Molbank 2010, 2010(4), M698; https://doi.org/10.3390/M698

Short Note
2-((Pyren-1-ylmethylamino)methyl)quinolin-8-ol
1
Grupo BIOSCOPE, Departamento de Química Física, Falcultad de Ciencias, Campus de Ourense, Universidad de Vigo, 32004, Ourense, Spain
2
REQUIMTE, Departamento de Química, FCT-UNL, 2829-516 Monte de Caparica, Portugal
*
Author to whom correspondence should be addressed.
Received: 25 September 2010 / Accepted: 12 October 2010 / Published: 14 October 2010

Abstract

:
A new fluorescent compound L1 derived from 1-pyrenemethylamine hydrochloride (A) has been synthesized by classical Schiff-base reaction between (A) and 8-hydroxyquinoline-2-carbaldehyde (B) followed by a chemical reduction with NaBH4. The chemical structure was confirmed by elemental analysis, FAB-MS spectrometry and by IR, UV-vis and 1H-NMR spectroscopy. The photophysical characterization was achieved by UV-vis and emission spectroscopy and lifetime measurements. Compound L1 was explored as pH fluorescent chemosensor in water-acetonitrile (95.5/0.5 v:v) solutions.
Keywords:
imines; amines; luminescent probes; pyrene; quinoline

1. Introduction

The development of compounds that selectively respond to specific metal ions and thus can be used as ion sensors is an area of growing interest [1,2]. Particular attention has been paid to fluorescence chemosensors, since fluorescence modulation allows the detection of the target ions at very low concentrations [3]. Moreover, fluorescent sensors offer several distinct advantages such as selectivity, time response, and spatial resolution.
8-Hydroxyquinoline (8-HQ) and derived compounds are known to be the best chelating agents after EDTA and its derivatives, due to their guest-modulated chromogenic and fluorescent behavior. Accordingly, they have been used in chromatography [4], for the detection of metal ions [5], in the preparation of organic light emitting diode devices [6], in electrochemiluminiscence [7], etc.
On the other hand, pyrene reveals to be one of the most commonly used fluorophores due to its peculiar fluorescent properties: intense fluorescence signals, vibronic band dependence with the media [8], long lifetime values [9], and excimer formation [10]. Due to these particular properties and because of its chemical stability, it is also employed as a probe for solid-state studies [11], polymer association [12], polymer–polymer interactions, polymer–surfactant interactions, micelle critical concentration determinations, etc [13]. In continuation of our group’s research line on development and study of new fluorescent and colorimetric chemosensors, we here report the synthesis of a new asymmetric bis-chromophoric compound bearing one 8-hydroxyquinoline moiety as chelating unit, and one pyrene emissive unit.

2. Experimental

A solution of 8-hydroxyquinoline-2-carbaldehyde (0.090 g, 0.52 mmol) in absolute ethanol (10 mL) was added dropwise to a refluxing solution of 1-pyrenemethylamine hydrochloride and triethylamine in the same solvent (30 mL). The resulting solution was gently refluxed with magnetic stirring for ca. 4 h. The colour changed from yellow to orange. After that time, the mixture was allowed to cool to room temperature and then concentrated in the rotary evaporator. The resulting brown oil was stirred with cold diethyl ether. A brown powder precipitate was formed, which was filtered off and dried under vacuum. This compound was characterized as L. NaBH4 was added in excess (20%) to a solution of L (0.123 g, 0.2 mmol) in absolute ethanol at room temperature. The resulting solutions were gently refluxed with magnetic stirring for 4 h; within that time, the colour changed slowly from brown to orange. The mixtures were filtered and evaporated to dryness. The residues were then extracted with water–chloroform. The organic extract was dried over anhydrous Na2SO4 and evaporated to yield an orange oil that was stirred with diethyl ether. The orange powder formed was separated by centrifugation and dried under vacuum. This compound was characterized as L1.
Yield: 190 mg (L) (96%), 60.0 mg (L1) (30%).
FAB-MS: m/z (rel. int%): 387.1 (100) ([L+H]+; 389.1 (90) ([L1+H]+.
1H NMR (CDCl3) (L): δ = 8.6 (s, 2H, N=C-H); 8.4–7.1 (m, C-H, Ar); 5.8 (s, 1H, OH); 5.7 (s, 2H, CH2) ppm. 1H NMR (CDCl3) (L1): δ = 8.4–7.1 (m, C-H, Ar); 5.4 (s, 1H, OH) 4.5(s, 2H, CH2); 4.2 (s, 2H, CH2) ppm.
IR (cm-1) (L): 3040 (C-H, Ar), 2911 and 2849 (C-H, Alq), 1633 (C=N, Imine), 1610, 1591, 1560 and 1503 (C=C, Ar).
IR (cm-1) (L1): 3037 (C-H, Ar), 2936 and 2846 (C-H, Alq), 2844 (N-H, Amine), 1594, 1576 and 1503 (C=C, Ar).
Elemental analysis: Calcd for C27H18N2O (L): C, 83.92; H, 4.70; N, 7.25. Found (L): C, 83.80; H, 4.85; N, 6.90%. Calcd for C27H20N2O.H2O (L1): C, 79.77; H, 6.90; N, 5.45. Found (L1): C, 79.80; H, 6.85; N, 5.65%.
Uv-vis (H2O/CH3CN; 95.5/0.5), [L1] = 7.1 ×10-6 M, λmax 273, 276, 329 and 343 nm.
Fluorescence Emission (H2O/CH3CN; 95.5/0.5); [L1] = 7.1 ×10−6 M): λmax 375, 394 and 412 nm.
Fluorescent Decay time of L1 in H2O (τ): pH 5.5, 118.6 ns; pH 10.3, 108.3 ns.

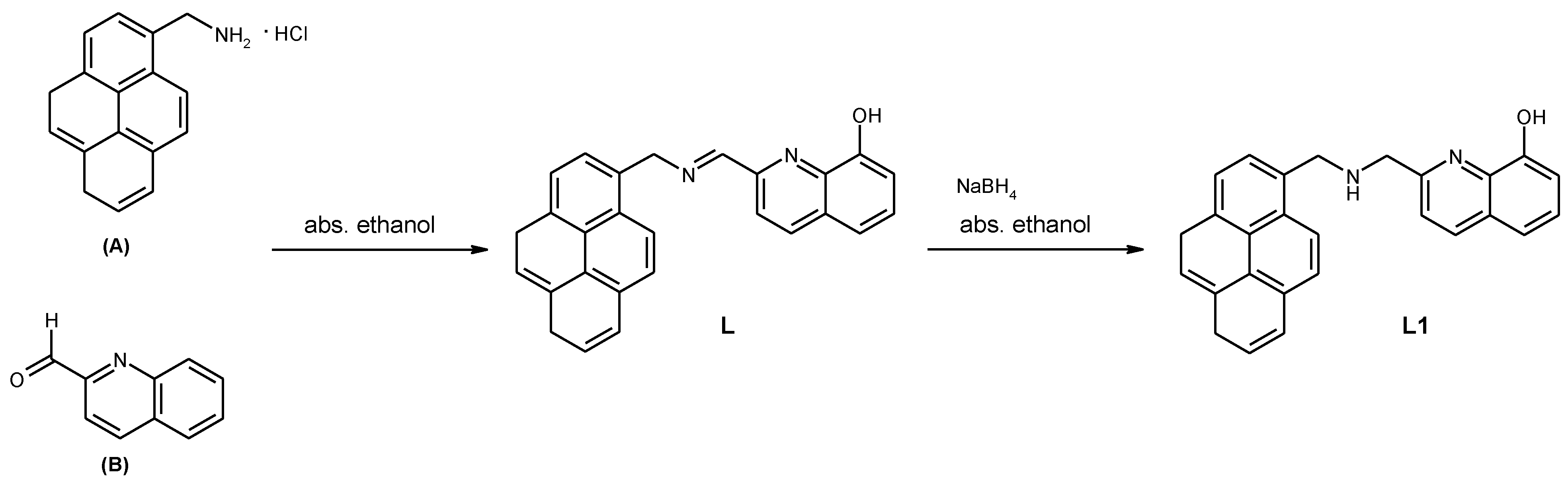

Molbank 2010 m698 g001

Supplementary materials

Supplementary File 1Supplementary File 2Supplementary File 3

Acknowledgements

We would like to thank Xunta de Galiza (Spain) for project 09CSA043383PR. J.F.L thank Xunta de Galicia for the Research contract in 09CSA043383PR. C.N. acknowledge the Fundação para a Ciência e a Tecnología (FCT, Portugal) for her Postdoctoral grant SFRH/BPD/65367/2009. C. L. and J.L.C. thank Xunta de Galicia (Spain) for the Isidro Parga Pondal Research program. We thank Berta Covelo from the University of Vigo for the preliminary synthesis of compound L and J. Sergio Seixas de Melo for the lifetime measurements of L1.

References and Notes

  1. Lodeiro, C.; Pina, F. Luminescent and chromogenic molecular probes based on polyamines and related compounds. Coord. Chem. Rev. 2009, 253, 1353–1385. [Google Scholar] [CrossRef]
  2. Lodeiro, C.; Capelo, J.L.; Mejuto, J.C.; Oliveira, E.; Santos, H.M.; Pedras, B.; Núñez, C. Light and colour as analytical detection tools: A journey into the periodic table using polyamines to bio-inspired systems as chemosensors. Chem. Soc. Rev. 2010, 39, 2948–2976. [Google Scholar] [CrossRef] [PubMed]
  3. De Silva, A.P.; Gunaratne, H.Q.N.; Gunnlaugsson, T.; Huxley, A.J.M.; McCoy, C.P.; Rademacher, J.T.; Rice, T.E. Signaling recognition events with fluorescent sensors and switches. Chem. Rev. 1997, 97, 1515–1566. [Google Scholar] [CrossRef] [PubMed]
  4. De Armas, G.; Miro, M.; Cladera, A.; Estela, J.M.; Cerda, V. Time-based multisyringe flow injection system for the spectrofluorimetric determination of aluminium. Anal. Chim. Acta 2002, 455, 149–157. [Google Scholar] [CrossRef]
  5. Bronson, R.T.; Montalti, M.; Prodi, L.; Zaccheroni, N.; Lamb, R.D.; Dalley, N.K.; Izatt, R.M.; Bradshaw, J.S.; Savage, P.B. Origins of ‘on–off’ fluorescent behavior of 8-hydroxyquinoline containing chemosensors. Tetrahedron 2004, 60, 11139–11144. [Google Scholar] [CrossRef]
  6. Wang, S. Luminescence and electroluminescence of Al(III), B(III), Be(II) and Zn(II) complexes with nitrogen donors. Coord. Chem. Rev. 2001, 215, 79–98. [Google Scholar] [CrossRef]
  7. Muegge, B.D.; Brooks, S.; Richter, M.M. Electrochemiluminescence of tris(8-hydroxyquinoline-5-sulfonic acid)aluminum(III) in aqueous solution. Anal. Chem. 2003, 75, 1102–1105. [Google Scholar] [CrossRef] [PubMed]
  8. Karpovich, D.S.; Blanchard, G.J. Relating the polariry dependent fluorescence response of pyrene to vibronic coupling-achieving a fundamental understanding of the py polariry scale. J. Phys. Chem. 1995, 99, 3951–3958. [Google Scholar] [CrossRef]
  9. Birks, J.B. Photophysics of Aromatic Molecules; Wiley: London, UK, 1970. [Google Scholar]
  10. Lodeiro, C.; Lima, J.C.; Parola, A.J.; Seixas de Melo, J.S.; Capelo, J.L.; Covelo, B.; Tamayo, A.; Pedras, B. Intramolecular eximer formation and sensing behavior of new fluorimetric probes and their interactions with metal cations and barbituric acids. Sensor. Actuator B-Chem. 2006, 115, 276–286. [Google Scholar] [CrossRef]
  11. Corma, A.; Galletero, M.S.; García, H.; Palomares, E.; Rey, F. Pyrene covalently anchored on a large external surface are zeolite as a selective heterogeneous sensor for iodide. Chem. Commun. 2002, 1100–1101. [Google Scholar] [CrossRef]
  12. Seixas de Melo, J.; Costa, T.; Miguel, M.D.G.; Lindman, B.; Schillén, K. Time-resolved and steady-state fluorescence studies of hydrophobically modified water-soluble polymers. J. Phys. Chem. B 2003, 107, 12605–12621. [Google Scholar] [CrossRef]
  13. Sasaki, D.; Padilla, B.E. Dithioamide metal ion receptors on fluorescent lipid bilayers for the selective optical detection of mercuric ion. Chem. Commun. 1998, 1581–1582. [Google Scholar] [CrossRef]
