Imaging of Thromboinflammation by Multispectral 19F MRI

1
Department of Anesthesiology, Faculty of Medicine, University Hospital, Heinrich-Heine-University, 40225 Düsseldorf, Germany
2
Experimental Cardiovascular Imaging, Institute of Molecular Cardiology, Faculty of Medicine, University Hospital, Heinrich-Heine-University, 40225 Düsseldorf, Germany
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2025, 26(6), 2462; https://doi.org/10.3390/ijms26062462
Submission received: 31 December 2024 / Revised: 24 February 2025 / Accepted: 5 March 2025 / Published: 10 March 2025

Abstract

The close interplay between thrombotic and immunologic processes plays an important physiological role in the immune defence after tissue injury and has the aim to reduce damage and to prevent the spread of invading pathogens. However, the uncontrolled or exaggerated activation of these processes can lead to pathological thromboinflammation. Thromboinflammation has been shown to worsen the outcome of cardiovascular, autoinflammatory, or even infectious diseases. Imaging of thromboinflammation is difficult because many clinically relevant imaging techniques can only visualize either inflammatory or thrombotic processes. One interesting option for the noninvasive imaging of thromboinflammation is multispectral 19F magnetic resonance imaging (MRI). Due to the large chemical shift range of the 19F atoms, it is possible to simultaneously visualize immune cells as well as thrombus components with specific 19F tracer that have individual spectral 19F signatures. Of note, the 19F signal can be easily quantified and a merging of the 19F datasets with the anatomical 1H MRI images enables precise anatomical localization. In this review, we briefly summarize the background of 19F MRI for inflammation imaging, active targeting approaches to visualize thrombi and specific immune cells, introduce studies about multispectral 19F MRI, and summarize one study that imaged thromboinflammation by multispectral 19F MRI.

1. A Brief Introduction to Immune Thrombosis and Thromboinflammation

Thrombotic processes, as part of innate immune responses, play an important physiological role in immune defence, e.g., stopping bleeding in the case of external injuries and preventing or reducing the spread of pathogens, thereby protecting the wound area from infection without causing major collateral damage to the organism. This physiological interaction between immune cells, platelets, and blood-clotting molecules is known as immune thrombosis [1]. However, if an uncontrolled process or a greatly increased reaction occurs, the immune thrombosis changes into a pathological form known as thromboinflammation, which can significantly influence the pathology of multiple disease states, especially in cardiovascular diseases (e.g., abdominal aortic aneurysms) [2]. Excessive thromboinflammation can cause serious damage to the vessel wall which plays a crucial role in atherosclerosis. Chronic inflammation of the arterial walls leads to the formation of atherosclerotic plaques and the rupture of plaques results in thromboinflammatory reactions activating platelets and causing the formation of blood clots, leading to myocardial infarction or stroke, while the resulting vascular damage exacerbates the progression of the disease [3].

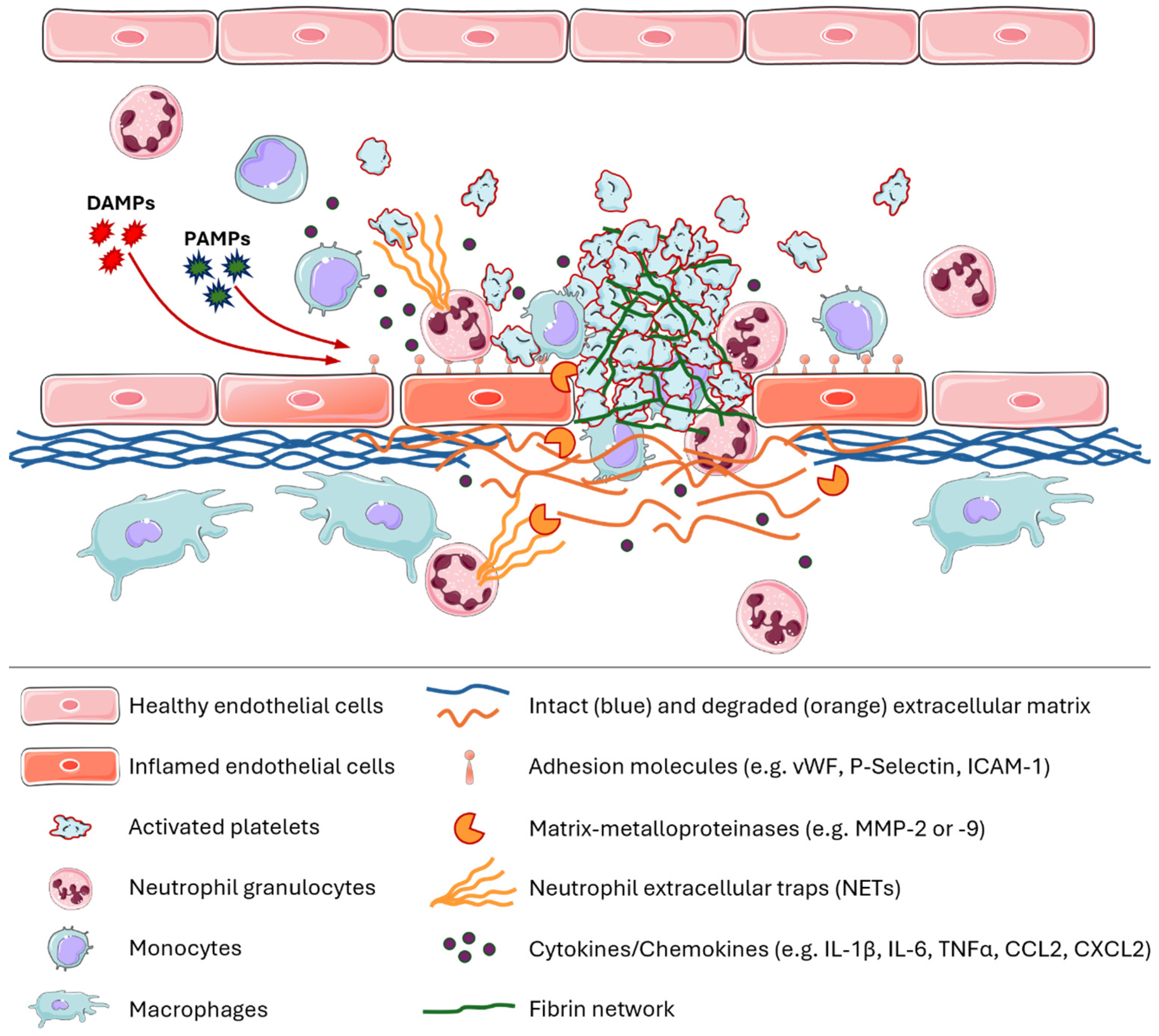

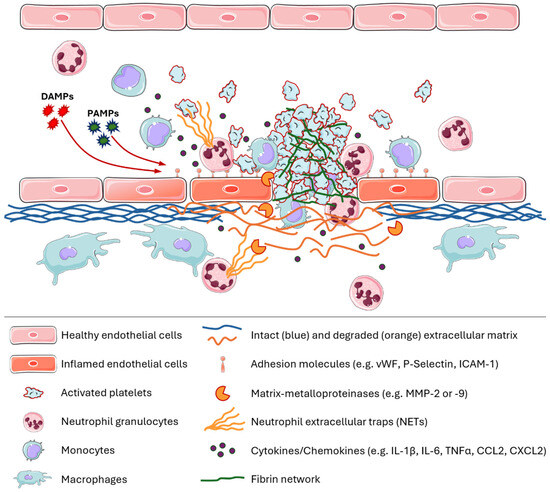

A crucial aspect of these thromboinflammatory processes is associated with endothelial dysfunction, which can be triggered by oxidative stress (reactive oxygen species [ROS]) [4], pathogenic microorganisms [5], or proinflammatory molecules (e.g., lipids or cytokines) [6]. Damage to the endothelium leads to the increased expression of adhesion molecules for platelets, monocytes, or neutrophils, such as von Willebrand factor (vWF), P-selectin, or intercellular cell adhesion molecule 1 (ICAM-1) [7]. Furthermore, there is an increase in the secretion of vasoactive substances and proinflammatory cytokines, e.g., tumour necrosis factor α (TNFα) [8] or interleukin-6 (IL-6) [9], which contribute to the recruitment of platelets and leukocytes and lead to a procoagulatory state [10]. In conjunction with fibrinogen as an acute-phase protein, increased IL-6 secretion causes an elevated thrombogenic potential by activating platelets and releasing tissue factor (TF). The expression of vWF and P-selectin on damaged and/or activated endothelial cells supports the binding and rolling of platelets and leukocytes [11,12].
Stable platelet adhesion is, for example, mediated by fibrinogen-integrin αIIbβ3 complexes that bind to ICAM-1 on the endothelium. Adherent platelets secrete numerous bioactive substances that alter the chemotactic and adhesive properties of endothelial cells [13]. For instance, platelets secrete IL-1 which induces TF expression on the endothelium and leads to the activation of coagulation factors FVII and FX and ultimately to the formation of thrombin. Thrombin cleaves fibrinogen to form fibrin and several protease-activated receptors on the surface of endothelial cells, platelets, and leukocytes, thereby continuing the thromboinflammatory process. In addition to the formation of soluble fibrin monomers, thrombin causes the activation of coagulation factors such as factor XIII. Activated factor XIII (FXIIIa) is a transglutaminase that produces cross-links between proteins. The FXIIIa-mediated formation of covalent bonds between fibrin monomers in the early phase of thrombus formation leads to stabilization of the fibrin network and finally to contraction of the thrombi [14]. The expression of P-selectin on endothelial cells or adherent activated platelets in turn induces the binding of leukocytes, mainly through the interaction of the macrophage-1 antigen (MAC-1) with glycoprotein (GP) Ib-GPV-GPIX and fibrinogen–integrin αIIbβ3 complexes. In addition to the interaction of leukocytes with platelets and endothelial cells, monocytes also secrete TF and proinflammatory cytokines or chemokines (e.g., IL-1β, IL-6, TNFα, CCL2, and CXCL2) to ensure the recruitment of additional platelets and leukocytes. Neutrophils are known to release of so-called neutrophil extracellular traps (NETs)—net-like structures made of fine chromatin fibres and intracellular granule contents—which also represent an important interface or interaction mechanism of inflammation and coagulation [15,16]. Furthermore, neutrophils as well as platelets secrete proteolytic enzymes like matrix-metalloproteinases (MMP) -2 or -9 to degrade the extracellular matrix and improve thrombus formation. A summary of the key characteristic features of thromboinflammation is shown in Figure 1.
One of the primary causes of death to date are cardiovascular diseases (CVDs). The clinical importance of inflammation associated with CVDs was shown in the 2017 Canakinumab Antiinflammatory Thrombosis Outcome Study (CANTOS) [17]. Patients with a previous myocardial infarction received an antibody-inhibiting IL-1β (Canakinumab; 50 mg, 150 mg or 300 mg) or a placebo. The intervention group showed a significantly reduced incidence of repetitive atherothrombotic events (non-fatal myocardial infarction (MI), non-fatal stroke, or cardiovascular death) and a reduction in the C-reactive protein level. In particular, the group that received 150 mg canakinumab showed a reduction in primary cardiovascular end-points (nonfatal MI or stroke, or cardiovascular death; hazard ratio versus placebo, 0.85, p = 0.02075). Therefore, anti-IL-1β treatment may pose a potential new target for the treatment of CVDs and shows the clinical relevance of understanding thromboinflammatory processes. However, this study also showed the drawback of an anti-inflammatory IL-1β therapy. Canakinumab treatment was associated with a higher incidence of fatal infections compared to the control group, which all together balanced the overall mortality in both groups [17].
In summary, thromboinflammatory processes refer to the interaction between a variety of humoral and cellular signalling pathways of the innate immune defence and the coagulation cascade. Due to the complexity of these processes, only the pathological consequences of excessive thromboinflammatory processes, such as tissue hypoperfusion, edema formation, and necrosis, can be detected with available clinically relevant non-invasive imaging techniques, which prevents early prophylactic treatment. In order to better understand these processes, it would be desirable if the close interaction between thrombus formation and immune cell activation or recruitment could be visualized using non-invasive imaging methods. To date, the most relevant imaging methods are ultrasound, CT (computer tomography), SPECT (single photon emission computed tomography), PET (positron emission tomography), and MRI (magnetic resonance imaging). Whereas ultrasound, CT, and anatomical proton MRI are often used to obtain information about structural changes in the tissue, to monitor immune responses, and the imaging of thrombus components has been conducted with PET, SPECT, or contrast enhanced MRI.
Numerous probes for PET/SPECT imaging have been designed and utilized for imaging of inflammation such as 18F-FDG (FDG = Fluorodeoxyglucose; taken up by macrophages, leukocytes) [18], 18F-mannose [19], 68Ga-DOTA-TATE to target the somatostatin receptor subtype 2 [20], 68Ga-Fucoidan (which binds to P-selectin) [21], and 68Ga-Pentixafor which recognizes CXCR4 [22]. Furthermore, thrombi have been detected via fibrin-binding peptides (FBP) (e.g., 68Ga-FBP14/111In-FBP15 [23], probes that target factor XIII [24], or the ligand-induced binding site of gpIIb/IIIa on activated platelets [25]. The major advantage of PET and SPECT imaging is the very high sensitivity. However, the spatial resolution is limited (3–8 mm3) and the patient is exposed to ionizing radiation [26]. The focus of this review is multispectral 19F MRI and, therefore, we cannot cover the broad range of approaches for PET/SPECT imaging, but we refer the reader to some excellent reviews about this topic [26,27,28,29]. However, these imaging methods are not able to visualize several target structures together, as PET or SPECT, for example, only detect one tracer at a time. Therefore, information about inflammation, certain immune cells, and thrombus formation cannot be collected simultaneously.
One way of visualizing several components of thrombotic and inflammatory processes is multispectral 19F MRI, which uses fluorine-containing substances, e.g., perfluorocarbon nanoemulsions (PFCs), to enable the background-free detection of a variety of cells and structures involved in the development and progression of thromboinflammatory processes. In the next section, the basic principles and some possible applications of multispectral 19F MRI are explained in more detail.

2. Imaging of Inflammation by Combined 1H/19F-MRI

Imaging of inflammatory processes by conventional 1H-based MRI is challenging because, in the early phase in particular, inflammation does not result in physical alterations that can be exploited to generate MR contrast. To this end, several indirect MRI methods have been utilized to gain information on inflammation such as the generation of tissue edema which can be detected by T2 mapping, or the application of gadolinium labelled small molecules that accumulate in inflamed tissue due to an impaired endothelial barrier. One of the hallmarks of inflammation is the migration of immune cells from the blood into the inflamed tissue. In many cases, the first immune cells that accumulate in diseased tissue are neutrophils, which are followed by classical and nonclassical monocytes. At later time points, lymphocytes such as T cells or B cells also accumulate in the inflamed lesion.
The visualization of immune-cell infiltration and accumulation is not feasible with classical 1H MRI. To overcome this, contrast agents such as iron oxide nanoparticles have been developed that are avidly taken up by circulating monocytes and local macrophages and which have been utilized in multiple preclinical but also clinical studies to visualize inflammation [30,31,32,33]. Small superparamagnetic iron oxide nanoparticles (SPIOs) belong to the group of negative MR contrast agents, because iron oxide disturbs the local magnetic field which results in a rapid decay in the signal intensity of T2-weighted anatomical 1H images [34,35]. The main advantage of SPIOs is the very high sensitivity, which enabled the single-cell tracking of patrolling monocytes in brain of mice [36]. On the other hand, the SPIO-mediated destruction of the 1H signal can impair the precise anatomical localization and the quantification is difficult because there is no linear correlation between iron concentration and signal loss. Furthermore, detection of SPIO-labelled monocytes and macrophages in the lungs (which normally have a very low proton density), or at the interphase between different tissues such as the vascular wall can be challenging.
An alternative technology for imaging immune-cell infiltration by MRI is based on fluorine 19 (19F). 19F has a gyromagnetic ratio similar to 1H, a natural abundance of 100%, and is nearly absent from biological tissue. There are low amounts of 19F in bones and teeth, but there, it is found in the form of fluorides which have a very short T1 relaxation and are therefore invisible to conventional imaging methods.

19F MR Imaging of Monocytes and Macrophages

The potential of 19F MRI for biomedical application has already been suggested in the first manuscript that showed the principle feasibility of 19F MRI in 1977 [37]. Holland et al. visualized a solution of NaF and perfluorotributylamine (FC43) by 19F MRI and suggested that this technology might be interesting for the observation of fluorinated drugs and the assessment for perfluorocarbons as artificial blood substitutes [37]. Studies in the 1980s showed that perfluorocarbon nanoemulsions could be applied for the visualization of inflammatory lesions because it was found that intravenously injected PFOB-PFCs or Fluosol-DA (A mixture of perfluodecalin and perfluortributylamin) did not only accumulate in the liver and spleen, but also in intraperitoneal bacterial abscesses and tumours [38,39,40]. Interestingly, in these early studies, imaging of the PFCs was not conducted by MRI, but by ultrasound [38,40] and computed tomography (CT) [39]. In 1985, Longmaid et al. utilized 19F MRI to investigate the localization of PFTA-PFCs (PFTA = perfluorotributylamine) that were i.v. injected into rats with Walker-256 sarcomas or intraperitoneal bacterial abscesses [41]. Here, PFTA-PFCs were found in the liver, but also in thigh tumours and abscesses. Histological analyses (conventional light microscopy and electron microscopy) revealed that the PFCs in the rim of the tumours were predominantly found in macrophages.
In 2005, Ahrens et al. published a landmark paper where dendritic cells were labelled ex vivo with PFCs, injected into the leg, and their trafficking towards lymph nodes was followed by 1H/19F MRI [42]. Three years later, our group then showed the feasibility of intravenously injected PFCs to image the accumulation of monocytes and macrophages within the heart and brain after ischemia–reperfusion injury [43]. Here, we systematically investigated the cellular uptake and localization of i.v.-injected PFCs. Flow cytometry and 19F MRI of blood immune cells separated by ficoll gradient density centrifugation revealed that PFCs are predominantly taken up by circulating monocytes. Histological analyses also verified that the PFC signal in the heart strongly colocalized with cardiac macrophages. However, some PFC uptake was also found by neutrophils and B-cells, whereas T cells did not internalize the PFCs.
Many follow up studies showed that the majority of the PFCs are found in monocytes and macrophages and to a lesser extend in other phagocytic immune cells. For example, Ebner et al., performed 19F MRI of the lungs after pulmonary instillation of lipopolysaccharide (LPS) [44]. Although neutrophils outnumbered monocytes/macrophages in the lungs after LPS treatment, the strongest 19F signal was found in macrophages. Of note, apart from 19F MRI, early pulmonary inflammation has also been detected by 1H MRI (edema) and 3He MRI which can be used to visualize ventilation [45,46]. Similar results regarding 19F MRI were obtained for atherosclerosis [47], inflammatory bowel disease [48], myocardial infarction in pigs [49], or viral myocarditis in mice [50]. However, some studies do also show that under certain circumstances other cell types such as neutrophils [51] or even a distinct stem cell population of the heart [52] can be predominantly labelled after the intravenous application of PFCs.

3. Active Targeting of Perfluorocarbon Nanoemulsions

In the previous section, we described that conventional perfluorocarbon nanoemulsions are predominantly taken up by circulating and local phagocytes such as monocytes, macrophages but also neutrophils. Although it has been shown that this approach is suitable for imaging of inflammation in a variety of different disease models, it is limited to the phagocytic properties of certain cell types. Therefore, an active targeting of PFCs is necessary to direct PFCs to cells/structures that cannot be labelled by conventional PFCs. To achieve an active targeting, the surface of the PFCs is functionalized with ligands, such as antibodies, single-chain antibodies, nanobodies, peptides, or other small molecules like sugars or cytokines that facilitate the binding of the nanoparticles to the desired structure or cell type. These ligands are often covalently attached to the nanoprobes via maleimide-thiol-, carboxyl-carbodiimide-, or NHS (N-hydroxysuccinimide)-ester-lysine-reactions [53]. Another way of binding is the biotin-streptavidin system, a non-covalent method which involves biotinylated targeting molecules that strongly bind to streptavidin- or avidin-coated nanoparticles [54]. Furthermore, multivalent probes, which combine multiple targeting peptides, could increase binding specificity and affinity [55].
What is also important is that the phagocytic uptake of PFCs by monocytes/macrophages and other cell types has to be reduced. The most widely used strategy to impair the phagocytic uptake is the modification of the nanoparticle surface with poly-ethylene glycol (PEG). PEG reduces the attachment of serum proteins (e.g., apolipoproteins, complement, and immunoglobulins) to the particle surface and therefore the formation of the nanoparticle corona [56]. These serum proteins (e.g., complement proteins), are recognized by phagocytic cells and facilitate the internalization of the nanoparticles [57]. However, one drawback of PEG is that it is immunogenic and induces the generation of anti-PEG antibodies which can either neutralize PEGylated nanoparticles or lead to anaphylactic reactions [58]. Therefore, alternative methodologies have been developed to confer stealth properties to nanoparticles, such as the use of polyphosphoester [59], CD47, or peptides derived from CD47 [60,61].
Interestingly, many earlier studies that have utilized targeted PFCs did not perform 19F MRI, but used them for imaging by X ray [62], ultrasound [63], near-infrared microscopy [64], or T1-weighted MRI, because the PFCs were decorated with a high payload of gadolinium [65,66,67]. Active targeting of PFCs has enabled the specific visualization of FXIIIa activity in early thrombi [68,69], activated platelets [70], fibrin [71], cells that express synthetic cargo-internalization receptors [72], epicardial derived stem cells, and activated cardiac fibroblasts [73,74] or neutrophils [75].
Taken together, the application of unmodified PFCs enables the imaging of (predominantly) monocytes and macrophages which accumulate in inflamed lesions. Modification of the surface of PFCs with PEG to impair the endocytic uptake by phagocytic cells in combination with the attachment of specific targeting ligands makes it possible to visualize structures, cells, and processes which could not be specifically visualized by the conventional approach. The following two sections describe in more detail the 19F MRI-based imaging of thrombus formation and the trafficking of neutrophils from the bone marrow to the infarcted heart.

3.1. Imaging of Thrombi by Targeting of FXIIIa, Activated Platelets, and Fibrin

As mentioned above (Section 1), the activated form of FXIII cross-links the fibrin network during the early phase of the thrombus formation process by formation of lysyl-bonds [76,77]. FXIIIa does also cross-link several proteins to fibrin, such as α2-antiplasmin. Due to the fact that FXIIIa is limited to the early phase of the thrombus formation process, Miserus et al. utilized a 14 amino acid peptide from α2-antiplasmin to develop an MRI-tracer to detect early thrombus formation [78]. To this end, they modified the peptide with gadolinium-chelates that resulted in signal enhancement in thrombi by imaging with T1-weighted proton MRI sequences.
We adopted this approach and modified the α2-antiplasmin peptide to facilitate the conjugation to the surface of PFCs. The C-terminus of the peptide was extended by a short GKG-peptide spacer where the ε-amino group of the lysine side chain was functionalized with carboxyfluoresceine and a terminal cysteine. This α2AP-peptide was conjugated to cholesterol-PEG2000-maleimide to generate cholesterol-PEG2000-α2AP (Chol-PEG-α2AP). The SH-group of the C-terminal cysteine reacts with the maleimide group to form a stable thioether. Chol-PEG-α2AP was then incubated with preformed PFCs at room temperature which leads to the spontaneous insertion of the cholesterol moiety of Chol-PEG-α2AP into the lipid layer of the PFCs, in a process called sterol-based post-insertion (SPIT) which finally led to the generation of α2AP-PFCs. SPIT was originally developed to functionalize liposomes [79] and enables the insertion of labile ligands into the lipid layer of liposomes or PFCs. During manufacturing, the pre-emulsions are processed at a high pressure of 1000 bar which is also associated with the generation of heat that can destroy labile ligands.
As control, a peptide was conjugated to PFCs where the glutamine on position 3 was converted to alanine (Q3A). This peptide shows an about 10-fold lower accumulation in the thrombus, because Q3 is mainly utilized by FXIIIa for cross-linking to the fibrin network. The specificity of this targeting approach was first evaluated by in vitro-generated human thrombi and subsequent 19F MRI measurements. Here, it turned out that PFCs labelled with α2AP showed a much higher accumulation in acute in vitro-generated thrombi than those functionalized with Q3A. To evaluate the functionality under in vivo conditions, we utilized a mouse model of deep venous thrombosis where thrombus formation was induced by application of a small piece of FeCl3-soaked filter paper on the top of the external side of the vessel wall of the inferior vein. Intravenous injection of α2AP-PFCs prior to the thrombus induction resulted in a very strong accumulation of the α2AP-PFCs and therefore enabled an unequivocal identification of the thrombus (Figure 2).

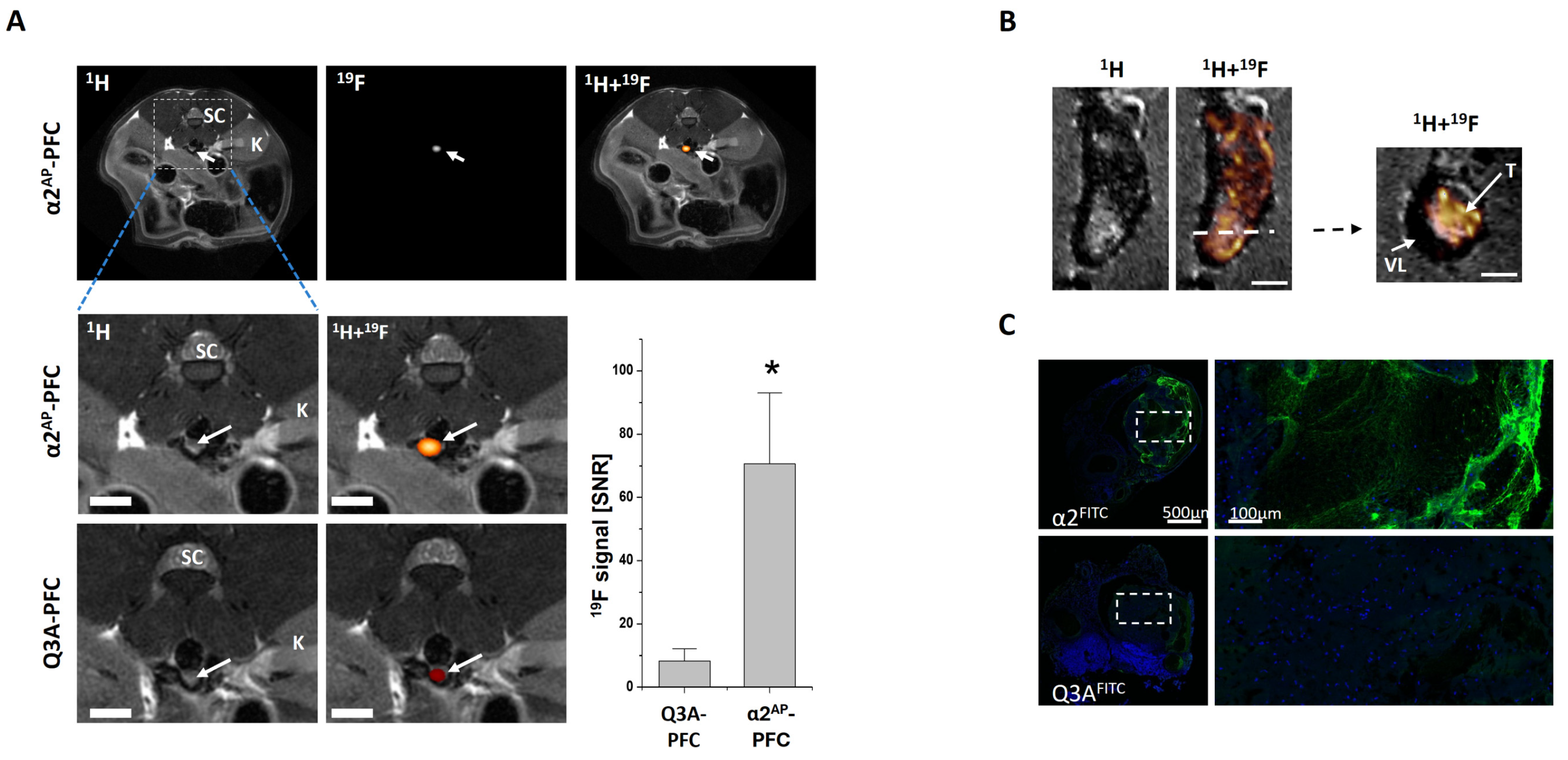

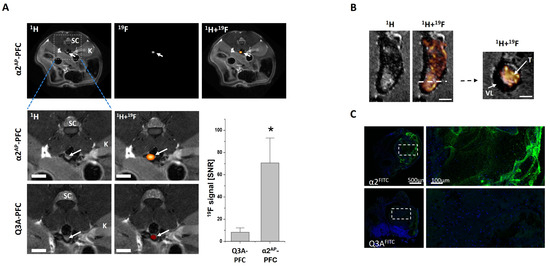

Imaging of thrombi by α2AP-PFCs enables the identification of thrombi during the very early phase but does not allow the visualization of more advanced thrombi. The reason is that the activity of FXIIIa is restricted to the early phase of the thrombus formation and the enzymatic activity rapidly declines after the thrombus has stabilized and contracted. However, thrombus formation can also be visualized via activated platelets or targeting the formed fibrin network. Activation of platelets is associated with multiple alterations and one important aspect is the change in the conformation of the integrin gpIIb/IIIa from a low- into a high-affinity state. Several years ago, KH Peter and his group developed a single-chain antibody which is directed against the activated form of gpIIb/IIIa (scFVLIBS) [80,81]. The suitability of this single-chain antibody for visualization of activated platelets has been validated by multiple different imaging modalities, like ultrasound, PET, fluorescence-based methods, and MRI after labelling of iron oxide nanoparticles [82,83]. More recently, we also utilized scFVLIBS to image activated platelets in murine FeCl3-induced deep venous thrombi by combined 1H/19F MRI [70].
Several years ago, phage display screening identified peptides with a high specificity for fibrin. Derivates of these peptides (e.g., EP-2104R) were utilized for in vivo visualization of thrombi in multiple preclinical studies [84,85,86], but also in clinical studies [87]. More recently, we utilized a modified version of the peptide moiety of EP-2104R to functionalize PFCs and to image thrombi in FeCl3-induced deep venous thrombi and also in thrombi formed in the lungs and the cardiac vasculature in HypoE mice that were treated with a high fat/cholesterol diet (see Section 4.2).

3.2. Visualization of Neutrophil Trafficking

Neutrophils are a crucial component of the innate immune system. They are produced in the bone marrow by hematopoietic stem cells. Humans, generating approximately 1011 neutrophils daily [88], differ from mice, where the daily production is around 107 cells [89]. Under normal, non-inflammatory conditions, most neutrophils are retained within the bone marrow, continuously being released into the bloodstream in an inactive state, where they patrol the blood vessels. However, during infection or tissue injury, a process called emergency granulopoiesis is activated and high amounts of neutrophils are released from the bone marrow into the circulation [90]. Furthermore, neutrophils become activated and are recruited to the site of inflammation. After infiltration into the inflamed tissue, neutrophils rapidly engulf infectious microorganisms to prevent spreading of the infection. Neutrophils do also remove cell debris—not only during infection—but also in situations of sterile inflammation caused by trauma or ischemic tissue injury. Given their role as first responders of the immune system, there is growing interest in understanding their natural behaviour and impact during inflammatory processes.
As mentioned in Section 2, the passive uptake of PFCs by phagocytic cells in 19F-based approaches lacks specificity for neutrophils. In complex inflammatory environments where multiple cell types are involved, neutrophils are often only weakly labelled compared to the highly phagocytic monocytes and macrophages [43,44]. This was seen, for example, by Ebner et al. during an acute lung injury model where PFC-labelled monocytes and neutrophils entered the lung [44]. To enable selective visualization of neutrophils using 19F MRI, PFCs must be equipped with ligands that target neutrophil-specific cell-surface receptors while simultaneously minimizing phagocytic uptake by monocytes and macrophages. In 1999, Mazzucchelli et al. identified peptides that specifically bind to human neutrophils [91]. Later, our group demonstrated that one of these peptides (hNP) binds to human CD177, a GPI-anchored surface protein specifically expressed by neutrophils. In most individuals, approximately 50–60% of the cells are positive for CD177 [75], although there is a large range from 0 to 100% [92]. However, it was also observed that hNP does not bind to murine CD177. Nearly two decades later, Miettinen et al. identified a peptide that targets murine CD177 [93]. Interestingly, unlike in humans where CD177 is found on 50–60% of the neutrophils in the blood, 100% of blood neutrophils in different mouse strains (e.g., C57BL/6J, Balb/c, and NMRI) express CD177 on the cell surface [75]. Using these peptides, we recently developed PFCs that are specifically targeted to either human or murine neutrophils (hNPPFCs and mNPPFCs, respectively). Both targeting peptides were modified with a triple glycine linker and a terminal cysteine, allowing conjugation to maleimide groups on the PFC surface. Additionally, PFCs were functionalized with polyethylene glycol (PEG) to reduce the non-specific uptake by monocytes and macrophages [68,94,95]. When NPPFCs were incubated with blood-derived immune cells, they showed highly specific labelling of neutrophils, with minimal uptake by monocytes or lymphocytes. Of note, there is some variability in the uptake of NPPFCs which depends on the cell type or whether the cells are derived from the blood or from an inflammatory lesion. In general, there is a 5- to 50-fold higher cellular uptake of NPPFCs by neutrophils compared to monocytes, macrophages, or lymphocytes [75]. Enhanced neutrophil uptake of NPPFCs compared to unspecific control PFCs (ConPFCs) was also confirmed using 19F MRI. During inflammation, neutrophils are rapidly released from the bone marrow into the bloodstream and migrate to the site of injury. To visualize neutrophil trafficking from the bone marrow to inflammatory lesions using combined 1H/19F MRI, we pre-labelled neutrophils in the bone marrow by repetitive injection of mNPPFCs prior to myocardial infarction [75]. Whole-body 3D 1H and 19F MRI conducted before and one day after myocardial infarction revealed neutrophil egress from the bone marrow and subsequent infiltration into the infarcted heart (Figure 3). Following myocardial infarction, the 19F signal in the femur (which represents bone marrow neutrophils) significantly decreased, while a corresponding 19F signal appeared in the infarcted heart (Figure 3 upper panel and lower left panel).

4. Multispectral 19F MRI of Thromboinflammation

Multispectral 19F MRI is an advanced imaging technique that allows the simultaneous visualization and tracking of multiple molecular targets within the same region of interest. This method utilizes the unique properties of fluorine-19 (19F) nuclei in magnetic resonance imaging. The negligible presence of 19F in the human body provides accurate and sensitive background-free detection and visualization of fluorine compounds. One further advantage of this imaging technique is the wide chemical shift range of 19F, which is in the range of 300 to 400 ppm and enables the use of multiple probes with distinct 19F signatures. Considering that signals differing by at least 5 ppm are easy to distinguish, up to 70 theoretical “channels” are available for multispectral 19F imaging. This enables the identification of multiple fluorinated tracers with well-separated spectral peaks such as perfluorocarbon nanoemulsions with individual spectral signatures.
For specific cell tracking or labelling of structures by multispectral 19F MRI, the surface of the PFC-nanoprobes must be modified to achieve selective binding to the desired target structure, or to label cells ex vivo with 19F tracer and then reintroduce the cells into an organism to track them in vivo [96].

4.1. Studies That Utilize Several Fluorinated Tracers for Multispectral 19F MRI

Multispectral 19F MRI has shown promise in various applications such as molecular or cancer imaging and cell tracking (Table 1). The first study on multicolor 19F MRI was published in 2007 and showed PFC-loaded nanoprobes (PFOB- [perfluorooctyl-bromide] and PFCE-PFCs) for in vivo tracking of stem/progenitor cells [96]. A few years later, our group implemented a technology for the simultaneous imaging of various mixtures of different PFC emulsions ex vivo and in vivo [97]. We used a multi chemical shift selective (MCSS) RARE sequence for artefact-free 19F MR imaging of perfluorocarbons (PFC) with complex spectra. In a further study, a method was developed that enables the simultaneous visualization of different PFCs with a significant reduction in acquisition time and reduced chemical shift artefacts that are normally associated with complex 19F MR spectra [98]. The group of Akazawa et al. already used three different types of PFC-encapsulated silica nanocarriers with distinct chemical shifts in the 19F peaks and showed the principle feasibility for multicolor in vivo imaging by subcutaneous injection of these 19F tracers into the back of the mice [99].
Further studies have demonstrated successful multicolor 19F MRI in living mice, visualizing different nanoprobes simultaneously. PFCE and PERFECTA (derived from “suPERFluorinatEdContrasT Agent”) were used to track the movement and activity of mononuclear cells in mice by 19F MRI [100]. Croci et al. utilized two different PFCs for multispectral 19F imaging of spatially and temporally distinct tumour-associated microglia and macrophages (TAMs) in radiotherapy-recurrent murine gliomas [101]. It was also possible to develop stable and clinically applicable labels for tracking two populations of primary human dendritic cells simultaneously [102].
Multicolor 19F MRI has shown promise in characterizing various cardiovascular diseases and tracking immune cell populations in myocardial infarction. Three PFC-probes were used to monitor monocytes, fibrin, and FXIIIa, providing detailed insights into myocardial infarction progression over two weeks by multicolor 19F MRI [103] (see Section 4.2). Table 1 summarizes studies the up to now utilized different 19F tracers such as perfluorocarbons, but also other 19F labelled molecules for multispectral 19F MRI (see below).
Table 1. Studies about multispectral 19F MRI.
Table 1. Studies about multispectral 19F MRI.
Brief Summary of the Multispectral 19F Approach19F TracerReference
1In vivo tracking of human hematopoietic stem/progenitor cells. The labelled cells were injected in the right and left thigh of adult C57/BL6 mice.PFCs:
PFOB and PFCE
Partlow et al., 2007 [96]
2Multi chemical shift selective (MCSS) RARE sequence for artefact-free 19F MR imaging of two different PFCs simultaneously in vitro and in vivo. Assessment of the washout kinetics from liver and spleen after intravenous injection of a mixture of PFOB- and PFCE-PFCs into male C57BL/6 mice. PFCs:
PFOB and PFCE
Jacoby et al., 2014 [97]
3Labelling and simultaneous visualization of two populations of blood derived human plasmacytoid and myeloid dendritic cells. The labelled cells were injected intramuscularly into the leg of a mouse.PLGA-nanoparticles:
PFCE and PFO
Srinivas et al., 2015 [102]
4Preparation of silica nanoparticles that encapsulate several perfluorocarbons. The in vivo suitability of this approach was shown by subcutaneous injection of the nanoparticles into the back of mice followed by multicolor 19F imaging.Silica-nanoparticles:
PFCE, TPFBME and PFTBA
Akazawa et al., 2018 [99]
5PFCE and PERFECTA were emulsified with a nonionic surfactant (Pluronic F68). These nanodroplets were used to label and track the movement and activity of mononuclear cells in C57BL/6 mice after inhibition of the colony-stimulation factor-1 receptor by multicolor 19F MRI. Nanoemulsions were taken up by mononuclear cells, including neutrophils and monocytes.Pluronic nanoemulsions:
PFCE and PERFECTA
Chirizzi et al., 2019 [100]
6Poly(lactic-co-glycolic acid) (PLGA) nanoparticles loaded with two fluorocarbons (PFCE and PERFECTA) for multicolor 19F MRI. These nanoparticles are composed of fractal blocks that contain PFCE and PERFECTA. Degradation of the PLGA results in changes in T1- and T2-relaxation of the perfluorocarbons which could be used for imaging of nanoparticle degradation in vivo. PLGA-nanoparticles:
PFCE and PERFECTA
Koshkina et al., 2019 [104]
7Development of a method that enables the simultaneous visualization of different PFCs with a significant reduction in acquisition time and chemical shift artefacts in connection with complex 19F MR spectra. The 19F signal was also measured in mice (male C57BL/6) after intramuscular and intravascular injection of fluorine probes.PFCs:
PFCE and PFOB
Schoormans et al., 2020 [98]
8Utilization of inhalable fluorinated anesthetics (halothane, isoflurane, sevoflurane, and fluroxene) in combination with water-soluble molecular cages (hosts) for 19F-GEST (guest exchange saturation transfer) for the simultaneous detection of micromolar concentrations of two targets.Fluorinated anesthetics as guest:
Halothane, Isoflurane, Sevoflurane, and Fluroxene
Shusterman-Krush et al., 2021 [105]
9PFC-based multicolor 19F MRI probes for visualizing FXIIIa, fibrin, and monocytes/macrophages. PFCs with PFCH and PFTBH were PEGylated and functionalized with peptides against FXIIIa (α2APPFCH) and fibrin (fbnPFTBH). Conventional PFCE-PFCs were utilizted to image phagocytic monocytes and macrophages. HypoE mice were subjected to a high-fat diet and a combination of α2APPFCH, fbnPFTBH, and PFCE-PFCs were applied to visualize thromboinflammation in the lungs and the heart. PFCs:
PFCE, PFOB and PFCH
Flögel et al., 2021 [103]
10Activatable 19F MRI probes for simultaneous in vivo detection and deep-tissue imaging of reactive oxygen species (ROS; O2•–) and reactive nitrogen species (RNS; ONOO) in mice with drug-induced acute kidney injury. ROSP-1 and RNSP-2 contain paramagnetic gadolinium which reduces T1- and T2- relaxation of the fluorinated groups. ROS and RNP lead to the release of fluorinated groups from the ROSP-1 or RNSP-2 molecules and therefore the separation from the gadolinium which leads to a strong 19F signal increase.Activatable 19F MRI molecular probes: ROSP-1 and RNSP-2Li et al., 2021 [106]
11Inorganic small fluoride nanoparticles (~10 nm; CaF2 and SrF2) were doped with the lanthanide samarium (sm) which significantly decreased the T1 relaxation and therefore increased the 19F signal. Sm:CaF2 nanoparticles were further coated with lipids and phospholipids to enhance the water solubility. Sm:CaF2 that were further modified with lactosyl-PE (LPL-Sm:CaF2) revealed an increased uptake by macrophages and showed an enhanced accumulation in lymph nodes and within an inflammatory hot spot of mice. Multiplex 19F MRI displayed an increased accumulation of LPL-Sm:CaF2 in lymph nodes of inflamed mice after injection of a mixture of LPL-Sm:CaF2 and PL-Sm:SrF2.CaF2 or SrF2 nanofluorides doped with paramagnetic lanthanoides (Sm3+) and coated with phospholipidsCohen et al., 2021 [107]
12Generation of nanoparticles that encapsulate fluorinated ionic liquids in a nanoparticle shell. The shells were designed to be opened by acidic pH (H+), glutathione (GSH) and matrix metalloproteinases (MMPs) which resulted in the release of the 19F cargo (fluoroborate, difluoroacetate, and trifluoromethanesulfonate) which is associated with turning on the 19F signal. Due to the fact that all 19F tracer have a distinct chemical shift, it was possible to image GSH- and MMP-2- activity as well as acidic pH in subcutaneously implanted tumours in mice by in vivo multiplex 19F MRI.Encapsulated fluorinated ionic liquids.Zhu et al., 2022 [108]
13Imaging of tumour-associated macrophages (TAM) in mouse models of gliomagenesis. I.v. injection of PFCs revealed that the 19F signal in the tumour was mainly due to 19F labelled TAMs. Application of PFCs with individual 19F spectra bevor and after radiotherapy revealed spatially and temporally distinct TAM niches (microglia and monocytes derived tumour macrophages). PFCs:
PFCE and PFTBH
Croci et al., 2022
[101]
Abbreviations: PFCs = perfluorocarbon nanoemulsions; PFOB = perfluorooctyl-bromide; PFCE = perfluoro-15-crown-5 ether; RARE = rapid acquisition with relaxation enhancement; PLGA = poly(lactic-co-glycolic) acid; PFO = perfluorooctane; TPFBME = 1,1,1-tris(perfluorotert-butoxymethyl)ethane; PFTBA = perfluorotributylamine; PERFECTA = suPERFluorinatEdContrasT Agent; PFCH = perfluoro-1,3,5-trimethylcyclohexane; PFTBH = perfluoro(tert-butylcyclohexane); FXIIIa = activated form of factor XIII.

4.2. Simultaneous Visualization of Monocytes/Macrophages and Thrombi

More recently, our group combined the active targeting of thrombi with the passive labelling of monocytes/macrophages to visualize thromboinflammation by multispectral 19F MRI in a mouse model that develops atherosclerotic plaques and plaque rupture after treatment with a high fat/cholesterol diet [103]. To detect FXIII activity and fibrin, we conjugated targeting peptides (α2AP and fbn) to the surface of PFCs that contain perfluoro-1,3,5-trimethylcyclohexane (PFCH) or perfluorooctyl-bromide (PFOB). Moreover, visualization of the phagocytic monocytes/macrophages was enabled with PFCs that contain perfluoro-15-crown-5 ether (PFCE). The perfluorocarbons PFCE, PFCH, and PFOB have individual spectral signals that are clearly separated and which can be selectively excited and detected (Figure 4A).
To verify the targeting specificity for thrombi, the surface of the PFCs was PEGylated (5 mol% DSPE-PEG2000). Incubation of RAW macrophages and murine monocytes from the blood with PFCE-PFCs, PEGylated PFCE-PFCs, α2APPFOB, and fbnPFCH revealed that PFCE-PFCs displayed a strong cellular uptake whereas α2APPFOB, fbnPFCH, and PEGylated PFCE-PFCs are taken up only weakly by phagocytic cells.
The specificity for thrombus imaging was first investigated by in vitro generated human thrombi that were incubated with α2APPFOB and fbnPFCH. As control, the thrombi were also incubated with PFCs that were labelled with corresponding nonspecific control peptides. These experiments revealed that the binding of α2APPFOB and fbnPFCH to in vitro generated thrombi was significantly stronger than the signals obtained from corresponding control-PFCs (Figure 4B). Further in vitro experiments did also show that α2APPFOB accumulate in early thrombi whereas fbnPFCH binds to early as well as advanced thrombi (Figure 4C).

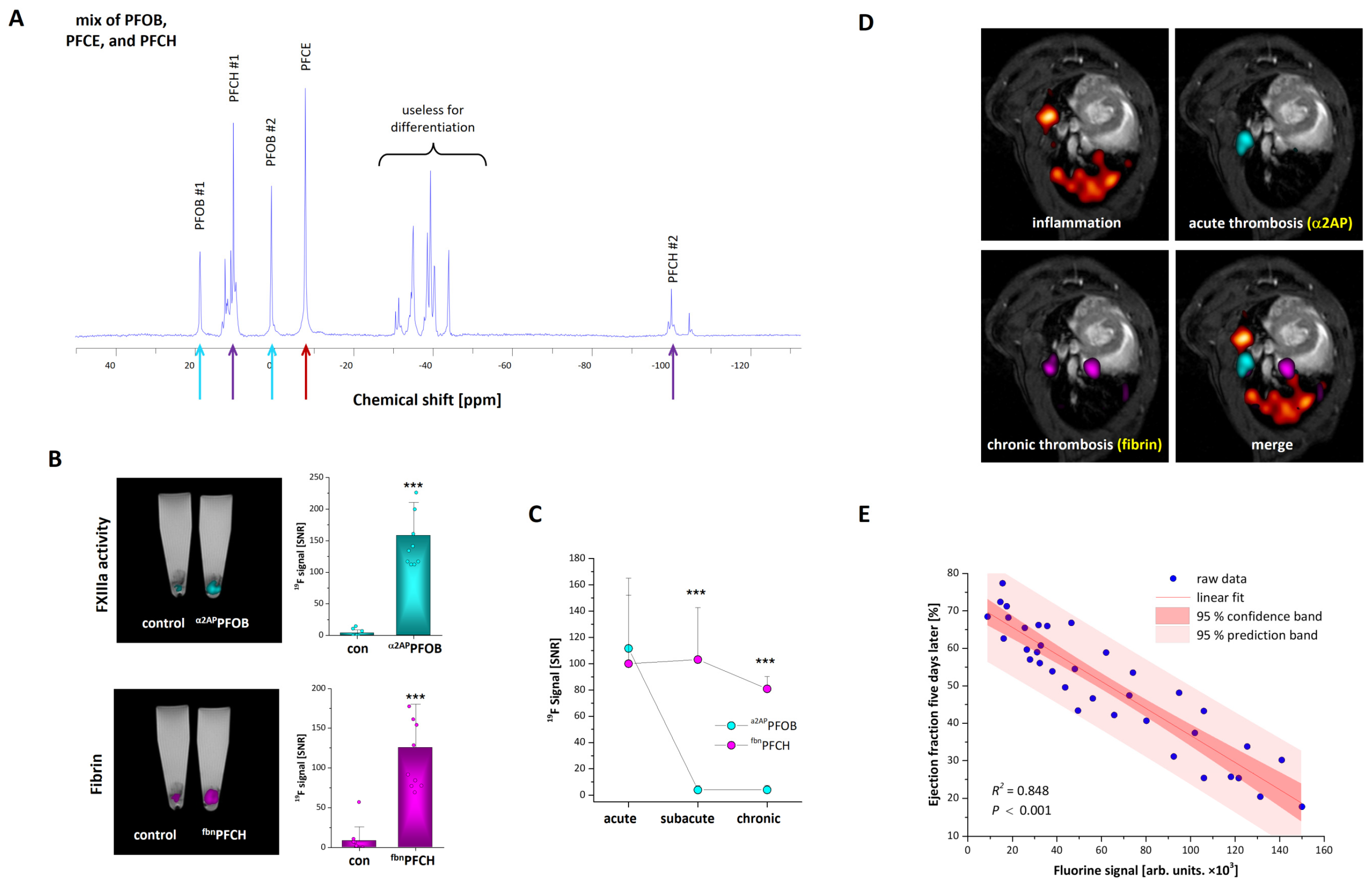

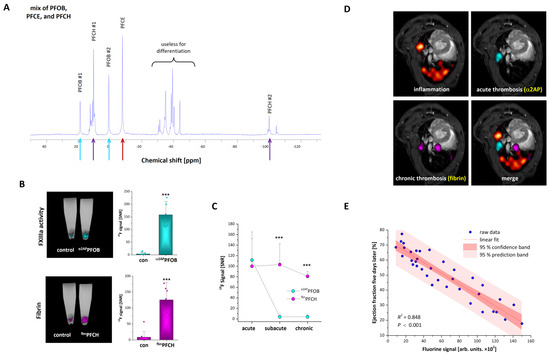

Finally, we utilized the combination of α2APPFOB, fbnPFCH, and unmodified PFCE-PFCs to detect throminflammatory processes in HypoE mice, which spontaneously generate MI after treatment with a high-fat/cholesterol diet (7.5% cocoa butter, 15.8% fat, 1.25% cholesterol, and 0.5% sodium cholate). HypoE mice express a hypomorphic mutant form of ApoE (ApoE-Rh/h) and lack the scavenger receptor class B type I (SR-BI−/−). Previous studies have already shown that HypoE mice develop thromboinflammation and MI [109,110]. In this study, we observed that application of this PFC combination after three days of diet resulted in weak signals for monocytes/macrophages in the heart on day five. Of note, there were already strong 19F signals for all tracers found in the lungs at this time point (Figure 4D). However, on day 10 there were strong 19F signal for monocytes/macrophages, FXIIIa, and fibrin within the heart. Importantly, there was no major impact on heart function on day five, but after 10 days cardiac function was severely impaired. In particular, the function of the right ventricle was reduced which fits to the strong thromboinflammatory signals that were found in the lungs five days after onset of the diet. Interestingly, there was also an inverse correlation of the 19F signal on day five with cardiac function on day ten which indicates that this approach can also have prognostic value (Figure 4E).
Taken together, because the chemical shift range of 19F atoms is quite large (>300 ppm) and the 19F resonance frequencies vary depending on the chemical structure, it is possible to visualize different cells or structures via the selective excitation and detection of 19F tracer with individual spectral signals.

5. Conclusions and Outlook

In the recent years, 19F MRI has been established as a powerful tool to visualize phagocytic cells such as monocytes/macrophages or neutrophils under inflammatory conditions [111,112]. Moreover, functional modification of the surface of PFCs with polyethylene glycol and specific targeting ligands has strongly expanded the repertoire of the application for 19F MRI. Establishment of a platform for the active targeting of PFCs has enabled us to visualize FXIIIa activity [68] or activated platelets [70] independent of any phagocytic requirements. Moreover, attachment of ligands against CD177 on the surface of PFCs led to specific targeting of neutrophils and made it possible to follow their migration in vivo from the bone marrow into the infarcted heart [75]. More recently, we identified a peptide that targets cell surface CD63 which is strongly upregulated in activated cardiac fibroblasts as well as epicardial cells after myocardial infarction [73,74].
For imaging of thromboinflammation, it is necessary to visualize the inflammatory as well as the thrombotic components of this process. Multispectral 19F MRI is particularly well suited for this, because 19F has a broad spectral range of about ~400 ppm and there are several fluorine-containing compounds available with distinct individual signals that enable the detection of several target structures. However, the signal range that is currently exploited is in the range of only 30–40 ppm. Signals that differ by 5 ppm can be distinguished, so there is still a large range (up to ~70 theroretical 19F channels) for individual 19F signals. The design of molecules with magnetically identical 19F atoms and a distinct resonance frequency could strongly expand the repertoire of the structures and cells that can be visualized simultaneously by multispectral 19F MRI.
Most of the 19F MRI studies have been performed for preclinical research, but some studies have been conducted under clinical conditions. It was shown that it is possible to visualize the accumulation of monocytes/macrophages in the heart after myocardial infarction in pigs [49]. The same group also demonstrated the feasibility to image vessel wall inflammation in pigs after wire injury [113]. Of note, there has also been a small clinical study with 19F-labelled dendritic cells in adenocarcinoma patients [114]. There are still many challenges and pitfalls that must be overcome to enable the clinical application of 19F MRI which has been nicely summarized in a recent review article by van Heeswijk et al. [115]. These comprise the imaging hardware, the pulse sequences, the formulation and the dosing of the 19F tracer and also the specific clinical applications where 19F MRI can be beneficial for the medical personnel for diagnosis or decision making. 19F MRI is feasible at clinical field strength of 1.5 or 3T, but the MR systems require additional hardware for the acquisition of X nuclei and matching radiofrequency coils. PFCs require a regulatory approval which makes it necessary that they have to be manufactured under GMP (good manufacturing procedure) conditions. Furthermore, they have to be evaluated in phase 1 and 2 clinical trials to validate their safety and efficacy. One major issue with 19F MRI is the sensitivity because accumulation of 19F atoms in mM concentrations are normally necessary for detection. However, advanced techniques like compressed sensing have been shown to strongly reduce scan times by a factor of 4–8 which could decrease MRI measurement time during clinical applications or enhance the detection of low-intensity 19F signals [116,117]. Also, improved manufacturing processes (e.g., higher 19F content and larger particle size) or targeting specific receptors that leads to much better internalization could greatly increase the sensitivity. 19F signal detection could also be enhanced with the utilization of superconducting cryo-coils. For example, Waiczies et al. have compared 19F MRI of cryo-coils operating at room temperature and at 20K and found a 15-fold increased sensitivity for 19F in the brain of EAE (experimental autoimmune encephalomyelitis) mice [118].
Already, in early studies it has been observed that PFCs can cause side effects such as rare anaphylactoid responses that have been attributed to the utilization of the poloxamer pluronic F-68 as emulsifier [119,120], or transient flu-like symptoms [121]. The anaphylactic reactions were eliminated by emulsifying perfluorocarbons with purified lipids such as lecithin [119]. The low-level inflammatory reactions were related to the lipids and the particle size [122]. Of note, in more recent studies we did not observe any adverse impact of PFCs on cells or organs [43,68,75,123,124]. The active targeting of PFCs is currently based on PEGylation of PFCs to suppress of the cellular uptake by phagocytic cells (see Section 3). However, at least some variants of PEG are very immunogenic, which can result in adverse reactions that either neutralize the particles and accelerate their blood clearance or induce life threatening anaphylactic responses (CARPA = complement activation related pseudoallergy) [125]. Therefore, alternatives for these PEG-variants are required that overcome the adverse properties but still impair the phagocytic uptake by monocytes and macrophages.
Nevertheless, we believe that 19F MRI and, in particular, multispectral 19F MRI is a powerful molecular imaging tool that can be used to study multiple biological processes simultaneously with high specificity and quantitative accuracy. This technology is of high value for preclinical studies because it provides a large amount of additional locoregional information. Repetitive MRI measurements make it possible to follow and monitor the course of a disease (and its therapy) in the same animal over time, which enhances the reliability of the datasets and reduces animal numbers (3R principle). Furthermore, multispectral 19F MRI of thromboinflammation could also be important for clinical decision making. Imaging of inflammation and assessment of acute or chronic thrombi could help to decide if it is feasible to treat a specific patient with certain anti-inflammatory or thrombolytic drugs. Multispectral 19F MRI is non-ionizing, making it a safe alternative for in vivo monitoring of biological processes in human patients. Future advancements in multispectral 19F MRI, like an enhanced probe design for active targeting, computational image analysis can extend its application for molecular imaging and promote the monitoring of progression and therapy of various diseases.

Author Contributions

Concept of the manuscript:, S.T., P.K., P.B., Z.-B.T., A.Z. and U.F.; preparation of the draft: S.T., P.K., Z.-B.T., P.B., A.Z., W.D., S.P., J.G. and U.F.; Review and editing of the manuscript: S.T., P.K., Z.-B.T., P.B., A.Z., W.D., S.P., J.G. and U.F.; Figure prepration: P.K., P.B. and S.T.; Supervision: S.T. and U.F.; Administration of the project:, S.T.; Acquisition of funding: S.T. and U.F. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the German Research Foundation (DFG): SFB 1116 and TRR 259 for UF, and the grant applications TE 1209/1-2 (for ST), FL 303/6-2, INST 208/764-1 FUGG (for UF).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

No new data were created.

Conflicts of Interest

The authors (S.T., P.K., Z.-B.T., P.B., A.Z., W.D., S.P., J.G. and U.F.) declare no conflicts of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Engelmann, B.; Massberg, S. Thrombosis as an Intravascular Effector of Innate Immunity. Nat. Rev. Immunol. 2013, 13, 34–45. [Google Scholar] [CrossRef]
  2. Stark, K.; Massberg, S. Interplay between Inflammation and Thrombosis in Cardiovascular Pathology. Nat. Rev. Cardiol. 2021, 18, 666–682. [Google Scholar] [CrossRef] [PubMed]
  3. Oikonomou, E.; Leopoulou, M.; Theofilis, P.; Antonopoulos, A.S.; Siasos, G.; Latsios, G.; Mystakidi, V.C.; Antoniades, C.; Tousoulis, D. A Link between Inflammation and Thrombosis in Atherosclerotic Cardiovascular Diseases: Clinical and Therapeutic Implications. Atherosclerosis 2020, 309, 16–26. [Google Scholar] [CrossRef] [PubMed]
  4. Chrysanthopoulou, A.; Gkaliagkousi, E.; Lazaridis, A.; Arelaki, S.; Pateinakis, P.; Ntinopoulou, M.; Mitsios, A.; Antoniadou, C.; Argyriou, C.; Georgiadis, G.S.; et al. Angiotensin II Triggers Release of Neutrophil Extracellular Traps, Linking Thromboinflammation with Essential Hypertension. JCI Insight 2021, 6, e148668. [Google Scholar] [CrossRef] [PubMed]
  5. Higashikuni, Y.; Liu, W.; Obana, T.; Sata, M. Pathogenic Basis of Thromboinflammation and Endothelial Injury in COVID-19: Current Findings and Therapeutic Implications. Int. J. Mol. Sci. 2021, 22, 12081. [Google Scholar] [CrossRef]
  6. Manke, M.-C.; Ahrends, R.; Borst, O. Platelet Lipid Metabolism in Vascular Thrombo-Inflammation. Pharmacol. Ther. 2022, 237, 108258. [Google Scholar] [CrossRef]
  7. Schrottmaier, W.C.; Assinger, A. The Concept of Thromboinflammation. Hamostaseologie 2024, 44, 21–30. [Google Scholar] [CrossRef]
  8. Hottz, E.D.; Martins-Gonçalves, R.; Palhinha, L.; Azevedo-Quintanilha, I.G.; de Campos, M.M.; Sacramento, C.Q.; Temerozo, J.R.; Soares, V.C.; Dias, S.S.G.; Teixeira, L.; et al. Platelet-Monocyte Interaction Amplifies Thromboinflammation through Tissue Factor Signaling in COVID-19. Blood Adv. 2022, 6, 5085–5099. [Google Scholar] [CrossRef]
  9. Rolling, C.C.; Barrett, T.J.; Berger, J.S. Platelet-Monocyte Aggregates: Molecular Mediators of Thromboinflammation. Front. Cardiovasc. Med. 2023, 10, 960398. [Google Scholar] [CrossRef]
  10. Stefanski, A.-L.; Nitschke, E.; Dörner, T. Thromboinflammation: Dynamik physiologischer und pathologischer Wechselwirkungen von Entzündung und Koagulation. Aktuelle Rheumatol. 2022, 47, 478–482. [Google Scholar] [CrossRef]
  11. Kratofil, R.M.; Kubes, P.; Deniset, J.F. Monocyte Conversion During Inflammation and Injury. Arterioscler. Thromb. Vasc. Biol. 2017, 37, 35–42. [Google Scholar] [CrossRef] [PubMed]
  12. Aggrey, A.A.; Srivastava, K.; Field, D.J.; Morrell, C.N. Platelet Induction of the Acute Phase Response Is Protective in Murine Experimental Cerebral Malaria. J. Immunol. 2013, 190, 4685–4691. [Google Scholar] [CrossRef] [PubMed]
  13. Gawaz, M.; Brand, K.; Dickfeld, T.; Pogatsa-Murray, G.; Page, S.; Bogner, C.; Koch, W.; Schömig, A.; Neumann, F. Platelets Induce Alterations of Chemotactic and Adhesive Properties of Endothelial Cells Mediated through an Interleukin-1-Dependent Mechanism. Implications for Atherogenesis. Atherosclerosis 2000, 148, 75–85. [Google Scholar] [CrossRef] [PubMed]
  14. Chu, A.J. Tissue Factor, Blood Coagulation, and Beyond: An Overview. Int. J. Inflamm. 2011, 2011, 367284. [Google Scholar] [CrossRef]
  15. Segal, A.W. How Neutrophils Kill Microbes. Annu. Rev. Immunol. 2005, 23, 197–223. [Google Scholar] [CrossRef]
  16. Liew, P.X.; Kubes, P. The Neutrophil’s Role During Health and Disease. Physiol. Rev. 2019, 99, 1223–1248. [Google Scholar] [CrossRef]
  17. Ridker, P.M.; Everett, B.M.; Thuren, T.; MacFadyen, J.G.; Chang, W.H.; Ballantyne, C.; Fonseca, F.; Nicolau, J.; Koenig, W.; Anker, S.D.; et al. Antiinflammatory Therapy with Canakinumab for Atherosclerotic Disease. N. Engl. J. Med. 2017, 377, 1119–1131. [Google Scholar] [CrossRef]
  18. Ng, S.J.; Lau, H.C.; Naseer, R.; Sandhu, S.; Raynor, W.Y.; Werner, T.J.; Alavi, A. Atherosclerosis Imaging: Positron Emission Tomography. PET Clin. 2023, 18, 71–80. [Google Scholar] [CrossRef]
  19. Tahara, N.; Mukherjee, J.; de Haas, H.J.; Petrov, A.D.; Tawakol, A.; Haider, N.; Tahara, A.; Constantinescu, C.C.; Zhou, J.; Boersma, H.H.; et al. 2-Deoxy-2-[18F]Fluoro-D-Mannose Positron Emission Tomography Imaging in Atherosclerosis. Nat. Med. 2014, 20, 215–219. [Google Scholar] [CrossRef]
  20. Nguyen, N.C.; Moon, C.-H.; Muthukrishnan, A.; Furlan, A. 68Ga-DOTATATE PET/MRI for Neuroendocrine Tumors: A Pictorial Review. Clin. Nucl. Med. 2020, 45, e406–e410. [Google Scholar] [CrossRef]
  21. Li, X.; Bauer, W.; Israel, I.; Kreissl, M.C.; Weirather, J.; Richter, D.; Bauer, E.; Herold, V.; Jakob, P.; Buck, A.; et al. Targeting P-Selectin by Gallium-68-Labeled Fucoidan Positron Emission Tomography for Noninvasive Characterization of Vulnerable Plaques: Correlation with in Vivo 17.6T MRI. Arterioscler. Thromb. Vasc. Biol. 2014, 34, 1661–1667. [Google Scholar] [CrossRef] [PubMed]
  22. Lindenberg, L.; Ahlman, M.; Lin, F.; Mena, E.; Choyke, P. Advances in PET Imaging of the CXCR4 Receptor: [68Ga]Ga-PentixaFor. Semin. Nucl. Med. 2024, 54, 163–170. [Google Scholar] [CrossRef]
  23. Oliveira, B.L.; Blasi, F.; Rietz, T.A.; Rotile, N.J.; Day, H.; Caravan, P. Multimodal Molecular Imaging Reveals High Target Uptake and Specificity of 111In- and 68Ga-Labeled Fibrin-Binding Probes for Thrombus Detection in Rats. J. Nucl. Med. 2015, 56, 1587–1592. [Google Scholar] [CrossRef]
  24. Zhuang, Z.W.; Huang, Y.; Ju, R.; Maxfield, M.W.; Ren, Y.; Wang, X.; Wang, X.; Stacy, M.R.; Hwa, J. Molecular Imaging of Factor XIII Activity for the Early Detection of Mouse Coronary Microvascular Disease. Theranostics 2019, 9, 1474–1489. [Google Scholar] [CrossRef] [PubMed]
  25. Heidt, T.; Deininger, F.; Peter, K.; Goldschmidt, J.; Pethe, A.; Hagemeyer, C.E.; Neudorfer, I.; Zirlik, A.; Weber, W.A.; Bode, C.; et al. Activated Platelets in Carotid Artery Thrombosis in Mice Can Be Selectively Targeted with a Radiolabeled Single-Chain Antibody. PLoS ONE 2011, 6, e18446. [Google Scholar] [CrossRef] [PubMed]
  26. Stacy, M.R. Radionuclide Imaging of Atherothrombotic Diseases. Curr. Cardiovasc. Imaging Rep. 2019, 12, 17. [Google Scholar] [CrossRef]
  27. Shimizu, Y.; Kuge, Y. Recent Advances in the Development of PET/SPECT Probes for Atherosclerosis Imaging. Nucl. Med. Mol. Imaging 2016, 50, 284–291. [Google Scholar] [CrossRef]
  28. Hammad, B.; Evans, N.R.; Rudd, J.H.F.; Tawakol, A. Molecular Imaging of Atherosclerosis with Integrated PET Imaging. J. Nucl. Cardiol. 2017, 24, 938–943. [Google Scholar] [CrossRef]
  29. Raynor, W.Y.; Park, P.S.U.; Borja, A.J.; Sun, Y.; Werner, T.J.; Ng, S.J.; Lau, H.C.; Høilund-Carlsen, P.F.; Alavi, A.; Revheim, M.-E. PET-Based Imaging with 18F-FDG and 18F-NaF to Assess Inflammation and Microcalcification in Atherosclerosis and Other Vascular and Thrombotic Disorders. Diagnostics 2021, 11, 2234. [Google Scholar] [CrossRef]
  30. Stoll, G.; Bendszus, M. New Approaches to Neuroimaging of Central Nervous System Inflammation. Curr. Opin. Neurol. 2010, 23, 282–286. [Google Scholar] [CrossRef]
  31. Ugga, L.; Romeo, V.; Tedeschi, E.; Brunetti, A.; Quarantelli, M. Superparamagnetic Iron Oxide Nanocolloids in MRI Studies of Neuroinflammation. J. Neurosci. Methods 2018, 310, 12–23. [Google Scholar] [CrossRef] [PubMed]
  32. Tsampasian, V.; Swift, A.J.; Assadi, H.; Chowdhary, A.; Swoboda, P.; Sammut, E.; Dastidar, A.; Cabrero, J.B.; Del Val, J.R.; Nair, S.; et al. Myocardial Inflammation and Energetics by Cardiac MRI: A Review of Emerging Techniques. BMC Med. Imaging 2021, 21, 164. [Google Scholar] [CrossRef] [PubMed]
  33. Beckmann, N.; Cannet, C.; Babin, A.L.; Blé, F.-X.; Zurbruegg, S.; Kneuer, R.; Dousset, V. In Vivo Visualization of Macrophage Infiltration and Activity in Inflammation Using Magnetic Resonance Imaging. Wiley Interdiscip. Rev. Nanomed. Nanobiotechnol. 2009, 1, 272–298. [Google Scholar] [CrossRef]
  34. Wáng, Y.X.J.; Idée, J.-M. A Comprehensive Literatures Update of Clinical Researches of Superparamagnetic Resonance Iron Oxide Nanoparticles for Magnetic Resonance Imaging. Quant. Imaging Med. Surg. 2017, 7, 88–122. [Google Scholar] [CrossRef]
  35. Dadfar, S.M.; Roemhild, K.; Drude, N.I.; Von Stillfried, S.; Knüchel, R.; Kiessling, F.; Lammers, T. Iron Oxide Nanoparticles: Diagnostic, Therapeutic and Theranostic Applications. Adv. Drug Deliv. Rev. 2019, 138, 302–325. [Google Scholar] [CrossRef]
  36. Masthoff, M.; Freppon, F.N.; Zondler, L.; Wilken, E.; Wachsmuth, L.; Niemann, S.; Schwarz, C.; Fredrich, I.; Havlas, A.; Block, H.; et al. Resolving Immune Cells with Patrolling Behaviour by Magnetic Resonance Time-Lapse Single Cell Tracking. eBioMedicine 2021, 73, 103670. [Google Scholar] [CrossRef] [PubMed]
  37. Holland, G.N.; Bottomley, P.A.; Hinshaw, W.S. 19F Magnetic Resonance Imaging. J. Magn. Reson. 1977, 28, 133–136. [Google Scholar] [CrossRef]
  38. Mattrey, R.F.; Scheible, F.W.; Gosink, B.B.; Leopold, G.R.; Long, D.M.; Higgins, C.B. Perfluoroctylbromide: A Liver/Spleen-Specific and Tumor-Imaging Ultrasound Contrast Material. Radiology 1982, 145, 759–762. [Google Scholar] [CrossRef]
  39. Mattrey, R.F.; Long, D.M.; Multer, F.; Mitten, R.; Higgins, C.B. Perfluoroctylbromide: A Reticuloendothelial-Specific and Tumor-Imaging Agent for Computed Tomography. Radiology 1982, 145, 755–758. [Google Scholar] [CrossRef]
  40. Mattrey, R.F.; Leopold, G.R.; vanSonnenberg, E.; Gosink, B.B.; Scheible, F.W.; Long, D.M. Perfluorochemicals as Liver- and Spleen-Seeking Ultrasound Contrast Agents. J. Ultrasound Med. 1983, 2, 173–176. [Google Scholar] [CrossRef]
  41. Longmaid, H.E.; Adams, D.F.; Neirinckx, R.D.; Harrison, C.G.; Brunner, P.; Seltzer, S.E.; Davis, M.A.; Neuringer, L.; Geyer, R.P. In Vivo 19F NMR Imaging of Liver, Tumor, and Abscess in Rats. Preliminary Results. Investig. Radiol. 1985, 20, 141–145. [Google Scholar] [CrossRef] [PubMed]
  42. Ahrens, E.T.; Flores, R.; Xu, H.; Morel, P.A. In Vivo Imaging Platform for Tracking Immunotherapeutic Cells. Nat. Biotechnol. 2005, 23, 983–987. [Google Scholar] [CrossRef] [PubMed]
  43. Flögel, U.; Ding, Z.; Hardung, H.; Jander, S.; Reichmann, G.; Jacoby, C.; Schubert, R.; Schrader, J. In Vivo Monitoring of Inflammation After Cardiac and Cerebral Ischemia by Fluorine Magnetic Resonance Imaging. Circulation 2008, 118, 140–148. [Google Scholar] [CrossRef]
  44. Ebner, B.; Behm, P.; Jacoby, C.; Burghoff, S.; French, B.A.; Schrader, J.; Flögel, U. Early Assessment of Pulmonary Inflammation by 19F MRI In Vivo. Circ. Cardiovasc. Imaging 2010, 3, 202–210. [Google Scholar] [CrossRef] [PubMed]
  45. Olsson, L.E.; Smailagic, A.; Önnervik, P.-O.; Hockings, P.D. 1H and Hyperpolarized 3He MR Imaging of Mouse with LPS-Induced Inflammation. J. Magn. Reson. Imaging 2009, 29, 977–981. [Google Scholar] [CrossRef]
  46. Quintana, H.K.; Cannet, C.; Schaeublin, E.; Zurbruegg, S.; Sugar, R.; Mazzoni, L.; Page, C.P.; Fozard, J.R.; Beckmann, N. Identification with MRI of the Pleura as a Major Site of the Acute Inflammatory Effects Induced by Ovalbumin and Endotoxin Challenge in the Airways of the Rat. Am. J. Physiol.-Lung Cell. Mol. Physiol. 2006, 291, L651–L657. [Google Scholar] [CrossRef]
  47. van Heeswijk, R.B.; Pellegrin, M.; Flögel, U.; Gonzales, C.; Aubert, J.-F.; Mazzolai, L.; Schwitter, J.; Stuber, M. Fluorine MR Imaging of Inflammation in Atherosclerotic Plaque in Vivo. Radiology 2015, 275, 421–429. [Google Scholar] [CrossRef]
  48. Kadayakkara, D.K.; Ranganathan, S.; Young, W.-B.; Ahrens, E.T. Assaying Macrophage Activity in a Murine Model of Inflammatory Bowel Disease Using Fluorine-19 MRI. Lab. Investig. 2012, 92, 636–645. [Google Scholar] [CrossRef]
  49. Rothe, M.; Jahn, A.; Weiss, K.; Hwang, J.-H.; Szendroedi, J.; Kelm, M.; Schrader, J.; Roden, M.; Flögel, U.; Bönner, F. In Vivo 19F MR Inflammation Imaging after Myocardial Infarction in a Large Animal Model at 3 T. Magn. Reson. Mater. Phys. Biol. Med. 2019, 32, 5–13. [Google Scholar] [CrossRef]
  50. Jacoby, C.; Borg, N.; Heusch, P.; Sauter, M.; Bönner, F.; Kandolf, R.; Klingel, K.; Schrader, J.; Flögel, U. Visualization of Immune Cell Infiltration in Experimental Viral Myocarditis by 19F MRI in Vivo. Magn. Reson. Mater. Phys. Biol. Med. 2014, 27, 101–106. [Google Scholar] [CrossRef]
  51. Temme, S.; Jacoby, C.; Ding, Z.; Bönner, F.; Borg, N.; Schrader, J.; Flögel, U. Technical Advance: Monitoring the Trafficking of Neutrophil Granulocytes and Monocytes during the Course of Tissue Inflammation by Noninvasive 19F MRI. J. Leukoc. Biol. 2014, 95, 689–697. [Google Scholar] [CrossRef]
  52. Ding, Z.; Temme, S.; Quast, C.; Friebe, D.; Jacoby, C.; Zanger, K.; Bidmon, H.-J.; Grapentin, C.; Schubert, R.; Flögel, U.; et al. Epicardium-Derived Cells Formed After Myocardial Injury Display Phagocytic Activity Permitting In Vivo Labeling and Tracking. Stem Cells Transl. Med. 2016, 5, 639–650. [Google Scholar] [CrossRef] [PubMed]
  53. Hermanson, G.T. (Ed.) Chapter 3—The Reactions of Bioconjugation. In Bioconjugate Techniques, 3rd ed.; Academic Press: Boston, MA, USA, 2013; pp. 229–258. ISBN 978-0-12-382239-0. [Google Scholar]
  54. Lesch, H.P.; Kaikkonen, M.U.; Pikkarainen, J.T.; Ylä-Herttuala, S. Avidin-Biotin Technology in Targeted Therapy. Expert Opin. Drug Deliv. 2010, 7, 551–564. [Google Scholar] [CrossRef] [PubMed]
  55. Al-Seragi, M.; Chen, Y.; Duong van Hoa, F. Advances in Nanobody Multimerization and Multispecificity: From in Vivo Assembly to in Vitro Production. Biochem. Soc. Trans. 2025, 53, BST20241419. [Google Scholar] [CrossRef]
  56. Partikel, K.; Korte, R.; Stein, N.C.; Mulac, D.; Herrmann, F.C.; Humpf, H.-U.; Langer, K. Effect of Nanoparticle Size and PEGylation on the Protein Corona of PLGA Nanoparticles. Eur. J. Pharm. Biopharm. 2019, 141, 70–80. [Google Scholar] [CrossRef]
  57. Owens, D.E.; Peppas, N.A. Opsonization, Biodistribution, and Pharmacokinetics of Polymeric Nanoparticles. Int. J. Pharm. 2006, 307, 93–102. [Google Scholar] [CrossRef] [PubMed]
  58. Kozma, G.T.; Shimizu, T.; Ishida, T.; Szebeni, J. Anti-PEG Antibodies: Properties, Formation, Testing and Role in Adverse Immune Reactions to PEGylated Nano-Biopharmaceuticals. Adv. Drug Deliv. Rev. 2020, 154–155, 163–175. [Google Scholar] [CrossRef]
  59. Koshkina, O.; Rheinberger, T.; Flocke, V.; Windfelder, A.; Bouvain, P.; Hamelmann, N.M.; Paulusse, J.M.J.; Gojzewski, H.; Flögel, U.; Wurm, F.R. Biodegradable Polyphosphoester Micelles Act as Both Background-Free 31P Magnetic Resonance Imaging Agents and Drug Nanocarriers. Nat. Commun. 2023, 14, 4351. [Google Scholar] [CrossRef]
  60. Gheibi Hayat, S.M.; Bianconi, V.; Pirro, M.; Sahebkar, A. Stealth Functionalization of Biomaterials and Nanoparticles by CD47 Mimicry. Int. J. Pharm. 2019, 569, 118628. [Google Scholar] [CrossRef]
  61. Vandchali, N.R.; Moadab, F.; Taghizadeh, E.; Tajbakhsh, A.; Gheibihayat, S.M. CD47 Functionalization of Nanoparticles as a Poly(Ethylene Glycol) Alternative: A Novel Approach to Improve Drug Delivery. Curr. Drug Targets 2021, 22, 1750–1759. [Google Scholar] [CrossRef]
  62. Hu, G.; Lijowski, M.; Zhang, H.; Partlow, K.C.; Caruthers, S.D.; Kiefer, G.; Gulyas, G.; Athey, P.; Scott, M.J.; Wickline, S.A.; et al. Imaging of Vx-2 Rabbit Tumors with Alpha(Nu)Beta3-Integrin-Targeted 111In Nanoparticles. Int. J. Cancer 2007, 120, 1951–1957. [Google Scholar] [CrossRef]
  63. Wang, C.-H.; Kang, S.-T.; Lee, Y.-H.; Luo, Y.-L.; Huang, Y.-F.; Yeh, C.-K. Aptamer-Conjugated and Drug-Loaded Acoustic Droplets for Ultrasound Theranosis. Biomaterials 2012, 33, 1939–1947. [Google Scholar] [CrossRef] [PubMed]
  64. Akers, W.J.; Zhang, Z.; Berezin, M.; Ye, Y.; Agee, A.; Guo, K.; Fuhrhop, R.W.; Wickline, S.A.; Lanza, G.M.; Achilefu, S. Targeting of Alpha(Nu)Beta(3)-Integrins Expressed on Tumor Tissue and Neovasculature Using Fluorescent Small Molecules and Nanoparticles. Nanomedicine 2010, 5, 715–726. [Google Scholar] [CrossRef]
  65. Winter, P.M.; Caruthers, S.D.; Yu, X.; Song, S.-K.; Chen, J.; Miller, B.; Bulte, J.W.M.; Robertson, J.D.; Gaffney, P.J.; Wickline, S.A.; et al. Improved Molecular Imaging Contrast Agent for Detection of Human Thrombus. Magn. Reson. Med. 2003, 50, 411–416. [Google Scholar] [CrossRef] [PubMed]
  66. Flacke, S.; Fischer, S.; Scott, M.J.; Fuhrhop, R.J.; Allen, J.S.; McLean, M.; Winter, P.; Sicard, G.A.; Gaffney, P.J.; Wickline, S.A.; et al. Novel MRI Contrast Agent for Molecular Imaging of Fibrin: Implications for Detecting Vulnerable Plaques. Circulation 2001, 104, 1280–1285. [Google Scholar] [CrossRef] [PubMed]
  67. Lanza, G.M.; Yu, X.; Winter, P.M.; Abendschein, D.R.; Karukstis, K.K.; Scott, M.J.; Chinen, L.K.; Fuhrhop, R.W.; Scherrer, D.E.; Wickline, S.A. Targeted Antiproliferative Drug Delivery to Vascular Smooth Muscle Cells with a Magnetic Resonance Imaging Nanoparticle Contrast Agent: Implications for Rational Therapy of Restenosis. Circulation 2002, 106, 2842–2847. [Google Scholar] [CrossRef]
  68. Temme, S.; Grapentin, C.; Quast, C.; Jacoby, C.; Grandoch, M.; Ding, Z.; Owenier, C.; Mayenfels, F.; Fischer, J.W.; Schubert, R.; et al. Noninvasive Imaging of Early Venous Thrombosis by 19F Magnetic Resonance Imaging with Targeted Perfluorocarbon Nanoemulsions. Circulation 2015, 131, 1405–1414. [Google Scholar] [CrossRef]
  69. Krämer, W.; Grapentin, C.; Bouvain, P.; Temme, S.; Flögel, U.; Schubert, R. Rational Manufacturing of Functionalized, Long-Term Stable Perfluorocarbon-Nanoemulsions for Site-Specific 19F Magnetic Resonance Imaging. Eur. J. Pharm. Biopharm. 2019, 142, 114–122. [Google Scholar] [CrossRef]
  70. Wang, X.; Temme, S.; Grapentin, C.; Palasubramaniam, J.; Walsh, A.; Krämer, W.; Kleimann, P.; Havlas, A.; Schubert, R.; Schrader, J.; et al. Fluorine-19 Magnetic Resonance Imaging of Activated Platelets. J. Am. Heart Assoc. 2020, 9, e016971. [Google Scholar] [CrossRef]
  71. Flögel, U.; Burghoff, S.; van Lent, P.L.E.M.; Temme, S.; Galbarz, L.; Ding, Z.; El-Tayeb, A.; Huels, S.; Bönner, F.; Borg, N.; et al. Selective Activation of Adenosine A2A Receptors on Immune Cells by a CD73-Dependent Prodrug Suppresses Joint Inflammation in Experimental Rheumatoid Arthritis. Sci. Transl. Med. 2012, 4, 146ra108. [Google Scholar] [CrossRef]
  72. Temme, S.; Baran, P.; Bouvain, P.; Grapentin, C.; Krämer, W.; Knebel, B.; Al-Hasani, H.; Moll, J.M.; Floss, D.; Schrader, J.; et al. Synthetic Cargo Internalization Receptor System for Nanoparticle Tracking of Individual Cell Populations by Fluorine Magnetic Resonance Imaging. ACS Nano 2018, 12, 11178–11192. [Google Scholar] [CrossRef] [PubMed]
  73. Straub, T.; Nave, J.; Bouvain, P.; Akbarzadeh, M.; Dasa, S.S.K.; Kistner, J.; Ding, Z.; Marzoq, A.; Stepanow, S.; Becker, K.; et al. MRI-Based Molecular Imaging of Epicardium-Derived Stromal Cells (EpiSC) by Peptide-Mediated Active Targeting. Sci. Rep. 2020, 10, 21669. [Google Scholar] [CrossRef]
  74. Martínez, A.A.E.; Bergmann, A.K.; Tellkamp, F.; Schott-Verdugo, S.; Bouvain, P.; Steinhausen, J.; Bahr, J.; Kmietczyk, V.; Flögel, U.; Distler, J.H.W.; et al. CD63 as Novel Target for Nanoemulsion-Based 19F MRI Imaging and Drug Delivery to Activated Cardiac Fibroblasts. Theranostics 2024, 15, 1–18. [Google Scholar] [CrossRef] [PubMed]
  75. Bouvain, P.; Ding, Z.; Kadir, S.; Kleimann, P.; Kluge, N.; Tiren, Z.-B.; Steckel, B.; Flocke, V.; Zalfen, R.; Petzsch, P.; et al. Non-Invasive Mapping of Systemic Neutrophil Dynamics upon Cardiovascular Injury. Nat. Cardiovasc. Res. 2023, 2, 126–143. [Google Scholar] [CrossRef]
  76. Robinson, B.R.; Houng, A.K.; Reed, G.L. Catalytic Life of Activated Factor XIII in Thrombi. Implications for Fibrinolytic Resistance and Thrombus Aging. Circulation 2000, 102, 1151–1157. [Google Scholar] [CrossRef]
  77. Tung, C.-H.; Ho, N.-H.; Zeng, Q.; Tang, Y.; Jaffer, F.A.; Reed, G.L.; Weissleder, R. Novel Factor XIII Probes for Blood Coagulation Imaging. Chembiochem 2003, 4, 897–899. [Google Scholar] [CrossRef] [PubMed]
  78. Miserus, R.-J.J.H.M.; Herías, M.V.; Prinzen, L.; Lobbes, M.B.I.; Van Suylen, R.-J.; Dirksen, A.; Hackeng, T.M.; Heemskerk, J.W.M.; van Engelshoven, J.M.A.; Daemen, M.J.A.P.; et al. Molecular MRI of Early Thrombus Formation Using a Bimodal Alpha2-Antiplasmin-Based Contrast Agent. JACC Cardiovasc. Imaging 2009, 2, 987–996. [Google Scholar] [CrossRef]
  79. Gantert, M.; Lewrick, F.; Adrian, J.E.; Rössler, J.; Steenpass, T.; Schubert, R.; Peschka-Süss, R. Receptor-Specific Targeting with Liposomes in Vitro Based on Sterol-PEG(1300) Anchors. Pharm. Res. 2009, 26, 529–538. [Google Scholar] [CrossRef]
  80. Schwarz, M.; Röttgen, P.; Takada, Y.; Le Gall, F.; Knackmuss, S.; Bassler, N.; Büttner, C.; Little, M.; Bode, C.; Peter, K. Single-Chain Antibodies for the Conformation-Specific Blockade of Activated Platelet Integrin alphaIIbbeta3 Designed by Subtractive Selection from Naive Human Phage Libraries. FASEB J. 2004, 18, 1704–1706. [Google Scholar] [CrossRef]
  81. Schwarz, M.; Meade, G.; Stoll, P.; Ylanne, J.; Bassler, N.; Chen, Y.C.; Hagemeyer, C.E.; Ahrens, I.; Moran, N.; Kenny, D.; et al. Conformation-Specific Blockade of the Integrin GPIIb/IIIa: A Novel Antiplatelet Strategy That Selectively Targets Activated Platelets. Circ. Res. 2006, 99, 25–33. [Google Scholar] [CrossRef]
  82. Wang, X.; Peter, K. Molecular Imaging of Atherothrombotic Diseases. Arterioscler. Thromb. Vasc. Biol. 2017, 37, 1029–1040. [Google Scholar] [CrossRef] [PubMed]
  83. Wang, X.; Hagemeyer, C.E.; Hohmann, J.D.; Leitner, E.; Armstrong, P.C.; Jia, F.; Olschewski, M.; Needles, A.; Peter, K.; Ahrens, I. Novel Single-Chain Antibody-Targeted Microbubbles for Molecular Ultrasound Imaging of Thrombosis. Circulation 2012, 125, 3117–3126. [Google Scholar] [CrossRef]
  84. Spuentrup, E.; Fausten, B.; Kinzel, S.; Wiethoff, A.J.; Botnar, R.M.; Graham, P.B.; Haller, S.; Katoh, M.; Parsons, E.C.; Manning, W.J.; et al. Molecular Magnetic Resonance Imaging of Atrial Clots in a Swine Model. Circulation 2005, 112, 396–399. [Google Scholar] [CrossRef] [PubMed]
  85. Spuentrup, E.; Katoh, M.; Wiethoff, A.J.; Parsons, E.C.; Botnar, R.M.; Mahnken, A.H.; Günther, R.W.; Buecker, A. Molecular Magnetic Resonance Imaging of Pulmonary Emboli with a Fibrin-Specific Contrast Agent. Am. J. Respir. Crit. Care Med. 2005, 172, 494–500. [Google Scholar] [CrossRef] [PubMed]
  86. Sirol, M.; Aguinaldo, J.G.S.; Graham, P.B.; Weisskoff, R.; Lauffer, R.; Mizsei, G.; Chereshnev, I.; Fallon, J.T.; Reis, E.; Fuster, V.; et al. Fibrin-Targeted Contrast Agent for Improvement of in Vivo Acute Thrombus Detection with Magnetic Resonance Imaging. Atherosclerosis 2005, 182, 79–85. [Google Scholar] [CrossRef]
  87. Vymazal, J.; Spuentrup, E.; Cardenas-Molina, G.; Wiethoff, A.J.; Hartmann, M.G.; Caravan, P.; Parsons, E.C. Thrombus Imaging with Fibrin-Specific Gadolinium-Based MR Contrast Agent EP-2104R: Results of a Phase II Clinical Study of Feasibility. Investig. Radiol. 2009, 44, 697–704. [Google Scholar] [CrossRef]
  88. Borregaard, N. Neutrophils, from Marrow to Microbes. Immunity 2010, 33, 657–670. [Google Scholar] [CrossRef]
  89. Basu, S.; Hodgson, G.; Katz, M.; Dunn, A.R. Evaluation of Role of G-CSF in the Production, Survival, and Release of Neutrophils from Bone Marrow into Circulation. Blood 2002, 100, 854–861. [Google Scholar] [CrossRef]
  90. Ulich, T.R.; del Castillo, J.; Souza, L. Kinetics and Mechanisms of Recombinant Human Granulocyte-Colony Stimulating Factor-Induced Neutrophilia. Am. J. Pathol. 1988, 133, 630–638. [Google Scholar]
  91. Mazzucchelli, L.; Burritt, J.B.; Jesaitis, A.J.; Nusrat, A.; Liang, T.W.; Gewirtz, A.T.; Schnell, F.J.; Parkos, C.A. Cell-Specific Peptide Binding by Human Neutrophils. Blood 1999, 93, 1738–1748. [Google Scholar] [CrossRef]
  92. Goldschmeding, R.; van Dalen, C.M.; Faber, N.; Calafat, J.; Huizinga, T.W.; van der Schoot, C.E.; Clement, L.T.; von dem Borne, A.E. Further Characterization of the NB 1 Antigen as a Variably Expressed 56–62 kD GPI-Linked Glycoprotein of Plasma Membranes and Specific Granules of Neutrophils. Br. J. Haematol. 1992, 81, 336–345. [Google Scholar] [CrossRef]
  93. Miettinen, H.M.; Gripentrog, J.M.; Lord, C.I.; Nagy, J.O. CD177-Mediated Nanoparticle Targeting of Human and Mouse Neutrophils. PLoS ONE 2018, 13, e0200444. [Google Scholar] [CrossRef] [PubMed]
  94. Grapentin, C.; Mayenfels, F.; Barnert, S.; Süss, R.; Schubert, R.; Temme, S.; Jacoby, C.; Schrader, J.; Flögel, U. Optimization of Perfluorocarbon Nanoemulsions for Molecular Imaging by 19F MRI. In Nanomedicine; Seifalin, A., de Mel, A., Kalaskar, D.M., Eds.; One Central Press: Manchester, UK, 2014; pp. 268–286. [Google Scholar]
  95. Bouvain, P.; Flocke, V.; Krämer, W.; Schubert, R.; Schrader, J.; Flögel, U.; Temme, S. Dissociation of 19F and Fluorescence Signal upon Cellular Uptake of Dual-Contrast Perfluorocarbon Nanoemulsions. Magn. Reson. Mater. Phys. Biol. Med. 2019, 32, 133–145. [Google Scholar] [CrossRef]
  96. Partlow, K.C.; Chen, J.; Brant, J.A.; Neubauer, A.M.; Meyerrose, T.E.; Creer, M.H.; Nolta, J.A.; Caruthers, S.D.; Lanza, G.M.; Wickline, S.A. 19F Magnetic Resonance Imaging for Stem/Progenitor Cell Tracking with Multiple Unique Perfluorocarbon Nanobeacons. FASEB J. 2007, 21, 1647–1654. [Google Scholar] [CrossRef]
  97. Jacoby, C.; Oerther, T.; Temme, S.; Schrader, J.; Flögel, U. Simultaneous 19F MR Imaging at Different Resonance Frequencies Using Multi Chemical Shift Selective RARE. In Proceedings of the ISMRM, Milan, Italy, 10–16 May 2014. Abstract #2927. [Google Scholar]
  98. Schoormans, J.; Calcagno, C.; Daal, M.R.R.; Wüst, R.C.I.; Faries, C.; Maier, A.; Teunissen, A.J.P.; Naidu, S.; Sanchez-Gaytan, B.L.; Nederveen, A.J.; et al. An Iterative Sparse Deconvolution Method for Simultaneous Multicolor 19F-MRI of Multiple Contrast Agents. Magn. Reson. Med. 2020, 83, 228–239. [Google Scholar] [CrossRef] [PubMed]
  99. Akazawa, K.; Sugihara, F.; Nakamura, T.; Matsushita, H.; Mukai, H.; Akimoto, R.; Minoshima, M.; Mizukami, S.; Kikuchi, K. Perfluorocarbon-Based 19F MRI Nanoprobes for In Vivo Multicolor Imaging. Angew. Chem. Int. Ed. 2018, 57, 16742–16747. [Google Scholar] [CrossRef] [PubMed]
  100. Chirizzi, C.; De Battista, D.; Tirotta, I.; Metrangolo, P.; Comi, G.; Bombelli, F.B.; Chaabane, L. Multispectral MRI with Dual Fluorinated Probes to Track Mononuclear Cell Activity in Mice. Radiology 2019, 291, 351–357. [Google Scholar] [CrossRef]
  101. Croci, D.; Santalla Méndez, R.; Temme, S.; Soukup, K.; Fournier, N.; Zomer, A.; Colotti, R.; Wischnewski, V.; Flögel, U.; van Heeswijk, R.B.; et al. Multispectral Fluorine-19 MRI Enables Longitudinal and Noninvasive Monitoring of Tumor-Associated Macrophages. Sci. Transl. Med. 2022, 14, eabo2952. [Google Scholar] [CrossRef] [PubMed]
  102. Srinivas, M.; Tel, J.; Schreibelt, G.; Bonetto, F.; Cruz, L.-J.; Amiri, H.; Heerschap, A.; Figdor, C.G.; de Vries, I.J.M. PLGA-Encapsulated Perfluorocarbon Nanoparticles for Simultaneous Visualization of Distinct Cell Populations by 19F MRI. Nanomedicine 2015, 10, 2339–2348. [Google Scholar] [CrossRef]
  103. Flögel, U.; Temme, S.; Jacoby, C.; Oerther, T.; Keul, P.; Flocke, V.; Wang, X.; Bönner, F.; Nienhaus, F.; Peter, K.; et al. Multi-Targeted 1H/19F MRI Unmasks Specific Danger Patterns for Emerging Cardiovascular Disorders. Nat. Commun. 2021, 12, 5847. [Google Scholar] [CrossRef]
  104. Koshkina, O.; White, P.B.; Staal, A.H.J.; Schweins, R.; Swider, E.; Tirotta, I.; Tinnemans, P.; Fokkink, R.; Veltien, A.; van Riessen, N.K.; et al. Nanoparticles for “Two Color” 19F Magnetic Resonance Imaging: Towards Combined Imaging of Biodistribution and Degradation. J. Colloid Interface Sci. 2019, 565, 278–287. [Google Scholar] [CrossRef]
  105. Shusterman-Krush, R.; Tirukoti, N.D.; Bandela, A.K.; Avram, L.; Allouche-Arnon, H.; Cai, X.; Gibb, B.C.; Bar-Shir, A. Single Fluorinated Agent for Multiplexed 19F-MRI with Micromolar Detectability Based on Dynamic Exchange. Angew. Chem. Int. Ed. 2021, 60, 15405–15411. [Google Scholar] [CrossRef] [PubMed]
  106. Li, A.; Luo, X.; Li, L.; Chen, D.; Liu, X.; Yang, Z.; Yang, L.; Gao, J.; Lin, H. Activatable Multiplexed 19F Magnetic Resonance Imaging Visualizes Reactive Oxygen and Nitrogen Species in Drug-Induced Acute Kidney Injury. Anal. Chem. 2021, 93, 16552–16561. [Google Scholar] [CrossRef] [PubMed]
  107. Cohen, D.; Mashiach, R.; Houben, L.; Galisova, A.; Addadi, Y.; Kain, D.; Lubart, A.; Blinder, P.; Allouche-Arnon, H.; Bar-Shir, A. Glyconanofluorides as Immunotracers with a Tunable Core Composition for Sensitive Hotspot Magnetic Resonance Imaging of Inflammatory Activity. ACS Nano 2021, 15, 7563–7574. [Google Scholar] [CrossRef] [PubMed]
  108. Zhu, X.; Xiong, H.; Wang, S.; Li, Y.; Chi, J.; Wang, X.; Li, T.; Zhou, Q.; Gao, J.; Shi, S. Fluorinated Ionic Liquid Based Multicolor 19F MRI Nanoprobes for In Vivo Sensing of Multiple Biological Targets. Adv. Healthc. Mater. 2022, 11, 2102079. [Google Scholar] [CrossRef]
  109. Zhang, S.; Picard, M.H.; Vasile, E.; Zhu, Y.; Raffai, R.L.; Weisgraber, K.H.; Krieger, M. Diet-Induced Occlusive Coronary Atherosclerosis, Myocardial Infarction, Cardiac Dysfunction, and Premature Death in Scavenger Receptor Class B Type I-Deficient, Hypomorphic Apolipoprotein ER61 Mice. Circulation 2005, 111, 3457–3464. [Google Scholar] [CrossRef]
  110. Hermann, S.; Kuhlmann, M.T.; Starsichova, A.; Eligehausen, S.; Schäfers, K.; Stypmann, J.; Tiemann, K.; Levkau, B.; Schäfers, M. Imaging Reveals the Connection Between Spontaneous Coronary Plaque Ruptures, Atherothrombosis, and Myocardial Infarctions in HypoE/SRBI-/- Mice. J. Nucl. Med. 2016, 57, 1420–1427. [Google Scholar] [CrossRef]
  111. Bouvain, P.; Temme, S.; Flögel, U. Hot Spot 19F Magnetic Resonance Imaging of Inflammation. Wiley Interdiscip. Rev. Nanomed. Nanobiotechnol 2020, 12, e1639. [Google Scholar] [CrossRef]
  112. Ahrens, E.T.; Bulte, J.W.M. Tracking Immune Cells in Vivo Using Magnetic Resonance Imaging. Nat. Rev. Immunol. 2013, 13, 755–763. [Google Scholar] [CrossRef]
  113. Nienhaus, F.; Walz, M.; Rothe, M.; Jahn, A.; Pfeiler, S.; Busch, L.; Stern, M.; Heiss, C.; Vornholz, L.; Cames, S.; et al. Quantitative Assessment of Angioplasty-Induced Vascular Inflammation with 19F Cardiovascular Magnetic Resonance Imaging. J. Cardiovasc. Magn. Reson. 2023, 25, 54. [Google Scholar] [CrossRef]
  114. Ahrens, E.T.; Helfer, B.M.; O’Hanlon, C.F.; Schirda, C. Clinical Cell Therapy Imaging Using a Perfluorocarbon Tracer and Fluorine-19 MRI. Magn. Reson. Med. 2014, 72, 1696–1701. [Google Scholar] [CrossRef] [PubMed]
  115. van Heeswijk, R.B.; Bauer, W.R.; Bönner, F.; Janjic, J.M.; Mulder, W.J.M.; Schreiber, L.M.; Schwitter, J.; Flögel, U. Cardiovascular Molecular Imaging With Fluorine-19 MRI: The Road to the Clinic. Circ. Cardiovasc. Imaging 2023, 16, e014742. [Google Scholar] [CrossRef]
  116. Zhong, J.; Mills, P.H.; Hitchens, T.K.; Ahrens, E.T. Accelerated Fluorine-19 MRI Cell Tracking Using Compressed Sensing. Magn. Reson. Med. 2013, 69, 1683–1690. [Google Scholar] [CrossRef]
  117. Liang, S.; Dresselaers, T.; Louchami, K.; Zhu, C.; Liu, Y.; Himmelreich, U. Comparison of Different Compressed Sensing Algorithms for Low SNR 19F MRI Applications-Imaging of Transplanted Pancreatic Islets and Cells Labeled with Perfluorocarbons. NMR Biomed. 2017, 30, e3776. [Google Scholar] [CrossRef] [PubMed]
  118. Waiczies, S.; Millward, J.M.; Starke, L.; Delgado, P.R.; Huelnhagen, T.; Prinz, C.; Marek, D.; Wecker, D.; Wissmann, R.; Koch, S.P.; et al. Enhanced Fluorine-19 MRI Sensitivity Using a Cryogenic Radiofrequency Probe: Technical Developments and Ex Vivo Demonstration in a Mouse Model of Neuroinflammation. Sci. Rep. 2017, 7, 9808. [Google Scholar] [CrossRef] [PubMed]
  119. Hammerschmidt, D.E.; Vercellotti, G.M. Limitation of Complement Activation by Perfluorocarbon Emulsions: Superiority of Lecithin-Emulsified Preparations. Biomater. Artif. Cells Artif. Organs 1988, 16, 431–438. [Google Scholar] [CrossRef]
  120. Ingram, D.A.; Forman, M.B.; Murray, J.J. Activation of Complement by Fluosol Attributable to the Pluronic Detergent Micelle Structure. J. Cardiovasc. Pharmacol. 1993, 22, 456–461. [Google Scholar] [CrossRef]
  121. Noveck, R.J.; Shannon, E.J.; Leese, P.T.; Shorr, J.S.; Flaim, K.E.; Keipert, P.E.; Woods, C.M. Randomized Safety Studies of Intravenous Perflubron Emulsion. II. Effects on Immune Function in Healthy Volunteers. Anesth. Analg. 2000, 91, 812–822. [Google Scholar] [CrossRef]
  122. Keipert, P.E.; Otto, S.; Flaim, S.F.; Weers, J.G.; Schutt, E.A.; Pelura, T.J.; Klein, D.H.; Yaksh, T.L. Influence of Perflubron Emulsion Particle Size on Blood Half-Life and Febrile Response in Rats. Artif. Cells Blood Substit. Biotechnol. 1994, 22, 1169–1174. [Google Scholar] [CrossRef]
  123. Staal, A.H.J.; Becker, K.; Tagit, O.; Koen van Riessen, N.; Koshkina, O.; Veltien, A.; Bouvain, P.; Cortenbach, K.R.G.; Scheenen, T.; Flögel, U.; et al. In Vivo Clearance of 19F MRI Imaging Nanocarriers Is Strongly Influenced by Nanoparticle Ultrastructure. Biomaterials 2020, 261, 120307. [Google Scholar] [CrossRef]
  124. Becker, K.; Ding, Z.; Bouvain, P.; Koshy, J.; Massold, T.; Kleimann, P.; Flögel, U.; Temme, S. Inflammatory Stimuli Impact on Cellular Uptake and Biodistribution of Perfluorocarbon Nanoemulsions. J. Leukoc. Biol. 2024, 117, qiae199. [Google Scholar] [CrossRef] [PubMed]
  125. Tenchov, R.; Sasso, J.M.; Zhou, Q.A. PEGylated Lipid Nanoparticle Formulations: Immunological Safety and Efficiency Perspective. Bioconjug. Chem. 2023, 34, 941–960. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Schematic overview of the interaction between immune cells, platelets, and clotting molecules in thromboinflammation. Pathogen-associated molecular patterns (PAMPs) or damage-associated molecular patterns (DAMPs) can lead to endothelial dysfunction, resulting in the activation of endothelial cells that express adhesion molecules for platelets, monocytes, or neutrophils on the cell surface. Monocytes as well as neutrophils and platelets release various cytokines or chemokines to attract and activate other immune cells. The production of matrix metalloproteinases by platelets or neutrophils leads to the degradation of the extracellular matrix, which promotes thrombus formation. The thrombus, consisting of platelets but also monocytes and neutrophils, is further stabilized by a strong fibrin network. Neutrophils and monocytes also infiltrate into the inflamed area, where monocytes can differentiate into macrophages and lead to a generalized proinflammatory milieu. This figure was created with elements obtained from SMART-Servier Medical Art (https://smart.servier.com/ (accessed on 16 December 2024)).
Figure 1. Schematic overview of the interaction between immune cells, platelets, and clotting molecules in thromboinflammation. Pathogen-associated molecular patterns (PAMPs) or damage-associated molecular patterns (DAMPs) can lead to endothelial dysfunction, resulting in the activation of endothelial cells that express adhesion molecules for platelets, monocytes, or neutrophils on the cell surface. Monocytes as well as neutrophils and platelets release various cytokines or chemokines to attract and activate other immune cells. The production of matrix metalloproteinases by platelets or neutrophils leads to the degradation of the extracellular matrix, which promotes thrombus formation. The thrombus, consisting of platelets but also monocytes and neutrophils, is further stabilized by a strong fibrin network. Neutrophils and monocytes also infiltrate into the inflamed area, where monocytes can differentiate into macrophages and lead to a generalized proinflammatory milieu. This figure was created with elements obtained from SMART-Servier Medical Art (https://smart.servier.com/ (accessed on 16 December 2024)).
Ijms 26 02462 g001
Figure 2. (A) Visualization of FeCl3-induced thrombi (arrow) in the inferior vena cava of male C57BL/6 mice by 1H/19F MRI. Upper panel: anatomical overview of the area of the thrombus location (arrow) (left). Corresponding 19F MRI (middle) and a merging of the 1H and 19F datasets which shows the site of the thrombus (right). The dashed lines in the lower part represent magnifications of 1H/19F MRI measurements of the thrombus area of mice which received α2AP-PFCs or Q3A-PFCs as control. The graph shows the signal to noise ratio of the 19F signal in the thrombus. Data are mean values ± SD of n = 8 (α2AP-PFCs), n = 6 (Q3A-PFCs), * = p < 0.05. K = kidney, and SC = spinal cord. (B) High-resolution 1H/19F MRI measurements (0.5 nL voxel size) of an excised venous thrombus that was fixed in paraformaldehyde and embedded in agarose. Please note that the 19F signal of the α2AP-PFCs is found as a patchy pattern within the thrombus. T = thrombus; VL = vessel lumen. (C) Fluorescence microscopy of excised thrombi after injection of PFCs functionalized with carboxyfluorescein-labelled α2AP (upper panel) or Q3A (lower panel). The carboxyfluorescein is shown in green and nuclei of cells were counterstained with DAPI (DAPI = 4′,6-diamidino-2-phenylindole; blue). The dashed boxes represent the areas of the magnified images on the right. The scale bars represent 1 mm (A), 500 µm (B,C, left) or 100 µm (C, right). (The figure is a combination of elements derived from Figure 1 and Figure 3 of Temme et al. 2015 [68]; reprinted with permission).
Figure 2. (A) Visualization of FeCl3-induced thrombi (arrow) in the inferior vena cava of male C57BL/6 mice by 1H/19F MRI. Upper panel: anatomical overview of the area of the thrombus location (arrow) (left). Corresponding 19F MRI (middle) and a merging of the 1H and 19F datasets which shows the site of the thrombus (right). The dashed lines in the lower part represent magnifications of 1H/19F MRI measurements of the thrombus area of mice which received α2AP-PFCs or Q3A-PFCs as control. The graph shows the signal to noise ratio of the 19F signal in the thrombus. Data are mean values ± SD of n = 8 (α2AP-PFCs), n = 6 (Q3A-PFCs), * = p < 0.05. K = kidney, and SC = spinal cord. (B) High-resolution 1H/19F MRI measurements (0.5 nL voxel size) of an excised venous thrombus that was fixed in paraformaldehyde and embedded in agarose. Please note that the 19F signal of the α2AP-PFCs is found as a patchy pattern within the thrombus. T = thrombus; VL = vessel lumen. (C) Fluorescence microscopy of excised thrombi after injection of PFCs functionalized with carboxyfluorescein-labelled α2AP (upper panel) or Q3A (lower panel). The carboxyfluorescein is shown in green and nuclei of cells were counterstained with DAPI (DAPI = 4′,6-diamidino-2-phenylindole; blue). The dashed boxes represent the areas of the magnified images on the right. The scale bars represent 1 mm (A), 500 µm (B,C, left) or 100 µm (C, right). (The figure is a combination of elements derived from Figure 1 and Figure 3 of Temme et al. 2015 [68]; reprinted with permission).
Ijms 26 02462 g002

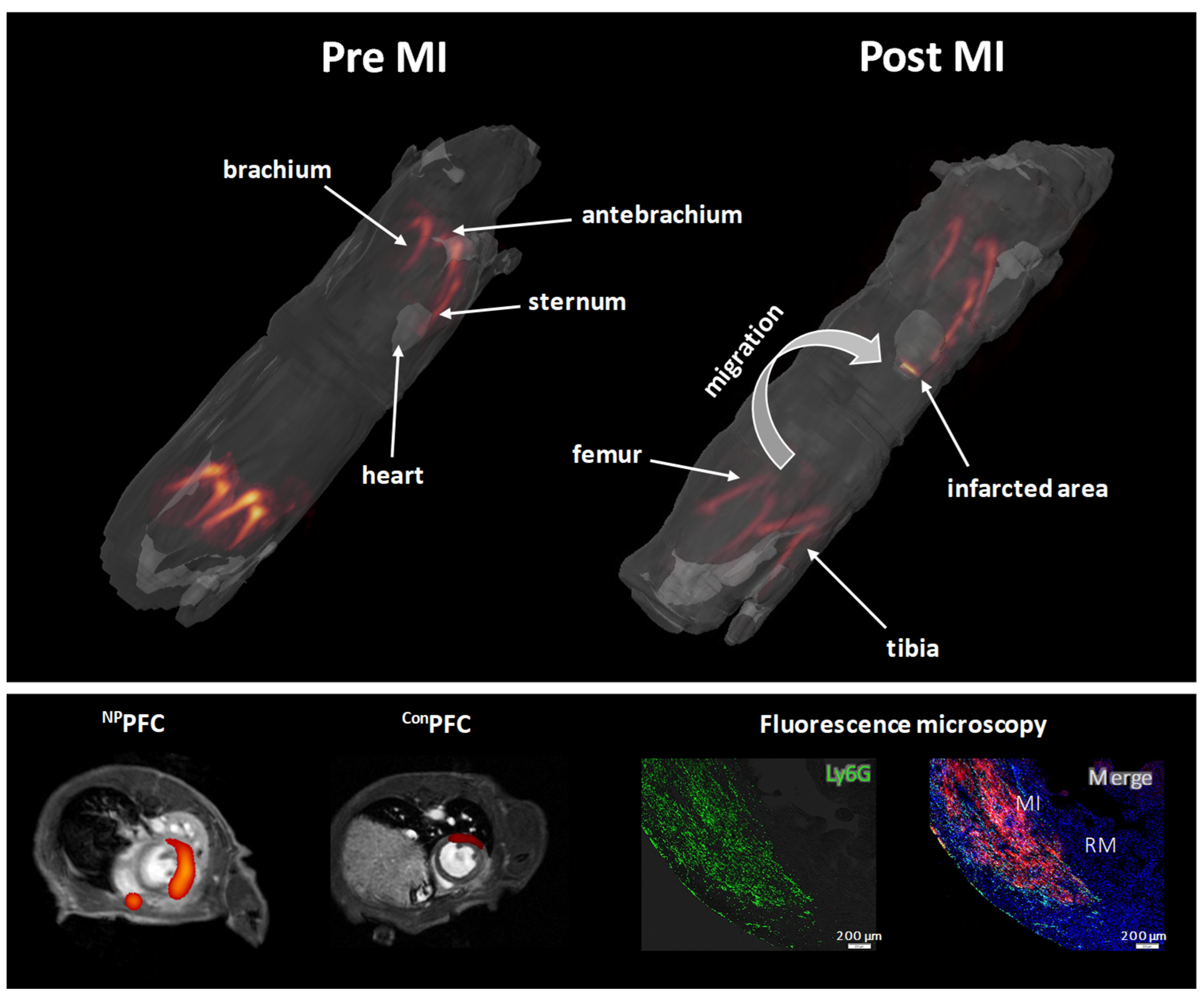

Figure 3. Mapping the trafficking of neutrophils after myocardial infarction (MI) by 1H/19F MRI. Upper panel: whole-body 3D 1H/19F MRI for systemic in vivo visualization of neutrophils pre- and post-MI. Anatomical 1H data were rendered transparent in grayscale with 19F data overlayed in orange/red; left: intravenous application of mNPPFCs prior MI resulted in in situ labelling of neutrophils. Right: re-investigation 24 h post MI revealed a pronounced reduction in the 19F signals in the bone marrow and appearance of the 19F label in the infarcted heart. Left lower panel: midventricular axial 1H/19F MRI images post MI of mice that received NPPFCs (left) or ConPFCs that are functionalized with an unspecific control peptide (right). Right lower panel: fluorescence microscopic images of infarcted heart sections after injection of rhodamine-labelled NPPFCs stained with anti-Ly6G antibodies to visualize neutrophils (left). Right: merging of the rhodamine- (red) with the Ly6G fluorescence (green) and cell nuclei stained with DAPI (4′,6-Diamidin-2-phenylindol; blue). (This figure was compiled with elements obtained from Bouvain et al., 2023 [75]; reprinted with permission).
Figure 3. Mapping the trafficking of neutrophils after myocardial infarction (MI) by 1H/19F MRI. Upper panel: whole-body 3D 1H/19F MRI for systemic in vivo visualization of neutrophils pre- and post-MI. Anatomical 1H data were rendered transparent in grayscale with 19F data overlayed in orange/red; left: intravenous application of mNPPFCs prior MI resulted in in situ labelling of neutrophils. Right: re-investigation 24 h post MI revealed a pronounced reduction in the 19F signals in the bone marrow and appearance of the 19F label in the infarcted heart. Left lower panel: midventricular axial 1H/19F MRI images post MI of mice that received NPPFCs (left) or ConPFCs that are functionalized with an unspecific control peptide (right). Right lower panel: fluorescence microscopic images of infarcted heart sections after injection of rhodamine-labelled NPPFCs stained with anti-Ly6G antibodies to visualize neutrophils (left). Right: merging of the rhodamine- (red) with the Ly6G fluorescence (green) and cell nuclei stained with DAPI (4′,6-Diamidin-2-phenylindol; blue). (This figure was compiled with elements obtained from Bouvain et al., 2023 [75]; reprinted with permission).
Ijms 26 02462 g003
Figure 4. Multispectral 19F MRI for visualization of inflammation and thrombosis: (A) 19F spectrum of a combination of perfluoro-15-crown-5 ether (PFCE), perfluorooctyl-bromide (PFOB), and perfluoro-1,3,5-trimethylcyclohexane (PFCH). The arrows in the spectrum show individual 19F peaks than can be used for selective excitation and detection. (B) Longitudinal cross-sections of buffer-filled reaction tubes that contain ex vivo generated human thrombi labelled with α2APPFOB (upper), fbnPFCH (lower), and corresponding control PFOB- and PFCH-PFCs. (C) Quantitative analysis of the 19F signal of ex vivo prepared acute, subacute, and chronic thrombi incubated with α2APPFOB and fbnPFCH. (D) Multispectral 19F MRI images of the heart and the lungs of HypoE mice after five days of a high-fat/cholesterol diet. Conventional PFCE-PFCs (red = monocytes/macrophages), α2APPFOB [cyan = activated form of FXIII (FXIIIa)], and fbnPFCH (magenta = fibrin). (E) Correlation between 19F signal at day x and the follow up of the cardiac function on day x + 5. *** = p < 0.001. Figure was modified from Flögel et al. [103] and reprinted with permission.
Figure 4. Multispectral 19F MRI for visualization of inflammation and thrombosis: (A) 19F spectrum of a combination of perfluoro-15-crown-5 ether (PFCE), perfluorooctyl-bromide (PFOB), and perfluoro-1,3,5-trimethylcyclohexane (PFCH). The arrows in the spectrum show individual 19F peaks than can be used for selective excitation and detection. (B) Longitudinal cross-sections of buffer-filled reaction tubes that contain ex vivo generated human thrombi labelled with α2APPFOB (upper), fbnPFCH (lower), and corresponding control PFOB- and PFCH-PFCs. (C) Quantitative analysis of the 19F signal of ex vivo prepared acute, subacute, and chronic thrombi incubated with α2APPFOB and fbnPFCH. (D) Multispectral 19F MRI images of the heart and the lungs of HypoE mice after five days of a high-fat/cholesterol diet. Conventional PFCE-PFCs (red = monocytes/macrophages), α2APPFOB [cyan = activated form of FXIII (FXIIIa)], and fbnPFCH (magenta = fibrin). (E) Correlation between 19F signal at day x and the follow up of the cardiac function on day x + 5. *** = p < 0.001. Figure was modified from Flögel et al. [103] and reprinted with permission.
Ijms 26 02462 g004
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Temme, S.; Kleimann, P.; Tiren, Z.-B.; Bouvain, P.; Zielinski, A.; Dollmeyer, W.; Poth, S.; Görges, J.; Flögel, U. Imaging of Thromboinflammation by Multispectral 19F MRI. Int. J. Mol. Sci. 2025, 26, 2462. https://doi.org/10.3390/ijms26062462

AMA Style

Temme S, Kleimann P, Tiren Z-B, Bouvain P, Zielinski A, Dollmeyer W, Poth S, Görges J, Flögel U. Imaging of Thromboinflammation by Multispectral 19F MRI. International Journal of Molecular Sciences. 2025; 26(6):2462. https://doi.org/10.3390/ijms26062462

Chicago/Turabian Style

Temme, Sebastian, Patricia Kleimann, Zeynep-Büsra Tiren, Pascal Bouvain, Arthur Zielinski, William Dollmeyer, Sarah Poth, Juliana Görges, and Ulrich Flögel. 2025. "Imaging of Thromboinflammation by Multispectral 19F MRI" International Journal of Molecular Sciences 26, no. 6: 2462. https://doi.org/10.3390/ijms26062462

APA Style

Temme, S., Kleimann, P., Tiren, Z.-B., Bouvain, P., Zielinski, A., Dollmeyer, W., Poth, S., Görges, J., & Flögel, U. (2025). Imaging of Thromboinflammation by Multispectral 19F MRI. International Journal of Molecular Sciences, 26(6), 2462. https://doi.org/10.3390/ijms26062462

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
