Article

Investigating the Development of Colorectal Cancer Based on Spatial Transcriptomics

by
Zhaoyao Qi
1,†,
Guoqing Gu
1,†,
Huanwei Huang
2,
Beile Lyu
1,
Yibo Liu
1,
Wei Wang
2,
Xu Zha
2,* and
Xicheng Liu
1,*
1
Laboratory for Clinical Medicine, Beijing Key Laboratory for Tumor Invasion and Metastasis, Department of Physiology and Pathophysiology, School of Basic Medical Sciences, Capital Medical University, Beijing 100069, China
2
Laboratory for Clinical Medicine, Department of Physiology and Pathophysiology, School of Basic Medical Sciences, Capital Medical University, Beijing 100069, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2025, 26(18), 9256; https://doi.org/10.3390/ijms26189256
Submission received: 10 August 2025 / Revised: 15 September 2025 / Accepted: 20 September 2025 / Published: 22 September 2025
(This article belongs to the Section Molecular Oncology)
Browse Figures
Versions Notes

Abstract

Colorectal cancer (CRC) remains a leading cause of cancer-related mortality worldwide. However, the spatial and temporal dynamics underlying its development remain poorly characterized. This study employs spatial transcriptomics (ST) to investigate the progression of intestinal tumors in APC Min/+ mice across multiple time points. We identified distinct transcriptional profiles between tumor and normal tissues, resolving six major cell types through integrated dimensionality reduction and pathological annotation. Pseudo-time trajectory analysis revealed increased expression of MMP11 and MYL9 in later stages of tumor progression. Analysis of human CRC cohorts from the TCGA database further confirmed that high expression of these genes is associated with advanced clinical stages and promotes tumor proliferation and invasion. Temporal gene expression dynamics indicated enrichment of cancer-related pathways concurrent with suppression of lipid and amino acid metabolism. Notably, genes in the DEFA family were significantly upregulated in normal tissues compared to tumor tissues. Functional validation showed that DEFA3 inhibits colon cancer cell migration and proliferation in vitro. These demonstrate the value of ST in resolving spatiotemporal heterogeneity in CRC and identify both MMP11/MYL9 and DEFA3 as potential biomarkers and therapeutic targets.

1. Introduction

Colorectal cancer (CRC) is the second-most deadly cancer in the world, which occurs in the colorectal mucosa and gland malignant tumors, and accounts for nearly 900,000 annual deaths [1,2]. In recent years, the mainstay treatments for CRC have included minimally invasive techniques for early-stage disease [3,4] and surgical resection for advanced cases [5]. Among the key molecular pathways involved, the WNT signaling pathway plays a critical role. Mutations or inactivation of the APC gene can impair the function of the destruction complex, leading to constitutive activation of the WNT pathway [6]. This results in the stabilization and nuclear translocation of β-catenin, where it activates target oncogenes, ultimately promoting glandular epithelial hyperplasia and adenoma formation [6,7]. Despite advances, the molecular mechanisms underlying CRC remain incompletely understood. Recent advances in molecular biology and sequencing technologies have enabled a deeper investigation into colorectal carcinogenesis. However, conventional RNA sequencing approaches are often limited in their ability to capture the complete transcriptomic landscape, as they lack spatial and cellular resolution. In comparison, single-cell sequencing technology has emerged as a powerful tool for characterizing genetic and functional heterogeneity by profiling gene expression at the single-cell level [8,9]. Its application to tumor tissues has provided valuable insights into cancer biology and mechanisms of tumorigenesis. Nevertheless, single-cell sequencing requires tissue dissociation, which disrupts native spatial architecture and loses critical contextual information on the cellular microenvironment. Analyzing location-dependent gene expression patterns is essential for understanding tumor initiation and progression. To address this limitation, spatial transcriptomics (ST) has been developed [10]. ST provides genome-wide expression profiling within the spatial context of intact tissue, offering valuable opportunities to elucidate tumor-related processes. As a result, the application of ST to investigate the dynamics of tumor development has become a major research focus.

2. Results

2.1. Spatial Transcriptomics Delineates the Cellular Architecture of Colorectal Tissues

We used spatial transcriptome data from intestinal tumor tissues of APC Min/+ mice. A total of 2482 capture points were obtained from the slices. We first labeled the locations of tumor tissue and normal tissue (Figure S1A) stained with H&E and then performed cluster analysis on all points and visualized the clusters using the uniform manifold approximation and projection (UMAP) method. All points were aggregated into six clusters (Figure 1A) according to the pathological information of the cell type (Figure S1B), which can be divided into six categories through different cell markers, namely, endothelial cells, epithelial cells, tumor cells, immune cells, and fibroblasts (Figure 1B). Here, we found that unsupervised clustering analysis could cluster ST points with similar characteristics, such as immune cells and tumor regions, and we located various types of cells back on the spatial transcriptome map (Figure 1C). Our analysis results show that S100A6 and CLU exhibit high expression in intestinal tumor tissue (Figure 1D–G).

2.2. Gene Changes in the Development of APCMin/+ Tumor Tissue over Time

We aimed to investigate the progression of APC Min/+ from tumorigenesis to the stabilization of tumor numbers, spanning from 18 days to 90 days, to describe the changes in tumor tissue. According to the pseudo-time analysis of cell differentiation, we divided it into five states (Figure 2A) and then mapped each state to its corresponding time point. We found that there were two types of differentiation tracks in the intestinal tissue of mice from 18 days to 90 days, one of which was a process of transitioning from 18 days to 80 days along the time axis and, finally, reaching 90 days, and the other was a process of transitioning from 18 days along the event to 35 days and from 50 days to 65 days, based on the results of the time points (Figure 2B). State 4 can be through of as the middle stage and State 5 as the late stage. We identified two genes with high expression in the late stage. The expression level of matrix metalloproteinase-11 (MMP11) tends to increase over time (Figure 2C,D). Additionally, the expression level of the myosin light chain 9 (MYL9) gene is very high in advanced CRC (Figure 2E,F). We found that the KRAS (Figure 2G,H) and TGF-β (Figure 2K,L) genes continue to be expressed during differentiation, with relatively high levels of expression, while there is a fluctuation in the expression level of Tp53 (Figure 2I,J). These results are consistent with the changes in gene expression in tumor tissue prior to the onset of disease. The expression level of the BRAF gene is relatively low during the overall differentiation process (Figure 2M,N). We divided all gene expression patterns into four clusters by analyzing gene expression in pseudo-time analysis (Figure S1C).

2.3. MMP11 and MYL9 Exploration and Functional Assays Using Publicly Available Datasets

We downloaded relevant data on CRC patients from the TCGA database, encompassing a total of 620 cases. Subgroup analyses were conducted based on MMP11 expression levels (MMP11 high-expression group, n = 157; MMP11 low-expression group, n = 157, top 25%) and MYL9 expression levels (MYL9 high-expression group, n = 156; MYL9 low-expression group, n = 155, top 25%), including a control group of para-tumoral tissue (n = 51). We utilized the aforementioned four subgroups to compare differences in clinical p-TNM staging. Specifically, for p-T staging (Figure 3A), p-N staging (Figure S2C), p-M staging (Figure S2D), and p-TNM staging (Figure 3B), the percentage of patients with high MMP11 and MYL9 expression significantly increased, with statistical significance observed for p-TNM stages III and IV (p < 0.05). Moreover, in tumor tissues from CRC patients, the expression levels of MMP11 and MLY9 showed a positive correlation (Figure 3F). We analyzed the relationship between MMP11 and MYL9 gene expression and tumor mutational burden. We found that high expression of MMP11 and MYL9 genes was negatively correlated with tumor mutation burden (TMB) scores (p < 0.05) (Figure 3D,E). By comparing differentially expressed genes between the MMP11 and MYL9 high-expression groups and the adjacent non-cancerous tissue group, we found that 1728 genes were upregulated and 1038 genes were downregulated in the MMP11 high-expression group. In the MYL9 high-expression group, 1608 genes were upregulated and 891 genes were downregulated. GO analysis indicated that Biological Process terms in both groups clustered around extracellular matrix organization and extracellular structure organization; Molecular Function terms clustered around signaling receptor activator activity and receptor ligand activity; Cellular Component terms clustered around collagen-containing extracellular matrix and endoplasmic reticulum lumen (Figure S3A,B). KEGG pathway enrichment analysis revealed that pathways in both groups were primarily concentrated in the cell cycle, protein digestion and absorption, and p53 signaling pathways (Figure 3C,G).

2.4. Temporal Dynamics of Pathway Activation and Suppression During Tumor Progression

We chose to integrate these data for analysis. We took 18 days, 35 days, and 40 days as the pre-tumor stage; 50 days, 64 days, and 65 days as the mid stage of tumor development; and 80 days and 90 days as the late stage of tumor development. We conducted GO and KEGG analyses on these three stages. Based on the analysis results, it was found that biological processes related to DNA, RNA, and ribosomes were activated in the early stages of tumor development, and splicing-related biological processes were also activated. Therefore, splicing is very important for the tumorigenesis process, which requires the synthesis of a large number of proteins. The intestinal absorption function, digestion process, lipid catabolism, and carbohydrate metabolism biological processes were all inhibited (Figure S1D).
We explored the KEGG pathways during this period (Figure S1F), and the signaling pathways activated in the early stages of tumor development include the ribosome signaling pathway. The pathways suppressed in the later stages of tumor development were largely consistent with those in the previous two stages (Figure S1). We studied the difference in gene expression between tumor tissue and peripheral tissue in more detail. We confirmed the obvious separation between tumor tissue region and normal tissue using PCA (Figure S2A). Then, we integrated all time points, and the integrated results are basically consistent with the activation and inhibition of related biological processes at each time period (Figure 4A). Compared to normal epithelial cells, genes in tumor tissue are enriched in different types of cancer-related pathways, including proteoglycans in cancer, nucleocytoplasmic transport, renal cell carcinoma, CRC, central carbon metabolism in cancer, small-cell lung cancer, and endometrial cancer (Figure 4B).

2.5. Spatial and Temporal Analysis Identifies DEFA Family Genes as Potential Tumor Suppressors

We integrated data from all points in time. A volcano map and heatmap show that compared with the tumor tissue the expression of DEFA genes in the normal tissue increased (Figure 5A,B), including in DEFA3, DEFA21, DEFA22, DEFA24, DEFA29, and DEFA30. We first analyzed the expression of DEFA genes in several parts of tissues by a violin diagram. The results show that the expression of DEFA genes in tumor tissue increased first and then decreased (Figure 5C). In contrast, the expression of DEFA in immune cells increased over time (Figure 5D), while the expression of DEFA in Paneth cells did not exhibit a difference over time, which may be because DEFA was produced by Paneth cells (Figure S2B). There were also differences in the expression of DEFA genes in other types of cells, such as endothelial cells (Figure S2E), fibroblasts (Figure S2F), and enterocytes (Figure 6F). We located these DEFA genes on the spatial transcriptome map and found that the expression of DEFA in tumor tissue was significantly lower (Figure 6A–E).
We aimed to verify the function of DEFA further to determine whether it affects the proliferation, migration, and invasion of CRC cells. We selected the CT26 CRC cell line as the research object. The wound-healing assay showed that, compared with the control group, the addition of DEFA3 in vitro could effectively inhibit the migration of tumor cells (Figure S3C); then, the CCK-8 assay showed that the proliferation of CRC cells treated with DEFA3 decreased (Figure S3D). Finally, we treated CT26 cells with DEFA3 and used Ki-67 to detect the proliferation for immunofluorescence. Here, we found that the fluorescence intensity of the CT26 cell line treated with DEFA3 decreased (Figure S3E), which further showed the inhibitory effect of DEFA3 on tumor cell proliferation. Finally, we conducted a gene network analysis of the DEFA gene (Figure S5) and found that there were tumor-suppressor-related genes associated with DEFA, including FGF21 and ITLN1, as well as tumor-promoting genes associated with DEFA, including GNB3, CRB2, DIO3, HPD, and Dll3. These results suggest that DEFA plays a crucial role in the development and progression of tumors.

3. Discussion

Tumor research has advanced in tandem with sequencing technologies, transitioning from bulk sequencing to single-cell sequencing. Single-cell sequencing enables investigation of cellular heterogeneity at a single-cell resolution and has become widely used for detecting tumor genes [11,12]. However, the tissue dissociation step required for single-cell sequencing inevitably disrupts the native spatial architecture of tissues and erases critical contextual information about the cellular microenvironment, limiting efforts to decipher tumor-related mechanisms. ST, named Nature’s Method of the Year in 2020 [13], addresses this gap and has since been applied to study a range of diseases. For example, Kuppe et al. employed ST to construct an integrated molecular atlas of spatial gene expression in human myocardial infarction, providing valuable insights for mechanistic and therapeutic research in heart disease [14]. Similarly, Chen et al. employed ST combined with in situ hybridization to reveal multicellular gene co-expression networks in Alzheimer’s disease, two of which were driven by amyloid plaque accumulation [15]. This study has applied spatial transcriptome sequencing to characterize the temporal progression of CRC in APC Min/+ mice. We constructed a spatial transcriptomic map of CRC development and further defined molecular differences between tumor and normal tissues, as well as differences validated, in part, through known cell markers like S100A6 and CLU. S100A6, a calcium-binding protein of the S100 family, localizes primarily to the cytoplasm of tumor cells [16,17], while CLU, a multifunctional protein, is significantly upregulated under cellular stress in diseases including cancer [18]. Our data confirm their high expression in murine intestinal tumor regions.
A key focus of our work was analyzing intestinal tumors in mice at various time points. This approach allowed us to identify differentially expressed genes in APC Min/+ mice during the late stages of intestinal tumorigenesis and track how tumor-related gene expression changes over time. Notably, our results show that MMP11 and MYL9 are highly expressed in late-stage tumors. MMP11 serves as a key mediator of normal physiological tissue remodeling, and its upregulation has been previously associated with tumor initiation and malignant progression [19]. Our data confirm its expression increases progressively over time in APC Min/+ mice. MYL9, a fibroblast marker associated with CRC severity, is also highly expressed in advanced CRC [20]. This finding is consistent with our observation of elevated MYL9 in late-stage murine tumors. Both genes are known to promote tumor proliferation and invasion [19,20], and our spatial transcriptomic data further reinforce their association with intestinal tumor progression. Additionally, we identified several genes associated with canonical colorectal cancer pathways, such as the proto-oncogenes KRAS [21] and BRAF [22] and the tumor suppressor TP53 [23], as well as components of the TGF-β signaling pathway [23]. KRAS and TGF-β were consistently expressed throughout differentiation, whereas the expression of TP53 exhibited dynamic fluctuations—a pattern consistent with previously reported pre-tumor gene expression dynamics [22]. Expression of BRAF remained consistently low throughout the process, reflecting its context-dependent role in CRC pathogenesis. We also observed temporal changes in other key genes: lipid metabolism-associated genes such as APOA4, FABP1, and FABP2 were upregulated over time [23], which is consistent with reports that excess lipids promote tumor cell proliferation, colonization, and metastasis. In contrast, expression of gastrointestinal factor 1 declined gradually, mirroring its downregulation in gastric cancer tissues [24] and suggesting a conserved role across gastrointestinal malignancies.
The integration of murine spatial transcriptomic data with human CRC datasets, which enhances the translational relevance of our findings [25]. We validated key observations using data from 620 human CRC cases in TCGA database. For instance, in human CRC, high MMP11 and MYL9 expression correlated with advanced p-TNM stages (III/IV) and showed a positive correlation with each other—mirroring the temporal upregulation of these genes in late-stage murine tumors. TMB is a critical biomarker for predicting response to immunotherapy [26,27]. Furthermore, our analysis showed that high expression of MMP11 and MYL9 in human colorectal cancer was inversely correlated with TMB. This suggests that MMP11 and MYL9 may drive CRC progression by contributing to therapy resistance—possibly through reduced tumor immunogenicity or the establishment of an immunosuppressive microenvironment. These findings were consistently observed in both murine and human datasets, supporting the potential of MMP11 and MYL9 as clinical biomarkers or therapeutic targets. KEGG analysis also revealed that genes upregulated in human CRC tissues exhibiting high MMP11/MYL9 expression were enriched in key pathways, such as cell cycle and p53 signaling—pathways similarly activated in late-stage murine tumors, strengthening the cross-species relevance of these findings.
To better contextualize these temporal gene expression patterns, we analyzed stage-specific pathway activation and inhibition in APC Min/+ mice. During the early stages of tumor development, biological processes involving DNA, RNA, and ribosomes were upregulated, along with splicing-related activities. Pre-mRNA splicing removes introns to produce mature mRNA, which then directs protein synthesis during translation [28]. Moreover, this process is critical for tumorigenesis, as cancer cells require massive protein production to sustain their uncontrolled proliferation. Conversely, functions—such as intestinal absorption, digestion, lipid catabolism, and carbohydrate metabolism—were suppressed, which is consistent with established tumor phenotypes in which cancer cells disrupt normal tissue function to prioritize their own survival. For instance, tumor cells can induce lipolysis in adjacent adipocytes to acquire fatty acids for energy production or lipid accumulation, while suppression of cell-killing mechanisms enables unlimited proliferation [29,30,31]. KEGG analysis of early-stage tumors revealed activation of the ribosome signaling pathway, which is critical for synthesizing cellular components required for rapid cell growth, particularly in cancer cells undergoing uncontrolled proliferation [32], as well as the Hippo signaling pathway, which is closely associated with tumor initiation and progression [33]. The estrogen signaling pathway was also activated. Although estrogens promote normal endometrial proliferation, sustained estrogen signaling is a well-established risk factor for endometrial cancer [34]; its activation in early-stage CRC may indicate shared mitogenic mechanisms across cancer types. Additionally, the nucleocytoplasmic transport pathway was activated. In non-tumor cells, APC protein is distributed evenly between the nucleus and cytoplasm, but in approximately 80% of CRC patients, APC mutations result in accumulation of a truncated, stable protein within the nucleus [35], disrupting normal transport mechanisms and promoting WNT pathway dysregulation. The cell cycle pathway was also activated, driven by continuous cyclin-dependent kinase activation via ubiquitin-mediated proteolysis of cyclins and kinase inhibitors [36]. Furthermore, focal adhesions, which regulate directional cell migration [37], were upregulated. The PI3K-Akt pathway, which regulates cell proliferation, differentiation, and survival [38], was activated, as was the TGF-β pathway, with enrichment of tumor-related pathways, including those related to proteoglycans in cancer and renal cell carcinoma. Notably, histidine metabolism was inhibited; recent work shows histidine catabolism enhances methotrexate efficacy by increasing cancer cell sensitivity to the drug [39], suggesting this inhibition may impact chemotherapy responses in early CRC.
In the middle stages of tumor development, enriched biological processes included positive regulation of cell motility, locomotion, and cell division—all of which promote tumor cell proliferation, migration, and invasion. Suppressed processes remained consistent with those observed in the early stages, and KEGG analysis revealed more differentially expressed genes enriched in CRC-specific pathways, such as colon cancer and microRNAs in cancer. The oxidative phosphorylation pathway was inhibited, reflecting the well-documented shift in cancer cells toward glycolysis, which leads to downregulated oxidative phosphorylation in many cancers [40]. In the late stages, activated biological processes mirrored those of earlier stages but with greater inhibition of immune-response-related pathways, likely contributing to immune evasion, as well as more differential genes enriched in diverse tumor-related pathways, such as melanoma and pancreatic cancer. Principal component analysis confirmed clear separation between tumor and normal tissues, and integrated analysis across all time points showed tumor tissues were enriched in cancer-related pathways such as nucleocytoplasmic transport and central carbon metabolism in cancer, which is consistent with human CRC biology.
Also, our study has several limitations that merit detailed discussion. First, the sample size for the murine spatial transcriptomic analyses was relatively small. Larger cohorts of APC Min/+ mice would help confirm the reproducibility of our temporal gene expression trends and reduce the risk of false-positive or negative findings. Second, the inherent technical constraints of the ST platform used in this study impact data resolution. While we combined ST data with pathological annotation to refine cell type assignments, the lack of a single-cell resolution prevents us from dissecting cell–cell interactions at the individual cell level, which are critical for understanding tumor progression. Third, our functional validation of DEFA3, MMP11, and MYL9 was limited to in vitro assays and lacked in vivo confirmation. Although we demonstrated that DEFA3 inhibits proliferation and migration of CT26 cells in vitro, and linked MMP11/MYL9 expression to advanced CRC in human datasets, we did not test the functional impact of these genes in living tumor models. For example, genetic manipulation of DEFA3, MMP11, or MYL9 in APC Min/+ mice would directly reveal their causal roles in tumor initiation, progression, or metastasis. Additionally, the functional assays for DEFA3 were limited to a single murine CRC cell line, which may not fully represent the genetic diversity of human CRC. Human CRC subtypes harbor distinct mutations—such as BRAF V600E, NRAS mutations or mismatch repair deficiency—which can alter cellular responses to regulatory factors like DEFA3.
The dual role of the DEFA family in cancer warrants even more cautious interpretation in light of our data limitations. Although our findings suggest that DEFA3 acts as a tumor suppressor in CT26 cells and is downregulated in murine tumors, previous reports have described conflicting roles for other DEFA family members. It is worth noting that DEFA proteins, which belong to the α-defensin family, are well-established for their broad-spectrum antibacterial and anti-HIV properties [41]. Some studies link DEFA family members to pro-tumor effects. DEFA1-3 are upregulated in lung cancer, renal cell carcinoma, and bladder cancer [42,43], and in bladder cancer, their expression in capillary endothelial cells correlates with in-creased invasiveness [44]. DEFA has also been reported to promote tumor cell proliferation in late-stage tumor development [45]. Conversely, DEFA1 can inhibit angiogenesis by impairing endothelial cell proliferation and migration [46], and high concentrations of DEFA1-3 exhibit cytotoxicity against cancer cell lines [47], the effect of which was first documented in early studies showing that human and rabbit granulocyte defensins mediate in vitro tumor cell cytolysis. Lower concentrations of DEFA1-3, however, may promote cancer cell motility and invasion [48], highlighting the importance of concentration in defining function. In our study, DEFA expression in murine immune cells increased progressively over time, whereas in tumor tissues it peaked during early stages before declining, suggesting that the role of DEFA may transition from tumor-suppressive to context-dependent or even pro-tumorigenic as the tumor microenvironment evolves. It should also be noted that we did not explore cell-type-specific functions of DEFA. For example, DEFA produced by Paneth cells—the primary source of intestinal defensins—may exert distinct functional impacts compared to DEFA secreted by tumor-infiltrating immune cells. Furthermore, although we identified several DEFA-associated genes, such as FGF21 and GNB3, these interactions still require experimental validation. Finally, while DEFA6 has been proposed as a potential biomarker in CRC, its specificity and sensitivity are demonstrated to be inferior to those of carcinoembryonic antigen [45], underscoring the need for careful interpretation regarding the clinical utility of DEFA family members. Further mechanistic studies investigating DEFA interactions with signaling components such as bradykinin receptors [49] may provide deeper insight into its context-dependent roles in tumorigenesis.
In summary, our spatial transcriptomic analysis of APC Min/+ mice reveals critical temporal and spatial dynamics in CRC development and validates key findings in human CRC datasets. We identified MMP11 and MYL9 as potential biomarkers for advanced disease stages and underscore the context-dependent role of DEFA family genes in tumor progression—supported by stage-specific pathway analyses and cross-species validation. Although this study has limitations, as noted above, addressing them in future work will help elucidate broader mechanistic insights and enhance the translational potential of our findings for targeted therapy development.

4. Materials and Methods

4.1. Experimental Animals

The control sources for the study include wild-type (WT) mice used in hybridization to generate APC Min/+ mice, as well as normal tissue regions within the APC Min/+ mice themselves. The sample size was determined based on literature reviews and prior laboratory research, with strict adherence to the 3R principles. Specifically, the study evaluated tumor development across seven time points—18 days, 35 days, 40 days, 50 days, 64 days, 65 days, 80 days, and 90 days—with 3–5 mice allocated to each time point. To minimize confounding factors, multiple strategies were implemented: all experiments were conducted on weight-matched mice aged 5–6 w, and group allocation was optimized through weight matching and averaging littermates across groups (18–24 g). All experiments were performed using male mice. Blinding was rigorously applied, with both testers and analysts remaining unaware of group allocations throughout the experiment and data analysis.
Housing conditions involved maintaining the mice in a specific pathogen-free (SPF) facility, with ad libitum access to standard animal chow and water. Regular weight monitoring was performed as part of the animal care, with a predefined humane endpoint: euthanasia was administered if a mouse experienced 10% weight loss within one week. Euthanasia for tissue collection was conducted using carbon dioxide asphyxiation. For each time point, representative tumor sites were selected from the euthanized mice for sectioning. Ethical approval for all procedures was granted by the Animal Experimentation Committee of Capital Medical University, with the license number AEEI-2021-083. In addition, the date on which we received approval for an animal ethics code is 3 March 2022. The health status of the mice was ensured by SPF housing, and their genetic background was confirmed as APC Min/+ mice. The primer sequence is Apc-F: 5′-ATACTACGGTATTGCCCAGC-3′ and Apc-R: 5′-TGTTGTTGGATGGTAAGCAC-3′, and the double band on the agarose gel electrophoresis is APC Min/+ mice.

4.2. Spatial Transcriptomics

4.2.1. Collection and Preparation of Colorectal Cancer Tissues

A small amount of OCT was added to the embedded box and placed in a −80 °C refrigerator. Mice were sacrificed using euthanasia, and the entire intestine was immediately removed and split into the following three parts: jejunum, ileum, and colon. The intestinal contents were rinsed with a mixture of PBS and OCT fluids (PBS: OCT = 1:1). All of the above processes were performed on ice. Subsequently, each part of the intestinal tissue was placed in the frozen tissue-embedding box mentioned above, wrapped in a Swiss roll form, and OCT was added until all intestinal tissues were wrapped and quickly stored in −80 °C refrigerator.

4.2.2. Slide Preparation

Spatial transcriptome sample slides contained four capture regions that could accommodate four individual tissue sections, each with 5000 barcoded spots, at 6.5 × 6.5 mm per slide. Due to the small area of the tumor tissue and the low utilization of slides, we chose to paste two pieces of tissue into a capture area. After rapid staining, if there was tumor tissue in the rapid section, the tumor location on the slide was marked, the mass covered with OCT, and the tissue stored at −80 °C for preservation. The tissue-embedding blocks that formed were, subsequently, attached at a thickness of 10 µm on dedicated slides of the spatial transcriptome. Then, they were incubated for 1 min at 37 °C, fixed in 1% methanol for 5 min, and washed in PBS for 3 min. We applied ST techniques that are currently applicable to all of the slices, yielding conventional hematoxylin–eosin (H&E) stained images, as well as gene expression profiles collected by each microarray spot. Tissue sections were annotated for tumor tissue and normal tissue and were selected.

4.2.3. Tissue Permeabilization

According to the Visium Spatial Tissue optimization slides and kit, provided by 10× Genomics, the tissue permeation conditions were optimized. The main step is to place tissue slices in the seven capture regions of the Visium tissue optimization slide, one of which is set as a positive control without the addition of permutase. Slices were fixed, stained, scanned, and imaged, followed by the addition of translucases, and different penetration times were set. The mRNA released during infiltration can bind to oligonucleotides in the capture region, followed by reverse transcription synthesis of the fluorescent cDNA and imaging. The permeation time with the largest fluorescence signal and the smallest signal diffusion is the best. If the signals are the same, a longer penetration time is the best penetration time.

4.2.4. Visium-Sequencing Library Preparation

We used the Visium spatial gene expression slide and kit, provided by 10× Genomics, to perform spatial gene-expression sequencing. The 10 μM tissue sections were attached to the capture area of the slide. After H&E staining, photos in the open-field mode were taken. The experiment was conducted based on the optimal tissue-permeation time obtained with the tissue permeation slide. Then, reverse-transcription experiments were conducted to obtain cDNA with spatial location information and amplified to build a library.

4.3. Spatial-Transcriptomics Data Processing

4.3.1. Quality Control of Sequencing Data and Gene Quantification

Sequencing data were analyzed using Space Ranger (v4.0), an official software package, provided by 10× Genomics, specifically for processing its ST data; raw data generated by high-throughput sequencing were in FASTQ format. Space Ranger first aligned the FASTQ sequencing data to the reference genome, then counted the unique molecular identifiers to avoid a PCR amplification bias, as well as conducted barcode filtering based on the distribution of barcodes (which are used to label spatial positions of capture spots) to, ultimately, generate a gene-barcode expression matrix. After obtaining this matrix, the filtered spot–gene expression matrix was further analyzed using Seurat (v4.0.6), which is capable of integrating gene expression, comparative genomic hybridization arrays, single-nucleotide polymorphism arrays, and clinical data via interactive visualization. Data normalization was performed as the initial step of the downstream analysis [50,51].

4.3.2. Dimensionality Reduction and Clustering

Unsupervised clustering of capture spots was implemented using Seurat software (v4.0.6) [52]. Specifically, linear dimensionality reduction was conducted through PCA based on gene expression levels, and the UMAP dimensionality reduction method was applied to visualize the clustering results of capture spots [53]. This UMAP-based visualization approach preserves the global structural features of the original data to the maximum extent, facilitating clear observation of the separation between different clusters.

4.3.3. Cell Type Annotation and Identification

Cell types corresponding to the results of the dimensionality reduction and clustering were inferred and identified by referencing the descriptions of cell marker genes in the previous literature. Classification was performed using specific marker genes for different cell types, including endothelial cells (Cdh5, Pecam1, Cldn5, and Eng), epithelial cells (Epcam and Krt8), immune cells (Cd79a, Cd79b, Cd3d, Cd86, abd Cd3e), fibroblasts (Dcn, Thy1, Col3a1, Col5a2, and Col1a2), Paneth cells (Pgc), goblet cells (Muc2), stem cells (Lgr5), and intestinal tumor cells (Kras and Trp53) [54,55]. Seurat was used to identify marker genes; genes that were differentially upregulated in each cell cluster relative to other cell clusters were screened out, and these differentially expressed genes were defined as potential marker genes for the corresponding cell type. Finally, dot plots were used to visualize the identified marker genes.

4.3.4. Pseudo-Time Analysis

Pseudo-time analysis was carried out using Monocle 2 (available at http://cole-trapnell-lab.github.io/monocle-release, accessed on 30 May 2023). Prior to conducting Monocle 2 analysis, marker genes were selected from the Seurat clustering results and the filtered raw expression counts of cells, and these marker genes were further used to identify differentially expressed genes that showed expression changes across different clusters, providing a basis for constructing the pseudo-time trajectory of cell differentiation [56].

4.3.5. Gene Enrichment Analysis

Pathway enrichment analysis was performed using the Cluster Profiler package based on the Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) databases. Among them, GO analysis annotated the functions of relevant genes mainly from the following three dimensions: cellular component (CC, describing the subcellular localization of gene products), molecular function (MF, describing the molecular activities of gene products), and biological process (BP, describing the biological processes in which genes participate). The KEGG enrichment analysis annotated the signaling pathways involved in the target genes. For the KEGG analysis, the hypergeometric distribution algorithm was used to calculate the statistical significance of differential gene enrichment in each pathway, with smaller p-values indicating stronger associations between the corresponding pathway and the differential genes. A p-value < 0.05 was considered statistically significant.

4.4. Bioinformatics Analysis of Clinical Human Samples

We downloaded the STAR counts data and the corresponding clinical information for CRC from the TCGA database (https://portal.gdc.cancer.gov). We ultimately selected samples from the MMP11 high-expression group (n = 157), MMP11 low-expression group (n = 157), MYL9 high-expression group (n = 156), MYL9 low-expression group (n = 155), and para-tumoral tissue group (n = 51) for further analysis. We then extracted data in the TPM format and performed normalization using the log2 (TPM+1) transformation [25], after retaining samples that included both RNA-seq data and clinical information. The data are presented as the mean ± standard deviation. Statistical analysis was performed using R software v4.0.3. A p-value < 0.05 was considered statistically significant [25,57]. Functional enrichment analysis included the KEGG pathway enrichment results and GO term enrichment results for the differentially upregulated genes, as well as the KEGG pathway enrichment results and GO term enrichment results for the differentially downregulated genes. These functional enrichment results are derived from the R package Cluster Profiler (v3.18.0) [58,59]. We employed Spearman’s correlation analysis to describe the correlations among quantitative variables that do not follow a normal distribution [60]. We utilized online platforms to complete the relevant bioinformatics analyses (https://www.aclbi.com/static/index.html#/tcga, accessed on 1 September 2025).

4.5. Cell Culture

CT26.WT cells were obtained from ATCC (Manassas, VA, USA, CRL-2638) and maintained in RPMI 1640 medium (ATCC, 30-2001). The RPMI 1640 medium was supplemented with 10% fetal bovine serum (FBS, Gibco, Grand Island, NY, USA), 100 U/mL penicillin, and 100 μg/mL streptomycin (Life Technologies, Carlsbad, CA, USA), except as indicated. Cells were grown at 37 °C in a 5% CO2 incubator. The CT26.WT cell line was identified with short tandem repeat profiling by the ATCC. Upon receipt from the ATCC, the cells were expanded and, subsequently, stored in liquid nitrogen. The stored vials were thawed for experiments and used in <2 months. All cell lines were confirmed to be negative for mycoplasma by ATCC.

4.6. Wound-Healing Assay

The cells were grown as a confluent monolayer in a six-well culture dish. The cell monolayers were scratched, using a sterile p200 pipette tip to create a wound, and then washed with PBS to remove cell debris. The cells were incubated in medium supplemented with culture media with or without DEFA3. Cell migration was monitored under an inverted microscope equipped with a camera. The wound distance (width) at different time points was measured and calculated at 0 h, 24 h, and 48 h.

4.7. CCK-8 Assay

Cells were seeded at a density of 3000 per well in 96-well plates and cultured for 24 h in 100 μL medium containing 10% FBS. Next, a 10 μL CCK-8 solution (NCM Biotech, C6005, Suzhou, Jiangsu, China) was added per well, and the cells were cultured at 37 °C. The number of viable cells was evaluated by measuring the absorbance at 450 nm using a SynergyH1 microplate reader (Burlington, VT, USA).

4.8. Immunofluorescence

For Immunofluorescence, CT26.WT was processed with PBS or DEFA3 for 12 h. Then, Ki-67 (Cell Signaling Technology, Boston, MA, USA, 12202, dilution 1:400) was used overnight at 4 °C. The secondary antibodies were horseradish-peroxidase-conjugated anti-rabbit IgG (Cell Signaling Technology, Boston, MA, USA, 7074, dilution 1:200) and anti-rabbit IgG (Thermo Fisher Scientific, Waltham, Massachusetts, USA, A-11304, dilution 1:200), incubated at room temperature for 1 h.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms26189256/s1.

Author Contributions

X.L., W.W. and X.Z.: designed the experiment; G.G. and X.Z. performed the experiments; Z.Q., G.G., X.Z., H.H., B.L. and Y.L.: analyzed and interpreted data; Z.Q. and G.G.: wrote the original draft; X.L.: reviewed and edited the draft; X.L.: provided funding acquisition. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Key R&D Program of China (grant numbers: 2024YFF0728704 and 2024YFA1306901), the National Natural Science Foundation of China (grant numbers: 82073126 and 81874076). All data are archived in Capital Medical University.

Institutional Review Board Statement

The Animal Experimentation Committee of Capital Medical University set the ethical standards for our procedures and treatments (AEEI-2021-083). A detailed experimental protocol was established prior to the commencement of this study, covering the research objectives (exploring the mechanisms underlying CRC development using ST), experimental design (multiple time-point tissue sampling in mice and validation of cellular functions), and data analysis plans (Seurat ST analysis, pseudo-time trajectory modeling, enrichment analysis, etc.). This protocol was reviewed and approved by the Animal Experiment Ethics Committee of Capital Medical University (ethics approval number: AEEI-2021-083. The date on which we received approval for the animal ethic code is 3 March 2022).

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article/Supplementary Materials. The ST data generated in this study have been deposited at the China National Center for Bioinformation (https://www.cncb.ac.cn, accessed on 15 September 2025) under project number PRJCA046204. Further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of the study, the collection, analyses, interpretation of data, and the writing of the manuscript.

Abbreviations

The following abbreviations are used in this manuscript:
BRAFB-Raf Proto-Oncogene
CCK-8Cell Counting Kit-8
CKIsCyclin-Dependent Kinase Inhibitors
CRCColorectal Cancer
DEFADefensin Alpha
GOGene Ontology
H&EHematoxylin and Eosin
HIVHuman Immunodeficiency Virus
KEGGKyoto Encyclopedia of Genes and Genomes
KRASKirsten Rat Sarcoma Viral Oncogene Homolog
MMP11Matrix Metallopeptidase 11
mRNAMessenger RNA
MYL9Myosin Light Chain 9
PBSPhosphate-Buffered Saline
PCAPrincipal Component Analysis
S100A6S100 Calcium-Binding Protein A6
STSpatial Transcriptomics
TGF-βTransforming Growth Factor Beta
TMBTumor Mutation Burden
UMAPUniform Manifold Approximation and Projection
WTWild Type

References

  1. Sung, H.; Ferlay, J.; Siegel, R.L.; Laversanne, M.; Soerjomataram, I.; Jemal, A.; Bray, F. Global Cancer Statistics 2020: GLOBOCAN Estimates of Incidence and Mortality Worldwide for 36 Cancers in 185 Countries. CA Cancer J. Clin. 2021, 71, 209–249. [Google Scholar] [CrossRef]
  2. Dekker, E.; Tanis, P.J.; Vleugels, J.L.A.; Kasi, P.M.; Wallace, M.B. Colorectal cancer. Lancet 2019, 394, 1467–1480. [Google Scholar] [CrossRef] [PubMed]
  3. Hayashi, N.; Tanaka, S.; Hewett, D.G.; Kaltenbach, T.R.; Sano, Y.; Ponchon, T.; Saunders, B.P.; Rex, D.K.; Soetikno, R.M. Endoscopic prediction of deep submucosal invasive carcinoma: Validation of the narrow-band imaging international colorectal endoscopic (NICE) classification. Gastrointest. Endosc. 2013, 78, 625–632. [Google Scholar] [CrossRef] [PubMed]
  4. Bhurwal, A.; Bartel, M.J.; Heckman, M.G.; Diehl, N.N.; Raimondo, M.; Wallace, M.B.; Woodward, T.A. Endoscopic mucosal resection: Learning curve for large nonpolypoid colorectal neoplasia. Gastrointest. Endosc. 2016, 84, 959–968.e957. [Google Scholar] [CrossRef]
  5. Ma, B.; Gao, P.; Song, Y.; Zhang, C.; Zhang, C.; Wang, L.; Liu, H.; Wang, Z. Transanal total mesorectal excision (taTME) for rectal cancer: A systematic review and meta-analysis of oncological and perioperative outcomes compared with laparoscopic total mesorectal excision. BMC Cancer 2016, 16, 380. [Google Scholar] [CrossRef]
  6. Bugter, J.M.; Fenderico, N.; Maurice, M.M. Mutations and mechanisms of WNT pathway tumour suppressors in cancer. Nat. Rev. Cancer 2020, 21, 5–21, Correction in Nat. Rev. Cancer 2020, 21, 64. https://doi.org/10.1038/s41568-020-00316-y. [Google Scholar] [CrossRef]
  7. Maurice, M.M.; Angers, S. Mechanistic insights into Wnt-β-catenin pathway activation and signal transduction. Nat. Rev. Mol. Cell Biol. 2025, 26, 371–388. [Google Scholar] [CrossRef]
  8. Luecken, M.D.; Theis, F.J. Current best practices in single-cell RNA-seq analysis: A tutorial. Mol. Syst. Biol. 2019, 15, e8746. [Google Scholar] [CrossRef]
  9. Slovin, S.; Carissimo, A.; Panariello, F.; Grimaldi, A.; Bouché, V.; Gambardella, G.; Cacchiarelli, D. Single-Cell RNA Sequencing Analysis: A Step-by-Step Overview. Methods Mol. Biol. 2021, 2284, 343–365. [Google Scholar] [CrossRef]
  10. Rao, A.; Barkley, D.; França, G.S.; Yanai, I. Exploring tissue architecture using spatial transcriptomics. Nature 2021, 596, 211–220. [Google Scholar] [CrossRef] [PubMed]
  11. Zhang, L.; Li, Z.; Skrzypczynska, K.M.; Fang, Q.; Zhang, W.; O’bRien, S.A.; He, Y.; Wang, L.; Zhang, Q.; Kim, A.; et al. Single-Cell Analyses Inform Mechanisms of Myeloid-Targeted Therapies in Colon Cancer. Cell 2020, 181, 442–459.e429. [Google Scholar] [CrossRef]
  12. Ziegenhain, C.; Vieth, B.; Parekh, S.; Reinius, B.; Guillaumet-Adkins, A.; Smets, M.; Leonhardt, H.; Heyn, H.; Hellmann, I.; Enard, W. Comparative Analysis of Single-Cell RNA Sequencing Methods. Mol. Cell 2017, 65, 631–643.e634. [Google Scholar] [CrossRef]
  13. Method of the Year 2020: Spatially resolved transcriptomics. Nat. Methods 2021, 18, 1. [CrossRef] [PubMed]
  14. Kuppe, C.; Flores, R.O.R.; Li, Z.; Hayat, S.; Levinson, R.T.; Liao, X.; Hannani, M.T.; Tanevski, J.; Wünnemann, F.; Nagai, J.S.; et al. Spatial multi-omic map of human myocardial infarction. Nature 2022, 608, 766–777. [Google Scholar] [CrossRef]
  15. Chen, W.-T.; Lu, A.; Craessaerts, K.; Pavie, B.; Frigerio, C.S.; Corthout, N.; Qian, X.; Laláková, J.; Kühnemund, M.; Voytyuk, I.; et al. Spatial Transcriptomics and In Situ Sequencing to Study Alzheimer’s Disease. Cell 2020, 182, 976–991.e919. [Google Scholar] [CrossRef]
  16. Donato, R.; Sorci, G.; Giambanco, I. S100A6 protein: Functional roles. Cell. Mol. Life Sci 2017, 74, 2749–2760. [Google Scholar] [CrossRef]
  17. Wang, Y.; Kang, X.; Kang, X.; Yang, F. S100A6: Molecular function and biomarker role. Biomark. Res. 2023, 11, 78. [Google Scholar] [CrossRef]
  18. Zhang, Y.; Lv, X.; Chen, L.; Liu, Y. The role and function of CLU in cancer biology and therapy. Clin. Exp. Med. 2023, 23, 1375–1391. [Google Scholar] [CrossRef]
  19. Bai, L.; Huo, R.; Fang, G.; Ma, T.; Shang, Y. MMP11 is associated with the immune response and immune microenvironment in EGFR-mutant lung adenocarcinoma. Front. Oncol. 2023, 13, 1055122. [Google Scholar] [CrossRef]
  20. Feng, M.; Dong, N.; Zhou, X.; Ma, L.; Xiang, R. Myosin light chain 9 promotes the proliferation, invasion, migration and angiogenesis of colorectal cancer cells by binding to Yes-associated protein 1 and regulating Hippo signaling. Bioengineered 2022, 13, 96–106. [Google Scholar] [CrossRef] [PubMed]
  21. Huang, L.; Guo, Z.; Wang, F.; Fu, L. KRAS mutation: From undruggable to druggable in cancer. Signal Transduct. Target. Ther. 2021, 6, 386. [Google Scholar] [CrossRef] [PubMed]
  22. Grothey, A.; Fakih, M.; Tabernero, J. Management of BRAF-mutant metastatic colorectal cancer: A review of treatment options and evidence-based guidelines. Ann. Oncol. Off. J. Eur. Soc. Med. Oncol. 2021, 32, 959–967. [Google Scholar] [CrossRef] [PubMed]
  23. Elyada, E.; Pribluda, A.; Goldstein, R.E.; Morgenstern, Y.; Brachya, G.; Cojocaru, G.; Snir-Alkalay, I.; Burstain, I.; Haffner-Krausz, R.; Jung, S.; et al. CKIα ablation highlights a critical role for p53 in invasiveness control. Nature 2011, 470, 409–413. [Google Scholar] [CrossRef]
  24. Peralta-Zaragoza, O.; Alarcón-Millán, J.; Martínez-Carrillo, D.N.; Fernández-Tilapa, G. Regulation of GKN1 expression in gastric carcinogenesis: A problem to resolve (Review). Int. J. Oncol. 2019, 55, 555–569. [Google Scholar] [CrossRef]
  25. Wang, Z.; Wang, Y.; Peng, M.; Yi, L. UBASH3B Is a Novel Prognostic Biomarker and Correlated with Immune Infiltrates in Prostate Cancer. Front. Oncol. 2019, 9, 1517. [Google Scholar] [CrossRef]
  26. Thorsson, V.; Gibbs, D.L.; Brown, S.D.; Wolf, D.; Bortone, D.S.; Ou Yang, T.-H.; Porta-Pardo, E.; Gao, G.F.; Plaisier, C.L.; Eddy, J.A.; et al. The Immune Landscape of Cancer. Immunity 2018, 48, 812–830.e814. [Google Scholar] [CrossRef]
  27. van Weverwijk, A.; de Visser, K.E. Mechanisms driving the immunoregulatory function of cancer cells. Nat. Rev. Cancer 2023, 23, 193–215. [Google Scholar] [CrossRef] [PubMed]
  28. Yang, H.; Beutler, B.; Zhang, D. Emerging roles of spliceosome in cancer and immunity. Protein Cell 2022, 13, 559–579. [Google Scholar] [CrossRef]
  29. Broadfield, L.A.; Pane, A.A.; Talebi, A.; Swinnen, J.V.; Fendt, S.-M. Lipid metabolism in cancer: New perspectives and emerging mechanisms. Dev. Cell 2021, 56, 1363–1393. [Google Scholar] [CrossRef]
  30. Pan, S.; Guo, Y.; Hong, F.; Xu, P.; Zhai, Y. Therapeutic potential of melatonin in colorectal cancer: Focus on lipid metabolism and gut microbiota. Biochim. Et Biophys. Acta Mol. Basis Dis. 2022, 1868, 166281. [Google Scholar] [CrossRef]
  31. Maan, M.; Peters, J.M.; Dutta, M.; Patterson, A.D. Lipid metabolism and lipophagy in cancer. Biochem. Biophys. Res. Commun. 2018, 504, 582–589. [Google Scholar] [CrossRef]
  32. Loreni, F.; Mancino, M.; Biffo, S. Translation factors and ribosomal proteins control tumor onset and progression: How? Oncogene 2014, 33, 2145–2156. [Google Scholar] [CrossRef]
  33. Ma, S.; Meng, Z.; Chen, R.; Guan, K.-L. The Hippo Pathway: Biology and Pathophysiology. Annu. Rev. Biochem. 2019, 88, 577–604. [Google Scholar] [CrossRef]
  34. Rodriguez, A.C.; Blanchard, Z.; Maurer, K.A.; Gertz, J. Estrogen Signaling in Endometrial Cancer: A Key Oncogenic Pathway with Several Open Questions. Horm. Cancer 2019, 10, 51–63. [Google Scholar] [CrossRef]
  35. Hill, R.; Cautain, B.; de Pedro, N.; Link, W. Targeting nucleocytoplasmic transport in cancer therapy. Oncotarget 2014, 5, 11–28. [Google Scholar] [CrossRef] [PubMed]
  36. Dang, F.; Nie, L.; Wei, W. Ubiquitin signaling in cell cycle control and tumorigenesis. Cell Death Differ. 2021, 28, 427–438. [Google Scholar] [CrossRef] [PubMed]
  37. Shibue, T.; Brooks, M.W.; Inan, M.F.; Reinhardt, F.; Weinberg, R.A. The outgrowth of micrometastases is enabled by the formation of filopodium-like protrusions. Cancer Discov. 2012, 2, 706–721. [Google Scholar] [CrossRef] [PubMed]
  38. Ge, T.; Li, H.; Xiang, P.; Yang, D.; Zhou, J.; Zhang, Y. Tanshinone IIA induces ferroptosis in colorectal cancer cells through the suppression of SLC7A11 expression via the PI3K/AKT/mTOR pathway. Eur. J. Med. Res. 2025, 30, 576. [Google Scholar] [CrossRef]
  39. Thalacker-Mercer, A.E.; Gheller, M.E. Benefits and Adverse Effects of Histidine Supplementation. J. Nutr. 2020, 150, 2588s–2592s. [Google Scholar] [CrossRef]
  40. Zhu, Y.; Dean, A.E.; Horikoshi, N.; Heer, C.; Spitz, D.R.; Gius, D. Emerging evidence for targeting mitochondrial metabolic dysfunction in cancer therapy. J. Clin. Investig. 2018, 128, 3682–3691. [Google Scholar] [CrossRef]
  41. Selsted, M.E.; Ouellette, A.J. Mammalian defensins in the antimicrobial immune response. Nat. Immunol. 2005, 6, 551–557. [Google Scholar] [CrossRef] [PubMed]
  42. Müller, C.A.; Markovic-Lipkovski, J.; Klatt, T.; Gamper, J.; Schwarz, G.; Beck, H.; Deeg, M.; Kalbacher, H.; Widmann, S.; Wessels, J.T.; et al. Human alpha-defensins HNPs-1, -2, and -3 in renal cell carcinoma: Influences on tumor cell proliferation. Am. J. Pathol. 2002, 160, 1311–1324. [Google Scholar] [CrossRef] [PubMed]
  43. Holterman, D.A.; Diaz, J.I.; Blackmore, P.F.; Davis, J.W.; Schellhammer, P.F.; Corica, A.; Semmes, O.J.; Vlahou, A. Overexpression of alpha-defensin is associated with bladder cancer invasiveness. Urol. Oncol. 2006, 24, 97–108. [Google Scholar] [CrossRef]
  44. Aarbiou, J.; Tjabringa, G.S.; Verhoosel, R.M.; Ninaber, D.K.; White, S.R.; Peltenburg, L.T.C.; Rabe, K.F.; Hiemstra, P.S. Mechanisms of cell death induced by the neutrophil antimicrobial peptides alpha-defensins and LL-37. Inflamm. Res. Off. J. Eur. Histamine Res. Soc. 2006, 55, 119–127. [Google Scholar] [CrossRef]
  45. Albrethsen, J.; Møller, C.H.; Olsen, J.; Raskov, H.; Gammeltoft, S. Human neutrophil peptides 1, 2 and 3 are biochemical markers for metastatic colorectal cancer. Eur. J. Cancer 2006, 42, 3057–3064. [Google Scholar] [CrossRef]
  46. Buck, C.; Day, P.M.; Thompson, C.D.; Lubkowski, J.; Lu, W.; Lowy, D.R.; Schiller, J.T. Human alpha-defensins block papillomavirus infection. Proc. Natl. Acad. Sci. USA 2006, 103, 1516–1521. [Google Scholar] [CrossRef]
  47. Lichtenstein, A.; Ganz, T.; Selsted, M.E.; Lehrer, R.I. In vitro tumor cell cytolysis mediated by peptide defensins of human and rabbit granulocytes. Blood 1986, 68, 1407–1410. [Google Scholar] [CrossRef]
  48. Kyle, D.J.; Martin, J.A.; Burch, R.M.; Carter, J.P.; Lu, S.; Meeker, S.; Prosser, J.C.; Sullivan, J.P.; Togo, J.; Noronha-Blob, L.; et al. Probing the bradykinin receptor: Mapping the geometric topography using ethers of hydroxyproline in novel peptides. Agents Actions Suppl. 1992, 38 Pt 1, 513–525. [Google Scholar] [CrossRef]
  49. Marceau, F.; Regoli, D. Bradykinin receptor ligands: Therapeutic perspectives. Nature reviews. Drug Discov. 2004, 3, 845–852. [Google Scholar] [CrossRef]
  50. Butler, A.; Hoffman, P.; Smibert, P.; Papalexi, E.; Satija, R. Integrating single-cell transcriptomic data across different conditions, technologies, and species. Nat. Biotechnol. 2018, 36, 411–420. [Google Scholar] [CrossRef] [PubMed]
  51. Hao, Y.; Stuart, T.; Kowalski, M.H.; Choudhary, S.; Hoffman, P.; Hartman, A.; Srivastava, A.; Molla, G.; Madad, S.; Fernandez-Granda, C.; et al. Dictionary learning for integrative, multimodal and scalable single-cell analysis. Nat. Biotechnol. 2024, 42, 293–304. [Google Scholar] [CrossRef]
  52. Gribov, A.; Sill, M.; Lück, S.; Rücker, F.; Döhner, K.; Bullinger, L.; Benner, A.; Unwin, A. SEURAT: Visual analytics for the integrated analysis of microarray data. BMC Med. Genom. 2010, 3, 21. [Google Scholar] [CrossRef] [PubMed]
  53. Becht, E.; McInnes, L.; Healy, J.; Dutertre, C.-A.; Kwok, I.W.H.; Ng, L.G.; Ginhoux, F.; Newell, E.W. Dimensionality reduction for visualizing single-cell data using UMAP. Nat. Biotechnol. 2019, 37, 38–44. [Google Scholar] [CrossRef]
  54. Kaushal, D.; Naeve, C.W. An overview of Spotfire for gene-expression studies. Curr. Protoc. Bioinform. Chapter 2004, 7, Unit 7.7. [Google Scholar] [CrossRef] [PubMed]
  55. Lockwood, W.W.; Chari, R.; Chi, B.; Lam, W.L. Recent advances in array comparative genomic hybridization technologies and their applications in human genetics. Eur. J. Hum. Genet. EJHG 2006, 14, 139–148. [Google Scholar] [CrossRef] [PubMed]
  56. Qiu, X.; Mao, Q.; Tang, Y.; Wang, L.; Chawla, R.; A Pliner, H.; Trapnell, C. Reversed graph embedding resolves complex single-cell trajectories. Nat. Methods 2017, 14, 979–982. [Google Scholar] [CrossRef]
  57. Hoadley, K.A.; Yau, C.; Wolf, D.M.; Cherniack, A.D.; Tamborero, D.; Ng, S.; Leiserson, M.D.M.; Niu, B.; McLellan, M.D.; Uzunangelov, V.; et al. Multiplatform analysis of 12 cancer types reveals molecular classification within and across tissues of origin. Cell 2014, 158, 929–944. [Google Scholar] [CrossRef]
  58. Yi, L.; Wu, G.; Guo, L.; Zou, X.; Huang, P. Comprehensive Analysis of the PD-L1 and Immune Infiltrates of m(6)A RNA Methylation Regulators in Head and Neck Squamous Cell Carcinoma. Molecular therapy. Nucleic Acids 2020, 21, 299–314. [Google Scholar] [CrossRef]
  59. Huang, H.; Ge, C.; Dai, Y.; Wu, Y.; Zhu, J. Exploring Ferroptosis-Associated Gene Signatures as Diagnostic and Therapeutic Targets for Sepsis-Induced Cardiomyopathy. Cureus 2024, 16, e60439. [Google Scholar] [CrossRef]
  60. Iglesia, M.D.; Parker, J.S.; Hoadley, K.A.; Serody, J.S.; Perou, C.M.; Vincent, B.G. Genomic Analysis of Immune Cell Infiltrates Across 11 Tumor Types. J. Natl. Cancer Inst. 2016, 108, djw144. [Google Scholar] [CrossRef]
Ijms 26 09256 g001

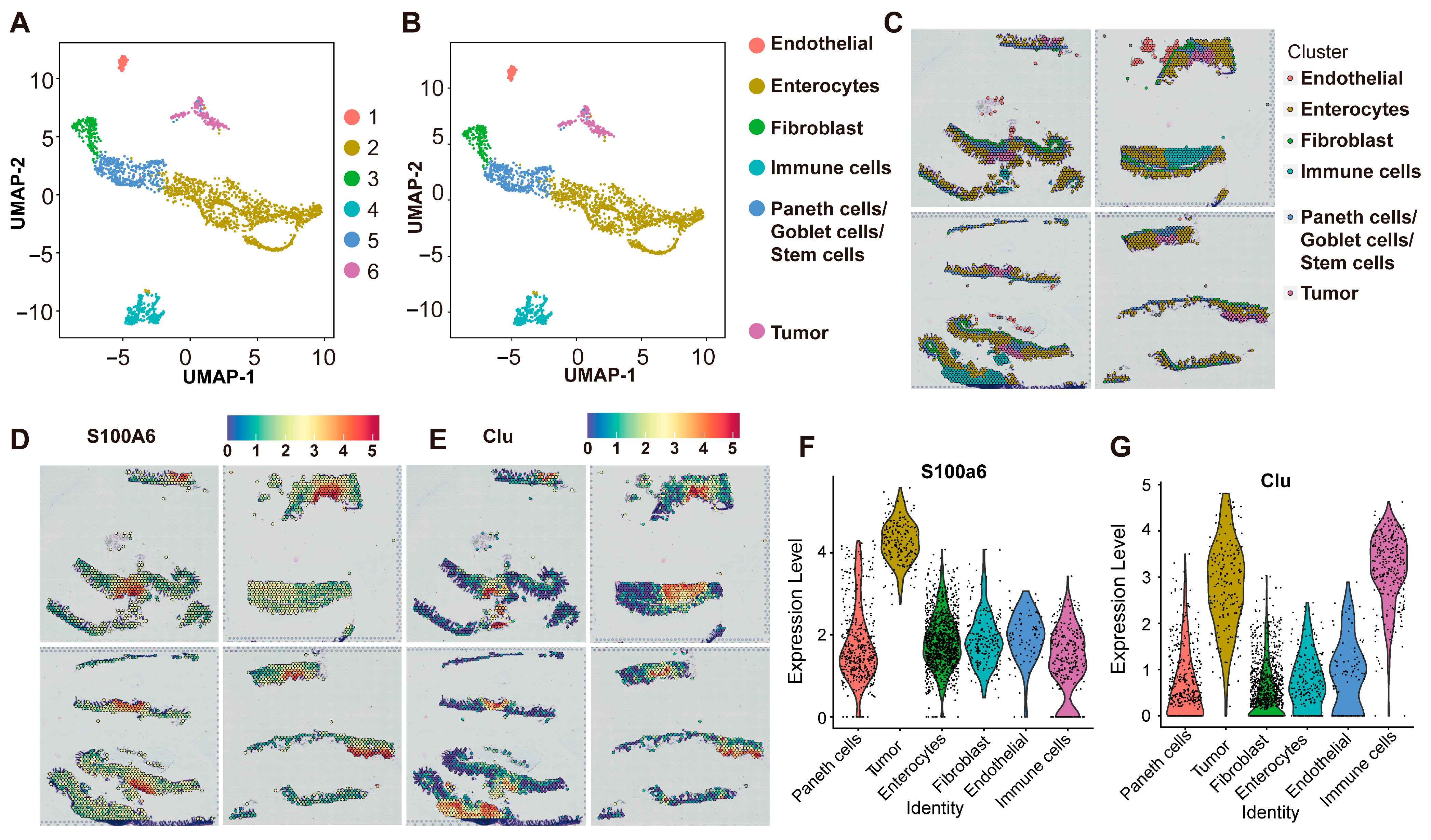

Figure 1. ST to study CRC (n = 4): (A) UMAP plot of the principal component analysis, first (PCA) clustering the results profiled in the present work; (B) UMAP plot of cell types; (C) spatial images of unsupervised clustering results; (D,E) spatial plots showing the spatial expression pattern of S100A6 and CLU; (F,G) violin plots showing the expression of S100A6 and CLU.
Figure 1. ST to study CRC (n = 4): (A) UMAP plot of the principal component analysis, first (PCA) clustering the results profiled in the present work; (B) UMAP plot of cell types; (C) spatial images of unsupervised clustering results; (D,E) spatial plots showing the spatial expression pattern of S100A6 and CLU; (F,G) violin plots showing the expression of S100A6 and CLU.
Ijms 26 09256 g001
Ijms 26 09256 g002

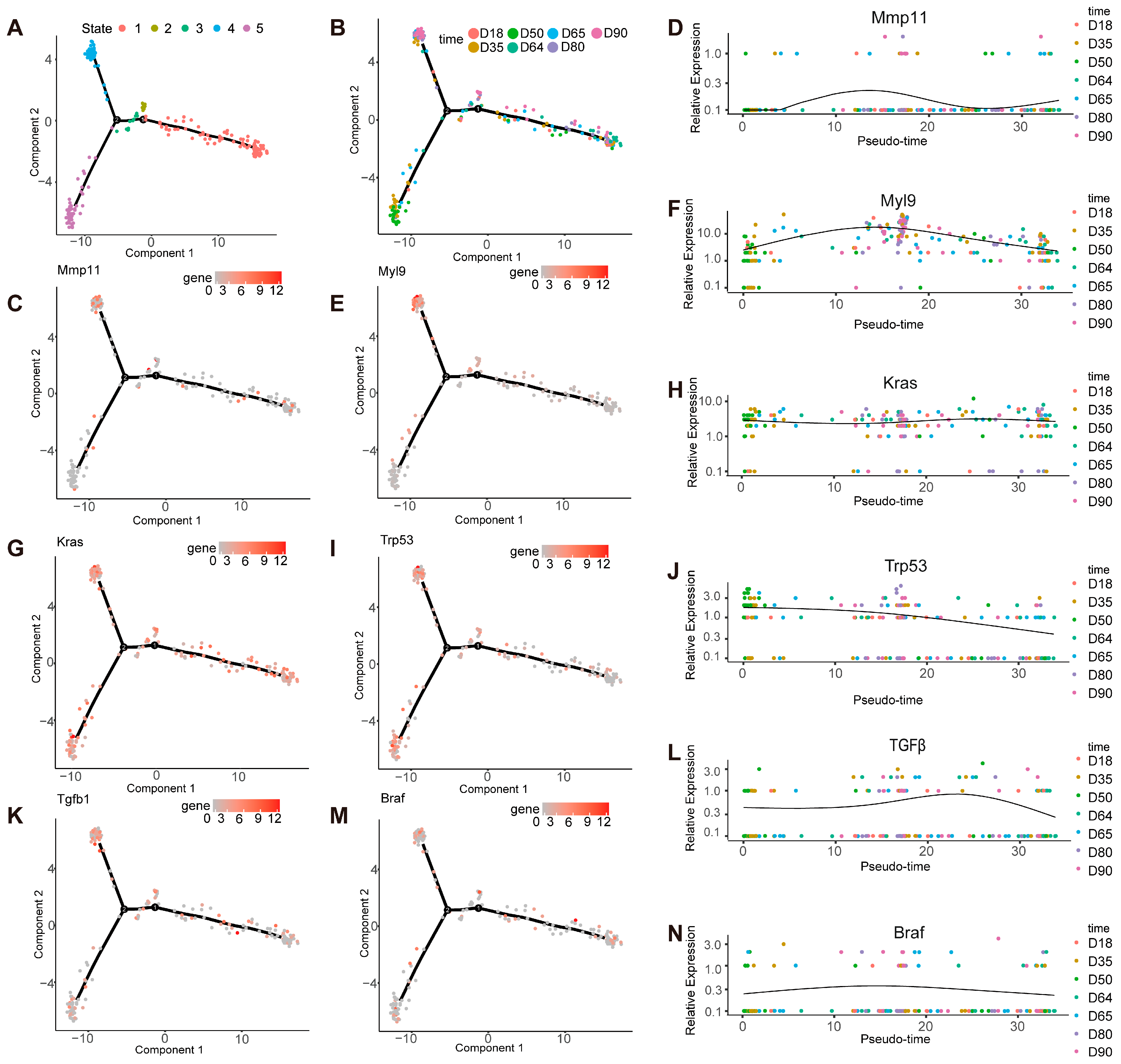

Figure 2. ST discovery of differential genes through pseudo-time analysis (n = 4): (A,B) trajectory of differentiation of the different time points predicted by monocle; (C) differential expression of MMP11 at distinct time points; (D) gene expression levels at single spots ordered along the pseudo-time for MMP11; (E) differential expression of MYL9 at distinct time points; (F) gene expression levels at single spots ordered along the pseudo-time for MYL9; (G) differential expression of KRAS at distinct time points; (H) gene expression levels at single spots ordered along the pseudo-time for KRAS; (I) differential expression of P53 at distinct time points; (J) gene expression levels at single spots ordered along the pseudo-time for P53; (K) differential expression of transforming growth factor-beta (TGF-β) at distinct time points; (L) gene expression levels at single spots ordered along the pseudo-time for TGF-β; (M) differential expression of BRAF at distinct time points; (N) gene expression levels at single spots ordered along the pseudo-time for BRAF.
Figure 2. ST discovery of differential genes through pseudo-time analysis (n = 4): (A,B) trajectory of differentiation of the different time points predicted by monocle; (C) differential expression of MMP11 at distinct time points; (D) gene expression levels at single spots ordered along the pseudo-time for MMP11; (E) differential expression of MYL9 at distinct time points; (F) gene expression levels at single spots ordered along the pseudo-time for MYL9; (G) differential expression of KRAS at distinct time points; (H) gene expression levels at single spots ordered along the pseudo-time for KRAS; (I) differential expression of P53 at distinct time points; (J) gene expression levels at single spots ordered along the pseudo-time for P53; (K) differential expression of transforming growth factor-beta (TGF-β) at distinct time points; (L) gene expression levels at single spots ordered along the pseudo-time for TGF-β; (M) differential expression of BRAF at distinct time points; (N) gene expression levels at single spots ordered along the pseudo-time for BRAF.
Ijms 26 09256 g002
Ijms 26 09256 g003

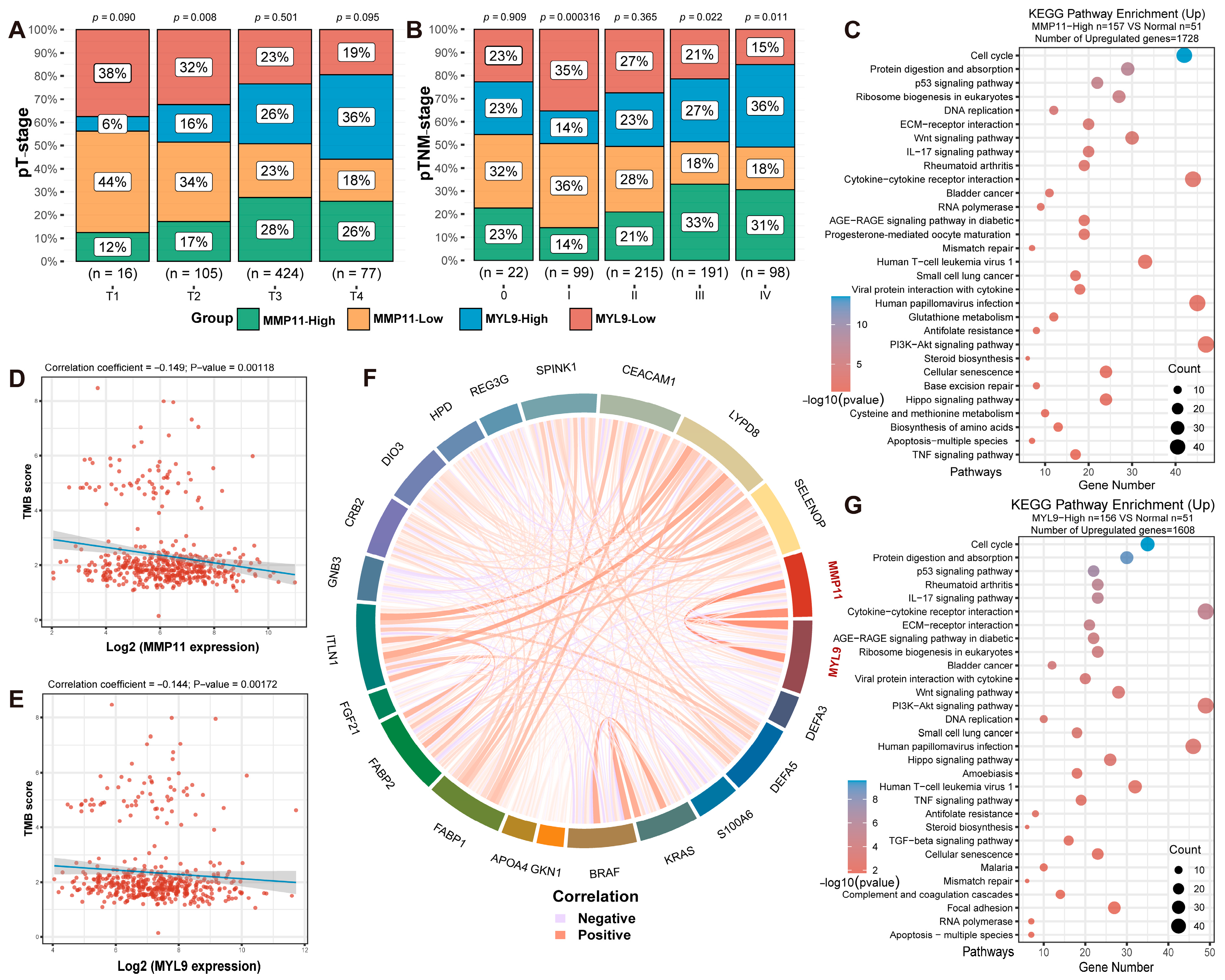

Figure 3. (A,B) Presents the distribution of tumor (T) and p-TNM staging in different sample groups, with the x-axis representing the different sample groups, the y-axis representing the percentage of clinical information contained in the corresponding grouped samples, and the different colors representing various clinical information. Significance, as a p-value, was analyzed by chi-square test, where the numerical size is −log10 (p-value). (C,G) Differentially expressed genes were screened based on samples from the MMP11 high-expression group (n = 157), MYL9 high-expression group (n = 156), and para-tumoral tissue group (n = 51), which was followed by KEGG analysis of the upregulated genes. According to the KEGG pathway enrichment results, the different colors represent the significance of the functional enrichment results, with larger values indicating smaller p-values. The size of the circle represents the number of enriched genes, with larger circles indicating more genes. (D,E) Illustration of the Scatter plot and fitted line of the Spearman correlation analysis between TMB and MMP11 and MYL9 gene expression. Each point represents a sample. The x-axis represents the distribution of gene expression, and the y-axis represents the score distribution of TMB. The density curve on the bottom depicts the distribution trend of the TMB scores and the gene expression. The top of the figure displays the p-value, correlation coefficient, and the method used for correlation calculation. (F) Multiple gene Spearman correlation circle plots, where the different colors represent correlation coefficients (red indicates a positive correlation and blue indicates a negative correlation in the diagram), with darker shades denoting stronger correlations among variables.
Figure 3. (A,B) Presents the distribution of tumor (T) and p-TNM staging in different sample groups, with the x-axis representing the different sample groups, the y-axis representing the percentage of clinical information contained in the corresponding grouped samples, and the different colors representing various clinical information. Significance, as a p-value, was analyzed by chi-square test, where the numerical size is −log10 (p-value). (C,G) Differentially expressed genes were screened based on samples from the MMP11 high-expression group (n = 157), MYL9 high-expression group (n = 156), and para-tumoral tissue group (n = 51), which was followed by KEGG analysis of the upregulated genes. According to the KEGG pathway enrichment results, the different colors represent the significance of the functional enrichment results, with larger values indicating smaller p-values. The size of the circle represents the number of enriched genes, with larger circles indicating more genes. (D,E) Illustration of the Scatter plot and fitted line of the Spearman correlation analysis between TMB and MMP11 and MYL9 gene expression. Each point represents a sample. The x-axis represents the distribution of gene expression, and the y-axis represents the score distribution of TMB. The density curve on the bottom depicts the distribution trend of the TMB scores and the gene expression. The top of the figure displays the p-value, correlation coefficient, and the method used for correlation calculation. (F) Multiple gene Spearman correlation circle plots, where the different colors represent correlation coefficients (red indicates a positive correlation and blue indicates a negative correlation in the diagram), with darker shades denoting stronger correlations among variables.
Ijms 26 09256 g003
Ijms 26 09256 g004

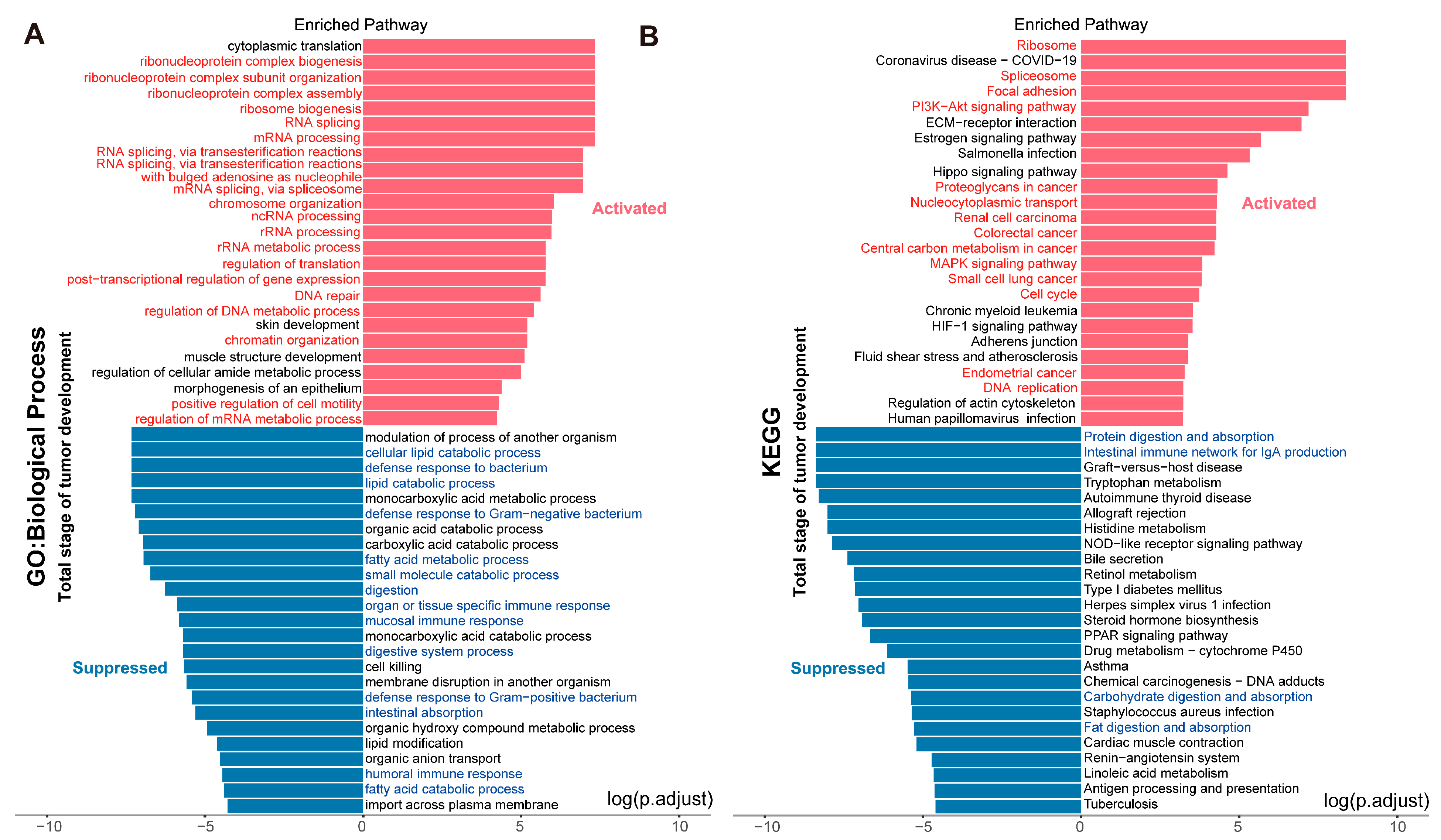

Figure 4. Enrichment analysis of tumor-related pathways: (A) GO analysis across all stages of tumor development; (B) KEGG analysis across all stages of tumor development. Red indicates activation; blue indicates suppression.
Figure 4. Enrichment analysis of tumor-related pathways: (A) GO analysis across all stages of tumor development; (B) KEGG analysis across all stages of tumor development. Red indicates activation; blue indicates suppression.
Ijms 26 09256 g004
Ijms 26 09256 g005

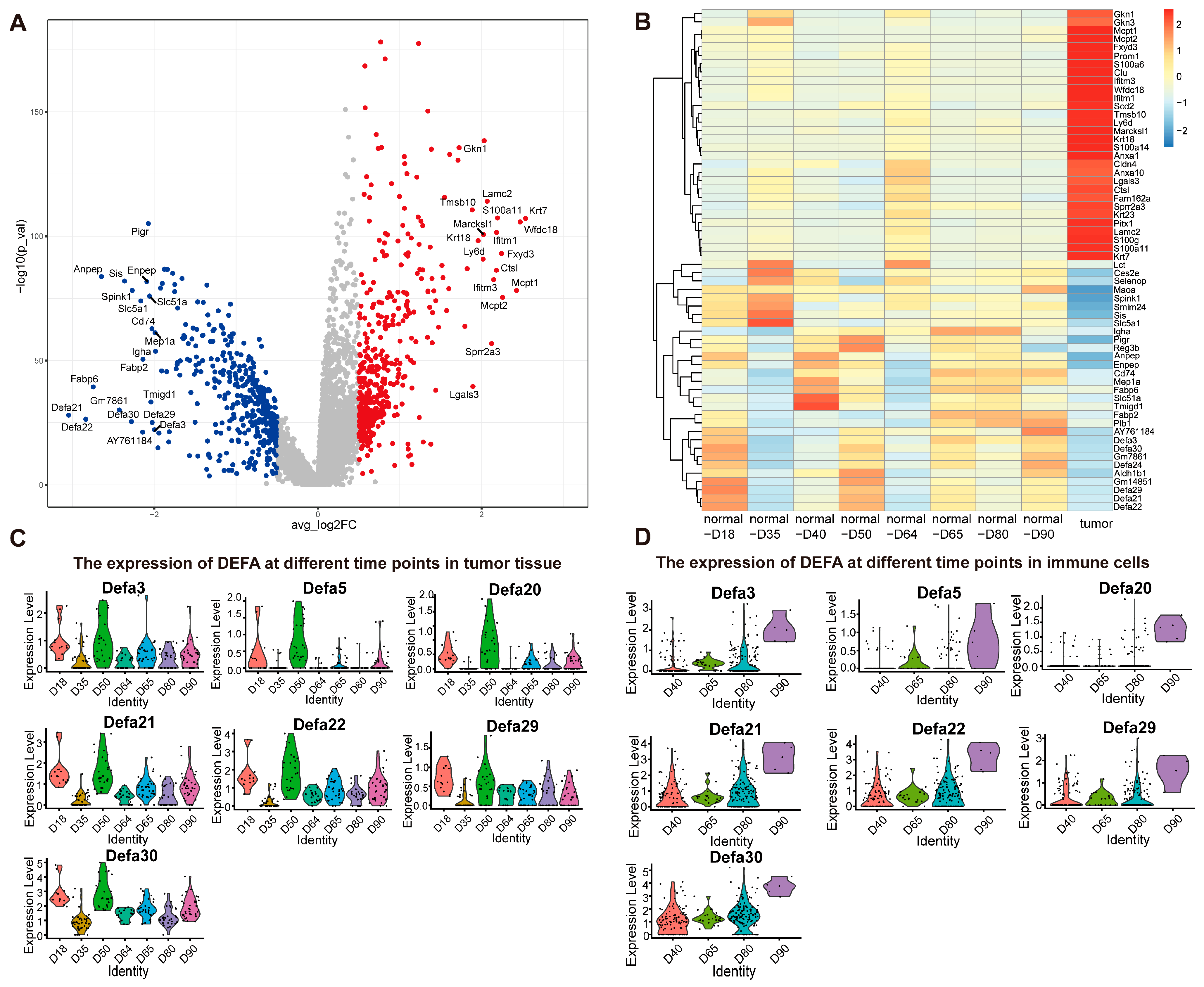

Figure 5. Differentially expressed genes between tumor and normal peripheral tissues: (A) volcano plot of significantly differentially expressed genes between tumor and normal peripheral tissues; Each point represents a gene. (B) heatmap of the most variable genes between tumor and normal peripheral tissues at different time points; (C) violin plots showing the expression of DEFA genes at different time points in tumor tissue; (D) violin plots showing the expression of DEFA genes at different time points in immune cells. Each point in (C,D) represents a measurement from an organizational spatial unit (capture point).
Figure 5. Differentially expressed genes between tumor and normal peripheral tissues: (A) volcano plot of significantly differentially expressed genes between tumor and normal peripheral tissues; Each point represents a gene. (B) heatmap of the most variable genes between tumor and normal peripheral tissues at different time points; (C) violin plots showing the expression of DEFA genes at different time points in tumor tissue; (D) violin plots showing the expression of DEFA genes at different time points in immune cells. Each point in (C,D) represents a measurement from an organizational spatial unit (capture point).
Ijms 26 09256 g005
Ijms 26 09256 g006

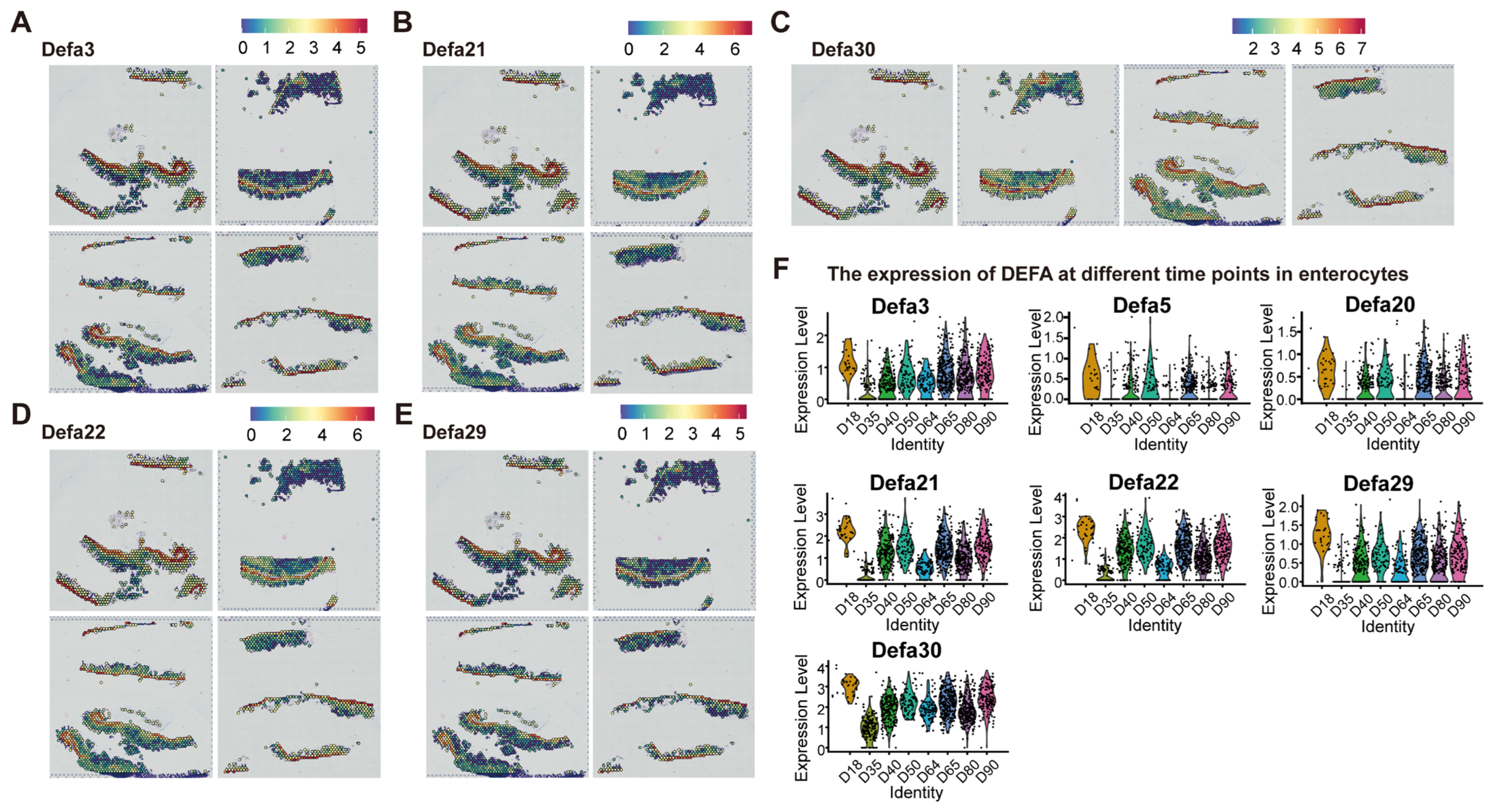

Figure 6. (A–E) Spatial plots showing the spatial expression patterns of the DEFA family; (F) violin plots showing the expression of DEFA genes at different time points in enterocytes. The dots above the violin plot represent the actual expression measurements of the DEFA gene at each specific time point, derived from all individual spatial capture points identified as intestinal epithelial cells.
Figure 6. (A–E) Spatial plots showing the spatial expression patterns of the DEFA family; (F) violin plots showing the expression of DEFA genes at different time points in enterocytes. The dots above the violin plot represent the actual expression measurements of the DEFA gene at each specific time point, derived from all individual spatial capture points identified as intestinal epithelial cells.
Ijms 26 09256 g006
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Qi, Z.; Gu, G.; Huang, H.; Lyu, B.; Liu, Y.; Wang, W.; Zha, X.; Liu, X. Investigating the Development of Colorectal Cancer Based on Spatial Transcriptomics. Int. J. Mol. Sci. 2025, 26, 9256. https://doi.org/10.3390/ijms26189256

AMA Style

Qi Z, Gu G, Huang H, Lyu B, Liu Y, Wang W, Zha X, Liu X. Investigating the Development of Colorectal Cancer Based on Spatial Transcriptomics. International Journal of Molecular Sciences. 2025; 26(18):9256. https://doi.org/10.3390/ijms26189256

Chicago/Turabian Style

Qi, Zhaoyao, Guoqing Gu, Huanwei Huang, Beile Lyu, Yibo Liu, Wei Wang, Xu Zha, and Xicheng Liu. 2025. "Investigating the Development of Colorectal Cancer Based on Spatial Transcriptomics" International Journal of Molecular Sciences 26, no. 18: 9256. https://doi.org/10.3390/ijms26189256

APA Style

Qi, Z., Gu, G., Huang, H., Lyu, B., Liu, Y., Wang, W., Zha, X., & Liu, X. (2025). Investigating the Development of Colorectal Cancer Based on Spatial Transcriptomics. International Journal of Molecular Sciences, 26(18), 9256. https://doi.org/10.3390/ijms26189256

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
