Article

Comparison of Pore Structures of Cellulose-Based Activated Carbon Fibers and Their Applications for Electrode Materials

by
Ju-Hwan Kim
1,
Sang-Chul Jung
2,
Hye-Min Lee
1,* and
Byung-Joo Kim
3,*
1
Convergence Research Division, Korea Carbon Industry Promotion Agency (KCARBON), Jeonju 54853, Korea
2
Department of Environmental Engineering, Sunchon National University, Sunchon 57922, Korea
3
Department of Carbon-Nanomaterials Engineering, Jeonju University, Jeonju 55069, Korea
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(7), 3680; https://doi.org/10.3390/ijms23073680
Submission received: 3 March 2022 / Revised: 24 March 2022 / Accepted: 25 March 2022 / Published: 27 March 2022
(This article belongs to the Special Issue Materials for Energy Applications 2.0)
Browse Figures
Versions Notes

Abstract

:
This study presents the first investigation of cellulose-based activated carbon fibers (RACFs) prepared as electrode materials for the electric double-layer capacitor (EDLC) in lieu of activated carbon, to determine its efficacy as a low-cost, environmentally friendly enhancement alternative to nanocarbon materials. The RACFs were prepared by steam activation and their textural properties were studied by Brunauer–Emmett–Teller and non-localized density functional theory equations with N2/77K adsorption isotherms. The crystallite structure of the RACFs was observed by X-ray diffraction. The RACFs were applied as an electrode material for an EDLC and compared with commercial activated carbon (YP-50F). The electrochemical performance of the EDLC was analyzed using galvanostatic charge/discharge curves, cyclic voltammetry, and electrochemical impedance spectroscopy. The results show that the texture properties of the activated carbon fibers were influenced by the activation time. Crucially, the specific surface area, total pore volume, and mesopore volume ratio of the RACF with a 70-min activation time (RACF-70) were 2150 m2/g, 1.03 cm3/g and 31.1%, respectively. Further, electrochemical performance analysis found that the specific capacitance of RACF-70 increased from 82.6 to 103.6 F/g (at 2 mA/cm2). The overall high specific capacitance and low resistance of the RACFs were probably influenced by the pore structure that developed outstanding impedance properties. The results of this work demonstrate that RACFs have promising application value as performance enhancing EDLC electrode materials.

1. Introduction

The electric double-layer capacitor (EDLC) is an energy storage device that has attracted recent attention along with the lithium-ion battery. The mechanism of energy storage for the ELDC relies on the physical adsorption and desorption reaction of ions on the electrode surface [1,2]. The scope of application of the EDLC has recently extended within the fields of energy (new renewable energy development and smart grids) and transportation (electric and hybrid cars) based on the rapid charge-discharge rate due to high output density despite low energy density and semi-permanent lifetime [3,4,5]. The electrochemical properties of the EDLC are determined by three factors: the electrolyte [6], current collector [7], and active electrode material [8], the last of which has the greatest influence. Thus, the active electrode material of the EDLC should have a large specific surface area and outstanding electrical conductivity to facilitate the storage of a large number of ions. For this reason, porous carbon materials have been widely used. Notably, among the various porous carbon materials for the EDLC, activated carbon (AC) shows numerous advantages from outstanding electrical conductivity to physical and chemical stability, large specific surface area, and low cost, such that it has been used as the main active electrode material for the EDLC.
With the recent extensions of the scope of EDLC application, studies to enhance the performance of the EDLC have been conducted regarding the use of nanocarbon materials with high electrical conductivity (e.g., carbon nanotubes [9,10,11], graphene [11,12,13,14]) as an active electrode material, or the control of pore structure for improving the ion diffusion resistance [15,16]. However, the EDLC applications proposed in these studies are not environmentally friendly and have high costs. Moreover, they tend to involve a complex process of material synthesis; hence, their feasibility is low in an actual industrial setting.
Activated carbon fiber (ACF) is a fiber form of AC that serves as a highly desirable active electrode material for the EDLC due to high specific surface area and outstanding electrical conductivity [16,17,18,19,20,21]. In particular, ACF is distinguished from AC by having a micropore structure that is oriented along the fiber axis with the hexagonal carbon layers of well-organized ribbon or sheet conformation [22]. This pore structure of ACF is known to allow a higher adsorption amount and rate than AC through direct external exposure of micropores [23,24]. Gan, et al. reported the short ion diffusion pathways due to the well-defined surface pores of activated carbon fibers led to an excellent electrochemical performance [25]. Hence, as ACF allows a reduction in ion diffusion resistance compared to AC, it is a highly desirable electrode material that can improve the Warburg impedance of the EDLC.
The production of ACF uses such precursors as polyacrylonitrile (PAN) fiber [18], pitch fiber [19,24], and cellulose fiber [20,21]. Notably, rayon fibers among cellulose fibers comprise high-purity cellulose to exhibit high crystallinity, which leads to high electrical conductivity upon its use in the production of carbon fibers or ACFs and has the advantage of fluent control of the pore structure [20,26]. In addition, cellulose derived ACF produced from wood pulp offers a vision for manufacturing high-performance porous materials from renewable resources [27]. In addition, rayon-based ACF (RACF) has greater hardness than pitch-based ACFs, such that less powder is formed to allow easier processing, while the low swelling of crystal grains based on the migration of electrolyte ions during the charge-discharge process poses an additional advantage [19].
In this study, RACF with outstanding pore characteristics and crystallinity was used in lieu of AC as the active electrode material to enhance the performance of an EDLC. The steam activation method was used to produce RACF through a low-cost and environmentally friendly process. The pore development behavior with an increase in activation time was investigated through comparative analysis of textural properties and micropore structures. The performance of the EDLC was analyzed using RACF as the active electrode material of the coin cell. A detailed analysis was performed on the correlation between cell performance and pore structure for RACF in comparison with YP-50F.

2. Results and Discussion

2.1. X-ray Diffraction Analysis

XRD is a highly useful method to analyze the changes in crystal structure in accordance with ACF pore development. Figure 1 shows the XRD curves for the RACF produced under various activation conditions. The XRD curves for the RACFs appeared as that of a typical isotropic carbon material with a C(002) peak at 23° and a C(101) peak at 43°, while peaks of other ashes were not detected [28]. In addition, the intensity of the XRD curves decreased as the activation time increased due to the oxidation of crystal grains. All (002) or (101) peak centers of the RACFs appeared to be consistent irrespective of the activation time.
Figure 2 shows the changes in the Lc (crystallite height) and La (crystallite size) of RACF as a function of the activation time calculated from the XRD curve. The XRD illustrates well the changes in the crystal structure of the RACF based on activation time as statistical data. In other words, as the activation process occurred under a constant temperature, rather than indicating the crystal grain growth for RACF, the increases in La and Lc indicate the relative increase in crystal grain size due to noncrystalline oxidation. On the other hand, the decrease in La and Lc indicates the oxidation of the crystal grain edge.
In the graphite crystalline structure, the layers of the (002) plane consist of strong hybridized sp2 bonds, and the vertical π bond on the (002) plane results in weak interlayer bonds. Crystalline changes were thus more easily observed for the (002) plane than the (101) plane [29,30].
The evolution of the RACF can be categorized into three steps based on the changes in Lc and La as follows. Step 1 (RACF-30 to -40): the Lc and La of the RACF increased from 10.7 to 14.1 Å and from 26.9 to 36.5 Å, respectively, as the activation time increased. Step 2 (RACF-50 to -60): the Lc of the RACF decreased slightly from 14.1 to 13.9 Å but the La increased from 36.5 to 44.6 Å. Step 3 (RACF-70): the Lc of the RACF was maintained at 13.9 Å but the La decreased to 39.1 Å. Hence, the relative increase in Lc and La is presumed to have been caused by preferential amorphous oxidation in Step 1 through the activation mechanism. As amorphous oxidation continued in Step 2, the La increased, while the simultaneous oxidation of the crystal grain edge led to a slight decrease in Lc. In Step 3, the La decreased presumably as the oxidation occurred only on the crystal grain edge. Overall, it can be understood that, with an increase in the activation time, the crystal favors amorphous oxidation, and the oxidation on the crystal grain edge occurs subsequently.

2.2. Adsorption Isotherm and Textural Properties

The three-dimensional shape and surface texture of the samples have been characterized by SEM. As shown in Figure 3, the YP-50F and RACF were observed as granular and fibrous, respectively. For the RACF, the surface was typically very smooth, without any macroscopic defects. It can be seen that the fibrous structure of the RACF is not destroyed because the amorphous is mainly oxidized in the process of physical activation by steam.
The N2/77K isotherm adsorption-desorption curve is the most common method of analyzing the pore characteristics of porous carbons, thus it was used to examine the changes in the pore characteristics of the RACF based on activation time. Figure 4 shows the N2/77K adsorption-desorption curve for the RACF as a function of activation time.
As shown in Figure 4a, the isotherm adsorption curves of the RACF samples uniformly display the Type I curve of the International Union of Pure and Applied Chemistry (IUPAC) classifications [31]. The point of inflection referred to as “the knee” of the curve that appears in the early part of the isotherm curve is due to the monolayer-multilayer adsorption. This indicates the step where monolayer adsorption of N2 molecules occurs on the wall, followed by the onset of multilayer adsorption [32]. Hence, the Type I isotherm adsorption curves are displayed by the materials that have a wider range of PSD including microporous materials with narrow micropores or wider micropores and possibly narrow mesopores, depending on the curvature or the relative pressure at the knee [32,33]. In Figure 4a, the isotherm adsorption curves for RACF-30 and -40 each show a knee with low curvature, whereas the isotherm adsorption curves for RACF-50 to -70 each show an increase in knee curvature as the activation time increases. Thus, the RACF samples in Step 1 (RACF-30 and -40) are mainly characterized by micropore development, and those in Steps 2 and 3 (RACF-50, -60, and -70) are characterized by simultaneous development of micropores and mesopores.
The logarithmic scale isotherm adsorption curve (Figure 4b) is a useful method to examine the micropore development behaviors in porous carbons because, for relative pressures below 0.01, it clearly displays the changes in adsorption as a function of the relative pressure. In Figure 4b, all isotherm adsorption curves of the RACF samples show an increase in adsorption at similar pressure domains. YP-50F, however, shows an increase in adsorption in a lower range of relative pressure (1.0 × 10−5 to 3.0 × 10−4 P/P0) than the RACF. Hence, all the RACF samples are presumed to have a PSD of micropores with similar pore diameters, while YP-50F has that with smaller pore diameters. The reason they exhibit varying micropore size distributions despite being produced through identical steam activation processes is possibly due to the differences in crystal structure between rayon fiber and coconut shell as the precursors of RACF and YP-50F, respectively.
The shapes of hysteresis loops have often been correlated to specific pore morphologies [31,33]. All isotherm adsorption curves of the RACF samples showed H4-type hysteresis of the IUPAC classifications [32], while the area of hysteresis increased as the activation time increased. In addition, the same IUPAC H4-type hysteresis was observed for YP-50F as in the RACF. Hence, it is presumed that the RACF and YP-50F share identical slit-shaped pores.
Table 1 presents the textural properties of the RACF samples. The specific surface area and mesopore volume of the RACF from 30 to 60 min activation time increased from 1600 to 2200 m2/g and from 0.07 to 0.29 cm3/g, respectively. Next, as the activation time increased to 70 min, the specific surface area and micropore volume decreased to 2150 m2/g and 0.71 cm3 from the peak at 60 min, respectively, while the mesopore volume increased to 0.32 cm3/g, exhibiting the highest mesopore volume fraction (RMeso = 31.1%).
In porous carbons, the pores are formed upon crystal grain oxidation during the activation process such that the pore characteristics and crystal structure show a close correlation [29,30]. Notably, in a prior investigation, the edge oxidation of amorphous and crystal grain was shown to have an influence on the development of micropores and mesopores, respectively, through the activation mechanism [30]. In the XRD analysis of this study, the changes in RACF crystal structure could be categorized into three steps depending on the behavior of amorphous or crystal grain edge oxidation, which was compared with the textural properties. In Step 1, the micropore volume was presumed to have increased through amorphous oxidation for RACF-30 and -40. In Step 2, the micropore and mesopore volumes both increased presumably due to the simultaneous edge oxidation of amorphous and crystal grain for RACF-50 and -60. In Step 3, the micropore volume decreased and mesopore volume increased presumably because the edge oxidation occurred mainly on the crystal grains rather than on the amorphous grains for RACF-70.
The NLDFT method is the most effective method of analyzing the PSD of ACF. Figure 5 shows the PSD curve for the RACF as a function of activation time. In the PSD curves for the RACFs, as in the case of textural properties, three steps of pore development behavior were observed.
In Step 1, RACF exhibited the distribution of narrow micropores and sub-mesopores with diameters of 1.6 and 2.1 nm, respectively. As the activation time increased, the 1.6 nm pores did not vary significantly in volume, but the 2.1 nm pores showed an increase in volume. It is thought that the increase in pore volume in porous carbons due to physical activation occurs through two mechanisms: the pore drilling (leading to the increase in pore diameter) and pore deepening (having no influence on pore diameter) [34]. Hence, the amorphous oxidation in Step 1 is presumed to have increased the pore volume through pore deepening without influencing the pore diameter. In addition, amorphous oxidation is likely to have mainly influenced the increase in the volume of the 2.1 nm pores.
In Step 2, RACF showed changes in PSD in the range of 2–4 nm diameter as the activation time increased, while the volume of the 1.6 nm pores was maintained. At 50 min activation time, both the 1.6 and 2.1 nm pores had maintained their volume, while new pores of 2.7 nm diameter were formed. Next, at 60 min activation time, the PSD curve for sub-mesopores changed from narrow to broad in the range of 2–2.6 nm diameter, along with the PSD of newly formed 2.9 and 3.7 nm mesopores. Hence, the increase in pore diameter and volume with the increase in activation time is likely due to the pore drilling caused by crystal grain edge oxidation. In addition, the continuous increase in the volume of the 2.1 nm pores is thought to be due to the continuous pore deepening caused by amorphous oxidation.
In Step 3, the PSD curve for RACF was considerably broad, ranging from 1–4 nm pore diameter, in contrast to the previous result. In other words, as the activation time increased, the oxidation is thought to have occurred mainly on the crystal grain edge such that the pore volume increased due to pore drilling, and consequently, the micropore volume decreased and the mesopore volume increased.
As shown in Table 1, similar textural properties were observed for RACF-40 and YP-50F. However, the PSD curve for RACF-40 was broader than that for YP-50F, as shown in Figure 5, which coincides with the isotherm adsorption curve shown in Figure 4b, indicating the increase in adsorption for RACF-40 at a higher relative pressure than that for YP-50F. This is presumed to be due to the differences in the crystal structures of the precursors rather than the differences in the unique pore structures of ACF and AC. According to Buchmeiser et al., cellulose fibers have high crystallinity with crystal grains aligned in a highly oriented form along the fiber axis [26]. In other words, while both RACF-40 and YP-50F share the same cellulose-based precursor, the high crystallinity of RACF-40 is presumed to have led to the PSD with larger pore diameters.

2.3. Electrochemical Performance

The electrochemical properties of the RACFs were assessed using a 1 M TEBF4/PC electrolyte through the GCD curve, CV, and EIS.
Figure 6 shows the GCD curves of the RACFs measured at the current density of 2 and 50 mA/cm2. The linear voltage-time dependence demonstrates the typical capacitive behavior of an EDLC. The GCD curves of the RACF samples at 2 mA/cm2 current density shows an instantaneous voltage drop (IR drop) of a small value as the charge and discharge curves were in symmetry. In Figure 6b, in contrast, the IR drop significantly increased with an increase in the ohmic resistance of the system under the influence of the increase in current density to 50 mA/cm2, which led to the asymmetry of the charge and discharge curves. The magnitude of the IR drop was shown to decrease as the activation time increased at all current density values in the following order: RACF-30 > RACF-40 > RACF-50 > RACF-60 > RACF-70. This IR drop is thought to be due to ohmic resistance of the system and inner resistance of ion diffusion in the nanopores [35]. As shown in Figure 5, RACF pores were found to have increased in volume and diameter as the activation time increased. Thus, for RACF, the inner resistance of ion diffusion in nanopores is thought to have decreased as the activation time increased. Consequently, the lowest inner resistance is predicted for RACF-70, which has the longest activation time.
The IR drop for YP-50F was similar to that of RACF-30 at 2 mA/cm2 current density, but larger than any of the RACFs at 50 mA/cm2. The sizes of the electrolyte (1 M (C2H5)4NBF4) cation and anion were 0.67 and 0.48 nm, respectively, while the sizes of solvated ions have been reported as 1.34 and 1.44 nm, respectively, in previous research [36]. In Figure 5, the PSD of YP-50F showed smaller pore diameters than either RACF-30 or -40. In particular, most pores were distributed at diameters smaller than those of the solvated ions. In addition, the ion diffusion rate for RACF is likely to be faster than YP-50F as an AC, based on the unique pore structure of ACF. Thus, YP-50F is predicted to show higher inner resistance of ion diffusion in nanopores than RACF-30 or -40, consequently showing the largest IR-drop.
Figure 7 shows the correlation between current density and specific capacitance. For all the RACF samples, the specific capacitance decreased as the ohmic resistance of system and inner resistance of ion diffusion in nanopores increased with the increase in current density, as was the case shown in Figure 7. As the activation time increased, the specific capacitance of the RACF increased to the range of 82.6–103.6 F/g at the current density of 2 mA/cm2 and 46.8–85.8 F/g at 50 mA/cm2. For YP-50F, the specific capacitance at 2 mA/cm2 was shown to be similar to that of RACF-30, but as the current density increased, the specific capacitance fell to a lower level than that of RACF-30. In addition, the rate of decrease in specific capacitance was substantially higher for YP-50F than for any of the RACF samples. In a prior investigation, the specific capacitance was found to be mainly influenced not by the ion storage based on the volume of micropores of similar size to the solvated ions at a low charge rate, but by the ion diffusion resistance (Warburg impedance) based on the mesopores with larger diameters than the solvated ions at a high charge rate [37]. In this study, likewise, the development and volume of micropores of 1.5–2 nm diameters of similar size to the solvated ions are likely to have influenced the specific capacitance of RACF at low current density, whereas at high current density, the influence is thought to have come from the increase in the mesopore ratio. Thus, due to the high specific surface area (2150 m2/g) and mesopore volume ratio (31.1%), the specific capacitance of RACF-70 is presumed to have been the highest across all current densities. YP-50F, in contrast, despite its higher specific surface area than those of RACF-30 and -40, had most of its micropore volume in the pores of ≤1.5 nm diameter, thereby making it difficult to store solvated ions such that the specific capacitance was the lowest and the rate of decrease in specific capacitance was the highest. In addition, the difference in the ion diffusion rate according to the ACF and AC pore structures is presumed to have influenced the rate of decrease in specific capacitance of YP-50F and all of the RACFs.
Cyclic voltammetry was also used since it is a typical means to measure the electrochemical performance of EDLC. Figure 8 shows the CV curves measured at the voltage range of 0–2.5 V and injection rates of 5 and 400 mV/s.
In Figure 8, all CV curves of the RACF samples produce a rectangular shape without evidence of the Faradic redox reaction. In addition, the area of the CV curve that indicates the specific capacitance of the EDLC shows an identical trend to the specific capacitance calculated based on the GCD curve (Table 1). RACF-40, in particular, shows a larger CV curve area than YP-50F, despite its similar specific surface area and low mesopore ratio. This agrees with the previous result from the GCD curve and is presumed to be the case because RACF-40 has a PSD of larger pore diameters than YP-50F. In Figure 8b, however, all CV curves produce a leaf shape rather than a rectangular shape, presumably due to the increase in ion diffusion resistance at the high injection rate of 400 mV/s.
Electrochemical impedance spectroscopy (EIS) is a method widely used to analyze the impedance of EDLC and consists of Nyquist plots representing the negative versus imaginary electrochemical impedance of electrodes. Figure 9 presents the Nyquist plots for the RACF, obtained in the frequency range of 10 mHz to 300 kHz through EIS. In addition, the numerical data of the Nyquist plots are given in Table 2. A typical Nyquist plot of an EDLC is generally categorized into three types: bulk solution electrolyte, charge transfer resistance, and Warburg impedance [38]. The first type shows the bulk solution electrolyte resistance (RS) that can be easily verified on the x-intercept at high frequency. RS may vary according to the properties of the electrolyte used in the EDLC [38], and in this study, similar values were obtained (RS: 2.0–2.2 Ω) across all cells, as can be seen in Table 2, because they were all prepared using 1 M (C2H5)4NBF4/PC. The second plot type shows the charge transfer resistance (RCT) that is observed in a semicircle shape on the Nyquist plot within the mid-frequency range. RCT is the resistance that incorporates the interface resistance between the active electrode material and the electrolyte, the electrical conductivity of the electrode, the contact resistance between the electrode and the current collector, and the ion resistance of the electrolyte in the pore interior [38]. In this study, RACF showed the smallest value of RCT at 3.7 Ω at 50 min activation time, while the value increased to 6.4 Ω as the activation time increased. In Wang et al. [39], the charge transfer resistance was reported to fall when the electrical conductivity of the EDLC electrode was improved. Thus, the electrical conductivity of RACF in this study is likely to have shown a relative increase in the proportion of crystal grain until 50 min activation time due to amorphous oxidation. Accordingly, the electrical conductivity of the RACF is thus presumed to have increased with amorphous oxidation as the activation time increased, consequently inducing a decrease in RCT in proportion to the activation time. However, as was shown in Figure 4, the edge oxidation of crystal grains after 60 min activation time is likely to have collapsed the micropores towards the expansion of mesopores, leading to a decrease in the electrical conductivity of the RACF. This decrease in the electrical conductivity is presumed to have increased the charge transfer resistance for RACF-60 and -70, promoting the semicircular shape. For YP-50F, a larger value of RCT at 10.2 Ω was observed as compared to all RACF samples. As previously shown, while both the RACF and YP-50F were produced from precursors of identical biomass, the precursor of the RACF was composed of high-purity cellulose with a lower content of hemicellulose than that of YP-50F, having higher crystallinity. Thus, the crystallinity of YP-50F is presumed to be lower than that of the LCAF, leading to lower electrical conductivity than the RACF and hence the highest RCT.
The third Nyquist plot type shows the Warburg impedance (RW) which is observed as a straight line with 45° slope at low frequency. RW indicates the ion diffusion resistance of the electrolyte [38]. In a prior investigation, the ion diffusion resistance of AC was shown to decrease with an increase in mesopore volume [37]. In this study, the mesopore fraction of the RACF increased to 10.6–31.1% as the activation time increased. Hence, the mesopore fraction increased as a function of activation time, leading to the continuous decrease in RW from 3.63 to 2.23 Ω. Notably, RACF-70 was shown to have the lowest RW according to its high mesopore fraction. YP-50F, despite having a higher mesopore fraction than RACF-40, showed a larger RW at 3.21 Ω. It is generally known that the rate of adsorption is higher for ACF than AC, when the micropores of ACF are open to the exterior. Thus, RACF-40 is thought to have a smaller RW despite its lower mesopore fraction than YP-50F due to its unique pore structure of ACF.

3. Materials and Methods

3.1. Sample Preparation

Stabilized rayon fiber was obtained from Dissol (Jeonju, Korea) for use as the precursor of the ACF. Commercial AC (YP-50F, Kuraray Chemical Corporation, Tokyo, Japan) was used as the control for assessing the electrochemical properties of the ACF.
The rayon fiber was placed in an alumina boat by 20 g for the carbonization in the cylindrical tubular furnace fabricated in this study (SIC heater: 80 × 800 mm). The heating of rayon fiber reached 700 °C at the rate of 10 °C/min in N2 atmosphere, and the carbonization temperature was maintained for 1 h. The carbonization yield of rayon fiber was approximately 54%.
The rayon-based carbon fiber was placed in an alumina boat by 3 g for activation in the same cylindrical tubular furnace. The heating of the rayon-based carbon fiber reached the activation temperature of 900 °C at the rate of 10 °C/min in N2 atmosphere (N2, 99.999%). Once the activation temperature was achieved, the gas flow inside the reactor was converted to steam at 0.5 mL/min, and the rayon-based carbon fiber was activated for 30–70 min. The sample names for the activated carbon fibers were labeled as RACF-30, -40, -50, -60, and -70, based on the activation time regulations.

3.2. Characterization

The textural properties of the RACF samples were measured after 12 h of drying at 573 K and ≤0.133 Pa residual pressure using an isotherm gas adsorption analyzer (BELSORP-max, BEL Japan, Tokyo, Japan). The specific surface area was calculated from the isotherm adsorption curve using the BET (Brunauer–Emmett–Teller) equation [40]. The pore size distribution (PSD) was obtained through the non-localized density functional theory (NLDFT) [41].
The morphologies of RACF were explored using a scanning electron microscope (SEM, AIS2000C, Seron Tech. Inc., Uiwang-si, Korea). The changes in RACF crystalline structure based on activation time were analyzed through X-ray diffraction (XRD) spectroscopy (X-ray diffractometer, X’ pert powder, PANalytical, Almelo, The Netherlands). The XRD pattern was measured using CuKα (1.5406 Å) in 10–60° range at 2°/min. In addition, the RACF crystal grain size (La) and height (Lc) as a function of activation time were calculated from the XRD pattern using the Gaussian calculation and Scherrer equation [42]:
L = K λ B cos θ
where λ indicates the wavelength of the applied X-ray, B indicates the full width at half maximum intensity, K indicates the dimensionless shape factor Lc (0.91) and La (1.84), and θ indicates the Bragg angle.

3.3. Electrochemical Measurements

To assess the electrochemical properties of the RACF samples, the electrodes in an EDLC were prepared at the ratio of [active material:conductive agent:binder] = [84:7:9] wt%. The conductive agent was carbon black (Super P, Timcal Ltd., Bodio, Switzerland), and for the binder, carboxy-methylcellulose (Dai-Ichi Kogyo Seiyaku Co., Ltd., Kyoto, Japan), styrene-butadiene rubber (BM400B, Zeon, Tokyo, Japan), and polytetrafluoroethylene (9002-84-0, Sigma Aldrich, St. Louis, MO, USA) were used. The slurry containing the active material, conductive agent, and binder was coated 0.152 mm thick on aluminum foil by the laboratory scale doctor blade coater. The coated electrodes were dried overnight in a 100 °C vacuum oven, then punched to 12 mm diameter. The EDLC was fabricated based on the CR2032 specification with punched electrodes and cellulose-based separation membrane (NKK, Kanagawa, Japan) using 1M (C2H5)4NBF4/propylene carbonate organic solution as the electrolyte.
For galvanostatic charge-discharge (GCD) testing of the EDLC, the MACCOR 4300 Battery Tester (Maccor Inc., Tulsa, OK, USA) was used. For cyclic voltammetry (CV) and electrochemical impedance spectroscopy (EIS), a VSP electro-chemical workstation (Bio-Logic Science Instruments, Grenoble, France) was used. The GCD was measured at the voltage range of 0.1–2.5 V and 2–50 mA/cm2 current density. The CV was measured at the voltage range of 0.1–2.5 V and 5–400 mV/s injection rate. The frequency range for the Nyquist plots was 10–300 mHz. All electrochemical tests were performed ten times at room temperature, and the data of ten measurements were used in subsequent analyses.
The specific capacitance (capacitance per electrode weight) of the EDLC was calculated using the GCD curve and the weight of the active electrode material based on Equation (2):
C g = i Δ t m Δ V
where i is the discharge current (A), Δt is the discharge time (s), m is the mass of the active electrode material, and ΔV is the voltage (V).

4. Conclusions

In this study, RACFs were developed using the steam activation method as a lower-cost and environmentally friendly alternative to nanocarbon materials for enhancing the performance of the EDLC. The effects of various activation times (30 to 70 min) on the ACF micropore structure and pore development behavior were examined; using isotherm adsorption with BET and NLDFT calculations to determine the specific surface area and distribution of pore sizes, XRD to elucidate pore structural changes, and GCD curves, CV, and EIS to evaluate electrochemical performance. The results showed that, with an increase in activation time, the pore characteristics of RACF underwent changes from micropore-rich structure to mesopore-rich structure. Notably, as activation time increased, RACF showed outstanding pore characteristics, including specific surface area of 1990–2150 m2/g and mesopore fraction of 20.5–31.1%, despite high activation yield at approximately 28–37%.
The specific capacitance of the active electrode material for EDLC was markedly dependent on the distribution of the pore sizes as a function of activation time. Of the five RACF samples RACF-30 to -70 corresponding to activation times, RACF-40 showed high specific capacitance at approximately 6% despite having a similar specific surface area to that of commercial AC and low total pore volume. Notably, compared to YP-50F at current densities of 2 and 50 mA/cm2, the specific capacitance of RACF-70 was shown to have increased by approximately 26% and 150% to 103.6 and 85.8 F/g, respectively. In addition, RACF showed outstanding impedance properties (low IR-drop, low charge transfer resistance, and low Warburg impedance) based on the unique pore structure of its ACF and large diameter of its PSD. This suggests that the pore structure of RACF had been better optimized than that of commercial AC (YP-50F) at 1M (C2H5)4NBF4/PC. Overall, the RACF developed through steam activation exhibited more outstanding pore characteristics and electrochemical performance than YP-50F, as well as the potential to enhance the performance of EDLC as an active electrode material. The findings of this study are expected to advance the application of RACF as an effective performance enhancing electrode material for the EDLC, with the advantages of having low cost and being environmentally friendly.

Author Contributions

Conceptualization, H.-M.L. and B.-J.K.; methodology, H.-M.L. and S.-C.J.; software, J.-H.K. and H.-M.L.; validation, H.-M.L. and B.-J.K.; formal analysis, H.-M.L. and B.-J.K.; investigation, J.-H.K.; resources, H.-M.L.; data curation, J.-H.K., H.-M.L. and B.-J.K.; writing—original draft preparation, J.-H.K. and H.-M.L.; writing—review and editing, B.-J.K.; visualization, S.-C.J.; supervision, H.-M.L. and B.-J.K.; project administration, H.-M.L. and B.-J.K.; funding acquisition, H.-M.L. and B.-J.K. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Nano Material Technology Development Program through the National Research Foundation of Korea (NRF) funded by Ministry of Science and ICT (Project no. 2019M3A7B9071501) and the Technology Innovation Program (20016795, Development of manufacturing technology independence of advanced activated carbons and application for high performance supercapacitor) funded by the Ministry of Trade, Industry and Energy (MOTIE, Korea). This work was also supported by grants from the Jeonju University.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lobato, B.; Suárez, L.; Guardia, L.; Centeno, T.A. Capacitance and surface of carbons in supercapacitors. Carbon 2017, 122, 434–445. [Google Scholar] [CrossRef] [Green Version]
  2. Largeot, C.; Portet, C.; Chmiola, J.; Taberna, P.-L.; Gogotsi, Y.; Simon, P. Relation between the Ion Size and Pore Size for an Electric Double-Layer Capacitor. J. Am. Chem. Soc. 2008, 130, 2730–2731. [Google Scholar] [CrossRef]
  3. Abbassi, A.; Dami, M.A.; Jemli, M. A statistical approach for hybrid energy storage system sizing based on capacity distri-butions in an autonomous PV/Wind power generation system. Renew. Energy 2017, 103, 81–93. [Google Scholar] [CrossRef]
  4. Khaligh, A.; Li, Z. Battery, Ultracapacitor, Fuel Cell, and Hybrid Energy Storage Systems for Electric, Hybrid Electric, Fuel Cell, and Plug-In Hybrid Electric Vehicles: State of the Art. IEEE Trans. Veh. Technol. 2010, 59, 2806–2814. [Google Scholar] [CrossRef]
  5. Burke, A.F. Batteries and Ultracapacitors for Electric, Hybrid, and Fuel Cell Vehicles. Proc. IEEE 2007, 95, 806–820. [Google Scholar] [CrossRef]
  6. Arvani, M.; Keskinen, J.; Lupo, D.; Honkanen, M. Current collectors for low resistance aqueous flexible printed supercapac-itors. J. Energy Storage 2020, 27, 101384. [Google Scholar] [CrossRef]
  7. Bates, J.; Markoulidis, F.; Lekakou, C.; Laudone, G.M. Design of Porous Carbons for Supercapacitor Applications for Differ-ent Organic Solvent-electrolytes. C 2021, 7, 15. [Google Scholar] [CrossRef]
  8. Dubey, R.; Guruviah, V. Review of carbon-based electrode materials for supercapacitor energy storage. Ionics 2019, 25, 1419–1445. [Google Scholar] [CrossRef]
  9. Tong, L.; Gao, M.; Jiang, C.; Cai, K. Ultra-high performance and flexible polypyrrole coated CNT paper electrodes for all-solid-state supercapacitors. J. Mater. Chem. A 2019, 7, 10751–10760. [Google Scholar] [CrossRef]
  10. Daraghmeh, A.; Hussain, S.; Haq, A.U.; Saadeddin, I.; Servera, L.; Ruiz, J. Carbon nanocomposite electrodes for electrical double layer capacitor. J. Energy Storage 2020, 32, 101798. [Google Scholar] [CrossRef]
  11. Pham, D.T.; Lee, T.H.; Luong, D.H.; Yao, F.; Ghosh, A.; Le, V.T.; Kim, T.H.; Li, B.; Chang, J.; Lee, Y.H. Carbon Nano-tube-Bridged Graphene 3D Building Blocks for Ultrafast Compact Supercapacitors. ACS Nano 2015, 9, 2018–2027. [Google Scholar] [CrossRef]
  12. Basnayaka, P.A.; Ram, M.K.; Stefanakos, L.; Kumar, A. Graphene/Polypyrrole Nanocomposite as Electrochemical Superca-pacitor Electrode: Electrochemical Impedance Studies. Graphene 2013, 2, 30869. [Google Scholar] [CrossRef] [Green Version]
  13. Oh, H.J.; Kim, S. Preparation and capacitive property of graphene oxide composite supercapacitor electrodes functionalized by Fe-based metal–organic frameworks. Carbon Lett. 2021, 32, 273–283. [Google Scholar] [CrossRef]
  14. Kumar, M.I.S.; Kirupavathy, S.S.; Shalini, S. Exploration on reduced graphene oxide/strontium pyro niobate electrode material for electrochemical energy storage applications. Carbon Lett. 2021, 31, 619–633. [Google Scholar] [CrossRef]
  15. Phan, T.N.; Gong, M.K.; Thangavel, R.; Lee, Y.S.; Ko, C.H. Enhanced electrochemical performance for EDLC using ordered mesoporous carbons (CMK-3 and CMK-8): Role of mesopores and mesopore structures. J. Alloys Compd. 2018, 780, 90–97. [Google Scholar] [CrossRef]
  16. Yu, S.; Sano, H.; Zheng, G. Mesoporous carbon microspheres fabricated from KOH activation of sulfonated resorcinol–formaldehyde for “water-in-salt” electrolyte-based high-voltage (2.5 V) supercapacitors. Carbon Lett. 2022, 32, 285–294. [Google Scholar] [CrossRef]
  17. Li, M.; Xiao, H.; Zhang, T.; Li, Q.; Zhao, Y. Activated Carbon Fiber Derived from Sisal with Large Specific Surface Area for High-Performance Supercapacitors. ACS Sustain. Chem. Eng. 2019, 7, 4716–4723. [Google Scholar] [CrossRef]
  18. Lee, H.-M.; Kim, H.-G.; Kang, S.-J.; Park, S.-J.; An, K.-H.; Kim, B.-J. Effects of pore structures on electrochemical behaviors of polyacrylonitrile (PAN)-based activated carbon nanofibers. J. Ind. Eng. Chem. 2014, 21, 736–740. [Google Scholar] [CrossRef]
  19. Lee, H.-M.; Kwac, L.-K.; An, K.-H.; Park, S.-J.; Kim, B.-J. Electrochemical behavior of pitch-based activated carbon fibers for electrochemical capacitors. Energy Convers. Manag. 2016, 125, 347–352. [Google Scholar] [CrossRef]
  20. Jung, J.Y.; Lee, Y.S. Electrochemical properties of KOH-activated lyocell-based carbon fibers for EDLCs. Carbon Lett. 2018, 27, 112–116. [Google Scholar] [CrossRef]
  21. Liu, C.; Wang, H.; Zhao, X.; Liu, H.; Sun, Y.; Tao, L.; Huang, M.; Shi, J.; Shi, Z. Cellulose-derived carbon-based electrodes with high capacitance for advanced asymmetric supercapacitors. J. Power Sources 2020, 457, 228056. [Google Scholar] [CrossRef]
  22. Ruland, W. Carbon Fibers. Adv. Mater. 1990, 2, 528–536. [Google Scholar] [CrossRef]
  23. Lee, H.-M.; Lee, B.-H.; Kim, J.-H.; An, K.-H.; Park, S.-J.; Kim, B.-J. Determination of the optimum porosity for 2-CEES adsorption by activated carbon fiber from various precursors. Carbon Lett. 2019, 29, 649–654. [Google Scholar] [CrossRef]
  24. Lee, H.-M.; Lee, B.-H.; Park, S.-J.; An, K.-H.; Kim, B.-J. Pitch-Derived Activated Carbon Fibers for Emission Control of Low-Concentration Hydrocarbon. Nanomaterials 2019, 9, 1313. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Gan, Y.X.; Gan, J.B. Porous Fiber Processing and Manufacturing for Energy Storage Applications. ChemEngineering 2020, 4, 59. [Google Scholar] [CrossRef]
  26. Frank, E.; Steudle, L.M.; Ingildeev, D.; Spörl, D.-C.J.M.; Buchmeiser, M.R. Carbon Fibers: Precursor Systems, Processing, Structure, and Properties. Angew. Chem. Int. Ed. 2014, 53, 5262–5298. [Google Scholar] [CrossRef]
  27. Gan, Y. Activated Carbon from Biomass Sustainable Sources. C 2021, 7, 39. [Google Scholar] [CrossRef]
  28. Li, K.; Liu, Q.; Cheng, H.; Hu, M.; Zhang, S. Classification and carbon structural transformation from anthracite to natural coaly graphite by XRD, Raman spectroscopy, and HRTEM. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2020, 249, 119286. [Google Scholar] [CrossRef]
  29. Baek, J.; Shin, H.S.; Chung, D.C.; Kim, B.J. Studies on the correlation between nanostructure and pore development of pol-ymeric precursor-based activated hard carbons: II. Transmission electron microscopy and Raman spectroscopy studies. J. Ind. Eng. Chem. 2017, 54, 324–331. [Google Scholar] [CrossRef]
  30. Baek, J.; Lee, H.M.; Roh, J.S.; Lee, H.S.; Kang, H.S.; Kim, B.J. Studies on preparation and applications of polymeric precur-sor-based activated hard carbons: I. Activation mechanism and microstructure analyses. Microporous Mesoporous Mater. 2016, 219, 258–264. [Google Scholar] [CrossRef]
  31. Sing, K.S.W. Reporting physisorption data for gas/solid systems with special reference to the determination of surface area and porosity (Recommendations 1984). Pure Appl. Chem. 1985, 57, 603–619. [Google Scholar] [CrossRef]
  32. Oginni, O.; Singh, K.; Oporto, G.; Dawson-Andoh, B.; McDonald, L.; Sabolsky, E. Effect of one-step and two-step H3PO4 acti-vation on activated carbon characteristics. Bioresour. Technol. 2019, 8, 100307. [Google Scholar] [CrossRef]
  33. Thommes, M.; Kaneko, K.; Neimark, A.V.; Olivier, J.P.; Rodriguez-Reinoso, F.; Rouquerol, J.; Sing, K.S.W. Physisorption of gases, with special reference to the evaluation of surface area and pore size distribution (IUPAC Technical Report). Pure Appl. Chem. 2015, 87, 1051–1069. [Google Scholar] [CrossRef] [Green Version]
  34. Wigmans, T. Industrial aspects of production and use of activated carbons. Carbon 1989, 27, 13–22. [Google Scholar] [CrossRef]
  35. Xu, J.; Zhang, R.; Wu, C.; Zhao, Y.; Ye, X.; Ge, S. Electrochemical performance of graphitized carbide-derived-carbon with hierarchical micro- and meso-pores in alkaline electrolyte. Carbon 2014, 74, 226–236. [Google Scholar] [CrossRef]
  36. Lin, R.; Taberna, P.L.; Chmiola, J.; Guay, D.; Gogotsi, Y.; Simon, P. Microelectrode Study of Pore Size, Ion Size, and Solvent Effects on the Charge/Discharge Behavior of Microporous Carbons for Electrical Double-Layer Capacitors. J. Electrochem. Soc. 2009, 156, A7–A12. [Google Scholar] [CrossRef] [Green Version]
  37. Kim, J.-H.; Lee, H.-M.; Jung, S.-C.; Chung, D.-C.; Kim, B.-J. Bamboo-Based Mesoporous Activated Carbon for High-Power-Density Electric Double-Layer Capacitors. Nanomaterials 2021, 11, 2750. [Google Scholar] [CrossRef]
  38. Mei, B.A.; Munteshari, O.; Lau, J.; Dunn, B.; Pilon, L. Physical Interpretations of Nyquist Plots for EDLC Electrodes and De-vices. J. Phys. Chem. C 2018, 122, 194–206. [Google Scholar] [CrossRef]
  39. Wang, K.; Wu, Y.; Luo, S.; He, X.; Wang, J.; Jiang, K.; Fan, S. Hybrid super-aligned carbon nanotube/carbon black conductive networks: A strategy to improve both electrical conductivity and capacity for lithiumion batteries. J. Power Sources 2013, 233, 209–215. [Google Scholar] [CrossRef]
  40. Brauneur, S.; Emmet, P.; Telle, E. Adsorption of Gases in Multimolecular Layer. J. Am. Chem. Soc. 1938, 60, 309–319. [Google Scholar] [CrossRef]
  41. Kierlik, E.; Rosinberg, M.L. Free-energy density functional for the inhomogeneous hard-sphere fluid: Application to in-ter-facial adsorption. Phys. Rev. A 1990, 42, 3382. [Google Scholar] [CrossRef] [PubMed]
  42. Biscoe, J.; Warren, B.E. An X-Ray Study of Carbon Black. Int. J. Appl. Phys. 1942, 13, 364. [Google Scholar] [CrossRef]
Ijms 23 03680 g001 550

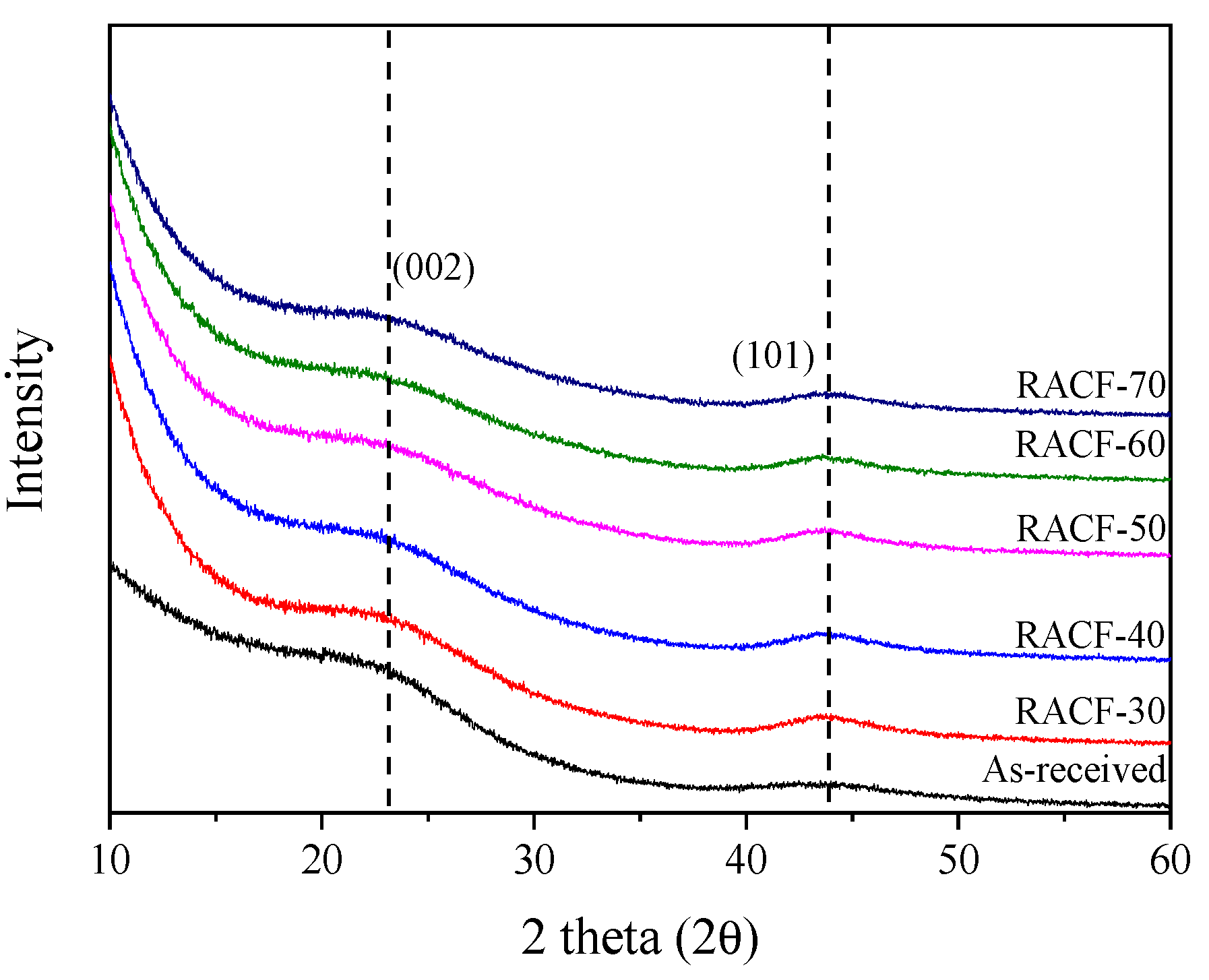

Figure 1. XRD patterns of RACF as a function of various steam activation conditions.
Figure 1. XRD patterns of RACF as a function of various steam activation conditions.
Ijms 23 03680 g001
Ijms 23 03680 g002 550

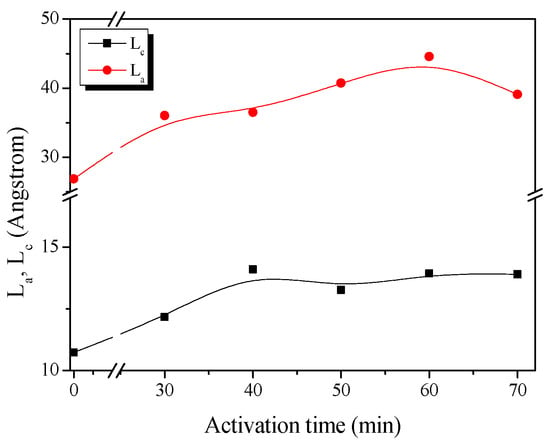

Figure 2. Structural characteristics of RACF as a function of various steam activation conditions.
Figure 2. Structural characteristics of RACF as a function of various steam activation conditions.
Ijms 23 03680 g002
Ijms 23 03680 g003 550

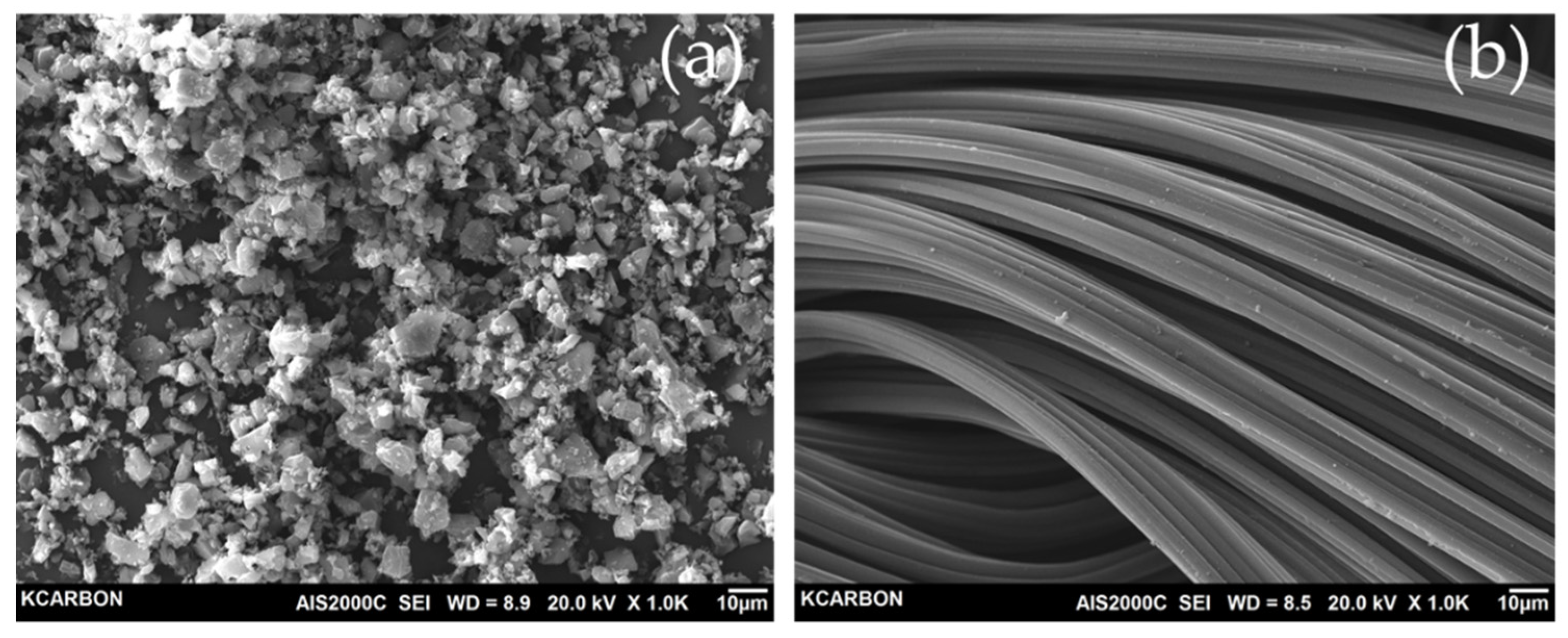

Figure 3. SEM images of the electrode materials (a) YP-50F, (b) RACF.
Figure 3. SEM images of the electrode materials (a) YP-50F, (b) RACF.
Ijms 23 03680 g003
Ijms 23 03680 g004 550

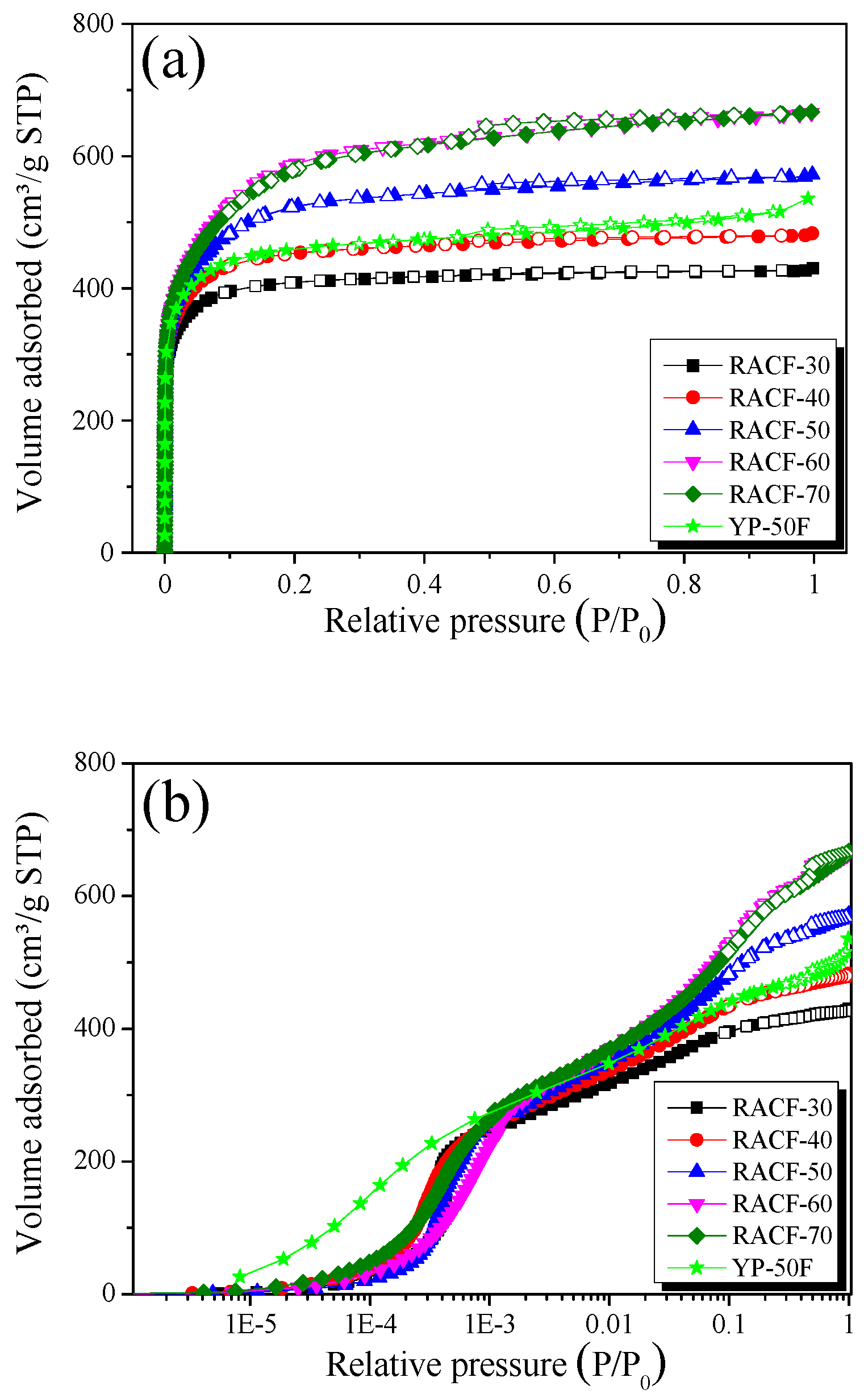

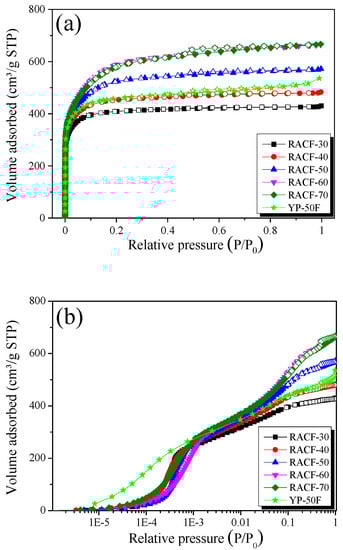

Figure 4. N2/77K isotherm adsorption-desorption curves of RACF as a function of various activation conditions; (a) normal and (b) logarithmic.
Figure 4. N2/77K isotherm adsorption-desorption curves of RACF as a function of various activation conditions; (a) normal and (b) logarithmic.
Ijms 23 03680 g004
Ijms 23 03680 g005 550

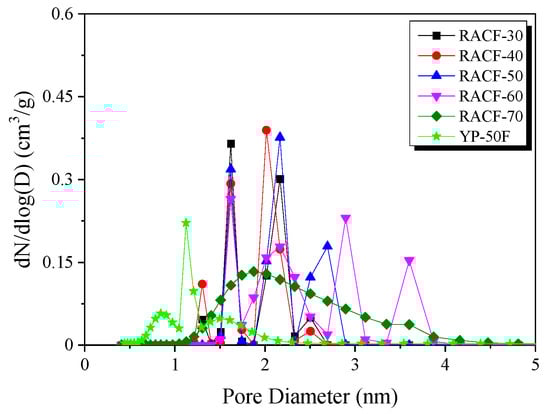

Figure 5. Pore size distribution of RACF as a function of various steam activation conditions according to the NLDFT equation.
Figure 5. Pore size distribution of RACF as a function of various steam activation conditions according to the NLDFT equation.
Ijms 23 03680 g005
Ijms 23 03680 g006 550

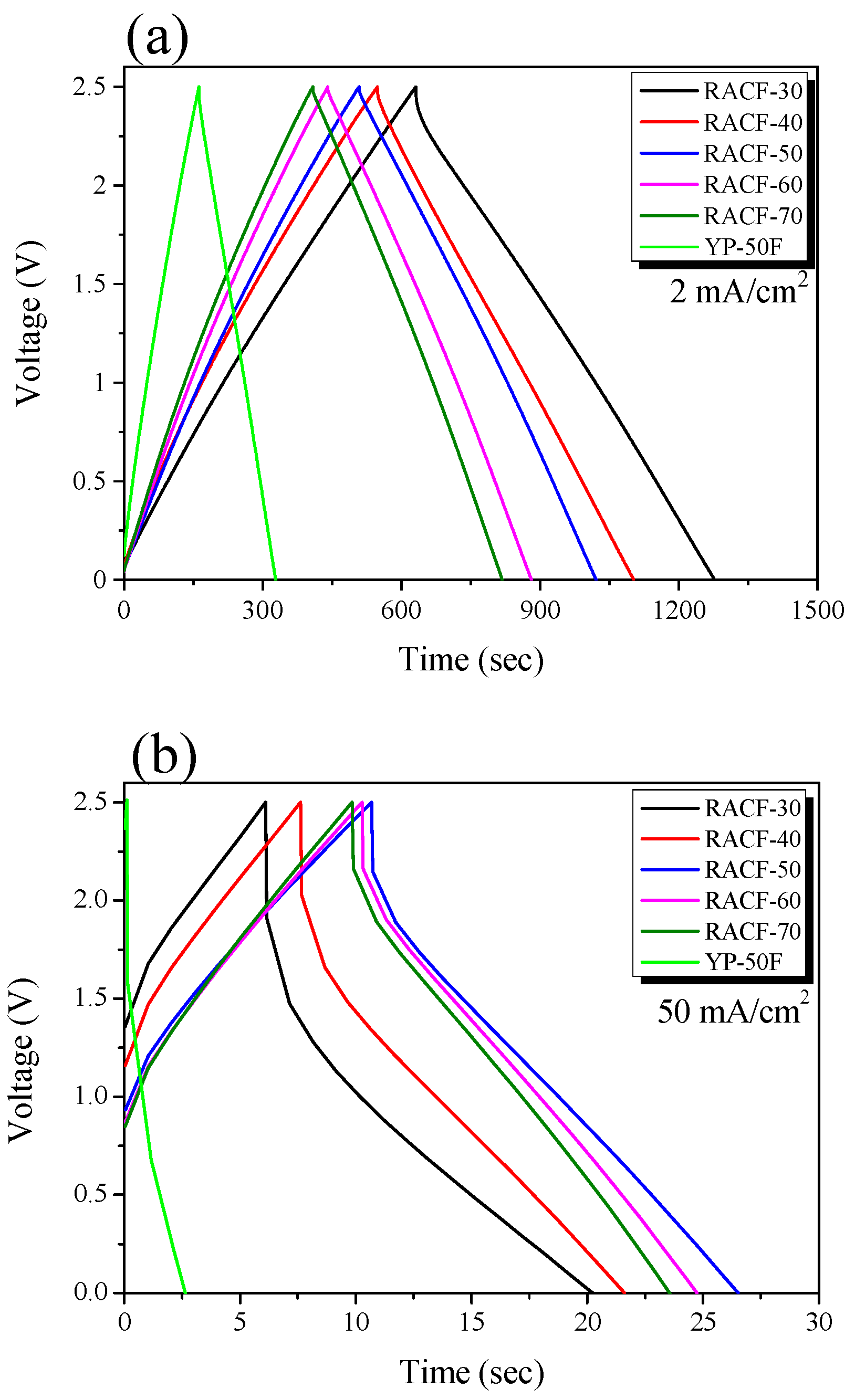

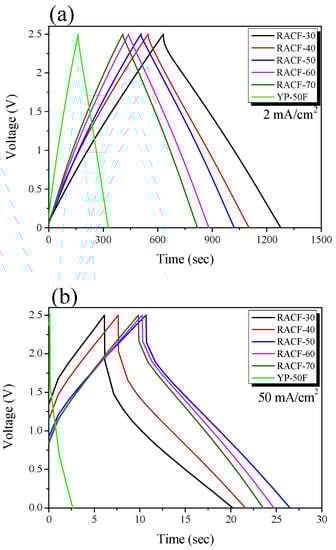

Figure 6. GCD curves of RACF as a function of various steam activation conditions with current densities of: (a) 2 mA/cm2, (b) 50 mA/cm2.
Figure 6. GCD curves of RACF as a function of various steam activation conditions with current densities of: (a) 2 mA/cm2, (b) 50 mA/cm2.
Ijms 23 03680 g006
Ijms 23 03680 g007 550

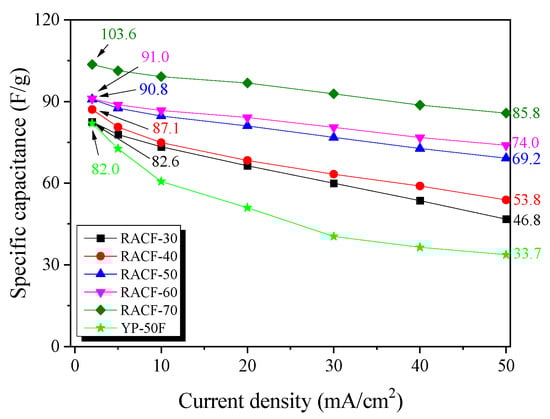

Figure 7. Specific capacitance of RACF as a function of discharge current density.
Figure 7. Specific capacitance of RACF as a function of discharge current density.
Ijms 23 03680 g007
Ijms 23 03680 g008 550

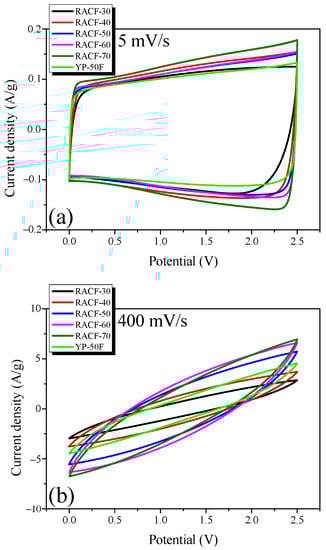

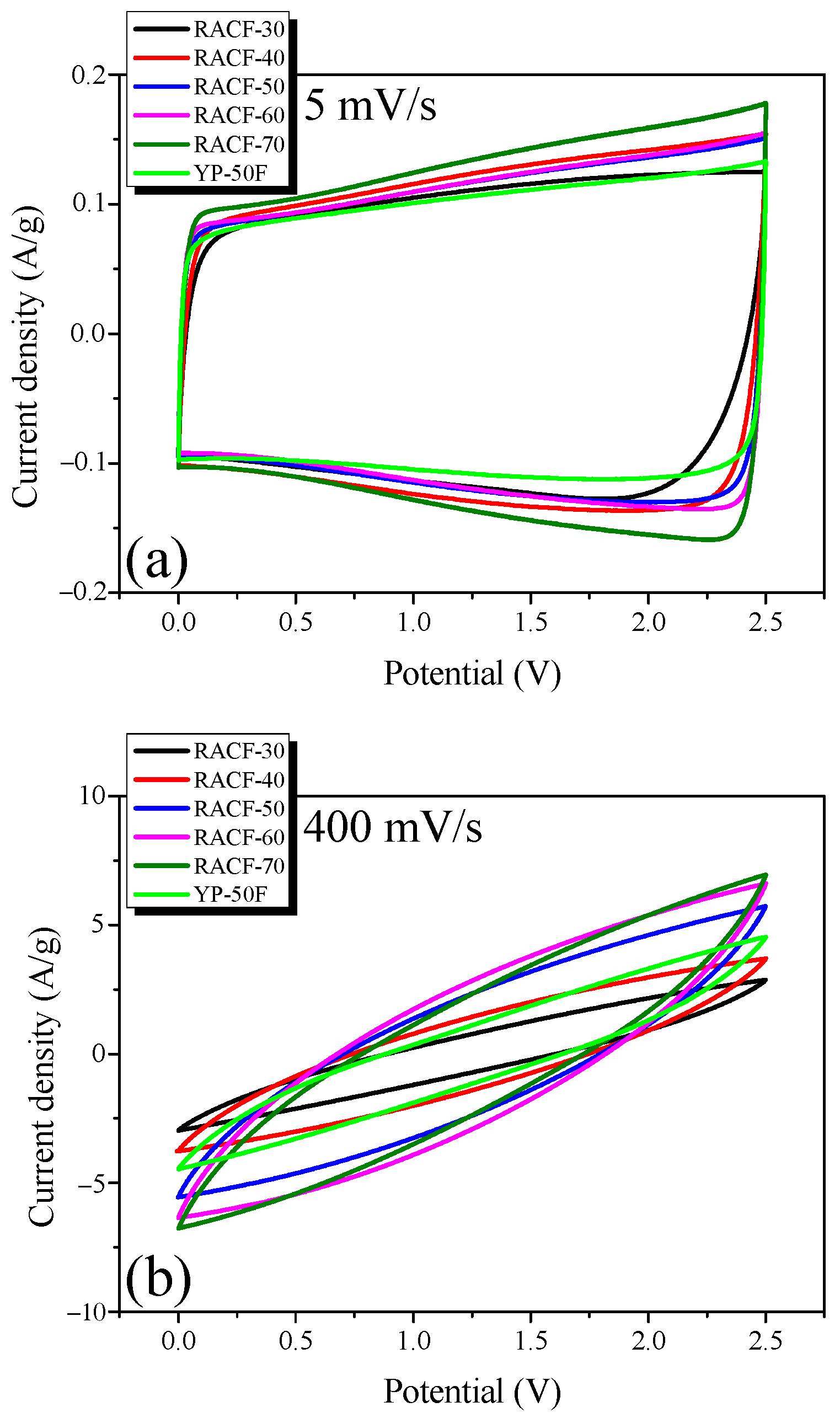

Figure 8. Cyclic voltammograms of RACF at various scan rates: (a) 5 mV/s, and (b) 400 mV/s.
Figure 8. Cyclic voltammograms of RACF at various scan rates: (a) 5 mV/s, and (b) 400 mV/s.
Ijms 23 03680 g008
Ijms 23 03680 g009 550

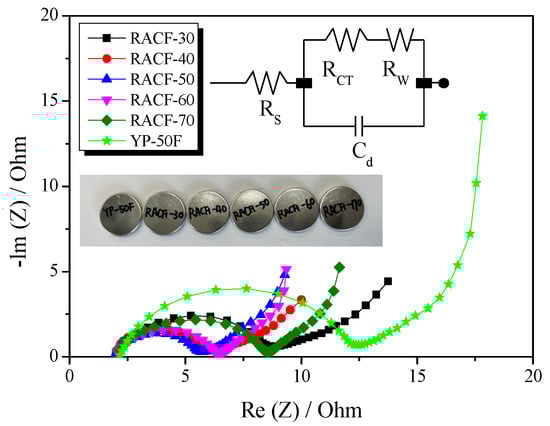

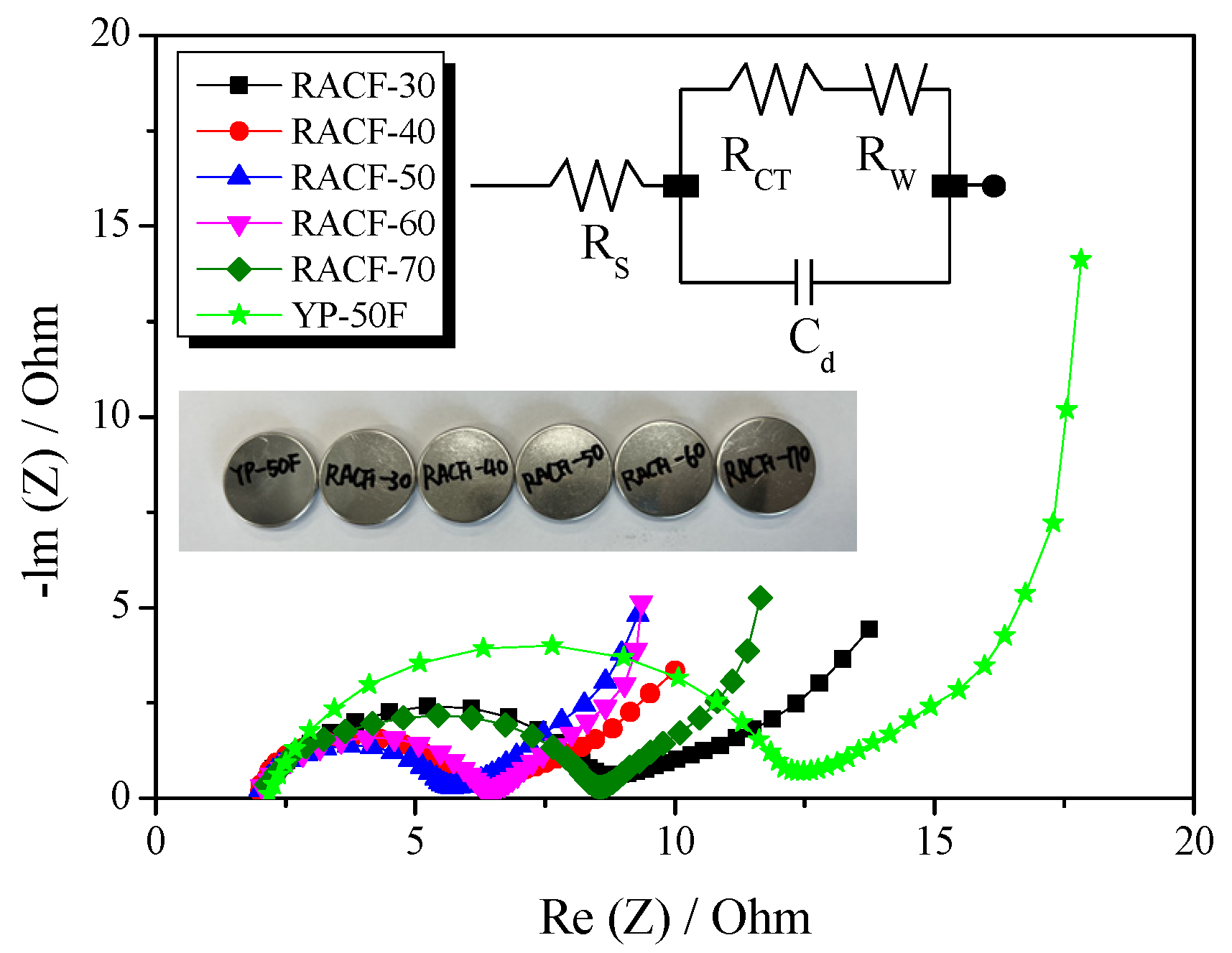

Figure 9. Nyquist plots of RACF obtained using different various activation conditions. The inset shows its equivalent circuit.
Figure 9. Nyquist plots of RACF obtained using different various activation conditions. The inset shows its equivalent circuit.
Ijms 23 03680 g009
Table
Table 1. Textural properties of RACF as a function of various activation conditions.
Table 1. Textural properties of RACF as a function of various activation conditions.
SampleSBET a
(m2/g)		VTotal b
(cm3/g)		VMicro c
(cm3/g)		VMeso d
(cm3/g)		RMeso e
(%)		Yield f
(%)		Cg g
(F/g)
RACF-3016000.660.590.0710.655.082.6
RACF-4017600.740.650.0912.248.987.1
RACF-5019900.880.700.1820.537.290.8
RACF-6022001.030.740.2928.230.791.0
RACF-7021501.030.710.3231.128.0103.6
YP-50F17800.830.700.1315.7-82.0
a SBET: Specific surface area; BET method P v ( P 0 − P ) = 1 v m c + c − 1 v m c P P 0 . b VTotal: Total pore volume; the amount adsorbed P/P0 = 0.99. c VMicro: Micropore volume; VTotal − VMeso. d VMeso: Mesopore volume; BJH method rp = rk + t, (rp = actual radius of the pore, t = thickness of the adsorbed film). e RMeso: Mesopore volume ratio; V Meso V Total × 100 . f Yield: Activation yield; W e i g h t   o f   a c t i v a t e d   s a m p l e W e i g h t   o f   c a r b o n i z e d   s a m p l e   i n p u t × 100 . g Cg: Specific capacitance at 2 mA/cm2.
Table
Table 2. Values of equivalent circuit parameters from the fitting of the impedance spectra in Figure 7.
Table 2. Values of equivalent circuit parameters from the fitting of the impedance spectra in Figure 7.
SampleRS a
(Ω)		RCT b
(Ω)		RW c
(Ω)
RACF-302.16.63.63
RACF-402.04.12.67
RACF-502.03.72.53
RACF-602.04.42.24
RACF-702.16.42.23
YP-50F2.210.23.21
a RS: bulk electrolyte resistance. b RCT: charge transfer resistance. c RW: Warburg impedance.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Kim, J.-H.; Jung, S.-C.; Lee, H.-M.; Kim, B.-J. Comparison of Pore Structures of Cellulose-Based Activated Carbon Fibers and Their Applications for Electrode Materials. Int. J. Mol. Sci. 2022, 23, 3680. https://doi.org/10.3390/ijms23073680

AMA Style

Kim J-H, Jung S-C, Lee H-M, Kim B-J. Comparison of Pore Structures of Cellulose-Based Activated Carbon Fibers and Their Applications for Electrode Materials. International Journal of Molecular Sciences. 2022; 23(7):3680. https://doi.org/10.3390/ijms23073680

Chicago/Turabian Style

Kim, Ju-Hwan, Sang-Chul Jung, Hye-Min Lee, and Byung-Joo Kim. 2022. "Comparison of Pore Structures of Cellulose-Based Activated Carbon Fibers and Their Applications for Electrode Materials" International Journal of Molecular Sciences 23, no. 7: 3680. https://doi.org/10.3390/ijms23073680

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
