Implantable Immunosuppressant Delivery to Prevent Rejection in Transplantation

Center for Vascularized Composite Allotransplantation, Department of Plastic and Reconstructive Surgery, Chang Gung Memorial Hospital, Chang Gung Medical College and Chang Gung University, Taoyuan 333, Taiwan
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(3), 1592;
Submission received: 8 November 2021 / Revised: 26 January 2022 / Accepted: 27 January 2022 / Published: 29 January 2022
(This article belongs to the Collection Frontiers in Polymeric Materials)


An innovative immunosuppressant with a minimally invasive delivery system has emerged in the biomedical field. The application of biodegradable and biocompatible polymer forms, such as hydrogels, scaffolds, microspheres, and nanoparticles, in transplant recipients to control the release of immunosuppressants can minimize the risk of developing unfavorable conditions. In this review, we summarized several studies that have used implantable immunosuppressant delivery to release therapeutic agents to prolong allograft survival. We also compared their applications, efficacy, efficiency, and safety/side effects with conventional therapeutic-agent administration. Finally, challenges and the future prospective were discussed. Collectively, this review will help relevant readers understand the different approaches to prevent transplant rejection in a new era of therapeutic agent delivery.

1. Introduction

Innovations in immunosuppressant delivery to prevent allotransplant rejection have grown rapidly in recent decades. The immunosuppressant carriers should ideally meet two prerequisites. First, they should deliver the immunosuppressant in a controlled dose directed to the organ target during the treatment period. Second, they should facilitate the active entity of the immunosuppressant to the site of rejection. Conventional systemic drug administrations, such as oral intake, intravenous, intraperitoneal, intramuscular, and subcutaneous injections, are unable to meet any of these prerequisites. To circumvent this, biodegradable polymers (such as hydrogels, micro/nanoparticles, and microspheres) for biomaterial formulation have been developed to provide advantages for immunosuppressant delivery, including the ability to support the local delivery of the drugs at a constant rate, to minimize the dosage requirement and then further enhance drug efficacy, and prevent adverse effects. Moreover, these polymers have good stability and high biocompatibility. Many reports have applied the biodegradable polymers as implantable immunosuppressant delivery carriers and show potential in suppressing transplantation rejection. Herein, we will review the current application of implantable immunosuppressant delivery that employ biodegradable polymers to prevent rejection in allotransplantation.

2. Immunosuppressants to Prevent Allograft Rejection in Transplantation

Transplantation is used to transfer an organ, a tissue, or a group of cells from the donor to the recipient (or host) or to different sites in the same individual [1], with the purpose of saving lives or improving the quality of life through the replacement of damaged organs or tissue with functional ones [2,3]. However, rejection caused by the direct or indirect immune mechanism of the recipient is one of the main obstacles that occur after transplantation [4].
In a transplantation setting, both innate [5] and adaptive immune cells [6,7], such as macrophages, natural killer (NK) cells, helper T (Th) cells (CD4+ T cells), cytotoxic T cells (CD8+ T cells), B cells, as well as cytokines and antibodies are involved in the direct or indirect immune mechanism of allograft rejection [8]. To inhibit effector cells activation/proliferation or enhance regulatory cells activation/proliferation [9], the common approaches to immunosuppression include costimulation blockades to block dendritic cells (DCs)–T cells interactions [10], anti-inflammatory recombinant proteins [11,12], immunosuppressive drugs [13], and anti-inflammatory cytokines derived from immunomodulatory stem cells, such as mesenchymal stem cells (MSCs) [14,15].
The early development of immunosuppressants, such as cyclosporine (CsA), tacrolimus (TAC), and rapamycin (RAPA), targeted the T cells pathways [16]. This is because recipient T cells play a significant role in acute/chronic rejection [17], with direct recognition of foreign antigens that are presented by the receptors of donor and recipient dendritic cells [18,19]. Once T cells are activated, they proliferate and secrete cytokines that regulate other immune responses, including B cells [20] that can produce an alloantibody that is detrimental to long-term graft survival [21]. Mycophenolate mofetil (MMF) has been applied to inhibit B cell proliferation [22]. Later on, more immunosuppressant types were developed. For instance, tofacitinib that inhibits the immune response through the janus kinase pathway, monoclonal antibodies (clazakizumab, tocilizumab) to inhibit inflammatory cytokines (such as interleukin (IL)-6), and multimeric Fas ligands (Adipogen) that can improve the survival of MSCs survival and support MSCs to induce T cells apoptosis (Figure 1) [23,24,25,26,27].
Broadly speaking, the transplant recipients may receive pharmacological treatments during the induction, maintenance, or rejection phases [28,29] based on the post-transplant time and the specific infection/rejection profile status [13,30]. Treatment during the induction phase aims to immediately eradicate the immune response, while treatment during the maintenance phase seeks to maintain the tolerant condition in which the immune system is sufficiently suppressed to minimize allograft rejection but is still able to respond to infections [31]. Multiple or single immunosuppressive drug administration is commonly applied in the induction or maintenance phase. Although not always successful, combination therapy that is intended to deplete B cells is used in the rejection phase. Costimulation blockades, T cells or lymphocytes depletion, and immunomodulatory cells are also used during the induction phase because immunosuppressive drug administration alone is not enough [32].

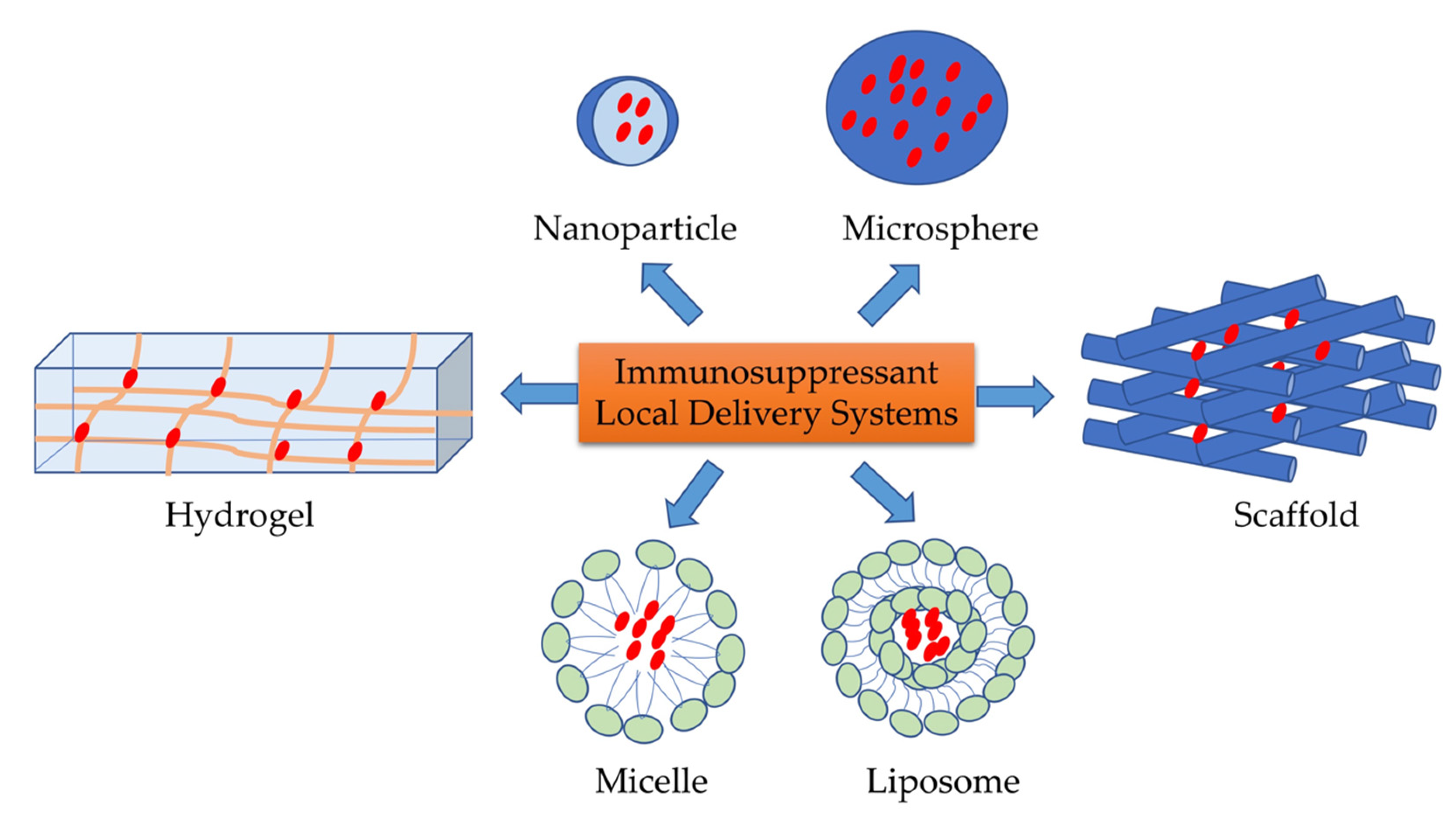

3. Types of Implantable Immunosuppressant Delivery System in Transplantation

Implantable immunosuppressant delivery systems have been devised to localize drug delivery and minimize the side effects of post-transplantation therapies. Implantable immunosuppressant delivery can be made through various systems, such as hydrogels, nano/microparticles [33], micelles [34], microspheres [33], and liposomes [35] (Figure 2). Several implantable immunosuppressant deliveries applied in transplantation are summarized below.

3.1. Hydrogel

A hydrogel has hydrophilic properties that are constructed from a 3D network polymer, is able to swell under water, and retains a large amount of water. It is feasible for immunosuppressant delivery because their unique physical characteristic to transform from liquid into a gel due to environmental changes, such as physical stimuli (temperature, pressure, and light) and chemical stimuli (pH, ion, and solvent composition) [36]. Hydrogels for immunosuppressant delivery can be made from polymers, such as poly-d,l-lactic-co-glycolic (PLGA), polyethylene glycol (PEG), and triglycerol monostearate (TGMS) [37,38]. They could be homopolymers, copolymers, or multipolymers [37,38,39]. The incorporation of peptides or nanoparticles may enhance their function [40,41].

3.2. Microsphere

Double-walled polymer microspheres, with a 1–1000 μm diameter size, could be synthesized by emulsification [42]. Scientific experts commonly employ biodegradable polymers, poly(lactic-co-glycolic acid), and poly(l-lactic acid) to make microspheres to control drug release [43,44,45]. Their low toxicity and degradation are suitable for use as a drug delivery system without side effects. This system has been utilized to treat various diseases successfully when inconvenience and limitations related to chronic oral treatments cannot be avoided [46]. Another application is the encapsulation of tacrolimus (TAC), which is effective in controlling rejection in the porcine small bowel transplantation and improving the allograft survival time in a heart transplant rat model while avoiding side effects [47,48].

3.3. Nanoparticles

Nanoparticles have been extensively studied as delivery vehicles for therapeutics. They are called nano since they have a 1–100 nm diameter size [49]. Because of their excellent biocompatibility and controllable biodegradability, PLGA nanoparticles prevent macromolecules from instant degradation in vivo. Hence, drug encapsulation by PLGA nanoparticles improves stability. Additionally, due to their size, these particles can target and access many parts of the body and can also penetrate specific tissues through the fenestrations in the endothelium of inflamed tissues or receptors for overexpressed targeted cells [50]. Better efficacy than soluble drugs results in the minimum required drug dosage that should be implemented [51]. The application of PLGA nanoparticles to prolong the allograft survival has been reported [52,53].

3.4. Micelles and Liposomes

Micelles and liposomes are vesicular structures composed of lipids that are formed in aqueous solutions. Unlike liposomes composed of lipid bilayers, polymer-based micelles comprise only closed lipid monolayers that are hydrophilic on the polar side and have fatty acids on the core side (Figure 2). Previously, both have also been used in various applications, such as drug delivery, hormone and chemotherapy, and vaccine delivery. In a transplantation study, Kuppan et al. optimized the dose of an immunosuppressant that attenuated naïve T cell proliferation and differentiation through CD28 costimulation [54] (dexamethason (Dex)) released with the micelles delivery system in the islet allograft. Nanosized micelles have also been reported to be applied in cornea transplantation, with good cytoprotective capacity and safety profile [55,56,57].

3.5. Scaffold

The scaffold delivery system can be implantable or injectable [58]. Scaffolds can be synthesized from polymerized alginate, were usually employed to delivery cells, and improved survival, such as MSCs in wound healing [59]. Scaffolds can retain the nanoparticle mobility. The quick release of nanoparticles from scaffolds directly reduces the effects of the immunosuppressive drug depot. Li et al. synthesized a scaffold delivery system to maintain the delivery of growth factors and immunosuppressant-loaded nanoparticles to enhance the survival rate of transplanted stem cells. They used a self-assembled peptide (RADA16) as a basic unit of hydrogels that could anchor and immobilize the nanoparticles; therefore, it can localize and sustain drug release for 28 days and ultimately enhance the survival of transplanted cells [41]. Mayorga et al. designed a 3D structure from polyamide 2200 filled with hydrogels to facilitate the MSC reservoir and local immunosuppressant delivery of cytotoxic T lymphocyte-associated-protein 4 immunoglobulin (CTLA4Ig) [60]. The selection of the scaffold structure and composition depends on their purpose. For instance, chitosan hydrogel and scaffold structure delivery systems support exosomes derived from MSCs by improving their retention and stability [61]. A 3D Life Dextran-PEG Hydrogel is used to carry these cells and stimulate immunomodulatory effects on local tissues and infiltrate immune cells [62].

4. Applications and Mechanisms of Implantable Immunosuppressant Delivery to Prevent Allograft Rejection

Various types of immunosuppressants are used to prevent rejection after transplantation. Recent studies have reported innovative delivery systems to carry immunosuppressants successfully (Table 1 and Table 2).

4.1. Immunosuppressant Drugs

Immunosuppressants commonly utilized to treat patients who receive allotransplants, such as TAC [69], RAPA [70], and tofacitinib [23] have unique characteristics. Some of them are hydrophobic and others are quite hydrophilic. For example, TAC exhibits strong hydrophobicity, which impedes its applications in aqueous solutions. Although a previous study verified its successful encapsulation by micelles, its outcome remains unsuitable for further applications because of a low encapsulation efficiency [71].
For this reason, potential candidates, including thermosensitive polymer hydrogels, have been developed for TAC delivery. Thermosensitive polymer hydrogels exhibit excellent biocompatibility and biodegradability, have a low concentration requirement for gelation, and rapidly react to temperature change [72]. Chu et al. synthesized a thermosensitive polypeptide hydrogel with P-Lys-Ala-PLX (poloxamer and poly(l-alanine) with l-lysine segments at both ends) copolymers [73] to encapsulate TAC [39]. Poly(l-alanine) acts as the hydrophobic chain of P-Lys-Ala-PLX copolymers, which have been designed to capture the hydrophobic agents. A drug release kinetic study has shown that P-Lys-Ala-PLX hydrogel releases TAC drugs at a constant rate, indicating that this hydrogel type is appropriate for negatively charged proteins and drugs. A mixed hydrogel is formulated by adding poloxamers (Pluronic® F127) to increase drug encapsulation efficiency and drug release rates. Furthermore, a supplement of methoxy-poly(ethylene glycol)-co-poly(lactic acid)-poly(ε-caprolactone) (mPEG-PLCL) and 0.5% polyvinylpyrrolidone (PVP) improve the stability of the hydrogel such that the drug was released in a stable and sustained fashion for 30 days. The allograft outcome was improved without significantly affecting systemic immune responses [65]. Another polymer that can also be loaded with TAC is the hydrogelator-triglycerol monostearate (TGMS), which also serves as a drug depot to slowly release drugs at a constant rate for long periods and exhibits enzyme-responsive properties. With these innovative delivery systems, the immunosuppressive effects of TAC were demonstrated by suppressing the local immune response, such as low complement C3c deposition, and proinflammatory cytokines (interleukin (IL)-2, tumor necrosis factor (TNF)-α, interferon (IFN)-γ, and IL-1-β). The development of chimerism in those hindlimb transplant recipients was also revealed [37,38,63].
Tofacitinib, the immunosuppressant used in the heart allograft, is fairly hydrophilic, indicated by a lower measured octanol-water partition coefficient (logP < 1.15) and is likely to cause rapid burst release. Thus, materials that contain the microcrystalline deposits of drugs encapsulated within an injectable hydrogel matrix can slow down the release rate. Therefore, hydrogel matrices allow drugs to stay localized, but early allograft rejection occurs when the location of administration is too far from the allograft [40].
The recent successful nanoparticle, micelle, and microsphere application for local immunosuppressant delivery systems in transplantation are listed (Table 2). For instance, a RAPA-nanomicelle that is used as an ophthalmic solution promoted the recruitment of myeloid-derived suppressor cells and improved their immunosuppressive function through the upregulation of arginase-1 and inducible nitric oxidase [56].

4.2. Biological Immunosuppressant

Antibodies and peptides that block inflammatory cytokines and interleukins are good candidates to prevent rejection. Naturally derived hydrogels, such as photocross-linkable gelatin-methacryloyl (GelMA)-based hydrogels, have been used for the controlled release of anti-IL-6 for skin allografts. Anti-IL-6 is locally released, as indicated by its local effects, such as less severe inflammation, nonoccurrence of matrix accumulation in draining lymph nodes, and unchanged systemic immune responses [64]. Another example, adding biological immunosuppressants, such as multimeric Fas ligand, in the hydrogel delivery system, improves MSCs survival by decreasing the CD8+ cytotoxic T cell population [26]. On the other hand, the microsphere system has been successfully developed to deliver an anti-TNF-α and IL-1-β for murine heart allografts [74]. Microspheres are phagocytosed by macrophages or other antigen-presenting cells [75]. This process verifies that the produced inflammatory cytokines become neutralized once they are released from macrophages. Unlike hydrogels or scaffolds, nanoparticles, microspheres, micelles, and liposomes may be administered through circulatory systems. To enhance site-specific targeting, conjugation of cell-specific ligands (including antibodies or specific antigens) to the surface of such molecules is a promising strategy [76]. The conjugation of endothelial-specific molecules improves site-specific targeting of endothelium, for example, platelet–endothelial cell adhesion molecule-1 increases lung targeting in vivo [77,78]. In transplantation, the conjugation of donor antigens specific to nanoparticles has been developed to prolong allograft survival without affecting overall recipient immune function [45,67,79,80].

5. Efficacy and Efficiency Compared to Conventional Administration

Efficacy and efficiency are very crucial for drug administration. Although the conventional immunosuppressant administration has resulted in the inhibition of the alloimmune response, the dosage may not be optimal. Without the help of biomaterials that can sustain long-term drug release, their effects in recipients will not be long lasting [81]. Therefore, a daily injection is required that results in a large amount of immunosuppressant dose. Although the physician maintains the systemic dose, it is still not proportionally correlated with local allograft concentrations. Furthermore, significant interpatient and intrapatient variability in drug exposure due to various clinical conditions, such as systemic inflammation, hemorrhage, and shock, often occurs [82]. In consequence, several problems exist in the conventional application of immunosuppressants. First, most immunosuppressants that are administered systematically may induce severe side effects. Fluctuating drug absorption will disrupt protein metabolism and cause loss of (multi) organ function. In the early phase after transplantation, it results in subsequent nephrotoxicity [82]. In addition, it increases the risk of infection [83] or cancer [84]. Second, a high concentration of immunosuppressants causes toxicity in stem cells [85]. Third, noncompliance by the patient during long-term medication fails to ensure the good efficacy of immunosuppressants [86].
To overcome these problems, localized and sustained immunosuppressant delivery is urgent. Implantable immunosuppressant delivery may be a safer route for drug administration. The several advantages of local immunosuppressant delivery compared to systemic delivery are shown in Table 3. With the incorporation of immunosuppressants into the local delivery system, such as hydrogels, the local alloimmune response has been greatly suppressed without systemic side effects. Several novel immunosuppressant-delivery systems that could improve the effectiveness of immunosuppressants have been reported. With a single injection of the immunosuppressant-loaded local delivery system, it can sustain the release of the immunosuppressant for one month or more, depending on the initial dose that is administered on day zero. Although burst release occurs in the early period after injection, the immunosuppressant was slowly and stably released for the long term. Moreover, that single injection has been shown, not only to improve allograft outcome, but also preserve kidney function without occurrence of malignancies or opportunistic infections compared with systemic immunosuppression [37,38,63,64,87,88]. With these advantages, the problem of noncompliance in the patient can be overcome [89,90]. However, additional costs are required for these implantable immunosuppressant deliveries [91,92].

6. Biocompatibility and Safety

High biocompatibility of the novel immunosuppressant-delivery systems is indicated by their high flexibility to interact with the cell surface or any protein in the body. Biocompatibility can be tested in vitro or in vivo. In vitro tests cannot replace in vivo tests but can minimize the animal sacrifice [93]. To standardize the protocol for biocompatibility, the manufacturer should follow the International Organization for Standardization (ISO) 10993 guidelines [94]. The recent use of polymeric biomaterials in transplantation studies, such as PLGA, PCL, and PEG, showed good biocompatibility, including cellular response, cell adhesion, and hemocompatibility [95,96]. Biocompatibility may be further enhanced by modification or addition of other polymeric materials [97,98,99,100]. For those nanoparticles, the ISO standard 1099-22 test that is dedicated to assessing the impact of shape, size, surface charge and function, dispersion state, matrix composition, attached protein formation on cell viability, and endocytosis process have been described [101,102]. The delivery drugs are not only polymeric with high biocompatibility but can also be applied to the niche of the stem cells, as shown by the thermosensitive chitosan hydrogel scaffold with microstructures or nanostructures [103,104].
Testing the safety of biomaterials usually includes a sensitization test, an irritation test in animals/humans, and a cytotoxicity assay both in the in vitro and in vivo systems [105]. In vitro studies have been performed with the relevant cultured cell line, such as human embryonic kidney cells [39], endothelial progenitor cells [41], or specific cell lines for certain experiments (e.g., human corneal epithelial cells for cornea transplantation) [106]. In the in vivo study, toxicity has been investigated by measuring parameters of kidney and liver function, such as blood urine nitrogen, creatinine [41], cholesterol, triglycerides, and liver enzymes, such as aspartate aminotransferase and alanine aminotransferase [37,107]. Polymeric materials that have been utilized in immunosuppressant micelle and nanoformulations have been extensively studied for decades. The administration of PLGA CsA [108], PEG-chitosan CsA nanoparticles (NPs) [109], poly(ethylene oxide-b-ε-caprolactone) (PEO-b-PCL) CsA micelle [110], and albumin-based TAC NPs [111] intravenously showed no kidney damage or safety enhancement. In the recipients who received TAC-loaded TGMS hydrogels, all these values have been lower than in those who received systemic TAC [37].

7. Conclusions

The unique properties of implantable immunosuppressant delivery, such as hydrogels, micelles, and microspheres, are suitable to avoid rapid immunosuppressant release. The ability to transform from solution into a solid form makes hydrogels excellent platforms for localized drug delivery applications. The nanosize of the nanoparticle will enhance the absorption by the targeted organ and the antigen-specific modification will improve their site-specific targeting. In addition, the toxicity studies on these delivery systems have validated their safety. The current literature review of the applications of various implantable delivery systems, including hydrogel-based (thermosensitive, photosensitive, and enzyme responsive), modified hydrogel-based systems with scaffolds and peptides, and others (micelles, microsphere) for the delivery of immunosuppressants to allografts, demonstrates that implantable immunosuppressant delivery systems provide many advantages, such as limited toxicity in normal tissues, the localized and sustained delivery of the immunosuppressants in the allograft vicinity, improved stability of the immunosuppressants, increased efficiency of the immunosuppressant effect, and enhanced allograft acceptance compared with systemic immunosuppressant administrations.

8. Challenge and Future Perspective

The effectiveness of these delivery systems for localized immunotherapy has been well characterized with standard in vitro environment protocols. The proof-of-principle demonstrations of their activities in various rodent–porcine allograft models are also encouraging. Although many of the in vivo studies exploring hydrogels have been extensively conducted, studies on nonhuman primates are still required. Moreover, necessary validation of the biocompatible and biodegradable polymers as immunosuppressant-delivery treatment options should be addressed in clinical studies to assess the effectiveness of these drug delivery platforms for allograft treatment.
Although the burst release pattern of immunosuppressants after injection is still below the maximum safety dose, modifications may be required to avoid incidence. Furthermore, the site-specific immunosuppression offered by this innovative delivery system is an effective strategy to achieve favorable results without the side effects of systemic immunosuppression. This provides an attractive option, not only in organ transplantation, but also in vascularized composite allotransplantation, where the transplanted allograft is easily visible.

Author Contributions

Writing—literature review and original draft preparation, M.R.A.; literature review, R.-W.H.; review and editing, H.-Y.C.; writing—review, editing, conceptualization, and funding acquisition, C.-H.L. (Cheng-Hung Lin) and C.-H.L. (Chih-Hung Lin). All authors have read and agreed to the published version of the manuscript.


This work was funded by the Ministry of Science and Technology, Taiwan, MOST 110-2811-B-182A-513 and the Chang Gung Foundation, CPRPG3F0033-4, CMRPG3C1541-3, and CMRPG6H0511.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Flaherty, D.K. Transplantation; Elsevier: St. Louis, MO, USA, 2012. [Google Scholar]
  2. Rouchi, A.H.; Mahdavi-Mazdeh, M. Regenerative Medicine in Organ and Tissue Transplantation: Shortly and Practically Achievable? Int. J. Organ Transplant. Med. 2015, 6, 93–98. [Google Scholar]
  3. Kaufman, C.L.; Bhutiani, N.; Ramirez, A.; Tien, H.Y.; Palazzo, M.D.; Galvis, E.; Farner, S.; Ozyurekoglu, T.; Jones, C.M. Current Status of Vascularized Composite Allotransplantation. Am. Surg. 2019, 85, 631–637. [Google Scholar] [CrossRef] [PubMed]
  4. Lin, C.M.; Gill, R.G. Direct and indirect allograft recognition: Pathways dictating graft rejection mechanisms. Curr. Opin. Organ Transplant. 2016, 21, 40–44. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Chaplin, D.D. Overview of the immune response. J. Allergy Clin. Immunol. 2010, 125, S3–S23. [Google Scholar] [CrossRef] [PubMed]
  6. Rosenblum, M.D.; Way, S.S.; Abbas, A.K. Regulatory T cell memory. Nat. Rev. Immunol. 2016, 16, 90–101. [Google Scholar] [CrossRef]
  7. Parkin, J.; Cohen, B. An overview of the immune system. Lancet 2001, 357, 1777–1789. [Google Scholar] [CrossRef]
  8. Jiang, S.; Herrera, O.; Lechler, R.I. New spectrum of allorecognition pathways: Implications for graft rejection and transplantation tolerance. Curr. Opin. Immunol. 2004, 16, 550–557. [Google Scholar] [CrossRef]
  9. Allison, T.L. Immunosuppressive Therapy in Transplantation. Nurs. Clin. N. Am. 2016, 51, 107–120. [Google Scholar] [CrossRef]
  10. Yeung, M.Y.; Grimmig, T.; Sayegh, M.H. Costimulation Blockade in Transplantation. Adv. Exp. Med. Biol. 2019, 1189, 267–312. [Google Scholar] [CrossRef]
  11. Citro, A.; Cantarelli, E.; Piemonti, L. Anti-Inflammatory Strategies to Enhance Islet Engraftment and Survival. Curr. Diabetes Rep. 2013, 13, 733–744. [Google Scholar] [CrossRef]
  12. Jordan, S.C.; Choi, J.; Kim, I.; Wu, G.; Toyoda, M.; Shin, B.; Vo, A. Interleukin-6, A Cytokine Critical to Mediation of Inflammation, Autoimmunity and Allograft Rejection: Therapeutic Implications of IL-6 Receptor Blockade. Transplantation 2017, 101, 32–44. [Google Scholar] [CrossRef] [PubMed]
  13. Jasiak, N.M.; Park, J.M. Immunosuppression in Solid-Organ Transplantation: Essentials and Practical Tips. Crit. Care Nurs. Q. 2016, 39, 227–240. [Google Scholar] [CrossRef] [PubMed]
  14. Wang, M.; Yuan, Q.; Xie, L. Mesenchymal Stem Cell-Based Immunomodulation: Properties and Clinical Application. Stem Cells Int. 2018, 2018, 3057624. [Google Scholar] [CrossRef] [PubMed]
  15. Al-Ghadban, S.; Bunnell, B.A. Adipose Tissue-Derived Stem Cells: Immunomodulatory Effects and Therapeutic Potential. Physiology 2020, 35, 125–133. [Google Scholar] [CrossRef] [PubMed]
  16. Pallet, N.; Fernández-Ramos, A.A.; Loriot, M.-A. Impact of Immunosuppressive Drugs on the Metabolism of T Cells. Int. Rev. Cell Mol. Biol. 2018, 341, 169–200. [Google Scholar] [CrossRef]
  17. Naik, R.H.; Shawar, S.H. Renal Transplantation Rejection. In StatPearls; StatPearls Publishing: Treasure Island, FL, USA, 2021. [Google Scholar]
  18. Zhuang, Q.; Lakkis, F.G. Dendritic cells and innate immunity in kidney transplantation. Kidney Int. 2015, 87, 712–718. [Google Scholar] [CrossRef] [Green Version]
  19. Ingulli, E. Mechanism of cellular rejection in transplantation. Pediatr. Nephrol. 2010, 25, 61–74. [Google Scholar] [CrossRef] [Green Version]
  20. Bevington, S.L.; Cauchy, P.; Withers, D.R.; Lane, P.J.L.; Cockerill, P.N. T Cell Receptor and Cytokine Signaling Can Function at Different Stages to Establish and Maintain Transcriptional Memory and Enable T Helper Cell Differentiation. Front. Immunol. 2017, 8, 204. [Google Scholar] [CrossRef] [Green Version]
  21. Schmitz, R.; Fitch, Z.W.; Schroder, P.M.; Choi, A.Y.; Jackson, A.M.; Knechtle, S.J.; Kwun, J. B cells in transplant tolerance and rejection: Friends or foes? Transpl. Int. 2019, 33, 30–40. [Google Scholar] [CrossRef] [Green Version]
  22. Von Borstel, A.; Abdulahad, W.H.; Dekkema, G.; Rutgers, A.; Stegeman, C.A.; Veldman, J.; Heeringa, P.; Sanders, J.S. Mycophenolic acid and 6-mercaptopurine both inhibit B-cell proliferation in granulomatosis with polyangiitis patients, whereas only mycophenolic acid inhibits B-cell IL-6 production. PLoS ONE 2020, 15, e0235743. [Google Scholar] [CrossRef]
  23. Zand, M.S. Tofacitinab in Renal Transplantation. Transplant. Rev. 2013, 27, 85–89. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Choi, J.; Aubert, O.; Vo, A.; Loupy, A.; Haas, M.; Puliyanda, D.; Kim, I.; Louie, S.; Kang, A.; Peng, A.; et al. Assessment of Tocilizumab (Anti-Interleukin-6 Receptor Monoclonal) as a Potential Treatment for Chronic Antibody-Mediated Rejection and Transplant Glomerulopathy in HLA-Sensitized Renal Allograft Recipients. Am. J. Transplant. 2017, 17, 2381–2389. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Miller, C.L.; Madsen, J.C. IL-6 Directed Therapy in Transplantation. Curr. Transplant. Rep. 2021, 8, 191–204. [Google Scholar] [CrossRef] [PubMed]
  26. Alvarado-Velez, M.; Enam, S.F.; Mehta, N.; Lyon, J.G.; LaPlaca, M.C.; Bellamkonda, R.V. Immuno-suppressive hydrogels enhance allogeneic MSC survival after transplantation in the injured brain. Biomaterials 2021, 266, 120419. [Google Scholar] [CrossRef]
  27. Akiyama, K.; Chen, C.; Wang, D.; Xu, X.; Qu, C.; Yamaza, T.; Cai, T.; Chen, W.; Sun, L.; Shi, S. Mesenchymal-Stem-Cell-Induced Immunoregulation Involves FAS-Ligand-/FAS-Mediated T Cell Apoptosis. Cell Stem Cell 2012, 10, 544–555. [Google Scholar] [CrossRef] [Green Version]
  28. Balani, S.S.; Jensen, C.J.; Kouri, A.M.; Kizilbash, S.J. Induction and maintenance immunosuppression in pediatric kidney transplantation—Advances and controversies. Pediatr. Transplant. 2021, 25, e14077. [Google Scholar] [CrossRef]
  29. Enderby, C.; Keller, C.A. An overview of immunosuppression in solid organ transplantation. Am. J. Manag. care 2015, 21, S12–S23. [Google Scholar]
  30. Dhanasekaran, R. Management of Immunosuppression in Liver Transplantation. Clin. Liver Dis. 2017, 21, 337–353. [Google Scholar] [CrossRef]
  31. Casati, C.; Menegotto, A.; Querques, M.L.; Ravera, F.; Colussi, G. Immunosuppression in kidney transplantation: A way between efficacy and toxicity. G. Ital. Nefrol. 2017, 34, 29–39. [Google Scholar]
  32. Fuehner, T.; Benden, C.; Gottlieb, J. Initial immunosuppression and managing rejection. Intensiv. Care Med. 2019, 45, 388–390. [Google Scholar] [CrossRef] [Green Version]
  33. Yuan, X.-B.; Yuan, Y.-B.; Jiang, W.; Liu, J.; Tian, E.-J.; Shun, H.-M.; Huang, D.-H.; Yuan, X.-Y.; Li, H.; Sheng, J. Preparation of rapamycin-loaded chitosan/PLA nanoparticles for immunosuppression in corneal transplantation. Int. J. Pharm. 2008, 349, 241–248. [Google Scholar] [CrossRef]
  34. Wang, Y.; Wang, C.; Fu, S.; Liu, Q.; Dou, D.; Lv, H.; Fan, M.; Guo, G.; Luo, F.; Qian, Z. Preparation of Tacrolimus loaded micelles based on poly(ε-caprolactone)–poly(ethylene glycol)–poly(ε-caprolactone). Int. J. Pharm. 2011, 407, 184–189. [Google Scholar] [CrossRef] [PubMed]
  35. Alemdar, A.Y.; Sadi, D.; McAlister, V.C.; Mendez, I. Liposomal Formulations of Tacrolimus and Rapamycin Increase Graft Survival and Fiber Outgrowth of Dopaminergic Grafts. Cell Transplant. 2004, 13, 263–271. [Google Scholar] [CrossRef]
  36. Ahmed, E.M. Hydrogel: Preparation, characterization, and applications: A review. J. Adv. Res. 2015, 6, 105–121. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Dzhonova, D.V.; Olariu, R.; Leckenby, J.; Banz, Y.; Prost, J.-C.; Dhayani, A.; Vemula, P.K.; Voegelin, E.; Taddeo, A.; Rieben, R. Local Injections of Tacrolimus-loaded Hydrogel Reduce Systemic Immunosuppression-related Toxicity in Vascularized Composite Allotransplantation. Transplantation 2018, 102, 1684–1694. [Google Scholar] [CrossRef] [PubMed]
  38. Gajanayake, T.; Olariu, R.; Leclère, F.M.; Dhayani, A.; Yang, Z.; Bongoni, A.K.; Banz, Y.; Constantinescu, M.A.; Karp, J.M.; Vemula, P.K.; et al. A single localized dose of enzyme-responsive hydrogel improves long-term survival of a vascularized composite allograft. Sci. Transl. Med. 2014, 6, 249ra110. [Google Scholar] [CrossRef] [PubMed]
  39. Lin, H.-C.; Anggelia, M.R.; Cheng, C.-C.; Ku, K.-L.; Cheng, H.-Y.; Wen, C.-J.; Wang, A.Y.L.; Lin, C.-H.; Chu, I.-M. A Mixed Thermosensitive Hydrogel System for Sustained Delivery of Tacrolimus for Immunosuppressive Therapy. Pharmaceutics 2019, 11, 413. [Google Scholar] [CrossRef] [Green Version]
  40. Majumder, P.; Zhang, Y.; Iglesias, M.; Fan, L.; Kelley, J.A.; Andrews, C.; Patel, N.; Stagno, J.R.; Oh, B.C.; Furtmüller, G.J.; et al. Multiphase Assembly of Small Molecule Microcrystalline Peptide Hydrogel Allows Immunomodulatory Combination Therapy for Long-Term Heart Transplant Survival. Small 2020, 16, 2002791. [Google Scholar] [CrossRef]
  41. Li, R.; Liang, J.; He, Y.; Qin, J.; He, H.; Lee, S.; Pang, Z.; Wang, J. Sustained Release of Immunosuppressant by Nanoparticle-anchoring Hydrogel Scaffold Improved the Survival of Transplanted Stem Cells and Tissue Regeneration. Theranostics 2018, 8, 878–893. [Google Scholar] [CrossRef]
  42. Jyothi, N.V.N.; Prasanna, P.M.; Sakarkar, S.N.; Prabha, K.S.; Ramaiah, P.S.; Srawan, G.Y. Microencapsulation techniques, factors influencing encapsulation efficiency. J. Microencapsul. 2010, 27, 187–197. [Google Scholar] [CrossRef]
  43. Mohamed, F.; van der Walle, C.F. Engineering Biodegradable Polyester Particles with Specific Drug Targeting and Drug Release Properties. J. Pharm. Sci. 2008, 97, 71–87. [Google Scholar] [CrossRef] [PubMed]
  44. Wang, S.; Xiong, Y.; Wang, Y.; Chen, J.; Yang, J.; Sun, B. Evaluation of PLGA microspheres with triple regimen on long-term survival of vascularized composite allograft—An experimental study. Transpl. Int. 2020, 33, 450–461. [Google Scholar] [CrossRef] [PubMed]
  45. Wang, W.; Fang, K.; Wang, X.; Li, M.; Wu, Y.; Chen, F.; Shahzad, K.A.; Gu, N.; Shen, C. Antigen-Specific Killer Polylactic-Co-Glycolic Acid (PLGA) Microspheres Can Prolong Alloskin Graft Survival in a Murine Model. Immunol. Investig. 2015, 44, 385–399. [Google Scholar] [CrossRef] [PubMed]
  46. Unadkat, J.V.; Schnider, J.T.; Feturi, F.G.; Tsuji, W.; Bliley, J.M.; Venkataramanan, R.; Solari, M.G.; Marra, K.G.; Gorantla, V.S.; Spiess, A.M. Single Implantable FK506 Disk Prevents Rejection in Vascularized Composite Allotransplantation. Plast. Reconstr. Surg. 2017, 139, 403e–414e. [Google Scholar] [CrossRef] [PubMed]
  47. Eshita, Y.; Uemoto, S.; Tabata, Y.; Sakamoto, S.; Egawa, H.; Hashida, T.; Inui, K.; Tanaka, K. Drug delivery system using microspheres that contain tacrolimus in porcine small bowel transplantation. Transpl. Int. 2005, 17, 841–847. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Kojima, R.; Yoshida, T.; Tasaki, H.; Umejima, H.; Maeda, M.; Higashi, Y.; Watanabe, S.; Oku, N. Release mechanisms of tacrolimus-loaded PLGA and PLA microspheres and immunosuppressive effects of the microspheres in a rat heart transplantation model. Int. J. Pharm. 2015, 492, 20–27. [Google Scholar] [CrossRef] [PubMed]
  49. Boverhof, D.R.; Bramante, C.M.; Butala, J.H.; Clancy, S.F.; Lafranconi, M.; West, J.; Gordon, S.C. Comparative assessment of nanomaterial definitions and safety evaluation considerations. Regul. Toxicol. Pharmacol. 2015, 73, 137–150. [Google Scholar] [CrossRef] [Green Version]
  50. Shahbaz, S.K.; Foroughi, F.; Soltaninezhad, E.; Jamialahmadi, T.; Penson, P.E.; Sahebkar, A. Application of PLGA nano/microparticle delivery systems for immunomodulation and prevention of allotransplant rejection. Expert Opin. Drug Deliv. 2020, 17, 767–780. [Google Scholar] [CrossRef]
  51. Danhier, F.; Ansorena, E.; Silva, J.M.; Coco, R.; Le Breton, A.; Préat, V. PLGA-based nanoparticles: An overview of biomedical applications. J. Control. Release 2012, 161, 505–522. [Google Scholar] [CrossRef]
  52. Shirali, A.C.; Look, M.; Du, W.; Kassis, E.; Stout-Delgado, H.W.; Fahmy, T.M.; Goldstein, D.R. Nanoparticle Delivery of Mycophenolic Acid Upregulates PD-L1 on Dendritic Cells to Prolong Murine Allograft Survival. Am. J. Transplant. 2011, 11, 2582–2592. [Google Scholar] [CrossRef]
  53. Deng, C.; Chen, Y.; Zhang, L.; Wu, Y.; Li, H.; Wu, Y.; Wang, B.; Sun, Z.; Li, Y.; Lv, Q.; et al. Delivery of FK506-loaded PLGA nanoparticles prolongs cardiac allograft survival. Int. J. Pharm. 2020, 575, 118951. [Google Scholar] [CrossRef] [PubMed]
  54. Giles, A.J.; Hutchinson, M.-K.N.D.; Sonnemann, H.M.; Jung, J.; Fecci, P.E.; Ratnam, N.M.; Zhang, W.; Song, H.; Bailey, R.; Davis, D.; et al. Dexamethasone-induced immunosuppression: Mechanisms and implications for immunotherapy. J. Immunother. Cancer 2018, 6, 51. [Google Scholar] [CrossRef] [PubMed]
  55. Zhang, H.; Wang, L.; Zhang, L. Cyclosporine Nanomicelle Eye Drop: A Novel Medication for Corneal Graft Transplantation Treatment. Biol. Pharm. Bull. 2015, 38, 893–900. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Wei, C.; Wang, Y.; Ma, L.; Wang, X.; Chi, H.; Zhang, S.; Liu, T.; Li, Z.; Xiang, D.; Dong, Y.; et al. Rapamycin Nano-Micelle Ophthalmic Solution Reduces Corneal Allograft Rejection by Potentiating Myeloid-Derived Suppressor Cells’ Function. Front. Immunol. 2018, 9, 2283. [Google Scholar] [CrossRef] [PubMed]
  57. Liu, D.; Wu, Q.; Chen, W.; Lin, H.; Zhu, Y.; Liu, Y.; Liang, H.; Zhu, F. A novel FK506 loaded nanomicelles consisting of amino-terminated poly(ethylene glycol)-block-poly(D,L)-lactic acid and hydroxypropyl methylcellulose for ocular drug delivery. Int. J. Pharm. 2019, 562, 1–10. [Google Scholar] [CrossRef]
  58. Li, J.; Luo, Y.; Li, B.; Xia, Y.; Wang, H.; Fu, C. Implantable and Injectable Biomaterial Scaffolds for Cancer Immunotherapy. Front. Bioeng. Biotechnol. 2020, 8, 612950. [Google Scholar] [CrossRef] [PubMed]
  59. Wahl, E.A.; Fierro, F.A.; Peavy, T.R.; Hopfner, U.; Dye, J.F.; Machens, H.-G.; Egaña, J.T.; Schenck, T.L. In Vitro Evaluation of Scaffolds for the Delivery of Mesenchymal Stem Cells to Wounds. BioMed Res. Int. 2015, 2015, 108571. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  60. Paez-Mayorga, J.; Capuani, S.; Hernandez, N.; Farina, M.; Chua, C.Y.X.; Blanchard, R.; Sizovs, A.; Liu, H.-C.; Fraga, D.W.; Niles, J.A.; et al. Neovascularized implantable cell homing encapsulation platform with tunable local immunosuppressant delivery for allogeneic cell transplantation. Biomaterials 2020, 257, 120232. [Google Scholar] [CrossRef]
  61. Zhang, K.; Zhao, X.; Chen, X.; Wei, Y.; Du, W.; Wang, Y.; Liu, L.; Zhao, W.; Han, Z.; Kong, D.; et al. Enhanced Therapeutic Effects of Mesenchymal Stem Cell-Derived Exosomes with an Injectable Hydrogel for Hindlimb Ischemia Treatment. ACS Appl. Mater. Interfaces 2018, 10, 30081–30091. [Google Scholar] [CrossRef]
  62. Ayenehdeh, J.M.; Niknam, B.; Rasouli, S.; Hashemi, S.M.; Rahavi, H.; Rezaei, N.; Soleimani, M.; Liaeiha, A.; Niknam, M.H.; Tajik, N. Immunomodulatory and protective effects of adipose tissue-derived mesenchymal stem cells in an allograft islet composite transplantation for experimental autoimmune type 1 diabetes. Immunol. Lett. 2017, 188, 21–31. [Google Scholar] [CrossRef]
  63. Fries, C.A.; Lawson, S.D.; Wang, L.C.; Slaughter, K.V.; Vemula, P.K.; Dhayani, A.; Joshi, N.; Karp, J.M.; Rickard, R.F.; Gorantla, V.S.; et al. Graft-implanted, enzyme responsive, tacrolimus-eluting hydrogel enables long-term survival of orthotopic porcine limb vascularized composite allografts: A proof of concept study. PLoS ONE 2019, 14, e0210914. [Google Scholar] [CrossRef] [PubMed]
  64. Uehara, M.; Li, X.; Sheikhi, A.; Zandi, N.; Walker, B.; Saleh, B.; Banouni, N.; Jiang, L.; Ordikhani, F.; Dai, L.; et al. Anti-IL-6 eluting immunomodulatory biomaterials prolong skin allograft survival. Sci. Rep. 2019, 9, 6535. [Google Scholar] [CrossRef] [PubMed]
  65. Wu, I.-E.; Anggelia, M.R.; Lin, S.-Y.; Chen, C.-Y.; Chu, I.-M.; Lin, C.-H. Thermosensitive Polyester Hydrogel for Application of Immunosuppressive Drug Delivery System in Skin Allograft. Gels 2021, 7, 229. [Google Scholar] [CrossRef]
  66. Kuppan, P.; Kelly, S.; Polishevska, K.; Hojanepesov, O.; Seeberger, K.; Korbutt, G.S.; Pepper, A.R. Co-localized immune protection using dexamethasone-eluting micelles in a murine islet allograft model. Am. J. Transplant. 2019, 20, 714–725. [Google Scholar] [CrossRef] [PubMed]
  67. Shah, S.; Daneshmandi, S.; Hughes, K.R.; Yu, S.; Bedoya, A.M.; Shea, L.D.; Luo, X. Optimizing PLG nanoparticle-peptide delivery platforms for transplantation tolerance using an allogeneic skin transplant model. Biomaterials 2019, 210, 70–82. [Google Scholar] [CrossRef] [PubMed]
  68. Deng, C.; Jin, Q.; Wu, Y.; Li, H.; Yi, L.; Chen, Y.; Gao, T.; Wang, W.; Wang, J.; Lv, Q.; et al. Immunosuppressive effect of PLGA-FK506-NPs in treatment of acute cardiac rejection via topical subcutaneous injection. Drug Deliv. 2021, 28, 1759–1768. [Google Scholar] [CrossRef]
  69. Taube, D.; Jones, G.; O’Beirne, J.; Wennberg, L.; Connor, A.; Rasmussen, A.; Bäckman, L. Generic tacrolimus in solid organ transplantation. Clin. Transplant. 2014, 28, 623–632. [Google Scholar] [CrossRef]
  70. Saunders, R.N.; Metcalfe, M.S.; Nicholson, M.L. Rapamycin in transplantation: A review of the evidence. Kidney Int. 2001, 59, 3–16. [Google Scholar] [CrossRef] [Green Version]
  71. Woodhead, J.L.; Hall, C.K. Encapsulation Efficiency and Micellar Structure of Solute-Carrying Block Copolymer Nanoparticles. Macromolecules 2011, 44, 5443–5451. [Google Scholar] [CrossRef] [Green Version]
  72. Klouda, L. Thermoresponsive hydrogels in biomedical applications: A seven-year update. Eur. J. Pharm. Biopharm. 2015, 97, 338–349. [Google Scholar] [CrossRef]
  73. Lin, J.-Y.; Lai, P.-L.; Lin, Y.-K.; Peng, S.; Lee, L.-Y.; Chen, C.-N.; Chu, I.-M. A poloxamer-polypeptide thermosensitive hydrogel as a cell scaffold and sustained release depot. Polym. Chem. 2016, 7, 2976–2985. [Google Scholar] [CrossRef]
  74. Gerber, D.A.; Oettinger, C.W.; D’Souza, M.; Milton, G.V.; Larsen, C.P.; Pearson, T.C. Prolongation of Murine Cardiac Allograft Survival by Microspheres Containing TNFα and IL1-β Neutralizing Antibodies. J. Drug Target. 1995, 3, 311–315. [Google Scholar] [CrossRef] [PubMed]
  75. Wattendorf, U.; Koch, M.C.; Walter, E.; Vörös, J.; Textor, M.; Merkle, H.P. Phagocytosis of poly(L-lysine)-graft-poly(ethylene glycol) coated microspheres by antigen presenting cells: Impact of grafting ratio and poly(ethylene glycol) chain length on cellular recognition. Biointerphases 2006, 1, 123–133. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  76. Tietjen, G.T.; Bracaglia, L.G.; Saltzman, W.M.; Pober, J.S. Focus on Fundamentals: Achieving Effective Nanoparticle Targeting. Trends Mol. Med. 2018, 24, 598–606. [Google Scholar] [CrossRef] [PubMed]
  77. Greineder, C.F.; Villa, C.H.; Walsh, L.R.; Kiseleva, R.Y.; Hood, E.D.; Khoshnejad, M.; Warden-Rothman, R.; Tsourkas, A.; Muzykantov, V.R. Site-Specific Modification of Single-Chain Antibody Fragments for Bioconjugation and Vascular Immunotargeting. Bioconjugate Chem. 2018, 29, 56–66. [Google Scholar] [CrossRef] [PubMed]
  78. Parhiz, H.; Shuvaev, V.V.; Pardi, N.; Khoshnejad, M.; Kiseleva, R.Y.; Brenner, J.S.; Uhler, T.; Tuyishime, S.; Mui, B.L.; Tam, Y.K.; et al. PECAM-1 directed re-targeting of exogenous mRNA providing two orders of magnitude enhancement of vascular delivery and expression in lungs independent of apolipoprotein E-mediated uptake. J. Control. Release 2018, 291, 106–115. [Google Scholar] [CrossRef] [PubMed]
  79. Wang, W.; Shahzad, K.A.; Li, M.; Zhang, A.; Zhang, L.; Xu, T.; Wan, X.; Shen, C. An Antigen-Presenting and Apoptosis-Inducing Polymer Microparticle Prolongs Alloskin Graft Survival by Selectively and Markedly Depleting Alloreactive CD8+ T Cells. Front. Immunol. 2017, 8, 657. [Google Scholar] [CrossRef] [Green Version]
  80. Shahzad, K.A.; Wan, X.; Zhang, L.; Pei, W.; Zhang, A.; Younis, M.; Wang, W.; Shen, C. On-target and direct modulation of alloreactive T cells by a nanoparticle carrying MHC alloantigen, regulatory molecules and CD47 in a murine model of alloskin transplantation. Drug Deliv. 2018, 25, 703–715. [Google Scholar] [CrossRef] [Green Version]
  81. Diehl, R.; Ferrara, F.; Müller, C.; Dreyer, A.Y.; McLeod, D.D.; Fricke, S.; Boltze, J. Immunosuppression for in vivo research: State-of-the-art protocols and experimental approaches. Cell. Mol. Immunol. 2017, 14, 146–179. [Google Scholar] [CrossRef] [Green Version]
  82. Brandacher, G.; Lee, W.P.A.; Schneeberger, S. Minimizing immunosuppression in hand transplantation. Expert Rev. Clin. Immunol. 2012, 8, 673–684. [Google Scholar] [CrossRef]
  83. Kumar, R.; Ison, M.G. Opportunistic Infections in Transplant Patients. Infect. Dis. Clin. N. Am. 2019, 33, 1143–1157. [Google Scholar] [CrossRef] [PubMed]
  84. Gutierrez-Dalmau, A.; Campistol, J.M. Immunosuppressive Therapy and Malignancy in Organ Transplant Recipients: A systematic review. Drugs 2007, 67, 1167–1198. [Google Scholar] [CrossRef] [PubMed]
  85. Busca, A.; Locatelli, F.; Moscato, D.; Falda, M. Sirolimus-Related Toxicity in Stem Cell Transplantation. Biol. Blood Marrow Transplant. 2005, 11, 647–649. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  86. Hucker, A.; Bunn, F.; Carpenter, L.; Lawrence, C.; Farrington, K.; Sharma, S. Non-adherence to immunosuppressants following renal transplantation: A protocol for a systematic review. BMJ Open 2017, 7, e015411. [Google Scholar] [CrossRef]
  87. Patel, K.; Atkinson, C.; Tran, D.; Nadig, S.N. Nanotechnological Approaches to Immunosuppression and Tolerance Induction. Curr. Transplant. Rep. 2017, 4, 159–168. [Google Scholar] [CrossRef]
  88. Sikma, M.A.; van Maarseveen, E.M.; van de Graaf, E.A.; Kirkels, J.H.; Verhaar, M.C.; Donker, D.W.; Kesecioglu, J.; Meulenbelt, J. Pharmacokinetics and Toxicity of Tacrolimus Early After Heart and Lung Transplantation. Am. J. Transplant. 2015, 15, 2301–2313. [Google Scholar] [CrossRef]
  89. Sutter, D.; Dzhonova, D.V.; Prost, J.-C.; Bovet, C.; Banz, Y.; Rahnfeld, L.; Leroux, J.-C.; Rieben, R.; Vögelin, E.; Plock, J.A.; et al. Delivery of Rapamycin Using In Situ Forming Implants Promotes Immunoregulation and Vascularized Composite Allograft Survival. Sci. Rep. 2019, 9, 9269. [Google Scholar] [CrossRef] [Green Version]
  90. Taddeo, A.; Tsai, C.; Vögelin, E.; Rieben, R. Novel targeted drug delivery systems to minimize systemic immunosuppression in vascularized composite allotransplantation. Curr. Opin. Organ Transplant. 2018, 23, 568–576. [Google Scholar] [CrossRef] [Green Version]
  91. Nikolić, L.B.; Zdravković, A.S.; Nikolić, V.D.; Ilić-Stojanović, S.S. Synthetic Hydrogels and Their Impact on Health and Environment. In Cellulose-Based Superabsorbent Hydrogels; Mondal, M.I.H., Ed.; Springer International Publishing: Cham, Switzerland, 2019; pp. 1363–1391. [Google Scholar] [CrossRef]
  92. Caló, E.; Khutoryanskiy, V.V. Biomedical applications of hydrogels: A review of patents and commercial products. Eur. Polym. J. 2015, 65, 252–267. [Google Scholar] [CrossRef] [Green Version]
  93. Bernard, M.; Jubeli, E.; Pungente, M.D.; Yagoubi, N. Biocompatibility of polymer-based biomaterials and medical devices–regulations, in vitro screening and risk-management. Biomater. Sci. 2018, 6, 2025–2053. [Google Scholar] [CrossRef]
  94. Liu, C.; Shi, Y.; Hou, L.; Sun, X. Current Progress on Biological Evaluation for Medical Devices. Zhongguo Yi Liao Qi Xie Za Zhi 2021, 45, 72–75. [Google Scholar]
  95. Hsu, S.-H.; Tang, C.-M.; Lin, C.-C. Biocompatibility of poly(ε-caprolactone)/poly(ethylene glycol) diblock copolymers with nanophase separation. Biomaterials 2004, 25, 5593–5601. [Google Scholar] [CrossRef] [PubMed]
  96. De Mel, A.; Cousins, B.G.; Seifalian, A.M. Surface Modification of Biomaterials: A Quest for Blood Compatibility. Int. J. Biomater. 2012, 2012, 707863. [Google Scholar] [CrossRef] [PubMed]
  97. Zhong, G.; Liu, Y.; Liu, C.; Li, X.; Lin, J.; Lanzon, A.L.; Zhang, H.; Chen, M. Biological compatibility, thermal and in vitro simulated degradation for poly(p-dioxanone)/poly(lactide-co-glycolide)/poly(ethylene succinate-co-glycolide). J. Biomed. Mater. Res. Part B Appl. Biomater. 2021, 109, 1817–1835. [Google Scholar] [CrossRef] [PubMed]
  98. Wang, Y.; Wei, Y.T.; Zu, Z.H.; Ju, R.K.; Guo, M.Y.; Wang, X.M.; Xu, Q.Y.; Cui, F.Z. Combination of Hyaluronic Acid Hydrogel Scaffold and PLGA Microspheres for Supporting Survival of Neural Stem Cells. Pharm. Res. 2011, 28, 1406–1414. [Google Scholar] [CrossRef]
  99. Li, D.; Sun, H.; Jiang, L.; Zhang, K.; Liu, W.; Zhu, Y.; Fangteng, J.; Shi, C.; Zhao, L.; Sun, H.; et al. Enhanced Biocompatibility of PLGA Nanofibers with Gelatin/Nano-Hydroxyapatite Bone Biomimetics Incorporation. ACS Appl. Mater. Interfaces 2014, 6, 9402–9410. [Google Scholar] [CrossRef]
  100. Trcin, M.T.; Zdraveva, E.; Dolenec, T.; Zimić, I.V.; Mihica, M.B.; Batarilo, I.; Dekaris, I.; Blažević, V.; Slivac, I.; Grgurić, T.H.; et al. Poly(ε-caprolactone) Titanium Dioxide and Cefuroxime Antimicrobial Scaffolds for Cultivation of Human Limbal Stem Cells. Polymers 2020, 12, 1758. [Google Scholar] [CrossRef]
  101. Landgraf, L.; Müller, I.; Ernst, P.; Schäfer, M.; Rosman, C.; Schick, I.; Köhler, O.; Oehring, H.; Breus, V.V.; Basché, T.; et al. Comparative evaluation of the impact on endothelial cells induced by different nanoparticle structures and functionalization. Beilstein J. Nanotechnol. 2015, 6, 300–312. [Google Scholar] [CrossRef]
  102. Doktorovova, S.; Souto, E.B.; Silva, A.M. Nanotoxicology applied to solid lipid nanoparticles and nanostructured lipid carriers–A systematic review of in vitro data. Eur. J. Pharm. Biopharm. 2014, 87, 1–18. [Google Scholar] [CrossRef]
  103. Heirani-Tabasi, A.; Hosseinzadeh, S.; Rabbani, S.; Tafti, S.H.A.; Jamshidi, K.; Soufi-Zomorrod, M.; Soleimani, M. Cartilage tissue engineering by co-transplantation of chondrocyte extracellular vesicles and mesenchymal stem cells, entrapped in chitosan-hyaluronic acid hydrogel. Biomed. Mater. 2021, 16, 055003. [Google Scholar] [CrossRef]
  104. Wang, J.; Li, K.; Xu, J.; Liu, M.; Li, P.; Li, X.; Fan, Y. A biomimetic hierarchical small intestinal submucosa–chitosan sponge/chitosan hydrogel scaffold with a micro/nano structure for dural repair. J. Mater. Chem. B 2021, 9, 7821–7834. [Google Scholar] [CrossRef]
  105. Oliveira, J.P.R.; Melendez-Ortiz, H.I.; Bucio, E.; Alves, P.T.; Lima, M.I.S.; Goulart, L.R.; Mathor, M.B.; Varca, G.H.C.; Lugao, A.B. Current Methods Applied to Biomaterials–Characterization Approaches, Safety Assessment and Biological International Standards. Curr. Top. Med. Chem. 2018, 18, 256–274. [Google Scholar] [CrossRef] [PubMed]
  106. Huhtala, A.; Pohjonen, T.; Salminen, L.; Salminen, A.; Kaarniranta, K.; Uusitalo, H. In vitro biocompatibility of degradable biopolymers in cell line cultures from various ocular tissues: Extraction studies. J. Mater. Sci. Mater. Electron. 2008, 19, 645–649. [Google Scholar] [CrossRef] [PubMed]
  107. Olariu, R.; Denoyelle, J.; Leclère, F.M.; Dzhonova, D.V.; Gajanayake, T.; Banz, Y.; Hayoz, M.; Constantinescu, M.; Rieben, R.; Vögelin, E.; et al. Intra-graft injection of tacrolimus promotes survival of vascularized composite allotransplantation. J. Surg. Res. 2017, 218, 49–57. [Google Scholar] [CrossRef] [PubMed]
  108. Italia, J.L.; Bhatt, D.K.; Bhardwaj, V.; Tikoo, K.; Kumar, M.N.V.R. PLGA nanoparticles for oral delivery of cyclosporine: Nephrotoxicity and pharmacokinetic studies in comparison to Sandimmune Neoral®. J. Control. Release 2007, 119, 197–206. [Google Scholar] [CrossRef] [PubMed]
  109. Wei, X.-H.; Zhang, L.; Zhao, Z.-L.; Liu, J.-H. Preparation and in vitro and in vivo characterization of cyclosporin A-loaded, PEGylated chitosan-modified, lipid-based nanoparticles. Int. J. Nanomed. 2013, 8, 601–610. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  110. Hamdy, S.; Haddadi, A.; Shayeganpour, A.; Alshamsan, A.; Aliabadi, H.M.; Lavasanifar, A. The Immunosuppressive Activity of Polymeric Micellar Formulation of Cyclosporine A: In Vitro and In Vivo Studies. AAPS J. 2011, 13, 159–168. [Google Scholar] [CrossRef] [Green Version]
  111. Zhang, Y.; Pan, J.; Li, H.; Yu, D.; Wu, T.; Wang, L.; Wang, Y.; Zhou, L.; Zheng, S. Albumin Based Nanomedicine for Enhancing Tacrolimus Safety and Lymphatic Targeting Efficiency. J. Biomed. Nanotechnol. 2019, 15, 1313–1324. [Google Scholar] [CrossRef]

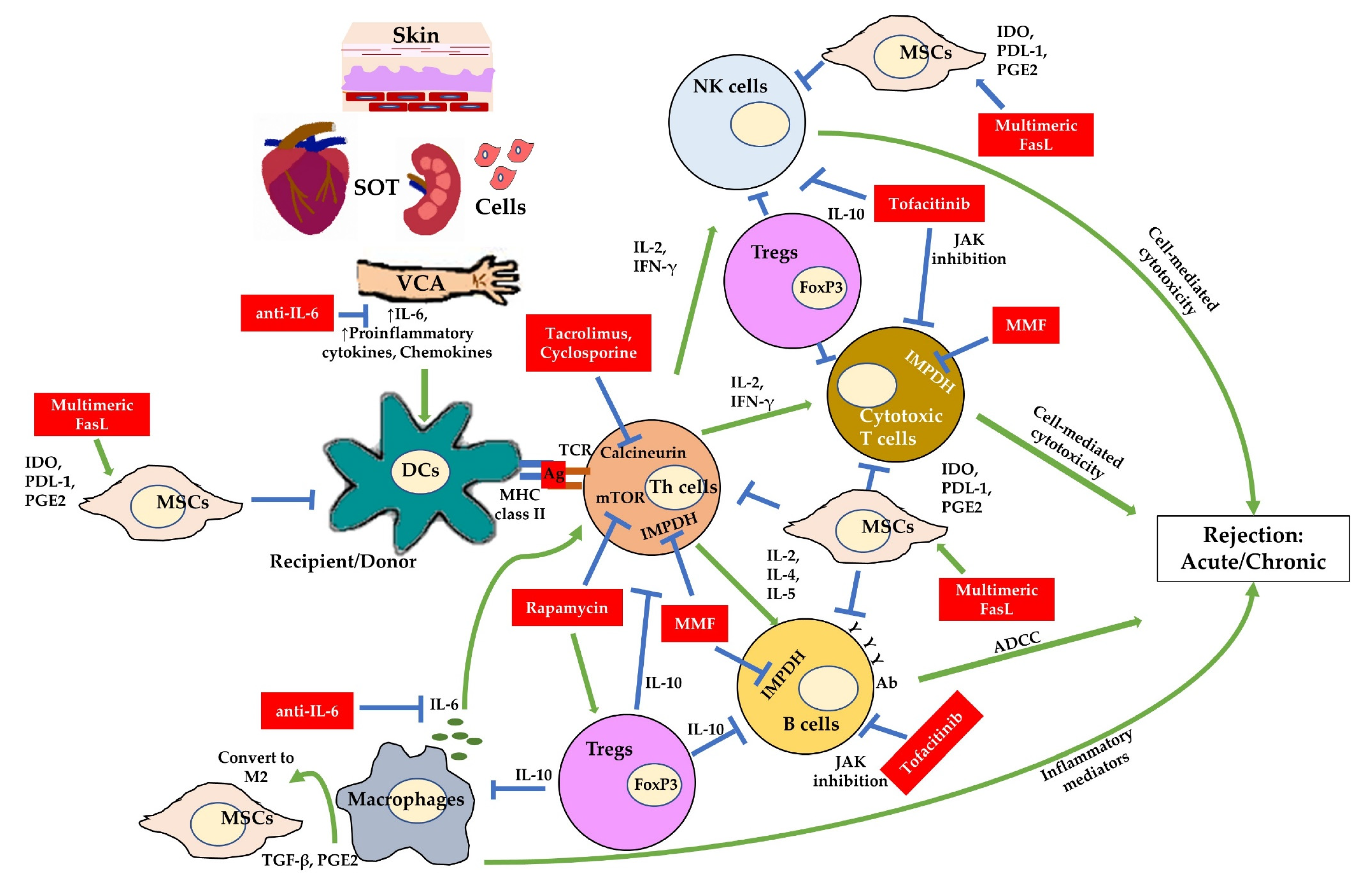

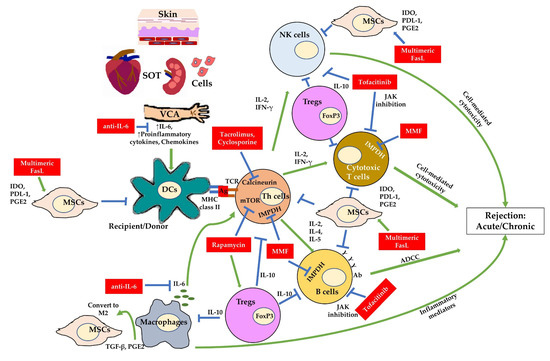

Figure 1. Examples of immunosuppressant targets in allograft rejection. ADCC: antibody-dependent, cell-mediated cytotoxicity; Ab: antibody; Ag: antigen; DC: dendritic cells; FasL: Fas ligand; FoxP3: forkhead box P3; IMPDH: inosine monophosphate dehydrogenase; IDO: indoleamine 2,3-dioxygenase 1; IFN-γ: interferon gamma; IL: interleukin; JAK: janus kinase; MHC: major histocompatibility complex; MMF: mycophenolate mofetil; MSCs: mesenchymal stem cells; mTOR: mammalian target of rapamycin; natural killer cells: NK cells; PDL-1: programmed cell death-1; PGE2: prostaglandin E2; SOT: solid organ transplantation; TGF-β: transforming growth factor beta; Tregs: regulatory T cells; VCA: vascularized composite allotransplantation.
Figure 1. Examples of immunosuppressant targets in allograft rejection. ADCC: antibody-dependent, cell-mediated cytotoxicity; Ab: antibody; Ag: antigen; DC: dendritic cells; FasL: Fas ligand; FoxP3: forkhead box P3; IMPDH: inosine monophosphate dehydrogenase; IDO: indoleamine 2,3-dioxygenase 1; IFN-γ: interferon gamma; IL: interleukin; JAK: janus kinase; MHC: major histocompatibility complex; MMF: mycophenolate mofetil; MSCs: mesenchymal stem cells; mTOR: mammalian target of rapamycin; natural killer cells: NK cells; PDL-1: programmed cell death-1; PGE2: prostaglandin E2; SOT: solid organ transplantation; TGF-β: transforming growth factor beta; Tregs: regulatory T cells; VCA: vascularized composite allotransplantation.
Ijms 23 01592 g001
Figure 2. Types of local delivery systems.
Figure 2. Types of local delivery systems.
Ijms 23 01592 g002
Table 1. Recent hydrogel application as immunosuppressant delivery to prevent allograft rejection.
Table 1. Recent hydrogel application as immunosuppressant delivery to prevent allograft rejection.
Literature, YearDelivery
PolymerTransplantationAnimal ModelImmunosuppressant, DoseOutcome
(Survival Rate)
Gajanayake et al., 2014 [38]Enzyme responsive hydrogelTGMSVCA
(Orthotopic hindlimb)
7 mg
>100 days
Dzhonova et al., 2018 [37]Enzyme responsive hydrogelTGMSVCA
(Orthotopic hindlimb)
7 mg per 70 days
>280 days
Li et al., 2018 [41]Nanoparticle-anchoring hydrogel scaffoldPLGA-PEG-maleimideStem cells (EPCs)MouseTAC,
1 mg
>14 days
Fries et al., 2019 [63]Enzyme responsive hydrogelTGMSVCA
(Orthotopic forelimb)
49 mg
56–93 days
Uehara et al., 2019 [64]Photocrosslinkable hydrogelGelatin-
SkinPorcineAnti-IL-6, (0.4% w/v)5/5,
MST: 23 days
Majumder et al., 2020 [40]Microcrystalline hydrogel 1TFA/
HeartMouseTofacitinib, 750 μg5/5,
up to 160 days
Wu et al., 2021 [65]Thermosensitive hydrogelmPEG-PLCL/PVPSkinRatTAC,
10 mg
>30 days
Alvarado-Velez et al., 2021 [26]Lipid microtubes agarose hydrogelAgaroseMSCRatMultimeric Fas ligand
12 μg
>6 days
1 Additional treatment with CTLA4Ig was applied. EPCs: endothelial progenitor cells; mPEG-PLCL: methoxy-poly(ethylene glycol)-co-poly(lactic acid)-poly(ε-caprolactone); MSC: mesenchymal stem cells; MST: mean survival time; PEG: polyethylene glycol; PLGA: poly-lactic-co-glycolic acid; PVP: polyvinylpyrrolidone; TFA: trifluoroacetic acid; TGMS: triglycerol monostearate; TAC: tacrolimus; VCA: vascularized composite allotransplantation.
Table 2. Recent microsphere and nanoparticle application as immunosuppressant delivery systems to prevent allograft rejection.
Table 2. Recent microsphere and nanoparticle application as immunosuppressant delivery systems to prevent allograft rejection.
Literature, YearDelivery
PolymerTransplantationAnimal ModelImmunosuppressant, DoseOutcome
(Survival Rate)
Wang et al., 2015 [45]MicrospherePLGASkinMouseH-2Kb/OVA257–264 monomers,
100 μg
14–19 days
Unadkat et al., 2017 [46]Disk microspherePLGAVCA (Orthotopic hindlimb)RatTAC,
40 mg
>180 days
Wei et al., 2018 [56]NanomicellesPVCL-PVA-PEGCorneaMouseRAPA,
3 × 0.05 mg/day
>60 days
Kuppan et al., 2019 [66]Micelles 1PLGAIsletMouseDexametasone, 2 mg8/10,
>60 days
Liu et al., 2019 [57]NanomicellesNH2-PEG-b-PLA and
CorneaRatTAC, 87.5 μg/day10/10,
MST: 27.5 days
Shah et al., 2019 [67]NanoparticlesPLGSkinMouseECDI peptide,
3 mg
>90 days
Wang et al., 2020 [44]MicrospherePLGAVCA (Orthotopic hind-limb)RatTAC, MMF, PDNN, 6 mg, 300 mg, 60 mg6/6,
>150 days
Deng et al., 2021 [68]NanoparticlesPLGAHeterotopic abdominal heartRatTAC, 3 mg/kg3/6,
>28 days
1 Additional treatment with CTLA4Ig was applied. ECDI: 1-ethyl-3-(3’-dimethylaminopropyl)-carbodiimide; mPEG: methoxy-poly(ethylene glycol); MMF: mycophenolate mofetil; PDNN: prednisolone; PEG: polyethylene glycol; PLA: poly(d,l)-lactic acid; PLG: polylactide-co-glycolide; PLGA: poly-lactic-co-glycolic acid; PVA: polyvinyl alcohol; PVCL: polyvinyl chloride; RAPA: rapamycin; TAC: tacrolimus; VCA: vascularized composite allotransplantation.
Table 3. Comparison between systemic and local immunosuppressant administration.
Table 3. Comparison between systemic and local immunosuppressant administration.
Systemic AdministrationLocal DeliveryRef
Concentration in the bloodFluctuateInitial burst then stable[38,63,82,87]
Side effectsMoreLess[37,82,84,87,88,89]
Patient compliance issueMoreLess[86,89,90]
Dosing frequencyHighLow[37,38,64,81,89]
Drug efficacyLowHigh[38,63,81]
Drug dosageMoreLess[38,63,81]
Additional costNoYes
(with biomaterial production)
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Anggelia, M.R.; Huang, R.-W.; Cheng, H.-Y.; Lin, C.-H.; Lin, C.-H. Implantable Immunosuppressant Delivery to Prevent Rejection in Transplantation. Int. J. Mol. Sci. 2022, 23, 1592.

AMA Style

Anggelia MR, Huang R-W, Cheng H-Y, Lin C-H, Lin C-H. Implantable Immunosuppressant Delivery to Prevent Rejection in Transplantation. International Journal of Molecular Sciences. 2022; 23(3):1592.

Chicago/Turabian Style

Anggelia, Madonna Rica, Ren-Wen Huang, Hui-Yun Cheng, Chih-Hung Lin, and Cheng-Hung Lin. 2022. "Implantable Immunosuppressant Delivery to Prevent Rejection in Transplantation" International Journal of Molecular Sciences 23, no. 3: 1592.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
