Article

Structural Basis of Mutation-Dependent p53 Tetramerization Deficiency

1
Department CIBIO, University of Trento, Via Sommarive 9, 38121 Trento, Italy
2
Mutagenesis and Cancer Prevention Unit, IRCCS Ospedale Policlinico San Martino, L.go R. Benzi, 10, 16132 Genoa, Italy
3
Department of Physics, University of Trento, Via Sommarive 9, 38121 Trento, Italy
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Current address: Sibylla Biotech SRL, Piazzetta Chiavica 2, 37121 Verona, Italy.
§
These authors contributed equally to this work.
Int. J. Mol. Sci. 2022, 23(14), 7960; https://doi.org/10.3390/ijms23147960
Submission received: 28 June 2022 / Revised: 13 July 2022 / Accepted: 15 July 2022 / Published: 19 July 2022
(This article belongs to the Special Issue Protein and DNA Interaction)

Abstract

:
The formation of a tetrameric assembly is essential for the ability of the tumor suppressor protein p53 to act as a transcription factor. Such a quaternary conformation is driven by a specific tetramerization domain, separated from the central DNA-binding domain by a flexible linker. Despite the distance, functional crosstalk between the two domains has been reported. This phenomenon can explain the pathogenicity of some inherited or somatically acquired mutations in the tetramerization domain, including the widespread R337H missense mutation present in the population in south Brazil. In this work, we combined computational predictions through extended all-atom molecular dynamics simulations with functional assays in a genetically defined yeast-based model system to reveal structural features of p53 tetramerization domains and their transactivation capacity and specificity. In addition to the germline and cancer-associated R337H and R337C, other rationally designed missense mutations targeting a significant salt-bridge interaction that stabilizes the p53 tetramerization domain were studied (i.e., R337D, D352R, and the double-mutation R337D plus D352R). The simulations revealed a destabilizing effect of the pathogenic mutations within the p53 tetramerization domain and highlighted the importance of electrostatic interactions between residues 337 and 352. The transactivation assay, performed in yeast by tuning the expression of wild-type and mutant p53 proteins, revealed that p53 tetramerization mutations could decrease the transactivation potential and alter transactivation specificity, in particular by better tolerating negative features in weak DNA-binding sites. These results establish the effect of naturally occurring variations at positions 337 and 352 on p53’s conformational stability and function.

1. Introduction

The TP53 gene encoding the well-known tumor suppressor protein, p53, is undoubtedly one of the most critical cancer genes [1]. Acting primarily as a nuclear sequence-specific transcription factor, p53 coordinates a complex network of gene targets to modulate many cellular pathways that respond to many cellular stress conditions [2]. The p53 transcriptional network is pleiotropic. The responses are distributed to many distinct target genes that collectively determine a specific cell outcome among the many possible, including cell cycle arrest and cell death as archetypes [3]. Furthermore, the p53-controlled pathway is highly regulated by multiple feedback loops at transcriptional, post-transcriptional, and translational levels [1,4]. This complexity is exemplified by the notion that there is still a significant lack of knowledge regarding the critical tumor-suppressive functions of p53 in specific cancer types or evolutionary cancer tracks [5,6,7].
The p53 function as a transcription factor relies on the assembly of a p53 tetramer that can interact with variations of DNA target sites known and referred to as response elements (REs) [8,9,10]. The p53 tetramer conformation results in a dimer of dimers, with p53 dimers being formed co-translationally [11]. This assembly is made possible by the presence and features of a so-called oligomerization or tetramerization (TET) domain in the proximal carboxy-terminal region (C-ter) of the protein [10,12]. The structure of the human p53 TET domain has been resolved by crystallography and NMR and consists of a four-helix bundle, with each p53 monomer featuring a sheet-loop-helix fold [13,14]. p53 tetramer assembly and stability are also influenced by interactions between the DNA-binding domains (DBDs). These are thought to be modulated by long-range interactions between the distal carboxy-terminal region of the protein and the DBDs [14,15,16]. The transactivation domains are critical for p53 function [6,17] and are located in the amino-terminal sequence (within the first 60 amino acids), a region that is considered to be intrinsically disordered [18,19,20,21]. Together with the last 30 amino acids in the C-ter, it is subject to several post-translational modifications that impart changes in protein–protein interactions, conformation, subcellular localization, and function to the protein [22,23,24]. p53 post-translational modifications were also shown to affect long-range intramolecular interactions between either the N-ter or the C-ter and the DBDs, influencing DNA binding [20,21].
The p53 binding site in the DNA reflects and co-evolved with the quaternary conformation of the protein. As the active protein structure is a p53 tetramer, so the p53 REs comprise an arrangement of four binding sites, consisting of five nucleotides, which are organized as inverted repeat dimers (i.e., a half-site), and two such dimers are placed adjacent or closely spaced to form an entire site [25,26,27,28,29]. Many studies based both on in vivo approaches, such as ChIP-seq or ChIP-Exo, and in vitro assays, such as Selex-seq, have derived the features of the p53 consensus RE and cataloged the many variants present in genomes (reviewed in [28,30,31]). Further, biochemical, biophysical, or defined gene reporter assays have deconstructed the p53 RE to reveal its critical features [25,27,31]. These studies also established the consequences of polymorphisms or mutations in the p53 REs or the p53 protein itself, which are among the most frequent somatic alterations acquired by human cancer [32,33,34,35,36]. Studies also established that p53 tetramers could be assembled on DNA as dimers, and p53 tetramers can also bind hemi-specifically, with one dimer establishing sequence-specific contacts with a decamer binding site and the second p53 dimers contacting non-specifically the DNA backbone [12].
Interestingly, there is clear evidence not only that the p53 RE is highly degenerated, which results in many different versions of the binding site, enabling various levels of quantitative controls by p53, but also there has been an apparent selection pressure during evolution to avoid optimal p53 binding sites in promoters that would lead to constitutive, non-regulatable p53-dependent transcriptional control of a target gene [25,36,37].
Given the essential requirement for the tetrameric structure, it is not surprising that the TET domain has undergone a significant evolutionary divergence within the p53 family of proteins that also comprises p63 and p73 [38,39,40,41]. In addition, within p53 protein from different and distant species, there is evidence of a divergence in the features of the TET domain that can also impact how the p53 tetramer interacts with the DNA, particularly for what concerns the relative arrangements of the two DNA half-sites [42,43].
Within the spectrum of p53 mutations observed in human cancers, those at the TET domain are much less abundant than mutations in the central DBDs of the protein; in fact, nearly 80% occur at residues in this latter domain [44]. p53 mutations are among the most frequent somatic alterations occurring in human cancer [1]; furthermore, p53 mutations can also be inherited in the germline, where heterozygous mutant alleles are associated with a highly penetrant cancer predisposition syndrome [45,46]. Moreover, in the case of germline p53 alleles, there is a strong enrichment for missense mutants in the p53 DBDs [47].
The low frequency of mutations in the p53 TET domain can be explained, at least in part, by the fact that p53 missense mutations in the DBDs can also acquire oncogenic gain of function (GoF) [48,49]. GoF, however, requires that the mutant protein remains able to be localized in the nucleus and participate in protein complexes, modulating aspects of DNA replication or transcription. Conversely, an intact P53 tetrameric conformation is critical for masking a nuclear export signal. However, tetramerization can enable the occurrence of mixed tetramers comprising wild-type (WT) and mutant DBDs in cells undergoing a transformation that have acquired a heterozygous p53 mutation, a feature of mutated alleles frequently referred to as dominant-negative [50,51]. Finally, systematic mutagenesis of the human p53 TET domain based on single-nucleotide changes showed that most of those mutants would not dramatically reduce the p53 transactivation function in a reporter assay [36].
There are, however, a few exceptions to the general rule of the scarcity of p53 TET domain mutations in cancer [52]. Two missense changes in the p53 TET domain have been found in the germline (R337H and R337C), affecting a conserved arginine involved in establishing a salt-bridge with D352, which is important for the stability of the dimeric conformation (Figure 1). While germline R337C is associated with a classical tumor proneness spectrum, R337H was initially identified as predisposing to pediatric adrenocortical carcinoma [53,54]. Molecular epidemiology studies, a screening campaign, and a knock-in mouse model have clarified that this allele results in a partially functional protein, whose degree of inactivation could be related to pH and the protonation level of the histidine residue [55,56,57]. The allele is widespread in the population of southern Brazil. It is associated with variable penetrance to various pediatric and adult-onset cancers, including choroid plexus carcinomas and breast cancer [54]. The arginine 333, 335, and 337 were found to be post-translationally modified by PRMT5, leading to either mono- or di-methylation [58]. Based on a triple arginine to lysine mutant and on the impact of PRMT5 silencing in osteosarcoma-derived cells, it was inferred that arginine methylation in the p53 TET domain can impact transactivation specificity [58].
Given the centrality of p53 in cell biology, the strong selection to lose or at least attenuate p53 responses in cancer and the fact that mutant p53 proteins are overexpressed in cancer cells, the potential to reactivate p53 mutant proteins by pharmacological strategies as cancer therapy has a robust rationale and has been pursued in many ways [59,60,61]. Cell-based assays have identified potential small molecules of therapeutic interest, but it has proven difficult to establish the exact mechanism of action of the hits coming from these assays [62]. Potent rationally designed molecules have also been developed primarily targeting the interaction between p53 and its major negative regulator MDM2 but have shown high toxicity in clinical trials [63]. Molecules patching the thermodynamic instability caused by specific p53 mutations, such as Y220C, or trying to increase the stability of the p53 DBDs have also provided proof of concept evidence of the value of rescuing p53 folding [64]. The lack of a high-resolution structure of the full-length p53 tetramer bound to DNA represents a limitation in rational drug design. With a few exceptions, all the effort has been directed toward p53 mutant proteins in the DBDs [65,66,67]. Molecules targeting the TET domain could be highly valuable, especially for individuals who have inherited the R337H mutation [68] but, in principle, also for other classes of cancer-associated p53 alleles in the DBDs that retain partial function and which have a defect that could, in principle, be compensated for by increasing the stability of the tetramer conformation.
In silico modeling, particularly molecular dynamics (MD), has been attempted to boost the search for small molecule leads to rescue p53 mutations [69]. Still, until recently, those approaches have been somewhat limited by the relatively short simulation times that could be afforded.
To our knowledge, a single systematic computational study on the stability of the TET domain has so far been conducted by Lwin et al. [70]. Here, the authors investigated by means of all-atom MD simulations the WT p53 TET domain as well as the R337H mutant at different salt concentrations and pH conditions. MD simulations of various configurations of the TET domain were performed in explicit and implicit solvation, for a total of 130 ns subdivided into eight different trajectories, coherently with the standards of the times. In the aforementioned work, the existence of a fluid salt-bridging cluster composed of residues R337, D352, R333, and E349 as well as the destabilization of the WT protein and of the R337H mutant in acidic conditions was pointed out. No differences in the remaining six simulated systems were observed in terms of stability of the protein structure (RMSD), in particular the R337H systems were found to be comparable in terms of RMSD to the WT ones.
Here, we adopted a state-of-the-art MD approach to study the p53 TET mutant proteins R337C and R337H along with rationally designed mutations to probe the impact of the salt-bridge between R337 and D352 on the stability of the p53 TET domain and the consequences not only on the transactivation potential but also on transactivation specificity. Indeed, by coupling computational predictions through extended all-atom molecular dynamics simulations with the results of a genetically defined transactivation-based assay in yeast, we reveal that targeting the R377-D352 salt-bridge interaction in the p53 TET domain can lead to reactivation of p53 but also an apparent change in relative transactivation specificity.

2. Results

2.1. Computational Prediction of the Effect of Naturally Occurring or Rationally Designed TP53 Mutation on the Stability of the p53 TET Domain

Mutations within the TET domain of p53 have been associated with Li-Fraumeni or Li-Fraumeni-like cancer predisposition syndromes. These mutations are thought to affect the stability of the tetramer by altering the intermolecular salt-bridge formed by residues R337 and D352 (Figure 1). We sought to test this possibility by performing extended, all-atom molecular dynamics simulations. First, we simulated for 2 µs the WT p53 TET domain and the two disease-associated mutant proteins (i.e., R337C and R337H). We included three different states of His337, accounting for the protonation of δ (R337Hδ), ε (R337Hε), or both (R337Hδε) imidazole nitrogens.

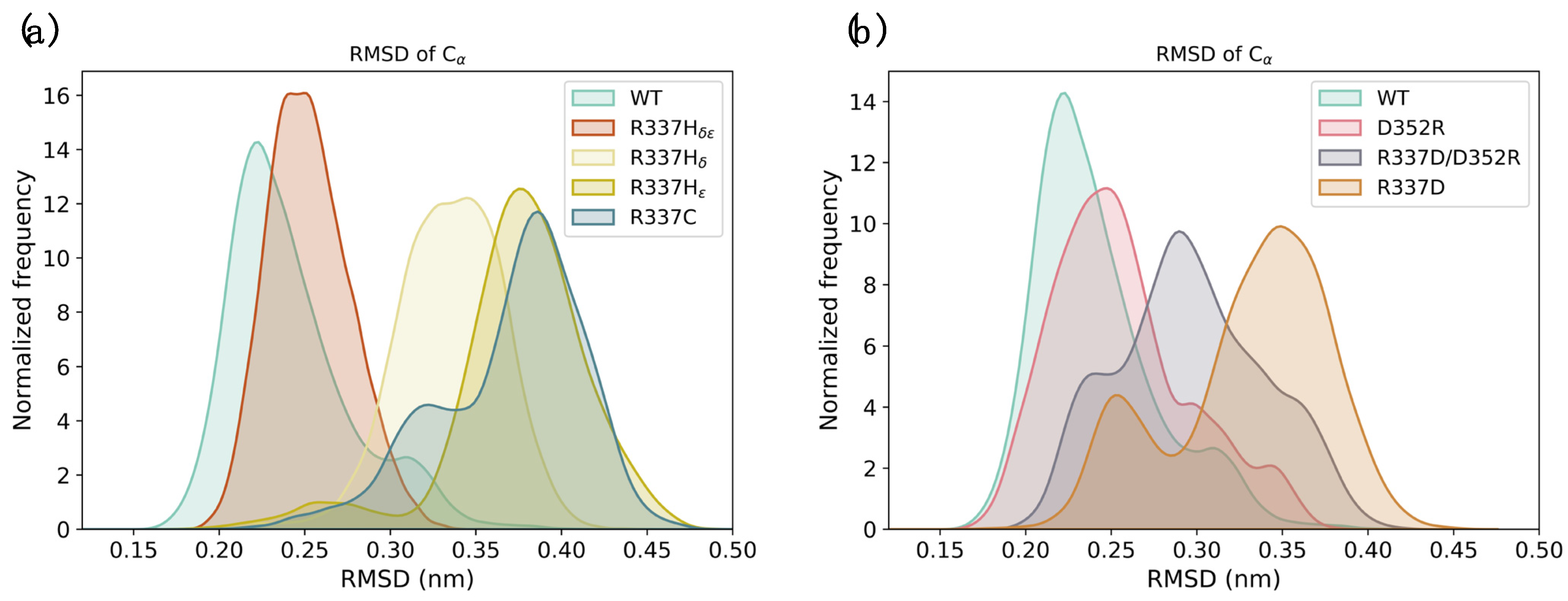

Next, we simulated for 2 µs the three artificial p53 mutant proteins, designed to test the contribution of the intermolecular electrostatic interaction between residues 337 and 352 (i.e., D352R, R337D, and R337D/D352R). Our simulations indicated that disease-associated substitutions at residues 337 (i.e., R337Hδ, R337Hε, and R337C) destabilize the conformation of the p53 TET domain. Interestingly, the R337Hδε form, which carries a positive charge on the side chain similar to its WT counterpart, showed no stability alterations (Figure 2a and Figure S1). Artificial p53 mutant proteins showed differential destabilization patterns, with the R337D exhibiting the most prominent alteration, the R337D/D352R a more modest effect, while the D352R resembled the WT form (Figure 2b and Figure S1).

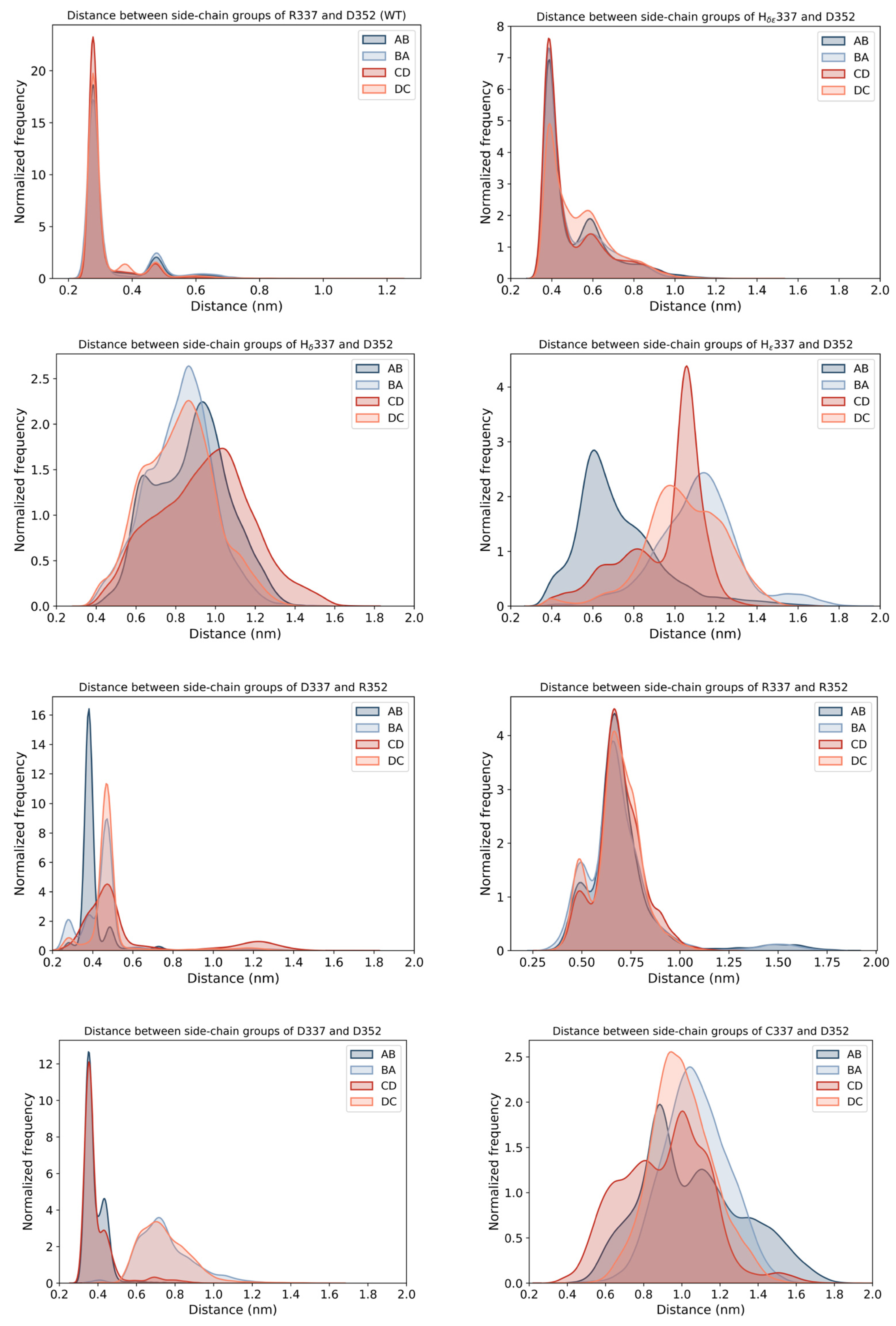

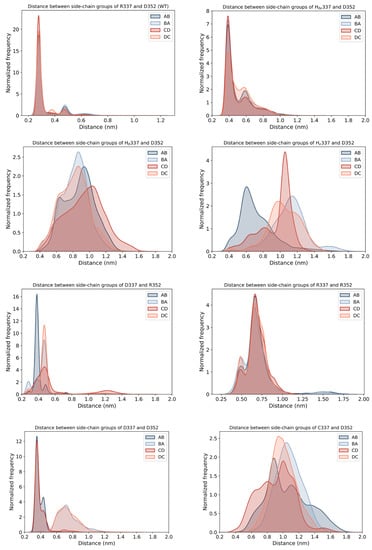

To corroborate these data, we computed the interchain distances of residues 337 and 352 within the p53 tetramer for all of the simulated systems. The results showed that similarly to the WT, a charged histidine at position 337 and the double-mutant protein R337D/D352R displayed distance distributions compatible with the formation of stable salt-bridges. Close interaction distances were also observed for residues 377 and 352 in the D352R mutant, possibly reflecting π-π and π-cation interactions between the guanidinium groups of the arginines. Conversely, in all of the other conditions, a distance incompatible with a stable interaction was detected in at least two pairs of residues (Figure 3).

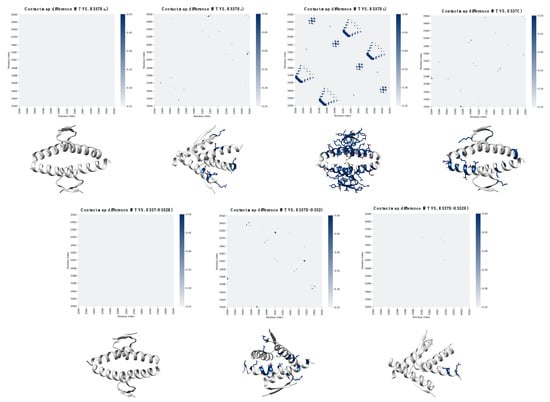

The alteration of an intermolecular interaction resulting from an amino acid substitution may destabilize regions in the protein complex several residues apart. To assess this possibility for residues 337 and 352 of the p53 TET domain, we computed the average contact map differences between the trajectories of the WT and the mutant forms. As expected, the contact maps of D352R and R337Hδε displayed no substantial deviation from the WT. Conversely, R337C, R337D/D352R, R337D, R337Hε, and R337Hδ showed a significant variation, with the latter presenting the most prominent effects (Figure 4 and Figure S2).
In summary, these results define the mechanism by which residue variations in positions 337 and 352 destabilize the TET domain of p53 and predict a structure–function relationship.

2.2. Experimental Analysis of Mutation-Dependent, p53-Driven Transcription

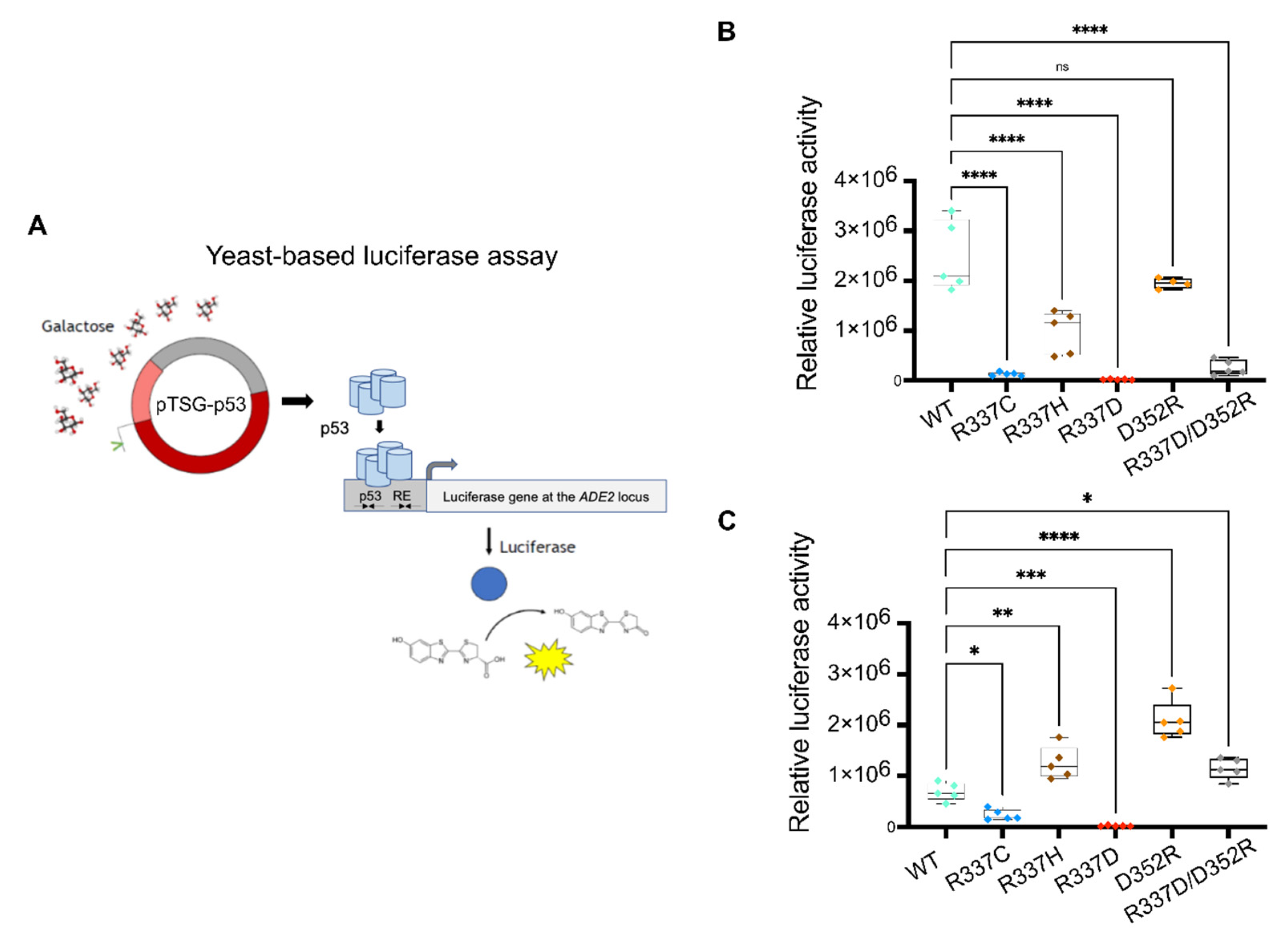

Based on the results of the MD simulations, we designed a set of experiments to validate the predicted effects of each p53 mutant protein. The goal was achieved by taking advantage of a defined functional assay in yeast, where p53 alleles can be expressed at variable levels under an inducible, finely tunable promoter, and the p53 transactivation potential is quantified based on the level of activation of the firefly reporter gene that is cloned in a single copy at a specific chromosomal location. A panel of reporter strains that are entirely isogenic, except for the sequence of the p53 RE driving p53-dependent reporter gene transactivation, were used to establish the consequences of p53 alleles on sequence-specific transactivation specificity. Specifically, we tested WT p53, the naturally occurring R337C and R337H alleles, and the ad hoc designed mutations R337D, D352R, and the double-mutant R337D/D352R. The relative transactivation of each protein was determined by culturing yeast reporter strains stably transformed with centromeric p53 reporter plasmids and cultured in media containing different amounts of galactose to vary the level of expression of p53 proteins. The results confirmed that R337C is a near loss-of-function mutation. At the same time, R337H exhibited a more subtle transactivation defect that is appreciable, particularly when p53 protein levels are low Figure 5 and Figure S3), consistent with previous studies. R337D is a complete loss of function allele, while D352R is WT-like. The double-mutant R337D/D352R showed only a partial rescue of the R337D effect (Figure 5 and Figure S3).
Interestingly, we noticed that the relative activity of this panel of mutations was affected by the level of expression of the p53 alleles and by the nature of the p53 RE. We tested two REs derived from the very well-established p21 target gene; one RE was the natural sequence derived from the human promoter and known as p21-5′, while the second was derived from p21-5′ but contained a two-nucleotide spacer between the decameric half-sites (p21-SP2). Consistent with previous studies, we confirmed that the small spacer significantly diminished the p53 transactivation potential and required higher galactose levels to measure p53-dependent transactivation (Figure 5 and Figure S3). Unexpectedly, however, the presence of the spacer also led to a change in the relative activity of the p53 TET domain. In particular, D352R showed much higher transactivation potential than WT p53, and, consistent with that observation, the double-mutant R337D/D352R was fully rescued. Moreover, the R337H allele was WT-like in the p21-SP2 reporter strain or slightly more active. These differences in relative activity were not solely related to the lower DNA-binding affinity of WT p53 for the REs. We also tested the panel of TET mutations with one additional yeast reporter strain based on the p53 RE found in the human PUMA/BBC3 gene. This RE has no spacer between the decameric half-sites, like the canonical p21-5′ RE, but, due to the presence of deviations from the RE consensus sequence, it mediates moderate responsiveness to p53. R337C was confirmed as a near loss-of-function allele in the PUMA reporter strain, R337D as a complete loss of function, and R337H and D352R as partial function alleles. The double-mutant R337D/D352R was only slightly active (Figure S3). Finally, when p53 expression levels were high in 0.032% galactose (or 0.128% for the p21-SP2 reporter), R337H and D352R were WT-like, and the double mutant was fully or nearly fully rescued. Still, only the structurally altered p21-SP2 reporter showed enhanced activity of D352R. All of the above-described differences in transactivation potential were undoubtedly not related to variations in the level of protein expression, as confirmed by Western blot (Figure S4).

3. Discussion

High-resolution computational modeling that assesses the stability and dynamic folding changes in the p53 protein will be essential not only to reveal the molecular basis of functional alterations caused by disease-associated mutations but, in principle, also to identify structural intermediates that could be qualified as target sites for the design of pharmacological rescue molecules. In the case of p53, the possibility of developing drugs that can restore its conformation or improve its thermodynamic stability would have high potential in benefitting cancer patients [59,60,61,63,71,72]. Drugging p53 has, however, proven very difficult, not only because the protein is a transcription factor and, hence, lacks a well-defined catalytic site but also because of the incomplete availability of data on the structure and dynamics of the entire functional unit of the protein, i.e., a p53 tetramer that is competent to bind to DNA and stimulate transcription. There are crystal structures available for the p53 DNA-binding domain, both the WT, alone or bound to different DNA target sites, some hotspot p53 mutations [10,73,74,75,76,77,78,79,80], and the p53 TET domain [13]. However, there is still a lack of data to fully reveal the structural details of the crosstalk between the different domains, including the intrinsically disordered and heavily post-translationally modified N-ter and C-ter domains [10,16,19,24,81,82]. This lack of knowledge represents a severe limitation, as p53 is a highly versatile transcription factor that interacts through a wide range of affinity with many DNA RE-binding sites that can be structurally diverse in their internal organization [12,29]. Hence, while increasing the thermodynamic stability of the p53 DNA-binding domain can increase p53 transactivation and rescue the consequences of some cancer-associated mutations [83,84,85,86], it can also affect transactivation specificity towards the various categories of p53-binding sites [1,3,30], with functional effects that are difficult to predict [87].
Conversely, cell-based assays can select for small molecules that result in a specific p53-dependent cellular outcome [61,63,88]. Still, given the extreme pleiotropy of p53 and the pluralism of highly connected molecular pathways, it has proven challenging to reveal the precise mechanisms of action on p53 of leads emerging from those screening campaigns. All-atom MD simulations hold great potential for revealing the molecular defect of p53 mutations in terms of local structural distortions, long-range spatial effect, and kinetic consequences on conformational changes [69,89,90,91]. MD has been applied to study a panel of hotspot p53 missense mutations in the DBD [92] to model the intrinsically disordered p53 transactivation domain to empower the screening of binding compounds [19] and to study the stability of the p53 TET domain [70]. There have also been attempts to combine high- with low-resolution modeling to address the entire p53 tetramer [89,93]. For example, those studies have suggested the existence of specific structural features that are more evident or stable in the mutant p53 DBDs and could be druggable [92]. In the case of the p53 TET domain, structure and molecular dynamics data have led to the attempt to design molecules that could lead to enhanced stability [68]. Our results directly suggest that the TET domain and DNA-binding domain are not independent, as an alteration in the TET domain could also impact the arrangements of p53 monomers and dimers which, in turn, results in a variety of functional consequences. This finding is consistent with recent data on the existence of complex intramolecular interactions between p53 domains and on the impact that post-translational modifications can have on those interactions, indirectly affecting DNA-binding affinity, specificity, or the balance between sequence-specific and nonspecific DNA binding [19,20,21,58]. The result that the D352R rescues the loss of function R337D mutant and exhibits wild-type or even higher transactivation is, on the one hand, consistent with the important role of the D352:R337 salt-bridge interaction but also suggest a more dynamic interplay between different arginine residues in the p53 TET domain [70]. Importantly, post-translational arginine-methylation in the p53 TET domain can impact on p53 function as a transcription factor [58]. Overall, our findings confirm that only the combination of structural and modeling studies, along with cell-based assays monitoring p53 function, can fully reveal the dynamic structure/functional features of the full-length p53. Such information could allow future therapeutic strategies to restore mutant p53 stability in human cancer.

4. Materials and Methods

4.1. Molecular Dynamics Simulations

Starting from the WT PDB structure (PDB code: 2J0Z), the mutant models were built using the UCSF Chimera package developed by the UCSF Resource for Biocomputing, Visualization, and Informatics [94]. The proteins were solvated in water using the TIP3P model [95]; Na and Cl ions were added to neutralize the protein’s charge and mimic the physiological salt concentration (150 mM). The simulation box was chosen for the cubic shape, and the protein had a minimum distance of 1 nm to the box’s edge. The simulations were performed in the NPT ensemble at 300 K and 1 bar, using the stochastic velocity-rescale thermostat [96] and the Parrinello–Rahman barostat [97]. The chosen parameters were temperature coupling constant tau-t = 0.1 ps and pressure coupling constant tau-p = 2 ps. The integration step was set to 2 fs, the selected integrator was the leap-frog one, and the LINCS algorithm [98] was selected to apply holonomic constraints. The forcefield employed for the protein simulations was the Amber14sb [99]. MD simulations and RMSD analyses were performed using the Gromacs 2018 software [100,101]. The contact map calculations were done by means of an in-house Python script following the definition provided by Bonomi et al., [102].

4.2. Yeast Cultures

The yeast reporter strains were previously developed from the yLFM-CORE strain and the so-called Delitto Perfetto targeting strategy [103]. Cells were transformed with centromeric plasmids containing the expression cassette for human p53 alleles [32]. The promoter was derived from the GAL1,10 gene, and we established it could be regulated by varying the sugar concentrations in the culture medium. Specifically, the expression of p53 was repressed in glucose media, reaching a slightly higher basal level when glucose was replaced by galactose, and it could then be gradually induced to moderate or high levels by adding galactose to the raffinose-containing medium [104,105]. Transformants were selected based on the TRP1 marker present in the plasmid and were kept in glucose media until the day of the transactivation experiment. Five independent transformants were tested for each p53 mutant protein by preparing fresh patches on selective glucose plates to start liquid cultures for the luciferase assays.

4.3. Luciferase Assay

To measure the p53-dependent transactivation of the firefly reporter, we used an optimized low-volume liquid culture system [43,105]. Briefly, independent transformants were resuspended from patches on glucose plates and placed in 200 μL of selective liquid medium containing 2% raffinose as a carbon source within a 96-well plate. Sixty microliters of cell suspension were then transferred to different 96-well plates and mixed with an equal volume of selective medium containing raffinose as a carbon source, supplemented or not with a desired amount of galactose to induce at different levels the expression of p53. Plates were incubated at 30 °C with moderate shaking for 6 h. In previous experiments, we determined that between 6 and 8 h in this culture condition, the reporter’s expression of p53 and p53-dependent transactivation reached a peak [25]. To measure the luciferase activity, 10 μL from each well of the cultures were transferred to a white 384-well plate. An equal volume of 2× PLB buffer (Promega, Promega Italia, Milan, Italy) was added to permeabilize the yeast cells. Permeabilization was achieved during 10 min of incubation in a shaker at room temperature. In the meantime, the optical density at 600 nm of each culture was measured in the 96-well plate using a plate reader. Luciferase activity was quantified by adding 10 μL of the substrate (Promega) to the permeabilized culture samples in the 384-well plate and measuring the luminescence in a plate reader. Luciferase activity was normalized relative to the optical density of the cultures. As a control, transformants with an empty plasmid that did not express p53 were processed in the same manner, and the low level of p53-independent expression of the firefly reporter was subtracted from the other values.

4.4. Western Blotting

To compare p53 protein expression, we developed 3 mL liquid cultures in falcon tubes using a selective medium and conditions equivalent to the luciferase assay experiment. Two microliters of the cultures were collected in 2 mL Eppendorf tubes after six hours and centrifuged at 4000 rpm for less than 2 min to obtain a pellet. Cells were washed once with 5 mL of sterile water and centrifuged again to obtain a pellet that was then resuspended in 150 μL of 2× PLB buffer. We then added the approximate equivalent of 150 μL of acid-washed, sterile glass beads. The tubes were vortexed at maximum speed for cycles of 30 s, followed by one-minute of rest on ice. After six such cycles, the tubes were spun at maximum speed in a refrigerated microfuge at 4 °C for 15 min. The supernatant was then transferred to a new tube, trying to maintain the solution cold. Proteins were quantified using the bicinchoninic acid assay (Pierce, Thermo Fisher Scientific, Milan Italy). Western blot was performed with a standard SDS-PAGE protocol in 10% acrylamide gels and loading of 10 μg of total protein for each sample. Immunodetection was performed after transferring the protein onto a nitrocellulose membrane, using the DO1 antibody against p53 and an anti PGK1 antibody to detect a reference protein and revealed using a secondary antibody and the ECL detection kit (Amersham, Fisher Scientific, Milan, Italy). Band intensities were quantified using ImageJ.

Supplementary Materials

Supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms23147960/s1.

Author Contributions

Conceptualization, R.P., E.B. and A.I.; investigation, M.R., G.L. and P.M.; resources, P.M.; writing—original draft preparation, M.R., G.S., E.B. and A.I.; writing—review and editing, M.R., G.S., P.M., R.P., E.B. and A.I.; visualization, M.R. and G.S.; supervision, R.P., E.B. and A.I.; funding acquisition, E.B. and A.I. All authors have read and agreed to the published version of the manuscript.

Funding

This project received funding from the European Research Council (ERC) under the European Union’s Horizon 2020 Research and Innovation Program (grant no: 758588 to R.P.) and from Telethon Grant (grant no: GGP20043 to E.B.). Partial support was also provided by Fondazione AIRC (grant no: IG#18985 sto A.I.).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Kastenhuber, E.R.; Lowe, S.W. Putting P53 in Context. Cell 2017, 170, 1062–1078. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Sullivan, K.D.; Galbraith, M.D.; Andrysik, Z.; Espinosa, J.M. Mechanisms of Transcriptional Regulation by P53. Cell Death Differ. 2018, 25, 133–143. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Andrysik, Z.; Galbraith, M.D.; Guarnieri, A.L.; Zaccara, S.; Sullivan, K.D.; Pandey, A.; MacBeth, M.; Inga, A.; Espinosa, J.M. Identification of a Core TP53 Transcriptional Program with Highly Distributed Tumor Suppressive Activity. Genome Res. 2017, 27, 1645–1657. [Google Scholar] [CrossRef] [PubMed]
  4. Vousden, K.H.; Prives, C. Blinded by the Light: The Growing Complexity of P53. Cell 2009, 137, 413–431. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Li, T.; Kon, N.; Jiang, L.; Tan, M.; Ludwig, T.; Zhao, Y.; Baer, R.; Gu, W. Tumor Suppression in the Absence of P53-Mediated Cell-Cycle Arrest, Apoptosis, and Senescence. Cell 2012, 149, 1269–1283. [Google Scholar] [CrossRef] [Green Version]
  6. Kaiser, A.M.; Attardi, L.D. Deconstructing Networks of P53-Mediated Tumor Suppression in Vivo. Cell Death Differ. 2018, 25, 93–103. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Rizzotto, D.; Zaccara, S.; Rossi, A.; Galbraith, M.D.; Andrysik, Z.; Pandey, A.; Sullivan, K.D.; Quattrone, A.; Espinosa, J.M.; Dassi, E.; et al. Nutlin-Induced Apoptosis Is Specified by a Translation Program Regulated by PCBP2 and DHX30. Cell Rep. 2020, 30, 4355–4369. [Google Scholar] [CrossRef]
  8. McLure, K.G.; Lee, P.W. How P53 Binds DNA as a Tetramer. EMBO J. 1998, 17, 3342–3350. [Google Scholar] [CrossRef]
  9. Menendez, D.; Inga, A.; Resnick, M.A. The Expanding Universe of P53 Targets. Nat. Rev. Cancer 2009, 9, 724–737. [Google Scholar] [CrossRef]
  10. Kitayner, M.; Rozenberg, H.; Kessler, N.; Rabinovich, D.; Shaulov, L.; Haran, T.E.; Shakked, Z. Structural Basis of DNA Recognition by P53 Tetramers. Mol. Cell 2006, 22, 741–753. [Google Scholar] [CrossRef]
  11. Nicholls, C.D.; McLure, K.G.; Shields, M.A.; Lee, P.W. Biogenesis of P53 Involves Cotranslational Dimerization of Monomers and Posttranslational Dimerization of Dimers. Implications on the Dominant Negative Effect. J. Biol. Chem. 2002, 277, 12937–12945. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Vyas, P.; Beno, I.; Xi, Z.; Stein, Y.; Golovenko, D.; Kessler, N.; Rotter, V.; Shakked, Z.; Haran, T.E. Diverse P53/DNA Binding Modes Expand the Repertoire of P53 Response Elements. Proc. Natl. Acad. Sci. USA 2017, 114, 10624–10629. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Jeffrey, P.D.; Gorina, S.; Pavletich, N.P. Crystal Structure of the Tetramerization Domain of the P53 Tumor Suppressor at 1.7 Angstroms. Science 1995, 267, 1498–1502. [Google Scholar] [CrossRef] [PubMed]
  14. Natan, E.; Baloglu, C.; Pagel, K.; Freund, S.M.; Morgner, N.; Robinson, C.V.; Fersht, A.R.; Joerger, A.C. Interaction of the P53 DNA-Binding Domain with Its n-Terminal Extension Modulates the Stability of the P53 Tetramer. J. Mol. Biol. 2011, 409, 358–368. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Bista, M.; Freund, S.M.; Fersht, A.R. Domain-Domain Interactions in Full-Length P53 and a Specific DNA Complex Probed by Methyl NMR Spectroscopy. Proc. Natl. Acad. Sci. USA 2012, 109, 15752–15756. [Google Scholar] [CrossRef] [Green Version]
  16. D’Abramo, M.; Bešker, N.; Desideri, A.; Levine, A.J.; Melino, G.; Chillemi, G. The P53 Tetramer Shows an Induced-Fit Interaction of the C-Terminal Domain with the DNA-Binding Domain. Oncogene 2016, 35, 3272–3281. [Google Scholar] [CrossRef]
  17. Raj, N.; Attardi, L.D. The Transactivation Domains of the P53 Protein. Cold Spring Harb. Perspect. Med. 2017, 7, a026047. [Google Scholar] [CrossRef] [Green Version]
  18. Shin, J.S.; Ha, J.H.; Lee, D.H.; Ryu, K.S.; Bae, K.H.; Park, B.C.; Park, S.G.; Yi, G.S.; Chi, S.W. Structural Convergence of Unstructured P53 Family Transactivation Domains in Mdm2 Recognition. Cell Cycle 2015, 14, 533–543. [Google Scholar] [CrossRef] [Green Version]
  19. Ruan, H.; Yu, C.; Niu, X.; Zhang, W.; Liu, H.; Chen, L.; Xiong, R.; Sun, Q.; Jin, C.; Liu, Y.; et al. Computational Strategy for Intrinsically Disordered Protein Ligand Design Leads to the Discovery of P53 Transactivation Domain I Binding Compounds That Activate the P53 Pathway. Chem. Sci. 2021, 12, 3004–3016. [Google Scholar] [CrossRef]
  20. Krois, A.S.; Jane Dyson, H.; Wright, P.E. Long-Range Regulation of P53 DNA Binding by Its Intrinsically Disordered N-Terminal Transactivation Domain. Proc. Natl. Acad. Sci. USA 2018, 115, E11302–E11310. [Google Scholar] [CrossRef] [Green Version]
  21. Sun, X.; Dyson, H.J.; Wright, P.E. A Phosphorylation-Dependent Switch in the Disordered P53 Transactivation Domain Regulates DNA Binding. Proc. Natl. Acad. Sci. USA 2020, 118, e2021456118. [Google Scholar] [CrossRef] [PubMed]
  22. Murray-Zmijewski, F.; Slee, E.A.; Lu, X. A Complex Barcode Underlies the Heterogeneous Response of P53 to Stress. Nat. Rev. Mol. Cell Biol. 2008, 9, 702–712. [Google Scholar] [CrossRef] [PubMed]
  23. Appella, E.; Anderson, C.W. Post-Translational Modifications and Activation of P53 by Genotoxic Stresses. Eur. J. Biochem. 2001, 268, 2764–2772. [Google Scholar] [CrossRef] [PubMed]
  24. Wen, J.; Wang, D. Deciphering the PTM Codes of the Tumor Suppressor P53. J. Mol. Cell Biol. 2022, 13, 774–785. [Google Scholar] [CrossRef]
  25. Senitzki, A.; Safieh, J.; Sharma, V.; Golovenko, D.; Danin-Poleg, Y.; Inga, A.; Haran, T.E. The Complex Architecture of P53 Binding Sites. Nucleic Acids Res. 2021, 49, 1364–1382. [Google Scholar] [CrossRef]
  26. Farkas, M.; McMahon, S. Unlocking P53 Response Elements: DNA Shape Is the Key. Mol. Cell. Oncol. 2021, 8, 1905489. [Google Scholar] [CrossRef]
  27. Wang, B.; Xiao, Z.; Ren, E.C. Redefining the P53 Response Element. Proc. Natl. Acad. Sci. USA 2009, 106, 14373–14378. [Google Scholar] [CrossRef] [Green Version]
  28. Nguyen, T.-A.T.; Grimm, S.A.; Bushel, P.R.; Li, J.; Li, Y.; Bennett, B.D.; Lavender, C.A.; Ward, J.M.; Fargo, D.C.; Anderson, C.W.; et al. Revealing a Human P53 Universe. Nucleic Acids Res. 2018, 46, 8153–8167. [Google Scholar] [CrossRef] [Green Version]
  29. Farkas, M.; Hashimoto, H.; Bi, Y.; Davuluri, R.V.; Resnick-Silverman, L.; Manfredi, J.J.; Debler, E.W.; McMahon, S.B. Distinct Mechanisms Control Genome Recognition by P53 at Its Target Genes Linked to Different Cell Fates. Nat. Commun. 2021, 12, 484. [Google Scholar] [CrossRef]
  30. Sammons, M.A.; Nguyen, T.A.T.; McDade, S.S.; Fischer, M. Tumor Suppressor P53: From Engaging DNA to Target Gene Regulation. Nucleic Acids Res. 2020, 48, 8848–8869. [Google Scholar] [CrossRef]
  31. Tebaldi, T.; Zaccara, S.; Alessandrini, F.; Bisio, A.; Ciribilli, Y.; Inga, A. Whole-Genome Cartography of P53 Response Elements Ranked on Transactivation Potential. BMC Genom. 2015, 16, 464. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Tomso, D.J.; Inga, A.; Menendez, D.; Pittman, G.S.; Campbell, M.R.; Storici, F.; Bell, D.A.; Resnick, M.A. Functionally Distinct Polymorphic Sequences in the Human Genome That Are Targets for P53 Transactivation. Proc. Natl. Acad. Sci. USA 2005, 102, 6431–6436. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Bond, G.L.; Menin, C.; Bertorelle, R.; Alhorpuro, P.; Aaltonen, L.A.; Levine, A.J. MDM2 SNP309 Accelerates Colorectal Tumour Formation in Women. J. Med. Genet. 2006, 43, 950–952. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Zeron-Medina, J.; Wang, X.; Repapi, E.; Campbell, M.R.; Su, D.; Castro-Giner, F.; Davies, B.; Peterse, E.F.; Sacilotto, N.; Walker, G.J.; et al. A Polymorphic P53 Response Element in KIT Ligand Influences Cancer Risk and Has Undergone Natural Selection. Cell 2013, 155, 410–422. [Google Scholar] [CrossRef] [Green Version]
  35. Kato, S.; Han, S.Y.; Liu, W.; Otsuka, K.; Shibata, H.; Kanamaru, R.; Ishioka, C. Understanding the Function-Structure and Function-Mutation Relationships of P53 Tumor Suppressor Protein by High-Resolution Missense Mutation Analysis. Proc. Natl. Acad. Sci. USA 2003, 100, 8424–8429. [Google Scholar] [CrossRef] [Green Version]
  36. Kawaguchi, T.; Kato, S.; Otsuka, K.; Watanabe, G.; Kumabe, T.; Tominaga, T.; Yoshimoto, T.; Ishioka, C. The Relationship among P53 Oligomer Formation, Structure and Transcriptional Activity Using a Comprehensive Missense Mutation Library. Oncogene 2005, 24, 6976–6981. [Google Scholar] [CrossRef] [Green Version]
  37. Fischer, M. Conservation and Divergence of the P53 Gene Regulatory Network between Mice and Humans. Oncogene 2019, 38, 4095–4109. [Google Scholar] [CrossRef] [Green Version]
  38. Joerger, A.C.; Wilcken, R.; Andreeva, A. Tracing the Evolution of the P53 Tetramerization Domain. Structure 2014, 22, 1301–1310. [Google Scholar] [CrossRef] [Green Version]
  39. Joerger, A.C.; Rajagopalan, S.; Natan, E.; Veprintsev, D.B.; Robinson, C.V.; Fersht, A.R. Structural Evolution of P53, P63, and P73: Implication for Heterotetramer Formation. Proc. Natl. Acad. Sci. USA 2009, 106, 17705–17710. [Google Scholar] [CrossRef] [Green Version]
  40. Chillemi, G.; Kehrloesser, S.; Bernassola, F.; Desideri, A.; Dötsch, V.; Levine, A.J.; Melino, G. Structural Evolution and Dynamics of the P53 Proteins. Cold Spring Harb. Perspect. Med. 2017, 7, a028308. [Google Scholar] [CrossRef] [Green Version]
  41. Mateu, M.G.; Fersht, A.R. Mutually Compensatory Mutations during Evolution of the Tetramerization Domain of Tumor Suppressor P53 Lead to Impaired Hetero-Oligomerization. Proc. Natl. Acad. Sci. USA 1999, 96, 3595–3599. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Belyi, V.A.; Ak, P.; Markert, E.; Wang, H.; Hu, W.; Puzio-Kuter, A.; Levine, A.J. The Origins and Evolution of the P53 Family of Genes. Cold Spring Harb. Perspect. Biol. 2010, 2, a001198. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Monti, P.; Bosco, B.; Gomes, S.; Saraiva, L.; Fronza, G.; Inga, A. Yeast as a Chassis for Developing Functional Assays to Study Human P53. J. Vis. Exp. 2019, 2019, e59071. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Muller, P.A.J.; Vousden, K.H. Mutant P53 in Cancer: New Functions and Therapeutic Opportunities. Cancer Cell 2014, 25, 304–317. [Google Scholar] [CrossRef] [Green Version]
  45. Malkin, D. Li-Fraumeni Syndrome. Genes Cancer 2001, 2, 474–484. [Google Scholar]
  46. Frebourg, T.; Bajalica Lagercrantz, S.; Oliveira, C.; Magenheim, R.; Evans, D.G.; Hoogerbrugge, N.; Ligtenberg, M.; Kets, M.; Oostenbrink, R.; Sijmons, R.; et al. Guidelines for the Li–Fraumeni and Heritable TP53-Related Cancer Syndromes. Eur. J. Hum. Genet. 2020, 28, 1379–1386. [Google Scholar] [CrossRef]
  47. Rana, H.Q.; Gelman, R.; LaDuca, H.; McFarland, R.; Dalton, E.; Thompson, J.; Speare, V.; Dolinsky, J.S.; Chao, E.C.; Garber, J.E. Differences in TP53 Mutation Carrier Phenotypes Emerge from Panel-Based Testing. J Natl. Cancer Inst. 2018, 110, 863–870. [Google Scholar] [CrossRef] [Green Version]
  48. Stein, Y.; Rotter, V.; Aloni-Grinstein, R. Gain-of-Function Mutant P53: All the Roads Lead to Tumorigenesis. Int. J. Mol. Sci. 2019, 20, 6197. [Google Scholar] [CrossRef] [Green Version]
  49. Bargonetti, J.; Prives, C. Gain-of-Function Mutant P53: History and Speculation. J. Mol. Cell Biol. 2019, 11, 605–609. [Google Scholar] [CrossRef]
  50. Gencel-Augusto, J.; Lozano, G. P53 Tetramerization: At the Center of the Dominant-Negative Effect of Mutant P53. Genes Dev. 2020, 34, 1128–1146. [Google Scholar] [CrossRef]
  51. Monti, P.; Perfumo, C.; Bisio, A.; Ciribilli, Y.; Menichini, P.; Russo, D.; Umbach, D.M.; Resnick, M.A.; Inga, A.; Fronza, G. Dominant-Negative Features of Mutant TP53 in Germline Carriers Have Limited Impact on Cancer Outcomes. Mol. Cancer Res. 2011, 9, 271–279. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Kamada, R.; Nomura, T.; Anderson, C.W.; Sakaguchi, K. Cancer-Associated P53 Tetramerization Domain Mutants: Quantitative Analysis Reveals a Low Threshold for Tumor Suppressor Inactivation. J. Biol. Chem. 2011, 286, 252–258. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Mathias, C.; Bortoletto, S.; Centa, A.; Komechen, H.; Lima, R.S.; Fonseca, A.S.; Sebastião, A.P.; Urban, C.A.; Soares, E.W.S.; Prando, C.; et al. Frequency of the TP53 R337H Variant in Sporadic Breast Cancer and Its Impact on Genomic Instability. Sci. Rep. 2020, 10, 16614. [Google Scholar] [CrossRef] [PubMed]
  54. Achatz, M.I.; Zambetti, G.P. The Inherited P53 Mutation in the Brazilian Population. Cold Spring Harb. Perspect. Med. 2016, 6, a026195. [Google Scholar] [CrossRef]
  55. Park, J.H.; Li, J.; Starost, M.F.; Liu, C.; Zhuang, J.; Chen, J.; Achatz, M.I.; Kang, J.G.; Wang, P.-Y.; Savage, S.A.; et al. Mouse Homolog of the Human TP53 R337H Mutation Reveals Its Role in Tumorigenesis. Cancer Res. 2018, 78, 5375–5383. [Google Scholar] [CrossRef] [Green Version]
  56. Pinto, E.M.; Billerbeck, A.E.C.; Villares, M.C.B.F.; Domenice, S.; Mendonça, B.B.; Latronico, A.C. Founder Effect for the Highly Prevalent R337H Mutation of Tumor Suppressor P53 in Brazilian Patients with Adrenocortical Tumors. Arq. Bras. Endocrinol. Metabol. 2004, 48, 647–650. [Google Scholar] [CrossRef] [Green Version]
  57. Pinto, E.M.; Zambetti, G.P. What 20 Years of Research Has Taught Us about the TP53 p.R337H Mutation. Cancer 2020, 126, 4678–4686. [Google Scholar] [CrossRef]
  58. Jansson, M.; Durant, S.T.; Cho, E.C.; Sheahan, S.; Edelmann, M.; Kessler, B.; la Thangue, N.B. Arginine Methylation Regulates the P53 Response. Nat. Cell Biol. 2008, 10, 1431–1439. [Google Scholar] [CrossRef]
  59. Khoo, K.H.; Verma, C.S.; Lane, D.P. Drugging the P53 Pathway: Understanding the Route to Clinical Efficacy. Nat. Rev. Drug Discov. 2014, 13, 217–236. [Google Scholar] [CrossRef]
  60. Brown, C.J.; Lain, S.; Verma, C.S.; Fersht, A.R.; Lane, D.P. Awakening Guardian Angels: Drugging the P53 Pathway. Nat. Rev. Cancer 2009, 9, 862–873. [Google Scholar] [CrossRef]
  61. Gomes, A.S.; Ramos, H.; Inga, A.; Sousa, E.; Saraiva, L. Structural and Drug Targeting Insights on Mutant P53. Cancers 2021, 13, 3344. [Google Scholar] [CrossRef] [PubMed]
  62. Bykov, V.J.; Issaeva, N.; Shilov, A.; Hultcrantz, M.; Pugacheva, E.; Chumakov, P.; Bergman, J.; Wiman, K.G.; Selivanova, G. Restoration of the Tumor Suppressor Function to Mutant P53 by a Low-Molecular-Weight Compound. Nat. Med. 2002, 8, 282–288. [Google Scholar] [CrossRef] [PubMed]
  63. Mullard, A. P53 Programmes Plough On. Nat. Rev. Drug Discov. 2020, 19, 497–500. [Google Scholar] [CrossRef] [PubMed]
  64. Liu, X.; Wilcken, R.; Joerger, A.C.; Chuckowree, I.S.; Amin, J.; Spencer, J.; Fersht, A.R. Small Molecule Induced Reactivation of Mutant P53 in Cancer Cells. Nucleic Acids Res. 2013, 41, 6034–6044. [Google Scholar] [CrossRef] [PubMed]
  65. Bullock, A.N.; Henckel, J.; DeDecker, B.S.; Johnson, C.M.; Nikolova, P.V.; Proctor, M.R.; Lane, D.P.; Fersht, A.R. Thermodynamic Stability of Wild-Type and Mutant P53 Core Domain. Proc. Natl. Acad. Sci. USA 1997, 94, 14338–14342. [Google Scholar] [CrossRef] [Green Version]
  66. Brachmann, R.K.; Yu, K.; Eby, Y.; Pavletich, N.P.; Boeke, J.D. Genetic Selection of Intragenic Suppressor Mutations That Reverse the Effect of Common P53 Cancer Mutations. Embo. J. 1998, 17, 1847–1859. [Google Scholar] [CrossRef]
  67. Joerger, A.C.; Allen, M.D.; Fersht, A.R. Crystal Structure of a Superstable Mutant of Human P53 Core Domain. Insights into the Mechanism of Rescuing Oncogenic Mutations. J. Biol. Chem. 2004, 279, 1291–1296. [Google Scholar] [CrossRef] [Green Version]
  68. Gordo, S.; Martos, V.; Santos, E.; Menéndez, M.; Bo, C.; Giralt, E.; de Mendoza, J. Stability and Structural Recovery of the Tetramerization Domain of P53-R337H Mutant Induced by a Designed Templating Ligand. Proc. Natl. Acad. Sci. USA 2008, 105, 16426–16431. [Google Scholar] [CrossRef] [Green Version]
  69. Demir, Ö.; Barros, E.P.; Offutt, T.L.; Rosenfeld, M.; Amaro, R.E. An Integrated View of P53 Dynamics, Function, and Reactivation. Curr. Opin. Struct. Biol. 2021, 67, 187–194. [Google Scholar] [CrossRef]
  70. Lwin, T.Z.; Durant, J.J.; Bashford, D. A Fluid Salt-Bridging Cluster and the Stabilization of P53. J. Mol. Biol. 2007, 373, 1334–1347. [Google Scholar] [CrossRef] [Green Version]
  71. Blanden, A.R.; Yu, X.; Blayney, A.J.; Demas, C.; Ha, J.H.; Liu, Y.; Withers, T.; Carpizo, D.R.; Loh, S.N. Zinc Shapes the Folding Landscape of P53 and Establishes a Pathway for Reactivating Structurally Diverse Cancer Mutants. eLife 2020, 9, e61487. [Google Scholar] [CrossRef] [PubMed]
  72. Joerger, A.C.; Fersht, A.R. The Tumor Suppressor P53: From Structures to Drug Discovery. Cold Spring Harb. Perspect. Biol. 2010, 2, a000919. [Google Scholar] [CrossRef] [PubMed]
  73. Degtjarik, O.; Golovenko, D.; Diskin-Posner, Y.; Abrahmsén, L.; Rozenberg, H.; Shakked, Z. Structural Basis of Reactivation of Oncogenic P53 Mutants by a Small Molecule: Methylene Quinuclidinone (MQ). Nat. Commun. 2021, 12, 7057. [Google Scholar] [CrossRef] [PubMed]
  74. Golovenko, D.; Bräuning, B.; Vyas, P.; Haran, T.E.; Rozenberg, H.; Shakked, Z. New Insights into the Role of DNA Shape on Its Recognition by P53 Proteins. Structure 2018, 26, 1237–1250. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  75. Kitayner, M.; Rozenberg, H.; Rohs, R.; Suad, O.; Rabinovich, D.; Honig, B.; Shakked, Z. Diversity in DNA Recognition by P53 Revealed by Crystal Structures with Hoogsteen Base Pairs. Nat. Struct. Mol. Biol. 2010, 17, 423–429. [Google Scholar] [CrossRef] [PubMed]
  76. Wells, M.; Tidow, H.; Rutherford, T.J.; Markwick, P.; Jensen, M.R.; Mylonas, E.; Svergun, D.I.; Blackledge, M.; Fersht, A.R. Structure of Tumor Suppressor P53 and Its Intrinsically Disordered N-Terminal Transactivation Domain. Proc. Natl. Acad. Sci. USA 2008, 105, 5762–5767. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  77. Canadillas, J.M.; Tidow, H.; Freund, S.M.; Rutherford, T.J.; Ang, H.C.; Fersht, A.R. Solution Structure of P53 Core Domain: Structural Basis for Its Instability. Proc. Natl. Acad. Sci. USA 2006, 103, 2109–2114. [Google Scholar] [CrossRef] [Green Version]
  78. Emamzadah, S.; Tropia, L.; Halazonetis, T.D. Crystal Structure of a Multidomain Human P53 Tetramer Bound to the Natural CDKN1A (P21) P53-Response Element. Mol. Cancer Res. 2011, 9, 1493–1499. [Google Scholar] [CrossRef] [Green Version]
  79. Wieczorek, A.M.; Waterman, J.L.; Waterman, M.J.; Halazonetis, T.D. Structure-Based Rescue of Common Tumor-Derived P53 Mutants. Nat. Med. 1996, 2, 1143–1146. [Google Scholar] [CrossRef]
  80. Cho, Y.; Gorina, S.; Jeffrey, P.D.; Pavletich, N.P. Crystal Structure of a P53 Tumor Suppressor-DNA Complex: Understanding Tumorigenic Mutations [See Comments]. Science 1994, 265, 346–355. [Google Scholar] [CrossRef]
  81. Tidow, H.; Melero, R.; Mylonas, E.; Freund, S.M.; Grossmann, J.G.; Carazo, J.M.; Svergun, D.I.; Valle, M.; Fersht, A.R. Quaternary Structures of Tumor Suppressor P53 and a Specific P53 DNA Complex. Proc. Natl. Acad. Sci. USA 2007, 104, 12324–12329. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  82. Okorokov, A.L.; Sherman, M.B.; Plisson, C.; Grinkevich, V.; Sigmundsson, K.; Selivanova, G.; Milner, J.; Orlova, E.V. The Structure of P53 Tumour Suppressor Protein Reveals the Basis for Its Functional Plasticity. EMBO J. 2006, 25, 5191–5200. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  83. Nikolova, P.V.; Henckel, J.; Lane, D.P.; Fersht, A.R. Semirational Design of Active Tumor Suppressor P53 DNA Binding Domain with Enhanced Stability. Proc. Natl. Acad. Sci. USA 1998, 95, 14675–14680. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  84. Baroni, T.E.; Wang, T.; Qian, H.; Dearth, L.R.; Truong, L.N.; Zeng, J.; Denes, A.E.; Chen, S.W.; Brachmann, R.K. A Global Suppressor Motif for P53 Cancer Mutants. Proc. Natl. Acad. Sci. USA 2004, 101, 4930–4935. [Google Scholar] [CrossRef] [Green Version]
  85. Inga, A.; Monti, P.; Fronza, G.; Darden, T.; Resnick, M.A. P53 Mutants Exhibiting Enhanced Transcriptional Activation and Altered Promoter Selectivity Are Revealed Using a Sensitive, Yeast-Based Functional Assay. Oncogene 2001, 20, 501–513. [Google Scholar] [CrossRef] [Green Version]
  86. Roth, J.; Lenz-Bauer, C.; Contente, A.; Löhr, K.; Koch, P.; Bernard, S.; Dobbelstein, M. Reactivation of Mutant P53 by a One-Hybrid Adaptor Protein. Cancer Res. 2003, 63, 3904–3908. [Google Scholar]
  87. Monti, P.; Menichini, P.; Speciale, A.; Cutrona, G.; Fais, F.; Taiana, E.; Neri, A.; Bomben, R.; Gentile, M.; Gattei, V.; et al. Heterogeneity of TP53 Mutations and P53 Protein Residual Function in Cancer: Does It Matter? Front. Oncol. 2020, 10, 593383. [Google Scholar] [CrossRef]
  88. Wiman, K.G. Pharmacological Reactivation of Mutant P53: From Protein Structure to the Cancer Patient. Oncogene 2010, 29, 4245–4252. [Google Scholar] [CrossRef] [Green Version]
  89. Terakawa, T.; Takada, S. P53 Dynamics upon Response Element Recognition Explored by Molecular Simulations. Sci. Rep. 2015, 5, 17107. [Google Scholar] [CrossRef] [Green Version]
  90. Barros, E.P.; Demir, Ö.; Soto, J.; Cocco, M.J.; Amaro, R.E. Markov State Models and NMR Uncover an Overlooked Allosteric Loop in P53. Chem. Sci. 2021, 12, 1891–1900. [Google Scholar] [CrossRef]
  91. Tan, Y.S.; Mhoumadi, Y.; Verma, C.S. Roles of Computational Modelling in Understanding P53 Structure, Biology, and Its Therapeutic Targeting. J. Mol. Cell Biol. 2019, 11, 306–316. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  92. Pradhan, M.R.; Siau, J.W.; Kannan, S.; Nguyen, M.N.; Ouaray, Z.; Kwoh, C.K.; Lane, D.P.; Ghadessy, F.; Verma, C.S. Simulations of Mutant P53 DNA Binding Domains Reveal a Novel Druggable Pocket. Nucleic Acids Res. 2019, 47, 1637–1652. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  93. Demir; Ieong, P.U.; Amaro, R.E. Full-Length P53 Tetramer Bound to DNA and Its Quaternary Dynamics. Oncogene 2017, 36, 1451–1460. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  94. Pettersen, E.F.; Goddard, T.D.; Huang, C.C.; Couch, G.S.; Greenblatt, D.M.; Meng, E.C.; Ferrin, T.E. UCSF Chimera—A Visualization System for Exploratory Research and Analysis. J. Comput. Chem. 2004, 25, 1605–1612. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  95. Jorgensen, W.; Chandrasekhar, J.; Madura, J.; Impey, R.; Klein, M.L. Comparison of Simple Potential Functions for Simulating Liquid Water. J. Chem. Phys. 1983, 79, 926–935. [Google Scholar] [CrossRef]
  96. Bussi, G.; Donadio, D.; Parrinello, M. Canonical Sampling through Velocity Rescaling. J. Chem. Phys. 2007, 126, 014101. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  97. Parrinello, M.; Rahman, A. Polymorphic Transitions in Single Crystals: A New Molecular Dynamics Method. J. Appl. Phys. 1981, 52, 7182–7190. [Google Scholar] [CrossRef]
  98. Hess, B.; Bekker, H.; Berendsen, H.J.C.; Fraaije, J.G.E.M. LINCS: A Linear Constraint Solver for Molecular Simulations. J. Comput. Chem. 1997, 18, 1463–1472. [Google Scholar] [CrossRef]
  99. Maier, J.A.; Martinez, C.; Kasavajhala, K.; Wickstrom, L.; Hauser, K.E.; Simmerling, C. Ff14SB: Improving the Accuracy of Protein Side Chain and Backbone Parameters from Ff99SB. J. Chem. Theory Comput. 2015, 11, 3696–3713. [Google Scholar] [CrossRef] [Green Version]
  100. Bekker, H.; Berendsen, H.; Dijkstra, E.; Achterop, S.; van Drunen, R.; van der Spoel, D.; Sijbers, A.; Keegstra, H.; Reitsma, B.; Renardus, M. Gromacs: A Parallel Computer for Molecular Dynamics Simulations. Phys. Comput. 1993, 92. [Google Scholar]
  101. Abraham, M.J.; Murtola, T.; Schulz, R.; Páll, S.; Smith, J.C.; Hess, B.; Lindah, E. Gromacs: High Performance Molecular Simulations through Multi-Level Parallelism from Laptops to Supercomputers. SoftwareX 2015, 1, 19–25. [Google Scholar] [CrossRef] [Green Version]
  102. Bonomi, M.; Branduardi, D.; Gervasio, F.L.; Parrinello, M. The Unfolded Ensemble and Folding Mechanism of the C-Terminal GB1 β-Hairpin. J. Am. Chem. Soc. 2008, 130, 13938–13944. [Google Scholar] [CrossRef]
  103. Storici, F.; Resnick, M.A. The Delitto Perfetto Approach to in Vivo Site-Directed Mutagenesis and Chromosome Rearrangements with Synthetic Oligonucleotides in Yeast. Methods Enzymol. 2006, 409, 329–345. [Google Scholar]
  104. Inga, A.; Storici, F.; Darden, T.A.; Resnick, M.A. Differential Transactivation by the P53 Transcription Factor Is Highly Dependent on P53 Level and Promoter Target Sequence. Mol. Cell. Biol. 2002, 22, 8612–8625. [Google Scholar] [CrossRef] [Green Version]
  105. Andreotti, V.; Ciribilli, Y.; Monti, P.; Bisio, A.; Lion, M.; Jordan, J.; Fronza, G.; Menichini, P.; Resnick, M.A.; Inga, A. P53 Transactivation and the Impact of Mutations, Cofactors and Small Molecules Using a Simplified Yeast-Based Screening System. PLoS ONE 2011, 6, e20643. [Google Scholar] [CrossRef]

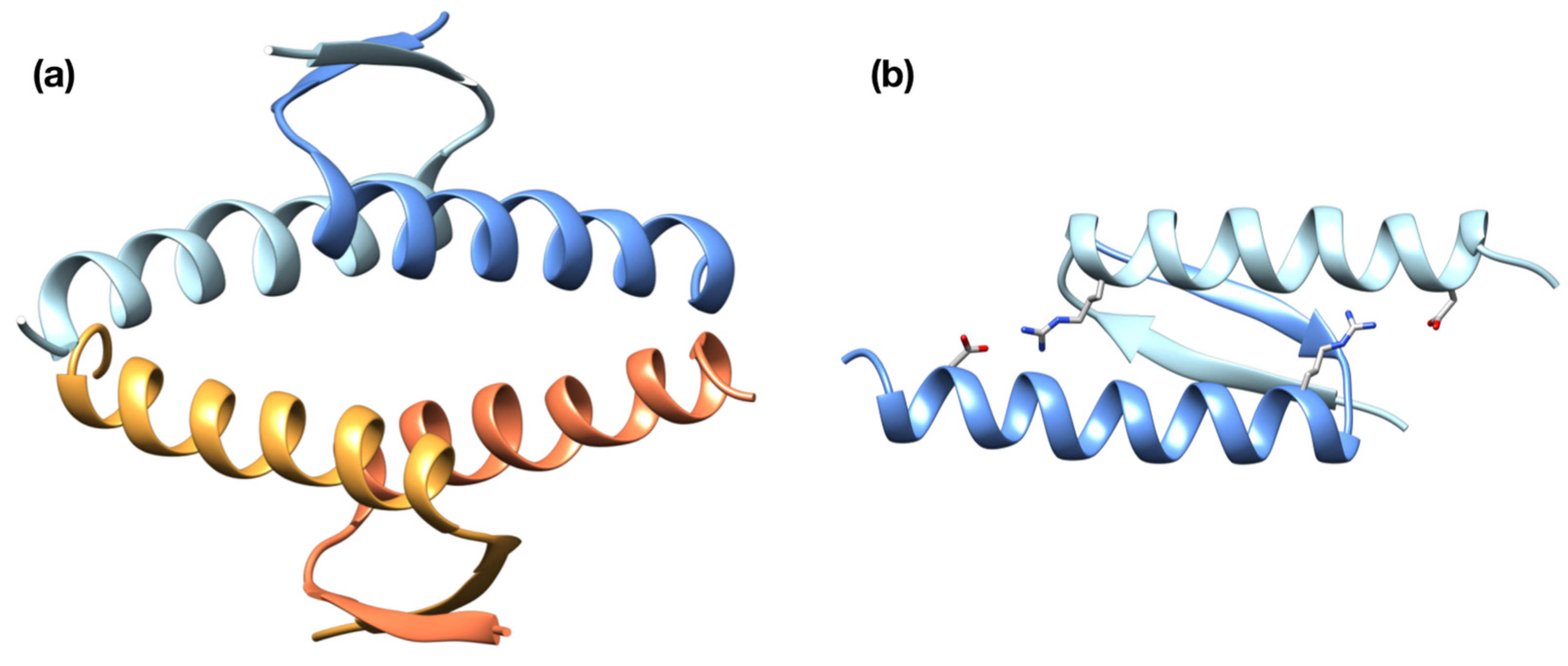

Figure 1. Structure of the p53 TET domain: (a) ribbon representation of the fully assembled TET domain of WT p53, where the individual chains are depicted in different colors; (b) representation of a dimer of the p53 TET domain displaying the two intermolecular salt-bridges between residues R337 and D352.
Figure 1. Structure of the p53 TET domain: (a) ribbon representation of the fully assembled TET domain of WT p53, where the individual chains are depicted in different colors; (b) representation of a dimer of the p53 TET domain displaying the two intermolecular salt-bridges between residues R337 and D352.
Ijms 23 07960 g001
Figure 2. Molecular dynamics simulations of p53 TET domain mutants. (a) The destabilization effect of disease-associated mutations lying within the p53 TET domain was analyzed by molecular dynamics. The graph shows the RMSD distribution of the WT tetramer and the R337C and R337H mutants. The latter was simulated in three different states of the histidine including the protonation of δ (R337Hδ), ε (R337Hε), or both (R337Hδε) nitrogens. The results indicate that the WT and R337Hδε showed overlapping distributions with low RMSD values. Conversely, the R337Hδ, R337Hε, and R337C mutants exhibited distributions centered at higher RMSD values. (b) The effect of rationally designed substitutions, including D352R, R337D, and R337D/D352R, on the stability of the p53 TET domain was compared to the WT counterpart. The results indicate that the WT and the D352R form showed distributions with low RMSD values. Conversely, the R337D/D352R and R337D exhibited distributions centered at higher RMSD values, with the latter presenting a more prominent destabilization. Each system was simulated for 2 µs.
Figure 2. Molecular dynamics simulations of p53 TET domain mutants. (a) The destabilization effect of disease-associated mutations lying within the p53 TET domain was analyzed by molecular dynamics. The graph shows the RMSD distribution of the WT tetramer and the R337C and R337H mutants. The latter was simulated in three different states of the histidine including the protonation of δ (R337Hδ), ε (R337Hε), or both (R337Hδε) nitrogens. The results indicate that the WT and R337Hδε showed overlapping distributions with low RMSD values. Conversely, the R337Hδ, R337Hε, and R337C mutants exhibited distributions centered at higher RMSD values. (b) The effect of rationally designed substitutions, including D352R, R337D, and R337D/D352R, on the stability of the p53 TET domain was compared to the WT counterpart. The results indicate that the WT and the D352R form showed distributions with low RMSD values. Conversely, the R337D/D352R and R337D exhibited distributions centered at higher RMSD values, with the latter presenting a more prominent destabilization. Each system was simulated for 2 µs.
Ijms 23 07960 g002
Figure 3. Analysis of the distances between side chains of residues 337 and 352 within the p53 tetramer. The interchain distance between residues involved in the salt-bridge formation at positions 337 and 352 in the WT protein was analyzed for all of the simulated systems. The graphs display the measure of the distance between the centers of mass of the functional groups of each couple of amino acids (337 and 352), initially forming salt-bridges between two pairs of the four polypeptide chains of the tetramer (A with B and C with D), resulting in the 4 different arrangements (i.e., 337.A-352.B, 337.B-352.A, 337.C-352.D, and 337.D-352.C). The results show that only the charged histidine at position 337, the double-mutant R337D/D352R, and the D352R mutant displayed distance distributions compatible with the formation of effective interactions.
Figure 3. Analysis of the distances between side chains of residues 337 and 352 within the p53 tetramer. The interchain distance between residues involved in the salt-bridge formation at positions 337 and 352 in the WT protein was analyzed for all of the simulated systems. The graphs display the measure of the distance between the centers of mass of the functional groups of each couple of amino acids (337 and 352), initially forming salt-bridges between two pairs of the four polypeptide chains of the tetramer (A with B and C with D), resulting in the 4 different arrangements (i.e., 337.A-352.B, 337.B-352.A, 337.C-352.D, and 337.D-352.C). The results show that only the charged histidine at position 337, the double-mutant R337D/D352R, and the D352R mutant displayed distance distributions compatible with the formation of effective interactions.
Ijms 23 07960 g003
Figure 4. Contact map analysis of WT and mutant p53 TET domain. The average contact map difference is represented as a residue index matrix for each form. Mutant p53 forms are expressed as the absolute value of the difference with the WT protein. The contact maps of R337C, R337D/D352R, R337D, R337Hε, and R337Hδ show a significant variation, with the latter presenting the largest divergence. In contrast, D352R and R337Hδε displayed no substantial deviation from the WT. The side chains of residues with the most evident differences in each contact map, defined by a threshold between 0.25 and 0.5, are illustrated as sticks.
Figure 4. Contact map analysis of WT and mutant p53 TET domain. The average contact map difference is represented as a residue index matrix for each form. Mutant p53 forms are expressed as the absolute value of the difference with the WT protein. The contact maps of R337C, R337D/D352R, R337D, R337Hε, and R337Hδ show a significant variation, with the latter presenting the largest divergence. In contrast, D352R and R337Hδε displayed no substantial deviation from the WT. The side chains of residues with the most evident differences in each contact map, defined by a threshold between 0.25 and 0.5, are illustrated as sticks.
Ijms 23 07960 g004
Figure 5. Transactivation potential of p53 TET mutations. (A). Scheme of the experimental approach. p53 expression was achieved by stable transformation of yeast reporter cells with plasmids that, by containing an origin of replication and a centromeric sequence, ensured stable low-copy transmission to daughter cells. The vector was based on the pRS314 shuttle vector and contained a selectable TRP1 marker gene complementing an auxotrophy of the yeast strain. The vector contained a GAL1,10 promoter driving the expression of the human p53 cDNA. This promoter affords inducible expression that can be modulated precisely by varying the amount of galactose in the medium. The yeast reporter strain contained the Photinus Pyralis luciferase cDNA cloned on chromosome XV at the endogenous ADE2 locus. The luciferase transcription was regulated by a minimal promoter that can be stimulated by p53 binding to upstream REs. Permutation of the p53 RE in isogenic yeast strains was made possible by an oligonucleotide targeting approach (see Section 4 for details). (B) Relative transactivation of the indicated p53 alleles expressed at moderate levels by medium containing 0.008% galactose for six hours in a yeast reporter strain containing the high-affinity p53 RE derived from the p21 promoter (p21-5′). Luminescence was normalized to the optical density of the cultures. Plots present the average normalized light units, the confidence intervals, and the individual data points after subtracting the p53-independent activity of the reporter. (C) Same as in (B), except that the experiment was performed using a reporter strain that relied on a p53-binding site derived from the p21-5′ RE but modified by the inclusion of a 2nt spacer between the two decameric half-site motifs (p21-SP2). Given the lower responsiveness of the spaced RE, a 0.032% galactose concentration was used. * p < 0.05; ** p < 0.01; *** p < 0.001; **** p < 0.0001; ns = not significant; one-way ANOVA with Dunnett’s multiple comparison test.
Figure 5. Transactivation potential of p53 TET mutations. (A). Scheme of the experimental approach. p53 expression was achieved by stable transformation of yeast reporter cells with plasmids that, by containing an origin of replication and a centromeric sequence, ensured stable low-copy transmission to daughter cells. The vector was based on the pRS314 shuttle vector and contained a selectable TRP1 marker gene complementing an auxotrophy of the yeast strain. The vector contained a GAL1,10 promoter driving the expression of the human p53 cDNA. This promoter affords inducible expression that can be modulated precisely by varying the amount of galactose in the medium. The yeast reporter strain contained the Photinus Pyralis luciferase cDNA cloned on chromosome XV at the endogenous ADE2 locus. The luciferase transcription was regulated by a minimal promoter that can be stimulated by p53 binding to upstream REs. Permutation of the p53 RE in isogenic yeast strains was made possible by an oligonucleotide targeting approach (see Section 4 for details). (B) Relative transactivation of the indicated p53 alleles expressed at moderate levels by medium containing 0.008% galactose for six hours in a yeast reporter strain containing the high-affinity p53 RE derived from the p21 promoter (p21-5′). Luminescence was normalized to the optical density of the cultures. Plots present the average normalized light units, the confidence intervals, and the individual data points after subtracting the p53-independent activity of the reporter. (C) Same as in (B), except that the experiment was performed using a reporter strain that relied on a p53-binding site derived from the p21-5′ RE but modified by the inclusion of a 2nt spacer between the two decameric half-site motifs (p21-SP2). Given the lower responsiveness of the spaced RE, a 0.032% galactose concentration was used. * p < 0.05; ** p < 0.01; *** p < 0.001; **** p < 0.0001; ns = not significant; one-way ANOVA with Dunnett’s multiple comparison test.
Ijms 23 07960 g005
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Rigoli, M.; Spagnolli, G.; Lorengo, G.; Monti, P.; Potestio, R.; Biasini, E.; Inga, A. Structural Basis of Mutation-Dependent p53 Tetramerization Deficiency. Int. J. Mol. Sci. 2022, 23, 7960. https://doi.org/10.3390/ijms23147960

AMA Style

Rigoli M, Spagnolli G, Lorengo G, Monti P, Potestio R, Biasini E, Inga A. Structural Basis of Mutation-Dependent p53 Tetramerization Deficiency. International Journal of Molecular Sciences. 2022; 23(14):7960. https://doi.org/10.3390/ijms23147960

Chicago/Turabian Style

Rigoli, Marta, Giovanni Spagnolli, Giulia Lorengo, Paola Monti, Raffaello Potestio, Emiliano Biasini, and Alberto Inga. 2022. "Structural Basis of Mutation-Dependent p53 Tetramerization Deficiency" International Journal of Molecular Sciences 23, no. 14: 7960. https://doi.org/10.3390/ijms23147960

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
