Article

Effects of Tearing Conditions on the Crack Propagation in a Monolayer Graphene Sheet

by
Jiao Shi
1,2,†,
Weihua Yu
2,†,
Chunwei Hu
2,
Haiyan Duan
3,*,
Jiaxing Ji
2,
Yuanyuan Kang
3 and
Kun Cai
4,*
1
Key Laboratory of Agricultural Soil and Water Engineering in Arid and Semiarid Areas, Ministry of Education, Northwest A&F University, Yangling 712100, China
2
College of Water Resources and Architectural Engineering, Northwest A&F University, Yangling 712100, China
3
Material Science Department, School of Forestry, Northwest A&F University, Yangling 712100, China
4
School of Science, Harbin Institute of Technology, Shenzhen 518055, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2022, 23(12), 6471; https://doi.org/10.3390/ijms23126471
Submission received: 20 April 2022 / Revised: 19 May 2022 / Accepted: 19 May 2022 / Published: 9 June 2022
(This article belongs to the Topic Molecular Topology and Computation)
Browse Figures
Versions Notes

Abstract

The path of crack propagation in a graphene sheet is significant for graphene patterning via the tearing approach. In this study, we evaluate the fracture properties of pre-cracked graphene during the tearing process, with consideration of the effects of the aspect ratio, loading speed, loading direction, and ambient temperatures on the crack propagation in the monolayer sheet. Some remarkable conclusions are drawn based on the molecular dynamic simulation results, i.e., a higher loading speed may result in a complicated path of crack propagation, and the propagation of an armchair crack may be accompanied by sp carbon links at high temperatures. The reason for this is that the stronger thermal vibration reduces the load stress difference near the crack tip and, therefore, the crack tip can pass through the sp link. A crack propagates more easily along the zigzag direction than along the armchair direction. The out-of-plane tearing is more suitable than the in-plane tearing for graphene patterning. The path of crack propagation can be adjusted by changing the loading direction, e.g., a rectangular graphene ribbon can be produced by oblique tearing. This new understanding will benefit the application of graphene patterning via the tearing approach.

1. Introduction

Graphene [1] is a type of sp2-bonded carbon material exhibiting remarkable electronic [2,3], thermal [4], and mechanical [5,6,7] properties, meaning that the innovative low-dimensional material has wide applications [8,9,10,11,12,13,14,15,16,17]. When working as a functioning component of a nanodevice, a graphene ribbon/sheet needs to be patterned with specific geometry. Meanwhile, defects in the graphene pattern should be avoided to guarantee its mechanical robustness, which determines the service life of the device. For example, Bai et al. [11] fabricated a graphene nanomesh with lithography. The nanomesh behaved as a semiconductor in a field-effect transistor. Blees et al. [12] prepared a graphene kirigami that can act as a nanobalance. Yang et al. [13,14] investigated the thermal stability of nanoweaves from graphene ribbons. Cai et al. [15,16] built nanosprings and a nanospring-based network for energy storage using partially hydrogenated graphene ribbons. Shi et al. [17] introduced a graphene nanoflake as a rotor in a rotary nanomotor. Muniz et al. [18,19] developed twisted bilayer graphene with periodic sp3 interlayer bonds, and estimated its mechanical properties via molecular dynamics (MD) simulations. Cai et al. [20] introduced a graphene ribbon in a rotor to show the centrifugal force at the nano scale [21,22]. Song et al. [23,24] modelled a rotary nanodevice for achieving the transfer of rotation–translation. Cai et al. [25,26] built a rotary nanomotor with graphene origami as actuators. They [27] also suggested a way to weld a cut graphene ribbon into a cone. Obviously, fabricating the above graphene-based nanodevices should be based on the accurate patterning of a graphene sheet.
In preparing the graphene-based components in a nanodevice or nanostructure, several types of patterning techniques have been developed, e.g., lithographic techniques [19,28,29,30], irradiation methods [31], chemical etching [32,33,34,35,36], and mechanically controllable break junctions [1,37,38,39]. The tearing approach is one of the simplest mechanical approaches. In a tearing process, an initial crack is first introduced on the graphene sheet, and then the two edges beside the crack are stretched in opposite directions. In tearing, the fracture toughness of the graphene sheet describes the ability of the material containing a crack to resist fracture. Thus, the fracture behavior of graphene has attracted much attention in the last decade. For example, Huang et al. [40] discussed ways to control the tearing paths in graphene through chemical functionalization, using MD simulations. Kim et al. [41] investigated the crack formation and propagation mechanisms in suspended graphene sheets using transmission electron microscopy. They found that the edges from ripping exhibit straight lines, and are predominantly aligned in the armchair or zigzag directions. Omeltchenko et al. [42] performed MD simulations to investigate crack propagation in a monolayer graphene sheet, and observed that in the perpendicular orientation, multiple crack branches sprouted off the primary crack front at regular intervals. They also calculated fracture toughness in terms of the stress intensity factor of the graphene sheet to be 4.7 MPa·m1/2. Xu et al. [43] reported similar values, i.e., 4.21 MPa·m1/2 for zigzag and 3.71 MPa·m1/2 for armchair cracks. Moura and Marder [44] studied the propagation of cracks in graphene, and found that the path of crack propagation and the newly generated edge structure depend on the initial length of the crack. Khare et al. [45] estimated the energy-release rate at the point of crack extension in graphene by using coupled quantum mechanical/molecular mechanical modeling. Zhang et al. [46] designed a 3D graphene structure with controlled distributions of topological defects. The constructed graphene structure had a fracture toughness of around 25 J/m2, which is about twice that of pristine graphene. Budarapu et al. [47] studied the crack growth mechanisms and the variation in temperature during crack growth in a graphene sheet with an initial crack under uniaxial tension. Wang and Liu [48] investigated the fracture toughness of graphene with grain boundaries, and showed that these defects can block crack propagation and affect fracture toughness significantly in bi-crystal graphene under tensile force. The experimental results of Lopez-Polín et al. [49] also showed that while tears in pristine graphene span microns in length, crack propagation is strongly reduced in the presence of defects, suggesting controlled defect creation as an approach to avoid catastrophic failure in graphene.
In the above studies, which have provided a deep understanding of graphene fractures, much attention has been paid to functionalization [40], types of defects [49,50,51], and the effects of the process of out-of-plane tearing. In an experiment, the essential factors—such as loading speed, ambient temperature, tearing direction, and the lengths of the confined areas on the target graphene for loading—also influence the tearing results, which have received less attention in previous studies. To enrich the understanding of fractures in graphene, in the present study, we focus on the influence of these factors on the tearing results using the MD simulation approach, with the tearing modes given in Figure 1.
In Figure 1, the length of the fixed area, i.e., L1, has three options. The length of the moving area, i.e., L2, has four options, and determines the value of the aspect ratio (AR = L1/L2). Correspondingly, the three pairs of models are referred to as AC1, ZZ1; AC2, ZZ2; and AC3, ZZ3, with the values of AR listed in Table 1. For visualization, the atoms in the central part of the graphene sheet are highlighted in blue. The speed of the moving area, i.e., v, is constant in the tearing process. The moving direction of the moving area determines the tearing mode, e.g., in-plane (Figure 1a,b), out-of-plane (Figure 1c,d), or oblique tearing (Figure 1e).
The tearing displacement is defined as the product of v and t, i.e., d = v·t. The path of crack propagation is formed when the C-C bonds at the crack tip break one by one. There are many possible paths, including the three paths—referred to as, P(0°), P(−30°), and P(30°)—marked in Figure 1a. For simplicity, a path can be defined by labeling the angle (rotating from 0° or the direction of the initial crack) in the bracket. For example, P(90°) means that the crack propagates on the left-hand side of the graphene sheet along the direction perpendicular to the direction of the initial crack.

2. Results and Discussion

2.1. In-Plane Tearing of a Graphene Ribbon

2.1.1. Effect of Loading Speed at 1 K

First, we studied the effect of loading speed (v) on the crack propagation in the graphene sheets with initial cracks as shown in Figure 1a,b. During in-plane tearing of the graphene sheet at 1 K, bond breakage takes place, and leads an increase in the potential energy of the system, which can be verified by the jagged curves shown in Figure 2. We also found that the sheet had a large deformation at both sides of the crack (Figure 3). For the sp2 carbon sheet, its bending deformation also leads to increasing potential energy, while an overlap of two parts of the sheet via van der Waals interaction reduces the potential energy of the system. For monitoring the state of the sheet during a tearing process, here we adopted a concept named variation of potential energy (VPE), which can be calculated by subtracting the initial potential energy (PE(0)) of the system from the current potential energy (PE(t)), i.e.,
VPE(t) = PE(t) − PE(0)
Briefly, in a tearing process, VPE is determined by three factors, i.e., the number of broken C-C bonds (5~6 eV per atom [31]), the curvature of the deformed parts (with the bending stiffness of 0.1~0.4 eV/(nN·nm) [52]), and the overlap area of the deformed parts of the sheet (−0.04 eV per atom [53]).
When the graphene sheet completely breaks, VPE shows a sharp decrease, and then tends to remain constant due to the relaxation of the two pieces after they disconnect. The peak values of VPE may also be different at different loading speeds (Figure 2). For the same graphene with the same values of L1 and L2 (i.e., the lengths of the edges with confined atoms for tearing), e.g., In-AC1 (Figure 2a1), VPE increases much faster at v >0.4 Å/ps than those at the lower loading cases. When v = 0.2 and 0.4 Å/ps, VPE continues increasing monotonously. Since they have the same loading duration, i.e., 200 ps, the sheet does not break after 200 ps of tearing. However, as v ≥ 0.6 Å/ps, VPE shows a sharp decrease, indicating that the sheet breaks. Moreover, the peak value of VPE is higher at a greater loading speed.
Before breakage of the graphene sheet, the VPE curves are not well aligned at different loading speeds (see the gap marked in Figure 2a1). For example, the VPE curves with respect to v = 0.4 and 0.8 Å/ps have a large gap. By comparing the snapshots in Figure 3a,b, the path of crack propagation is along P(30°) at v = 0.4 Å/ps, while the path at v = 0.8 Å/ps is along P(30°) at first, and then changes to P(−30°) (Supplementary Video S1). Hence, the gap between the two corresponding VPE curves is mainly caused by the different paths of crack propagation at different loading speeds.
When more atoms are confined in tearing, e.g., L1 = 30.8 Å (In-AC2 in Figure 2a2) or L1 = 49.2 Å (In-AC3 in Figure 2a3), the gaps between the VPE curves are much smaller than those in In-AC1 (Figure 2a1). This implies that the loading speed has a slight influence on the path of crack propagation when more atoms at the edge are confined in tearing. However, the peak value of VPE is generally higher at faster loading speeds.
We also evaluated the cracking propagation on the sheet with the initial zigzag crack; Figure 2b1 indicates that, when fewer atoms are confined, the VPE curves have obvious gaps during loading at different speeds. Meanwhile, the peak values of VPE have slight differences. Similar characteristics can be found in the curves in Figure 2b2. The reason for this is that the sheet has greater deformation when torn at a higher speed. However, in Figure 2b3, the gaps between the VPE curves are small, which indicates that the sheet has the same path of crack propagation (P(0°)) before the crack tip approaches the lower edge of the sheet. However, the VPE curve of the sheet at v = 1.0 Å/ps has a peak value much higher than those at lower loading speeds, because the sheet has extra broken bonds that occur after the crack tip approaches the lower edge of the sheet.
We also found that the peak values of VPE in Figure 2b were close to 150 eV, which is about 40 eV less than those in Figure 2a. This is because the sheets have different numbers of broken bonds occurring on different paths of the crack propagation, e.g., the armchair crack extends along with P(30°) or P(−30°), while the zigzag crack extends forward (P(0°)).

2.1.2. Effect of Aspect Ratio at 1 K

From Figure 4, it can be seen that each VPE curve has a sharp increase at the initial stage. Its slope decreases gradually and tends to be constant (Figure 4a). When the moving area contains more atoms, a longer displacement of the moving area is required for a VPE curve to reach the constant slope. This is due to two reasons: One is that the bond breakage starting from the crack tip leads to a sharp increase in VPE, while the bending deformation of the sheet causes a slower increase in potential energy (Figure 5). Due to different numbers of confined atoms in the moving area, the other reason is that the sheet has different deformation due to the local displacement constraint on the atoms near the two confined areas. Hence, the slope tends to be constant when the crack expands deeply, which requires a longer tearing displacement of the moving area. We also estimated the slopes of the curves in different cases. According to the data shown in Figure 4a, the slope was around 1.3 eV/Å for the three In-AC cases.
When tearing a sheet along the zigzag crack (Figure 4b), the VPE curves have different slopes when the same sheet has different lengths of the moving area (L2 or AR) before the sheet breaks in half. When observing the cracking processes, we found that the crack always propagated along with the path P(0°) perpendicular to the loading direction (Figure 5c,d). Hence, the gaps between the VPE curves must be caused by the different deformation of the sheets with different values of AR at the same tearing speed.
To show the influence of AR on the path of crack propagation, the paths are listed in Table 2. One can see that when the sheet has an armchair crack, the crack propagates along with the path P(30°) or P(−30°), depending on the value of AR. Note that the two paths produce a smooth edge in a zigzag direction. However, when tearing the sheet with a zigzag crack, the propagation path is mainly along P(0°). This implies that the crack is liable to propagate along a zigzag direction.
To show the propagation of the crack in a sheet, herein, the three typical styles of propagation are demonstrated. As shown in Figure 6a, the graphene sheet splits off with new smooth edges. In this case, the crack propagation style is marked as “SS”, i.e., smoothly split. In Figure 6b, the sheet does not split off, and is marked “NS” as the propagation style. Sometimes, the path of crack propagation may vary during tearing. For example, in Figure 6c, the path first propagates along P(−30°), and then along P(0°). Meanwhile, the two parts of the sheet are connected via an sp carbon link. In this case, the style is marked as “SC”. Sometimes, the moving area on the sheet may depart when the crack propagates in the “SC” style. A similar phenomenon has been mentioned in the work by Omeltchenko et al. [42], i.e., the second branches and the overhangs appear in the process of crack propagation.
Table 3 lists the propagation styles of the sheets with an initial armchair or zigzag crack. It illustrates that the sheet does not split off (“NS” in Table 3) when the tearing speed is low, e.g., 0.2 Å/ps with 200 ps. When a higher speed is applied to the atoms in a small moving area (e.g., AR1), the sheet still does not split off. For the sheet with an armchair crack, its path of crack propagation is mainly in the “SC” style. Conversely, the propagation path of a zigzag crack is mainly split off, with smooth edges along the initial direction of the crack, which benefits the graphene patterning by tearing.

2.1.3. Effects of Temperature on In-Plane Tearing

In the above discussion, the dynamic response of the crack in torn graphene is collected at an extremely low temperature, i.e., 1 K, which is difficult, but can be achieved in an experiment. It is known that the ambient temperature of the graphene sheet indicates the intensity of the thermal vibration of atoms. In general, a stronger thermal vibration of atoms leads to a lower strength of the sheet (Figure 7). At 1 K, the thermal vibration has slight influence on the bond length and bond angles in tearing. In other words, the crack propagation simply depends on the essential loading factors, e.g., the loading speed and the value of AR. One fact that we have to face is that graphene tearing could happen at higher temperatures. Consequently, the sheet may behave differently when being torn at different temperatures. Hence, the VPE curve at a higher temperature (Figure 8) is thicker due to stronger thermal vibration that induces a larger fluctuation of the potential energy of the system; Figure 8 indicates that the VPE curves at higher temperatures are not always aligned with that at 1 K. For instance, the VPE curves at higher temperatures are not as smooth as that at 1 K; meanwhile, they may have obvious gaps.
When tearing along the armchair crack (Figure 8a), some of the curves are aligned very well before the graphene sheet breaks. For example, the curves in In-AC1 have a small gap when the temperature is between 100 K and 300 K. In the In-AC2 case, the curves (except that at 200 K) have small gaps. In the In-AC3 case, only the curve at 300 K has an obvious gap with the remaining curves. By observing the snapshots of the sheet in the three cases (Figure 9), we found that the crack mainly propagated along with P(30°) or P(−30°), which was the same as happened at 1 K. Moreover, the sheet had a large deformation in tearing. However, there an sp carbon link appeared at the crack edge (i.e., propagating in an “SC” style), which was obviously different from that at 1 K. The reason for this is that the stress distributes randomly in the sheet at higher temperatures (Figure 7). This kind of deficient propagation should be avoided in graphene patterning.
When tearing the sheet with a zigzag crack, the crack propagates in the “SS” style. Each of the VPE curves in Figure 8b has at least a sharp decrease. The peak values have slight differences, indicating that the breakage of the sheet slightly depends on the ambient temperature. After the sharp decrease, the curves still have large fluctuation due to the large continuous deformation of the sheet.
In Figure 9, the origin of an sp link should be explained; Figure 7 indicates that the atoms near the crack tip have higher stresses. In the area in front of the crack tip, new bond breakage may happen randomly due to the thermal vibration of the atoms in the area. When the broken bond is not right at the crack tip, a nanopore is produced, and the crack tip jumps into the pore and begins further propagation. This phenomenon is extremely remarkable when discovered in an MD simulation. When the crack tip moves forward, the atoms between the two crack edges will be under tension at a high stress level. Hence, bonds break until forming an sp link, which has a higher tensile strength than an sp2 C-C bond.

2.2. Out-of-Plane Tearing of Graphene Ribbons

In an out-of-plane tearing process, the moving area has a velocity perpendicular to the sheet, i.e., v = vz. First, the effect of the tearing speed on the crack propagation is evaluated. According to the molecular dynamics simulation results, e.g., as shown in Figure 10, the loading speed has a slight influence on the crack propagation. For example, the armchair crack on the Out-AC2 expands along with P(30°) when AR = 1.25 (Figure 10a). The zigzag crack propagates along with P(0°) when AR = 1.26 (Figure 10b). If the tearing speed is too high, e.g., v = 1.0 Å/ps, the moving area may escape from the sheet, which leads to an increase in VPE, since more broken bonds occur at the edges of the moving area.
Second, the value of AR also has a slight influence on the path of crack propagation; Figure 11a indicates that the VPE curves have a slight gap and the slopes are about 1.68 eV/Å when tearing the sheet along the armchair crack, which expands along with the path of P(30°). When tearing the zigzag crack, the path of crack propagation is along P(0°). The inserted snapshots in Figure 11 demonstrate that the deformation of the sheet is very low in the out-of-plane tearing. Hence, stress concentration at the crack tip can be avoided. This is the reason why the curves in Figure 11 have slight gaps while the corresponding VPE curves in Figure 4 have obvious gaps, meaning that the lengths of the two confined areas in the graphene sheet can be set randomly in an out-of-plane tearing.
Finally, we investigated the effects of temperature on the crack propagation of the crack in the graphene sheet torn out-of-plane. The results in Figure 12 illustrate that the thermal vibration of atoms has no influence on the path of crack propagation when the graphene sheet is torn in a thermostat with a temperature no higher than 500K. It can be concluded that the out-of-plane tearing will benefit the patterning of graphene sheets, because the effect of temperature is negligible.

2.3. Oblique Tearing

According to the tearing direction shown in Figure 1e, oblique tearing happens when θ is between 0° and 90°. Herein, a sheet with a size of ~58 Å × 301 Å was selected, with an armchair crack at the center of the zigzag edge (~58 Å). The top five rows of atoms at the zigzag edge were confined as the fixed area or the moving area for applying the tearing load. Five cases of oblique tearing together with the in-plane and out-of-plane tearing results were collected for comparison. For example, in Figure 13a, the VPE curves have different slopes at the initial stage, and then tend to be constant after about 50 ps. Their constant slopes are slightly different.
There are three types of tearing results. For example, when θ =75° or 90°, the crack always propagates along with the path P(0°) (Figure 13b). When θ < 75°, the path is first aligned with P(0°) for about 300 ps, and then changes to be aligned with P(−90°) (see the snapshots with θ = 0°, 45°, or 60° in Figure 13b), or a new crack appears at the end of the moving area (see the snapshots with θ = 15°, or 30° in Figure 13b). The sheet splits off by generating different numbers of broken bonds (Figure 13a). Hence, even when the sheet has a zigzag crack, the path of crack propagation predominantly depends on the loading direction. Note that a rectangular ribbon can be produced from a wider graphene sheet by the oblique tearing processes, where the crack path is along P(0°) at first, and then turns along P(−90°).

3. Methodology

In this study, the tearing process of graphene sheets is simulated using the molecular dynamics approach, and conducted on the open-source code LAMMPS [54]. Each simulation contains the following main steps:
Step 1: Build the graphene sheet with an initial crack;
Step 2: Reshape the sheet by minimizing its potential energy;
Step 3: Before tearing, relax the system in an NVT ensemble for 100 ps, using the Nose–Hoover thermostat [55,56] to control temperature;
Step 4: Fix the atoms in the fixed area, and apply a constant speed on the atoms in the moving area along a direction for 200 ps;
Step 5: Collect the essential data for post-processing.
In a simulation, the interactions between the carbon atoms in the graphene sheet are determined by the adaptive intermolecular reactive bond-order (AIREBO) potential [57], with a cutoff distance of 2 Å for the bonding interaction and 10 Å for the non-bonding interaction. The time step is set to be 0.001 ps throughout the entire process. The virial stresses [58] of atoms in the simulations are predicted with 3.4 Å as the thickness of the sheet.

4. Conclusions

In this study, we estimated the fracture properties of pre-cracked graphene during the tearing process with constant velocity. The effects of the aspect ratio, loading speed, loading direction, and ambient temperatures on the crack propagation in the monolayer graphene sheet were investigated using the molecular dynamics simulation approach. Some remarkable conclusions can be drawn based on the numerical results for preparing a graphene ribbon by tearing; for example:
Firstly, in an in-plane tearing process at an extremely low temperature, a high loading speed on the graphene sheet with an initial armchair crack may produce a complicated path of crack propagation. The influence can be reduced when the two loading areas (i.e., the fixed area and the moving area) in the sheet contain more atoms. If the sheet has an initial zigzag crack, the crack propagates straight forward, i.e., along P(0°).
Secondly, when the two loading areas contain fewer atoms, a new crack may occur at the edge of the shorter area—especially at a higher loading speed, e.g., >0.4 Å/ps. An sp carbon link may appear soon after the initial crack propagates through the whole graphene sheet. These appear more frequently in the graphene sheets with armchair cracks than in the sheets with zigzag cracks.
Thirdly, in an in-plane tearing of a graphene sheet with an initial armchair crack, temperature influences the crack propagation. For example, at a temperature higher than 200 K, an sp carbon link may appear on the path of crack propagation, i.e., the crack tip passes through the carbon link due to a slight stress difference near the crack tip when the atoms have strong thermal vibration. Fortunately, the sp carbon link seldom appears in the graphenes sheet with initial zigzag cracks.
Fourthly, in an out-of-plane tearing process, if the loading speed is less than 1 Å/ps, the armchair crack propagates along P(30°), while the zigzag crack propagates along P(0°), despite the length difference between the two loading areas and the difference in ambient temperature. Hence, out-of-plane tearing is more suitable for graphene patterning than in-plane tearing.
Finally, when an oblique tearing process is applied to a larger sheet with an initial zigzag crack, the path of propagation depends on the loading direction.
From above, for preparing a graphene ribbon from a sheet by tearing, the sp carbon links on the path of the armchair crack propagation should be avoided, and the two loading areas should have sufficient length to counteract the local stress concentration.

Supplementary Materials

The supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms23126471/s1.

Author Contributions

J.S. and W.Y. prepared the manuscript and some images; C.H., J.J., and Y.K. built the models, collected data, and prepared some images; H.D. and K.C. managed the project and reviewed the manuscript; K.C. proposed the project. All authors attended the discussion of the work. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Start-Up Research Fund of Harbin Institute of Technology, Shenzhen (Grant No.: 20218330), and the “Pengcheng Phenix Project” (2021).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

This paper does not report any data.

Conflicts of Interest

The authors declare that there are no conflict of interest.

References

  1. Novoselov, K.S.; Geim, A.K.; Morozov, S.V. Electric field effect in atomically thin carbon films. Science 2004, 306, 666–669. [Google Scholar] [CrossRef] [PubMed]
  2. Peres, N.M.R. The electronic properties of graphene and its bilayer. Vacuum 2009, 83, 1248–1252. [Google Scholar] [CrossRef]
  3. Geim, A.K.; Novoselov, K.S. The rise of graphene. Nat. Mater. 2007, 6, 183–191. [Google Scholar] [CrossRef] [PubMed]
  4. Balandin, A.A.; Ghosh, S.; Bao, W.; Calizo, I.; Teweldebrhan, A. Superior thermal conductivity of single-layer graphene. Nano Lett. 2008, 8, 902–907. [Google Scholar] [CrossRef]
  5. Galiotis, C.; Frank, O.; Koukaras, E.N.; Sfyris, D. Graphene mechanics: Current status and perspectives. Ann. Rev. Chem. Biomol. Eng. 2015, 6, 121–140. [Google Scholar] [CrossRef]
  6. Akinwande, D.; Brennan, C.J.; Bunch, J.S.; Egberts, P.; Felts, J.R.; Gao, H.; Huang, R.; Kim, J.; Li, T.; Li, Y.; et al. A review on mechanics and mechanical properties of 2D materials—Graphene and beyond. Extr. Mech. Lett. 2017, 13, 42–77. [Google Scholar] [CrossRef]
  7. Lee, C.; Wei, X.; Kysar, J.W.; Hone, J. Measurement of the elastic properties and intrinsic strength of monolayer graphene. Science 2008, 321, 385–387. [Google Scholar] [CrossRef]
  8. Bunch, J.S.; van der Zande, A.M.; Verbridge, S.S.; Frank, I.W.; Tanenbaum, D.M.; Parpia, J.M.; Craighead, H.G.; McEuen, P.L. Electromechanical resonators from graphene sheets. Science 2007, 315, 490–492. [Google Scholar] [CrossRef]
  9. Benameur, M.M.; Gargiulo, F.; Manzeli, S.; Autès, G.; Tosun, M.; Yazyev, O.V.; Kis, A. Electromechanical oscillations in bilayer graphene. Nat. Commun. 2015, 6, 8582. [Google Scholar] [CrossRef][Green Version]
  10. Kinloch, I.A.; Suhr, J.; Lou, J.; Young, R.J.; Ajayan, P.M. Composites with carbon nanotubes and graphene: An outlook. Science 2018, 362, 547–553. [Google Scholar] [CrossRef]
  11. Bai, J.; Zhong, X.; Jiang, S.; Huang, Y.; Duan, X. Graphene nanomesh. Nat. Nanotech. 2010, 5, 190–194. [Google Scholar] [CrossRef] [PubMed]
  12. Blees, M.K.; Barnard, A.W.; Rose, P.A.; Roberts, S.P.; McGill, K.L.; Huang, P.Y.; Ruyack, A.R.; Kevek, J.W.; Kobrin, B.; Muller, D.A.; et al. Graphene kirigami. Nature 2015, 524, 204–207. [Google Scholar] [CrossRef] [PubMed]
  13. Yang, Y.; Cai, K.; Shi, J.; Xie, Y.M. Nanotextures from orthogonal graphene ribbons: Thermal stability evaluation. Carbon 2019, 144, 81–90. [Google Scholar] [CrossRef]
  14. Yang, Y.; Cai, K.; Shi, J.; Qin, Q.H. Shrinkage-expansion of a tri-isometric knitting from graphene ribbons at finite temperature. Mater. Design 2020, 185, 108269. [Google Scholar]
  15. Cai, K.; Li, X.; Shi, J.; Qin, Q.H. Nanospring from partly hydrogenated graphene ribbon: A molecular dynamics study. Appl. Surfac. Sci. 2021, 541, 148507. [Google Scholar]
  16. Cai, K.; Lin, X.; Zhong, Z.; Shi, J.; Qin, Q. A method for designing tunable chiral mechanical carbon networks for energy storage. Phys. Chem. Chem. Phys. 2021, 23, 26209. [Google Scholar]
  17. Shi, J.; Wang, A.Q.; Song, B.; Cai, K. A GHz rotary nanoflake driven by diamond needles: A molecular dynamics study. Mater. Design 2020, 191, 108593. [Google Scholar]
  18. Muniz, A.R.; Machado, A.S.; Maroudas, D. Mechanical behavior of interlayer-bonded nanostructures obtained from bilayer graphene. Carbon 2015, 81, 663–677. [Google Scholar]
  19. Chen, M.; Muniz, A.R.; Maroudas, D. Formation and mechanical behavior of nanocomposite superstructures from interlayer bonding in twisted bilayer graphene. ACS Appl. Mater. Interfaces 2018, 10, 28898–28908. [Google Scholar] [CrossRef]
  20. Cai, K.; Yu, J.Z.; Shi, J.; Qin, Q.H. A method for measuring rotation of a thermal carbon nanomotor using centrifugal effect. Sci. Rep. 2016, 6, 27338. [Google Scholar]
  21. Zhu, C.; Guo, W.L.; Yu, T.X. Energy dissipation of high-speed nanobearings from double-walled carbon nanotubes. Nanotechnology 2008, 19, 465703. [Google Scholar] [CrossRef]
  22. Shi, J.; Yin, H.; Yu, J.Z.; Liu, L.; Cai, K. Configuration transition between graphene and nanoscroll using kinetic energy injecting method. Comput. Mater. Sci. 2016, 125, 146–153. [Google Scholar] [CrossRef]
  23. Song, B.; Shi, J.; Hu, C.W.; Wang, J.; Cai, K.; Zhang, C. Recoverability of a gigahertz rotation–translation nanoconvertor with hydrogenated deformable rotor at room temperature. Nanotechnology 2019, 30, 465301. [Google Scholar] [CrossRef] [PubMed]
  24. Song, B.; Shi, J.; Wang, J.B.; Shen, J.; Cai, K. Ideal oscillation of a hydrogenated deformable rotor in a gigahertz rotation–translation nanoconvertor at low temperature. Sensors 2020, 20, 1969. [Google Scholar] [CrossRef] [PubMed]
  25. Cai, K.; Sun, S.; Shi, J.; Qin, Q.H. A CNT nanomotor driven by graphene origami. Phys. Rev. Appl. 2021, 15, 054017. [Google Scholar] [CrossRef]
  26. Cai, K.; Sun, S.; Shi, J.; Zhang, C.; Zhang, Y. Position effects of the graphene–origami actuators on the rotation of a CNT nanomotor. Phys. Chem. Chem. Phys. 2021, 23, 18893–18898. [Google Scholar] [CrossRef]
  27. Cai, K.; Wan, J.; Yu, J.Z.; Cai, H.; Qin, Q. Molecular dynamics study on welding a defected graphene by a moving fullerene. Appl. Surf. Sci. 2016, 377, 213–220. [Google Scholar] [CrossRef]
  28. Duan, H.; Hu, H.; Kumar, K.; Shen, Z.; Yang, J.K.W. Direct and reliable patterning of plasmonic nanostructures with sub-10-nm Gaps. ACS Nano 2011, 5, 7593–7600. [Google Scholar] [CrossRef]
  29. Cui, A.; Liu, Z.; Dong, H.; Wang, Y.; Zhen, Y.; Li, W.; Li, J.; Gu, C.; Hu, W. Single Grain boundary break junction for suspended nanogap electrodes with gap width down to 1-2 nm by focused ion beam milling. Adv. Mater. 2015, 27, 3002–3006. [Google Scholar] [CrossRef]
  30. Ji, D.; Li, T.; Fuchs, H. Nanosphere lithography for sub-10-nm nanogap electrodes. Adv. Electr. Mater. 2017, 3, 1600348. [Google Scholar] [CrossRef]
  31. Girit, C.O.; Meyer, J.C.; Erni, R.; Rossell, M.D.; Kisielowski, C.; Yang, L.; Park, C.-H.; Crommie, M.F.; Cohen, M.L.; Louie, S.G.; et al. Graphene at the edge: Stability and dynamics. Science 2009, 323, 1705–1708. [Google Scholar] [CrossRef] [PubMed]
  32. Li, X.; Wang, X.; Zhang, L.; Lee, S.; Dai, H. Chemically derived, UI-trasmooth graphene nanoribbon semiconductors. Science 2008, 319, 1229–1232. [Google Scholar] [CrossRef] [PubMed]
  33. Dimiev, A.; Kosynkin, D.V.; Sinitskii, A.; Slesarev, A.; Sun, Z.; Tour, J.M. Layer-by-layer removal of graphene for device patterning. Science 2011, 331, 1168–1172. [Google Scholar] [CrossRef]
  34. Kosynkin, D.V.; Higginbotham, A.L.; Sinitskii, A.; Lomeda, J.R.; Dimiev, A.; Price, B.K.; Tour, J.M. Longitudinal unzipping of carbon nanotubes to form graphene nanoribbons. Nature 2009, 458, 872–876. [Google Scholar] [CrossRef] [PubMed]
  35. Jiao, L.; Zhang, L.; Wang, X.; Diankov, G.; Dai, H. Narrow graphene nanoribbons from carbon nanotubes. Nature 2009, 458, 877–880. [Google Scholar] [CrossRef]
  36. Zhang, H.; Liu, W.; Zhang, Z.; Li, M.; Xua, B.; Guo, J. Direct imaging of a single Ni atom cut graphene to form a graphene nanomesh. Phys. Chem. Chem. Phys. 2018, 2018, 26814. [Google Scholar] [CrossRef]
  37. Reed, M.A.; Zhou, C.; Muller, C.J.; Burgin, T.P.; Tour, J.M. Conductance of a molecular junction. Science 1997, 278, 252–254. [Google Scholar] [CrossRef]
  38. Loertscher, E.; Gotsmann, B.; Lee, Y.; Yu, L.; Rettner, C.; Riel, H. Transport properties of a single-molecule diode. ACS Nano 2012, 6, 4931–4939. [Google Scholar] [CrossRef]
  39. Xiang, D.; Jeong, H.; Lee, T.; Mayer, D. Mechanically controllable break junctions for molecular electronics. Adv. Mater. 2013, 25, 4845–4867. [Google Scholar] [CrossRef]
  40. Huang, X.; Yang, H.; van Duin, A.C.T.; Hsia, J.; Zhang, S. Chemomechanics control of tearing paths in graphene. Phys. Rev. B 2012, 85, 195453. [Google Scholar] [CrossRef]
  41. Kim, K.; Artyukhov, V.I.; Regan, W.; Liu, Y.; Crommie, M.F.; Yakobson, B.I.; Zettl, A. Ripping graphene: Preferred directions. Nano Lett. 2012, 12, 293–297. [Google Scholar] [CrossRef] [PubMed]
  42. Omeltchenko, A.; Yu, J.; Kalia, R.K.; Vashishta, P. Crack front propagation and fracture in a graphite sheet: A molecular-dynamics study on parallel computers. Phys. Rev. Lett. 1997, 78, 2148–2151. [Google Scholar] [CrossRef]
  43. Xu, M.; Tabarraei, A.; Paci, J.T.; Oswald, J.; Belytschko, T. A coupled quantum/continuum mechanics study of graphene fracture. Int. J. Fract. 2012, 173, 163–173. [Google Scholar] [CrossRef]
  44. Moura, M.J.B.; Marder, M. Tearing of free-standing graphene. Phys. Rev. E 2013, 88, 032405. [Google Scholar] [CrossRef]
  45. Khare, R.; Mielke, S.L.; Paci, J.T.; Zhang, S. Coupled quantum mechanical/molecular mechanical modeling of the fracture of defective carbon nanotubes and graphene sheets. Phys. Rev. B 2007, 75, 075412. [Google Scholar] [CrossRef]
  46. Zhang, T.; Li, X.; Gao, H. Designing graphene structures with controlled distributions of topological defects: A case study of toughness enhancement in graphene ruga. Extr. Mech. Lett. 2014, 1, 3–8. [Google Scholar] [CrossRef]
  47. Budarapu, P.R.; Javvaji, B.; Sutrakar, V.K.; Mahapatra, D.R.; Zi, G.; Rabczuk, T. Crack propagation in graphene. J. Appl. Phys. 2015, 118, 064307. [Google Scholar] [CrossRef]
  48. Wang, Y.; Liu, Z. The fracture toughness of graphene during the tearing process. Model. Simul. Mater. Sci. Eng. 2016, 24, 085002. [Google Scholar] [CrossRef]
  49. Lopez-Polín, G.; Gomez-Herrero, J.; Gomez-Navarro, C. Confining crack propagation in defective graphene. Nano Lett. 2015, 15, 2050–2054. [Google Scholar] [CrossRef]
  50. Shekhawat, A.; Ritchie, R.O. Toughness and strength of nanocrystalline graphene. Nature Commun. 2016, 7, 10546. [Google Scholar] [CrossRef]
  51. Dewapriya, M.A.N.; Meguid, S.A. Atomistic simulations of nanoscale crack-vacancy interaction in graphene. Carbon 2017, 125, 113–131. [Google Scholar] [CrossRef]
  52. Qiang, L.; Arroyo, M.; Huang, R. Elastic bending modulus of monolayer graphene. J. Phys. D Appl. Phys. 2009, 42, 102002. [Google Scholar]
  53. Charlier, J.C.; Gonze, X.; Michenaud, J.P. Graphite interplanar bonding: Electronic delocalization and van der Waals interaction. Europhys. Lett. 1994, 28, 403. [Google Scholar] [CrossRef]
  54. Plimpton, S. Fast parallel algorithms for short-range molecular dynamics. J. Computat. Phys. 1995, 117, 1–19. [Google Scholar] [CrossRef]
  55. Nosé, S. A unified formulation of the constant temperature molecular dynamics methods. J. Chem. Phys. 1984, 81, 511–519. [Google Scholar] [CrossRef]
  56. Hoover, W.G. Canonical dynamics: Equilibrium phase-space distributions. Phys. Rev. A 1985, 31, 1695–1697. [Google Scholar] [CrossRef]
  57. Stuart, S.J.; Tutein, A.B.; Harrison, J.A. A reactive potential for hydrocarbons with intermolecular interactions. J. Chem. Phys. 2000, 112, 6472–6486. [Google Scholar] [CrossRef]
  58. Thompson, A.P.; Plimpton, S.; Mattson, W. General formulation of pressure and stress tensor for arbitrary many-body interaction potentials under periodic boundary conditions. J. Chem. Phys. 2009, 131, 154107. [Google Scholar] [CrossRef]
Ijms 23 06471 g001
Figure 1. Geometry of monolayer graphene sheets with armchair (AC) crack or zigzag (ZZ) crack. The atoms in the fixed area with a length of L1 are fixed in tearing. Meanwhile, the atoms in the moving area with a length of L2 move synchronously along a direction with the speed of v. The ribbons have similar sizes of ~100.8 Å × ~60.3 Å. The depth of the initial crack is ~5 Å. (a) In-plane tearing along the armchair crack (In-AC), and (b) along the zigzag crack (In-ZZ); (c) out-of-plane tearing along the armchair crack (Out-AC), and (d) along the zigzag crack (Out-ZZ). (e) Oblique tearing. The vector v is in the xz-plane. “θ = 0°” means an in-plane tearing, while “θ = 90°” means an out-of-plane tearing. “0° < θ < 90°” illustrates an oblique tearing.
Figure 1. Geometry of monolayer graphene sheets with armchair (AC) crack or zigzag (ZZ) crack. The atoms in the fixed area with a length of L1 are fixed in tearing. Meanwhile, the atoms in the moving area with a length of L2 move synchronously along a direction with the speed of v. The ribbons have similar sizes of ~100.8 Å × ~60.3 Å. The depth of the initial crack is ~5 Å. (a) In-plane tearing along the armchair crack (In-AC), and (b) along the zigzag crack (In-ZZ); (c) out-of-plane tearing along the armchair crack (Out-AC), and (d) along the zigzag crack (Out-ZZ). (e) Oblique tearing. The vector v is in the xz-plane. “θ = 0°” means an in-plane tearing, while “θ = 90°” means an out-of-plane tearing. “0° < θ < 90°” illustrates an oblique tearing.
Ijms 23 06471 g001
Ijms 23 06471 g002

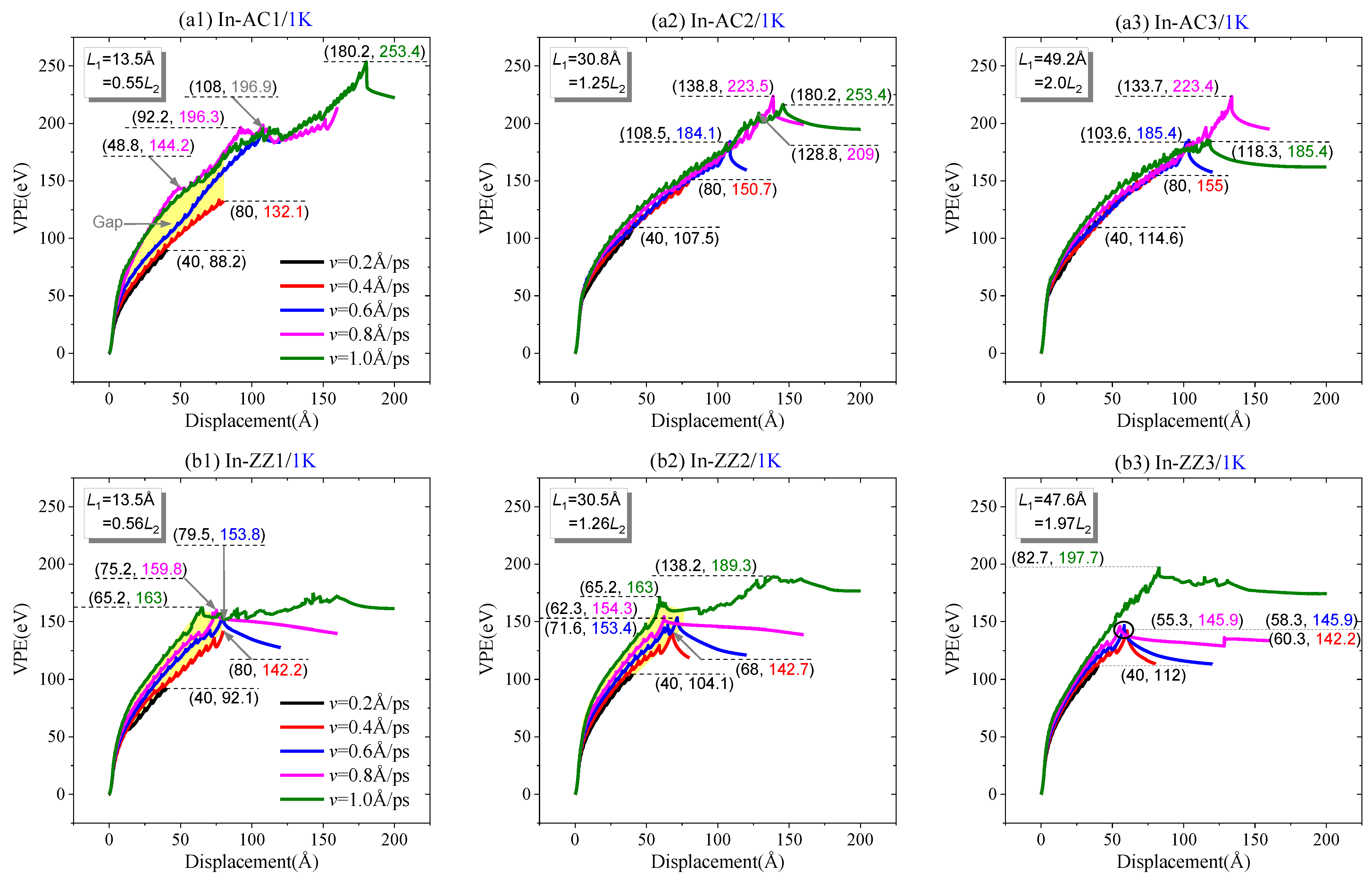

Figure 2. Curves of VPE vs. the tearing displacement, i.e., d, of a graphene sheet with three different aspect ratios at different tearing speeds within 200 ps at 1 K: (a1–a3) along the armchair crack, or (b1–b3) along the zigzag crack.
Figure 2. Curves of VPE vs. the tearing displacement, i.e., d, of a graphene sheet with three different aspect ratios at different tearing speeds within 200 ps at 1 K: (a1–a3) along the armchair crack, or (b1–b3) along the zigzag crack.
Ijms 23 06471 g002
Ijms 23 06471 g003

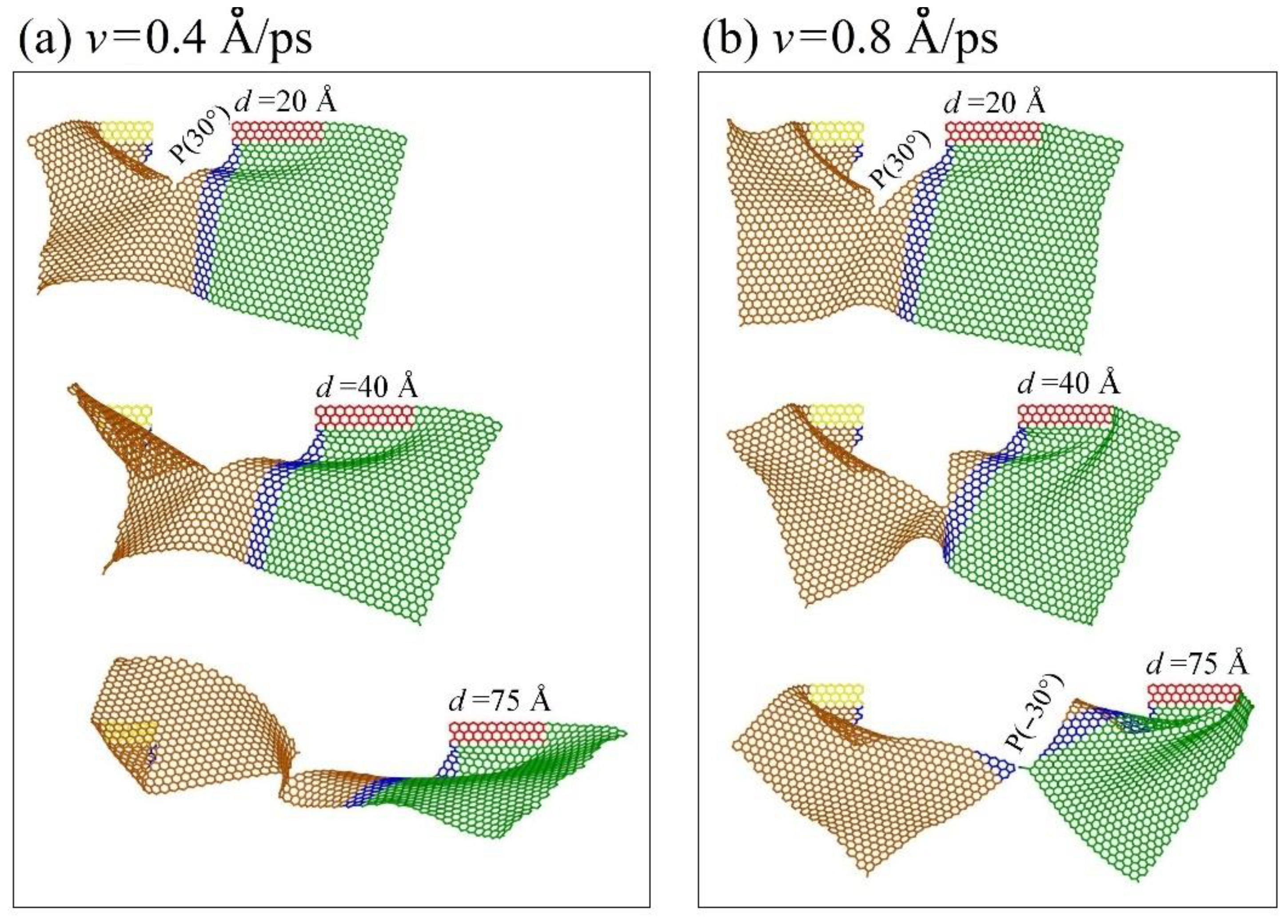

Figure 3. Snapshots of the graphene sheet (In-AC1 with AR = 0.55) in an in-plane tearing under different loading speeds at 1 K, e.g., (a) at v =0.4 Å/ps, (b) at v =0.8 Å/ps.
Figure 3. Snapshots of the graphene sheet (In-AC1 with AR = 0.55) in an in-plane tearing under different loading speeds at 1 K, e.g., (a) at v =0.4 Å/ps, (b) at v =0.8 Å/ps.
Ijms 23 06471 g003
Ijms 23 06471 g004

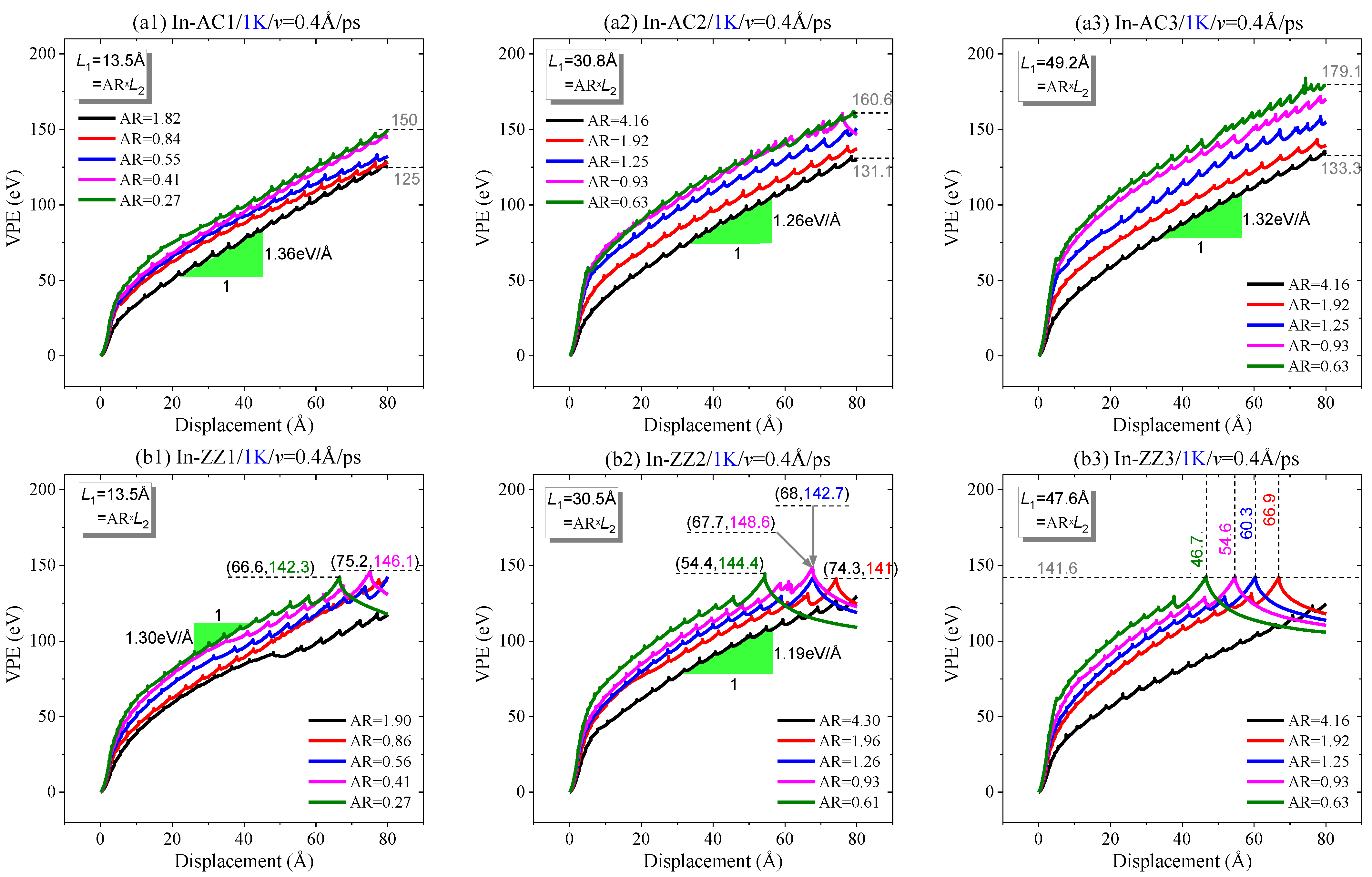

Figure 4. Curves of VPE vs. the in-plane tearing displacement of graphene ribbons with v = 0.4 Å/ps and different aspect ratios at 1 K: (a1–a3) an armchair crack in the sheet, (b1–b3) a zigzag crack in the sheet.
Figure 4. Curves of VPE vs. the in-plane tearing displacement of graphene ribbons with v = 0.4 Å/ps and different aspect ratios at 1 K: (a1–a3) an armchair crack in the sheet, (b1–b3) a zigzag crack in the sheet.
Ijms 23 06471 g004
Ijms 23 06471 g005

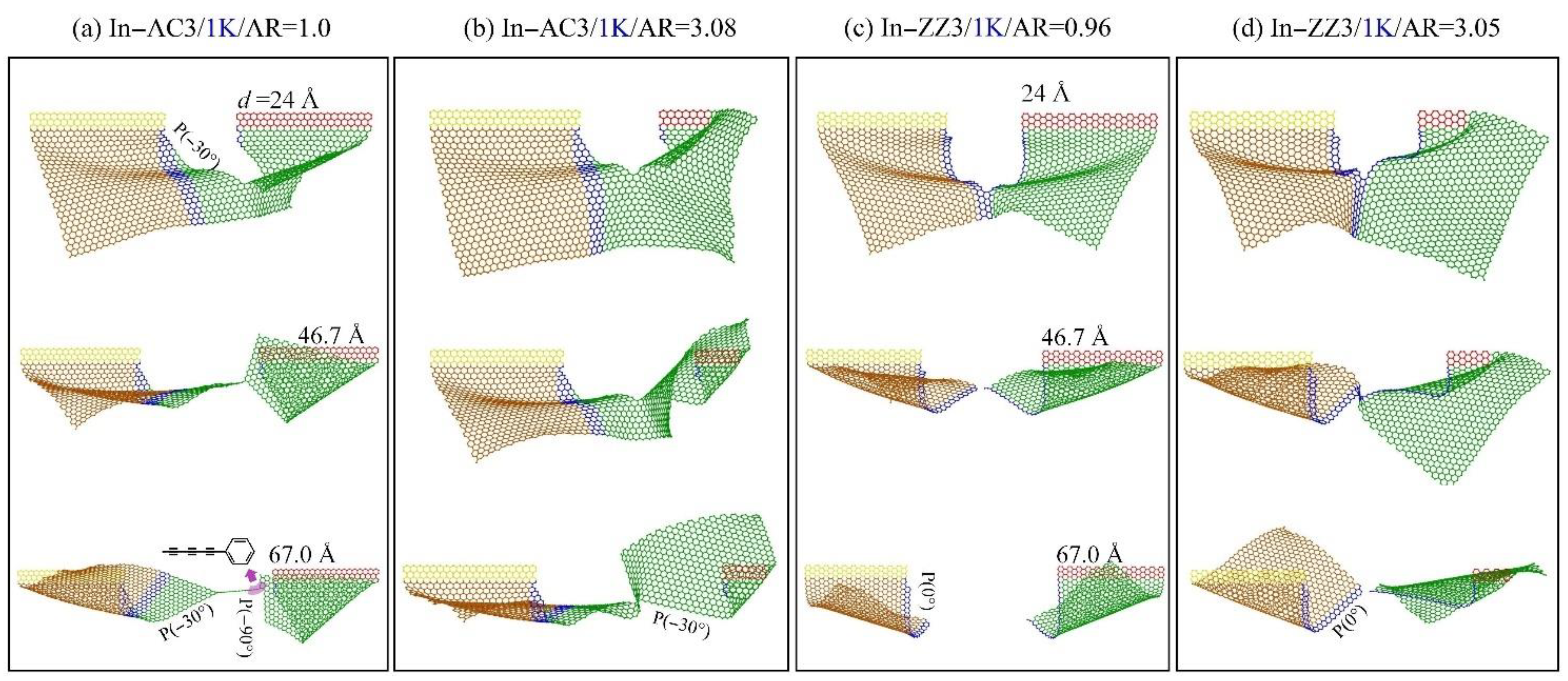

Figure 5. Snapshots of the sheets in an in-plane tearing with v = 0.4 Å/ps at 1 K: (a,b) In-AC3 with AR = 1.00 or 3.08, respectively; (c,d) in-ZZ3 with AR = 0.96 or 3.05, respectively.
Figure 5. Snapshots of the sheets in an in-plane tearing with v = 0.4 Å/ps at 1 K: (a,b) In-AC3 with AR = 1.00 or 3.08, respectively; (c,d) in-ZZ3 with AR = 0.96 or 3.05, respectively.
Ijms 23 06471 g005
Ijms 23 06471 g006

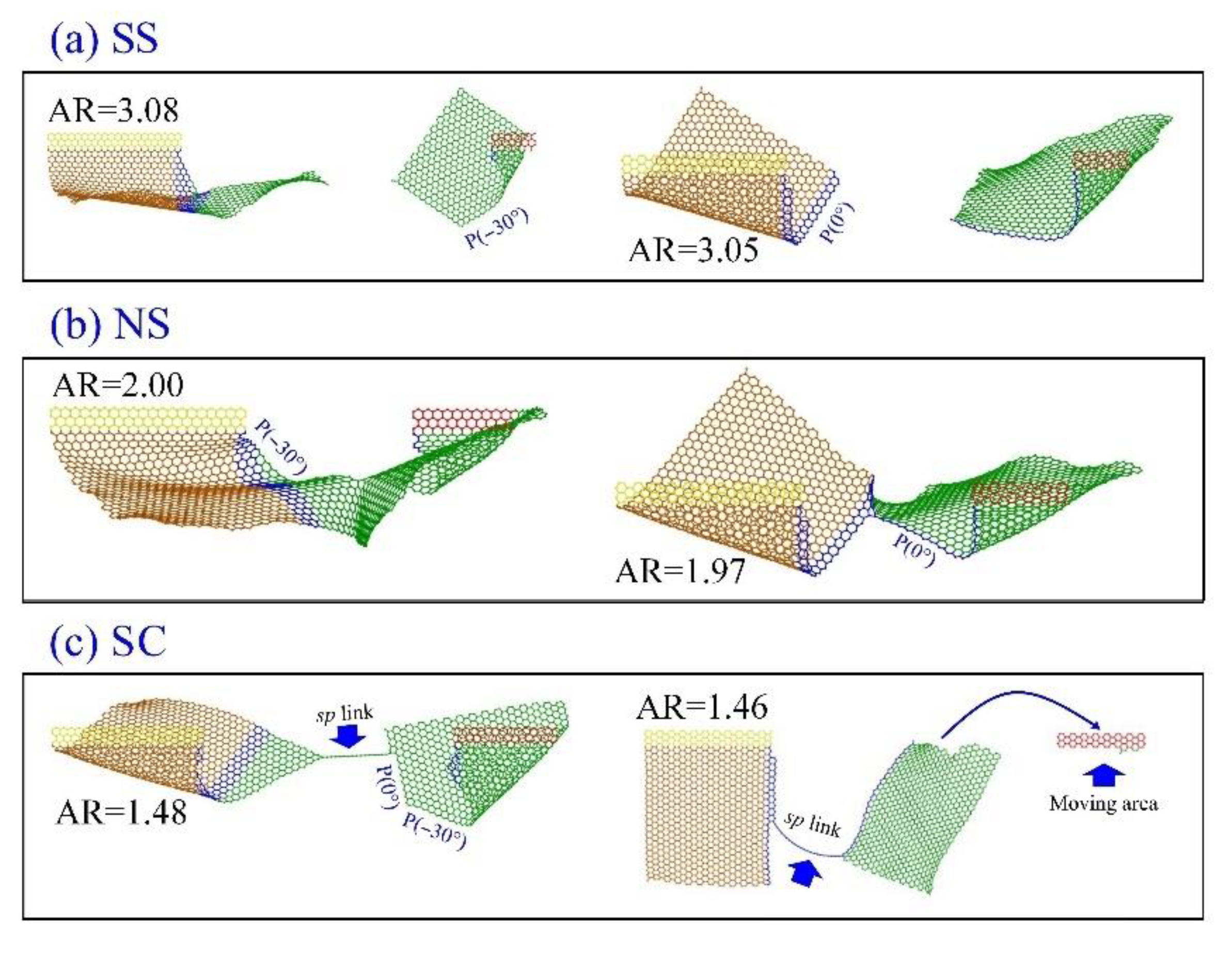

Figure 6. Propagation styles of the cracks in sheets under an in-plane tearing at 1 K: (a) “SS” for split with smooth edges at v = 0.6 Å/ps, (b) “NS” for not split off when v = 0.2 Å/ps, and (c) “SC” for split but still connected via an sp carbon link when v = 1.0 Å/ps. In each of the three panels, the left-hand sheet is the In-AC3 and the right-hand one is the In-ZZ3.
Figure 6. Propagation styles of the cracks in sheets under an in-plane tearing at 1 K: (a) “SS” for split with smooth edges at v = 0.6 Å/ps, (b) “NS” for not split off when v = 0.2 Å/ps, and (c) “SC” for split but still connected via an sp carbon link when v = 1.0 Å/ps. In each of the three panels, the left-hand sheet is the In-AC3 and the right-hand one is the In-ZZ3.
Ijms 23 06471 g006
Ijms 23 06471 g007

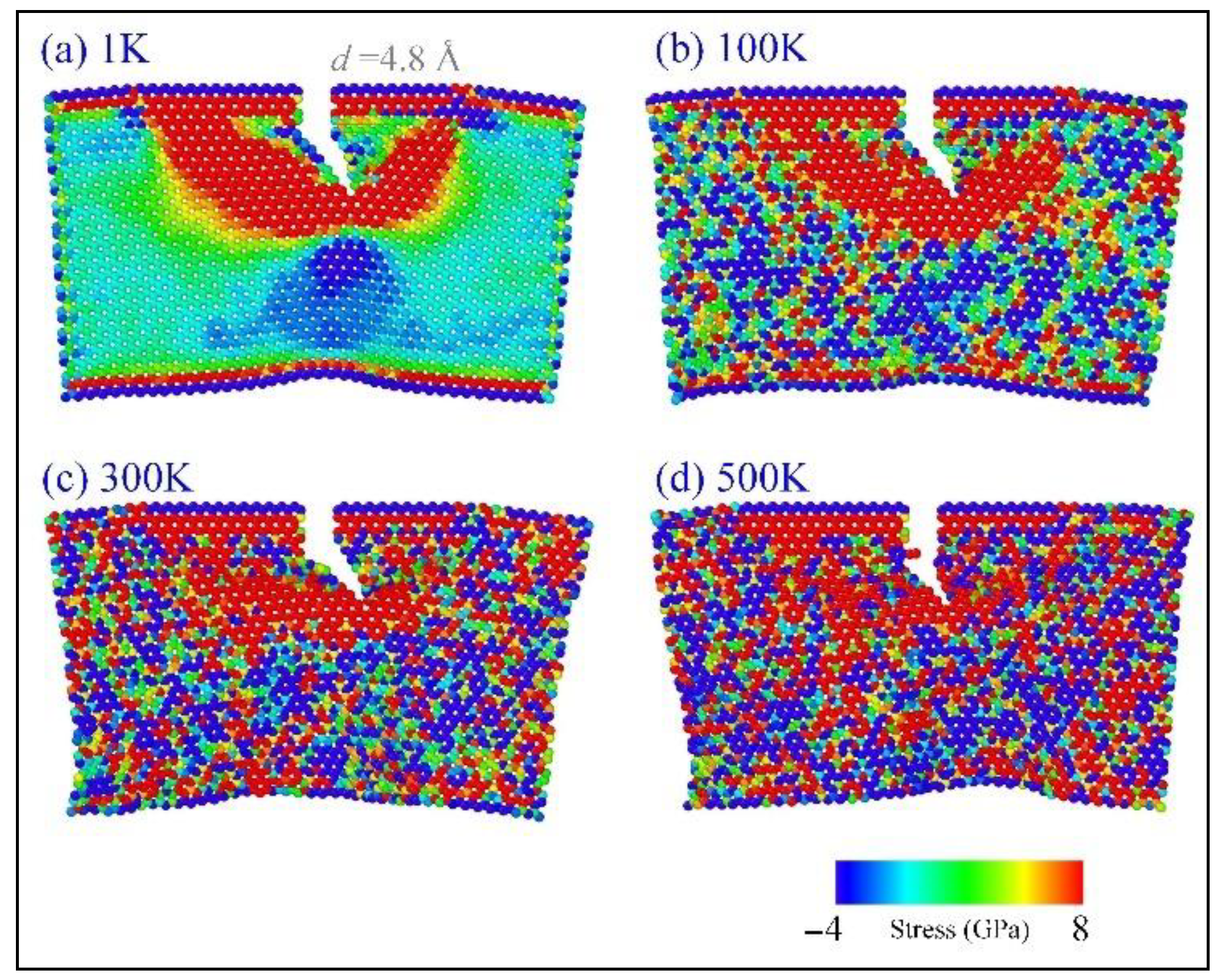

Figure 7. The virial stress distribution in a graphene sheet with an armchair crack in tearing (with v = 0.6 Å/ps and AR = 1.25) at (a) 1 K, (b) 100 K, (c) 300 K, or (d) 500 K.
Figure 7. The virial stress distribution in a graphene sheet with an armchair crack in tearing (with v = 0.6 Å/ps and AR = 1.25) at (a) 1 K, (b) 100 K, (c) 300 K, or (d) 500 K.
Ijms 23 06471 g007
Ijms 23 06471 g008
Figure 8. Curves of VPE vs. the in-plane tearing displacement of graphene sheets with v = 0.6 Å/ps at different temperatures: (a1–a3) an armchair crack in the sheet, (b1–b3) a zigzag crack in the sheet.
Figure 8. Curves of VPE vs. the in-plane tearing displacement of graphene sheets with v = 0.6 Å/ps at different temperatures: (a1–a3) an armchair crack in the sheet, (b1–b3) a zigzag crack in the sheet.
Ijms 23 06471 g008
Ijms 23 06471 g009

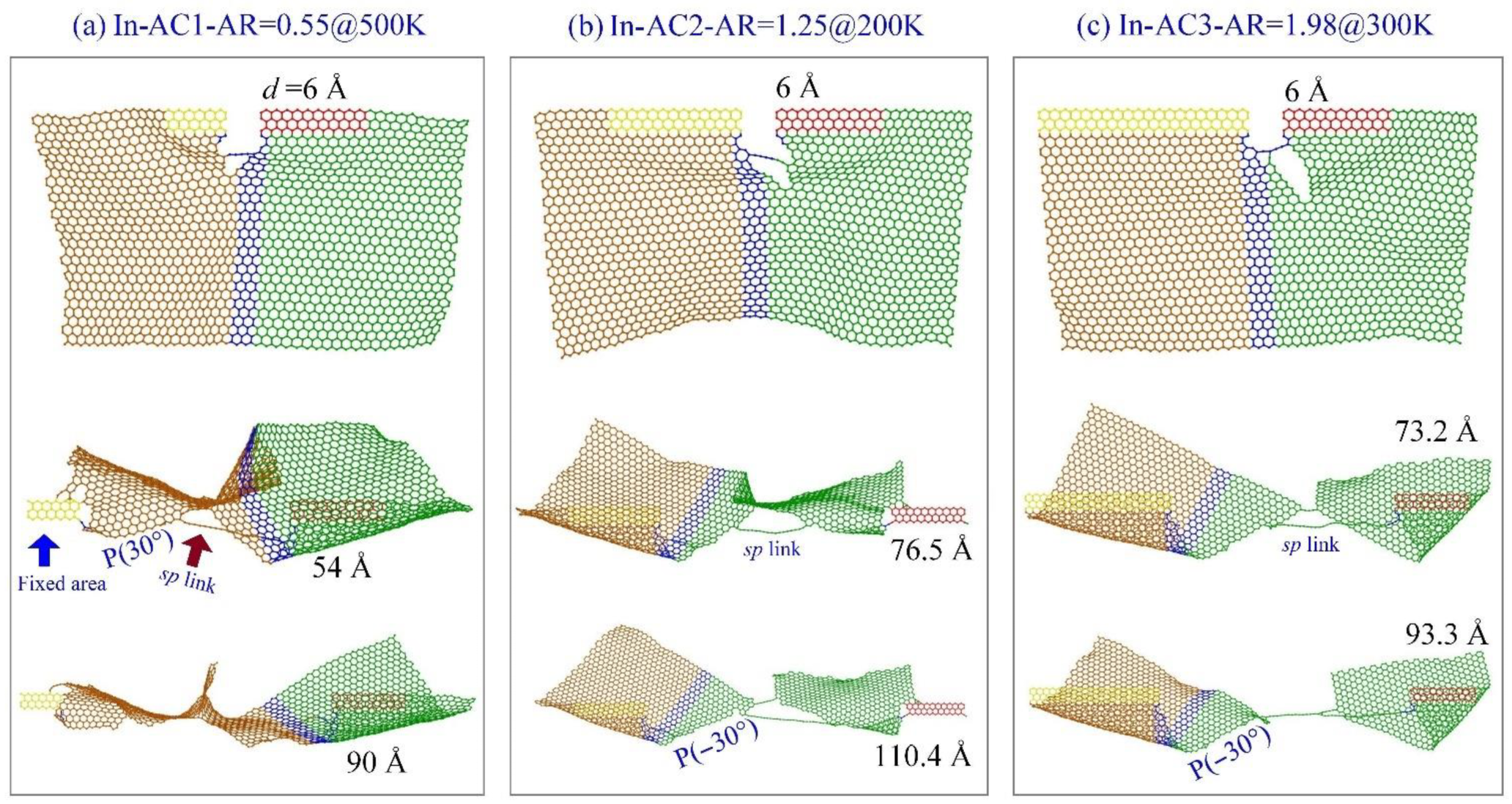

Figure 9. Snapshots of graphene sheets with different values of AR in an in-plane tearing with v = 0.6 Å/ps at different temperatures, e.g., (a) In-AC1 at 500 K, (b) In-AC2 at 200 K, (c) In-AC3 at 300 K.
Figure 9. Snapshots of graphene sheets with different values of AR in an in-plane tearing with v = 0.6 Å/ps at different temperatures, e.g., (a) In-AC1 at 500 K, (b) In-AC2 at 200 K, (c) In-AC3 at 300 K.
Ijms 23 06471 g009
Ijms 23 06471 g010

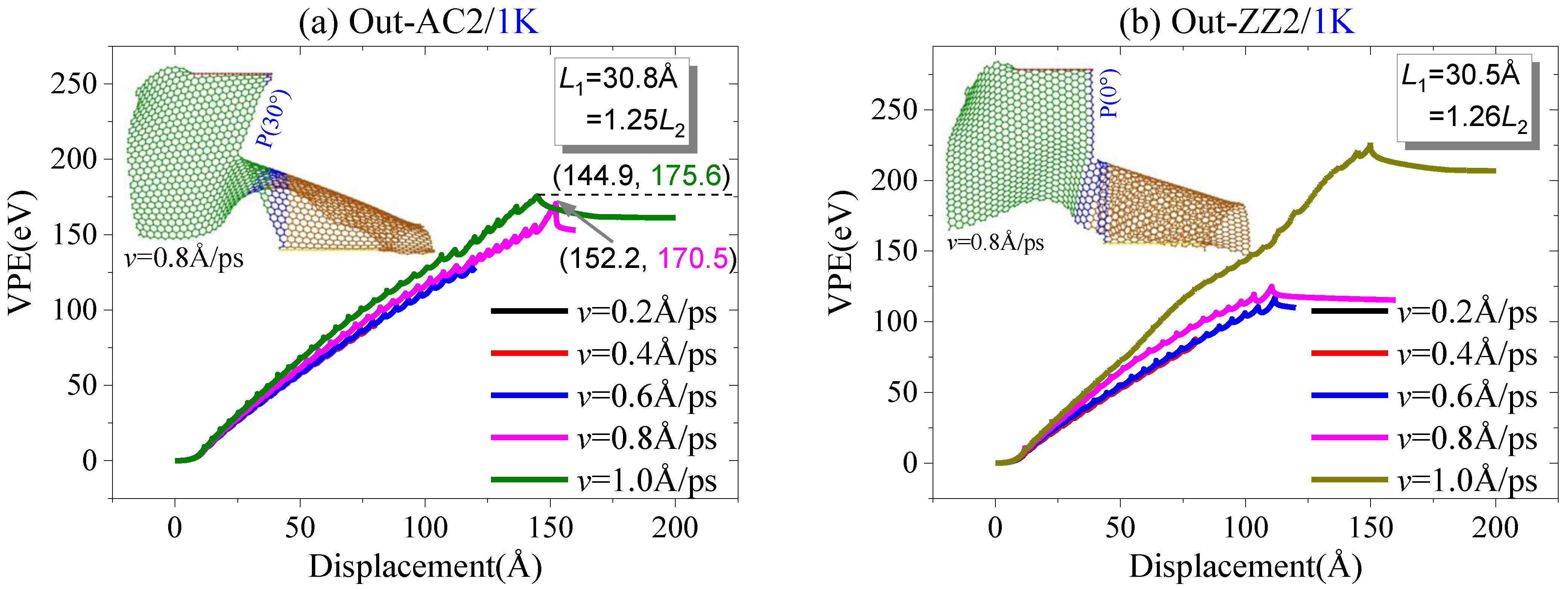

Figure 10. Curves of VPE vs. out-of-plane tearing of graphene ribbons with three aspect ratios at different speeds at 1 K: (a) armchair crack; (b) zigzag crack.
Figure 10. Curves of VPE vs. out-of-plane tearing of graphene ribbons with three aspect ratios at different speeds at 1 K: (a) armchair crack; (b) zigzag crack.
Ijms 23 06471 g010
Ijms 23 06471 g011aIjms 23 06471 g011b

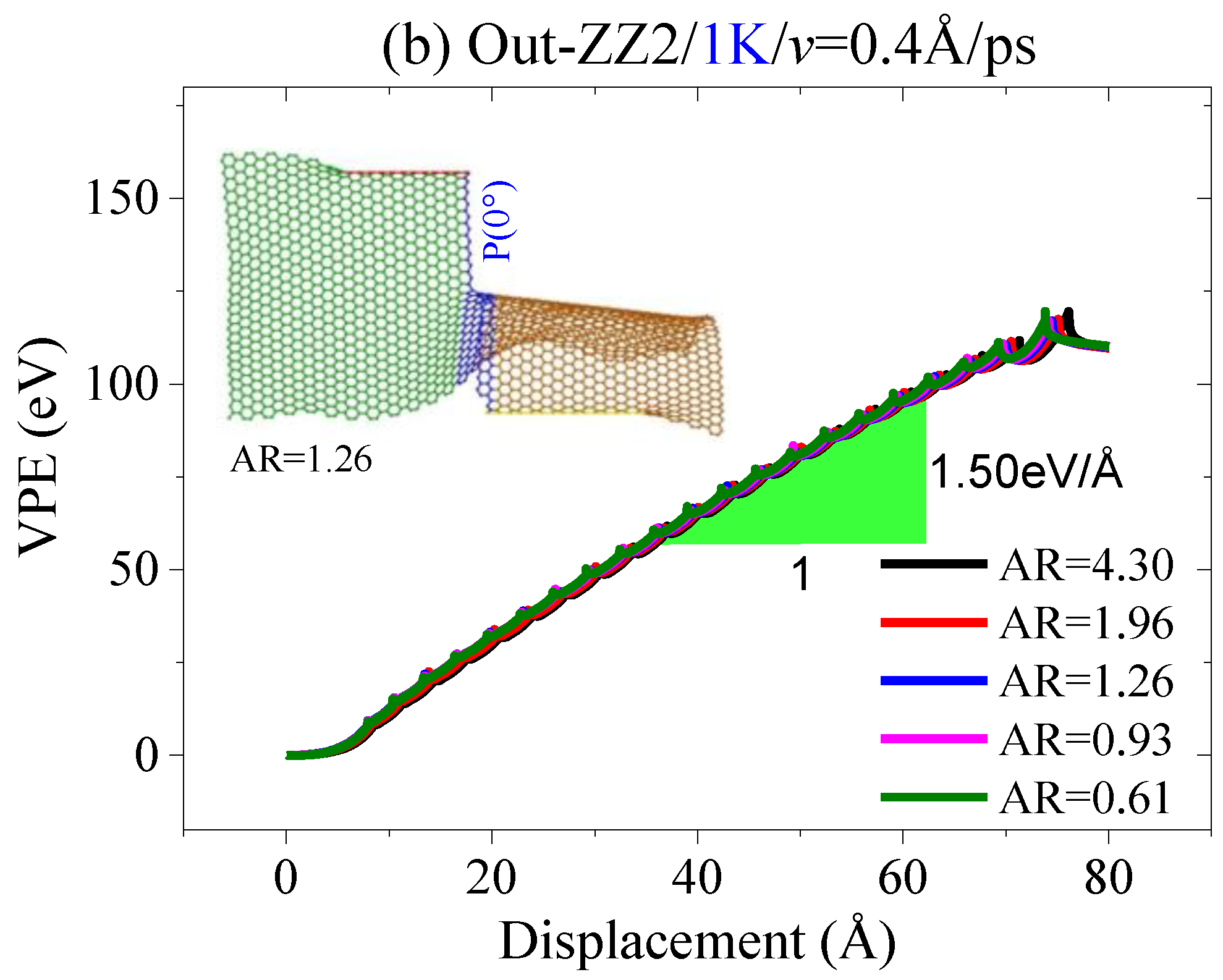

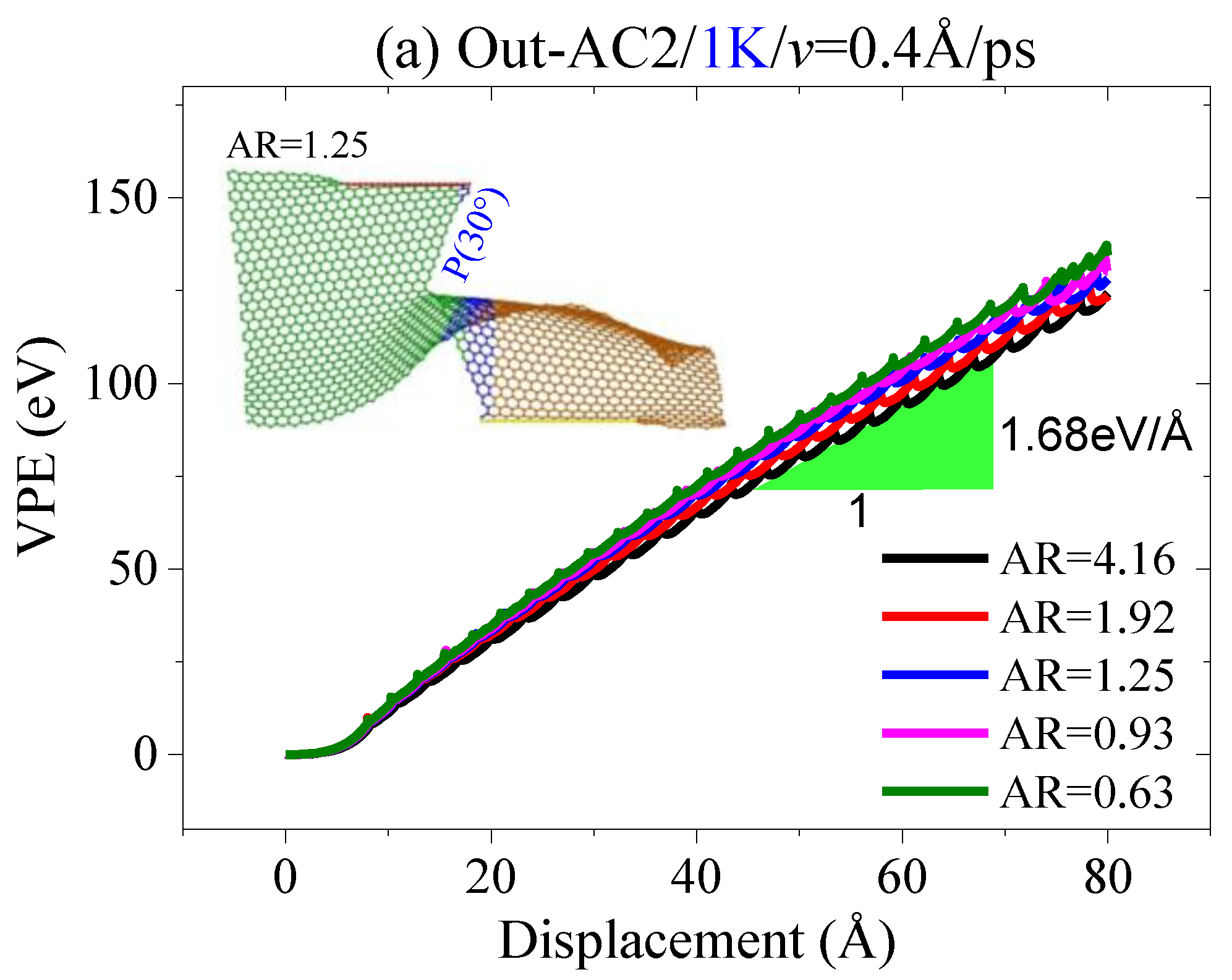

Figure 11. Curves of VPE out-of-plane tearing with the speed of v = 0.4 Å/ps at different aspect ratios and at 1 K: (a) armchair crack; (b) zigzag crack.
Figure 11. Curves of VPE out-of-plane tearing with the speed of v = 0.4 Å/ps at different aspect ratios and at 1 K: (a) armchair crack; (b) zigzag crack.
Ijms 23 06471 g011aIjms 23 06471 g011b
Ijms 23 06471 g012aIjms 23 06471 g012b

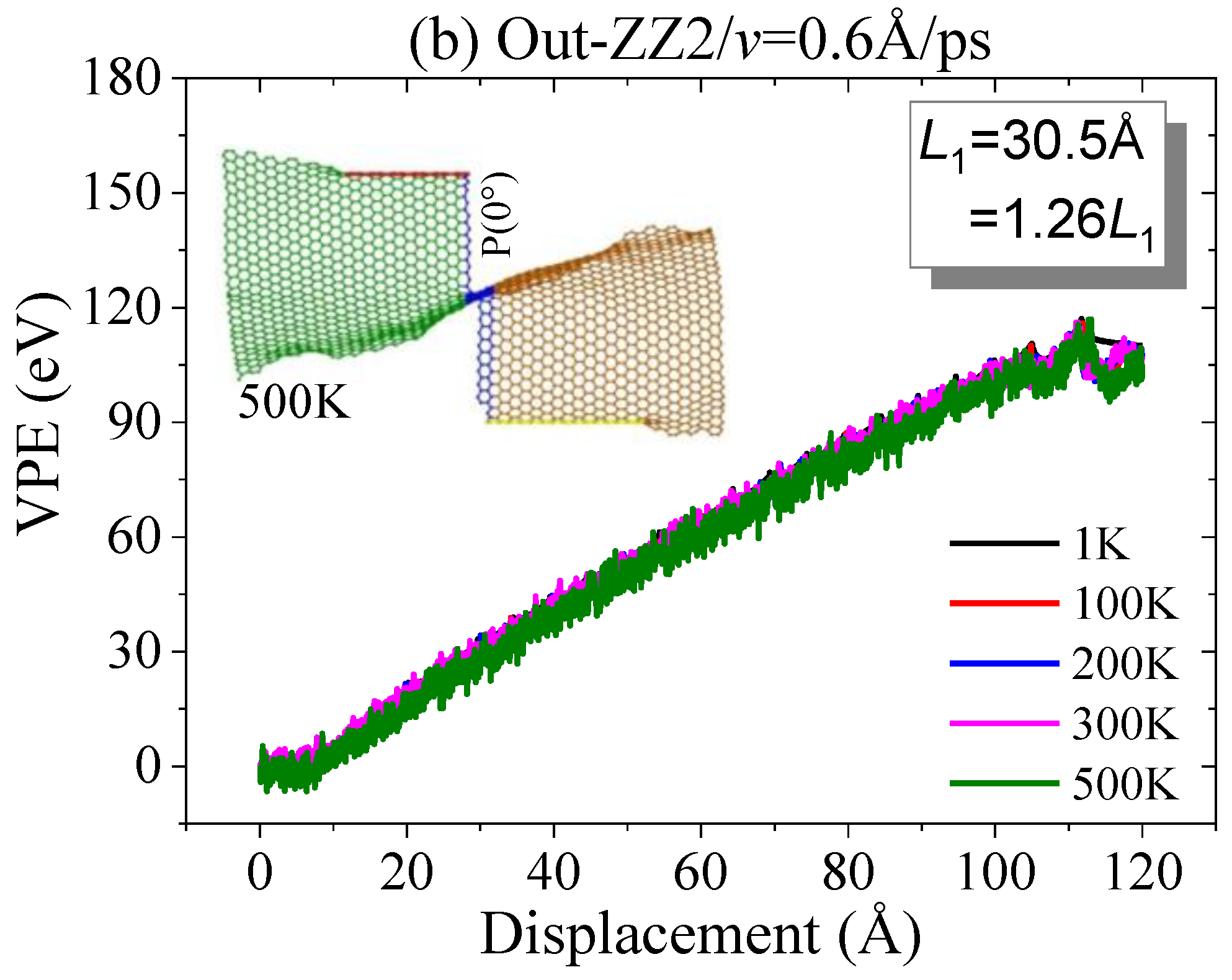

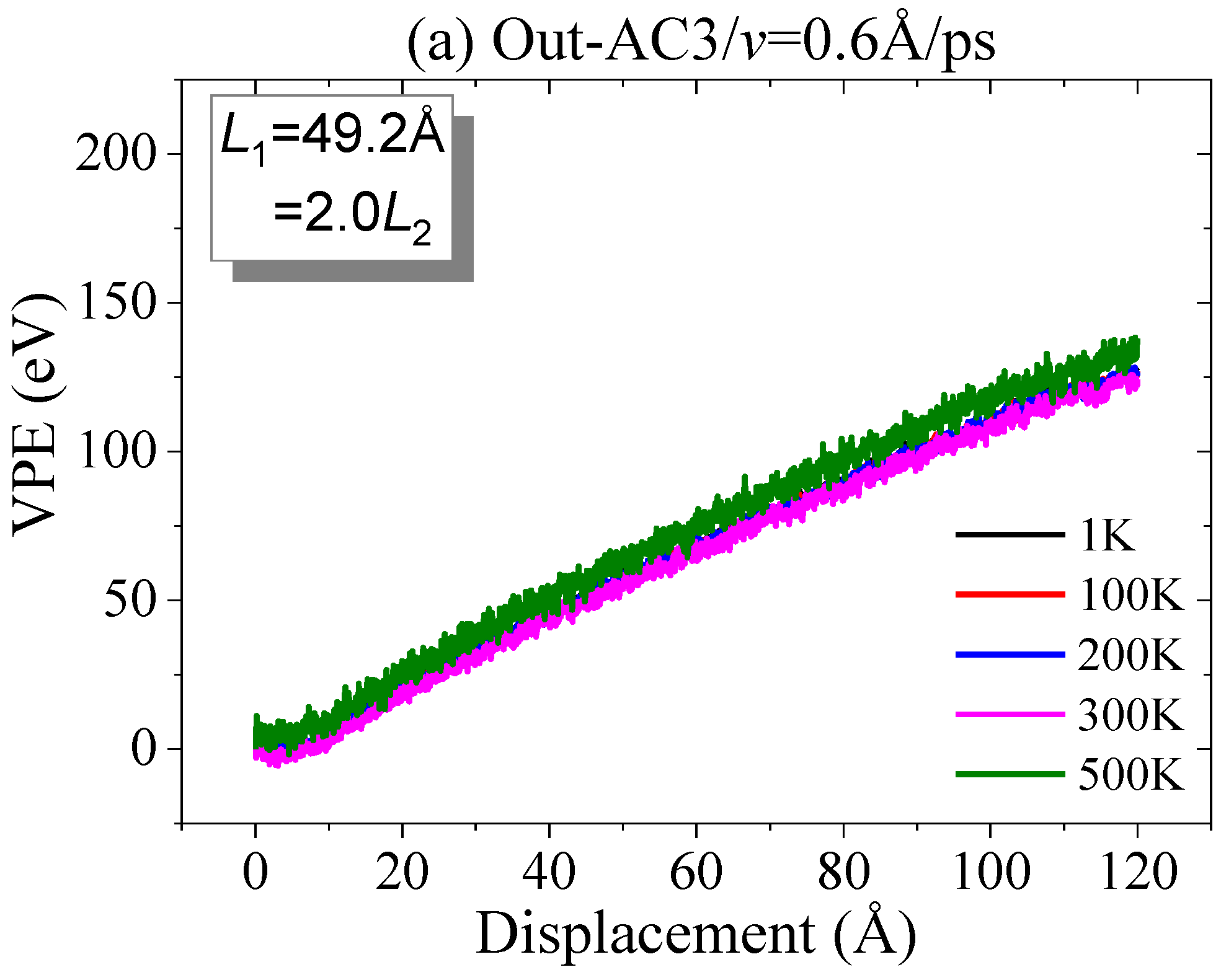

Figure 12. Curves of VPE vs. out-of-plane tearing of graphene ribbons with three aspect ratios at different temperatures: (a) armchair crack; (b) zigzag crack.
Figure 12. Curves of VPE vs. out-of-plane tearing of graphene ribbons with three aspect ratios at different temperatures: (a) armchair crack; (b) zigzag crack.
Ijms 23 06471 g012aIjms 23 06471 g012b
Ijms 23 06471 g013aIjms 23 06471 g013b

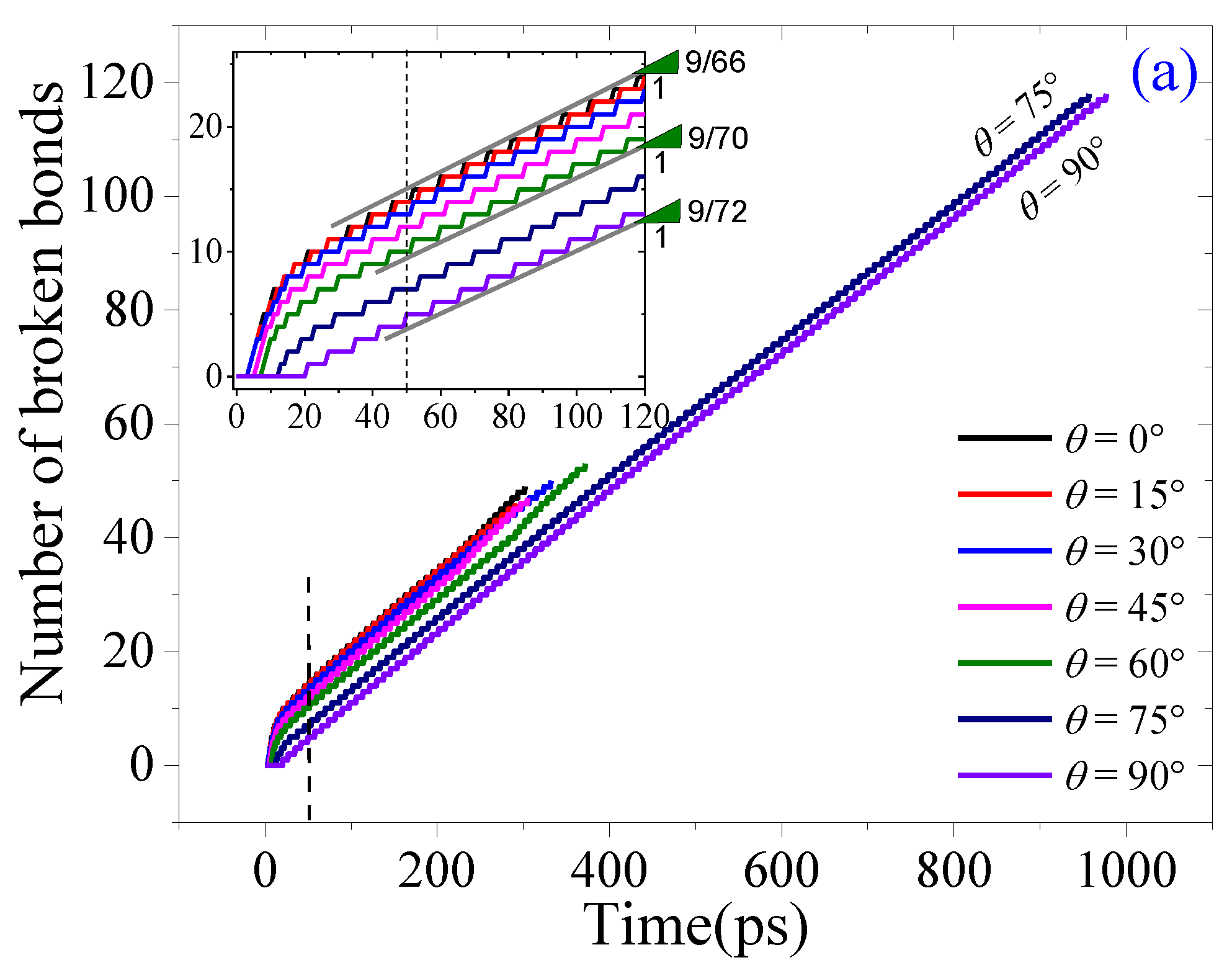

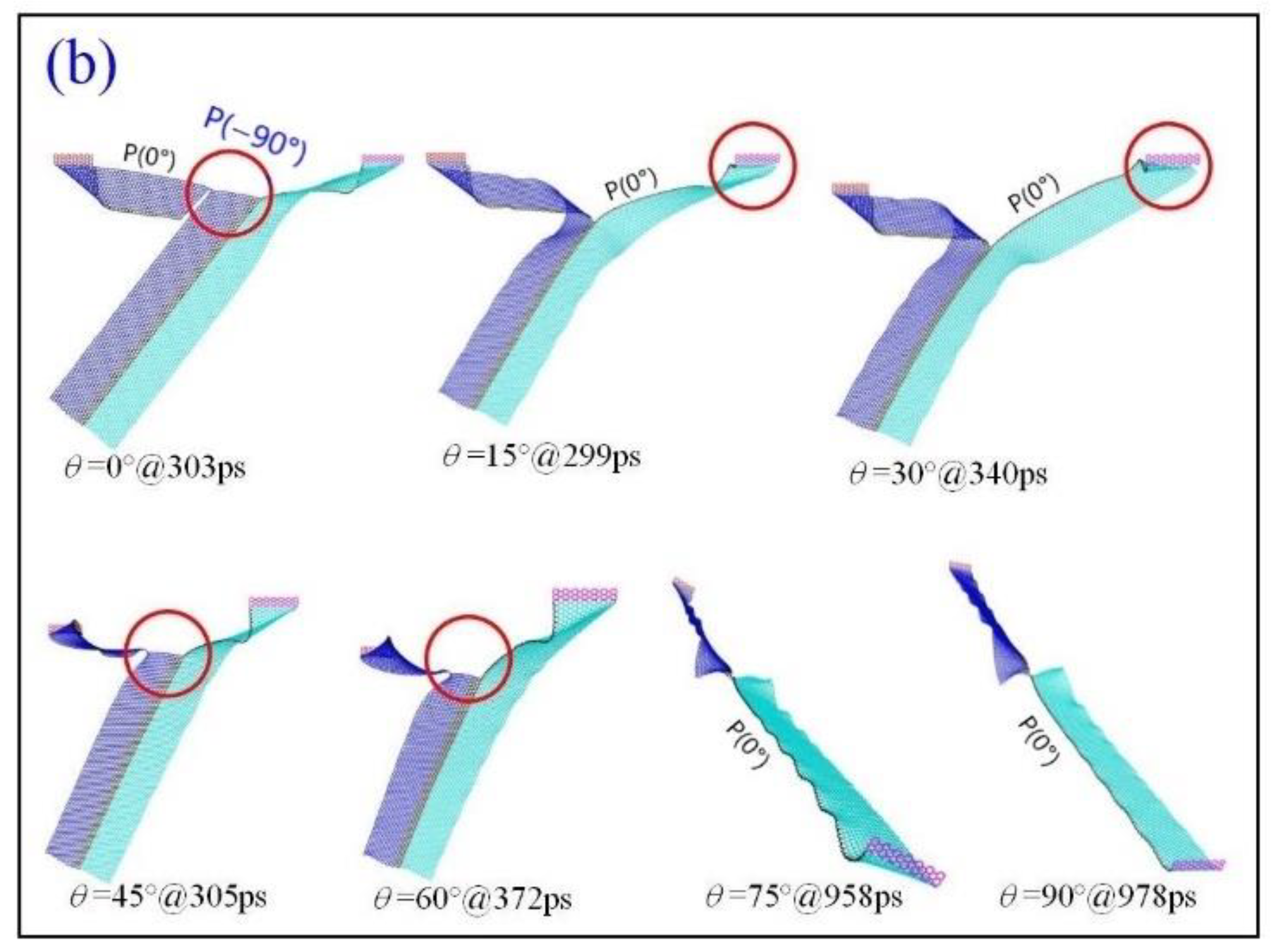

Figure 13. Results of a graphene sheet in oblique tearing conditions with v = 0.6 Å/ps at 1 K: (a) numbers of broken bonds, (b) the snapshots of the sheet torn in different directions.
Figure 13. Results of a graphene sheet in oblique tearing conditions with v = 0.6 Å/ps at 1 K: (a) numbers of broken bonds, (b) the snapshots of the sheet torn in different directions.
Ijms 23 06471 g013aIjms 23 06471 g013b
Table 1. Initial parameters of graphene ribbons with different aspect ratios (AR).
Table 1. Initial parameters of graphene ribbons with different aspect ratios (AR).
ModelL1 (Å) = AR × L2L2 (Å)AR = L1/L2
AR1/AR2/AR3/AR4/AR5
AC113.57.4/16.0/24.6/33.2/49.21.82/0.84/0.55/0.41/0.27
AC230.84.16/1.92/1.25/0.93/0.63
AC349.26.65/3.08/2.00/1.48/1.00
ZZ113.57.1/15.6/24.2/32.7/49.71.90/0.86/0.56/0.41/0.27
ZZ230.54.30/1.96/1.26/0.93/0.61
ZZ347.66.70/3.05/1.97/1.46/0.96
Table 2. Crack propagation paths in the in-plane tearing of graphene sheets with v = 0.4 Å/ps at 1 K.
Table 2. Crack propagation paths in the in-plane tearing of graphene sheets with v = 0.4 Å/ps at 1 K.
ModelAR1AR2AR3AR4AR5
In-AC1P(−30°)P(30°) P(30°) P(30°) P(30°)
In-AC2P(−30°)P(−30°)P(−30°)P(−30°)P(30°)
In-AC3P(−30°)P(−30°)P(−30°)P(30°) P(−30°)
In-ZZ1P(0°)P(0°)P(0°)P(0°)P(0°)
In-ZZ2P(0°)P(0°)P(0°)P(0°)P(0°)
In-ZZ3P(−30°)P(0°)P(0°)P(0°)P(0°)
Note that the same crack paths share the same background.
Table 3. Crack propagation styles of the armchair and zigzag cracks in graphene sheets at 1 K.
Table 3. Crack propagation styles of the armchair and zigzag cracks in graphene sheets at 1 K.
In-AC3In-ZZ3
AR1AR2AR3AR4AR5AR1AR2AR3AR4AR5
v = 0.2NSNSNSNSNSNSNSNSNSNS
v = 0.4NSSCSCSCSCNSSS SS SS SS
v = 0.6SC SS SS SS SCSC SS SS SS SS
v = 0.8 SS SS SS SCSC SS SS SS SS SS
v = 1.0SCSCSCSCSCSC SS SS SCSC
Note that the same crack styles own the same background.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Shi, J.; Yu, W.; Hu, C.; Duan, H.; Ji, J.; Kang, Y.; Cai, K. Effects of Tearing Conditions on the Crack Propagation in a Monolayer Graphene Sheet. Int. J. Mol. Sci. 2022, 23, 6471. https://doi.org/10.3390/ijms23126471

AMA Style

Shi J, Yu W, Hu C, Duan H, Ji J, Kang Y, Cai K. Effects of Tearing Conditions on the Crack Propagation in a Monolayer Graphene Sheet. International Journal of Molecular Sciences. 2022; 23(12):6471. https://doi.org/10.3390/ijms23126471

Chicago/Turabian Style

Shi, Jiao, Weihua Yu, Chunwei Hu, Haiyan Duan, Jiaxing Ji, Yuanyuan Kang, and Kun Cai. 2022. "Effects of Tearing Conditions on the Crack Propagation in a Monolayer Graphene Sheet" International Journal of Molecular Sciences 23, no. 12: 6471. https://doi.org/10.3390/ijms23126471

APA Style

Shi, J., Yu, W., Hu, C., Duan, H., Ji, J., Kang, Y., & Cai, K. (2022). Effects of Tearing Conditions on the Crack Propagation in a Monolayer Graphene Sheet. International Journal of Molecular Sciences, 23(12), 6471. https://doi.org/10.3390/ijms23126471

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
