Review

Origin, Regulation, and Fitness Effect of Chromosomal Rearrangements in the Yeast Saccharomyces cerevisiae

by
Xing-Xing Tang
1,
Xue-Ping Wen
1,
Lei Qi
1,2,
Yang Sui
1,2,
Ying-Xuan Zhu
1 and
Dao-Qiong Zheng
1,*
1
Ocean College, Zhejiang University, Zhoushan 316021, China
2
Department of Molecular Genetics and Microbiology, Duke University, Durham, NC 27705, USA
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2021, 22(2), 786; https://doi.org/10.3390/ijms22020786
Submission received: 9 December 2020 / Revised: 2 January 2021 / Accepted: 11 January 2021 / Published: 14 January 2021
(This article belongs to the Special Issue Studies on the Pathogenesis of Chromosome Rearrangement)
Browse Figures
Versions Notes

Abstract

:
Chromosomal rearrangements comprise unbalanced structural variations resulting in gain or loss of DNA copy numbers, as well as balanced events including translocation and inversion that are copy number neutral, both of which contribute to phenotypic evolution in organisms. The exquisite genetic assay and gene editing tools available for the model organism Saccharomyces cerevisiae facilitate deep exploration of the mechanisms underlying chromosomal rearrangements. We discuss here the pathways and influential factors of chromosomal rearrangements in S. cerevisiae. Several methods have been developed to generate on-demand chromosomal rearrangements and map the breakpoints of rearrangement events. Finally, we highlight the contributions of chromosomal rearrangements to drive phenotypic evolution in various S. cerevisiae strains. Given the evolutionary conservation of DNA replication and recombination in organisms, the knowledge gathered in the small genome of yeast can be extended to the genomes of higher eukaryotes.

1. Introduction

Chromosomal rearrangements, including deletions, duplications, translocations, inversions, and formation of extrachromosomal circular DNA (eccDNA), are ubiquitous in cancer genomes and multiple genetic diseases. It was found that the translocation between chromosome 6 and chromosome 4, leading to the fusion of proto-oncogene 1, receptor tyrosine kinase (ROS1) to solute carrier family 34 member 2 (SLC34A2), drives lung cancer development [1], and the translocation-mediated fusion of the nucleoporin 98 kDa (NUP98) gene and topoisomerase (DNA) IIB 180 kDa (TOP2B) gene acts as a pathogenic factor in acute myeloid leukemia [2]. Recent studies have reported that eccDNA with amplified oncogenes is widespread in cancers [3,4]. The enhanced expression levels of oncogenes in eccDNA-carrying cells can result from eccDNA-mediated copy number changes as well as a higher chromatin accessibility of eccDNA due to the absence of higher-order compaction [5,6,7]. In addition to being a driver of carcinogenesis, chromosomal rearrangement also underlies the phenotypic diversification and environmental adaptability in organisms [8,9,10,11]. Multiple experimental systems have been developed in model organisms to decipher the rates, qualitative spectra, genetic dependencies, and phenotypic effects of chromosomal rearrangements. We focus here on the work performed in the yeast Saccharomyces cerevisiae, in which the conserved DNA repair pathways and the consequences of their defect have been well explored owing to its compact genome and the powerful genetic tools established for this organism.

2. Origins of Chromosomal Rearrangements

The integrity of genomic DNA of cells is constantly challenged by both endogenous and exogenous agents. Of the many different classes of DNA lesions, double-stranded breaks (DSBs) are most deleterious and can be lethal to cells if left unrepaired [12]. Nonhomologous end joining (NHEJ) and homologous recombination (HR) are two evolutionally conserved pathways for DSB repair. Below we will briefly summarize how DSBs are processed and sealed, and discuss how this process results in chromosomal rearrangements in S. cerevisiae.

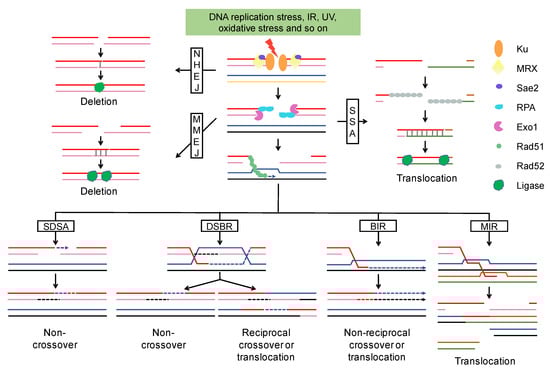

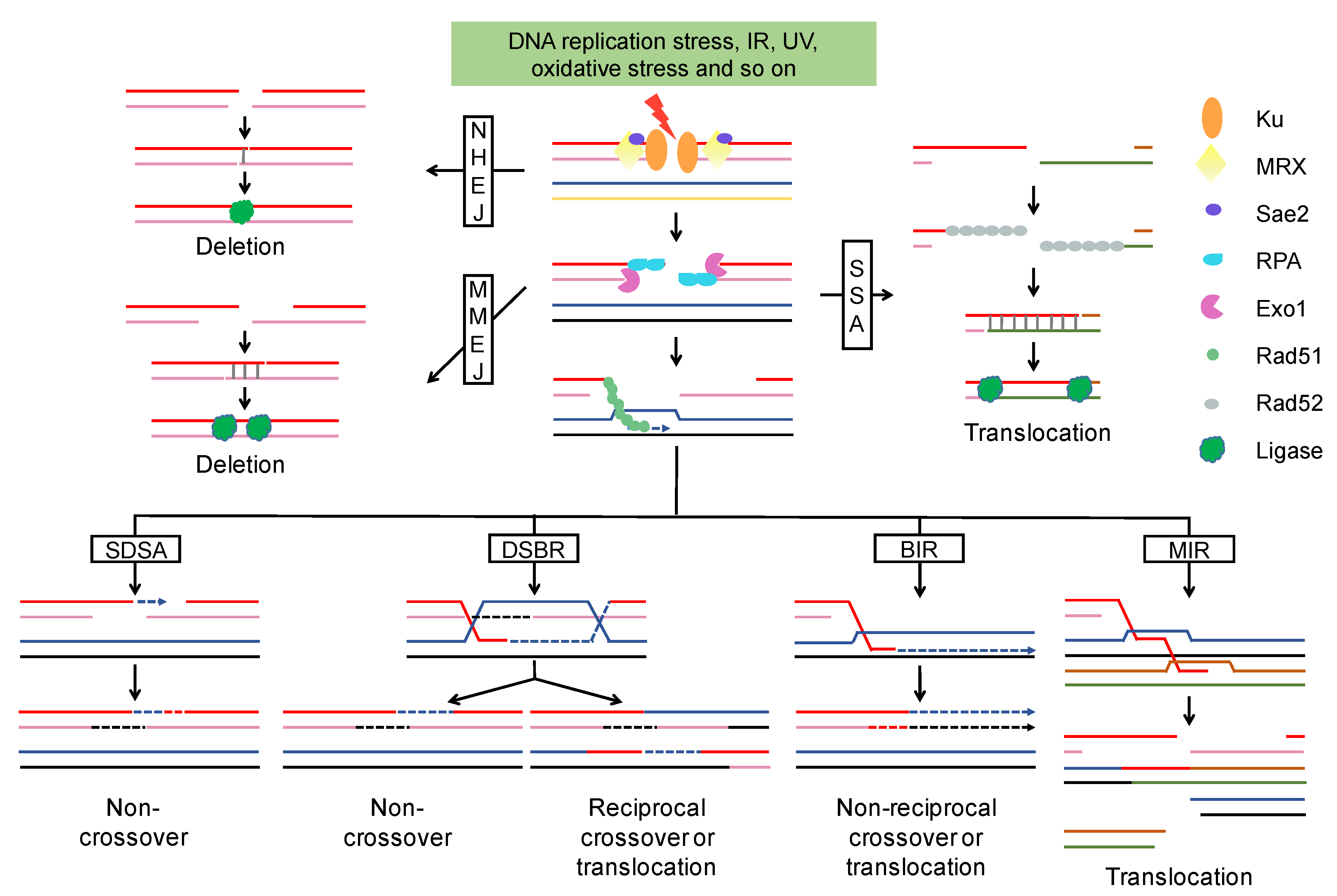

2.1. End Resection of DSBs and Repair Pathway Choice

In S. cerevisiae, the trimeric complex Mre11-Rad50-Xrs2 (MRX) recognizes DSBs and initiates end resection. It removes oligonucleotides from the 5′ end when Sae2 is recruited, resulting in a limited length of single strand DNA (ssDNA) tracts (50–100 nt) [13,14,15]. Mre11 is a member of the lambda phosphatase family, exhibiting an ssDNA endonuclease activity and a 3′ to 5′ dsDNA exonuclease activity that processes DSB ends. MRX also recruits 5′ to 3′ exonuclease Exo1 or ssDNA endonuclease Dna2 to enable extensive resection (thousands of nucleotides or even longer) in concert with the RecQ family DNA helicase Sgs1 [15,16]. What is the purpose of extensive resection? Firstly, extensive resection is critical for template searching during homology-dependent repair [13,14,16,17]. Secondly, extensive resection ensures fidelity by preventing repair between short dispersed repeats [16,17]. Thirdly, long ssDNA tails are required for cells to signal DSBs and activate DNA damage checkpoints [17]. Nevertheless, it should be noted that long 3′ ssDNA tracts facilitate multiple template invasion and complex chromosome rearrangements [18,19].
NHEJ, which does not require 3′ ssDNA overhang, takes place throughout the cell cycle. In the canonical NHEJ (c-NHEJ) pathway, the heterodimer Ku70/Ku80 recognizes and binds the broken ends to prevent resection [20,21]. The DNA ends can be ligated directly by ligase IV (Dnl4) after simple end trimming (up to 4 nt) [22]. In addition to c-NHEJ, alternative end joining (alt-NHEJ) and single-strand annealing (SSA) have been identified as backup NHEJ. Alt-NHEJ, also known as micro-homology-mediated end joining (MMEJ), is initiated by limited end resection (5 to 25 nt) [23]. The exposed 3′ ssDNA of the two broken ends are subsequently annealed, followed by single-stranded gap filling and ligation. Extensive resection resulting in long stretches (>30 nt) of 3′ ssDNA is suitable for single-strand annealing (SSA) [24]. The long 3′ ssDNA tails are first bound by replication protein A (RPA) to prevent secondary structure formation, followed by Rad52-mediated annealing. Distinct from NHEJ, HR takes place in S and G2 phases in the presence of sister chromatids. As mentioned above, extensive resection is a prerequisite for homolog search and alignment. In HR, the long 3′ ssDNA coated by Rad51 searches for a homologous template to invade, forming a D-Loop [25]. Detailed information about how the extent of DNA end resection and other factors that determine the choice of repair pathway (including the nature of the DSB ends, cell cycle stage, and multiple repair proteins) has been discussed in other recent reviews [26,27,28,29,30].

2.2. Chromosome Rearrangements Result in Poor Outcomes of DSB Repair

2.2.1. NHEJ-Associated Chromosomal Rearrangements

While c-NHEJ is a rapid and efficient way to repair DSBs, it is usually regarded as an error-prone repair pathway because it rejoins the DSB ends without the use of an intact template (Figure 1). C-NHEJ often leads to small deletions and insertions that can be easily verified and selected by frameshift reversion assays in S. cerevisiae [31]. C-NHEJ also readily causes large deletions and translocation [32], respectively, when two DSBs occur simultaneously at the same and different chromosomes [33,34]. Cells in which c-NHEJ is blocked are still able to repair DSBs through alt-NHEJ, which is a more error-prone pathway compared to c-NHEJ. As shown in Figure 1, alt-NHEJ inevitably results in the deletion of inter-microhomology sequences and one copy of microhomology. Interestingly, polymerase θ associated insertions were occasionally observed at the DSB sites sealed by alt-NHEJ [35,36]. Chromosomal translocations via alt-NHEJ also elevate mutagenesis of the flanking of breakpoint junctions, suggesting that alt-NHEJ could destabilize genomes by triggering chromosomal arrangements and increasing the mutation rate [37]. In contrast to alt-NHEJ, SSA requires more extensive resection that results in large deletions (Figure 1) [38]. Long repeat sequences, such as Ty retrotransposon-elements, were proposed as important mediators of SSA that caused translocation in yeast [39,40]. Ramakrishnan et al. [41] reported that inverted DNA repeats placed near a DSB can generate a dicentric chromosome or a fold-back (hairpin) structure through SSA, indicating the orientation of repeats would influence the choice and outcome of DSB repair [42].

2.2.2. HR-Associated Chromosomal Rearrangements

HR starts with D-Loop formation and then proceeds via one of the following sub-pathways (Figure 1): (I) Synthesis-dependent strand annealing (SDSA). The 3′ end of the invading strand is used as a primer to extend the D-Loop through DNA synthesis. The newly copied strand is re-annealed to the other broken end to allow gap filling by a second round of DNA synthesis. (II) Double-strand break repair (DSBR). The D-Loop is stabilized via “capturing” of the second broken DSB end. The resulting double Holliday junction (dHJ) can be resolved by topoisomerase-mediated dissolution or by cleavage of the Holliday junctions. (III) Break-induced replication (BIR). The invasion results in the initiation of DNA synthesis that proceeds via a migrating bubble with asynchronous DNA synthesis distal to the point of invasion. (IV) Multi-invasion-induced rearrangement (MIR). The 3′ end invades two intact donors and stimulates translocation between the two donors without any homology.
HR, during which the broken chromosome is repaired using an intact sister chromatid or homolog as a template, is much more important than NHEJ in diploid cells of S. cerevisiae [43]. HR between homologous chromosomes leads to loss of heterozygosity (LOH), a common genomic alteration in cancers and diploid S. cerevisiae strains. SDSA and DSBR are the main pathways responsible for interstitial and terminal LOH, respectively [44]. DSBR would lead to reciprocal translocation if non-allelic homology was used as the template for DSBs repair [45]. While BIR plays a crucial role in replication fork restart and telomere maintenance due to its capability to repair one-end breaks, this pathway results in terminal LOH and translocation as well [46,47]. Additionally, half-crossovers (HC) are generated when BIR is interrupted and the migrating bubble is resolved, resulting in the fusion of donor and recipient chromosomes [47]. The remaining DSB end can invade another donor to initiate a new HC or other chromosomal rearrangements [47,48]. MIR is a newly characterized pathway that drives complex rearrangements [19]. As shown in Figure 1, MIR not only stimulates translocation, but also generates new DSBs that give rise to further chromosomal rearrangements [19,45,49,50].
In summary, although NHEJ and HR are critical for maintaining the integrity of genomic DNA, aberrant DSBs repair performed by these two pathways leads to diverse chromosomal rearrangements.

3. Spontaneous and Genotoxic Factor-Induced Chromosomal Rearrangements in Yeast

3.1. Spontaneous Chromosomal Rearrangements in the Yeast Genome

In wild-type yeast cells, the rate of chromosomal rearrangements during vegetative growth is low [43]. Most information about the rates of these events was based on the genetic assay system involving single genes or partial chromosomes [51,52]. More recently, subculturing of yeast strains over many generations for mutation accumulation (MA) followed by whole-genome sequencing has allowed a more global analysis of chromosomal rearrangements [53,54,55,56]. Sui et al. [53] performed MA experiments in a diploid S. cerevisiae strain (spo11/spo11; unable to enter meiosis), identifying chromosomal rearrangements throughout the genome by deep-coverage genome sequencing. This study detected 47 chromosomal rearrangements including 35 deletions, 12 duplications, and 1 translocation. It was calculated that spontaneous chromosomal rearrangements occur at a rate of 1.8 × 10−4 per cell division. This rate is one magnitude lower than that of LOH events (4.6 × 10−3 per cell division; gene conversion and crossover) resulted from SDSA and DSBR pathways (Figure 1) [53]. They also showed certain regions are more susceptible to rearrangements than other regions. For example, the region of 184–195 Kb (including three genes RRN11, CAT2, and VPS71) located between two flanking Ty elements (standing for transposons of yeast, which are dispersed repeat retrotransposons in the yeast genome) on chromosome XIII, and the region of the RDL1/2 locus on chromosome XV are two hotspots for interstitial deletion or duplication [53]. Non-allelic recombination between two sister chromatids by the DSBR pathway might be responsible for those frequent interstitial deletions and duplications (Figure 1). SSA to repair a DSB located between two direct repeats can be an alternative mechanism underlying spontaneous interstitial deletion (Figure 1). In one subcultured isolate, they also found recombination between two directly oriented Ty transposons on chromosome III that resulted in a circular DNA molecule [53]. Most strikingly, this work demonstrated that spontaneous chromosomal rearrangements generally involve homologous recombination between non-allelic dispersed repeats in the yeast genome. In a recent study by Sampaio et al. [55], the authors showed that two LOH events coincided at two different chromosomes at rates 14- to 150-fold higher than predicted if these two events originated independently of each other. This finding suggested that multiple genomic alterations can occur simultaneously during a limited time window, possibly as short as a single cycle of cell division [55]. What is the nature of recombinogenic lesions under spontaneous conditions? The study of St. Charles and Petes indicated that most mitotic recombination events were caused by DSBs in G1 phase [57]. Since the frequency of recombination in S. cerevisiae grown under anaerobic conditions was significantly lower than that under aerobic conditions [58], oxidative stress may constitute an important factor responsible for spontaneous chromosomal rearrangements.

3.2. Chromosomal Rearrangements under DNA Replication Stress

The fidelity of DNA replication ensures precise genetic information passage in living organisms. At least three DNA replication polymerases (α, δ, and ε) are required to complete genome replication in all eukaryotes [59,60]. Defects in DNA polymerases, the presence of DNA lesions or secondary structure, origin re-firing, as well as limited concentrations of intracellular deoxyribonucleotide, would interrupt the normal function of replication forks and lead to DNA replication stress (DRS) that has been recognized as a hallmark in cancers [61,62,63]. Using S. cerevisiae models in which the levels of DNA polymerases were reduced, several studies have explored how DRS stimulates DNA lesions and chromosomal rearrangements [64,65,66,67,68]. In these studies, the expression of the genes POL1 (encoding the catalytic subunit of polymerase α) or POL3 (encoding the catalytic subunit of polymerase δ) was regulated by the galactose-inducible GAL1 promoter. When grown in low-galactose medium (0.005% galactose), the expression levels of the DNA polymerases were reduced which greatly elevated rates of genomic alterations. Using the whole-genome SNP microarray, Zheng et al. [65] detected the chromosomal rearrangements among 35 colonies derived from a low polymerase δ strain. Of the 41 interstitial deletions/duplications, 27 were within the tandem clusters (CUP1 and HXT6/7 genes), 4 were between solo long terminal repeats (LTRs), and 10 involved nonallelic Ty transposons. They also identified repeats that mediated 16 terminal alterations and most of them were paired events: a terminal deletion and a terminal duplication deletion occurred in the same strain. This pattern may be caused by a break on one chromosome that was repaired by BIR using an ectopic allele on a nonhomologous chromosome as a template (Figure 1). This work showed that DRS imposed by low levels of polymerase δ stimulate the frequency of chromosomal rearrangement by two orders of magnitudes [65]; the main source of chromosomal rearrangements is HR between ectopic repeats rather than NHEJ under DNA replication stress. By a genetic assay, the authors also showed that most recombinogenic DNA lesions in the low polymerase δ cells occurred during S/G2 phase, presumably as a consequence of replication fork collapse under DNA replication stress.

3.3. DNA Repair Deficiency Contributes to Chromosomal Rearrangements

The DSB repair process can be broadly divided into two stages: DSB signaling and repair. These two processes coordinate to guard the genome integrity in cells [69]. In S. cerevisiae, Mec1-Ddc2 (orthologues of human ATR-ATRIP) and Tel1 (orthologue of human ATM) are two sensor kinases to perceive DSBs [70]. Mec1-Ddc2 senses ssDNA through interaction with RPA [71], while Tel1 is recruited to DSBs and activated by the MRX complex [72]. It was found that the mec1 tel1 null mutant showed a great increase (~13000 fold) in chromosomal rearrangement, of which most are chromosome translocations [73,74]. Downstream gene (such as RAD53, SML1, MRC1, and TOF1) knockout increased the frequency of chromosomal rearrangement as well [75]. These studies suggest that the deficiency in DNA damage checkpoints drives chromosomal rearrangements.
Although HR is the major genetic mechanism underlying chromosomal rearrangements in S. cerevisiae, loss function of HR (rad52 mutant or rad51 rad59 double mutant) results in a higher rate of chromosomal rearrangements due to the error-prone feature of NHEJ (see review [76]). The genes involved in DSB resection, which channel DSBs into HR, are particularly important for maintaining genome stability. The deletion of either MRE11 or XRS2 increased the rate of chromosome rearrangement by more than 500-fold [77,78]. Large palindromic duplications occurred at a higher rate in the sae2 mre11 double mutant than in wild-type cells [18]. The sgs1 mutant increas the frequencies of deletions and translocations that contain extra regions of imperfect homology at the breakpoints [79]. A defect in EXO1 caused about a 14-fold increase in chromosomal rearrangements [80], and the exo1 sgs1 double mutant showed a dramatic increase in chromosomal rearrangement of about 450 times [81]. The HR intermediates can be disrupted by multiple pathways [82,83,84,85], among which the DNA mismatch repair pathway can unwind heteroduplex HR intermediates by recognizing mismatches by Msh2-Msh6 or Msh2-Msh3 [86,87]. Defects in the DNA mismatch repair lead to close rates of recombination mediated by identical sequences and by imperfectly matched sequences [86].
Overall, DNA repair deficiency would dramatically increase the frequency of chromosomal rearrangements. It should be noted that the overactivity of certain HR components also brings risks to genome. For example, the 3′ to 5′ exonuclease activity of Mre11 contributes to large deletions and translocations due to the excessive process of DSBs [88], emphasizing that strict regulation of the DNA repair activity is pivotal to genome stability.

3.4. Chromosomal Rearrangements Induced by Ion Irradiation (IR), Chemical, and Oxidative Stress

The integrity of genomic DNA is also challenged by exogenous factors that inflict damage upon DNA and induce chromosomal rearrangements [89,90,91]. Although IR is not a major force of spontaneous genomic alterations, it is extensively used as an exogenous factor to generate DNA damage and recombination in research. In the study of Argueso et al. [40], it was found that 7–28% of the G2-phase arrested yeast cells still survived after extensive irradiation that introduced about 250 DSBs per cell, demonstrating the ability of a eukaryotic genome to undergo extensive repair and rebuilding from extreme DSBs. Using pulsed-field gel electrophoresis (PFGE) analysis, they found nearly two-thirds of the appeared colonies (54 of 71) contained at least one chromosomal rearrangement. Comparative genomic hybridization arrays (CGHarrays) of IR-treated isolates revealed that almost all of the chromosomal rearrangements resulted from HR between nonallelic repetitive elements (mainly Ty retrotransposons). These findings argued that HR is the primary pathway to repair DSBs in diploid yeast cells resulted from IR, and after IR treatment, chromosomal rearrangements generated by recombination between nonallelic repeats can profoundly reshape the genomes [40]. Interestingly, although ultraviolet (UV) is highly recombinogenic, very few chromosomal rearrangements were observed in UV-treated yeast cells [92]. This difference is likely to reflect the different numbers of DSBs caused by IR and UV. IR is able to cleave DNA directly, causing much more DSBs than UV [92].
Bleomycin (BLM) is a radiomimetic chemical used for the treatment of a variety of tumors [93]. Freeman and Hoffmann found the frequency of mitotic recombination in yeast could be significantly elevated by BLM treatment [94]. Using a whole-genome SNP array, Sheng et al. [95] detected 78 LOH events and 3 aneuploidy events among the 13 isolates derived from a heterozygous diploid S. cerevisiae strain QSS4 after treatment with 4 μg/mL Zeocin (a BLM analog). The authors also detected an interstitial deletion mediated by an LTR sequence [95]. This study demonstrated that a DNA damaging chemical can greatly stimulate mitotic recombination that leads to LOH and chromosomal rearrangement in yeast [95]. The ratio of chromosomal rearrangement and the LOH event was similar to that observed in the wild type cells. Etoposide is a podophyllotoxin derivative that belongs to the class of topoisomerase poisons. Exposure to etoposide leads to ssDNA breaks by trapping the topoisomerase 2 (Top2)-DNA complex, which can be converted to DSBs after chromosomal replication [96]. It has been demonstrated that Top2 poisons can trigger chromosomal translocations and shorten the replicative lifespan of yeast [97,98]. Camptothecin (CPT) also indirectly causes DSBs by stabilizing the covalent Top1-DNA cleavage intermediate [99]. Treatment with 50 μg/mL CPT increased the frequency of chromosomal rearrangements by about 50-fold in yeast [51]. Further, copy number variations of rDNA and CUP1 clusters were observed after CPT treatment [100]. Methyl benzimidazole-2-yl-carbamate (MBC or carbendazim) is a widely used broad-spectrum benzimidazole fungicide that interferes with the function of the mitotic spindle, resulting in whole chromosomal aberration (monosomy, trisomy, and uniparental disomy). Additionally, it was also reported that MBC treatment led to chromosomal rearrangements [101,102]. Because of its potential to stimulate large-scale genomic alterations, MBC has been used as a mutagen to obtain S. cerevisiae mutants with improved stress tolerance and fermentation performances in several studies [103,104]. The primary conclusion from the above discussion is that any chemical that interrupts DNA replication or separation may be a potent inducer of chromosomal rearrangements.
Oxidative stress is a constant threat to the genome stability of aerobic organisms [105]. Reactive oxidative species (ROS)-induced DNA damage includes various general damages as well as DNA breaks [106]. In the study by Zhang et al. [58], yeast cells treated with 100 mM H2O2 for 1 h resulted in a one hundred-fold elevation of the frequency of mitotic recombination in a diploid S. cerevisiae strain, demonstrating that H2O2 is a potent inducer of genome instability. The authors observed 10 deletions and duplications, half were interstitial and half were terminal, among 30 isolates obtained after repeated exposure to H2O2. Similarly, chromosomal rearrangement can result from mutations of genes (such as SOD1 and TSA2) involved in the anti-oxidative systems [58,107] and intracellular ROS accumulation induced by extracellular stressors. Qi et al. [108] found that exposure to furfural, a major inhibitor existing in the cellulosic hydrolysate used for bioethanol fermentation, led to enhanced rates of chromosomal rearrangements in yeast cells. Although furfural cannot cleave DNA directly, the authors observed frequent in vivo DNA breaks due to accumulation of intracellular ROS [108]. It is likely that prolonged exposure of yeast cells to the recombinogenic agent under industrial conditions could quickly lead to loss of selected desirable traits of industrial yeast strains. These findings have direct implications for the use of yeast cells in the production of bioethanol from cellulosic feedstocks, particularly in distilleries that utilize cell recycling.

4. Methods to Generate and Map Chromosomal Rearrangements

Although chromosomal rearrangements represent common genetic polymorphisms among S. cerevisiae strains, the determination of the fitness impact of chromosomal rearrangements independently from the effect of DNA point mutations remains challenging. To tackle this, as described below, several technologies and analysis methods have been developed to improve the efficiency of generating and mapping targeted chromosomal rearrangements.

4.1. Synthetic Chromosome Rearrangement and Modification by loxP-Mediated Evolution (SCRaMbLE)

Facilitated by advances in DNA synthesis, the yeast chromosomes can be de novo resynthesized and systematically modified [109]. With symmetric loxP site (ATGTACAT) sites inserted 3 bp after the stop codon of each nonessential gene, an inducible chromosome rearrangement system defined as SCRaMbLE can be built in the synthetic yeast genome (Sc2.0; www.syntheticyeast.org). As mentioned in Table 1, this approach proved to be efficient to generate mutants with enhanced stress tolerance and metabolic capacities through massive chromosome rearrangement upon the expression of Cre recombinase that recognizes the LoxP sites [110,111,112,113,114]. For example, Luo et al. [110] illustrated the application of SCRaMbLE to yield robust mutants from a parental strain with synthesized chromosome XII. In one mutant showing higher ethanol resistance, it was identified that an inversion event that caused the function loss of the transcription factor gene ACE2 was responsible for the improved ethanol tolerance. To aid the selection of positive SCRaMbLEd colonies, Luo et al. [110] also developed a genetic screening system based on the on/off switch of two auxotrophic markers flanked by two loxP sites. Following the induction of Cre recombinase, the marker gene cassette is inverted, resulting in one marker (URA3) being turned on and the other (LEU2) being turned off [110].

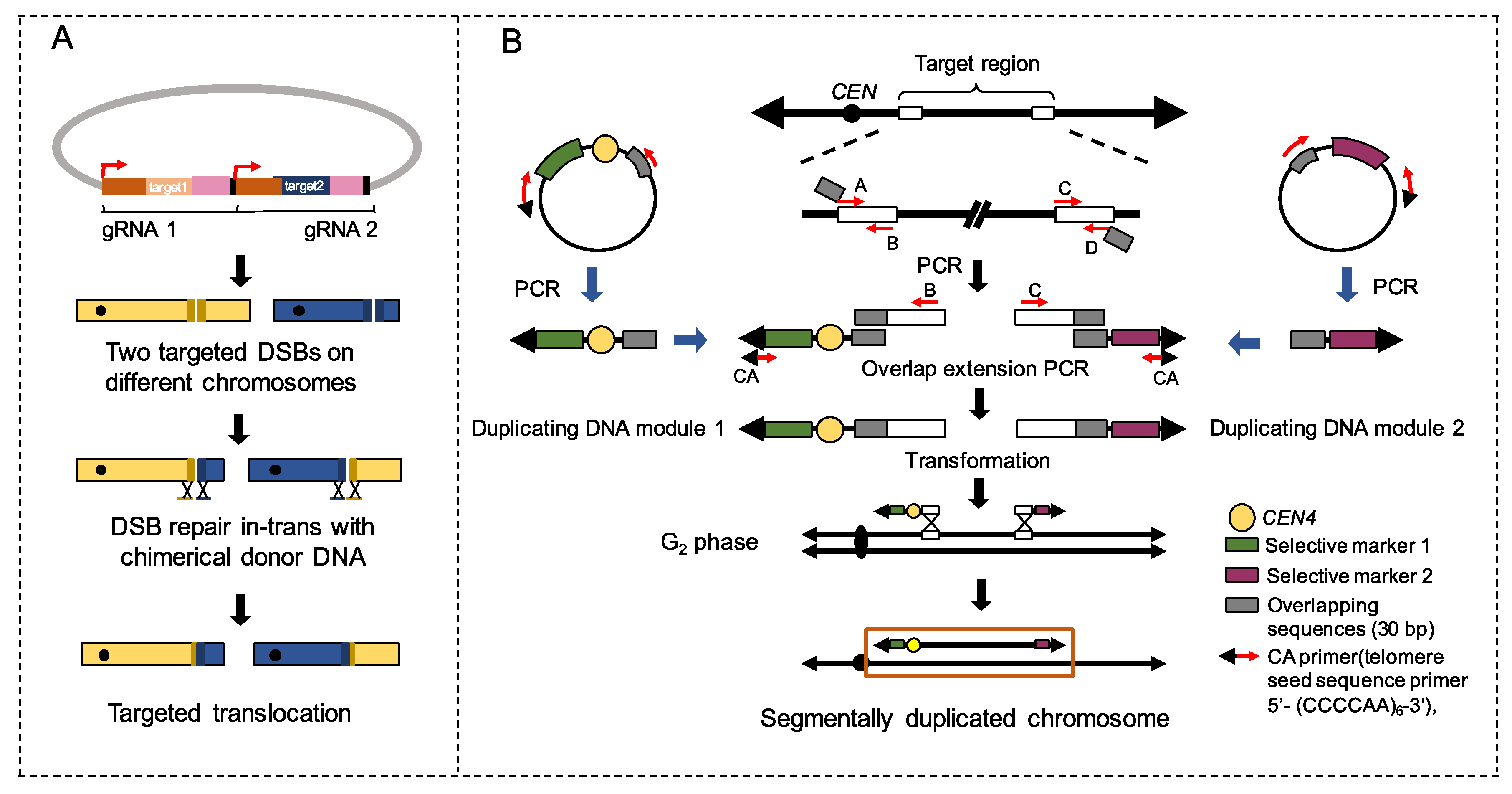

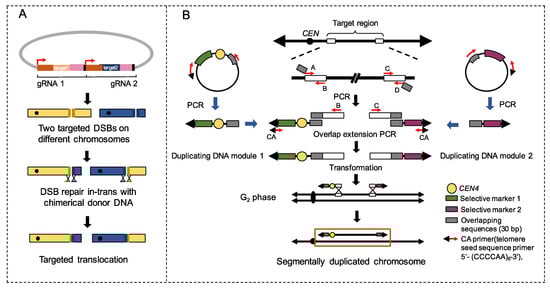

4.2. Generation of On-Demand Chromosomal Rearrangements

Fleiss et al. [115] reported an application of the Clustered Regularly Interspaced Short Palindromic Repeats-CRISPR associated (CRISPR-Cas ) system to generate uniquely targeted translocation. In their protocol, two Cas9-induced DSBs were introduced on different chromosomes to force the trans-chromosomal repair through HR by chimerical donor DNAs (Figure 2A) [115]. The authors also developed a protocol to generate multiple concomitant reciprocal translocations by introducing guide RNA sequences targeted to LTRs [115]. It was demonstrated that LTR-mediated rearrangements are efficient to fuel phenotypic diversification [115]. The work of Natesuntorn et al. [116] described a PCR-mediated method to construct targeted chromosomal segments (Figure 2B). As shown in Figure 2B, two guiding “duplicating DNA modules” were first amplified by PCR and transformed into yeast cells to initiate the segmental duplication of the targeted chromosomal region by HR. Up to 300 kb of the targeted chromosomal region can be generated efficiently by this method [116]. Phenotypic assays of the segmental duplication mutants showed direct associations between segmental duplication and improved resistance against environmental stressors (see Section 5). However, since the duplicated region in this study was large (100 to 300 kb) and always contained at least dozens of genes, further work is required to verify the contribution of a specific gene or a smaller number of genes to the improved tolerance.

4.3. Detection of Rearrangements by Nanopore Sequencing Technology

PFGE paired with Southern blot analysis has been widely used to identify the rearrangement event in the yeast genome. The application of high-throughput analysis methods, including CGHarray [40], SNP microarray [117], and second-generation sequencing [53,54], allows mapping of chromosomal rearrangements at the whole genome level. However, second-generation sequencing lacks the ability to parse junctions if the rearrangement events are mediated by long (>300 bp) repeats due to short sequencing reads [118]. The long-read sequencing platforms have the potential to address this challenge. Researchers have reported read lengths in excess of 2 Mb using Oxford nanopore sequencing [119]. The study of McGinty et al. [118] illustrated the advantages of nanopore sequencing over other methods in identifying repeat-mediated complex chromosomal rearrangements in S. cerevisiae. To obtain long reads, high-molecular-weight DNA extraction and careful library preparation should be done. The “dry” part of nanopore sequencing includes base calling to obtain read sequences, mapping of reads onto the reference genome, and detection of rearrangement events. Albacore, Guppy, and Flappie are widely used for base calling of nanopore reads [120]. The combination of NGMLR (mapping reads to genome) and Sniffles (variation calling) is powerful to detect chromosomal rearrangements using nanopore reads [121]. Finally, the alignments can be visualized using Ribbon, a tool specializing in split reads [122]. It is worth mentioning that nanopore sequencing has a broad application in the detection of structure variations in human genomes as well [123]. With the improvement of base quality and mapping methods, we expect that nanopore sequencing will provide a greater opportunity for chromosomal arrangement analysis in the near future.

5. Phenotypic Effects of Chromosomal Rearrangements

In addition to being the best studied model organism of eukaryotes, S. cerevisiae is also widely used in the fields of baking, winemaking, brewing, bioethanol production, and synthetic biology. S. cerevisiae cells inevitably encounter stressors including high concentrations of substrates and fermentation products, metal ions, temperature fluctuation, and inhibitors (such as weak acids, furan derivatives, and phenolic compounds) during the industrial processes [124]. Stress tolerance is a key component of the yeast-based fermentation directly influencing the production efficiency [125]. Genomic studies of S. cerevisiae strains isolated from natural, clinical, and industrial conditions have uncovered various chromosomal rearrangement events in this species, indicating genomic structural variations are beneficial, and provide the stock for adaptive evolution under certain conditions [11,103,126,127,128]. In Table 1, we summarize the studies showing the associations of chromosomal rearrangements and phenotypic variations in S. cerevisiae strains.
Copper is an essential cofactor for many enzymes, but a high copper content in a medium is toxic to yeast cells during the ethanol fermentation process [129]. Chang et al. [130] found that the S. cerevisiae strains isolated from the Evolution Canyon, Israel, were highly resistant to copper. This phenotype mainly resulted from the recombination between chromosomes VII and VIII, which increased the copy numbers of CUP1 and CUP2, two major genes involved in copper regulation [130]. Interestingly, they also observed that the chromosomal rearrangements in copper-tolerant yeast strains were highly reversible, suggesting that chromosomal rearrangement provides not only a fast arising but also readily reversible source of genomic variations during adaptive evolution [130]. Using PCR-mediated chromosome duplication technology (see Section 4.2), Natesuntorn et al. [116] constructed S. cerevisiae strains in which a certain chromosomal region (100–290 kb) was duplicated. Such segmental duplication was effective to improve the tolerance to high temperature (39 °C and 40 °C), lactic acid (4% and 5%), ethanol (8%), sulfuric acid (0.44%), acetic acid (80 mM), formic acid (36 mM) or NaCl (1.2 M) [116]. The authors also found the duplication of certain chromosomal segments, such as the region from 400 kb to 601 kb on chromosome II, contributed to the resistance of multiple stressors. Sugiyama et al. [131] found the deletion of the DNA region between UBP2 and LSC1 on chromosome XV resulted in a sensitive phenotype of hygromycin B. However, knocking out each individual ORF within the deleted region alone did not result in hygromycin B sensitivity, suggesting certain phenotypic changes can only occur when multiple genes are deleted or duplicated at the same time [131].
The DAL cluster that contains 6 DAL genes is the largest metabolic gene cluster in the yeast genome, enabling yeast to use the non-preferred nitrogen source allantoin. Naseeb and Delneri found that inversion of the DAL2 gene (encoding allantoicase that converts allantoate to urea and ureidoglycolate) in the DAL cluster reduced the expression of DAL2 and its neighboring genes DAL1 (encoding allantoicase that converts allantoin to allantoate) and DAL4 (encoding allantoin permease) as well, leading to reduced fitness in allantoin-containing medium [132]. Sulfites are a food preservative widely used in winemaking. S. cerevisiae can produce sulfites (H2S and SO2) during alcoholic fermentation. Resistance to sulfites is a desired trait for yeast used for winemaking [133]. Zimmer et al. [134] reported that a translocation between chromosome XV and chromosome XVI in the wine strain GN increased the expression of the sulfite pump (Ssu1p), thus resulting in a shorter lag phase time. The exact chromosomal breakpoint occurred at the position 161,342 (between ADH1 and PHM7) and 373,561 (between SSU1 and NOG1) for chromosome XV and chromosome XVI, respectively [134]. In the other wine strain, an inversion event mediated by the microhomology sequence between SSU1 and GCR1 regulatory regions led to an increase in the expression of SSU1 and sulfite resistance [135].
SCRaMbLE has been proven powerful to enhance tolerance to high temperature, ethanol, lactic acid, and alkali in the S. cerevisiae strains harboring synthesized chromosomes [110,114]. This system can also be used to construct mutants with improved yields of high value-added compounds and substrate utilizing capability. Xylose is abundant in lignocellulosic biomass, while it cannot be utilized by the wild S. cerevisiae for growth and ethanol fermentation. Using SCRaMbLE, xylose utilization was improved in S. cerevisiae with a synthesized chromosome V and a plasmid harboring two genes (XYL1 and XYL2 from Scheffersomyces stipitis) involved in xylose metabolism [112]. In the same study, the authors also obtained SCRaMbLEd strains with enhanced production of violacein and penicillin G [112]. Jia et al. [111] integrated the carotenoid pathway containing gene crtE, crtI, and crtYB, into a haploid strain with synthesized chromosome V, resulting in a start strain yJBH000 that produced 12.53 mg/L carotenoid. The production of carotenoids was increased 1.5-fold in the yJBH000-derived mutants, in which gene YEL013W was lost after SCRaMbLE [111].
It is likely that certain chromosomal rearrangements can be readily selected under stressful conditions. Dunham et al. [136] reported that the evolved strains selected from glucose-limited conditions often carry an amplified region (HXT6/7 region on chromosome IV) that encodes a high-affinity hexose transporter. Gresham et al. [137] found the amplifications of a high-affinity sulfate transporter locus (SUL1) can be selected, contributing to the faster growth of S. cerevisiae under sulfate-limited conditions. In the work of Zhang et al. [58], a H2O2-resistant mutant was selected after multiple rounds of H2O2 treatments. By whole-genome SNP microarray, the authors found chromosome VII underwent multiple in situ segmental duplications in that mutant. As a result, the mutant obtained H2O2 resistance due to the amplification of the catalase-encoding gene CTT1 [58]. Interestingly, chronic exposure of human fibroblasts to H2O2 also resulted in the amplification of the catalase-encoding gene CAT and enhanced oxidative stress resistance [138]. Given the fact that ROS is inevitably produced in cellular metabolism and can be readily induced by a variety of environmental conditions [105], oxidative DNA damage may be a general factor that drives chromosomal rearrangements in eukaryotes.
How do chromosomal rearrangements fuel phenotypic alterations? Firstly, chromosomal rearrangement-associated DNA dosage changes lead to altered gene expression levels. Secondly, translocations cause gene dysregulation at translocation breakpoints and/or gene fusion [130,132]. Thirdly, rearrangements reorganize the 3D architecture of chromosomes, which in turn can modify the expression of genetic information [6,7]. Lastly, cells with large deletions/duplications, such as aneuploidy cells, may suffer from aneuploidy-associated stresses [139,140]. We refer the reader interested in the phenotypic effects of whole chromosome aneuploidy to the reviews [44,126].
Table
Table 1. Studies of phenotypic effects of chromosomal rearrangements in S. cerevisiae.
Table 1. Studies of phenotypic effects of chromosomal rearrangements in S. cerevisiae.
StrainsEventsPhenotypic EffectReference
JSC25-1 (a diploid lab strain)Duplication of a region that contains catalase-encoding gene CTT1 on chrVIIImproved tolerance to H2O2[58]
FY834Deletion of the region between UBP2 and LSC1 on chrXVSensitive to hygromycin B[131]
FY3Inversion of DAL cluster on chrIXDrop in fitness in allantoin-containing medium[132]
Strains isolated from Evolution Canyon, IsraelA rearranged 900-kb chromosome that contains two chrVIII fragments and a rearranged 650-kb chromosome containing a chrVII fragment and a chrVIII fragment.Enhanced copper tolerance[130]
GNTranslocation between chr XV and chrXVI involving the promoter of ADH1 and the gene SSU1Adaptation to sulfite[134]
ScDupSegmental duplication of region 0–158 kb on chrIII in ScDup (C3-1); 158–317 kb on chrIII in ScDup (C3-2); 398–577 kb on chrV in ScDup (C5-3); 800–1091 kb on chrVII in ScDup (C7-5); 195–403 kb on chr X in ScDup (C10-2); 491-692 kb on chr XII in ScDup (C12-3); 199–401kb on chrXV in ScDup (15-2)Heat tolerance[116]
ScDupSegmental duplication of region 400–601 kb on chrII in ScDup (C2-3); 1401–1532 kb on chrIV in ScDup (C4-8)Acetic acid tolerance[116]
ScDupSegmental duplication of region 0–201 kb on chrIV in ScDup (C4-1); 0–252 kb on chrXII in ScDup (C12-1); 491–692 kb on chrXII in ScDup (C12-3)Lactic acid tolerance[116]
ScDupSegmental duplication of region 400–601 kb on chrII in ScDup (C2-3)Formic acid tolerance[116]
ScDupSegmental duplication of region 400–601 kb on chrII in ScDup (C2-3); 0–158 kb on chrIII in ScDup (C3-1); 800–1091 kb on chrVII in ScDup (C7-5); 491–692 kb on chrXII in ScDup (C12-3); 0-205kb on chrXIII in ScDup (C13-1); 596–800 kb on chrXVI in ScDup (C16-4);Enhanced tolerance to 1.2 M NaCl[116]
ScDupSegmental duplication of region 398–577 kb on chrV in ScDup (C5-3); 800–1091 kb on chrVII in ScDup (C7-5); 199–401kb on chrXV in ScDup (15-2); 198–399 kb on chrXVI in ScDup (C16-2); 596–800 kb on chrXVI in ScDup (C16-4)Ethanol tolerance[116]
Haploid strain with synthesized chrVAn inversion of a 7-kb region encoding GCN4, YEL008W, MIT1, and YEA6 genes and deletion of a 785-bp region containing the short MXR1 coding sequenceImproved xylose utilization[112]
Haploid strain with synthesized chrVDeletion of the YEL013W- containing region on synVImprovement in carotenoid production[111]
A diploid strain (crossing sake-brewing strain Y12 and a synthesized chrV-bearing strain)Deletion of the region spanning YJL154C-YJL140WImproved thermotolerance[113]
Haploid strain with synthesized chrXIIAn inversion involves ZRT2 and ACE2 on synXIIEnhanced tolerance to ethanol[110]
A wine yeast strainAn inversion in chrXVI involves SSU1 and GCR1 regulatory regionsTolerance to sulfite[135]
Haploid strain with synthesized chrVDeletion of the SPT2-containing region on synVEnhanced alkali tolerance[114]

6. Conclusions

In this review, we have discussed the origin, regulation, and evolutional effect of chromosomal rearrangements in the model organism S. cerevisiae. In the wild-type cells of diploid S. cerevisiae, the spontaneous rate of this genomic alteration is about 10−4 per cell division, but it can be greatly induced by DNA replication stress, DNA repair inactivation, radiation, oxidative stress, drugs, etc. Despite the various inducers, most rearrangement events in the yeast genome involve homologous recombination between dispersed repeats such as the Ty retrotransposons. It is likely that the numbers of direct repeats, the sequence similarity and distance between the repeats, and the genetic effect of the event are crucial factors to determine the patterns of chromosomal rearrangements among the various S. cerevisiae strains. It should be noted that the chromosomal rearmaments always occur at a much lower rate than that of LOH events under both spontaneous and stressful conditions. This phenomenon reflects that most recombinogenic lesions would be preferably repaired by SDSA and DSBR rather than other rearrangement-prone pathways in yeast (Figure 1). Moreover, most chromosomal rearrangements may be generally more harmful to cells than copy-neutral LOH events, although a specific chromosomal rearrangement can be readily selected under certain conditions. Using the technologies of introducing on-demand rearrangements, the fitness effect of a particular rearrangement event can be well explored in yeast. Additionally, the long-read sequencing has served as a powerful analysis tool to map the junctions of complex rearrangements with high resolution in yeast, as well as in higher eukaryotes. Recently, eccDNA has been shown to constitute a more prominent phenomenon of genomic instability in cancers, while the underlying genetic mechanisms of eccDNA formation remain unclear [5,6,7,141]. The excellent tools available for the yeast S. cerevisiae enable improved understanding of the origins and fates of eccDNA in eukaryotes.

Funding

This study was supported by grants from the National Natural Science Foundation of China (32022004 and 31800055) and the Natural Science Foundation of Zhejiang Province (LY18C060002).

Acknowledgments

Due to the concise format of this review, I apologize to all colleagues whose work was not cited. We thank all members of the DQ lab for comments on the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.
