Article

Morphing of Ibogaine: A Successful Attempt into the Search for Sigma-2 Receptor Ligands

by
Giuseppe Floresta
1,
Maria Dichiara
1,
Davide Gentile
1,
Orazio Prezzavento
1,
Agostino Marrazzo
1,
Antonio Rescifina
1,2,* and
Emanuele Amata
1,*
1
Department of Drug Sciences, University of Catania, V.le A. Doria, 95125 Catania, Italy
2
Consorzio Interuniversitario Nazionale di ricerca in Metodologie e Processi Innovativi di Sintesi (C.I.N.M.P.S.), Via E. Orabona, 4, 70125 Bari, Italy
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2019, 20(3), 488; https://doi.org/10.3390/ijms20030488
Submission received: 31 December 2018 / Revised: 18 January 2019 / Accepted: 21 January 2019 / Published: 23 January 2019
Browse Figures
Versions Notes

Abstract

:
Ibogaine is a psychoactive indole alkaloid with high affinity for several targets including the σ2 receptor. Indeed, extensive data support the involvement of the σ2 receptor in neurological disorders, including Alzheimer’s disease, schizophrenia, alcohol abuse and pain. Due to its serious side effects which prevent ibogaine from potential clinical applications, novel ibogaine derivatives endowed with improved σ2 receptor affinity may be particularly beneficial. With the purpose to facilitate the investigation of iboga alkaloid derivatives which may serve as templates for the design of selective σ2 receptor ligands, here we report a deconstruction study on the ibogaine tricyclic moiety and a successive scaffold-hopping of the indole counterpart. A 3D-QSAR model has been applied to predict the σ2 pKi values of the new compounds, whereas a molecular docking study conducted upon the σ2 receptor built by homology modeling was used to further validate the best-scored molecules. We eventually evaluated pinoline, a carboline derivative, for σ2 receptor affinity through radioligand binding assay and the results confirmed the predicted high µM range of affinity and good selectivity. The obtained results could be helpful in the drug design process of new ibogaine simplified analogs with improved σ2 receptor binding capabilities.

Graphical Abstract

1. Introduction

First introduced as subtypes of the opioid receptor and as high-affinity phencyclidine binding sites, sigma receptors are now recognized as a particular and unique receptor class. Two subtypes are currently known, denoted as sigma-1 (σ1) and sigma-2 (σ2) receptors, having a different structures, biological functions, and pharmacological profiles.
Sigma-1 σ1 receptor has been identified as a 25.3 kDa chaperone protein within the mitochondria-associated endoplasmic reticulum membranes (MAMs) [1]. Recently, the crystal structure of the human σ1 receptor has been reported revealing a trimeric architecture [2]. Sigma-1 σ1 receptor is highly expressed in both the central and peripheral nervous system, with involvement in the production of neurotrophic factors and in the protection of the mitochondrial integrity [3,4]. In this view, σ1 receptor agonists represent potential therapeutic agents for the treatment of several neuropsychiatric and neurodegenerative disorders, whereas σ1 receptor antagonists have been reported for their antiproliferative and antiangiogenic effects, in addition to the modulation of pain and drug abuse-related conditions [5,6,7,8,9,10].
Sigma-2 σ2 receptor is a poorly understood protein whose identification has been controversial. For a long time its binding site has been postulated to be located in the progesterone receptor membrane component 1 (PGRMC1). A recent study has highlighted that σ2 receptor and PGRMC1 are different proteins since the presence or absence of PGRMC1 has no impact on σ2 ligands binding ability [11]. In 2017, Alon and coworkers [12] identified the σ2 receptor as an endoplasmic reticulum-resident transmembrane protein (TMEM97) playing a role in the cholesterol homeostasis and the sterol transporter Niemann–Pick disease type C1. Despite the challenges in identifying its true identity, σ2 receptor has earned a growing scientific interest due to its involvement in several disease states. High levels of the σ2 receptor have been found in several cancer cells and proliferating tumors such as lung, colorectal, ovarian, and breast cancers [13]. Extensive data support the utility of sigma-receptor ligands as cancer therapeutics and diagnostic tools [14,15]. Due to a 10-fold higher density in proliferating tumor cells than in quiescent tumor cells, σ2 receptor also represents an important clinical biomarker for determining the proliferative status of solid tumors [14]. The fluorine (F18) ISO-1 is a promising positron emission tomography (PET) ligand evaluated in clinical trials for the imaging of σ2 receptor binding in primary breast cancer [16].
More recently, σ2 receptor has been implicated in neurological disorders, including Alzheimer’s disease, schizophrenia, alcohol abuse, and pain [17,18,19,20]. The small-molecule CT1812, a σ2 receptor antagonist whose structure has not been disclosed, is currently under clinical trial in patients with mild to moderate Alzheimer’s disease [21]. Also, Roluperidone (MIN-101) is in phase III clinical trials for the treatment of negative symptoms of schizophrenia [21].
Ibogaine (Figure 1), a psychoactive indole alkaloid, is a typical “dirty drug” with high affinity for a panel of targets including NMDA, κ- and µ-opioid receptors and σ2 receptor sites [22]. Ibogaine has also shown to interact with the acetylcholine, serotonin, and dopamine systems and to modify the expression of some proteins including substance P and brain-derived neurotrophic factor (BDNF) [23,24]. Initially used for its hallucinogenic properties, ibogaine has been then investigated for its potential in treating drug abuse [25]. However, little research in humans has been done due to the severe side effects and death following its ingestion, including tremors, neurotoxicity, and cardiotoxicity [26].
As mentioned above, the receptor sites through which ibogaine mediates its effects are not known with certainty even if clear evidence indicates that ibogaine and other iboga alkaloids interact with σ2 receptors. Indeed, ibogaine shows a moderate nanomolar affinity for σ2 receptor with a Ki value of 201 nM and good selectivity over σ1 site (Ki 8554 nM) [22]. Lower affinity values for other neurotransmitter receptors have been showed [27,28,29]. Similar Ki values have been reported for other iboga alkaloid analogs in which the presence or the position of the methoxy group on the aromatic ring of the indole moiety as the presence of another substituent appears to be not critical for σ2 affinity [30,31,32].
In light of the neurotoxic and tremorigenic effects, which associated with a complex structure prevent ibogaine from potential clinical applications, synthetic σ2 receptor analogs with low toxicity may be particularly beneficial. However, the development of ligands endowed with high affinity and selectivity can often run into several limitations and challenges. With the aim to overcome this issue, we recently reported the σ2 receptor selective ligand database (S2RSLDB, http://www.researchdsf.unict.it/S2RSLDB, accessed on 23 January 2019), a manually curated collection of the whole set of selective σ2 receptor ligands published in the literature [33]. At the same time, we also developed a 2D-QSAR affinity filter [34], built-up with 548 compounds, and a 3D-QSAR model for the identification of potentially selective σ2 receptor ligands [35,36].
With the interest to find new and easily synthesizable skeletons able to interact with the σ2 receptor, we have performed a deconstruction study of the ibogaine structure. In the study we report here, we have systematically modified the tricyclic moiety of ibogaine and its indole counterpart using a scaffold-hopping approach, and investigated the ability of the new obtained fragments to bind to the σ2 receptor. The σ2 pKi values of these new compounds were predicted applying the abovementioned 3D-QSAR model and the potency of the best-scored molecules were further validated by a molecular docking analysis using the σ2 receptor homology model already reported by us [37].

2. Results and Discussion

2.1. 3D-Ligand Evaluation and Scaffold-Hopping Analysis

With the aim to produce a library of virtual compounds to further guide us in development of new hit ibogaine derived σ2 receptor ligands, we proceed to deconstruct the tricyclic ibogaine system containing the azepane moiety by a first scaffold-hopping [38,39,40] approach set out to maintain an indolo fused six- or seven-membered ring (Figure 1, Series 1). Successively, on the best-scored compound was performed a second scaffold-hopping cycle to alter the external aromatic (Figure 1, Series 2). As expected, this second series of compounds results as potentially more effective; in fact, in this series the ibogaine scaffold was optimized in both the selected components in Figure 1, differently in the series only one component was optimized.
Then the resulted molecules (1055 from Series 1 and 500 from Series 2) were filtered through statistical/2D descriptors filters using DataWarrior software [41]. To perform this, we analyzed the most potent and selective compounds present in the S2RSLDB [33] retrieving only the ligands presenting a σ2 Ki value ≤ 10 nM and a σ1/σ2 selectivity ≥ 1, for a total of 115 entities. The ranges of molecular weight (up to 651), cLogP (1.76/8.43), cLogS (−9.51/−2.26), H-acceptors (1/9), H-donor (0/2), Druglikeness (−15.1/8.2), DrugScore (0.04/0.86), topological polar surface area (3/96) belonging to the 115 potent and selective compounds were all chosen as 2D descriptors and the dataset of 1555 molecules was further filtered using these interval values to give 179 molecules from the Series 1 and 319 molecules from the Series 2.
The resulting 498 filtered molecules and the ibogaine were aligned in the 3D-QSAR model using Forge (v10.4.2, Cresset, New Cambridge House, United Kingdom) as a software [42], by adopting parameters reported in Figures S1 and S2. Once aligned, these compounds were scored assuming that if the fields (defined as the local extrema of the electrostatic, van der Waals, and hydrophobic potentials of each molecule) of the newly designed molecules are very similar to that of the original compounds, the resulting compounds will have similar biological properties [37,43,44,45]. The evaluation of the ibogaine in the 3D-QSAR model resulted in a predicted pKi value of 6.8, which is in excellent agreement with the experimental one (6.69) [22]. Some selected compounds resulted from the 3D-ligand based filter are reported in Table 1; Table 2 while the full set of compounds is present in the Supplementary Materials (Tables S1 and S2). Overall, the results indicate that the double scaffold-hopping approach and the following 3D-QSAR model evaluation generate compounds with a suitable chemical structure for the σ2 receptor binding. Most importantly, several of the new generated compounds are predicted to be more effective than the parent hit compound ibogaine.
Interestingly, among the 179 molecules of Series 1 we found a simplified analogue (Table 1) of incazane (metralindole, Figure 2), a reversible inhibitor of the monoamine oxidase A possessing an antidepressant activity [46], and the natural product pinoline (Table 1), another inhibitor of the monoamine oxidase A [47].

2.2. Molecular Docking Analysis

To further validate the predicted pKi values of the 3D-QSAR model and to investigate the interactions of the new ligands within the σ2 receptor active site, we conducted a docking study on the selected compounds reported in Table 3. Each ligand was docked in the binding pocket of the σ2 receptor structure already built, in our group, by homology modeling [37]; successively, the best pose/receptor complex structure was minimized to allow the ligand to better adapt to the pocket of the active site and then a re-docking was performed using the same procedure already reported by us [48]. The values of the calculated pKi, reported in Table 3, are well in accord to the predicted ones by the 3D-QSAR model with the exception for the incazane derivative and compound 2_1. Interestingly, the pKi value calculated by docking for compound 2_1 is the same as DTG (1,3-di(2-tolyl)guanidine) [49], a selective sigma receptor ligand used for the binding assays, of which it shares the portion similar to guanidine.
Moreover, to investigate the σ1/σ2 selectivity (SI) of this set of compounds, we conducted a molecular docking study using the crystal structure of the human σ1 receptor model bound to the high-affinity and selective σ1 antagonist PD144418 (PDB ID: 5HK1), employing the same methodology already validated by us [48]. The SI values reported in Table 3 for reference compounds (ibogaine and DTG) indicate that the computational models are efficient in the prediction and the new compounds should possess an effective σ2 selectivity.
A representation of the best docked pose for compound 2_4 is depicted in Figure 3. There are clearly visible two hydrogen bonds between the LYS67 and LEU70 with the two hydrogen atoms at nitrogens and another one between LYS67 and a methoxyl oxygen atom. Moreover, two π-ion interactions were established between the ASP56 and the two aromatic rings of the indole and another two between the ASP56 and PHE71 with the π-orbital of the nitrogen atom of the 1,3-diazepine ring. A comparison of the best docked poses for ibogaine, pinoline and compound 2_4 are reported in Figure S3.

2.3. Pinoline Biological Assay

Among the compounds with the best 3D-QSAR predicted and docking calculated pKi values, we decided to evaluate pinoline (compound 1_179) for affinity at both σ1 and σ2 receptors, with haloperidol as reference standard. Our choice was grounded on a structural simplicity, ease of commercial availability, and based on the fact that literature data for sigma binding affinity for pinoline have not been provided yet. However, the lack of a substituent on the N-atom of the piperidine appears to be critical for σ2 affinity since a Ki of 35.4 ± 2.6 µM (pKi = 4.45) has been shown (Figure S4), thus confirming the range of magnitude for this displacement assay predicted by the in silico models. Moreover, the measure of the σ1 affinity for pinoline give a Ki value > 100 (pKi < 4.00) accordingly with the calculated selectivity.

3. Materials and Methods

3.1. 2D to 3D Building and Minimization of Structures

The structures of ibogaine and related compounds were built using Marvin Sketch (ChemAxon, Budapest, Hungary). The 2D structures were subjected to molecular mechanics energy minimization by Merck molecular force field (MMFF94) using the Marvin Sketch geometrical descriptors plugin. The protonation states of the molecules were calculated considering a neutral pH. Before the alignment for the 3D-QSAR filter, the geometry of the obtained 3D structures was further optimized at semi-empirical level using the parameterized model number 3 (PM3) Hamiltonian [50,51] as implemented in MOPAC package (vMOPAC2016, Stewart Computational Chemistry, Colorado Springs, CO, USA) [52].

3.2. Compound Alignment and Scaffold-Hopping Analysis

All the optimized three-dimensional structures were imported into the software Forge (v10.4.2, Cresset, New Cambridge House, UK). The computational evaluation of all the molecules in the imported dataset was made by the field-based 3D-QSAR model previously published [35], after a careful alignment with the training set of the model (see Supplementary Material for more information). The molecules were described by means of field points (negative, positive, shape and hydrophobic), and all of them were generated using the extended electron distribution (XED) force field in Forge. In Figures S1 and S2 (Supplementary Material) are shown the software’s parameters used for the conformation hunt and the alignment. 500 was set as maximum number of conformations generated for each molecule. The root-mean-square deviation of atomic positions cutoff for duplicate conformers was set to 0.5 Å (the similarity threshold below which two conformers are assumed identical). The gradient cutoff for conformer minimization was set to 0.1 kcal/mol. The energy window was set to 2.5 kcal/mol. Conformers with a minimized energy outside the energy window were discarded. The scaffold-hopping analysis was performed using Spark as a software (v10.4.0) using the same 511717 fragments [38,39,40,45].

3.3. Molecular Docking

Docking experiments were performed employing AutoDock 4.2.5.2 software implemented in YASARA (v. 18.12.7, YASARA Biosciences GmbH, Vienna, Austria) [53,54] using the homology model of the σ2 receptor previously built by the same authors. The maps were generated by the program AutoGrid (4.2.5.2) with a spacing of 0.375 Å and dimensions that encompass all the surface of the active site. All the parameters were inserted at their default settings as previously reported [37].
To allow each ligand to adapt to the binding pocket, we carried out this study utilizing a three-step sequence already validated by us [48]: (i) ligand was docked upon σ1 or σ2 receptor, (ii) 5 ns of molecular dynamic (MD) simulation of the best pose obtained for the ligand/σ receptor complex, in order to accommodate the ligand, and (iii) redocking of the complex obtained from the last 3 ns of MD simulation averaged frames. The MD simulation was performed as described in Reference [48].

3.4. Radioligand Binding Assay

Sigma-2 binding experiments were performed as previously reported by Matsumoto et al. [55] and Mach et al. [56]. Briefly, each tube containing 360 µg of membrane protein was incubated with 3.26 nM [3H]DTG (1,3-di-2-tolylguanidine, Perkin Elmer, Waltham, MA, USA) (31 Ci/mM) in the presence of 400 nM (+)-SKF10,047 (Sigma-Aldrich, Saint Louis, MO, USA) to mask the σ1 sites. Test compounds were dissolved in dimethyl sulfoxide and then diluted in buffer to a final volume of 1 mL. Pinoline (Sigma-Aldrich, Saint Louis, MO, USA) was added to give a concentration in the range of 10−3–10−10 M, while haloperidol (Sigma-Aldrich, Saint Louis, MO, USA) was added to give a concentration in the range of 10−5–10−10 M. Incubation was carried out in 50 mM Tris-HCl (pH 8.0) for 120 min at room temperature. Each assay was terminated by the addition of ice-cold 10 mM Tris-HCl, pH 8.0, followed by filtration through a Whatman GF/B glass fiber filter that had been presoaked for 1 h in a 0.5% polyethylenimine (PEI) (Sigma-Aldrich, Saint Louis, MO, USA) solution. Filters were washed twice with 4 mL of ice-cold buffer. Non-specific binding was assessed in the presence of 5 µM DTG (Tocris, Minneapolis, MN, USA).
Sigma-1 binding assays were carried out according to DeHaven et al. [57]. Each tube containing 500 µg of membrane protein was incubated with 3.26 nM [3H]-(+)-pentazocine (Perkin Elmer, Waltham, MA, USA) (45 Ci/mmol) in 50 mM Tris-HCl (pH 7.4). Non-specific binding was evaluated in the presence of 10 µM haloperidol. Test compounds were dissolved in dimethyl sulfoxide and then diluted in buffer to a final volume of 1 mL. Pinoline was added to give a concentration of 10−4 M, while haloperidol was added to give a concentration in the range of 10−5–10−10 M. After incubation (150 min at 37 °C), the samples were filtered through Whatman GF/B glass fiber filters that were presoaked in a 0.5% PEI solution using a millipore filter apparatus. The filters were washed twice with 4 mL of ice-cold buffer and the amount of bound radioactivity on the filters air-dried and then soaked in Scintillation cocktail (Ultima Gold MV, Perkin Elmer, Waltham, MA, USA) was measured using a liquid scintillation counter (Beckman LS6500). Results are expressed as inhibition constants (Ki values) and calculated using GraphPad Prism (GraphPad Software, San Diego, CA, USA).

4. Conclusions

Ibogaine simplified analogs with high affinity for σ2 receptor represent an attractive and useful field to investigate. However, the development of ligands endowed with high affinity and selectivity has often several challenges. In this view, in silico methods have become essential tools in the drug design process. With the aim to find new, easily synthesizable skeletons able to interact with σ2 receptor, we here reported a deconstruction study on the ibogaine tricyclic moiety and a successive scaffold-hopping of the indole counterpart that indicated two new scaffolds that further decorated could constitute an excellent alternative for the synthesis of powerful σ2 receptor ligands. In particular, compound 2_4 emerged for the predicted/calculated pKi values of 8.1 and 8.39, respectively, which are about 1.6 units higher than that of ibogaine. We eventually evaluated pinoline, a carboline derivative, for σ2 receptor affinity through radioligand binding assay and the result confirmed the predicted high µM range of affinity and even a good selectivity. The obtained results will be used by our research group for the next step in the development of new ibogaine simplified analogs with improved σ2 receptor binding capabilities.

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1422-0067/20/3/488/s1.

Author Contributions

Conceptualization, G.F., A.R. and E.A.; Data curation, E.A., M.D. and D.G.; Formal analysis, G.F., D.G., A.R. and E.A.; Investigation, G.F., A.R. and E.A.; Methodology, G.F., A.R. and E.A.; Project administration, A.R. and E.A.; Resources, G.F., D.G., M.D. and A.R.; Supervision, A.R. and E.A.; Validation, G.F., M.D., A.M. and E.A.; Biological assays, O.P.; Writing—original draft, G.F., M.D., O.P., A.R. and E.A.; Writing—review & editing, G.F., M.D., D.G., O.P., A.M, A.R. and E.A.

Funding

This research received no external funding.

Acknowledgments

This work was supported by the University of Catania (Piano per la Ricerca 2016–2018—Linea di Intervento 2 “Dotazione Ordinaria”). Free academic licenses from ChemAxon and Cresset for their suites of programs are gratefully acknowledged.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hayashi, T.; Su, T.P. Sigma-1 receptor chaperones at the ER-mitochondrion interface regulate Ca(2+) signaling and cell survival. Cell 2007, 131, 596–610. [Google Scholar] [CrossRef] [PubMed]
  2. Schmidt, H.R.; Zheng, S.; Gurpinar, E.; Koehl, A.; Manglik, A.; Kruse, A.C. Crystal structure of the human sigma1 receptor. Nature 2016, 532, 527–530. [Google Scholar] [CrossRef] [PubMed]
  3. Fujimoto, M.; Hayashi, T.; Urfer, R.; Mita, S.; Su, T.P. Sigma-1 receptor chaperones regulate the secretion of brain-derived neurotrophic factor. Synapse 2012, 66, 630–639. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Weng, T.Y.; Tsai, S.A.; Su, T.P. Roles of sigma-1 receptors on mitochondrial functions relevant to neurodegenerative diseases. J. Biomed. Sci. 2017, 24, 74. [Google Scholar] [CrossRef] [PubMed]
  5. Maurice, T. Improving Alzheimer’s Disease-Related Cognitive Deficits with sigma1 Receptor Agonists. Drug News Perspect. 2002, 15, 617–625. [Google Scholar] [CrossRef]
  6. Albayrak, Y.; Hashimoto, K. Sigma-1 Receptor Agonists and Their Clinical Implications in Neuropsychiatric Disorders. Adv. Exp. Med. Biol. 2017, 964, 153–161. [Google Scholar] [PubMed]
  7. Olivieri, M.; Amata, E.; Vinciguerra, S.; Fiorito, J.; Giurdanella, G.; Drago, F.; Caporarello, N.; Prezzavento, O.; Arena, E.; Salerno, L.; et al. Antiangiogenic Effect of (+/−)-Haloperidol Metabolite II Valproate Ester [(+/−)-MRJF22] in Human Microvascular Retinal Endothelial Cells. J. Med. Chem. 2016, 59, 9960–9966. [Google Scholar] [CrossRef]
  8. Amata, E.; Dichiara, M.; Arena, E.; Pittala, V.; Pistara, V.; Cardile, V.; Graziano, A.C.E.; Fraix, A.; Marrazzo, A.; Sortino, S.; et al. Novel Sigma Receptor Ligand-Nitric Oxide Photodonors: Molecular Hybrids for Double-Targeted Antiproliferative Effect. J. Med. Chem. 2017, 60, 9531–9544. [Google Scholar] [CrossRef]
  9. Arena, E.; Dichiara, M.; Floresta, G.; Parenti, C.; Marrazzo, A.; Pittalà, V.; Amata, E.; Prezzavento, O. Novel Sigma-1 receptor antagonists: From opioids to small molecules: What is new? Future Med. Chem. 2018, 10, 231–256. [Google Scholar] [CrossRef]
  10. Schinina, B.; Martoran, A.; Colabufo, N.A.; Contino, M.; Niso, M.; Perrone, M.G.; De Guidi, G.; Catalfo, A.; Rappazzo, G.; Zuccarello, E.; et al. 4-Nitro-2,1,3-benzoxadiazole derivatives as potential fluorescent sigma receptor probes. RSC Adv. 2015, 5, 47108–47116. [Google Scholar] [CrossRef]
  11. Pati, M.L.; Groza, D.; Riganti, C.; Kopecka, J.; Niso, M.; Berardi, F.; Hager, S.; Heffeter, P.; Hirai, M.; Tsugawa, H.; et al. Sigma-2 receptor and progesterone receptor membrane component 1 (PGRMC1) are two different proteins: Proofs by fluorescent labeling and binding of sigma-2 receptor ligands to PGRMC1. Pharmacol. Res. 2017, 117, 67–74. [Google Scholar] [CrossRef] [PubMed]
  12. Alon, A.; Schmidt, H.R.; Wood, M.D.; Sahn, J.J.; Martin, S.F.; Kruse, A.C. Identification of the gene that codes for the sigma2 receptor. Proc. Natl. Acad. Sci. USA 2017, 114, 7160–7165. [Google Scholar] [CrossRef]
  13. Crawford, K.W.; Bowen, W.D. Sigma-2 receptor agonists activate a novel apoptotic pathway and potentiate antineoplastic drugs in breast tumor cell lines. Cancer Res. 2002, 62, 313–322. [Google Scholar] [PubMed]
  14. Zeng, C.; McDonald, E.S.; Mach, R.H. Molecular Probes for Imaging the Sigma-2 Receptor: In Vitro and In Vivo Imaging Studies. Handb. Exp. Pharmacol. 2017, 244, 309–330. [Google Scholar]
  15. Van Waarde, A.; Rybczynska, A.A.; Ramakrishnan, N.K.; Ishiwata, K.; Elsinga, P.H.; Dierckx, R.A. Potential applications for sigma receptor ligands in cancer diagnosis and therapy. Biochim. Biophys. Acta 2015, 1848, 2703–2714. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Washington University School of Medicine. [18F]ISO-1 PET/CT in Breast Cancer. Available online: https://clinicaltrials.gov/ct2/show/NCT02762110 (accessed on 29 December 2018).
  17. Sahn, J.J.; Mejia, G.L.; Ray, P.R.; Martin, S.F.; Price, T.J. Sigma 2 Receptor/Tmem97 Agonists Produce Long Lasting Antineuropathic Pain Effects in Mice. ACS Chem. Neurosci. 2017, 8, 1801–1811. [Google Scholar] [CrossRef] [Green Version]
  18. Vazquez-Rosa, E.; Watson, M.R.; Sahn, J.J.; Hodges, T.R.; Schroeder, R.E.; Cintron-Perez, C.J.; Shin, M.K.; Yin, T.C.; Emery, J.L.; Martin, S.F.; et al. Neuroprotective Efficacy of a Novel Sigma 2 Receptor/TMEM97 Modulator (DKR-1677) after Traumatic Brain Injury. ACS Chem. Neurosci. 2018. [Google Scholar] [CrossRef]
  19. Yi, B.; Sahn, J.J.; Ardestani, P.M.; Evans, A.K.; Scott, L.L.; Chan, J.Z.; Iyer, S.; Crisp, A.; Zuniga, G.; Pierce, J.T.; et al. Small molecule modulator of sigma 2 receptor is neuroprotective and reduces cognitive deficits and neuroinflammation in experimental models of Alzheimer’s disease. J. Neurochem. 2017, 140, 561–575. [Google Scholar] [CrossRef]
  20. Scott, L.L.; Sahn, J.J.; Ferragud, A.; Yen, R.C.; Satarasinghe, P.N.; Wood, M.D.; Hodges, T.R.; Shi, T.; Prakash, B.A.; Friese, K.M.; et al. Small molecule modulators of sigma2R/Tmem97 reduce alcohol withdrawal-induced behaviors. Neuropsychopharmacology 2018, 43, 1867–1875. [Google Scholar] [CrossRef]
  21. Washington University School of Medicine. Study to Evaluate Efficacy and Safety of Roluperidone (MIN-101) in Adult Patients with Negative Symptoms of Schizophrenia. Available online: https://clinicaltrials.gov/ct2/show/NCT03397134 (accessed on 29 December 2018).
  22. Bowen, W.D.; Vilner, B.J.; Williams, W.; Bertha, C.M.; Kuehne, M.E.; Jacobson, A.E. Ibogaine and its congeners are sigma 2 receptor-selective ligands with moderate affinity. Eur. J. Pharmacol. 1995, 279, R1–R3. [Google Scholar] [CrossRef]
  23. Popik, P.; Layer, R.T.; Skolnick, P. 100 years of ibogaine: Neurochemical and pharmacological actions of a putative anti-addictive drug. Pharmacol. Rev. 1995, 47, 235–253. [Google Scholar] [PubMed]
  24. He, D.Y.; Ron, D. Autoregulation of glial cell line-derived neurotrophic factor expression: Implications for the long-lasting actions of the anti-addiction drug, Ibogaine. FASEB J. 2006, 20, 2420–2422. [Google Scholar] [CrossRef] [PubMed]
  25. Maciulaitis, R.; Kontrimaviciute, V.; Bressolle, F.M.; Briedis, V. Ibogaine, an anti-addictive drug: Pharmacology and time to go further in development. A narrative review. Hum. Exp. Toxicol. 2008, 27, 181–194. [Google Scholar] [CrossRef] [PubMed]
  26. Litjens, R.P.; Brunt, T.M. How toxic is ibogaine? Clin. Toxicol. 2016, 54, 297–302. [Google Scholar] [CrossRef] [PubMed]
  27. Deecher, D.C.; Teitler, M.; Soderlund, D.M.; Bornmann, W.G.; Kuehne, M.E.; Glick, S.D. Mechanisms of action of ibogaine and harmaline congeners based on radioligand binding studies. Brain Res. 1992, 571, 242–247. [Google Scholar] [CrossRef]
  28. Popik, P.; Layer, R.T.; Skolnick, P. The putative anti-addictive drug ibogaine is a competitive inhibitor of [3H]MK-801 binding to the NMDA receptor complex. Psychopharmacology 1994, 114, 672–674. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Sweetnam, P.M.; Lancaster, J.; Snowman, A.; Collins, J.L.; Perschke, S.; Bauer, C.; Ferkany, J. Receptor binding profile suggests multiple mechanisms of action are responsible for ibogaine’s putative anti-addictive activity. Psychopharmacology 1995, 118, 369–376. [Google Scholar] [CrossRef] [PubMed]
  30. Bowen, W.D. Sigma receptors and iboga alkaloids. Alkaloids Chem. Biol. 2001, 56, 173–191. [Google Scholar]
  31. Mésangeau, C.; Amata, E.; Alsharif, W.; Seminerio, M.J.; Robson, M.J.; Matsumoto, R.R.; Poupaert, J.H.; McCurdy, C.R. Synthesis and pharmacological evaluation of indole-based sigma receptor ligands. Eur. J. Med. Chem. 2011, 46, 5154–5161. [Google Scholar] [CrossRef] [Green Version]
  32. Prezzavento, O.; Arena, E.; Sánchez-Fernández, C.; Turnaturi, R.; Parenti, C.; Marrazzo, A.; Catalano, R.; Amata, E.; Pasquinucci, L.; Cobos, E.J. (+)-and (−)-Phenazocine enantiomers: Evaluation of their dual opioid agonist/σ1 antagonist properties and antinociceptive effects. Eur. J. Med. Chem. 2017, 125, 603–610. [Google Scholar] [CrossRef]
  33. Nastasi, G.; Miceli, C.; Pittala, V.; Modica, M.N.; Prezzavento, O.; Romeo, G.; Rescifina, A.; Marrazzo, A.; Amata, E. S2RSLDB: A comprehensive manually curated, internet-accessible database of the sigma-2 receptor selective ligands. J. Cheminform. 2017, 9, 3. [Google Scholar] [CrossRef] [PubMed]
  34. Rescifina, A.; Floresta, G.; Marrazzo, A.; Parenti, C.; Prezzavento, O.; Nastasi, G.; Dichiara, M.; Amata, E. Development of a Sigma-2 Receptor affinity filter through a Monte Carlo based QSAR analysis. Eur. J. Pharm. Sci. 2017, 106, 94–101. [Google Scholar] [CrossRef] [PubMed]
  35. Floresta, G.; Rescifina, A.; Marrazzo, A.; Dichiara, M.; Pistara, V.; Pittala, V.; Prezzavento, O.; Amata, E. Hyphenated 3D-QSAR statistical model-scaffold hopping analysis for the identification of potentially potent and selective sigma-2 receptor ligands. Eur. J. Med. Chem. 2017, 139, 884–891. [Google Scholar] [CrossRef] [PubMed]
  36. Rescifina, A.; Floresta, G.; Marrazzo, A.; Parenti, C.; Prezzavento, O.; Nastasi, G.; Dichiara, M.; Amata, E. Sigma-2 receptor ligands QSAR model dataset. Data Brief 2017, 13, 514–535. [Google Scholar] [CrossRef] [PubMed]
  37. Floresta, G.; Amata, E.; Barbaraci, C.; Gentile, D.; Turnaturi, R.; Marrazzo, A.; Rescifina, A. A Structure- and Ligand-Based Virtual Screening of a Database of “Small” Marine Natural Products for the Identification of “Blue” Sigma-2 Receptor Ligands. Mar. Drugs 2018, 16, 384. [Google Scholar] [CrossRef] [PubMed]
  38. Floresta, G.; Apirakkan, O.; Rescifina, A.; Abbate, V. Discovery of High-Affinity Cannabinoid Receptors Ligands through a 3D-QSAR Ushered by Scaffold-Hopping Analysis. Molecules 2018, 23, 2183. [Google Scholar] [CrossRef] [PubMed]
  39. Floresta, G.; Pittala, V.; Sorrenti, V.; Romeo, G.; Salerno, L.; Rescifina, A. Development of new HO-1 inhibitors by a thorough scaffold-hopping analysis. Bioorg. Chem. 2018, 81, 334–339. [Google Scholar] [CrossRef] [PubMed]
  40. Floresta, G.; Amata, E.; Dichiara, M.; Marrazzo, A.; Salerno, L.; Romeo, G.; Prezzavento, O.; Pittala, V.; Rescifina, A. Identification of Potentially Potent Heme Oxygenase 1 Inhibitors through 3D-QSAR Coupled to Scaffold-Hopping Analysis. ChemMedChem 2018, 13, 1336–1342. [Google Scholar] [CrossRef] [PubMed]
  41. Sander, T.; Freyss, J.; von Korff, M.; Rufener, C. DataWarrior: An open-source program for chemistry aware data visualization and analysis. J. Chem. Inf. Model. 2015, 55, 460–473. [Google Scholar] [CrossRef] [PubMed]
  42. Cheeseright, T.; Mackey, M.; Rose, S.; Vinter, A. Molecular field extrema as descriptors of biological activity: Definition and validation. J. Chem. Inf. Model. 2006, 46, 665–676. [Google Scholar] [CrossRef] [PubMed]
  43. Greish, K.F.; Salerno, L.; Al Zahrani, R.; Amata, E.; Modica, M.N.; Romeo, G.; Marrazzo, A.; Prezzavento, O.; Sorrenti, V.; Rescifina, A.; et al. Novel Structural Insight into Inhibitors of Heme Oxygenase-1 (HO-1) by New Imidazole-Based Compounds: Biochemical and In Vitro Anticancer Activity Evaluation. Molecules 2018, 23, 1209. [Google Scholar] [CrossRef] [PubMed]
  44. Floresta, G.; Cilibrizzi, A.; Abbate, V.; Spampinato, A.; Zagni, C.; Rescifina, A. FABP4 inhibitors 3D-QSAR model and isosteric replacement of BMS309403 datasets. Data Brief 2018, 22, 471–483. [Google Scholar] [CrossRef] [PubMed]
  45. Floresta, G.; Cilibrizzi, A.; Abbate, V.; Spampinato, A.; Zagni, C.; Rescifina, A. 3D-QSAR assisted identification of FABP4 inhibitors: An effective scaffold hopping analysis/QSAR evaluation. Bioorg. Chem. 2019, 84, 276–284. [Google Scholar] [CrossRef] [PubMed]
  46. Andreeva, N.I.; Asnina, V.V.; Liberman, S.S. Domestic Antidepressants. 3. Incazane (Metralindole). Pharm. Chem. J. 2001, 35, 59–62. [Google Scholar] [CrossRef]
  47. Airaksinen, M.M.; Huang, J.T.; Ho, B.T.; Taylor, D.; Walker, K. The uptake of 6-methoxy-1,2,3,4-tetrahydro-beta-carboline and its effect on 5-hydroxytryptamine uptake and release in blood platelets. Acta Pharmacol. Toxicol. 1978, 43, 375–380. [Google Scholar] [CrossRef]
  48. Amata, E.; Rescifina, A.; Prezzavento, O.; Arena, E.; Dichiara, M.; Pittalà, V.; Montilla-Garcia, A.; Punzo, F.; Merino, P.; Cobos, E.J.; Marrazzo, A. (+)-Methyl (1R,2S)-2-{[4-(4-Chlorophenyl)-4-hydroxypiperidin-1-yl]methyl}-1-phenylcyclopropa necarboxylate [(+)-MR200] Derivatives as Potent and Selective Sigma Receptor Ligands: Stereochemistry and Pharmacological Properties. J. Med. Chem. 2018, 61, 372–384. [Google Scholar] [CrossRef]
  49. Lever, J.R.; Gustafson, J.L.; Xu, R.; Allmon, R.L.; Lever, S.Z. σ1 and σ2 receptor binding affinity and selectivity of SA4503 and fluoroethyl SA4503. Synapse 2006, 59, 350–358. [Google Scholar] [CrossRef]
  50. Stewart, J.J.P. Optimization of Parameters for Semiempirical Methods 1. Method. J. Comput. Chem. 1989, 10, 209–220. [Google Scholar] [CrossRef]
  51. Stewart, J.J.P. Optimization of parameters for semiempirical methods IV: Extension of MNDO, AM1, and PM3 to more main group elements. J. Mol. Model. 2004, 10, 155–164. [Google Scholar] [CrossRef]
  52. Stewart, J.J.P. MOPAC2016. Available online: http://OpenMOPAC.net (accessed on 29 December 2018).
  53. Krieger, E.; Vriend, G. YASARA View—Molecular graphics for all devices—From smartphones to workstations. Bioinformatics 2014, 30, 2981–2982. [Google Scholar] [CrossRef]
  54. Krieger, E.; Koraimann, G.; Vriend, G. Increasing the precision of comparative models with YASARA NOVA—A self-parameterizing force field. Proteins 2002, 47, 393–402. [Google Scholar] [CrossRef] [PubMed]
  55. Matsumoto, R.R.; Bowen, W.D.; Tom, M.A.; Vo, V.N.; Truong, D.D.; De Costa, B.R. Characterization of two novel sigma receptor ligands: Antidystonic effects in rats suggest sigma receptor antagonism. Eur. J. Pharmacol. 1995, 280, 301–310. [Google Scholar] [CrossRef]
  56. Mach, R.H.; Smith, C.R.; Childers, S.R. Ibogaine possesses a selective affinity for sigma 2 receptors. Life Sci. 1995, 57, 57–62. [Google Scholar] [CrossRef]
  57. Dehavenhudkins, D.L.; Fleissner, L.C.; Fordrice, F.Y. Characterization of the Binding of [H-3] (+)-Pentazocine to Sigma-Recognition Sites in Guinea-Pig Brain. Eur. J. Pharmacol. 1992, 227, 371–378. [Google Scholar] [CrossRef]
Ijms 20 00488 g001 550

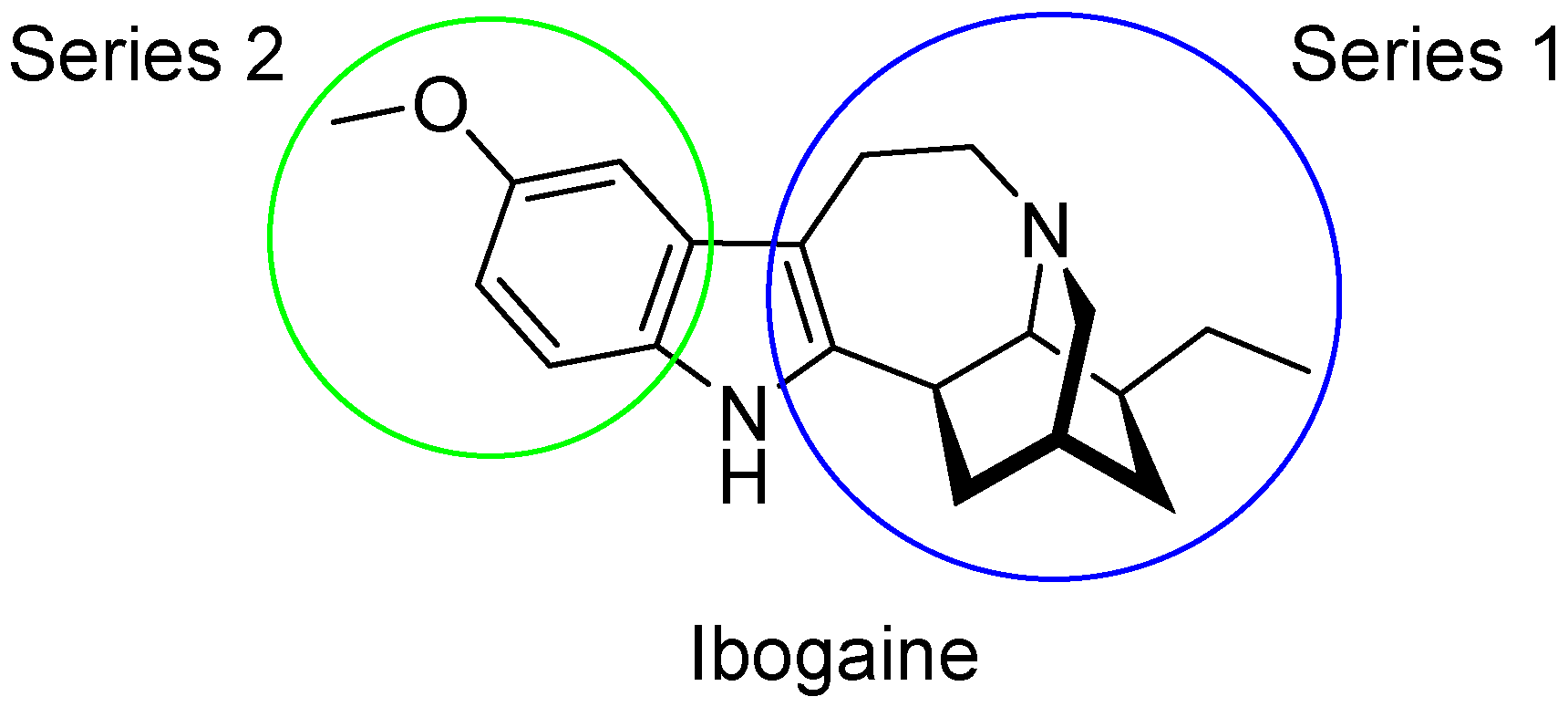

Figure 1. Series 1 and 2 derived from ibogaine.
Figure 1. Series 1 and 2 derived from ibogaine.
Ijms 20 00488 g001
Ijms 20 00488 g002 550

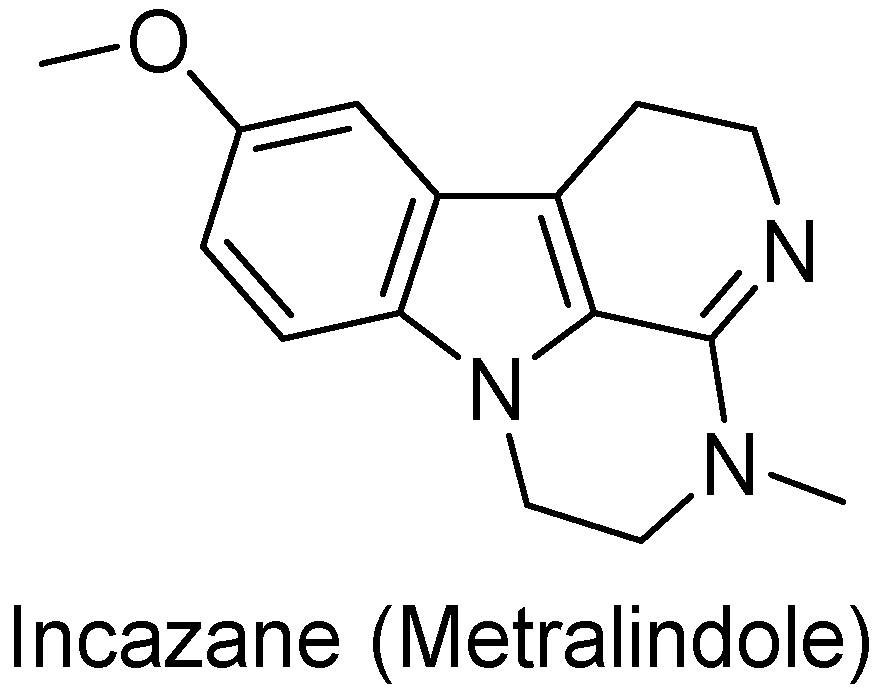

Figure 2. Structure of incazane.
Figure 2. Structure of incazane.
Ijms 20 00488 g002
Ijms 20 00488 g003 550

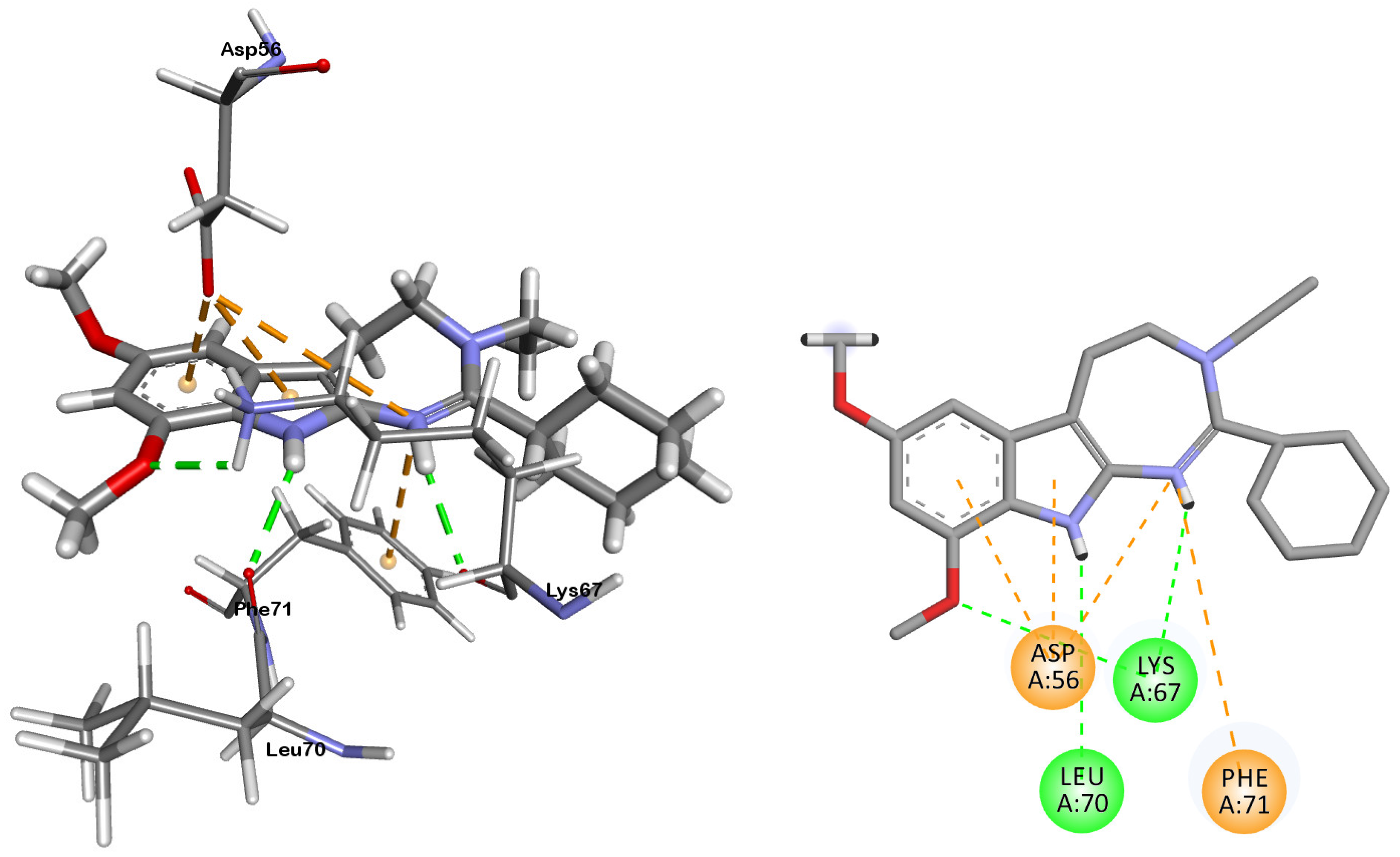

Figure 3. 3D (left) and 2D (right) representations of the docked pose for compound 2_4. Green dotted lines represent hydrogen bonds and orange dotted lines π-ion interactions.
Figure 3. 3D (left) and 2D (right) representations of the docked pose for compound 2_4. Green dotted lines represent hydrogen bonds and orange dotted lines π-ion interactions.
Ijms 20 00488 g003
Table
Table 1. Structure and predicted pKi values of the selected ibogaine derivatives resulted from the scaffold-hopping study of Series 1.
Table 1. Structure and predicted pKi values of the selected ibogaine derivatives resulted from the scaffold-hopping study of Series 1.
Entry IDStructurePredicted pKi
1 Ijms 20 00488 i0017.4
6 Ijms 20 00488 i0027.0
45 Ijms 20 00488 i0036.9
125 (Incazane derivative) Ijms 20 00488 i0046.5
179 (Pinoline) Ijms 20 00488 i0054.7
Table
Table 2. Structure and predicted pKi values of the selected ibogaine derivatives resulted from the scaffold-hopping study of Series 2.
Table 2. Structure and predicted pKi values of the selected ibogaine derivatives resulted from the scaffold-hopping study of Series 2.
EntryStructurePredicted pKi
1 Ijms 20 00488 i0068.3
4 Ijms 20 00488 i0078.1
35 Ijms 20 00488 i0087.8
Table
Table 3. Docking calculated σ2 pKi values compared to the 3D-QSAR predicted ones and docking calculated σ1 pKi values with σ1/σ2 selectivity index for selected compounds.
Table 3. Docking calculated σ2 pKi values compared to the 3D-QSAR predicted ones and docking calculated σ1 pKi values with σ1/σ2 selectivity index for selected compounds.
Series ID_Entry ID3D-QSAR Predicted σ2 pKiDocking Calculated σ2 pKiDocking Calculated σ1 pKiSI a
1_17.47.246.505.5
1_67.06.986.811.5
1_456.97.196.772.6
1_125 (Incazane derivative)6.57.405.13186.2
1_179 (Pinoline)4.74.533.815.2
2_18.37.566.1525.7
2_48.18.396.6555.0
2_357.88.146.5836.3
Incazane6.46.635.3519.1
Ibogaine6.86.895.0667.6 b
DTG6.87.277.320.9 c
a SI: Selectivity index calculated as σ1 Ki/σ2 Ki. b SI = 42.5 from Reference [22]. c SI = 1.1 from Reference [49].
