Open AccessArticle

Preparation of Silk Sericin/Lignin Blend Beads for the Removal of Hexavalent Chromium Ions

Research Institute of Agriculture and Life Sciences, Seoul National University, Seoul 151-921, Korea
Department of Biosystems & Biomaterials Science and Engineering, Seoul National University, Seoul 151-921, Korea
Center for Food and Bioconvergence, Seoul National University, Seoul 151-921, Korea
Author to whom correspondence should be addressed.
Academic Editors: John G. Hardy and Chris Holland
Int. J. Mol. Sci. 2016, 17(9), 1466;
Received: 30 June 2016 / Revised: 23 August 2016 / Accepted: 24 August 2016 / Published: 2 September 2016
(This article belongs to the Special Issue Silk-Based Materials: From Production to Characterization)
PDF [6867 KB, uploaded 2 September 2016]

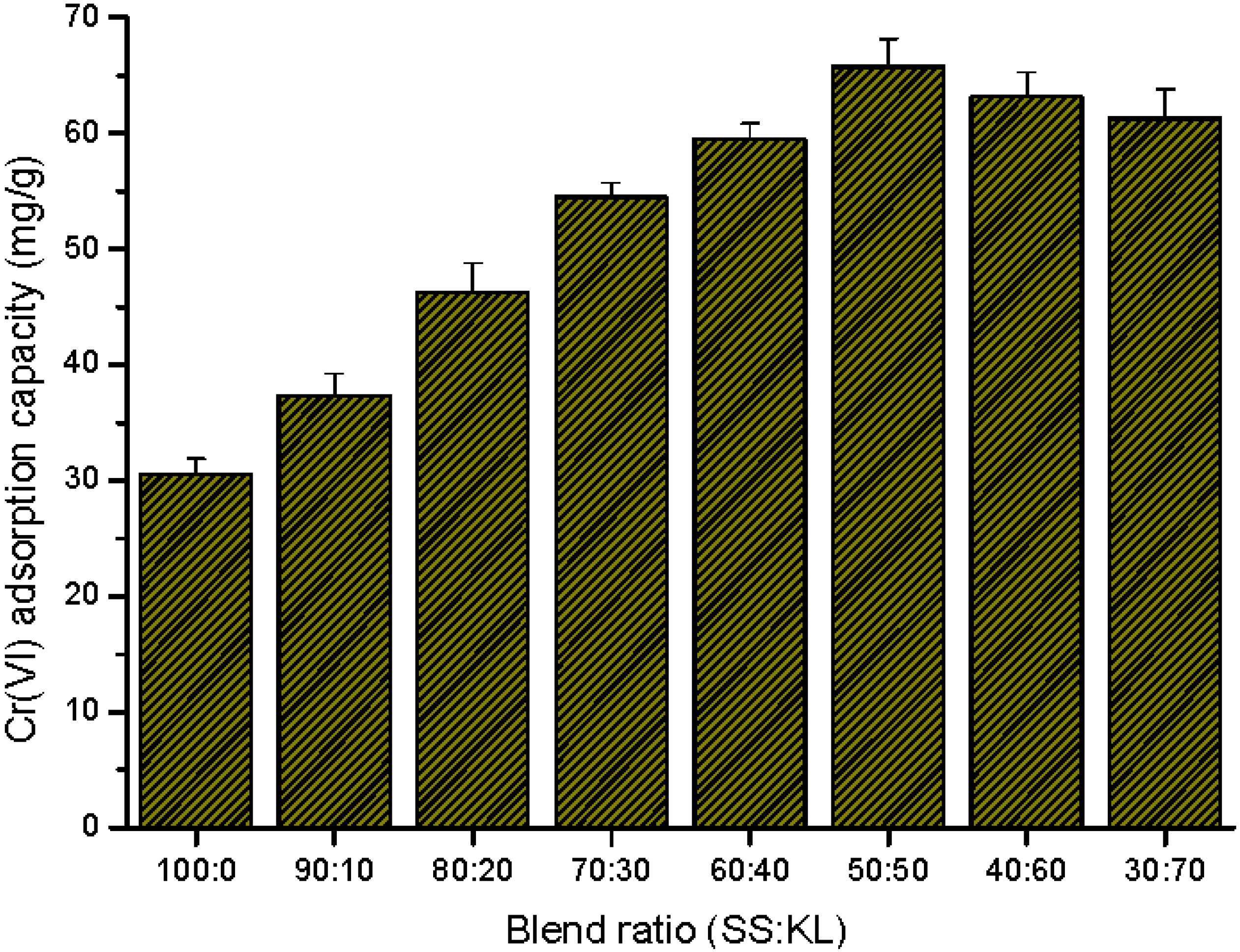

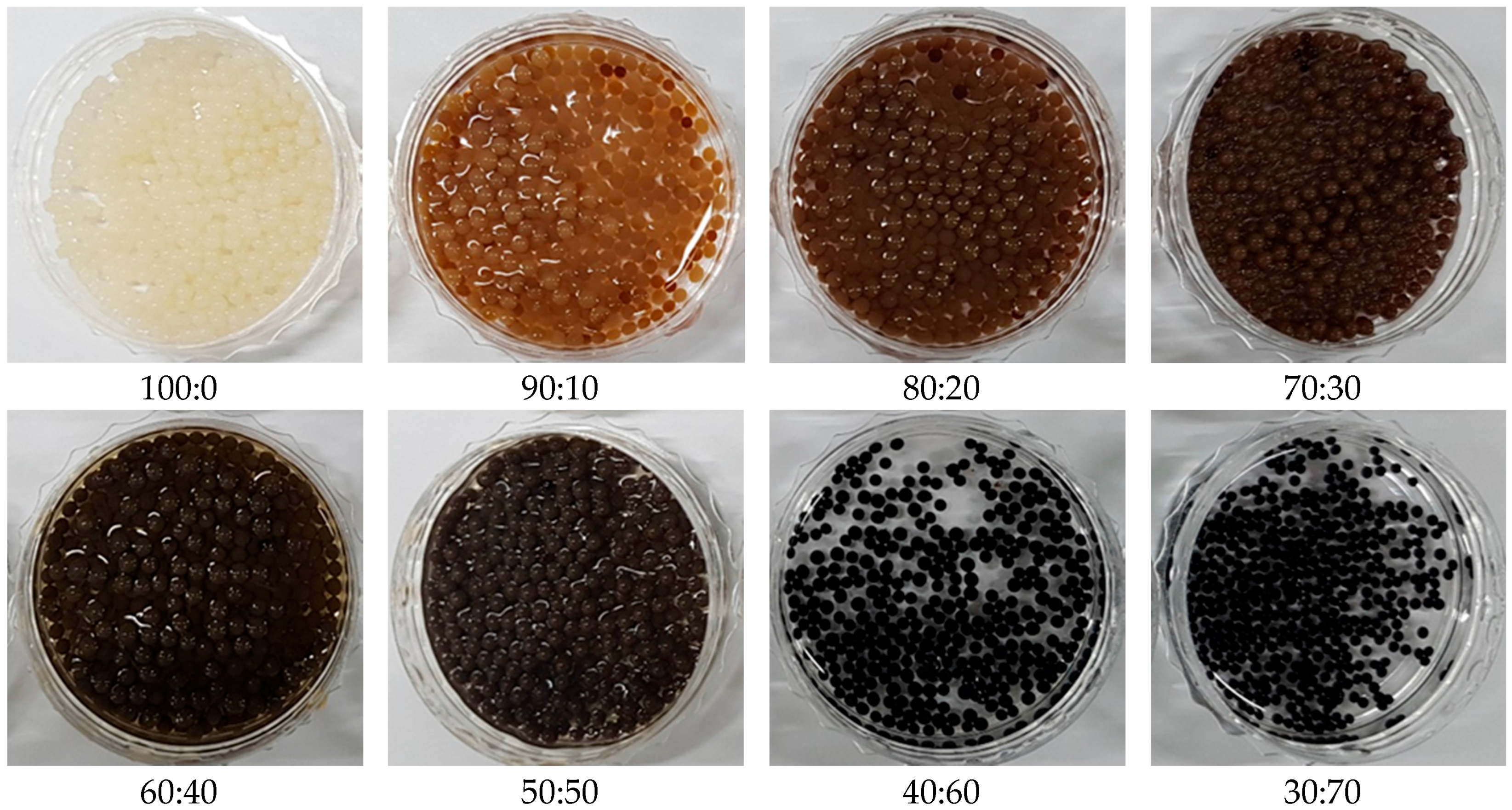

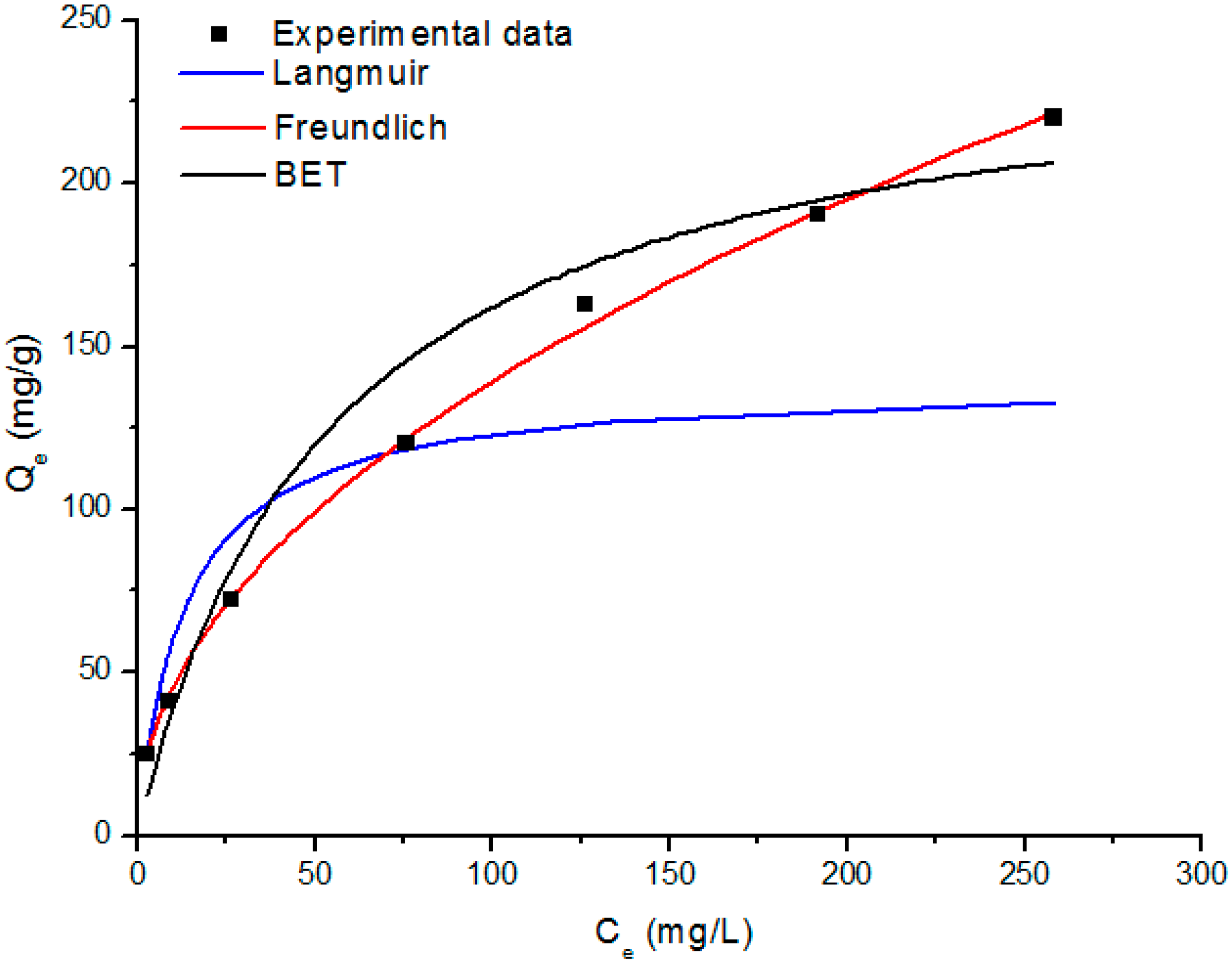

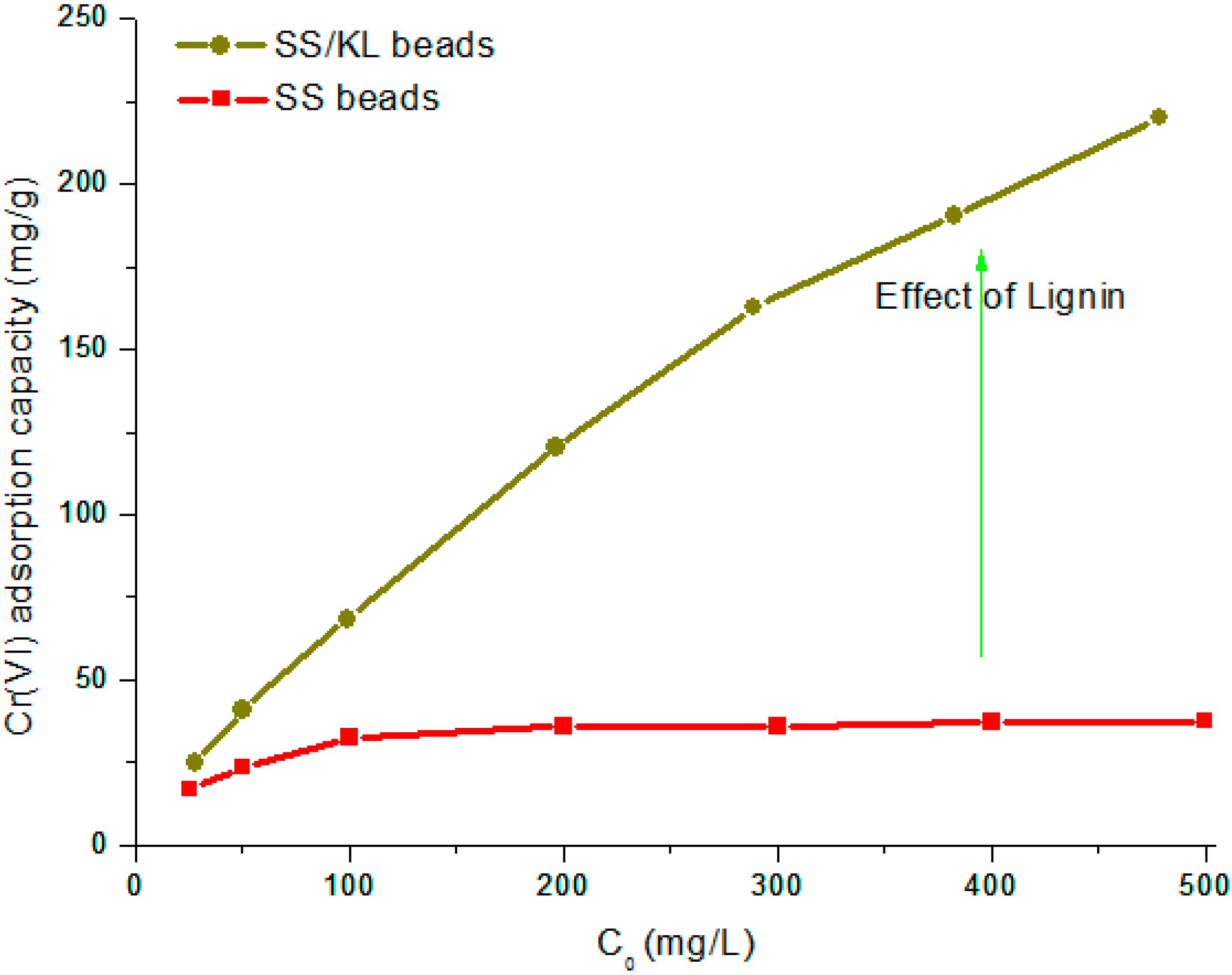

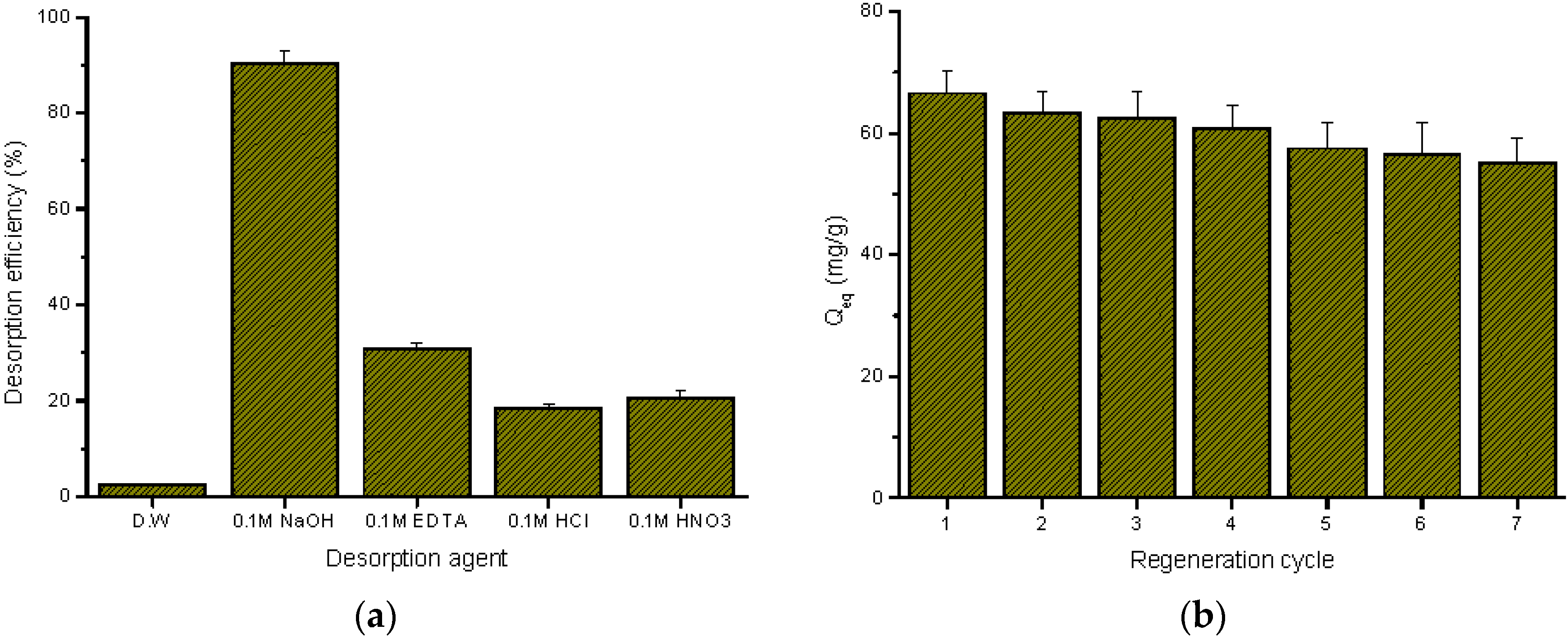

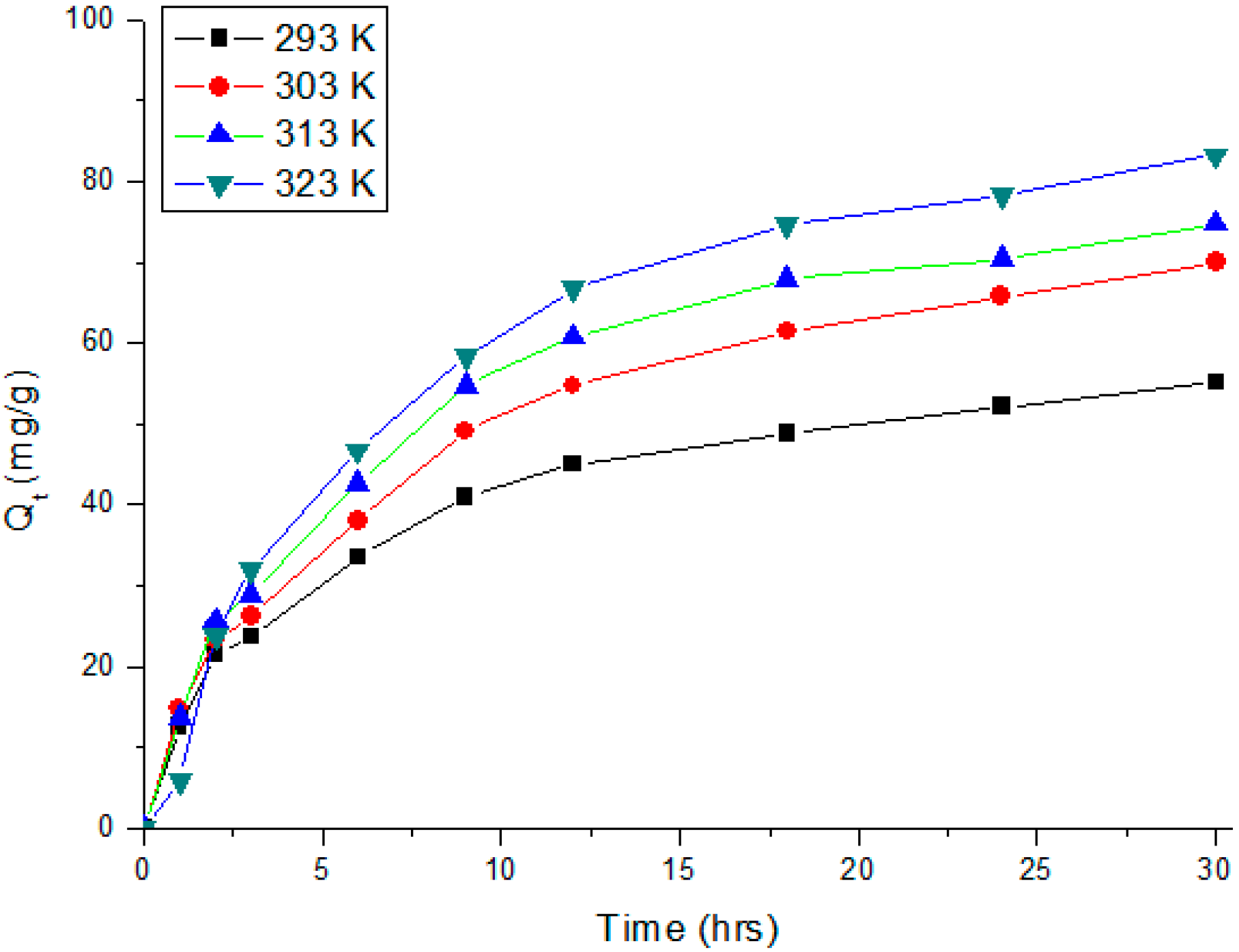

In the present study, novel adsorbents having high adsorption capability and reusability were prepared using agricultural by-products: silk sericin and lignin. Silk sericin and lignin blend beads were successfully prepared using simple coagulation methods for the removal of hexavalent chromium (Cr(VI)) from aqueous solution. A 1 M lithium chloride (LiCl)/dimethyl sulfoxide (DMSO) solvent system successfully dissolved both sericin and lignin and had sufficient viscosity for bead preparation. Compared to the conventional sericin bead adsorbent, sericin/lignin blend beads showed higher Cr(VI) adsorption capacity. The amount of lignin added to the adsorbent greatly affected the adsorption capacity of the beads, and a 50:50 sericin/lignin blend ratio was optimal. Adsorption behavior followed the Freundlich isotherm, which means the adsorption of Cr(VI) occurred on the heterogeneous surface. Cr(VI) adsorption capability increased with temperature because of thermodynamic-kinetic effects. In addition, over 90% of Cr(VI) ions were recovered from the Cr(VI) adsorbed sericin/lignin beads in a 1 M NaOH solution. The adsorption-desorption recycling process was stable for more than seven cycles, and the recycling efficiency was 82%. It is expected that the sericin/lignin beads could be successfully applied in wastewater remediation especially for hazardous Cr(VI) ions in industrial wastewater. View Full-Text
Keywords: lignin; silk sericin; beads; adsorption; hexavalent chromium lignin; silk sericin; beads; adsorption; hexavalent chromium

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material


Share & Cite This Article

MDPI and ACS Style

Kwak, H.W.; Shin, M.; Yun, H.; Lee, K.H. Preparation of Silk Sericin/Lignin Blend Beads for the Removal of Hexavalent Chromium Ions. Int. J. Mol. Sci. 2016, 17, 1466.
