Next Article in Journal
Heavy Metal Complexation of Thiol-Containing Peptides from Soy Glycinin Hydrolysates
Next Article in Special Issue
Structural, Magnetic and Luminescent Properties of Lanthanide Complexes with N-Salicylideneglycine
Previous Article in Journal
Nitrogen Removal from Micro-Polluted Reservoir Water by Indigenous Aerobic Denitrifiers
Previous Article in Special Issue
A New Series of Kinked Liquid Crystals: 2-(6-Alkoxynaphthalen-2-yl)-6-methoxyquinolines


Article

Development of Carbon Nanotube Modified Cement Paste with Microencapsulated Phase-Change Material for Structural–Functional Integrated Application

1
Guangdong Provincial Key Laboratory of Durability for Marine Civil Engineering, College of Civil Engineering, Shenzhen University, Shenzhen 518060, China
2
Department of Civil and Environmental Engineering, School of Engineering, The Hong Kong University of Science and Technology, Hong Kong 999077, China
3
Department of Civil Engineering, COMSATS Institute of Information Technology, Abbottabad Campus, Abbottabad 22010, Pakistan
*
Authors to whom correspondence should be addressed.
Academic Editor: Qinghua Qin
Int. J. Mol. Sci. 2015, 16(4), 8027-8039; https://doi.org/10.3390/ijms16048027
Received: 28 February 2015 / Revised: 3 April 2015 / Accepted: 8 April 2015 / Published: 10 April 2015
(This article belongs to the Special Issue Advances in Anisotropic and Smart Materials)

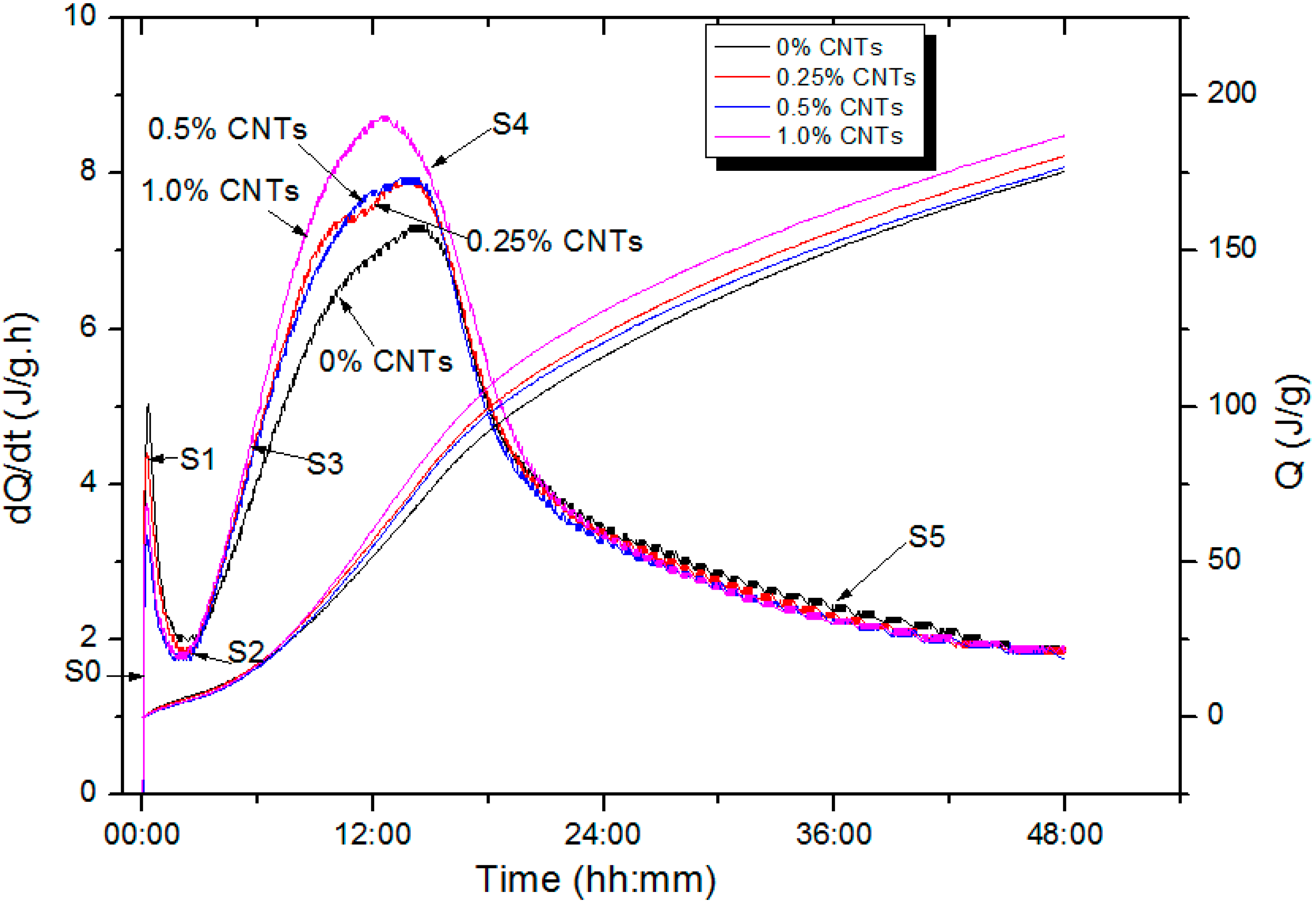

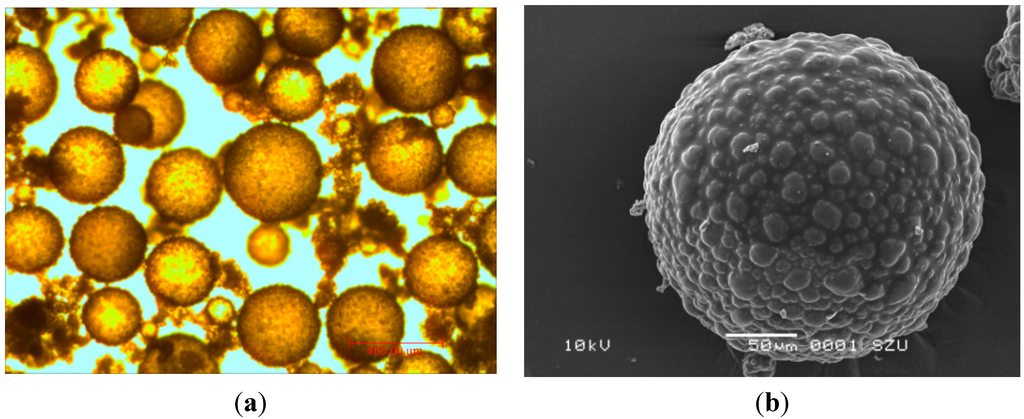

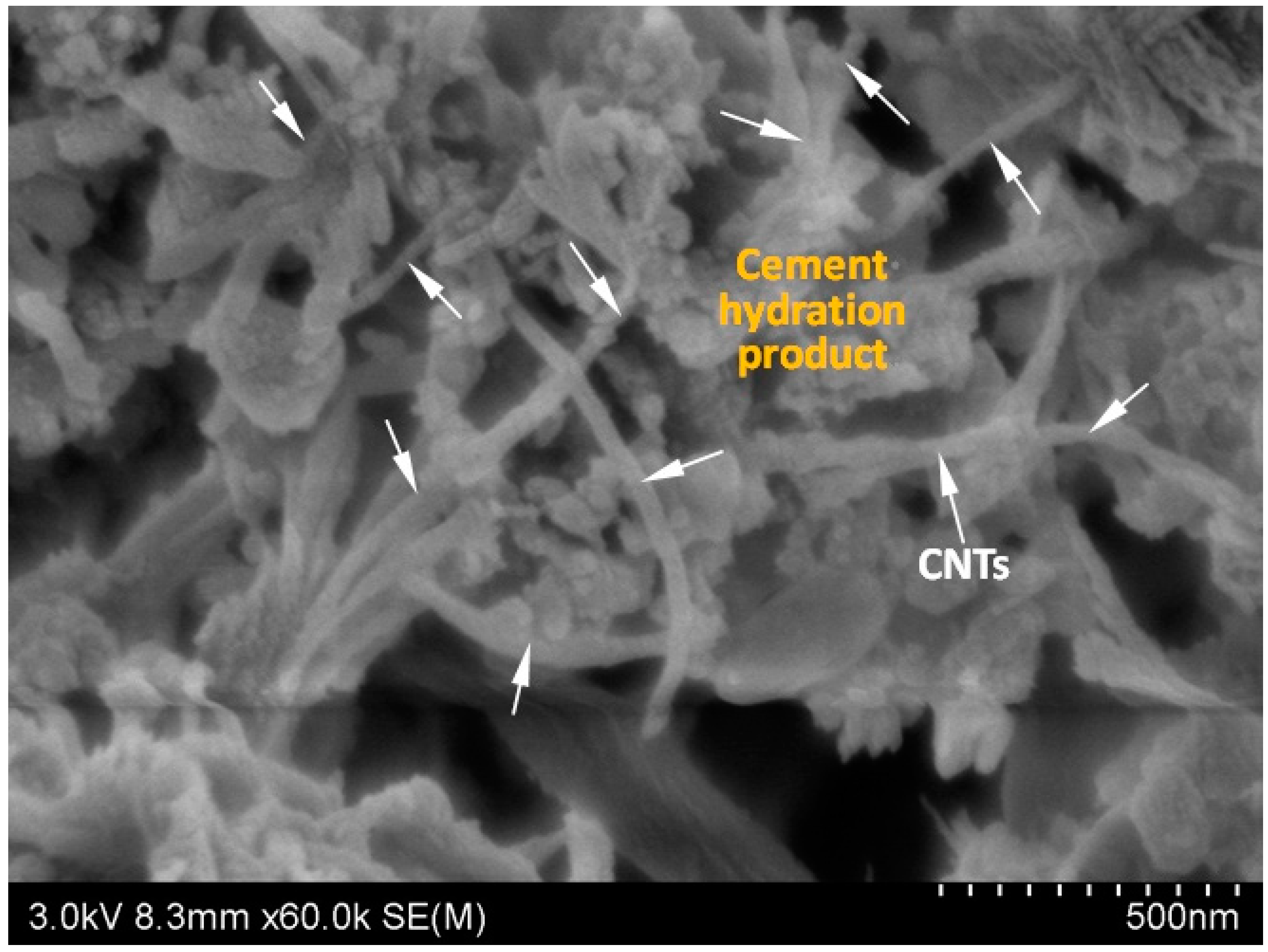

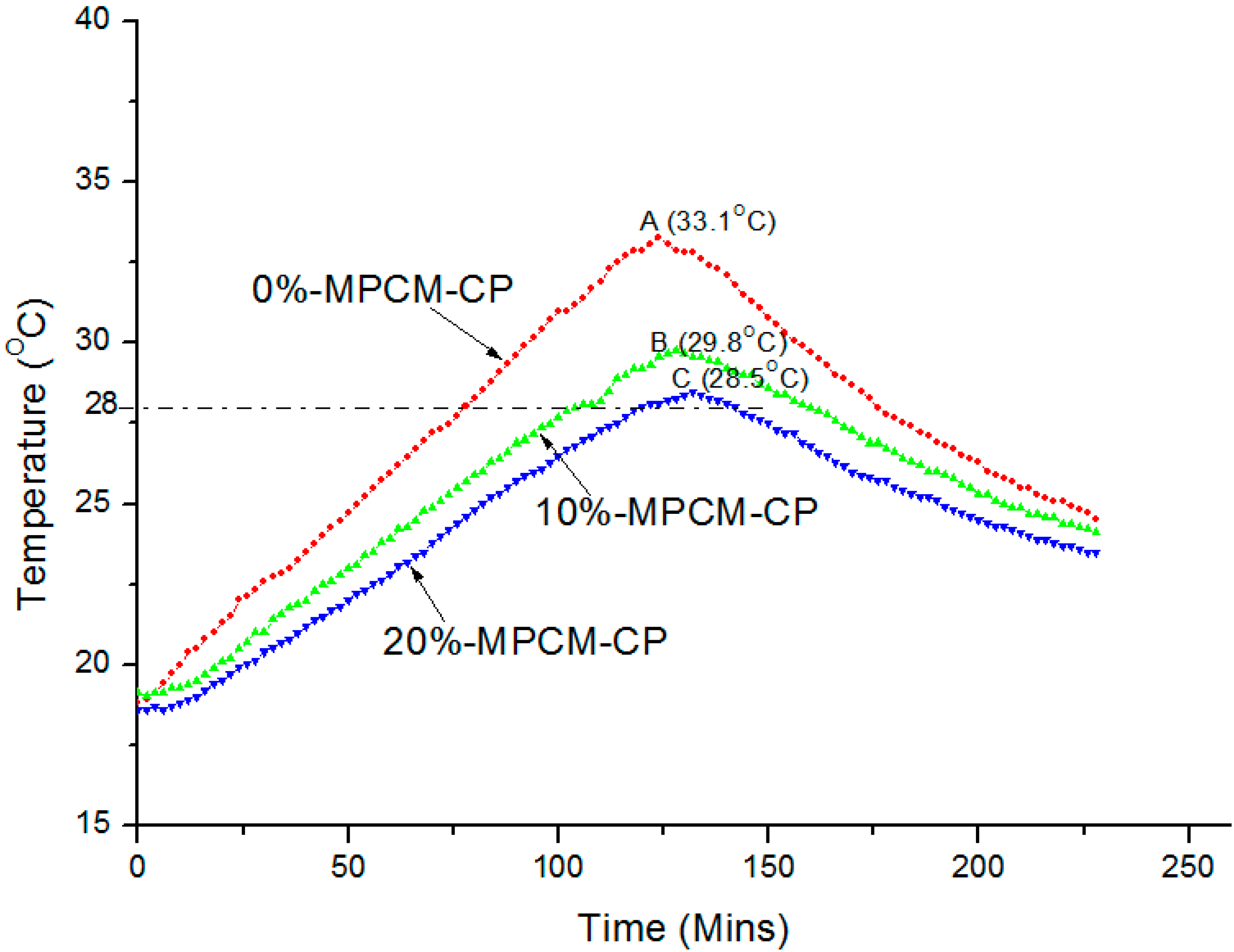

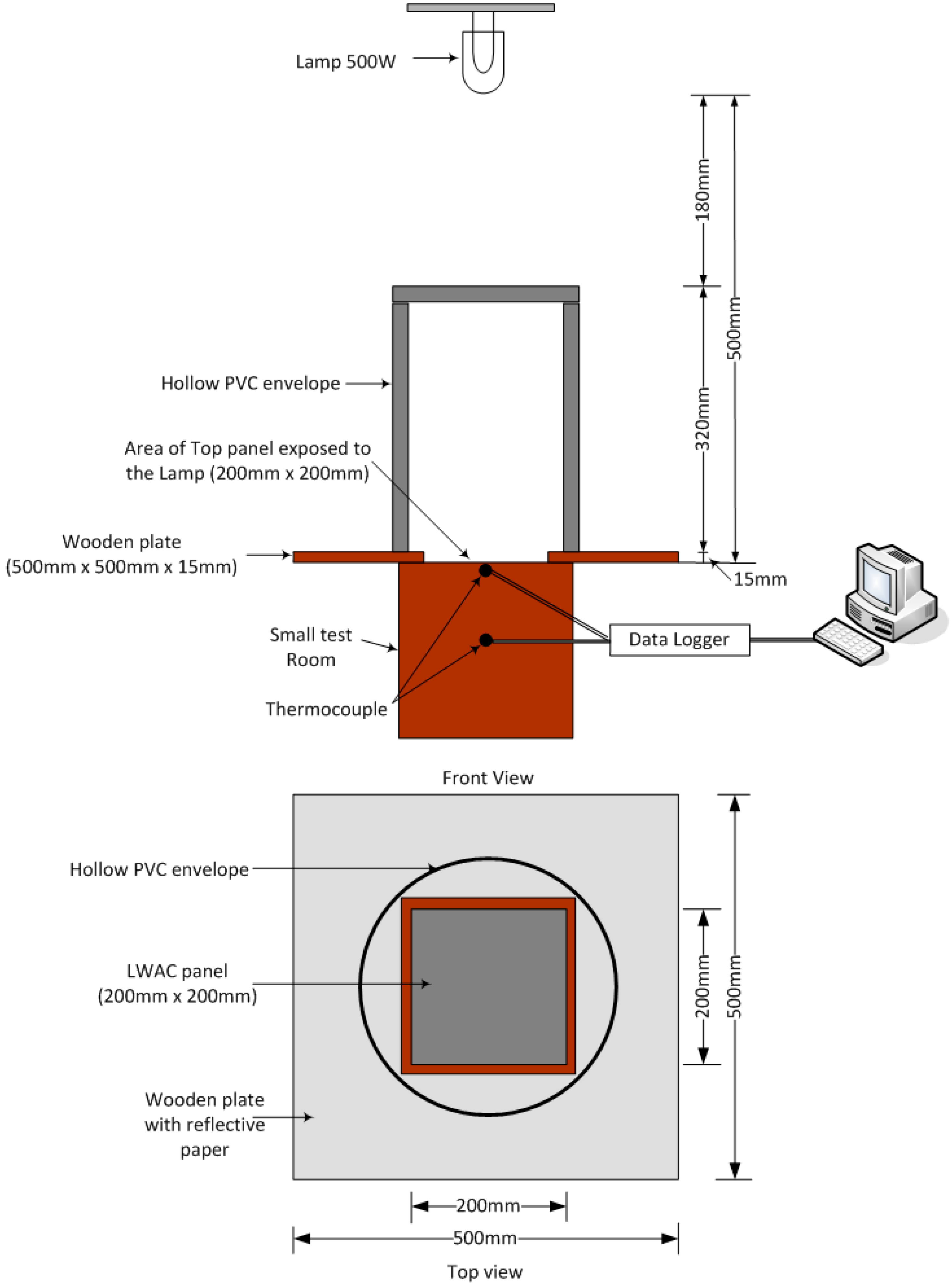

Microencapsulated phase-change materials (MPCM) can be used to develop a structural–functional integrated cement paste having high heat storage efficiency and suitable mechanical strength. However, the incorporation of MPCM has been found to degrade the mechanical properties of cement based composites. Therefore, in this research, the effect of carbon nanotubes (CNTs) on the properties of MPCM cement paste was evaluated. Test results showed that the incorporation of CNTs in MPCM cement paste accelerated the cement hydration reaction. SEM micrograph showed that CNTs were tightly attached to the cement hydration products. At the age of 28 days, the percentage increase in flexural and compressive strength with different dosage of CNTs was found to be up to 41% and 5% respectively. The optimum dosage of CNTs incorporated in MPCM cement paste was found to be 0.5 wt %. From the thermal performance test, it was found that the cement paste panels incorporated with different percentages of MPCM reduced the temperature measured at the center of the room by up to 4.6 °C. Inverse relationship was found between maximum temperature measured at the center of the room and the dosage of MPCM. View Full-Text
Keywords: carbon nanotube; cement paste; microencapsulated phase-change material; structural–functional integrated materials; mechanical properties; thermal energy storage carbon nanotube; cement paste; microencapsulated phase-change material; structural–functional integrated materials; mechanical properties; thermal energy storage
Show Figures

Graphical abstract

MDPI and ACS Style

Cui, H.; Yang, S.; Memon, S.A. Development of Carbon Nanotube Modified Cement Paste with Microencapsulated Phase-Change Material for Structural–Functional Integrated Application. Int. J. Mol. Sci. 2015, 16, 8027-8039. https://doi.org/10.3390/ijms16048027

AMA Style

Cui H, Yang S, Memon SA. Development of Carbon Nanotube Modified Cement Paste with Microencapsulated Phase-Change Material for Structural–Functional Integrated Application. International Journal of Molecular Sciences. 2015; 16(4):8027-8039. https://doi.org/10.3390/ijms16048027

Chicago/Turabian Style

Cui, Hongzhi, Shuqing Yang, and Shazim Ali Memon. 2015. "Development of Carbon Nanotube Modified Cement Paste with Microencapsulated Phase-Change Material for Structural–Functional Integrated Application" International Journal of Molecular Sciences 16, no. 4: 8027-8039. https://doi.org/10.3390/ijms16048027

Find Other Styles

Article Access Map by Country/Region

1
Only visits after 24 November 2015 are recorded.
Back to TopTop
