1. Introduction
The ability of microalgae to produce hydrogen under the light was discovered more than 70 years ago [
1]. Under photoautotrophic conditions the process realizes the true water-splitting reaction.
If one could implement technically this process with H2 and O2 spatial (or temporal) separation, at low operational cost, in practical scale, and with high rate, the human population could get environmentally friendly and clean energy from a renewable source. However, many fundamental and technical problems should be solved before microalgal hydrogen production comes into practical stage.
Sulfur deprived cultures of microalgae realize temporal separation of oxygen and hydrogen production. Fundamental mechanisms of this process are under active investigations [
2,
3,
4]. However, hydrogen production under S-deprivation is still very expensive. One of the ways to decrease the operational cost is realization of the process in seawater, which is cheaper than fresh water.
In recent years most of research has been focused on developing biological H
2 production using different fresh water species of
Chlamydomonas,
Scenedesmus, and
Chlorella, with
C. reinhardtii as a model system [
5,
6]. Significant advances in H
2 photoproduction from
C. reinhardtii have recently been reported [
5,
7,
8], whereas relatively few studies have examined H
2 production from marine microalgae [
9,
10,
11,
12]. Early attempts to produce sustainable hydrogen by marine microalgae under sulfur deprivation were not successful [
9]. Marine microalgae
Platymonas subcordiformis [
13] and
Platimonas helgolandica [
14] produced significant quantities of hydrogen under light only after addition of carbonyl cyanide m-chlorophenylhydrazone.
Sustained H
2 production under sulfur deprivation by marine microalgae is impossible due to high sulfur content in the seawater ~0.028 M·L
−1 [
15], which is even higher than saturating concentrations in TAP medium (0.016 M·L
−1).
Artificial seawater also cannot produce decent S-deprived conditions due to high sulfur content in salts like NaCl, which is added to the medium at high concentration (~35 g·L
−1). Extra-pure NaCl (Sigma, product No. 13423) contains sulfates as contaminants (200 mg per 1 kg NaCl), and if used for preparation of artificial seawater will result in none limiting for microalgae concentrations of sulfates (~0.07 mM) [
16]. In contrast, concentration of phosphorus in Atlantic and Pacific Ocean varies from 0.07 to 0.2 µM·L
−1 and depends on the pollution of ocean waters [
17].
Taking into account that phosphorus content in seawater is very low, in the present work we developed phosphorus-deprivation for generation of hydrogen production in marine microalgae,
Chlorella sp
. We demonstrated that
Chlorella sp. can produce H
2 gas under phosphorus deprived conditions by using dilution method that was applied before for fresh water microalgae [
18]. Cultures washed of phosphorus and diluted to below 2 mg Chl·L
−1 in the phosphate-free medium were able to establish anaerobiosis after the growth period and produce H
2 gas in the similar quantities as phosphorus-deprived fresh water microalgae.
2. Results
In order to determine limiting initial concentration of phosphates for growth of
Chorella sp. culture, the dependence of final concentration of biomass (expressed as Chl) on initial phosphates concentration in L1 medium under photoautotrophic conditions was studied (
Figure 1). The increase of phosphate-ions concentration from 4 to 12 μM in the medium did not result in increase of the final Chl accumulation. The increase of phosphate-ions concentration from 12 to 36 μM in the medium resulted in significant increase of the final Chl accumulation. One could conclude that 4–36 μM is the region of phosphates concentration when the culture comes to stationary phase due to the lack of the phosphorus. The increase to 108 μM in the medium also resulted in increase of final Chl concentration. Possibly, in the range 36–108 μM phosphorus is also limiting substrate and at the end of growth cultures are P-deprived.

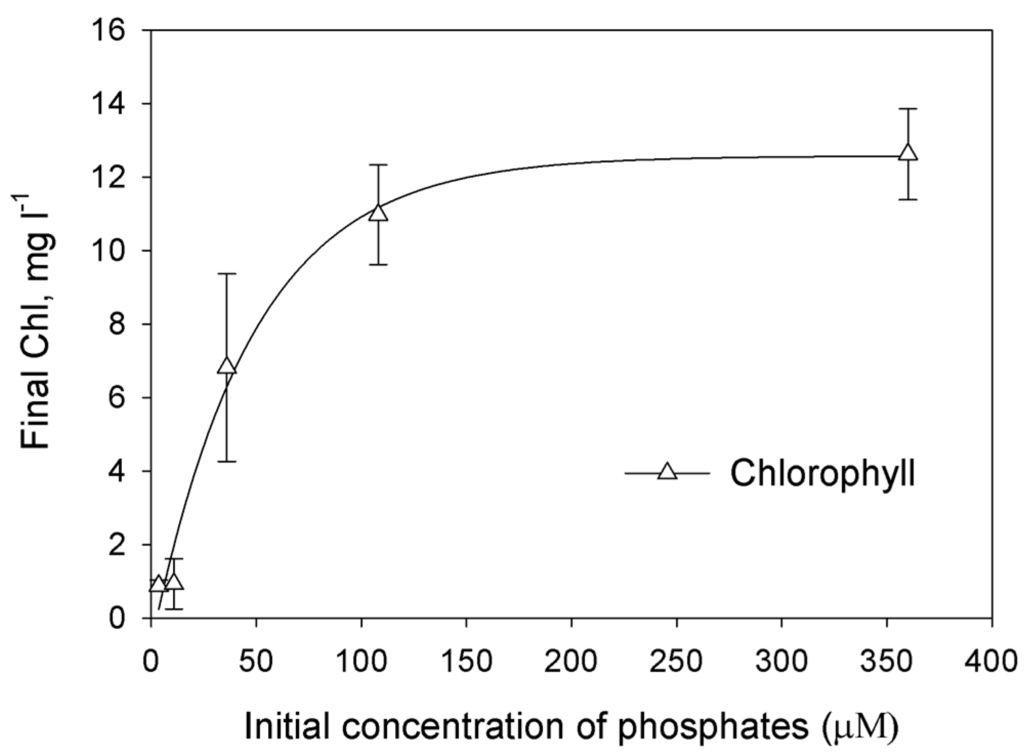

Figure 1.
The effect of the initial phosphates concentration on the accumulation of the biomass (measured as the final Chl concentration). Each point represents the average of three independent repetitions. The curve was drawn as nonlinear regression, modified Hyperbola III.
Figure 1.
The effect of the initial phosphates concentration on the accumulation of the biomass (measured as the final Chl concentration). Each point represents the average of three independent repetitions. The curve was drawn as nonlinear regression, modified Hyperbola III.
Unfortunately, the photoautotrophic growth of Chlorella sp. in artificial seawater was not stable and we could not keep the culture for a long time. That is why other experiments were done with photoheterotrophic cultures using TA-P/SW or TA-P/NaCl media as described in materials and methods section.
In order to achieve sustainable H
2 production, the dilution method of P-deprivation was applied [
18]. This procedure involves phosphorus deprivation by dilution of P-replete cultures into P-free medium. As indicated in Methods section, P-replete cultures were washed in P-free medium and diluted by P-free medium to desired Chl concentrations. In this case initial phosphorus was added together with the cells (and traces of phosphorus in sea and artificial waters). So, the dependence of final Chl concentration on initial ones reflects the influence of initial P concentration on final Chl accumulation. Initial phosphorus content in the medium was regulated by the cells concentration expressed as Chl concentration. As shown in
Figure 2, the cell growth (defined as the final Chl concentration in the culture after ~200 h of cultivation) linearly depended on the amount of phosphorus introduced into the culture only when the initial concentration of the total Chl in the culture was below 6.5–8.2 mg Chl·L
−1. Further increase of initial Chl concentrations resulted in non-linear increase of final Chl concentration.
Figure 2 shows that there was a narrow range in initial Chl concentrations leading to the efficient H
2 photoproduction under phosphorus-deprived conditions. The maximum volume of H
2 gas (20 ml·L
−1) was obtained in the culture with the initial Chl content 0.8 mg·L
−1. Cultures with the initial Chl concentration above 2 mg·L
−1 did not produce H
2 gas even if they have evident P-deprivation at the end of growth (as judged from linear dependence of final Chl accumulation on initial ones).
Subsequently, we performed series of experiments and demonstrated that cultures washed of phosphorus in TA-P/NaCl or TA-P/SW media and diluted to the initial Chl concentration ~1 mg Chl·L
−1 in either TA-P/NaCl or TA-P/SW media pass through certain physiological stages. In the beginning of incubation cultures grew as usual cultures with oxygen production (
Figure 3A,B for TA-P/NaCl and
Figure 4A,B for TA-P/SW media). At this stage cultures accumulated starch in both media (
Figure 3C,D and
Figure 4C,D). Evidently significant reserve of intracellular phosphorus exists allowing the
Chlorella sp. cultures to grow continuously for several days after removal of phosphates from the medium. Oxygen production stage is followed by the stage of oxygen consumption that was observed in all cultures (
Figure 3A,B and
Figure 4A,B). At this stage cultures with and without CO
2 additions in both media started to consume starch (
Figure 3C,D and
Figure 4C,D). After this stage hydrogen production stage starts in all cultures. This stage is finished and changed by termination stage.

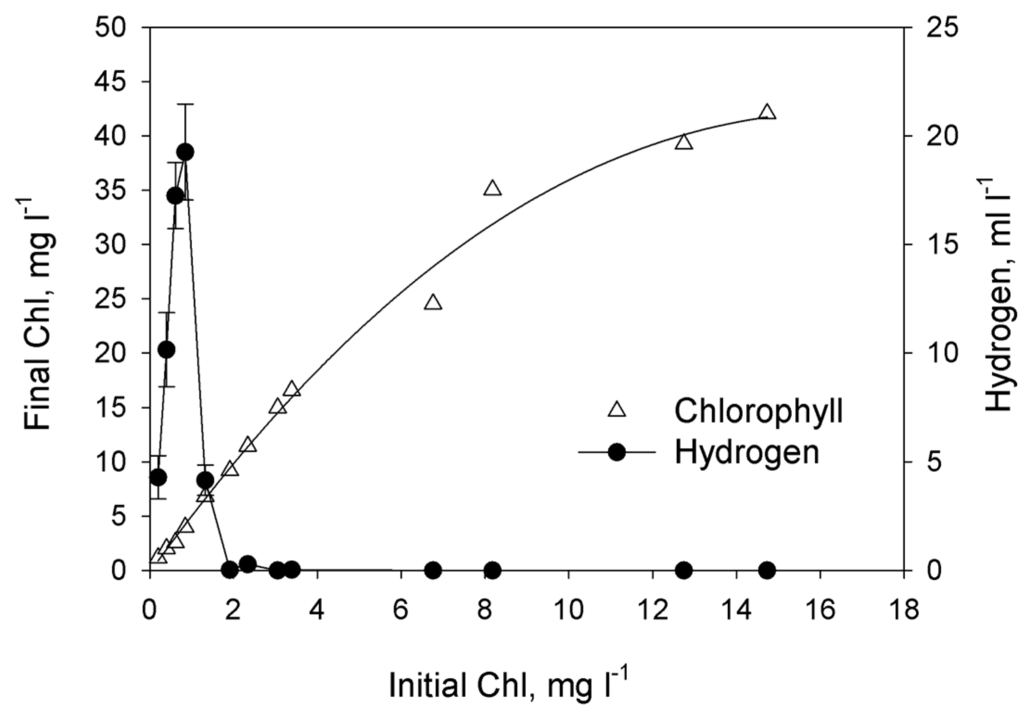

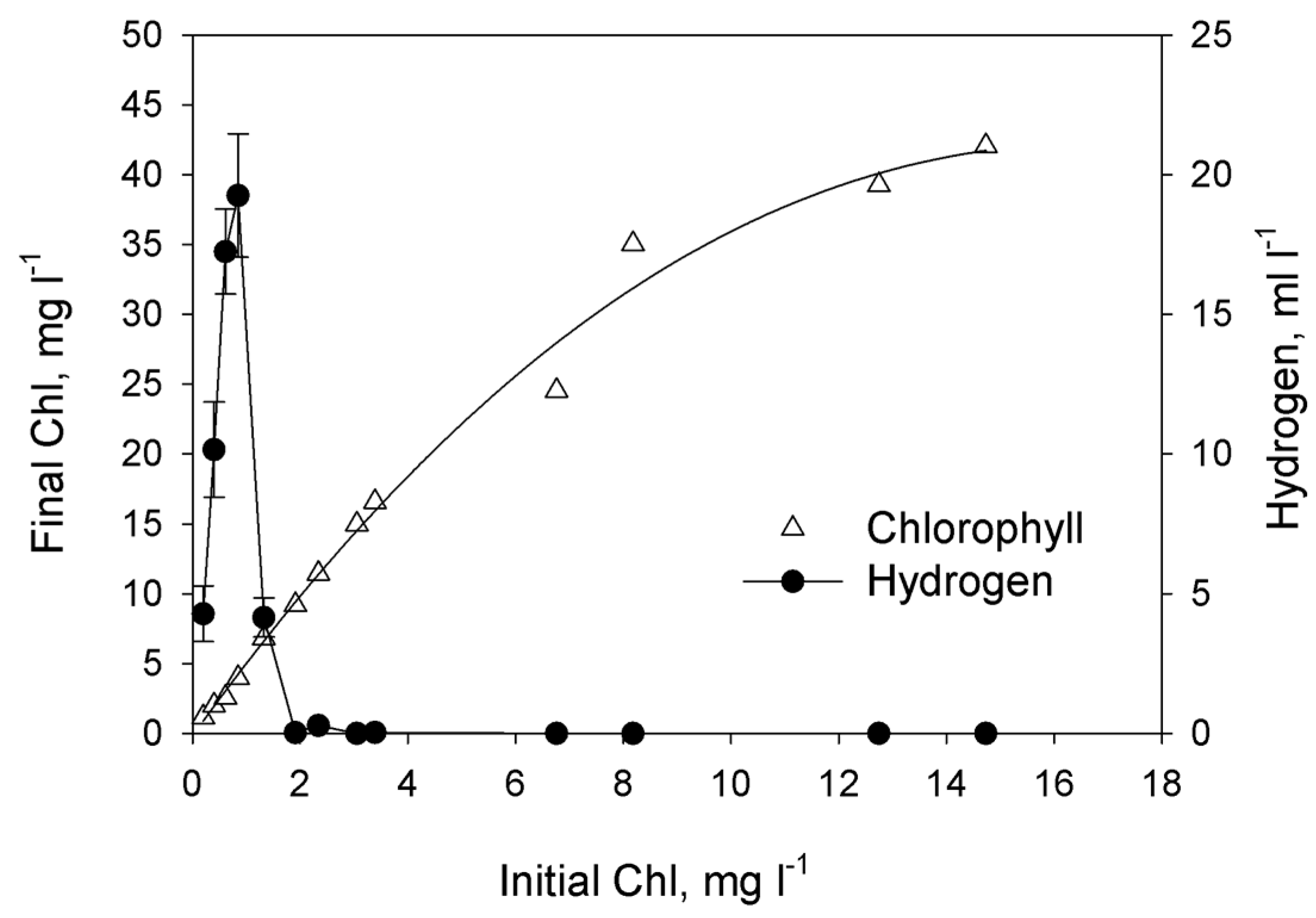

Figure 2.
The effect of the initial culture density (measured as the total Chl concentration at the beginning of phosphorus deprivation) on accumulation of the biomass (measured as the final Chl concentration) and the total yield of H2 gas produced by the culture. The phosphorus deprivation effect was achieved by using the dilution method. Each point represents the average of three independent repetitions. Curve that represents Chlorophyll was drown as nonlinear regression, modified Hyperbola III. For Hydrogen graph was used simple error bars curve.
Figure 2.
The effect of the initial culture density (measured as the total Chl concentration at the beginning of phosphorus deprivation) on accumulation of the biomass (measured as the final Chl concentration) and the total yield of H2 gas produced by the culture. The phosphorus deprivation effect was achieved by using the dilution method. Each point represents the average of three independent repetitions. Curve that represents Chlorophyll was drown as nonlinear regression, modified Hyperbola III. For Hydrogen graph was used simple error bars curve.

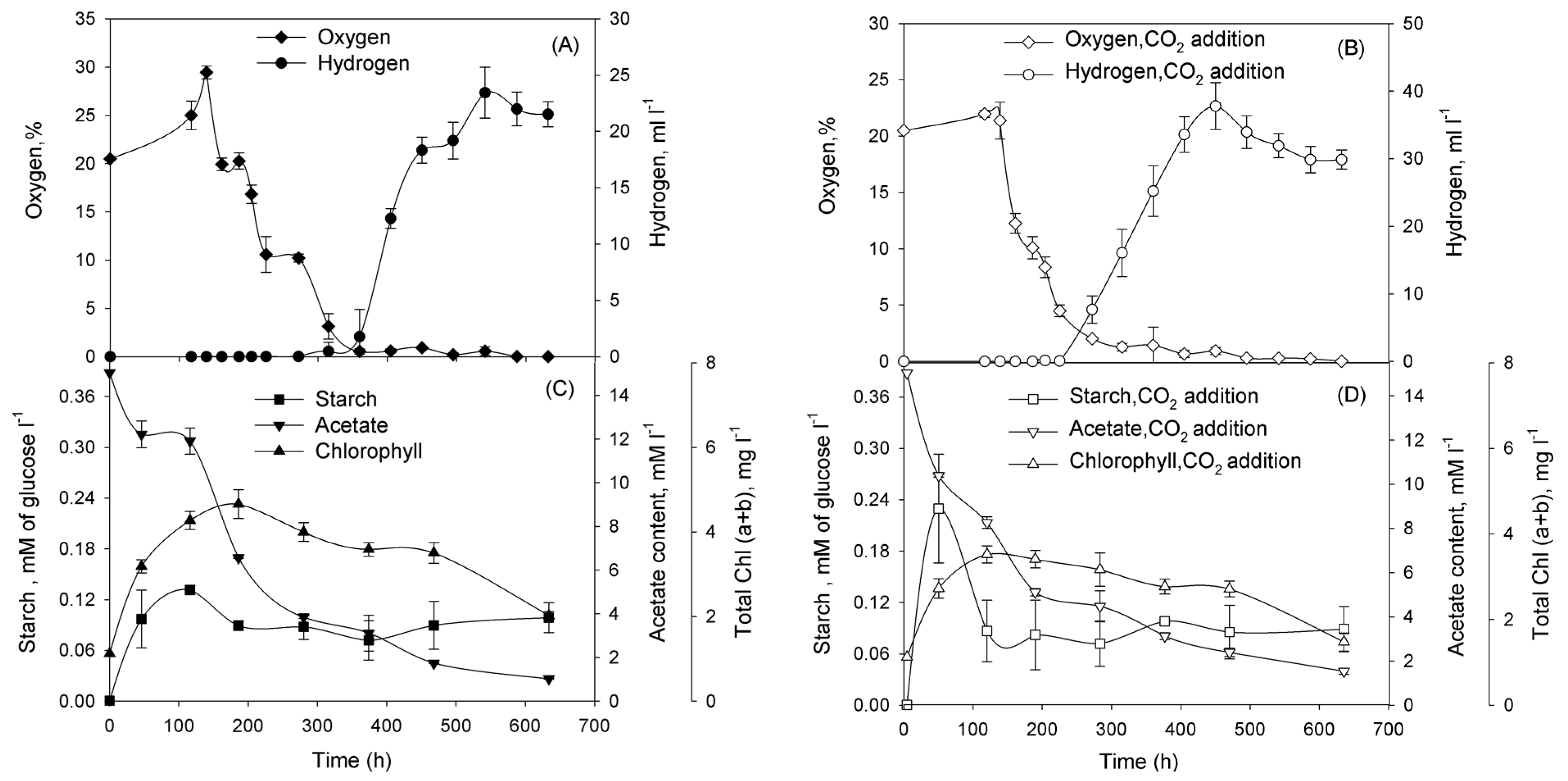

Figure 3.
Incubation of
Chlorella sp. in TA-P/NaCl medium without CO
2 (
A,
C), and with CO
2 additions (
B,
D). At the start of incubation the gas phase was supplemented with CO
2 to 10% (
v/
v). Parameters that were examined: (
A,
B) O
2 concentration in a gas phase of vials (%) and volume of the H
2 gas produced (mL·L
−1 of suspension); (
C,
D) intracellular starch and acetate in the medium (mM·L
−1), total (a + b) chlorophyll (mg·L
−1). Figure represents data of typical experiments from three independent repetitions with the same trend. For all graphs on
Figure 3 simple error bars curves were used.
Figure 3.
Incubation of
Chlorella sp. in TA-P/NaCl medium without CO
2 (
A,
C), and with CO
2 additions (
B,
D). At the start of incubation the gas phase was supplemented with CO
2 to 10% (
v/
v). Parameters that were examined: (
A,
B) O
2 concentration in a gas phase of vials (%) and volume of the H
2 gas produced (mL·L
−1 of suspension); (
C,
D) intracellular starch and acetate in the medium (mM·L
−1), total (a + b) chlorophyll (mg·L
−1). Figure represents data of typical experiments from three independent repetitions with the same trend. For all graphs on
Figure 3 simple error bars curves were used.

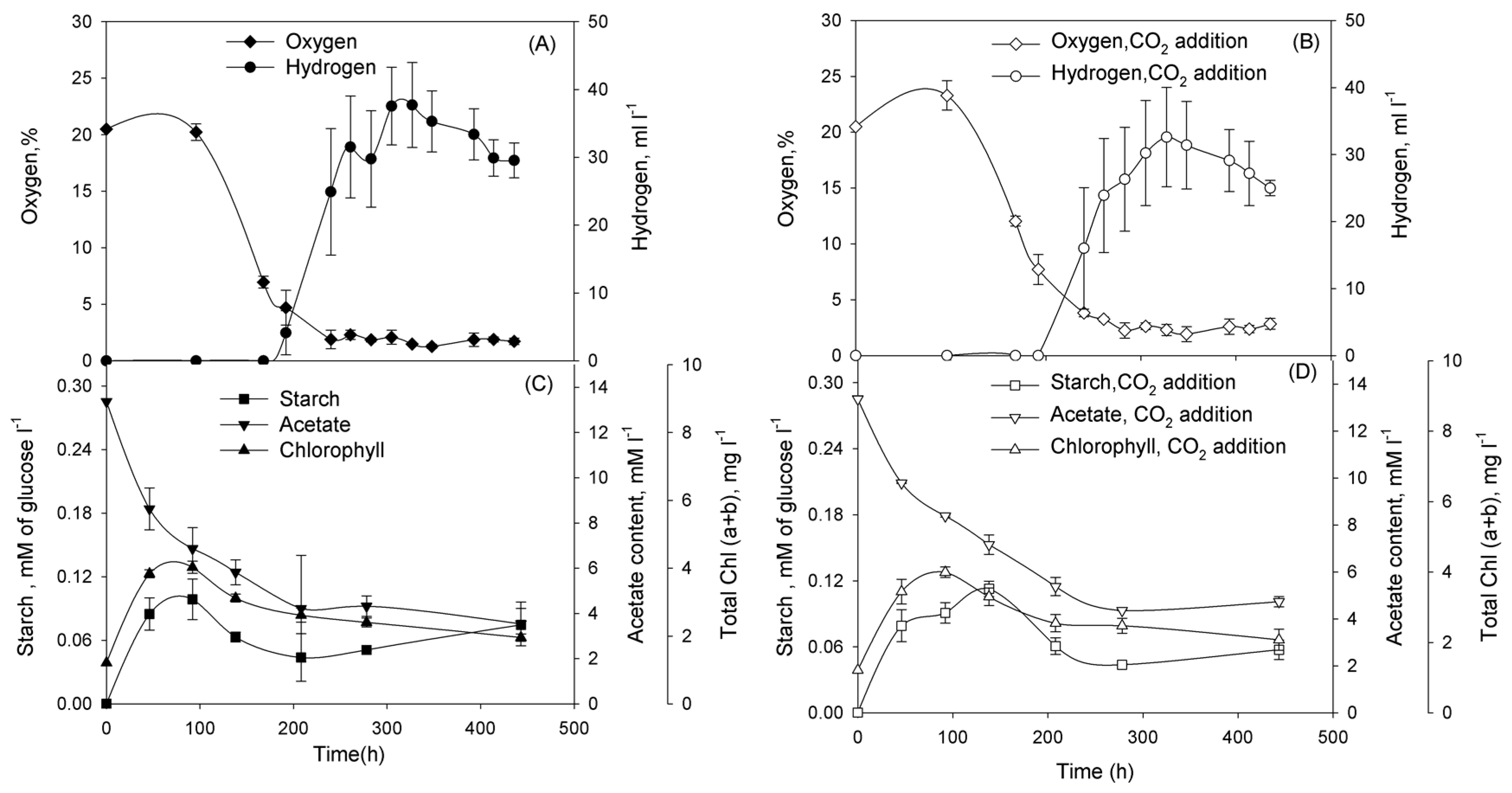

Figure 4.
Incubation of
Chlorella sp. in TA-P/SW medium without CO
2 (
A,
C), and with CO
2 additions (
B,
D). At the start of incubation the gas phase was supplemented with CO
2 to 10% (
v/
v). Parameters that were examined: (
A,
B) O
2 concentration in a gas phase of vials (%) and volume of the H
2 gas produced (mL·L
−1 of suspension); (
C,
D) intracellular starch and acetate in the medium (mM·L
−1), total (a + b) chlorophyll (mg·L
−1). Figure represents data of typical experiments from three independent repetitions with the same trend. For all graphs on
Figure 4 simple error bars curves were used.
Figure 4.
Incubation of
Chlorella sp. in TA-P/SW medium without CO
2 (
A,
C), and with CO
2 additions (
B,
D). At the start of incubation the gas phase was supplemented with CO
2 to 10% (
v/
v). Parameters that were examined: (
A,
B) O
2 concentration in a gas phase of vials (%) and volume of the H
2 gas produced (mL·L
−1 of suspension); (
C,
D) intracellular starch and acetate in the medium (mM·L
−1), total (a + b) chlorophyll (mg·L
−1). Figure represents data of typical experiments from three independent repetitions with the same trend. For all graphs on
Figure 4 simple error bars curves were used.
Cultures in TA-P/NaCl medium have longer oxygen production, oxygen consumption, and hydrogen production stages than in TA-P/SW medium independently on CO
2 presence (
Table 1).
Table 1.
Duration in hours of different stages of Chlorella sp. adaptation to P-deprivation.
Table 1.
Duration in hours of different stages of Chlorella sp. adaptation to P-deprivation.
Culture | Oxygen | Oxygen Consumption Stage ** | Hydrogen Production Stage *** |
---|
Production Stage * |
---|
TA-P/NaCl | 137.6 ± 6.1 | 154.7 ± 15.01 | 214 ± 13.53 |
TA-P/NaCl + CO2 | 140.6 ± 6.03 | 124 ± 6.56 | 221.7 ± 10.41 |
TA-P/SW | 96.3 ± 3.51 | 93.7 ± 3.21 | 134.3 ± 6.02 |
TA-P/SW + CO2 | 98 ± 6.56 | 102.7 ± 7.505 | 131 ± 6.56 |
Having demonstrated that
Chlorella sp. cultures are capable for H
2 photoproduction under phosphorus-deprived conditions, we addressed the question of improving H
2 production yield in the system. One of the ways to improve the H
2 production is increasing of starch accumulation during the O
2-production stage of the phosphorus-deprivation. Therefore, in the next series of experiments, we checked the dependence of starch accumulation and H
2 production in phosphorus-deprived
Chlorella sp. on CO
2 addition. CO
2 is the additional carbon source for growth and starch accumulation of the culture. The adaptation of cells to phosphorus-deprived conditions is accompanied by the accumulation of starch during the O
2-production stage. Starch accumulation was increased twofold after carbon dioxide addition during the initial stages of phosphorus-deprivation in TA-P/NaCl medium, H
2 production was also increased (
Figure 3). However, no significant difference was observed, either in starch accumulation or in H
2 production, in the presence of carbon dioxide during the phosphorus deprivation in TA-P/SW medium (
Figure 4). Chemical analysis of seawater revealed the presence of high concentrations of carbonates and hydrocarbonates that served as additional carbon sources for
Chlorella sp. cultures (
Table 2), thus alleviated the effect of carbon dioxide addition. For both cases in TA-P/SW and TA-P/NaCl media starch accumulation was maximal during the O
2-production stage, but then degradation of starch during the O
2-consumption stage began (
Figure 3C,D and
Figure 4C,D). Most of the amount of starch was consumed during the O
2-consumption stage. The establishment of anaerobiosis under phosphorus deprivation is an energy-dependent process that requires a substrate for respiration. The main substrates for respiration during the period ~100 to 250 h of phosphorus deprivation are acetate and starch (or organic acids produced during starch fermentation), as seen in
Figure 3C,D and
Figure 4C,D.
Table 2.
The chemical composition of marine water from Black Sea that was used in the experiments to study phosphorus deprivation in TA-P/SW medium.
Table 2.
The chemical composition of marine water from Black Sea that was used in the experiments to study phosphorus deprivation in TA-P/SW medium.
Components | Concentration, mg·L−1 |
---|
CO32− | 11.4 ± 0.8485 |
НСО3− | 184.22 ± 1.7253 |
Cl− | 10530 ± 330.93 |
SO42− | 1402.44 ± 15.373 |
Ca2+ | 258 ± 2.8284 |
Mg2+ | 675.6 ± 5.0912 |
K+ | 225.475 ± 6.371 |
Na+ | 5857.49 ± 187.37 |
P2O5 | 0.005251 ± 0.002 |
Dry residue | 21,055± 63.639 |
3. Discussion
Marine green microalgae offer several advantages for the H
2 photoproduction. First, the use of marine microalgae will enable us to utilize the unlimited resources of seawater, thereby minimizing the potential use of limited fresh water resources. Secondly, gas solubility is reduced in aquatic saline systems [
19], which is potentially advantageous because the levels of soluble O
2, a potential inhibitor of most FeFe-hydrogenases [
20] are diminished in salt water relative to fresh water. Hydrogen is also less soluble in saline systems and therefore more easily removed.
Because little previous research has examined H
2 production in marine green microalgae, we undertook an effort aimed at optimization of phosphorus deprivation for generation of hydrogen production in marine green microalgae
Chlorella sp. We first checked how exclusion of phosphorus from the medium affects H
2 photoproduction in marine green microalga. The most direct and evident way to prove that microalgae experience phosphorus starvation is to find the region of initial P where microalgal final concentration depends on initial P. The dependence can be linear and non-linear. In case of linear dependence the culture is limited by phosphorous. Non-linear dependence occurs when the culture experience double limitation as in the case of ammonium-limited cultures of purple non-sulfur bacterium
Rhodobacter capsultus which have region of double limitation by ammonium and by light [
21]. Using photoautotrophic cultures we were able to produce direct experiments changing initial phosphorus concentration (
Figure 1). In the range from 4 to 12 μM of added P we did not observe significant changes of final Chl concentration. Possibly, in this case intracellular P has more impact to the growth of the culture. At higher concentrations cultures showed evident dependence of final Chl on added P up to 36 or even 108 μM proving that in this region we have P-limited cultures, which were deprived of P at the end of growth. Unfortunately, photoautotrophic cultures did not grow stably in artificial seawater. Taking into account that photoautotrophic hydrogen production usually needs particular light conditions [
22], which should be optimized for particular culture; in the rest of our study we used photoheterotrophic and photomixotrophic cultures of
Chlorella sp. for hydrogen production experiments. For these cultures we applied a dilution approach that was previously used for obtaining H
2 production in sulfur-deprived [
23] and phosphorus-deprived
C. reinhardtii cultures [
18]. In this approach, cells utilize limited nutrients accumulated inside cells during the growth phase and after that become nutrient-limited and, very soon after, nutrient-deprived. We demonstrated that final microalgal concentration depends linearly on initial cells concentration up to ~8 mg Chl·L
−1 (
Figure 2). Since the medium was without added P, we assume that the growth of the culture was restricted by P availability. Surprisingly, hydrogen production was observed in very narrow range of initial cells concentration with sharp maximum near 0.8 mg·Chl·L
−1.The decrease in H
2 production in the region lower than 0.8 mg·Chl·L
−1 can be attributed to the low final concentration of the culture. The absence of hydrogen production in the range 2–8 mg·Chl·L
−1 is more complicated for the explanation. This is the range of phosphorous deprivation at the end of growth. One could suggest that at higher initial concentrations of cells cultures growth to higher final Chl and acetate was consumed before the anaerobiosis establishment. However, additional research is necessary to clarify this suggestion. Nevertheless, our experiments clearly showed that phosphorus-deprived cultures of marine microalga
Chlorella sp. are able to produce hydrogen.
Our data show that the phosphorus-deprived culture passes through following stages: stage of the growth, starch accumulation, and oxygen production; stage of oxygen consumption; stage of hydrogen production; and termination stage. Transition of cultures from oxygen production to oxygen consumption stage can be clearly differentiated by the point when the rate of photosynthesis is equal to the rate of respiration. Future research should clarify what is the difference in microalgal adaptation to oxygen production and oxygen consumption stages but these stages are different in physiological appearance. That is why these stages should be separated from each other rather than joint in the single, oxygen stage. The set of stages described above differs from phosphorus-deprived fresh water cultures of microalgae [
18] by the visible absence of anaerobic stage. However, taking into account that we measured oxygen in gas phase, culture could pass through anaerobic stage when oxygen still present in the gas phase but is equal to zero in the liquid. This suggestion is supported by the fact that in some cases hydrogen appeared when oxygen concentration in gas phase is rather high (see, for example,
Figure 4A). Hydrogen production by microalgae is the good indication of anaerobiosis of the culture [
2]. Thus, taking into account that anaerobic stage has duration from hours [
24] to days [
22] and that for the hydrogenase induction is important [
25] we could conclude that marine microalgae also pass through anaerobic stage. Summarizing our considerations, it is possible to claim that marine microalgae
Chlorella sp. passes the same stages as fresh water microalgae during phosphorus deprivation.
The experiments with CO
2 addition demonstrated that H
2 production can be improved by increasing of starch accumulation. The interplay between starch accumulation during the phosphorus-deprivation in TA-P/NaCl and the amount of H
2 gas produced (see
Figure 3) suggests that it is possible to increase hydrogen production further. For example, manipulating the culture conditions at different steps of the process it was possible to increase hydrogen production by photoautotrophic microalgae [
22] using cultures with particular pre-history and separating light regimes during oxygen production and hydrogen production stages. Also, taking into account the durability of oxygen consumption stage and quantity of consumed starch, it is possible to suggest that artificial exclusion of oxygen at this stage (for example, bubbling the culture with argon) will accelerate this stage and keep the starch for following hydrogen production. Clearly, more work is needed to accurately define the metabolic pathways and functional regulations involved in the H
2 photoproduction process under phosphorus-deprived conditions in marine green microalgae
Chlorella sp., however, the response of
Chlorella sp. to phosphorus deprivation demonstrates significant similarities with fresh water
C. reinhardtii: cultures passed through the same physiological stages, including oxygen production with accumulation of starch, oxygen consumption, evidently due to inactivation of PSII, establishment of anaerobiosis in cultures, H
2 photoproduction and termination.
In conclusion, we have demonstrated for the first time the sustainable H2 photoproduction in marine green microalgae Chlorella sp. under phosphorus-deprived conditions. In the presence of carbon dioxide, the system accumulated significant amounts of starch during the initial, photosynthetic stage of phosphorus deprivation and produced more hydrogen.
