Hydrogenation of the Exocyclic Olefinic Bond at C-16/C-17 Position of ent-Kaurane Diterpene Glycosides of Stevia rebaudiana Using Various Catalysts

Abstract

Catalytic hydrogenation of the exocyclic double bond present between C16 and C17 carbons of the four ent-kaurane diterpene glycosides namely rebaudioside A, rebaudioside B, rebaudioside C, and rebaudioside D isolated from Stevia rebaudiana has been carried out using Pt/C, Pd(OH)₂, Rh/C, Raney Ni, PtO₂, and 5% Pd/BaCO₃ to their corresponding dihydro derivatives with 17α and 17β methyl group isomers. Reactions were performed using the above-mentioned catalysts with the solvents methanol, water, and ethanol/water (8:2) under various conditions. Synthesis of reduced steviol glycosides was performed using straightforward chemistry and their structures were characterized on the basis of 1D and 2D NMR spectral data, including a comparison with reported spectral data.

1. Introduction

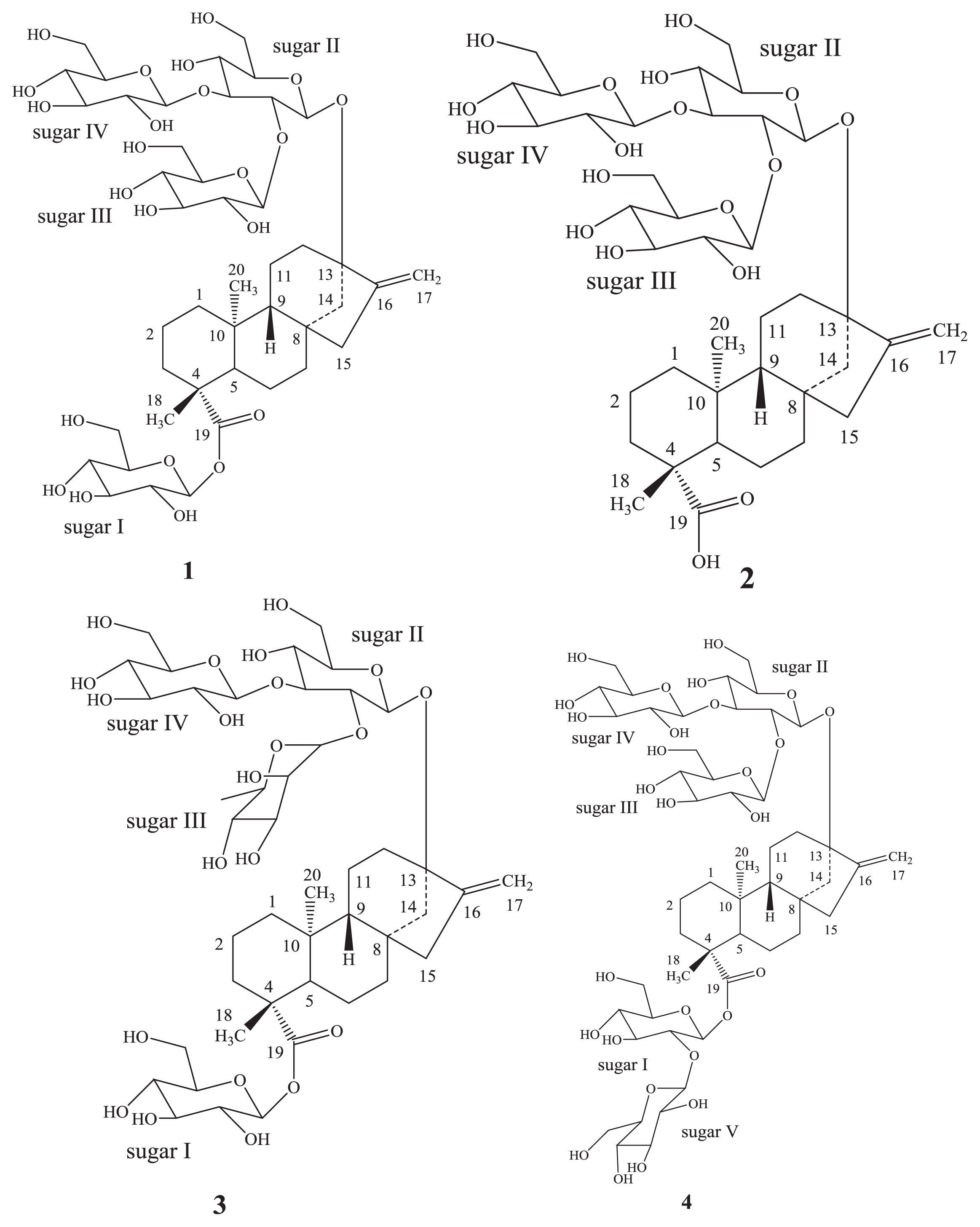

The major constituents isolated from the leaves of Stevia rebaudiana Bertoni (family: Asteraceae) are the potently sweet diterpenoid glycosides, stevioside, and rebaudioside A. These compounds are glycosides of the diterpene steviol, ent-13-hydroxykaur-16-en-19-oic acid, which are known as Stevia sweeteners [1] and are used to sweeten food products and beverages. Rebaudioside A (1) tastes about 200–300 times sweeter than sucrose; rebaudioside B (2) tastes about 150 times sweeter than sucrose; rebaudioside C (3) tastes about 20–30 times sweeter than sucrose, and rebaudioside D (4) tastes about 200–220 times sweeter than sucrose; all are non-caloric. Rebaudioside A (1) has a (2-O-β-d-glucopyranosyl-3-O-β-d-glucopyranosyl)-β-d-glucopyranosyl unit at the C-13 position with a β-d-glucopyranosyl moiety at the C-19 position of the aglycone steviol as an ester; rebaudioside B (2) has a (2-O-β-d-glucopyranosyl-3-O-β-d-glucopyranosyl)-β-d-glucopyranosyl unit at the C-13 position with a free carboxylic acid group at the C-19 position of the aglycone steviol; whereas rebaudioside C (3) has a (2-O-α-l-rhamnopyranosyl-3-O-β-d-glucopyranosyl)-β-d-glucopyranosyl unit at the C-13 position and a β-d-glucosyl moiety at the C-19 position of the aglycone steviol in the form of an ester; and rebaudioside D (4) has a (2-O-β-d-glucopyranosyl-3-O-β-d-glucopyranosyl)-β-d-glucopyranosyl unit at the C-13 position and a 2-O-β-d-glucopyranosyl-β-d-glucopyranosyl moiety at the C-19 position of the aglycone steviol as an ester (Figure 1).

As a part of our continuing research to discover natural sweeteners, we have reported several glycosides from the commercial extract of S. rebaudiana [2–6]. Apart from isolating novel compounds from S. rebaudiana and utilizing them as possible natural sweeteners or sweetness enhancers, we are also engaged in understanding the physicochemical profiles of steviol glycosides in various systems of interest and the structural characterization of their metabolites as well as their synthesis [7,8]. Recently, we have published the hydrogenation of the ent-kaurane diterpene glycosides namely rubusoside, stevioside, rebaudioside A, rebaudioside B, rebaudioside C, and rebaudioside D isolated from S. rebaudiana using Pd(OH)₂ and their sensory evaluation [9,10]. In this article, we present the synthesis of ent-kaurane diterpene glycosides that are prepared by the reduction of the C-16/C-17 exocyclic double bond of rebaudioside A, rebaudioside B, rebaudioside C, and rebaudioside D using Pt/C, Pd(OH)₂, Rh/C, Raney Ni, PtO₂, and 5% Pd/BaCO₃ as catalysts to their corresponding dihydro derivatives with the solvents methanol, water, and ethanol/water (8:2) under various experimental conditions. Their structures were characterized on the basis of extensive NMR and MS spectroscopic data as well as comparison of spectral data reported from literature.

2. Results and Discussion

2.1. Chemistry

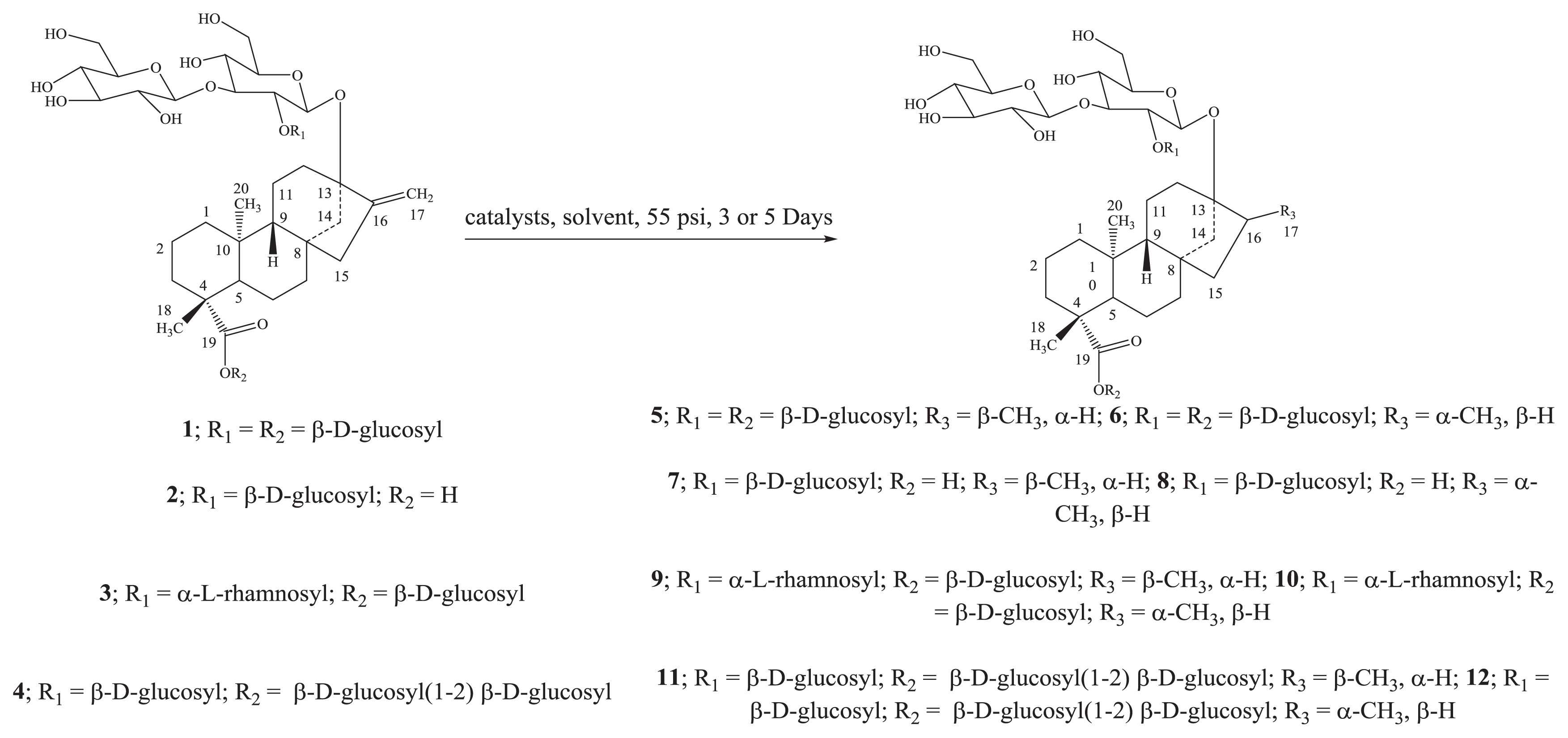

Reduction of the four compounds rebaudioside A (1), rebaudioside B (2), rebaudioside C (3), and rebaudioside D (4), were performed using catalytic hydrogenation with Pt/C, Pd(OH)₂, Rh/C, Raney Ni, PtO₂, and 5% Pd/BaCO₃ as catalysts in solvents of MeOH, H₂O, and EtOH/H₂O (8:2) at room temperature under 55 psi at 3 and 5 days furnished mixtures of dihydro derivatives of their corresponding isomers of 17α and 17β methyl groups (Scheme 1).

The conditions used for the catalytic hydrogenation of the four steviol glycosides rebaudioside A (1), rebaudioside B (2), rebaudioside C (3), and rebaudioside D (4) using Pt/C for the six methods along with the yields obtained for each reaction are given in

Table 1. Catalytic hydrogenation of Rebaudioside A (1); Rebaudioside B (2); Rebaudioside C (3); and Rebaudioside D (4) using Pt/C and yields of various methods.

S. No.	Solvent	Conditions	Duration	Yield
Method 1	MeOH	Temp.: 25 °C; Pressure: 55 psi	72 h	72.2%–77.5%
Method 2	MeOH	Temp.: 25 °C; Pressure: 55 psi	120 h	99.0%–99.5%
Method 3	H2O	Temp.: 25 °C; Pressure: 55 psi	72 h	78.0%–83.0%
Method 4	H2O	Temp.: 25 °C; Pressure: 55 psi	120 h	99.0%–99.8%
Method 5	EtOH/H2O (8:2)	Temp.: 25 °C; Pressure: 55 psi	72 h	69.0%–72.5%
Method 6	EtOH/H2O (8:2)	Temp.: 25 °C; Pressure: 55 psi	120 h	99.2%–99.5%

.

From the above table, it has been observed that the reaction was completed between 69.0% and 83.0% yield after 3 days (72 h) with highest conversion to the reduced compounds using H₂O as the solvent for the reactions. The conversion rate was similar using all three solvents after 5 days of catalytic reaction.

The conditions used for 5% Pd/BaCO₃ as a catalyst towards the hydrogenation of the four steviol glycosides rebaudioside A (1), rebaudioside B (2), rebaudioside C (3), and rebaudioside D (4) and their methods along with the yields obtained for each reaction are given in

Table 2. Catalytic hydrogenation of Rebaudioside A (1), Rebaudioside B (2), Rebaudioside C (3), and Rebaudioside D (4) using 5% Pd/BaCO₃ and yields of various methods.

S. No.	Solvent	Conditions	Duration	Yield
Method 1	MeOH	Temp.: 25 °C; Pressure: 55 psi	72 h	64.0%–69.5%
Method 2	MeOH	Temp.: 25 °C; Pressure: 55 psi	120 h	99.0%–99.5%
Method 3	H2O	Temp.: 25 °C; Pressure: 55 psi	72 h	72.2%–78.0%
Method 4	H2O	Temp.: 25 °C; Pressure: 55 psi	120 h	98.8%–99.5%
Method 5	EtOH/H2O (8:2)	Temp.: 25 °C; Pressure: 55 psi	72 h	66.2%–70.5%
Method 6	EtOH/H2O (8:2)	Temp.: 25 °C; Pressure: 55 psi	120 h	99.0%–99.5%

.

From the above table, it was inferred that the reaction was completed between 64.0% and 78.0% after 3 days (72 h) with highest conversion to the reduced compounds with H₂O as the reaction solvent using 10% Pd-BaCO₃ as catalyst, whereas the conversion rate was in the same range using all three solvents MeOH, H₂O, and EtOH-H₂O (8:2) mixtures for 5 days of reaction.

The conditions used for the catalytic hydrogenation of the four steviol glycosides rebaudioside A (1), rebaudioside B (2), rebaudioside C (3), and rebaudioside D (4) using Rh/C for their six methods along with the yields obtained for each reaction are given in

Table 3. Catalytic hydrogenation of Rebaudioside A (1); Rebaudioside B (2); Rebaudioside C (3); and Rebaudioside D (4) using Rh/C and yields of various methods.

S. No.	Solvent	Conditions	Duration	Yield
Method 1	MeOH	Temp.: 25 °C; Pressure: 55 psi	72 h	62.0%–67.5%
Method 2	MeOH	Temp.: 25 °C; Pressure: 55 psi	120 h	99.0%–99.5%
Method 3	H2O	Temp.: 25 °C; Pressure: 55 psi	72 h	78.2%–81.0%
Method 4	H2O	Temp.: 25 °C; Pressure: 55 psi	120 h	99.5%–99.8%
Method 5	EtOH/H2O (8:2)	Temp.: 25 °C; Pressure: 55 psi	72 h	68.4%–73.2%
Method 6	EtOH/H2O (8:2)	Temp.: 25 °C; Pressure: 55 psi	120 h	96.5%–97.2%

.

From Table 3, it was inferred that the hydrogenation reaction was completed between 62.0% and 81.0% after 3 days (72 h) with highest conversion to the reduced compounds of rebaudioside A (1), rebaudioside B (2), rebaudioside C (3), and rebaudioside D (4) using H₂O as the solvent for the reactions with Rh/C as catalyst, whereas the conversion rate was similar using the two solvents MeOH, and H₂O between 99.0% and 99.8% conversion, and around 97.0% in case of EtOH/H₂O (8:2) mixture after 5 days reactions.

The experimental conditions used for the catalytic hydrogenation with Raney Ni on the four steviol glycosides rebaudioside A (1), rebaudioside B (2), rebaudioside C (3), and rebaudioside D (4) and the methods along with their yields for each reaction are given in

Table 4. Catalytic hydrogenation of Rebaudioside A (1); Rebaudioside B (2); Rebaudioside C (3); and Rebaudioside D (4) using Raney Ni and yields of various methods.

S. No.	Solvent	Conditions	Duration	Yield
Method 1	MeOH	Temp.: 25 °C; Pressure: 55 psi	72 h	57.0%–61.2%
Method 2	MeOH	Temp.: 25 °C; Pressure: 55 psi	120 h	99.0%–99.5%
Method 3	H2O	Temp.: 25 °C; Pressure: 55 psi	72 h	76.5%–81.2%
Method 4	H2O	Temp.: 25 °C; Pressure: 55 psi	120 h	99.5%–99.8%
Method 5	EtOH-H2O (8:2)	Temp.: 25 °C; Pressure: 55 psi	72 h	68.5%–73.5%
Method 6	EtOH-H2O (8:2)	Temp.: 25 °C; Pressure: 55 psi	120 h	97.5%–98.4%

.

From Table 4, it was identified that the reaction was completed between 57.0% and 81.2% after 3 days (72 h) with the highest conversion to the reduced compounds of rebaudioside A (1), rebaudioside B (2), rebaudioside C (3), and rebaudioside D (4) using H₂O as the solvent for the reactions with Rh/C as catalyst. The conversion rate was similar using the two solvents MeOH, and H₂O between 99.0% and 99.8% conversion, and around 98% in case of EtOH-H₂O (8:2) mixture after 5 days reactions.

The conditions used for the catalytic hydrogenation of the four steviol glycosides rebaudioside A (1), rebaudioside B (2), rebaudioside C (3), and rebaudioside D (4) using PtO₂ for their reaction methods along with the yields obtained are given in

Table 5. Catalytic hydrogenation of Rebaudioside A (1); Rebaudioside B (2); Rebaudioside C (3); and Rebaudioside D (4) using PtO₂ and yields of various methods.

S. No.	Solvent	Conditions	Duration	Yield (17β/17α)
Method 1	MeOH	Temp.: 25 °C; Pressure: 55 psi	72 h	55.2%–59.5%
Method 2	MeOH	Temp.: 25 °C; Pressure: 55 psi	120 h	99.0%–99.7%
Method 3	H2O	Temp.: 25 °C; Pressure: 55 psi	72 h	78.3%–81.5%
Method 4	H2O	Temp.: 25 °C; Pressure: 55 psi	120 h	99.0%–99.8%
Method 5	EtOH/H2O (8:2)	Temp.: 25 °C; Pressure: 55 psi	72 h	67.5%–73.0%
Method 6	EtOH/H2O (8:2)	Temp.: 25 °C; Pressure: 55 psi	120 h	99.3%–99.7%

.

From the above table it was observed that the reaction was completed between 55.2% and 81.0% after 3 days (72 h) with highest conversion to the reduced compounds using H₂O as the solvent for the reactions with PtO₂ as catalyst. The conversion rate was almost same using all three solvents MeOH, H₂O, and EtOH/H₂O (8:2) mixtures for 5 days reaction.

The conditions used for the hydrogenation using Pd(OH)₂ as catalyst on the four steviol glycosides rebaudioside A (1), rebaudioside B (2), rebaudioside C (3), and rebaudioside D (4) along with their methods and yields obtained for each reaction are given in

Table 6. Catalytic hydrogenation of Rebaudioside A (1); Rebaudioside B (2); Rebaudioside C (3); and Rebaudioside D (4) using Pd(OH)₂ and yields of various methods.

S. No.	Solvent	Conditions	Duration	Yield (17β/17α)
Method 1	MeOH	Temp.: 25 °C; Pressure: 55 psi	72 h	62.0%–67.5%
Method 2	MeOH	Temp.: 25 °C; Pressure: 55 psi	120 h	99.0%–99.5%
Method 3	H2O	Temp.: 25 °C; Pressure: 55 psi	72 h	81.2%–84.4%
Method 4	H2O	Temp.: 25 °C; Pressure: 55 psi	120 h	99.3%–99.8%
Method 5	EtOH/H2O (8:2)	Temp.: 25 °C; Pressure: 55 psi	72 h	65.4%–73.5%
Method 6	EtOH/H2O (8:2)	Temp.: 25 °C; Pressure: 55 psi	120 h	99.4%–99.9%

.

From Table 6, it was concluded that the reaction was completed between 62.0% and 84.4% after 3 days (72 h) with highest conversion to the reduced compounds using H₂O as the solvent for the reactions with PtO₂ as catalyst, whereas the conversion rate was similar using all three solvents MeOH, H₂O, and EtOH-H₂O (8:2) mixtures after 5 days of reaction.

Further trails to separate the mixtures of the dihydro products of the hydrogenation of the four compounds: rebaudioside A (1), rebaudioside B (2), rebaudioside C (3), and rebaudioside D (4) using various separation techniques of preparative TLC and reversed phase HPLC failed. Hence we have reported these compounds as is.

2.2. Spectroscopy

The structural characterization of 5–12 were performed on the basis of one dimensional (¹H, ¹³C), two-dimensional (¹H–¹H COSY, ¹H–¹³C HMQC, ¹H–¹³C HMBC) NMR and in comparison with the reported spectral data [9,10]. The stereochemistry at the C-16 position was identified in comparison with their corresponding aglycone derivative literature values [9–13] as well as chemical studies. The ¹H and ¹³C NMR values for all the protons and carbons in 5–12 were assigned on the basis of COSY, HMQC and HMBC correlations. Further it was found that the ratio of 17α/17β reduced compounds were observed at an approximately 60:40 ratio based on NMR spectral data of the mixture after 3 or 5 days reduction with catalytic hydrogenation of rebaudioside A (1), rebaudioside B (2), rebaudioside C (3), and rebaudioside D (4) using Pt/C, Pd(OH)₂, Rh/C, Raney Ni, PtO₂, and 5% Pd/BaCO₃ indicates that the ratio is devoid of catalysts. The ¹H NMR data for the key protons in 5–12 are given in

Table 7. ¹H NMR chemical shifts values for reduced compounds 5–12 recorded in pyridine-d5 (C₅D₅N) a–c.

Position	5	6	7	8	9	10	11	12
17	1.10 (d, 6.4, 1H)	1.16 (d, 6.4, 1H)	1.15 (d, 6.6, 1H)	1.32 (d, 6.4, 1H)	1.18 (d, 6.5, 1H)	1.37 (d, 6.4, 1H)	1.14 (d, 6.6, 1H)	1.16 (d, 6.4, 1H)
18	1.26 (s, 3H)	1.25 (s, 3H)	1.15 (s, 3H)	1.17 (s, 3H)	1.24 (s, 3H)	1.27 (s, 3H)	1.14 (s, 3H)	1.15 (s, 3H)
20	1.31 (s, 3H)	1.32 (s, 3H)	1.17 (s, 3H)	1.34 (s, 3H)	1.29 (s, 3H)	1.28 (s, 3H)	1.41 (s, 3H)	1.42 (s, 3H)
Sugar I-1′	6.16 (d, 6.8, 1H)	6.16 (d, 6.6, 1H)			6.13 (d, 6.8, 1H)	6.14 (d, 6.5, 1H)	6.86 (d, 6.4, 1H)	6.84 (d, 6.5, 1H)
Sugar II-1″	5.02 (d, 6.7, 1H)	5.01 (d, 6.7, 1H)	5.04 (d, 6.6, 1H)	5.01 (d, 6.4, 1H)	5.10 (d, 6.7, 1H)	5.07 (d, 6.4, 1H)	5.50 (d, 6.6, 1H)	5.53 (d, 6.4, 1H)
Sugar III-1‴	5.36 (d, 6.7, 1H)	5.34 (d, 6.4, 1H)	5.33 (d, 6.4, 1H)	5.34 (d, 6.3, 1H)	5.92 (d, 6.4, 1H)	5.75 (d, 6.8, 1H)	5.52 (d, 6.6, 1H)	5.56 (d, 6.6, 1H)
Sugar IV-1‴′	5.51 (d, 6.4, 1H)	5.42 (d, 6.8, 1H)	5.47 (d, 6.1, 1H)	5.51 (d, 6.4, 1H)	6.51 (d, 1.8, 1H)	6.84 (d, 1.6, 1H)	5.36 (d, 6.4, 1H)	5.41 (d, 6.6, 1H)
Sugar V-1‴″					1.64 (d, 6.1, 3H)	1.72 (d, 6.4, 3H)	6.31 (d, 6.4, 1H)	6.33 (d, 6.2, 1H)

^aassignments made on the basis of COSY, HSQC and HMBC correlations;

^bChemical shift values are in δ (ppm);

^cCoupling constants are in Hz.

, whereas the complete assignments of their carbon values are given in

Table 8. ¹³C NMR chemical shifts values for reduced compounds 5–12 recorded in pyridine-d5 (C₅D₅N) a–b.

Position	5	6	7	8	9	10	11	12
1	41.1	41.3	40.3	40.2	41.4	41.3	41.2	41.2
2	20.2	20.2	20.3	20.5	20.3	20.2	20.4	20.3
3	38.8	38.7	38.7	38.7	38.8	38.8	38.7	38.6
4	44.5	43.1	44.3	43.2	44.4	43.4	44.4	42.9
5	57.7	57.7	57.6	55.8	58.0	58.1	58.1	58.0
6	22.9	23.0	23.1	23.4	22.8	23.1	23.0	23.0
7	41.6	40.3	41.6	40.4	41.6	40.2	41.4	40.2
8	44.5	43.2	44.3	43.2	44.4	43.1	43.5	42.5
9	55.7	54.8	55.8	50.6	56.4	54.6	55.4	55.1
10	40.2	40.3	40.2	40.3	40.3	40.3	40.1	40.3
11	20.3	20.7	20.5	20.8	20.4	20.7	20.6	20.7
12	35.4	44.4	35.5	44.0	35.4	44.2	35.9	44.0
13	88.3	88.2	88.6	88.2	86.2	86.2	88.3	88.1
14	47.3	50.5	47.6	50.6	47.1	50.3	47.5	51.1
15	47.2	44.6	47.7	44.2	47.1	44.9	47.6	44.8
16	41.2	38.9	41.5	38.7	41.2	39.0	41.1	38.9
17	14.5	19.7	16.5	16.4	14.2	19.7	14.4	17.2
18	28.6	28.6	29.7	29.8	28.6	28.6	29.4	29.8
19	177.4	177.7	180.5	180.3	177.8	177.6	176.5	176.3
20	15.6	15.8	15.8	16.2	15.7	16.1	15.6	16.0
Sugar I
1′	96.3	96.2			96.2	95.9	96.2	96.3
2′	75.8	75.4			75.4	75.3	81.6	81.2
3′	79.6	79.8			79.0	79.3	78.9	78.7
4′	71.6	71.4			71.2	71.4	71.6	71.4
5′	78.6	78.8			78.5	78.6	78.5	78.6
6′	63.1	63.2			62.5	62.5	63.1	63.2
Sugar II
1″	99.1	98.8	98.7	98.9	98.4	96.8	94.2	94.3
2″	78.4	78.5	78.8	78.6	78.4	78.6	79.1	79.2
3″	86.5	85.6	85.6	86.6	87.3	86.2	86.1	86.7
4″	71.9	72.1	72.1	72.2	70.6	70.6	71.2	71.1
5″	77.3	77.0	77.0	77.0	75.6	75.4	77.2	77.1
6″	62.7	62.9	62.9	62.8	62.7	62.7	62.8	62.9
Sugar III
1‴	105.2	105.5	105.5	105.0	103.2	102.2	105.2	104.9
2‴	74.6	74.7	74.6	74.6	71.9	71.6	75.9	75.9
3‴	77.5	77.9	77.8	77.8	72.9	72.9	78.7	78.6
4‴	72.1	72.0	72.1	72.3	73.0	73.2	72.4	72.2
5‴	78.9	79.1	79.0	79.3	70.3	70.2	79.0	79.3
6‴	62.6	62.5	62.9	62.9	19.6	19.3	62.6	62.8
Sugar IV
1‴′	105.4	105.9	105.6	105.5	105.2	104.8	105.2	105.7
2‴′	74.3	74.6	75.6	75.7	74.8	74.7	74.3	74.4
3‴′	79.9	79.9	81.8	81.2	79.8	79.9	79.8	79.7
4‴′	72.2	72.3	72.0	72.1	72.4	72.1	72.2	72.3
5‴′	79.8	79.7	79.1	79.2	79.0	78.7	79.6	79.8
6‴′	63.2	63.0	63.3	63.3	63.4	63.1	63.2	63.3
Sugar V
1‴″							106.1	105.6
2‴″							76.8	76.8
3‴″							78.9	78.9
4‴″							72.3	72.2
5‴″							81.8	81.3
6‴″							63.5	63.5

^aassignments made on the basis of COSY, HMQC and HMBC correlations;

^bChemical shift value are in δ (ppm).

.

3. Experimental Section

3.1. General

Samples of the synthesized steviol glycosides 5–12 are available from the authors. Melting points were measured using a SRS Optimelt MPA 100 instrument and are uncorrected. IR spectral data was acquired using a Perkin Elmer 400 Fourier Transform Infrared Spectrometer (Perkin Elmer, Waltham, MA, USA) with Universal attenuated total reflectance (UATR) polarization accessory. NMR spectra were acquired a Varian Unity Plus 600 MHz instrument in C₅D₅N using standard pulse sequences. Chemical shifts are given in δ (ppm), and coupling constants are reported in Hz. HRMS and MS/MS data were generated with a Waters Premier Quadrupole Time-of-Flight mass spectrometer (Waters Corporation, Milford, MA, USA) equipped with an electrospray ionization source operated in the positive-ion mode and ThermoFisher Discovery OrbiTrap in the positive mode of electrospray. Samples were diluted with water/acetonitrile (1:1) containing 0.1% formic acid and introduced via infusion using the onboard syringe pump. The mixed solvents were made up on a volume/volume basis.

3.2. Isolation of Reduced Steviol Glycosides 5–12

3.2.1. General Procedure for the Catalytic Hydrogenation of Steviol Glycosides 1–4 with Pd(OH)₂

To a solution of each steviol glycoside 1–4 (2 g) dissolved in 100 mL of solvent was added Pd(OH)₂ (50 mg). The mixture was hydrogenated at ambient temperature under 55 psi. At the end of hydrogenation (3 or 5 days), the reaction mixture was filtered through celite and concentrated under vacuum to afford a clear white product. The product, triturated in acetone and filtered and dried under vacuum at 50 °C for 2 days furnished the corresponding dihydroderivatives of 1–4.

3.2.2. General Procedure for the Catalytic Hydrogenation of Steviol Glycosides 1–4 with Pt/Charcoal

To a solution of each steviol glycoside 1–4 (2 g) dissolved in 100 mL of solvent was added Pt/C (100 mg). The mixture was hydrogenated at ambient temperature under 55 psi. At the end of hydrogenation (3 or 5 days), the reaction mixture was filtered in nitrogen atmosphere under vacuum (failing to do this would result in fire of the reaction mixture) and concentrated under vacuum to afford a clear white product. The product was triturated in acetone, filtered and dried under vacuum at 50 °C for 2 days which yielded their corresponding dihydroderivatives.

3.2.3. General Procedure for the Catalytic Hydrogenation of Steviol Glycosides 1–4 with Rh/Charcoal

To a solution of each steviol glycoside 1–4 (2 g) dissolved in 100 mL of solvent was added Rh/C (100 mg). The mixture was hydrogenated at ambient temperature under 55 psi. At the end of hydrogenation (3 or 5 days), the reaction mixture was filtered through celite and concentrated under vacuum to afford a clear white product. The product was triturated in acetone/diethylether (1:1) and filtered. The product obtained was dried under vacuum at 50 °C for 2 days which yielded their corresponding dihydroderivatives.

3.2.4. General Procedure for the Catalytic Hydrogenation of Steviol Glycosides 1–4 with Raney Ni

To a solution of each steviol glycoside 1–4 (2 g) dissolved in 100 mL of solvent was added Raney Ni (100 mg). The mixture was hydrogenated at ambient temperature under 55 psi. At the end of hydrogenation (3 or 5 days), the reaction mixture was filtered in nitrogen atmosphere under vacuum (failing to do this would result in fire of the reaction mixture) and concentrated under vacuum to afford a clear white product. The product was triturated with acetone/ethylmethylketone (1:1), filtered and dried under vacuum at 50 °C for 2 days yielding the corresponding dihydroderivatives of 1–4.

3.2.5. General Procedure for the Catalytic Hydrogenation of Steviol Glycosides 1–4 with 5% Pd/BaCO₃

To a solution of each steviol glycoside 1–4 (2 g) dissolved in 100 mL of solvent was added 5% Pd/BaCO₃ (100 mg). The mixture was hydrogenated at ambient temperature under 55 psi. At the end of hydrogenation (3 or 5 days), the reaction mixture was filtered through celite and concentrated under vacuum to afford a clear white product. The product was triturated in acetone/diethylether (1:1) and filtered and dried under vacuum at 50 °C for 2 days yielding the corresponding dihydroderivatives of 1–4.

3.2.6. General Procedure for the Catalytic Hydrogenation of Steviol Glycosides 1–4 with PtO₂

To a solution of each steviol glycoside 1–4 (2 g) dissolved in 100 mL of solvent was added PtO₂ (50 mg). The mixture was hydrogenated at ambient temperature under 55 psi. At the end of hydrogenation (3 or 5 days), the reaction mixture was filtered in nitrogen atmosphere under vacuum (failing to do this would result in fire of the reaction mixture) and concentrated under vacuum to afford a clear white product. The product was triturated in acetone, filtered and dried under vacuum at 50 °C for 2 days which yielded their corresponding dihydroderivatives.

The structural characterization of each isomeric mixture of (5/6), (7/8), (9/10), and (11/12) obtained by the catalytic hydrogenation of rebaudioside A (1), rebaudioside B (2), rebaudioside C (3), and rebaudioside D (4) using Pt/C, Pd(OH)₂, Rh/C, Raney Ni, PtO₂, and 5% Pd/BaCO₃ has been confirmed by co-HPLC and comparative spectral data of the reported literature data [9,10].

3.2.7. Dihydrorebaudiososide A1/Dihydrorebaudiososide A2 (5/6)

White powder; IR νmax: 3342, 2928, 2886, 1735, 1033, 887 cm^{−1; 1}H NMR (600 MHz, C₅D₅N, δ ppm) and ¹³C NMR (150 MHz, C₅D₅N, δ ppm) spectroscopic data see Tables 7 and 8; HRMS (M + H)⁺m/z 969.4553 (calcd. for C₄₄H₇₃O₂₃: 969.4543), (M + NH₄)⁺m/z 986.4808 (calcd. for C₄₄H₇₆NO₂₃: 986.4808) [9].

3.2.8. Dihydrorebaudioside B1/Dihydrorebaudioside B2 (7/8)

White powder; IR ν_max: 3345 cm⁻¹, 2932 cm⁻¹, 2880 cm⁻¹, 1726 cm⁻¹, 1036 cm⁻¹, 894 cm^{−1; 1}H-NMR and ¹³C-NMR spectroscopic data see Tables 7 and 8, respectively; HRMS (M + NH₄)⁺m/z 824.4282 (calcd. for C₃₈H₆₆NO₁₈: 824.4280), (M + Na)⁺m/z 829.3838 (calcd. for C₃₈H₆₂O₁₈Na: 829.3834) [10].

3.2.9. Dihydrorebaudioside C1/Dihydrorebaudioside C2 (9/10)

White powder; IR ν_max: 3355 cm⁻¹, 2930 cm⁻¹, 2883 cm⁻¹, 1724 cm⁻¹, 1034 cm⁻¹, 892 cm^{−1; 1}H-NMR and ¹³C-NMR spectroscopic data see Tables 7 and 8, respectively; HRMS (M + NH₄)⁺m/z 970.4864 (calcd. for C₄₄H₇₆NO₂₂: 970.4859), (M + Na)⁺m/z 975.4418 (calcd. for C₄₄H₇₂NaO₂₂: 975.4413) [10].

3.2.10. Dihydrorebaudioside D1/Dihydrorebaudioside D2 (11/12)

White powder; IR ν_max: 3348 cm⁻¹, 2923 cm⁻¹, 2882 cm⁻¹, 1726 cm⁻¹, 1033 cm⁻¹, 880 cm^{−1; 1}H-NMR and ¹³C-NMR spectroscopic data see Tables 7 and 8, respectively; HRMS (M + H)⁺m/z 1131.5074 (calcd. for C₅₀H₈₃O₂₈: 1131.5071), (M + NH₄)⁺m/z 1148.5342 (calcd. for C₅₀H₈₆NO₂₈: 1148.5336) [10].

4. Conclusions

In conclusion, eight ent-kaurane diterpene glycosides 5–12 were synthesized by catalytic hydrogenation of the four natural products rebaudioside A (1), rebaudioside B (2), rebaudioside C (3), and rebaudioside D (4) using Pt/C, Pd(OH)₂, Rh/C, Raney Ni, PtO₂, and 5% Pd/BaCO₃ to their corresponding dihydro derivatives with 17α and 17β methyl group isomers with solvents methanol, water, and ethanol/water (8:2) under various conditions. The structures of all synthesized compounds were characterized on the basis of NMR (1D and 2D) and mass spectral data, as well as in comparison with the data reported in the literature. This is the first report of the catalytic hydrogenation of rebaudioside A, rebaudioside B, rebaudioside C, and rebaudioside D under various experimental conditions of solvents and duration of reaction time.
