Synthesis and Antibacterial Activities of 1-Alkyl-3-methacryloyl (Acryloyl) of Benzimidazolone (Thione) Derivatives

Wei, Shaopeng; Wu, Wenjun; Ji, Zhiqin

doi:10.3390/ijms13044819

Open AccessArticle

Synthesis and Antibacterial Activities of 1-Alkyl-3-methacryloyl (Acryloyl) of Benzimidazolone (Thione) Derivatives

by

Shaopeng Wei

,

Wenjun Wu

and

Zhiqin Ji

^*

College of plant protection and Institute of Pesticide Science, Northwest A & F University, Shaanxi 712100, China

^*

Author to whom correspondence should be addressed.

Int. J. Mol. Sci. 2012, 13(4), 4819-4830; https://doi.org/10.3390/ijms13044819

Submission received: 7 March 2012 / Revised: 24 March 2012 / Accepted: 6 April 2012 / Published: 16 April 2012

(This article belongs to the Section Biochemistry)

Download

Browse Figure

Versions Notes

Abstract

:

A series of (28) 1-alkyl-3-methacryloyl (acryloyl)-benzimidazolone (thione) deriv-atives were synthesized. The structures of the new derivatives were confirmed by ¹H-NMR, ¹³C-NMR and ESI-MS spectral analysis. The antibacterial activities of these compounds against several strains of bacteria, such as Bacillus cereus, Bacillus subtilis, Escherichia coli, Staphylococcus aureus and Pseudomonas aeruginosa, were evaluated by methods of paper disc-diffusion and broth mciro-dilution. Methacryloyl derivatives displayed higher antibacterial activities against tested bacterial strains than those of acryloyl derivatives in in vitro tests. A structure-activity relationship (SAR) study revealed that the presences of the methacryloyl moieties is essential to the antibacterial activities of the compounds.

Keywords:

benzimidazolone (thione) derivatives; synthesis; antibacterial activity

1. Introduction

With the widespread use of antibiotics, the emergence of resistant bacteria has become a great threat to public health [1]. Although there are many approaches to limit the spread of resistant bacteria, the development of new antibiotics is undoubtedly a fundamental solution [2]. It is regretful that the number of newly approved antibiotics continues to decline, and the majority of compounds under different stages are improved variants of marketed antibiotics [3]. Finding good initial lead compounds and progressing compounds into the clinic has proven difficult owing to bottlenecks in the discovery pipeline [4]. Benzimidazolone derivatives have been found to exhibit anti-HIV [5], antitrichinellosis [6], antinociceptive [7], antitumor activities [8], and other pharmacological activities [9–12]. For instance, it has been reported in recent literature that benzimidazolone bearing a sugar or piperidine residue on the aromatic nitrogen effectively inhibits the growth of bacteria [13,14].

In previous studies, we synthesized a series of 1-acyl-3-isopropenyl-benzimidazol-2-ones, in which several derivatives of aromatic and α, β-unsaturated carboxylic acids showed strong activities against Botrytis cinerea, a plant pathogenic fungus that causes an important disease affecting vegetables and fruits [15]. In further investigation, their antibacterial activities against several strains of bacteria were assessed by broth micro-dilution method. The results showed that only 1-methacryloyl-3-isopropenyl-benzimidazol- 2-one exhibited extraordinary antibacterial activity, whereas other derivatives only showed minor or even no inhibition. A structure-activity relationship (SAR) study revealed that the presence of α, β-unsaturated carbonyl moiety is essential to the antibacterial activities of these derivatives. To better understand the SAR, a series of (28) 1-alkyl-3-methacryloyl (acryloyl)-benzimidazolone (thione) derivatives were synthesized and their antibacterial activities were evaluated herein.

2. Results and Discussion

2.1. Synthesis of 1-Alkyl-3-methacryloyl (Acryloyl)-benzimidazolone (Thione)

For the synthesis of the title compounds, the reaction sequences outlined in Scheme 1 were followed, starting from 2(3H)-benzimidazolone (thione) (1), which was prepared by the reaction of O-phenylenediamine and urea or thiourea. Compound 1 was reacted with corresponding alkylhalide to obtain 1-alkyl-2(3H)-benzimidazolone (thione) (2), and the title compounds were then obtained by the reaction of 1-alkyl-2(3H)-benzimidazolone (thione) with corresponding acid chloride, which was prepared by the reaction of the carboxylic acids with thionyl chloride [16]. The chemical structures of the compounds have been elucidated by ¹H-NMR, ¹³C-NMR and ESI-HRMS spectral analysis.

2.2. Antibacterial Activities

Antibacterial activities of the title compounds against standard bacterial strains were evaluated by the method of paper disc-diffusion, and the results are listed in Table 1. MICs of 1-alkyl-3-meth-acryloyl-Int. benzimidazolone (thione) derivatives against tested bacterial strains were evaluated by the broth micro-dilution method, and the results are listed in Table 2.

As shown in Table 1, except for benzyl (3aI₇ and 3bI₇), most other alkyl derivatives of methacryloyl benzimidazolone (thione) (3aI₁~3aI₆ and 3bI₁~3bI₆) showed extraordinary antibacterial activity against both gram-positive and gram-negative bacteria, whereas acryloyl derivatives exhibited weak or even no active against tested bacteria. This suggests that the presence of α, β-unsaturated carbonyl is essential to the antibacterial activities, and the methyl group substituted at α-position is also important. The loss of activity of benzyl derivatives (3aI₇ and 3bI₇) may be due to the steric hindrance of benzene ring. In Table 2, the activities of pentyl derivatives (3aI₅ and 3bI₅) decreased dramatically compared to those of other alkylated derivatives, which implies that a longer carbon chain is not favorable to the activity. Obviously, the introduction of different alkyl groups to the N₁-position of the moiety of benzimidazolone had various affect on the activity, and 2–4 carbon substitutions may be more favorable for promoting the antibacterial activity as compared with much larger substitution groups at the same position. The antibacterial activities of 2-hydroxyl and 2-hydrosulfuryl benzimidazoles were almost identical, which indicates that these two groups had similar biological effects. These results have encouraged us to start further investigations into novel benzimidazolone (thione) derivatives as antibacterial agents and this will be reported in due course.

3. Experimental Section

3.1. General Experimental Procedures

Melting points were measured on a WPR apparatus and are uncorrected (Shanghai Jingke Co., China). The ¹H-NMR (500 MHz), and ¹³C-NMR (125 MHz) were obtained on a Bruker AM-500 FT-NMR spectrometer with CDCl₃ as the solvent and TMS as the internal standard. MS were recorded under ESI conditions using an APEX II FT-ICR mass spectrometer (Bruker Daltonics Inc.). Analytical thin layer chromatography (TLC) was carried out on precoated plates (silica gel), and spots were visualized with H₂SO₄/EtOH.

3.2. Synthetic Procedures

3.2.1. General Procedures for 1-Alkyl-Benzimidazolone (Thione) (2)

To a solution of 1 (1 mmol) in methanol (10 mL) were added potassium carbonate (0.21 g, 1.5 mmol) and alkylhalide (1 mmol), and the mixture was refluxed for 4 h. The reaction was cooled and evaporated to dryness in vacuum. The residue was dissolved in 10 mL of water and 20 mL of ethyl acetate, and then stirred for 10 min. The organic layer was separated and washed with water followed by brine. The aqueous layer was extracted twice with ethyl acetate. The combined organic layers were dried over Na₂SO₄, concentrated under vacuum and the crude product was purified by flash chromatography on silica gel.

3.2.2. General Procedures for 1-Alkyl-3-Methacryloyl (Acryloyl)-Benzimidazolone (Thione) (3)

With nitrogen protection, to a solution of 2 (1 mmol) in anhydrous dichloromethane (10 mL) was added triethylamine (0.3 mL, 2.1 mmol). Carboxylic chloride (1 mmol) in dichloromethane (2 mL) was added in an ice-water bath, and the mixture was stirred for 5 h at room temperature. Saturated NaHCO₃ solution (10 mL) was added, and the mixture was extracted by dichloromethane (3 × 15 mL). The organic extracts were combined, washed with water and saturated NaCl solution in that order, dried over Na₂SO₄, and finally concentrated under vacuum. After purification on a silica gel column, target compounds were obtained.

1-ethyl-3-methacryloyl-1H-benzo[d]imidazol-2(3H)-one (3aI₁): white crystalline solid (0.145 g, 63% yield), mp 60–62 °C. ¹H-NMR (500 MHz, CDCl₃) δ 1.36 (t, J = 7.0 Hz, 3H), 2.15 (s, 3H), 3.91 (q, J = 7.0 Hz, 2H), 5.54 (s, 1H), 5.55 (s, 1H), 7.01 (d, J = 8.0 Hz, 1H), 7.16 (t, J = 8.0 Hz, 1H), 7.22–7.26 (m, 1H), 7.97 (d, J = 8.0 Hz, 1H); ¹³C-NMR (125 MHz, CDCl₃) δ 13.1, 19.0, 36.0, 107.7, 115.0, 121.2, 122.4, 124.5, 126.6, 129.9, 140.7, 151.2, 170.4. ESI-MS: 231.1153 ([M+H]⁺, [C₁₃H₁₄N₂O₂+H]⁺; calc. 231.1134).

1-propyl-3-methacryloyl-1H-benzo[d]imidazol-2(3H)-one (3aI₂): white crystalline solid (0.136 g, 56% yield), mp 67–68 °C. ¹H-NMR (500 MHz, CDCl₃) δ 0.99 (t, J = 7.0 Hz, 3H), 1.76–1.81 (m, 2H), 2.14 (s, 3H), 3.81 (t, J = 7.0 Hz, 2H), 5.53 (s, 1H), 5.55 (s, 1H), 7.00 (d, J = 8.0 Hz, 1H), 7.15 (t, J = 8.0 Hz, 1H),7.21–7.26 (m, 1H), 7.96 (d, J = 8.0 Hz, 1H); ¹³C-NMR (125 MHz, CDCl₃) δ 11.3, 18.9, 21.3, 42.8, 107.8, 114.9, 121.2, 122.4, 124.4, 126.5, 130.4, 140.7, 151.6, 170.4. ESI-MS: 245.1295 ([M+H]⁺, [C₁₄H₁₆N₂O₂+H]⁺; calc. 245.1290).

1-isopropyl-3-methacryloyl-1H-benzo[d]imidazol-2(3H)-one (3aI₃): yellow oil (0.158 g, 65% yield). ¹H-NMR (500 MHz, CDCl₃) δ 1.53 (d, J = 6.0 Hz, 6H), 2.14 (s, 3H), 4.62–4.64 (m, 1H), 5.52(s, 1H), 5.54 (s, 1H), 7.11 (d, J = 8.0 Hz, 1H), 7.18–7.23 (m, 2H), 7.96 (d, J = 8.0 Hz, 1H); ¹³C-NMR (125 MHz, CDCl₃) δ 18.9, 21.7 (2CH₃), 45.4, 108.9, 114.8, 121.0, 122.7, 124.3, 126.6, 129.3, 140.9, 150.9, 170.4. ESI-MS: 245.1280 ([M+H]⁺, [C₁₄H₁₆N₂O₂+H]⁺; calc. 245.1290).

1-isobutyl-3-methacryloyl-1H-benzo[d]imidazol-2(3H)-one (3aI₄): white solid (0.142 g, 55% yield), mp 55–56 °C. ¹H-NMR (500 MHz, CDCl₃) δ 0.98 (d, J = 5.0 Hz, 6H), 2.14 (s, 3H), 2.19–2.22 (m, 1H), 3.64 (d, J = 6.5, 2H), 5.53 (s, 1H), 5.55 (s, 1H), 6.98 (d, J = 8.0 Hz, 1H), 7.13–7.26 (m, 2H), 7.96 (d, J = 8.0 Hz, 1H); ¹³C-NMR (125 MHz, CDCl₃) δ 18.9, 20.2 (2CH₃), 27.6, 48.6, 108.1, 114.8, 121.3, 122.4, 124.4, 126.5, 130.7, 140.7, 151.8, 170.4. ESI-MS: 259.1455 ([M+H]⁺, [C₁₅H₁₈N₂O₂+H]⁺; calc. 259.1447).

1-pentyl-3-methacryloyl-1H-benzo[d]imidazol-2(3H)-one (3aI₅): white solid (0.166 g, 61% yield), mp 72–73 °C. ¹H-NMR (500 MHz, CDCl₃) δ 0.90 (CH₃, br.s, 3H), 1.36 (2CH₂, br.s, 4H), 1.75–1.76 (m, 2H), 2.14 (s, 3H), 3.83 (t, J = 7.0 Hz, 2H), 5.54 (s, 1H), 5.55 (s, 1H), 6.98 (d, J = 8.0 Hz, 1H), 7.06–7.23 (m, 2H), 7.96 (d, J = 8.0 Hz, 1H); ¹³C-NMR (125 MHz, CDCl₃) δ 13.9, 18.9, 22.3, 27.5, 28.9, 41.2, 107.8, 114.9, 121.2, 122.4, 124.4, 126.6, 130.3, 140.7, 151.5, 170.4. ESI-MS: 273.1629 ([M+H]⁺, [C₁₆H₂₀N₂O₂+H]⁺; calc. 273.1603).

1-allyl-3-methacryloyl-1H-benzo[d]imidazol-2(3H)-one (3aI₆): white solid (0.140 g, 58% yield), mp 42–44 C. ¹H-NMR (500 MHz, CDCl₃) δ 2.14 (s, 3H), 4.46 (d, J = 5.5 Hz, 2H), 5.26–5.29 (m, 2H), 5.54 (s, 1H), 5.56 (s, 1H), 5.85–5.92 (m, 1H), 6.98 (d, J = 8.0 Hz, 1H), 7.14–7.26 (m, 2H), 7.96 (d, J = 8.0 Hz, 1H); ¹³C-NMR (125 MHz, CDCl₃) δ 18.9, 43.5, 108.4, 114.9, 118.4, 121.3, 122.6, 124.5, 126.5, 130.1, 131.0, 140.6, 151.3, 170.3. ESI-MS: 243.1139 ([M+H]⁺, [C₁₄H₁₄N₂O₂+H]⁺; calc. 243.1134).

1-benzyl-3-methacryloyl-1H-benzo[d]imidazol-2(3H)-one (3aI₇): white solid (0.188 g, 64% yield), mp 112–114 °C. ¹H-NMR (500 MHz, CDCl₃) δ 2.14 (s, 3H), 5.04 (s, 2H), 5.54 (s, 1H), 5.56 (s, 1H), 6.89–6.92 (m, 1H), 7.14–7.16 (m, 2H), 7.24–7.34 (m, 5H), 8.22–8.25 (m, 1H); ¹³C-NMR (125 MHz, CDCl₃) δ 18.9, 44.8, 108.3, 116.2, 122.7, 124.6, 126.5, 127.5(2C), 128.1, 129.2(2C), 129.9, 132.0, 135.2, 140.5, 151.7, 170.3. ESI-MS: 293.1289 ([M+H]⁺, [C₁₈H₁₆N₂O₂+H]⁺; calc. 293.1290).

1-ethyl-3-acryloyl-1H-benzo[d]imidazol-2(3H)-one (3aII₁): white crystalline solid (0.117 g, 54% yield), mp 45–47 °C. ¹H-NMR (500 MHz, CDCl₃) δ 1.36 (t, J = 7.0 Hz, 3H), 3.92 (q, J = 7.0 Hz, 2H), 5.98 (d, J = 11.0 Hz, 1H), 6.67 (d, J = 17.0 Hz, 1H), 6.99 (d, J = 8.0 Hz, 1H), 7.14–7.26 (m, 2H), 7.79 (dd, J = 17.0 Hz, 11.0 Hz, 1H), 8.24 (d, J = 8.0 Hz, 1H); ¹³C-NMR (125 MHz, CDCl₃) δ 13.1, 36.0, 107.5, 116.1, 122.7, 124.7, 126.6, 129.2, 129.7, 131.8, 151.9, 165.3. ESI-MS: 217.0980 ([M+H]⁺, [C₁₂H₁₂N₂O₂+H]⁺; calc. 217.0977).

1-propyl-3-acryloyl-1H-benzo[d]imidazol-2(3H)-one (3aII₂): white solid (0.115 g, 50% yield), mp 66–67 °C. ¹H-NMR (500 MHz, CDCl₃) δ 1.00 (t, J = 7.0 Hz, 3H), 1.80 (q, J = 7.0 Hz, 2H), 3.83 (t, J = 7.0 Hz, 2H), 5.98 (d, J = 10.0 Hz, 1H), 6.67 (d, J = 17.0 Hz, 1H), 6.99 (d, J = 7.5 Hz, 1H), 7.14–7.26 (m, 2H), 7.79 (dd, J = 17.0 Hz, 10.0 Hz, 1H), 8.24 (d, J = 7.5 Hz, 1H); ¹³C NMR (125 MHz, CDCl₃) δ 11.3, 21.2, 42.8, 107.7, 116.1, 122.7, 124.7, 126.5, 129.3, 130.2, 131.8, 152.3, 165.4. ESI-MS: 231.1139 ([M+H]⁺, [C₁₃H₁₄N₂O₂+H]⁺; calc. 231.1134).

1-isopropyl-3-acryloyl-1H-benzo[d]imidazol-2(3H)-one (3aII₃): white solid (0.138 g, 60% yield), mp 93–95 °C. ¹H-NMR (500 MHz, CDCl₃) δ 1.56 (d, J = 5.0 Hz, 6H), 4.68–4.70 (m, 1H), 5.97 (d, J = 10.0 Hz, 1H), 6.65 (d, J = 16.5 Hz, 1H), 7.13–7.26 (m, 2H), 7.76 (dd, J = 16.5 Hz, 10.0 Hz, 1H), 8.25 (d, J = 7.5 Hz, 1H); ¹³C-NMR (125 MHz, CDCl₃) δ 19.8, 45.4, 108.8, 116.1, 122.3, 124.4, 126.7, 129.1, 129.5, 131.6, 151.6, 165.5. ESI-MS: 231.1130 ([M+H]⁺, [C₁₃H₁₄N₂O₂+H]⁺; calc. 231.1134).

1-isobutyl-3-acryloyl-1H-benzo[d]imidazol-2(3H)-one (3aII₄): white solid (0.151 g, 62% yield), mp 106–108 °C. ¹H-NMR (500 MHz, CDCl₃) δ 1.00 (d, J = 5.0 Hz, 6H), 2.21–2.23 (m, 1H), 3.66 (d, J = 6.0 Hz, 2H), 5.98 (d, J = 10.5 Hz, 1H), 6.67 (d, J = 17.0 Hz, 1H), 6.97 (d, J = 7.5 Hz, 1H), 7.14–7.26 (m, 2H), 7.79 (dd, J = 16.0 Hz, 11.0 Hz, 1H), 8.23 (d, J = 7.5 Hz, 1H); ¹³C-NMR (125 MHz, CDCl₃) δ 20.2(2CH₃), 27.6, 48.6, 107.9, 116.0, 122.6, 124.6, 126.5, 129.3, 130.5, 131.8, 152.5, 165.4. ESI-MS: 245.1291 ([M+H]⁺, [C₁₄H₁₆N₂O₂+H]⁺; calc. 245.1290).

1-pentyl-3-acryloyl-1H-benzo[d]imidazol-2(3H)-one (3aII₅): white solid (0.163 g, 63% yield), mp 54–56 °C. ¹H-NMR (500 MHz, CDCl₃) δ 0.89 (t, J = 6.0 Hz, 3H), 1.34–1.36(m, 4H), 1.70–1.73 (m, 2H), 3.78 (t, J = 7.5 Hz, 2H), 5.93 (dd, J = 10.5, 1.5 Hz, 1H), 6.63 (dd, J = 1.5, 17.0 Hz, 1H), 6.91 (d, J = 8.0 Hz, 1H), 7.04–7.17 (m, 2H), 7.78 (dd, J = 10.5 Hz, 17.0 Hz, 1H), 8.15 (d, J = 8.0 Hz, 1H); ¹³C-NMR (125 MHz, CDCl₃) δ 13.9, 22.3, 27.5, 28.9, 41.0, 107.5, 115.8, 122.4, 124.5, 126.4, 129.3, 130.0, 131.4, 152.0, 165.0. ESI-MS: 259.1450 ([M+H]⁺, [C₁₅H₁₈N₂O₂+H]⁺; calc. 259.1447).

1-allyl-3-acryloyl-1H-benzo[d]imidazol-2(3H)-one (3aII₆): yellow oil (0.135 g, 59% yield). ¹H-NMR (500 MHz, CDCl₃) δ 4.49–4.50 (d, J = 4.0 Hz, 2H), 5.25–5.29 (m, 2H), 5.87–5.92 (m, 1H), 5.99 (d, J = 10.0 Hz, 1H), 6.68 (d, J = 17.0 Hz, 1H), 6.97 (d, J = 8.0 Hz, 1H), 7.14–7.26 (m, 2H), 7.79 (dd, J = 17.0 Hz, 10.0 Hz, 1H), 8.24 (d, J = 8.0 Hz, 1H); ¹³C-NMR (125 MHz, CDCl₃) δ 43.4, 108.2, 116.0, 118.3, 122.9, 124.7, 126.5, 129.2, 129.9, 130.9, 132.0, 152.0, 165.3. ESI-MS: 229.0980 ([M+H]⁺, [C₁₃H₁₂N₂O₂+H]⁺; calc. 229.0977).

1-benzyl-3-acryloyl-1H-benzo[d]imidazol-2(3H)-one (3aII₇): white solid (0.206 g, 74% yield), mp 118–119 °C. ¹H-NMR (500 MHz, CDCl₃) δ 5.05 (s, 2H), 6.01 (dd, J = 10.0, 1.5 Hz, 1H), 6.69 (dd, J = 17.5, 1.5 Hz, 1H), 6.89–6.91 (m, 1H), 7.13–7.16 (m,2H), 7.26–7.34 (m, 5H), 7.83 (dd, J = 10.0, 1.5 Hz, 1H), 8.23–8.25 (m, 1H). ¹³C-NMR (125 MHz, CDCl₃) δ 44.9, 108.3, 116.1, 122.9, 124.8, 126.5, 127.5(2C), 128.1, 129.0(2C), 129.2, 129.9, 132.0, 135.2, 152.5, 165.3. ESI-MS: 279.1133 ([M+H]⁺, [C₁₇H₁₄N₂O₂+H]⁺; calc. 279.1134).

1-ethyl-3-methacryloyl-1H-benzo[d]imidazol-2(3H)-thione (3bI₁): white solid (0.128 g, 52% yield), mp 38–39 °C. ¹H-NMR (500 MHz, CDCl₃) δ 1.44 (t, J = 7.5 Hz, 3H), 2.19 (s, 3H), 3.33 (q, J = 7.5 Hz, 2H), 5.70 (s, 1H), 5.82 (s, 1H), 7.20–7.29 (m, 2H), 7.59 (d, J = 8.0 Hz, 1H), 7.63 (d, J = 8.0 Hz, 1H); ¹³C-NMR (125 MHz, CDCl₃) δ 14.0, 18.6, 27.4, 113.4, 118.5, 123.2, 124.3, 126.1, 134.1, 139.3, 143.9, 154.4, 169.1. ESI-MS: 247.0900 ([M+H]⁺, [C₁₃H₁₄N₂OS+H]⁺; calc. 247.0905).

1-propyl-3-methacryloyl-1H-benzo[d]imidazol-2(3H)-thione (3bI₂): yellow oil (0.158 g, 61% yield). ¹H-NMR (500 MHz, CDCl₃) δ 1.07 (t, J = 7.0 Hz, 3H), 1.81 (q, J = 7.0 Hz, 2H), 2.18 (s, 3H), 3.30 (t, J = 7.0 Hz, 2H), 5.68 (s, 1H), 5.80 (s, 1H), 7.18 (t, J = 7.5, 1H), 7.25 (t, J = 7.5, 1H), 7.57 (d, J = 7.5 Hz, 1H), 7.61 (d, J = 7.5 Hz, 1H); ¹³C-NMR (125 MHz, CDCl₃) δ 13.5, 18.5, 22.2, 35.0, 113.4, 118.5, 123.2, 124.2, 126.1, 134.1, 139.3, 143.9, 154.5, 169.0. ESI-MS: 261.1063 ([M+H]⁺, [C₁₄H₁₆N₂OS+H]⁺; calc. 261.1062).

1-isopropyl-3-methacryloyl-1H-benzo[d]imidazol-2(3H)-thione (3bI₃): yellow oil (0.148 g, 57% yield). ¹H-NMR (500 MHz, CDCl₃) δ 1.46 (d, J = 6.5 Hz, 6H), 2.17 (s, 3H), 4.13–4.15 (m, 1H), 5.66 (s, 1H), 5.79 (s, 1H), 7.18–7.27 (m, 2H), 7.57 (d, J = 8.0 Hz, 1H), 7.62 (d, J = 8.0 Hz, 1H); ¹³C-NMR (125 MHz, CDCl₃) δ 18.5, 23.0(2CH₃), 39.1, 113.3, 118.5, 123.3, 124.2, 126.3, 133.9, 139.4, 143.9, 153.8, 169.1. ESI-MS: 261.1063 ([M+H]⁺, [C₁₄H₁₆N₂OS+H]⁺; calc. 261.1062).

1-isobutyl-3-methacryloyl-1H-benzo[d]imidazol-2(3H)-thione (3bI₄): white solid (0.176 g, 64% yield), mp 55–57 °C. ¹H-NMR (500 MHz, CDCl₃) δ 1.07 (d, J = 5.0 Hz, 6H), 2.04–2.06 (m, 1H), 2.19 (s, 3H), 3.24 (d, J = 5.0 Hz, 2H), 5.69 (s, 1H), 5.82 (s, 1H), 7.18–7.28 (m, 2H), 7.57 (d, J = 8.0 Hz, 1H), 7.62 (d, J = 8.0 Hz, 1H); ¹³C-NMR (125 MHz, CDCl₃) δ 18.5, 22.1, 28.1, 41.6, 113.3, 118.5, 123.2, 124.2, 126.2, 134.2, 139.3, 143.8, 154.8, 169.1. ESI-MS: 275.1213 ([M+H]⁺, [C₁₅H₁₈N₂OS+H]⁺; calc. 275.1218).

1-pentyl-3-methacryloyl-1H-benzo[d]imidazol-2(3H)-thione (3bI₅): yellow oil (0.196 g, 68% yield). ¹H-NMR (500 MHz, CDCl₃) δ 0.91 (d, J = 7.5 Hz, 3H), 1.33–1.47 (m, 4H), 1.74–1.78 (m, 2H), 2.16 (s, 3H), 3.31 (t, J = 7.5 Hz, 2H), 5.66 (s, 1H), 5.77 (s, 1H), 7.14–7.25 (m, 2H), 7.55 (d, J = 8.0 Hz, 1H), 7.60 (d, J = 8.0 Hz, 1H); ¹³C-NMR (125 MHz, CDCl₃) δ 13.9, 18.5, 22.2, 28.4, 31.0, 33.0, 113.4, 118.5, 123.1, 124.2, 126.0, 134.1, 139.2, 143.9, 154.5, 168.9. ESI-MS: 289.1373 ([M+H]⁺, [C₁₆H₂₀N₂OS+H]⁺; calc. 289.1375).

1-allyl-3-methacryloyl-1H-benzo[d]imidazol-2(3H)-thione (3bI₆): colorless oil (0.137g, 53% yield). ¹H-NMR (500 MHz, CDCl₃) δ 2.16 (s, 3H), 3.97 (d, J = 7.5 Hz, 2H), 5.16 (d, J = 10.5, 1H), 5.35 (dd, J = 17.0, 1.0 Hz, 1H), 5.67 (s, 1H), 5.78 (s, 1H), 5.98–6.06 (m, 1H), 7.16–7.26 (m, 2H), 7.57 (d, J = 8.0 Hz, 1H), 7.60 (d, J = 8.0 Hz, 1H); ¹³C-NMR (125 MHz, CDCl₃) δ 13.9, 18.5, 22.2, 28.4, 31.0, 33.0, 113.4, 118.5, 123.1, 124.2, 126.0, 134.1, 139.2, 143.9, 154.5, 168.9. ESI-MS: 259.0503 ([M+H]⁺, [C₁₄H₁₄N₂OS+H]⁺; calc. 259.0509).

1-benzyl-3-methacryloyl-1H-benzo[d]imidazol-2(3H)-thione (3bI₇): colorless oil (0.215g, 69% yield). ¹H-NMR (500 MHz, CDCl₃) δ 2.16 (s, 3H), 4.57 (s, 2H), 5.68 (s, 1H), 5.79 (s, 1H), 7.20–7.34 (m, 5H), 7.43–7.45 (m, 2H), 7.60 (d, J = 8.0, 1H), 7.66 (d, J = 8.0, 1H). ¹³C-NMR (125 MHz, CDCl₃) δ 18.6, 37.8, 113.5, 118.6, 123.4, 124.4, 126.1, 127.7, 128.7(2C), 129.4(2C), 134.1, 136.2, 139.2, 143.8, 154.1, 168.9. ESI-MS: 309.1065 ([M+H]⁺, [C₁₈H₁₆N₂OS+H]⁺; calc. 309.1062).

1-ethyl-3-acryloyl-1H-benzo[d]imidazol-2(3H)-thione (3bII₁): white solid (0.132 g, 57% yield), mp 82–83 °C. ¹H-NMR (500 MHz, CDCl₃) δ 1.48 (t, J = 7.5 Hz, 3H), 3.36 (q, J = 7.5 Hz, 2H), 6.16 (d, J = 10.5 Hz, 1H), 6.73 (d, J = 17.0 Hz, 1H), 7.04–7.10 (dd, J = 17.0, 10.5 Hz, 1H), 7.23–7.33 (m, 2H), 7.63–7.66 (m, 2H),; ¹³C-NMR (125 MHz, CDCl₃) δ 13.9, 27.0, 113.4, 118.8, 123.3, 124.6, 129.4, 133.2, 133.8, 144.2, 154.7, 164.4. ESI-MS: 233.0743 ([M+H]⁺, [C₁₂H₁₂N₂OS+H]⁺; calc. 233.0749).

1-propyl-3-acryloyl-1H-benzo[d]imidazol-2(3H)-thione (3bII₂): white solid (0.160 g, 65% yield), mp 100–102 °C. ¹H-NMR (500 MHz, CDCl₃) δ 1.08 (t, J = 7.5 Hz, 3H), 1.83–1.85 (m, 2H), 3.42 (q, J = 7.5 Hz, 2H), 6.16 (d, J = 10.5 Hz, 1H), 6.73 (d, J = 17.0 Hz, 1H), 7.07 (dd, J = 17.0, 10.5 Hz, 1H), 7.23–7.33 (m, 2H), 7.63–7.66 (m, 2H),; ¹³C-NMR (125 MHz, CDCl₃) δ 13.4, 22.7, 38.8, 113.5, 118.7, 123.3, 124.6, 129.5, 133.3, 133.7, 144.1, 154.9, 164.4. ESI-MS: 247.0910 ([M+H]⁺, [C₁₃H₁₄N₂OS+H]⁺; calc. 247.0905).

1-isopropyl-3-acryloyl-1H-benzo[d]imidazol-2(3H)-thione (3bII₃): white solid (0.130 g, 53% yield), mp 102–103 °C. ¹H-NMR (500 MHz, CDCl₃) δ 1.51 (d, J = 6.0 Hz, 6H), 4.18–4.20 (m, 1H), 6.15 (d, J = 10.5, 1H), 6.72 (d, J = 17.0, 1H), 7.07 (dd, J = 17.0, 10.5 Hz, 1H), 7.23–7.26 (m, 1H), 7.29–7.32 (m, 1H), 7.64–7.66 (m, 2H); ¹³C-NMR (125 MHz, CDCl₃) δ 23.0 (2CH₃), 37.8, 113.5, 118.7, 123.3, 124.5, 129.6, 133.1, 133.6, 144.3, 154.1, 164.4. ESI-MS: 247.0910 ([M+H]⁺, [C₁₃H₁₄N₂OS+H]⁺; calc. 247.0905).

1-isobutyl-3-acryloyl-1H-benzo[d]imidazol-2(3H)-thione (3bII₄): colorless oil (0.153 g, 59% yield). ¹H-NMR (500 MHz, CDCl₃) δ 1.10 (d, J = 6.0 Hz, 6H), 2.08–2.10 (m, 1H), 3.28 (d, J = 6.0 Hz, 2H), 6.13 (d, J = 10.5, 1H), 6.69 (d, J = 17.0, 1H), 7.06 (dd, J = 17.0, 10.5 Hz, 1H), 7.21–7.28 (m, 2H), 7.59–7.62 (m, 2H); ¹³C-NMR (125 MHz, CDCl₃) δ 22.2 (2CH₃), 28.0, 41.1, 113.5, 118.7, 123.3, 124.5, 129.5, 133.3, 133.7, 144.1, 155.0, 164.4. ESI-MS: 261.1050 ([M+H]⁺, [C₁₄H₁₆N₂OS+H]⁺; calc. 261.1062).

1-pentyl-3-acryloyl-1H-benzo[d]imidazol-2(3H)-thione (3bII₅): colorless oil (0.186 g, 64% yield). ¹H-NMR (500 MHz, CDCl₃) δ 0.88 (t, J = 6.0 Hz, 3H), 1.35–1.38 (m, 4H), 1.77–1.80 (m, 2H), 3.53 (t, J = 7.5 Hz, 2H), 6.14 (d, J = 10.5), 6.70 (d, J = 17.0 Hz, 1H), 7.04 (dd, J = 17.0,10.5 Hz, 1H), 7.22–7.29 (m, 2H), 7.60–7.62 (m, 2H); ¹³C-NMR (125 MHz, CDCl₃) δ 14.0, 22.2, 28.0, 29.0, 38.7, 113.6, 118.8, 123.3, 124.6, 129.4, 133.2, 133.7, 144.1, 152.0, 164.4. ESI-MS: 275.1211 ([M+H]⁺, [C₁₅H₁₈N₂OS+H]⁺; calc. 275.1218).

1-allyl-3-acryloyl-1H-benzo[d]imidazol-2(3H)-thione (3bII₆): white solid (0.161 g, 66% yield), mp 104–106 °C. ¹H-NMR (500 MHz, CDCl₃) δ 4.02 (d, J = 7.0 Hz, 2H), 5.15 (d, J = 10.0 Hz, 1H), 5.36 (dd, J = 16.5 Hz, 1H), 6.04–6.07 (m, 1H), 6.16 (d, J = 10.5, 1H), 6.72 (d, J = 17.0 Hz, 1H), 7.05 (dd, J = 17.0, 10.5 Hz, 1H), 7.22–7.29 (m, 2H), 7.60–7.62 (m, 2H); ¹³C-NMR (125 MHz, CDCl₃) δ 35.5, 113.4, 119.1, 123.4, 124.6, 129.3, 132.6, 133.9, 143.5, 154.2, 164.3. ESI-MS: 245.0741 ([M+H]⁺, [C₁₃H₁₂N₂OS+H]⁺; calc. 245.0749).

1-benzyl-3-acryloyl-1H-benzo[d]imidazol-2(3H)-thione (3bII₇): colorless oil (0.223 g, 76% yield). ¹H-NMR (500 MHz, CDCl₃) δ 4.56 (s, 2H), 6.00 (dd, J = 10.0, 1.5 Hz, 1H), 6.68 (dd, J = 17.5, 1.5 Hz, 1H), 6.89–6.91 (m, 1H), 7.13–7.15 (m,2H), 7.27–7.34 (m, 5H), 7.83 (dd, J = 10.0, 1.5 Hz, 1H), 8.24–8.26(m, 1H). ¹³C-NMR (125 MHz, CDCl₃) δ 37.9, 113.6, 119.1, 123.5, 124.7, 127.5(2C), 128.1, 129.1(2C), 129.3, 133.0, 133.9, 135.4, 143.8, 154.1, 164.5. ESI-MS: 295.0902 ([M+H]⁺, [C₁₇H₁₄N₂OS+H]⁺; calc. 295.0905).

3.3. Antibacterial Activity

Antibacterial activities 3a(b)I_1–7~3a(b)II_1–7 were carried out by paper disc-diffusion method [17]. The standard bacterial strains Bacillus cereus (1.1846), Bacillus subtilis (1.88), Staphylococcus aureus (1.89), Escherichia coli (1.1574), and Pseudomonas aeruginosa (1.2031) were obtained from the China General Microbiological Culture Collection Center. Ampicillin sodium (Sigma, Shanghai, China) was used as positive control. Standardized inoculum (5 × 10⁵ cfu/mL) of each test bacterium was spread on to sterile Müller-Hinton agar (Hangzhou Microbial Reagent Co. Ltd., Zhejiang, China) plates so as to achieve a confluent growth. The title compounds were dissolved in dichloromethane at the concentration of 1 mg/mL, and then 5 μL of the solutions were transfered onto discs (diameter, 6 mm) punched from Whatman no. 1 filiter paper, so that the disc contained 5 μg of the compound. After the solvent was evaporated, the sample discs were placed gently on the previously-marked zones in the agar plates. Standard ampicillin (5 μg/disc) paper disc (diameter, 6 mm) was used as positive controls. The plates were allowed to stand for 1 h at 4 °C for diffusion to take place and then incubated at 37 °C for 24 h. The diameter of inhibition zone around each disc was measured and recorded at the end of the incubation period. Experiments were repeated triplicate and the average values are reported here.

3.4. Minimum Inhibitory Concentrations (MICs)

MICs of compounds 3a(b)I_1–6 against five strains of bacteria were evaluated by the broth mciro- dilution method in 96-well plates [18]. The inoculum was prepared by suspending several colonies from an overnight culture of test bacteria from 0.5% sheep blood agar media in Müller-Hinton broth, and a adjusting to a 0.5 McFarland standard (approximately 1.5 × 10⁸ colony-forming units per mL). A further dilution of 1:200 was made by placing 0.25 mL of the adjusted suspension into 49.75 mL of Müller-Hinton broth. The compounds were firstly dissolved in DMSO at the concentration of 10 mg/mL, and it was diluted ten-fold with sterile water to give the stock solution. Two-fold serial dilutions of the tested compounds were prepared in Müller-Hinton broth. Then the dilutions and inoculated suspension of the bacteria were delivered to wells of a 96-well plate at the ratio of 1:1. The final concentration of inoculum in each well was 3.7 × 10⁵ colony-forming units per mL. After incubation for 24 h at 30 °C, the MICs were read. Experiments were repeated in triplicate and standard ampicillin was used as the positive control.

4. Conclusions

In summary, 28 new 1-alkyl-3-methacryloyl (acryloyl) derivatives of benzimidazolone (thione) (3a(b)I_1–7~3a(b)II_1–7) were synthesized and evaluated for their antibacterial activities against five standard bacterial strains in vitro. The bioassay of these analogues showed that all synthesized N₃-methacryloyl-derivatives of benzimidazolone (thione) exhibited stronger active against tested bacterial strains, whereas the acryloyl-derivatives were weaker or inactive against tested bacterial strains. The data suggest that the substitutions of N₃ have a notable influence on the antibacterial activity of the title compounds. In addition, 2–4 carbon substitutions may be more favorable for promoting the antibacterial activity as compared with much larger substitution groups at the N₁ position. These results have encouraged us to start further investigations into novel benzimidazolone (thione) derivatives as antibacterial agents and this will be reported in due course.

Acknowledgments

This study was supported part by the grant of The National Key Basic Research Program (973 Program, 2010CB126100) from Science and Technology Ministry of China, the National Natural Science Foundation of China (No.30971935), and Program for New Century Excellent Talents in University from Education Ministry of China.

References

Thomson, C.J.; Power, E.; Waigmann, H.R.; Labischinski, H. Antibacterial research and development in the 21^st century: An industry perspective of the challenges. Curr. Opin. Microbiol 2004, 7, 445–450. [Google Scholar]
Spellberg, B.; Guidos, R.; Gilbert, D.; Bradley, J.; Boucher, H.W.; Scheld, W.M.; Bartlett, J.G.; Edwards, J. The epidemic of antibiotic-resistant infections: A call to action for the medical community from the infectious diseases society of America. Clin. Infect. Dis 2008, 46, 155–164. [Google Scholar]
Donadio, S.; Maffioli, S.; Monciardini, P.; Sosio, M.; Jabes, D. Antibiotic discovery in the 21^st century: Current trends and future perspectives. J. Antibiot 2010, 63, 423–430. [Google Scholar]
Schmid, M.B. Seeing is believing: The impact of structural genomics on antimicrobial drug discovery. Nat. Rev. Microbiol 2004, 2, 739–746. [Google Scholar]
Barreca, M.L.; Rao, A.; Luca, L.D.; Iraci, N.; Monforte, A.M.; Maga, G.; Clercq, E.D.; Pannecouque, C.; Balzarini, J.; Chimirri, A. Discovery of novel benzimidazolones as potent non-nucleoside reverse transcriptase inhibitors active against wild-type and mutant HIV-1 strains. Bioorg. Med. Chem. Lett 2007, 17, 1956–1960. [Google Scholar]
Mavrova, A.T.; Anichina, K.K.; Vuchev, D.I.; Tsenov, J.A.; Kondeva, M.S.; Micheva, M.K. Synthesis and antitrichinellosis activity of some 2-substituted-[1,3]thiazolo[3,2-R]benzimidazol-3(2H)-ones. Bioorg. Med. Chem 2005, 13, 5550–5559. [Google Scholar]
Nacak, S.; Dogruer, D.S.; Sahin, M.F. Synthesis and antinociceptive activity of (1-benzyl-2(3H)-benzimidazolon-3-yl) acetic acid derivatives. II Farmaco 1999, 54, 768–772. [Google Scholar]
Khodarahmi, G.A.; Chen, C.S.; Hakimelahi, G.H.; Tseng, C.T.; Chern, J.W. Design, synthesis, and cytotoxicity of 4-sulfonamide substituted benzamidobenzimidazolones and an acyl benzimida- zolone. J. Iran. Chem. Soc 2005, 2, 124–134. [Google Scholar]
Badarau, E.; Suzenet, F.; Bojarski, A.J.; Finaru, A.L.; Guillaumet, G. Benzimidazolone-based serotonin 5-HT1A or 5-HT7R ligands: Synthesis and biological evaluation. Bioorg. Med. Chem. Lett 2009, 19, 1600–1603. [Google Scholar]
Omura, H.; Kawai, M.; Shima, A.; Iwata, Y.; Ito, F.; Masuda, T.; Ohta, A.; Makita, N.; Omoto, K.; Sugimoto, H.; et al. The SAR studies of novel CB2 selective agonists, benzimidazolone derivatives. Bioorg. Med. Chem. Lett 2008, 18, 3310–3314. [Google Scholar]
Palin, R.; Bom, A.; Clark, J.K.; Evans, L.; Feilden, H.; Houghton, A.K.; Jones, P.S.; Montgomery, B.; Weston, M.A.; Wishart, G. Synthesis and evaluation of N-3 substituted phenoxypropyl piperidine benzimidazol-2-one analogues as NOP receptor agonists with analgesic and sedative properties. Bioorg. Med. Chem 2007, 15, 1828–1847. [Google Scholar]
Singh, S.; Syme, C.A.; Singh, A.K.; Devor, D.C.; Bridges, R.J. Benzimidazolone activators of chloride secretion: Potential therapeutics for cystic fibrosis and chronic obstructive pulmonary disease. J. Pharmacol. Exp. Ther 2001, 296, 600–611. [Google Scholar]
Messaoudi, S.; Sancelme, M.; Polard-Housset, V.; Aboab, B.; Moreau, P.; Prudhomme, M. Synthesis and biological evaluation of oxindoles and benzimidazolinones derivatives. Eur. J. Med. Chem 2004, 39, 453–458. [Google Scholar] [Green Version]
Vira, J.J.; Patel, D.R.; Bhimani, N.V.; Ajudia, P.V. Synthesis and biological evaluation of potent benzimidazolone derivatives. Der Pharma Chem 2010, 2, 178–183. [Google Scholar]
Li, S.K.; Ji, Z.Q.; Zhang, J.W.; Guo, Z.Y.; Wu, W.J. Synthesis of 1-Acyl-3-isopropenyl benzimidazolone derivatives and their activity against Botrytis cinerea. J. Agric. Food Chem 2010, 58, 2668–2672. [Google Scholar]
Troisi, L.; Granito, C.; Perrone, S.; Rosato, F. Synthesis of benzo-fused five- and six-membered heterocycles by palladium-catalyzed cyclocarbonylation. Tetrahedron Lett 2011, 52, 4330–4332. [Google Scholar]
Ferreira, I.C.; Calhelha, R.C.; Estevinho, L.M.; Queiroz, M.R. Screening of antimicrobial activity of diarylamines in the 2,3,5-trimethylbenzo[b]thiophene series: A structure-activity evaluation study. Bioorg. Med. Chem. Lett 2004, 14, 5831–5833. [Google Scholar]
Ji, Z.Q.; Wang, M.A.; Zhang, J.W.; Wei, S.P.; Wu, W.J. Two new members of streptothricin class antibiotics from Streptomyces qinlingensis sp. Nov. J. Antibiot 2007, 60, 739–744. [Google Scholar]

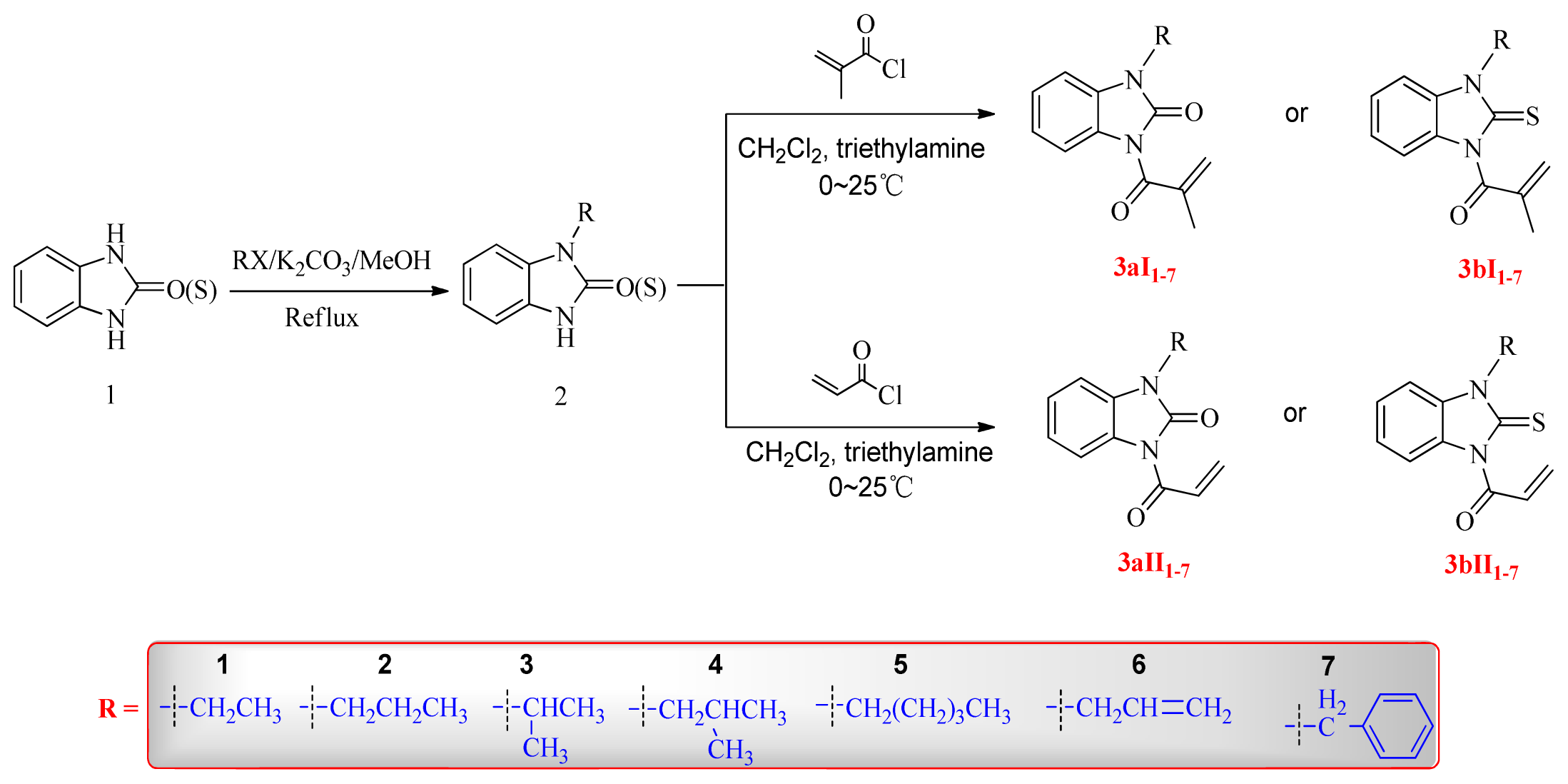

Scheme 1. Synthetic route of the title compounds.

Table 1. Antibacterial activity of title compounds against five bacterial strains.

**Table 1.** Antibacterial activity of title compounds against five bacterial strains.
Compounds	Zone of inhibition (mm)

	B. cereus	B. subtilis	E. coli	S. aureus	P. aeruginosa
3aI (1-alkyl-3-methacryloyl-benzimidazolone)
1	14(+++)	13(+++)	19(+++)	11(++)	15(+++)
2	13(+++)	15(+++)	18(+++)	11(++)	14(+++)
3	15(+++)	15(+++)	19(+++)	-	20(+++)
4	13(+++)	14(+++)	17(+++)	-	16(+++)
5	10(++)	12(++)	14(++)	10(+)	9(++)
6	14(+++)	16(+++)	19(+++)	14(++)	16(+++)
7	-	-	-	-	-
3aII (1-alkyl-3-acryloyl-benzimidazolone)
1	6(+)	7(+)	11(+)	-	-
2	7(+)	7(+)	-	-	-
3	7(+)	-	-	-	-
4	-	-	-	-	-
5	10	8	-	-	-
6	7	-	-	-	-
7	-	-	-	-	-
3bI (1-alkyl-3-methacryloyl-benzimidazolthione)
1	13(+++)	13(+++)	15(+++)	13(++)	14(+++)
2	12(+++)	13(+++)	19(+++)	11(++)	14(+++)
3	14(+++)	14(+++)	18(+++)	9(+)	20(+++)
4	12(+++)	13(+++)	17(+++)	-	15(+++)
5	9(++)	8(+)	10(++)	9(+)	9(++)
6	12(+++)	11(+++)	15(+++)	12(+)	16(+++)
7	-	-	-	-	-
3bII (1-alkyl-3-acryloyl-benzimidazolthione)
1	6(+)	6(+)	-	-	-
2	6(+)	-	12(+)	-	-
3	7(+)	-	-	-	-
4	-	-	-	-	-
5	-	-	-	-	-
6	7(+)	-	-	-	-
7	-	-	-	-	-
Ampicillin	15(+++)	16(+++)	18(+++)	13(++)	20(+++)

All values are means of three replicates; “-” means invisible “+” means eyeable, “++” means clear, “+++” means transparent. (Dose: 5 μg/disc).

Table 2. Minimum Inhibitory Concentrations (MICs) of 3aI and 3bI against five bacterial strains.

**Table 2.** Minimum Inhibitory Concentrations (MICs) of **3aI** and **3bI** against five bacterial strains.
Compounds	MICs (μg/mL)

	B. cereus	B. subtilis	E. coli	S. aureus	P. aeruginosa
3aI (1-alkyl-3-methacryloyl-benzimidazolone)
1	6.25	3.13	3.13	25	25
2	12.5	1.56	6.25	50	25
3	3.13	3.13	1.56	>100	12.5
4	12.5	6.25	12.5	>100	50
5	100	100	>100	>100	>100
6	6.25	12.5	1.56	12.5	50
3bI (1-alkyl-3-methacryloyl-benzimidazolthione)
1	12.5	6.25	12.5	50	25
2	12.5	3.13	6.25	50	25
3	3.13	6.25	3.13	>100	25
4	25	12.5	6.25	>100	50
5	>100	>100	>100	>100	>100
6	12.5	25	3.13	25	100
Ampicillin	6.25	1.56	3.13	6.25	25

© 2012 by the authors; licensee Molecular Diversity Preservation International, Basel, Switzerland. This article is an open-access article distributed under the terms and conditions of the Creative Commons Attribution license (http://creativecommons.org/licenses/by/3.0/).
