A Novel Synthesis of Arylpyrrolo[1,2-a]pyrazinone Derivatives

Fei Wang; Jiawei Wang; Shoufang Zhang

doi:10.3390/90700574

,

and

School of Pharmaceutical Engineering, Shenyang Pharmaceutical University, Shenyang, 110016, P. R. China

^*

Author to whom correspondence should be addressed.

Molecules2004, 9(7), 574-582;https://doi.org/10.3390/90700574

Version Notes

Order Reprints

Abstract

Some aryl-2-methyl-1-pyrrolo[1,2-a]pyrazinones were designed and prepared to study the Structure-Activity Relationships (SAR) of pyrrolo[1,2-a]pyrazinone derivatives. With methyl pyrrole-2-carboxylate as the starting material, the title compounds were prepared through N-alkylation and two novel cyclizations. Eleven aryl-2-methyl-1- pyrrolo[1,2-a]pyrazinone derivatives not previously reported in the literature are presented in this paper. Some of them show potent anti-inflammatory and analgesic activities.

Keywords:

Aryl-2-methyl-1-pyrrolo[1; 2-a]pyrazinones; synthesis; anti-inflammation.

Introduction

It has been reported that some derivatives of 3,4-dihydro-2-methyl-1-pyrrolo[1,2-a] pyrazinone (1) showed remarkable anti-inflammatory and analgesic activities [1]. Molecules 09 00574 i001

Their structure-activity relationships (SAR) were studied and the results suggested that a large hydrophobic substituent around the 3-position of the pyrazinone ring could result in an additional contribution to the activity. This encouraged us to design and synthesize new aryl derivatives of 2-methyl-1-pyrrolo[1,2-a] pyrazinone (2, 3).

Results and Discussion

Brimble et al. have reported the synthesis of 2-methyl-1-pyrrolo[1,2-a] pyrazinone (5) from methyl pyrrole-2-carboxylate (4) and 1,2-dibromoethane (Scheme 1) [2]. Based on this scheme, we wished to prepare compounds 2 by replacing the 1,2-dibromoethane with 1,2-dibromo-1-phenylethane, but the N-alkylation of compound 4 failed to take place and 2-bromo-1-phenylethene was separated from the reaction mixture. This revealed that instead of the desired reaction, an elimination of 1,2-dibromo-1- phenylethane took place under the alkaline reaction conditions.

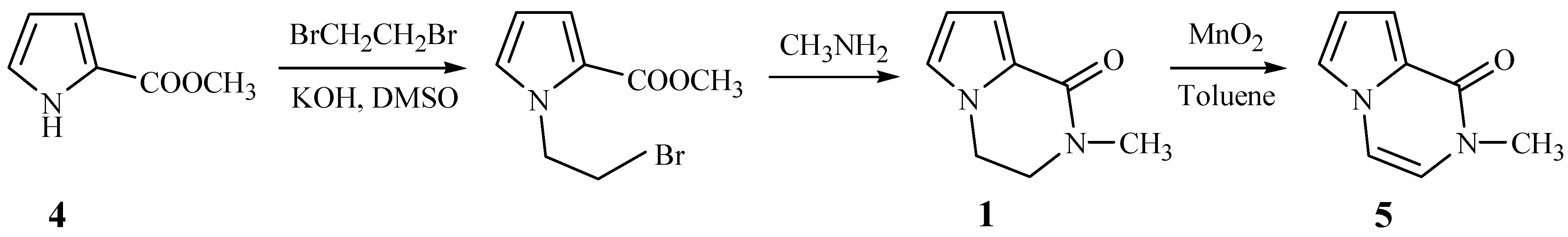

Scheme 1.

With α-bromoacetophenone replacing 1,2-dibromo-1-phenylethane, the new route shown Scheme 2 was designed. The N-alkylations of compound 4 took place smoothly to form the intermediates 6. Our original intention was to convert compounds 6 to the title compounds 2 through imidization to 7, reduction to 8, and finally oxidation to compounds 2, but unexpectedly, when 6 reacted with methylamine in absolute methanol, the title 3-aryl-2-methyl-1-pyrrolo[1,2,[1,2-a]pyrazinones (2) were obtained directly.

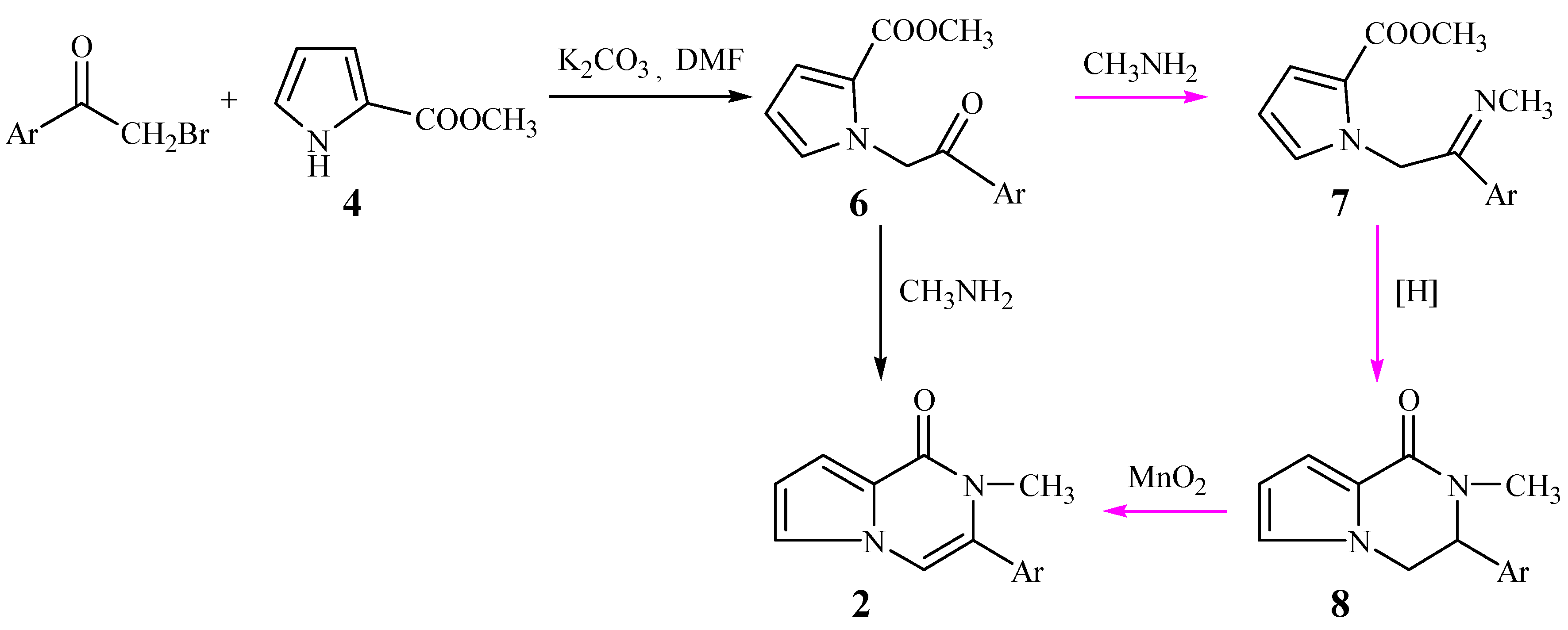

Scheme 2.

Obviously, this represents a very facile route for the synthesis of compounds 2. Since primary amines readily react with ketones to yield imines, the mechanism in Figure 1 would appear reasonable.

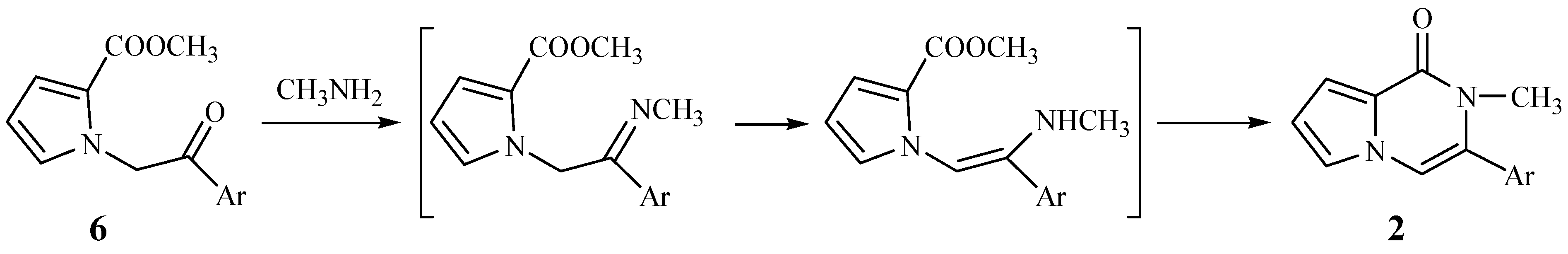

Figure 1. Proposed mechanism of the first cyclization

According to Scheme 2, we wished to prepare 3,4-diaryl-2-methyl-1-pyrrolo[1,2-a]pyrazinones 3 from 1-bromo-1,2-diarylethanones. The N-alkylation of compound 4 also took place smoothly to yield the intermediate 10. When 10 reacted with methylamine, the cyclization did not take place and the product 11 resulting from aminolysis of 10 was obtained. Fortunately, an acid-catalyzed cyclization as shown in Scheme 3 was discovered. When the intermediate 11 was treated with phosphoric acid in ethanol, it was successfully converted into the title compounds 3 in moderate yield.

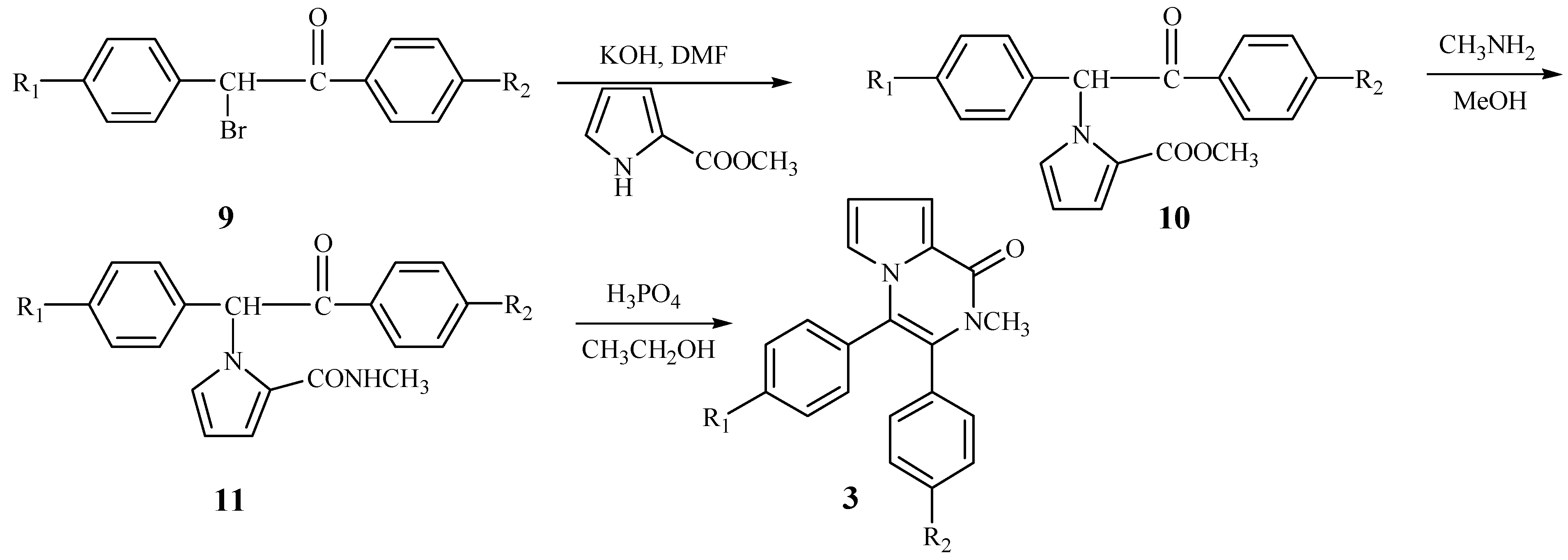

Scheme 3.

A cyclization mechanism involving a nucleophilic substitution as outlined in Figure 2 is suggested.

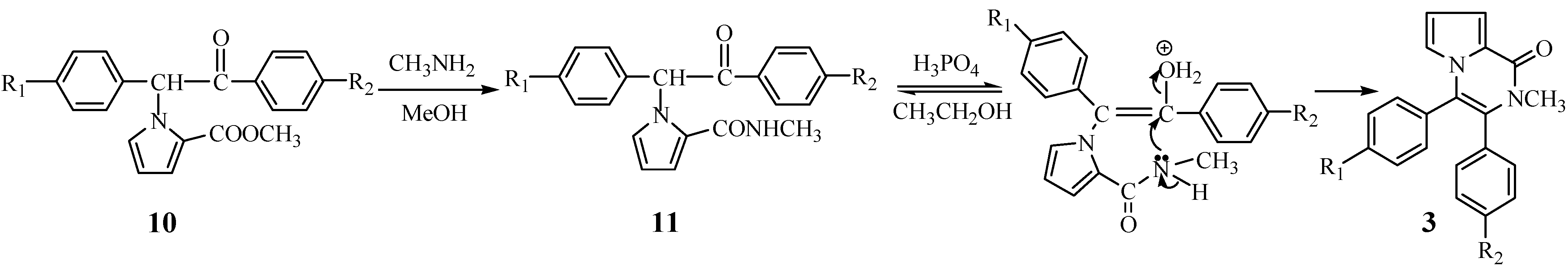

Figure 2. Proposed mechanism of the second cyclization

From above-mentioned two proposed mechanisms, it can be found that the intermediates 6 and 10 are similar, but the cyclization of 10 does not happen under the conditions of intermediates 6. After preliminary studies, we assume that it may be the steric influence that has resulted in the two proposed mechanism of cyclization.

Pharmacological tests

Male Kunming mice were used to test the anti-inflammatory and analgesic activities. These tests were carried out by administering the compounds intragastrically (i.g.) at a dose of 200mg/kg, and each compound was tested on 10 mice. The anti-inflammatory activities were evaluated by the xylene- induced ear edema model, and the analgesic activities were evaluated by acetic acid-induced writhing method. The results show that compounds 2b, 2f, 3a and 3c have remarkable activities. The anti- inflammatory activities of 2f and 3c are more potent than that of ibuprofen, the positive control (see Table 1).

Table 1. Inhibition on xylene-induced mice ear edema and acetic acid-induced mice writhing

**Table 1.** Inhibition on xylene-induced mice ear edema and acetic acid-induced mice writhing
Compd.	Xylene-induced mice ear edema			Acetic acid-induced mice writhing
Compd.	Dose/mg.kg^-1	Mice/n	Inhb.rate/%	Dose/mg.kg^-1	Mice/n	Inhb.rate/%
CMC	200	10	-----	200	10	-----
ibuprofen	200	10	36.9	200	10	98.3
2a	200	10	6.1	200	10	80.0*
2b	200	10	30.7*	200	10	85.7*
2c	200	10	13.1	200	10	82.8*
2d	200	10	14.6	200	10	46.0
2e	200	10	29.5	200	10	93.5**
2f	200	10	71.6**	200	10	96.0**
3a	200	10	26.8*	200	10	78.5**
3b	200	10	16.4	200	10	27.6
3c	200	10	53.9**	200	10	62.6*
3d	200	10	25.4	200	10	50.2
3e	200	10	16.1	200	10	35.3

* P<0.05, ** P<0.01, CMC is the control.

Conclusions

As shown in Scheme 2 and Scheme 3, six compounds 2 and five compounds 3 not found in the literature were prepared. In anti-inflammatory and analgesic tests some of these compounds displayed notable activity, greater than that of an ibuprofen standard.

Experimental

General

Melting points were determined by the capillary tube method, and the thermometer was uncorrected. ¹H-NMR spectra were recorded on a Bruker ARX-300 spectrometer. MS were measured with Finnigan LCQ LS/MS instrument. IR spectra were recorded on a Bruker IR-FIS-55 spectrometer.

General Procedure for the Preparation of Methyl 1-(2-aryl-2-oxoethyl)pyrrole-2-carboxylates 6.

The corresponding α-bromoarylethanone (13.6 mmol) was added to a mixture of methyl pyrrole-2- carboxylate (4, 13.3 mmol) and K₂CO₃ (2.7 g) in DMF (15 mL). After stirring at room temperature for 30 min, the reaction mixture was poured into water. The mixture was filtered, and the solid was washed with water and air-dried to yield the crude compounds 6. The crude products were purified by recrystallization from methanol or column chromatography on silica gel [3].

Methyl 1-(2-oxo-2-phenylethyl)pyrrole-2-carboxylate (6a). Yield 62.5%; m.p. 105-107°C (Lit. [3] 105- 106°C).

Methyl 1-[2-(4-hydroxyphenyl)-2-oxoethyl]pyrrole-2-carboxylate (6d). Yield 80.5%; m.p. 209- 210°C; ¹H-NMR (DMSO) δ (ppm): 3.61 (s, 3H, -OCH₃), 5.79 (s, 2H, -CH₂), 6.17 (br. t, 1H, pyrrole H- 4), 6.90 (br. d, 3H, pyrrole H-3, Ar-H), 7.12 (br. s, 1H, pyrrole H-5), 7.91 (d, 2H, J=8.3Hz, Ar-H), 10.48 (s, 1H, -OH).

Methyl 1-[2-(4-methylthiophenyl)-2-oxoethyl]pyrrole-2-carboxylate (6f). Yield 73.2%; m.p. 136- 138°C; ¹H-NMR (CDCl₃) δ (ppm): 2.53 (s, 3H, -SCH₃), 3.72 (s, 3H, -OCH₃), 5.72 (s, 2H, -CH₂), 6.25 (br. t, 1H, pyrrole H-4), 6.84 (br. s, 1H, pyrrole H-3), 7.04 (dd, 1H, J=1.5Hz, 3.9Hz, pyrrole H-5), 7.30 (d, 2H, J=8.4Hz, Ar-H), 7.92 (d, 2H, J=8.4Hz, Ar-H).

Methyl 1-[2-(2,4-dimethylphenyl)-2-oxoethyl]pyrrole-2-carboxylate (6b), methyl 1-[2-naphthyl-2-oxo- ethyl]pyrrole-2-carboxylate (6c) and methyl 1-[2-(4-fluorophenyl)-2-oxoethyl]pyrrole-2-carboxylate (6e) were prepared by the same procedure used for 6a.

General Procedure for the Preparation of 3-Aryl-2-methyl-1-pyrrolo[1,2-a]pyrazinones 2a-f.

A solution of the appropriate compound 6 (4.5 mmol) in anhydrous methanol (15 mL) was heated to reflux. A stream of methylamine was passed through this solution for 3-4 hr, and then the solution was refluxed for four days. Removal of solvent under reduced pressure afforded a brown, sticky oil which was purified by column chromatography on silica gel using 4:1 petroleum ether/ethyl acetate as eluant to give the corresponding compounds 2.

2-Methyl-3-phenyl-1-pyrrolo[1,2-a]pyrazinone (2a). Yield 62.5%; overall yield 22.7%; m.p. 141- 142°C; ¹H-NMR (CDCl₃) δ (ppm): 3.28 (s, 3H, N-CH₃), 6.60 (br. t, 1H, H-7), 6.93 (s, 1H, H-4), 7.10 (br. d, 1H, H-8), 7.16 (br. d, 1H, H-6), 7.39-7.49 (m, 5H, Ar-H); IR (KBr) ν(cm^-1): 1621.4 (amide, C=O); MS (m/z): 225 (M⁺+1).

3-(2,4-Dimethylphenyl)-2-methyl-1-pyrrolo[1,2-a]pyrazinone (2b). Yield 59.4%, overall yield 26.5%; m.p. 163-164°C; ¹H-NMR (CDCl₃) δ (ppm): 2.20 (s, 3H, Ar-CH₃), 2.39 (s, 3H, Ar-CH₃), 3.12 (s, 3H, N-CH₃), 6.59 (br. t, 1H, H-7), 6.86 (s, 1H, H-4), 7.07-7.16 (m, 5H, H-8, H-6, Ar-H); IR (KBr) ν(cm^-1): 1625.9 (amide, C=O); MS (m/z): 253 (M⁺+1).

2-Methyl-3-naphthyl-1-pyrrolo[1,2-a]pyrazinone (2c). Yield 36.8%, overall yield 10.2%; m.p. 161- 163°C; ¹H-NMR (CDCl₃) δ (ppm): 3.09 (s, 3H, N-CH₃), 6.64 (br. t, 1H, H-7), 7.04 (s, 1H, H-4), 7.12 (br. s, 1H, H-8), 7.21 (br. d, 1H, H-6), 7.53-7.58 (m, 4H, Ar-H), 7.72 (br. d, 1H, Ar-H), 7.92-8.00 (m, 2H, Ar-H); IR (KBr) ν(cm^-1): 1621.0 (amide, C=O); MS (m/z): 275 (M⁺+1).

3-(4-Hydroxyphenyl)-2-methyl-1-pyrrolo[1,2-a]pyrazinone (2d). Yield 89.9%, overall yield 40.8%; m.p. 240-241°C; ¹H-NMR (DMSO) δ (ppm): 3.13 (s, 3H, N-CH₃), 6.55 (br. s, 1H, H-7), 6.86 (br. d, 3H, H-4, Ar-H), 7.31 (br. d, 3H, H-8, Ar-H), 7.39 (br. s, 1H, H-6), 9.82 (s, 1H, -OH); IR (KBr) ν(cm^-1): 2991.6 (O-H), 1628.4 (amide, C=O); MS (m/z): 241 (M⁺+1).

3-(4-Fluorophenyl)-2-methyl-1-pyrrolo[1,2-a]pyrazinone (2e). Yield 70.1%, overall yield 34.3%; m.p. 133-135°C; ¹H-NMR (CDCl₃) δ (ppm): 3.25 (s, 3H, N-CH₃), 6.59 (br. t, 1H, H-7), 6.89 (s, 1H, H-4), 7.08-7.19 (m, 4H, H-8, H-6, Ar-H), 7.36-7.40 (m, 2H, Ar-H); IR (KBr) ν(cm^-1): 1623.5 (amide, C=O); MS (m/z): 243 (M⁺+1).

2-Methyl-3-(4-methylsulfinylphenyl)-1-pyrrolo[1,2-a]pyrazinone (2f). Yield 70.8%, overall yield 22.7%; m.p. 213-214°C; ¹H-NMR (CDCl₃) δ (ppm): 2.81 (s, 3H, -SOCH₃), 3.28 (s, 3H, N-CH₃), 6.61 (br. t, 1H, H-7), 6.93 (s, 1H, H-4), 7.11 (br. s, 1H, H-8), 7.16 (br. d, 1H, H-6), 7.59 (d, 2H, J=8.2Hz, Ar-H), 7.77 (d, 2H, J=8.2Hz, Ar-H); IR (KBr) ν(cm^-1): 1049.2 (S=O), 1618.7 (amide, C=O); MS (m/z): 287 (M⁺+1).

General Procedure for the Preparation of 1-Bromo-1,2-diarylethanones 9.

A solution of the 1,2-diarylethanone (2.6 mmol) in ethyl acetate (5 mL) and chloroform (5 mL) was heated to reflux. Powdered cupric bromide (5.1 mmol) was added in small portions over a 3.5-hr period, with the reaction mixture maintained at 75-80°C while a constant stream of nitrogen gas was bubbled through the reaction solution. After the addition was complete, stirring was continued for 1.5 hr until the green color and dark cupric bromide had disappeared, then the reaction mixture was cooled, filtered and the colorless solid cuprous bromide was washed with chloroform (25 mL). The combined filtrate and washings were rotary evaporated and an oily residue was obtained. The residue was redissolved in diethyl ether (200 mL), washed with water, 5% sodium bicarbonate and brine and then dried over sodium sulfate. After removing the solvent, an opaque product was isolated [4].

1- Bromo-1-phenylacetophenone (9a). Yield 97%; m.p. 54-56°C (Lit. [4] 55-56°C).

General Procedure for the Preparation of Methyl 1-(1, 2-diaryl-2-oxoethyl)pyrrole-2-carboxylates 10.

The corresponding 1-bromo-1, 2-diarylethanones (13.6 mmol) were added to a mixture of methyl pyrrole-2-carboxylate (4, 13.3 mmol) and KOH (1.3 g) in DMF (15 mL). After stirring at room temperature for 30 min, the reaction mixture was poured into water. The mixture was filtered, and the solid was washed with water and air-dried to yield the crude products title compounds 10, which were purified by recrystallization from methanol or column chromatography on silica gel [3].

Methyl 1-[2-(4-methylphenyl)-2-oxo-1-phenylethyl]pyrrole-2-carboxylate (10c). Yield 35.6%; m.p. 126-128°C; ¹H-NMR (DMSO) δ (ppm): 2.29 (s, 3H, Ar-CH₃), 3.64 (s, 3H, -COOCH₃), 6.09 (br. t, 1H, pyrrole H-4), 6.42 (br. t, 1H, pyrrole H-3), 6.97 (dd, 1H, J=1.7Hz, 3.9Hz, pyrrole H-5), 7.28 (d, 2H, J=8.9Hz, Ar-H), 7.42-7.44 (m, 5H, Ar-H), 7.86 (s, 1H, -CH), 7.95 (d, 2H, J=8.9Hz, Ar-H).

General Procedure for the Preparation of N-methyl-1-(1, 2-diaryl-2-oxoethyl)pyrrole-2-amides 11.

A solution of compounds 10 (4.5 mmol) in anhydrous methanol (15 mL) was heated to reflux. A stream of methylamine was passed through this solution for 3-4 hr and then the solution was refluxed for four days. Removal of solvent under reduced pressure afforded a brown sticky oil, which was purified by column chromatography on silica gel using petroleum ether/ethyl acetate (4:1) as eluant to give the title compounds 11.

N-methyl-1-[2-(4-methylphenyl)-2-oxo-1-phenylethyl]pyrrole-2-amide (11c). Yield 70.2%; m.p. 177- 179°C; ¹H-NMR (DMSO) δ (ppm): 2.32 (s, 3H, Ar-CH₃), 2.64 (d, 3H, J=5.1Hz, -NH-CH₃), 6.06 (br. t, 1H, pyrrole H-4), 6.45 (br. s, 1H, pyrrole H-3), 6.77 (br. d, 1H, pyrrole H-5), 7.09 (q, 1H, J=5.1Hz, -NH-CH₃), 7.27 (d, 2H, J=7.8Hz, Ar-H), 7.35-7.38 (m, 5H, Ar-H), 7.87 (d, 2H, J=7.8Hz, Ar- H), 8.06 (s, 1H, -CH); IR (KBr) ν(cm^-1): 1701.3 (C=O), 1616.4 (amide, C=O); MS (m/z): 333 (M⁺+1).

General Procedure for the Preparation of 3,4-Diaryl-2-methyl-1-pyrrolo[1,2-a]pyrazinones 3.

To a solution of compounds 11 (1.4 mmol) in anhydrous ethanol (3 mL) was added 85% phosphoric acid (6 mL). The reaction solution was refluxed for 1 hr. After cooling to room temperature, the reaction solution was poured into water and filtered, giving the crude product as a solid. The crude product could be purified by recrystallization from anhydrous methanol to provide the title compounds 3.

3,4-Diphenyl-2-methyl-1-pyrrolo[1,2-a]pyrazinone (3a, R₁=H, R₂=H). Yield 65.6%; overall yield 13.4%; m.p. 195-196°C; ¹H-NMR (DMSO) δ (ppm): 3.05 (s, 3H, N-CH₃), 6.53 (br. t, 1H, H-7), 6.64 (br. s, 1H, H-8), 7.03 (br. d, 1H, H-6), 7.28-7.35 (m, 10H, Ar-H); IR (KBr) ν(cm^-1): 1627.9 (amide, C=O); MS (m/z): 301 (M⁺+1).

4-(4-Chlorophenyl)-2-methyl-3-phenyl-1-pyrrolo[1,2-a]pyrazinone (3b, R₁=Cl, R₂=H). Yield 60.2%, overall yield 10.9%; m.p. 202-204°C; ¹H-NMR (DMSO) δ (ppm): 3.05 (s, 3H, N-CH₃), 6.56 (br. t, 1H, H-7), 6.70 (br. d, 1H, H-8), 7.05 (dd, 1H, J=1.2Hz, 3.9Hz, H-6), 7.30-7.37 (m, 9H, Ar-H); IR (KBr) ν(cm^-1): 1628.6 (amide, C=O); MS (m/z): 335 (M⁺+1).

2-Methyl-3-(4-methylphenyl)-4-phenyl-1-pyrrolo[1,2-a]pyrazinone (3c, R₁=H, R₂=CH₃). Yield 67.8%, overall yield 16.6%; m.p. 204-206°C; ¹H-NMR (DMSO) δ (ppm): 2.24 (s, 3H, Ar-CH₃), 3.04 (s, 3H, N-CH₃), 6.54 (br. d, 1H, H-7), 6.61 (br. s, 1H, H-8), 7.02 (br. d, 1H, H-6), 7.10 (d, 2H, J=7.9Hz, Ar-H), 7.22 (d, 2H, J=7.9Hz, Ar-H), 7.31 (s, 5H, Ar-H); IR (KBr) ν(cm^-1): 1631.9 (amide, C=O); MS (m/z): 315 (M⁺+1).

2-Methyl-4-(-methoxyphenyl)-3-(-methylphenyl)-1-pyrrolo[1,2-a]pyrazinone (3d, R₁=OCH₃, R₂=CH₃). Yield 94.7%, overall yield 28.8%; m.p. 219-221°C; ¹H-NMR (DMSO) δ(ppm): 2.30 (s, 3H, Ar-CH₃), 3.07 (s, 3H, N-CH₃), 3.75 (s, 3H, -OCH₃), 6.42 (dd, 1H, J=2.7Hz, 3.9Hz, H-7), 6.62 (dd, 1H, J=1.5Hz, 2.7Hz, H-8), 6.79 (d, 2H, J=9.0Hz, Ar-H), 6.96 (dd, 1H, J=1.5Hz, 3.9Hz, H-6), 7.05-7.15 (m, 6H, Ar-H); IR (KBr) ν(cm^-1): 1633.8 (amide, C=O); MS (m/z): 345 (M⁺+1).

4-(4-Chlorophenyl)-2-methyl-3-(4-methylsulfonylphenyl)-1-pyrrolo[1,2-a]pyrazinone (3e, R₁=Cl, R₂=SO₂CH₃). Yield 18.5%; overall yield 6.7%; m.p. 235-237°C; ¹H-NMR (DMSO) δ (ppm): 3.04 (s, 3H, N-CH₃), 3.22 (s, 3H, -SO₂CH₃), 6.57 (dd, 1H, J=2.7Hz, 3.9Hz, H-7), 6.72 (dd, 1H, J=1.6Hz, 2.7Hz, H-8), 7.07 (dd, 1H, J=1.6Hz, 3.9Hz, H-6), 7.36 (d, 2H, J=8.7Hz, Ar-H), 7.42 (d, 2H, J=8.7Hz, Ar-H), 7.67 (d, 2H, J=8.4Hz, Ar-H), 7.87 (d, 2H, J=8.4Hz, Ar-H); IR (KBr) ν(cm^-1): 1305.2, 1149.8 (O=S=O), 1630.5 (amide, C=O); MS (m/z): 413 (M⁺+1).

References

Pang, J. Y.; Sun, G.; Zhang, S. F. Chinese J. Med. Chem. 2002, 12, 82.
Brimble, M. A.; Hodges, L. R. Aust. J. Chem. 1988, 41, 1583.
Belanger, P. C.; Britcher, S. F.; Atkinson, J. G.; Rooney, C. S.; Remy, D. C. J. Org. Chem. 1983, 48, 3234–3241. [CrossRef]
Bauer, D. P.; Macomber, R. S. J. Org. Chem. 1975, 40, 1990–1992. [CrossRef]

Sample availability: Samples of compounds reported in this paper may be obtained from the author.
