Article

Novel 4-Aroyl-3-alkoxy-2(5H)-furanones as Precursors for the Preparation of Furo[3,4-b][1,4]-diazepine Ring System

1
Department of Chemistry, University of Cincinnati, Cincinnati, OH 45221-0172, USA
2
Department of Chemistry, Faculty of Science, Alexandria University, Alexandria, Egypt
*
Author to whom correspondence should be addressed.
Molecules 2003, 8(10), 735-743; https://doi.org/10.3390/81000735
Received: 29 April 2003 / Revised: 17 August 2003 / Accepted: 18 August 2003 / Published: 31 October 2003

Abstract

:
A general synthesis of tetronic acid derivatives, namely 4-aroyl-3-alkoxy-2(5H)-furanones, is achieved via the treatment of an anhydrous dimethylformamide (DMF) solution of 4-aroyl-3-hydroxy-2(5H)-furanones with 1,8-diazabicyclo[5.4.0]undec-7-ene (DBU) as base at -10-0°C, followed by the addition of alkyl iodide. Their structural assignments are based on spectroscopic data and confirmed by X-ray crystallography. These furanones were used as starting materials for the preparation of furodiazepines.

Introduction

Benzodiazepines are an important class of psychotherapeutic compounds. In recent years some examples of heterocyclic rings fused to the seven member diazepine ring system have been synthesized which exhibit psychotropic activities [2,3,4,5,6,7]. Recently, we have reported on a facile synthesis of novel furodiazepines, namely 7-aryl-4,5-dihydro-2-oxo-3H,8H-furo[3,4-b][1,4]diazepines (1) using 4-aroyl-3-methoxy-2(5H)-furanones (2) [1,8]. This procedure was however limited since many 4-aroyl-3-hydroxy-2(5H)-furanones 3 [9,10] are insoluble in ether, the solvent needed for the transformation of 3 into the 3-methoxy analogs 2 (R= CH3) (Scheme 1).

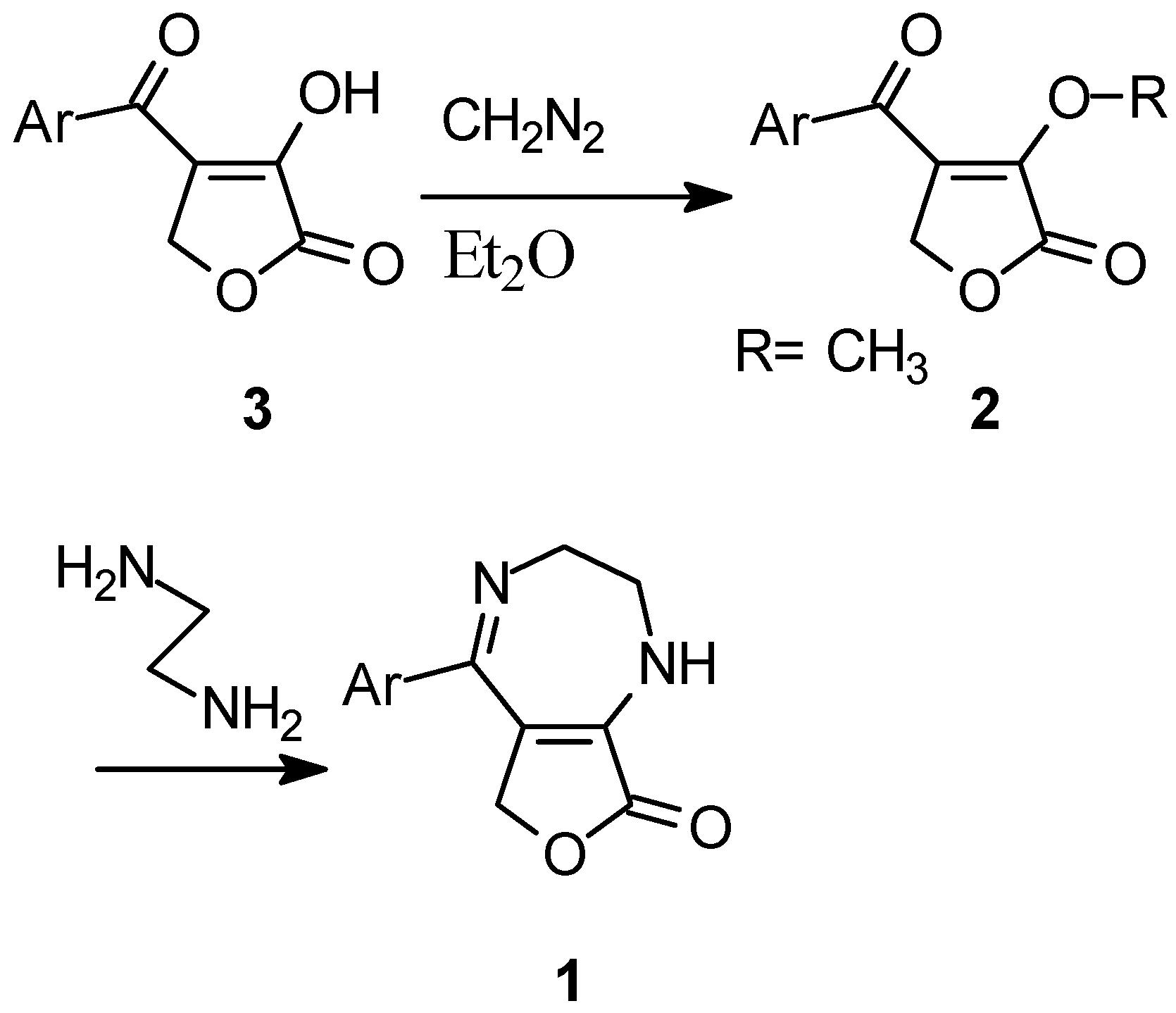

Scheme 1.
Scheme 1.
Molecules 08 00735 g002

Results and Discussion

In this work we report the results based on our efforts to develop an extended, general O-alkylation procedure for compounds of type 3. We found that treatment of a solution of 3 in anhydrous dimethylformamide (DMF) with 1,8-diazabicyclo[5.4.0]undec-7-ene (DBU) as base at -10-0°C, followed by the addition of a primary alkyl iodide afforded type 2 compounds in moderate yields (Scheme 2). Our results are summarized in Table 1

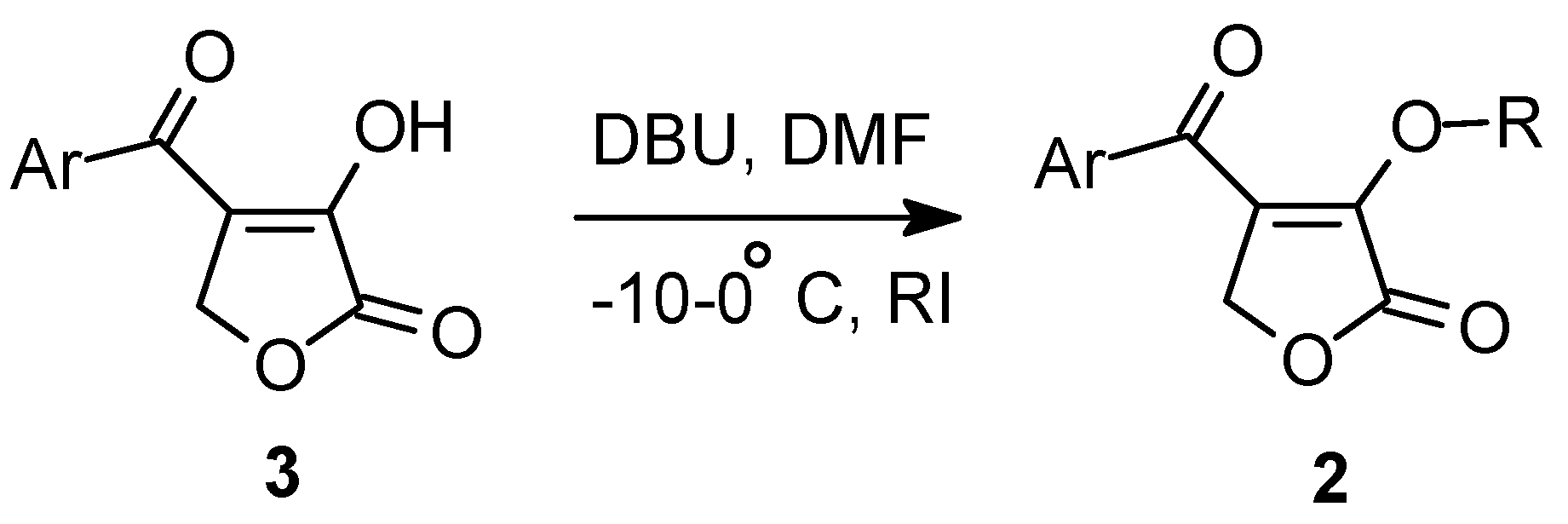

Scheme 2.
Scheme 2.
Molecules 08 00735 g003
Table 1.
Table 1.
EntryArRYield (%)Mp (°C)
2aC6H5CH3CH2-42Oil
2bC6H5CH2=CHCH2-5152
2co-Cl C6H4CH3CH2-3548
2do-Cl C6H4(CH3)2CHCH2-41Oil
2em-CNC6H4CH3-47116
2fp-CH3C6H4CH3-31Oil
2gp-CH3C6H4CH3CH2-28Oil
2hp-CH3C6H4CH3(CH2)2CH2-2942
2ip-CH3C6H4CH3(CH2)5CH2-31Oil
2jp-CH3C6H4C6H5CH2-4284
2kp-CH3C6H4CH2=CHCH2-4870
2lp-CH3C6H4(CH3)2CHCH2-1755
2mp-CH3C6H4CH3CH2O2CH2-5384
2np-CH3C6H4(CH3)2CH-2373
2op-CH3C6H4(CH2)4CH-2580
2pp-NO2C6H4CH3-3085
2q5-CH3-2-thienylCH3-33Oil
4p-CH3C6H4o-C6H4(CH2-)22498

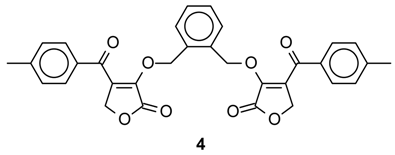

This O-alkylation could also be employed to synthesize bis-ethers. Thus, when one equivalent of 1,2-bis(iodomethyl)benzene was allowed to react with two equivalents of 3 (Ar= 4-CH3C6H4), 4-(methylbenzoyl)-3-[2-(4-methylbenzoyl)-2-oxo(3-hydrofuryl-5-oxy)methylphenyl)methoxy]-(5H)-furan-2-one (4) was obtained in 24% yield.
Molecules 08 00735 i001
Depending upon the reactivity of the alkyl iodide an excess ranging between one to five equivalents was used to favor the formation of the corresponding ether 2 in an SN2-like reaction. Secondary alkyl iodide were also could be used in this reaction. Structural assignments of the ethers 2 are made on spectroscopic ground, which are summarized in Table 2. Definite proof of the ether structures 2 was obtained by X-ray analyses[11]. X-ray structures were obtained for the compounds 2h (R= CH3(CH2)2CH2-), 2j (R= C6H5CH2-), 2k (R= CH2=CHCH2-), 2l (R= (CH3)2CHCH2-) and 2o (R= (CH2)4CH-). Figure 1 shows the X-ray structure of 2k as a prototype.

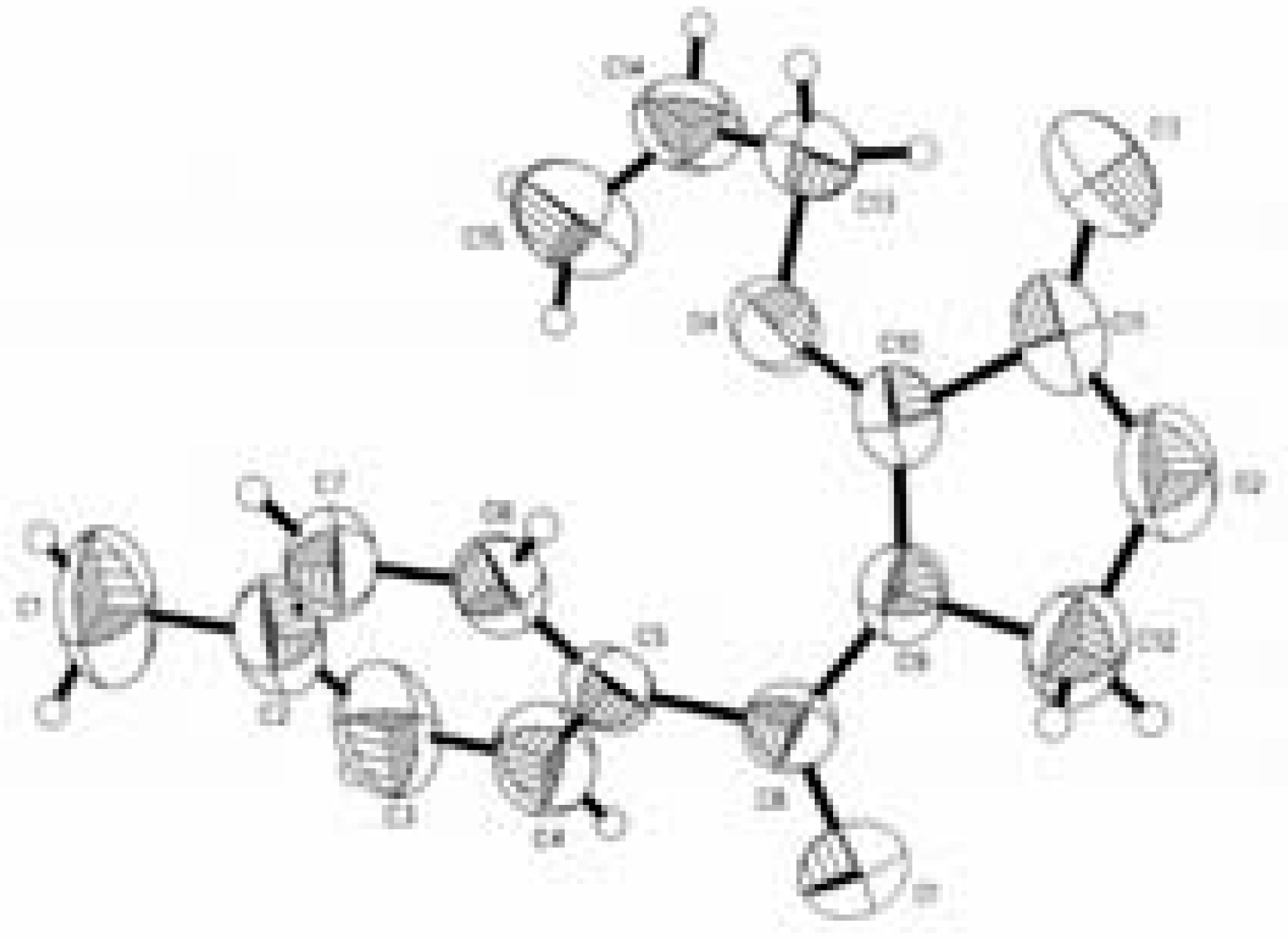

Figure 1. X-ray structure of compound 2k (R= CH2=CHCH2-).
Figure 1. X-ray structure of compound 2k (R= CH2=CHCH2-).
Molecules 08 00735 g001
By using this O-alkylation procedure for the preparation of compounds of type 2, a series of diazepines 1 were synthesized by reacting several compounds of type 2 (R= CH3) with ethylenediamine in chloroform solutions (Table 3). This reaction is not limited to R= CH3 as demonstrated by the reaction of 2k (R= CH2=CHCH2-) with 1,2-ethylenediamine which formed the corresponding diazepine 1f in 66% yield (up from 39% for 2f, R= CH3).

Conclusions

We have presented a facile route for the formation of 3-alkoxy-2(5H)-furanones 2. These compounds are key intermediates in the synthesis of furodiazepines. These furodiazepines possess interesting structural similarities to benzodiazepines which are presently under biological evaluation, and shall be reported elsewhere.

Experimental

General

Melting points were determined on a Melt-Temp apparatus and are uncorrected. TLC was conducted on plated prepared from E. Merck silica gel 60 F254, 0.2 mm thickness. Silica gel from EM science in a column with 20 mm diameter was used for flash column chromatography pressured with compressed nitrogen. NMR spectra were acquired on a Bruker AC250 spectrometer with TMS as internal standard. A Hewlett-Packard 6890 Gas chromatograph/mass spectrometer was used to record MS data. For high resolution mass spectra a Kratos MS-801 DS-55 spectrometer was used. Elemental analysis were performed by M-H-W Laboratories, Phoenix, Arizona.

General Procedure: 4-Aroyl-3-alkoxy-2(5H)-furanones (2).

DBU (0.37 mL, 2.5 mmol) was added to a solution of 3 (2.5 mmol) in anhydrous DMF (35 mL) in a three-neck-round-bottom flask equipped with a thermometer and a magnetic stirring bar under an inert atmosphere. The solution was cooled to a temperature between -10-0°C and stirred for 10 min. Then an excess of alkyl iodide was added and the solution was stirred for 2 h. The resulting mixture was allowed to come to room temperature and stirring was continued for 24 h. The yellow-brown reaction mixture was poured into ice water (300 mL) and extracted with ether (3 x 25 mL). The organic layers were combined and dried over anhydrous magnesium sulfate and the solvent was evaporated. The residue was chilled overnight. Solids were recrystallized from ethanol, while oils were subjected to column chromatography on silica gel using methylene chloride as eluent. Spectroscopic and analytical data are given in Table 2.

General Procedure: 7-Aryl-4,5-dihydro-2-oxo-3H,8H-furo[3,4-b][1,4]diazepines (1).

To a solution of 2 (2.5 mmol) in chloroform (50 mL) was added 1,2-ethylenediamine (3 mmol) under an inert gas atmosphere. The mixture was stirred at room temperature for 24 h. The solvent was evaporated and the resulting residue was recrystallized from methanol or ethanol. Spectroscopic and analytical data are given in Table 3.
Table 2. 1H- , 13 C-NMR, MS and analytical data of 2a-q and 4
Table 2. 1H- , 13 C-NMR, MS and analytical data of 2a-q and 4
Product1H NMR a δ (ppm)13C NMR a δ (ppm)MolecularformulaMSAnalysis % Calc./Found
CH
2a1.17 (t, 3H), 4.32 (q, 2H), 5.01 (s, 2H), 7.50, 7.63, 7.86 (m, m, d, 5H)14.85, 67.63, 67.85, 127.97, 128.18, 128.98, 133.58, 136.32, 142.79, 167.59, 189.49C13H12O4232, 203, 188, 159, 143, 132, 10567.245.01
67.305.21
2b4.78(d, 2H), 5.04 (s, 2H), 5.07 (d, 1H), 5.10 (d, 1H), 5.76 (m, 1H), 7.50, 7.63, 7.85 (m, m, d, 5H)67.72, 71.74, 118.97, 128.35, 129.15, 130.25, 131.60, 133.74, 136.36, 143.54, 167.67, 189.40C14H12O4244, 172, 122, 10568.854.95
68.685.03
2c1.01 (t, 3H), 4.47 (q, 2H), 5.05 (s, 2H), 7.40 (m, 4H)14.30, 66.28, 67.20, 126.32, 127,22, 127.89, 128.94, 130.03, 131.05, 138.10, 146.62, 166.95, 188.09C13H11ClO4266, 231, 203, 166, 159, 139, 13158.554.16
58.654.35
2d0.62 (d, 6H), 1.58 (m, 1H), 4.22 (d, 2H), 5.06 (s, 2H), 7.39 (m, 4H)18.19, 28.44, 66.79, 77.70, 126.87, 127.17, 128.34, 129.65, 130.88, 131.50, 138.89, 147.21, 167.54, 188.85C15H15ClO4294, 239, 203, 159, 139, 13161.135.13
61.195.27
2e4.13 (s, 3H), 5.08 (s, 2H), 7.62, 7.88, 8.07 (3m, 4H)59.03, 67.14, 112.65, 117.47, 126.59, 129.15, 132.53, 132.77, 136.07, 137.30, 145.31, 187.05C13H9NO4243, 214, 168, 130, 10264.203.73
64.403.90
2f2.38 (s, 3H), 3.87 (s, 3H), 4.94 (s, 2H), 7.23 (d, 2H), 7.71 (d, 2H)bC13H12O4232, 189, 159, 119, 91b
2g1.11 (t, 3H), 2.35 (s, 3H), 4.21 (q, 2H), 4.91 (s, 2H), 7.21 (d, 2H), 7.70 (d, 2H)15.02, 21.60, 67.84, 68.01, 128.51, 129.11, 129.36, 133.88, 143.37, 145.05, 167.79, 189.19C14H14O4246, 231, 189, 159, 146, 119, 9168.275.73
68.525.72
2h0.80 (t, 3H), 1.19 (m, 2H), 1.51 (m, 2H), 2.45 (s, 3H), 4.27 (t, 2H), 5.03 (s, 2H), 7.29 (d, 2H), 7.77 (d, 2H)13.46, 18.56, 21.77, 31.52, 67.97, 72.06, 128.60, 129.19, 129.49, 134.17, 143.91, 145.05, 167.96, 189.39C16H18O4275 (M+1), 219, 119, 9170.066.62
70.236.60
2i0.85 (t, 3H), 1.21 (m, 8H), 1.52 (m, 2H), 2.44 (s, 3H), 4.27 (t, 2H), 5.03 (s, 2H), 7.29 (d, 2H), 7.67 (d, 2H)13.87, 21.64, 22.36, 25.22, 28.60, 29.41, 31.47, 67.85, 72.19, 128.60, 129.06, 129.40, 134.08, 143.83, 144.85, 167.88, 189.26C19H24O4316, 301, 219, 146, 119, 9172.117.65
72.207.62
2j2.43 (s, 3H), 5.02 (s, 2H), 5.39 (s, 2H), 7.10 (m, 2H), 7.25 (m, 5H), 7.69 (d, 2H)21.81, 68.01, 72.95, 127.88, 127.97, 128.43, 128.51, 129.23, 129.58, 130.58, 135.18, 143.29, 145.02, 168.05, 189.10C19H16O4308, 278, 225, 187, 144, 119, 9174.005.23
74.065.33
2k2.37 (s, 3H), 4.76 (d, 2H), 4.97 (s, 2H), 5.07 (bs, 1H), 5.12 (bs, 1H), 5.64 – 5.80 (m, 1H), 7.19 (d, 2H), 7.71 (d, 2H)21.60, 67.80, 71.77, 118.98, 129.10, 129.40, 129.61, 131.68, 133.78, 142.94, 144.97, 167.72, 188.89 C15H14O4258, 243, 146, 119, 9169.745.47
69.925.52
2l0.76 (d, 6H), 1.81 (m, 1H), 2.44 (s, 3H), 4.07 (d, 2H), 5.04 (s, 2H), 7.28 (d, 2H), 7.77 (d, 2H)18.52, 21.81, 28.65, 67.97, 78.22, 128.77, 129.24, 129.52, 134.21, 144.17, 145.01, 168.05, 189.45 C16H18O4274, 259, 219, 174, 146, 119, 9167.83c6.76c
67.596.34
2m1.28 (t, 3H), 2.43 (s, 3H), 4.23 (q, 2H), 5.01 (s, 2H), 5.08 (s, 2H), 7.27 (d, 2H), 7.88 (d, 2H)14.01, 21.73, 61.60, 65.90, 68.01, 129.15, 129.70, 133.79, 141.89, 144.93, 167.71, 168.26, 188.67C16H16O6305 (M+1), 277, 185, 123, 11963.145.30
63.305.25
2n1.16 (d, 6H), 2.45 (s, 3H), 5.05 (s, 2H), 5.25 (qu, 1H), 7.27 (d, 2H), 7.89 (d, 2H)21.73, 22.45, 67.97, 74.93, 128.94, 129.61, 130.29, 133.88, 143.08, 144.85, 168.22, 189.28C15H16O4261 (M+1), 219, 147, 119, 9169.206.20
68.946.10
2o1.39 - 1.45 (m, 4H), 1.60 – 1.66 (m, 4H), 2.45 (s, 3H), 5.06 (s, 2H), 5.48 (t, 1H), 7.28 (d, 2H), 7.76 (d, 2H)21.69, 23.12, 33.12, 67.93, 84.26, 128.85, 129.44, 130.04, 134.04, 143.07, 144.63, 168.14, 189.27C17H18O4286, 219, 119, 9171.316.34
71.366.29
2p4.13 (s, 3H), 5.09 (s, 2H), 7.27 (m, 2H), 8.34 (m, 2H)59.13, 67.31, 123.41, 126.59, 129.95, 141.44, 145.78, 150.20, 167.14, 187.73C12H9NO6263, 146, 150, 10454.763.45
54.773.21
2q2.59 (s, 3H), 4.07 (s, 3H), 5.01 (s, 2H), 6.89 (d, 1H), 7.71 (d, 1H)bC11H10O4S238, 223, 140, 125, 112, 97b
42.41 (s, 6H), 4.98 (s, 4H), 5.08 (s, 4H), 7.04 (m, 2H), 7.19 (d, 4H), 7.62 (m, 2H), 7.77 (d, 4H)21.65, 67.88, 70.28, 128.79, 129.11, 129.28, 130.61, 133.79, 142.95, 145.02, 167.67C32H26O8539 (M+1), 321, 195, 11971.374.87
71.474.97
a) in CDCl3 as solvent, q= quartet, qu= quintet b) not determined c) calcd. for C16H18O4 • 0.5 H2O
Table 3. 1H-NMR, MS and analytical data of 1c,e,f,p and q
Table 3. 1H-NMR, MS and analytical data of 1c,e,f,p and q
ProductaYield (%)Mp (°C)1H NMRb δ (ppm)Molecular formulaMSAnalysis % Calc./Found
CHN
1c421763.55 (bs, 2H), 3.94 (bs, 2H), 4.56 (bs, 2H), 6.39 (bs, 1H), 7.37 (m, 4H)C13H11ClN2O2262, 227, 217, 183 59.444.2210.66
59.544.2710.82
1e481723.62 (bs, 2H), 4.21 (bs, 2H), 4.76 (s, 2H), 5.68 (bs, 1H), 7.55, 7.74 (2m, 4H)C14H11N3O2253, 252, 208, 181, 179, 142, 140, 102 66.404.3816.59
66.604.6016.68
1f391782.38 (s, 3H), 3.61 (bs, 2H), 4.20 (bs, 2H), 4.78 (s, 2H), 5.31 (bs, 1H), 7.22 (m, 2H), 7.34 (m, 2H) C14H14N2O2242, 227, 197, 183, 170, 128, 105, 91 69.415.82
69.225.90
1p511983.57 (bs, 2H), 4.15 (bs, 2H), 4.64 (s, 2H), 5.51 (bs, 1H), 7.53 (d, 2H), 8.17 (d, 2H)C13H11N3O4273, 256, 228, 182, 151 57.144.0615.38
57.244.1415.31
1q271702.47 (s, 3H), 3.69 (bs, 2H), 4.13 (bs, 2H), 5.10 (s, 2H), 5.72 (bs, 1H), 6.71 (d, 1H), 7.29 (d, 1H)C12H12N2O2S248, 233, 215, 203, 176, 111 58.054.8711.28
57.915.0811.27
a) Numbers are given so that Ar will match the ones in Table 1; b) in CDCl3 as solvent

Acknowledgments

The authors thank the Deutsche Akademische Austauschdient (DAAD) for partial financial support for CPL. JAKB thanks Dr. Alan Pinkerton, Department of Chemistry, University of Toledo for the use of his SMART 2K CCD diffractometer.

References and Notes

  1. Zimmer, H.; Nauss, J. L.; Amer, A. J. Heterocyclic.Chem. 1998, 35, 25–28. [CrossRef]
  2. Pigeon, P.; Decroix, B. Tetrahedron Lett. 1998, 39, 8659–8662, and references cited therein.
  3. Fray, M. J.; Bull, D. J.; Cooper, K.; Parry, M. J.; Slefaniak, H. M. J. Med. Chem. 1995, 38, 3524–3535.
  4. Kawakami, Y.; Kitani, H.; Yuasa, S.; Abe, M.; Moriwaki, M.; Kagoshima, M.; Tersawa, M.; Tahara, T. Eur. J. Med. Chem. 1996, 31, 683–692. [CrossRef]
  5. Rajappan, V. P.; Hosmane, R. S. Nucleosides Nucleotides 1998, 17, 1141–1151.
  6. Bertelli, L.; Biagi, G.; Giorgi, I.; Livi, O.; Manera, C. Farmaco 1998, 53, 305–311.
  7. Goerlitzer, K.; Wilpert, C.; Ruebsamen-Waigmann, H.; Suhartono, H; Wang, L.; Immelmann, A. Arch. Pharm. (Weinheim Ger.) 1995, 328, 247–255.
  8. Zimmer, H.; Amer, A.; Ho, D.; Palmer-Sungail, R. J. Heterocyclic Chem. 1991, 28, 1501–1510. [CrossRef]
  9. Amer, A.; Ventura, M.; Zimmer, H. J. Heterocyclic Chem. 1983, 20, 359–364, and references cited therein.
  10. Zimmer, H.; Palmer-Sungail, R.; Ho, D.; Amer, A. J. Heterocyclic Chem. 1993, 30, 161–167.
  11. Crystallographic data for the structures reported in this paper have been deposited with Cambridge Crystallographic Data Centre as supplementary publications no. CCDC 146275-146279. These data can be obtained free of charge via www.ccdc.cam.ac.uk/conts/retrieving.html (or from the CCDC, 12 Union Road, Cambridge CB2 1EZ, UK; fax: +44 1223 336033; e-mail: [email protected]).
  • Sample Availability: Not Available
