Electrochemical and Electrocatalytical Properties of 3,7,13,17-Tetramethyl-2,8,12,18-Tetrabutylporphyrin in Alkaline Solution
1
Ivanovo State University of Chemistry and Technology, 153000, Engels av., 7. Ivanovo, Russian Federation
2
Institute of Solution Chemistry of the Russian Academy of Sciences, 153045, Akademicheskaya, 1, Ivanovo, Russian Federation
*
Author to whom correspondence should be addressed.
Received: 17 March 2000 / Accepted: 27 March 2000 / Published: 12 June 2000

Abstract

:
The reduction and oxidation behaviour in alkaline solution of 3,7,13,17-tetramethyl-2,8,12,18-tetrabutylporphyrin (L) has been studied by cyclic voltammetry. The shape of I-E curves was investigated at different terminal values of electrode potential and at different scan rates. It was shown that it is possible to obtain two reversible one-electron electroreduction processes accompanied by the formation of mono- and dianion forms of the porphyrin under specific experimental conditions. The reduction potentials of the L⇔L- and L-⇔ L2- processes are –0.67±0.02 V and –1.12±0.02 V, respectively.
Keywords:
Porphyrin; reduction potential; electroreduction

Introduction

There are several publications concerning investigations of the electrochemical and electrocatalytical properties of porphyrin compounds [1,2,3,4,5]. The reasons for this considerable interest in porphyrins and their metal complexes are their semiconductive, photosensitivity and catalytic properties as well as the possibility of modifying these properties by structural modification of the porphyrin ring.
The aim of this work was an investigation of the electrochemical and electrocatalytical properties of 3,7,13,17-tetramethyl-2,8,12,18-tetrabutylporphyrin (L). This article also forms part of a larger body of experimental work concerning macroheterocyclic compounds and their metal complexes in alkaline solution [6,7,8,9,10].

Results and Discussion

As shown in Fig.1, only one peak IIk (E=-1.3 …- 1.5V) can be found on the cathode curve. This curve was obtained after bubbling Ar through the electrolyte for 30 minutes. On the anode curve the inverse process peak IIa is easily detected at E=-1.0 … -1.3V. The ratios between the quantities of electricity as well as the difference between the potentials of peaks IIk and IIa do not correspond to a reversibility of process II. The peaks Ia (E=-0.6 … -0.8V) and IIIa (0 … 0.2V) also appear on the anode curve, whereas the corresponding peaks are absent on the cathode curve.
An additional experiment was carried out to obtain the corresponding pairs of peaks Ia and IIIa. A preliminary electroreduction at E=0.5V and electrooxidation at E=-1.6V was imposed on the working electrode potential. As shown in Fig.2 the two weak peaks for the process III appear if anode polarization at E=0.5V is performed.
Electrode polarization at –1.6V affected the redistribution of the square peaks for the processes I and III (Fig.3). This redistribution depends on the electrode polarization time, and the irreversibility of process II is seen to increase. At the same time the intensity of process I is growing (the area of peak Ia is increasing), but this process is still irreversible. It was thus shown that the shape of the I-E curves depends on the range of the electrode potential change (Fig.4). Increasing the potential from -1.6V to more positive values (Fig.4, curves 2-5) causes a decrease of the current intensity.
In Fig. 5 the shapes of the I-E curve at different terminal anode potential values are shown. The cathode peak corresponding to process I appears to narrow the range from 0.5V to negative value. The reversibility of the process I is also increasing as the range of the potential narrows.
The existence of the stable I-E curve with two peaks corresponding to one-electron processes allows us to investigate the dependence of peak position and the corresponding quantities of electricity for those processes upon scan rate (Fig.6, Table1).
The potentials for both oxidation and reduction were obtained by extrapolation of the potentials to zero scan rates. The effective numbers of electrons was calculated as well.
The comparison of obtained values Ered/ox with the same values for other porphyrins [2,3,4,5] allows us to conclude that the pairs of peaks observed belong to one-electron processes of porphyrin electro-reduction accompanied mono- and dianion form creation (L- and L2-). The lower oxidation potential (E=0.25V) for process III is caused by its chemical structure and the electron-donor ability of methyl and butyl groups.
Additional peaks appeared on the I-E curve (Fig.7) if molecular O2 was present in the solution. These peaks correspond to the electroreduction of O2 and peroxide ion creation. The analysis of the current ratio corresponding to these two stages showed that after 30 minutes of O2 bubbling the electrolyte is saturated with oxygen and the equilibrium concentrations of the components in solution are established.
The increasing ΔIO2 /ΔIHO2- ratio manifests itself about 10 cycles after start of scanning, and this fact testifies to the growth of the contribution of direct electroreduction process of dioxygen (Table 2). Starting with the 10th cycle the ratio of the currents corresponding to the first and second stadium of molecular oxygen electroreduction is nearly a constant value.

Experimental

General

The porphyrin studied (structure shown below) was synthesized and identified as follows: a solution of 5,5′-dicarboxy-4,4′-dimethyl-3,3′-dibutyl-2,2′-dipyrrolylmethane (0.5g, 1.04 mmol), triethyl ortho-formate (1mL, 6.24 mmol) and trifluoracetic acid (1 mL) in chloroform (50 mL) was refluxed for 4 hours. The acid was neutralized with ammonia solution. The product was purified by column chroma-tography (Al2O3, CHCl3). Yield 133 mg (36%). Rf=0.49 (Silufol, toluene). Electron Absorption Spec-trum (CHCl3) λmax, nm(lg ε): 620.3 (3.62), 566.9 (3.72), 534 (3.90), 498.0 (4.00), 400.1 (5.08); IR-spectrum (KBr disk), cm-1: νNH=3335, δNH=960, γNH=690, νCH=990, δCH=1480, γCH=840; NMR-spectrum (CDCl3, int. stand. HMDS), δ (m.d.): 9.91 singlet (4H, mezo-H), 3.92 triplet (8H, CH2CH2CH2CH3), 3.47 singlet (12H, β-CH3), 2.19 pentet (8H, CH2CH2CH2CH3), 1.64 sextet (8H, CH2CH2CH2CH3), 1.11 triplet (12H, CH2CH2CH2CH3), -3.82 singlet (2H, NH) C,H,N analysis: found, %: C-81.20; H-9.13; N-9.62; calculated for C40H54N4, %: C-81.22; H-9.14; N-9.64.
Molecules 05 00767 i001
The electrochemical measurements were performed using a standard three-compartment electro-chemical cell in 0,1M KOH electrolyte [10]. The potential values were measured vs. a Ag/AgCl(sat.) reference electrode.

References and Notes

  1. Tarasevich, M. R.; Radiushkina, K. A. Kataliz i elektrokataliz s metallporfirinami; Nauka: Moscow, 1982; p. 168. [Google Scholar]
  2. Askarov, K.A. Porfiriny: spektroskopiya, elektrohimiya, primenenie; Nauka: Moscow, 1987; p. 384. [Google Scholar]
  3. Mairanovskii, V.G.; Mamaev, V. M.; Ponomarev, G. V. Russ. J. General Chem. 1974, 44, 2508.
  4. Worthington, P.; Hambright, H.; Williams, R. J. Inorg. Biochem. 1980, 12, 281. [CrossRef]
  5. Girandeau, A.; Ezhar, I.; Gross, M. Bioelectrochem. and Bioenerg. 1976, 3, 519.
  6. Bazanov, M. I. Izv. Vuzov. Himiya i him. Tehnologiya 1988, 31, 62.
  7. Bazanov, M. I. Izv. Vuzov. Himiya i him. Tehnologiya 1988, 31, 16.
  8. Martynov, N. P.; Bazanov, M. I.; Kolesnikov, N. A. Izv. Vuzov. Himiya i him. Tehnologiya 1995, 38, 97.
  9. Bazanov, M. I.; Siling, S. A.; Smirnov, R. P. Elektrohimiya 1996, 32, 1120.
  10. Bazanov, M.I.; Ulitina, O.E.; Tiana, J. Elektrohimiya 1999, 35, 212.
  • Sample Availability: Available from the authors.
Figure 1. Cyclic voltammogram recorded in oxygen-free 0.1 KOH.Scan rate=20mV/s.
Figure 1. Cyclic voltammogram recorded in oxygen-free 0.1 KOH.Scan rate=20mV/s.
Molecules 05 00767 g001
Figure 2. Cyclic voltammogram when eletrode polarization at E=0.5V is perfomed. Polarization time, s: 1-10; 2-50; 3-100; 4-200. Scan rate=20mV/s.
Figure 2. Cyclic voltammogram when eletrode polarization at E=0.5V is perfomed. Polarization time, s: 1-10; 2-50; 3-100; 4-200. Scan rate=20mV/s.
Molecules 05 00767 g002

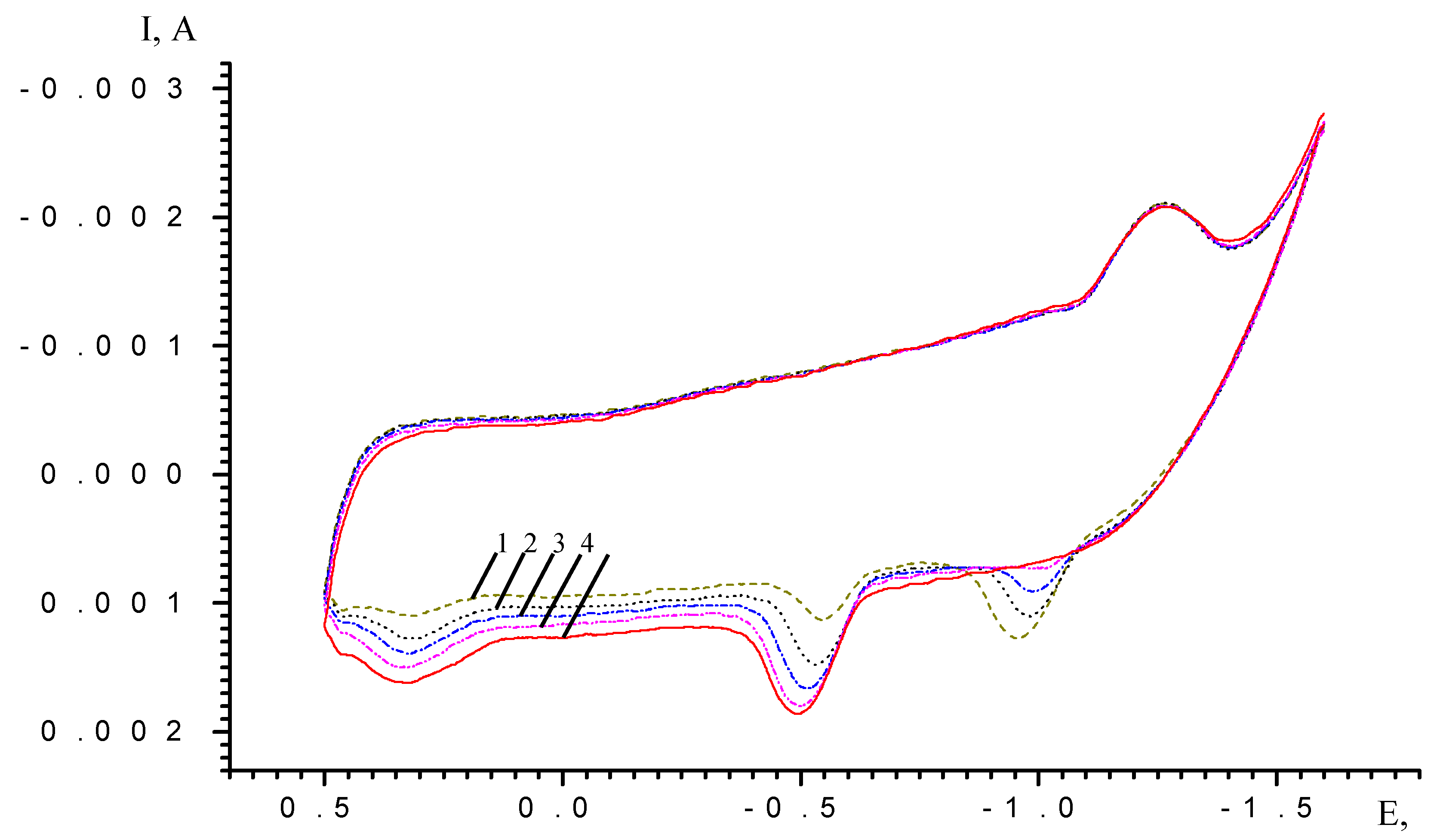

Figure 3. Cyclic voltammogram with electrode polarization at E=-1.6V. Polarization time, s: 1-10; 2-50; 3-100; 4-200; 5-500. Scan rate=20mV/s.
Figure 3. Cyclic voltammogram with electrode polarization at E=-1.6V. Polarization time, s: 1-10; 2-50; 3-100; 4-200; 5-500. Scan rate=20mV/s.
Molecules 05 00767 g003

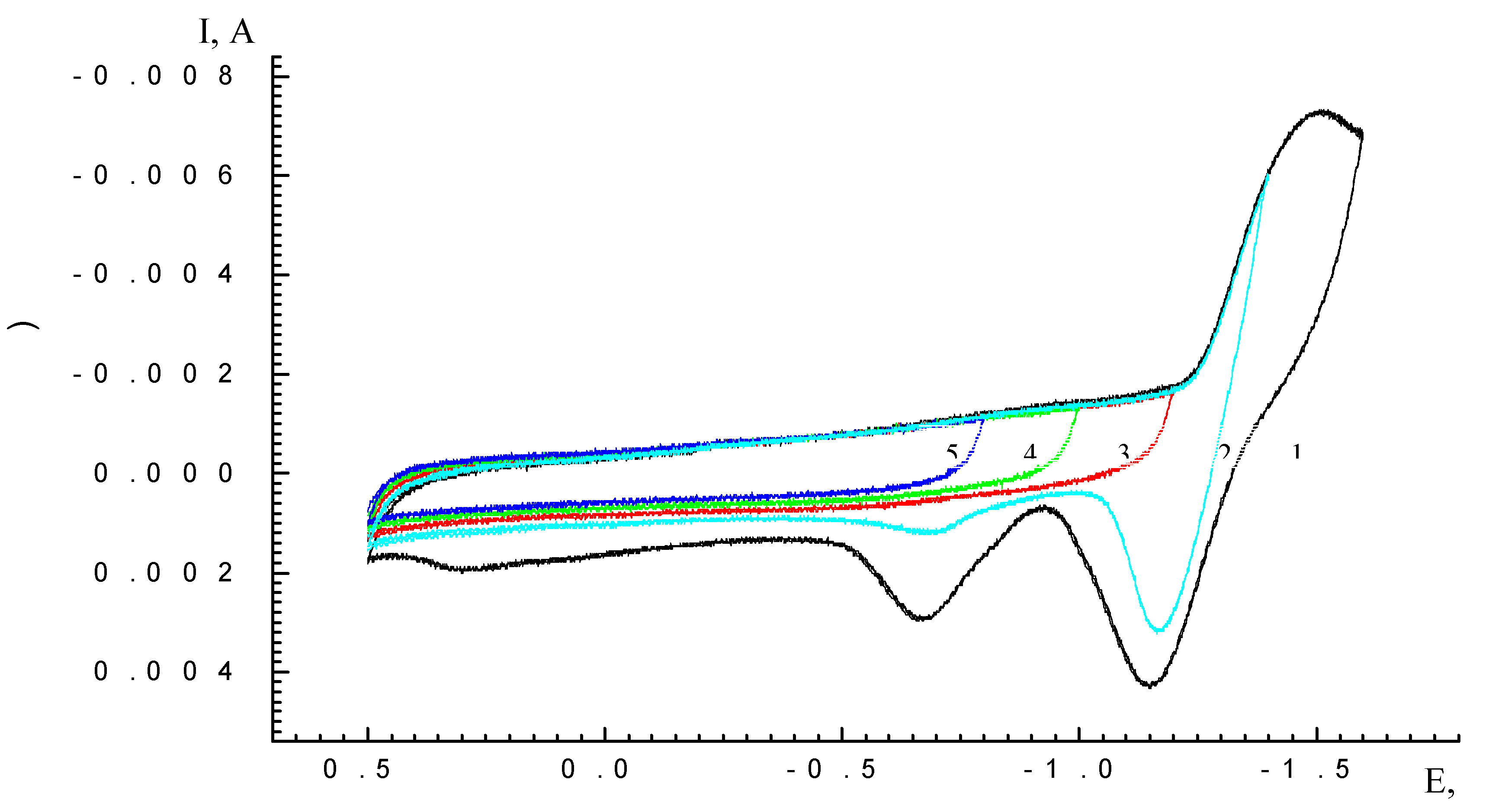

Figure 4. I-E curves depends on the range of the electrode potential changing(V) (1=-1.6; 2=-1.4; 3=-1.2; 4=-1.0; 5=-0.8). Scan rate=20mV/s.
Figure 4. I-E curves depends on the range of the electrode potential changing(V) (1=-1.6; 2=-1.4; 3=-1.2; 4=-1.0; 5=-0.8). Scan rate=20mV/s.
Molecules 05 00767 g004

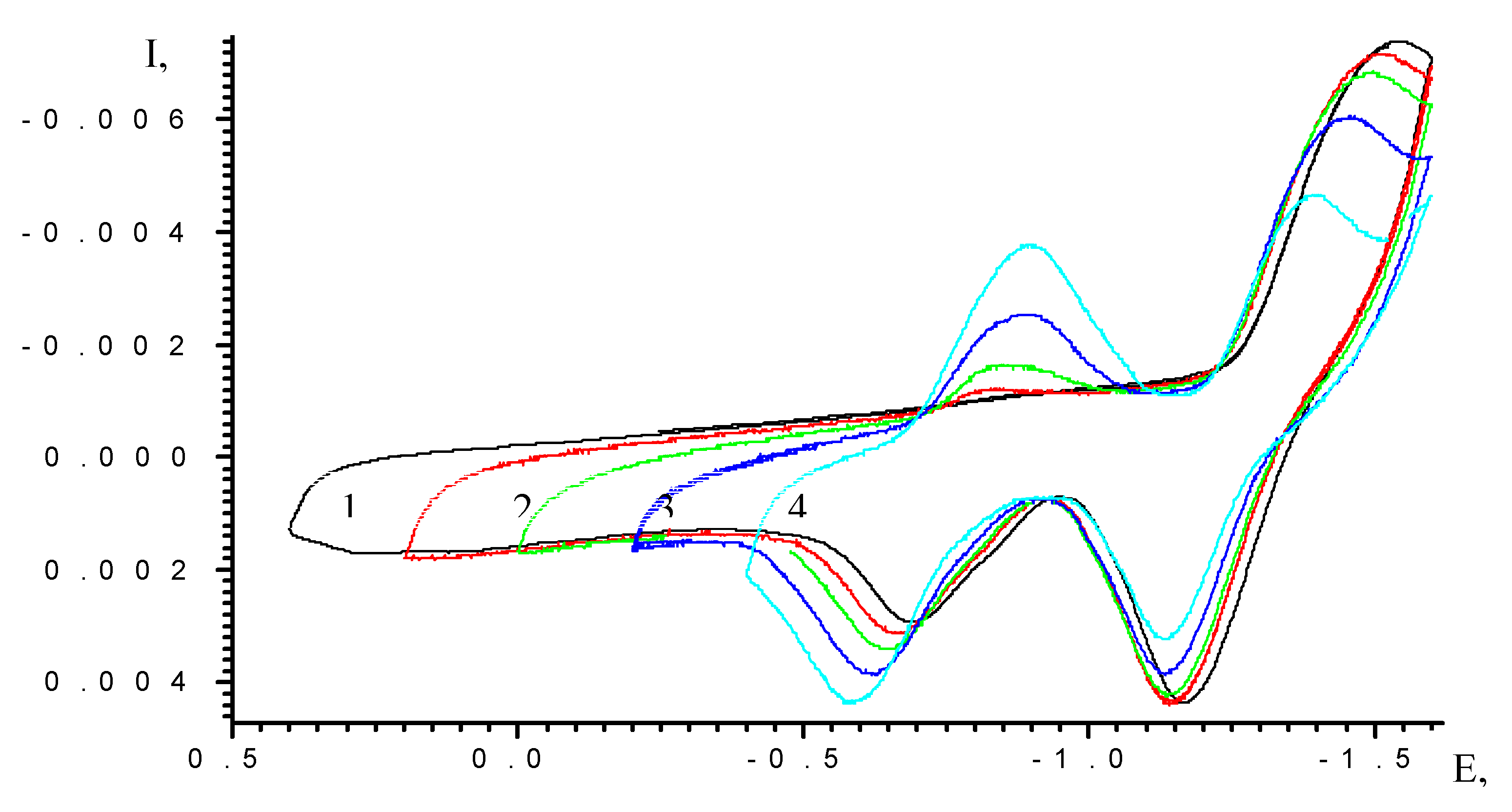

Figure 5. I-E curves dependence on the range of the electrode potential change(V) (1=0.4; 2=0.2; 3=0; 4=-0.2; 5=-0.4). Scan rate=20mV/s.
Figure 5. I-E curves dependence on the range of the electrode potential change(V) (1=0.4; 2=0.2; 3=0; 4=-0.2; 5=-0.4). Scan rate=20mV/s.
Molecules 05 00767 g005

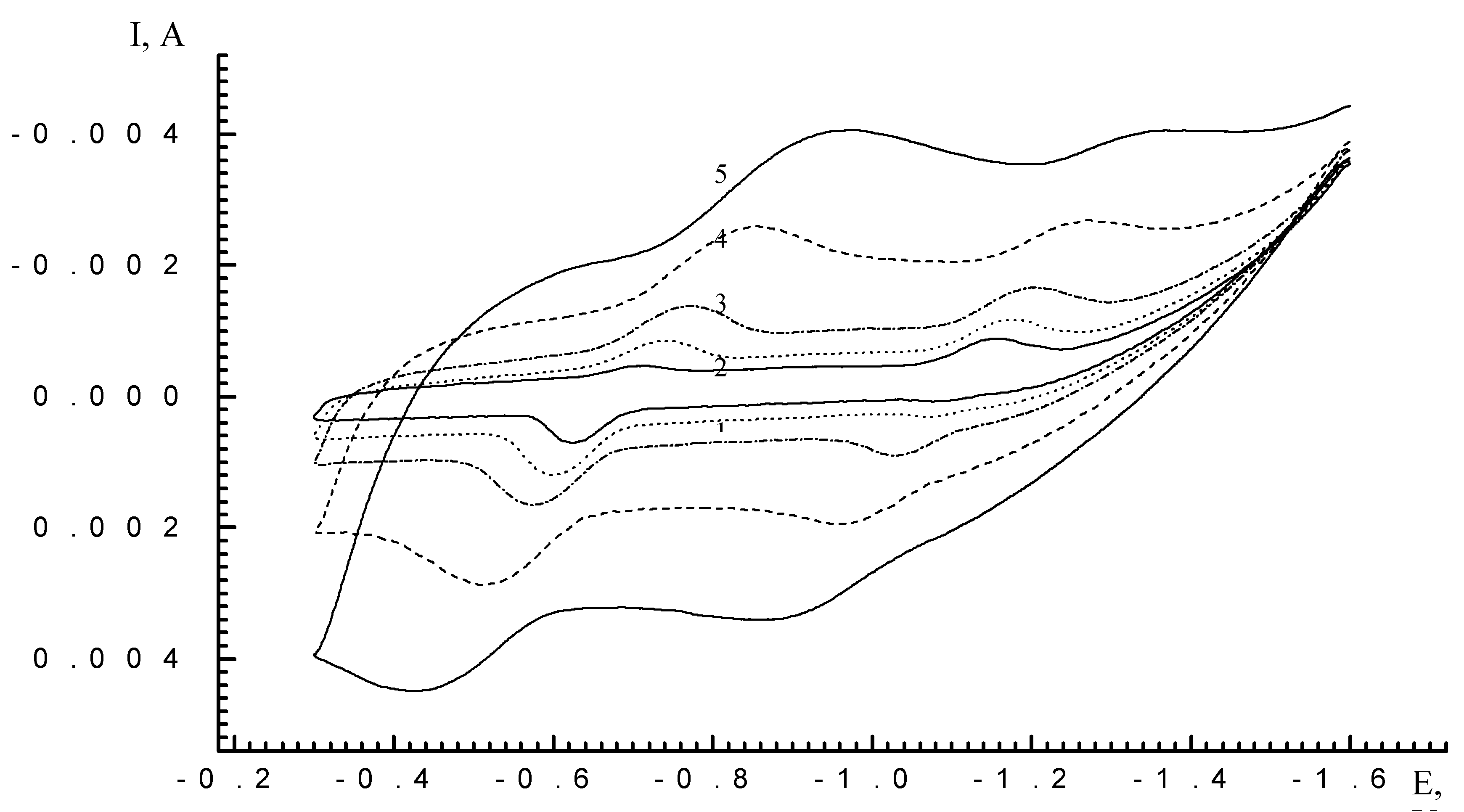

Figure 6. Cyclic voltammogram depends on scan rate. Scan rate (mV/s) 1-5; 2-10; 3-20; 4-50; 5-100.
Figure 6. Cyclic voltammogram depends on scan rate. Scan rate (mV/s) 1-5; 2-10; 3-20; 4-50; 5-100.
Molecules 05 00767 g006

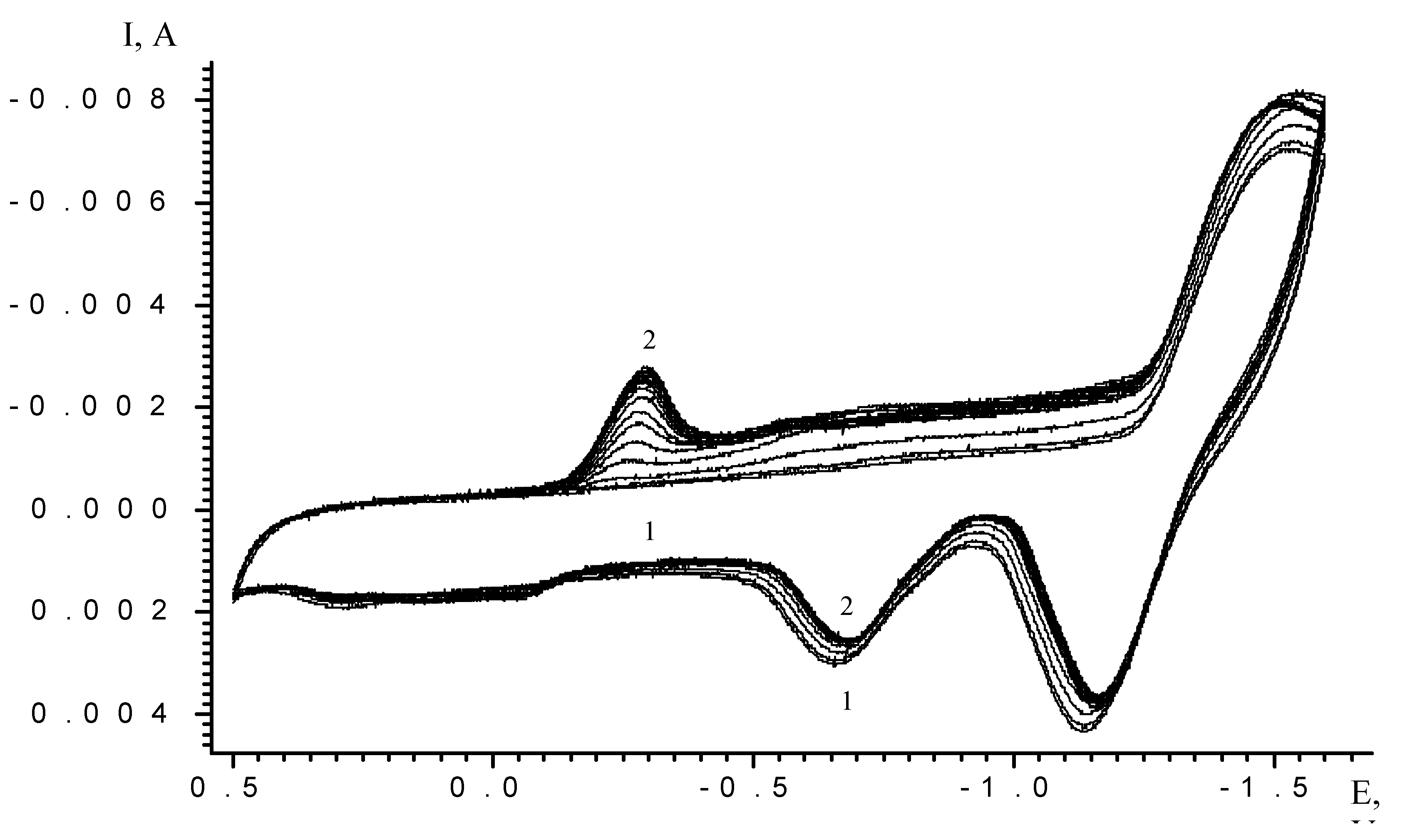

Figure 7. Cyclic voltammogram when molecular O2 has been added to the electrolyte.Scan rate 20mV/s.
Figure 7. Cyclic voltammogram when molecular O2 has been added to the electrolyte.Scan rate 20mV/s.
Molecules 05 00767 g007
Table 1. The parameters of electrochemical processes under investigation at the different scan rate.
Table 1. The parameters of electrochemical processes under investigation at the different scan rate.
Scan rate, mV/sProcess I (L ⇔ L-)Process II (L- ⇔ L2-)
Ek, VEa, VEred/ox, VEk, VEa, VEred/ox, V
5-0.71-0.63-0.67-1.16-1.09-1,12
10-0.74-0.6-0.67-1.18-1.07-1,12
20-0.77-0.58-0.67-1.2-1.03-1,12
50-0.85-0.51-0.68-1.27-0.96-1,12
100-0.97-0.42-0.69-1.35-0.87-1,11
Extrapolation to zero scan rateEred/ox,V (v→0)
-0.67 ± 0.02
Ered/ox,V (v→0)
-1.12 ± 0.02
Table 2. Current values after different numbers of scans for the molecular oxygen transformation process.
Table 2. Current values after different numbers of scans for the molecular oxygen transformation process.
Cycle NScan time (min)Imax (A) (E=-0.25V)Imax (A) (E=-0,65V)Ratio Imax (E=-0.25V)//Imax (E=-0.65V)
414-0.00027262-0.0004607870,5916
621-0.000881274-0.001110630,7935
828-0.001345321-0.0011414481,1786
1035-0.001676613-0.0008605311,9484
1552,5-0.001865077-0.0009749131,913
2070-0.001937914-0.0009304052,083
