Article

A Series of Lanthanide Coordination Polymers as Luminescent Sensors for Selective Detection of Inorganic Ions and Nitrobenzene

by
Miao Wu
1,
Juan Song
1,*,
Yun-Long Zhou
1,
Hui-Hui Chen
1,
Bo-Feng Duan
2,
Ling-Xia Jin
1,
Chuan-Qing Ren
1 and
Jiu-Fu Lu
1
1
Shaanxi Key Laboratory of Catalysis, College of Chemical & Environment Science, Shaanxi University of Technology, Hanzhong 723001, China
2
Trine Engineering Institute, Shaanxi University of Technology, Hanzhong 723001, China
*
Author to whom correspondence should be addressed.
Molecules 2024, 29(14), 3438; https://doi.org/10.3390/molecules29143438
Submission received: 18 June 2024 / Revised: 14 July 2024 / Accepted: 19 July 2024 / Published: 22 July 2024
Browse Figures
Versions Notes

Abstract

:
Seven new lanthanide coordination polymers, namely [Ln(cpt)3H2O)]n(Ln = La (1), Pr (2), Sm (3), Eu (4), Gd (5), Dy (6), and Er (7)), which were synthesized under hydrothermal conditions using 4′-(4-(4-carboxyphenyloxy)phenyl)-4,2′:6′,4′-tripyridine (Hcpt) as the ligand. The crystal structures of these seven complexes were determined using single-crystal X-ray diffraction, and they were found to be isostructural, crystallizing in the triclinic P 1 - space group. The Ln(III) ions were nine-coordinated with tricapped trigonal prism coordination geometry. The Ln(III) cations were coordinated by carboxylic and pyridine groups from (cpt)− ligands, forming one-dimensional ring-chain structures. Furthermore, the luminescent properties of complexes 1–7 were investigated using fluorescent spectra in the solid state. The fluorescence sensing experiments demonstrated that complex 4 exhibits high selectivity and sensitivity for detecting Co2+, Cu2+ ions, and nitrobenzene. Moreover, complex 3 shows good capability for detecting Cu2+ ions and nitrobenzene. Additionally, the sensing mechanism was also thoroughly examined through theoretical calculations.

Graphical Abstract

1. Introduction

With the continuous development of industry and human social activities, a significant amount of heavy metal ions and toxic small molecules are being discharged into our living environment, leading to serious environmental and public health issues [1,2,3,4,5]. The sensing and detection of metal ions play a crucial role in environmental and ecological systems, with direct implications for human health and daily life. In biological systems, the Cu2+ ion is essential, and its imbalance may be associated with metabolic disorders such as Parkinson’s, Wilson’s, and Alzheimer’s [6,7,8,9,10,11]. On the other hand, Co2+ has toxic effects and can lead to serious health problems including cardiomyopathy, hypothyroidism, peripheral neuropathy, and respiratory disorders [12,13,14]. Meanwhile, nitrobenzene (NB), a toxic industrial chemical used as a precursor for explosives, pesticides, and synthetic rubbers and in the production of dyes and pharmaceuticals, poses significant safety risks [15]. Furthermore, NB can be easily inhaled, ingested, and absorbed through the skin, leading to methemoglobinemia, hemolytic anemia, splenic congestion, and disorders of the central nervous system (CNS) [16,17,18]. Therefore, researchers are dedicated to exploring simple and practical methods for detecting low concentrations of Co2+, Cu2+, and NB. However, the majority of testing methods require costly instruments and skilled technicians. Therefore, it remains crucial for the protection of the environment and human health to develop efficient methods and design multifunctional materials with high sensitivity and selectivity for detecting Co2+, Cu2+, and NB.
In recent years, there has been significant attention on the design and construction of lanthanide coordination polymers (Ln-Cps) as luminescent sensors due to their intriguing architectures, high sensitivity, excellent selectivity, rapid response time, and cost effectiveness [19,20,21]. The Ln-Cps have been widely reported as luminescent sensors for the detection of anions [22,23,24,25], cations [26], biological molecules [27] and organic molecules [28,29]. The 4f orbitals in lanthanide ions are shielded by the filled 5p66s2 subshells, leading to unique optical properties. Lanthanide coordination polymers exhibit high color purity, narrow band emission, long lifetime, and high quantum yields [30]. However, the absorption coefficients and luminescence intensities of pure rare-earth ions are significantly low, and the 4f–4f transitions of lanthanide are Laporte-forbidden. To mitigate these limitations, organic ligands with suitable chromophores can be selected to absorb Uv–vis light and transfer excitation energy from the ligands to lanthanide ions through an “antenna effect”, thereby shielding Ln(III) ions from vibrational coupling that dampens luminescence [31]. The selection of a suitable ligand is crucial for the construction of lanthanide coordination polymers skeletons, as it determines the structure and chemical environment of the resulting complexes. Choosing long and flexible ligands can contribute to the production of interesting topologies and rich properties. After considering all the aforementioned factors, we chose 4′-(4-(4-carboxyphenoxy)phenyl)-4,2′:6′,4″-tripyridine as the ligand based on the following considerations: (1) The Hcpt ligand contains abundant coordination sites, including the nitrogen atom in pyridine and the oxygen atoms of carboxylic acid, all of which can form strong bonds with lanthanide ions and exhibit variable coordination patterns in self-assembly. (2) In addition to the tripyridine and carboxylic group, the Hcpt ligand also contains a phenoxy group, which increases the length and rigidity of the ligand. (3) The Hcpt ligand contains a large π-conjugated system, enabling efficient energy transfer to the lanthanide center for indirect excitation and light emission during relaxation. Additionally, it enhances the thermal stability of lanthanide complexes. (4) To the best of our knowledge, the coordination chemistry and structural properties based on the Hcpt ligand have not been previously reported.
In order to construct novel lanthanide coordination polymers with unique structures and high sensitivity and selectivity for detecting Co2+, Cu2+, and NB, we employed 4′-(4-(4-carboxyphenyloxy) phenyl)-4,2′:6′,4′-tripyridine (Hcpt) as a ligand to undergo hydrothermal reaction with lanthanide ions, resulting in the isolation of seven new lanthanide coordination polymers: [Ln(cpt)3H2O)]n(Ln = La (1), Pr (2), Sm (3), Eu (4), Gd (5), Dy (6), and Er (7)). We herein present the synthesis of these compounds, their crystal structures, as well as their potential applications as fluorescence sensing materials and the underlying sensing mechanism.

2. Results and Discussion

2.1. Structural Description of Complexes 1–7

The structures of complexes 1–7 are isostructural; therefore, only the detailed description of complex 4 is provided. The single-crystal X-ray analysis revealed that complex 4 exhibits a one-dimensional ring-chain structure. The asymmetric unit of 4 contains one Eu(III) cation, four (cpt)− ligands, and a water molecule. The coordination polyhedron around Eu(III) is a nine-coordinated dodecahedron consisting of seven oxygen (O1, O1A, O7, O6, O8, O4, and O10) atoms and one nitrogen (N4) from four (cpt)− ligands as well as one oxygen (O2) from one coordinated water molecule (Figure 1a). The Eu–O bond lengths fall within the range of 2.4090(19) Å–2.725(2) Å, while the Eu–N bond lengths are 2.715(2) Å, demonstrating strong consistency with previous research findings [32].
It is worth noting that the (cpt)− anion adopts two different coordination fashions: (a) a bidentate coordination fashion in which the carboxylic group acts as a bidentate chelating coordination mode, and the terpyridyl moiety is free (Scheme 1a), and (b) a tridentate coordination fashion in which the carboxylic acid adopts μ2–η1:η2 coordination mode, and the terpyridyl moiety acts as the monodentate-chelating coordination mode, coordinating to another atom Eu(III) (Scheme 1b). The Eu(III) atoms are linked by (cpt)− ligands in the two coordination modes, resulting in the formation of a 1D infinite ring-chain structure (Figure 1b). Furthermore, these adjacent chains are further connected via hydrogen bonding interactions between coordinated O atoms and N atoms of (cpt)− ligand (O2–H2B…N2, 2.728 Å), resulting in the formation of a 2D supramolecular structure (Figure 1c). The crystallographic refinement parameters are provided in Tables S1 and S2.

2.2. Luminescent Properties

The solid-state luminescent behaviors of the free ligand and complexes 1–7 were analyzed at ambient temperature when excited at 390 nm. The fluorescence emission of the free ligand was at 474 nm (Figure S1a). For complex 4, the three sharp characteristic peaks shown in Figure 2a belong to the transitions of 5D0→7F1 (586 nm), 5D0→7F2 (624 nm), and 5D0→7F4 (704 nm). The intensity of the 5D0→7F2 transition (electric dipole) was stronger than that of 5D0→7F1 transition (magnetic dipole), indicating an asymmetric coordination environment for the Eu3+ ion, as confirmed by crystallographic analyses. For complex 3, only one characteristic emission band of the Sm(III) cation could be observed in the emission spectra (Figure 2b), which was attributed to 4G5/2→6H9/2 (680 nm). For complex 6, the emission spectra (Figure 2c) revealed the presence of one weak characteristic emission band of the Dy(III) cation, which could be attributed to 4F9/2→6H13/2 (572 nm) transitions. Compared with the emission spectra of the three complexes, the energy transfers from the ligand to Eu(III) were more efficient than those to Sm(III) and Dy(III). The complexes 1, 2, 5, and 7 displayed the characteristic emission peaks of the ligand at 409 nm (1), 450 nm (2), 456 nm (5), and 436 nm (7), all exhibiting a blue shift compared to the free ligand (Figure S1b–e).
Furthermore, the fluorescence lifetime of coordination polymers 4 and 3 were monitored at 624 nm and 680 nm, respectively. The fluorescence decays of the coordination polymers 4 and 3 in the solid state at ambient temperature were fitted into double-exponential decay laws with the following formula: I = A1 exp(t/τ1)+ A2 exp(t/τ2), where τ1 and τ2 are defined as the fast and slow components of the luminescence lifetimes, while A1 and A2 denote the preexponential factors (Figure 3). The fitted fluorescence lifetimes τ1 and τ2 were 1.15 ns (21.98%) and 4.52 ns (78.02%) for 4 and 1.05 ns (34.10 %) and 4.60 ns (65.90%) for 3. As a result, the average decay times (τ*) was determined by the following equation: τ* = (A1τ12 + A2τ22)/(A1τ1 + A2τ2), giving the corresponding average lifetimes of 3.78 ns and 3.39 ns. The CIE chromaticity coordinates of the corresponding samples were (0.7309, 0.2691) for complex 4 and (0.1400, 0.0495) for complex 3, as illustrated in Figure 4.

2.3. Detection of Metal Ions

The structures of complexes 1–7 are isostructural, and they show a gradual decrease in ionic radius with increasing atomic number (also known as the lanthanide contraction); the resulting applications determine to a large extent these lanthanide ions themselves [33,34]. Studies on luminescent lanthanides have concentrated on Sm(III), Eu(III), Tb(III), and Dy(III) ions in the visible region [35], and due to their relatively excellent fluorescence properties, complexes 4 and 3 were selected for investigating their selective sensing behavior towards metal ions. Finely ground samples of 4/3 were suspended in equal volumes of different DMF solutions, each containing a concentration of 1.0 × 10−2 mol/L of specific M(NO3)n species (M = Li+, Pb2+, Mn2+, Co2+, K+, Na+, Cu2+, Cd2+, and Zn2+), for luminescence studies at ambient temperature. As shown in Figure 5a,b, the fluorescence emission intensity of complex 4 was most significantly affected by Cu2+ and Co2+ ions, showing a more pronounced decrease compared to other ions. The distinct sensing behavior on Cu2+ and Co2+ from other cations showed that complex 4 may be employed as an efficient sensor to distinguish Cu2+ and Co2+ ions. Interestingly, the luminescence intensity of 3 was quenched close to 0 by only Cu2+ ions (Figure 6a,b), suggesting that complex 3 can effectively detect Cu2+ through the phenomenon of fluorescence quenching.
In order to further evaluate the sensitivity of complex 4 in sensing Cu2+ and Co2+ as well as the sensing sensitivity of 3 towards Cu2+, concentration gradient experiments were conducted with Cu2+ and Co2+ concentrations ranging from 10 to 100 μM. The emission intensity of 4 and 3 gradually decreased as the concentration of Co2+/Cu2+ and Cu2+ increased, as demonstrated in Figure 5c,e and Figure 6c. The fluorescence intensity of complex 4 shows a good linear relationship with ion concentration (R2 = 0.994 for Cu2+ and 0.996 for Co2+) in Figure 5d,f. Additionally, the fluorescence intensity of complex 3 demonstrates a good linear relationship with the concentration of Cu2+ (R2 = 0.989) in Figure 6d. Furthermore, the quenching efficiency (Ksv) can be quantitatively calculated using the Stern–Volmer equation: I0/I = 1 + Ksv[M], where I0 and I represent the emission intensities of the reference sample and complexes, respectively, and [M] represents the concentration [36,37]. The Ksv values for complex 4 towards Cu2+ and Co2+ were calculated to be 4.9 × 104 M−1 and 9.4 × 104 M−1, respectively, while the Ksv values for complex 3 towards Cu2+ were calculated to be 3.53 × 104 M−1. The limit of detection (LOD) was further calculated according to 3σ/k (σ is the standard deviation of 10 blank tests; k is the slope of the linear relationship), which were 8.13 × 10−5 mol/L for Cu2+, 4.4 × 10−5 mol/L for Co2+, and 1.13 × 10−5 mol/L for Cu2+. These values are consistent with those reported for some complex sensors designed to detect Co2+ and Cu2+ [38,39].

2.4. Sensing of Organic Small Molecules

The rapid and sensitive detection of toxic small molecules is crucial due to their high toxicity, which poses a potential threat to environmental safety, public health, and human security. After being inspired by this concept, we evaluated the sensing behaviors of complexes 4 and 3 towards various organic small molecules using fluorescence, with the addition of different organic solvents such as CH3CN, NB, CH3CH2OH, CH3OH, DMA, DMF, DMSO, and CH2Cl2 to the suspensions of 4/3. As illustrated in Figure 7a,b and Figure 8a,b, different degrees of fluorescence intensity quenching were observed for 4 and 3 upon the addition of all selected analytes. Among them, only NB thoroughly quenched the emission of complexes 4 and 3, with a quenching efficiency of approximately 99%. The luminescence of coordination polymers 4 and 3 was significantly influenced by the presence of solvent molecules. Specifically, the CH3CN suspension of 4 exhibited the strongest emission band, while the DMF suspension of 3 exhibited the strongest emission band at ambient temperature. Thus, fluorescent detection experiments were performed in CH3CN solution of complex 4 and DMF solution of complex 3. To further investigate the sensitivity of fluorescence quenching characteristics for NB, the emissive response was recorded by gradually increasing the concentration of NB in the suspension of coordination polymer 4 dispersed in CH3CN and 3 dispersed in DMF. As shown in Figure 7c and Figure 8c, the fluorescence bursting phenomenon of complex 4 was most pronounced at a concentration of 700 ppm NB, with a fluorescence bursting efficiency reaching 99.99%. For complex 3, at a concentration of 1000 ppm NB, the quench efficiency reached as high as 99.99%. Although there is no strict systematic trend in the Figure 7c and Figure 8c, the general trend is still that the quenching effect increases with the increase of concentration, indicating that 4 and 3 are sensitive in detecting trace quantities of NB.

2.5. PXRD and FT-IR

To confirm the purities of the bulk samples, PXRD experiments were carried out for lanthanide coordination polymers 1–7 (Figure S2). By comparing the PXRD experimental spectrum of the complex with the theoretical spectrum obtained from fitting single-crystal data, it was observed that the diffraction peak positions in both spectra were essentially consistent. Additionally, no extra diffraction peaks were observed in the experimental spectrum, confirming the purity of the complex obtained. The difference in diffraction peak intensity between the experimental and theoretical spectra can be attributed to the uneven orientation distribution of the powder sample during the diffraction experiment. Moreover, PXRD patterns of complexes 4 and 3 after sensing tests were measured, which are in good agreement with the synthesized 4 and 3, suggesting that the host skeleton remains unchanged after immersion in aqueous solution containing different metal ions (Figure S3). Besides that, the FT-IR spectra of the recycled complexes 4 and 3 were also recorded. And these infrared spectra after processing were highly matched to those before treatment (Figure S4). This indicates that the structure of the complexes 4 and 3 did not collapse during fluorescence detection, and the detected complexes can be recycled for subsequent experiments.

2.6. Theoretical Studies

In order to explain the high selectivity and sensitivity of complexes 4 and 3 towards NB, an investigation into the mechanism of fluorescence quenching was conducted. It is well known that fluorescence quenching occurs through mechanisms such as photo-induced electron transfer, long-range energy transfer processes, dynamic-static quenching mechanisms, or a combination of them. The lack of porosity in complexes 4 and 3 excludes the mechanisms of guest-induced fluorescence quenching. The observed fluorescence quenching phenomenon can be attributed to the photoinduced electron transfer from the excited state of the two compounds to the electron-deficient NB, which belongs to the surface adsorption. The coordination polymers can be considered as giant “molecules”, and their valence-band (VB) and conduction-band (CB) energy levels can be described in a fashion similar to that used for molecular orbitals (MOs) [40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62]. The low-lying π* orbitals of nitrobenzene, which are the lowest unoccupied MOs (LUMOs), are stabilized by the -NO2 substituent. Their orbital energies always fall below the conduction band (CB) of coordination polymers. This leads to the driving force for electron transfer from the coordination polymers to nitrobenzene, thus resulting in fluorescence quenching. Figure 9 exhibits the highest occupied molecular orbital (HOMO) and lowest unoccupied molecular orbital (LUMO) energy levels of ligand and the selected analytes, including NB, as determined through density functional theory (DFT) calculations using the B3LYP/6-31 + G(d) level of theory with the Gaussian 03 package. The LUMO energy of the electron-rich ligand was calculated to be −2.31 eV, which is higher than that of NB (−2.92 eV) and lower than those of other tested analytes, indicating that there are excited-state electrons transferred from electron-rich coordination polymers to electron-deficient NB [63,64].
The fluorescence of complex 4 and complex 3 results from the antenna effect, in which the Hcpt ligand adsorbs energy through vibronic coupling with Ln3+ and subsequently transfers this energy to Ln3+, resulting in the fluorescence of Ln3+.The quenching efficiency of NB may be attributed to the competition for absorption of the light source energy between NB and the Hcpt ligand. NB acts as a filter for the light adsorbed by the Hcpt ligand, thus decreasing the probability of energy transfer from Hcpt to Ln3+, consequently leading to the quenching of the fluorescence of the complexes. Therefore, compared to other organic solvents, complexes 4 and 3 exhibit much higher fluorescence quenching responses towards NB due to favorable electron and energy transfer mechanisms.

2.7. Hirshfeld Surface Analysis

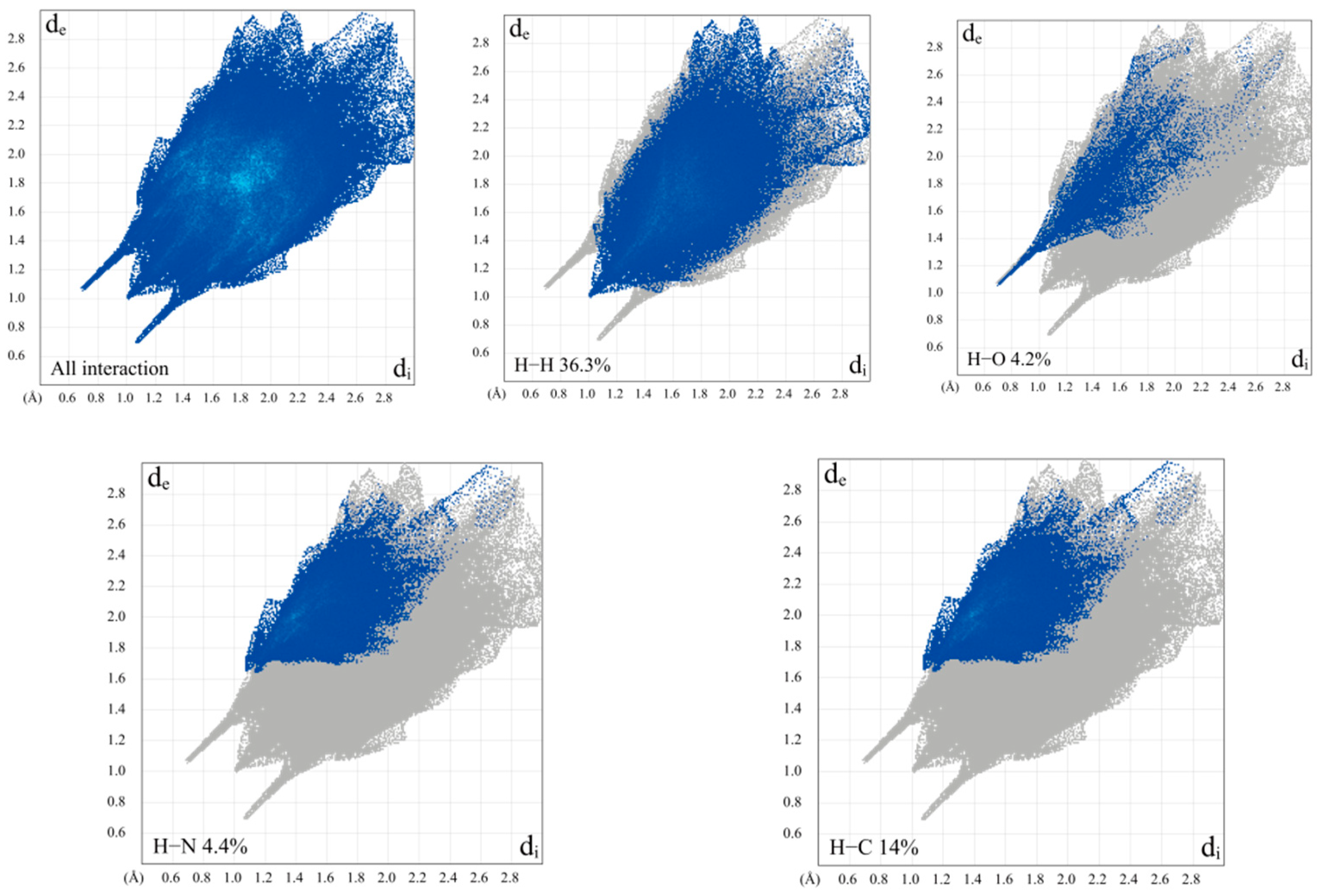

To analyze the various interactions corresponding to the crystal structures, the Hirshfeld surface and 2D fingerprints plot of the complexes 1–7 were calculated based on the crystallographic information file (CIF) using the CrystalExplorer program (Figure 10 and Figure S5). The Hirshfeld surface analysis of complex 4 is described in detail due to the isostructural nature of complexes 1–7. As illustrated in Figure 10, the colors red, white, and blue correspond to the relationship between forces present at that location and the sum of the van der Waals radii [65]. The 2D fingerprints of the complexes provide a clearer visualization of the interactions between corresponding atoms (Figure 11). The H…H inter-atomic contacts make the most significant contribution to the crystal packing of complex 4 (36.3%). This finding can be attributed to the predominance of hydrogen atoms in the crystal. The H…C interaction located in the second ladder contributes to 14% of the complex, while the H…O exposure accounts for 4.2%. In addition to these interaction forces, the H…N interactions also contribute 4.4% of the total Hirshfeld surface area among all interactions, attributed to the presence of coordinated nitrogen atoms in the complex. In comparison, the H…H interaction contributes the most to the structures of the complex. In summary, four forces significantly contributed to the construction and stabilization of molecular structures [66].

3. Materials and Methods

3.1. Materials and General Method

All chemicals and reagents were purchased commercially and used without further purification. Infrared spectra were recorded on a Bruker EQUINOX55 spectrometer (Billerica, MA, USA) as KBr pellets in the range of 4000–500 cm−1. Fluorescence spectra were performed on a Hitachi F-4500 fluorescence spectrophotometer (Tokyo, Japan) at room temperature. The crystal structure was measured using a BRUKER SMART APEX-IICCD X-ray single-crystal diffractometer. Powder X-ray diffraction (PXRD) patterns were recorded on a Bruker D8 Advance instrument with Cu Kα radiation (λ = 0.71073 Å) in the range of 2θ = 5–50° at room temperature.

3.2. Synthesis of Complexes

Synthesis of [La(cpt)3(H2O)] (1).
A mixture of the ligand Hcpt (22.2 mg, 0.05 mmol) and La(NO3)3·6H2O (43.30 mg, 0.10 mmol) was prepared by dissolving in 10 mL of distilled water; the mixture was stirred at room temperature for 30 min before being transferred into a 25 mL Teflon-lined stainless steel autoclave and heated to 180 °C for 72 h. The reaction system was gradually cooled to ambient temperature at a rate of 5 °C/h, resulting in the formation of colorless, block-shaped crystals of complex 1 in ca. 67.33% based on La. Elemental analysis (%) calculated forC84H56LaN9O10 (M = 1490.28): C = 67.70, H = 3.79, N = 8.46; Found: C = 66.58; H = 3.56; N = 8.04. IR (KBr pellets, cm−1): 3320, 1698, 1602, 1513, 1395, 1237, 867, 824, 631 (Figure S6a).
Synthesis of [Pr(cpt)3(H2O)] (2).
Complex 2 was obtained by a similar procedure to that for 1, except that Pr(NO3)3·6H2O (43.50 mg, 0.1 mmol) was used instead of La(NO3)3·6H2O, yielding colorless, block-shaped crystals of complex 2 in ca. 68.51% based on Pr. Elemental analysis (%) calculated for C84H56PrN9O10 (M = 1492.285): C = 67.61, H = 3.78, N = 8.45; Found: C = 66.72, H = 3.56, N = 7.84. IR (KBr pellets, cm−1): 3415, 1596, 1498, 1395, 1238, 1006, 876, 824, 631 (Figure S6b).
Synthesis of [Sm(cpt)3(H2O)] (3).
Complex 3 was obtained by a similar procedure to that for 1, except that Sm(NO3)3·6H2O (22.22 mg, 0.05 mmol) was used instead of La(NO3)3·6H2O and heated to 160 °C for 72 h; colorless, block-shaped crystals of complex 3 in ca. 61.65% based on Sm were obtained. Elemental analysis (%) calculated for C84H56SmN9O10 (M = 1501.72): C = 67.18, H = 3.76, N = 8.39; Found: C = 66.89, H = 3.36, N = 7.45. IR (KBr pellets, cm−1):3400, 1594, 1500, 1415, 1239, 1163, 870,825, 631 (Figure S6c).
Synthesis of [Eu(cpt)3(H2O)] (4).
Complex 4 was obtained by a similar procedure to that for 1, except that Eu (NO3)3·6H2O (44.61 mg, 0.1 mmol) was used instead of La(NO3)3·6H2O and heated to 160 °C for 72 h; colorless, block-shaped crystals of complex 4 in ca. 63.51% based on Eu were obtained. Elemental analysis (%) calculated for C84H55EuN9O10 (M = 1502.33): C = 67.15, H = 3.69, N = 8.39; Found: C = 66.74, H = 3.25, N = 7.89. IR (KBr pellets, cm−1): 3280, 1601, 1527, 1415, 1394, 1239, 1167, 870, 826, 634 (Figure S6d).
Synthesis of [Gd(cpt)3(H2O)] (5).
Complex 5 was obtained by a similar procedure to that for 1, except that Gd(NO3)3·6H2O (45.14 mg, 0.10 mmol) was used instead of La(NO3)3·6H2O. Colorless, block-shaped crystals of complex 5 in ca. 65.69% based on Gd were obtained. Elemental analysis (%) calculated for C84H56GdN9O10 (M = 1508.62): C = 66.87, H = 3.74, N = 8.36; Found: C = 6, H = 3.46, N = 8.14. IR (KBr pellets, cm−1): 3260, 1594, 1506, 1393, 1239, 1005, 874, 825, 637 (Figure S6e).
Synthesis of [Dy(cpt)3(H2O)] (6).
Complex 6 was obtained by a similar procedure to that for 1, except that Dy(NO3)3·6H2O (45.67 mg, 0.1 mmol) was used instead of La(NO3)3·6H2O. Colorless, block-shaped crystals of complex 6 in ca. 67.65% based on Dy were obtained. Elemental analysis (%) calculated for C84H56DyN9O10 (M = 1513.87): C = 66.64, H = 3.73, N = 8.33; Found for: C = 65.75, H = 3.38, N = 7.92. IR (KBr pellets, cm−1): 3400, 1596, 1498, 1415, 1237, 1008, 870, 824, 630 (Figure S6f).
Synthesis of [Er(cpt)3(H2O)] (7).
Complex 7 was obtained by a similar procedure to that for 1, except that Er(NO3)3·6H2O (23.07 mg, 0.05 mmol) was used instead of La(NO3)3·6H2O; colorless, block-shaped crystals of complex 7 in ca. 69.57% based on Er were obtained. Elemental analysis (%) calculated for C84H56ErN9O10 (M = 1518.63): C = 66.44, H = 3.72, N = 8.30; Found: C = 65.64, H = 3.36, N = 8.12. IR (KBr pellets, cm−1): 3360, 1604, 1502, 1426, 1236, 1068, 875, 824, 626 (Figure S6g).

3.3. X-ray Crystallography

We selected a single crystal with a clean and smooth surface, no concave surface, and no cracks. At the temperature of 293(2) K, we used a BRUKER SMART APEX-IICCD X-ray single crystal diffractometer and graphite monochromatic Mo-Kα (λ = 0.71073 Å) rays, and diffraction data were collected in ω-φ scanning. All data were corrected by empirical absorption, and the crystal structure was solved using the direct method. The anisotropy parameters and the coordinates of all non-hydrogen atoms were corrected using the least squares method. F2 was refined using the SHELXTL-97 program, and the hydrogen atoms were obtained by theoretical calculation methods. Crystallographic data and experimental details of structural analyses for complexes are summarized in Table S1. The selected bond length and angle parameters are listed in Table S2.

4. Conclusions

In conclusion, after hydrothermal synthesis, seven new Lanthanide coordination polymers, namely [Ln(cpt)3H2O)]n(Ln = La (1), Pr (2), Sm (3), Eu (4), Gd (5), Dy (6), and Er (7)), were successfully obtained. Remarkably, complex 4 exhibited remarkable sensitivity and selectivity toward Co2+, Cu2+ and nitrobenzene. Complex 3 demonstrated effective detection of Cu2+ and nitrobenzene through the phenomenon of fluorescence quenching. Furthermore, the mechanism of the high selectivity and sensitivity of complex 4 and 3 for NB were also investigated by theoretical studies. The two coordination polymers exhibited much higher fluorescence quenching responses towards NB due to favorable electron and energy transfer mechanisms. The work presented in this study offers valuable insights for the development of sensitive fluorescent recognition sensors with multifunctional applications.
Crystallographic data for the structural analysis were deposited with the Cambridge Crystallographic Data Center, CCDC reference numbers: 2283726 for complex 1, 2283709 for complex 2, 2283707 for complex 3, 2283701 for complex 4, 2283708 for complex 5, 2328935 for complex 6, and 2283727 for complex 7. These data can be obtained free of charge from The Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/data_request/cif (accessed on 17 June 2024).

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules29143438/s1, Figure S1: The emission spectra of free ligand (a), complex 1 (b), 2 (c), 5 (d) and 7 (e) at room temperature; Figure S2: Xrd for 1 (a), 2 (b), 3 (c), 4 (d), 5 (e), 6 (f), 7 (g); Figure S3: PXRD patterns of simulated and experimental samples of complex 4, 3 before and after treatment in ionic aqueous solutions; Figure S4: FT-IR spectra of complex 4, 3 before and after treatment in ionic aqueous solutions; Figure S5: Hirshfeld surface mapped with dnorm (left), shape index (middle), and curvedness (right) for 1 (a), 2 (b), 3 (c), 5 (d), 6 (e) and 7 (f); Figure S6: The IR spectra for complex 1 (a), 2 (b), 3 (c), 4 (d), 5 (e), 6 (f) and 7 (g); Table S1: Crystallographic data for complexes 1–7; Table S2: Selected bond lengths and angles for complexes 1–7.

Author Contributions

Writing—original draft and visualization, M.W.; writing—review and editing, supervision, and software, J.S.; software, investigation, and data curation, Y.-L.Z. and H.-H.C.; formal analysis and resources, B.-F.D. and L.-X.J.; conceptualization and conceptualization, C.-Q.R. and J.-F.L. All authors have read and agreed to the published version of the manuscript.

Funding

The authors thank financial assistance from the Shaanxi Fundamental Science Research Project for Chemistry and Biology (23JHQ073), the Key Scientific Research Project of Education Department of Shaanxi Province (23JS002), and Natural Science Foundation of Shaanxi Provincial Science and Technology Department (2024JC-YBMS-132).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in the article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Zhao, X.; Bu, X.; Wu, T.; Zheng, S.T.; Wang, L.; Feng, P. Selective anion exchange with nanogated isoreticular positive metal-organic frameworks. Nat. Commun. 2013, 4, 2344. [Google Scholar] [CrossRef]
  2. Boyd, S.A.; Sheng, G.; Teppen, B.J.; Johnston, C.T. Mechanisms for the Adsorption of Substituted Nitrobenzenes by Smectite Clays. Environ. Sci. Technol. 2001, 35, 4227–4234. [Google Scholar] [CrossRef]
  3. Li, Z.; Zhan, Z.; Hu, M. A luminescent terbium coordination polymer as a multifunctional water-stable sensor for detection of Pb2+ ions, PO43− ions, Cr2O72− ions, and some amino acids. CrystEngComm 2020, 22, 6727. [Google Scholar] [CrossRef]
  4. Gahlaut, P.S.; Gautam, D.; Yadav, K.; Barun, J. Supramolecular Gels for the Sensing and Extraction of Heavy Metal Ions from Wastewater. J. Mol. Struct. 2023, 1272, 134152. [Google Scholar] [CrossRef]
  5. Fayed, T.A.; El-Nahass, M.N.; El-Daly, H.A.; Shokry, A.A. Development of nanomaterial chemosensors for toxic metal ions sensing. Appl. Organomet. Chem. 2019, 33, 4868. [Google Scholar] [CrossRef]
  6. Mandal, S.; Das, A.; Biswas, A.; Halder, A.; Mondal, D.; Mondal, T.K. Adaptable Biomolecule-Interactive Dual Colorimetric Chemosensor for Cu2+ and Pd2+: Insight from Crystal Structure, Photophysical Investigations, Real-Time Sampling, and Molecular Logic Circuits. Cryst. Growth Des. 2024, 24, 1051–1067. [Google Scholar] [CrossRef]
  7. Senthilkumar, S.; Goswami, R.; Smith, V.J.; Bajaj, H.C.; Neogi, S. Pore wall-functionalized luminescent Cd (II) framework for selective CO2 adsorption, highly specific 2, 4, 6-trinitrophenol detection, and colorimetric sensing of Cu2+ ions. ACS Sustain. Chem. Eng. 2018, 6, 10295–10306. [Google Scholar] [CrossRef]
  8. Huang, L.; Ran, Z.; Liu, X.; Huang, C.M.; Qin, Q.P.; Zhou, J. One Luminescent Cadmium Iodide with Free Bifunctional Azole Sites as a Triple Sensor for Cu2+, Fe3+, and Cr2O72− Ions. Inorg. Chem. 2022, 61, 14156. [Google Scholar] [CrossRef]
  9. Udhayakumari, D.; Naha, S.; Velmathi, S. Colorimetric and fluorescent chemosensors for Cu 2+. A comprehensive review from the years. Anal. Methods-UK. 2017, 9, 552. [Google Scholar] [CrossRef]
  10. Hao, Z.; Song, X.; Zhu, M.; Meng, X.; Zhao, S.; Su, S.; Zhang, H. One-dimensional channel-structured Eu-MOF for sensing small organic molecules and Cu2+ ion. J. Mater Chem. A. 2013, 1, 11043. [Google Scholar] [CrossRef]
  11. Chen, L.; Cui, X.; Cheng, H.; Chen, X.; Song, M.; Tang, M.; Wu, Y. Syntheses, structures of N-(substituted)-2-aza-[3]-ferrocenophanes and their application as redox sensor for Cu2+ ion. Appl. Organomet. Chem. 2012, 26, 449. [Google Scholar] [CrossRef]
  12. Mohandoss, S.; Stalin, T. A new fluorescent PET sensor probe for Co2+ ion detection: Computational, logic device and living cell imaging applications. RSC Adv. 2017, 7, 16581. [Google Scholar] [CrossRef]
  13. Khan, I.M.; Shakya, S. Exploring Colorimetric Real-Time Sensing Behavior of a Newly Designed CT Complex toward Nitrobenzene and Co2+: Spectrophotometric, DFT/TD-DFT, and Mechanistic Insights. ACS Omega 2019, 4, 9983. [Google Scholar] [CrossRef]
  14. Maity, D.; Govindaraju, T. Highly selective visible and near-IR sensing of Cu2+ based on thiourea-salicylaldehyde coordination in aqueous media. Chemistry 2011, 17, 1410. [Google Scholar] [CrossRef]
  15. Vellingiri, K.; Boukhvalov, D.W.; Pandey, S.K.; Deep, A.; Kim, K.H. Luminescent metal-organic frameworks for the detection of nitrobenzene in aqueous media. Sens. Actuators B Chem. 2017, 245, 305–313. [Google Scholar] [CrossRef]
  16. Li, X.Y.; Zeng, H.; Hu, H.M.; Sun, L.J.; Zhang, J.L.; Wang, X.F. Multiterpyridyl Ligand/Cadmium(II) Coordination Polymer Nanosheets for Recoverable Luminescent Sensors. ACS Appl. Nano Mater. 2022, 5, 7113. [Google Scholar] [CrossRef]
  17. Ruiz-Ramirez, M.M.; Silva-Carrillo, C.; Hinostroza-Mojarro, J.J.; Rivera-Lugo, Y.Y.; Valle-Trujillo, P.; Trujillo-Navarrete, B. Electrochemical sensor for determination of nitrobenzene in aqueous solution based on nanostructures of TiO2/GO. Fuel 2021, 283, 119326. [Google Scholar] [CrossRef]
  18. Zhang, J.; Deng, Y.; Wang, S.; Yang, J.; Hu, S. A calixarene-based coordination cage as an efficient luminescent sensor for Fe3+, MnO4−, NB and 2, 4-DNP in aqueous medium. CrystEngComm 2023, 25, 1495. [Google Scholar] [CrossRef]
  19. Karmakar, A.; Samanta, P.; Dutta, S.; Ghosh, S.K. Fluorescent “turn-on” sensing based on metal–organic frameworks (MOFs). Chem.-Asian J. 2019, 14, 4506–4519. [Google Scholar] [CrossRef]
  20. Wu, J.X.; Yan, B. Photofunctional hybrid based lanthanide functionalized metal-organic frameworks by ion exchange and coordination modification for luminescent sensing. Inorg. Chem. Commun. 2016, 70, 189. [Google Scholar] [CrossRef]
  21. Li, Q.; Qian, J.; Zhou, J.; Du, L.; Zhao, Q. Highly chemically and thermally stable lanthanide coordination polymers for luminescent probes and white light emitting diodes. CrystEngComm 2020, 22, 2667. [Google Scholar] [CrossRef]
  22. Wu, Y.; Li, M.; Liu, D.; Liu, M.; Qian, J. Two-dimensional Cd(II) coordination polymer encapsulated by Tb3+ as a reversible luminescent probe for Fe3+. RSC Adv. 2019, 9, 34949. [Google Scholar] [CrossRef] [PubMed]
  23. Chen, H.; Fan, P.; Tu, X.; Min, H.; Yu, X.; Li, X.; Cheng, P. A bifunctional luminescent metal–organic framework for the sensing of paraquat and Fe3+ ions in water. Chem.-Asian J. 2019, 14, 3611. [Google Scholar] [CrossRef]
  24. Chen, Z.; Cai, Y.; Ma, Y.; Huang, L.; Zhao, Y.; Wang, L. Luminescent lanthanide complex sensor for Acac and Cd2+. Photochem. Photobiol. 2021, 97, 664. [Google Scholar] [CrossRef] [PubMed]
  25. Gao, J.H.; Huang, P.P.; Zhang, Z.J.; Tian, F.W.; Ge, J.; Cao, X.Y.; Liu, J.; Wang, D.; Zheng, N.; Lu, J.F.; et al. A new 3D Cd-MOF with 2fold interpenetrated as “turn-on/turn-off” fluorescent sensor for selective and sensitive detection of Cu2+, Al3+ and Fe3+ ions. J. Mol. Struct. 2024, 1299, 137162. [Google Scholar] [CrossRef]
  26. Wang, L.; Tu, B.; Xu, W.; Fu, Y.; Zheng, Y. Uranyl Organic Framework as a Highly Selective and Sensitive Turn-on and Turn-off Luminescent Sensor for Dual Functional Detection Arginine and MnO. Inorg. Chem. 2020, 59, 5004. [Google Scholar] [CrossRef] [PubMed]
  27. Wang, X.; Xu, Q.W.; Wei, M.M.; Chen, J.Y.; Wang, H.H.; Li, X. Lanthanide ternary mixed-ligand coordination polymers as fluorescent sensors for the sensitive and selective detection of chlorogenic acid. CrystEngComm 2022, 24, 6367. [Google Scholar] [CrossRef]
  28. Xu, X.Y.; Yan, B. Eu(III)-Functionalized MIL-124 as Fluorescent Probe for Highly Selectively Sensing Ions and Organic Small Molecules Especially for Fe(III) and Fe(II). ACS Appl. Mater. Interfaces 2015, 7, 721. [Google Scholar] [CrossRef] [PubMed]
  29. Lu, Z.Z.; Zhang, R.; Li, Y.Z.; Guo, Z.; Zheng, H.G. Solvatochromic Behavior of a Nanotubular Metal-Organic Framework for Sensing Small Molecules. J. Am. Chem. Soc. 2011, 133, 4172. [Google Scholar] [CrossRef] [PubMed]
  30. Mautner, F.A.; Bierbaumer, F.; Fischer, R.C.; Vicente, R.; Tubau, À.; Ferran, A.; Massoud, S.S. Structural Characterization, Magnetic and Luminescent Properties of Praseodymium(III)-4,4,4-Trifluoro-1-(2-Naphthyl)Butane-1,3-Dionato(1-) Complexes. Crystals 2021, 11, 179. [Google Scholar] [CrossRef]
  31. Mautner, F.A.; Bierbaumer, F.; Vicente, R.; Speed, S.; Tubau, Á.; Font-Bardía, M.; Fischer, R.C.; Massoud, S.S. Magnetic and luminescence properties of 8-coordinate holmium (iii) complexes containing 4, 4, 4-trifluoro-1-phenyl-and 1-(naphthalen-2-yl)-1, 3-butanedionates. Molecules 2022, 27, 1129. [Google Scholar] [CrossRef] [PubMed]
  32. Han, L.J.; Kong, Y.J.; Zhang, X.M.; Hou, G.Z.; Chen, H.C.; Zheng, H.G. Fabrication of a robust lanthanide metal–organic framework as a multifunctional material for Fe (III) detection, CO2 capture, and utilization. J. Mater. Chem. C 2021, 9, 6051. [Google Scholar] [CrossRef]
  33. Wei, N.; Zhang, M.Y.; Zhang, X.N.; Li, G.M.; Zhang, X.D.; Han, Z.B. Two series of solvent-dependent lanthanide coordination polymers demonstrating tunable luminescence and catalysis properties. Cryst. Growth Des. 2014, 14, 3002–3009. [Google Scholar] [CrossRef]
  34. Tarlton, M.L.; Skanthakumar, S.; Hutchison, D.; Gremillion, A.J.; Oliver, A.G.; Wilson, R.E. Synthesis of an isostructural series of 12-coordinate lanthanide nitrate hybrid double perovskites with cubic symmetry. Inorg. Chem. 2022, 61, 17101–17108. [Google Scholar] [CrossRef] [PubMed]
  35. Xu, W.T.; Zhou, Y.F.; Huang, D.C.; Wei, X.; Su, M.Y.; Wang, K.; Han, S.; Hong, M.C. Crystal structure, multiplex photoluminescence, and magnetic properties of a series of lanthanide coordination polymers based on quinoline carboxylate ligand. Cryst. Growth Des. 2013, 13, 5420–5432. [Google Scholar] [CrossRef]
  36. Jing, T.; Chen, L.; Jiang, F.; Yang, Y.; Zhou, K.; Yu, M.; Cao, Z.; Li, S.; Hong, M. Fabrication of a Robust Lanthanide Metal–Organic Framework as a Multifunctional Material for Fe(III) Detection, CO2 Capture, and Utilization. Cryst. Growth Des. 2018, 18, 2956. [Google Scholar] [CrossRef]
  37. Yang, Y.; Qiu, F.; Xu, C.; Feng, Y.; Zhang, G.; Liu, W.A. A multifunctional Eu-CP as a recyclable luminescent probe for the highly sensitive detection of Fe3+/Fe2+, Cr2O72−, and nitroaromatic explosives. Dalton Trans. 2018, 47, 7480. [Google Scholar] [CrossRef] [PubMed]
  38. Smith, J.A.; Singh-Wilmot, M.A.; Carter, K.P.; Cahill, C.L.; Ridenour, J.A. Lanthanide-2, 3, 5, 6-tetrabromoterephthalic acid metal–organic frameworks: Evolution of halogen···halogen interactions across the lanthanide series and their potential as selective bifunctional sensors for the detection of Fe3+, Cu2+, and nitroaromatics. Cryst. Growth Des. 2018, 19, 305. [Google Scholar] [CrossRef]
  39. Zhong, X.F.; Ma, Z.C.; Lin, J.J.; Wu, Y.; Liang, G.; Zhang, Y.Y.; Chen, D.J.; Xie, K.P.; Mo, Z.W.; Chen, X.M. Metal–Organic Frameworks with Triazine and Amine Functional Groups for Iodine Removal and Sensitive Detection of Cu2+ and Fe3+ Ions. Cryst. Growth Des. 2023, 23, 8793. [Google Scholar] [CrossRef]
  40. Cui, Y.; Yue, Y.; Qian, G.; Chen, B. Luminescent functional metal-organic frameworks. Chem. Rev. 2012, 112, 1126. [Google Scholar] [CrossRef]
  41. Kreno, L.E.; Leong, K.; Farha, O.K.; Allendorf, M.; VanDuyne, R.; Hupp, J.T. Metal–organic framework materials as chemical sensors. Chem. Rev. 2012, 112, 1105. [Google Scholar] [CrossRef]
  42. Liu, B. Metal–organic framework-based devices: Separation and sensors. J. Mater. Chem. 2012, 22, 10094. [Google Scholar] [CrossRef]
  43. Banerjee, D.; Hu, Z.; Li, J. Luminescent metal–organic frameworks as explosive sensors. Dalton Trans. 2014, 43, 10668. [Google Scholar] [CrossRef]
  44. Cui, Y.; Chen, B.; Qian, G. Lanthanide metal-organic frameworks for luminescent sensing and light-emitting applications. Chem. Rev. 2014, 273, 76. [Google Scholar] [CrossRef]
  45. Hu, Z.; Deibert, B.J.; Li, J. Luminescent metal–organic frameworks for chemical sensing and explosive detection. Chem. Soc. Rev. 2014, 43, 5815. [Google Scholar] [CrossRef]
  46. Nagarkar, S.S.; Desai, A.V.; Ghosh, S.K. Engineering metal–organic frameworks for aqueous phase 2, 4, 6-trinitrophenol (TNP) sensing. CrystEngComm 2016, 18, 2994. [Google Scholar] [CrossRef]
  47. Lustig, W.P.; Mukherjee, S.; Rudd, N.D.; Desai, A.V.; Li, J.; Ghosh, S.K. Metal–organic frameworks: Functional luminescent and photonic materials for sensing applications. Chem. Soc. Rev. 2017, 46, 3242. [Google Scholar] [CrossRef]
  48. Nagarkar, S.S.; Joarder, B.; Chaudhari, A.K.; Mukherjee, S.; Ghosh, S.K. Highly selective detection of nitro explosives by a luminescent metal-organic framework. Chem. Int. Ed. 2013, 52, 2881. [Google Scholar] [CrossRef]
  49. Nagarkar, S.S.; Desai, A.V.; Ghosh, S.K. A fluorescent metal–organic framework for highly selective detection of nitro explosives in the aqueous phase. Chem. Commun. 2014, 50, 8915. [Google Scholar] [CrossRef]
  50. Joarder, B.; Desai, A.V.; Samanta, P.; Mukherjee, S.; Ghosh, S.K. Selective and sensitive aqueous-phase detection of 2, 4, 6-trinitrophenol (TNP) by an amine-functionalized metal–organic framework. Chem. Eur. J. 2015, 21, 965. [Google Scholar] [CrossRef]
  51. Mukherjee, S.; Desai, A.V.; Inamdar, A.I.; Manna, B.; Ghosh, S.K. Selective detection of 2, 4, 6-trinitrophenol (TNP) by a π-stacked organic crystalline solid in water. Cryst. Growth Design 2015, 15, 3493. [Google Scholar] [CrossRef]
  52. Mukherjee, S.; Desai, A.V.; Manna, B.; Inamdar, A.I.; Ghosh, S.K. Exploitation of guest accessible aliphatic amine functionality of a metal–organic framework for selective detection of 2, 4, 6-trinitrophenol (TNP) in water. Cryst. Growth Des. 2015, 15, 4627. [Google Scholar] [CrossRef]
  53. Nagarkar, S.S.; Desai, A.V.; Samanta, P.; Ghosh, S.K. Aqueous phase selective detection of 2, 4, 6-trinitrophenol using a fluorescent metal–organic framework with a pendant recognition site. Dalton Trans. 2015, 44, 15175. [Google Scholar] [CrossRef]
  54. Karmakar, A.; Kumar, A.; Chaudhari, A.K.; Samanta, P.; Desai, A.V.; Krishna, R.; Ghosh, S.K. Bimodal Functionality in a Porous Covalent Triazine Framework by Rational Integration of an Electron-Rich and-Deficient Pore Surface. Chem.-Eur. J. 2016, 22, 4931. [Google Scholar] [CrossRef]
  55. Surya, S.G.; Nagarkar, S.S.; Ghosh, S.K.; Sonar, P.; Rao, V.R. OFET based explosive sensors using diketopyrrolopyrrole and metal organic framework composite active channel material. Sens. Actuators. B. 2016, 223, 114. [Google Scholar] [CrossRef]
  56. Liu, X.G.; Wang, H.; Chen, B.; Zou, Y.; Gu, Z.G.; Zhao, Z.; Shen, L. A luminescent metal–organic framework constructed using a tetraphenylethene-based ligand for sensing volatile organic compounds. Chem. Commun. 2015, 51, 1677. [Google Scholar] [CrossRef]
  57. Wang, G.Y.; Song, C.; Kong, D.M.; Ruan, W.J.; Chang, Z.; Li, Y. Two luminescent metal–organic frameworks for the sensing of nitroaromatic explosives and DNA strands. J. Mater. Chem. A 2014, 2, 2213. [Google Scholar] [CrossRef]
  58. Tian, H.R.; Gao, C.Y.; Yang, Y.; Ai, J.; Liu, C.; Xua, Z.G.; Sun, Z.M. A microporous Cd-MOF based on a hexavalent silicon-centred connector and luminescence sensing of small molecules. New J. Chem. 2017, 41, 1137. [Google Scholar] [CrossRef]
  59. Wang, L.; Xie, Z.G.; Dang, S.; Sun, Z.M. Self-Assembly of Tunable Heterometallic Ln–Ru Coordination Polymers with Near-Infrared Luminescence and Magnetocaloric Effect. Chem.-Eur. J. 2017, 23, 2852. [Google Scholar] [CrossRef] [PubMed]
  60. Buragohain, A.; Yousufuddin, M.; Sarma, M.; Biswas, S. 3D luminescent amide-functionalized cadmium tetrazolate framework for selective detection of 2, 4, 6-trinitrophenol. Cryst. Growth Des. 2016, 16, 842. [Google Scholar] [CrossRef]
  61. Huang, R.W.; Wei, Y.S.; Dong, X.Y.; Wu, X.H.; Du, C.X.; Zang, S.Q.; Mak, T.C.W. Hypersensitive dual-function luminescence switching of a silver-chalcogenolate cluster-based metal–organic framework. Nat. Chem. 2017, 9, 689. [Google Scholar] [CrossRef] [PubMed]
  62. Yang, L.; Cao, L.; Li, X.; Qin, C.; Zhao, L.; Shao, K.Z.; Su, Z.M. Metal–organic frameworks constructed from tib and carboxylate acid ligands: Selective sensing of nitro explosives and magnetic properties. Dalton Trans. 2017, 46, 7567. [Google Scholar] [CrossRef] [PubMed]
  63. Gole, B.; Bar, A.K.; Mukherjee, P.S. Modification of extended open frameworks with fluorescent tags for sensing explosives: Competition between size selectivity and electron deficiency. Chem.-Eur. J. 2014, 20, 2276–2291. [Google Scholar] [CrossRef] [PubMed]
  64. Gao, J.H.; Wang, J.X.; Huang, P.P.; Liu, J.; Zheng, N.; Shi, J.; Xu, H.T.; Yue, S.Y.; Lu, J.F. A new pyrazine carboxyl derivative and its two d10 metal coordination polymers: Syntheses, characterization, DFT and property. J. Mol. Struct. 2023, 1290, 135935. [Google Scholar] [CrossRef]
  65. Elantabli, F.M.; Mohamed, R.G.; El-Medani, S.M.; Haukka, M.; Ramadan, R.M.; Afifi, M.A. Structural investigations of new tridentate-phenylacetohydrazide Schiff base metal chelates: X-ray diffraction, Hirshfeld surface analyses, DFT, antibacterial and molecular docking studies. J. Mol Struct. 2024, 1299, 137230. [Google Scholar] [CrossRef]
  66. Najafi, Z.; Marandi, F.; Bahrami, A.; Fuhrmann, D.; Janghouri, M. Four new Zn (II) complexes based on 2-thienoyltrifluoroacetone and N-donor auxiliary bridging and chelating ligands: Synthesis, spectroscopic and structural studies, thermal behavior and Hirshfeld surface analysis. Polyhedron 2023, 242, 116486. [Google Scholar] [CrossRef]
Molecules 29 03438 g001aMolecules 29 03438 g001b

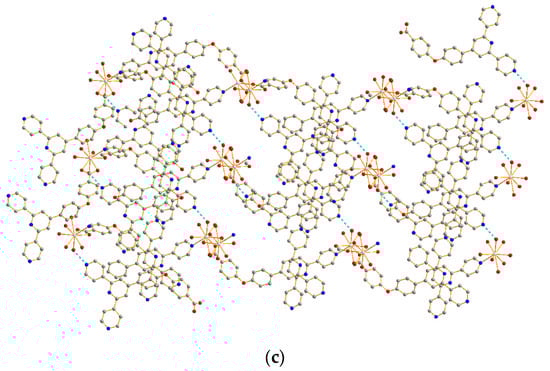

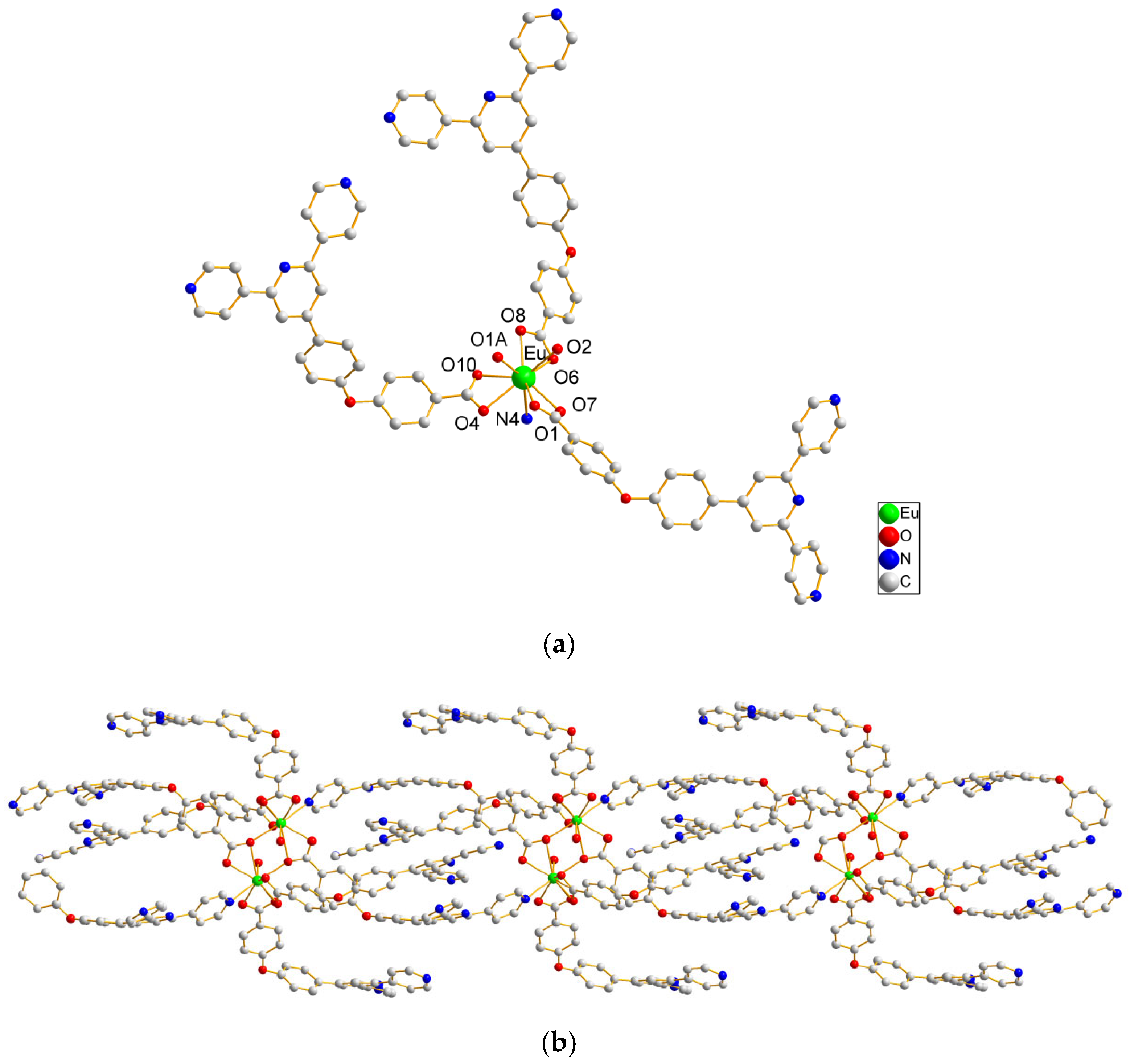

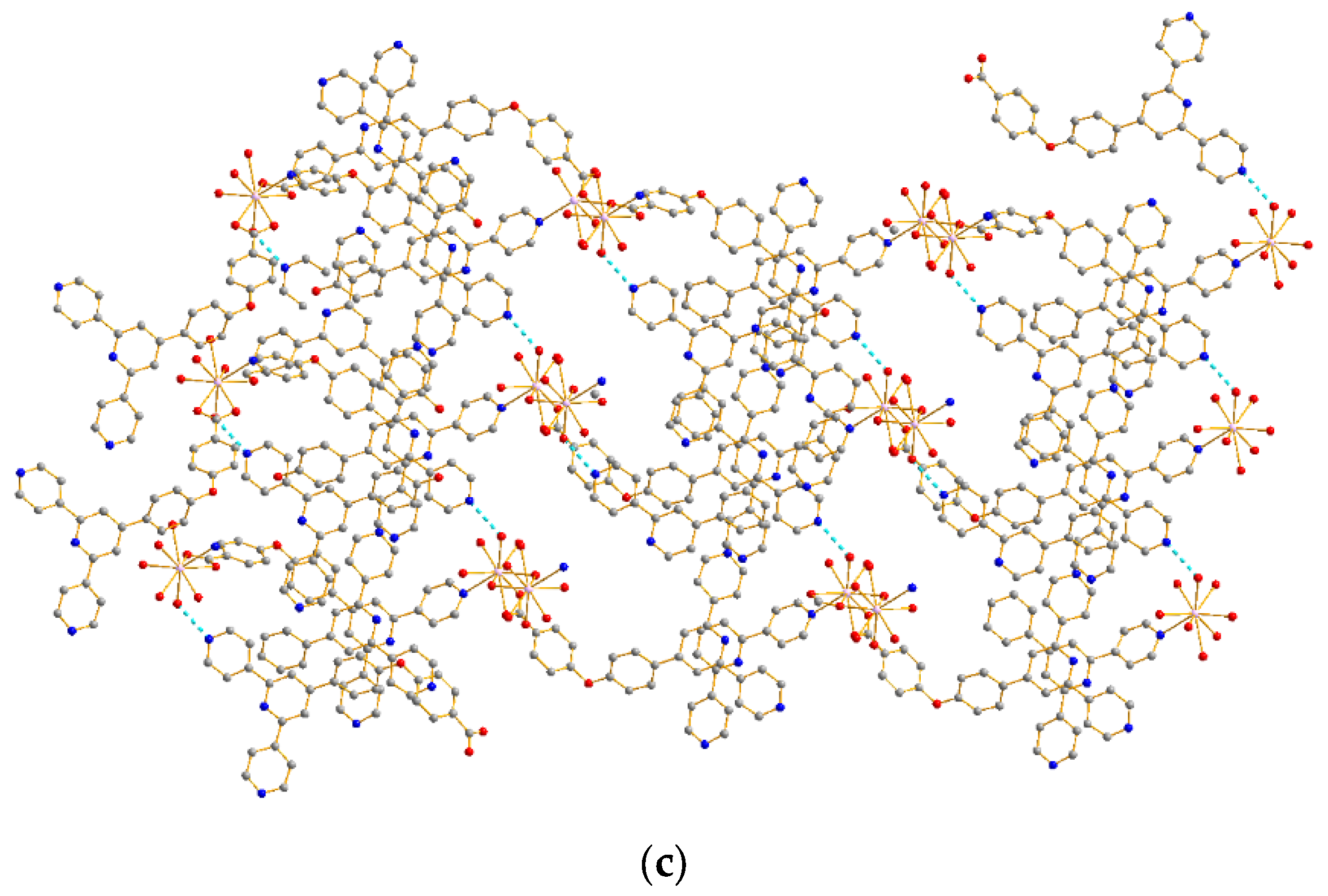

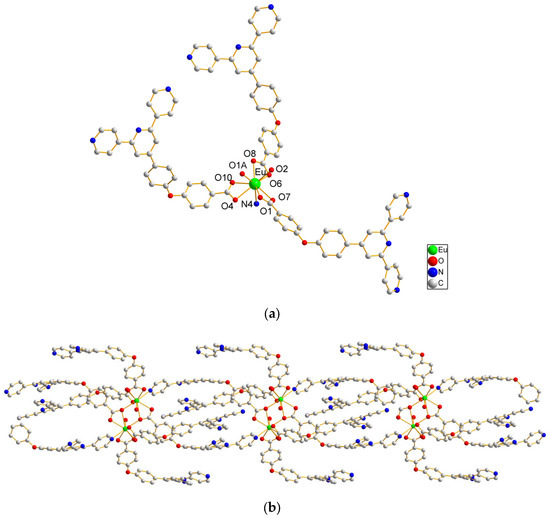

Figure 1. (a) Coordination environment of the EuIII cations in complex 4. (b) The one-dimensional ring-chain structure of complex 4. (c) Two-dimensional supramolecular structure of complex 4.
Figure 1. (a) Coordination environment of the EuIII cations in complex 4. (b) The one-dimensional ring-chain structure of complex 4. (c) Two-dimensional supramolecular structure of complex 4.
Molecules 29 03438 g001aMolecules 29 03438 g001b
Molecules 29 03438 sch001

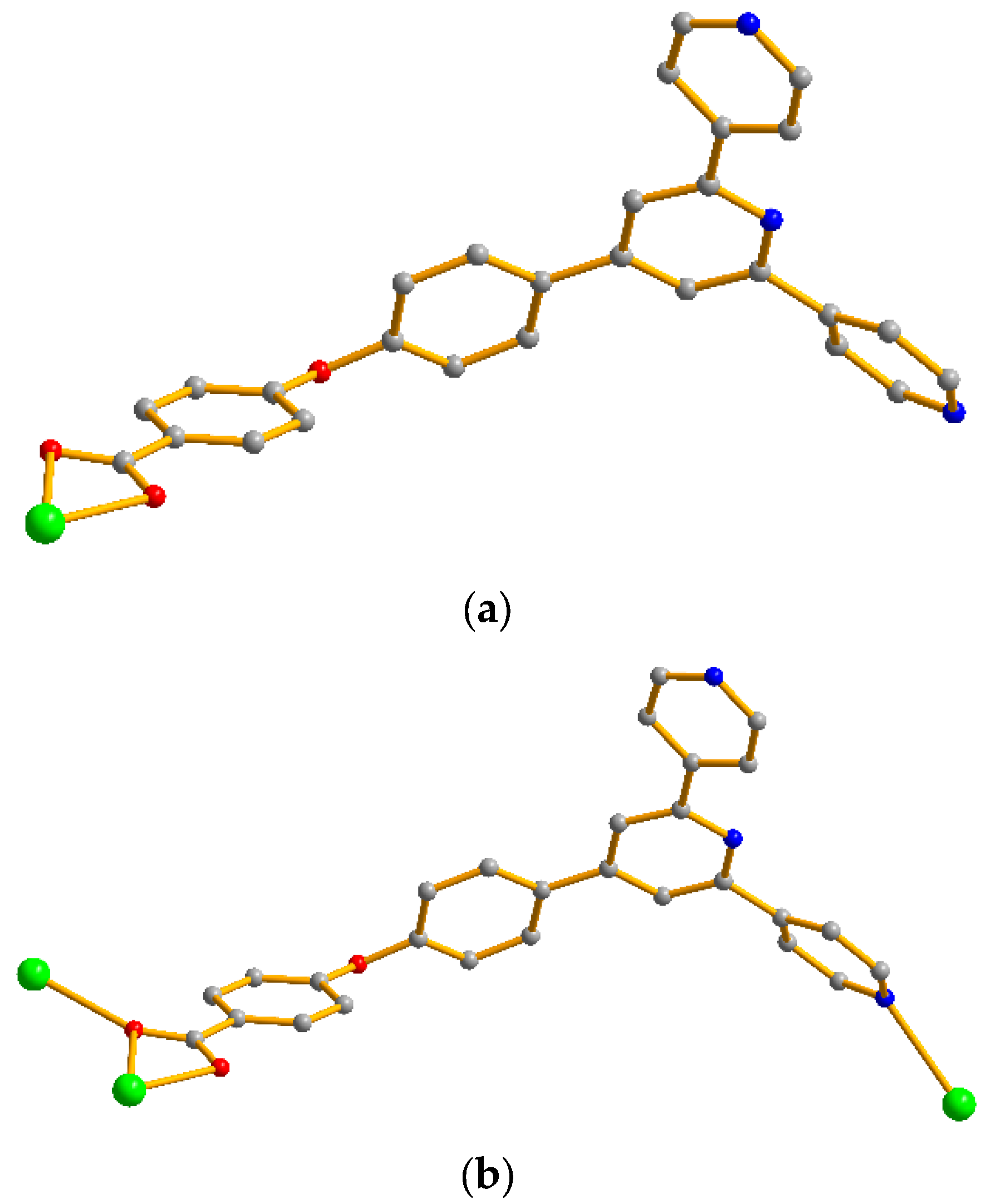

Scheme 1. Coordination modes of the (cpt)− ligand. (a) a bidentate coordination fashion (b) a tridentate coordination fashion.
Scheme 1. Coordination modes of the (cpt)− ligand. (a) a bidentate coordination fashion (b) a tridentate coordination fashion.
Molecules 29 03438 sch001
Molecules 29 03438 g002

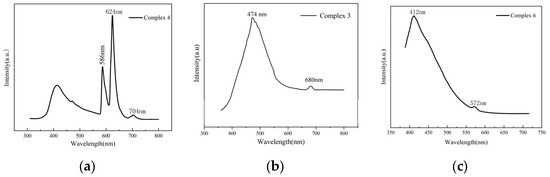

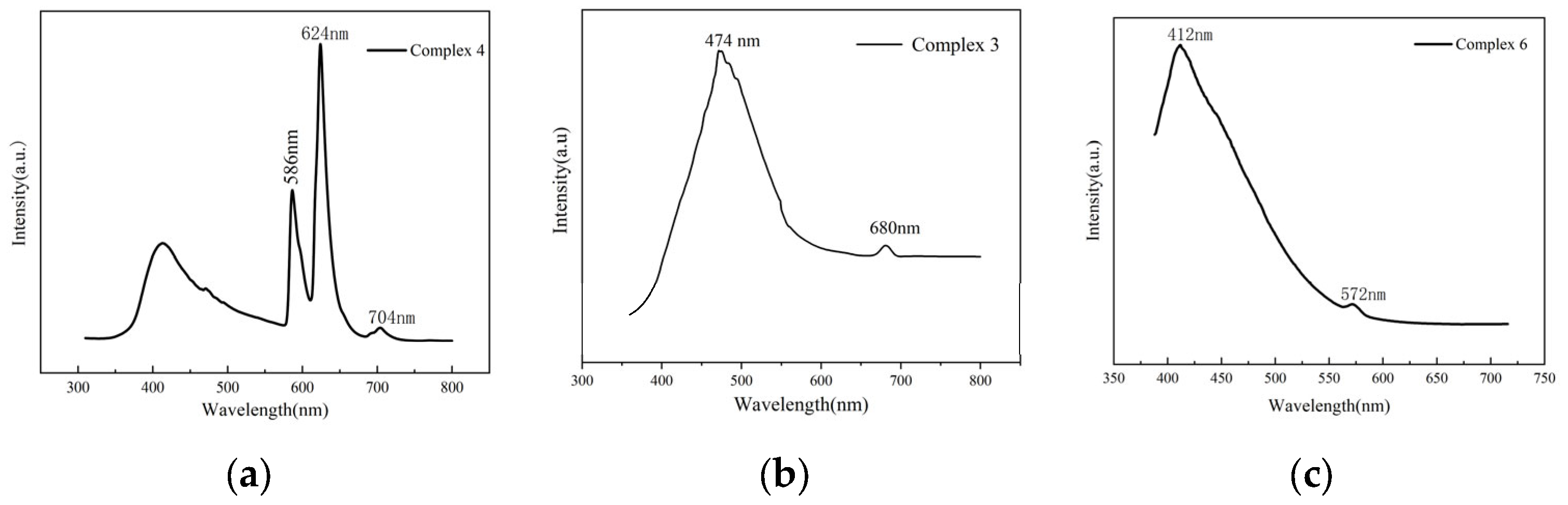

Figure 2. (a) Emission spectra of complex 4. (b) Emission spectra of complex 3. (c) Emission spectra of complex 6.
Figure 2. (a) Emission spectra of complex 4. (b) Emission spectra of complex 3. (c) Emission spectra of complex 6.
Molecules 29 03438 g002
Molecules 29 03438 g003

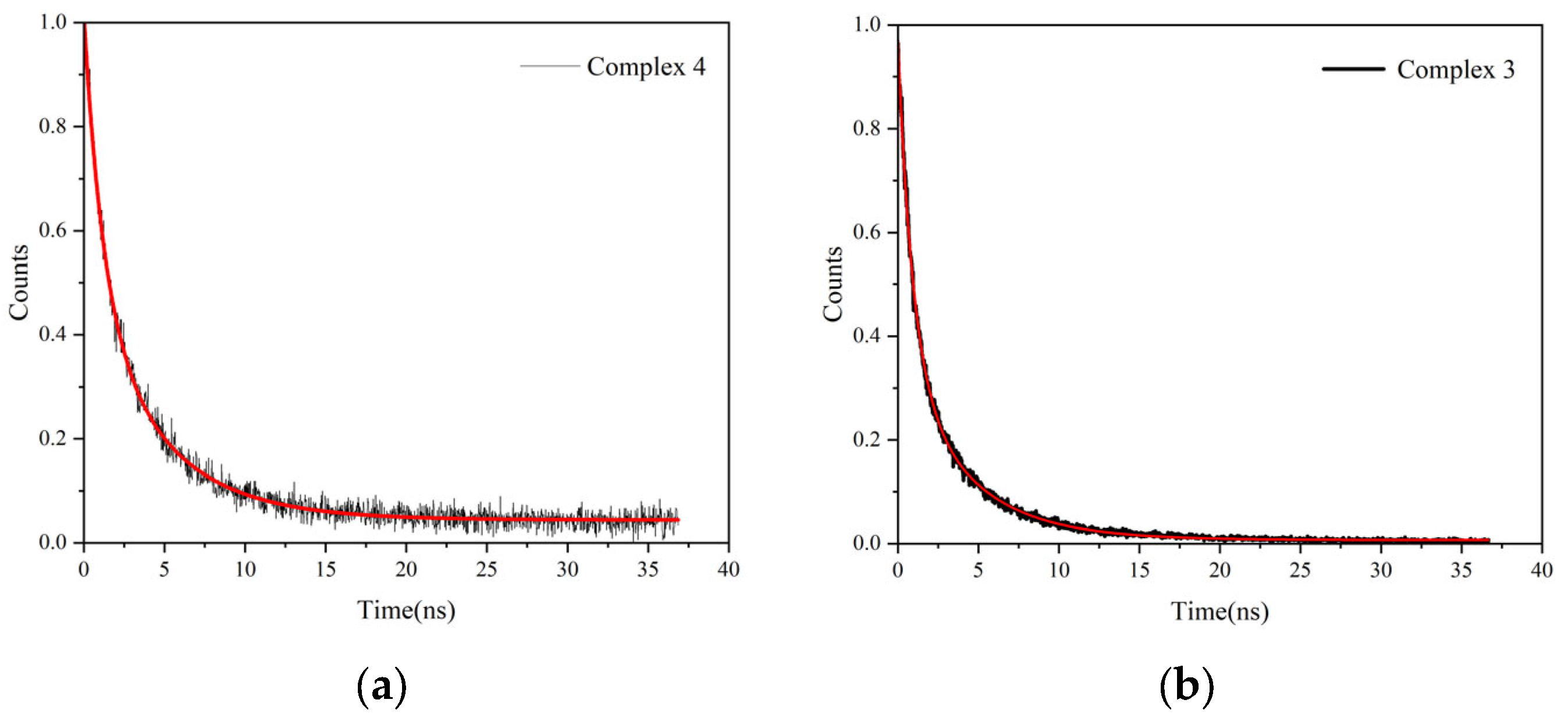

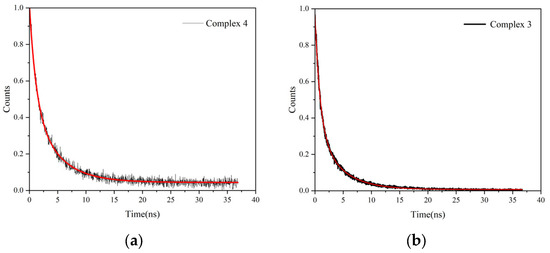

Figure 3. (a) Luminescence decay curves of complex 4. (b) Luminescence decay curves of complex 3.
Figure 3. (a) Luminescence decay curves of complex 4. (b) Luminescence decay curves of complex 3.
Molecules 29 03438 g003
Molecules 29 03438 g004

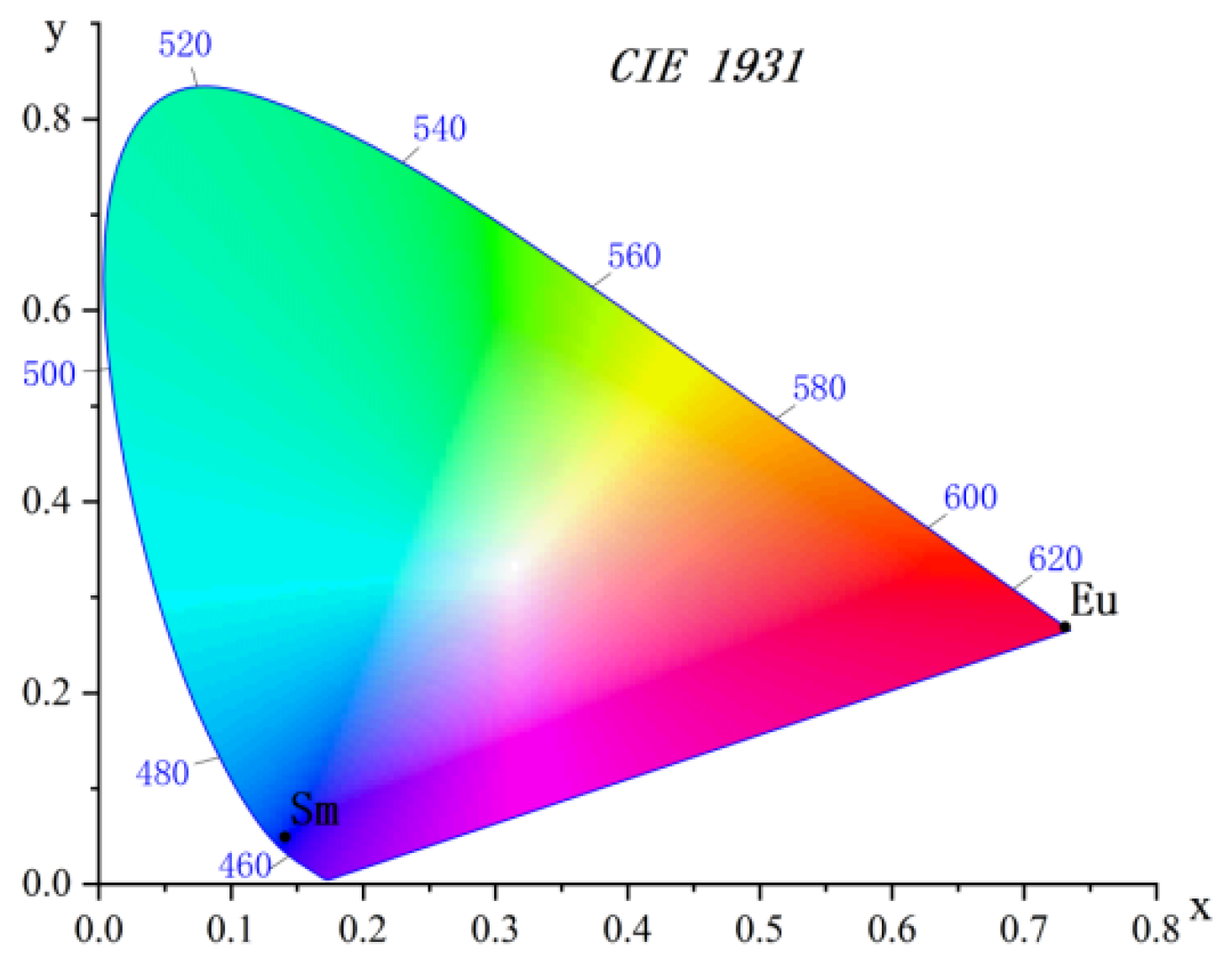

Figure 4. CIE chromaticity diagrams for complex 4 and 3.
Figure 4. CIE chromaticity diagrams for complex 4 and 3.
Molecules 29 03438 g004
Molecules 29 03438 g005

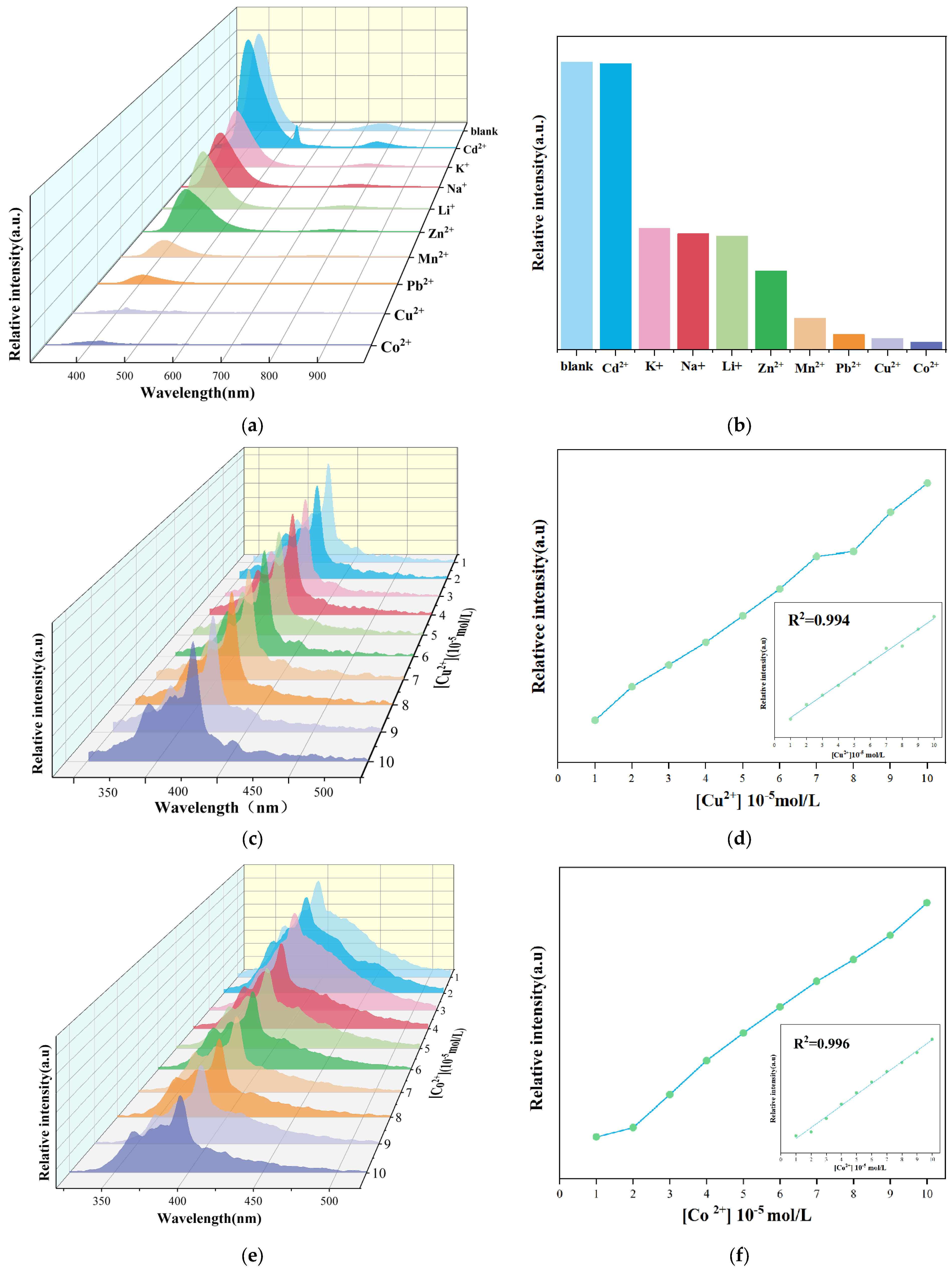

Figure 5. (a) Emission spectra of complex 4 in diverse metal ions. (b) Comparisons for intensities of complex 4 in different metal ions. (c,e) Luminescence quenching of complex 4 dispersed in DMF with gradual addition of Cu2+ and Co2+ ions, respectively. (d,f) The fitting of the fluorescence change value of complex 4 in Cu2+ and Co2+ ions, respectively.
Figure 5. (a) Emission spectra of complex 4 in diverse metal ions. (b) Comparisons for intensities of complex 4 in different metal ions. (c,e) Luminescence quenching of complex 4 dispersed in DMF with gradual addition of Cu2+ and Co2+ ions, respectively. (d,f) The fitting of the fluorescence change value of complex 4 in Cu2+ and Co2+ ions, respectively.
Molecules 29 03438 g005
Molecules 29 03438 g006

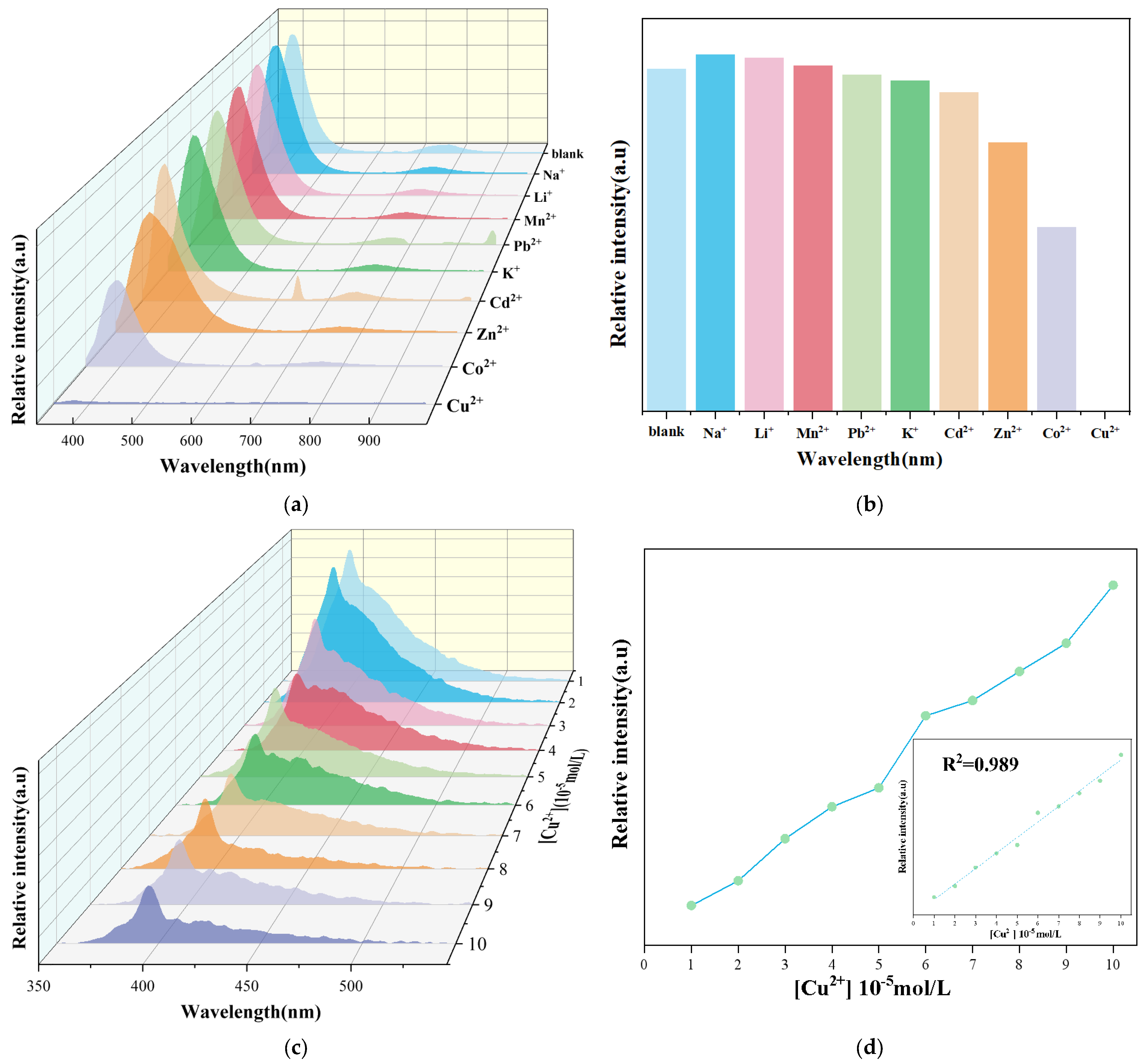

Figure 6. (a) Emission spectra of complex 3 in diverse metal ions. (b) Comparisons for intensities of complex 3 in different metal ions. (c) Luminescence quenching of complex 3 dispersed in DMF with gradual addition of Cu2+ ion. (d) The fitting of the fluorescence change value of complex 3 in Cu2+ ion.
Figure 6. (a) Emission spectra of complex 3 in diverse metal ions. (b) Comparisons for intensities of complex 3 in different metal ions. (c) Luminescence quenching of complex 3 dispersed in DMF with gradual addition of Cu2+ ion. (d) The fitting of the fluorescence change value of complex 3 in Cu2+ ion.
Molecules 29 03438 g006
Molecules 29 03438 g007

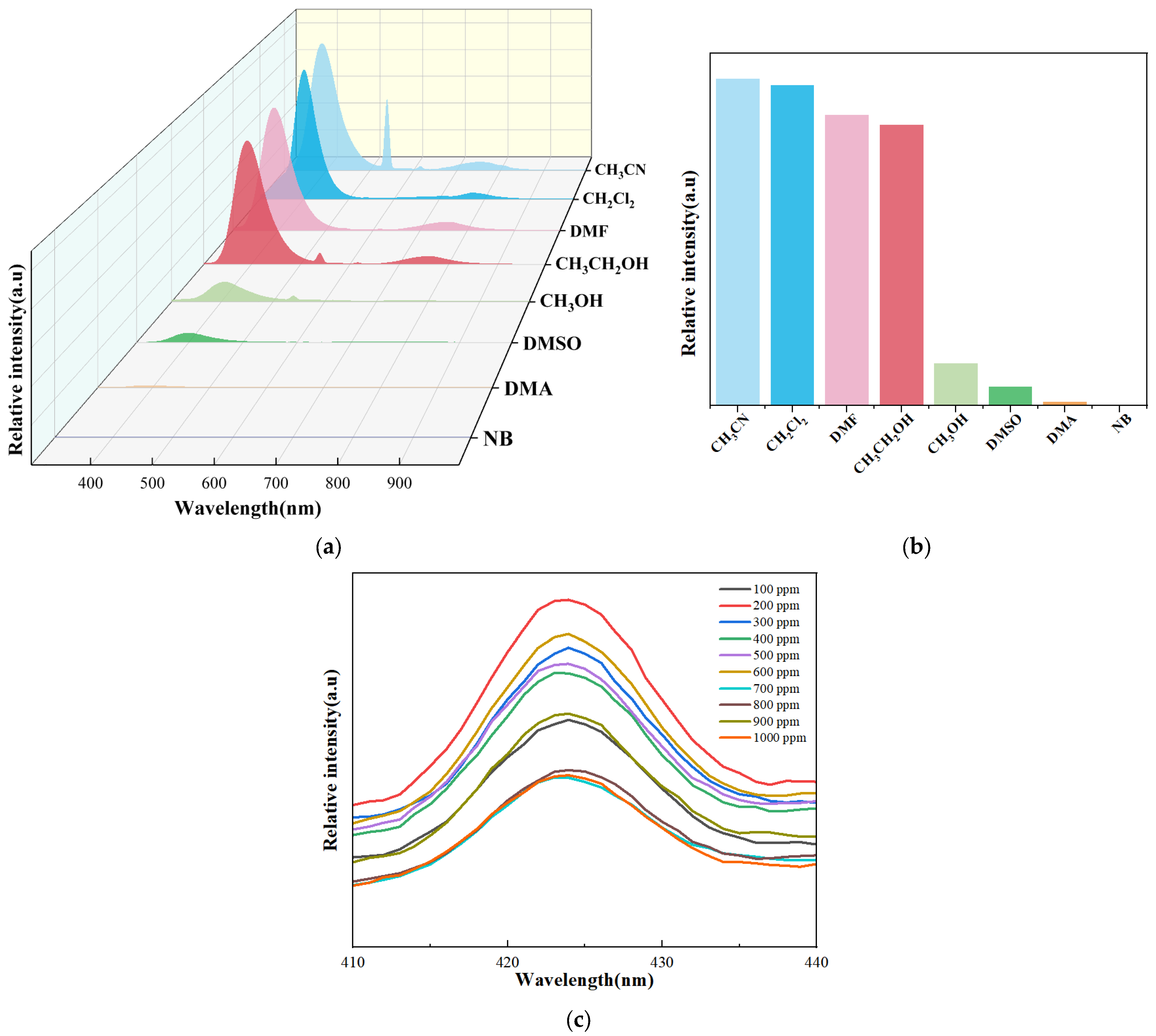

Figure 7. (a) Emission spectra of complex 4 in diverse analytes. (b) Comparisons for intensities of 4 in diverse analytes. (c) Emission spectra of complex 4 in CH3CN with different concentrations of NB.
Figure 7. (a) Emission spectra of complex 4 in diverse analytes. (b) Comparisons for intensities of 4 in diverse analytes. (c) Emission spectra of complex 4 in CH3CN with different concentrations of NB.
Molecules 29 03438 g007
Molecules 29 03438 g008

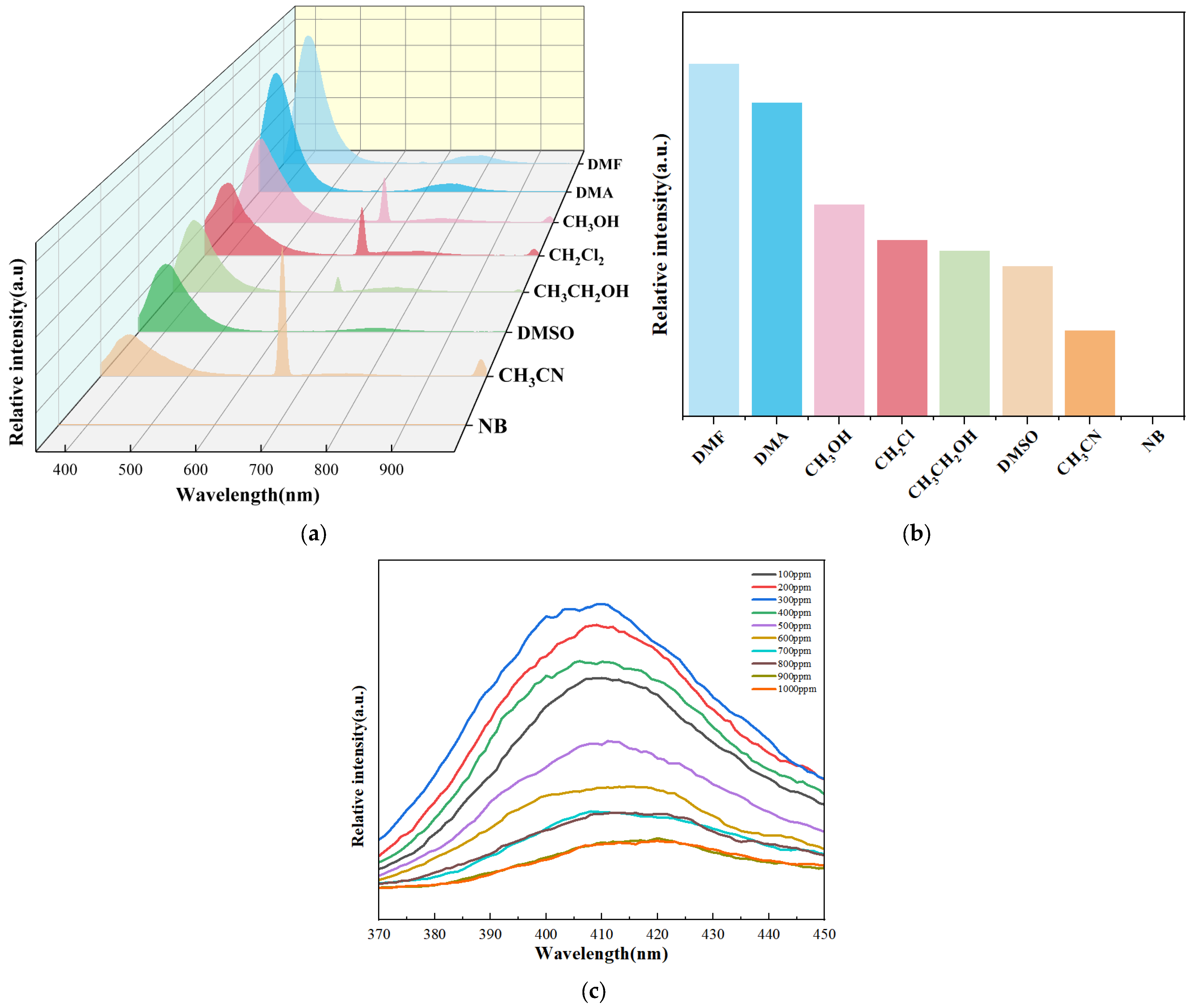

Figure 8. (a) Emission spectra of complex 3 in diverse analytes. (b) Comparisons for intensities of 3 in diverse analytes. (c) Emission spectra of complex 3 in DMF with different concentrations of NB.
Figure 8. (a) Emission spectra of complex 3 in diverse analytes. (b) Comparisons for intensities of 3 in diverse analytes. (c) Emission spectra of complex 3 in DMF with different concentrations of NB.
Molecules 29 03438 g008
Molecules 29 03438 g009

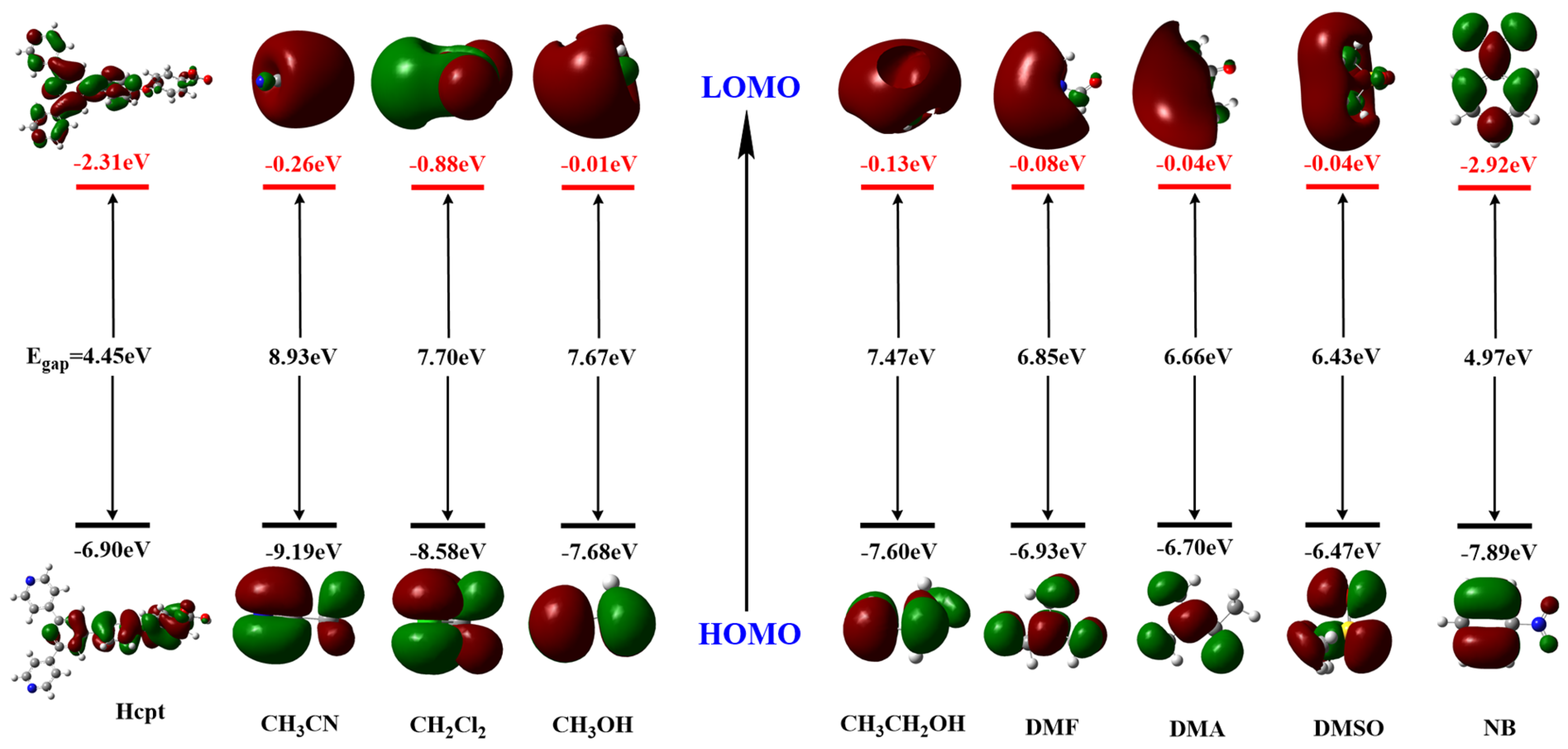

Figure 9. HOMO and LUMO energy levels of ligand and the selected analytes.
Figure 9. HOMO and LUMO energy levels of ligand and the selected analytes.
Molecules 29 03438 g009
Molecules 29 03438 g010

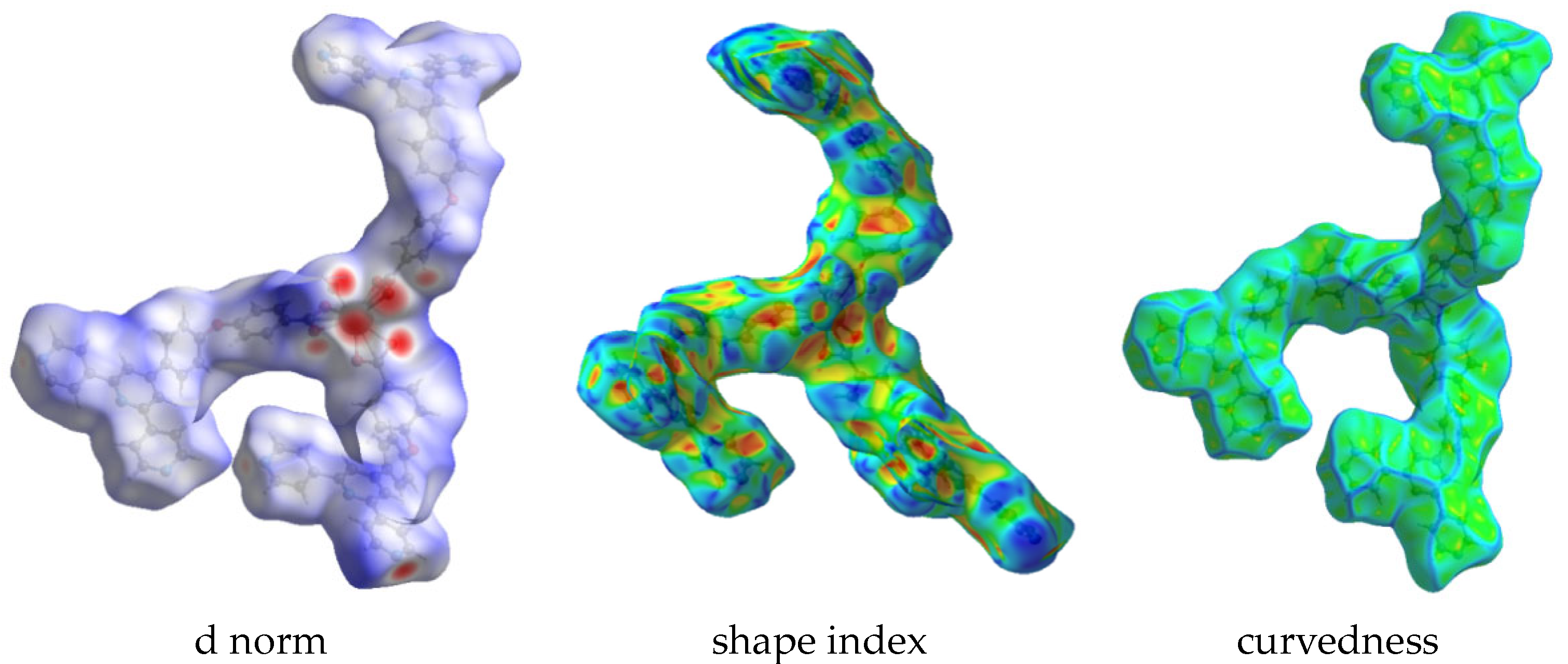

Figure 10. Hirshfeld surface mapped with dnorm (left), shape index (middle), and curvedness (right) for complex 4.
Figure 10. Hirshfeld surface mapped with dnorm (left), shape index (middle), and curvedness (right) for complex 4.
Molecules 29 03438 g010
Molecules 29 03438 g011
Figure 11. Two-dimensional (2D) fingerprint plots of Hirshfeld surfaces for complex 4.
Figure 11. Two-dimensional (2D) fingerprint plots of Hirshfeld surfaces for complex 4.
Molecules 29 03438 g011
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Wu, M.; Song, J.; Zhou, Y.-L.; Chen, H.-H.; Duan, B.-F.; Jin, L.-X.; Ren, C.-Q.; Lu, J.-F. A Series of Lanthanide Coordination Polymers as Luminescent Sensors for Selective Detection of Inorganic Ions and Nitrobenzene. Molecules 2024, 29, 3438. https://doi.org/10.3390/molecules29143438

AMA Style

Wu M, Song J, Zhou Y-L, Chen H-H, Duan B-F, Jin L-X, Ren C-Q, Lu J-F. A Series of Lanthanide Coordination Polymers as Luminescent Sensors for Selective Detection of Inorganic Ions and Nitrobenzene. Molecules. 2024; 29(14):3438. https://doi.org/10.3390/molecules29143438

Chicago/Turabian Style

Wu, Miao, Juan Song, Yun-Long Zhou, Hui-Hui Chen, Bo-Feng Duan, Ling-Xia Jin, Chuan-Qing Ren, and Jiu-Fu Lu. 2024. "A Series of Lanthanide Coordination Polymers as Luminescent Sensors for Selective Detection of Inorganic Ions and Nitrobenzene" Molecules 29, no. 14: 3438. https://doi.org/10.3390/molecules29143438

APA Style

Wu, M., Song, J., Zhou, Y.-L., Chen, H.-H., Duan, B.-F., Jin, L.-X., Ren, C.-Q., & Lu, J.-F. (2024). A Series of Lanthanide Coordination Polymers as Luminescent Sensors for Selective Detection of Inorganic Ions and Nitrobenzene. Molecules, 29(14), 3438. https://doi.org/10.3390/molecules29143438

Article Metrics

Back to TopTop
