Covalent Bonding of MXene/COF Heterojunction for Ultralong Cycling Li-Ion Battery Electrodes

Abstract

Covalent organic frameworks (COFs) have emerged as promising renewable electrode materials for LIBs and gained significant attention, but their capacity has been limited by the densely packed 2D layer structures, low active site availability, and poor electronic conductivity. Combining COFs with high-conductivity MXenes is an effective strategy to enhance their electrochemical performance. Nevertheless, simply gluing them without conformal growth and covalent linkage restricts the number of redox-active sites and the structural stability of the composite. Therefore, in this study, a covalently assembled 3D COF on Ti₃C₂ MXenes (Ti₃C₂@COF) is synthesized and serves as an ultralong cycling electrode material for LIBs. Due to the covalent bonding between the COF and Ti₃C₂, the Ti₃C₂@COF composite exhibits excellent stability, good conductivity, and a unique 3D cavity structure that enables stable Li⁺ storage and rapid ion transport. As a result, the Ti₃C₂-supported 3D COF nanosheets deliver a high specific capacity of 490 mAh g⁻¹ at 0.1 A g⁻¹, along with an ultralong cyclability of 10,000 cycles at 1 A g⁻¹. This work may inspire a wide range of 3D COF designs for high-performance electrode materials.

1. Introduction

In the past few decades, due to the excessive consumption of fossil fuels and the increasing frequency of human activities, the global environment has deteriorated [1,2,3]. In response to this, global goals for peak carbon emissions and carbon neutrality have been established, and there is a strong emphasis on promoting the use of green energy such as wind, tidal, and solar power [4,5,6]. However, due to the intermittent nature of renewable energy, efficient energy storage systems are needed to store and utilize it. Among the various energy storage systems, LIBs have dominated the market as a power supply system for smart devices, electric vehicles (EVs), and more [7,8,9]. Nevertheless, with the rapid evolution of EVs and smart grids, there are higher demands on the performance indicators of LIBs, particularly in terms of energy density and power density [10,11,12]. Therefore, there is an urgent need to explore new electrodes with high capacity to meet these increasing requirements [13,14]. Currently, the most frequently used anode material for LIBs is graphite, but it has nearly achieved its theoretical specific capacity of 372 mAh g⁻¹ [14,15]. The limited specific capacity of the anode material poses a constraint on LIBs to achieve an energy density of 300 Wh kg⁻¹ [16,17]. This inability to meet the demands of the new energy market highlights the importance of designing and developing new anode materials that offer both high specific capacity and high-rate performance [18,19,20].

COFs are a new type of polymer constructed using modular organic building blocks linked by strong covalent bonds and have gained attention for their various applications in areas such as gas storage, semiconductors, catalysis, and drug delivery [21,22,23,24]. Recently, COFs have shown excellent potential as electrode materials due to their excellent structure and thermal stability. For example, Huang et al. [25] have successfully synthesized a novel Janus dione-based COF with well-organized 2D crystalline structures and abundant redox-active sites which makes it highly suitable as an electrode material for LIBs. The COF-based cathode demonstrated a significant capacity of 338 mAh g⁻¹ at 0.1 C. Another study by Lee et al. [26] involved the fabrication of redox-active COF materials capable of accommodating up to 30 Li⁺ ions, resulting in a remarkable specific capacity of 764.1 mAh g⁻¹. Both these studies exemplify the potential of COFs as active materials for battery electrodes. However, it is worth noting that despite these advancements, there are still challenges to be addressed. The tightly packed two-dimensional layer structures of COFs often lead to the burial of interior accessible active sites, limiting their full utilization and resulting in reduced reversible capacity [27,28]. Additionally, COFs face limitations in terms of electronic conductivity and sluggish lithium diffusion kinetics, which will hinder their broader applications in energy storage [29].

Ti₃C₂ MXene is a two-dimensional layered transition metal carbide material with a graphite-like structure [30,31,32]. It is primarily produced through etching of the precursor material Ti₃AlC₂ [33,34,35]. The unique layered structure of Ti₃C₂ gives it exceptional electrical conductivity, high surface area, and chemical stability, thanks to its specific elemental composition and surface functional groups [36,37]. As a result, Ti₃C₂ has found extensive applications as an active material in energy storage systems. Considering the outstanding properties of Ti₃C₂ and the limitations of COFs, combining these two materials appears to be a promising approach for fabricating high-performance electrode materials [38,39]. By leveraging the conductivity and large surface area of Ti₃C₂ along with the unique features of COFs, it is possible to develop electrode materials with enhanced performance for various energy storage applications. However, simply gluing them without conformal growth and covalent linkage restricts the number of redox-active sites and the structural stability of the composite [40,41,42,43,44,45].

In this study, a covalently assembled 3D COF on Ti₃C₂ MXene (Ti₃C₂@COF) is synthesized and serves as an ultralong cycling electrode material for LIBs. To achieve this, the COF and Ti₃C₂ are connected through covalent linking between aldehydes and amino groups, resulting in the formation of a Ti₃C₂@COF composite. Due to the covalent bonding between the COF and Ti₃C₂, the Ti₃C₂@COF composite exhibits excellent stability, good conductivity, and a unique 3D cavity structure that enables stable Li⁺ storage and rapid ion transport. The 3D COFs offer several advantages over their 2D counterparts, including higher specific surface areas and more pore structures. The unique structure of Ti₃C₂ in the composite plays a key role in shortening the diffusion pathway for ions and electrons and providing a larger surface area for the combination with the 3D COF. Through DFT calculations, it is confirmed that the 3D COF can accommodate four Li⁺ ions within its 3D pore channels and store an additional three Li⁺ ions at the interface between the COF and Ti₃C₂. This exceptional Li⁺ storage capability of the Ti₃C₂@COF anode is further demonstrated experimentally. The Ti₃C₂@COF anode exhibited a high capacity of 490 mAh g⁻¹ at a rate of 0.1 A g⁻¹ and demonstrated an extraordinarily long cycling life, maintaining a capacity of 180 mAh g⁻¹ over 10,000 cycles at a rate of 1 A g⁻¹. This work expands the diversity of 3D COFs in the field of energy storage, showcasing the potential of 3D COFs as a high-performance electrode material for LIBs.

2. Results and Discussion

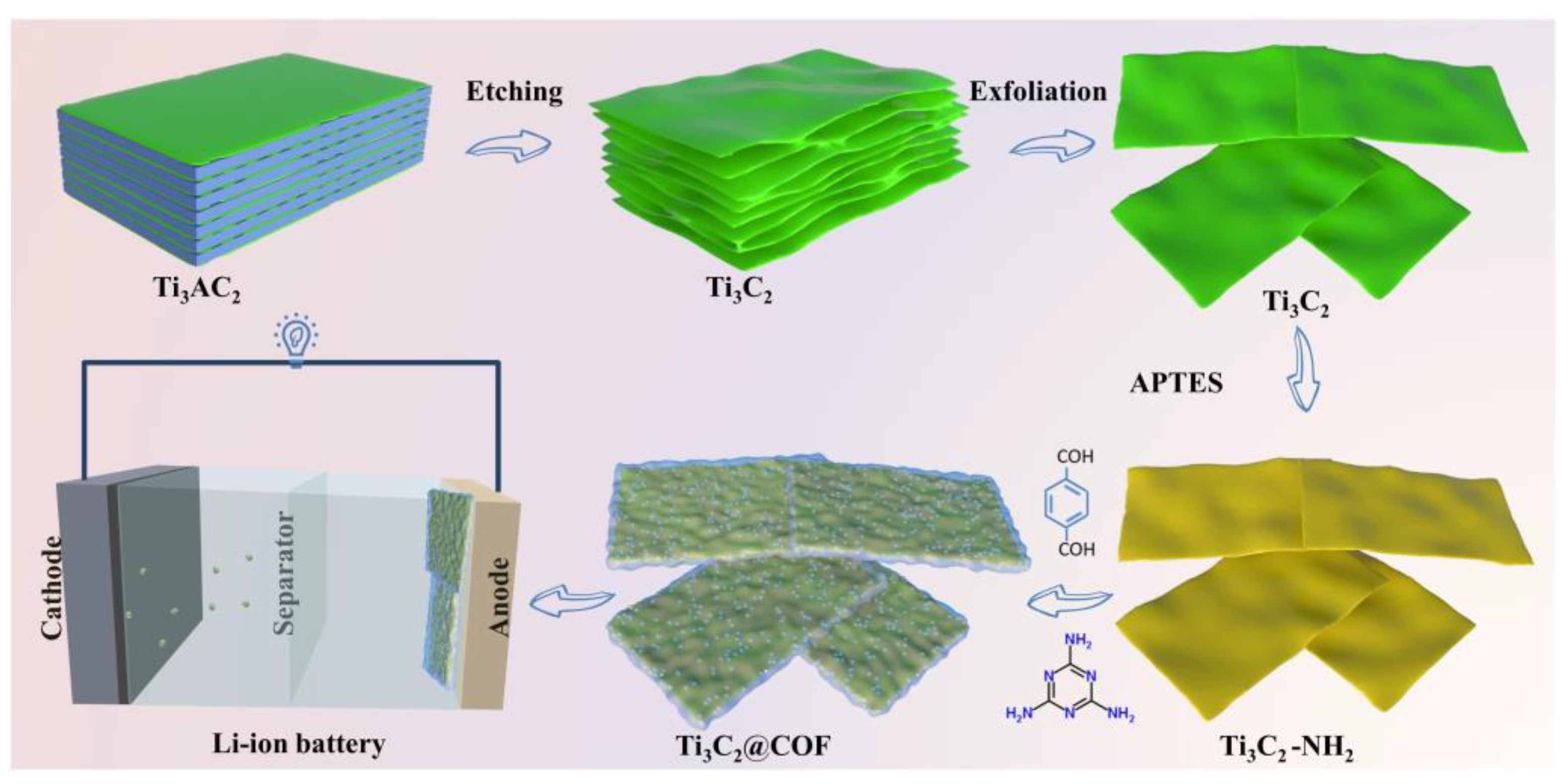

The fabrication of Ti₃C₂@COF composite is schematically shown in Figure 1. Briefly, Ti₃C₂T_x nanosheets were exfoliated from the MAX phase and aminated using 3−aminopropyl triethoxysilane (APTES). Then, the 3D COF layer grew on the amino-grafted Ti₃C₂ (Ti₃C₂–NH₂) surface via the covalent linking between the aldehydes and amino groups of the respective monomers to obtain a Ti₃C₂@COF nanoarchitecture. Specifically, pre-grafting homologous APTES onto the surface of Ti₃C₂ nanosheets is crucial for controlling the growth of uniform crystal 3D COF materials. Due to the large number of terminal groups on the surface of Ti₃C₂, such as –F, –O, and –OH, hydrogen bonding interactions ensure that the APTES molecules tightly bind to Ti₃C₂, resulting in modified Ti₃C₂ nanosheets with rich –NH₂ groups. The introduction of Ti₃C₂ is aimed at enhancing the electronic conductivity of the obtained Ti₃C₂@COF composite. Notably, the unique 2D lamellar structure of Ti₃C₂ can shorten the diffusion pathway of ions/electrons and offer more surface area to combine the 3D COF with high Li storage capacity.

To confirm the morphological changes during the synthesis process, SEM and TEM were conducted on the Ti₃C₂ and Ti₃C₂@COF composite, as shown in Figure 2a–d, Figures S2 and S3. Figure 2a shows the morphology of Ti₃C₂ nanosheets, which reveal a 2D lamellar structure with a large surface area. Figure S2 shows the aminated lamellar Ti₃C₂ without any particles on the surface. In addition, the EDS elemental mapping of amino-grafted Ti₃C₂ nanosheets confirms the uniform distribution of C, N, Ti, and O elements, which demonstrates the successful amino groups grafted on the Ti₃C₂ surface (Figure S3). SEM image of Ti₃C₂@COF composite demonstrated the homogeneous and rough surface of COFs with granular morphology (Figure 2b). The assembly of 3D COFs on the Ti₃C₂ surface could be seen in TEM images (Figure 2c,d). Notably, the Ti₃C₂@COF composite still retains a 2D lamellar structure. This phenomenon demonstrates the grafted amino can firmly anchor 3D COF on the Ti₃C₂ surface. A high-resolution TEM image of the COF@Ti₃C₂ composite is shown in Figure 2d. The lattice spacing values of 0.23 and 0.35 nm correspond to the (104) surface of Ti₃C₂ and the (101) surface of TiO₂, respectively. Furthermore, the (104) surface of TiO₂ observed in TEM is attributed to the slight oxidation of the Ti₃C₂ material due to the high-temperature effect.

Figure 2e shows the XRD patterns of Ti₃C₂, Ti₃C₂–NH₂, COF, and Ti₃C₂@COF composite. The characteristic peak of 9.0° corresponds to the (002) plane of Ti₃C₂. Importantly, the (002) plane corresponding to Ti₃C₂ in the Ti₃C₂–NH₂ composite can be detected in the XRD pattern, which proves that the amino-functionalization process does not affect the structure of Ti₃C₂ nanosheets. After the hydrothermal reaction, new peaks appeared at 25.3°, 37.9°, 47.8°, 53.8°, 54.8°, and 62.5° corresponding to the (101), (004), (200), (105), (211), and (304) planes of anatase TiO₂, respectively. Moreover, the peaks at 36° and 42° corresponding to Ti₃C₂ in the magnified XRD spectra remained, confirming the formation of the COF@Ti₃C₂ hybrid structure. The surface area and pore volume play a critical role in the electrochemical performance of an electrode. Therefore, the COF and Ti₃C₂’s specific surface area and pore properties were analyzed using N₂ adsorption-desorption plots, and the obtained data are presented in Figure 2g and Figure S4. The 3D COF shows a high surface area of 546.0 m² g⁻¹ and pore volume of 1.0 cm³ g⁻¹, but the Ti₃C₂ shows a low surface area of 6.0 m² g⁻¹ and pore volume of 0.03 cm³ g⁻¹.

To demonstrate the successful functionalization of MXenes and the successful composite of 3D COF materials, the surface group evolution was examined through ATRFTIR and XPS. The covalent amination of MXene was confirmed by the presence of the NH₂ band in FTIR. As depicted in Figure 2f, the appearance of peaks at 1040 and 980 cm⁻¹ corresponding to the Si–O–Si and Ti–O–Si bonds in the Ti₃C₂ nanosheets confirms the covalent reaction between APTES and MXene. Additionally, the peak at 1617 cm⁻¹, which is attributed to the bending mode of the N–H bond of the primary amine units, confirms the successful amino-functionalization of the MXene nanosheet. The infrared spectra of 3D COF and Ti₃C₂@COF are shown in Figure S5. A peak at 1550 cm⁻¹ in the FTIR spectra is associated with the triazine ring structure within the COF material. As shown in Figure S5, the FTIR spectra of the COF and Ti₃C₂@COF composite exhibit a peak at 1550 cm⁻¹, indicating the successful synthesis of the COF and Ti₃C₂@COF composite. Figure 2h shows the XPS wide spectra of Ti₃C₂–NH₂ and Ti₃C₂, which confirm the appearance of N and Si elements in the Ti₃C₂–NH₂. This result is consistent with FTIR spectra, confirming the success of the amination process. The C1s core level spectra resolving results reveal the C–Ti bond from Ti₃C₂ nanosheets and the C–F and C–O bonds which derive from the etching process. The –NH₃, –NH/NH₂, and N–C bonds in N 1s and C1s correspond to the amino group grafted on the COF surface. The N=C bond in N 1s and C 1s proves the 3D COF and Ti₃C₂ incorporated successfully. The above evidence indicates the successful production of Ti₃C₂@COF composite.

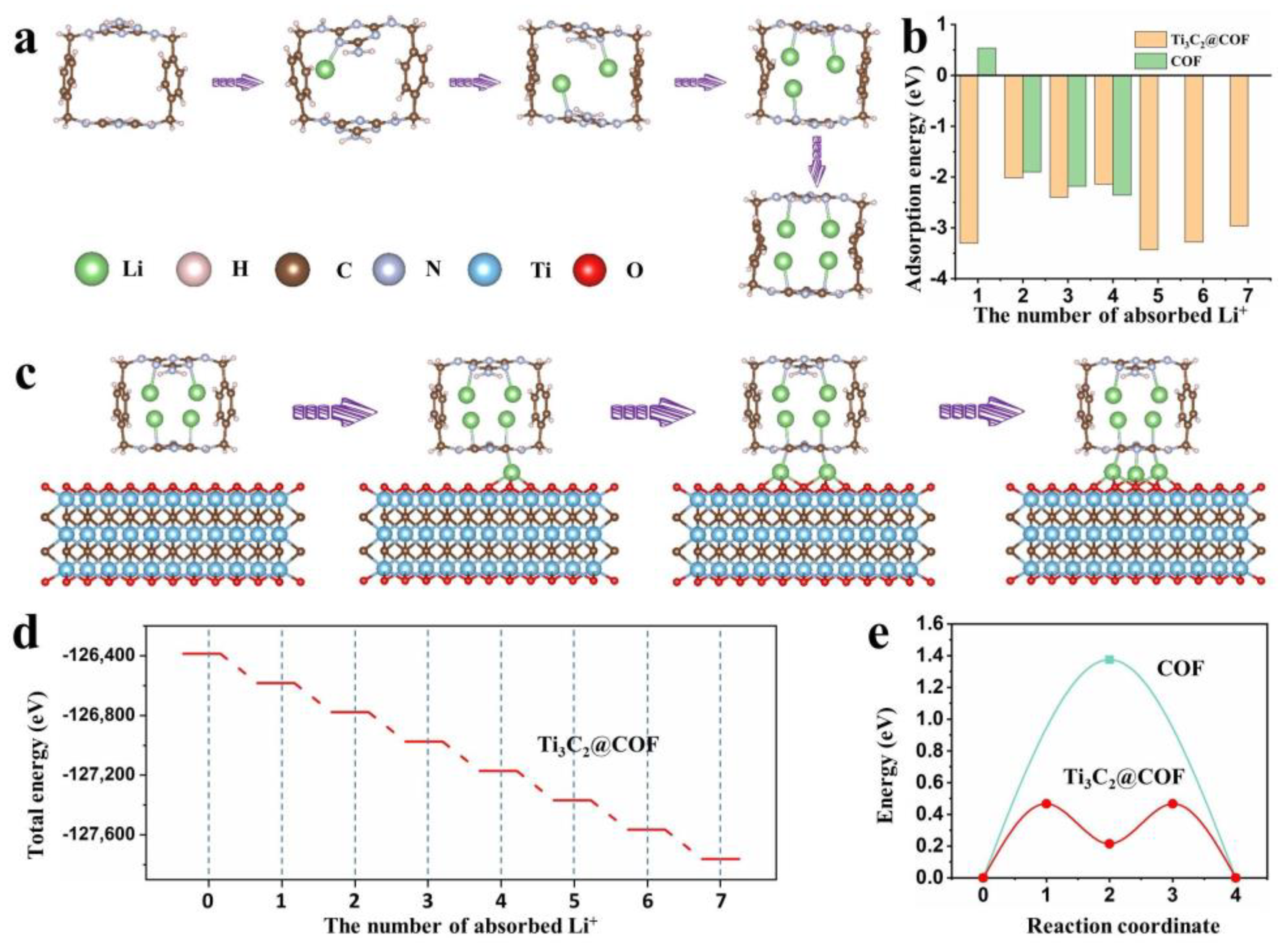

To better understand the redox mechanism of the Ti₃C₂@COF electrode, lithiated models of COF with four Li⁺ ions and Ti₃C₂@COF with seven Li⁺ ions were first simulated, and the adsorption energy, free energy, and total energy of Li⁺ ions in these models were calculated by DFT calculation, as shown in Figure 3. According to the calculated results, Li⁺ ions most prefer bonds with N or C atoms and insert into the 3D cavity structure of COF material, forming COF + 4Li. The structural evolution of COF with different numbers of Li⁺ ions during the lithiation procedure is shown in Figure 3a. The Ti₃C₂@COF composite could receive another 3Li⁺ ions at the interface of COF and Ti₃C₂ materials, and the structural evolution of Ti₃C₂@COF composite during the lithiation procedure is shown in Figure 3c. These results prove that the combination of 3D COF and Ti₃C₂ materials could offer more active sites to store Li⁺ ions. As shown in Figure 3b, the Ti₃C₂@COF shows smaller adsorption energy than that of pure COF. This reveals that the combination of COF and Ti₃C₂ could speed up Li adsorption in the COF, which will contribute to better rate performance. The free energy of the COF and Ti₃C₂@COF electrode with different insert numbers of Li⁺ ions was calculated and shown in Figure S6. During the discharge process, the Gibbs free energy of the COF electrode increases during the initial insertion of the first Li⁺, but subsequently decreases as more lithium ions are inserted. This indicates that the adsorption of Li⁺ ions on the active site of the COF is initially unstable, but becomes more stable with an increasing number of lithium ion insertions (Figure S6). It is surprising that the Gibbs free energy of the Ti₃C₂@COF electrode continuously decreases as Li⁺ ions are inserted during the discharge process. This indicates that Li⁺ ions can stably adsorb onto the composite material. This result demonstrates that the introduction of Ti₃C₂ enhances the stability of COF in Li⁺ storage (Figure S6c). The total energy for Ti₃C₂@COF is −1.263 × 10⁵ eV. The energies of the lithiation process for the 3D COF cavity and the heterojunction of COF and Ti₃C₂ decreased to −1.269 × 10⁵ and −1.277 × 10⁵ eV after inserting four and three Li⁺ ions (Figure 3d). The total energy shows a downward trend in the lithiation process for the Ti₃C₂@COF configuration indicating that Li adsorption on all these steps is thermodynamically favorable. Furthermore, the energy barrier for Li⁺ ion diffusion was calculated, as shown in Figure 3e. The calculated results confirm the low Li⁺ ions diffusion energy barrier of 0.46 eV on the interface of COF and Ti₃C₂, compared with a fresh COF electrode (1.37 eV). In summary, DFT calculation confirms that the Ti₃C₂ can enhance the lithium storage stability of COF electrodes, increase the lithium storage capacity of composite electrodes, and promote the rapid transfer of Li⁺ ions. Notably, the 3D COF layer grew on the amino-grafted Ti₃C₂ (Ti₃C₂–NH₂) surface via the covalent linking between the aldehydes and amino groups of the respective monomers to obtain a Ti₃C₂@COF nanoarchitecture. Therefore, the COF and Ti₃C₂ are connected by an amino group, which means there is a spacing for the amino group between COF and Ti₃C₂ composite. In the process of building the model, to simplify the configuration and accelerate the analysis process, we omitted the amino group and retained a gap between COF and Ti₃C₂, which is about 7 Å. In actual situations, there are some amino groups in the spacing between COF and Ti₃C₂, which would act as a barrier toward Li diffusion and affect the corresponding adsorption energies to some extent. However, the simplified configuration of COF and Ti₃C₂ shows a clear trend of promoting Li⁺ transport and enhancing lithium storage capacity, which is consistent with the electrochemical performance testing results of the Ti₃C₂@COF nanoarchitecture. Therefore, simplified configurations can to some extent reflect the actual situations of materials.

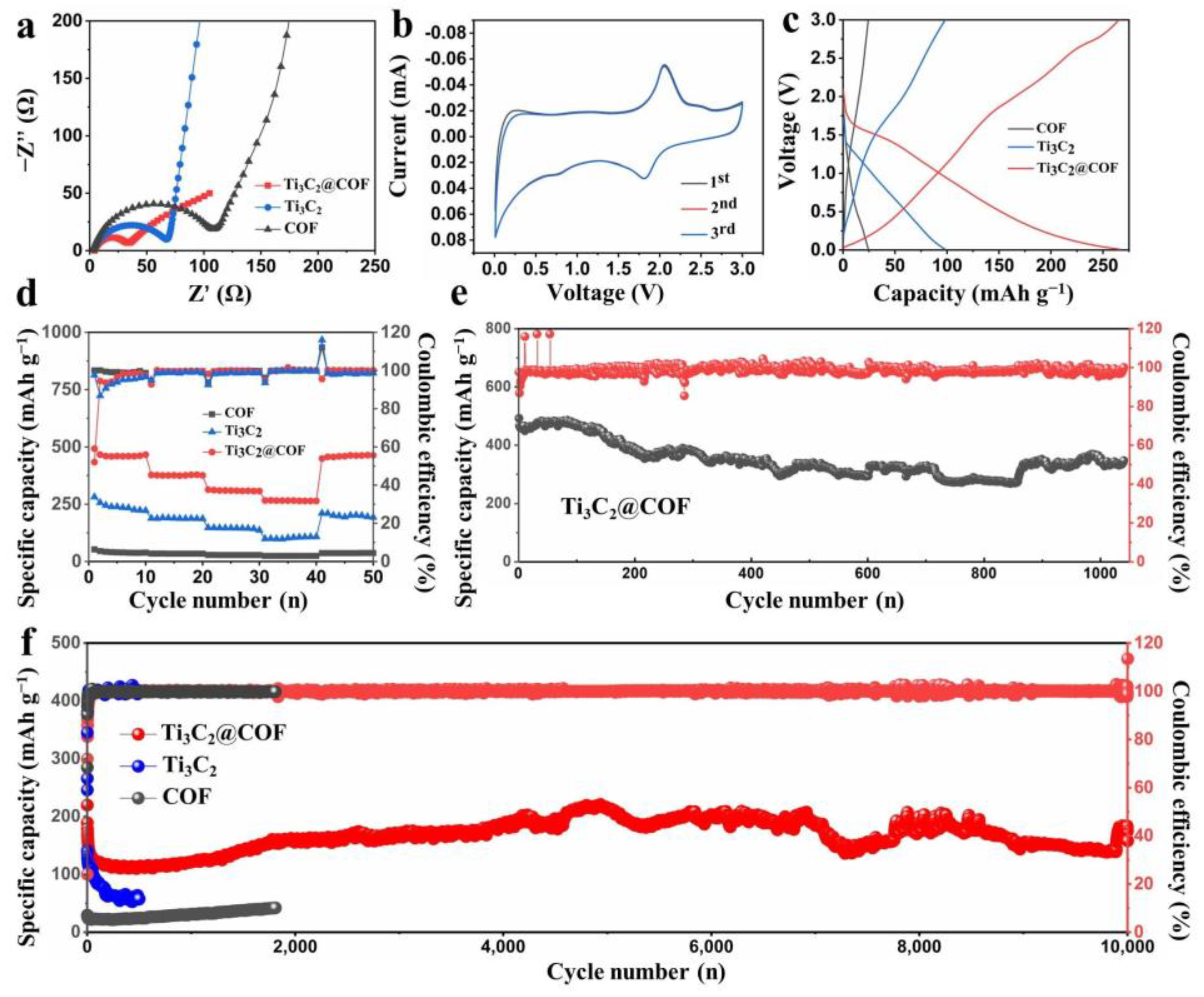

To illustrate the electrochemical performances of Ti₃C₂@COF composite, the EIS, CV, rate, and long-term cycle performance were investigated, as shown in Figure 4. The EIS results show that the Ti₃C₂@COF composite has lower charge transfer resistance than the pure Ti₃C₂ and COF electrodes, which is attributed to the combination of better electro-conductivity of Ti₃C₂ nanosheets and the unique 3D pore structure of COF (Figure 4a). Figure 4b and Figure S7 show the CV test of the Ti₃C₂@COF and COF, Ti₃C₂ electrode at 0.1 mV s⁻¹. The Ti₃C₂@COF electrode shows distinct redox peaks at 1.80 and 2.1 V which are assigned to the reversible lithiation/delithiation reactions. In particular, a prominent peak at 1.8 V during the discharge process of Ti₃C₂@COF is attributed to the lithium reaction with the C=N/C–N groups, while the peak at 0.7 V assigned to the insertion of Li⁺ ions into the heterojunction of Ti₃C₂ and COF materials. Figure S7a shows the CV curves of pure COF anode, the two peaks at 1.5 and 0.6 V ascribed to the reduction reaction of C=N and C–N with Li⁺. The CV curves of Ti₃C₂ display two peaks in the first cycle, which is ascribed to an irreversible reaction of the formation of a solid electrolyte interface (SEI) film on the electrode surface (Figure S7b). Compared with the Ti₃C₂@COF electrode, the COF electrode shows a weak CV-responsive signal and the Ti₃C₂ anode has too much irreversible capacity.

The specific capacities of prepared electrodes were tested using galvanostatic charge-discharge curves at 1 A g⁻¹, as demonstrated in Figure 4c. The 3D COF electrode only delivers a low capacity of 24 mAh g⁻¹, which is attributed to the low electrical conductivity and dense structure of the COF itself. The specific capacity of the Ti₃C₂ electrode is only 98 mAh g⁻¹. Such a low specific capacity can be attributed to the low-capacity nature of Ti₃C₂. Notably, the Ti₃C₂@COF anode delivers a high capacity of 266 mAh g⁻¹ at the same current density, indicating that more redox active sites of Ti₃C₂@COF are utilized due to the enhanced conductivity and more exposed 3D cavity structure. Then, the rate capability performance of COF, Ti₃C₂, and the Ti₃C₂@COF electrodes were investigated over the range from 0.1 to 1 A g⁻¹ (Figure 4d). For the Ti₃C₂@COF, average capacities of 490, 380, 312, and 266 mAh g⁻¹ can be obtained under 0.1, 0.2, 0.5, and 1 A g⁻¹, respectively. In addition, the capacity recovers to nearly 465 mAh g⁻¹ after the current density returns to 0.1 A g⁻¹, which suggests good electrochemical reversibility of Ti₃C₂@COF anode. However, the COF and Ti₃C₂ electrodes show low capacity and inferior rate performance. Further evidence for the electrochemical stability of Ti₃C₂@COF anodes is provided by the similarity in the shape of the charge/discharge curves. This indicates the absence of significant polarization and indirectly demonstrates the excellent transport properties of both Li ions and electrons within the Ti₃C₂@COF anodes, as shown in Figure S8. The long-term cycling performance of Ti₃C₂@COF anodes was further evaluated at 0.1 C, as shown in Figure 4d. It is worth noting that Ti₃C₂@COF anodes still have a high capacity of 355 mAh g⁻¹ even after 1000 cycles. Nevertheless, as can be seen in Figure 4e, the excellent cycling stability of Ti₃C₂@COF anodes is also verified by electrochemical measurements at high rates of 1 A g⁻¹, showing a high capacity of 180 mAh g⁻¹ even after 10,000 cycles, representing one of the best COF-based electrodes in LIBs in terms of both long cycling stability and high capacity.

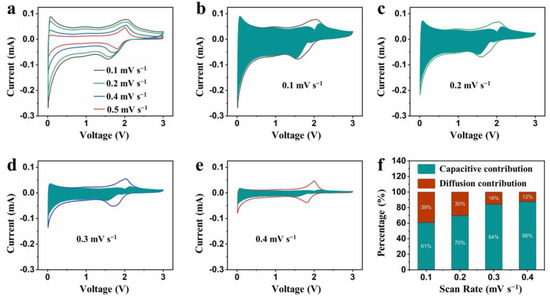

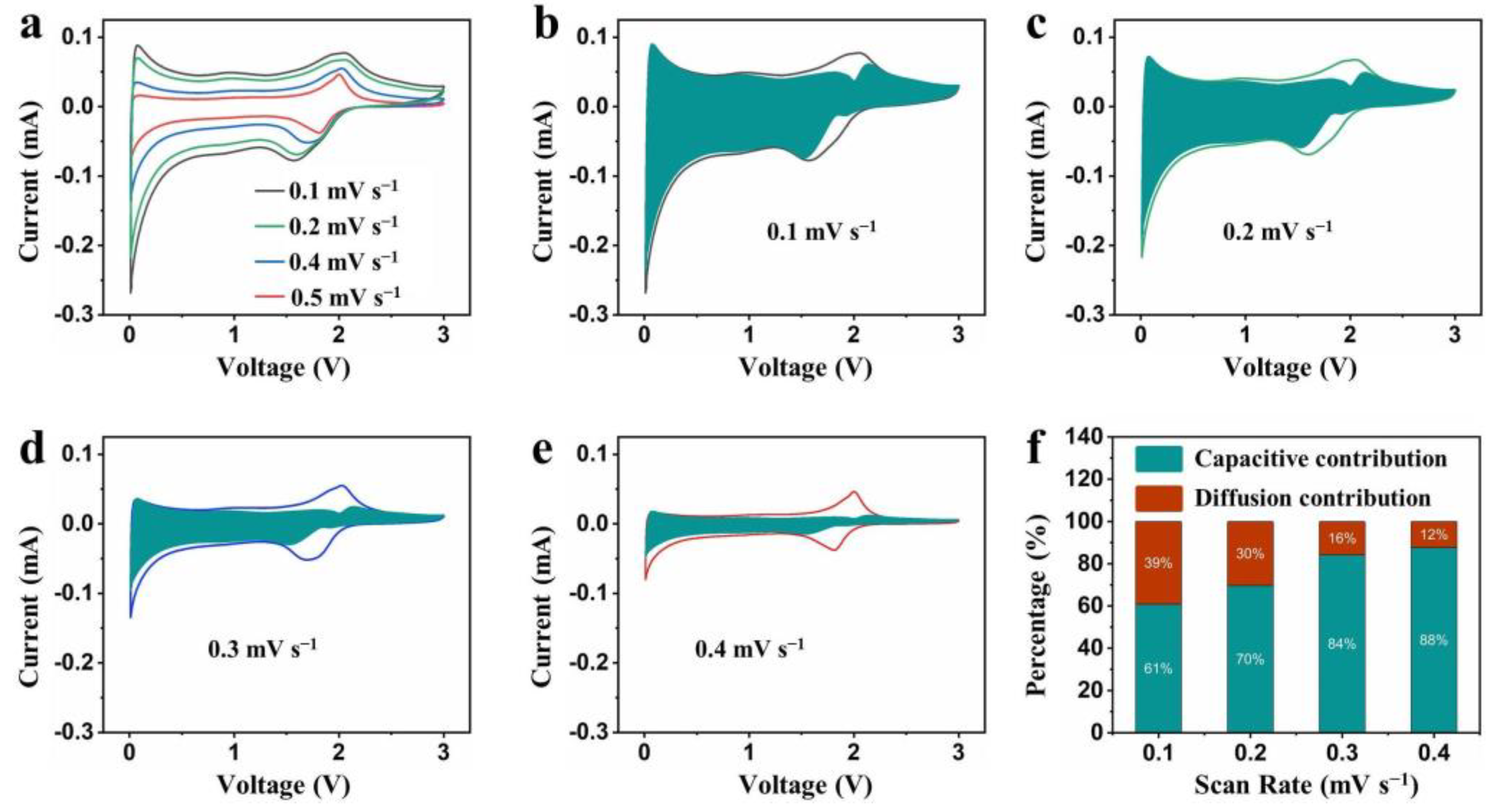

The CV test at 0.1–0.5 mV s⁻¹ was conducted to investigate the kinetic behavior of Li⁺ storage in the Ti₃C₂@COF anodes, as shown in Figure 5. Equations (1) and (2) were used to express the relationship between the peak current and the sweep rate. Here, i represents the peak current, v stands for the sweep rate, and a and b denote adjustable parameters.

I = av^b

(1)

log(i) = b log(v) + log(a)

(2)

i = k₁v + k₂v^1/2

(3)

We further utilize Cook’s analytical method to ascertain the collective impact of pseudo-capacitors across different sweep rates. The total current at a constant potential is segmented into a pseudocapacitive mechanism (k₁v) and an ion diffusion process (k₂v^1/2). The calculation of the pseudocapacitive contribution is determined by the following Equation (4).

i = k₁v + k₂v^1/2

(4)

As illustrated in Figure 5b–f, the proportion of the capacitive contribution increases as the scan rate increases. This suggests that the insertion/extraction of Li⁺ in the Ti₃C₂@COF electrode relied on a rapidly kinetic pseudocapacitive process, which improved the rate performance of the Ti₃C₂@COF electrode.

3. Materials and Methods

3.1. Preparation of Ti₃C₂ MXenes

To synthesize Ti₃C₂T_x MXene, the selective etching of aluminum from Ti₃AlC₂ is carried out. Firstly, 1 g of LiF is dissolved in 9 mol L⁻¹ hydrochloric acid. Then, 1 g of Ti₃AlC₂ is gradually added to the solution, and the mixture is stirred at 35 °C for 24 h. Afterward, the acidic suspension is washed with deionized water through centrifugation at 3500 rpm until the pH of the solution exceeds 6. Following the washing step, the suspension is subjected to ultrasonic dispersion for 2 h, ensuring a uniform dispersion. The mixture is then shaken and subjected to centrifugation, and the supernatant is collected for further use.

3.2. Synthesis of COF and Ti₃C₂@COF Composite

The next step involves adding 3−aminopropyl triethoxysilane (APTES) to the obtained suspension and stirring it for 12 h. The resulting precipitate is then washed several times with ethanol and ultrapure water. Subsequently, it undergoes freeze-drying to obtain amino−grafted Ti₃C₂. The functionalized Ti₃C₂ is then combined with a solution consisting of melamine (3.5 mg) and terephthalaldehyde (5.5 mg) dissolved in dimethyl sulfoxide (3 mL). This mixture is placed in a 20 mL autoclave and heated to 180 °C for 10 h. After cooling down to room temperature, the Ti₃C₂@COF composite is filtered and washed using acetone, tetrahydrofuran, and dichloromethane. The resulting powder, which appears white, is then dried overnight at a temperature of 45 °C in a vacuum oven. Furthermore, pure COF (Schiff base networks (SNW)) was synthesized using the same procedure but without Ti₃C₂ supernatant. Briefly, melamine (3.5 mg) and terephthalaldehyde (5.5 mg) were dissolved in dimethyl sulfoxide (3 mL) and placed in a 20 mL autoclave. Then, the mixture was heated to 180 °C for 10 h. The synthesis route and chemical structure of COF are shown in Figure S1 in the Supporting Information.

3.3. Materials Characterization

The surface morphology of the prepared samples was analyzed using scanning electron microscopy (SEM) equipped with energy-dispersive X-ray spectroscopy (EDS) analysis. For this analysis, a FE-SEM (JSM-7001F, JEOL Ltd., Tokyo, Japan) was utilized. Additionally, the samples were examined using transmission electron microscopy (TEM) analysis with a JEM-2100 TEM instrument (JEOL Ltd., Tokyo, Japan). To investigate the structural properties of the samples, X-ray diffraction (XRD) analysis was performed using a D8-ADVANCE instrument (Bruker, Billerica, MA, USA) with Cu Kα radiation. Fourier-transform infrared spectroscopy (FT-IR) spectra were recorded using a JASCO model FT IR-6100 infrared spectrometer (JASCO, Oklahoma City, OK, USA). For further characterization of the samples, X-ray photoelectron spectroscopy (XPS) analysis was conducted using a Thermo Scientific K-Alpha energy spectrometer (Thermo Fisher Scientific, Waltham, MA, USA). The nitrogen adsorption and desorption isotherms were analyzed using an ASAP 2460 instrument (Micromeritics Instrument Corporation, Norcross, GA, USA) at a temperature of 77 K.

3.4. Electrochemical Characterization

The electrochemical properties were conducted by a CR2016 coin-type cell in a glove box. The working electrodes were prepared by mixing 80 wt% active materials, 10 wt% Super P, and 10 wt% poly(vinylidene fluoride) (PVDF). Coin-type test cells were assembled in an argon-filled glove box with Li foil as the counter electrode, Celgard 2400 as the separator, and 1 M LiPF₆ in ethylene carbonate/dimethyl carbonate (EC/DMC vol 1:1) as the electrolyte. Cyclic voltammetry (CV) (0.01–3 V, 0.1 mV s⁻¹) and electrochemical impedance spectroscopy (EIS) (0.01–100,000 Hz, 5 mV) were conducted using a CHI660E electrochemical workstation.

3.5. DFT Calculations

All DFT calculations employing spin polarization were carried out using the Vienna Ab Initio Simulation Package (VASP 6.1.0) [46]. The Perdew–Burke–Ernzerhof (PBE) functional under the generalized gradient approximation (GGA) was employed to represent electron exchange-correlation, and the projector augmented wave (PAW) method was used to define the pseudo-potentials [47]. The structure model of COF is built from crystalline structures in the Inorganic Crystal Structure Database (ICSD) [48]. A 5 × 5 × 1 supercell of the Ti₃C₂O₂ (001) facet was utilized. The Brillouin zones were sampled using the Monkhorst–Pack scheme with a 3 × 3 × 1 k-point grid. The DFT-D3 correction with the Grimme scheme was applied to consider the dispersion interaction [49]. The energy profiles of the barrier for Li⁺ ion diffusion on the interface of COF and Ti₃C₂ and the surface of COF were simulated by the climbing-image nudged elastic band (CI-NEB) method implemented in the VASP [50]. In this work, the Ti₃C₂ is obtained by selectively etching Al element from the precursor Ti₃AlC₂ in a hydrofluoric acid-containing solution. This method inevitably introduces various content-uncontrollable terminations on the surface of Ti₃C₂, such as –O, –OH, and –F. Therefore, choosing Ti₃C₂O₂ as the structure model to simulate the lithiation procedures and Li⁺ diffusion in the Ti₃C₂@COF electrode is closer to the real environment, a more realistic reflection of the transport and embedding process of Li⁺ in electrodes.

The Li adsorption energy (E_ads) is calculated by the following Equation (5):

E_ads= (E_ta − E_tb − nE_{isolated Li})/n

(5)

where E_tb and E_ta are the total energies of COF (or Ti₃C₂@COF) and a Li-adsorbed COF (or Ti₃C₂@COF), respectively. E_{isolated Li} is the energies of an isolated Li atom and n is the number of adsorbed Li atoms.

4. Conclusions

In conclusion, a Ti₃C₂@COF electrode for LIBs was prepared by covalent bonding which possesses high surface areas and abundant pore channels, making it well-suited for storing and transferring Li ions. The unique structural advantages of 3D COFs, combined with the robust skeleton of Ti₃C₂, allow a Ti₃C₂@COF electrode to obtain high capacities, excellent rate performance, high utilization of the active site, and good cyclability. This represents one of the best overall performances among the COF-based electrodes reported thus far. The pathway for the storage of Li⁺ in the Ti₃C₂@COF electrode has been elucidated through a series of electrochemical analyses and DFT calculations. The Ti₃C₂-supported 3D COF nanosheets deliver a high specific capacity of 490 mAh g⁻¹ at 0.1 A g⁻¹ between 0.01–3 V, which could offer a much higher energy density than the commercial graphite anode. However, the preparation procedure of the Ti₃C₂@COF anode needs to be further improved and simplified, due to the complex preparation process of Ti₃C₂ nanosheets will increase the cost of large-scale production. This work would inspire a wide range of 3D COF designs for high-performance electrode materials. These results not only present a new 3D COF anode with better electrochemical performances but also provide a platform for designing and manufacturing high-performance electrode materials for energy storage.
