Diterpenoids from the Aerial Parts of Isodon serra with Selective Cytotoxic Activity

by
Siqin Li
1,
Fang Liang
1,
Dongdong Huang
1,
Huanling Wu
1,
Xiaohua Tan
1,
Jiang Ma
1,
Caihong Wei
1,
Shixiong Wang
1,
Ziying Huang
1,
Guang Yang
2,
Xin He
1,* and
Ji Yang
1,*
1
School of Traditional Chinese Materia Medica, Guangdong Pharmaceutical University, Guangzhou 510006, China
2
China Academy of Chinese·Medical Sciences, Beijing 100700, China
*
Authors to whom correspondence should be addressed.
Molecules 2024, 29(12), 2733; https://doi.org/10.3390/molecules29122733
Submission received: 11 May 2024 / Revised: 27 May 2024 / Accepted: 31 May 2024 / Published: 8 June 2024
Browse Figures
Versions Notes

Abstract

:
Four new diterpenoids, isodosins A–D (1–4), together with nine known compounds (5–13) were isolated and identified from the aerial parts of Isodon serra (Maxim.) Hara. The structures of the new diterpenoids were elucidated based on the analysis of HR-ESI-MS data, 1D/2D-NMR-spectroscopic data, and electronic circular dichroism (ECD) calculations. Cytotoxicities of compounds 2, 3, 5, 6, and 9 against the HepG2 and H1975 cell lines were evaluated with the MTT assay. As a result, compounds 2, 3, and 6 revealed higher levels of cytotoxicity against HepG2 cells than against H1975 cells. Moreover, compund 6 demonstrated the most efficacy in inhibiting the proliferation of HepG2 cells, with an IC50 value of 41.13 ± 3.49 μM. This effect was achieved by inducing apoptosis in a dose-dependent manner. Furthermore, the relationships between the structures and activities of these compounds are briefly discussed.

1. Introduction

Hepatocellular carcinoma (HCC), which is the most common primary tumor of the liver, is ranked as the third most common cause of cancer death in 46 countries, thus remaining a global health challenge [1,2]. The number of new cases and deaths from HCC is predicted to rise by more than 55% from 2020 to 2040, resulting in 1.3 million fatalities in 2040 [1]. The risk of developing HCC has been associated with multiple factors, including chronic viral infections [3], alcohol consumption [4], and exposure to various chemicals [5]. The development of chemotherapy has positively influenced the treatment of HCC and offers a substantial improvement in patient survival [6] from drugs such as Sorafenib, 5-Fluorouracil, and Cisplatin [7]. However, the main limitation of the chemotherapeutic modality is their non-specificity and their inability to identify and target cancerous cells directly [8,9]. The administration of anti-HCC chemotherapeutics often necessitates the utilization of delivery systems to ensure targeted drug delivery, thereby minimizing systemic side effects [7,10]. Consequently, medicinal chemists have been making efforts to find potential chemotherapeutic agents with high selectivity and low toxicity effects over the past several decades [11].
Natural products (NPs) from medicinal plants play a crucial role in the exploration of new drugs for cancer therapy [12]. Among the different types of NPs, diterpenoids have attracted considerable interest on account of their promising anti-cancer effects and modifiable skeleton, including NPs such as Taxol and Ingenol 3-angelate [13,14,15,16,17]. Recently, researchers have discovered a series of diterpenoids from medicinal plants with selective anti-cancer activities and have proved that those diterpenoids could induce apoptosis, autophagy, and metastasis suppression in cancer cells via the inhibition of Akt [18,19,20]. These findings suggest that the isolation of more diterpenoids with selective cytotoxic activities from medicinal plants could make a substantial contribution to the progress of anti-cancer drugs [21].
Isodon serra (Maxim.) Hara, a perennial plant belonging to the family of Labiatae, is commonly used as a folk medicine for the treatment of acute jaundice, hepatitis, and acute cholecystitis [22,23,24]. Previous phytochemical studies on I. serra have led to the isolation and identification of over 90 ent-kaurane diterpenoids, which are characterized by a perhydrophenanthrene subunit (A, B, and C rings) and a cyclopentane ring (D ring) [25]. Pharmacological investigations have been conducted to highlight the therapeutic potential of ent-kaurane compounds isolated from I. serra against various cancers such as liver [22,26], colon [27,28], lung [29], muscle-invasive bladder [30], and human nasopharyngeal carcinoma [31] cancer. In an effort to search for diterpenoids with anti-liver cancer bioactivity from I. serra, the petroleum ether fraction of this plant was chemically investigated.
In this study, four new diterpenoids (1–4) and nine known ones (5–13) were isolated and characterized (Figure 1). Compounds 2, 3, and 6 demonstrate high selectivity towards HepG2 cells over H1975 cells, which could be attributed to the presence of a double bond at C-2 and C-3 or the hydroxy groups at C-6 and C-15. Furthermore, compound 6 exhibited a dose-dependent induction of apoptosis in HepG2 cells.

2. Results and Discussion

2.1. Isolation and Identification of Diterpenoids from I. serra

Compound 1 was acquired as a white powder with a molecular formula of C24H30O7, as determined by the HR-ESI-MS ion at m/z 453.1888 [M + Na]+ (calculated for C24H30O7Na, 453.1884), corresponding to ten degrees of unsaturation. The IR absorptions at 2927, 1736, and 1579 cm−1 suggested the presence of hydroxy, carbonyl, and double bond functionalities, respectively (Figure S8). Its 1H NMR spectrum (Table 1) showed four methyl singlets at δH 0.92 (s), 1.10 (s), 2.21 (s), and 2.08 (s); two protons of oxygenated methylene at δH 4.10 (d, J = 9.9 Hz) and 3.98 (dd, J = 9.9, 3.0 Hz); two protons of oxygenated methines at δH 5.14 (d, J = 7.1 Hz) and 5.90 (t, J = 2.1 Hz); and four olefinic protons at δH 4.86 (brs) and 5.00 (d, J = 2.0 Hz), 5.58 (dd, J = 2.4, 10.0 Hz), and 6.37 (m). The 13C, DEPT, and HSQC NMR spectra of compound 1 gave 24 carbon signals comprising four methyls, five methylenes, seven methines, and eight quaternary carbons (Table 1), which was consistent with a skeleton of a 7, 20-epoxy-ent-kaur-16-en-1-one [24,25,26,32,33]. The signals at δC 170.3, 21.9, 173.8, and 21.0, along with methyl singlets (δH 2.20 and 2.08), indicated the presence of two acetoxy groups. The two acetyl groups were assigned to C-6 and C-15 by the HMBC correlations from H-6 (δH 5.14) and δH 2.08 to δC 170.3 and H-15 (δH 5.90) and δH 2.20 to δC 173.8, respectively. The carbonyl (δC 211.0) was placed at C-1 by the HMBC correlations of H-2/H-3/H-20 with carbonyl (Figure 2). The NMR information from compound 1 suggests that it is very similar to maoecrystal D (5) [34], except that the two methines of C-11/C-12 (δC 17.2 and 31.8) in maoecrystal D (5) were replaced by a double bond (δC 124.3 and 138.0) in compound 1. This hypothesis was confirmed by the 1H-1H COSY correlations of H-10/H-11/H-12/H-13 and the HMBC correlations of H-13/H-14 with C-12 and H-9/H-12 with C-11(Figure 2). Furthermore, the hydroxyl group at C-6 was assigned a β-orientation based on the NOESY correlations of H-6 with C-19 and C-18. The NOESY cross-peak of H-15/H-13, as well as the small coupling constant of H-15 (δH 5.90, t, J = 2.1 Hz), suggested a β-orientation of the acetoxy group at C-15 (Figure 3). The absolute configuration of (5R,6S,7S,8S,9S,10S,13S,15R)−1 was determined by performing ECD calculations. The calculated ECD curve exhibited identical Cotton effects (CEs) to those observed in the experimental curve (Figure 4). Consequently, the structure of 1 was characterized as 6β,15β-diacetoxy-7α,20-epoxy-ent-kaur-16-en-1-one, which has been named isodosin A.
Compound 2, a white powder, gave a molecular formula of C20H28O5 based on its HR-ESI-MS ion at m/z 349.2011 [M + H]+ (calculated for C20H29O5, 349.2010), corresponding to seven degrees of unsaturation. The 1H and 13C NMR data of compound 2 (Table 1) closely resembled those of maoecrystal D (5) [34], and the major difference was that the acetyl groups (δC 173.6, 170.1, 21.0, and 22.0) at C-6/C-15 in maoecrystal D (5) had disappeared in compound 2. This hypothesis was confirmed by HMBC correlations from H-6 to C-4/C-5/C-7/C-8, and from H-15 to C-9/C-7/C-17/C-16 (Figure 2). The crucial NOESY cross-peak of H-6/H-20 and H-15/H-13 suggested β-orientations of the hydroxyl groups at C-6 and C-15 (Figure 3). The ECD curve of compound 2 showed a positive Cotton effect at 203 nm and 297 nm, which was consistent with the calculated ECD spectrum of (5R,6S,7S,8S,9S,10S,13R,15R)−2 (Figure 4). Accordingly, the absolute configuration of compound 2 was determined as 5R,6S,7S,8S,9S,10S,13R,15R. Thus, the structure of compound 2 was characterized as 6β,15β-diahydroxyl-7α,20-epoxy-ent-kaur-16-en-1-one, which has been named isodosin B.
Compound 3 had a molecular formula of C24H32O7 as deduced based on HR-ESIMS data (m/z 433.2224 [M + H]+, calculated for C24H33O7, 433.2221), with nine degrees of unsaturation. The 1H and 13C NMR data of 3 (Table 1) were superimposable on those of Parvifolin G [26]. Carefully comparing their 1D NMR spectrum indicated that the oxygenated methine (C-1) in Parvifolin G was replaced as methylene (δC 30.3) in compound 3, and the acetyl group (δC 169.2 and 21.6) at C-1 of Parvifolin G was absent in compound 3 [26]. Then, the 2D structure of compound 3 was determined by 1H-1H COSY and HMBC NMR data analysis (Figure 2). In the NOESY spectrum, correlations of H-11/H-5 and H-15/H-13 indicated the α-orientation of OAc-11 and β-orientation of OAc-15. The absolute configuration of compound 3 was determined as 5R,7S,8S,9S,10R,11R,13S,15R by employing ECD calculations (Figure 4). Thus, the structure of compound 3 was formulated as 11α,15β-diacetoxy-7α,20-epoxy-ent-kaur-16-en-6-one, and it has been named isodosin C.
Compound 4 was obtained as a white amorphous powder. The HR-ESI-MS of 4 exhibited a [M + H]+ peak at 305.2471 (calculated 305.2475), which suggested a molecular formula of C20H32O2, indicating five degrees of unsaturation. Its IR spectrum had absorption bands at 3392, and 1594 cm−1, accounting for the presence of hydroxyl and double bond functionalities (Figure S38). The 1H NMR data of 4 (Table 1) showed three singlet methyl signals, at δH 0.81 (3H, s), 0.89 (3H, s), and 1.00 (3H, s) and four olefinic protons at δH 4.12 (2H, s), 4.88 (1H, s) and 5.03 (dd, J =1.5, 2.4 Hz). The 13C NMR and DEPT 135 spectra of 4 (Table 1) revealed 20 carbons, including three methyls (δC 28.4, 15.6, 15.0), eight methylenes (δC 37.9, 27.4, 23.0, 25.9, 31.6, 40.8, 65.2, and 107.8), five methines (δC 120.4, 79.3, 49.9, 52.3, and 41.2) and four quaternary carbons (δC 153.6, 38.6, 35.3, and 136.8). The 1H and 13C NMR data of compound 4 were superimposable on those of ent-abieta-7,15(17)-diene-3β,16,18-triol [35,36,37], except that the oxygenated methylene methyl at δC 68.0 in ent-abieta-7,15(17)-diene-3β,16,18-triol was reduced to a methyl (δC 28.4) in compound 4, which was confirmed by HMBC correlations from H-18 to C-3/C-4/C-5. The hydroxyl group at C-3 was assigned an α-orientation from the NOESY interactions of H-3/H-5 (Figure 3). Furthermore, the absolute configuration of (3R,5S,9R,10S,13R)−4 was determined using ECD calculations (Figure 4). Thus, the structure of compound 4 was determined as ent-abieta-7,15(17)-diene-3α,16-triol, which has been named isodosin D.
The known compounds were identified by comparison of their spectroscopic data with those reported in the literature as maoecrystal D (5) [34], odonicin (6) [38], enmenin monoacetate (7) [39], maoecrystal E (8) [40], shikokianal acetate (9) [41], longikaurin E (10) [42], nervosanin A 1-acetate (11) [43], effusanin B (12) [44], and taibaihenryiin B (13) [45].

2.2. Compounds Isolated from I. serra Were Selectively Toxic toward HepG2 over H1975 Cells

The global prevalence of HCC is increasing, posing a significant challenge to public health [46]. Chemotherapy has emerged as a well-established therapeutic approach in cancer treatment, offering potential relief from the disease burden. The superior efficacy and safety profile of targeted therapeutic drugs, in comparison to traditional chemotherapy, has established them as the prevailing modality for cancer treatment [8]. I. serra is a proven source of diterpenoid-containing natural products that often have anti-cancer activity [28].
In consideration of the anti-cancer activity of ent-kaurane diterpenoids, the main compounds 2, 3, 5, 6, and 9 were evaluated for their cytotoxic activities against two human cancer cell lines (HepG2 and H1975) by an MTT method. As shown in Figure 4, it is noteworthy that compounds 2, 3, and 6 exhibited significant inhibitory effects against HepG2 cells while displaying limited cytotoxic activity against H1975 cells. Compound 6 exhibited strong inhibition effects (IC50 = 41.13 ± 3.49 μM) on HepG2 cells, whereas compounds 2 and 3 demonstrated potent cytotoxic activity, displaying IC50 values of 121.33 ± 17.54 μM and 96.44 ± 9.52 μM, respectively. In contrast, compounds 5 and 9 exhibited relatively weak cytotoxic activity against HepG2 cells. Importantly, the tested compounds exhibited limited cytotoxic activity against H1975 cells (Figure 5). These results suggest a compelling structure–activity relationship (SAR) involving the cyclopentanone core. In the present study, the weak inhibition effect of compound 9 suggested that the cleavage of the C-6-C-7 could decrease its cytotoxicity. Antitumor activity is enhanced by a hydroxy group at C-6 and C-15, which was supported by the fact that compound 2 was more effective than compound 5 [32]. Moreover, the antitumor activity is enhanced by the presence of a double bond at C-2 and C-3, as was demonstrated by the superior efficacy of compound 6 compared to compound 5. The presence of substantial evidence suggests that modifying or altering its conformation, such as introducing a fluorine atom, can significantly enhance anti-HCC activity [47]. The compounds with the highest potency, or those exhibiting moderate efficacy possess multiple sites available for modification, and the development of their derivatives could potentially enhance anti-HCC activity.

2.3. Compound 6 Selectively Induced Apoptosis in Two Human Cancer Cell Lines

Apoptosis is essential for maintaining a delicate equilibrium between cell death and proliferation [48]. Evasion of apoptosis results in uncontrolled cell multiplication, thereby contributing to various diseases such as cancer [49]. The cytotoxic results have demonstrated that compound 6, the primary compound in the PE part, exhibited the highest efficacy in suppressing the proliferation of HepG2 cells. PI staining was conducted to assess whether its cytotoxicity was caused by apoptosis. As shown in Figure 6a,b, HepG2 cells treated with compound 6 displayed a significant dose-dependent increase in the percentage of apoptotic cells compared to that in the control group. Meanwhile, compound 6 induced a higher level of apoptosis in HepG2 cells than in H1975 cells, indicating that the effect was not cell-type dependent (Figure 6c,d).
Targeting the apoptotic pathway presents a compelling strategy for the discovery of novel anti-HCC therapies, as evading apoptosis is a hallmark of cancer [50]. The present study conducted an unprecedented investigation into the cytotoxicity of compound 6 in inducing apoptotic cell death in HepG2 and H1975 cells. Moreover, this data indicated the potential of compound 6 as a promising targeted-anti-liver-cancer candidate by selectively inducing cell death in liver cancer cells.

3. Materials and Methods

3.1. General Experimental Procedures

Optical rotations were measured with a Rudolph Research Analytical Autopol I automatic polarimeter. Ultraviolet (UV) was recorded on a Yokechina double-beam ultraviolet-visible spectrophotometer. IR spectra analyses were performed on a Bruke TENSOR37 infrared spectrometer (KBr). HR-ESI-MS spectra analyses were performed on an Agilent 1290 Infinity LC and Agilent 6530 Q-TOF mass spectrometer (Agilent, Palo Alto, CA, USA). 1D and 2D NMR spectra were taken on a Bruker Ascend 600 NMR spectrometer with TMS as an internal reference. Column chromatography (CC) was performed on a silica gel (80–100 mesh, Huanghai, China) column. Ultra Performance Liquid Chromatography (UPLC) was performed on the Waters XSelect Premier HSS T3 column (100 mm × 2.0 mm, 2.2 μm). Medium-pressure liquid chromatography (MPLC) was performed on a RUIHE LC-2100 liquid chromatography instrument with an RP-18 column (YMC C18, 46 × 600 mm, 40–60 μm particle size). Semi-preparative HPLC was conducted on a RUIHE LC-2010 liquid chromatography instrument with a Waters Xbridge Prep C18 column (10 × 250 mm, 5 μm) or XSelect Prep C18 column (10 × 250 mm, 5 μm).
Ethanol, petroleum ether, and ethyl acetate were acquired from Ghtech (Guangzhou, China). The HPLC-grade solvents (methanol and acetonitrile) were obtained from Thermo Fisher Scientific (Suwanee, GA, USA). Deuterated chloroform (CDCl3) was purchased from Macklin (Shanghai, China). 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) was purchased from Solarbio (Beijing, China). Phosphate buffer saline (PBS), Dulbecco’s modified Eagle medium (DMEM), RPMI-1640, 0.25% Trypsin-Ethylene diamine tetraacetic acid (EDTA) solution, and penicillin-streptomycin solution were purchased from Servicebio (Wuhan, China). Fetal bovine serum (FBS) was obtained from Gibco (Waltham, MA, USA).

3.2. Plant Materials

The aerial parts of I. serra were collected from the Qingyuan City of Guangdong Province, People’s Republic of China, in October 2021 and identified by one of the authors, Dr. Ji Yang. The voucher specimen (IS-2021-10) was stored at the School of Traditional Chinese Materia Medica Guangdong Pharmaceutical University.

3.3. Extraction and Isolation

The air-dried aerial part of I. serra (80 kg) was extracted by reflux with 80% EtOH three times (320 L). After evaporation, the ethanol extract (EE) was partitioned sequentially with petroleum ether (PE), ethyl acetate (EA), and aqueous solution (AS). The partial PE fraction (300 g) was subjected to silica gel CC with PE:EtOAc:MeOH (100:0:0→0:100:0→0:0:100) to provide four selected fractions (Fr. A–D). Subsequently, Fr. A (7.29 g) was further separated by MPLC and eluted with a stepwise gradient elution of MeOH−H2O (15:85→100:0, v:v) to yield four subfractions, Fr.A1–A4. Then, Fr.A1 was isolated by MPLC and eluted with MeOH–H2O (45:55→100:0, v:v) to obtain two subfractions (Fr.A1-a and A1-b). Fr.A1-a was purified using semi-preparative HPLC to afford compounds 1 (1.26 mg) and 5 (103.2 mg) using a mobile phase of MeOH−H2O (40:60). Similarly, compounds 3 (6.39 mg) and 7 (1.33 mg) were isolated from Fr.A1-b via semi-preparative HPLC (MeOH−H2O, 65:35). Fr.A2 was separated with semi-preparative HPLC (MeOH−H2O, 55:45) to obtain compound 2 (5.91 mg). Following, Fr.A3 was subjected to an MPLC protocol using the eluent of MeOH−H2O (40:60→100:0, v:v) to provide Fr.A3-a and Fr.A3-b. Compound 8 (2.46 mg) was purified from Fr.A3-a by sim-PHPLC with a mobile phase of MeOH−H2O (58:42). Fr.A3-b was further fractionated using semi-preparative HPLC with a mobile phase of (MeOH−H2O, 75:25) to give compound 4 (1.35 mg). Compounds 6 (765.21 mg) and 9 (42.50 mg) were acquired using recrystallization from Fr. B and Fr. C, respectively. The residue of Fr. C (3.67 g) was fractionated using MPLC with a gradient of MeOH−H2O (15:85→100:0, v:v) to give two subfractions (Fr.C1 and Fr.C2). Then Fr.C1 was separated by MPLC eluted with MeOH−H2O (65:35, v:v), which was repurified by semi-preparative HPLC with a mobile phase of MeOH−H2O (54:46) to yield compounds 10 (3.76 mg) and 13 (2.67 mg). Fr.C2 was further purified by semi-preparative HPLC with a mobile phase of MeOH−H2O (60:40) to give compounds 11 (3.11 mg) and 12 (2.89 mg).
Isodosin A (1): White amorphous powder; [α ] D 20.7 − 49.10 (c = 0.5, MeOH); UV (MeOH) λmax (log ε) 219 (6.39), 274 (2.66); IR (KBr) νmax: 3435, 2927, 1736, 1579, 1373, 1245, 1054 cm−1; 1H and 13C NMR, see Table 1; HR-ESI-MS m/z 453.1888 [M + Na]+ (calculated for C24H30O7Na, 453.1884).
Isodosin B (2): White amorphous powder; [α ] D 23.3 − 168.48 (c = 0.5, MeOH); UV (MeOH) λmax (log ε) 212 (3.29), 296(1.95); IR (KBr) νmax: 3421, 2929, 1698, 1372, 1246, 1081cm−1; 1H and 13C NMR, see Table 1; HR-ESI-MS m/z 349.2011 [M + H]+ (calculated for C20H29O5, 349.2010).
Isodosin C (3): White amorphous powder; [α ] D 21.5 + 75.53 (c = 0.5, MeOH); UV (MeOH) λmax (log ε) 208 (3.03), 219 (2.58), 310 (2.04); IR (KBr) νmax: 2918, 1734, 1373, 1228, 1055 cm−1; 1H and 13C NMR, see Table 1; HR-ESI-MS m/z 433.2224 [M + H]+ (calculated for C24H33O7, 433.2221).
Isodosin D (4): White amorphous powder; [α ] D 21.3 − 19.41 (c = 0.3, MeOH); UV (MeOH) λmax (log ε) 210 (3.02), 235 (2.52), 300 (1.96); IR (KBr) νmax: 3392, 2929, 2360, 1594, 1456, 1260, 1029, 800 cm−1; 1H and 13C NMR, see Table 1; HR-ESI-MS m/z 305.2471 [M + H]+ (calculated for C20H33O2, 305.2475).

3.4. ECD Calculations

The conformational analyses were performed using random searching in Spartan 16 (Wavenfunction, Irvine, CA, USA, 2016) employing the MMFF94 force field. Subsequently, the conformers were re-optimized using DFT at the B3LYP/6-31G(d,p) level and utilizing the polarizable conductor calculation model (SMD) provided by the Gaussian 09 program. The energies, oscillator strengths, and rotational strengths (velocity) of conformers with a Boltzmann distribution greater than 1% were calculated using TDDFT methodology at the B3LYP/6-311+g(d,p) level in MeOH. The ECD spectra were simulated by convolving Gaussian functions (half bandwidth at 1/e peak height, sigma ¼ 0.30 for all). The final spectra were obtained by averaging the simulated spectra of each conformer based on Boltzmann distribution theory and their relative Gibbs free energy (ΔG) values.

3.5. Cell Lines and Cell Culture

Human hepatocellular carcinoma HepG2 and H1975 cell lines were obtained from the American Type Culture Collection (ATCC, Manassas, VA, USA). HepG2 cells were cultured in DMEM medium supplemented with 10% FBS and 1% antibiotics (penicillin and streptomycin) in an incubator containing 5% CO2 at 37 °C. H1975 cells were grown in RPMI 1640 medium containing 10% (v/v) FBS and 1% antibiotics in a cell incubator with 5% CO2 at 37 °C.

3.6. Cytotoxicity Assay

Cytotoxicities of the main compounds (2, 3, 5, 6, and 9) against HepG2 and H1975 cell lines were evaluated with the MTT assay as described in the literature [32]. Briefly, HepG2 or H1975 cells (5 × 103 cells/well) were cultured in 96-well plates. After seeding and incubating for 24 h, the cells were treated with the compounds at various concentrations (0, 25, 50, and 100 μM) for 24 h. After this treatment, MTT solution was added and the cells were incubated for 4 h at 37 °C in an atmosphere of 5% CO2. DMSO was added to dissolve the formazan after the supernatant medium was removed. Finally, absorbance was detected at 570 nm using a Multiskan SkyHigh Spectrum (Thermo Scientific™, Waltham, MA, USA).

3.7. Analysis of Apoptosis by PI Staining

HepG2 and H1975 cells (1.5 × 105 cells/well) were plated in 6-well plates and treated with compound 6 at 0, 20, 40, 60, 80, or 100 μM for 24 h. The cells were subsequently collected, re-suspended in 70% ethanol, and fixed at 4 °C for 30 min. Cells were centrifuged at 1000 rpm for 5 min to separate the supernatant. Each cell pellet was stained in 300 μL propidium iodide (PI) (50 μg/mL) staining solution at 37 °C for 30 min in the dark. Finally, the cells were washed twice with PBS and measured using flow cytometry (Beckman Coulter, CytoFLEX, Indianapolis, IN, USA).

3.8. Statistical Analysis

All values presented in the figures, tables, and text are presented as means ± SD. Statistical analysis was performed with a one-way analysis of variance (ANOVA) test using GraphPad Prism, Version 8.2.1 (GraphPad Software, Inc., San Diego, CA, USA). p < 0.05 was considered statistically significant.

4. Conclusions

In conclusion, a total of 13 diterpenoids (1–13) were isolated from the aerial parts of I. serra. Among them, compounds 1–3 were identified as new ent-kaurane diterpenoids, and compound 4 was identified as a new ent-abietane diterpenoid. Compounds 2, 3, and 6 demonstrate high selectivity towards HepG2 cells over H1975 cells. Moreover, compound 6 demonstrated a significant induction of apoptotic cell death specifically in HepG2 cells compared to H1975 cells. Our results suggest that compound 6 might be a highly promising lead candidate for targeted anti-liver cancer therapy by inducing apoptotic cell death. Overall, the findings of our study have significantly expanded the structural diversity of secondary metabolites derived from I. serra and provided evidence for the potential use of these diterpenoids in HCC treatment.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/molecules29122733/s1. Physical and spectral data of 1–13 with citation.

Author Contributions

Conceptualization, S.L.; methodology, S.L. and F.L.; software, S.L. and D.H.; validation, C.W. and S.W.; formal analysis, S.L. and H.W.; investigation, S.L., Z.H. and X.T.; resources, G.Y.; data curation, S.L. and H.W.; writing—original draft preparation, S.L.; writing—review and editing, S.L. and J.M.; supervision, G.Y.; project administration, X.H. and J.M.; funding acquisition, J.Y. and G.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Science and Technology Planning Project of Guangzhou (Grant No. SL2022A04J00771, SL2023A04J02377), the Scientific Research Projects of Guangdong Provincial Bureau of Traditional Chinese Medicine (Grant No. 20241168, 20231206), the Medical Scientific Research Foundation of Guangdong Province (Grant No. A2024479), the Guangdong Basic and Applied Basic Research Foundation (Grant No. 2022A1515110678), the National Natural Science Foundation of China (Grant No. 82304859), the Key Research and Development Program of Shanxi (Grant No. 2021ZDLSF04-03), and the CACMS Innovation Fund (Grant No. CI2021A03907).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article and Supplementary Materials.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Rumgay, H.; Arnold, M.; Ferlay, J.; Lesi, O.; Cabasag, C.J.; Vignat, J.; Laversanne, M.; McGlynn, K.A.; Soerjomataram, I. Global burden of primary liver cancer in 2020 and predictions to 2040. J. Hepatol. 2022, 77, 1598–1606. [Google Scholar] [CrossRef] [PubMed]
  2. Sun, L.; Yang, Y.; Li, Y.; Zhang, B.; Shi, R. The past, present, and future of liver cancer research in China. Cancer Lett. 2023, 574, 216334. [Google Scholar] [CrossRef] [PubMed]
  3. Cao, M.; Fan, J.; Lu, L.; Fan, C.; Wang, Y.; Chen, T.; Zhang, S.; Yu, Y.; Xia, C.; Lu, J.; et al. Long term outcome of prevention of liver cancer by hepatitis B vaccine: Results from an RCT with 37 years. Cancer Lett. 2022, 536, 215652. [Google Scholar] [CrossRef] [PubMed]
  4. Matsushita, H.; Takaki, A. Alcohol and hepatocellular carcinoma. BMJ Open Gastroenterol. 2019, 6, e000260. [Google Scholar] [CrossRef] [PubMed]
  5. Jiang, Y.; Han, Q.; Zhao, H.; Zhang, J. The Mechanisms of HBV-Induced Hepatocellular Carcinoma. J. Hepatocell. Carcinoma 2021, 8, 435–450. [Google Scholar] [CrossRef] [PubMed]
  6. Le Grazie, M.; Biagini, M.R.; Tarocchi, M.; Polvani, S.; Galli, A. Chemotherapy for hepatocellular carcinoma: The present and the future. World J. Hepatol. 2017, 9, 907–920. [Google Scholar] [CrossRef] [PubMed]
  7. Shaaban, S.; Negm, A.; Ibrahim, E.E.; Elrazak, A.A. Chemotherapeutic agents for the treatment of hepatocellular carcinoma: Efficacy and mode of action. Oncol. Rev. 2014, 8, 246. [Google Scholar] [CrossRef] [PubMed]
  8. Debela, D.T.; Muzazu, S.G.; Heraro, K.D.; Ndalama, M.T.; Mesele, B.W.; Haile, D.C.; Kitui, S.K.; Manyazewal, T. New approaches and procedures for cancer treatment: Current perspectives. SAGE Open Med. 2021, 9, 20503121211034366. [Google Scholar] [CrossRef] [PubMed]
  9. Dey, A.; Chandel, A.K.S.; Sanyal, R.; Mishra, A.; Pandey, D.K.; De Falco, V.; Upadhyay, A.; Kandimalla, R.; Chaudhary, A.; Dhanjal, J.K.; et al. Cancer chemotherapy and beyond: Current status, drug candidates, associated risks and progress in targeted therapeutics. Genes Dis. 2023, 10, 1367–1401. [Google Scholar] [CrossRef]
  10. Abotaleb, M.; Kubatka, P.; Caprnda, M.; Varghese, E.; Zolakova, B.; Zubor, P.; Opatrilova, R.; Kruzliak, P.; Stefanicka, P.; Büsselberg, D. Chemotherapeutic agents for the treatment of metastatic breast cancer: An update. Biomed. Pharmacother. 2018, 101, 458–477. [Google Scholar] [CrossRef]
  11. Coleman, R.S.; Tierney, M.T.; Cortright, S.B.; Carper, D.J. Synthesis of Functional “Top-Half” Partial Structures of Azinomycin A and B. J. Org. Chem. 2007, 72, 7726–7735. [Google Scholar] [CrossRef] [PubMed]
  12. Sarwar, M.S.; Xia, Y.-X.; Liang, Z.-M.; Tsang, S.W.; Zhang, H.-J. Mechanistic Pathways and Molecular Targets of Plant-Derived Anticancer ent-Kaurane Diterpenes. Biomolecules 2020, 10, 144. [Google Scholar] [CrossRef] [PubMed]
  13. Wang, L.; Li, D.; Wang, C.; Zhang, Y.; Xu, J. Recent progress in the development of natural ent-kaurane diterpenoids with anti-tumor activity. Mini-Rev. Med. Chem. 2011, 11, 910–919. [Google Scholar] [CrossRef] [PubMed]
  14. Sabzehzari, M.; Zeinali, M.; Naghavi, M.R. Alternative sources and metabolic engineering of Taxol: Advances and future perspectives. Biotechnol. Adv. 2020, 43, 107569. [Google Scholar] [CrossRef] [PubMed]
  15. Wani, M.C.; Taylor, H.L.; Wall, M.E.; Coggon, P.; McPhail, A.T. Plant antitumor agents. VI. Isolation and structure of taxol, a novel antileukemic and antitumor agent from Taxus brevifolia. J. Am. Chem. Soc. 1971, 93, 2325–2327. [Google Scholar] [CrossRef] [PubMed]
  16. Gras, J. Ingenol mebutate: A new option for actinic keratosis treatment. Drugs Today 2013, 49, 15–22. [Google Scholar] [CrossRef] [PubMed]
  17. Lesiak, A.; Maćkowska, A.; Bednarski, I.; Kolano, P.; Olejniczak-Staruch, I.; Woźniacka, A.; Sieniawska, J.; Narbutt, J. Ingenol mebutate treatment in actinic keratosis—Clinical effectiveness and potential side effects. Adv. Dermatol. Allergol. 2019, 36, 468–471. [Google Scholar] [CrossRef] [PubMed]
  18. Hu, R.; Huang, J.-L.; Yuan, F.-Y.; Wei, X.; Zou, M.-F.; Tang, G.-H.; Li, W.; Yin, S. Crotonianoids A–C, Three Unusual Tigliane Diterpenoids from the Seeds of Croton tiglium and Their Anti-Prostate Cancer Activity. J. Org. Chem. 2022, 87, 9301–9306. [Google Scholar] [CrossRef] [PubMed]
  19. Fan, R.Z.; Chen, L.; Su, T.; Li, W.; Huang, J.L.; Sang, J.; Tang, G.H.; Yin, S. Discovery of 8,9-seco-ent-Kaurane Diterpenoids as Potential Leads for the Treatment of Triple-Negative Breast Cancer. J. Med. Chem. 2021, 64, 9926–9942. [Google Scholar] [CrossRef]
  20. Huang, J.L.; Yan, X.L.; Li, W.; Fan, R.Z.; Li, S.; Chen, J.; Zhang, Z.; Sang, J.; Gan, L.; Tang, G.H.; et al. Discovery of Highly Po-tent Daphnane Diterpenoids Uncovers Importin-β1 as a Druggable Vulnerability in Castration-Resistant Prostate Cancer. J. Am. Chem. Soc. 2022, 144, 17522–17532. [Google Scholar] [CrossRef]
  21. Atanasov, A.G.; Waltenberger, B.; Pferschy-Wenzig, E.-M.; Linder, T.; Wawrosch, C.; Uhrin, P.; Temml, V.; Wang, L.; Schwaiger, S.; Heiss, E.H.; et al. Discovery and resupply of pharmacologically active plant-derived natural products: A review. Biotechnol. Adv. 2015, 33, 1582–1614. [Google Scholar] [CrossRef] [PubMed]
  22. Wan, J.; Liu, M.; Jiang, H.-Y.; Yang, J.; Du, X.; Li, X.-N.; Wang, W.-G.; Li, Y.; Pu, J.-X.; Sun, H.-D. Bioactive ent-kaurane diterpenoids from Isodon serra. Phytochemistry 2016, 130, 244–251. [Google Scholar] [CrossRef] [PubMed]
  23. Fujita, E.; Nagao, Y.; Node, M.; Kaneko, K.; Nakazawa, S.; Kuroda, H. Antitumor activity of the isodon diterpenoids: Structural requirements for the activity. Experientia 1976, 32, 203–206. [Google Scholar] [CrossRef] [PubMed]
  24. Yan, F.L.; Bin Zhang, L.; Zhang, J.X.; Sun, H.D. Two new diterpenoids from Isodon serra. Chin. Chem. Lett. 2007, 18, 1383–1385. [Google Scholar] [CrossRef]
  25. Hu, J.-J.; Li, B.-L.; Xie, J.-D.; Liang, H.-J.; Li, Q.-R.; Yuan, J.; Wu, J.-W. Two new 7,20-epoxy-ent-kaurane diterpenoids from the aerial parts of Isodon serra. Nat. Prod. Res. 2022, 36, 2021–2027. [Google Scholar] [CrossRef] [PubMed]
  26. Lin, L.; Gao, Q.; Cui, C.; Zhao, H.; Fu, L.; Chen, L.; Yang, B.; Luo, W.; Zhao, M. Isolation and identification of ent-kaurane-type diterpenoids from Rabdosia serra (MAXIM.) HARA leaf and their inhibitory activities against HepG-2, MCF-7, and HL-60 cell lines. Food Chem. 2012, 131, 1009–1014. [Google Scholar] [CrossRef]
  27. Fan, H.; Hao, X.; Gao, Y.; Yang, J.; Liu, A.; Su, Y.; Xia, Y. Nodosin Exerts an Anti-Colorectal Cancer Effect by Inhibiting Proliferation and Triggering Complex Cell Death in Vitro and in Vivo. Front. Pharmacol. 2022, 13, 943272. [Google Scholar] [CrossRef] [PubMed]
  28. Bae, E.S.; Kim, Y.-M.; Kim, D.-H.; Byun, W.S.; Park, H.J.; Chin, Y.-W.; Lee, S.K. Anti-Proliferative Activity of Nodosin, a Diterpenoid from Isodon serra, via Regulation of Wnt/β-Catenin Signaling Pathways in Human Colon Cancer Cells. Biomol. Ther. 2020, 28, 465–472. [Google Scholar] [CrossRef]
  29. Hou, J.; Li, Y.; Xing, H.; Cao, R.; Jin, X.; Xu, J.; Guo, Y. Effusanin B Inhibits Lung Cancer by Prompting Apoptosis and Inhibiting Angiogenesis. Molecules 2023, 28, 7682. [Google Scholar] [CrossRef]
  30. Hao, X.; Fan, H.; Yang, J.; Tang, J.; Zhou, J.; Zhao, Y.; Huang, L.; Xia, Y. Network Pharmacology Research and Dual-omic Analyses Reveal the Molecular Mechanism of Natural Product Nodosin Inhibiting Muscle-Invasive Bladder Cancer in Vitro and in Vivo. J. Nat. Prod. 2022, 85, 2006–2017. [Google Scholar] [CrossRef]
  31. Zhuang, M.; Zhao, M.; Qiu, H.; Shi, D.; Wang, J.; Tian, Y.; Lin, L.; Deng, W. Effusanin E Suppresses Nasopharyngeal Carcinoma Cell Growth by Inhibiting NF-κB and COX-2 Signaling. PLoS ONE 2014, 9, e109951. [Google Scholar] [CrossRef] [PubMed]
  32. Wang, W.-Q.; Xuan, L.-J. Ent-6,7-Secokaurane diterpenoids from Rabdosia serra and their cytotoxic activities. Phytochemistry 2016, 122, 119–125. [Google Scholar] [CrossRef] [PubMed]
  33. Xing, H.; An, L.; Song, Z.; Li, S.; Wang, H.; Wang, C.; Zhang, J.; Tuerhong, M.; Abudukeremu, M.; Li, D.; et al. Anti-Inflammatory ent-Kaurane Diterpenoids from Isodon serra. J. Nat. Prod. 2020, 83, 2844–2853. [Google Scholar] [CrossRef] [PubMed]
  34. Li, C.B.; Sun, H.D.; Zhon, J. Structures of maoecrystals, new diterpenoids from rabdosia eriocalyx. Acta Chim. Sin. 1988, 46, 657–662. [Google Scholar]
  35. Niu, X.; Li, S.; Zhao, Q.; Mei, S.; Lin, Z.; Sun, H.; Lu, Y.; Wang, C.; Zheng, Q. Novel ent-Abietane Diterpenoids from Isodon eriocalyx var. laxiflora. Helv. Chim. Acta 2003, 86, 299–306. [Google Scholar] [CrossRef]
  36. Wan, J.; Jiang, H.-Y.; Tang, J.-W.; Li, X.-R.; Du, X.; Li, Y.; Sun, H.-D.; Pu, J.-X. Ent-Abietanoids Isolated from Isodon serra. Molecules 2017, 22, 309. [Google Scholar] [CrossRef] [PubMed]
  37. Liu, G.-L.; Xu, W.; Liu, X.-J.; Yan, X.-L.; Chen, J. Two new abietane diterpenoids from the leaves of Rabdosia serra. J. Asian Nat. Prod. Res. 2020, 22, 47–51. [Google Scholar] [CrossRef] [PubMed]
  38. Yan, F.; Guo, L.; Bai, S.; Sun, H. Two New Diterpenoids and other Constituents from Isodon nervosus. J. Chin. Chem. Soc. 2008, 55, 933–936. [Google Scholar] [CrossRef]
  39. Xiang, W.; Li, R.-T.; Wang, Z.-Y.; Li, S.-H.; Zhao, Q.-S.; Zhang, H.-J.; Sun, H.-D. Ent-Kaurene diterpenoids from Isodon oresbius. Phytochemistry 2004, 65, 1173–1177. [Google Scholar] [CrossRef]
  40. He, F.; Xiao, W.-L.; Pu, J.-X.; Wu, Y.-L.; Zhang, H.-B.; Li, X.-N.; Zhao, Y.; Yang, L.-B.; Chen, G.-Q.; Sun, H.-D. Cytotoxic ent-kaurane diterpenoids from Isodon sinuolata. Phytochemistry 2009, 70, 1462–1466. [Google Scholar] [CrossRef]
  41. Ochi, M.; Okamura, M.; Kotsuki, H.; Miura, I.; Kubo, I.; Kubota, T. Bitter Diterpenoids from Rabdosia shikokiana (Makino) Hara. Bull. Chem. Soc. Jpn. 1982, 55, 2208–2211. [Google Scholar] [CrossRef]
  42. Sun, H.D.; Niu, F.T.; Chen, Y.P.; Lin, Z.W. Diterpenoids from Rabdosia nervosa. Phytochemistry 1992, 31, 695–696. [Google Scholar] [CrossRef]
  43. Wang, X.R.; Hu, H.P.; Wang, H.P.; Wang, S.Q.; Ueda, S.; Fujita, T. Nervosanin a and b and ent-kauranoids from Isodon nervosus. Phytochemistry 1994, 37, 1367–1370. [Google Scholar]
  44. Fujita, T.; Takeda, Y.; Shingu, T.; Ueno, A.J.C.L. Structures of effusanins, antibacterial diterpenoids from Rabdosia effusa. Chem. Lett. 1980, 9, 1635–1638. [Google Scholar] [CrossRef]
  45. Li, B.L.; Pan, Y.J.; Pan, W.J. Two new C(20)-oxygenated ent-kaurene diterpenoids from Isodon henryi. Helv. Chim. Acta 2001, 84, 3418–3422. [Google Scholar] [CrossRef] [PubMed]
  46. Devarbhavi, H.; Asrani, S.K.; Arab, J.P.; Nartey, Y.A.; Pose, E.; Kamath, P.S. Global burden of liver disease: 2023 update. J. Hepatol. 2023, 79, 516–537. [Google Scholar] [CrossRef] [PubMed]
  47. Belov, K.; Brel, V.; Sobornova, V.; Fedorova, I.; Khodov, I. Conformational Analysis of 1,5-Diaryl-3-Oxo-1,4-Pentadiene Derivatives: A Nuclear Overhauser Effect Spectroscopy Investigation. Int. J. Mol. Sci. 2023, 24, 16707. [Google Scholar] [CrossRef]
  48. Arbiser, J.L.; Bonner, M.Y.; Gilbert, L.C. Targeting the duality of cancer. NPJ Precis. Oncol. 2017, 1, 23. [Google Scholar] [CrossRef]
  49. Galluzzi, L.; Vitale, I.; Abrams, J.M.; Alnemri, E.S.; Baehrecke, E.H.; Blagosklonny, M.V.; Dawson, T.M.; Dawson, V.L.; El-Deiry, W.S.; Fulda, S.; et al. Molecular definitions of cell death subroutines: Recommendations of the Nomenclature Committee on Cell Death 2012. Cell Death Differ. 2012, 19, 107–120. [Google Scholar] [CrossRef]
  50. Pfeffer, C.M.; Singh, A.T.K. Apoptosis: A Target for Anticancer Therapy. Int. J. Mol. Sci. 2018, 19, 448. [Google Scholar] [CrossRef]
Molecules 29 02733 g001

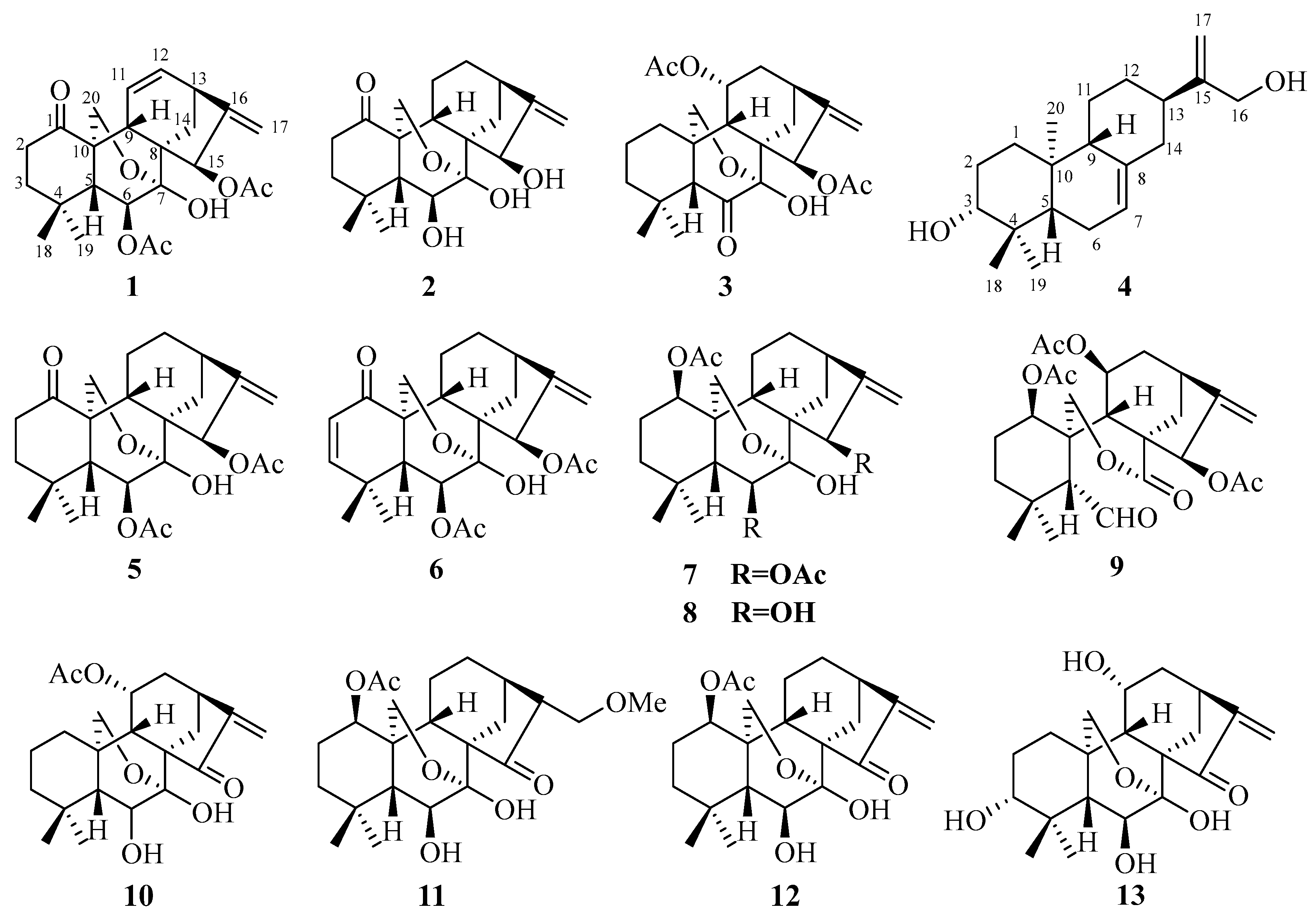

Figure 1. Chemical structures of compounds 1–13.
Figure 1. Chemical structures of compounds 1–13.
Molecules 29 02733 g001
Molecules 29 02733 g002

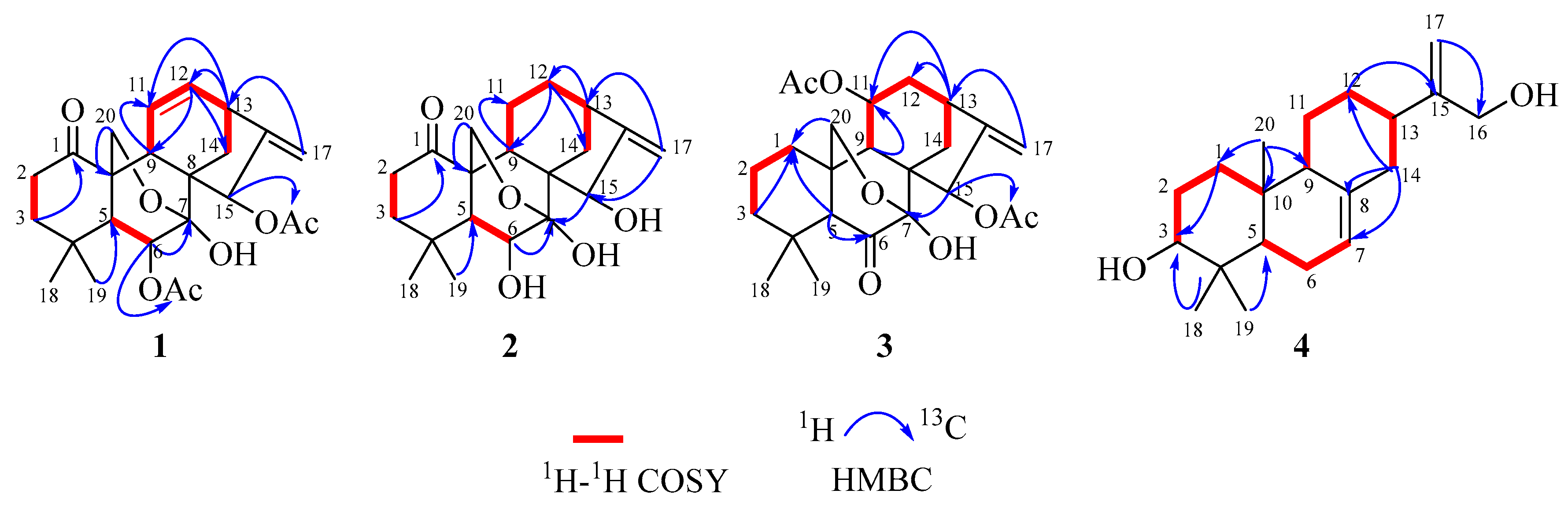

Figure 2. 1H-1H COSY and key HMBC correlations of compound 1–4.
Figure 2. 1H-1H COSY and key HMBC correlations of compound 1–4.
Molecules 29 02733 g002
Molecules 29 02733 g003

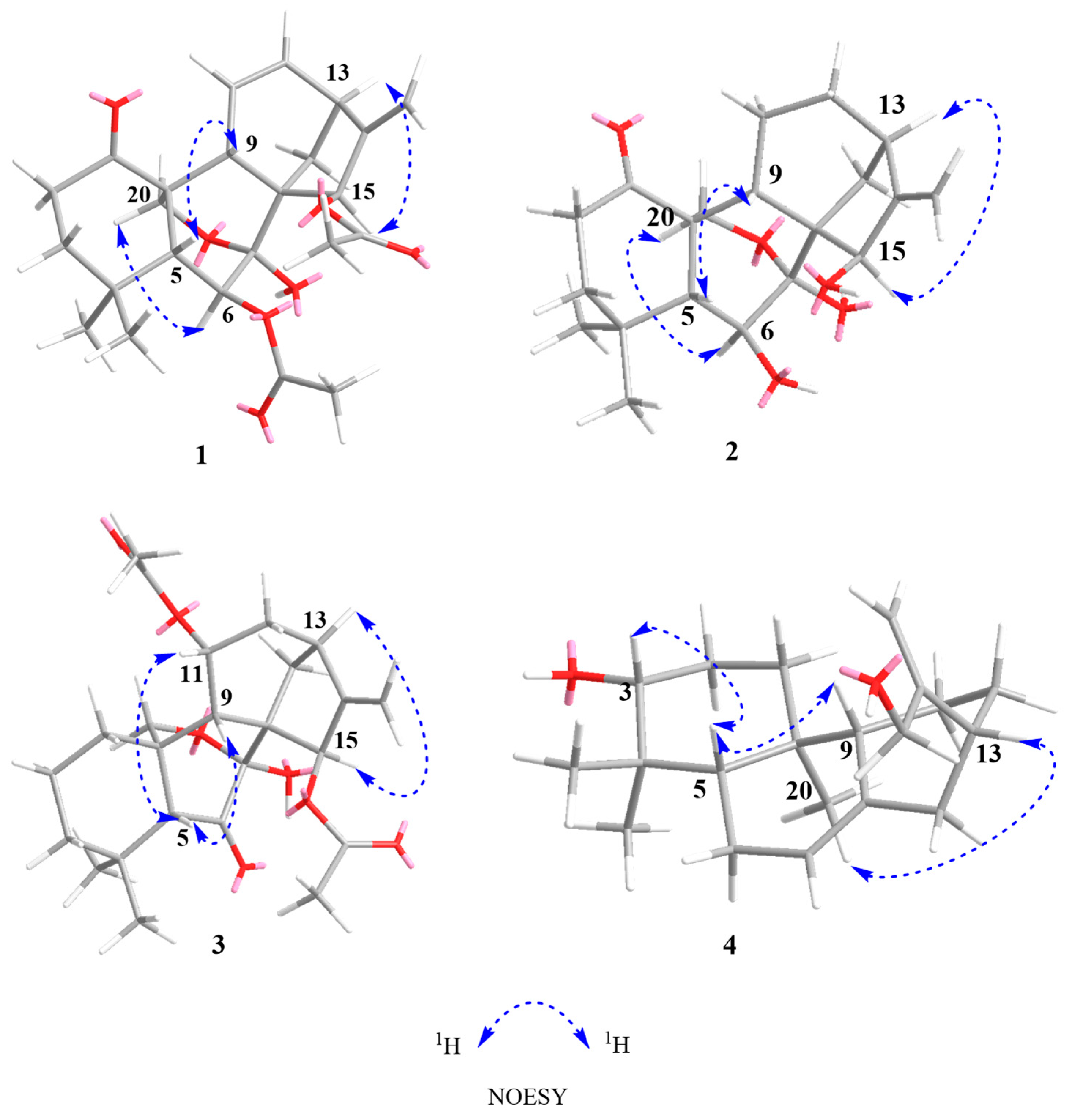

Figure 3. Key NOESY correlations of compounds 1–4.
Figure 3. Key NOESY correlations of compounds 1–4.
Molecules 29 02733 g003
Molecules 29 02733 g004

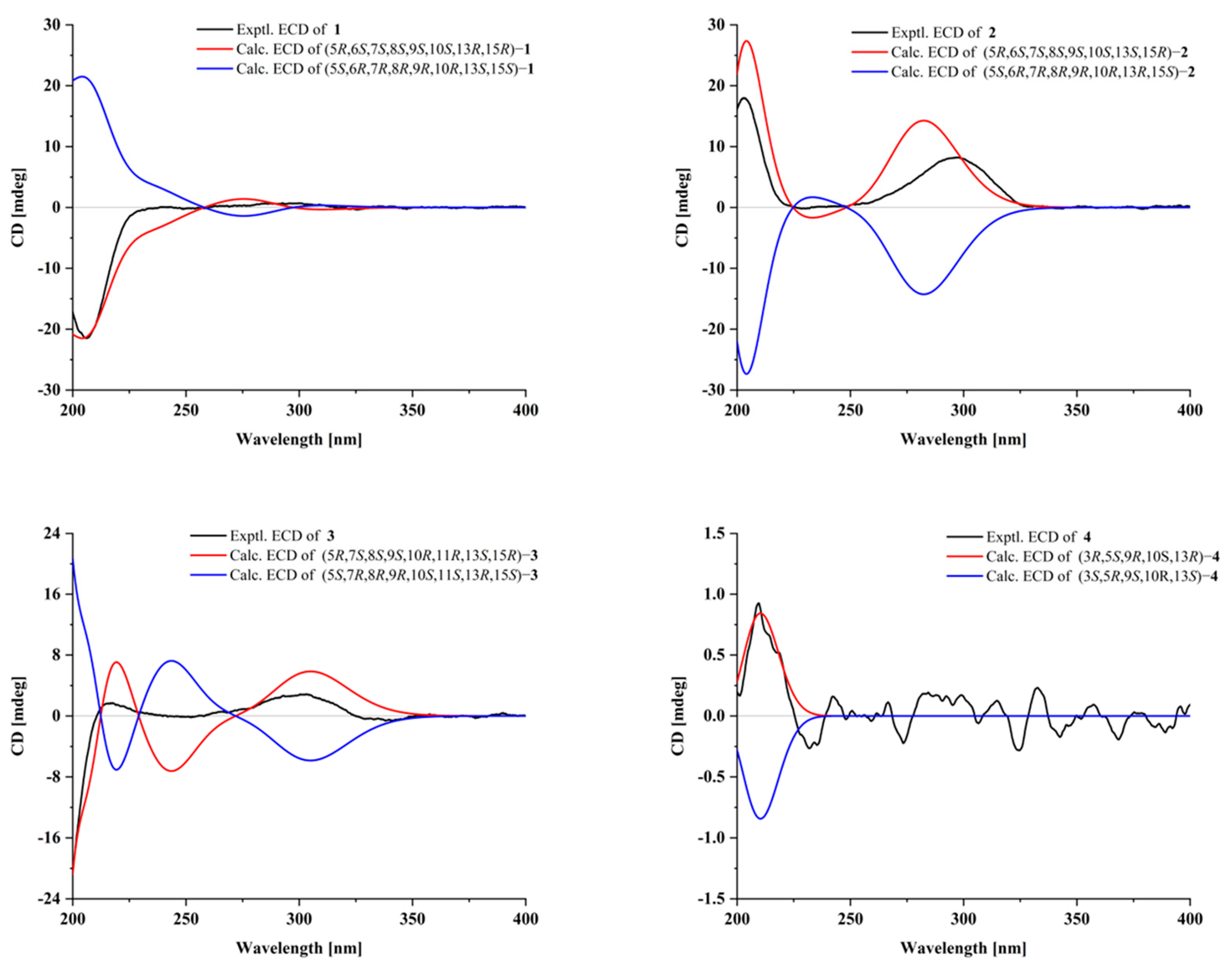

Figure 4. Experimental and calculated ECD spectra of compounds 1–4.
Figure 4. Experimental and calculated ECD spectra of compounds 1–4.
Molecules 29 02733 g004
Molecules 29 02733 g005

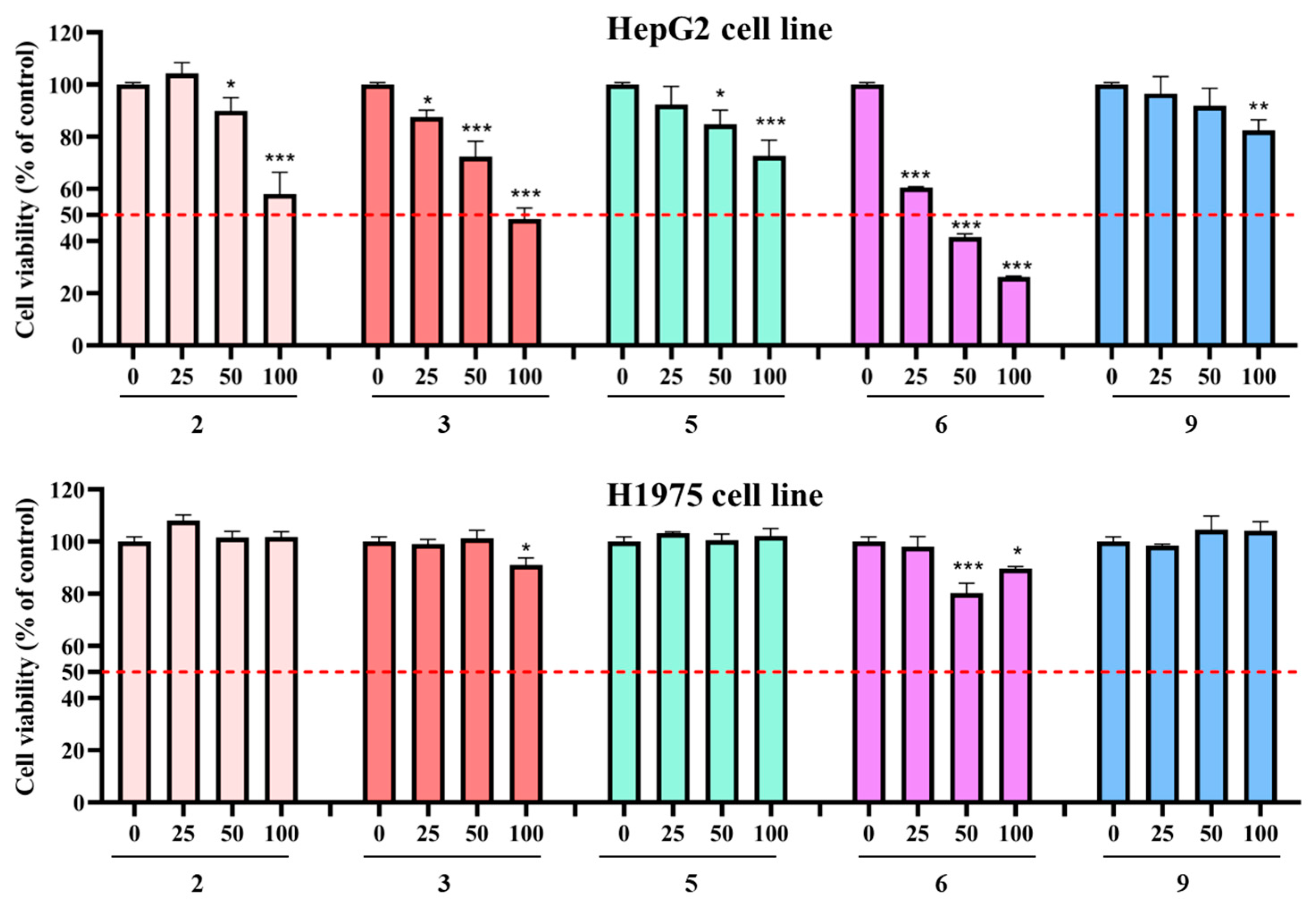

Figure 5. Cytotoxic activities of compounds 2, 3, 5, 6, and 9 against HepG2 cells and H1975 cells cell lines. Data were collected in three replicates. Error bars represent standard deviation. *—p < 0.05 versus the control group; **—p < 0.01 versus the control group; ***—p < 0.001 versus the control group.
Figure 5. Cytotoxic activities of compounds 2, 3, 5, 6, and 9 against HepG2 cells and H1975 cells cell lines. Data were collected in three replicates. Error bars represent standard deviation. *—p < 0.05 versus the control group; **—p < 0.01 versus the control group; ***—p < 0.001 versus the control group.
Molecules 29 02733 g005
Molecules 29 02733 g006

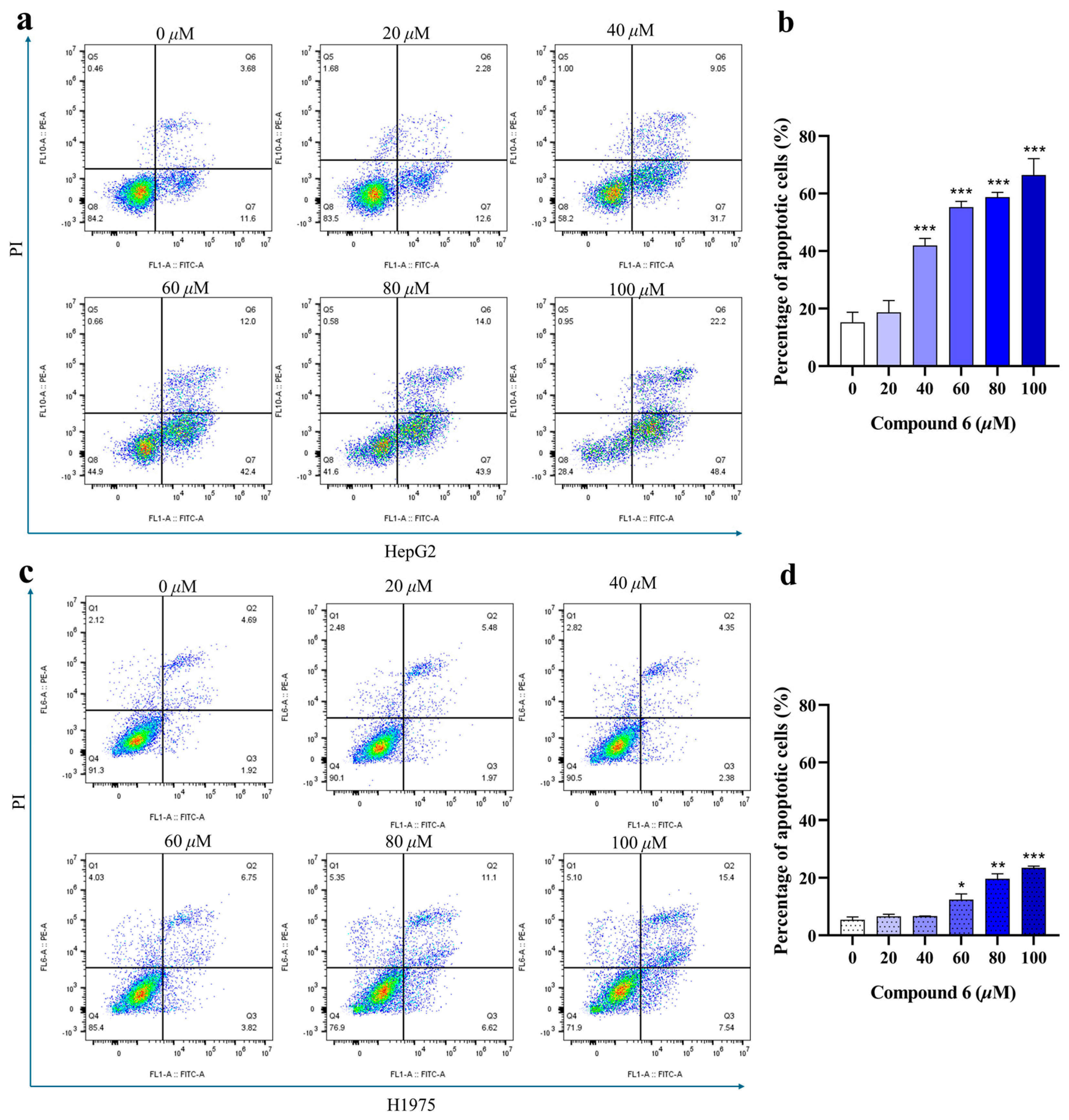

Figure 6. Flow cytometric analysis of apoptosis in HepG2 and H1975 cells (a,c). The apoptosis of HepG2 or H1975 cell lines was detected by flow cytometry based on PI staining after treatment with various concentrations of compound 6 (b,d). Histogram showing the proportions of apoptotic cells after 24 h of treatment with compound 6. The results are expressed as mean ± SD. (* p < 0.05, ** p < 0.01, *** p < 0.001 versus the control group).
Figure 6. Flow cytometric analysis of apoptosis in HepG2 and H1975 cells (a,c). The apoptosis of HepG2 or H1975 cell lines was detected by flow cytometry based on PI staining after treatment with various concentrations of compound 6 (b,d). Histogram showing the proportions of apoptotic cells after 24 h of treatment with compound 6. The results are expressed as mean ± SD. (* p < 0.05, ** p < 0.01, *** p < 0.001 versus the control group).
Molecules 29 02733 g006
Table 1. 1H NMR (600 MHz) and 13C NMR (150 MHz) spectroscopic data of compounds 1–4 in CDCl3 (δ in ppm, J in Hz).
Table 1. 1H NMR (600 MHz) and 13C NMR (150 MHz) spectroscopic data of compounds 1–4 in CDCl3 (δ in ppm, J in Hz).
Position1234
δC (Type)δH (mult., J in Hz)δC (Type)δH (mult., J in Hz)δC (Type)δH (mult., J in Hz)δC (Type)δH (mult., J in Hz)
1a211.0 (C) 213.4 (C) 30.3 (CH2)1.49 (m)37.9 (CH2)1.17 (m)
1b 1.35 (m) 1.86 (m)
2a36.3 (CH2)2.47 (m)35.5 (CH2)2.68 (m)18.1 (CH2)1.53 (m)27.4 (CH2)1.62 (m)
2b 2.58 (m) 2.28 (m) 1.44 (m) 1.58 (overlap)
3a38.4(CH2)1.90 (m)38.1 (CH2)1.94 (m)41.4 (CH2)1.52 (m)79.3 (CH)3.26 (dd, 11.3, 4.0)
3b 1.78 (m) 1.72 (m) 1.24 (m)
433.0 (C) 32.6 (C)2.02 (m)34.4 (C) 38.6 (C)
557.0 (CH)2.32 (d, 7.1)56.1 (CH)2.34 (d, 7.8)61.9 (CH)2.18 (s)49.9 (CH)1.13 (m)
6a74.6 (CH)5.14 (d, 7.1)73.7 (CH)3.84 (d, 7.8)206.7 (C) 23.0 (CH2)1.96 (m)
6b 1.94 (m)
797.0 (C) 96.8 (C) 92.6 (C) 120.4 (CH)5.41 (s)
851.7 (C) 51.9 (C) 48.2 (C) 136.8 (C)
944.1 (CH)3.05 (m)41.0 (CH)2.40 (m)47.0 (CH)2.00 (d, 3.4)52.3 (CH)1.68 (m)
1050.1 (C) 48.7 (C) 38.7 (C) 35.3 (C)
11a124.3 (CH)5.58(dd, 9.4, 2.4)17.2 (CH2)1.68 (m)68.0 (CH)5.30 (t, 5.1)25.9 (CH2)1.78 (m)
11b 1.04 (m) 1.15 (m)
12a138.0 (CH)6.37(m)32.2 (CH2)2.17 (m)42.0 (CH2)2.21 (m)31.6 (CH2)1.87 (m)
12b 1.44 (m) 1.85 (m) 1.22 (m)
1338.4 (CH)3.02 (m)35.4 (CH)2.68 (m)35.6 (CH)2.81 (m)41.2 (CH)1.89 (m)
14a33.2 (CH2)2.14 (dd, 11.7, 4.6)25.2 (CH2)1.80 (d, 11.9)25.0 (CH2)2.40 (d, 12.3)40.8 (CH2)2.33 (m)
14b 1.64 (overlap) 1.50 (m) 1.85 (m) 2.33 (m)
1574.3 (CH)5.90 (t, 2.1)74.2 (CH)4.42 (m)76.6 (CH)5.50 (m)153.6 (C)
16a153.0 (C) 159.0 (C) 154.1 (C) 65.2 (CH2)4.12 (s)
16b 4.12 (s)
17a109.2 (CH2)5.00 (d, 2.0)108.9 (CH2)5.18 (d, 2.1)110.0 (CH2)5.07 (m)107.8 (CH2)5.03 (m)
17b 4.86 (brs) 4.86 (brs) 4.88 (s)
1829.7 (CH3)0.92 (s)30.3 (CH3)1.12 (s)35.0 (CH3)1.37 (s)28.4 (CH3)1.00 (s)
1922.7 (CH3)1.10 (s)23.9 (CH3)0.98 (s)22.0 (CH3)1.05 (s)15.6 (CH3)0.89(s)
20a66.0 (CH2)4.10 (d, 9.9)64.9 (CH2)4.37 (d, 10.2)68.0 (CH2)4.50 (d, 9.4)15.0 (CH3)0.81 (s)
20b 3.98 (dd, 9.9, 3.0) 3.96 (dd, 10.2, 1.6) 4.15 (d, 9.4)
OAc-6170.3 (C)
21.9 (CH3)2.08 (s)
OAc-15173.8 (C) 169.6 (C)
21.0 (CH3)2.20 (s) 20.6 (CH3)2.02 (s)
OAc-11 169.7 (C)
21.9 (CH3)2.11 (s)
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Li, S.; Liang, F.; Huang, D.; Wu, H.; Tan, X.; Ma, J.; Wei, C.; Wang, S.; Huang, Z.; Yang, G.; et al. Diterpenoids from the Aerial Parts of Isodon serra with Selective Cytotoxic Activity. Molecules 2024, 29, 2733. https://doi.org/10.3390/molecules29122733

AMA Style

Li S, Liang F, Huang D, Wu H, Tan X, Ma J, Wei C, Wang S, Huang Z, Yang G, et al. Diterpenoids from the Aerial Parts of Isodon serra with Selective Cytotoxic Activity. Molecules. 2024; 29(12):2733. https://doi.org/10.3390/molecules29122733

Chicago/Turabian Style

Li, Siqin, Fang Liang, Dongdong Huang, Huanling Wu, Xiaohua Tan, Jiang Ma, Caihong Wei, Shixiong Wang, Ziying Huang, Guang Yang, and et al. 2024. "Diterpenoids from the Aerial Parts of Isodon serra with Selective Cytotoxic Activity" Molecules 29, no. 12: 2733. https://doi.org/10.3390/molecules29122733

APA Style

Li, S., Liang, F., Huang, D., Wu, H., Tan, X., Ma, J., Wei, C., Wang, S., Huang, Z., Yang, G., He, X., & Yang, J. (2024). Diterpenoids from the Aerial Parts of Isodon serra with Selective Cytotoxic Activity. Molecules, 29(12), 2733. https://doi.org/10.3390/molecules29122733

Article Metrics

Back to TopTop
