Influence of Substituents in a Six-Membered Chelate Ring of HG-Type Complexes Containing an N→Ru Bond on Their Stability and Catalytic Activity

by
Kirill A. Vasilyev
1,
Alexandra S. Antonova
1,
Nikita S. Volchkov
1,
Nikita A. Logvinenko
1,
Eugeniya V. Nikitina
1,
Mikhail S. Grigoriev
2,
Anton P. Novikov
1,2,
Vladimir V. Kouznetsov
3,
Kirill B. Polyanskii
1,* and
Fedor I. Zubkov
1,*
1
Organic Chemistry Department, Faculty of Science, Peoples’ Friendship University of Russia (RUDN University), Miklukho-Maklaya St., 6, Moscow 117198, Russia
2
Frumkin Institute of Physical Chemistry and Electrochemistry, Russian Academy of Sciences, Leninsky pr. 31, bld. 4, Moscow 119071, Russia
3
Laboratorio de Química Orgánica y Biomolecular, Escuela de Química, Universidad Industrial de Santander, Cl. 9 # Cra 27, Bucaramanga 680006, Colombia
*
Authors to whom correspondence should be addressed.
Molecules 2023, 28(3), 1188; https://doi.org/10.3390/molecules28031188
Submission received: 31 December 2022 / Revised: 18 January 2023 / Accepted: 21 January 2023 / Published: 25 January 2023
(This article belongs to the Topic Heterocyclic Carbene Catalysis)
Browse Figures
Review Reports Versions Notes

Abstract

:
An efficient approach to the synthesis of olefin metathesis HG-type catalysts containing an N→Ru bond in a six-membered chelate ring was proposed. For the most part, these ruthenium chelates can be prepared easily and in high yields based on the interaction between 2-vinylbenzylamines and Ind II (the common precursor for Ru-complex synthesis). It was demonstrated that the increase of the steric volume of substituents attached to the nitrogen atom and in the α-position of the benzylidene fragment leads to a dramatic decrease in the stability of the target ruthenium complexes. The bulkiest iPr substituent bonded to the nitrogen atom or to the α-position does not allow the closing of the chelate cycle. N,N-Diethyl-1-(2-vinylphenyl)propan-1-amine is a limiting case; its interaction with Ind II makes it possible to isolate the corresponding ruthenium chelate in a low yield (5%). Catalytic activity of the synthesized complexes was tested in RCM reactions and compared with α-unsubstituted catalysts obtained previously. The structural peculiarities of the final ruthenium complexes were thoroughly investigated using XRD and NMR analysis, which allowed making a reliable correlation between the structure of the complexes and their catalytic properties.

1. Introduction

In the last decade of the 20th century, the olefin metathesis took a worthy place among the most important reactions of organic chemistry and in industrial processes [1]. To date, along with common Hoveyda–Grubbs (HG) catalysts with a coordination bond O→Ru in a five-membered cycle, their heteroanalogues containing S→Ru, P→Ru, and N→Ru chelate bonds have been described.
The history of nitrogen-containing ruthenium derivatives including a six-membered chelate cycle began in 2000, when Van Der Scaaf proposed a simple synthesis of 2-pyridylethanyl substituted ruthenium carbene complexes [2]. Afterwards, in 2004, the highly-reactive ruthenium complexes suitable for different metathesis reactions were obtained by Schrodi, who was the first to introduce an N-heterocyclic carbene ligand into the structure of six-membered N→Ru chelates [3]. Since then, changes of substituents around the heteroatom [4,5,6,7,8,9,10,11], the fine tuning of NHC ligands [6,12,13,14,15,16], and the introduction of different functional groups into the benzylidene moiety of the chelate ring have become the main directions of improvement of practical and useful properties of aza-HG-type catalysts [8,9,14,15,17,18,19]. For example, such types of ruthenium derivatives were successfully applied in the synthesis of natural compounds [20,21] and for stereoselective CM reactions [22,23,24,25].
Although the HG-catalysts containing an O→Ru bond in a five-membered chelate cycle remain among the most popular, both in synthetic practice and in industry [26,27], nitrogen-bearing ruthenium complexes begin to play an increasingly prominent role. For instance, at the beginning of the 21st century, the third-generation Grubbs catalysts (like G-III-Br, Figure 1) were implemented in laboratory practice. It should also be mentioned that six-membered N→Ru complexes are successfully used not only in fine synthesis for RCM and ROMP reactions [28,29,30,31,32,33], but they have also been recently patented for commercial use including oil refining, gasoline reforming, and as catalysts for metathesis polymerization of dicyclopentadiene (DCPD) [34,35,36,37,38].
Despite the fact that the six-membered N-ruthenium chelates are less popular in comparison with their five-membered homologues, they have some important advantages. In particular, they possess an additional site for structural modification due to the presence of an α-position relative to the nitrogen atom in a benzylidene moiety [28,29,34,35,36] (see the bottom row in Figure 1). In the previous communications [28,29], it had been proved that catalytic properties of these N→Ru chelates are closely dependent on the steric volume of substituents surrounding the donating nitrogen atom (in Figure 1, the three most active catalytic complexes are shown). As a rule, with an increase in the volume of N-substituents, the catalytic activity increased, but the stability of the complexes fell. Thereby, this work is the logical continuation of our previous articles [28,29]; in particular, here we investigate the influence of the volume of the substituent in the α-position (Figure 1) on the possibility of the closing of the N→Ru chelate ring, as well as on the catalytic properties of the resulting N→Ru complexes. In the beginning of this work, it was planned to introduce methyl, ethyl, isopropyl, and tert-butyl substituents into the α-position, simultaneously varying the volume of the radicals at the nitrogen atom.

2. Results and Discussion

2.1. Synthesis of the Initial 2-vinylbenzylamines 1, 2, and 3

In the beginning, we needed to synthesize the nitrogen-containing ligands for the assembly of the benzylidene unit of the Ru-complexes (Scheme 1, Scheme 2 and Scheme 3). Based on the available starting compounds, two close synthetic routes to the target 2-vinyl benzylamines (1–3) have been developed. Note that both methods can be used on an industrial scale.
Synthesis of styrenes 1 and 2 was carried out by acylation of inexpensive phenethylamine, followed by the Bischler–Napieralski cyclization of the obtained amides [39]. The resulting 1-methyl and 1-isopropyl-3,4-dihydroisoquinolines were sequentially alkylated with dialkyl sulfates and reduced to give the corresponding 1-methyl and 1-isopropyl-N-methyl-1,2,3,4-tetrahydroisoquinolines (THQs) [29]. Further, the repeated quaternization of the nitrogen atom was carried out, followed by one-pot with the Hofmann cleavage (Scheme 1) [28,40]. The total yields of styrenes 1a–c and 2a–c obtained according to this approach were 42–56% based on the initial phenethylamine. Yields of 1 and 2 after the last two stages are given in Table 1 (based on 1-alkyl-3,4-dihydroisoquinolines).
Interestingly, the above-described method proved to be unsuitable for obtaining the N-isopropyl substituted benzylamines, similar to 1e (Scheme 2). Presumably, this is due to a significant steric volume of the iPr group and the N-alkylation step passes in a low yield.
Advantages of the styrene synthesis, proposed in Scheme 1, lie not only in the availability of the initial and auxiliary reagents but also in the scalability of all stages, which do not include the use of absolute or highly toxic reagents. In other words, this method is optimal from the point of view of the industrial synthesis of HG-catalysts. On the other hand, more suitable reagents are available for laboratory synthesis that enable the reduction in the number of stages.
An alternative synthetic approach has been elaborated on for the preparation of α-ethyl substituted styrenes 3 (Scheme 3). In this process, available 3,4-dihydroisoquinoline was quaternized according to a standard procedure [29] to give N-alkyl-3,4-dihydroisoquinoline salts. The second C-alkylation of the C=N double bond by the Grignard reagent leads to the corresponding THQs. The last ones were introduced in two successive one-pot steps, the alkylation and the Hofmann cleavage, to form the target 2-aminomethylstyrenes 3a–c in overall yields greater than 60% (Table 1) [28,40]. The total yields of 3a–c after all steps, according to Scheme 2, were 68–75% based on 3,4-dihydroisoquinoline.
The last two styrenes, 1d and 3d, possessing a morpholine fragment were obtained using the third synthetic approach presented in Scheme 4. After N-protection, α-alkylation, and the deprotection of N-Boc-THQ, the intermediate 1-R3-substituted THQs were quaternized with 1-chloro-2-(2-chloroethoxy)ethane. The one-pot Hofmann reaction completed the sequence and provided the target benzylamines 1d and 3d in good yields (Table 1) [40,41]. The total reaction yields of 1d and 3d based on 1,2,3,4-tetrahydroisoquinoline were 85 and 81%, respectively.
Thus, all approaches to the synthesis of styrenes 1–3 shown in Scheme 1, Scheme 3 and Scheme 4 complement each other. Depending on the substituents needed and the available starting reagents, a chemist can choose the most convenient route.
After purification with column chromatography, all 2-vinylbenzylamines 1–3 were obtained as yellowish oily liquids.

2.2. Synthesis of Ruthenium Complexes

For the synthesis of metallo-complexes, ligands 1–3 obtained in the first section were introduced into the reaction with precursor Ind II [28,42,43] and were frequently used for preparation of ruthenium chelates (Scheme 5). Boiling toluene turned out to be a good solvent for the preparation of α-methyl-substituted 4a–c, but the yields of the other ruthenium derivatives 4–6 were unsatisfactory under the same conditions. Therefore, the conditions were optimized with varying solvents, temperature, and duration of synthesis (see the ESI). A mixture of toluene/heptane in the V/V ratio of 1:5 at 110 °C proved to be the best medium for the synthesis of the compounds 4d and 5a–d (Scheme 5). Under both mentioned conditions, a complex was completed in less than 1.5 h (Table 2). Catalysts 4a–c and 5a–c, with α-methyl or α-ethyl group, usually precipitated from solutions after cooling of the reaction mixtures to −20 °C (for detailed information, see the ESI).
It should be noted that we were not able to isolate the ruthenium complexes 6 (Table 2) synthesized on the base of α-isopropyl benzylamines 2a–c (Table 1). Although they probably exist in solutions, which is confirmed with TLC, they appear as bright green spots on a chromatographic plate. These complexes are poorly crystallized after cooling of the reaction mixtures, and the resulting precipitates are soluble even in ice-cold pentane. After numerous attempts, we could not isolate the target isopropyl-substituted chelates 6 in a pure form.
According to previously published data [28,29], the morpholine-containing ruthenium complex N-Morph (see Figure 1) exhibits one of the best activities towards metathesis reactions. To improve these useful properties, in this work, we inserted a substituent in the α-position of the morpholine-substituted ruthenium chelate. We assumed that the steric volume of any substituent R3 next to the ruthenium atom will loosen the N→Ru donor-acceptor bond, and that should help to increase catalytic properties. Formation of chelates 4d and 5d proceeded faster than similar transformations, providing analogues 4a–c and 5a–c (Scheme 5, Table 2).
Complexes with methyl and ethyl groups in the α-position were isolated in good yields, except for 5c (Table 2). Attempts to change the solvent with absolute hexane, heptane, benzene, toluene, or their mixtures did not lead to an increase in the yield of the target product. In the best cases, the yield of compound 5c did not exceed 5%.
From the data of Table 2, it can be concluded that ruthenium chelates 6 with an isopropyl group in the α-position are unstable and could not be isolated in any case (even N,N-dimethyl substituted 6a cannot be synthesized). Presumably, the simultaneous presence of three ethyl groups in the benzylidene moiety of the complex 5c was the limiting case for the closing of the chelate ring. With a high probability, more sterically-loaded coordination compounds of type 4, 5 could not be assembled.
All catalysts 4a–d, 5a–d were obtained as emerald green powders. The majority of them crystallized readily from a mixture of heptane/dichloromethane or chloroform/dichloromethane, with the formation of well-shaped crystals. An exception was catalyst 5c, which, in contrast to the others, was fairly soluble in nonpolar solvents, such as pentane and hexane. In this regard, this substance is quite difficult to isolate in a pure from.
The structure of compounds 4–5 were established using NMR and, in the cases of 4a,b,c, and 5a,b,d, using XRD analysis. The most well-defined signals of the key Ru=CH fragment were observed in the range of δ 18.70–19.10 ppm in 1H NMR and 312–324 ppm in 13C NMR spectra. Such downfield shifts are usual for chelates with a coordinating N→Ru bond [8,28,29,36] and are explained by the strong polarization of the Ru=C bond towards the metal atom. Otherwise, the obtained NMR spectra do not differ from those already described earlier for homologues [28,29]. It should be noted that the signals of the mesityl fragments (Mes) in both the proton and carbon spectra in some compounds turn out to be strongly broadened due to a slow rotation of the Mes-moieties around the C–N bond. To overcome this difficulty, the spectra of such ruthenium derivatives were additionally recorded in dichloromethane (CD2Cl2).

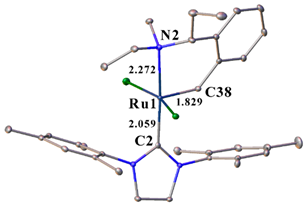

2.3. XRD Analysis of Ruthenium Complexes

All obtained structures for 4a–c and 5a,b contained one independent molecule of the ruthenium complex, except for structure 5d where there were two crystallographically independent molecules of the complex with the same conformation. One ethyl group in 4c is disordered. In all complexes, the chlorine atoms were coordinated to the ruthenium atom in the trans-position (Cl atoms are on opposite sides of the N2Ru1C2 plane). The Cl-Ru-Cl angles varied from 157.83° to 168.22° (see Table 3). The Ru–Cl distances are close to those for the other N→Ru HG-type trans-catalysts [28,29] described earlier and are not of particular interest for discussion. All complexes 4 and 5 contained intramolecular hydrogen bonds of the C-H···Cl type (see the ESI).
In complexes 4 and 5, the six-membered rings containing N→Ru coordination bond had a distorted conformation. As in the previously obtained analogs [28,29] in 4, 5a, and 5b, the Ru atom and four carbon atoms formed one RuC4 plane (the maximum displacement is 0.08 Å), but the sixth pyramidal nitrogen atom deviated from it and formed another RuNC plane. The angle between the RuC4/RuNC planes varied from 55.26° to 58.84° and was close to the previously described analogs [28,29]. In the sing crystal of 5d (in contrast to the other 4, 5 and previously described complexes of this type) two other planes, CRuNC and C4, were formed (the maximum deviation is 0.05 Å) with an angle between the planes of 46.75° and 47.75° for two molecules.
The Ru–C bond length (2.01–2.06 Å) in all compounds differed insignificantly and were close to what was published earlier [28,29]. From the point of view of potential activity in metathesis reactions, the N→Ru bond in complexes 4, 5a, and 5b had practically the same length (2.26–2.27 Å). In ethyl-morpholine substituted 5d, an elongation of this bond (2.35, 2.37 Å) was observed. This result is close to the previously described one for the N-chelate ruthenium complex with a morpholine moiety (N-Morph, Figure 1) but without additional α-methyl or α-ethyl groups [28]. The observed Ru–N bond elongation can affect the catalytic activity of the 5d complex [28,29] (Table 3).
It is also worth noting that two chelates, 4b and 5b, contain two chiral centers each (the sp3-hybridized nitrogen atom and the α-carbon atom) and, thus, can exist as a pair of diastereomers (Figure 2). According to 1H NMR data of the crude reaction mixtures, only one diastereomer of 4b and 5b was formed and observed in all experiments. As it was described earlier (Table 3), its spatial structures were unambiguously established with XRD analysis. In the both structures, the bulkiest vicinal substituents (N-Et/C-Me in 4b and N-Et/C-Et in 5b) occupied the most favorable pseudoequatorial positions in the six-membered ruthenium-containing ring. The aforementioned fragment was noticeably flattened and had a slightly distorted envelope conformation. With the exception of the nitrogen, all of its atoms practically laid in one plane (the maximum displacement is 0.08 Å for 5b). Figure 2 clearly shows that the smallest substituents (N-Me/C-H in 4b and N-Me/C-H in 5b) were pseudoaxial and occupied the anti-periplanar positions.
From the data of XRD analysis, it can be concluded that the addition of methyl or ethyl groups to the α-position relative to the nitrogen atom did not lead to strong changes in the structure of ruthenium complexes. Only the addition of the morpholine fragment resulted in appreciable changes in the structure.

2.4. Evaluation of Catalytic Properties

In the final part of the work, the catalytic properties of the resulting ruthenium complexes 4–5 were studied in the simplest ring-closing metathesis (RCM) reactions to evaluate its efficiency. For convenience, the rate of initiation and transformation of starting alkenes into metathesis products will be hereinafter referred to as the catalytic activity.
Thus, the most common substrate, N,N-diallyltosylamide (7), was chosen for the RCM test experiments (Scheme 6). The reaction was carried out according to the previously described procedure [28]. After adding the catalyst sample to a tosylate solution, aliquots were taken at a certain time interval. Then, an excess of a catalytic “poison”, ethyl vinyl ether (10% solution in THF), was immediately added to each aliquot to stop the metathesis reaction and to prevent all possible post-transformations. Next, volatile products were removed and the conversion was analyzed with 1H NMR. Based on the NMR data, kinetic curves were plotted (Figure 3, Figure 4, Figure 5 and Figure 6).
Simultaneously, the catalytic efficiency of the new complexes 4–5 was compared with a range of commercially available HG-II [44] or previously reported N-Morph, NEt2 (see Figure 1) catalysts of the same type. To achieve this goal, the two most different chelates, 4a and 4d, were chosen to describe the efficiency of the whole series of ruthenium derivatives. The activity of N-heterocyclic carbene complexes 4a and 4d in RCM reactions with diene 7 turned out to be excellent and exceeded that of the reference catalysts (Figure 3). It was shown that the RCM reaction proceeded reliably with 0.005 mol% catalyst loadings; however, it was more convenient to use higher catalyst concentrations to plot kinetic curves. The reverse side of the high activity was the elevated sensitivity of the solutions of complexes 4–5 to the moisture and air (in the crystalline state, the resulting chelates are stable when stored in air). In this regard, all metathesis reactions hereinafter were carried out under an argon atmosphere using dry solvents.
Furthermore, the comparison of the activity of all N→Ru chelates 4–5 synthesized in this work was carried out. However, a difference in efficiency between the complexes turned out to be difficult to detect under the aforementioned conditions (0.1 mol% of a catalyst). The data in Figure 4 permit the claim that only the morpholine -containing compounds 4d and 5d have a higher initiation rate compared with the other ones, due to an increased steric environment of the donating nitrogen atom (Figure 4).
To overcome the difficulty noted above, the catalyst amount was reduced to 0.01 mol%. In this case, as can be clearly seen in Figure 5, all catalysts 4–5 were divided into three groups, in accordance with the size of the substituents around the catalytic center. Similarly, as with the previous results (see Figure 4), complexes 4d and 5d possessing bulky morpholine moieties manifested the highest efficiency. The second group consists of α-ethyl-substituted complexes 5a, 5b, and 5c, and the worst activity is exhibited by α-methyl-containing catalysts 4a, 4b, and 4c. As expected in the beginning of this work, an increase in the steric volume of the substituent in the α-position led to an increase in catalytic activity, albeit insignificantly. However, the difference between the complexes 4a, 4b, 4c, and 5a–c carrying the same α-substituent (R3) was so insubstantial that it is groundless to speak about the essential effect of substituents on the nitrogen atom (R1, R2) on catalytic activity.

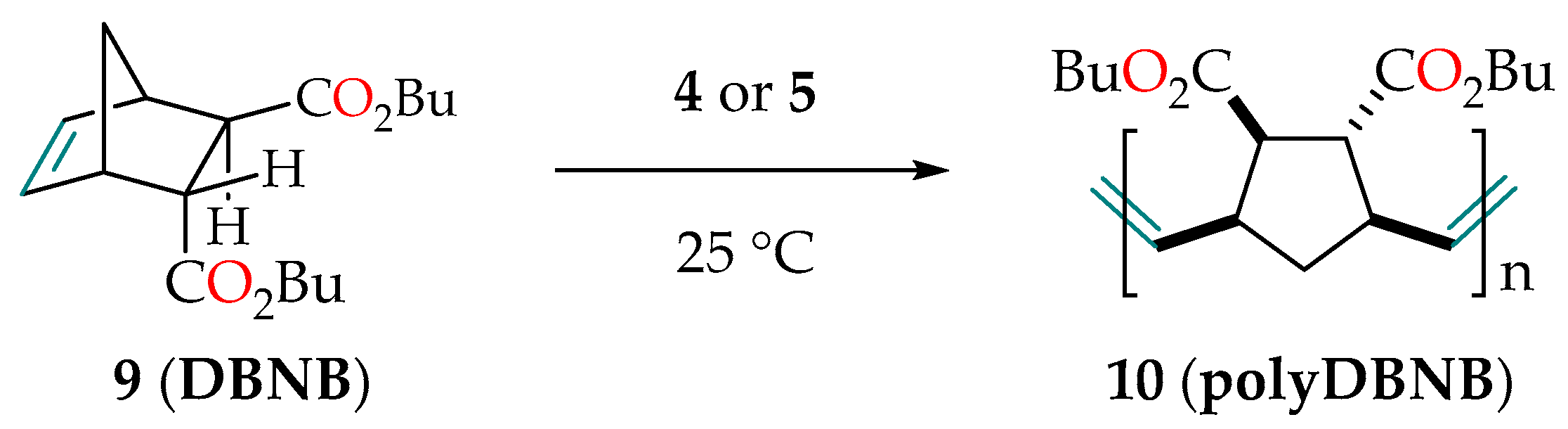

The high activity of ruthenium derivatives 4–5 in RCM reactions prompted us to investigate its behavior in metathesis polymerization reactions. As is known, this is one of the more often used processes in the polymer industry. For this purpose, the ring-opening metathesis polymerization (ROMP) of trans-dibutoxycarbonyl substituted bicyclo[2.2.1]hept-2-ene (5-endo-6-exo-di(n-butoxycarbonyl)norbornene, DBNB, 9), a monomer which is liquid under normal conditions, was chosen (Scheme 7 and Figure 6). The thermal effects of the polymerization of 9 to 10 are the simplest and most easily observable, which makes it possible to estimate the rate of the process.
A series of catalysts 4a, 4d, 5a, and 5d was tested for comparative study of the polymerization of DBNB. To study the ROMP, in each range, catalysts with the highest (4d, 5d) and lowest (4a, 5a) steric load were selected. A reaction was carried out under constant stirring (450 rpm) in a 30 mL glass vessel, with the temperature being controlled using two thermocouples (one in a water bath and another in a reaction vessel). The catalysts were added as solutions in DCM, and, for convenience of analysis, there was constant video recording of the temperature sensor readings.

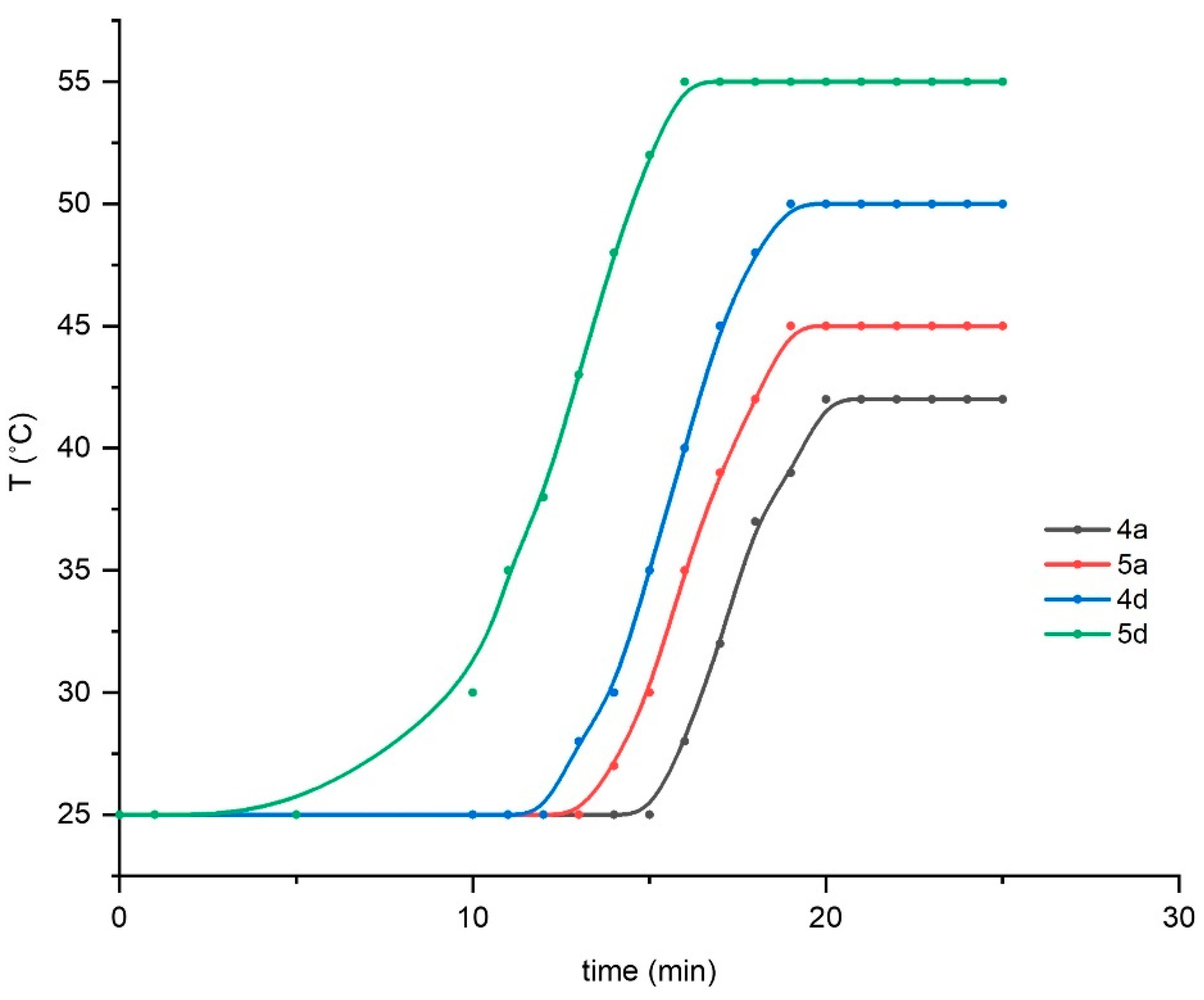

Under the selected conditions, polymerization reaction started after about 3–12 min (Figure 6). The highest temperature of the exotherm was detected for sterically hindered complex 5d, and the lowest one, 4a, possessed the smallest substituents in all positions. From the performed experiments, it can be concluded that the steric load on the nitrogen atom plays a more significant role in the activation of the complex than the substituents in the α-position.

3. Materials and Methods

3.1. General Remarks

All reagents were purchased from commercial suppliers (Acros Organics, Morris Plains, NJ, USA and Merck KGaA, Darmstadt, Germany) and used without further purification. The metathesis reactions required solvents (CH2Cl2 and CHCl3) pre-dried over anhydrous P2O5 and an inert atmosphere (dry Ar). The thin layer chromatography was carried out on aluminum-backed silica precoated plates «Sorbfil» or «Alugram». The plates were visualized using a water solution of KMnO4 or UV (254 nm). After extraction, organic layers were dried over anhydrous MgSO4. IR spectra were obtained in KBr pellets or in thin films using an Infralum FT-801 or Nicolet 6700 IR-Fourier spectrometers. The NMR spectra were run in deuterated solvents (>99.5 atom % D) on a Jeol JNM-ECA 600 (600.1 MHz for 1H and 150.9 MHz for 13C) spectrometer for 2–5% solutions in CDCl3 at 22–23 °C using residual solvent signals (7.26/77.0 ppm for 1H/13C in CDCl3) or TMS as an internal standard.

3.2. Experimental Procedures

The isoquinoline derivatives were synthesized using the Bischler–Napieralski reaction according to procedures described earlier [39].
The detailed methods for the preparation of new compounds obtained in this work is given in the ESI section.

3.3. Single-Crystal XRD Analysis

The crystal structure of all synthesized substances was determined with X-ray structural analysis using an automatic four-circle area-detector diffractometer, the Bruker KAPPA APEX II with MoKα radiation. The crystal data, data collection, and structure refinement details are summarized in Table S2 (see the ESI). All other crystallographic parameters of the structures are indicated in Tables S3–S26 (see the ESI). The atomic coordinates were deposited at the Cambridge Crystallographic Data Centre (CCDC) [44]. The CCDC numbers are 2232047–2232052 for 4a, 4b, 4c, 5a, 5b, and 5d, respectively. The Supplementary crystallographic data can be obtained free of charge from the Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/data_request/cif (accessed on 21 December 2022).

4. Conclusions

In this work, we reported on the synthesis of a series of second-generation HG-type complexes containing a nitrogen–ruthenium coordinate bond in the six-membered chelate ring, in which an alkyl group (Me, Et, iPr) is attached to the α-position of the benzylidene fragment. The majority of the aforementioned metal complexes can be synthesized easily and in excellent yields based on the reaction between available (2-vinyl)benzylamines and Ind II. It has been experimentally shown that the steric volume of the substituents at the nitrogen atom and in the α-position of the 2-vinylbenizamine ligands has a decisive influence on the possibility of assembly of the chelate ring. The most sterically loaded ligand suitable for chelate synthesis is N,N-diethyl-α-ethyl-2-vinylbenzylamine. An isopropyl group being introduced into the benzylamine ligand does not allow the chelate ring to close and makes the existence of the corresponding ruthenium complex impossible.
Activity of the target ruthenium chelates towards the simplest ROMP and RCM reactions was investigated in the concentration range of 0.1–0.01 mol%. It has been proven that the substituents attached to the nitrogen atom have the greatest influence on the rate of metathesis. The catalysts bearing an N-morpholine moiety manifested the highest catalytic activity. The methyl or ethyl groups in the α-position did not significantly affect the rate of the metathesis reactions. The storage stability and the catalytic properties of the ruthenium chelates turned out to be comparable to those of commercially available metathesis catalysts (HG-II).
Thus, the aforementioned range of ruthenium complexes completes our research [28,29], which is devoted to the synthesis and properties of six-membered HG-type complexes containing an N→Ru bond in the chelate ring.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28031188/s1, it includes all experimental procedures, NMR data for new compounds and details of XRD experiments. Synthesis of 1-substituted-3,4-dihydroquinolines includes acylation of phenethylamine and a further cyclization of the resulting amide by the Bischler-Napieralski reaction according to previously described procedures [39]. Commercially available second-generation Hoveyda-Grubbs catalyst [45] was used to compare its catalytic activity with complexes 4a–d and 5a–d. The crystal structure of all synthesized substances was determined by X-ray structural analysis using an automatic four-circle area-detector diffractometer Bruker KAPPA APEX II with MoKα radiation. The cell parameters were refined over the entire data set, together with data reduction using SAINT-Plus software [46]. Absorption corrections were introduced using the SADABS program [47]. The structures were solved using the SHELXT-2018/2 program [48] and refined by full-matrix least squares on F2 in the anisotropic approximation for all non-hydrogen atoms [49]. The H atoms were placed in geometrically calculated positions with isotropic temperature factors equal to 1.2Ueq(C) for CH2 and CH-groups, and 1.5Ueq(C) for CH3-groups, the orientation of CH3-groups was refined. In structures 4a, 4b, 5a solvent molecules were strongly disordered and therefore it was removed using the SQUEEZE routine of PLATON [50], and the structure was then refined again using the data generated. Structure 5b was refined as an inversion twin. Tables and figures for the structures were generated using Olex2 [51]. Schemes S1–S6: reaction schemes for preparation of (2-vinyl)benzylamines 1a–d, 2a–c, 3a–d and catalysts 4a–d, 5a–d; Figures S1–S4: time/conversion curves for RCM transformations of compounds 7 and 9; Figures S5–S10: view showing intramolecular hydrogen bonds in complexes 4a, 4b, 4c, 5a and 5b; Table S1: optimization of reaction conditions for the synthesis of catalysts 4, 5 and 6; Table S2: the crystal data, data collection, and structure refinement details for 4a–c, 5a, 5b and 5d; Tables S3–S24: angles and bond lengths for compounds 4a, 4b, 4c, 5a, 5b and 5d.

Author Contributions

K.A.V.; A.S.A., N.S.V., N.A.L. and E.V.N. performed the synthesis and purification of the obtained compounds; A.P.N. and M.S.G. performed the X-ray diffraction experiments; V.V.K. organized the drafts preparation and participated in the edition; K.B.P. provided experimental procedures for metathesis reactions; F.I.Z. conceived and designed the experiments and supervised all process of this investigation. All authors have read and agreed to the published version of the manuscript.

Funding

Funding for this research was provided by the Ministry of Education and Science of the Russian Federation [Award no. 075-03-2020-223 (FSSF-2020-0017)].

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

“MDPI Research Data Policies” at https://www.mdpi.com/ethics.

Acknowledgments

X-ray diffraction experiments were performed at the Center for Shared Use of Physical Methods of Investigation at the Frumkin Institute of Physical Chemistry and Electrochemistry, RAS with partial support by the Ministry of Science and Higher Education of the Russian Federation.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are not available from the authors.

References

  1. Handbook of Metathesis: Catalyst Development, 1st ed.; Grubbs, R.H. (Ed.) Wiley: Amsterdam, The Netherlands, 2003; ISBN 978-3-527-30616-9. [Google Scholar]
  2. van der Schaaf, P.A.; Kolly, R.; Kirner, H.-J.; Rime, F.; Mühlebach, A.; Hafner, A. Synthesis and Reactivity of Novel Ruthenium Carbene Catalysts. X-ray Structures of [RuCl2(#CHSC6H5)(PiPr3)2] and [RuCl2(CHCH2CH2-C,N-2-C5H4N)(PiPr3)]. J. Organomet. Chem. 2000, 606, 65–74. [Google Scholar] [CrossRef]
  3. Ung, T.; Hejl, A.; Grubbs, R.H.; Schrodi, Y. Latent Ruthenium Olefin Metathesis Catalysts That Contain an N-Heterocyclic Carbene Ligand. Organometallics 2004, 23, 5399–5401. [Google Scholar] [CrossRef] [Green Version]
  4. Nechmad, N.B.; Lemcoff, N.G. Sulfur-Chelated Ruthenium Olefin Metathesis Catalysts. Synlett 2021, 32, 258–266. [Google Scholar] [CrossRef]
  5. Alassad, N.; Nechmad, N.B.; Phatake, R.S.; Reany, O.; Lemcoff, N.G. Steric and Electronic Effects in Latent S-Chelated Olefin Metathesis Catalysts. Catal. Sci. Technol. 2023. advanced article. [Google Scholar] [CrossRef]
  6. Monsigny, L.; Kajetanowicz, A.; Grela, K. Ruthenium Complexes Featuring Unsymmetrical N-Heterocyclic Carbene Ligands–Useful Olefin Metathesis Catalysts for Special Tasks. Chem. Rec. 2021, 21, 3648–3661. [Google Scholar] [CrossRef] [PubMed]
  7. Lexer, C.; Burtscher, D.; Perner, B.; Tzur, E.; Lemcoff, N.G.; Slugovc, C. Olefin Metathesis Catalyst Bearing a Chelating Phosphine Ligand. J. Organomet. Chem. 2011, 696, 2466–2470. [Google Scholar] [CrossRef]
  8. Tzur, E.; Szadkowska, A.; Ben-Asuly, A.; Makal, A.; Goldberg, I.; Woźniak, K.; Grela, K.; Lemcoff, N.G. Studies on Electronic Effects in O-, N- and S-Chelated Ruthenium Olefin-Metathesis Catalysts. Chem. Eur. J. 2010, 16, 8726–8737. [Google Scholar] [CrossRef]
  9. Kajetanowicz, A.; Grela, K. Nitro and Other Electron Withdrawing Group Activated Ruthenium Catalysts for Olefin Metathesis Reactions. Angew. Chem. Int. Ed. 2021, 60, 13738–13756. [Google Scholar] [CrossRef]
  10. Kost, T.; Sigalov, M.; Goldberg, I.; Ben-Asuly, A.; Lemcoff, N.G. Latent Sulfur Chelated Ruthenium Catalysts: Steric Acceleration Effects on Olefin Metathesis. J. Organomet. Chem. 2008, 693, 2200–2203. [Google Scholar] [CrossRef]
  11. Żukowska, K.; Pump, E.; Pazio, A.E.; Woźniak, K.; Cavallo, L.; Slugovc, C. Consequences of the Electronic Tuning of Latent Ruthenium-Based Olefin Metathesis Catalysts on Their Reactivity. Beilstein J. Org. Chem. 2015, 11, 1458–1468. [Google Scholar] [CrossRef]
  12. Hussain, R.; Iqbal, S.; Shah, M.; Rehman, W.; Khan, S.; Rasheed, L.; Rahim, F.; Dera, A.A.; Kehili, S.; Elkaeed, E.B.; et al. Synthesis of Novel Benzimidazole-Based Thiazole Derivatives as Multipotent Inhibitors of α-Amylase and α-Glucosidase: In Vitro Evaluation along with Molecular Docking Study. Molecules 2022, 27, 6457. [Google Scholar] [CrossRef] [PubMed]
  13. Kośnik, W.; Lichosyt, D.; Śnieżek, M.; Janaszkiewicz, A.; Woźniak, K.; Malińska, M.; Trzaskowski, B.; Kajetanowicz, A.; Grela, K. Ruthenium Olefin Metathesis Catalysts Bearing a Macrocyclic N-Heterocyclic Carbene Ligand: Improved Stability and Activity. Angew. Chem. Int. Ed. 2022, 61, in press. [Google Scholar] [CrossRef]
  14. Taran, O.P.; Miroshnikova, A.V.; Baryshnikov, S.V.; Kazachenko, A.S.; Skripnikov, A.M.; Sychev, V.V.; Malyar, Y.N.; Kuznetsov, B.N. Reductive Catalytic Fractionation of Spruce Wood over Ru/C Bifunctional Catalyst in the Medium of Ethanol and Molecular Hydrogen. Catalysts 2022, 12, 1384. [Google Scholar] [CrossRef]
  15. Czarnocki, S.; Monsigny, L.; Sienkiewicz, M.; Kajetanowicz, A.; Grela, K. Ruthenium Olefin Metathesis Catalysts Featuring N-Heterocyclic Carbene Ligands Tagged with Isonicotinic and 4-(Dimethylamino)Benzoic Acid Rests: Evaluation of a Modular Synthetic Strategy. Molecules 2021, 26, 5220. [Google Scholar] [CrossRef] [PubMed]
  16. Kajetanowicz, A.; Chwalba, M.; Gawin, A.; Tracz, A.; Grela, K. Non-Glovebox Ethenolysis of Ethyl Oleate and FAME at Larger Scale Utilizing a Cyclic (Alkyl)(Amino)Carbene Ruthenium Catalyst. Eur. J. Lipid Sci. Technol. 2020, 122, 1900263. [Google Scholar] [CrossRef]
  17. Czarnocki, S.J.; Czeluśniak, I.; Olszewski, T.K.; Malinska, M.; Woźniak, K.; Grela, K. Rational and Then Serendipitous Formation of Aza Analogues of Hoveyda-Type Catalysts Containing a Chelating Ester Group Leading to a Polymerization Catalyst Family. ACS Catal. 2017, 7, 4115–4121. [Google Scholar] [CrossRef]
  18. Basak, T.; Grudzień, K.; Barbasiewicz, M. Remarkable Ability of the Benzylidene Ligand To Control Initiation of Hoveyda–Grubbs Metathesis Catalysts. Eur. J. Inorg. Chem. 2016, 2016, 3513–3523. [Google Scholar] [CrossRef]
  19. Grela, K.; Harutyunyan, S.; Michrowska, A. A Highly Efficient Ruthenium Catalyst for Metathesis Reactions. Angew. Chem. 2002, 114, 4210–4212. [Google Scholar] [CrossRef]
  20. Cheng-Sánchez, I.; Sarabia, F. Recent Advances in Total Synthesis via Metathesis Reactions. Synthesis 2018, 50, 3749–3786. [Google Scholar] [CrossRef] [Green Version]
  21. Jacques, R.; Pal, R.; Parker, N.A.; Sear, C.E.; Smith, P.W.; Ribaucourt, A.; Hodgson, D.M. Recent Applications in Natural Product Synthesis of Dihydrofuran and -Pyran Formation by Ring-Closing Alkene Metathesis. Org. Biomol. Chem. 2016, 14, 5875–5893. [Google Scholar] [CrossRef]
  22. Phatake, R.S.; Nechmad, N.B.; Reany, O.; Lemcoff, N.G. Highly Substrate-Selective Macrocyclic Ring Closing Metathesis. Adv. Synth. Catal. 2022, 364, 1465–1472. [Google Scholar] [CrossRef]
  23. Nechmad, N.B.; Kobernik, V.; Tarannam, N.; Phatake, R.; Eivgi, O.; Kozuch, S.; Lemcoff, N.G. Reactivity and Selectivity in Ruthenium Sulfur-Chelated Diiodo Catalysts. Angew. Chem. Int. Ed. 2021, 60, 6372–6376. [Google Scholar] [CrossRef] [PubMed]
  24. Siano, V.; D’Auria, I.; Grisi, F.; Costabile, C.; Longo, P. Activity and Stereoselectivity of Ru-Based Catalyst Bearing a Fluorinated Imidazolinium Ligand. Open Chem. 2011, 9, 605–609. [Google Scholar] [CrossRef]
  25. Olefin Metathesis: Theory and Practice; Grela, K. (Ed.) Wiley: Hoboken, NJ, USA, 2014; ISBN 978-1-118-71156-9. [Google Scholar]
  26. Butilkov, D.; Frenklah, A.; Rozenberg, I.; Kozuch, S.; Lemcoff, N.G. Highly Selective Olefin Metathesis with CAAC-Containing Ruthenium Benzylidenes. ACS Catal. 2017, 7, 7634–7637. [Google Scholar] [CrossRef]
  27. Sytniczuk, A.; Kajetanowicz, A.; Grela, K. Fishing for the Right Catalyst for the Cross-Metathesis Reaction of Methyl Oleate with 2-Methyl-2-Butene. Catal. Sci. Technol. 2017, 7, 1284–1296. [Google Scholar] [CrossRef] [Green Version]
  28. Kumandin, P.A.; Antonova, A.S.; Alekseeva, K.A.; Nikitina, E.V.; Novikov, R.A.; Vasilyev, K.A.; Sinelshchikova, A.A.; Grigoriev, M.S.; Polyanskii, K.B.; Zubkov, F.I. Influence of the N→Ru Coordinate Bond Length on the Activity of New Types of Hoveyda–Grubbs Olefin Metathesis Catalysts Containing a Six-Membered Chelate Ring Possessing a Ruthenium–Nitrogen Bond. Organometallics 2020, 39, 4599–4607. [Google Scholar] [CrossRef]
  29. Polyanskii, K.B.; Alekseeva, K.A.; Raspertov, P.V.; Kumandin, P.A.; Nikitina, E.V.; Gurbanov, A.V.; Zubkov, F.I. Hoveyda–Grubbs Catalysts with an N→Ru Coordinate Bond in a Six-Membered Ring. Synthesis of Stable, Industrially Scalable, Highly Efficient Ruthenium Metathesis Catalysts and 2-Vinylbenzylamine Ligands as Their Precursors. Beilstein J. Org. Chem. 2019, 15, 769–779. [Google Scholar] [CrossRef]
  30. Slugovc, C.; Burtscher, D.; Stelzer, F.; Mereiter, K. Thermally Switchable Olefin Metathesis Initiators Bearing Chelating Carbenes: Influence of the Chelate’s Ring Size. Organometallics 2005, 24, 2255–2258. [Google Scholar] [CrossRef]
  31. Pump, E.; Leitgeb, A.; Kozłowska, A.; Torvisco, A.; Falivene, L.; Cavallo, L.; Grela, K.; Slugovc, C. Variation of the Sterical Properties of the N-Heterocyclic Carbene Coligand in Thermally Triggerable Ruthenium-Based Olefin Metathesis Precatalysts/Initiators. Organometallics 2015, 34, 5383–5392. [Google Scholar] [CrossRef]
  32. Shcheglova, N.M.; Kolesnik, V.D.; Ashirov, R.V.; Krasnokutskaya, E.A. Latent Ruthenium Carbene Complexes with Six-Membered N- and S-Chelate Rings. Russ. Chem. Bull. 2016, 65, 490–497. [Google Scholar] [CrossRef]
  33. Messina, M.S.; Maynard, H.D. Modification of Proteins Using Olefin Metathesis. Mater. Chem. Front. 2020, 4, 1040–1051. [Google Scholar] [CrossRef] [PubMed]
  34. Bespalova, N.B.; Afanas’ev, V.V.; Polyanskiy, K.B. RU2545176 C1 Catalyst of Metathesis Polymerisation of Dicyclopentadiene and Method of Obtaining Thereof. Available online: https://patents.google.com/patent/RU2545176C1/en (accessed on 29 January 2014).
  35. Afanas’ev, V.V.; Dolgina, T.M.; Bespalova, N.B. RU2393171 C1 Dicyclopentadiene Metathesis Polymerisation Catalyst, Preparation Method Thereof and Polymerisation Method. Available online: https://patents.google.com/patent/RU2393171C1/en (accessed on 10 December 2008).
  36. Ashirov, R.V.; Bozhenkova, G.S.; Kiselev, S.A.; Zamanova, M.G. RU2578593 C1 Ruthenium Catalyst, Method for Production Thereof and Use in Metathesis Reaction. Available online: https://patents.google.com/patent/RU2578593C1/en (accessed on 29 December 2014).
  37. Choi, T.-L.; Grubbs, R.H. Controlled Living Ring-Opening-Metathesis Polymerization by a Fast-Initiating Ruthenium Catalyst. Angew. Chem. Int. Ed. 2003, 42, 1743–1746. [Google Scholar] [CrossRef]
  38. Gawin, A.; Pump, E.; Slugovc, C.; Kajetanowicz, A.; Grela, K. Ruthenium Amide Complexes—Synthesis and Catalytic Activity in Olefin Metathesis and in Ring-Opening Polymerisation. Eur. J. Inorg. Chem. 2018, 2018, 1766–1774. [Google Scholar] [CrossRef]
  39. Perecim, G.P.; Rodrigues, A.; Raminelli, C. A Convenient Formation of Aporphine Core via Benzyne Chemistry: Conformational Analysis and Synthesis of (R)-Aporphine. Tetrahedron Lett. 2015, 56, 6848–6851. [Google Scholar] [CrossRef]
  40. Rheiner, A.; Brossi, A. Synthesen in Der Isochinolinreihe Zum HOFMANN’schen Abbau 1-Phenäthylsubstituierter 1,2,3,4-Tetrahydroisochinoline. Helv. Chim. Acta 1962, 45, 2590–2600. [Google Scholar] [CrossRef]
  41. Kafka, S.; Trška, P.; Kytner, J.; Taufmann, P.; Ferles, M. Hydroboration of N,N-Dimethyl(2-Vinylbenzyl)Amine. Collect. Czech. Chem. Commun. 1987, 52, 2047–2056. [Google Scholar] [CrossRef]
  42. Nascimento, D.L.; Davy, E.C.; Fogg, D.E. Merrifield Resin-Assisted Routes to Second-Generation Catalysts for Olefin Metathesis. Catal. Sci. Technol. 2018, 8, 1535–1544. [Google Scholar] [CrossRef]
  43. Monsaert, S.; Drozdzak, R.; Dragutan, V.; Dragutan, I.; Verpoort, F. Indenylidene-Ruthenium Complexes Bearing Saturated N-Heterocyclic Carbenes: Synthesis and Catalytic Investigation in Olefin Metathesis Reactions. Eur. J. Inorg. Chem. 2008, 2008, 432–440. [Google Scholar] [CrossRef]
  44. Groom, C.R.; Bruno, I.J.; Lightfoot, M.P.; Ward, S.C. The Cambridge Structural Database. Acta Crystallogr. Sect. B Struct. Sci. Cryst. Eng. Mater. 2016, 72, 171–179. [Google Scholar] [CrossRef]
  45. Kingsbury, J.S.; Harrity, J.P.A.; Bonitatebus, P.J.; Hoveyda, A.H. A Recyclable Ru-Based Metathesis Catalyst. J. Am. Chem. Soc. 1999, 121, 791–799. [Google Scholar] [CrossRef]
  46. SAINT, V8.40B 2020 Cif File Entries for the Purdue Quest Diffractometer (June 2020); Bruker AXS Inc.: Madison, WI, USA, 2020.
  47. Krause, L.; Herbst-Irmer, R.; Sheldrick, G.M.; Stalke, D. Comparison of Silver and Molybdenum Microfocus X-ray Sources for Single-Crystal Structure Determination. J. Appl. Crystallogr. 2015, 48, 3–10. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Sheldrick, G.M. SHELXT – Integrated Space-Group and Crystal-Structure Determination. Acta Cryst. 2015, A71, 3–8. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Sheldrick, G.M. Crystal Structure Refinement with SHELXL. Acta Cryst. 2015, C71, 3–8. [Google Scholar] [CrossRef] [Green Version]
  50. Spek, A.L. PLATON SQUEEZE: A Tool for the Calculation of the Disordered Solvent Contribution to the Calculated Structure Factors. Acta Cryst. 2015, C71, 9–18. [Google Scholar] [CrossRef] [Green Version]
  51. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A Complete Structure Solution, Refinement and Analysis Program. J. Appl. Crystallogr. 2009, 42, 339–341. [Google Scholar] [CrossRef]
Molecules 28 01188 g001 550

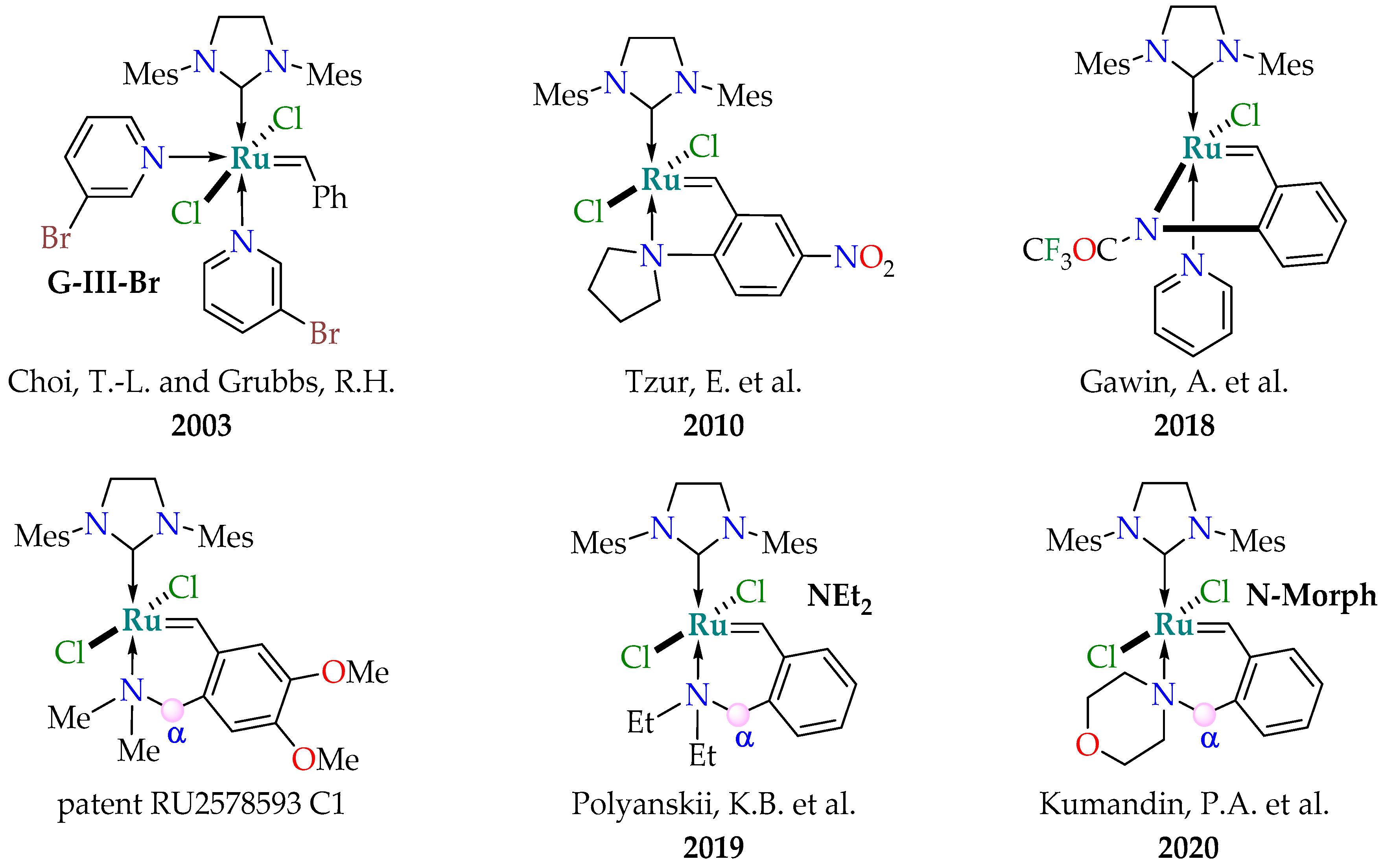

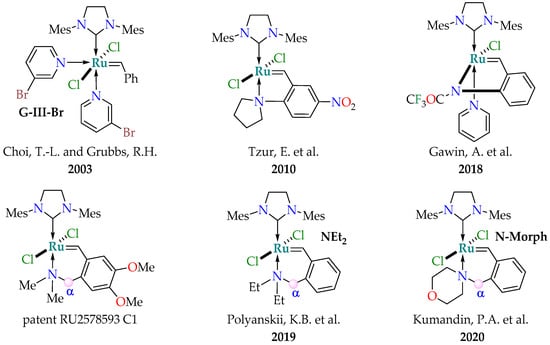

Figure 1. N–Ru complexes that are closest to this study (the top row [8,37,38], the bottom row [28,29,36]).
Figure 1. N–Ru complexes that are closest to this study (the top row [8,37,38], the bottom row [28,29,36]).
Molecules 28 01188 g001
Molecules 28 01188 sch001 550

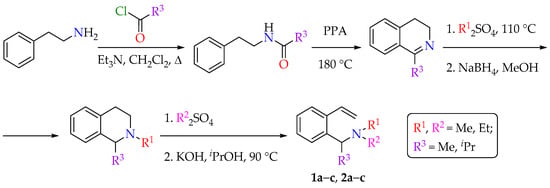

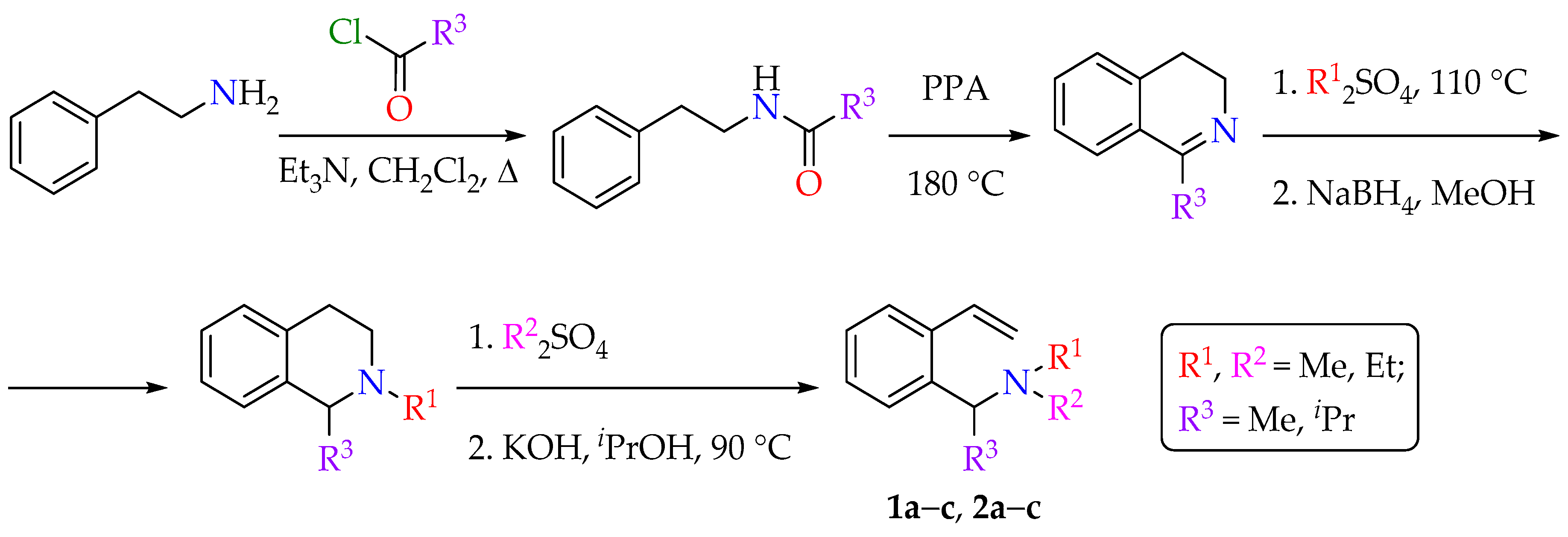

Scheme 1. Synthesis of 2-vinylbenzylamines 1a–c and 2a–c.
Scheme 1. Synthesis of 2-vinylbenzylamines 1a–c and 2a–c.
Molecules 28 01188 sch001
Molecules 28 01188 sch002 550

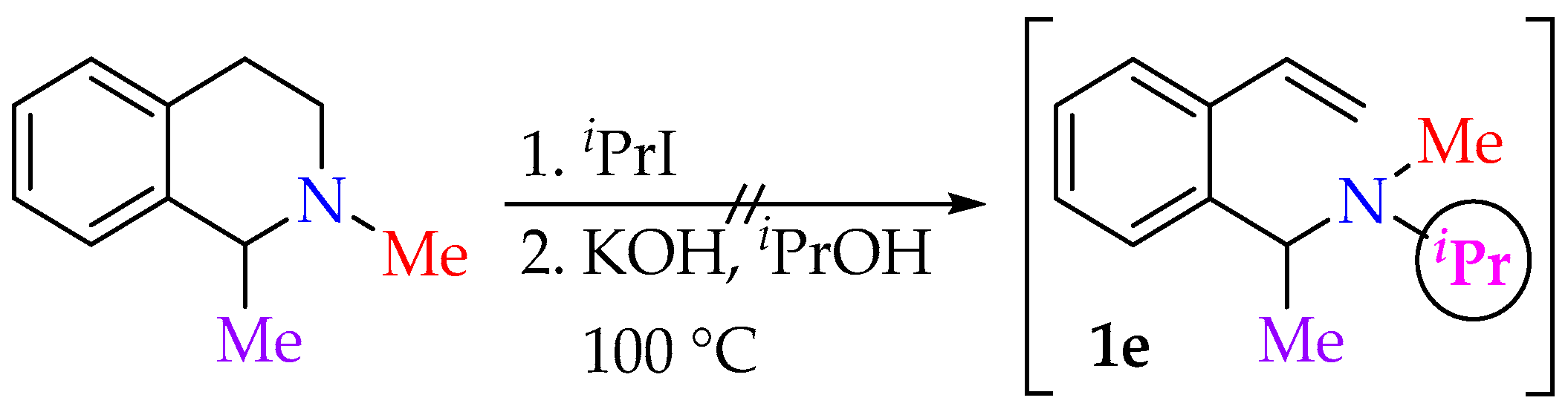

Scheme 2. Unsuccessful attempts to synthesize N-isopropyl substituted benzylamine 1e.
Scheme 2. Unsuccessful attempts to synthesize N-isopropyl substituted benzylamine 1e.
Molecules 28 01188 sch002
Molecules 28 01188 sch003 550

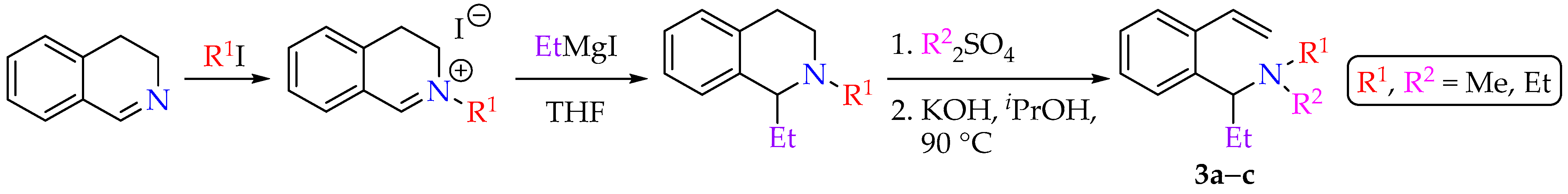

Scheme 3. Synthesis of α-ethyl substituted styrenes 3a–c.
Scheme 3. Synthesis of α-ethyl substituted styrenes 3a–c.
Molecules 28 01188 sch003
Molecules 28 01188 sch004 550

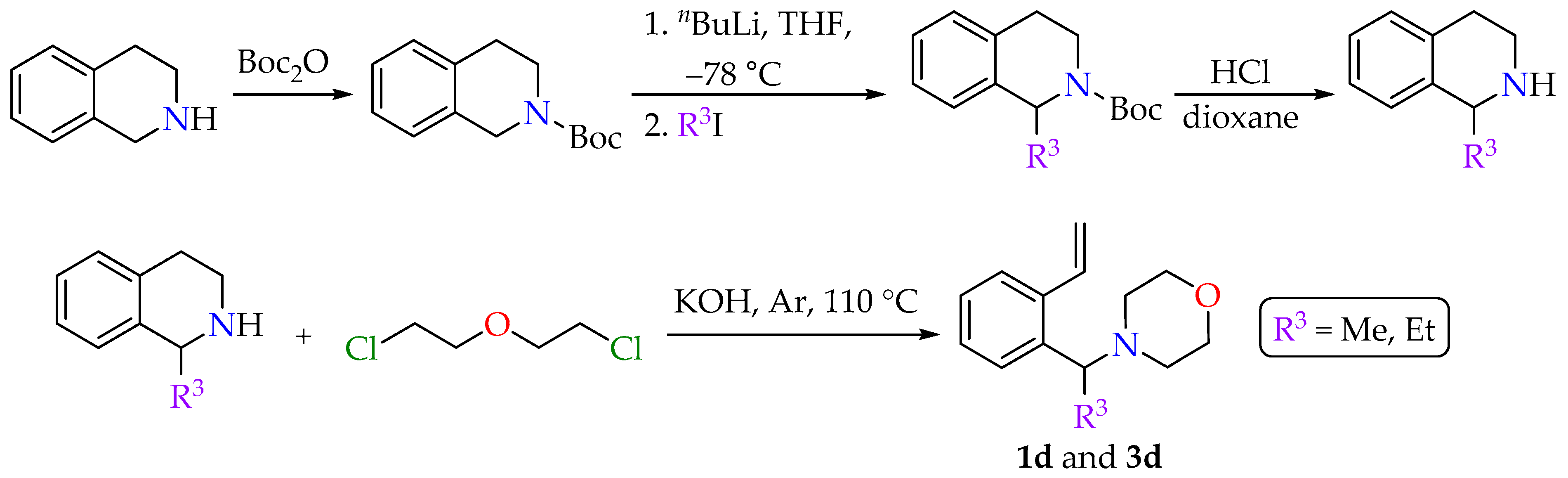

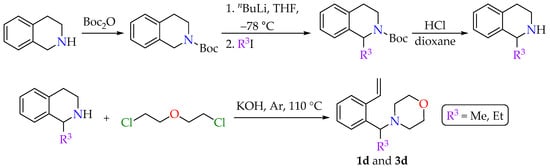

Scheme 4. Synthesis of morpholine-containing styrenes 1d and 3d.
Scheme 4. Synthesis of morpholine-containing styrenes 1d and 3d.
Molecules 28 01188 sch004
Molecules 28 01188 sch005 550

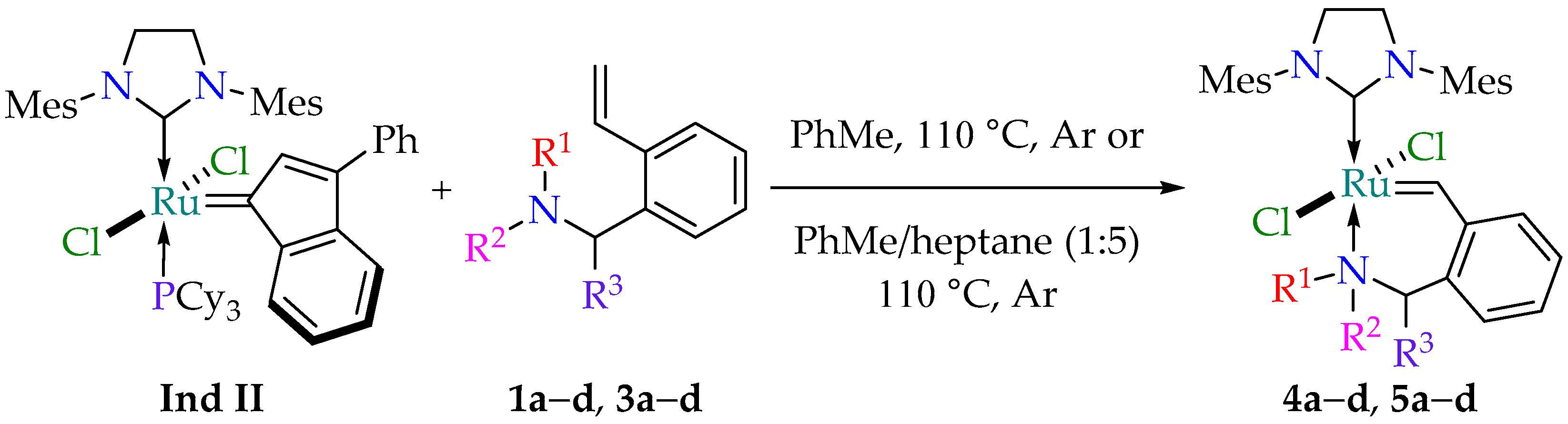

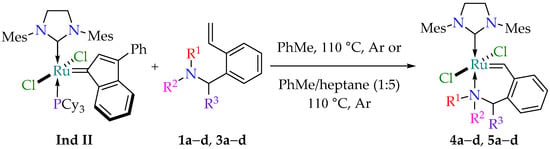

Scheme 5. Synthesis of the target ruthenium complexes 4 and 5.
Scheme 5. Synthesis of the target ruthenium complexes 4 and 5.
Molecules 28 01188 sch005
Molecules 28 01188 g002 550

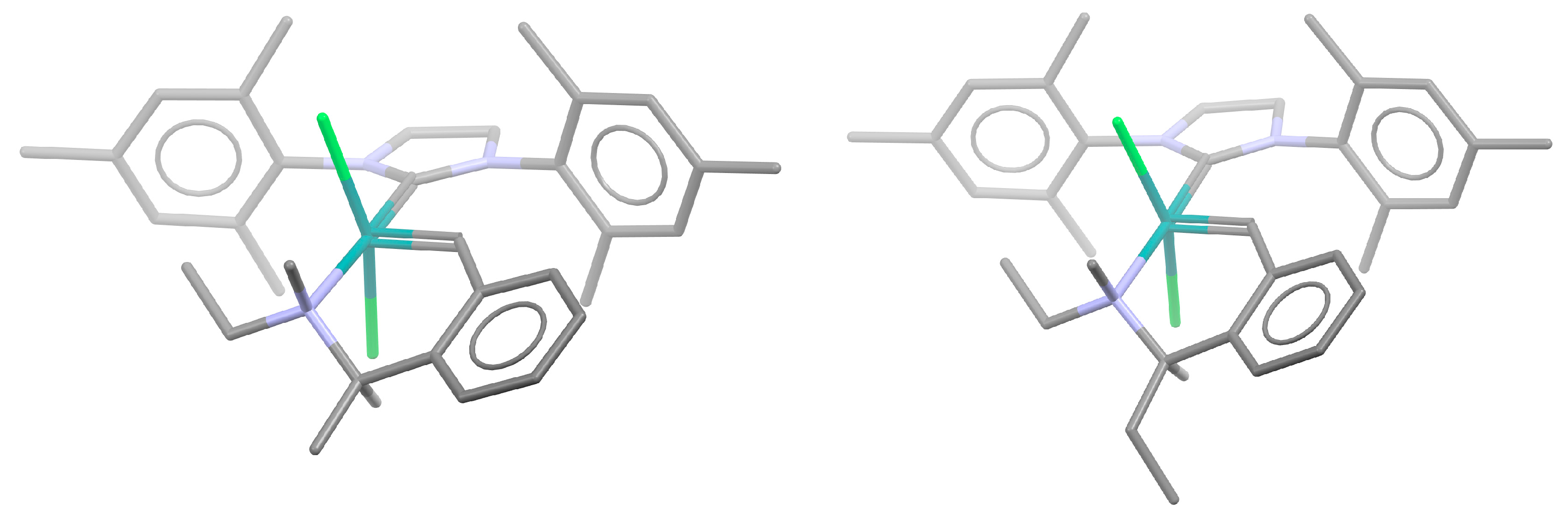

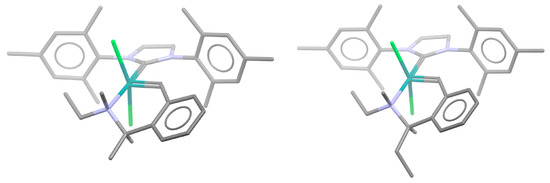

Figure 2. N–Ru complexes 4b (on the left) and 5b (on the right) with two stereogenic centers. All H-atoms except for the one in the α-CH-fragment are omitted everywhere for clarity.
Figure 2. N–Ru complexes 4b (on the left) and 5b (on the right) with two stereogenic centers. All H-atoms except for the one in the α-CH-fragment are omitted everywhere for clarity.
Molecules 28 01188 g002
Molecules 28 01188 sch006 550

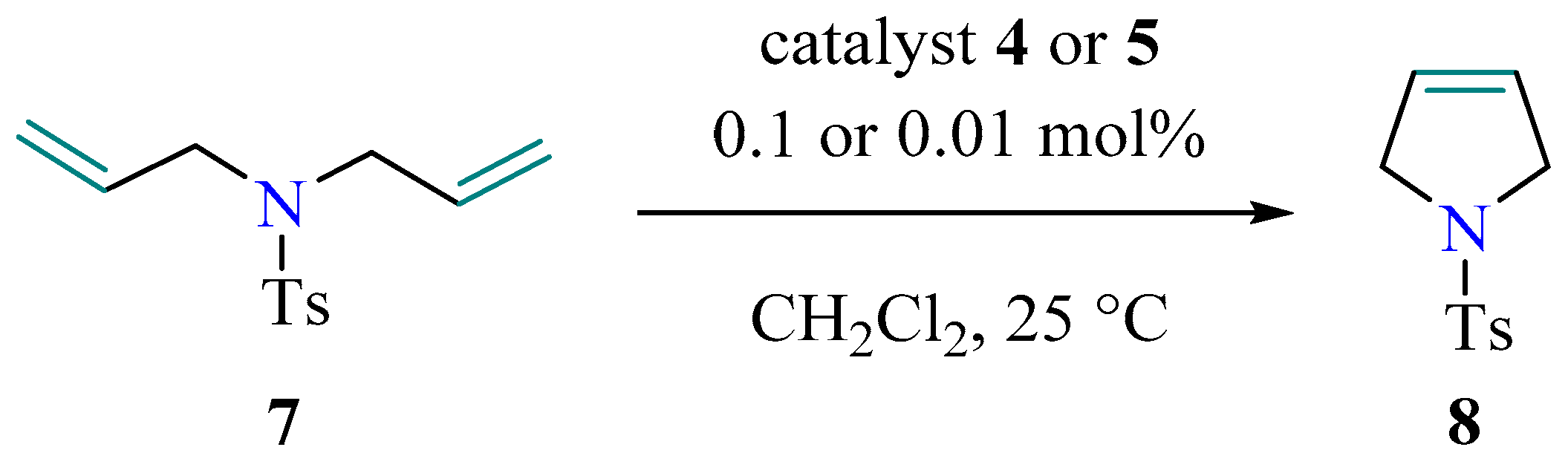

Scheme 6. RCM reaction of N,N-diallyltosylamide.
Scheme 6. RCM reaction of N,N-diallyltosylamide.
Molecules 28 01188 sch006
Molecules 28 01188 g003 550

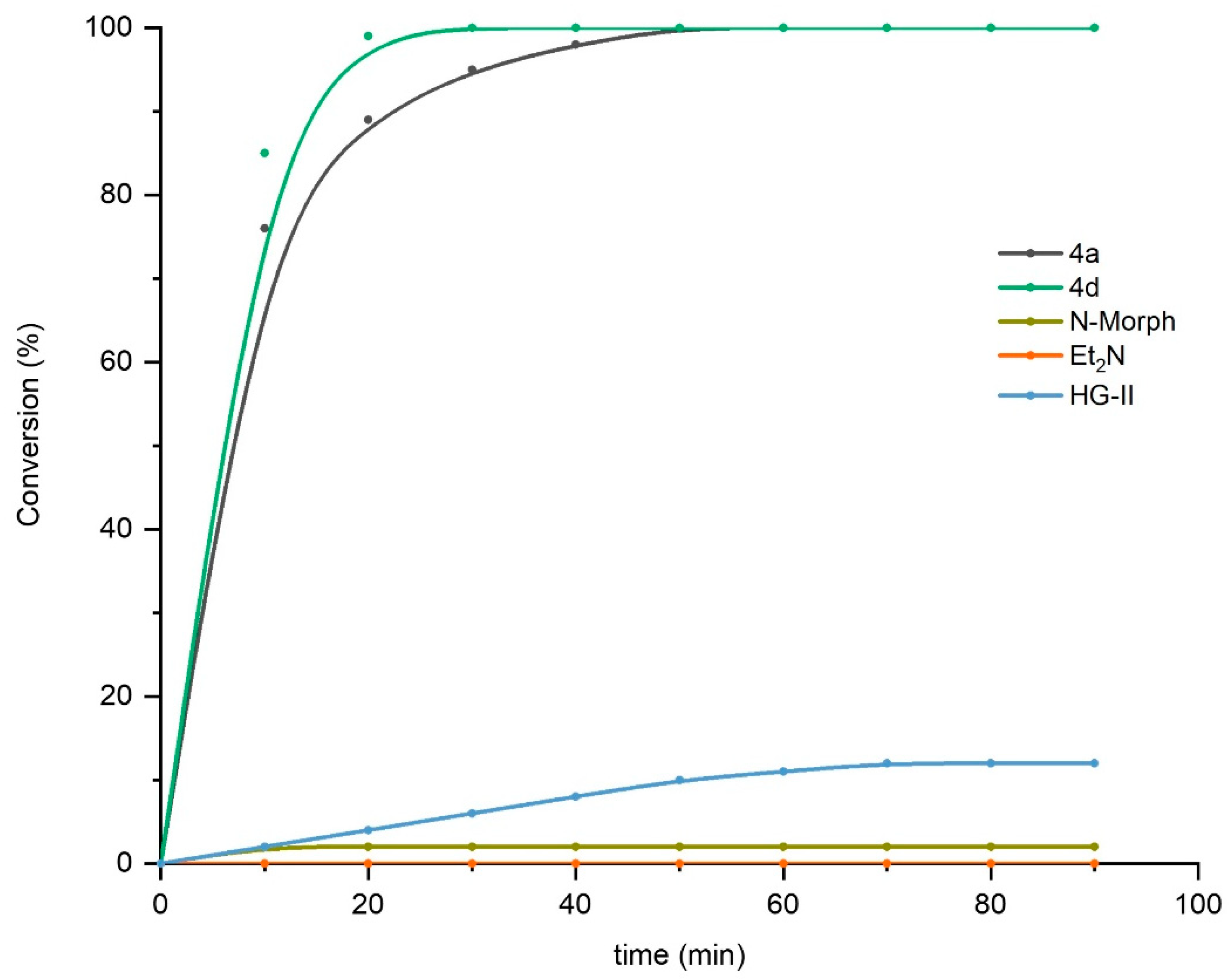

Figure 3. Time/conversion curves for RCM transformations of 7 (0.8 mmol, 200 mg) to 8 under the action of catalysts 4a, 4d compared with the previously reported ones for N-Morph [28], NEt2 [29] (for structures, see Figure 1) and HG-II [44]. Conditions: catalyst loading is 0.1 mol% (0.0008 mmol), 25 ℃, Ar, dry CH2Cl2 (20 mL).
Figure 3. Time/conversion curves for RCM transformations of 7 (0.8 mmol, 200 mg) to 8 under the action of catalysts 4a, 4d compared with the previously reported ones for N-Morph [28], NEt2 [29] (for structures, see Figure 1) and HG-II [44]. Conditions: catalyst loading is 0.1 mol% (0.0008 mmol), 25 ℃, Ar, dry CH2Cl2 (20 mL).
Molecules 28 01188 g003
Molecules 28 01188 g004 550

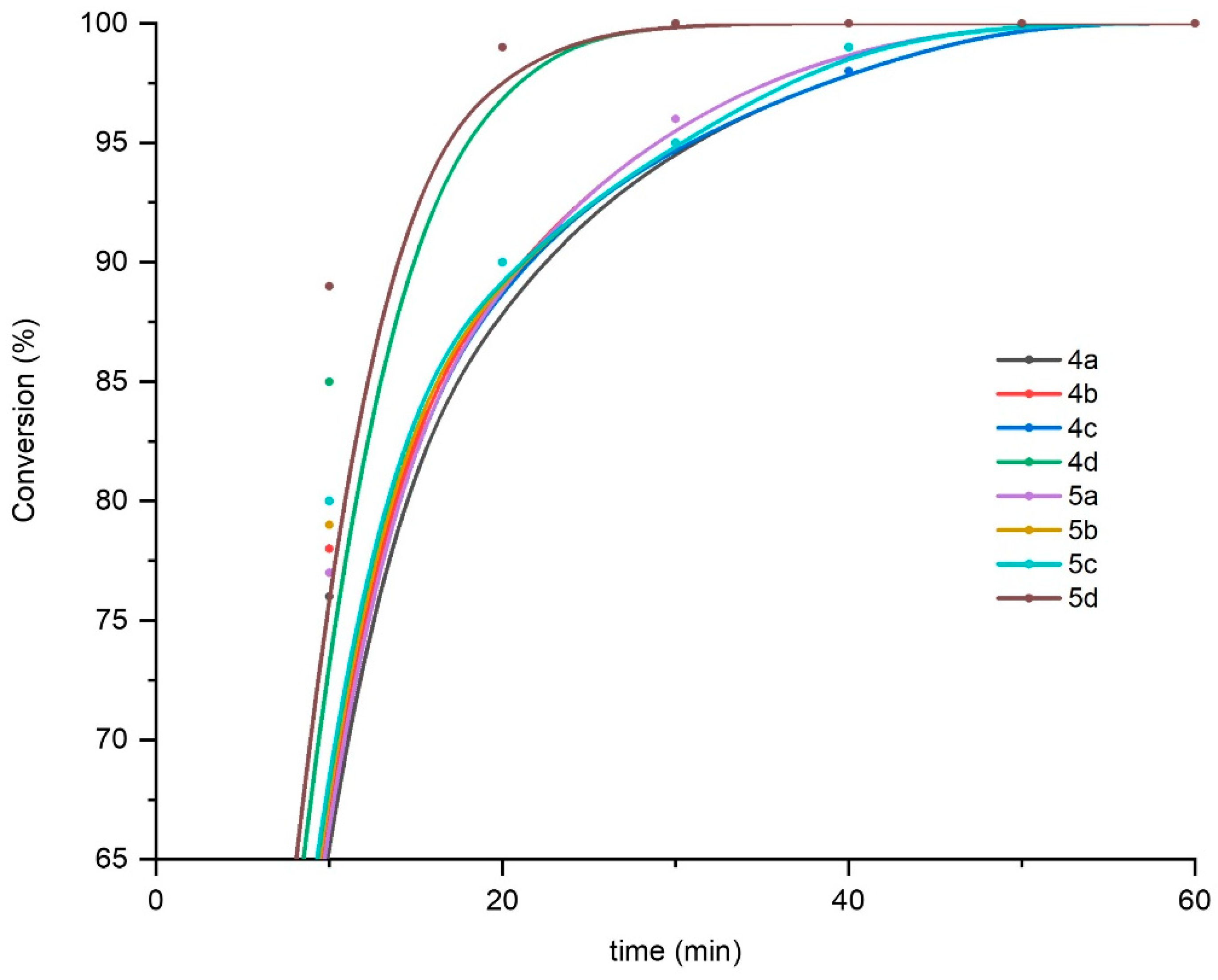

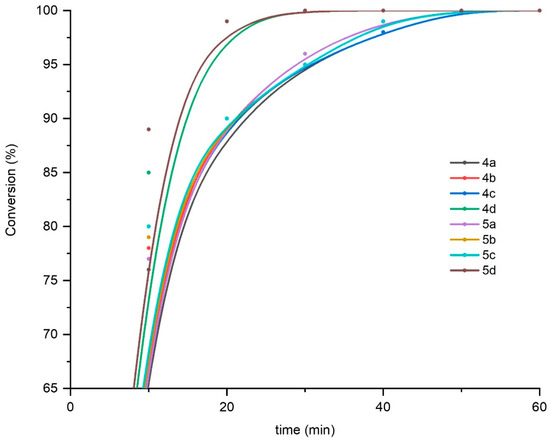

Figure 4. Time/conversion curves for RCM transformations of 7 (0.8 mmol, 200 mg) to 8 under the action of catalysts 4a–d and 5a–d. Conditions: catalyst loading is 0.1 mol% (0.0008 mmol), 25 °C, Ar, dry CH2Cl2 (20 mL). A fragment of the kinetic curve is presented to better reflect the course of reactions with various catalysts.
Figure 4. Time/conversion curves for RCM transformations of 7 (0.8 mmol, 200 mg) to 8 under the action of catalysts 4a–d and 5a–d. Conditions: catalyst loading is 0.1 mol% (0.0008 mmol), 25 °C, Ar, dry CH2Cl2 (20 mL). A fragment of the kinetic curve is presented to better reflect the course of reactions with various catalysts.
Molecules 28 01188 g004
Molecules 28 01188 g005 550

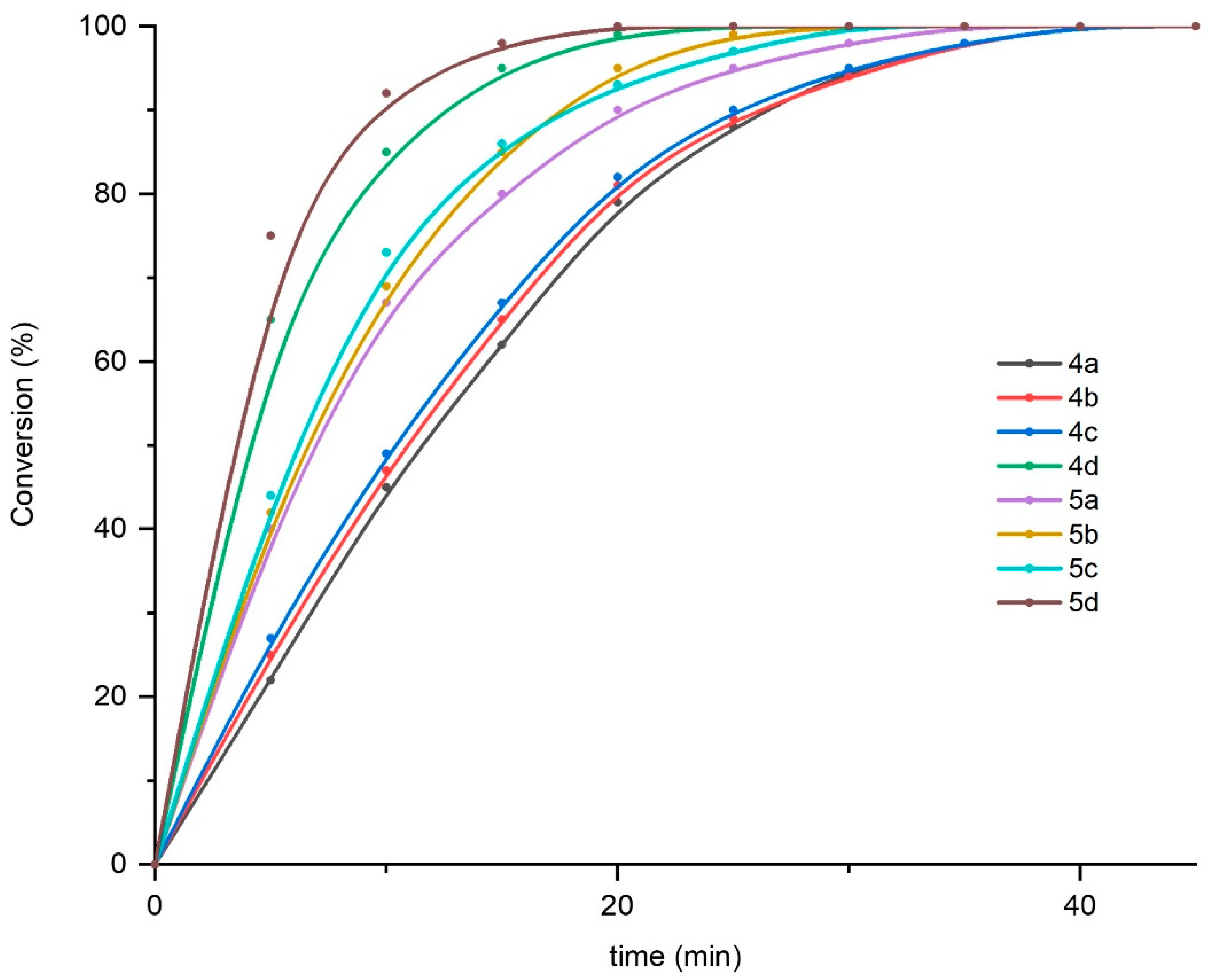

Figure 5. Time/conversion curves for RCM transformations of 7 (0.8 mmol, 200 mg) to 8 under the action of catalysts 4a–d and 5a–d. Conditions: catalyst loading is 0.01 mol% (0.00008 mmol), 25 °C, Ar, dry CH2Cl2 (20 mL).
Figure 5. Time/conversion curves for RCM transformations of 7 (0.8 mmol, 200 mg) to 8 under the action of catalysts 4a–d and 5a–d. Conditions: catalyst loading is 0.01 mol% (0.00008 mmol), 25 °C, Ar, dry CH2Cl2 (20 mL).
Molecules 28 01188 g005
Molecules 28 01188 sch007 550
Scheme 7. ROMP polymerization of DBNB promoted by 4a, 4d, 5a, 5d catalysts.
Scheme 7. ROMP polymerization of DBNB promoted by 4a, 4d, 5a, 5d catalysts.
Molecules 28 01188 sch007
Molecules 28 01188 g006 550
Figure 6. Exotherms of ROMP reactions of DBNB (10 g, 0.05 mol) under the action of catalysts 4a, 4d, 5a, and 5d. Reaction conditions: catalyst loading is 0.1 mol% (0.008 mmol), starting temperature is 25 °C, neat.
Figure 6. Exotherms of ROMP reactions of DBNB (10 g, 0.05 mol) under the action of catalysts 4a, 4d, 5a, and 5d. Reaction conditions: catalyst loading is 0.1 mol% (0.008 mmol), starting temperature is 25 °C, neat.
Molecules 28 01188 g006
Table
Table 1. Structures and yields of styrenes 1a–d, 2a–c, 3a–d.
Table 1. Structures and yields of styrenes 1a–d, 2a–c, 3a–d.
Entry1Yield of 1, %2Yield of 2, %3Yield of 3, %
aMolecules 28 01188 i00184
☑		Molecules 28 01188 i00253
☒		Molecules 28 01188 i00375
☑
bMolecules 28 01188 i00472
☑		Molecules 28 01188 i00542
☒		Molecules 28 01188 i00670
☑
cMolecules 28 01188 i00778
☑		Molecules 28 01188 i00850
☒		Molecules 28 01188 i00968
☒☑
dMolecules 28 01188 i01085
☑		☑—corresponding styrenes are suitable for the preparation of ruthenium complexesMolecules 28 01188 i01181
☑
☒—corresponding styrenes are unsuitable for the preparation of ruthenium complexes
Table
Table 2. Structures and yields of ruthenium complexes 4a–d, 5a–d.
Table 2. Structures and yields of ruthenium complexes 4a–d, 5a–d.
Entry4Solvent,
Time		Yield of 4, %5Solvent,
Time		Yield of 5, %6Solvent, TimeYield of 6, %
aMolecules 28 01188 i012PhMe,
1.5 h		78
☑
X-ray *		Molecules 28 01188 i013PhMe/
heptane (1:5),
40 min		74
☑
X-ray *		Molecules 28 01188 i014PhMe/
heptane (1:5),
0.5–2 h		0
☒
bMolecules 28 01188 i015PhMe,
1.5 h		79
☑
X-ray *		Molecules 28 01188 i016PhMe/
heptane (1:5),
40 min		58
☑
X-ray *		Molecules 28 01188 i017PhMe/
heptane (1:5),
0.5–2 h		0
☒
cMolecules 28 01188 i018PhMe,
1.5 h		71
☑
X-ray *		Molecules 28 01188 i019PhMe/
heptane (1:5),
0.5–2 h		5
☒☑		Molecules 28 01188 i020PhMe/
heptane (1:5),
0.5–2 h		0
☒
dMolecules 28 01188 i021PhMe/
heptane (1:5),
40 min		80
☑		Molecules 28 01188 i022PhMe/
heptane (1:5),
40 min		77
☑
X-ray *		☑—the corresponding ruthenium complex can be synthesized
☒—the corresponding ruthenium complex cannot be synthesized
* XRD data were obtained for these compounds.
Table
Table 3. Selected X-ray data for ruthenium complexes 4a–c and 5a,b,d.
Table 3. Selected X-ray data for ruthenium complexes 4a–c and 5a,b,d.
EntryCompoundBond Lengths, ÅAngle, °
N→RuRu=CRu-CCl-Ru-ClRuC4/RuNC Planes
4aMolecules 28 01188 i0232.2671.8232.041157.8358.84
4bMolecules 28 01188 i0242.2631.8222.047161.0857.24
4c *Molecules 28 01188 i0252.2651.8232.042161.3657.76
5aMolecules 28 01188 i0262.2651.8282.040161.5458.76
5bMolecules 28 01188 i0272.2721.8292.059159.0255.26
5dMolecules 28 01188 i0282.353
2.371		1.808
1.841		2.005
2.030		167.71
168.22		−
* In compound 4c, only one C41 atom of the disordered ethyl group is shown. The solvent molecules and H-atoms are omitted everywhere for clarity.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Vasilyev, K.A.; Antonova, A.S.; Volchkov, N.S.; Logvinenko, N.A.; Nikitina, E.V.; Grigoriev, M.S.; Novikov, A.P.; Kouznetsov, V.V.; Polyanskii, K.B.; Zubkov, F.I. Influence of Substituents in a Six-Membered Chelate Ring of HG-Type Complexes Containing an N→Ru Bond on Their Stability and Catalytic Activity. Molecules 2023, 28, 1188. https://doi.org/10.3390/molecules28031188

AMA Style

Vasilyev KA, Antonova AS, Volchkov NS, Logvinenko NA, Nikitina EV, Grigoriev MS, Novikov AP, Kouznetsov VV, Polyanskii KB, Zubkov FI. Influence of Substituents in a Six-Membered Chelate Ring of HG-Type Complexes Containing an N→Ru Bond on Their Stability and Catalytic Activity. Molecules. 2023; 28(3):1188. https://doi.org/10.3390/molecules28031188

Chicago/Turabian Style

Vasilyev, Kirill A., Alexandra S. Antonova, Nikita S. Volchkov, Nikita A. Logvinenko, Eugeniya V. Nikitina, Mikhail S. Grigoriev, Anton P. Novikov, Vladimir V. Kouznetsov, Kirill B. Polyanskii, and Fedor I. Zubkov. 2023. "Influence of Substituents in a Six-Membered Chelate Ring of HG-Type Complexes Containing an N→Ru Bond on Their Stability and Catalytic Activity" Molecules 28, no. 3: 1188. https://doi.org/10.3390/molecules28031188

APA Style

Vasilyev, K. A., Antonova, A. S., Volchkov, N. S., Logvinenko, N. A., Nikitina, E. V., Grigoriev, M. S., Novikov, A. P., Kouznetsov, V. V., Polyanskii, K. B., & Zubkov, F. I. (2023). Influence of Substituents in a Six-Membered Chelate Ring of HG-Type Complexes Containing an N→Ru Bond on Their Stability and Catalytic Activity. Molecules, 28(3), 1188. https://doi.org/10.3390/molecules28031188

Article Metrics

Back to TopTop
