Article

Multi-Responsive Molecular Encapsulation and Release Based on Hydrogen-Bonded Azo-Macrocycle

by
Jinyang Wu
,
Xuan Sun
,
Xianghui Li
,
Xiaowei Li
,
Wen Feng
and
Lihua Yuan
*
College of Chemistry, Key Laboratory of Radiation Physics and Technology of the Ministry of Education, Institute of Nuclear Science and Technology, Sichuan University, Chengdu 610064, China
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(11), 4437; https://doi.org/10.3390/molecules28114437
Submission received: 13 April 2023 / Revised: 27 May 2023 / Accepted: 27 May 2023 / Published: 30 May 2023
(This article belongs to the Special Issue Selected Papers from the 21th National Symposium on Macrocyclic Chemistry and the 13th National Symposium on Supramolecular Chemistry)
Browse Figures
Versions Notes

Abstract

:
Research on stimuli-responsive host–guest systems is at the cutting edge of supramolecular chemistry, owing to their numerous potential applications such as catalysis, molecular machines, and drug delivery. Herein, we present a multi-responsive host–guest system comprising azo-macrocycle 1 and 4,4′-bipyridinium salt G1 for pH-, photo-, and cation- responsiveness. Previously, we reported a novel hydrogen-bonded azo-macrocycle 1. The size of this host can be controlled through light-induced E↔Z photo-isomerization of the constituent azo-benzenes. The host is found in this work to be capable of forming stable complexes with bipyridinium/pyridinium salts, and implementing guest capture and release with G1 under light in a controlled manner. The binding and release of the guest in the complexes can also be easily controlled reversibly by using acid and base. Moreover, the cation competition-induced dissociation of the complex 1a2⊃G1 is achieved. These findings are expected to be useful in regulating encapsulation for sophisticated supramolecular systems.

Graphical Abstract

1. Introduction

Uncovering the mystery of biomolecules such as proteins for controlling the capture and release process has aroused extensive research interests [1,2]. However, the complexity of natural macrocycles renders chemists to design simple artificial systems for exploring the mechanism behind them [3]. In this regard, macrocycle-based host–guest systems are considered as one of the options that can fulfill this task more or less in functioning as encapsulation and release modules [4]. Multiple-responsive host–guest systems are particularly interesting in terms of their versatility in applications under various operative conditions with the aid of acid/base [5,6,7], light [8,9], and competitive guests [10,11]. Macrocyclic hosts, one of the components for such modular systems, have emerged in increasing numbers in recent years as recognition motifs for guest binding and for guest capture and release [12] owing to their easy synthesis and programmable, adjustable cavity size and binding affinity. Typical examples include cyclodextrin [13,14], crown ether [15,16,17], calixarene [18,19,20], pillararene [5,21,22,23,24], and other macrocycles [25,26], which are widely utilized for constructing multiple-responsive host–guest systems [27,28,29,30,31,32] to implement binding and releasing functions.
There are mainly three types of host–guest-responsive systems used in the field of supramolecular chemistry according to external stimuli: (a) one relying on guest molecules that are switched between capture and release according to chemical actions (e.g., pH switching and substrate competition), (b) the second type accomplishing the capture and release process using light irradiation—a clean, easily manipulated approach—for controlling complexation, and (c) the third type modulating the host–guest binding ability using electrochemical methods to change the charge and electron distributions by implementing electron transfer reactions [33]. Most of the known light-switchable azo-benzene systems involve the use of light-responsive guests rather than light-responsive hosts. It has been challenging to carry out the uptake and release of guests based on macrocyclic hosts alone. So far, there have been only a few examples using photo-responsive macrocycles, cryptands, and box-like molecules for the encapsulation and release of guest molecules [34,35,36,37,38,39,40]. A study by Sessler et al. revealed an expanded “Texas-sized” molecular box (AzoTxSB) that incorporates photo-responsive azo-benzene bridging subunits and anion recognition motifs, which allows various anionic substrates to be bound and released by using different forms of the box. Controlled release was achieved under multiple responsive conditions including light, pH, and anion competition [36]. Pillararene-based azo-macrocycle from Huang’s group also exhibited excellent capture and release of guests by light-controlled irradiation [38]. Our previous work demonstrated the feasibility of the quantitatively controlled release of guests under light stimulus with hydrogen-bonded azo-macrocycles [40]. Specifically, incorporating azo-benzene subunits into the core structure of cyclo[6]aramide creates a novel dynamic hydrogen-bonded azo-macrocycle host, which could form complexes with various bipyridinium salts. The size of this host can be controlled through light-induced E↔Z photo-isomerization of the constitutional azo-benzene moieties in the ring.
Two-dimensional hydrogen-bonded aramide macrocycles with shape persistency have exhibited plenty of unique features for guest binding [41,42,43] compared to more flexible crown ether and three-dimensional macrocycles, such as cyclodextrin and pillararenes. In addition, such cyclic compounds present superiority over their corresponding non-macrocyclic counterparts [44]. H-bonded aramide macrocycles have been applied to applications in recognition [45], extraction [46,47], separation [48], transmembrane channels [49,50], catalysis [51,52], and liquid-crystal materials [53]. In fact, the amide oxygen atoms pointing inward in the cavity and the variation in the number of internal H-bonds endow this class of H-bonded macrocycles with binding sites of affinities of different degrees for accommodating organic cations, ion-pair species, and even neutral molecules [54]. For instance, they are able to complex cationic guests such as diakylammonium [55,56], diquat [57], tropylium [45], paraquat [40,58], ferrocenium [59], and pyridinium [60]. Interestingly, host–guest complexation with cyclo[6]aramide and α-amino esters was found to induce chiroptical amplification, showing the pronounced enantiomeric and structural differentiation of α-amino esters [61]. The superiority of H-bonded azo-macrocycles was revealed in their ability for forging higher-order rotaxanes [62]. Notably, the box-directed aggregation of multiple H-bonded azo-macrocycles enabled the easy generation of a shish-kebab-like ring-in-rings dimeric superstructure [63].
To be amenable to the changing environments, host–guest systems with multiple responsiveness are desirable in supramolecular chemistry. This provides an excess to the optimal use of several stimulus approaches for achieving desired functions [64,65,66]. However, multiple responsiveness remains unknown for these two-dimensional shape-persistent H-bonded aramide macrocycles. Bipyridinium/pyridinium salts and their derivatives (e.g., viologen) are popular guests among others in macrocycle chemistry. So far, the application of protonated bipyridine/pyridine salts as guests in host–guest chemistry is very limited [67]. The deprotonation of protonated bipyridine/pyridine salts often proceeds easily to provide bipyridines/pyridines, and vice versa, which could make the association and dissociation of the complexes based on the protonated bipyridine/pyridine salts easily chemically controlled by acid and base. In this study, we report a dual-responsive host–guest system based on H-bonded aramide azo-macrocycle 1 and protonated 4,4′-bipyridine G1 and its analogues G3–G5 (Scheme 1). The binding and release of the guests in the complexes can be easily controlled by light and acid/base for G1. In addition, the complexation is responsive to the presence of a competitive organic cation G6. Most multi-responsive host–guest systems reported hitherto rely on the use of hosts without light-responsive properties; instead, guests are photo-responsive. The dual-responsive host–guest system presented here is unique in the combined use of a host with photo-responsive property and a guest responsive to acid/base to enable switchable complexation.

2. Results and Discussion

2.1. Host–Guest Complexation

Hydrogen-bonded aramide macrocycle 1 used in the present work adopts a nearly planar conformation with six carbonyl oxygen atoms pointing inward as recognition sites. The cavity size measures 8.3 Å in diameter, which renders it suitable for enclosing such organic cations as pyridinium or bipyridinium (G1–G5) (4.1 Å in width) [68]. The host–guest complexation in solution was studied using 1H NMR, HRMS, and UV-vis spectroscopy.
First, we set out to examine the complexation between host 1a and guest G1 in solution by 1H NMR spectroscopy. At room temperature, the 1H NMR spectra of a mixture of host 1a and guest G1 recorded in CDCl3-CD3CN show signals corresponding to the formation of a host–guest complex (Figure 1 and Figure S3). The signals of protons H1 and H2 in G1 experience distinct downfield shifts, especially for the proton H2 with a shift as large as ca. 0.5 ppm at a 2:1 (H:G) molar ratio (Figure 1c) with respect to free guest (Figure 1a). Substantial upfield shifts for the aromatic protons c and d of the complex relative to the macrocycle (Figure 1c,d) were also observed. The signal evolution of these protons in the presence of 1 equiv. and 2 equiv. 1a suggests the production of the complex 1a2⊃G1. The Job plot experiment indicates the formation of a 2:1 complex (Figure S4), which is in accordance with the results from positive-ion electrospray ionization mass spectrometry (ESI-MS, Figure S5). UV-vis titration experiments in CHCl3-CH3CN (5:1, v/v) provided binding constants of K1 = 6.55 × 104 M−1, K2 = 7.20 × 104 M−1, and K12 = 4.72 × 109 M−2 for 1a2⊃G1 (Figures S7 and S8). Notably, only a single set of signals from the bipyridinium ion was detected in the presence of 1.0 equiv. of 1a, indicating a fast exchange on the NMR time scale for the complex formation (Figure 1b). When using G2 with PF6− as a different counterion to replace CF3COO−, a similar trend was observed (Figures S9–S13). The Job plot experiments provided a 2:1 stoichiometry for 1b2⊃G2 complexes in solution (Figures S11 and S12), which are all consistent with the results from the ESI-MS spectra (Figure S13). The binding constants of K1 = 5.63 × 104 M−1, K2 = 8.24 × 103 M−1, and K12 = 4.64 × 108 M−2 (G2) were obtained in CHCl3-CH3CN (1:1, v/v) due to the low solubility in CHCl3-CH3CN (5:1, v/v) by fitting the experimental data from the UV-vis spectroscopy (Figures S14 and S15).
We then studied the complexation ability of 1a with 2,2′-bipyridinium salt G3, a structural isomer of G1/G2. G3 with 1a also exhibited a fast exchange process on the NMR time scale (Figure S16). According to the results of the Job plot experiment (Figures S19 and S20), a host–guest complex with 2:1 stoichiometry was formed, which is in agreement with the HR-MS results (Figure S25). The association constants for 1a2⊃G3 were found to be K1 = 9.91 × 105 M−1, K2 = 1.02 × 105 M−1, and K12 = 1.01 × 1011 M−2 in CHCl3-CH3CN (5:1, v/v) (Figures S28 and S29). Since π–π stacking interactions play an important role along with multiple C-H···O hydrogen-bonding and/or N+···O ion–dipole interactions to form pseudorotaxanes [62], G4/G5 with a single positive charge was selected to test if 2:1 stoichiometry could be retained under the same condition. G4, 4-phenylpyridinium salt, differs from G5, 2-phenylpyridinium salt, only in the position of nitrogen atoms. In the 1H NMR spectra, significant chemical shifts of 1a and G4/G5 could be observed, indicating the formation of host–guest complexes (Figures S17 and S18). The Job plot experiments only disclose the presence of 1:1 complexes between 1a and G4/G5 in solution (Figures S21–S24). HR-MS studies provided further evidence for the formation of the 1:1 complexes between 1a and G4/G5 (Figures S26 and S27), but no peaks relating to 2:1 species were observed. The binding constants for the 1:1 complex between 1a and guest G4/G5 were calculated to be Ka = 5.50 × 103 M−1 (G4) and Ka = 4.02 × 104 M−1 (G5) in CHCl3-CH3CN (5:1, v/v), respectively (Figures S30–S33).
The complexation of G1 and 1a was probed by two-dimensional nuclear overhauser effect spectroscopy (2D NOESY) in CDCl3-CD3CN. The sizable cross-peaks, (c, H1) and (c, H2), are apparently a consequence of the interactions through space between the macrocycle and guest G1 (Figure S6). The additional NOE correlation signals could also be discerned between internal aromatic protons a of 1a and protons H1/H2 in each pyridinium unit of G1. Since the two faces of the H-bonded aramide macrocycle are diastereotopic, NOEs were observed with protons on only one of its faces. The NOESY spectrum does not reveal any correlations associated with the interaction of side-chain protons of the host and internal aromatic protons. The through-space contact observed implies that the guest was trapped in the cavity of the macrocycle to form a 1a2⊃G1 pseudo[3]rotaxane. The results from these two cases remain coherent with the complexation process, in which the guest tends to reside in the cavity of macrocyclic host 1a.

2.2. Photo-Switchable Complexation

Following the study on the complexation between 1a and protonated bipyridines/phenylpyridines, we carried out 1H NMR experiments to probe the controlled guest release and encapsulation by different stimuli. Among the reported stimuli, the use of light for manipulating guest binding and release is recognized as the most convenient means owing to its clean and benign process, fast response, and ease of spatio-temporal control [8]. H-bonded azo-macrocycle 1 used in this work features a molecular structure with two azo-benzene units incorporated into the macrocyclic backbone. Our previous work demonstrated that 1 is able to isomerize reversibly between E and Z configurations upon light irradiation [40]. The persistent shape due to the inherent nature of molecular rigidity and adaptable flexibility provides the macrocycle with an ability to quantitatively capture and release cationic guests by photo-irradiation. Protonated 4,4′-bipyridine G1 was selected in this work for the following capture and release experiments.
Before exploring switchable complexation with light, we first examined photo-isomerization behavior under UV/BL light using 1H NMR spectroscopy (Figures S34 and S35). In the mixed solvent system of CDCl3 and CD3CN (5:1, v/v), azo-macrocycle 1a exhibited pronounced light-induced E→Z isomerization. At the photo-stationary state, three isomers were identified as E,E-1a (10%), E,Z-1a (25%), and Z,Z-1a (65%), and the relative percentages were calculated by integrating the area of different stereoisomers (Figure S34). This result is consistent with prior observations in a more polar solvent system (CDCl3-CD3CN, 1:1, v/v) [40]. The light-induced isomerization process was finalized within 25 min as indicated by UV-vis (UV, 365 nm). A reverse process from Z,Z-1a to E,E-1a can be completed in less than 10 min when the sample solution is irradiated with blue light (BL, 450 nm) (Figure S35), indicating the high photo-sensitivity for such an azo-macrocycle. It is unlikely to convert all E,E-1a to Z,Z-1a under the experimental conditions, probably due to the rigidity of the macrocyclic backbone. According to the DFT calculations (B3LYP(PCM, chloroform)/6-31G (d,p)), the size of the macrocyclic cavity decreases substantially upon azo-benzene photo-isomerization (Figures S55–S57), which lays the foundation for the exclusion of guests through a reduction in cavity size, thereby ensuring the controlled binding and release of bipyridinium salts by using UV and BL irradiation.
Indeed, when a mixture of 1a and G1 (1a2⊃G1 complex) was exposed to photo-irradiation, the signals from protons H1 and H2 of E,Z-1a and Z,Z-1a appeared upfield (Figure 2b,c and Figure S36). The changes in the chemical shifts of signals from aromatic protons of 1a were also observed. Specifically, the signal from the proton H1 experienced a pronounced upfield shift (Δδ = −0.23 ppm) relative to the proton resonance of the 1a2⊃G1 complex before UV irradiation, and the signal from the other proton H2 also shifted upfield to a great extent (Δδ = −0.39 ppm), strongly suggesting that the guest was released (Figure 2c). Reversely, when the sample solution was irradiated with BL, the guest G1 was bound to the macrocycle again. This is indicated by the same signals reappearing at the same position, pointing to the regeneration of the E,E-1a2⊃G1 complex. In fact, the signals from protons H1 and H2 had a pronounced downfield shift (Δδ = +0.14 ppm and +0.23 ppm, respectively) under blue light irradiation with respect to the same protons in solution after irradiation. It should be noted that not all the signals of protons H1 and H2 returned to the original resonances because the conversion from Z,Z-1a to E,E-1a was incomplete, which is normal in photo-isomerization for most azo-based compounds [69]. On the basis of these experimental observations, we conclude that neither E,Z-1a nor Z,Z-1a has an appreciable affinity for G1 via complexation within the cavity. Upon the exposure of the 1a2⊃G1 complex to UV light irradiation, the E→Z transformation of the macrocycle occurred, leading to the reduced size of the cavity and, thus, the release of G1. Exposure of the irradiated mixture to light at 450 nm reset the system back to the guest-trapped E,E-1a2⊃G1-enriched state.
With a view to gaining further understanding of the detected binding properties, DFT-technique-based computational simulations were performed for the host–guest complex system comprising azo-benzene macrocycle 1c and protonated 4,4′-bipyridine at the B3LYP(PCM, chloroform)/6-31(d,p) level (Figure 3 and Figures S55–S57). The results of the binding energies disclosed that each guest molecule resides in the macrocyclic cavity through multiple hydrogen-bonding interactions (Figure 3a). For example, in the case of G1, there exist six C-H∙∙∙O hydrogen bonds and two +N-H∙∙∙O hydrogen bonds in the complex (Figure 3a). An independent gradient model (IGM) analysis (Figure 3b, Figures S58 and S59) revealed the multiple H-bond interactions between 1c and G1. DFT calculations led to the conclusion that the lowest energy for the molecular configuration of Z,Z-1c2⊃G1 is 26.69 kcal/mol higher in energy than that of E,Z-1c2⊃G1, which lies 39.49 kcal/mol above E,E-1c2⊃G1 (Figure 3c). These findings are consistent with the notion that E,E-1a2⊃G1 is more stable than E,Z-1a2⊃G1 or Z,Z-1a2⊃G1.
The results above demonstrate the reversibility of the present complexation system working under UV and BL light irradiation to a greater extent. Interestingly, the release and encapsulation of guests from the complexes 1a2⊃G2, 1a2⊃G3, 1a⊃G4, and 1a⊃G5 were not observed under photo-responsive conditions (Figures S37–S40). We hypothesized that the proton transfers from G2–G5 to the azo-benzene groups of 1a may occur, thereby blocking photo-isomerization. Protonation experiments were carried out to provide an important piece of evidence for the claim that protonated azo groups are unable to isomerize. Indeed, macrocycle 1a failed to isomerize in the presence of TFA (Figure S45). We noticed that guests G2–G5 were in a state of dynamic equilibrium. When mixing bipyridinium (or pyridinium) salt (G2–G5) with bipyridine (or pyridine), only a signal set of signals (Figures S41–S44) appear, indicative of the occurrence of proton transfer. Therefore, the observation for the failure in guest capture and uptake with G2–G5 under light irradiation is attributable to the rigidification of the molecular backbone through the protonation of azo groups in the macrocycle.

2.3. Acid/Base-Switchable Complexation

Switchable complexation in the presence of acid/base is usually enabled by the preferential binding of one guest over another. Bipyridine and pyridine are known to be easily protonated, providing bipyridinium and pyridinium salts in solution, and a reverse process is induced by a base such as Et3N. The H-bonded azo-macrocycle 1a is capable of binding positively charged G1–G5 and has no or very low affinity for neutral bipyridine/pyridine. This constitutes the basis for the chemically controlled association and dissociation of the complexes by acid and base.
To this end, we first tested the interaction between 1a and 4,4′-bipyridine. The 1H NMR spectrum shows slight changes (~0.02 ppm) for the 2:1 mixture of host and guest in CDCl3-CD3CN (5:1, v/v) (Figure 4a–c and Figure S46). We attempted to determine the stoichiometry and the binding constant between 1a and 4,4′-bipyridine. The Job plot experiment indicates the formation of a 2:1 complex (Figures S47 and S48); however, the binding constant fitting based on the data from the 1H NMR titration experiments failed (Figure S49), indicating that the binding affinity between 1a and 4,4′-bipyridine is too low to be determined [70]. Therefore, the effect of neutral bipyridine on the binding event is negligible. When 4.0 eq. of trifluoroacetic acid (TFA) was added to the solution, the aromatic ArH resonances (c, d, e, and f) for 1a experienced an upfield shift by Δδ = −0.49, −0.16, −0.18, and −0.11 ppm, respectively (Figure 4c,d), while protons H1 and H2 of guest G1 exhibited a downshift of Δδ = +0.12 and +0.91 ppm, respectively (Figure 4c,f). Comparing the spectrum (Figure 4c) of the mixture with that of the complex E,E-1a2⊃G1 (Figure 1c) indicates that a stable complex 1a2⊃G1 was formed. As excess triethylamine (Et3N, 6 eq.) is added to the solution above, deprotonation occurs on G1, and as a consequence, the complex 1a2⊃G1 dissociates (Figure 4e). This is clearly indicated by the reappearance of the resonance from 4′4-bipyridine at the original position. A similar change in signals is observed with 1a. These results demonstrate that the capture and release of 1a2⊃G1 could be induced by adding in sequence TFA and Et3N. The complexes 1a2⊃G2, 1a2⊃G3, 1a⊃G4, and 1a⊃G5 can be regulated in a similar fashion (Figures S50–S53).

2.4. Competitive Ion Complexation

Tuning host–guest affinity may provide a useful alternative for the control of complicated switchable supramolecular systems. H-bonded azo-macrocycle 1a has a strong binding ability toward N,N-dialkyl-4,4′-bipyridinium salts. This promoted us to further examine the cation competition with a host–guest system comprising 1a and G2 (PF6− as a counter ion) in the presence of G6 as a competitive ion to release protonated 4,4′-bipyridine G2 (Figure S54).
Firstly, when macrocycle 1a (2.0 mM) was mixed with guest G2 (1.0 mM) in CDCl3-CD3CN (1:1, v/v), a stable 1a2⊃G2 complex was formed (Figure 5a). The 1H NMR spectra show signals of protons H3 and H4 of G2, which shift upfield by Δδ = −0.16 and −0.2 ppm, respectively. Accompanied by the change in chemical shifts is the appearance of signals corresponding to the formation of the complex 1a2⊃G6 (Figure 5 and Figure S54). The protons H21 and H22 show board signals because of the presence of rotational isomerization in this system [71]. Beyond 1.0 mM of G6, signals from protons H3 and H4 of guest G2 return by shifting upfield to the position where free G2 resonates (Figure 5e,g). These results indicate that the complex 1a2⊃G6 is formed upon the dissociation of the complex 1a2⊃G2, thereby accomplishing the release of guest G2 through a cation competition process. Unfortunately, this process is irreversible due to the much stronger binding affinity of paraquat G6 over G2 [40].

3. Materials and Methods

3.1. Materials and Reagents

4,4′-Bipyridine, 2,2′-bipyridine, 4-phenylpyridine, 2-phenylpyridine, CDCl3, and HPLC CD3CN were purchased from Energy Chemical. CD3CN was purchased from Cambridge Isotope Laboratories (CIL). HPLC CHCl3 and CH3CN were purchased from Chron Chemicals (Chengdu, China). All reagents purchased from commercial suppliers were used without further purification.

3.2. Experimental Methods

NMR Analytical NMR spectra were recorded on Bruker AVANCE AV II-400/600 MHz at a temperature of 298 K (1H: 400 MHz; 2D: 600 MHz). Chemical shifts were reported in δ values in ppm using tetramethylsilane (TMS) or residual solvent as internal standard, and coupling constants (J) are denoted in Hz. Multiplicities are denoted as follows: s—singlet, d—doublet, t—triplet, dd—double doublet, and m—multiplet. High-resolution mass (HRMS) data were collected by WATERS Q-TOF Premier. UV-vis spectra were measured by SHIMADZU UV-2450 (Kyoto, Japan).

3.3. Synthesis of Azo-Macrocycles 1 (1a and 1b) and Guests G1–G6

Azo-macrocycles 1 (1a and 1b) and guests G1–G6 were synthesized according to previous references [40,67,72,73] (Schemes S1 and S2, Figures S1 and S2).

3.4. DFT Calculations

DFT calculations for the geometrical optimizations were performed in Gaussian 09 program package [74]. All substituents (R1 and R2) on the periphery of azo-macrocycle 1 were replaced by methyl groups to provide compound 1c for simplicity. The counterion CF3COO− of guest G1 was also omitted for clarity.

3.5. Visualization of Noncovalent Interactions

Independent gradient model (IGM) analysis is an approach [75] based on promolecular density (an electron density model prior to molecule formation) to identify and isolate intermolecular interactions. DFT optimize structures are used as input files. Strong polar attractions, van der Waals contacts, and repulsive forces are visualized as an isosurface with blue, green, and red colors, respectively. The binding surface was calculated by Multiwfn 3.8 program [76] and visualized using PyMOL [77].

4. Conclusions

In summary, we demonstrated a photo-responsive and acid/base-controllable host–guest system based on hydrogen-bonded azo-macrocycle 1 and protonated 4,4′-bipyridine. The complexation and dissociation of the complexes were explored under UV/BL irradiation and acid/base conditions. Switchable complexation was corroborated and rationalized by using the results from 1H-NMR, HR-MS, binding constant, and titration experiments. Moreover, control can also be achieved using cation competition. The multi-responsive host–guest systems in this work may serve as a potential platform to construct multi-component and complicated molecular machines. Correlational research is underway in our laboratory.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28114437/s1, Scheme S1: Synthetic routes of 1a and 1b, Scheme S2: Synthetic routes of guests G1–G6, Figure S1: 1H NMR spectrum of 1a, Figure S2: 1H NMR spectrum of 1b, Figure S3: Stacked 1H NMR spectra of 1a2⊃G1, Figure S4: Job plot for the stoichiometry of 1a and G1, Figure S5: HR-MS spectrum of 1a2⊃G1, Figure S6: 2D NOESY spectrum of 1a2⊃G1, Figures S7 and S8: Stacked UV-vis spectra of binding constant experiment and corresponding fitting curves of 1a and G1, Figure S9: Stacked 1H NMR spectra of 1a2⊃G3, Figure S10: 2D NOESY spectrum of 1a2⊃G3, Figures S11 and S12: Job plot for the stoichiometry of 1a and G3, Figure S13: HR-MS spectrum of 1a2⊃G3, Figures S14 and S15: Stacked UV-vis spectra of binding constant experiment and corresponding fitting curves of 1a and G3, Figures S16–S18: Stacked 1H NMR spectra of 1a2⊃G3, 1a2⊃G4, and 1a2⊃G5, Figures S19–S24: Job plot for the stoichiometry of 1a and G3–G5, Figures S25–S27: HR-MS spectra of 1a2⊃G3, 1a2⊃G4, and 1a2⊃G5, Figures S28–S33: Stacked UV-vis spectra of binding constant experiment and corresponding fitting curves of 1a and G3–G5, Figures S34 and S35: 1H NMR spectra of 1a photo-irradiation, Figures S36–S40: 1H NMR spectra of photo-switchable complexation, Figures S41–S44: 1H NMR spectra of proton transfer between bipyridine/phenylpyridine and bipyridinium/phenylpyridinium, Figure S45: 1H NMR spectra of protonated 1a photo-irradiation, Figures S46–S53: 1H NMR spectra of acid/base-switchable complexation, Figure S54: 1H NMR spectra of competitive ion complexation, Figures S55–S57: DFT simulation of E,E-1c2⊃G1, E,Z-1c2⊃G1, and Z,Z-1c2⊃G1, Figures S58 and S59: Visualization of noncovalent interactions in complex 1c2⊃G1.

Author Contributions

Conceptualization, J.W., L.Y. and W.F.; methodology, J.W., X.S., X.L. (Xianghui Li) and X.L. (Xiaowei Li); software, J.W. and X.S.; validation, X.S.; formal analysis, J.W.; investigation, J.W., X.L. and X.S.; resources, X.L. (Xiaowei Li), W.F. and L.Y.; data curation, J.W.; writing—original draft preparation, J.W. and L.Y.; writing—review and editing, W.F. and L.Y.; visualization, J.W.; supervision, W.F. and L.Y.; project administration, L.Y.; funding acquisition, L.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (21971170, 22271202, and 22201193) and the Open Project of State Key Laboratory of Supramolecular Structure and Materials (SKLSSM2023032).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We also thank Dongyan Deng, from the College of Chemistry, and Pengchi Deng, from The Analytical & Testing Center, Sichuan University for NMR analysis.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of compounds 1a, 1b and G1–G6 are available from the authors.

References

  1. Du, N.; Ye, F.; Sun, J.; Liu, K. Stimuli-Responsive Natural Proteins and Their Applications. ChemBioChem 2022, 23, e20210041. [Google Scholar] [CrossRef] [PubMed]
  2. Lu, S.; Shen, J.; Fan, C.; Li, Q.; Yang, X. DNA Assembly-Based Stimuli-Responsive Systems. Adv. Sci. 2021, 8, 2100328. [Google Scholar] [CrossRef]
  3. Xiong, R.; Xu, R.X.; Huang, C.; De Smedt, S.; Braeckmans, K. Stimuli-Responsive Nanobubbles for Biomedical Applications. Chem. Soc. Rev. 2021, 50, 5746–5776. [Google Scholar] [CrossRef] [PubMed]
  4. Braegelman, A.S.; Webber, M.J. Integrating Stimuli-Responsive Properties in Host-Guest Supramolecular Drug Delivery Systems. Theranostics 2019, 9, 3017–3040. [Google Scholar] [CrossRef] [PubMed]
  5. Duan, Q.; Cao, Y.; Li, Y.; Hu, X.; Xiao, T.; Lin, C.; Pan, Y.; Wang, L. pH-Responsive Supramolecular Vesicles Based on Water-Soluble Pillar[6]arene and Ferrocene Derivative for Drug Delivery. J. Am. Chem. Soc. 2013, 135, 10542–10549. [Google Scholar] [CrossRef] [PubMed]
  6. Cao, Z.; Wu, D.; Li, M.; Yang, F.; Li, Z.; An, W.; Jiang, S.; Zheng, X.; Niu, C.; Qu, D. An Acid-Base Responsive Linear-Cyclic Polymer Rotaxane Molecular Shuttle with Fluorescence Signal Output. Chin. Chem. Lett. 2022, 33, 881–884. [Google Scholar] [CrossRef]
  7. Han, X.-N.; Zong, Q.-S.; Han, Y.; Chen, C.-F. Pagoda[5]arene with Large and Rigid Cavity for the Formation of 1:2 Host-Guest Complexes and Acid/Base-Responsive Crystalline Vapochromic Properties. CCS Chem. 2022, 4, 318–330. [Google Scholar] [CrossRef]
  8. Qu, D.-H.; Wang, Q.-C.; Zhang, Q.-W.; Ma, X.; Tian, H. Photoresponsive Host–Guest Functional Systems. Chem. Rev. 2015, 115, 7543–7588. [Google Scholar] [CrossRef]
  9. Qi, X.; Li, W.; Shi, B.; Zhang, Y.; Yao, H.; Lin, Q.; Wei, T. Fabricating a Novel Supramolecular Light-Activated Platform Based on Internal-Driven Forces Induced by the UV-Light. Chin. Chem. Lett. 2022, 33, 5065–5068. [Google Scholar] [CrossRef]
  10. Li, Y.; Dong, Y.; Miao, X.; Ren, Y.; Zhang, B.; Wang, P.; Yu, Y.; Li, B.; Isaacs, L.; Cao, L. Shape-Controllable and Fluorescent Supramolecular Organic Frameworks Through Aqueous Host-Guest Complexation. Angew. Chem. Int. Ed. 2018, 57, 729–733. [Google Scholar] [CrossRef]
  11. Li, Q.; Sun, J.; Zhou, J.; Hua, B.; Shao, L.; Huang, F. Barium Cation-Responsive Supra-Amphiphile Constructed by a New Twisted Cucurbit[15]uril/Paraquat Recognition Motif in Water. Organ. Chem. Front. 2018, 5, 1940–1944. [Google Scholar] [CrossRef]
  12. Blanco-Gomez, A.; Corton, P.; Barravecchia, L.; Neira, I.; Azos, E.; Peinador, C.; Garcia, M.D. Controlled Binding of Organic Guests by Stimuli-Responsive Macrocycles. Chem. Soc. Rev. 2020, 49, 3834–3862. [Google Scholar] [CrossRef]
  13. Engel, S.; Moeller, N.; Ravoo, B.J. Stimulus-Responsive Assembly of Nanoparticles using Host-Guest Interactions of Cyclodextrins. Chem.-Eur. J. 2018, 24, 4741–4748. [Google Scholar] [CrossRef] [PubMed]
  14. Zhang, Y.-M.; Zhang, N.-Y.; Xiao, K.; Yu, Q.; Liu, Y. Photo-Controlled Reversible Microtubule Assembly Mediated by Paclitaxel-Modified Cyclodextrin. Angew. Chem. Int. Ed. 2018, 57, 8649–8653. [Google Scholar] [CrossRef] [PubMed]
  15. Li, D.; Zhang, Q.; Zhao, W.; Dong, S.; Li, T.; Stang, P.J. Thermo/Anion Dual-Responsive Supramolecular Organoplatinum-Crown Ether Complex. Org. Lett. 2020, 22, 4289–4293. [Google Scholar] [CrossRef] [PubMed]
  16. Zhang, M.; Yan, X.; Huang, F.; Niu, Z.; Gibson, H.W. Stimuli-Responsive Host-Guest Systems Based on the Recognition of Cryptands by Organic Guests. Acc. Chem. Res. 2014, 47, 1995–2005. [Google Scholar] [CrossRef]
  17. Wang, C.; Zhang, Y.-M.; Li, H.; Zhang, J.; Zhou, Y.; Liu, G.; Xu, X.; Liu, Y. Synergistic Activation of Photoswitchable SupraMolecular Assembly Based on Sulfonated Crown Ether and Dithienylethene Derivative. Chin. Chem. Lett. 2022, 33, 2447–2450. [Google Scholar] [CrossRef]
  18. Gao, J.; Yu, H.; Chen, F.-Y.; Hu, X.-Y.; Wang, Y.; Guo, D.-S. A Hyaluronidase/ATP Tandem Stimuli-Responsive Supramolecular Assembly. Chem. Commun. 2019, 55, 14387–14390. [Google Scholar] [CrossRef]
  19. Shetty, D.; Skorjanc, T.; Olson, M.A.; Trabolsi, A. Self-Assembly of Stimuli-Responsive Imine-Linked Calix[4]arene Nanocapsules for Targeted Camptothecin Delivery. Chem. Commun. 2019, 55, 8876–8879. [Google Scholar] [CrossRef]
  20. Cen, R.; Liu, M.; Lu, J.; Zhang, W.; Dai, J.; Zeng, X.; Tao, Z.; Xiao, X. Synthesis and Characterization of a Sensitive and Selective Fe3+ Fluorescent Sensor Based on Novel Sulfonated Calix[4]arene-Based Host-Guest Complex. Chin. Chem. Lett. 2022, 33, 2469–2472. [Google Scholar] [CrossRef]
  21. Zhu, P.; Luo, W.; Qian, J.; Meng, C.; Shan, W.; Xu, Z.; Zhang, W.; Liu, X.; Ling, Y. GSH/ROS Dual-Responsive Supramolecular Nanoparticles Based on Pillar[6]arene and Betulinic Acid Prodrug for Chemo–Chemodynamic Combination Therapy. Molecules 2021, 26, 5900. [Google Scholar] [CrossRef]
  22. Kakuta, T.; Yamagishi, T.-A.; Ogoshi, T.; Ogoshi, T. Stimuli-Responsive Supramolecular Assemblies Constructed from Pillar[n]arenes. Acc. Chem. Res. 2018, 51, 1656–1666. [Google Scholar] [CrossRef]
  23. Sun, G.; Zuo, M.; Xu, Z.; Wang, K.; Wang, L.; Hu, X.-Y. Orthogonal Design of Supramolecular Prodrug Vesicles via Water-Soluble Pillar[5]arene and Betulinic Acid Derivative for Dual Chemotherapy. ACS Appl. Bio Mater. 2022, 5, 3320–3328. [Google Scholar] [CrossRef]
  24. Tang, R.; Ye, Y.; Zhu, S.; Wang, Y.; Lu, B.; Yao, Y. Pillar[6]arenes: From Preparation, Host-Guest Property to Self-Assembly and Applications. Chin. Chem. Lett. 2023, 34, 107734. [Google Scholar] [CrossRef]
  25. Zhang, J.; Tang, Q.; Gao, Z.-Z.; Huang, Y.; Xiao, X.; Tao, Z. Stimuli-Responsive Supramolecular Assemblies between Twisted Cucurbit[14]uril and Hemicyanine Dyes and Their Analysis Application. J. Phys. Chem. B 2017, 121, 11119–11123. [Google Scholar] [CrossRef] [PubMed]
  26. Wiemann, M.; Jonkheijm, P. Stimuli-Responsive Cucurbit[n]uril-Mediated Host-Guest Complexes on Surfaces. Isr. J. Chem. 2018, 58, 314–325. [Google Scholar] [CrossRef]
  27. Xiao, T.; Qi, L.; Zhong, W.; Lin, C.; Wang, R.; Wang, L. Stimuli-Responsive Nanocarriers Constructed from Pillar[n]arene-Based Supra-amphiphiles. Mater. Chem. Front. 2019, 3, 1973–1993. [Google Scholar] [CrossRef]
  28. Cao, Y.; Hu, X.-Y.; Li, Y.; Zou, X.; Xiong, S.; Lin, C.; Shen, Y.-Z.; Wang, L. Multistimuli-Responsive Supramolecular Vesicles Based on Water-Soluble Pillar[6]arene and SAINT Complexation for Controllable Drug Release. J. Am. Chem. Soc. 2014, 136, 10762–10769. [Google Scholar] [CrossRef] [PubMed]
  29. Liu, Y.; Jiang, S.; Mao, W.; Li, P.; Zhou, F.; Ma, D. Smart Supramolecular Vesicles Based on Glutathione-Reactive Pillar[6]arene and Acid-Labile Prodrug: Dual Drug Loading and Sequential Release. Chin. Chem. Lett. 2022, 33, 209–212. [Google Scholar] [CrossRef]
  30. Li, Z.-Y.; Zhang, Y.; Zhang, C.-W.; Chen, L.-J.; Wang, C.; Tan, H.; Yu, Y.; Li, X.; Yang, H.-B. Cross-Linked Supramolecular Polymer Gels Constructed from Discrete Multi-pillar[5]arene Metallacycles and Their Multiple Stimuli-Responsive Behavior. J. Am. Chem. Soc. 2014, 136, 8577–8589. [Google Scholar] [CrossRef]
  31. Samanta, S.K.; Quigley, J.; Vinciguerra, B.; Briken, V.; Isaacs, L. Cucurbit[7]uril Enables Multi-Stimuli-Responsive Release from the Self-Assembled Hydrophobic Phase of a Metal Organic Polyhedron. J. Am. Chem. Soc. 2017, 139, 9066–9074. [Google Scholar] [CrossRef] [PubMed]
  32. Liu, Z.; Wu, J.; Wang, C.; Yang, J.; Wang, Y.; Yang, Y.-W. Stimuli-Responsive Fluorescent Supramolecular Polymer Network Based on a Monofunctionalized Leaning Tower[6]arene. Chin. Chem. Lett. 2019, 30, 2299–2303. [Google Scholar] [CrossRef]
  33. Peng, L.; Feng, A.; Huo, M.; Yuan, J. Ferrocene-Based Supramolecular Structures and Their Applications in Electrochemical Responsive Systems. Chem. Commun. 2014, 50, 13005–13014. [Google Scholar] [CrossRef]
  34. Liu, M.; Yan, X.; Hu, M.; Chen, X.; Hang, M.; Zheng, B.; Hu, X.; Shao, S.; Huang, F. Photoresponsive Host–Guest Systems Based on a New Azobenzene-Containing Crytpand. Org. Lett. 2010, 12, 2558–2561. [Google Scholar] [CrossRef] [PubMed]
  35. Ryan, S.T.J.; del Barrio, J.; Suardíaz, R.; Ryan, D.F.; Rosta, E.; Scherman, O.A. A Dynamic and Responsive Host in Action: Light-Controlled Molecular Encapsulation. Angew. Chem. Int. Ed. 2016, 55, 16096–16100. [Google Scholar] [CrossRef] [PubMed]
  36. Chi, X.; Cen, W.; Queenan, J.A.; Long, L.; Lynch, V.M.; Khashab, N.M.; Sessler, J.L. Azobenzene-Bridged Expanded “Texas-sized” Box: A Dual-Responsive Receptor for Aryl Dianion Encapsulation. J. Am. Chem. Soc. 2019, 141, 6468–6472. [Google Scholar] [CrossRef]
  37. Wu, H.; Chen, Y.; Zhang, L.; Anamimoghadam, O.; Hen, D.; Liu, Z.; Cai, K.; Pezzato, C.; Stern, C.L.; Liu, Y.; et al. A Dynamic Tetracationic Macrocycle Exhibiting Photoswitchable Molecular Encapsulation. J. Am. Chem. Soc. 2019, 141, 1280–1289. [Google Scholar] [CrossRef] [PubMed]
  38. Liu, Y.; Wang, H.; Liu, P.; Zhu, H.; Shi, B.; Hong, X.; Huang, F. Azobenzene-Based Macrocyclic Arenes: Synthesis, Crystal Structures, and Light-Controlled Molecular Encapsulation and Release. Angew. Chem. Int. Ed. 2021, 60, 5766–5770. [Google Scholar] [CrossRef]
  39. Liu, Y.; Zhang, Q.; Crespi, S.; Chen, S.; Zhang, X.-K.; Xu, T.-Y.; Ma, C.-S.; Zhou, S.-W.; Shi, Z.-T.; Tian, H.; et al. Motorized Macrocycle: A Photo-Responsive Host with Switchable and Stereoselective Guest Recognition. Angew. Chem. Int. Ed. 2021, 60, 16129–16138. [Google Scholar] [CrossRef]
  40. Ye, Z.; Yang, Z.; Wang, L.; Chen, L.; Cai, Y.; Deng, P.; Feng, W.; Li, X.; Yuan, L. A Dynamic Hydrogen-Bonded Azo-Macrocycle for Precisely Photo-Controlled Molecular Encapsulation and Release. Angew. Chem. Int. Ed. 2019, 58, 12519–12523. [Google Scholar] [CrossRef]
  41. Gong, B.; Shao, Z. Self-Assembling Organic Nanotubes with Precisely Defined, Sub-nanometer Pores: Formation and Mass Transport Characteristics. Acc. Chem. Res. 2013, 46, 2856–2866. [Google Scholar] [CrossRef] [PubMed]
  42. Ong, W.Q.; Zeng, H. Rapid Construction of Shape-persistent H-bonded Macrocycles via One-pot H-bonding-Assisted Macrocyclization. J. Incl. Phenom. Mol. Recognit. Chem. 2013, 76, 1–11. [Google Scholar] [CrossRef]
  43. Zhang, D.-W.; Zhao, X.; Hou, J.-L.; Li, Z.-T. Aromatic Amide Foldamers: Structures, Properties, and Functions. Chem. Rev. 2012, 112, 5271–5316. [Google Scholar] [CrossRef]
  44. Hu, J.; Chen, L.; Ren, Y.; Deng, P.; Li, X.; Wang, Y.; Jia, Y.; Luo, J.; Yang, X.; Feng, W.; et al. Nonaggregational Shape-Persistent Cyclo[6]aramide and Its Macrocyclic Effect toward Binding Secondary Ammonium Salts in Moderately Polar Media. Org. Lett. 2013, 15, 4670–4673. [Google Scholar] [CrossRef]
  45. Chen, L.; Peng, Z.; Liu, S.; Li, X.; Chen, R.; Ren, Y.; Feng, W.; Yuan, L. Cyclo[6]aramide-Tropylium Charge Transfer Complex as a Colorimetric Chemosensor for Differentiation of Intimate and Loose Ion Pairs. Org. Lett. 2015, 17, 5950–5953. [Google Scholar] [CrossRef] [PubMed]
  46. Zhong, L.; Chen, L.; Feng, W.; Zou, S.; Yang, Y.; Liu, N.; Yuan, L. Shape-Persistent Macrocycles: Efficient Extraction Towards Lanthanide and Actinide Elements. J. Incl. Phenom. Macrocycl. Chem. 2012, 72, 367–373. [Google Scholar] [CrossRef]
  47. Fu, H.; Liu, Y.; Zeng, H. Shape-Persistent H-bonded Macrocyclic Aromatic Pentamers. Chem. Commun. 2013, 49, 4127–4144. [Google Scholar] [CrossRef]
  48. Ren, C.; Shen, J.; Zeng, H. One-Pot Synthesis of Strained Macrocyclic Pyridone Hexamers and Their High Selectivity toward Cu2+ Recognition. Org. Lett. 2015, 17, 5946–5949. [Google Scholar] [CrossRef]
  49. Helsel, A.J.; Brown, A.L.; Yamato, K.; Feng, W.; Yuan, L.; Clements, A.J.; Harding, S.V.; Szabo, G.; Shao, Z.; Gong, B. Highly Conducting Transmembrane Pores Formed by Aromatic Oligoamide Macrocycles. J. Am. Chem. Soc. 2008, 130, 15784–15785. [Google Scholar] [CrossRef]
  50. Wei, X.; Zhang, G.; Shen, Y.; Zhong, Y.; Liu, R.; Yang, N.; Al-Mkhaizim, F.Y.; Kline, M.A.; He, L.; Li, M.; et al. Persistent Organic Nanopores Amenable to Structural and Functional Tuning. J. Am. Chem. Soc. 2016, 138, 2749–2754. [Google Scholar] [CrossRef]
  51. Pan, W.; Mao, L.; Shi, M.; Fu, Y.; Jiang, X.; Feng, W.; He, Y.; Xu, D.; Yuan, L. The Cytochrome c–Cyclo[6]aramide Complex as a Supramolecular Catalyst in Methanol. New J. Chem. 2018, 42, 3857–3866. [Google Scholar] [CrossRef]
  52. Kang, K.; Lohrman, J.A.; Nagarajan, S.; Chen, L.; Deng, P.; Shen, X.; Fu, K.; Feng, W.; Johnson, D.W.; Yuan, L. Convergent Ditopic Receptors Enhance Anion Binding upon Alkali Metal Complexation for Catalyzing the Ritter Reaction. Org. Lett. 2019, 21, 652–655. [Google Scholar] [CrossRef] [PubMed]
  53. Li, X.; Li, B.; Chen, L.; Hu, J.; Wen, C.; Zheng, Q.; Wu, L.; Zeng, H.; Gong, B.; Yuan, L. Liquid-Crystalline Mesogens Based on Cyclo[6]aramides: Distinctive Phase Transitions in Response to Macrocyclic Host-Guest Interactions. Angew. Chem. Int. Ed. 2015, 54, 11147–11152. [Google Scholar] [CrossRef] [PubMed]
  54. Liu, Z.; Zhou, Y.; Yuan, L. Hydrogen-Bonded Aromatic Amide Macrocycles: Synthesis, Properties and Functions. Org. Biomol. Chem. 2022, 20, 9023–9051. [Google Scholar] [CrossRef] [PubMed]
  55. Hu, J.; Chen, L.; Shen, J.; Luo, J.; Deng, P.; Ren, Y.; Zeng, H.; Feng, W.; Yuan, L. Convergent Heteroditopic Cyclo[6]aramides as Macrocyclic Ion-Pair Receptors for Constructing [2]Pseudorotaxanes. Chem. Comm. 2014, 50, 8024–8027. [Google Scholar] [CrossRef] [PubMed]
  56. He, Y.; Xu, M.; Gao, R.; Li, X.; Li, F.; Wu, X.; Xu, D.; Zeng, H.; Yuan, L. Two-Component Supramolecular Gels Derived from Amphiphilic Shape-Persistent Cyclo[6]aramides for Specific Recognition of Native Arginine. Angew. Chem. Int. Ed. 2014, 53, 11834–11839. [Google Scholar] [CrossRef]
  57. Xu, M.; Chen, L.; Jia, Y.; Mao, L.; Feng, W.; Ren, Y.; Yuan, L. A Rare Case for Binding a Diquat Salt by Two Cyclo[6]aramides. Supramol. Chem. 2015, 27, 436–443. [Google Scholar] [CrossRef]
  58. Li, X.; Yuan, X.; Deng, P.; Chen, L.; Ren, Y.; Wang, C.; Wu, L.; Feng, W.; Gong, B.; Yuan, L. Macrocyclic Shape-Persistency of Cyclo[6]aramide Results in Enhanced Multipoint Recognition for the Highly Efficient Template-Directed Synthesis of Rotaxanes. Chem. Sci. 2017, 8, 2091–2100. [Google Scholar] [CrossRef]
  59. Chen, L.; Yuan, X.; Wang, Z.; Luo, Y.; Huang, W.; Zhang, S.; Yuan, W.; Qin, S.; Tao, G.; Yuan, L. A Redox-Responsive Complex System Based on 2 D Shape-Persistent Cyclo[6]aramide and Ferrocenium. Asian J. Org. Chem. 2016, 5, 966–970. [Google Scholar] [CrossRef]
  60. Kothapalli, S.S.K.; Kannekanti, V.K.; Ye, Z.; Yang, Z.; Chen, L.; Cai, Y.; Zhu, B.; Feng, W.; Yuan, L. Light-Controlled Switchable Complexation by a Non-photoresponsive Hydrogen-bonded Amide Macrocycle. Org. Chem. Front. 2020, 7, 846–855. [Google Scholar] [CrossRef]
  61. Wang, X.; Ji, J.; Liu, Z.; Cai, Y.; Tang, J.; Shi, Y.; Yang, C.; Yuan, L. Chiroptical Sensing of Amino Acid Derivatives by Host–Guest Complexation with Cyclo[6]aramide. Molecules 2021, 26, 4064. [Google Scholar] [CrossRef] [PubMed]
  62. Zhou, Y.; Wu, J.; Liu, Z.; Xu, W.; Liu, M.; Jia, A.; Liu, Y.; Xiao, X.; Li, X.; Yuan, L. Threading of Three Rings on Two Stations: A Convergent Approach to [4]Rotaxane. Chem. Commun. 2021, 57, 13506–13509. [Google Scholar] [CrossRef] [PubMed]
  63. Wang, Z.; Mei, L.; Guo, C.; Huang, S.; Shi, W.-Q.; Li, X.; Feng, W.; Li, X.; Yang, C.; Yuan, L. Supramolecular Shish Kebabs: Higher Order Dimeric Structures from Ring-in-Rings Complexes with Conformational Adaptivity. Angew. Chem. 2023, 135, e202216690. [Google Scholar] [CrossRef]
  64. Baroncini, M.; Silvi, S.; Credi, A. Photo- and Redox-Driven Artificial Molecular Motors. Chem. Rev. 2020, 120, 200–268. [Google Scholar] [CrossRef]
  65. Corra, S.; de Vet, C.; Groppi, J.; La Rosa, M.; Silvi, S.; Baroncini, M.; Credi, A. Chemical On/Off Switching of Mechanically Planar Chirality and Chiral Anion Recognition in a [2]Rotaxane Molecular Shuttle. J. Am. Chem. Soc. 2019, 141, 9129–9133. [Google Scholar] [CrossRef]
  66. Curcio, M.; Nicoli, F.; Paltrinieri, E.; Fois, E.; Tabacchi, G.; Cavallo, L.; Silvi, S.; Baroncini, M.; Credi, A. Chemically Induced Mismatch of Rings and Stations in [3]Rotaxanes. J. Am. Chem. Soc. 2021, 143, 8046–8055. [Google Scholar] [CrossRef]
  67. Han, Y.; Meng, Z.; Chen, C.-F. Acid/base controllable complexation of a triptycene-derived macrotricyclic host and protonated 4,4′-bipyridinium/pyridinium salts. Chem. Commun. 2016, 52, 590–593. [Google Scholar] [CrossRef]
  68. Huang, F.; Gibson, H.W.; Bryant, W.S.; Nagvekar, D.S.; Fronczek, F.R. First Pseudorotaxane-Like [3]Complexes Based on Cryptands and Paraquat:  Self-Assembly and Crystal Structures. J. Am. Chem. Soc. 2003, 125, 9367–9371. [Google Scholar] [CrossRef]
  69. Bandara, H.M.D.; Burdette, S.C. Photoisomerization in Different Classes of Azobenzene. Chem. Soc. Rev. 2012, 41, 1809–1825. [Google Scholar] [CrossRef]
  70. Brynn Hibbert, D.; Thordarson, P. The death of the Job plot, transparency, open science and online tools, uncertainty estimation methods and other developments in supramolecular chemistry data analysis. Chem. Commun. 2016, 52, 12792–12805. [Google Scholar] [CrossRef]
  71. Bruns, C.J.; Stoddart, J.F. The Nature of the Mechanical Bond: From Molecules to Machines; John Wiley & Sons: Hoboken, NJ, USA, 2016. [Google Scholar]
  72. Cheng, M.; Zhang, J.; Ren, X.; Guo, S.; Xiao, T.; Hu, X.-Y.; Jiang, J.; Wang, L. Acid/base-controllable fluorescent molecular switches based on cryptands and basic N-heteroaromatics. Chem. Commun. 2017, 53, 11838–11841. [Google Scholar] [CrossRef] [PubMed]
  73. Xiao, Y.; Chu, L.; Sanakis, Y.; Liu, P. Revisiting the IspH Catalytic System in the Deoxyxylulose Phosphate Pathway: Achieving High Activity. J. Am. Chem. Soc. 2009, 131, 9931. [Google Scholar] [CrossRef] [PubMed]
  74. Frisch, G.W.; Trucks, H.B.; Schlegel, G.E.; Scuseria, M.A.; Robb, J.R.; Cheeseman, G.; Scalmani, V.; Barone, B.; Mennucci, G.A.; Petersson, H.; et al. Gaussian 09, Revision B.01; Gaussian, Inc.: Wallingford, CT, USA, 2013. [Google Scholar]
  75. Lefebvre, C.; Rubez, G.; Khartabil, H.; Boisson, J.-C.; Contreras-García, J.; Hénon, E. Accurately Extracting the Signature of Intermolecular Interactions Present in the Nci Plot of the Reduced Density Gradient Versus Electron Density. Phys. Chem. Chem. Phys. 2017, 19, 17928–17936. [Google Scholar] [CrossRef] [PubMed]
  76. Lu, T.; Chen, F. Multiwfn: A multifunctional wavefunction analyzer. J. Comput. Chem. 2012, 33, 580–592. [Google Scholar] [CrossRef] [PubMed]
  77. The PyMOL Molecular Graphics System, Version 2.3.0; Schrödinger, LLC.: New York, NY, USA, 2019.
Molecules 28 04437 sch001 550

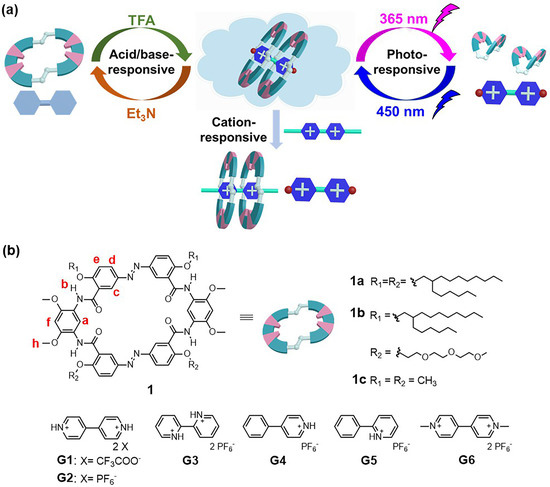

Scheme 1. (a) Schematic representation of the multi-responsive encapsulation and/or release of 4,4′-bipyridinium salts by azo-macrocycle 1, through photo-, acid/base-, and cation-competitive complexation-controlled process. (b) Chemical structures of azo-macrocycle 1 and guests G1–G6.
Scheme 1. (a) Schematic representation of the multi-responsive encapsulation and/or release of 4,4′-bipyridinium salts by azo-macrocycle 1, through photo-, acid/base-, and cation-competitive complexation-controlled process. (b) Chemical structures of azo-macrocycle 1 and guests G1–G6.
Molecules 28 04437 sch001
Molecules 28 04437 g001 550

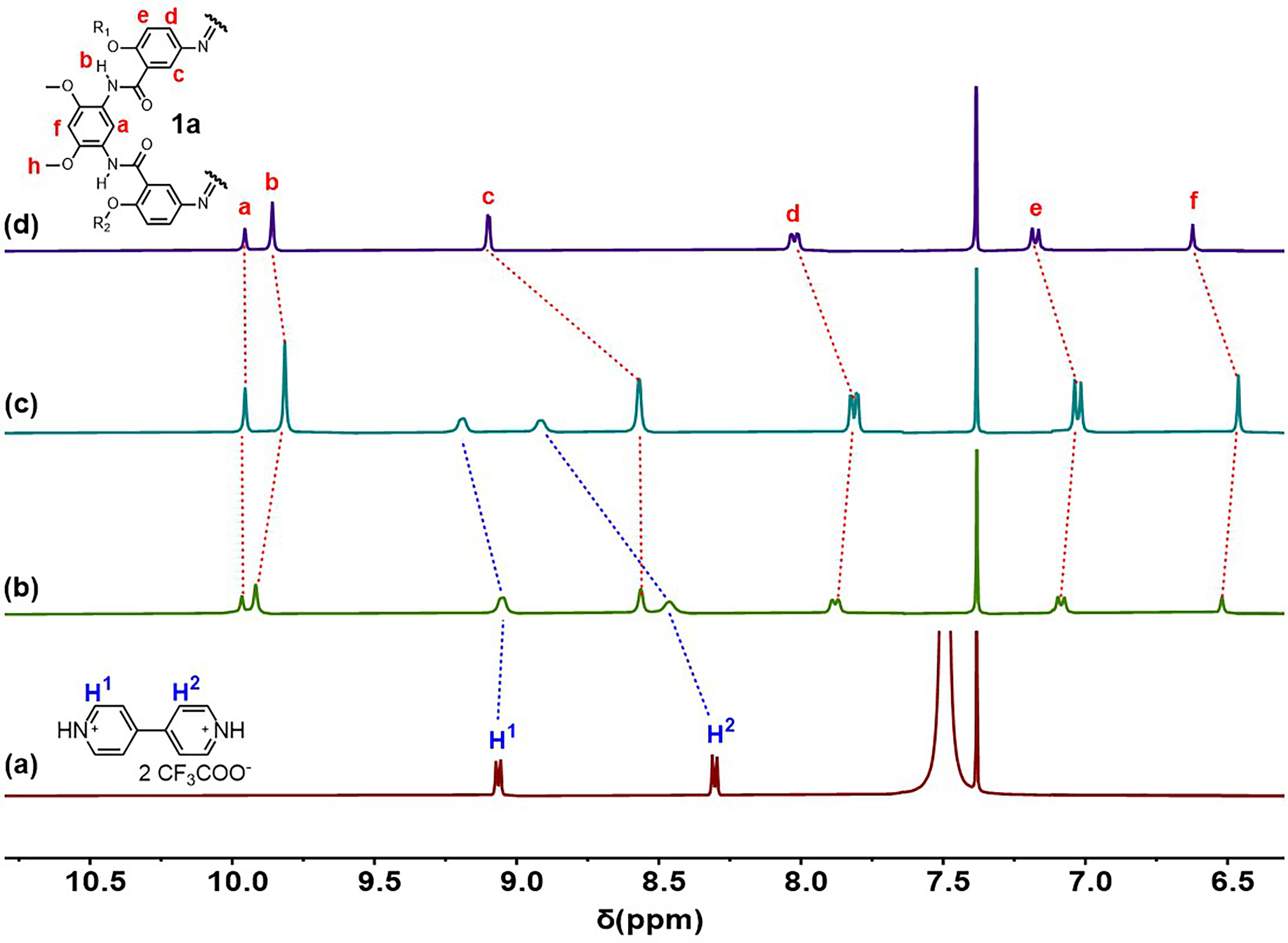

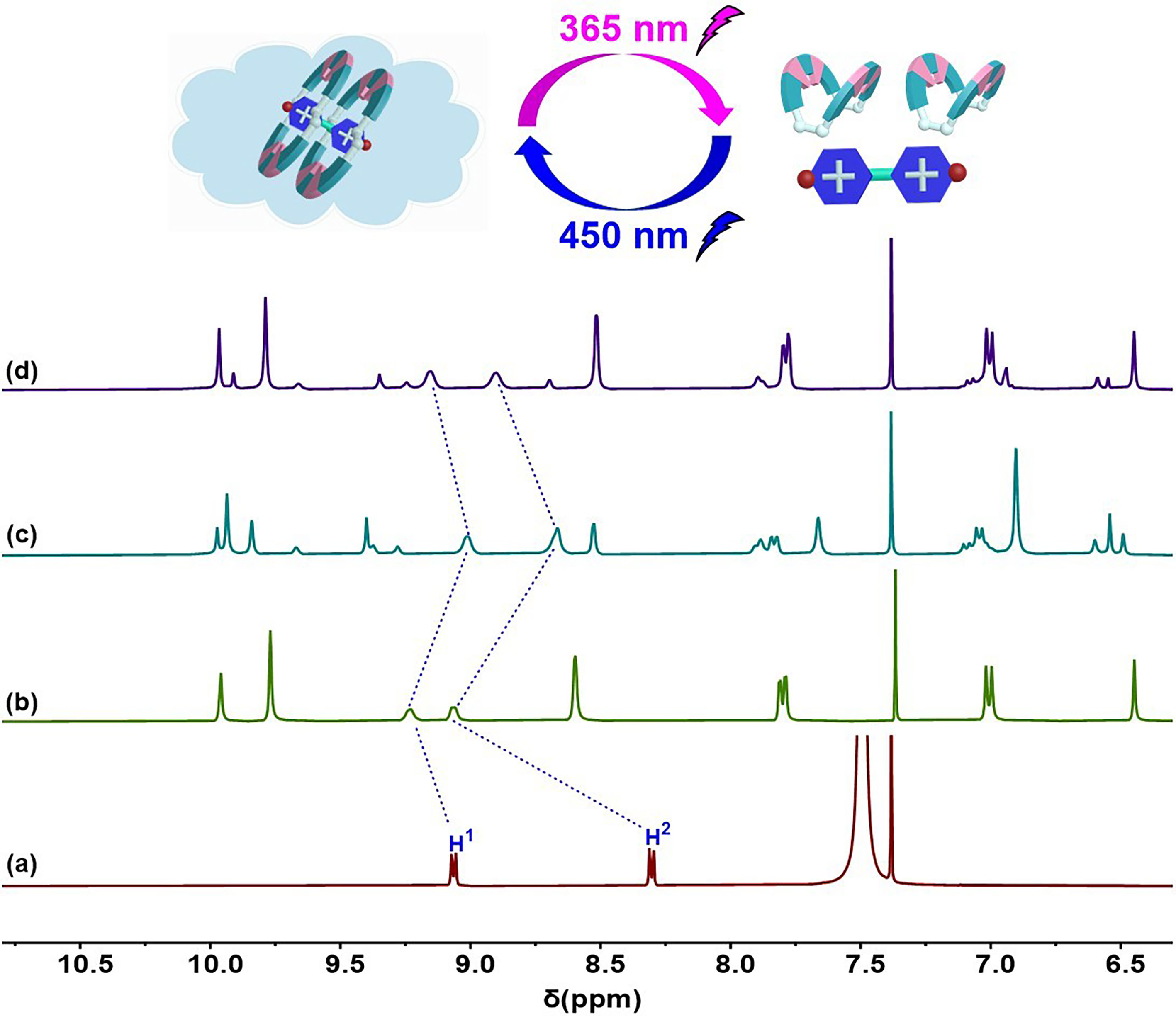

Figure 1. Partial 1H NMR spectra (400 MHz, CDCl3-CD3CN, 5:1, v/v, 298 K) of (a) G1 (1.0 mM), (b) 1a and G1 (1.0 mM for each), (c) 1a (2.0 mM) and G1 (1.0 mM), and (d) 1a (1.0 mM).
Figure 1. Partial 1H NMR spectra (400 MHz, CDCl3-CD3CN, 5:1, v/v, 298 K) of (a) G1 (1.0 mM), (b) 1a and G1 (1.0 mM for each), (c) 1a (2.0 mM) and G1 (1.0 mM), and (d) 1a (1.0 mM).
Molecules 28 04437 g001
Molecules 28 04437 g002 550
Figure 2. Partial 1H NMR spectra (400 MHz, CDCl3-CD3CN, 5:1, v/v, 298 K) of (a) G1, (b) 1a:G1 = 2:1 before UV irradiation, (c) 1a:G1 = 2:1 after UV irradiation, (d) under blue light irradiation of (c).
Figure 2. Partial 1H NMR spectra (400 MHz, CDCl3-CD3CN, 5:1, v/v, 298 K) of (a) G1, (b) 1a:G1 = 2:1 before UV irradiation, (c) 1a:G1 = 2:1 after UV irradiation, (d) under blue light irradiation of (c).
Molecules 28 04437 g002
Molecules 28 04437 g003 550

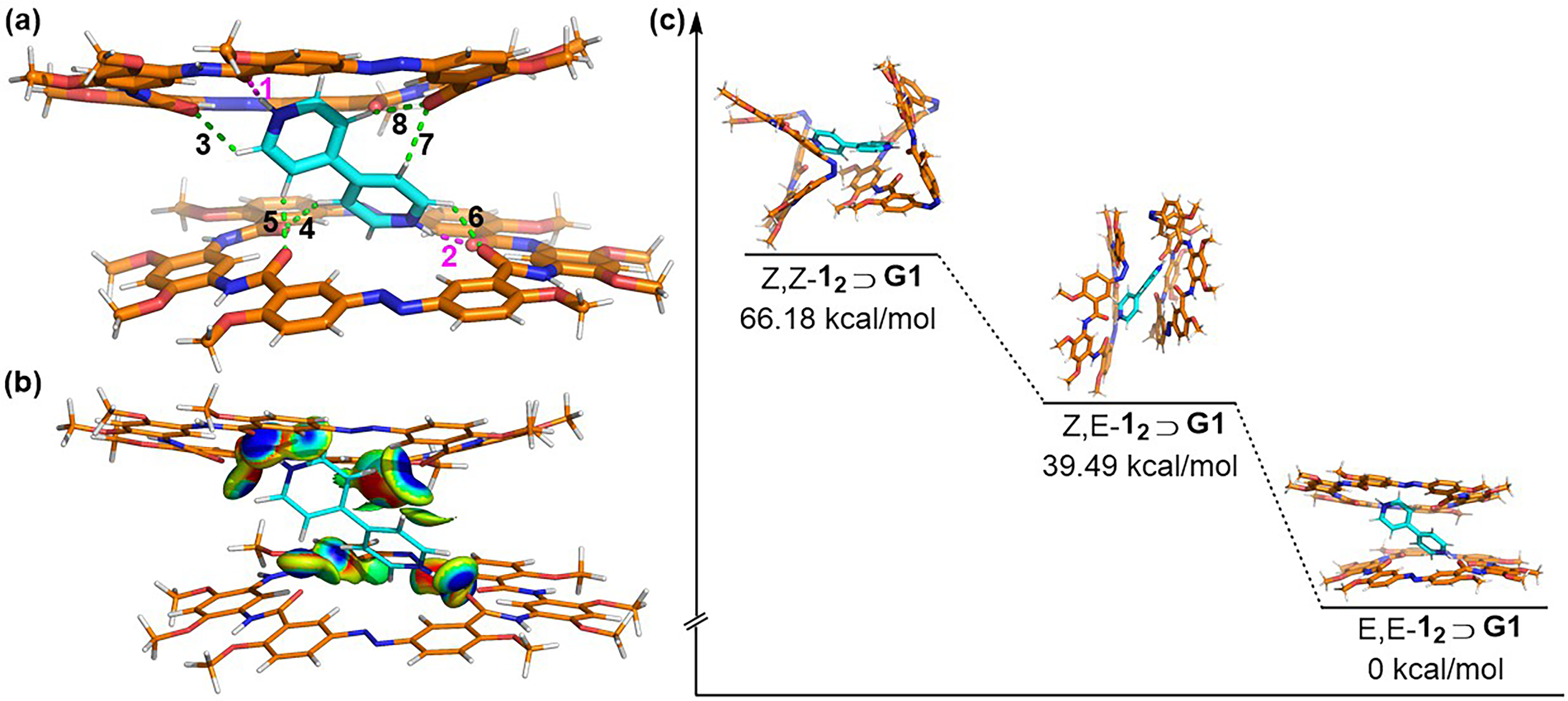

Figure 3. (a) Optimized structure at the DFT/B3LYP(PCM, chloroform)/6-31G (d,p) level of complex E,E-1c2⸧G1. (H—white, O—red, N—blue, C—orange and cyan). All side chains are replaced by methyl groups for simplicity, and the counterion CF3COO− is omitted for clarity. The dashed magenta lines indicate +N-H···O hydrogen bonds 1 and 2, where 1 = 1.7 Å (159.1°) and 2 = 1.7 Å (165.6°). The dashed green lines indicate C-H···O hydrogen bonds 3-8, where 3 = 2.3 Å (122.6°), 4 = 2.3 Å (141.7°), 5 = 2.1 Å (147.0°), 6 = 2.2 Å (131.8°), 7 = 2.4 Å (139.7°), and 8 = 2.2 Å (160.5°). (b) Visual study of weak interaction (IGM analyses), revealing the multiple hydrogen bond interactions between 1c and G1. (c) Structure, relative energies of E,E-1c2⸧G1, E,Z-1c2⸧G1, and Z,Z-1c2⸧G1. The energy is measured in kcal/mol and compared to the lower energy conformation of E,E-1c2⸧G1, which is set to 0 kcal/mol.
Figure 3. (a) Optimized structure at the DFT/B3LYP(PCM, chloroform)/6-31G (d,p) level of complex E,E-1c2⸧G1. (H—white, O—red, N—blue, C—orange and cyan). All side chains are replaced by methyl groups for simplicity, and the counterion CF3COO− is omitted for clarity. The dashed magenta lines indicate +N-H···O hydrogen bonds 1 and 2, where 1 = 1.7 Å (159.1°) and 2 = 1.7 Å (165.6°). The dashed green lines indicate C-H···O hydrogen bonds 3-8, where 3 = 2.3 Å (122.6°), 4 = 2.3 Å (141.7°), 5 = 2.1 Å (147.0°), 6 = 2.2 Å (131.8°), 7 = 2.4 Å (139.7°), and 8 = 2.2 Å (160.5°). (b) Visual study of weak interaction (IGM analyses), revealing the multiple hydrogen bond interactions between 1c and G1. (c) Structure, relative energies of E,E-1c2⸧G1, E,Z-1c2⸧G1, and Z,Z-1c2⸧G1. The energy is measured in kcal/mol and compared to the lower energy conformation of E,E-1c2⸧G1, which is set to 0 kcal/mol.
Molecules 28 04437 g003
Molecules 28 04437 g004 550

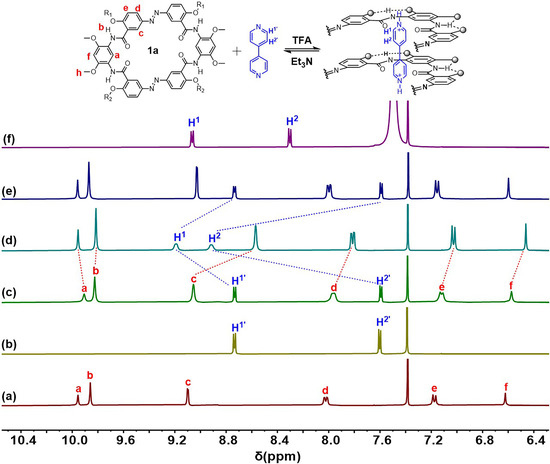

Figure 4. Partial 1H NMR spectra (400 MHz, CDCl3-CD3CN, 5:1, v/v, 298 K) of (a) free 1a, (b) free 4,4′-bipyridine, (c) 4,4′-bipyridine and 1a (2.0 equiv.), (d) the solution of (c) in the presence of 4.0 equiv. of TFA, (e) the solution of (d) after adding 6.0 equiv. of Et3N, and (f) free G1. [1a]0 = 2.0 mM.
Figure 4. Partial 1H NMR spectra (400 MHz, CDCl3-CD3CN, 5:1, v/v, 298 K) of (a) free 1a, (b) free 4,4′-bipyridine, (c) 4,4′-bipyridine and 1a (2.0 equiv.), (d) the solution of (c) in the presence of 4.0 equiv. of TFA, (e) the solution of (d) after adding 6.0 equiv. of Et3N, and (f) free G1. [1a]0 = 2.0 mM.
Molecules 28 04437 g004
Molecules 28 04437 g005 550

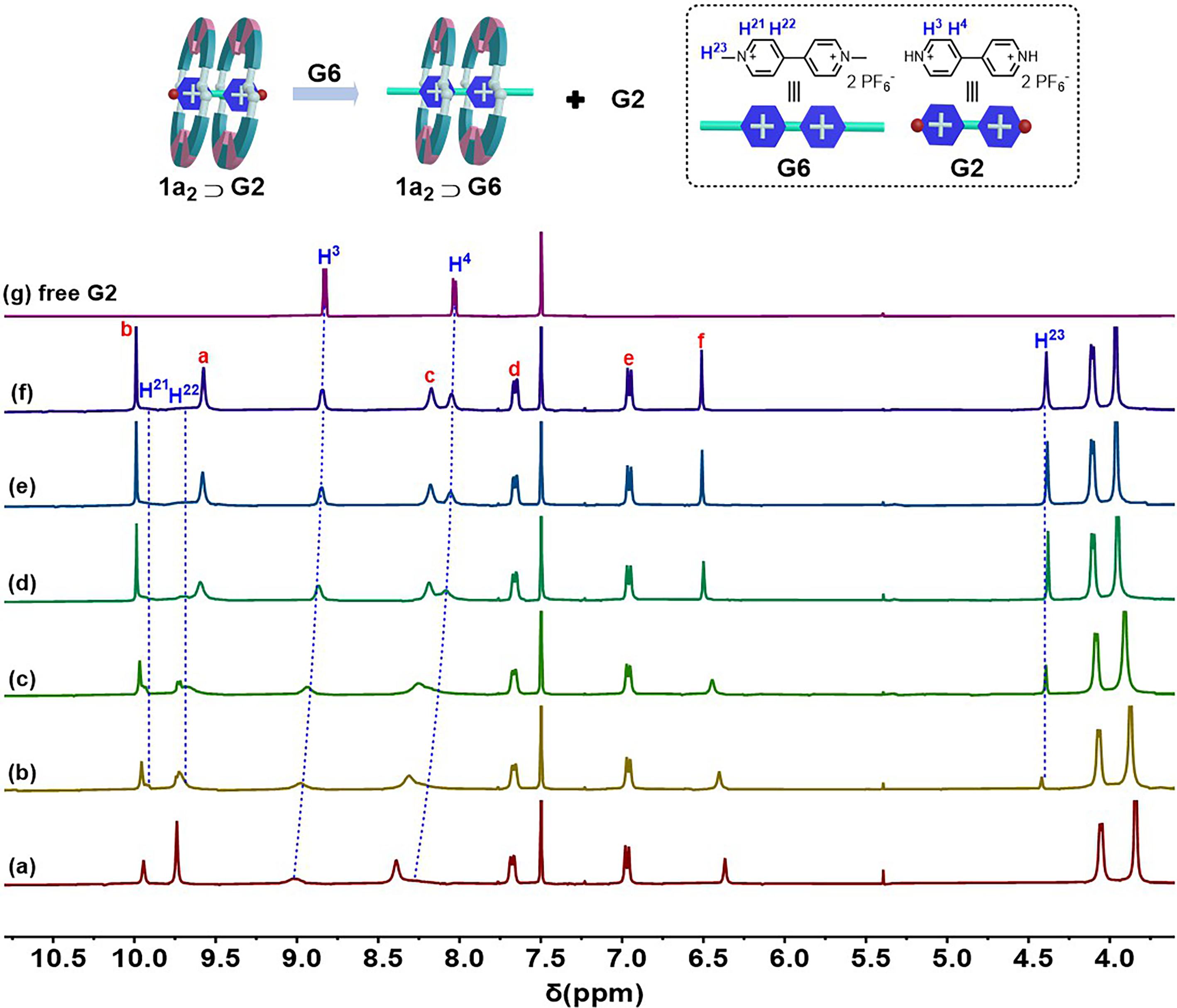

Figure 5. Partial 1H NMR spectra (400 MHz, CDCl3-CD3CN, 1:1, v/v 298 K) of (a) 2.0 mM 1a and 1.0 mM G2, and containing the following concentrations of G6 (b) 0.2 mM, (c) 0.4 mM, (d) 0.8 mM, (e) 1.0 mM, (f) 1.2 mM, (g) free G2.
