Article

Fluoride Adsorption from Aqueous Solution by Modified Zeolite—Kinetic and Isotherm Studies

by
Thouraya Turki
1,
Abdelkader Hamdouni
2 and
Alexandru Enesca
3,*
1
Natural Water Treatment Laboratory, Water Researches and Technologies Center (CERTE), Technopark of Borj-Cedria, P.O. Box 273, Soliman 8020, Tunisia
2
High Institute of Sciences and Technology of Environment of Borj Cedria, University of Carthage, Carthage 1054, Tunisia
3
Product Design, Mechatronics and Environment Department, Transilvania University of Brasov, Eroilor 29 Street, 500036 Brasov, Romania
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(10), 4076; https://doi.org/10.3390/molecules28104076
Submission received: 27 March 2023 / Revised: 2 May 2023 / Accepted: 10 May 2023 / Published: 13 May 2023

Abstract

:
Fluorine is a very common element in the Earth’s crust and is present in the air, food, and in natural waters. It never meets in the free state in nature due to its high reactivity, and it comes in the form of fluorides. Depending on the concentration of fluorine absorbed, it may be beneficial or harmful to human health. Similar to any trace element, fluoride ion is beneficial for the human body at low levels, but as soon as its concentration becomes too high, it is toxic, inducing dental and bone fluorosis. The lowering of fluoride concentrations that exceed the recommended standards in drinking water is practiced in various ways around the world. The adsorption process has been classified as one of the most efficient methods for the removal of fluoride from water as it is environmentally friendly, easy to operate, and cost-effective. The present study deals with fluoride ion adsorption on modified zeolite. There are several influential parameters, such as zeolite particle size, stirring rate, solution pH, initial concentration of fluoride, contact time, and solution temperature. The maximum removal efficiency of the modified zeolite adsorbent was 94% at 5 mg/L fluoride initial concentration, pH 6.3, and 0.5 g modified zeolite mass. The adsorption rate increases accordingly with increases in the stirring rate and pH value and decreases when the initial fluoride concentration is increased. The evaluation was enhanced by the study of adsorption isotherms using the Langmuir and Freundlich models. The Langmuir isotherm corresponds with the experimental results of the fluoride ions adsorption with a correlation value of 0.994. The kinetic analysis results of the fluoride ions adsorption on modified zeolite allowed us to demonstrate that the process primarily follows a pseudo-second-order and then, in the next step, follows a pseudo-first-order model. Thermodynamic parameters were calculated, and the ΔG° value is found to be in the range of −0.266 kJ/mol up to 1.613 kJ/mol amidst an increase in temperature from 298.2 to 331.7 K. The negative values of the free enthalpy ΔG° mean that the adsorption of fluoride ions on the modified zeolite is spontaneous, and the positive value of the enthalpy ∆H° shows that the adsorption process is endothermic. The ∆S° values of entropy indicate the fluoride adsorption randomness characteristics at the zeolite-solution interface.

1. Introduction

Water is a vital resource for all living creatures. It covers three-quarters (3/4) of the Earth’s surface and represents about two-thirds (2/3) of the human body [1]. Sources of fresh water are manifold, but surface drinking water and groundwater are the commonest. Indeed, most countries in the world rely on both sources to secure public water supplies. The issue that arises in countries such as Morocco, Algeria, Senegal, and Tunisia is the existence of excessive amounts of fluoride in drinking water [2]. In the South of Tunisia, and in the Gafsa region in particular (Metlaoui, Omlarayes, and Redayef), the water contains high fluoride concentrations—approximately 2 to 4 mg/L, which exceeds the WHO’s target (1.5 mg/L). Fluorine is an essential and beneficial chemical element for the human body if ingested at low rates. However, dangerously high levels of fluoride in water supplies can lead to serious health problems. At 0.5 mg/L of fluoride ions, water plays a prophylactic role in preventing cavities and early tooth decay through enamel remineralization. On the contrary, at higher concentrations (>0.8 mg/L), the risk of dental and skeletal fluorosis increases [3,4,5,6]. Bone fluorosis results from the excessive accumulation of fluoride in bones, causing changes in the skeleton structure and making them extremely fragile. In addition, an increased bone density (ribs, pelvic bone), ligament calcification, anarchic bone trabeculations structure, and a decrease in figurative element production in blood can be noticed [7].
In order to avoid public health problems linked to the consumption of drinking water rich in fluoride, the methods used to deal with excessive fluoride concentrations should be considered before the water is released to consumers. Conventional treatment processes (precipitation, adsorption, etc.) and unconventional (membrane separation processes) have been implemented to reduce excess fluorine to concentrations that meet the recommendations of the World Health Organization (WHO) and the standards in place in the concerned countries. Our literature study indicated that adsorption appeared to be the most appropriate method for fluoride removal in terms of material consumption and treatment costs (energy consumption). To a lesser extent, adsorption on modified zeolite could be utilized due to its high rate of fluoride ion removal [8,9]. Studies and applications of zeolites have increased considerably in recent decades, and a large number of publications and patents have been issued [10,11,12,13]. Natural zeolites have been increasingly substituted by synthetic zeolites, and today, more than 150 different crystal structures of the material are known [14]. Although very little is used in industrial processes [15], thousands of tons of zeolites are consumed each year to remove hardness from water as catalysts, adsorbents to control soil pH, and as a fertilizer to adsorb moisture [8]. Low-cost metal-laden adsorbents have attracted a lot of attention from researchers in this field, as they have greatly improved selectivity and adsorption capacity [16,17].
This study focuses on finding sustainable solutions to reduce fluoride levels in Tunisian drinking water by employing a modified type of zeolite as an adsorbent material. Clinoptilolite was modified to increase its affinity for fluoride ions, and the adsorption processes were evaluated. Clinoptilolite has been used for the removal of lead [18], tetracycline [19], ammonium [20], and fluoride [17] from wastewater. Compared with other similar works [21,22], this paper indicates the steps required to establish the optimized dosage of modified clinoptilolite in order to acquire the maximum fluoride absorption capacity. Additionally, the influence of various parameters such as pH, contact time, temperature, and initial fluoride concentration was analyzed. The isothermal behavior and adsorption kinetics for fluoride adsorption onto the modified zeolite were investigated, and the fluoride adsorption mechanism was evaluated.

2. Results and Discussion

2.1. Material Characterization

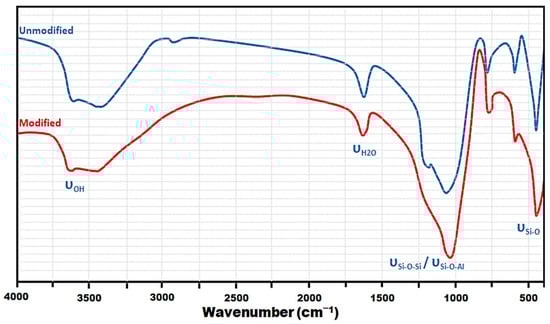

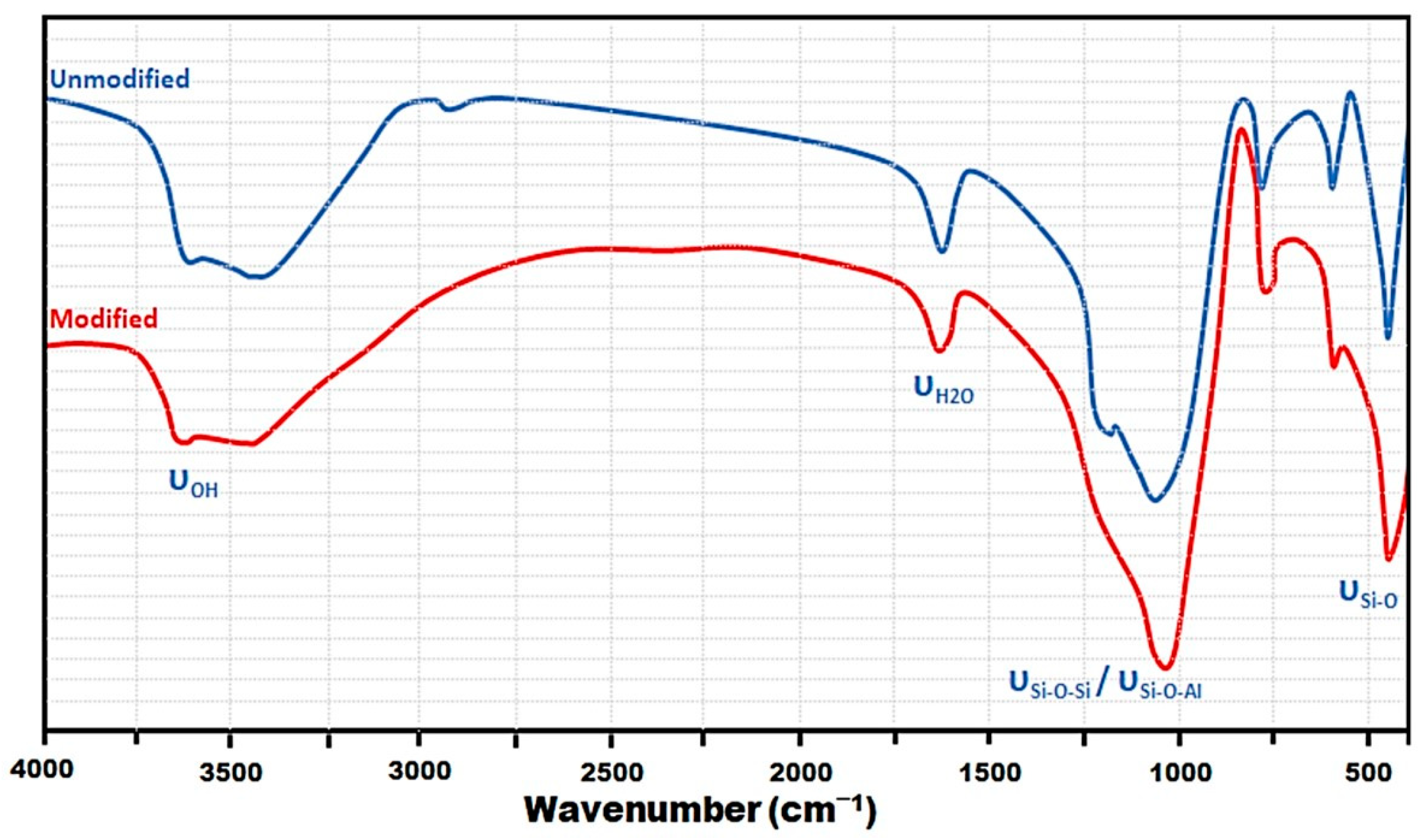

FTIR spectra were performed using a VERTEX 70 Fourier transform spectrometer over a range from 400 to 4000 cm−1 with a resolution of 4 cm−1. The modified zeolite was packaged as dispersion in a KBr pellet. The IR spectrum of the modified and unmodified zeolite is shown in Figure 1. As expected, there are no significant changes in the FTIR spectra due to the treatments, and the main bands are present in both materials. The exchange in the band intensity is a consequence of the diffusion processes induced during the thermal treatments [23].
The broad band between 3500 and 3700 cm−1 in the activated zeolite shows the presence of two species on the adsorbent surface: free and hydrogen-bonded OH groups. In the OH stretching region, the infrared spectra show that there are hydroxyl groups attached and that zeolite is significantly hydrated. The bands centered at 3444 cm−1 and 1600 cm–1 refer to water molecules associated with Na and Ca in the adsorbent channels and cage’s structure. The 1065 cm−1 band indicates the asymmetric stretching vibration modes corresponding to the internal Si-O-Si or Si-O-Al bonds. The 800 cm−1 and 550 cm–1 bands are ascribed to the Si-O-Si or Si-O-Al bonds groups stretching vibration modes, as well as the Si–O bonds bending vibrations. These results are in agreement with other articles [24], showing that the main band corresponds to this type of modified zeolite.

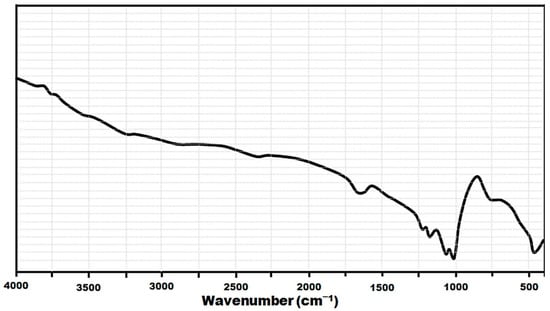

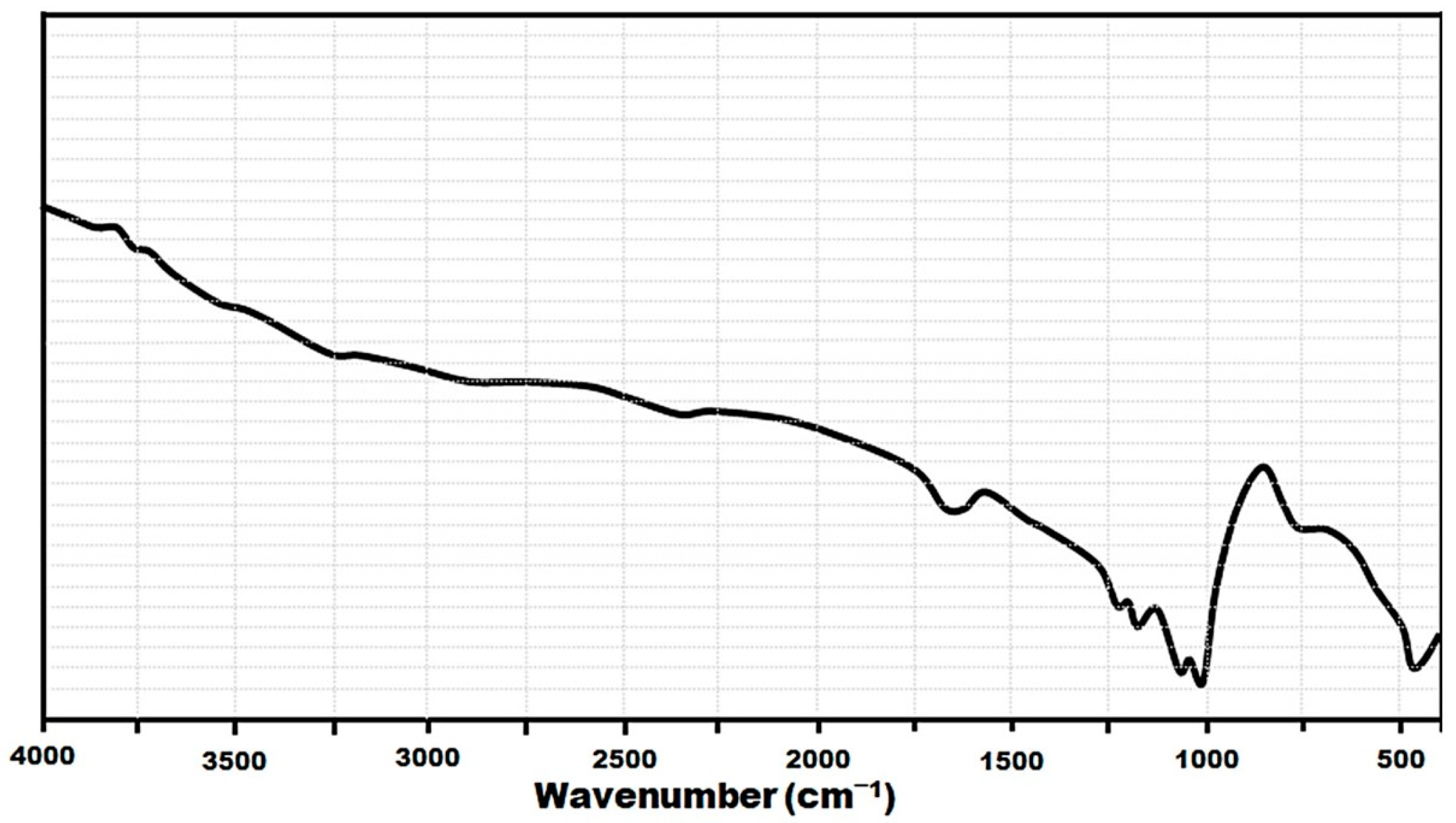

After adsorption experiments (Figure 2) were conducted, slight shifts and amplitude modifications corresponding to some bands were observed, indicating an interaction between OH groups or active metal (aluminum, silicon, and iron) surfaces with fluoride ions [25,26]. There is also a decrease in band intensity attributed to the group at 3570 cm−1 after the adsorption process, which is associated with the exchange between the fluoride and hydroxide radicals.

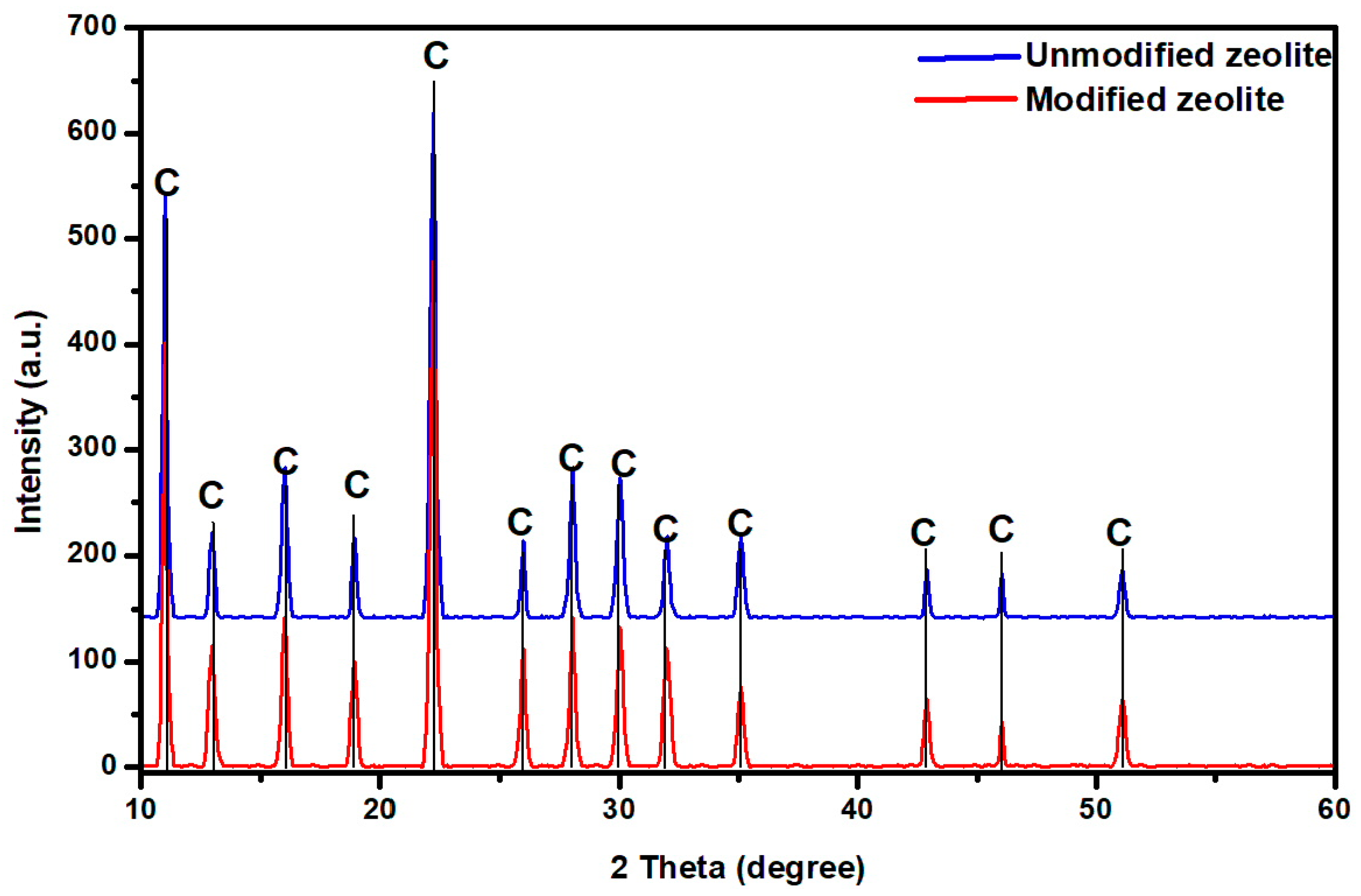

The diffraction analysis presented in Figure 3 indicates the presence of characteristic lines corresponding to clinoptilolite (JCPDS-ICCD 98-000-2606) with a predominant monoclinic structure. The diffraction patent of unmodified and modified zeolite exhibits the same diffraction line, with the only difference being that, for the modified zeolite, the minor lines have a higher intensity due to the thermal treatment of the adsorber [27].

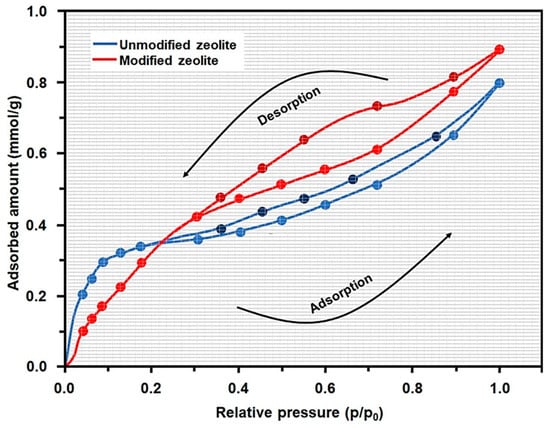

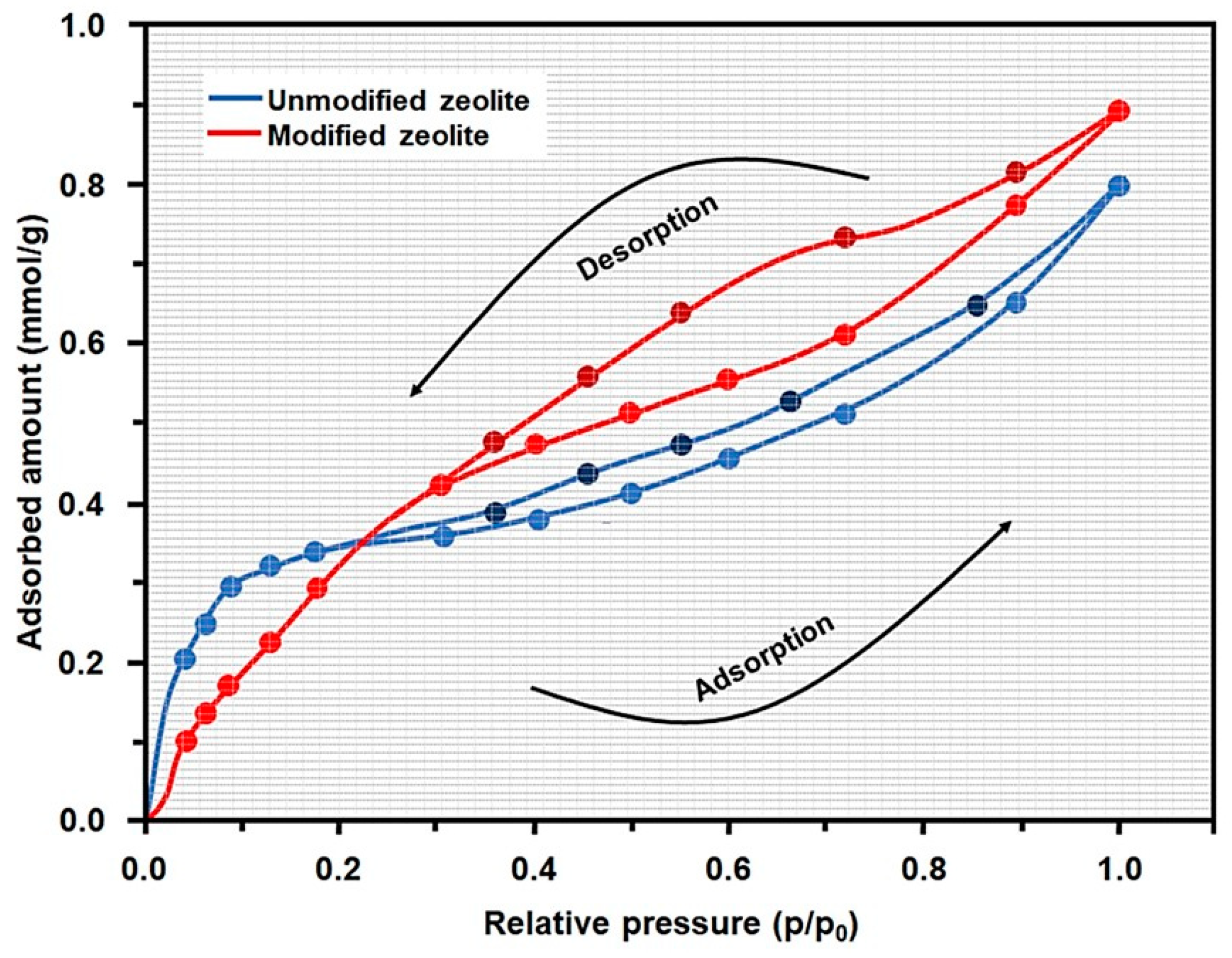

The nitrogen low-temperature adsorption/desorption isotherm (Figure 4) corresponds to a IV-type isotherm with H3-type loop hysteresis in accordance with IUPAC classification [28]. Both materials present a relatively low specific surface area of 24.4 m2/g for unmodified zeolite and 29.7 m2/g for modified zeolite. The increase in specific surface area corresponding to the modified zeolite can be associated with the presence of a larger number of free micropores and not necessarily the formation of new micropores.

2.2. Influence of the Adsorbent Amount

During this study, the modified zeolite with two morphologies (powder and larger granular (≤45 µm)) was tested, and the adsorbent quantity was varied from 0.1 to 0.6 g while fixing the fluoride concentration.

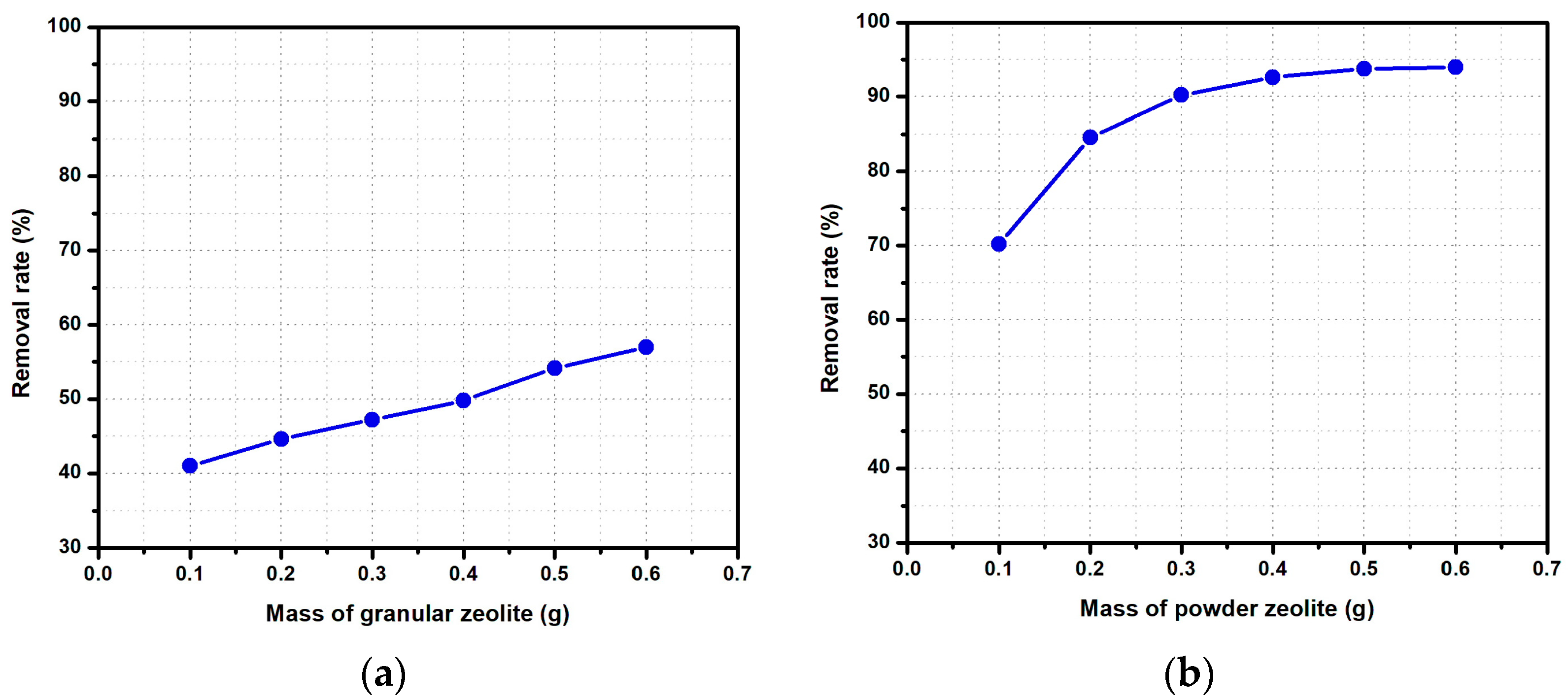

The experiments indicate a relative linear dependency (Figure 5a) between the fluoride removal rate and the amount of large granular modified zeolite. The adsorption increases from 41% for 0.1 g of zeolite to 57% for 0.6 g of zeolite added in the working solution after one hour of contact, at room temperature and without stirring. However, when powder-modified zeolite is added, there is a significant increase in the fluoride removal rate (Figure 5b), especially when the adsorbent quantity is increased to 0.2 and 0.3 g. It must be underlined that using 0.3 g of powder-modified zeolite is enough to remove >90% of fluoride ions. After 0.3 g zeolite dosage, there is a slow increase in the fluoride removal rate due to the fact that the available fluoride ion concentration is reduced. These results are in agreement with the work of Papari et al. [29], indicating that the removal efficiency of fluoride (10 ppm solution concentration) increased from 15.86% to 82.24% when the adsorbent dose of powdered Conocarpus biochar increased from 2 to 15 g/L. Consequently, all the other experiments were performed using powder-modified zeolite.

2.3. Influence of the Stirring on Fluoride Adsorption (Dynamic vs. Static)

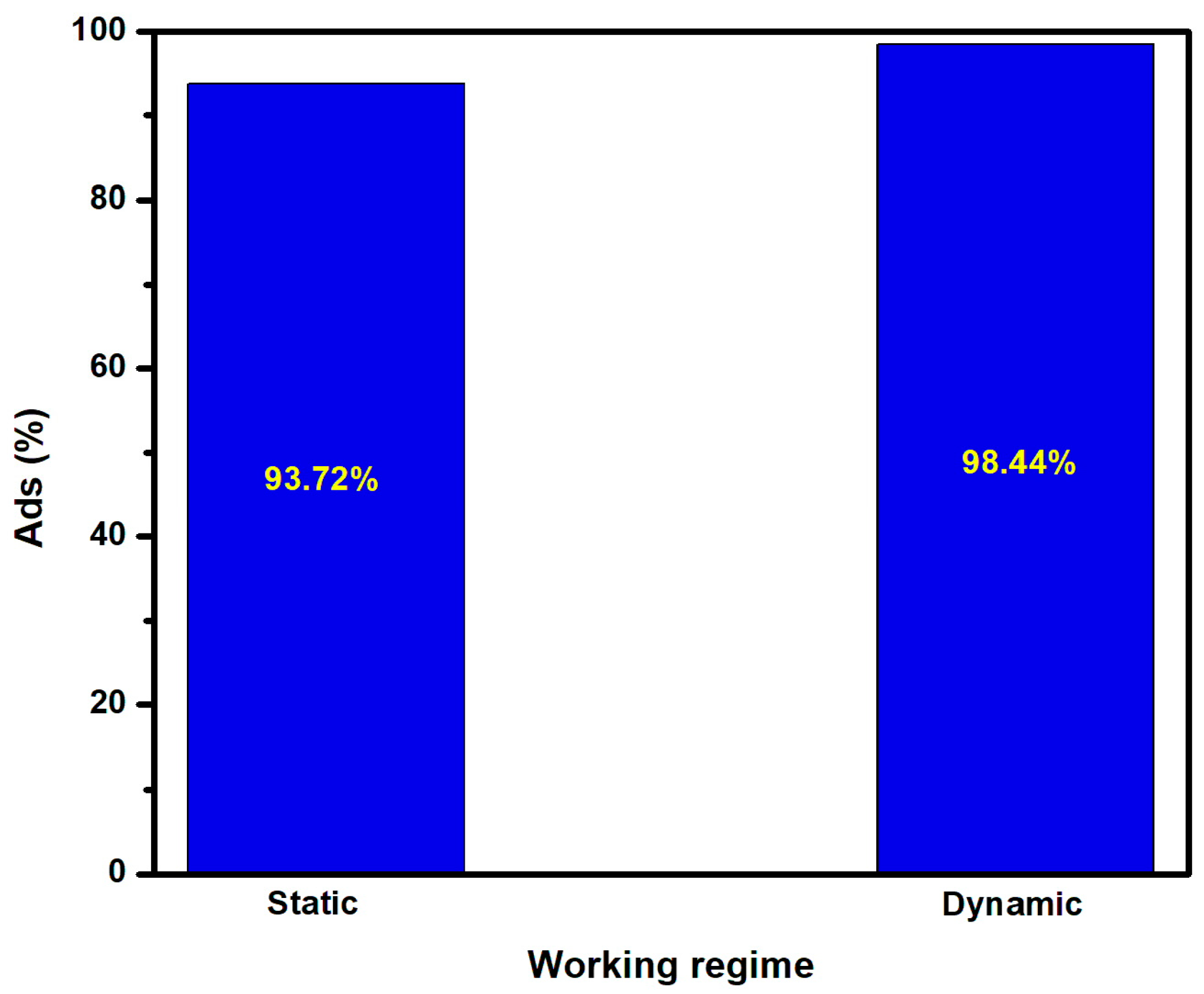

The influence of stirring vs. static experiments on the removal of fluoride ions was evaluated, and the results are presented in Figure 6. Both experiments were performed with the same quantity of adsorbent optimized in Section 3.2, and the stirring speed was 350 rpm. The results indicate that working in a dynamic regime will increase the fluoride ion adsorption rate from 93.7% to 98.5%.
The higher removal rate in the dynamic working regime suggests that the diffusion can be tailored by using the stirring process to decrease the liquid film captive on the adsorbent interface. This experimental observation corresponds with the work described by Pricila et al. [30], which showed that the adsorption will be favored when stirring ensures a uniform distribution of fluoride ions at the liquid–solid interface.

2.4. Influence of Fluoride Initial Concentration and Contact Time

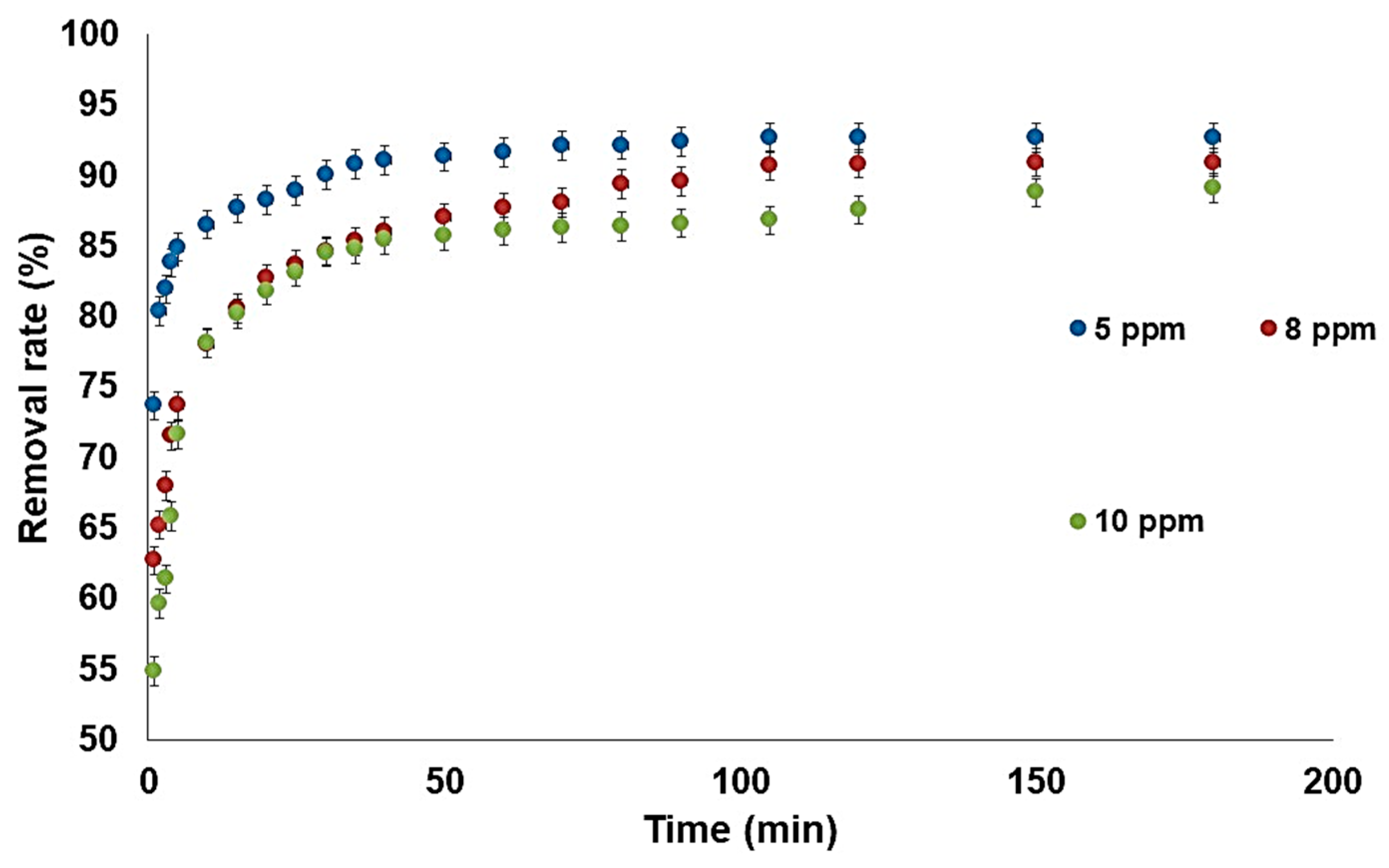

The influence of the initial fluoride concentration on the adsorption rate was evaluated, and the results are presented in Figure 7. Three solutions with 5 ppm, 8 ppm, and 10 ppm initial fluoride concentrations were used. The curve shape highlights two main zones:
  • Between 5 min and 50 min, the removal rate is faster due to the higher number of available active sites on the adsorbent surface.
  • Between 50 and 180 min there is the second zone, which is similar but with a plateau, where the removal rate decreases due to the synergic action, the lower number of available active sites, and fewer available fluoride ions; this behavior was also observed by Tan et al. [31] and was described as a phase of pseudo-equilibrium between the rates of adsorption and desorption.
The kinetic study indicates that a contact time of 90 min is generally sufficient to reach a state of equilibrium. Upon comparing the curves corresponding to each concentration, it is evident that the fluoride adsorption rate increases when the initial concentration of fluoride ions is higher. This decrease in the rate of elimination is explained by the presence of excess fluoride ions in the solution, which hinders adsorption [32,33,34].

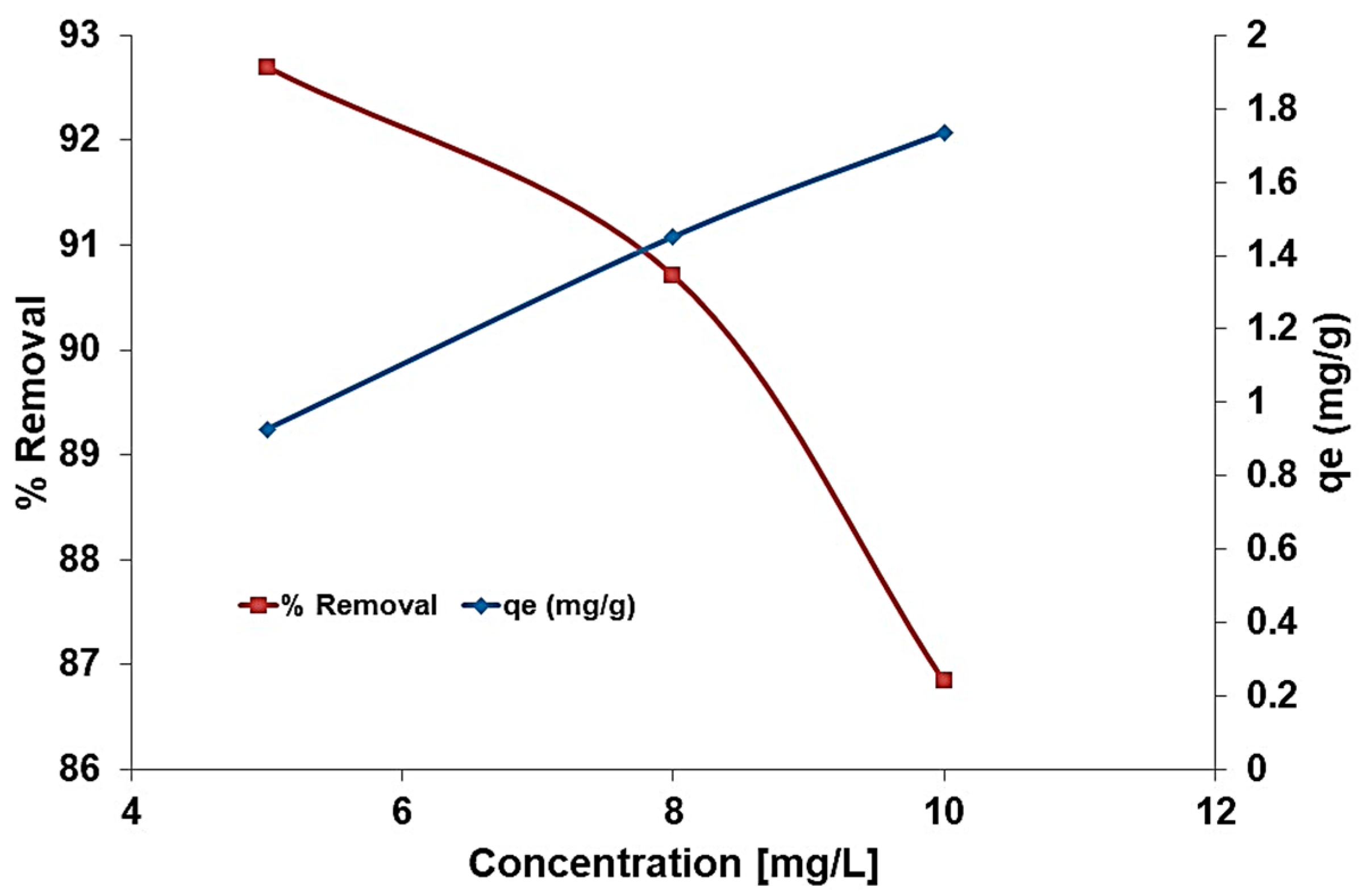

A reduction in removal percentage at higher fluoride concentrations may be a consequence of the fluoride ions competing for the available adsorbent binding sites. As presented in Figure 8, the adsorption capacity increased from 0.93 to 1.74 mg/g as the initial fluoride ion concentration increased from 5 to 10 mg/L, which is in agreement with Kebede et al. [35], who found that the activity of fluoride ions increases as their concentration increases. Table 1 presents a comparison between the adsorption capacity of different adsorbers used for the removal of fluoride from wastewater. As observed, higher adsorption capacities can be reached by increasing the adsorbent dosage. However, at an adsorbent dosage of 0.5 g/L, the modified clinoptilolite exhibits higher or similar absorption capacities (1.74 mg/g) compared to aluminum-modified zeolite (0.47 mg/g), marble apatite-CM (0.25 mg/g), or lanthanum oxyhydroxides anchored commercial granular activated carbon (1.79 mg/g).

2.5. Influence of pH on the Fluoride Ions Removal

The pH is considered an important parameter in adsorption-based processes. In order to evaluate the influence of pH on the removal of fluoride ions, a series of tests at different pH were carried out. The pH was adjusted with solutions of hydrochloric acid (0.01 M) and sodium hydroxide (1 M), and the results are presented in Figure 9. The evaluation shows an interesting adsorption capacity, which reaches its maximum at 94% in an acid environment and decreases in an alkaline environment without exceeding 57%. The adsorption capacity is higher in acid pH and significantly decreases in alkaline pH. The adsorption in an acidic medium is enhanced due to the ability of fluoride ions to fix protons required for hydrofluoric acid. The reaction is strongly exothermic and considers the competition between the fluoride ion adsorption and complexation. The results are in agreement with Parashar et al. [41] who showed that the adsorption of fluorides increases at acidic pH, becomes constant up to pH = 8, and decreases in a basic medium. Additionally, the kinetic evaluation presented in Figure 10 confirms the superior adsorption capacity of the modified zeolite in acid pH. Adsorption in alkaline pH is lower because it is hampered by the presence of OH ions in the medium [42].

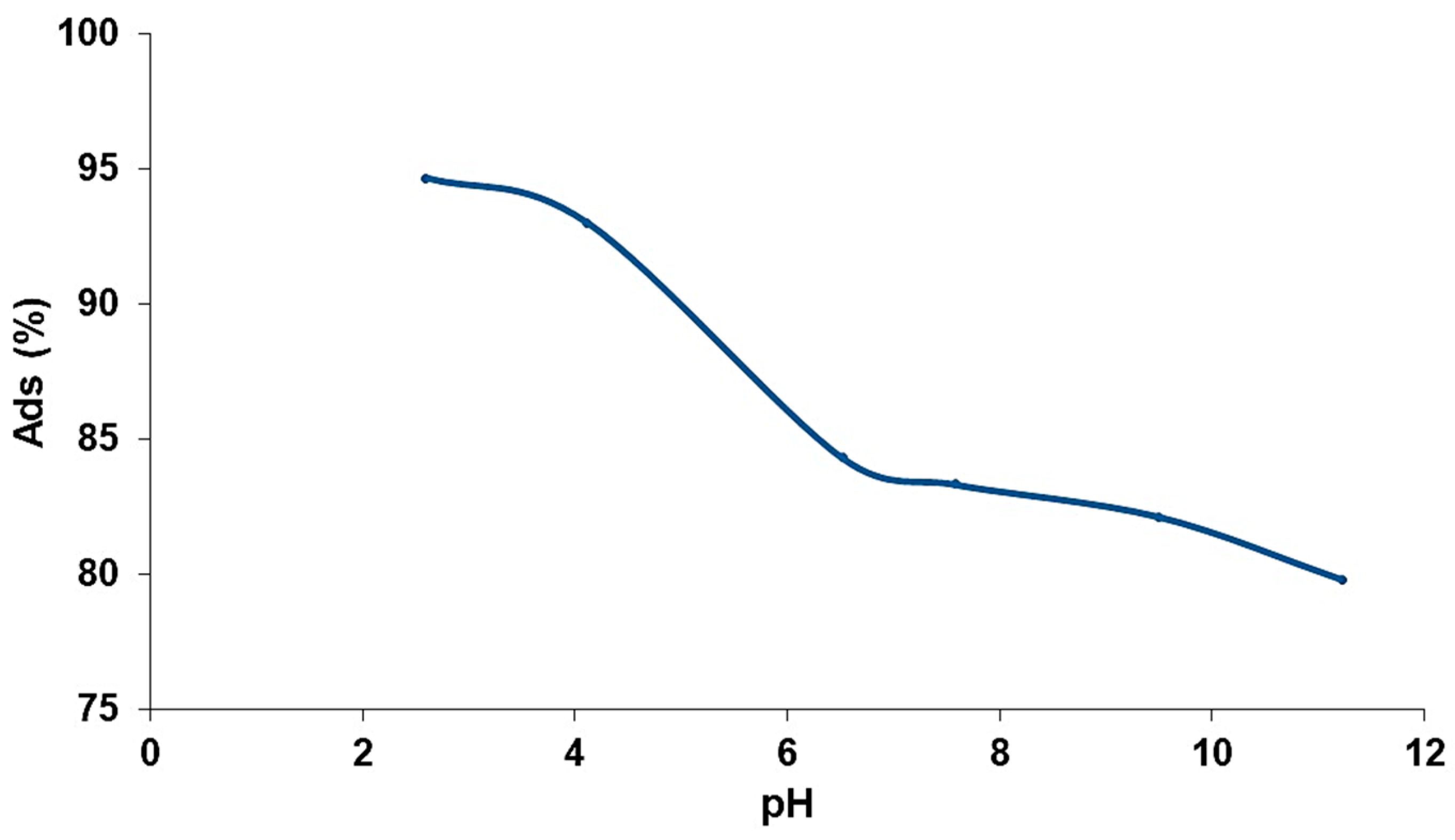

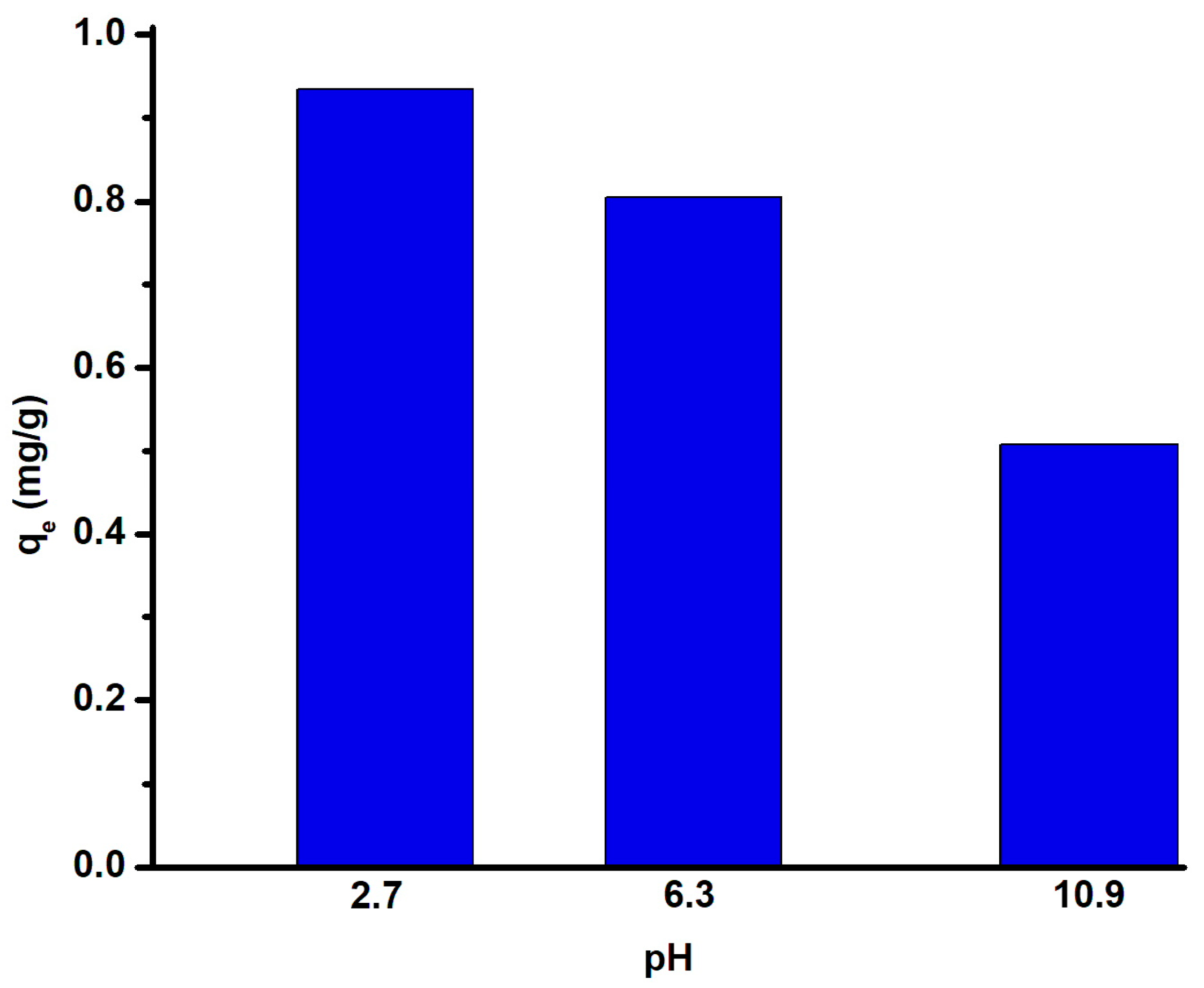

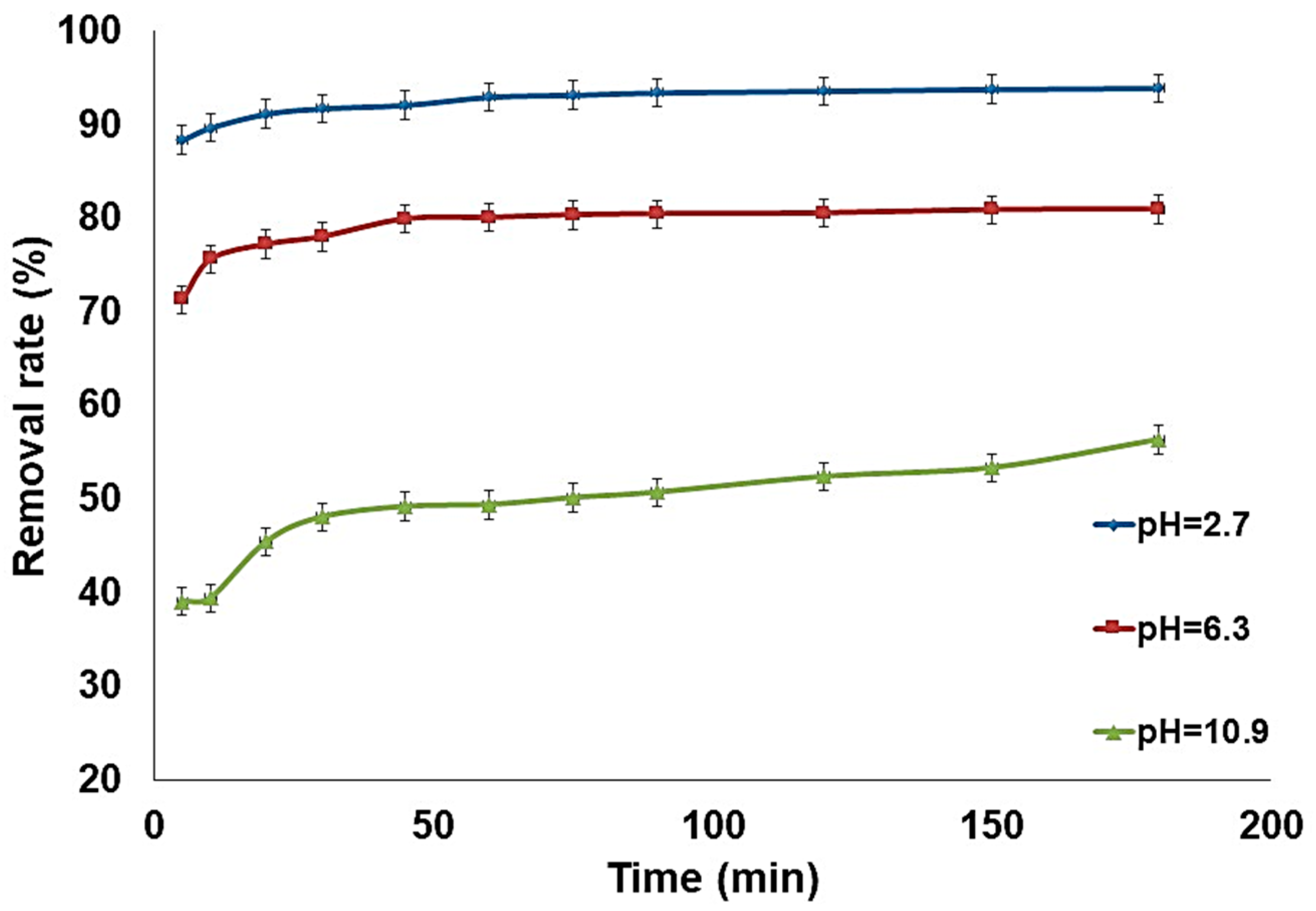

As presented in Figure 11, the fluoride uptake capacity is not strongly affected when the pH is less than or equal to 7. To avoid affecting environmental factors, the results suggested that a pH value of 6.3 was the optimal pH for the removal of fluoride by the modified zeolite adsorbent. Even at a lower pH, increasing the adsorption capacity can be detrimental for large scale applications.

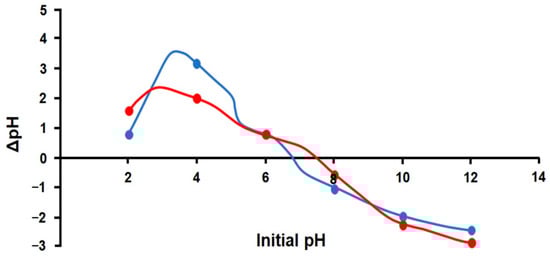

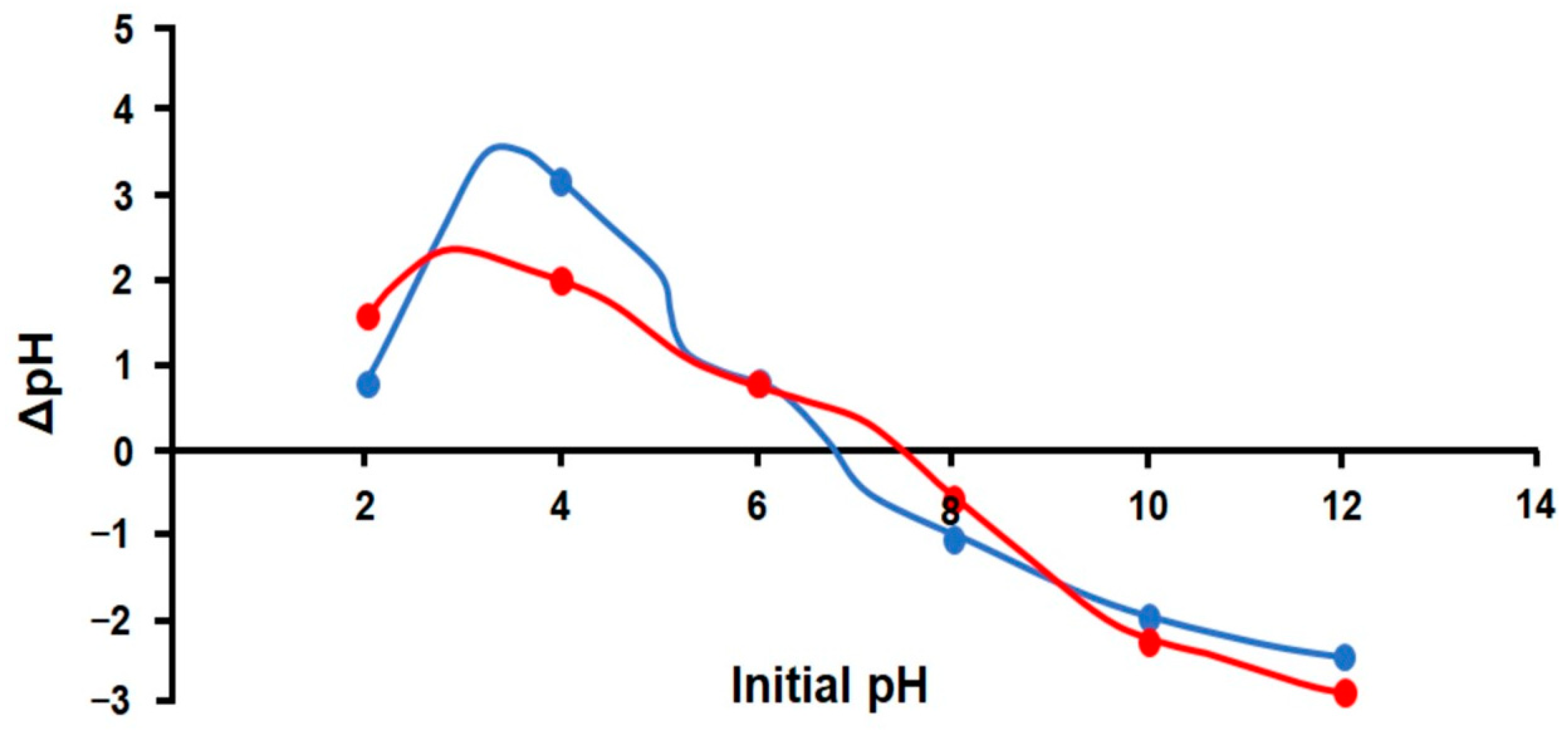

The evaluation of pHpzc (Figure 12) indicates that the modification made to zeolite has influenced the point of zero charge. The unmodified zeolite exhibits a pHpzc value of around 6.8, while the modified zeolite pHpzc was 7.6. Consequently, at pH values below 7.6, the modified zeolite surface will have a net positive charge, and at pH > 7.6, the surface will be negatively charged.

2.6. Influence of Temperature on the Fluoride Ions Removal

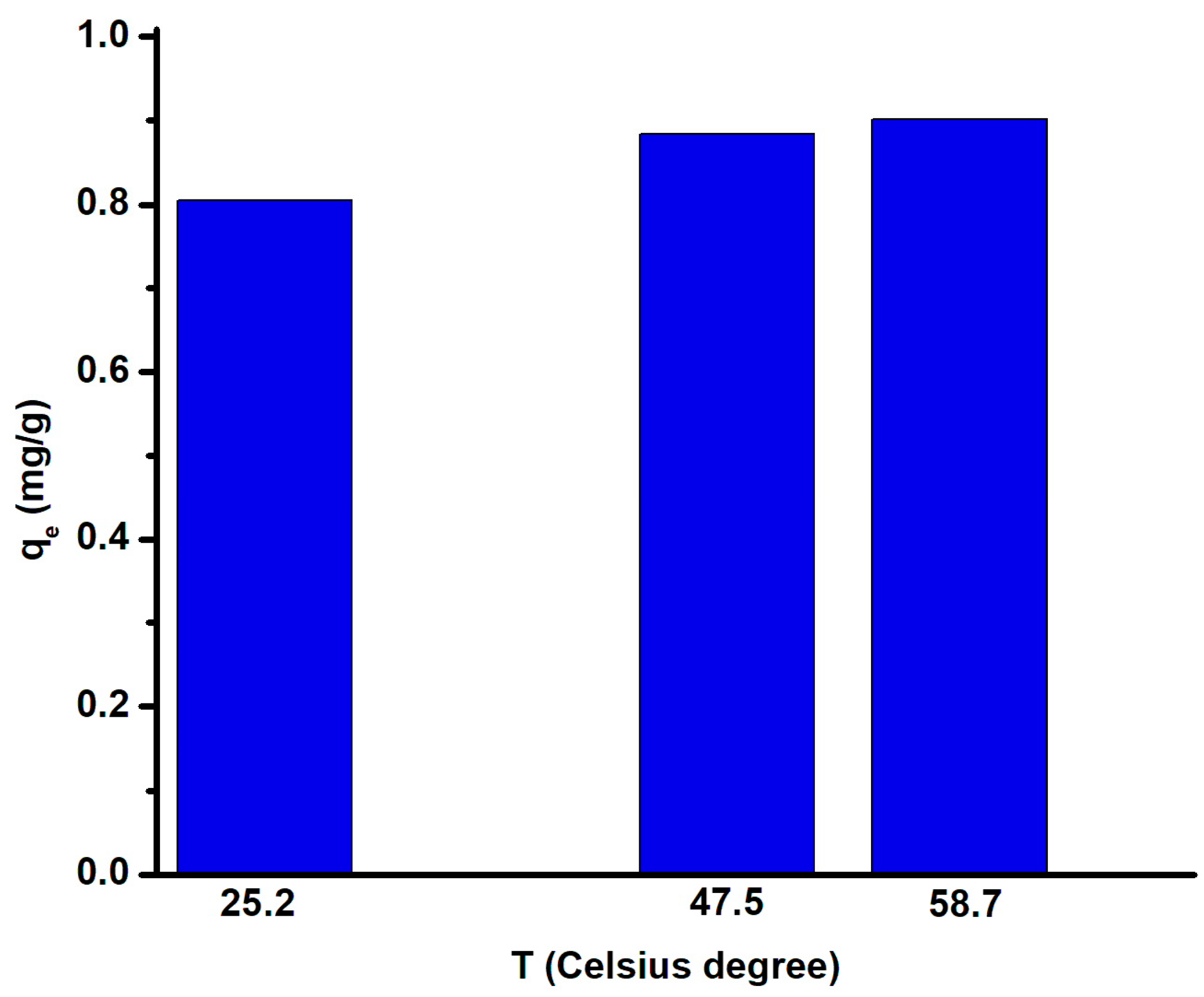

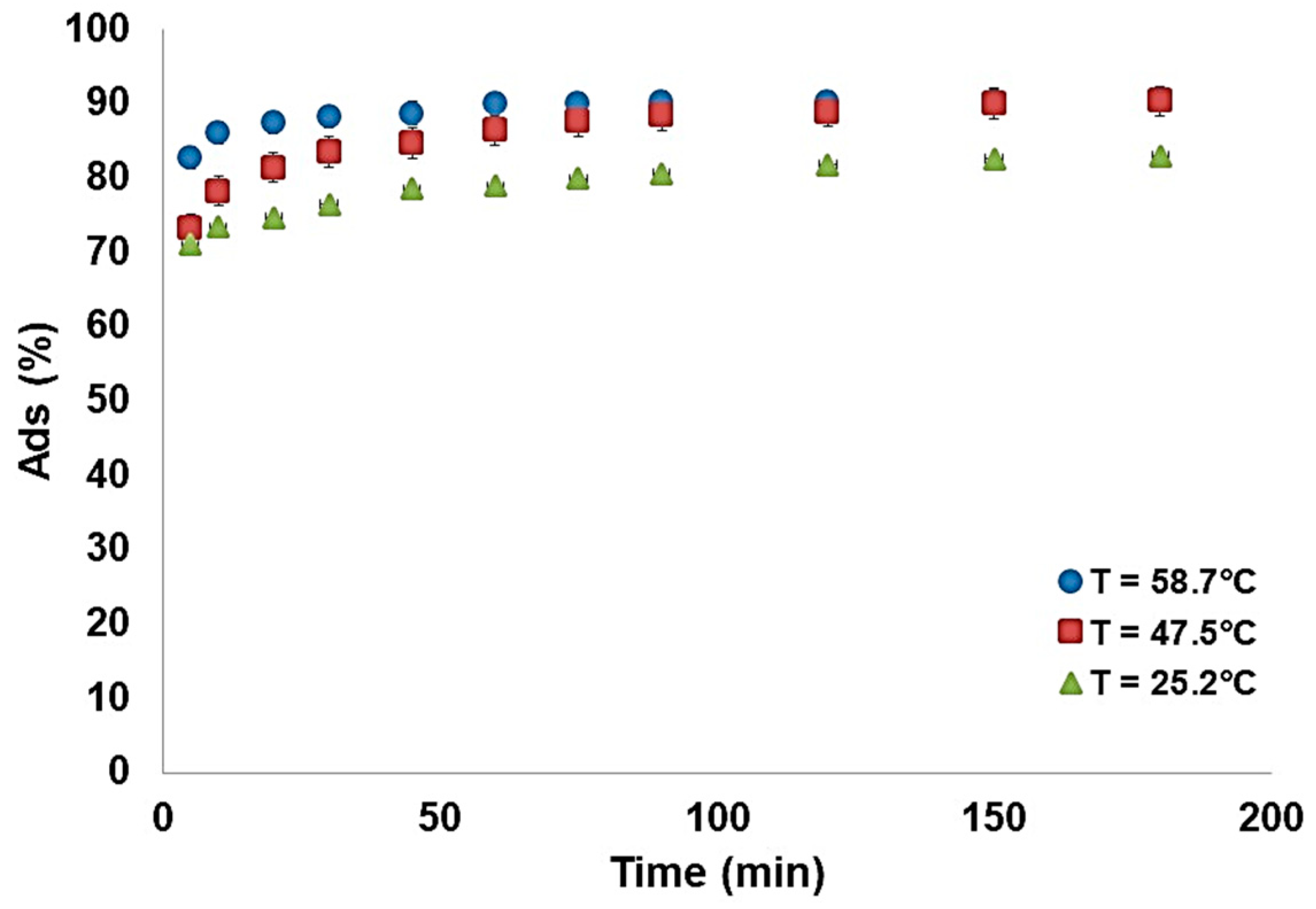

Along with the pH, temperature is a major variable in the adsorption process that plays an important role in establishing the optimal working conditions for the modified zeolite. Our evaluation was performed at three different temperatures (25.2 °C, 47.5 °C, and 58.7 °C), and the results are presented in Figure 13.
The results indicate that the adsorption process is endothermic, meaning that the fluoride ion adsorption increases when temperature increases. This is a consequence of the fact that adsorption is controlled by diffusion, and diffusion increases when the temperature rises. This thermal correlation was also reported in other works [43,44,45] and was correlated with ion diffusion dependency on temperature. Figure 14 indicates that the highest adsorption capacity (0.9 mg/g) was obtained when the working temperature was 58.7 °C. The increase in temperature will also increase the rate of the adsorption process when equilibrium is reached via a chemisorption reaction [46]. Further increases in temperature are not recommended, as the evaporation process will reduce the overall solution volume and modify the fluoride concentration.

2.7. Influence of Co-Existing Ions on the Fluoride Ions Adsorption

In previous experiments, the synthetic solutions contained only fluoride ions. The study of other anion interferences, in particular sulfate, hydrogen carbonate, and chloride anions, on the fluoride ion adsorption capacity by the modified zeolite is illustrated in Figure 15.

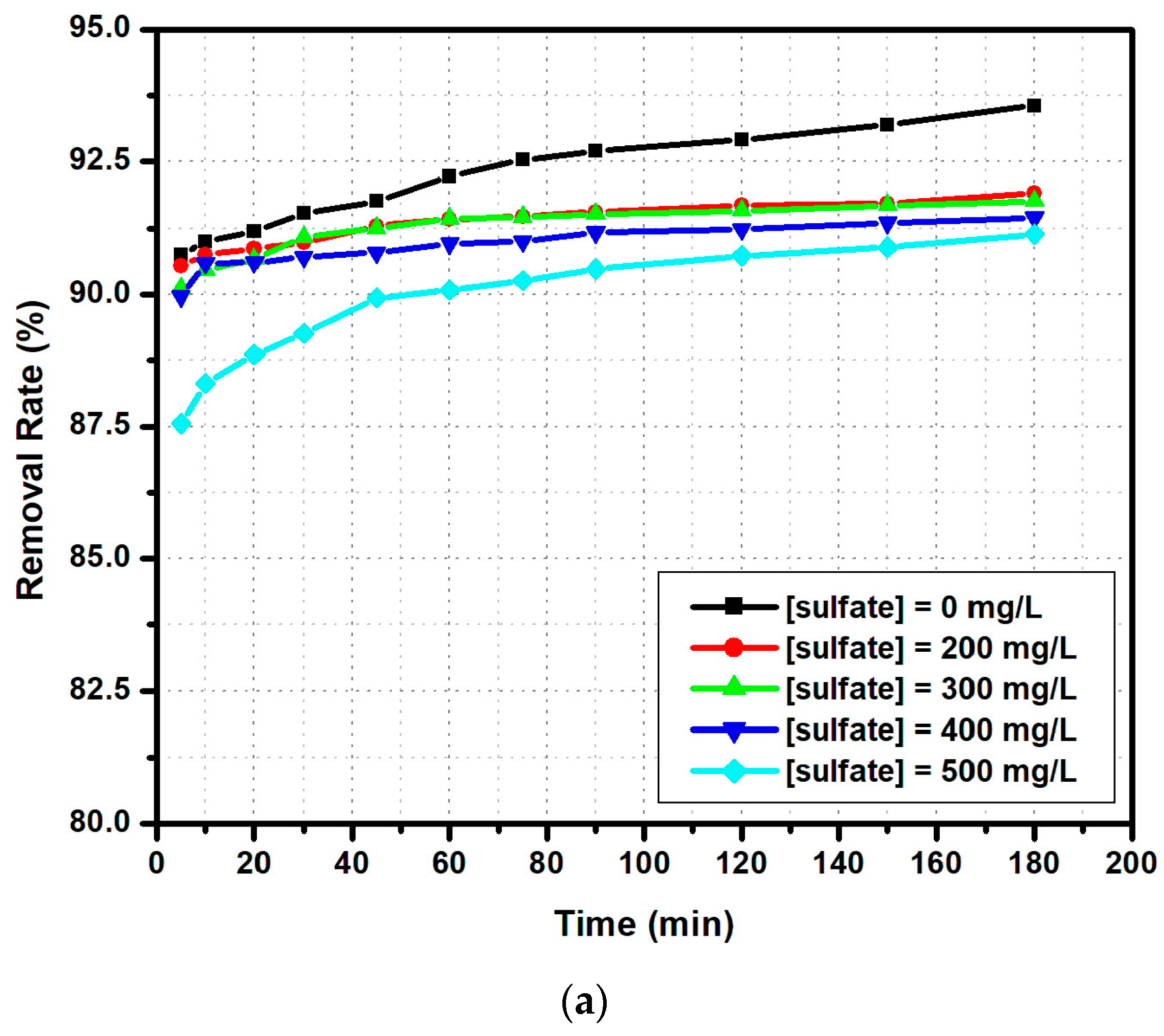

In the presence of sulfate anions (Figure 15a), the highest influence was observed at 500 ppm, when the final percentage of adsorbed fluoride ions decreased to 90%, compared to 93% when no sulfate was added. It is important to underline that the main differences between the lower and higher sulfate concentrations were observed in the first 50 min of the experiment, indicating the competition among ions for the available active sites from the modified zeolite surface. A similar result was described in another paper [22], which showed that, at concentrations greater than 300 ppm in sulfate, chloride, and hydrogen carbonate, the adsorption of fluoride ions decreased [47]. This tendency seems to be more obvious at higher concentrations (500 ppm). A similar behavior was observed when a hydrogen carbonate anion was added (Figure 15b). Indeed, by increasing the concentration of hydrogen carbonate ions, the adsorption percentage decreases. These results can be explained by the fact that these ions replace fluoride ions at the adsorption sites. The work done by Zhijie et al. [48] indicates that, depending on the adsorbed substrate, a hydrogen carbonate ion concentration higher than 200 ppm will decrease the fluoride ion removal rate. The presence of chloride anions seems to enhance the fluoride ion removal rate (Figure 15c), as both are halide anions. According to Drouichea et al. [22], chloride anions act as a conditioning substrate factor on zeolites and other alumina-silicate materials, inducing the formation of more active sites ready for fluoride anion adsorption.

2.8. Kinetics of Adsorption

The pseudo-first-order model is deduced from the following differential equation (Equation (1)) [24]:
d q t d t = k 1 · q e q t ,
which is integrated into the boundary conditions from (t = 0, q = 0) to (t, q) and linearized to obtain the next equation (Equation (2)):
log q e q t = log q e k 1 2.303 t ,
where k1 is the first order rate constant (min−1), t represents the contact time (min), qe express the amount of fluorine adsorbed per unit mass at equilibrium (mg/g), and qt is the amount of fluorine adsorbed per unit mass of adsorbent at time t in mg/g. The values of k1 and qe can be calculated by plotting log(qeqt) as a function of t.

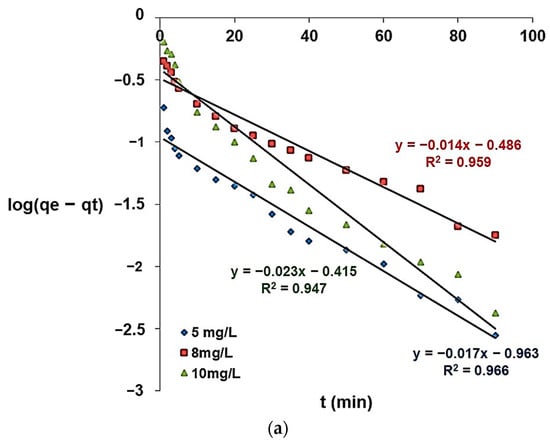

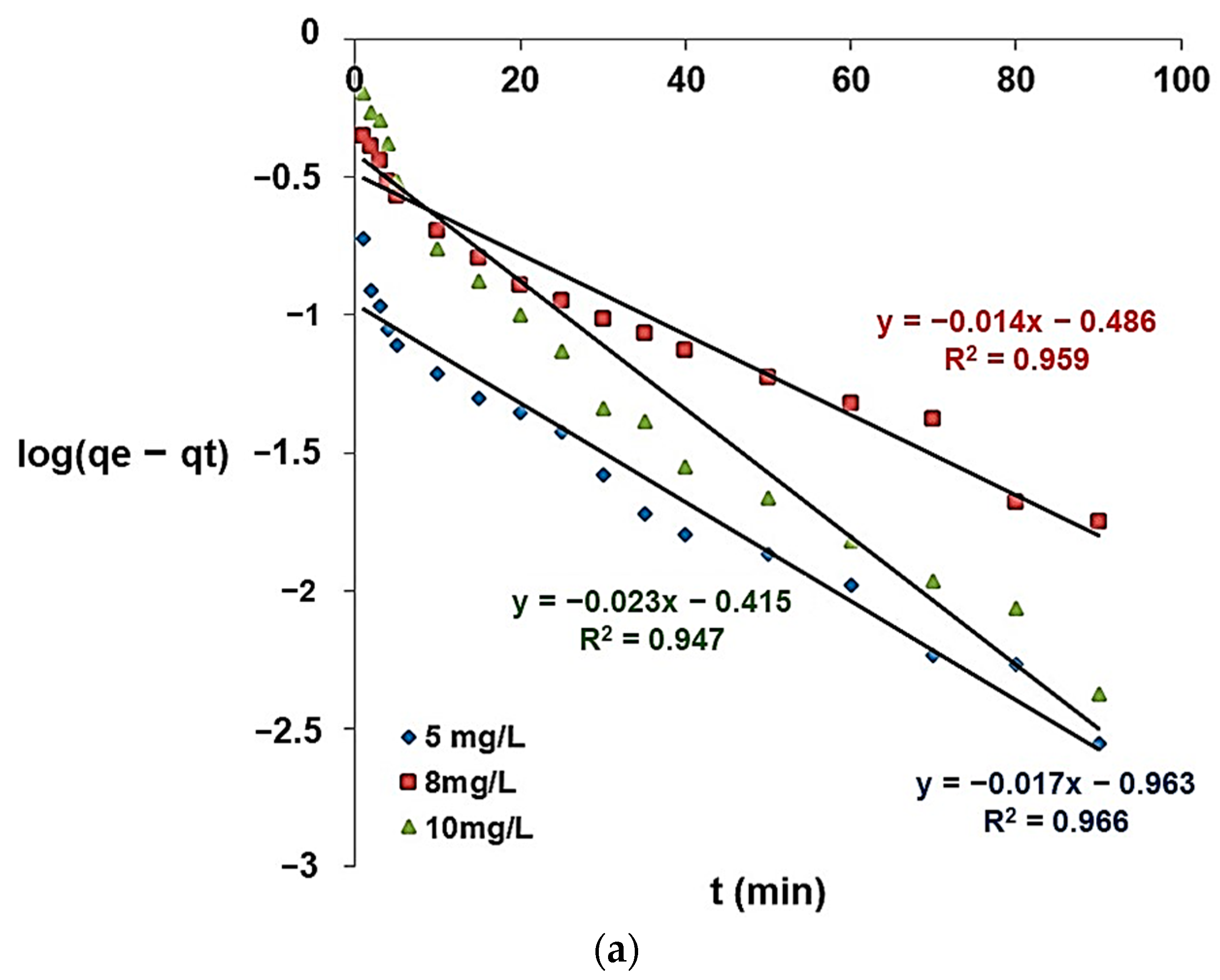

The pseudo-first-order and pseudo-second-order kinetic models for the adsorption of fluoride ions are given in Figure 16, along with Table 2, which contains the kinetic parameters.
The pseudo-second-order model corresponding to the Heckscher–Ohlin model, also known as the pseudo-second-order model [24], considers the type of adsorption to be chemisorption. The mathematical model is expressed using the following equation (Equation (3)):
d q t d t = k 2 q e q t 2 ,
Considering the process rate and after linearization, the equation takes the following expression (Equation (4)):
t q t = 1 k 2 · q e 2 + 1 q e t ,

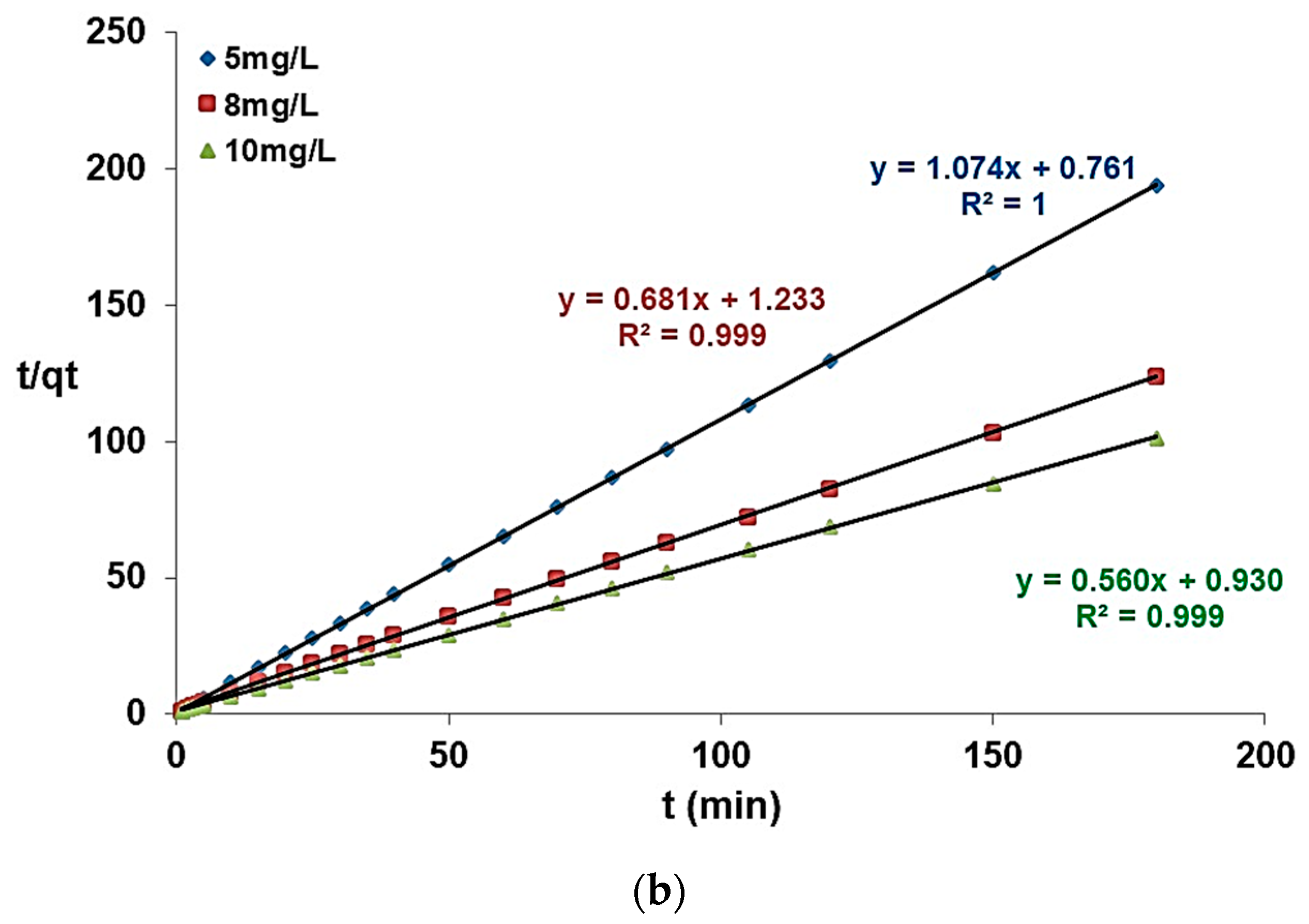

According to Table 2, the correlation coefficient closer to 1 corresponds to the pseudo-second-order model. Therefore, this model can be used to describe the experimental results for the fluoride ion adsorption on the modified zeolite. The pseudo-second-order model was also suitable to describe fluoride adsorption onto brushite [49], alumina of an alkoxide nature [50], and charcoals [51].
The transfer of a fluoride from an aqueous phase to a solid phase follows four steps, which can be either independent of each other or simultaneous. The first is represented by the transfer of the fluoride from the aqueous phase to the surface of the solid. The second step represents the interparticle spaces diffusion (also known as external diffusion). The next step is associated with intraparticle diffusion, and finally, the last step considers the surface chemical reactions. It should be noted that the first step can be tailored in the dynamic processes, while the last one is rather fast, suggesting that the diffusion processes most likely limit the adsorption step.

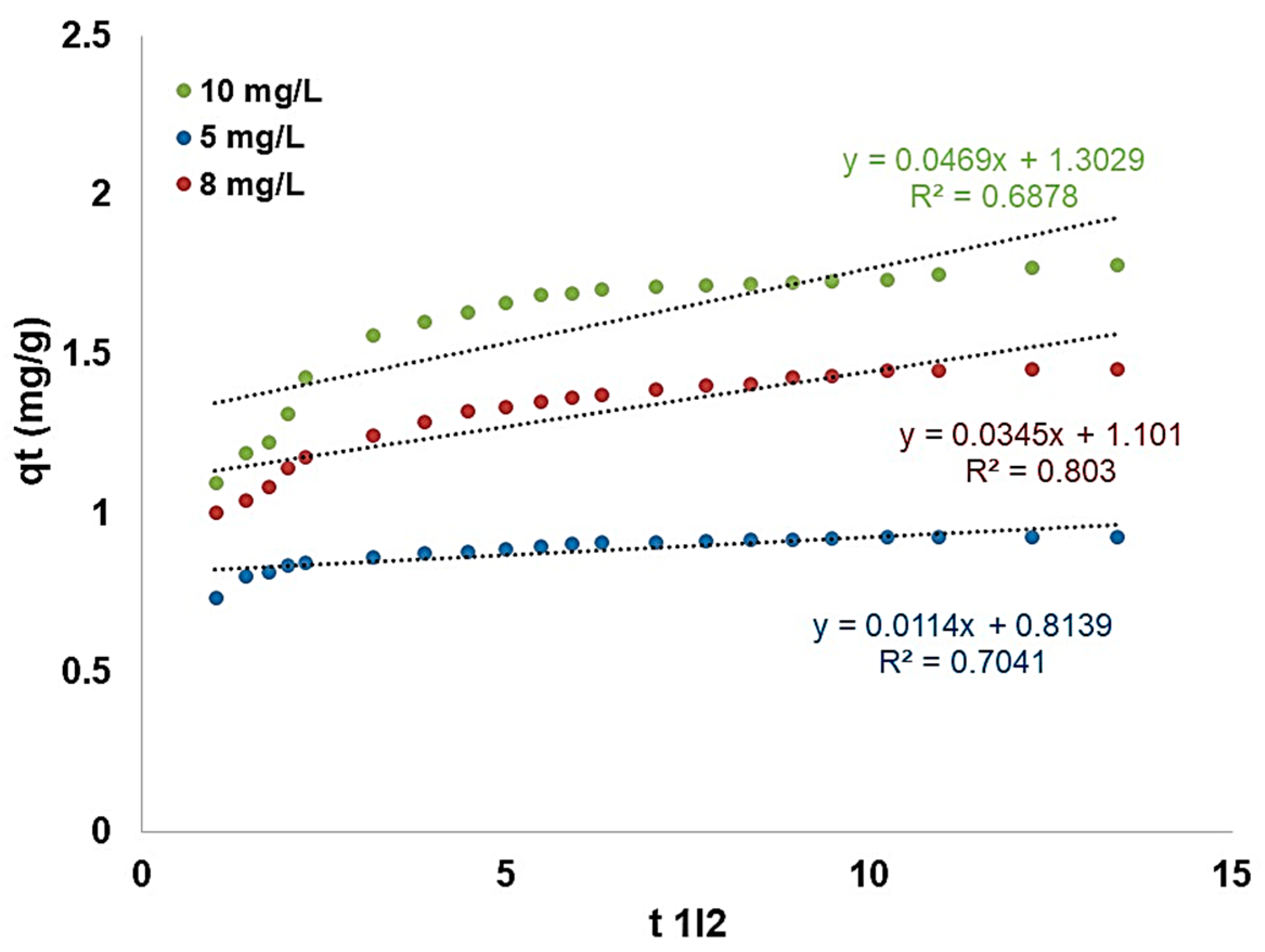

In order to identify the diffusion mechanism, the kinetic results were then analyzed using the intraparticular diffusion model (Figure 17). According to Webber and Morris, the kinetic expression of intraparticle diffusion is given by the following equation (Equation (5)):
q t = k i d · t 1 2 + C
where Kid is the intraparticle (pore) diffusion rate constant (mg/g·min1/2), and C (mg/g) is evaluated based on the regression line slope and intercept.
The computation of the primary linear plots area should not make junction with the origin, as the fluoride adsorption rate onto the modified zeolite was not exclusively conducted by pore diffusion. The increase of Kid (Table 2), along with the concentration, suggests a predominant pore sorption process of fluoride ions onto modified zeolite.

2.9. Adsorption Isotherms

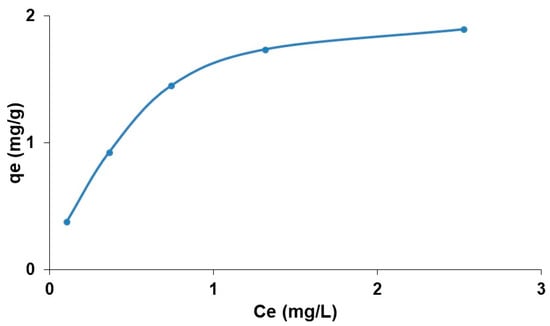

To study the fluoride adsorption isotherm equilibrium on modified zeolite, five NaF synthetic solutions were brought together, with a fluoride concentration ranging from 2 to 12 mg/L at an ambient temperature. Figure 18 plots the adsorbed quantities (qe) as a function of equilibrium fluoride concentrations (Ce). It can be observed that the fluoride adsorption isotherm on modified zeolite is type I—the adsorbed capacity increases with an increase in the initial concentration until reaching a level corresponding to a diffusion balance between the solid and liquid phases. This isotherm is characteristic for molecular monolayers and is used to describe various ionic adsorptions.

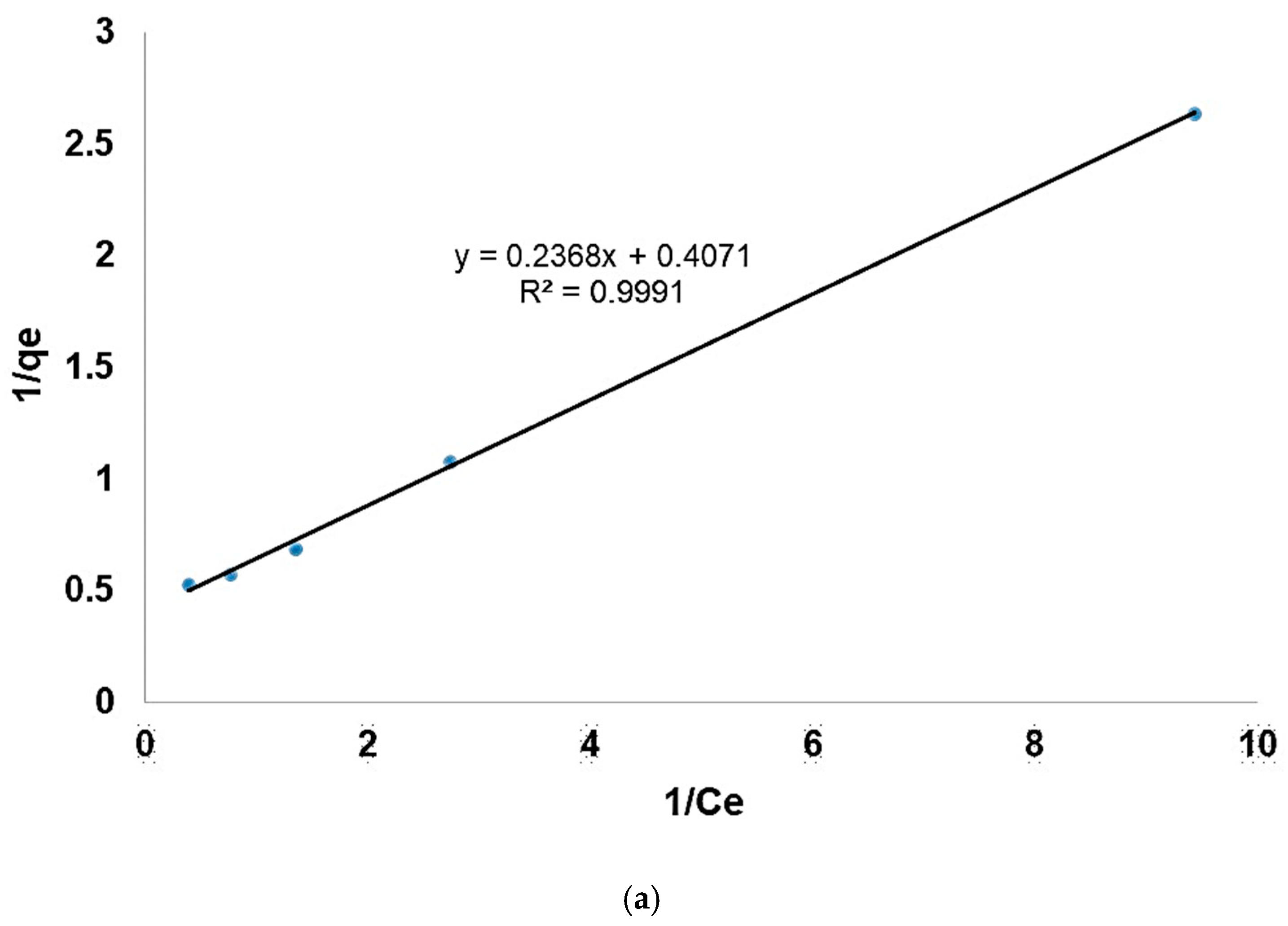

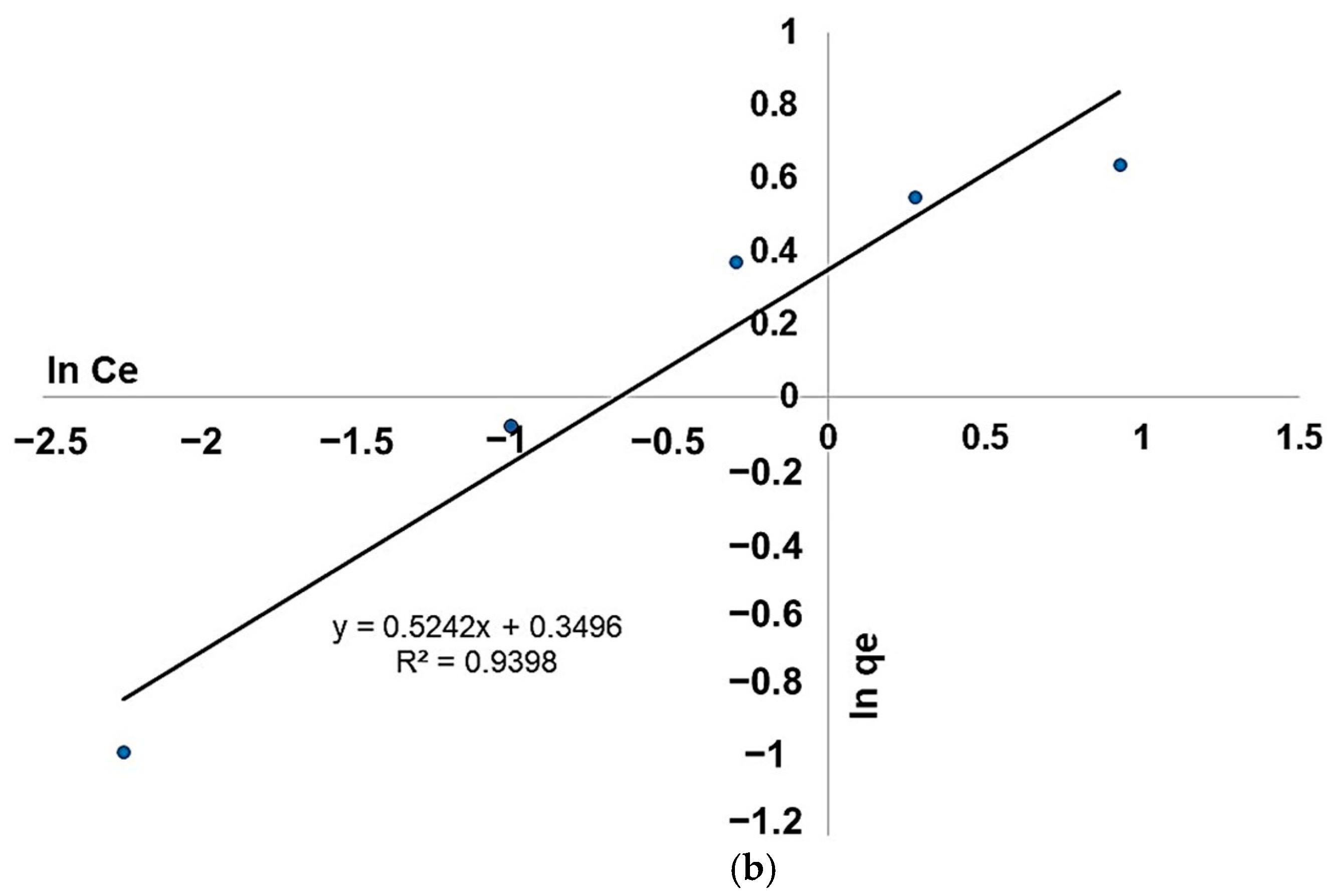

The adsorption isotherms were carried out by applying the Langmuir and Freundlich models. As presented in Figure 19a, the graphical representation of 1/qe function of 1/Ce allows us to obtain the 1/Kq0 slope and the origin ordinate 1/q0. The evaluation will provide the equilibrium factors (q0 and K) required for the Langmuir model investigation (Table 3). The linear Freundlich model presented in Figure 19b was obtained by plotting ln(qe) function of ln(Ce), providing a line with 1/n slope and ln(Kf) as y-axe intercept.
The correlation factor, as well as the other parameters, indicate that the Langmuir model is suitable to describe the fluoride adsorption process on the modified zeolite. A similar result was reported for fluoride removal using TiO2 and TiO2-SiO2 nanocomposites [52]. The results show that the adsorption site at the modified zeolite surface is energetically equivalent, and each site can bind a single molecule. Additionally, the RL value is less than 1; therefore, the experimental conditions are favorable for fluoride ion adsorption on substrates. The adsorption occurs as a single layer, and there is no interaction between the adsorbed molecules.

2.10. Thermodynamic Study

Thermodynamic parameters such as standard free enthalpy ΔG°, standard enthalpy ΔH°, and standard entropy ΔS° were determined using Equations (6)–(8) [53]:
K = q e C e
Δ G ° = Δ H °   T Δ S °
ln   K = Δ S R ° Δ H ° R   1 T
where K is the distribution constant; qe represents the equilibrium adsorption capacity (mg/g); Ce is the solute equilibrium concentration in solution (mg/L); R is the ideal gas constant (J/mol·K); and T represents the absolute temperature (K). Figure 20 shows the lnK plot vs. 1/T based on the above equations.

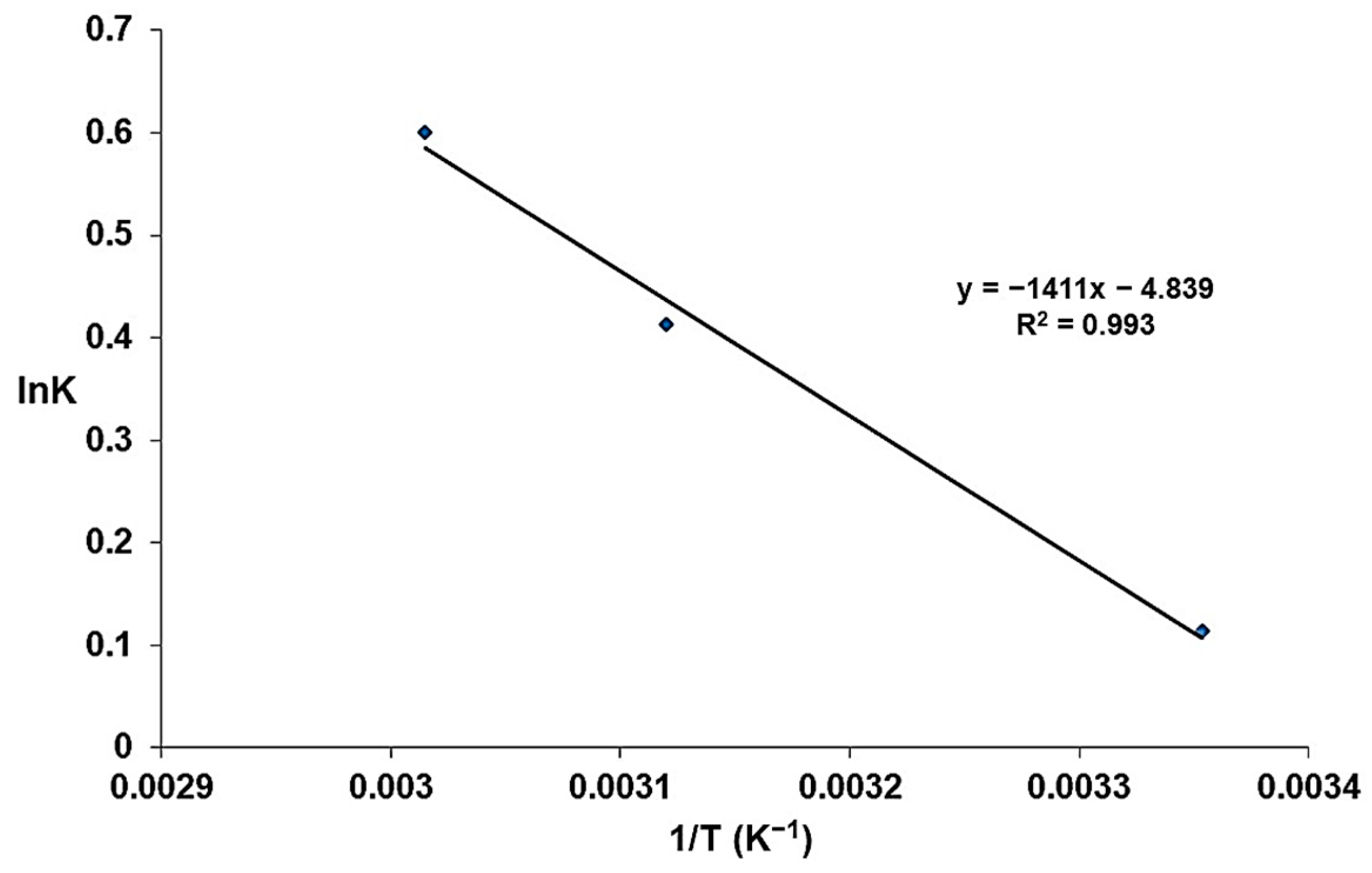

The thermodynamic parameters of the adsorption were evaluated at different temperatures, and the results are presented in Table 4.
The negative values of the free enthalpy ΔG° indicate that the adsorption of fluoride ions on the modified zeolite is a spontaneous process [17,54,55]. The decrease of ΔG° with increasing temperature is another parameter that indicates the adsorption takes place without additional outputs. On the other hand, the positive value of the enthalpy ∆H° shows that the adsorption process is endothermic, which confirms the kinetic and isotherm evaluations. Additionally, the entropy ∆S° exhibits positive values associated with a good affinity between the adsorbed ions and the modified zeolite [56].

3. Materials and Methods

3.1. Modified Zeolite

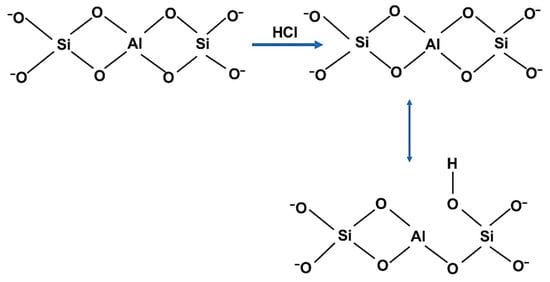

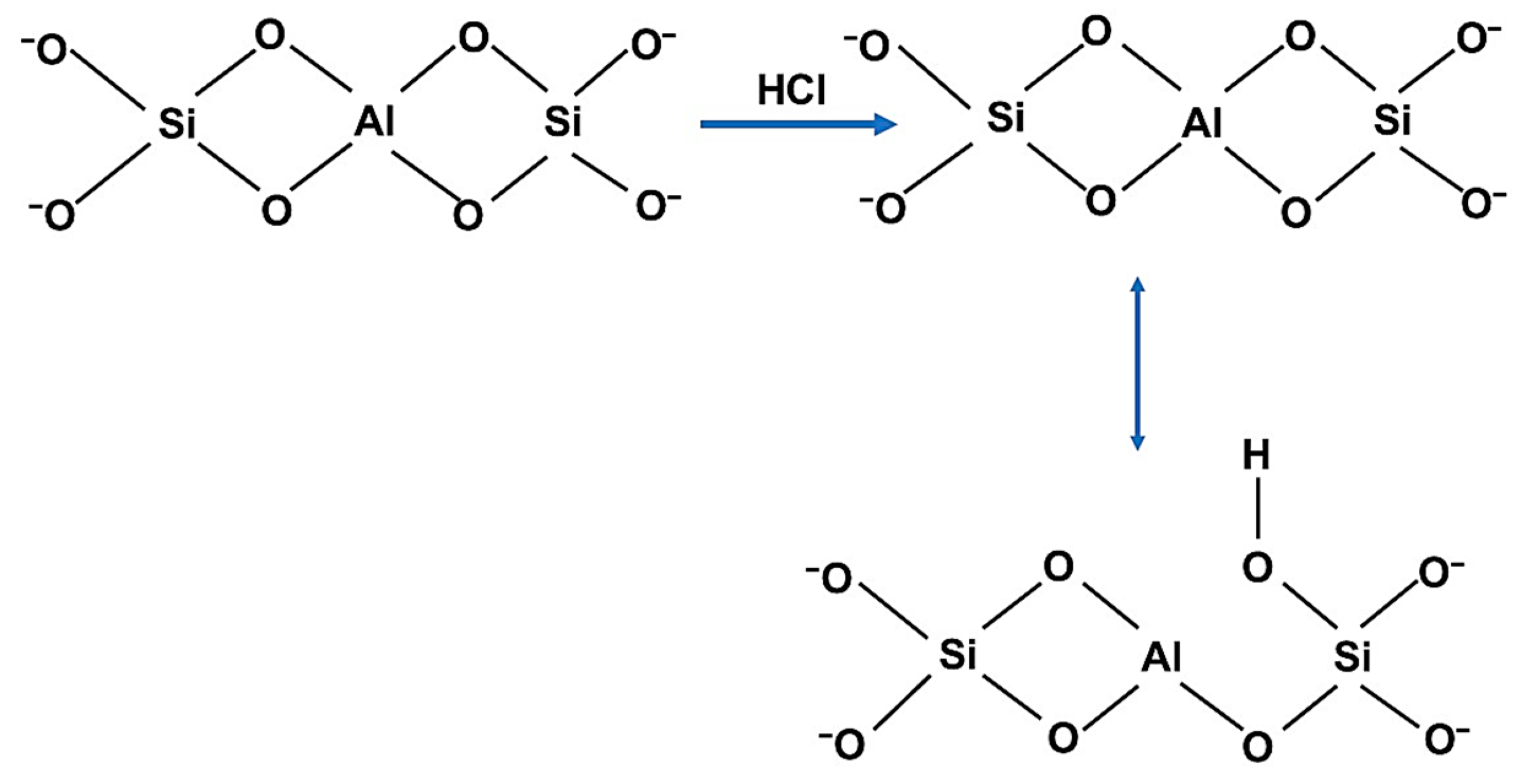

Clinoptilolite ((Ca,Na)2Al2Si7O18·6H2O, Sigma-Aldrich, St. Louis, MO, USA) was the zeolite used in this study for fluoride adsorption. In order to increase the porosity, the zeolite was thermally treated at 600 °C for 2 h in a muffle furnace. After cooling, it was soaked in HCl (4%, Vwr chemicals Prolabo, Radnor, PA, USA) solution (4%) at 65 °C for one hour (Scheme 1).

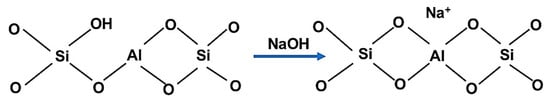

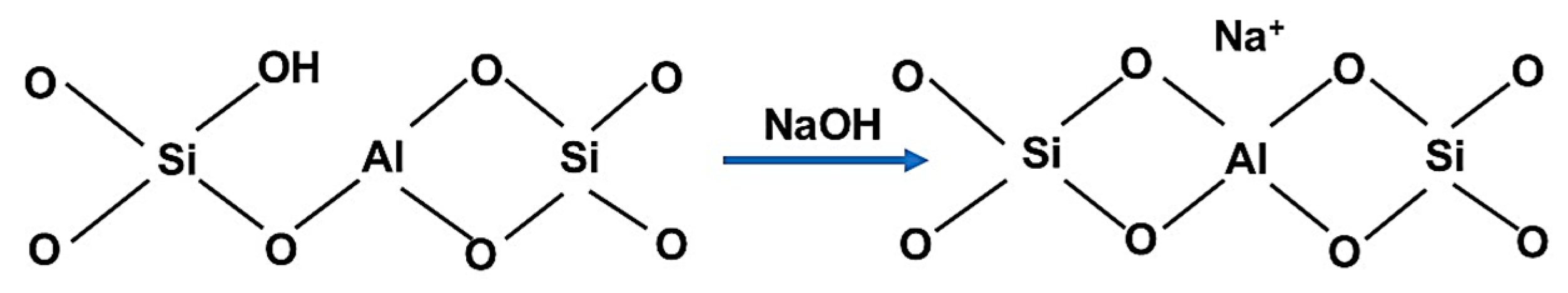

In the second step, the material was pumped into a NaOH solution (1 mol/L, Novachim, Bucharest, Romania) for one hour at 40 °C (Scheme 2).
During the third step, the material was soaked in AlCl3 (10%, Sigma Aldrich) solution for 20 h (Equations (9)–(11) and Scheme 3). A comprehensive explanation of the mechanisms has already been presented in other papers [48,57,58].
Al 3 + solution + 3 Na + zeolite Al 3 + zeolite + 3 Na + solution ,
Zeolite AlOH 2 + + F Zeolite AlF + H 2 O   neutral   pH ,
Zeolite AlOH + F Zeolite AlF + OH neutral   pH ,
Finally, the obtained mass was placed in an oven overnight at 100 °C, and the modified zeolite was used for fluoride ion adsorption studies.

3.1.1. Feed Solution

The stock solution was prepared by dissolving 0.221 g of sodium fluoride (NaF) in one liter of distilled water. The volumetric flask used was made of polyvinyl chloride (PVC). The sodium fluoride was of analytical grade (Merck, Darmstadt, Germany). The working fluoride solution was prepared by diluting the stock solution with distilled water until the required concentration was reached. All the experiments were carried out in three phases: (i) the contact between the fluoride solution and the adsorbent, (ii) filtration, and (iii) fluoride ion concentration measurement.

3.1.2. Fluoride Ions Analysis

The ionometric assay was performed using selective electrodes for fluoride ions. This principally consisted of measuring the membrane potential, representing the potential difference between the internal membrane surface, in contact with a reference solution, and the external membrane surface of the membrane. The difference was measured using two combined electrodes: (i) a reference electrode (Metrohm brand 6.0726.100 Ag/AgCl electrode) and (ii) a specific fluoride electrode (Metrohm brand 6.0502.150). In order to define the dose of the F ions, TISAB solution was prepared as follows: in a 1-L flask containing about 500 mL of distilled water, 57 mL of acetic acid (Sigma Aldrich) and 58g of NaCl (99%, Sigma Aldrich) were added. The solution pH was adjusted to 5.5 with sodium hydroxide (NaOH, 98%, Novachim) as a pellet. Distilled water was added up to the gauge line. In order to plot the calibration curve, standards of different NaF concentrations were prepared. The stock solution in NaF was 100 mg/L.

3.2. Structural and Composition Analysis of the Adsrobent

The FTIR analysis was made with a VERTEX 70 Fourier transform spectrometer (Bruker, Berlin, Germany) over a range from 400 to 4000 cm−1 with a resolution of 4 cm−1. Diffraction pattern was evaluated using a Discover 8 Difractometter (Bruker, Berlin, Germany). The diffraction scan was performed between relevant 2 theta angles (20–60°) with steps of 0.05 degree and a rate of 0.03 s/step. The active surface was evaluated with a porosimeter (Tristar II Plus Model, Micromeritics, Norcross, GA, USA) measuring N2 adsorption–desorption isotherm.

3.3. Batch Adsorption Studies and Influence of Adsorbent Mass

Prior to each adsorption test, the adsorbent had been previously dehydrated in an oven at 100 °C for one hour. This step served to remove water molecules, thus freeing up adsorption sites. In PVC bottles containing the solution that needed to be treated, different adsorbent quantities were added. The solution was stirred using a VELP brand multi-station stirrer for a well-determined time. After adsorption, the residue was filtered. Each experiment was conducted three times, and average values were reported.
The adsorption of fluoride ions on the modified zeolite was studied by varying the amount of adsorbent from 0.1 to 0.6 g for a fluoride concentration of 5 mg /L. The pH was adjusted to 6.7.

3.4. Influence of Contact Time

The period required to reach the adsorption equilibrium is necessary in order to identify the specific points needed to construct the isotherm, as well as its nature. Considering adsorption is a process based on the pollutant migration from the liquid phase to the solid phase, the transfer period between the two media represents a limiting factor.
Adsorption kinetics tests were carried out for different contact times (ranging from 0 to 180 min) in order to evaluate the period required to reach the pseudo-equilibrium state of fluoride ion binding on the adsorbent, using the modified zeolite.
The percentage evaluation of the fluoride ions adsorption on the modified zeolite was directly carried through the following relation Equation (12):
% A d s = F 0 F t F 0 100 ,
The adsorption capacity was calculated based on Equation (13):
q t = F 0 F t V m ,
where [F]0 represents the initial fluoride concentration (mg/L); [F]t constitutes the fluoride concentration at time t (mg/L); V expresses the solution volume; and m represents the adsorbent mass.

3.5. The pH and Temperature Influence

The pH values were adjusted by adding HCl (0.01 M, Vwr chemicals Prolabo) or NaOH (1 M, Novachim). In a series of bottles, a constant mass of 0.5 g of adsorbent was inserted; the fluoride aqueous solution (100 mL) with 5 ppm concentration and different pH was added.
In order to apprehend the thermodynamic phenomenon of fluoride adsorption on modified zeolite, the adsorption experiments were carried out by varying the solution temperature from 25 to 60 °C. The tests were performed using 100 mL solution volume with 5 mg/L concentration, pH 6.2, and adsorbent dosage of 0.5 g. Each experiment period was 180 min.

3.6. Effect of Co-Existing Ions

Drinking water contains several other ions, especially anions. These anions, similarly to fluorides, tend to be adsorbed on the zeolite, thus modifying the adsorption capacity of the material.
In order to evaluate the influence of other anions on the de-fluoridation rate, several tests were performed in the presence of SO42−, Cl, and HCO3 at different concentrations (200, 300, 400, and 500 mg L−1) while maintaining the other fixed parameters.

4. Conclusions

The adsorption of fluoride ions on modified zeolite was evaluated, and the influence of the adsorbed amount, stirring, initial fluoride concentration, pH, temperature, and co-existing ions was evaluated. The results indicate that powder zeolite has a higher adsorption capacity (>90%) compared with granular zeolite (<60%). Increasing the adsorbent amount will increase the adsorption capacity until a certain point, wherein the equilibrium between the fluoride concentration and adsorbent is established. Using the dynamic working regime with 350 rpm will increase the adsorption efficiency from 93.7% to 98.5%. This study shows that most of the fluoride adsorption occurs in the first 50 min of the experiment, and the adsorption capacity increased from 0.93 to 1.74 mg/g when the initial fluoride ion concentration increased from 5 to 10 mg/L. Adsorption is also aided by acidic pH (2.7) and higher temperatures (58.7 °C).
This study indicates that the influence of the initial fluoride concentration on the adsorption kinetics follows the pseudo-second-order pattern, especially after the first 60 min of the reaction. Negative values of the free enthalpy ΔG° correspond to spontaneous processes. A positive value of enthalpy and entropy shows that the adsorption process is endothermic, and there is a good affinity between the fluoride ions and the adsorbent material. Langmuir’s model best expresses the type of adsorption considering the fluoride ions adsorbed in monolayers without fluoride–fluoride interactions, which increase the order of their surface distribution on the adsorbent.

Author Contributions

Conceptualization, T.T. and A.H.; methodology, T.T.; software, T.T.; validation, T.T., A.H., and A.E.; formal analysis, T.T.; investigation, T.T. and A.H.; resources, T.T.; data curation, A.H.; writing—original draft preparation, T.T.; writing—review and editing, T.T., A.H., and A.E.; visualization, A.E.; supervision, T.T. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by a grant from the Ministry of Research, Innovation and Digitization, CNCS-UEFISCDI, project number PN-III-P4-PCE-2021-1020 (PCE87) within PNCDI III.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data will be available upon request.

Acknowledgments

The author, Thouraya Turki, wishes to thank the ERASMUS + project, University of Carthage which subsidized his stay at the Transilvania University of Brasov.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Not applicable.

References

  1. Benrabah, S.; Attoui, B.; Hannouche, M. Characterization of groundwater quality destined for drinking water supply of Khenchela City (eastern Algeria). J. Water Land Dev. 2016, 30, 13–20. [Google Scholar] [CrossRef]
  2. Elmabrok, F.M. Study of Fluoride Level in the Ground Water of Alagilat City, Libya: Correlation with Physicochemical Parameters. Int. Res. J. Pharm. 2015, 6, 616–622. [Google Scholar] [CrossRef]
  3. Agoubi, B.; Gzam, M. Adverse effects of phosphate industry on the environment and groundwater geochemistry in the Ghannouch field, Southeastern Tunisia. Am. J. Geophys. Geochem. Geosystems 2016, 2, 51–63. [Google Scholar]
  4. Guissouma, W.; Hakami, O.; Al-Rajab, A.J.; Tarhouni, J. Risk assessment of fluoride exposure in drinking water of Tunisia. Chemosphere 2017, 177, 102–108. [Google Scholar] [CrossRef]
  5. Karroum, M.; Elgettafi, M.; Elmandour, A.; Wilske, C.; Himi, M.; Casas, A. Geochemical processes controlling groundwater quality under semi-arid environment: A case study in central Morocco. Sci. Total Environ. 2017, 609, 1140–1151. [Google Scholar] [CrossRef]
  6. WHO. Guidelines for Drinking-Water Quality, 4th ed.; WHO: Geneva, Switzerland, 2011. [Google Scholar]
  7. Nasr, A.B. Performance of Physico-Chemical and Membrane Processes for Removal of Fluoride Ions in Drill Water: Application to Tunisian Waters. Ph.D. Thesis, Université Claude Bernard—Lyon I, Villeurbanne, France. University of Sfax, Sfax, Tunisia, 2013. [Google Scholar]
  8. Mastinu, A.; Kumar, A.; Maccarinelli, G.; Bonini, S.A.; Premoli, M.; Aria, F.; Gianoncelli, A.; Memo, M. Zeolite clinoptilolite: Therapeutic virtues of an ancient mineral. Molecules 2018, 24, 24081517. [Google Scholar] [CrossRef]
  9. Collins, F.; Rozhkovskaya, A.; Outram, J.G.; Millar, G.J. A critical review of waste resources, synthesis, and applications for Zeolite LTA. Microporous Mesoporous Mater. 2020, 291, 109667. [Google Scholar] [CrossRef]
  10. Cataldo, E.C.; Salvi, L.S.; Paoli, F.P.; Fucile, M.F.; Masciandaro, G.M.; Manzi, D.M.; Masini, C.M.M.; Mattii, G.B.M. Application of zeolites in agriculture and other potential uses: A review. Agronomy 2021, 11, 1547. [Google Scholar] [CrossRef]
  11. Ennaert, T.; Van Aelst, J.; Dijkmans, J.; De Clercq, R.; Schutyser, W.; Dusselier, M.; Verboekend, D.; Sels, B.F. Potential and challenges of zeolite chemistry in the catalytic conversion of biomass. Chem. Soc. Rev. 2016, 45, 584–611. [Google Scholar] [CrossRef] [PubMed]
  12. Enesca, A.; Andronic, L.; Duta, A. Optimization of Opto-Electrical and Photocatalytic Properties of SnO2 Thin Films Using Zn2+ and W6+ Dopant Ions. Catal. Lett. 2012, 142, 224–230. [Google Scholar] [CrossRef]
  13. Szerement, J.; Szatanik-Kloc, A.; Jarosz, R.; Bajda, T.; Mierzwa-Hersztek, M. Contemporary applications of natural and synthetic zeolites from fly ash in agriculture and environmental protection. J. Clean. Prod. 2021, 311, 127461. [Google Scholar] [CrossRef]
  14. Moshoeshoe, M.; Silas Nadiye-Tabbiruka, M.; Obuseng, V. A review of the chemistry, structure, properties and applications of zeolites. Am. J. Mater. Sci. 2017, 7, 196–221. [Google Scholar]
  15. Bandura, L.; Panek, R.; Madej, J.; Franus, W. Synthesis of zeolite-carbon composites using high-carbon fly ash and their adsorption abilities towards petroleum substances. Fuel 2021, 283, 119173. [Google Scholar] [CrossRef]
  16. Luo, H.; Law, W.W.; Wu, Y.; Zhu, W.; Yang, E.H. Hydrothermal synthesis of needle-like nanocrystalline zeolites from metakaolin and their applications for efficient removal of organic pollutants and heavy metals. Microporous Mesoporous Mater. 2018, 272, 8–15. [Google Scholar] [CrossRef]
  17. Saucedo-Delgado, B.; De Haro-Del Rio, D.A.G.; Gonzalez-Rodriguez, L.M.; Reynel-Avila, H.E.; Mendoza-Castillo, D.I.; Bonilla-Petriciolet, A.; de la Rosa, J.R. Fluoride adsorption from aqueous solution using a protonated clinoptilolite and its modeling with artificial neural network-based equations. J. Fluor. Chem. 2017, 204, 98–106. [Google Scholar] [CrossRef]
  18. Heidarian, M.H.; Nakhaei, M.; Vatanpour, V.; Rezaei, K. Evaluation of using clinoptilolite as a filter in drinking water wells for removal of lead (small-scale physical sand box model). J. Water Proc. Eng. 2023, 52, 103558. [Google Scholar] [CrossRef]
  19. Rouhani, M.; Ashrafi, S.D.; Taghavi, K.; Joubani, M.N.; Jaafari, J. Evaluation of tetracycline removal by adsorption method using magnetic iron oxide nanoparticles (Fe3O4) and clinoptilolite from aqueous solutions. J. Mol. Liq. 2022, 356, 119040. [Google Scholar] [CrossRef]
  20. Wang, Y.; Sun, Y.; Chen, H.; Wu, Q.; Chi, D. Assessing the performance of clinoptilolite for controlling and releasing ammonium in agricultural applications. Energy Rep. 2021, 7, 887–895. [Google Scholar] [CrossRef]
  21. Kumari, U.; Behera, S.K.; Meikap, B.C. A novel acid modified alumina adsorbent with enhanced defluoridation property: Kinetics, isotherm study and applicability on industrial wastewater. J. Hazard. Mater. 2019, 365, 868–882. [Google Scholar] [CrossRef]
  22. Drouichea, N.; Aoudj, S.; Hecini, M.; Ghaffour, N.; Lounici, H.; Mameri, N. Study on the treatment of photovoltaic wastewater using electrocoagulation:Fluoride removal with aluminium electrodes, Characteristics of products. J. Hazard. Mater. 2009, 169, 65–69. [Google Scholar] [CrossRef]
  23. Bazrafshan, E.; Balarak, D.; Panahi, A.H.; Kamani, H.; Mahvi, A.H. Fluoride removal from aqueous solutions by Cupric oxide nanoparticles. Flouride 2016, 49, 233–244. [Google Scholar]
  24. Tang, D.; Zhang, G. Efficient removal of fluoride by hierarchical Ce–Fe bimetal oxides adsorbent: Thermodynamics, kinetics and mechanism. Chem. Eng. J. 2016, 283, 721–729. [Google Scholar] [CrossRef]
  25. Salih, A.M.; Khanaqal, W.C. Heavy metal removals from industrial wastewater using modified zeolite: Study the effect of pre-treatment. J. Univ. Garmian 2019, 6, 405–416. [Google Scholar] [CrossRef]
  26. Annan, E.; Nyankson, E.; Agyei-Tuffour, B.; Armah, S.K.; Nkrumah-Buandoh, G.; Hodasi, J.A.M.; Oteng-Peprah, M. Synthesis and Characterization of Modified Kaolin-Bentonite Composites for Enhanced Fluoride Removal from Drinking Water. Adv. Mater. Sci. Eng. 2021, 2021, 6679422. [Google Scholar] [CrossRef]
  27. Hamid, M.A.A.; Aziz, H.A.; Yusoff, M.S.; Rezan, S.A. Optimization and Analysis of Zeolite Augmented Electrocoagulation Process in the Reduction of High-Strength Ammonia in Saline Landfill Leachate. Water 2020, 12, 247. [Google Scholar] [CrossRef]
  28. Sing, K.S.W.; Everett, D.H.; Haul, R.A.W.; Moscou, L.; Pierotti, R.A.; Rouquerol, J. Reporting physisorption data for gas/solid systems with special reference to the determination of surface area and porosity. Appl. Chem. 1984, 57, 603–619. [Google Scholar] [CrossRef]
  29. Papari, F.; Najafabadia, P.R.; Ramavandi, B. Fluoride ion removal from aqueous solution, groundwater, and seawater by granular and powdered Conocarpus erectus biochar. Desalination Water Treat. 2017, 65, 375–386. [Google Scholar] [CrossRef]
  30. Marina, P.; Monte-Blancoa Silvia, P.D.; Módenesb Aparecido, N.; Bergamascoa, R.; Yamaguchi Natália, U.; Coldebellaa Priscila, F.; Ribeiroc Rosa, M.; Paraisoa Paulo, R. Equilibrium and Kinetic Mechanisms of Fluoride Ions Adsorption onto Activated Alumina. Chem. Eng. Trans. 2017, 57, 607–612. [Google Scholar]
  31. Tan, T.L.; Krusnamurthy, P.A.P.; Nakajima, H.; Abdul Rashid, S. Adsorptive, kinetics and regeneration studies of fluoride removal from water using zirconium-based metal organic frameworks. RSC Adv. 2020, 10, 18740–18752. [Google Scholar] [CrossRef]
  32. Singh, K.; Lataye, D.H.; Wasewar, K.L. Removal of fluoride from aqueous solutions by using Bael (Aegle Marmelos) Shell activated carbon: Kinetic, equilibrium and thermodynamic study. J. Fluor. Chem. 2017, 194, 23–32. [Google Scholar] [CrossRef]
  33. Islamuddin, R.; Gautam, K.; Fatima, S. Removal of fluoride from drinking water by coconut husk as natural adsorbent. Int. J. Eng. Sci. Res. Technol. 2016, 5, 841–846. [Google Scholar]
  34. Gandhi, N.; Sirisha, D.; Chandra Sekhar, K.B. Adsorption of Fluoride(F-)from aqueous solution by using Horse gram(Macrotyloma uniflorum) seed powder. Int. J. Eng. Tech. Res. 2016, 5, 54–62. [Google Scholar]
  35. Kebede, B.; Beyene, A.; Fufa, F.; Megersa, M.; Behm, M. Experimental evaluation of sorptive removal of fluoride from drinking water using iron ore. Appl. Water Sci. 2016, 6, 57–65. [Google Scholar] [CrossRef]
  36. Hortigüela, L.G.; Pariente, J.P.; García, R.; Chebude, Y.; Díaz, I. Natural zeolites from Ethiopia for elimination of fluoride from drinking water. Sep. Purif. Technol. 2013, 120, 224–229. [Google Scholar] [CrossRef]
  37. Teutli-Sequeira, A.; Solache-Ríos, M.; Martínez-Miranda, V.; Linares-Hernández, I. Behavior of fluoride removal by aluminum modified zeolitic tuff and hematite in column systems and the thermodynamic parameters of the process. Water Air Soil Pollut. 2015, 226, 239. [Google Scholar] [CrossRef]
  38. Garcia-Sanchez, J.J.; Solache-Rios, M.; Martinez-Gutierres, J.M.; Arteaga-Larios, N.V.; Ojeda-Escamillac, M.C.; Rodriguez-Torresa, I. Modified natural magnetite with Al and La ions for the adsorption of fluoride ions from aqueous solutions. J. Fluor. Chem. 2016, 186, 115–124. [Google Scholar] [CrossRef]
  39. Mehta, D.; Mondal, P.; Saharan, V.K.; George, S. In-vitro synthesis of marble apatite as a novel adsorbent for removal of fluoride ions from ground water: An ultrasonic approach. Ultrason. Sonochem. 2018, 40, 664–674. [Google Scholar] [CrossRef] [PubMed]
  40. Vences-Alvarez, E.; Velazquez-Jimenez, L.H.; Chazaro-Ruiz, L.F.; Diaz-Flores, P.E.; Rangel-Mendez, J.R. Fluoride removal in water by a hybrid adsorbent lanthanum-carbon. J. Colloid Interface Sci. 2015, 455, 194–202. [Google Scholar] [CrossRef] [PubMed]
  41. Parashar, K.; Ballav, N.; Debnath, S.; Pillay, K.; Maity, A. Rapid and efficient removal of F- from aqueous solution using polypyrrole coated hydrous tin oxide composite. J. Colloid Interface Sci. 2016, 476, 103–118. [Google Scholar] [CrossRef]
  42. Mukhopadhyay, K.; Ghosh, A.; Das, S.K.; Show, B.; Sasikumar, P.; Ghosh, U.C. Synthesis and characterisation of cerium (IV)-incorporated hydrous iron (III) oxide as an adsorbent for fluoride removal from water. RSC Adv. 2017, 7, 26037–26051. [Google Scholar] [CrossRef]
  43. Esmaeeli, N.; Faghihian, H. Synthesis and characterization of magnetized ETS-4 modified with lanthanum and iron for fluoride adsorption. Environ Prog. Sustain. Energy 2020, 39, e13420. [Google Scholar] [CrossRef]
  44. Bazrafshan, E.; Alipour, M.R.; Mahvi, A.H. Textile wastewater treatment by application of combined chemical coagulation, electrocoagulation, and adsorption processes. Desalination Water Treat. 2016, 57, 9203–9215. [Google Scholar] [CrossRef]
  45. Bazrafshan, E.; Zarei, A.A.; Kord Mostafapour, F. Biosorption of cadmium from aqueous solutions by Trichoderma fungus: Kinetic, thermodynamic, and equilibrium study. Desalination Water Treat. 2016, 57, 14598–14608. [Google Scholar] [CrossRef]
  46. Naeimi, S.; Faghihian, H. Application of novel metal organic framework, MIL-53(Fe) and its magnetic hybrid: For removal of pharmaceutical pollutant, doxycycline from aqueous solutions. Environ. Toxicol. Pharmacol. 2017, 53, 121–132. [Google Scholar] [CrossRef]
  47. Onyango, M.S.; Kojima, Y.; Kumar, A.; Kuchar, D.; Matsuda, H. Uptake of fluoride by Al3+pretreated low-silica synthetic zeolites: Adsorption equilibrium and rate studies. Sep. Sci. Technol. 2006, 41, 683–704. [Google Scholar] [CrossRef]
  48. Zhijie, Z.; Yue, T.; Mingfeng, Z. Defluorination of wastewater by calcium chloride modified natural zeolite. Desalination 2011, 276, 246–252. [Google Scholar]
  49. Mourabet, M.; El Boujaady, H.; El Rhilassi, A.; Ramdane, H.; Bennani-Ziatni, M.; El Hamri, R.; Taitai, A. Defluoridation of water using Brushite: Equilibrium, kinetic and thermodynamic studies. Desalination 2011, 278, 1–9. [Google Scholar] [CrossRef]
  50. Kamble, S.P.; Deshpande, G.; Barve, P.P.; Rayalu, S.; Labhsetwar, N.K.; Malyshew, A.; Kulkarni, B.D. Adsorption of fluoride from aqueous solution by alumina of alkoxide nature: Batch and continuous operation. Desalination 2010, 264, 15–23. [Google Scholar] [CrossRef]
  51. Kamga, E.T.; Alonzo, V.; Njiki, C.P.N.; Audebrand, N.; Ngameni, E.; Darchen, A. Preparation and characterization of charcoals that contain dispersed aluminum oxide as adsorbents for removal of fluoride from drinking water. Carbon 2010, 48, 333–343. [Google Scholar] [CrossRef]
  52. Zeng, Y.; Xue, Y.; Liang, S.; Zhang, J. Removal of fluoride from aqueous solution by TiO2 and TiO2-SiO2 nanocomposite. Chem. Speciat. Bioavailab. 2017, 29, 25–32. [Google Scholar] [CrossRef]
  53. Chinnakoti, P.; Chunduri, A.L.; Vankayala, R.K.; Patnaik, S.; Kamisetti, V. Enhanced fluoride adsorption by nano crystalline γ-alumina: Adsorption kinetics, isotherm modeling and thermodynamic studies. Appl. Water Sci. 2017, 7, 2413–2423. [Google Scholar] [CrossRef]
  54. Kumar, R.; Sharma, P.; Aman, K.A.; Singh, K.R. Equilibrium sorption of fluoride on the activated alumina in aqueous solution. Desalination Water Treat. 2020, 197, 224–236. [Google Scholar] [CrossRef]
  55. Sahu, N.; Bhan, C.; Singh, J. Removal of fluoride from an aqueous solution by batch and column process using activated carbon derived from iron infused Pisum sativum peel: Characterization, Isotherm, kinetics study. Environ. Eng. Res. 2021, 26, 200241. [Google Scholar] [CrossRef]
  56. Visa, M.; Enesca, A. Opportunities for Recycling PV Glass and Coal Fly Ash into Zeolite Materials Used for Removal of Heavy Metals (Cd, Cu, Pb) from Wastewater. Materials 2023, 16, 239. [Google Scholar] [CrossRef] [PubMed]
  57. Rahmani, A.; Nouri, J.; Kamal Ghadiri, S.; Mahvi, A.H.; Zare, M.R. Adsorption of fluoride from water Al3+ and Fe3+ pretreated natural Iranian zeolites. J. Environ. Res. 2010, 4, 607–614. [Google Scholar]
  58. Paripurnanda, L.; Saravanamuthu, V.; Jaya, K.; Ravi, N. Defluoridation of drinking water using adsorption processes. J. Hazard. Mater. 2013, 248, 1–19. [Google Scholar]
Figure 1. FTIR spectra of the activated zeolite.
Figure 1. FTIR spectra of the activated zeolite.
Molecules 28 04076 g001
Figure 2. FTIR spectra of the zeolite after the adsorption of fluoride ions.
Figure 2. FTIR spectra of the zeolite after the adsorption of fluoride ions.
Molecules 28 04076 g002
Figure 3. Diffraction patent corresponding to unmodified and modified zeolite.
Figure 3. Diffraction patent corresponding to unmodified and modified zeolite.
Molecules 28 04076 g003
Figure 4. Nitrogen adsorption/desorption isotherms corresponding to unmodified and modified zeolite.
Figure 4. Nitrogen adsorption/desorption isotherms corresponding to unmodified and modified zeolite.
Molecules 28 04076 g004
Figure 5. Variations in the fluoride ion removal rate function of adsorbent dosage: (a) granular modified zeolite and (b) powder-modified zeolite ([F] = 5 mg/L, pH = 6.3, T = 30 °C).
Figure 5. Variations in the fluoride ion removal rate function of adsorbent dosage: (a) granular modified zeolite and (b) powder-modified zeolite ([F] = 5 mg/L, pH = 6.3, T = 30 °C).
Molecules 28 04076 g005
Figure 6. Fluoride ion adsorption in static and dynamic working regimes.
Figure 6. Fluoride ion adsorption in static and dynamic working regimes.
Molecules 28 04076 g006
Figure 7. Effect of the initial fluoride concentration (madsorbent = 0.5 g, pH = 6.3, T = 28 °C, V = 100 mL).
Figure 7. Effect of the initial fluoride concentration (madsorbent = 0.5 g, pH = 6.3, T = 28 °C, V = 100 mL).
Molecules 28 04076 g007
Figure 8. Effect of initial fluoride concentration on adsorption capacity and removal rate.
Figure 8. Effect of initial fluoride concentration on adsorption capacity and removal rate.
Molecules 28 04076 g008
Figure 9. Influence of pH on fluoride ion adsorption.
Figure 9. Influence of pH on fluoride ion adsorption.
Molecules 28 04076 g009
Figure 10. Evolution of removal efficiency at different pH (madsorbent = 0.5 g, [F] = 5 mg/L, pH = 6.3, T = 22 °C).
Figure 10. Evolution of removal efficiency at different pH (madsorbent = 0.5 g, [F] = 5 mg/L, pH = 6.3, T = 22 °C).
Molecules 28 04076 g010
Figure 11. Adsorption capacity of modified zeolite (adsorbent) for fluoride at different pH.
Figure 11. Adsorption capacity of modified zeolite (adsorbent) for fluoride at different pH.
Molecules 28 04076 g011
Figure 12. Determination of pHpzc for unmodified (blue line) and modified (red line) zeolite.
Figure 12. Determination of pHpzc for unmodified (blue line) and modified (red line) zeolite.
Molecules 28 04076 g012
Figure 13. Adsorption of fluoride ions as a function of temperature (madsorbent = 0.5 g, [F] = 5 mg/L, pH = 6.3).
Figure 13. Adsorption of fluoride ions as a function of temperature (madsorbent = 0.5 g, [F] = 5 mg/L, pH = 6.3).
Molecules 28 04076 g013
Figure 14. Influence of temperature on fluoride adsorption capacity.
Figure 14. Influence of temperature on fluoride adsorption capacity.
Molecules 28 04076 g014
Figure 15. The influence of co-existing ions on fluoride anion adsorption (madsorbent = 0.5 g, [F] = 5 mg/L, pH = 6.3, T = 30 °C, V = 100 mL): (a) sulfate, (b) hydrogen carbonate and (c) chloride ions.
Figure 15. The influence of co-existing ions on fluoride anion adsorption (madsorbent = 0.5 g, [F] = 5 mg/L, pH = 6.3, T = 30 °C, V = 100 mL): (a) sulfate, (b) hydrogen carbonate and (c) chloride ions.
Molecules 28 04076 g015aMolecules 28 04076 g015b
Figure 16. Pseudo-first-order kinetic model (a) and pseudo-second-order kinetic model (b) for fluoride adsorption.
Figure 16. Pseudo-first-order kinetic model (a) and pseudo-second-order kinetic model (b) for fluoride adsorption.
Molecules 28 04076 g016aMolecules 28 04076 g016b
Figure 17. Representation of intraparticle diffusion of fluoride adsorption on modified zeolite.
Figure 17. Representation of intraparticle diffusion of fluoride adsorption on modified zeolite.
Molecules 28 04076 g017
Figure 18. Fluoride adsorption isotherm on modified zeolite.
Figure 18. Fluoride adsorption isotherm on modified zeolite.
Molecules 28 04076 g018
Figure 19. (a) Langmuir and (b) Freundlich models of the adsorption isotherms.
Figure 19. (a) Langmuir and (b) Freundlich models of the adsorption isotherms.
Molecules 28 04076 g019aMolecules 28 04076 g019b
Figure 20. Representation of lnK as a function of temperature (1/T).
Figure 20. Representation of lnK as a function of temperature (1/T).
Molecules 28 04076 g020
Scheme 1. Clinoptilolite structural changes during HCl treatment.
Scheme 1. Clinoptilolite structural changes during HCl treatment.
Molecules 28 04076 sch001
Scheme 2. Structural changes during NaOH treatment.
Scheme 2. Structural changes during NaOH treatment.
Molecules 28 04076 sch002

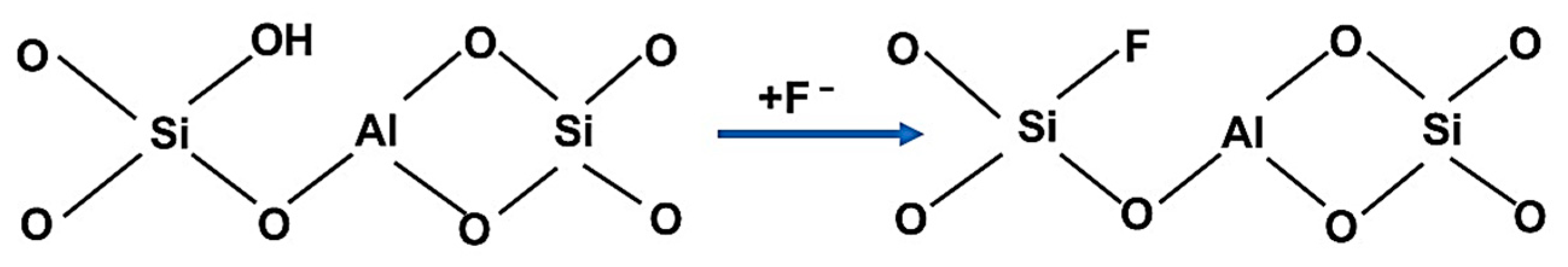

Scheme 3. Ionic exchange in the zeolite material.
Scheme 3. Ionic exchange in the zeolite material.
Molecules 28 04076 sch003
Table 1. Comparison of fluoride removal by different adsorbents.
Table 1. Comparison of fluoride removal by different adsorbents.
Adsorbent TypeAdsorbent Dosage
(g/L)
Adsorption Capacity (mg/g)References
Acid-modified alumina1469.52[21]
Natural zeolites from Ethiopia600.47[36]
Aluminum modified zeolite32.37[37]
Lanthanum hydroxide modified magnetites1001.42[38]
Marble apatite-CM104.23[39]
Lanthanum oxyhydroxides anchored commercial granular activated carbon3.339.98[40]
Modified clinoptilolite0.51.74This work
Table 2. Kinetic parameters for pseudo-first-order, pseudo-second-order models, and intraparticle diffusion model.
Table 2. Kinetic parameters for pseudo-first-order, pseudo-second-order models, and intraparticle diffusion model.
Kinetic ParametersInitial Concentrations of Fluoride (mg/L)
5810
Pseudo-first-order model
qeexp (mg/g)0.9271.4511.736
qeth (mg/g)0.1080.3260.384
K1 (min−1)0.0390.0320.053
R20.9470.9590.947
Pseudo-second-order model
qeexp (mg/g)0.9271.4511.736
qeth (mg/g)0.9311.4681.785
K2 (g/mg min)1.5160.3760.337
R210.9990.999
Intraparticle diffusion model
Kid0.0110.0340.046
C0.8131.1011.302
R20.7040.8030.687
Table 3. Langmuir and Freundlich parameters.
Table 3. Langmuir and Freundlich parameters.
Langmuir ModelFreundlich Model
q0 (mg/g)KL (L/mg)R2RLKfnR2
2.4561.7060.9990.1241.4181.9070.939
Table 4. Thermodynamic parameters relating to the adsorption of fluoride on modified zeolite.
Table 4. Thermodynamic parameters relating to the adsorption of fluoride on modified zeolite.
Thermodynamic ParametersTemperature (°C)
25.247.558.7
ΔG ° (K·J·mol−1)−0.266−1.163−1.613
ΔH ° (K·J·mol−1)11.73111.73111.731
ΔS ° (J·mol−1·K−1)40.23140.23140.231
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Turki, T.; Hamdouni, A.; Enesca, A. Fluoride Adsorption from Aqueous Solution by Modified Zeolite—Kinetic and Isotherm Studies. Molecules 2023, 28, 4076. https://doi.org/10.3390/molecules28104076

AMA Style

Turki T, Hamdouni A, Enesca A. Fluoride Adsorption from Aqueous Solution by Modified Zeolite—Kinetic and Isotherm Studies. Molecules. 2023; 28(10):4076. https://doi.org/10.3390/molecules28104076

Chicago/Turabian Style

Turki, Thouraya, Abdelkader Hamdouni, and Alexandru Enesca. 2023. "Fluoride Adsorption from Aqueous Solution by Modified Zeolite—Kinetic and Isotherm Studies" Molecules 28, no. 10: 4076. https://doi.org/10.3390/molecules28104076

Article Metrics

Back to TopTop
