Article

Dioxygen Reactivity of Copper(I)/Manganese(II)-Porphyrin Assemblies: Mechanistic Studies and Cooperative Activation of O2

Department of Chemistry and Biochemistry, University of North Carolina at Greensboro, Greensboro, NC 27412, USA
*
Author to whom correspondence should be addressed.
Molecules 2022, 27(3), 1000; https://doi.org/10.3390/molecules27031000
Submission received: 27 December 2021 / Revised: 24 January 2022 / Accepted: 28 January 2022 / Published: 1 February 2022

Abstract

:
The oxidation of transition metals such as manganese and copper by dioxygen (O2) is of great interest to chemists and biochemists for fundamental and practical reasons. In this report, the O2 reactivities of 1:1 and 1:2 mixtures of [(TPP)MnII] (1; TPP: Tetraphenylporphyrin) and [(tmpa)CuI(MeCN)]+ (2; TMPA: Tris(2-pyridylmethyl)amine) in 2-methyltetrahydrofuran (MeTHF) are described. Variable-temperature (−110 °C to room temperature) absorption spectroscopic measurements support that, at low temperature, oxygenation of the (TPP)Mn/Cu mixtures leads to rapid formation of a cupric superoxo intermediate, [(tmpa)CuII(O2•–)]+ (3), independent of the presence of the manganese porphyrin complex (1). Complex 3 subsequently reacts with 1 to form a heterobinuclear μ-peroxo species, [(tmpa)CuII–(O22–)–MnIII(TPP)]+ (4; λmax = 443 nm), which thermally converts to a μ-oxo complex, [(tmpa)CuII–O–MnIII(TPP)]+ (5; λmax = 434 and 466 nm), confirmed by electrospray ionization mass spectrometry and nuclear magnetic resonance spectroscopy. In the 1:2 (TPP)Mn/Cu mixture, 4 is subsequently attacked by a second equivalent of 3, giving a bis-μ-peroxo species, i.e., [(tmpa)CuII−(O22−)−MnIV(TPP)−(O22−)−CuII(tmpa)]2+ (7; λmax = 420 nm and δpyrrolic = −44.90 ppm). The final decomposition product of the (TPP)Mn/Cu/O2 chemistry in MeTHF is [(TPP)MnIII(MeTHF)2]+ (6), whose X-ray structure is also presented and compared to literature analogs.

Graphical Abstract

1. Introduction

Dioxygen (O2) binding, reduction, and activation at metalloenzyme active sites are vital for aerobic life. Manganese-containing enzymes, in particular, facilitate a wide variety of biological redox processes through interactions of manganese with O2 and its reduced derivatives such as superoxide (O2•–) and peroxide (O22–) [1,2,3]. Because of its relative abundance and multiple accessible oxidation states, manganese can facilitate biochemical multielectron redox conversions and is essential for a variety of biological redox processes such as photosynthetic O2 evolution, antioxidant defense mechanisms regulating reactive oxygen species (ROS), and DNA synthesis [1,2,3,4]. Several Mn-containing enzymes involved in facilitating these redox processes include manganese superoxide dismutase (SOD), manganese catalase, the oxygen-evolving complex (OEC) in photosystem II, and Mn/Mn or Mn/Fe ribonucleotide reductase (RNR) [2,3,5]. The nuclearity of such manganese active sites varies, with more complex redox processes typically occurring at multinuclear sites with two or more metal centers [6,7].
Over the years, many Mn-porphyrins have been investigated for their ability to mimic various enzymatic activities or have been used as catalysts to promote a variety of other redox reactions [1,8,9,10,11,12,13,14,15,16,17,18,19,20,21]. An extensively-studied example is tetraphenylporphyrin manganese(II), (TPP)MnII, which was used for generating the first dioxygen adduct of a manganese-containing complex [22]. While no reactivity toward O2 was observed at room temperature, it was found that the complex can be reversibly oxygenated at cryogenic conditions (<−80 °C), forming a manganese(IV) peroxide species, i.e., (TPP)MnIVO22– [22,23]. This reactivity significantly differs from those observed for iron(II) or cobalt(II) analogues, which typically produce “superoxide-like” adducts [24,25]. Later, Valentine and co-workers reported the formation of a manganese(III) peroxide adduct, (TPP)MnIIIO22–, through the reaction of equimolar quantities of potassium superoxide (KO2) and (TPP)MnII [24,26]. However, the addition of more than one equivalent of the superoxide ion was not reported.
Although O2 is a very powerful four-electron oxidant, its one-electron reduction to generate superoxide as the product is relatively disfavored. Instead, metal-O2 reactivity typically requires the presence of protons or proceeds through a two-electron step to form a peroxide adduct. The two-electron step may involve O2 obtaining two electrons from one metal or from two discrete metal centers forming a binuclear µ-peroxo complex [26,27].
Due to the versatility of manganese-O2 chemistry, the catalytic advantage of multinuclear sites, and the undeniably rich chemistry of copper with dioxygen, in this study, we present the oxygenation chemistry of 1:1 and 1:2 mixtures of a copper(I)/manganese(II)-porphyrin system, i.e., [(TPP)MnII] (1) and [(tmpa)CuI(MeCN)][B(C6F5)4] (2), where TMPA is tris(2-pyridylmethyl)amine.
A very rich chemistry ensued (Scheme 1), wherein there was an initial rapid generation of a cupric-superoxo complex, [(tmpa)CuII(O2•–)]+ (3), as described previously [27,28,29,30,31]. In the reaction mixture, the cupric-superoxo species subsequently reacted with 1, forming a heterobinuclear O2-adduct formulated as the μ-peroxo [(tmpa)CuII–(O22–)–MnIII(TPP)]+ (4) assembly. In the 1:2 mixture, this was followed by the subsequent addition of a second equivalent of 3 to 4, forming a bis-μ-peroxo [(tmpa)CuII−(O22−)−MnIV(TPP)−(O22−)−CuII(tmpa)]2+ (7) species. These two dioxygen-adducts have been characterized by ultraviolet–visible (UV-vis) absorption and nuclear magnetic resonance (NMR) spectroscopies. These bridged peroxo assemblies (i.e., 4 and 7) thermally transform to the corresponding μ-oxo and possibly bis-μ-oxo complexes, respectively, which, in turn, decompose to [(TPP)MnIII(MeTHF)2]+, whose X-ray structure is described.

2. Results and Discussion

2.1. UV-vis Absorption Spectroscopy

2.1.1. Dioxygen Chemistry of [(TPP)MnII]

In coordinating solvents such as 2-methyltetrahydrofuran (MeTHF), [(TPP)MnII] is rather unreactive toward O2 at room temperature. As shown in Figure 1a, despite long O2 exposure, the UV-vis spectrum of the reaction mixture mostly retained the Soret (433 nm) and Q-band (568 and 606 nm) absorption characteristics of the manganous complex. The UV-vis spectroscopic changes of [(TPP)MnII] oxygenation in MeTHF at −90 °C are shown in Figure 1b. At low temperature, a small but noticeable decrease in the 434 nm Soret band, along with the formation of a minor (TPP)MnIII species (λmax = 470 nm), were observed. Allowing the solution to warm to room temperature yielded a product with features at 378, 400, 423, and 470 nm. We posit this final product as a [(TPP)MnIII(MeTHF)2]+ species, based on its characteristic “split Soret band” and other absorption features similar to those of an authentic MeTHF solution of [(TPP)MnIII(THF)2]SbF6 (λmax = 377, 399, 418, 467 nm) (Figures S1 and S2). We note that in the high-spin manganese(III) porphyrins, the normally intense Soret band splits into two less-intense bands; one of which is a prominent peak at lower energy (~470 nm), and the other one is a very broad band that occurs at higher energy (~380 nm). The ratios of bands well as the λmax values for these bands are particularly sensitive to the nature of the axial ligand(s) [32,33]. The X-ray structure of [(TPP)MnIII(MeTHF)2]SbF6, as well as 1H-NMR and IR data further support the identity of this product species as [(TPP)MnIII(MeTHF)2]+ (vide infra).

2.1.2. Dioxygen Chemistry of [(TPP)MnII]/[(tmpa)CuI(MeCN)][B(C6F5)4]

While [(TPP)MnII] showed no appreciable reactivity toward O2 at room temperature, remarkably, equimolar amounts of [(TPP)MnII] and [(tmpa)CuI(MeCN)][B(C6F5)4] immediately reacted with O2 to produce a new species (Figure 2a), now to be referred to as the μ-oxo MnIII/CuII assembly, as monitored by UV-vis spectroscopy (λmax = 432 and 466 nm). The nature of this bridged complex was further supported by ESI-MS and 1H-NMR results, vide infra. This complex gradually decomposes to a final (TPP)MnIII species (λmax = 470 nm) with features similar to that of the [(TPP)MnII] oxygenation product, i.e., [(TPP)MnIII(MeTHF)2]+.
Investigations of the independent O2 chemistry for the copper complex, [(tmpa)CuI(MeCN)][B(C6F5)4], have been described previously [28,30]. The O2 adduct observed from low-temperature reactions of this copper complex bearing the tripodal TMPA ligand with O2 was solvent-, temperature-, and concentration-dependent (Cu/O2 = 1:1 or 2:1). Upon initial binding of O2 to [(tmpa)CuI(MeCN)]+, an end-on cupric η1-superoxo intermediate, [(tmpa)CuII(O2•–)]+, was formed via single electron transfer from the cuprous center to the ligated dioxygen moiety. At higher concentrations of the copper complex solution, and/or higher reaction temperatures, a second cuprous center provided the second electron, generating a dicopper end-on μ-1,2-peroxo species, [(tmpa)CuII–(O22–)–CuII(tmpa)]2+.
With this background, we investigated the oxygenation of an equimolar mixture of [(TPP)MnII] and [(tmpa)CuI(MeCN)][B(C6F5)4] at low temperatures. At −110 °C, bubbling with dioxygen immediately produced a metastable O2-adduct with new spectral features at 389, 443, 562, and 606 nm (Figure 2b). We formulated this as a heterobinuclear peroxo complex, [(tmpa)CuII–(O22–)–MnIII(TPP)]+. The reaction proceeded through initial formation of a cupric superoxo species, [(tmpa)CuII(O2•–)]+, followed by a fast electron transfer from the manganous center to the superoxide moiety, forming the bridged peroxo species. This μ-peroxo MnIII/CuII complex was not stable at higher temperatures, primarily leading to the formation of a μ-oxo complex, [(tmpa)CuII–O–MnIII(TPP)]+. By analogy to the process shown to occur in similar bridged peroxo systems, it was presumed that this transformation occurred through a disproportionation reaction of two μ-peroxo species that generated two μ-oxo complexes and released O2 [27,34].
Warming the μ-peroxo complex, [(tmpa)CuII–(O22–)–MnIII(TPP)]+, to room temperature leads to the formation of the μ-oxo complex that subsequently converts to [(TPP)MnIII(MeTHF)2]+, i.e., the identical (TPP)MnIII product obtained from the oxygenation experiment at room temperature.
It is important to note that, under the given experimental conditions, i.e., low temperature (−110 °C) and low concentration (μM range), the oxygenation reaction of [(tmpa)CuI(MeCN)][B(C6F5)4] exclusively resulted in the formation of the cupric superoxo species [29,30,35]. This strongly suggests that the electron transfer from a second cuprous complex to [(tmpa)CuII(O2•–)]+ is significantly less favored than from a [(TPP)MnII] complex. We can, therefore, rule out the formation of the dicopper peroxo species, i.e., [(tmpa)CuII–(O22–)–CuII(tmpa)]2+, in our experiments, independent of the experimental conditions.

2.1.3. Dioxygen Chemistry of [(TPP)MnII]/2 [(tmpa)CuI(MeCN)][B(C6F5)4]

The remaining question about the capability of the manganese(II) porphyrin precursor to react with more than an equimolar amount of the superoxide was addressed by reacting a 1:2 mixture of [(TPP)MnII] and [(tmpa)CuI(MeCN)][B(C6F5)4] with dioxygen. Here, at room temperature, the oxygenation reaction and formation of the final solvated (TPP)MnIII product were faster compared with those of an equimolar mixture, with nearly all of [(TPP)MnIII(MeTHF)2]+ formed within 1 h after O2 bubbling rather than over the 3 h observed for the 1:1 mixture (Figure 2a and Figure 3a).
The same reaction was repeated at −110 °C, where we were able to detect two intermediates. Low temperature oxygenation of the 1:2 mixture leads to rapid formation of the μ-peroxo [(TPP)MnIII−(O22−)−CuII(tmpa)]+ intermediate (λmax = 443 nm), identical to that observed during the reaction of the 1:1 mixture with O2, vide supra. This μ-peroxo MnIII/CuII intermediate then reacted with a second cupric superoxo species, [(tmpa)CuII(O2•–)]+, on the open face of the Mn-porphyrin (Scheme 1) and isosbestically converted to a bis-μ-peroxo adduct with λmax = 420 nm, i.e., [(tmpa)CuII−(O22−)−MnIV(TPP)−(O22−)−CuII(tmpa)]2+ (Figure 3b). The characteristic single blue-shifted Soret absorption at 420 nm and other spectral features of this new species agreed with those of previously reported [(TPP)MnIV(L)2] species (Table 1), supporting the oxidation state of manganese(IV) in this intermediate [17,36,37,38]. Further indication that the bis-μ-peroxo intermediate is a manganese(IV) complex was derived from the resonance observed for its pyrrolic protons using 1H-NMR spectroscopy, vide infra. Upon warming, the bis-μ-peroxo intermediate may disproportionate to form a bis-μ-oxo adduct, [(tmpa)CuII−O−MnIV(TPP)−O−CuII(tmpa)]2+, which can subsequently decompose to the observed (TPP)MnIII product, [(TPP)MnIII(MeTHF)2]+ (Figure 3b).
It is worth mentioning that quantitative analyses of UV-vis spectra of the oxygenation products of [(TPP)MnII] in the presence of 0 to 2 equivalents of [(tmpa)CuI(MeCN)]+, at either low or room temperature, confirmed the generation of one equivalent of the final product, [(TPP)MnIII(MeTHF)2]+, with features near 380, 400, and 470 nm in high yields (~100% yield).

2.2. X-ray Structure of [(TPP)MnIII(MeTHF)2]SbF6

For the present studies, the molecular structure of an authentic sample of the proposed final product, [(TPP)MnIII(MeTHF)2]+, was also obtained. Dark red crystals of [(TPP)MnIII(MeTHF)2]SbF6·2MeTHF were grown by slow diffusion of heptane into a MeTHF solution of [(TPP)MnIII(THF)2]SbF6 (see Materials and Methods, Table S1). The complex crystallizes in a tetragonal crystal system with the P43212 space group. A perspective view of the complex, along with the selected structural and geometrical parameters, are given in Figure 4; the molecular packing in the unit cell is shown in Figure S3. The hexacoordinate Mn center lies perfectly in the plane of the porphyrin and is axially ligated by two MeTHF molecules. The length of the bond between the manganese and the axially-ligated MeTHF molecule, Mn−Oax,, of 2.272(3) Å was within the range reported for other hexacoordinate Mn(III) porphyrins with two O-based ligands (Table S2) [42,43,44,45,46,47]. Moreover, the longer Mn−Oax distances, as compared to Mn−Npor (i.e., average of 2.008 Å) were in accord with the presence of a high-spin tetragonally elongated Mn(III) center. The elongation of the bonds to the axial oxygen sites has been ascribed to a singly occupied axially antibonding dz2 orbital that renders a ground electronic state of (dxz, dyz)2(dxy)1(dz2)1 [48,49,50].

2.3. Nuclear Magnetic Resonance (NMR) Spectroscopy

The oxygenation reactions of 1:1 and 1:2 mixtures of [(TPP)MnII] and [(tmpa)CuI(MeCN)]+ were monitored by 1H-NMR spectroscopy at room temperature. In both cases, NMR data support the formation of copper-bound manganese porphyrin intermediates, as well as the identity of [(TPP)MnIII(MeTHF)2]+ as the final product. Here, the resonances of the β-pyrrole protons can aid manganese oxidation and spin-state assignments. Our tentative assignments of the pyrrolic peaks are based on analogy to values reported in the literature or comparison with authentic samples (Figures S4–S10).
The 1H-NMR spectrum of an equimolar mixture of [(TPP)MnII] and [(tmpa)CuI(MeCN)]+ in THF-d8 displays distinct signals originating from individual reduced complexes. The broad peak at δ = 39.04 ppm corresponds to the β-pyrrole protons of the Mn(II) species while the broad signal at δ = 8.02 ppm originates from the meso-aryl protons in [(TPP)MnII] (Figure 5a Left and Figure S11a Left). The peaks at δ = 8.60, 7.74, and 7.34 ppm arise from the pyridyl groups of [(tmpa)CuI(MeCN)][B(C6F5)4] (Figure S11a Left). The peak assignments were obtained by comparing the 1H-NMR spectral pattern of the reaction mixture with the individual spectra of the reduced complexes (Figures S6 and S10).
Upon O2 bubbling, several new signals appeared in the upfield and downfield regions in the spectrum, which resulted from oxidation of the two metal centers (Figure 5 Left and Figure S11). After 1 min of O2 bubbling, the 1H-NMR spectrum showed a distinct pyrrolic peak at δ = 36.06 ppm, which corresponds to the presence of a peroxo Mn(III) center [24,51], in agreement with our UV-vis spectroscopic results (vide supra). This proposed μ-peroxo MnIII/CuII intermediate was unstable and the corresponding pyrrolic resonance disappeared over time (Figure 5 Left).
The upfield region displayed the three most intense peaks at δ = −4.23, −19.60, and −34.65 ppm. The signal at δ = −4.23 ppm likely originated from the TMPA moiety of the attached copper center as the significant upfield shift of this peak indicated that the protons of this chelate were directly located above the porphyrin core, as observed in similar oxo-bridged heterobinuclear systems [52,53,54]. The second upfield broad signal at δ = −19.60 ppm could be ascribed to [(TPP)MnIII−O−CuII(tmpa)]+ and may correspond to a combination of the pyrrolic, as well as part of the attached, TMPA protons. The third upfield signal at δ = −34.65 ppm corresponded to the pyrrolic protons of [(TPP)MnIII(THF)2]+ in the reaction mixture, which was identical to that of the authentic [(TPP)MnIII(THF)2]+ sample, confirming the presence of a high-spin (S = 2) Mn(III) center (Figure S8). All proton peaks were integrated with respect to the δ = −34.65 ppm peak for relative comparisons. As the reaction progressed, the signal at δ = −34.65 ppm continued growing and the intensities of the other signals in the upfield region decreased, which suggested decomposition to [(TPP)MnIII(THF)2]+, consistent with the overall reactivity patterns observed in our UV-vis studies. Appearance of the small peaks in the δ = 10 to 26 ppm region over time (Figure 5 left and Figure S11b–g Left) that correspond to the TMPA protons in a free [(tmpa)CuII(X)]+ complex [52] further confirmed the dissociation of the Mn/Cu assembly.
To further support our supposition that an individual homobinuclear copper species did not form during the oxygenation of the mixture of manganese and copper complexes, we also monitored the independent dioxygen reactivity of [(tmpa)CuI(MeCN)][B(C6F5)4] through 1H-NMR spectroscopy (Figures S12 and S13). The cuprous complex showed three distinct signals between δ = 8.84 and 7.48 ppm, corresponding to the protons of the pyridyl arms, while the methyl-protons resonated at δ = 4.53 ppm. Bubbling with O2 led to the formation of a dioxygen adduct with new features. The pyridyl signals appeared at δ = 11.02, 8.16, 8.11, and 7.79 ppm, while the methyl-protons resonated at δ = 5.80; this spectral pattern is in agreement with the presence of the µ-peroxo [(tmpa)CuII–(O22–)–CuII(tmpa)]2+ complex in the reaction mixture [55]. The spectrum also showed an additional peak at δ = 10.39 ppm, which corresponded to the pyridyl protons of a [(tmpa)CuII(X)]+ species [52]. Within a couple of hours, the µ-peroxo complex fully decomposed into the [(tmpa)CuII]+ species, as evidenced by the gradual disappearance of the peroxo species signals and concomitant growth of the δ = 10.39 ppm peak. No proton signals in the negative region were observed throughout the oxygenation reaction of the cuprous complex; the final cupric complex only displayed proton signals in the downfield region.
The 1H-NMR spectral pattern obtained for a 1:2 mixture of [(TPP)MnII] and [(tmpa)CuI(MeCN)][B(C6F5)4] was quite similar to that obtained for their equimolar mixture, aside from the expected higher relative peak intensities observed for the pyridyl-protons of the cuprous complex (δ = 8.62, 7.73, and 7.35 ppm) as compared to the meso-aryl protons (δ = 8.02 ppm) of the porphyrin ring (Figure S11a Right). Moreover, the very broad -CH2- signal of (tmpa)CuI appeared at δ = 3.99 ppm. Similarly, dioxygen was bubbled through the 1:2 reaction mixture and the proton NMR spectra were recorded at different time intervals (Figure 5 Right and Figure S11b–g Right). After one minute, the sample exhibited a series of new peaks in both upfield and downfield regions. While some of the spectral features were similar to those observed for the oxygenation of the 1:1 reaction mixture, there were a few important differences. A broad peak at δ = −44.90 ppm was observed, which could be ascribed to the β-pyrrole protons of a high-spin (S = 3/2) Mn(IV) center [36,41], possibly [(tmpa)CuII−(O22−)−MnIV(TPP)−(O22−)−CuII(tmpa)]2+ or the bis-μ-oxo adduct. This broad peak is absent during oxygenation of a 1:1 reaction mixture; this finding is in agreement with our supposition concerning the formation of a manganese(IV) species during the oxygenation reaction mixture only when an additional equivalent [(tmpa)CuII(O2•–)]+ is present, thus, promoting the second electron transfer. This peak at δ = −44.90 slowly disappeared with a concurrent increase of the peak at δ = −34.36 ppm over the course of the reaction, hinting towards the decomposition of the Mn(IV) assembly into the (TPP)MnIII species. As expected, the TMPA signals associated with a free [(tmpa)CuII(X)]+ complex (possibly X = OH) in the δ = 10 to 26 ppm region appeared at higher intensity (Figure 5 Right and Figure S11b–g Right), further supporting the dissociation of the Mn/Cu assembly.

2.4. Electrospray Ionization Mass Spectrometry (ESI-MS)

The formation of the μ-oxo [(TPP)MnIII−O−CuII(tmpa)]+ complex was further confirmed by ESI-MS studies. The ESI-MS spectrum of a 1:1 mixture of [(TPP)MnII] and [(MeCN)CuI(tmpa)][B(C6F5)4] in MeTHF immediately after bubbling with O2 at room temperature showed a peak for [(TPP)MnII−OH−CuII(tmpa)]+ at m/z 1037.2557. The isotopic distribution pattern of the experimental mass correlated well with theory (Figure 6), which further confirms the formation of the Mn/Cu assembly. To try to provide further insight, the oxygenation of a 1:2 mixture of the reduced complexes did not lead to the mass spectrometric detection of a bis-μ-oxo adduct, most likely due to its even lower stability and, therefore, easier reduction/fragmentation.

2.5. Fourier-Transform Infrared Spectroscopy (FT-IR)

IR spectroscopy also supports the formation of the same final oxygenation product, i.e., [(TPP)MnIII(MeTHF)2]+, for 1:1, as well as 1:2, mixtures of [(TPP)MnII] and [(tmpa)CuI(MeCN)][B(C6F5)4] (Figures S14–S17). The presence of bound MeTHF in [(TPP)MnIII(MeTHF)2]+ was confirmed by C-H stretching bands at or near 2966 and 2864 cm−1. The high-frequency metal-sensitive IR bands of the TPP complexes have been previously found to, slightly but regularly, vary depending on the nature of the metal ion [56]. Here, the metal-sensitive TPP bands at 1598, 1487, 1342, and 1010 cm−1 were identical or within 2 cm−1 for the 1:1 and 1:2 oxygenation products, and similar to those of authentic [(TPP)MnIII(MeTHF)2]SbF6 (Table S3), further confirming the presence of a Mn(III) center.

3. Conclusions

The foregoing results demonstrate the cooperative activation of dioxygen by the copper(I)/manganese(II)-porphyrin systems. A combined array of variable-temperature UV-vis, NMR, IR as well as ESI-MS and X-ray crystallographic analyses collectively demonstrated that [(TPP)MnII] reacts with O2 in the presence of 0 to 2 equivalents of a cuprous chelate, [(tmpa)CuI(MeCN)]+, in MeTHF to produce a common final decomposition product, [(TPP)MnIII(MeTHF)2]+. However, the O2 reactivity in the presence of the copper(I) center is remarkably faster and proceeds through a distinct mechanism. As evidenced by low temperature (−110 °C) UV-vis and room temperature 1H-NMR measurements, copper(I) is responsible for the binding and initial activation of dioxygen, forming a cupric superoxo intermediate, [(tmpa)CuII(O2•–)]+. This is followed by an electron transfer from the manganous complex generating a bridged heterobinuclear peroxo species, [(tmpa)CuII–(O22–)–MnIII(TPP)]+. In the presence of a second equivalent of the cupric superoxo complex, an additional electron transfer from the Mn(III) center of the μ-peroxo assembly to the superoxo species takes place, forming a bis-μ-peroxo assembly, [(tmpa)CuII−(O22−)−MnIV(TPP)−(O22−)−CuII(tmpa)]2+. These systems represent the first examples of such Mn/Cu/O2 adducts and illustrate the importance of cooperative activation of O2 in the heteromultimetallic systems. Experiments designed to further investigate these dioxygen-adducts are currently in hand.

4. Materials and Methods

4.1. General Methods

Chemicals were purchased commercially and used without further purification, unless noted otherwise. Acetonitrile (MeCN), dichloromethane (DCM), tetrahydrofuran (THF), and 2-methyltetrahydrofuran (MeTHF) were purchased from Sigma-Aldrich (St. Louis, MO, USA). Deuterated solvents (acetone-d6, CD2Cl2, and THF-d8) were purchased from Cambridge Isotope Laboratories (Tewksbury, MA, USA). Commercial ACS grade solvents were used for chromatography and extractions. For the reactions, all solvents were purified by an Innovative Technologies (Newburyport, MA, USA) or Inert PureSolv Micro (Amesbury, MA, USA) solvent purification system. Solvents were then deoxygenated by bubbling with argon for 1 h, followed by storage over 3 or 5 Å molecular sieves for at least 72 h prior to use. Deionized water was purified by a PURELAB flex 1 Analytical Ultrapure Water System (ELGA) to obtain nanopure water with a specific resistance of 18.2 MΩ cm at room temperature. Air-sensitive compounds were prepared and handled under a dry, oxygen-free argon atmosphere using standard Schlenk techniques or under nitrogen atmosphere in a Vacuum Atmospheres (Hawthorne, CA, USA) OMNI-Lab inert atmosphere (<0.5 ppm of O2 and H2O) glovebox. Ultra-high purity grade oxygen gas was purchased from Airgas (Greensboro, NC, USA) and dried by passing through a drying column containing Drierite desiccant and 3 Å activated molecular sieves. For the NMR experiments, dry O2 gas was transferred and stored in a capped 50-mL Schlenk flask, then added into the metal complex solutions via a three-way long syringe needle.
UV-vis absorption spectra were recorded on an Agilent (Wilmington, DE, USA) Cary-60 spectrophotometer equipped with a Unisoku (Osaka, Japan) CoolSpeK USP-203-B cryostat using 4-mm modified Schlenk cuvettes. Infrared (IR) spectra of neat solid samples were obtained using a Thermo Scientific (West Palm Beach, FL, USA) Nicolet iS5 Fourier Transform IR (FT-IR) spectrometer equipped with an iD7 attenuated total reflection (ATR) accessory. NMR spectra were recorded on a JEOL (Peabody, MA, USA) 500 MHz spectrometer, and the chemical shifts were referenced against NMR solvent residual shifts (e.g., THF-d8 at 𝛿 = 1.72 ppm) and/or tetramethylsilane (TMS at 𝛿 = 0.00 ppm). Electrospray ionization mass spectrometry (ESI-MS) data was collected in positive ion mode on a Thermo Fisher Scientific (Waltham, MA, USA) Q Exactive Plus system.

4.2. Synthesis and Characterization

The compounds [(tmpa)CuI(MeCN)][B(C6F5)4] [57] and [(TPP)MnIIICl] [58] were synthesized and characterized following previously described methods.

4.2.1. Synthesis of [(TPP)MnII]

The complex was prepared following slight modification of the literature procedure reported for the ferric choro complexes bearing similar porphyrin rings [59,60]. Using standard Schlenk techniques, a solution of [(TPP)MnIIICl] (500 mg, 0.711 mmol) in DCM (200 mL) was mixed with a solution of sodium dithionite (22 g, 0.126 mol) in water (100 mL) for 1 h by bubbling argon. The reaction mixture was allowed to sit for approximately 20 min to allow the separation of the two layers. The DCM layer was filtered through sodium sulfate to remove residual water, then dried under vacuum, producing the deep-purple microcrystalline product. Yield: 416 mg, 91%. UV-vis (λmax, nm [ε, M−1cm−1]): 327 (22,800), 412 (54,300), 432 (495,000), 527 (4000), 568 (16,600), 606 (11,300) in MeTHF; 327 (f,000), 412 (53,800), 432 (492,000), 527 (3000), 568 (15,500), 606 (11,300) in THF. 1H-NMR (THF-d8, δ, ppm): 38.67 (s, 8H, β-pyrrole), 8.01 and 7.84 (s, 20H, phenyl).

4.2.2. Synthesis of [(TPP)MnIII(THF)2]SbF6

The complex was prepared following slight modification of the reported procedure for a similar manganese complex [50]. In the glovebox, a solution of [(TPP)MnIIICl] (101 mg, 0.138 mmol) and AgSbF6 (52 mg, 0.152 mmol) in THF (20 mL) was stirred for 1.5 h under reduced light at room temperature, then filtered to remove precipitated AgCl. The filtrate was concentrated under vacuum and layered with hexanes to obtain the dark-red semi-crystalline product, which was further vacuum dried. Yield: 119 mg, 83%. UV-vis (λmax, nm [ε, M−1cm−1]): 382 (52,400), 402 (46,800), 420 (31,300), 472 (67,800), 516 (6500), 565 (9800), 600 (8000) in MeTHF; 382 (51,500), 403 (46,700), 420 (31,400), 472 (64,900), 516 (6200), 565 (9700), 600 (7700) in THF. A UV-vis spectrum of [(TPP)MnIII(THF)2]SbF6 was also recorded in MeTHF at −110 °C for comparison (Figure S2): 377, 399, 418, 467, 514, 565, and 601 nm. 1H-NMR (THF-d8, δ, ppm): −34.35 (s, 8H, β-pyrrole), 9.65 (s, 8H, phenyl-o), 8.01 (s, 4H, phenyl-p), 7.43 (s, 8H, phenyl-m), 3.60 (s, 8H), 1.76 (s, 8H). IR (solid, cm−1): ν(C-H, MeTHF) = 2950, 2869; ν(SbF6) = 651.

4.3. Dioxygen Reactivity Studies

4.3.1. Room-Temperature UV-vis Measurements for [(TPP)MnII]

Inside the glovebox, 4.8 mg (0.007 mmol) of [(TPP)MnII] was dissolved in MeTHF (5 mL). Samples for UV-vis spectral measurements were prepared by diluting 7 μL of this stock solution with MeTHF to 1 mL, which was then transferred to a 4-mm modified Schlenk cuvette equipped with a septum. The spectra were recorded upon bubbling of dry O2 gas directly into the solution at room temperature (Figure 1a).

4.3.2. Low-Temperature UV-vis Measurements for [(TPP)MnII]

A stock solution of [(TPP)MnII] (5.3 mg, 0.008 mmol) in MeTHF (5 mL) was prepared inside the glovebox. UV-vis samples for low-temperature measurements were prepared by diluting 7 μL of this stock solution with MeTHF to 1 mL, which was then transferred to a 4-mm modified Schlenk cuvette equipped with a septum. The spectra were recorded upon bubbling of dry O2 gas directly into the solution at −90 °C (Figure 1b). The solution was monitored at −90 °C for 30 min after O2 bubbling, then allowed to warm up to room temperature. The solution was further monitored for 2 h, with spectra recorded at −90 °C.

4.3.3. Room-Temperature UV-vis Measurements for 1:1 and 1:2 Mixtures of [(TPP)MnII] and [(tmpa)CuI(MeCN)][B(C6F5)4]

For the 1:1 mixture, 4.7 mg (0.007 mmol) of [(TPP)MnII] and 7.5 mg (0.007 mmol) of [(tmpa)CuI(MeCN)][B(C6F5)4] were dissolved in MeTHF (5 mL) inside the glovebox. Samples for UV-vis spectral measurements were prepared by diluting 5 μL of this stock solution with MeTHF to 1 mL. The UV-vis sample was then transferred to a 4-mm modified Schlenk cuvette equipped with a septum. The spectra were recorded upon bubbling of dry O2 gas directly into the solution at room temperature (Figure 2a). The reaction was repeated for the 1:2 mixture (Figure 3a). Here, the stock solution was prepared by dissolving 4.7 mg (0.007 mmol) of [(TPP)MnII] and 15.1 mg (0.014 mmol) of [(tmpa)CuI(MeCN)][B(C6F5)4] in MeTHF (5 mL) inside the glovebox. All other steps were identical to those described for the 1:1 mixture.

4.3.4. Low-Temperature UV-vis Measurements for 1:1 and 1:2 Mixtures of [(TPP)MnII] and [(tmpa)CuI(MeCN)][B(C6F5)4]

For the 1:1 mixture, 5.3 mg (0.008 mmol) of [(TPP)MnII] and 8.5 mg (0.008 mmol) of [(tmpa)CuI(MeCN)][B(C6F5)4] were dissolved in MeTHF (5 mL) inside the glovebox. UV-vis samples were prepared by diluting 5 μL of this stock solution with MeTHF to 1 mL. This solution was then transferred to a 4-mm modified Schlenk cuvette equipped with a septum. The spectra were recorded upon bubbling of dry O2 gas directly into the solution at −110 °C (Figure 2b). The solution was monitored at −110 °C for 1 h after O2 bubbling, then allowed to warm up to room temperature over 1 h. The spectrum of the warmed solution was recorded at −110 °C. For the 1:2 mixture, 5.3 mg (0.008 mmol) of [(TPP)MnII] and 17.1 mg (0.016 mmol) of [(tmpa)CuI(MeCN)][B(C6F5)4] were dissolved in MeTHF (5 mL) inside the glovebox. All other steps, as described for the 1:1 mixture, were repeated for this sample (Figure 3b).

4.3.5. 1H-Nuclear Magnetic Resonance (1H-NMR) Measurements

To prepare the 1:1 mixture NMR sample, 7.5 mg (0.011 mmol) of [(TPP)MnII] and 12.1 mg (0.011 mmol) of [(tmpa)CuI(MeCN)][B(C6F5)4] were dissolved in THF-d8 (800 μL) and transferred to an NMR tube inside the glovebox. The NMR sample sealed with a rubber septum was taken out, and the spectrum prior to dioxygen bubbling was recorded at room temperature. For oxygenation, 4 mL of dry O2 gas was bubbled into the metal complex solution in the NMR tube using a Hamilton gastight syringe equipped with a three-way valve. After O2 bubbling, the first spectrum was recorded within 2 min of mixing, and the reaction was monitored over 18 h (Figure 5 and Figure S11). The same steps were repeated for the 1:2 mixture NMR sample which was prepared by dissolving 7.5 mg (0.011 mmol) of [(TPP)MnII] and 24.2 mg (0.022 mmol) of [(tmpa)CuI(MeCN)][B(C6F5)4] in THF-d8 (800 μL).
In a control experiment, in order to confirm the O2 reactivity of the authentic mononuclear Cu(I) complex in our experimental conditions, NMR studies were carried out following a slightly modified version of the literature procedure [55]. Inside the glovebox, [(tmpa)CuI(MeCN)][B(C6F5)4] (24.2 mg, 0.022 mmol) was dissolved in THF-d8 (800 μL) and transferred to an NMR tube. Oxygenation of the Cu(I) complex solution was carried out using methods described above. After O2 bubbling, the first spectrum was recorded within 2 min of mixing; the reaction was monitored over 6 h (Figures S12 and S13).

4.4. Crystallographic Studies

Suitable X-ray quality single crystals of [(TPP)MnIII(MeTHF)2]SbF6 were obtained by transferring a 7 µM solution of [(TPP)MnIII(THF)2]SbF6 in MeTHF into a 5-mm glass tube, layering with heptane, and storing it in the glovebox at room temperature. All reflection intensities were measured at 100(2) K using a Gemini R diffractometer (equipped with Atlas detector) with MoKα radiation (λ = 0.71073 Å) under the program CrysAlisPro (Version CrysAlisPro 1.171.38.43f, Rigaku OD, 2015). The same program (but a different version viz. CrysAlisPro 1.171.40.53, Rigaku OD, 2019) was used to refine the cell dimensions and for data reduction. The temperature of the data collection was controlled using the system Cryojet (manufactured by Oxford Instruments, Abingdon, UK). The structure was solved with the program SHELXT-2018/2 and was refined on F2 by full-matrix least-squares technique using the SHELXL-2018/3 program package [61]. Numerical absorption correction based on Gaussian integration was applied using a multifaceted crystal model by CrysAlisPro. Non-hydrogen atoms were refined anisotropically. In the refinement, hydrogen atoms were treated as riding atoms using SHELXL default parameters.
CSD 2128108 contains the supplementary crystallographic data for this paper. These data can be obtained free of charge via https://www.ccdc.cam.ac.uk/data_request/cif.

4.5. Electrospray Ionization Mass Spectrometry (ESI-MS) Measurements

The 1:1 mixture stock solution was prepared by dissolving 7.5 mg (0.011 mmol) of [(TPP)MnII] and 12.1 mg (0.011 mmol) of [(tmpa)CuI(MeCN)][B(C6F5)4] in MeTHF (800 μL) inside the glovebox. The stock solution was brought out in a Schlenk flask equipped with a rubber septum, and dry O2 gas was bubbled into the mixture for 30 s. Samples for ESI-MS measurement were taken from this Schlenk flask and diluted by 20 folds in MeTHF before injection. The same procedure was repeated for the 1:2 mixture, whose stock solution was prepared by dissolving 7.5 mg (0.011 mmol) of [(TPP)MnII] and 24.2 mg (0.022 mmol) of [(tmpa)CuI(MeCN)][B(C6F5)4] in MeTHF (800 μL), followed by bubbling dry O2. In order to detect multinuclear assemblies, soft ionization was maintained at a relatively low source voltage of 1.0 kV.

Supplementary Materials

The following supporting information can be downloaded. Details concerning spectroscopy including UV-vis, 1H-NMR, and IR as well as crystallographic data.

Author Contributions

Conceptualization, S.H.; methodology, R.L.; formal analysis, R.L., F.S.T.K., S.H.; investigation, R.L., F.S.T.K.; resources, S.H.; writing—original draft preparation, R.L., F.S.T.K., S.H.; writing—review and editing, S.H.; visualization, R.L., F.S.T.K., S.H.; supervision, S.H.; funding acquisition, S.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Raw data are available upon request.

Acknowledgments

The authors gratefully acknowledge financial support provided in the form of startup funds, the Spartans ADVANCE Research Award, and the URSCO Undergraduate Research and Creativity Award (URCA) from the University of North Carolina at Greensboro. The Joint School of Nanoscience and Nanoengineering is acknowledged for providing access to the X-ray diffraction facility.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the manganese and/or copper complexes, in limited quantities, are available from the authors.

References

  1. Pecoraro, V.L.; Baldwin, M.J.; Gelasco, A. Interaction of Manganese with Dioxygen and Its Reduced Derivatives. Chem. Rev. 1994, 94, 807–826. [Google Scholar] [CrossRef]
  2. Pecoraro, V.L.; Gelasco, A.; Baldwin, M.J. Reactivity and Mechanism of Manganese Enzymes. In Mechanistic Bioinorganic Chemistry; Advances in Chemistry; American Chemical Society: Washington, DC, USA, 1996; Volume 246, pp. 265–301. [Google Scholar]
  3. Lingappa, U.F.; Monteverde, D.R.; Magyar, J.S.; Valentine, J.S.; Fischer, W.W. How Manganese Empowered Life with Dioxygen (and vice versa). Free Radic. Biol. Med. 2019, 140, 113–125. [Google Scholar] [CrossRef] [PubMed]
  4. Emsley, J. Manganese. In Nature’s Building Bocks: An A–Z Guide to the Elements; Oxford University Press: Oxford, UK, 2001; pp. 249–253. [Google Scholar]
  5. Law, N.A.; Caudle, M.T.; Pecoraro, V.L. Manganese Redox Enzymes and Model Systems: Properties, Structures, and Reactivity. In Advances in Inorganic Chemistry; Sykes, A.G., Ed.; Academic Press: Cambridge, MA, USA, 1998; Volume 46, pp. 305–440. [Google Scholar]
  6. Dismukes, G.C. Manganese Enzymes with Binuclear Active Sites. Chem. Rev. 1996, 96, 2909–2926. [Google Scholar] [CrossRef] [PubMed]
  7. Zhu, W.; Richards, N.G.J. Biological Functions Controlled by Manganese Redox Changes in Mononuclear Mn-Dependent Enzymes. Essays Biochem. 2017, 61, 259–270. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Groves, J.T.; Watanabe, Y.; McMurry, T.J. Oxygen Activation by Metalloporphyrins. Formation and Decomposition of an Acylperoxymanganese(III) Complex. J. Am. Chem. Soc. 1983, 105, 4489–4490. [Google Scholar] [CrossRef]
  9. Liu, W.; Groves, J.T. Manganese Porphyrins Catalyze Selective C−H Bond Halogenations. J. Am. Chem. Soc. 2010, 132, 12847–12849. [Google Scholar] [CrossRef]
  10. Miriyala, S.; Spasojevic, I.; Tovmasyan, A.; Salvemini, D.; Vujaskovic, Z.; St Clair, D.; Batinic-Haberle, I. Manganese Superoxide Dismutase, MnSOD and Its Mimics. Biochim. Biophys. Acta Mol. Basis Dis. 2012, 1822, 794–814. [Google Scholar] [CrossRef] [Green Version]
  11. Guo, M.; Dong, H.; Li, J.; Cheng, B.; Huang, Y.; Feng, Y.; Lei, A. Spectroscopic Observation of Iodosylarene Metalloporphyrin Adducts and Manganese(V)-oxo Porphyrin Species in a Cytochrome P450 Analogue. Nat. Commun. 2012, 3, 1190. [Google Scholar] [CrossRef] [Green Version]
  12. Liu, W.; Groves, J.T. Manganese Catalyzed C–H Halogenation. Acc. Chem. Res. 2015, 48, 1727–1735. [Google Scholar] [CrossRef]
  13. Huang, X.; Zhuang, T.; Kates, P.A.; Gao, H.; Chen, X.; Groves, J.T. Alkyl Isocyanates via Manganese-Catalyzed C–H Activation for the Preparation of Substituted Ureas. J. Am. Chem. Soc. 2017, 139, 15407–15413. [Google Scholar] [CrossRef]
  14. Passard, G.; Dogutan, D.K.; Qiu, M.; Costentin, C.; Nocera, D.G. Oxygen Reduction Reaction Promoted by Manganese Porphyrins. ACS Catal. 2018, 8, 8671–8679. [Google Scholar] [CrossRef]
  15. Guo, M.; Seo, M.S.; Lee, Y.-M.; Fukuzumi, S.; Nam, W. Highly Reactive Manganese(IV)-Oxo Porphyrins Showing Temperature-Dependent Reversed Electronic Effect in C–H Bond Activation Reactions. J. Am. Chem. Soc. 2019, 141, 12187–12191. [Google Scholar] [CrossRef] [PubMed]
  16. Li, G.; Kates, P.A.; Dilger, A.K.; Cheng, P.T.; Ewing, W.R.; Groves, J.T. Manganese-Catalyzed Desaturation of N-Acyl Amines and Ethers. ACS Catal. 2019, 9, 9513–9517. [Google Scholar] [CrossRef]
  17. Klaine, S.; Bratcher, F.; Winchester, C.M.; Zhang, R. Formation and Kinetic Studies of Manganese(IV)-oxo Porphyrins: Oxygen Atom Transfer Mechanism of Sulfide Oxidations. J. Inorg. Biochem. 2020, 204, 110986. [Google Scholar] [CrossRef]
  18. Zhang, L.; Lee, Y.-M.; Guo, M.; Fukuzumi, S.; Nam, W. Unprecedented Reactivities of Highly Reactive Manganese(III)–Iodosylarene Porphyrins in Oxidation Reactions. J. Am. Chem. Soc. 2020, 142, 19879–19884. [Google Scholar] [CrossRef]
  19. Mann, S.I.; Nayak, A.; Gassner, G.T.; Therien, M.J.; DeGrado, W.F. De Novo Design, Solution Characterization, and Crystallographic Structure of an Abiological Mn–Porphyrin-Binding Protein Capable of Stabilizing a Mn(V) Species. J. Am. Chem. Soc. 2021, 143, 252–259. [Google Scholar] [CrossRef]
  20. Kostopoulos, N.; Banse, F.; Fave, C.; Anxolabéhère-Mallart, E. Modulating Alkene Reactivity from Oxygenation to Halogenation via Electrochemical O2 Activation by Mn Porphyrin. Chem. Commun. 2021, 57, 1198–1201. [Google Scholar] [CrossRef]
  21. Guo, M.; Zhang, J.; Zhang, L.; Lee, Y.-M.; Fukuzumi, S.; Nam, W. Enthalpy–Entropy Compensation Effect in Oxidation Reactions by Manganese(IV)-Oxo Porphyrins and Nonheme Iron(IV)-Oxo Models. J. Am. Chem. Soc. 2021, 143, 18559–18570. [Google Scholar] [CrossRef]
  22. Weschler, C.J.; Hoffman, B.M.; Basolo, F. Synthetic Oxygen Carrier. Dioxygen Adduct of a Manganese Porphyrin. J. Am. Chem. Soc. 1975, 97, 5278–5280. [Google Scholar] [CrossRef]
  23. Hoffman, B.M.; Szymanski, T.; Brown, T.G.; Basolo, F. The Dioxygen Adducts of Several Manganese(II) Porphyrins. Electron Paramagnetic Resonance Studies. J. Am. Chem. Soc. 1978, 100, 7253–7259. [Google Scholar] [CrossRef]
  24. VanAtta, R.B.; Strouse, C.E.; Hanson, L.K.; Valentine, J.S. Peroxo(tetraphenylporphinato)manganese(III) and Chloro(tetraphenylporphinato)manganese(II) Anions. Synthesis, Crystal Structures, and Electronic Structures. J. Am. Chem. Soc. 1987, 109, 1425–1434. [Google Scholar] [CrossRef]
  25. Phung, Q.M.; Pierloot, K. The Dioxygen Adducts of Iron and Manganese Porphyrins: Electronic Structure and Binding Energy. Phys. Chem. Chem. Phys. 2018, 20, 17009–17019. [Google Scholar] [CrossRef] [PubMed]
  26. Valentine, J.S.; Quinn, A.E. Reaction of Superoxide with the Manganese(III) Tetraphenylporphine Cation. Inorg. Chem. 1976, 15, 1997–1999. [Google Scholar] [CrossRef]
  27. Adam, S.M.; Wijeratne, G.B.; Rogler, P.J.; Diaz, D.E.; Quist, D.A.; Liu, J.J.; Karlin, K.D. Synthetic Fe/Cu Complexes: Toward Understanding Heme-Copper Oxidase Structure and Function. Chem. Rev. 2018, 118, 10840–11022. [Google Scholar] [CrossRef] [PubMed]
  28. Karlin, K.D.; Wei, N.; Jung, B.; Kaderli, S.; Niklaus, P.; Zuberbuehler, A.D. Kinetics and Thermodynamics of Formation of Copper-Dioxygen Adducts: Oxygenation of Mononuclear Copper(I) Complexes Containing Tripodal Tetradentate Ligands. J. Am. Chem. Soc. 1993, 115, 9506–9514. [Google Scholar] [CrossRef]
  29. Karlin, K.D.; Kaderli, S.; Zuberbühler, A.D. Kinetics and Thermodynamics of Copper(I)/Dioxygen Interaction. Acc. Chem. Res. 1997, 30, 139–147. [Google Scholar] [CrossRef]
  30. Zhang, C.X.; Kaderli, S.; Costas, M.; Kim, E.; Neuhold, Y.-M.; Karlin, K.D.; Zuberbühler, A.D. Copper(I)−Dioxygen Reactivity of [(L)CuI]+ (L = Tris(2-pyridylmethyl)amine): Kinetic/Thermodynamic and Spectroscopic Studies Concerning the Formation of Cu−O2 and Cu2−O2 Adducts as a Function of Solvent Medium and 4-Pyridyl Ligand Substituent Variations. Inorg. Chem. 2003, 42, 1807–1824. [Google Scholar] [CrossRef]
  31. Solomon, E.I.; Heppner, D.E.; Johnston, E.M.; Ginsbach, J.W.; Cirera, J.; Qayyum, M.; Kieber-Emmons, M.T.; Kjaergaard, C.H.; Hadt, R.G.; Tian, L. Copper Active Sites in Biology. Chem. Rev. 2014, 114, 3659–3853. [Google Scholar] [CrossRef] [Green Version]
  32. Williamson, M.M.; Hill, C.L. Isolation and Characterization of a Five-Coordinate Manganese(III) Porphyrin Cation. Crystal and Molecular Structure of Aquo(tetraphenylporphinato)manganese(III) Triflate. Inorg. Chem. 1986, 25, 4668–4671. [Google Scholar] [CrossRef]
  33. Galinato, M.G.I.; Brocious, E.P.; Paulat, F.; Martin, S.; Skodack, J.; Harland, J.B.; Lehnert, N. Elucidating the Electronic Structure of High-Spin [MnIII(TPP)Cl] Using Magnetic Circular Dichroism Spectroscopy. Inorg. Chem. 2020, 59, 2144–2162. [Google Scholar] [CrossRef]
  34. Carrasco, M.C.; Hematian, S. (Hydr)oxo-Bridged Heme Complexes: From Structure to Reactivity. J. Porphyr. Phthalocyanines 2019, 23, 1286–1307. [Google Scholar] [CrossRef] [Green Version]
  35. Citek, C.; Herres-Pawlis, S.; Stack, T.D.P. Low Temperature Syntheses and Reactivity of Cu2O2 Active-Site Models. Acc. Chem. Res. 2015, 48, 2424–2433. [Google Scholar] [CrossRef] [PubMed]
  36. Groves, J.T.; Stern, M.K. Synthesis, Characterization, and Reactivity of Oxomanganese(IV) Porphyrin Complexes. J. Am. Chem. Soc. 1988, 110, 8628–8638. [Google Scholar] [CrossRef]
  37. Groves, J.T.; Lee, J.; Marla, S.S. Detection and Characterization of an Oxomanganese(V) Porphyrin Complex by Rapid-Mixing Stopped-Flow Spectrophotometry. J. Am. Chem. Soc. 1997, 119, 6269–6273. [Google Scholar] [CrossRef]
  38. Low, D.W.; Abedin, S.; Yang, G.; Winkler, J.R.; Gray, H.B. Manganese Microperoxidase-8. Inorg. Chem. 1998, 37, 1841–1843. [Google Scholar] [CrossRef] [Green Version]
  39. Camenzind, M.J.; Hollander, F.J.; Hill, C.L. Syntheses, Ground Electronic State, and Crystal and Molecular Structure of the Monomeric Manganese(IV) Porphyrin Complex Dimethoxy(5,10,15,20-tetraphenylporphinato)manganese(IV). Inorg. Chem. 1982, 21, 4301–4308. [Google Scholar] [CrossRef]
  40. Smegal, J.A.; Schardt, B.C.; Hill, C.L. Isolation, Purification, and Characterization of Intermediate (Iodosylbenzene)metalloporphyrin Complexes from the (Tetraphenylporphinato)manganese(III)-iodosylbenzene Catalytic Hydrocarbon Functionalization System. J. Am. Chem. Soc. 1983, 105, 3510–3515. [Google Scholar] [CrossRef]
  41. Kaustov, L.; Tal, M.E.; Shames, A.I.; Gross, Z. Spin Transition in a Manganese(III) Porphyrin Cation Radical, Its Transformation to a Dichloromanganese(IV) Porphyrin, and Chlorination of Hydrocarbons by the Latter. Inorg. Chem. 1997, 36, 3503–3511. [Google Scholar] [CrossRef]
  42. Hatano, K.; Anzai, K.; Iitaka, Y. The Crystal and Molecular Structure of Bis(methanol)-α,β,γ,δ-tetraphenylporphinatomanganese(III) Perchlorate-Methanol. A Molecular Structure Relevant to the Intermediate-spin Six Coordinate Iron(III) Porphyrin. Bull. Chem. Soc. Jpn. 1983, 56, 422–427. [Google Scholar] [CrossRef] [Green Version]
  43. Hill, C.L.; Williamson, M.M. Structural and Electronic Properties of Six-Coordinate Manganese(III) Porphyrin Cations. Crystal and Molecular Structure of Bis(N,N-dimethylformamide)(Tetraphenylporphinato)manganese(III) Perchlorate, [MnIII TPP(DMF)2]+ClO4. Inorg. Chem. 1985, 24, 2836–2841. [Google Scholar] [CrossRef]
  44. Hill, C.L.; Williamson, M.W. Electronic and Structural Properties of a Reactive Metalloporphyrin with N-oxide Axial Ligands. Crystal and Molecular Structure of Bis(2,6-lutidine N-oxide)(Tetraphenylporphinato)manganese(III) Perchlorate. Inorg. Chem. 1985, 24, 3024–3030. [Google Scholar] [CrossRef]
  45. Scheidt, W.R.; Pearson, W.B.; Gosal, N. Structure of Bis(methanol)(meso-tetraphenylporphinato)manganese(III) Hexachloroantimonate Bis(tetrachloroethane) Solvate. Acta Cryst. C 1988, 44, 927–929. [Google Scholar] [CrossRef] [PubMed]
  46. Bhyrappa, P.; Wilson, S.R.; Suslick, K.S. Hydrogen-Bonded Porphyrinic Solids:  Supramolecular Networks of Octahydroxy Porphyrins. J. Am. Chem. Soc. 1997, 119, 8492–8502. [Google Scholar] [CrossRef]
  47. Tong, S.-l.; Zhang, J.; Yan, Y.; Hu, S.; Yu, J.; Yu, L. Self-Assembled Supramolecular Architecture with Alternating Porphyrin and Phthalocyanine, Bonded by Hydrogen Bonding and ππ Stacking. Solid State Sci. 2011, 13, 1967–1971. [Google Scholar] [CrossRef]
  48. Williamson, M.N.; Hill, C.L. Molecular Stereochemistry of Aquamanganese(III) Porphyrins. Demonstrable effect of π-Arene-Porphyrin Interaction in the metal Coordination Environment in a Metalloporphyrin. Inorg. Chem. 1987, 26, 4155–4160. [Google Scholar] [CrossRef]
  49. Salomon, R.G.; Ghosh, S.; Raychaudhuri, S. Homogeneous Metal-Catalyzed Photochemistry in Organic Synthesis. In Photosensitive Metal—Organic Systems; Advances in Chemistry; American Chemical Society: Washington, DC, USA, 1993; Volume 238, pp. 315–333. [Google Scholar]
  50. Fox, S.J.; Chen, L.; Khan, M.A.; Richter-Addo, G.B. Nitrosoarene Complexes of Manganese Porphyrins. Inorg. Chem. 1997, 36, 6465–6467. [Google Scholar] [CrossRef]
  51. Shirazi, A.; Goff, H.M. Characterization of Superoxide-Metalloporphyrin Reaction Products: Effective Use of Deuterium NMR Spectroscopy. J. Am. Chem. Soc. 1982, 104, 6318–6322. [Google Scholar] [CrossRef]
  52. Carrasco, M.C.; Dezarn, K.J.; Khan, F.S.T.; Hematian, S. Protonation of the Oxo-Bridged Heme/Copper Assemblies: Modeling the Oxidized State of the Cytochrome c Oxidase Active Site. J. Inorg. Biochem. 2021, 225, 111593. [Google Scholar] [CrossRef]
  53. Chufán, E.E.; Verani, C.N.; Puiu, S.C.; Rentschler, E.; Schatzschneider, U.; Incarvito, C.; Rheingold, A.L.; Karlin, K.D. Generation and Characterization of [(P)M−(X)−Co(TMPA)]n+ Assemblies; P = Porphyrinate, M = FeIII and CoIII, X = O2−, OH, O22−, and TMPA = Tris(2-pyridylmethyl)amine. Inorg. Chem. 2007, 46, 3017–3026. [Google Scholar] [CrossRef]
  54. Wasser, I.M.; Martens, C.F.; Verani, C.N.; Rentschler, E.; Huang, H.-w.; Moënne-Loccoz, P.; Zakharov, L.N.; Rheingold, A.L.; Karlin, K.D. Synthesis and Spectroscopy of μ-Oxo (O2−)-Bridged Heme/Non-heme Diiron Complexes:  Models for the Active Site of Nitric Oxide Reductase. Inorg. Chem. 2004, 43, 651–662. [Google Scholar] [CrossRef]
  55. Tyeklar, Z.; Jacobson, R.R.; Wei, N.; Murthy, N.N.; Zubieta, J.; Karlin, K.D. Reversible Reaction of Dioxygen (and Carbon Monoxide) with a Copper(I) Complex. X-ray Structures of Relevant Mononuclear Cu(I) Precursor Adducts and the Trans-(μ-1,2-peroxo)dicopper(II) Product. J. Am. Chem. Soc. 1993, 115, 2677–2689. [Google Scholar] [CrossRef]
  56. Kincaid, J.; Nakamoto, K. Vibrational Spectra of Transition Metal Complexes of Tetraphenylporphine. J. Inorg. Nucl. Chem. 1975, 37, 85–89. [Google Scholar] [CrossRef]
  57. Hematian, S.; Siegler, M.A.; Karlin, K.D. Heme/Copper Assembly Mediated Nitrite and Nitric Oxide Interconversion. J. Am. Chem. Soc. 2012, 134, 18912–18915. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Adler, A.D.; Longo, F.R.; Kampas, F.; Kim, J. On the Preparation of Metalloporphyrins. J. Inorg. Nucl. Chem. 1970, 32, 2443–2445. [Google Scholar] [CrossRef]
  59. Ghiladi, R.A.; Kretzer, R.M.; Guzei, I.; Rheingold, A.L.; Neuhold, Y.-M.; Hatwell, K.R.; Zuberbühler, A.D.; Karlin, K.D. (F8TPP)FeII/O2 Reactivity Studies {F8TPP = Tetrakis(2,6-difluorophenyl)porphyrinate(2−)}:  Spectroscopic (UV−Visible and NMR) and Kinetic Study of Solvent-Dependent (Fe/O2 = 1:1 or 2:1) Reversible O2-Reduction and Ferryl Formation. Inorg. Chem. 2001, 40, 5754–5767. [Google Scholar] [CrossRef]
  60. Hematian, S.; Siegler, M.A.; Karlin, K.D. Nitric Oxide Generation from Heme/Copper Assembly Mediated Nitrite Reductase Activity. J. Biol. Inorg. Chem. 2014, 19, 515–528. [Google Scholar] [CrossRef] [PubMed]
  61. Sheldrick, G.M. SHELXL-2018: Program for Crystal Structure Refinement; University of Göttingen: Göttingen, Germany, 2018. [Google Scholar]

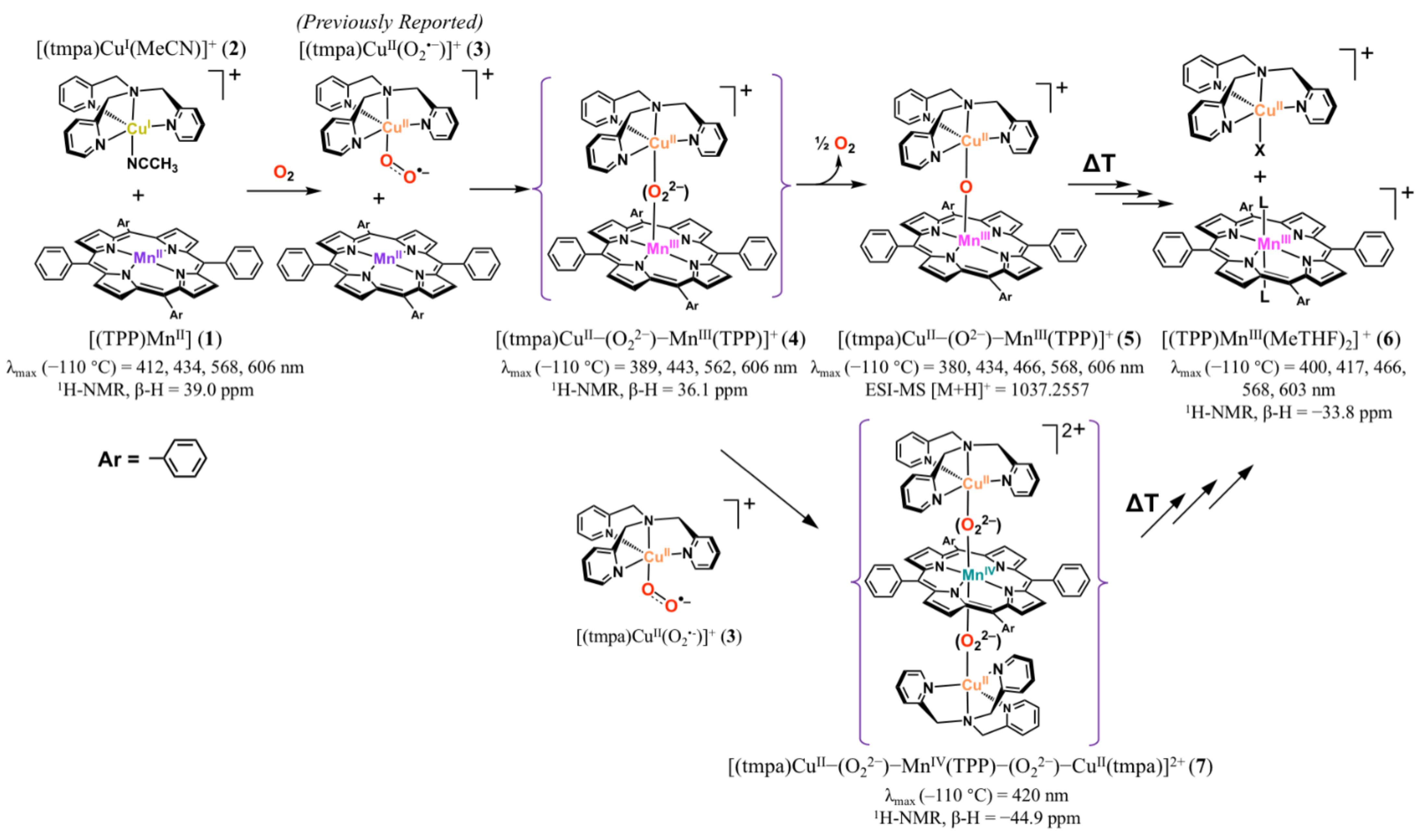

Scheme 1. Proposed reaction steps for the oxygenation of 1:1 and 1:2 mixtures of [(TPP)MnII] (1) and [(tmpa)CuI(MeCN)][B(C6F5)4] (2) in MeTHF leading to the observed products. TPP: Tetraphenylporphyrin; TMPA: Tris(2-pyridylmethyl)amine).
Scheme 1. Proposed reaction steps for the oxygenation of 1:1 and 1:2 mixtures of [(TPP)MnII] (1) and [(tmpa)CuI(MeCN)][B(C6F5)4] (2) in MeTHF leading to the observed products. TPP: Tetraphenylporphyrin; TMPA: Tris(2-pyridylmethyl)amine).
Molecules 27 01000 sch001

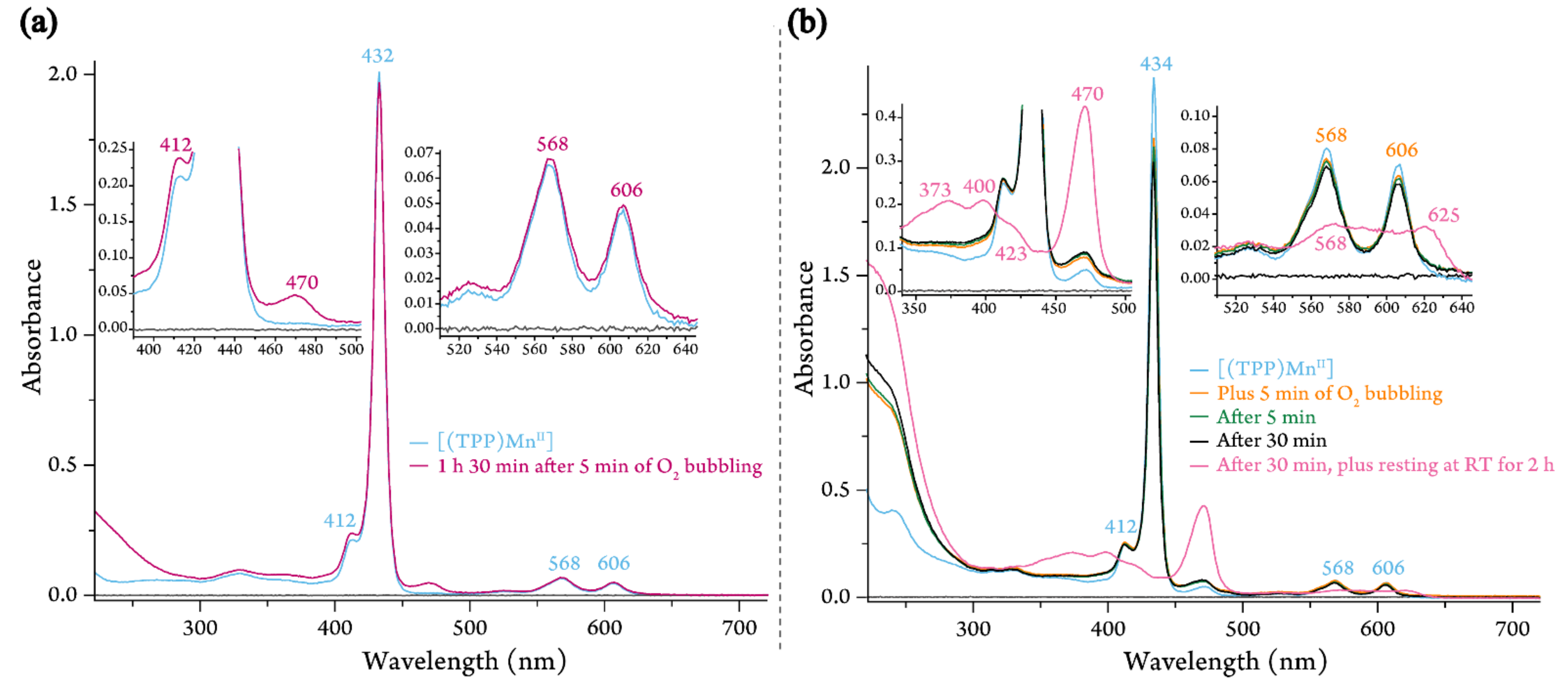

Figure 1. UV-vis spectra of [(TPP)MnII] in MeTHF in a 4-mm cuvette upon 5 min of O2 bubbling at: (a) room temperature (10 µM), and (b) −90 °C (11 µM).
Figure 1. UV-vis spectra of [(TPP)MnII] in MeTHF in a 4-mm cuvette upon 5 min of O2 bubbling at: (a) room temperature (10 µM), and (b) −90 °C (11 µM).
Molecules 27 01000 g001

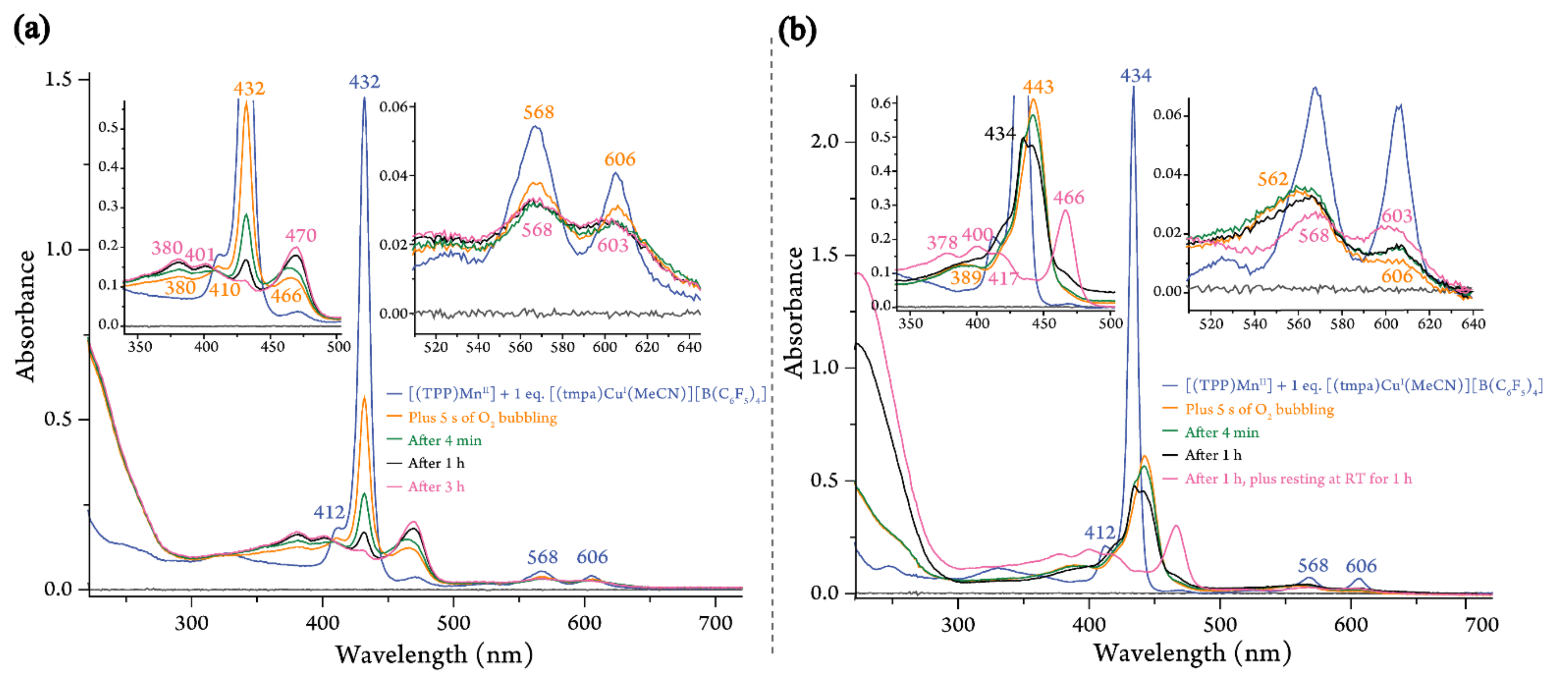

Figure 2. UV-vis spectra of the oxygenation reaction of 1:1 mixture of [(TPP)MnII] and [(tmpa)CuI(MeCN)][B(C6F5)4] in MeTHF in a 4-mm cuvette at: (a) room temperature (7 µM), and (b) −110 °C (8 µM).
Figure 2. UV-vis spectra of the oxygenation reaction of 1:1 mixture of [(TPP)MnII] and [(tmpa)CuI(MeCN)][B(C6F5)4] in MeTHF in a 4-mm cuvette at: (a) room temperature (7 µM), and (b) −110 °C (8 µM).
Molecules 27 01000 g002

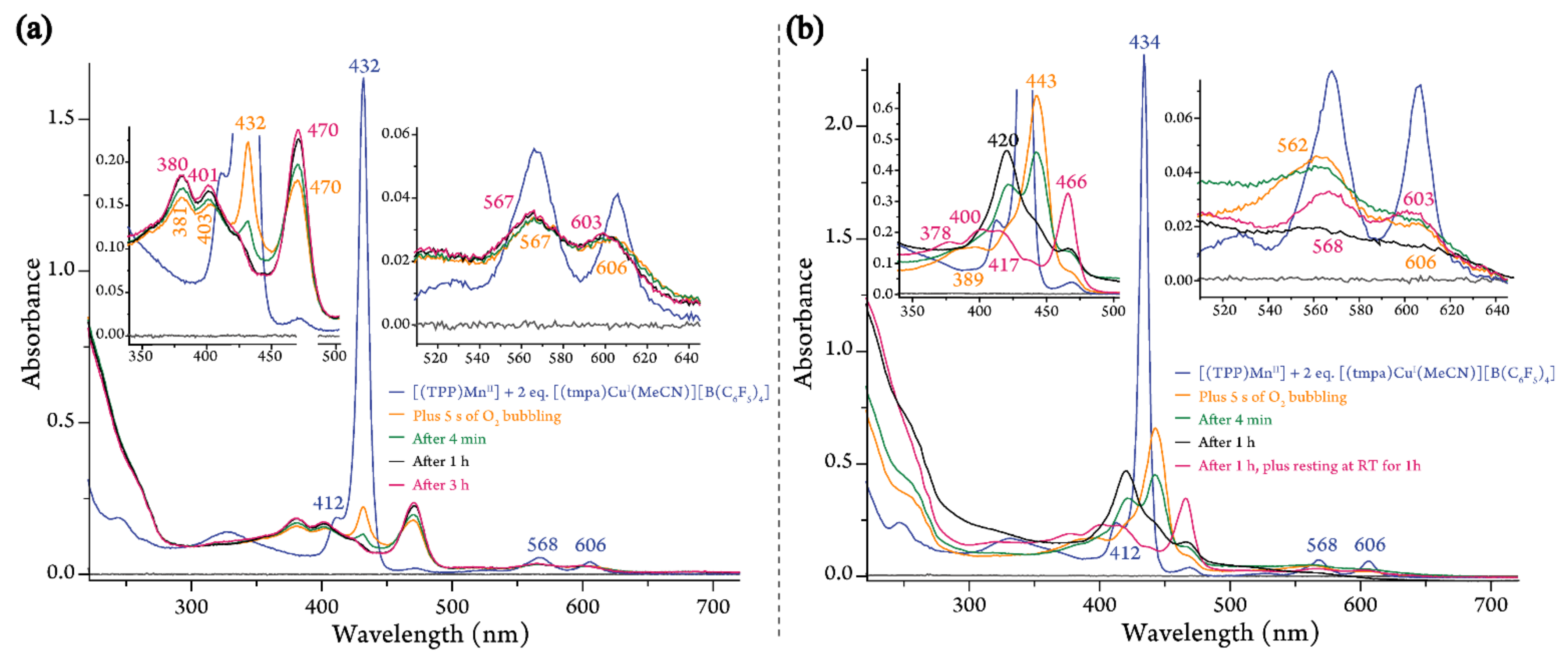

Figure 3. UV-vis spectra of the oxygenation reaction of 1:2 mixture of [(TPP)MnII] and [(tmpa)CuI(MeCN)][B(C6F5)4] in MeTHF in a 4-mm cuvette at: (a) room temperature (7 µM), and (b) −110 °C (8 µM).
Figure 3. UV-vis spectra of the oxygenation reaction of 1:2 mixture of [(TPP)MnII] and [(tmpa)CuI(MeCN)][B(C6F5)4] in MeTHF in a 4-mm cuvette at: (a) room temperature (7 µM), and (b) −110 °C (8 µM).
Molecules 27 01000 g003

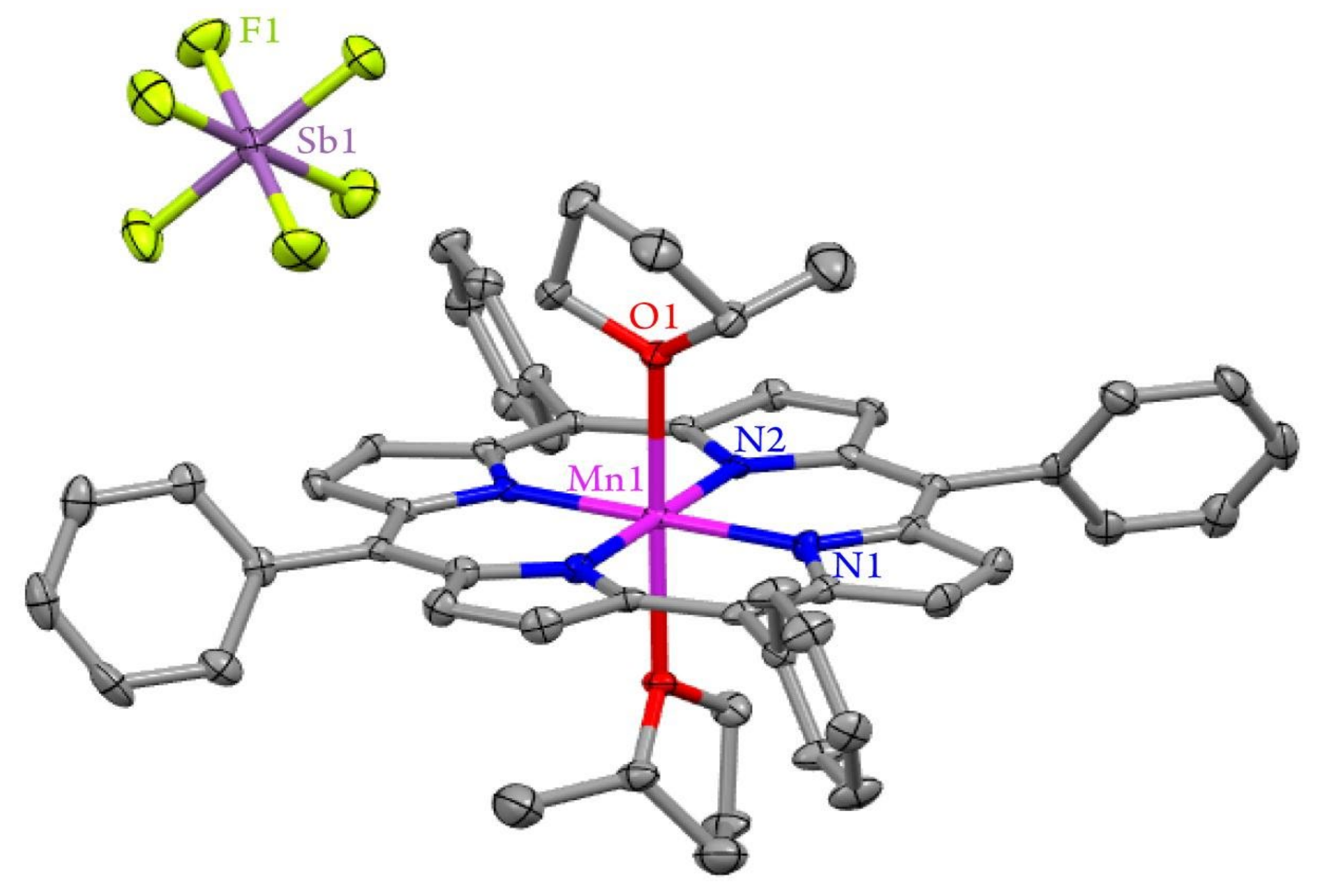

Figure 4. Displacement ellipsoid plot (50% probability level) of [(TPP)MnIII(MeTHF)2]SbF6 at 100(2) K, showing the atom-labeling scheme. Hydrogen atoms and solvent molecules have been omitted for clarity. Selected bond lengths (Å) and angles (deg): Mn(1)-O(1), 2.272(3); Mn(1)-N(1), 2.007(4); Mn(1)-N(2), 2.008(4); O(1)-Mn(1)-O(1a), 177.51(17); N(1)-Mn(1)-N(2), 90.15(17); N(1)-Mn(1)-N(1a), 89.8(2); N(1)-Mn(1)-N(2a), 179.91(19); N(1)-Mn(1)-O(1), 88.43(14); N(1)-Mn(1)-O(1a), 89.81(14); N(2)-Mn(1)-N(2a), 89.9(2); N(2)-Mn(1)-O(1), 90.21(14); N(2)-Mn(1)-O(1a), 91.55(14); N(1a)-Mn(1)-O(1), 89.80(14); N(2a)-Mn(1)-O(1), 91.55(14).
Figure 4. Displacement ellipsoid plot (50% probability level) of [(TPP)MnIII(MeTHF)2]SbF6 at 100(2) K, showing the atom-labeling scheme. Hydrogen atoms and solvent molecules have been omitted for clarity. Selected bond lengths (Å) and angles (deg): Mn(1)-O(1), 2.272(3); Mn(1)-N(1), 2.007(4); Mn(1)-N(2), 2.008(4); O(1)-Mn(1)-O(1a), 177.51(17); N(1)-Mn(1)-N(2), 90.15(17); N(1)-Mn(1)-N(1a), 89.8(2); N(1)-Mn(1)-N(2a), 179.91(19); N(1)-Mn(1)-O(1), 88.43(14); N(1)-Mn(1)-O(1a), 89.81(14); N(2)-Mn(1)-N(2a), 89.9(2); N(2)-Mn(1)-O(1), 90.21(14); N(2)-Mn(1)-O(1a), 91.55(14); N(1a)-Mn(1)-O(1), 89.80(14); N(2a)-Mn(1)-O(1), 91.55(14).
Molecules 27 01000 g004

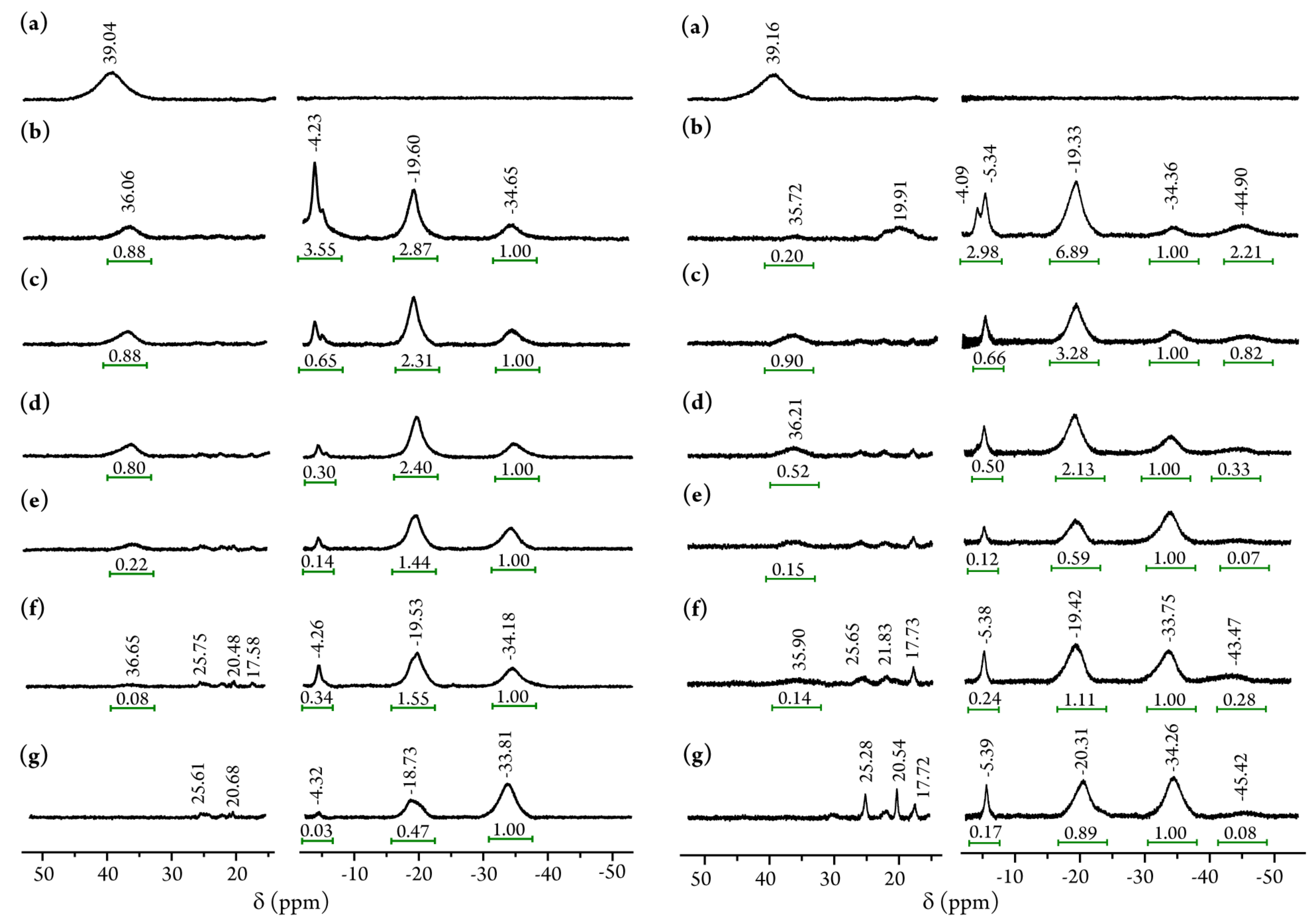

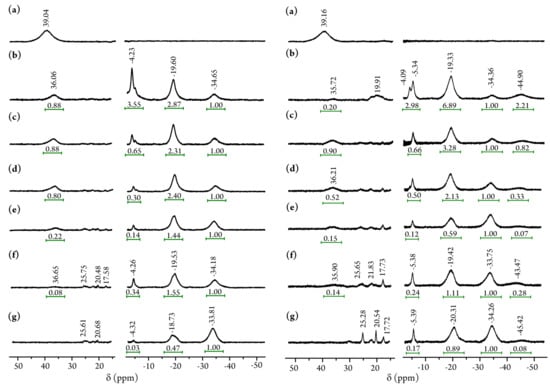

Figure 5. Parts of the 1H-NMR spectra of the oxygenation reaction of a 1:1 mixture, (Left), and 1:2 mixture, (Right), of [(TPP)MnII] and [(tmpa)CuI(MeCN)][B(C6F5)4] (THF-d8, room temperature) at different time intervals: (a) 0 min, (b) 1 min, (c) 15 min, (d) 1 h 30 min, (e) 4 h 30 min, (f) 6 h, and (g) 18 h. The peak for [(TPP)MnIII(THF)2]+ at δ = −34.65 ppm was set as the reference for comparing peak areas.
Figure 5. Parts of the 1H-NMR spectra of the oxygenation reaction of a 1:1 mixture, (Left), and 1:2 mixture, (Right), of [(TPP)MnII] and [(tmpa)CuI(MeCN)][B(C6F5)4] (THF-d8, room temperature) at different time intervals: (a) 0 min, (b) 1 min, (c) 15 min, (d) 1 h 30 min, (e) 4 h 30 min, (f) 6 h, and (g) 18 h. The peak for [(TPP)MnIII(THF)2]+ at δ = −34.65 ppm was set as the reference for comparing peak areas.
Molecules 27 01000 g005

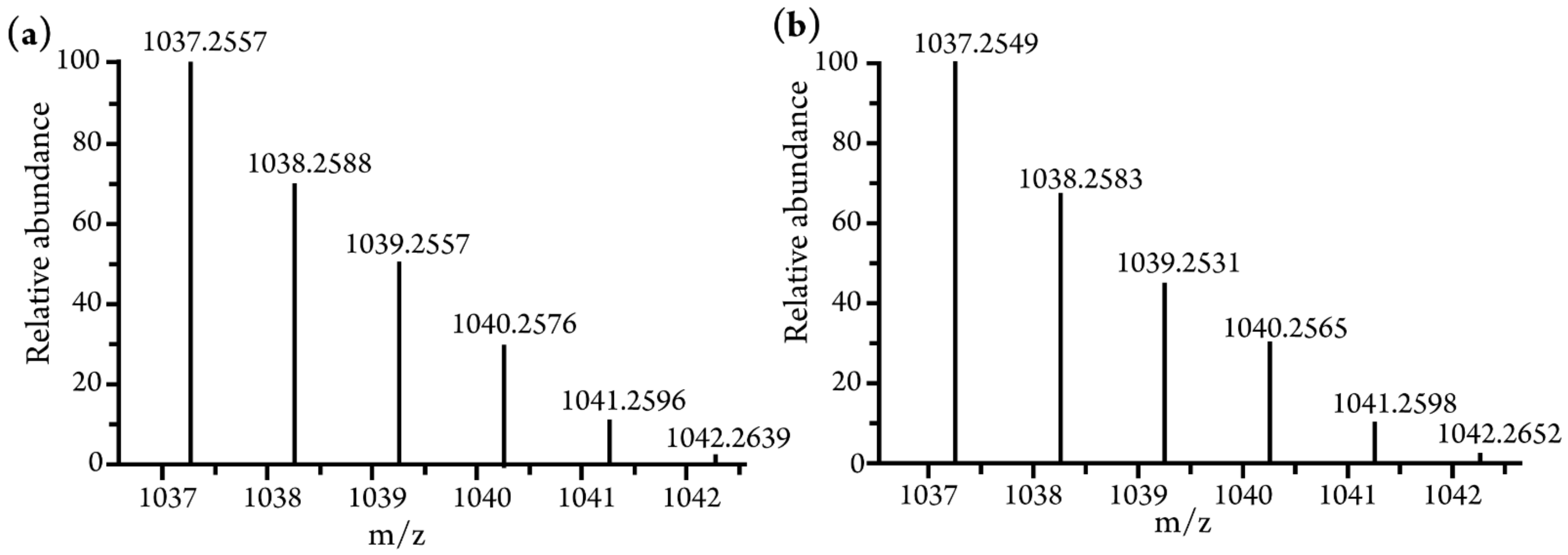

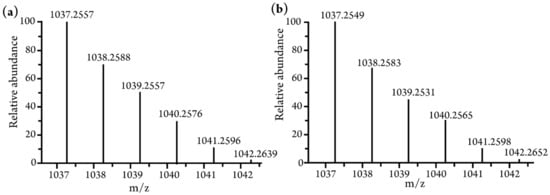

Figure 6. Isotopic distribution pattern of the (a) experimental, and (b) simulated ESI-MS spectra of [(TPP)Mn–O–Cu(tmpa)+H]+. The sample was prepared in MeTHF and recorded in positive-ion mode with a source voltage of 1.0 kV.
Figure 6. Isotopic distribution pattern of the (a) experimental, and (b) simulated ESI-MS spectra of [(TPP)Mn–O–Cu(tmpa)+H]+. The sample was prepared in MeTHF and recorded in positive-ion mode with a source voltage of 1.0 kV.
Molecules 27 01000 g006
Table 1. Examples of UV-vis absorption features reported for MnIV complexes bearing TPP-based ligands.
Table 1. Examples of UV-vis absorption features reported for MnIV complexes bearing TPP-based ligands.
Complex *Solventλmax (nm)Reference
{(TPP)MnIV[(O22−)CuII(tmpa)]2}2+ (7)MeTHF420This work
[(TPP)MnIV(OCH3)2]methanol360, 420, 520[39]
[Cl(TPP)MnIV(OIPh)]2Ochlorobenzene421, 502[40]
[(TMP)MnIV(O)(OH)]DCM422[8]
[(TMP)MnIVCl2]DCM420, 530, 620, 720[41]
benzene420, 535, 720
* TPP: Tetraphenylporphyrin; TMPA: Tris(2-pyridylmethyl)amine); TMP: Tetramesitylporphyrin.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Li, R.; Khan, F.S.T.; Hematian, S. Dioxygen Reactivity of Copper(I)/Manganese(II)-Porphyrin Assemblies: Mechanistic Studies and Cooperative Activation of O2. Molecules 2022, 27, 1000. https://doi.org/10.3390/molecules27031000

AMA Style

Li R, Khan FST, Hematian S. Dioxygen Reactivity of Copper(I)/Manganese(II)-Porphyrin Assemblies: Mechanistic Studies and Cooperative Activation of O2. Molecules. 2022; 27(3):1000. https://doi.org/10.3390/molecules27031000

Chicago/Turabian Style

Li, Runzi, Firoz Shah Tuglak Khan, and Shabnam Hematian. 2022. "Dioxygen Reactivity of Copper(I)/Manganese(II)-Porphyrin Assemblies: Mechanistic Studies and Cooperative Activation of O2" Molecules 27, no. 3: 1000. https://doi.org/10.3390/molecules27031000

APA Style

Li, R., Khan, F. S. T., & Hematian, S. (2022). Dioxygen Reactivity of Copper(I)/Manganese(II)-Porphyrin Assemblies: Mechanistic Studies and Cooperative Activation of O2. Molecules, 27(3), 1000. https://doi.org/10.3390/molecules27031000

Article Metrics

Back to TopTop
