A Tail Does Not Always Make a Difference: Assembly of cds Nets from Co(NCS)2 and 1,4-bis(n-Alkyloxy)-2,5-bis(3,2′:6′,3″-terpyridin-4′-yl)benzene Ligands

by
Simona S. Capomolla
,
Giacomo Manfroni
,
Alessandro Prescimone
,
Edwin C. Constable
and
Catherine E. Housecroft
*
Department of Chemistry, University of Basel, BPR 1096, Mattenstrasse 24a, CH-4058 Basel, Switzerland
*
Author to whom correspondence should be addressed.
Molecules 2022, 27(15), 4995; https://doi.org/10.3390/molecules27154995
Submission received: 29 June 2022 / Revised: 2 August 2022 / Accepted: 4 August 2022 / Published: 5 August 2022
(This article belongs to the Special Issue Exclusive Contributions by the Editorial Board Members (EBMs) of the Inorganic Chemistry Section of Molecules)
Browse Figures
Versions Notes

Abstract

:
The consistent assembly of a (65.8) cds net is observed in reactions of cobalt(II) thiocyanate with 1,4-bis(n-alkyloxy)-2,5-bis(3,2′:6′,3″-terpyridin-4′-yl)benzene ligands in which the n-alkyloxy substituents are n-propyl (ligand 3), n-butyl (4), n-pentyl (5), n-hexyl (6), n-heptyl (7), and n-octyl (8). Crystals were grown by layering a methanol solution of Co(NCS)2 over a 1,2-dichlorobenzene solution of each ligand. The choice of crystallization solvents is critical in directing the assembly of the cds net. Single-crystal structures of [Co(NCS)2(3)]n.3.5nC6H4Cl2, [Co(NCS)2(4)]n.5.5nC6H4Cl2, [Co(NCS)2(5)]n.4nC6H4Cl2, [Co(NCS)2(6)]n.3.8nC6H4Cl2, [Co(NCS)2(7)]n.3.1nC6H4Cl2, and [Co(NCS)2(8)]n.1.6nC6H4Cl2.2nMeOH (C6H4Cl2 = 1,2-dichlorobenzene) are presented and compared. The n-alkyloxy chains exhibit close to extended conformations and are accommodated in cavities in the lattice without perturbation of the coordination framework.

Graphical Abstract

1. Introduction

The first metal coordination compound containing the 3,2′:6′,3″-terpyridine (3,2′:6′,3″-tpy) domain was reported in 2008 by Grafino et al. and demonstrated metal binding by the outer pyridine rings of 4′-phenyl-3,2′:6′,3″-terpyridine (1, Scheme 1) in the discrete molecular complex [Zn2(μ-1)(acac)4]·H2O (Hacac = pentane-2,4-dione) [1]. This ditopic coordination environment is typical of 3,2′:6′,3″-tpy, although coordination through a single pyridine ring has also been observed, often when a coordinatively non-innocent functionality such as a carboxylate has been introduced into the 3,2′:6′,3″-tpy unit [2,3,4,5,6,7,8,9,10,11] or when protonation of a pyridine ring occurs [12,13]. Compared to 4,2′:6′,4”-tpy (Scheme 1), 3,2′:6′,3″-tpy is conformational flexible (Scheme 2), allowing the metal-binding domain to adapt to different environments imposed either by the coordination geometry of a metal center or to spatial constraints within the crystal lattice. However, it is important to note that changes in the conformation of the 3,2′:6′,3″-tpy units do not necessarily result in modification of the coordination network type [14].
Yoshida et al. [15] were the first to report the coordination chemistry of tetratopic ligands combining two divergent terpyridine domains; this included ligand 2 (Scheme 1). In addition to the conformational flexibility described in Scheme 2, ligands such as 2 also exhibit conformational variation arising from bond rotation about the arene spacer–tpy C–C bonds. With reference to the centroid of the central arene ring in 2 and the four outer pyridine N-donors, the ligand is described as a 4-connecting node, and the limiting geometries are defined with the two 3,2′:6′,3″-tpy units being coplanar or orthogonal [16].
In our recent investigations, we have been focusing on coordination networks assembled using combinations of [Cu(hfacac)2] (Hhfacac = hexafluoropentane-2,4-dione) and ligands related to 2 which contain n-alkyloxy substituents bonded to the central arene spacer [17]. The n-alkyloxy groups increase the solubility of the bis(3,2′:6′,3″-tpy) ligands, as well as providing a means of tuning the steric requirements of the ligands. Using ligands 3–8 (Scheme 3) as well as their methoxy and ethoxy-substituted analogs, we demonstrated the dominant assembly of (4,4) nets directed by the bis(3,2′:6′,3″-tpy) ligands acting as 4-connecting nodes. We showed that changes in conformation of the 3,2′:6′,3″-tpy units from I to II (Scheme 2) did not influence the network topology. Related to these observations is the reaction of ligand 2 with [Co(CNacac)2] (HCNacac = 3-cyanopentane-2,4-dione), which also leads to a (4,4)-net with the ligand functioning as a 4-connecting node and the metal center only acting as a linker [15].
By combining bis(3,2′:6′,3″-tpy) ligands with Co(NCS)2, both ligand and metal center have the potential to act as 4-connecting nodes. Typically, coordination of pyridine-based ligands with Co(NCS)2 yields trans-{Co(NCS)2(N)4} domains, which can function as a 4-connecting node in a coordination network. The coordination chemistry of bis(3,2′:6′,3″-tpy) ligands with Co(NCS)2 is still little explored and only four structures appear in the Cambridge Structural Database (CSD) version 2022.1.0 [18], searched using Conquest version 2022.1.0 [19]. However, even with these limited examples, three different networks are exemplified illustrating the flexibility of the bis(3,2′:6′,3″-tpy) building block. In each of the following, crystals were obtained under ambient conditions, using crystal growth by layering. A combination of a 1,2-Cl2C6H4 solution of 9 (Scheme 3) and a MeOH solution of Co(NCS)2 yielded [Co(NCS)2(9)]n.1.6nH2O.1.2nC6H4Cl2, which assembled into a 3D (65.8) cds net [20]. In contrast, use of CHCl3 solutions of 10 and 11 (Scheme 3) and a MeOH solution of Co(NCS)2 produced trinodal self-interpenetrating (62.84)(64.82)(65.8)2 nets, with powder X-ray diffraction data confirming that the single crystal structures were representative of the bulk materials [21]. In each of these structures (CSD refcodes KOXJEP, NORVAU and NORVOI), the asymmetric unit contains either one or two, crystallographically independent half-ligands with the second half generated by inversion. Thus, each ligand in [Co(NCS)2(9)]n.1.6nH2O.1.2nC6H4Cl2 [20], [Co(NCS)2(10)]n.nMeOH.3nCHCl3 [21] and [Co(NCS)2(11)]n.0.8nMeOH.1.8nCHCl3 [21] is a planar, 4-connecting node, and in each structure, the 3,2′:6′,3″-tpy domain adopts conformation II (Scheme 2). We have also observed that layering of a MeOH solution of Co(NCS)2 over a CHCl3 solution of 8 (Scheme 3) resulted in the assembly of a 3D (42.84)(42.84) net (CSD refcode LOTDIJ) [22] directed by a combination of planar, 4-connecting Co nodes and pseudo-tetrahedral ligand nodes (i.e., ligand 8 adopts a conformation in which the two 3,2′:6′,3″-tpy units approach orthogonality). In [Co(NCS)2(8)]n.4nCHCl3, ligand 8 adopts conformation I (Scheme 2). These latter results motivated us to further investigate network assembly using Co(NCS)2 and bis(3,2′:6′,3″-tpy) ligands, and we chose to use ligands 3–8 with a common solvent combination of methanol and 1,2-dichlorobenzene. A reason for investigating the series 3–8 is that we have previously observed changes in coordination assembly as a result of varying the length of the n-alkyloxy chain in series of 3,2′:6′,3″-tpy and 4,2′:6′,4″-tpy ligands [23,24,25,26].

2. Results and Discussion

2.1. Crystal Growth Conditions

We have previously reported the synthesis and characterization of compounds 3–8. Crystal growth experiments were carried out under ambient conditions (ca. 22 °C) by layering a MeOH solution of Co(NCS)2 over a 1,2-Cl2C6H4 solution of each ligand. Reactions were carried out on the same scale with the same concentrations of solutions, and X-ray quality crystals were obtained in periods ranging from 21 days to two months (see Section 3).

2.2. Single Crystal Structures

The compounds [Co(NCS)2(3)]n.3.5nC6H4Cl2 and [Co(NCS)2(4)]n.5.5nC6H4Cl2 crystallized in the monoclinic space group P21/c, while [Co(NCS)2(5)]n.4nC6H4Cl2, [Co(NCS)2(6)]n.3.8nC6H4Cl2, [Co(NCS)2(7)]n.3.1nC6H4Cl2 and [Co(NCS)2(8)]n.1.6nC6H4Cl2.2nMeOH crystallized in the monoclinic space group P21/n. All six compounds exhibit similar, extended structures and we therefore discuss them together. The structures of the asymmetric units with atom numbering are shown in Figures S1–S6 in the Supporting Material. Each bis(3,2′:6′,3″-tpy) ligand binds to four different {Co(NCS)2} units and therefore functions as a 4-connecting node. Each Co(II) center is 6-coordinate and is in a trans-{Co(NCS)2(N)4} environment, coordinated by four different bis(3,2′:6′,3″-tpy) ligands. Thus, each Co(II) is also a 4-connecting node. Figure 1 illustrates this for [Co(NCS)2(3)]n.3.5nC6H4Cl2 as representative of the six structures. Selected bond parameters are given in Table 1; the Co–N bond lengths are unexceptional, and the N –Co–N bond angles are all close to 90°, consistent with a regular octahedral coordination sphere.
The asymmetric unit in each of the structures of the complexes containing 3, 5, 6, 7 and 8 contains half of one independent ligand, with the second half being generated by inversion (Figures S1 and S3–S6 in the Supporting Material). Thus, symmetry dictates that the four N-donors are coplanar. In [Co(NCS)2(4)]n.5.5nC6H4Cl2, the asymmetric unit contains one whole and one-half independent ligands. For the latter, the ligand is completed by inversion and so, again, the four N-donors (N7, N9, N7i, N9i in Figure S2) are coplanar. For the crystallographically independent ligand containing N1, N2, N3 and N4 (Figure S2), the angle between the plane containing N1, N2 and the centroid of the arene spacer, and the plane containing N3, N4 and the centroid of the arene ring, is 3.4°. This ligand is therefore also a planar, 4-connecting node, and while the ligands in [Co(NCS)2(4)]n.5.5nC6H4Cl2 are crystallographically independent, they are topologically equivalent. Therefore, in all six structures, both the bis(3,2′:6′,3″-tpy) ligand and the cobalt center are planar, 4-connecting nodes and the assemblies propagate into 3D networks with a cds topology. This is one of the more common networks comprising planar 4-connecting nodes [27,28]; half of the adjacent nodes are coplanar and half are mutually perpendicular. This is shown for [Co(NCS)2(3)]n.3.5nC6H4Cl2 in Figure 2, in which the ligand and metal nodes are shown in red and blue, respectively. The coordination networks with 3–8 are structurally related to that in [Co(NCS)2(9)]n.1.6nH2O.1.2nC6H4Cl2, crystals of which were also grown using a MeOH/1,2-Cl2C6H4 mixture [20]. The cds net was also found for [Co(NCS)2(12)]n.2nC6H4Cl2 (see Scheme 3 for ligand 12) in which 12 is an isomer of 3 [29].
In each compound, the 3,2′:6′,3″-tpy unit adopts conformation II (Scheme 2), and the angles between the least-squares planes of bonded pairs of aromatic rings in the coordinated ligands 3–8 show striking similarities (Table 2). This is further demonstrated in the overlay of one building block from each structure displayed in Figure 3. In each structure, the n-alkyloxy chains are in close to extended conformations and it is noteworthy that the increase in steric demands of the substituents has negligible effect on the overall structure as discussed below. Packing diagrams of the six structures with solvent molecules omitted are displayed in comparable orientations in Figure 4 and illustrate how the n-alkyloxy chains are accommodated in analogous cavities with little impact on the 3D framework. The solvent-accessible void space was calculated using Mercury version 2022.1.0 [30] with a contact surface map with probe radius of 1.2 Å. The decrease from 49.3% to 34.4% (Table 3) is consistent with the increase in the steric demands of the n-alkyloxy chains.

2.3. Bulk Sample Analysis

Powder X-ray diffraction (PXRD) and solid-state IR spectroscopy were used to analyze the bulk materials after single crystals had been selected for single-crystal X-ray diffraction. The IR spectra are shown in Figures S7–S12, and a strong absorption at 2065, 2069, 2069, 2067, 2068 or 2056 cm−1 for the compound containing ligands 3, 4, 5, 6, 7 or 8, respectively, was assigned to the ν(CN) mode of the coordinated thiocyanato ligands. The fingerprint regions of the IR spectra are all similar.
For [Co(NCS)2(6)]n.3.8nC6H4Cl2, an excellent fit was found between the experimental PXRD pattern for the bulk material and the pattern predicted from the single-crystal structure (Figure 5). However, for the remaining compounds, good fits were not obtained, most likely because of solvent loss which occurs on standing at ambient temperatures. Overlays of the experimental PXRD (298 K) for the bulk material and that predicted from the single crystal structures (150 K) of [Co(NCS)2(3)]n.3.5nC6H4Cl2 and [Co(NCS)2(4)]n.5.5nC6H4Cl2 are shown in Figures S13 and S14.
For [Co(NCS)2(3)]n.3.5nC6H4Cl2, [Co(NCS)2(4)]n.5.5nC6H4Cl2 and [Co(NCS)2(6)]n.3.8nC6H4Cl2, thermogravimetric analysis (TGA) coupled with mass spectrometry was used to investigate loss of solvent from the lattice upon heating. The results are summarized in Table 4. The crystals of the coordination polymers were heated to 210 °C. Loss of 1,2-dichlorobenzene was detected with mass peaks at m/z 146, 148 and 111 (arising from C6H435Cl2+, C6H435Cl37Cl+ and C6H435Cl+). Detection at m/z 31.0 was used to check for loss of MeOH; none or a negligible amount was observed (Figures S15–S17). [Co(NCS)2(4)]n.5.5nC6H4Cl2 and [Co(NCS)2(6)]n.3.8nC6H4Cl2 exhibit loss of C6H4Cl2 in two steps, while [Co(NCS)2(3)]n.3.5nC6H4Cl2 shows a three-step process (Figures S15–S17).

2.4. Role of Solvents

The consistency of the cds net in the [Co(NCS)2(L)]n family for L = 3–8 and as well as 9 [20] when crystallization conditions are the same, and the appearance of other nets when different solvent systems are used [20,21] indicates that the role of the solvents is a critical factor in directing the assembly while retaining the 4-connecting Co(NCS)2 and bis(3,2′:6′,3″-tpy) nodes. For ligand 4, a change in crystallization solvents from MeOH and 1,2-dichlorobenzene to MeOH and CHCl3 resulted in a material which crystallized in the triclinic space group P–1 with cell dimensions a = 17.6394(3), b = 20.7435(4), c = 21.1158(4) Å, α = 79.009(2), β = 65.2470(10), γ = 64.8080(10)°. Preliminary crystallographic data revealed the assembly of a trinodal self-penetrating network analogous to those observed for [Co(NCS)2(10)]n.nMeOH.3nCHCl3 and [Co(NCS)2(11)]n.0.8nMeOH.1.8nCHCl3 [21]. We are currently investigating further the effects of solvent on crystal growth in the reactions of Co(NCS)2 with ligands structurally related to 3–9.

3. Materials and Methods

3.1. General

Compounds 3–7 [17] and 8 [22] were prepared as previously reported. Co(NCS)2 was purchased from Alfa Aesar (Kandel Germany) and was used as received.
FT-IR spectra were recorded on a PerkinElmer UATR Two instrument.

3.2. [Co(NCS)2(3)]n.3.5nC6H4Cl2

A solution of Co(NCS)2 (1.8 mg, 10 μmol) in MeOH (5 mL) was layered over a 1,2-dichlorobenzene solution (4 mL) of ligand 3 (6.6 mg, 10 μmol). Pink plate-shaped crystals grew after 26 days, and a single crystal was selected for X-ray diffraction. The remaining crystals were analyzed by PXRD and FT-IR spectroscopy.

3.3. [Co(NCS)2(4)]n.5.5nC6H4Cl2

A solution of Co(NCS)2 (1.8 mg, 10 μmol) in MeOH (5 mL) was layered over a 1,2-dichlorobenzene solution (4 mL) of ligand 4 (6.9 mg, 10 μmol). Pink block-shaped crystals grew after 34 days, and a single crystal was selected for X-ray diffraction. The remaining crystals were analyzed by PXRD and FT-IR spectroscopy.

3.4. [Co(NCS)2(5)]n.4nC6H4Cl2

A solution of Co(NCS)2 (1.8 mg, 10 μmol) in MeOH (5 mL) was layered over a 1,2- dichlorobenzene solution (4 mL) of ligand 5 (7.1 mg, 10 μmol). Pink block-shaped crystals grew after 21 days, and one X-ray quality crystal was chosen. The remaining crystals were analyzed by PXRD and FT-IR spectroscopy.

3.5. [Co(NCS)2(6)]n.3.8nC6H4Cl2

A solution of Co(NCS)2 (1.8 mg, 10 μmol) in MeOH (5 mL) was layered over a 1,2-dichlorobenzene solution (4 mL) of ligand 6 (7.4 mg, 10 μmol). Pink block-shaped crystals grew after 24 days, and one X-ray quality crystal was chosen. The remaining crystals were analyzed by PXRD and FT-IR spectroscopy.

3.6. [Co(NCS)2(7)]n.3.1nC6H4Cl2

A solution of Co(NCS)2 (1.8 mg, 10 μmol) in MeOH (5 mL) was layered over a 1,2-dichlorobenzene solution (4 mL) of ligand 7 (7.7 mg, 10 μmol). Pink block-shaped crystals grew within two months, and one X-ray quality crystal was chosen. The remaining crystals were analyzed by PXRD and FT-IR spectroscopy.

3.7. [Co(NCS)2(8)]n.1.6nC6H4Cl2.2nMeOH

A solution of Co(NCS)2 (1.8 mg, 10 μmol) in MeOH (5 mL) was layered over a 1,2-dichlorobenzene solution (4 mL) of ligand 8 (8.0 mg, 10 μmol). Pink block-shaped crystals grew within two months, and one X-ray quality crystal was chosen. The remaining crystals were analyzed by PXRD and FT-IR spectroscopy.

3.8. Crystallography

Single crystal data were collected on a STOE StadiVari Eulerian 4-circle diffractometer (CuKα radiation) equipped with a Dectris Eiger2 1M detector, or using a STOE StadiVari diffractometer equipped with a Pilatus300K detector and with a Metaljet D2 source (GaKα radiation) with data processing using STOE software (X-Area 1.90, STOE, 2020). Structures were solved using Superflip [31,32] and Olex2 [33]. The model was refined with ShelXL v. 2018/3 [34]. All H atoms were included at geometrically calculated positions and refined using a riding model with Uiso = 1.2 of the parent atom. Structure analysis and structural diagrams used CSD Mercury 2022.1.0 [30].
In most structures, the sulfur atom of the [NCS]− unit and the n-alkyloxy chains suffered from disorder. Details of the treatment of the disorders and site occupancies are given in the Supplementary Materials in the relevant figure captions. The solvent molecules in all the structures were disordered. In [Co(NCS)2(4)]n.5.5nC6H4Cl2, [Co(NCS)2(7)]n.3.1nC6H4Cl2 and [Co(NCS)2(8)]n.1.6nC6H4Cl2.2nMeOH geometrical restraints for the aromatic ring and restraints for the thermal parameters had to be used to treat the 1,2-Cl2C6H4 molecules. A solvent mask was applied to treat part or all of the solvent region in [Co(NCS)2(3)]n.3.5nC6H4Cl2, [Co(NCS)2(4)]n.5.5nC6H4Cl2, [Co(NCS)2(7)]n.3.1nC6H4Cl2 and [Co(NCS)2(8)]n.1.6nC6H4Cl2.2nMeOH. In each case, the electron density removed was accounted for in terms of added solvent molecules, and these were added to the formulae and all appropriate numbers.
PXRD data were collected at 295 K in transmission mode using a Stoe Stadi P diffractometer equipped with CuKα1 radiation (Ge(111) monochromator and a DECTRIS MYTHEN 1K detector). Whole-pattern profile matching analysis [35,36,37] of the diffraction patterns was performed using the package FULLPROF SUITE (v. January 2021) [37,38] applying a previously determined instrument resolution function based on a NIST640d standard. The structural models were derived from the single crystal X-ray diffraction data. Refined parameters in Rietveld were scale factor, zero shift, lattice parameters, background points, and peak shapes as a Thompson-Cox-Hastings pseudo-Voigt function. Preferred orientations as a March–Dollase multi-axial phenomenological model were incorporated into the analysis.
Thermogravimetric analysis was carried out under nitrogen on a TGA5500 instrument coupled to a Discovery II MS, Cirrus 3 mass spectrometer. A Barchart scanning method in the mass range 10–125 or 12–160 was used, and the temperature of the TGA instrument was initially stabilized at 30 °C. The samples were heated to 210 °C, and this was maintained for 30 min.
[Co(NCS)2(3)]n.3.5nC6H4Cl2: C65H50Cl7CoN8O2S2, Mr = 1346.33, pink plate, monoclinic, space group P21/c, a = 14.7191(2) Å, b = 15.0949(2) Å, c = 16.6847(2) Å, β = 115.5830(10)°, V = 3343.62(8) Å3, Dc = 1.337 g cm−3, T = 150 K, Z = 2, µ(CuKα) = 5.556 mm−1, 52602 reflections measured, 6247 unique (Rint = 0.0451). Refinement of 5968 reflections (259 parameters) with I > 2σ(I) converged at final R1 = 0.1150 (R1 all data = 0.1178), wR2 = 0.3133 (wR2 all data = 0.3159), gof = 1.052. CCDC 2180678.
[Co(NCS)2(4)]n.5.5nC6H4Cl2: C152.34H135.33Cl10.67Co2N16O4S4, Mr = 2878.52, pink block, monoclinic, space group P21/c, a = 15.0516(10) Å, b = 14.9277(5) Å, c = 46.097(2) Å, β = 98.736(4)°, V = 10237.1(9) Å3, Dc = 1.401 g cm−3, T = 150 K, Z = 3, µ(CuKα) = 4.895 mm−1, 80876 reflections measured, 19075 unique (Rint = 0.0550). Refinement of 12630 reflections (1014 parameters) with I > 2σ(I) converged at final R1 = 0.1267 (R1 all data = 0.1699), wR2 = 0.3098 (wR2 all data = 0.3534), gof = 1.082. CCDC 2180679.
[Co(NCS)2(5)]n.4nC6H4Cl2: C72H60Cl8CoN8O2S2, Mr = 1475.93, pink block, monoclinic, space group P21/n, a = 15.3929(3) Å, b = 14.4011(4) Å, c = 16.7954(4) Å, β = 112.716(2)°, V = 3434.31(15) Å3, Dc = 1.427 g cm−3, T = 150 K, Z = 2, µ(GaKα) = 3.926 mm−1, 29543 reflections measured, 6585 unique (Rint = 0.0594). Refinement of 6270 reflections (392 parameters) with I > 2σ(I) converged at final R1 = 0.0853 (R1 all data = 0.0881), wR2 = 0.2228 (wR2 all data = 0.2251), gof = 1.048. CCDC 2180677.
[Co(NCS)2(6)]n.3.8nC6H4Cl2: C72.80H63.20Cl7.60CoN8O2S2, Mr = 1474.58, pink block, monoclinic, space group P21/n, a = 15.4135(4) Å, b = 14.3925(2) Å, c = 16.9214(4) Å, β = 112.398(2)°, V = 3470.63(14) Å3, Dc = 1.411 g cm−3, T = 150 K, Z = 2, µ(GaKα) = 3.791 mm−1, 24990 reflections measured, 6666 unique (Rint = 0.0371). Refinement of 6327 reflections (496 parameters) with I > 2σ(I) converged at final R1 = 0.0578 (R1 all data = 0.0603), wR2 = 0.1523 (wR2 all data = 0.1551), gof = 1.050. CCDC 2180674.
[Co(NCS)2(7)]n.3.1nC6H4Cl2: C70.60H64.40Cl6.20CoN8O2S2, Mr = 1399.74, pink block, monoclinic, space group P21/n, a = 15.2267(4) Å, b = 14.6023(3) Å, c = 16.9263(5) Å, β = 114.392(2)°, V = 3427.55(16) Å3, Dc = 1.356 g cm−3, T = 150 K, Z = 2, µ(CuKα) = 5.159 mm−1, 28723 reflections measured, 6654 unique (Rint = 0.0307). Refinement of 6173 reflections (390 parameters) with I > 2σ(I) converged at final R1 = 0.0985 (R1 all data = 0.1033), wR2 = 0.2408 (wR2 all data = 0.2452), gof = 1.024. CCDC 2180676.
[Co(NCS)2(8)]n.1.6nC6H4Cl2.2nMeOH: C65.60H70.40Cl3.20CoN8O4S2, Mr = 1271.39, pink block, monoclinic, space group P21/n, a = 15.2229(2) Å, b = 14.5275(2) Å, c = 16.8735(2) Å, β = 113.7470(10)°, V = 3415.64(8) Å3, Dc = 1.236 g cm−3, T = 150 K, Z = 2, µ(CuKα) = 4.090 mm−1, 30773 reflections measured, 6692 unique (Rint = 0.0394). Refinement of 6169 reflections (315 parameters) with I > 2σ(I) converged at final R1 = 0.1542 (R1 all data = 0.1608), wR2 = 0.3216 (wR2 all data = 0.3251), gof = 0.999. CCDC 2180675.

4. Conclusions

We have reported the single-crystal structures of [Co(NCS)2(3)]n.3.5nC6H4Cl2, [Co(NCS)2(4)]n.5.5nC6H4Cl2, [Co(NCS)2(5)]n.4nC6H4Cl2, [Co(NCS)2(6)]n.3.8nC6H4Cl2, [Co(NCS)2(7)]n.3.1nC6H4Cl2, and [Co(NCS)2(8)]n.1.6nC6H4Cl2.2nMeOH, in which the ligands 3–8 are bis(3,2′:6′,3″-tpy) ligands with n-alkyloxy substituents ranging from n-propyl to n-octyl. Crystals were grown by layering a MeOH solution of Co(NCS)2 over a 1,2-Cl2C6H4 solution of 3–8. For each compound, the assembly of a (65.8) cds net was observed. Despite the increasing steric demands of the ligands, the network remains little perturbed, and the n-alkyloxy chains (all in extended) are accommodated in cavities in the lattice with a concomitant decrease in the solvent-accessible void space within the net. The assembly of the cds net rather than other possible nets is critically dependent upon the choice of solvents for the crystal growth. We are currently exploring the effects of using different solvent systems and will report on these findings in the near future.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules27154995/s1, Figures S1–S6: Structural figures with atom numbering; Figures S7–S12: solid-state IR spectra of the coordination compounds. Figure S13: Overlay of the experimental (blue) PXRD (298 K) for the bulk material and that predicted (black) from the single crystal structure (150 K) of [Co(NCS)2(3)]n.3.5nC6H4Cl2. Figure S14: Overlay of the experimental (blue) PXRD (298 K) for the bulk material and that predicted (black) from the single crystal structure (150 K) of [Co(NCS)2(4)]n.5.5nC6H4Cl2. Figure S15: TGA and mass spectrometric traces for the analysis of [Co(NCS)2(3)]n.3.5nC6H4Cl2. Red: temperature vs. time; black: weight of sample vs. time; dark blue: mass detection for m/z 146, 148 and 111; orange: mass detection for m/z 31.0. Figure S16: TGA and mass spectrometric traces for the analysis of [Co(NCS)2(4)]n.5.5nC6H4Cl2. Red: temperature vs. time; black: weight of sample vs. time; dark blue: mass detection for m/z 146, 148 and 111; orange: mass detection for m/z 31.0. Figure S17: TGA and mass spectrometric traces for the analysis of [Co(NCS)2(6)]n.3.8nC6H4Cl2. Red: temperature vs. time; black: weight of sample vs. time; dark blue: mass detection for m/z 146, 148 and 111; orange: mass detection for m/z 31.0.

Author Contributions

Experimental: S.S.C.; crystallography: G.M. and A.P.; powder diffraction and analysis: S.S.C.; manuscript writing and structure analysis: S.S.C. and C.E.H.; manuscript editing: all authors; funding, project concepts and supervision: C.E.H. and E.C.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded in part by the Swiss National Science Foundation, grant number 200020_182559.

Data Availability Statement

Original data will be placed on zenodo.org after paper publication.

Acknowledgments

We acknowledge the support of the University of Basel.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

No samples are available.

References

  1. Grafino, J.; Vargas, M.; Garland, M.T.; Ibáñez, A.; Gaviño, R.; Baggio, R. The novel ligand 4′-phenyl-3,2′:6′,3″-terpyridine (L) and the supramolecular structure of the dinuclear complex [Zn2(μ-L)(acac)4].H2O (acac = acetylacetonato). Inorg. Chem. Comm. 2008, 11, 1388–1391. [Google Scholar] [CrossRef]
  2. Yang, P.; Wang, M.-S.; Shen, J.-J.; Li, M.-X.; Wang, Z.-X.; Shaob, M.; He, X. Seven novel coordination polymers constructed by rigid 4-(4-carboxyphenyl)-terpyridine ligands: Synthesis, structural diversity, luminescence and magnetic properties. Dalton Trans. 2014, 43, 1460–1470. [Google Scholar] [CrossRef] [PubMed]
  3. Xu, B.; Luo, F.; Tang, G.; Zhang, J. A 4-(4-carboxphenyl)-3,2′:6′,3″-terpyridine-based luminescent cadmium(II) coordination polymer for the detection of 2,4,6-trinitrophenol. Acta Crystallogr. 2019, C75, 508–513. [Google Scholar] [CrossRef]
  4. Li, N.; Zhu, Q.-E.; Hu, H.-M.; Guo, H.-L.; Xie, J.; Wang, F.; Dong, F.-X.; Yang, M.-L.; Xue, G.-L. Hydrothermal syntheses, crystal structures and luminescence properties of zinc(II) coordination polymers constructed by bifunctional 4′-(4-carboxyphenyl)-3,2′:6′,3″-terpyridine. Polyhedron 2013, 49, 207–215. [Google Scholar] [CrossRef]
  5. Cheng, Y.; Yang, M.-L.; Hu, H.-M.; Xu, B.; Wang, X.; Xue, G. Syntheses, structures and luminescence for zinc coordination polymers based on a multifunctional 4′-(3-carboxyphenyl)-3,2′:6′,3″-terpyridine ligand. J. Solid State Chem. 2016, 239, 121–130. [Google Scholar] [CrossRef]
  6. Wang, T.-T.; Zhang, J.-L.; Hu, H.-M.; Cheng, Y.; Xue, L.-L.; Wang, X.; Wang, B.-Z. Syntheses, structures and luminescent properties of Zn/Cd coordination polymers based on 4′-(2-carboxyphenyl)-3,2′:6′,3″-terpyridine. Polyhedron 2018, 151, 43–50. [Google Scholar] [CrossRef]
  7. Zheng, L.-N.; Cheng, Y.; Hu, H.-M.; Bai, C.; Wang, X.; Xue, G. Syntheses, structures and magnetic properties for transition metal coordination polymers based on polycarboxylate and isomeric terpyridyl carboxylate ligands. J. Solid State Chem. 2019, 272, 210–220. [Google Scholar] [CrossRef]
  8. Wang, J.; Yuan, F.; Hu, H.-M.; Bai, C.; Xue, G.-L. Nitro explosive and cation sensing by a luminescent 2D Cu(I) coordination polymer with multiple Lewis basic sites. Inorg. Chem. Commun. 2016, 73, 37–40. [Google Scholar] [CrossRef]
  9. Toledo, D.; Pena, O.; Roisnel, T.; Pivan, J.-Y.; Moreno, Y. New cobalt(II) coordination polymer based on carboxyphenyl-tpy ligand: Photoluminescence, crystal structures and magnetic properties, without orbital contribution. J. Coord. Chem. 2018, 71, 22–34. [Google Scholar] [CrossRef]
  10. Zhang, T.-H.; Bai, C.; Hu, H.-M.; Zhang, J.-L.; Li, X.-Y.; Wang, X.; Wang, B.-Z. Cadmium(II) and cobalt(II) coordination compounds based on a benzenesulfonic terpyridine ligand: Syntheses, structures, luminescent sensing and magnetic properties. J. Solid State Chem. 2021, 298, 122148. [Google Scholar] [CrossRef]
  11. Li, N.; Guo, H.-L.; Hu, H.-M.; Song, J.; Xu, B.; Yang, M.-L.; Dong, F.-X.; Xue, G.-L. Hydrothermal syntheses, crystal structures and luminescence properties of zinc(II) and cadmium(II) coordination polymers based on bifunctional 3,2′:6′,3″-terpyridine-4′-carboxylic acid. J. Solid State Chem. 2013, 198, 416–423. [Google Scholar] [CrossRef]
  12. Zhang, L.; Li, C.-J.; He, J.-E.; Chen, Y.-Y.; Zheng, S.-R.; Fan, J.; Zhang, W.-G. Construction of New Coordination Polymers from 4′-(2,4-disulfophenyl)-3,2′:6′,3″-terpyridine: Polymorphism, pH-dependent syntheses, structures, and properties. J. Solid State Chem. 2016, 233, 444–454. [Google Scholar] [CrossRef]
  13. Wang, J.; Lu, L.; Ding, Q.; Zhang, S.-L.; Wang, J.; Singh, A.; Kumar, A.; Ma, A. Multi-responsive luminescent 2D Zn(II)-based coordination polymer for detection of trinitrophenol and Fe3+. J. Coord. Chem. 2020, 73, 307–316. [Google Scholar] [CrossRef]
  14. Rocco, D.; Novak, S.; Prescimone, A.; Constable, E.C.; Housecroft, C.E. Manipulating the Conformation of 3,2′:6′,3″-Terpyridine in [Cu2(μ-OAc)4(3,2′:6′,3″-tpy)]n 1D-Polymers. Chemistry 2021, 3, 182–198. [Google Scholar] [CrossRef]
  15. Yoshida, J.; Nishikiori, S.; Yuge, H. Bis(3-cyano-pentane-2,4-dionato) Co(II) as a linear building block for coordination polymers: Combinations with two polypyridines. J. Coord. Chem. 2013, 66, 2191–2200. [Google Scholar] [CrossRef]
  16. Constable, E.C.; Housecroft, C.E. Tetratopic bis(4,2′:6′,4″-terpyridine) and bis(3,2′:6′,3″-terpyridine) Ligands as 4-Connecting Nodes in 2D-Coordination Networks and 3D-Frameworks. J. Inorg. Organomet. Polym. Mater. 2018, 28, 414–427. [Google Scholar] [CrossRef] [Green Version]
  17. Capomolla, S.S.; Manfroni, G.; Prescimone, A.; Constable, E.C.; Housecroft, C.E. Versatility within (4,4) networks assembled from 1,4-bis(n-alkyloxy)-2,5-bis(3,2′:6′,3″-terpyridin-4′-yl)benzene and [Cu(hfacac)2] (Hhfacac = 1,1,1,5,5,5-hexafluoropentane-2,4-dione). Polyhedron 2022, 224, 116005. [Google Scholar] [CrossRef]
  18. Groom, C.R.; Bruno, I.J.; Lightfoot, M.P.; Ward, S.C. The Cambridge Structural Database. Acta Crystallogr. 2016, B72, 171–179. [Google Scholar] [CrossRef]
  19. Bruno, I.J.; Cole, J.C.; Edgington, P.R.; Kessler, M.; Macrae, C.F.; McCabe, P.; Pearson, J.; Taylor, R. New software for searching the Cambridge Structural Database and visualising crystal structures. Acta Crystallogr. 2002, B58, 389–397. [Google Scholar] [CrossRef]
  20. Klein, Y.M.; Prescimone, A.; Karpacheva, M.; Constable, E.C.; Housecroft, C.E. Sometimes the Same, Sometimes Different: Understanding Self-Assembly Algorithms in Coordination Networks. Polymers 2018, 10, 1369. [Google Scholar] [CrossRef] [Green Version]
  21. Manfroni, G.; Prescimone, A.; Batten, S.R.; Klein, Y.M.; Gawryluk, D.J.; Constable, E.C.; Housecroft, C.E. Trinodal Self-Penetrating Nets from Reactions of 1,4-Bis(alkoxy)-2,5-bis(3,2′:6′,3″-terpyridin-4′-yl)benzene Ligands with Cobalt(II) Thiocyanate. Crystals 2019, 9, 529. [Google Scholar] [CrossRef] [Green Version]
  22. Klein, Y.M.; Constable, E.C.; Housecroft, C.E.; Prescimone, A. A 3-dimensional {42.84} lvt net built from a ditopic bis(3,2′:6′,3″-terpyridine) tecton bearing long alkyl tails. CrystEngComm 2015, 17, 2070–2073. [Google Scholar] [CrossRef] [Green Version]
  23. Vujovic, S.; Constable, E.C.; Housecroft, C.E.; Morris, C.D.; Neuburger, M.; Prescimone, A. Engineering 2D→2D parallel interpenetration using long alkoxy-chain substituents. Polyhedron 2015, 92, 77–83. [Google Scholar] [CrossRef] [Green Version]
  24. Klein, Y.M.; Constable, E.C.; Housecroft, C.E.; Zampese, J.A.; Crochet, A. Greasy tails switch 1D-coordination [Zn2(OAc)4(4′-(4-ROC6H4)-4,2′:6′,4″-tpy)]n polymers to discrete [Zn2(OAc)4(4′-(4-ROC6H4)-4,2′:6′,4″-tpy)2] complexes. CrystEngComm 2014, 16, 9915–9929. [Google Scholar] [CrossRef] [Green Version]
  25. Klein, Y.M.; Prescimone, A.; Neuburger, M.; Constable, E.C.; Housecroft, C.E. What a difference a tail makes: 2D→2D parallel interpenetration of sheets to interpenetrated nbo networks using ditopic-4,2′:6′,4″-terpyridine ligands. CrystEngComm 2017, 19, 2894–2902. [Google Scholar] [CrossRef] [Green Version]
  26. Rocco, D.; Prescimone, A.; Constable, E.C.; Housecroft, C.E. Directing 2D-coordination networks: Combined effects of a conformationally flexible 3,2′:6′,3″-terpyridine and chain length variation in 4′-(4-n-alkyloxyphenyl) substituents. Molecules 2020, 25, 1663. [Google Scholar] [CrossRef] [Green Version]
  27. Li, D.-S.; Wu, Y.-P.; Zhao, J.; Zhang, J.; Lu, J.Y. Metal-organic frameworks based upon non-zeotype 4-connected topology. Coord. Chem. Rev. 2014, 261, 1–27. [Google Scholar] [CrossRef]
  28. Batten, S.R.; Neville, S.M.; Turner, D.R. Coordination Polymers: Design, Analysis and Application; RSC Publishing: Cambridge, UK, 2009; ISBN 978-0-85404-837-3. [Google Scholar]
  29. Klein, Y.M.; Prescimone, A.; Constable, E.C.; Housecroft, C.E. 4,2′6′,4″- and 3,2′:6′,3″-terpyridines: The conflict between well-defined vectorial properties and serendipity in the assembly of 1D-, 2D- and 3D-architectures. Materials 2017, 10, 728. [Google Scholar] [CrossRef] [Green Version]
  30. Macrae, C.F.; Sovago, I.; Cottrell, S.J.; Galek, P.T.A.; McCabe, P.; Pidcock, E.; Platings, M.; Shields, G.P.; Stevens, J.S.; Towler, M.; et al. Mercury 4.0: From visualization to analysis, design and prediction. J. Appl. Cryst. 2020, 53, 226–235. [Google Scholar] [CrossRef] [Green Version]
  31. Palatinus, L.; Chapuis, G. SUPERFLIP—A computer program for the solution of crystal structures by charge flipping in arbitrary dimensions. J. Appl. Cryst. 2007, 40, 786–790. [Google Scholar] [CrossRef] [Green Version]
  32. Palatinus, L.; Prathapa, S.J.; van Smaalen, S. EDMA: A computer program for topological analysis of discrete electron densities. J. Appl. Cryst. 2012, 45, 575–580. [Google Scholar] [CrossRef]
  33. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Cryst. 2019, 42, 339–341. [Google Scholar] [CrossRef]
  34. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Cryst. 2015, C27, 3–8. [Google Scholar] [CrossRef]
  35. LeBail, A.; Duroy, H.; Fourquet, J.L. Ab-initio structure determination of LiSbWO6 by X-ray powder diffraction. Mat. Res. Bull. 1988, 23, 447–452. [Google Scholar] [CrossRef]
  36. Pawley, G.S. Unit-cell refinement from powder diffraction scans. J. Appl. Cryst. 1981, 14, 357–361. [Google Scholar] [CrossRef]
  37. Rodríguez-Carvajal, J. Recent Advances in Magnetic Structure Determination by Neutron Powder Diffraction. Physica B 1993, 192, 55–69. [Google Scholar] [CrossRef]
  38. Roisnel, T.; Rodríguez-Carvajal, J. WinPLOTR: A Windows tool for powder diffraction patterns analysis. In Materials Science Forum; Transtec Publications: Zurich, Switzerland, 2000; pp. 118–123. [Google Scholar]
Molecules 27 04995 sch001 550

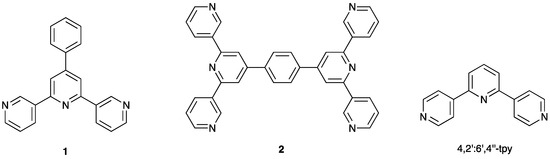

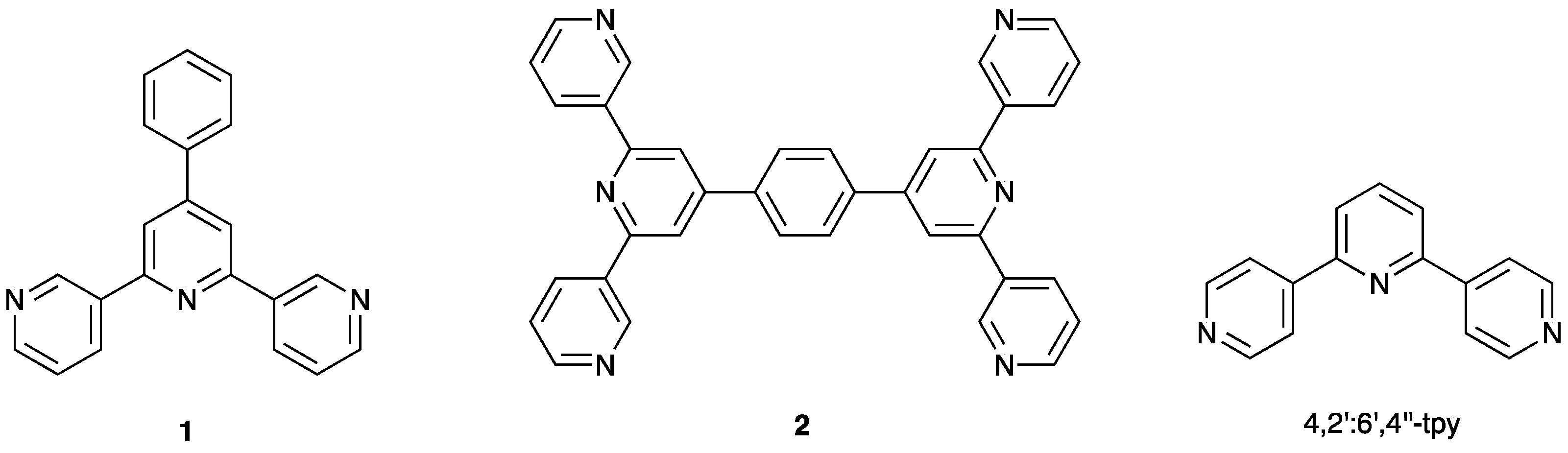

Scheme 1. The structures of the ditopic ligand 1, the first tetratopic ligand 2, containing two 3,2′:6′,3″-tpy metal-binding domains, and 4,2′:6′,4″-terpyridine.
Scheme 1. The structures of the ditopic ligand 1, the first tetratopic ligand 2, containing two 3,2′:6′,3″-tpy metal-binding domains, and 4,2′:6′,4″-terpyridine.
Molecules 27 04995 sch001
Molecules 27 04995 sch002 550

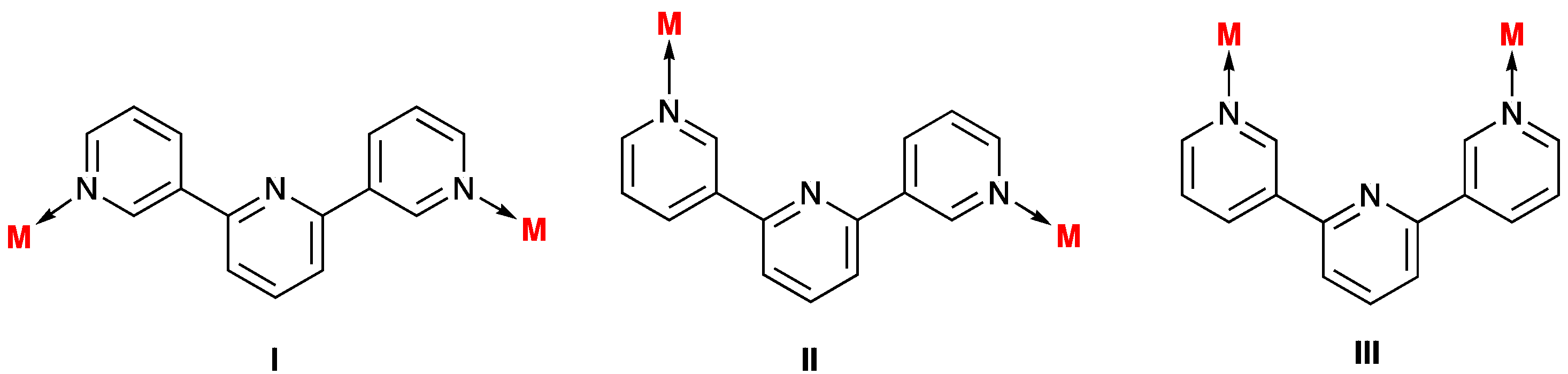

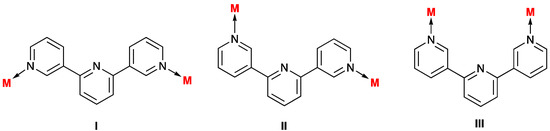

Scheme 2. Limiting planar conformations of the 3,2′:6′:3″-tpy metal-binding domain. Only the outer pyridine rings coordinate to metal ions.
Scheme 2. Limiting planar conformations of the 3,2′:6′:3″-tpy metal-binding domain. Only the outer pyridine rings coordinate to metal ions.
Molecules 27 04995 sch002
Molecules 27 04995 sch003 550

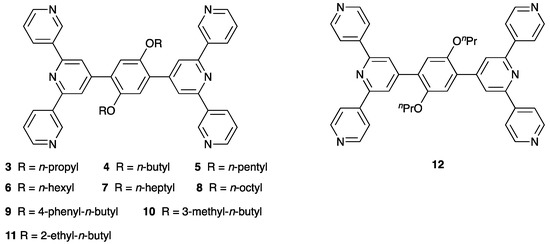

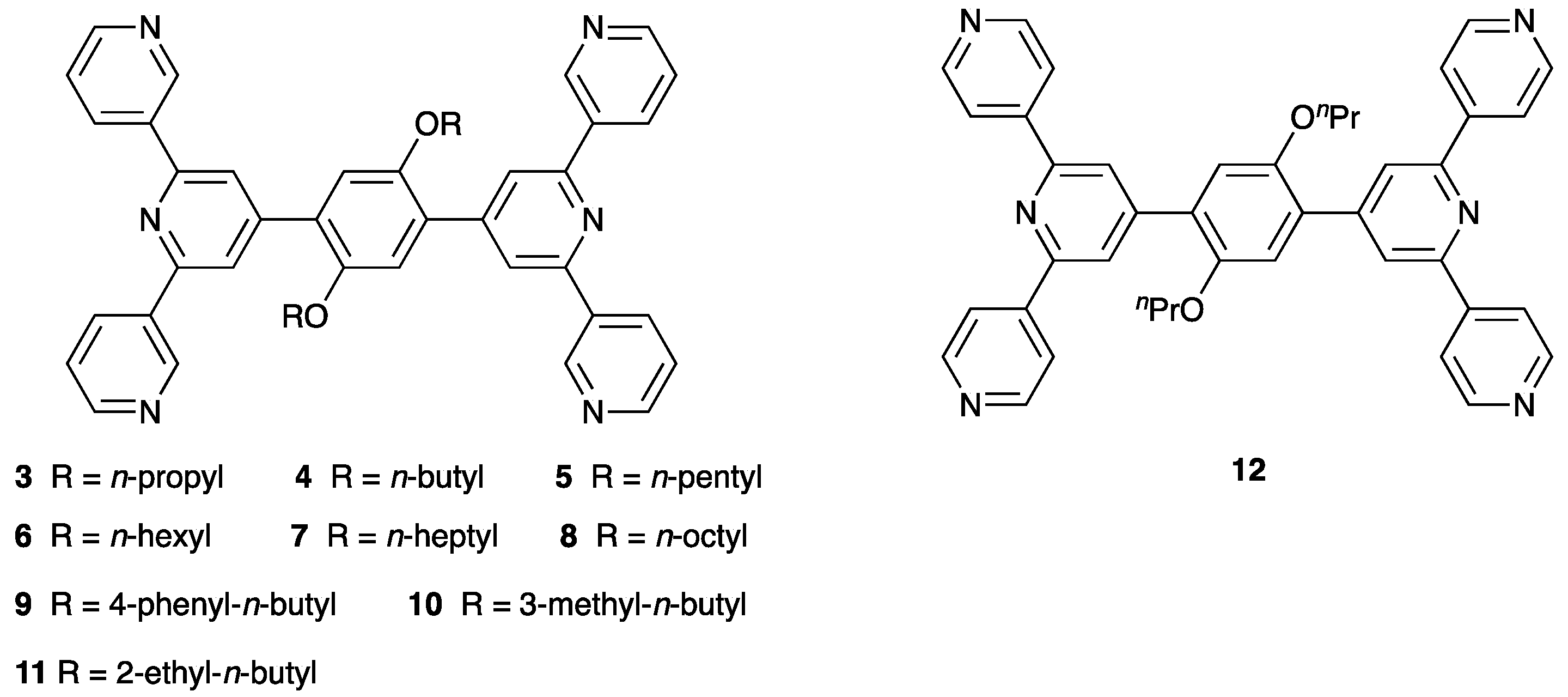

Scheme 3. The structures of ligands 3–12.
Scheme 3. The structures of ligands 3–12.
Molecules 27 04995 sch003
Molecules 27 04995 g001 550

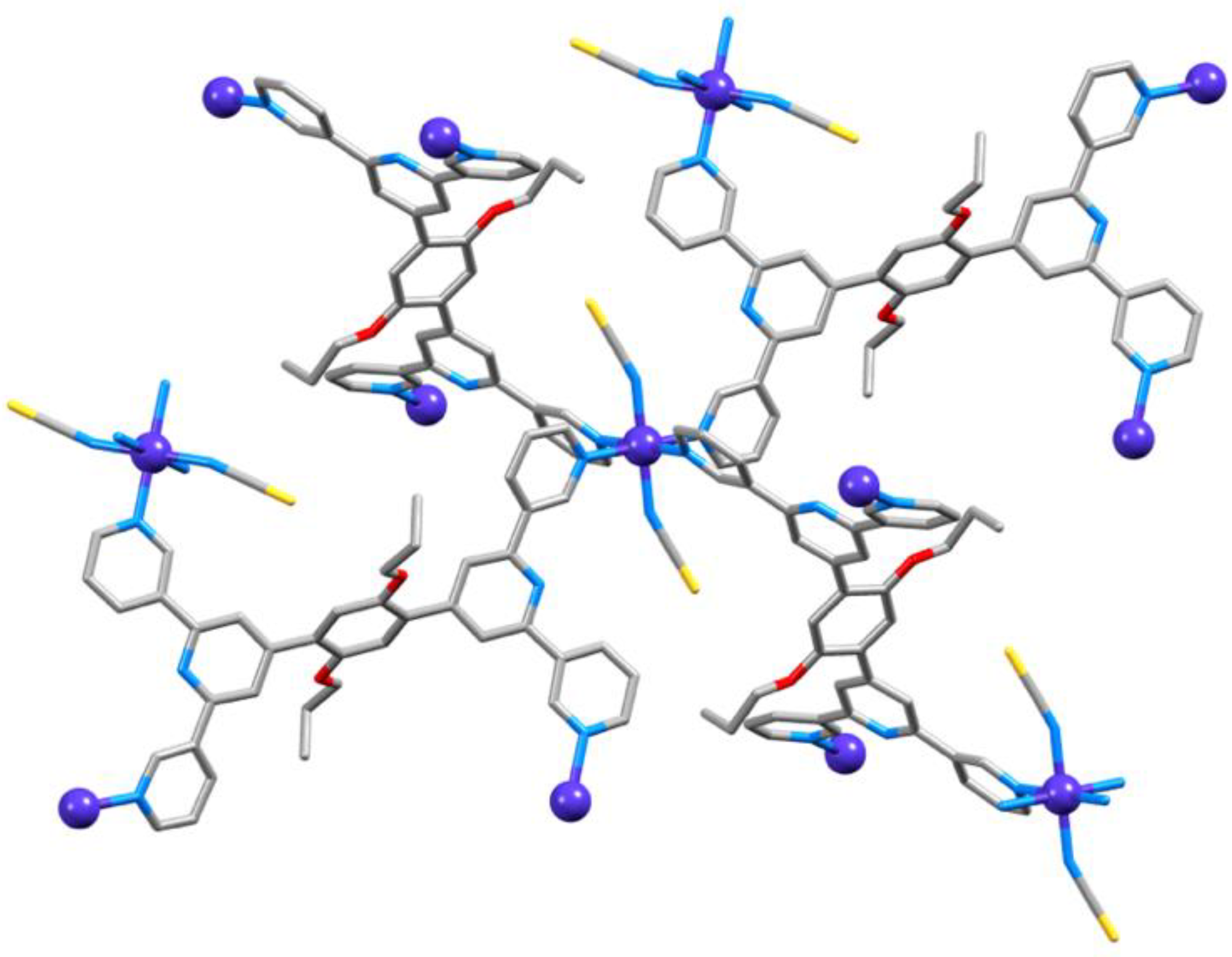

Figure 1. In [Co(NCS)2(3)]n.3.5nC6H4Cl2, both the Co atom and ligand 3 act as 4-connecting nodes. H atoms and solvent molecules are omitted for clarity.
Figure 1. In [Co(NCS)2(3)]n.3.5nC6H4Cl2, both the Co atom and ligand 3 act as 4-connecting nodes. H atoms and solvent molecules are omitted for clarity.
Molecules 27 04995 g001
Molecules 27 04995 g002 550

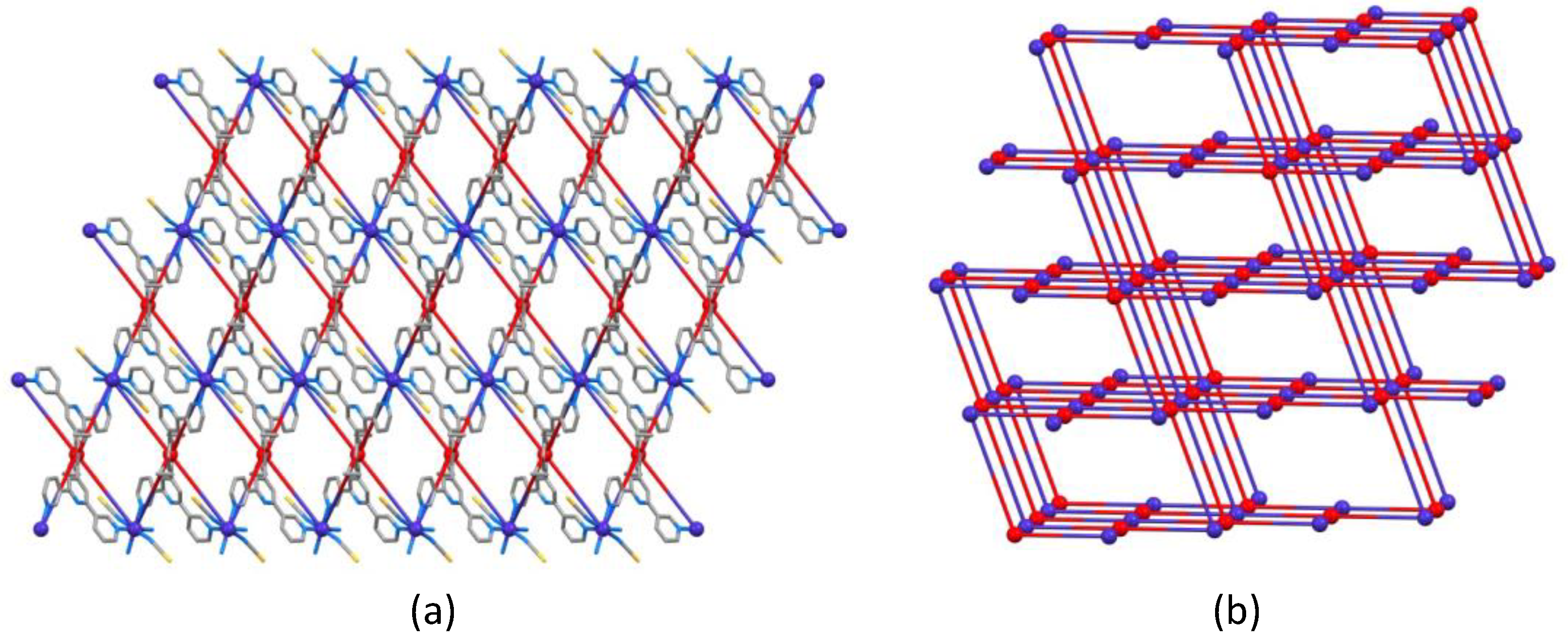

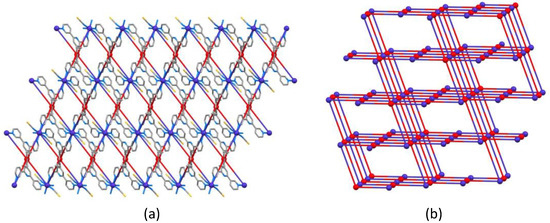

Figure 2. (a) The cds network in [Co(NCS)2(3)]n.3.5nC6H4Cl2 viewed down the crystallographic b-axis. (b) The same network showing only the 4-connecting nodes.
Figure 2. (a) The cds network in [Co(NCS)2(3)]n.3.5nC6H4Cl2 viewed down the crystallographic b-axis. (b) The same network showing only the 4-connecting nodes.
Molecules 27 04995 g002
Molecules 27 04995 g003 550

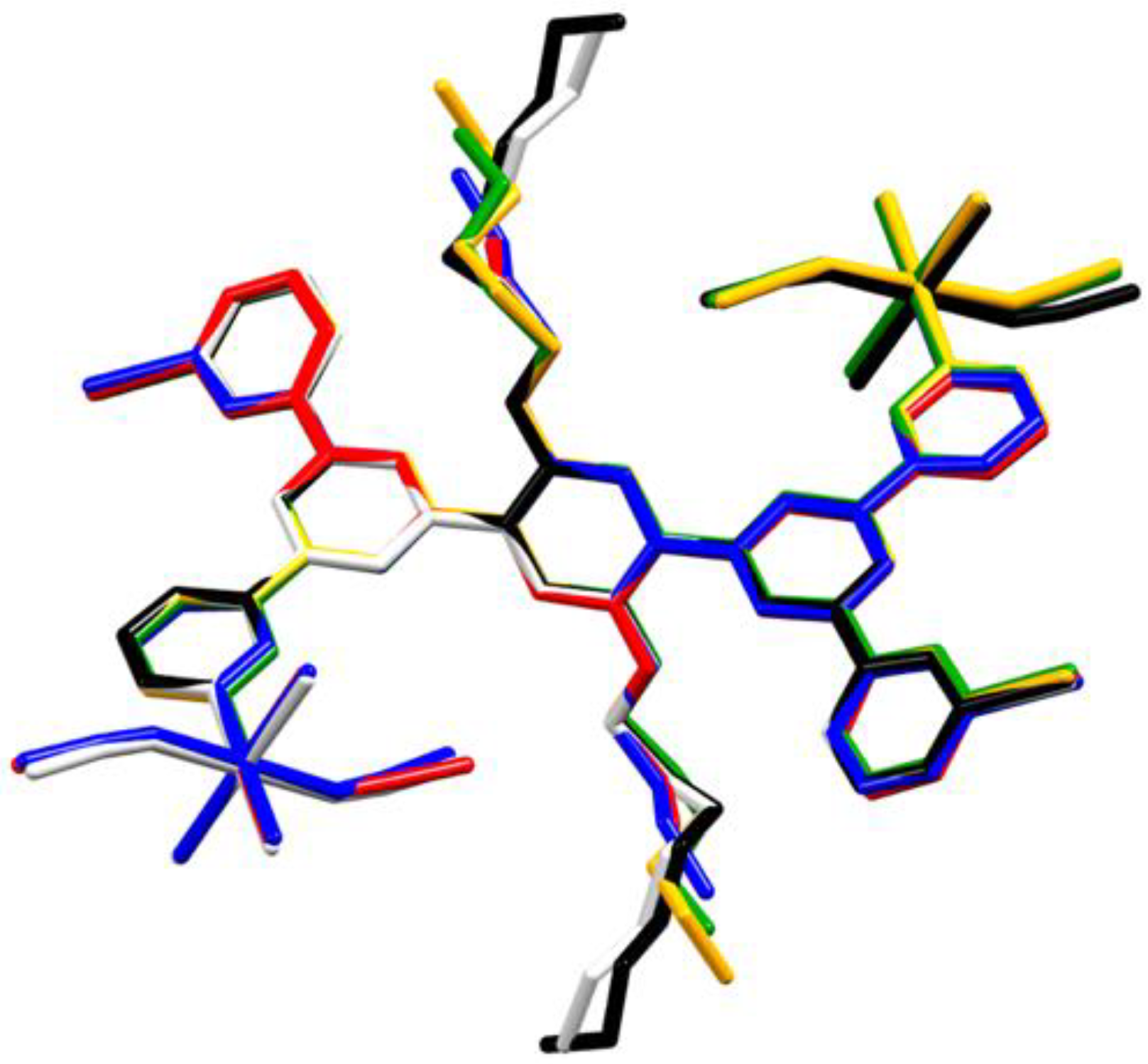

Figure 3. Overlay of the ligand conformations showing the four coordinated trans-{Co(NCS)2(N)4} units in [Co(NCS)2(3)]n.3.5nC6H4Cl2 (red), [Co(NCS)2(4)]n.5.5nC6H4Cl2 (blue), [Co(NCS)2(5)]n.4nC6H4Cl2 (green), [Co(NCS)2(6)]n.3.8nC6H4Cl2 (yellow), [Co(NCS)2(7)]n.3.1nC6H4Cl2 (pale grey), and [Co(NCS)2(8)]n.1.6nC6H4Cl2.2nMeOH (black). In [Co(NCS)2(4)]n.5.5nC6H4Cl2, one of the two independent ligands is shown; both ligands have similar conformations (Table 2).
Figure 3. Overlay of the ligand conformations showing the four coordinated trans-{Co(NCS)2(N)4} units in [Co(NCS)2(3)]n.3.5nC6H4Cl2 (red), [Co(NCS)2(4)]n.5.5nC6H4Cl2 (blue), [Co(NCS)2(5)]n.4nC6H4Cl2 (green), [Co(NCS)2(6)]n.3.8nC6H4Cl2 (yellow), [Co(NCS)2(7)]n.3.1nC6H4Cl2 (pale grey), and [Co(NCS)2(8)]n.1.6nC6H4Cl2.2nMeOH (black). In [Co(NCS)2(4)]n.5.5nC6H4Cl2, one of the two independent ligands is shown; both ligands have similar conformations (Table 2).
Molecules 27 04995 g003
Molecules 27 04995 g004 550

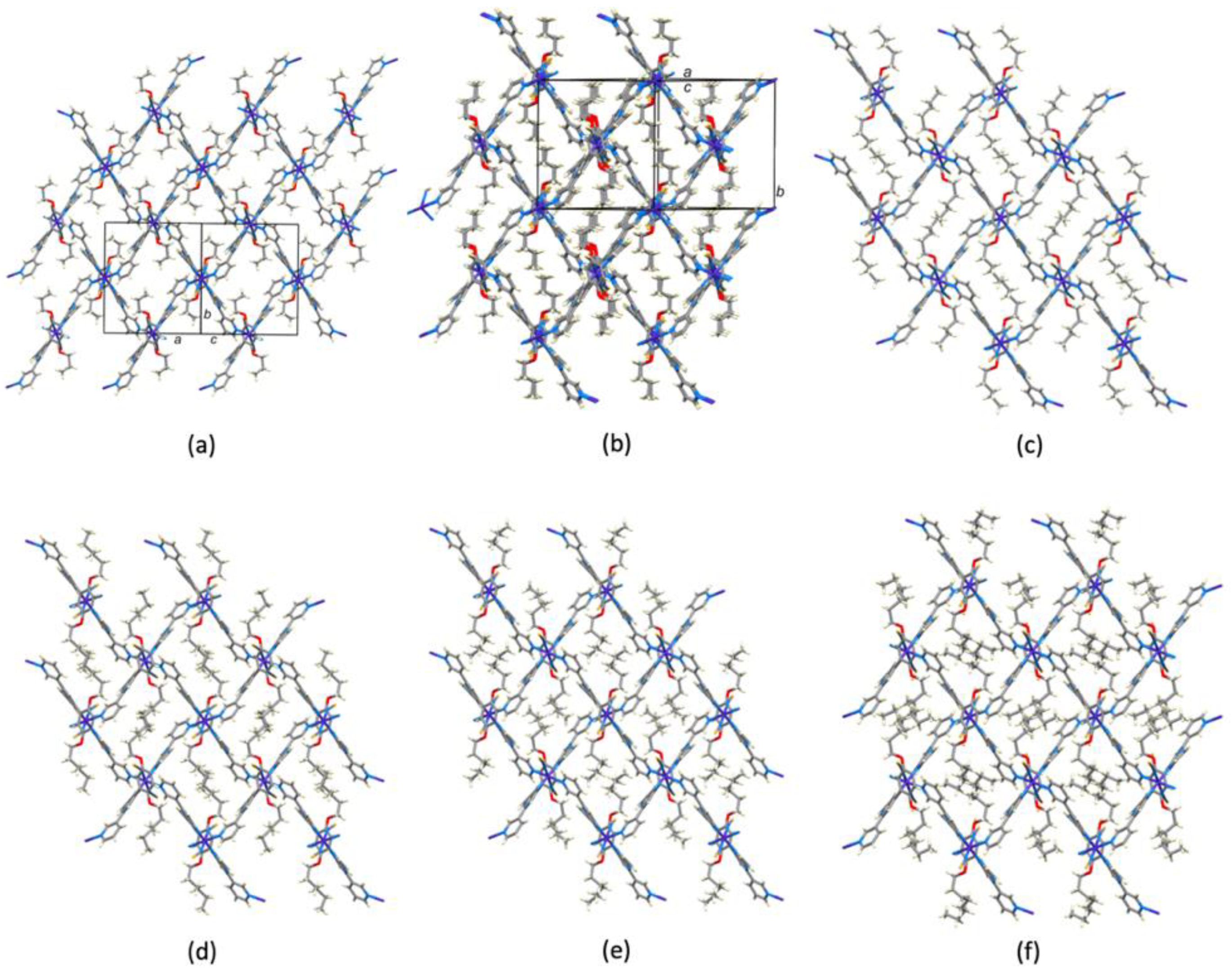

Figure 4. Packing diagrams of (a) [Co(NCS)2(3)]n.3.5nC6H4Cl2, (b) [Co(NCS)2(4)]n.5.5nC6H4Cl2, (c) [Co(NCS)2(5)]n.4nC6H4Cl2, (d) [Co(NCS)2(6)]n.3.8nC6H4Cl2, (e) [Co(NCS)2(7)]n.3.1nC6H4Cl2, and (f) [Co(NCS)2(8)]n.1.6nC6H4Cl2.2nMeOH. Solvent molecules have been removed. In (c–f), the packing diagram is viewed down the c-axis. In (b), there are two crystallographically independent ligands.
Figure 4. Packing diagrams of (a) [Co(NCS)2(3)]n.3.5nC6H4Cl2, (b) [Co(NCS)2(4)]n.5.5nC6H4Cl2, (c) [Co(NCS)2(5)]n.4nC6H4Cl2, (d) [Co(NCS)2(6)]n.3.8nC6H4Cl2, (e) [Co(NCS)2(7)]n.3.1nC6H4Cl2, and (f) [Co(NCS)2(8)]n.1.6nC6H4Cl2.2nMeOH. Solvent molecules have been removed. In (c–f), the packing diagram is viewed down the c-axis. In (b), there are two crystallographically independent ligands.
Molecules 27 04995 g004
Molecules 27 04995 g005 550

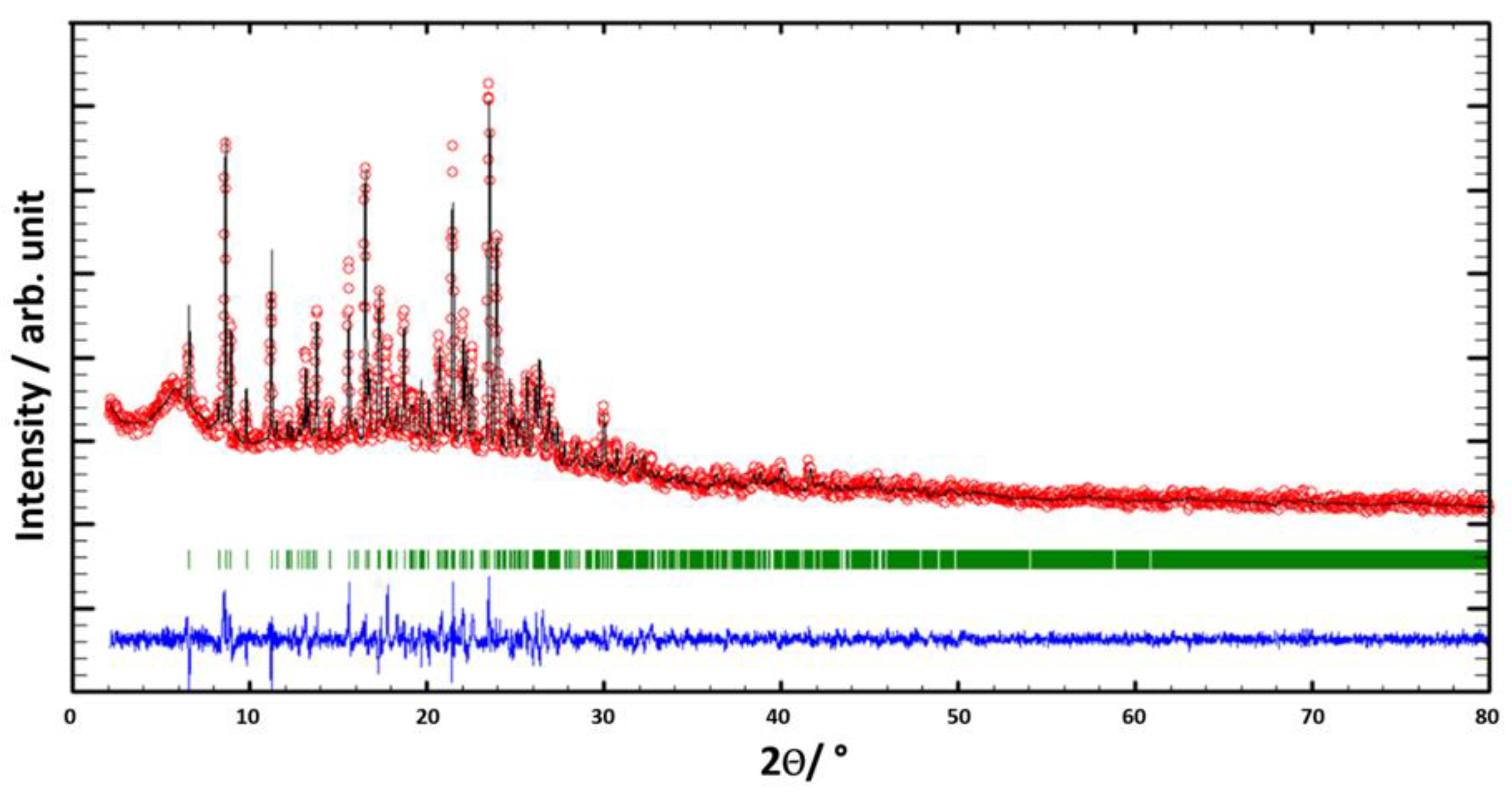

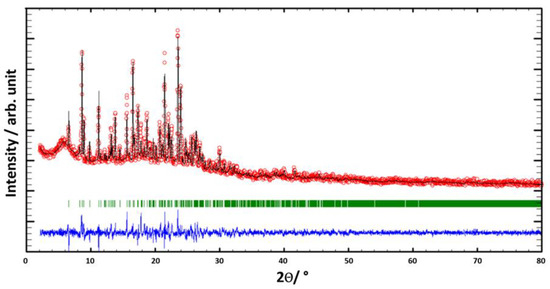

Figure 5. PXRD (CuKα1 radiation) patterns for [Co(NCS)2(6)]n.3.8nC6H4Cl2. Experimentally obtained pattern (red circles) is compared with the best fit from the Rietveld refinement analysis (black line). Bragg peak positions (green) and differences between the calculated and experimental plots (blue) are also shown.
