Supramolecular Assemblies of Dipyrrolyldiketone Cu^II Complexes

Abstract

Dipyrrolyldiketones are essential building units of anion-responsive π-electronic molecules and ion-pairing assemblies. Here, we demonstrated that they form complexes with Cu^II characterized by planar geometries. The solid-state stacking assembled structures, as revealed by single-crystal X-ray analysis, were modulated by the substitution of pyrrole units. The rectangular shapes of the Cu^II complexes resulted in the formation of mesophases upon introduction of aliphatic chains.

1. Introduction

The fabrication of molecular assemblies is crucial for the development of functional materials [1]. In particular, π-electronic molecules with planar geometries may afford stacking assemblies, which are suitable for the generation of electrically conductive materials. Ion-pairing assemblies based on π-electronic ions form a variety of ordered states that act as dimension-controlled assemblies, such as crystals, liquid crystals, and supramolecular gels [2,3]. The preparation of π-electronic anions, which can serve as components of ion-pairing assemblies, is more difficult than that of π-electronic cations due to the lower stability of electron-rich species. Therefore, anion-responsive π-electronic molecules have been investigated for the preparation of anion complexes which are pseudo π-electronic anions. For example, boron complexes of dipyrrolyldiketones (Figure 1a) provided planar anion complexes through hydrogen-bonding interactions with pyrrole-NH and bridging-CH units, which were used as components of various ion-pairing assemblies [4,5,6,7,8]. Anion binding requires the inversion of two pyrrole rings from the state where the NH units are oriented towards the carbonyl units, as the most stable conformations generally result from the opposite dipole arrangements of the pyrrole rings and carbonyl units.

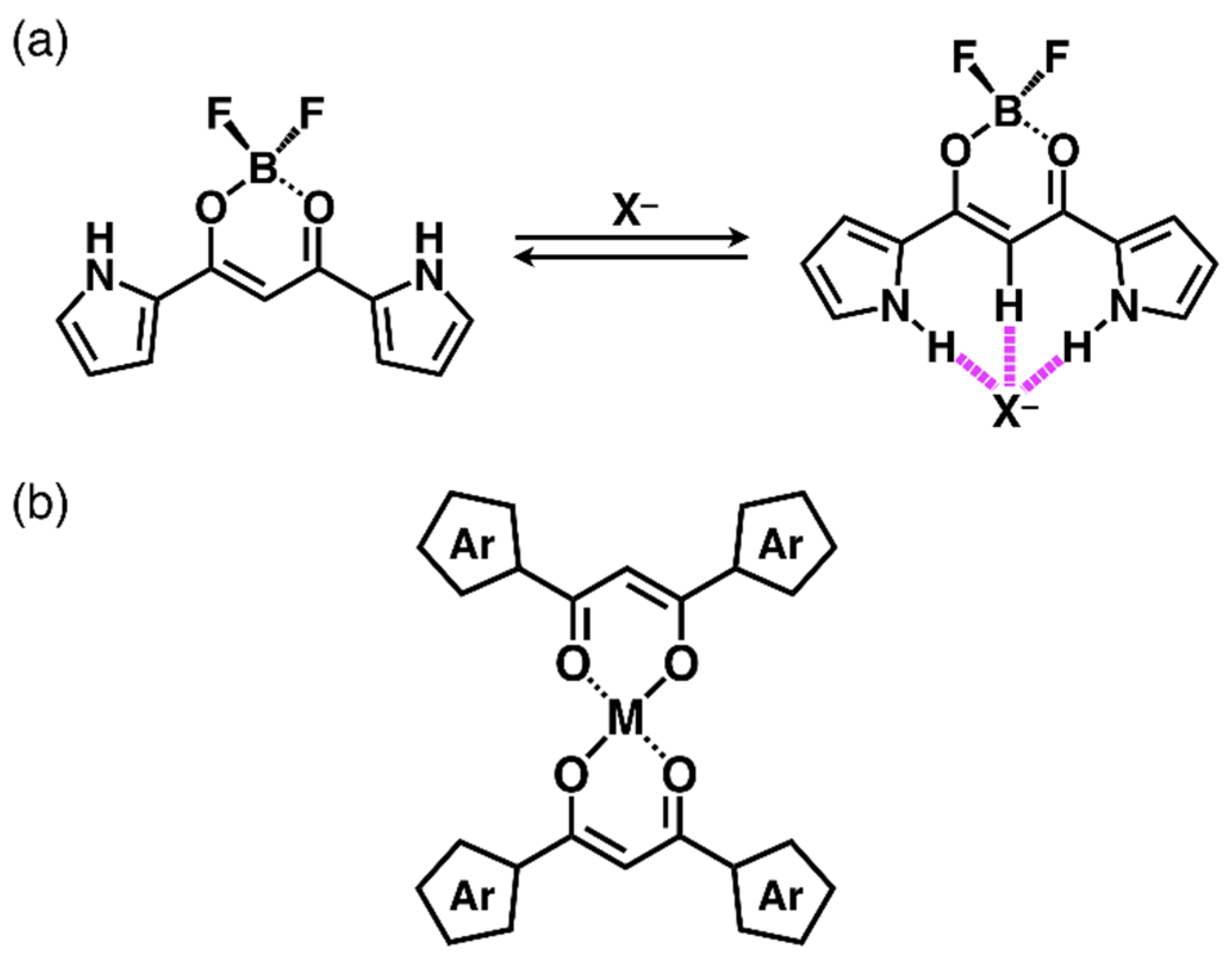

Notably, the 1,3-diketone unit can act as a monovalent metal ligand for various metal complexes (Figure 1b) [9,10,11,12,13,14,15,16]. The complexation of 1,3-diketones with divalent metals, such as Cu^II, Ni^II, and Pt^II, formed planar geometries, which are suitable for the formation of stacking assemblies. For example, various liquid-crystal materials based on 1,3-diketone metal complexes were fabricated using aryl units that served as scaffolds for aliphatic chains [11,12,13,14,15,16]. On the other hand, the introduction of divalent metals to dipyrrolyldiketones were not achieved due to the coordination by the pyrrole-N sites. Therefore, appropriate metal complexation conditions are required for the development of dipyrrolyldiketone metal complexes. Recently, Ti^IV complexes of dipyrrolyldiketones were investigated by focusing on their crystal and liquid-crystal mesophase structures [17], prompting further investigations on other metal complexes [18]. This study describes the synthesis of Cu^II complexes of dipyrrolyldiketones, as well as the investigation of their crystal structures and mesophase assemblies.

2. Results and Discussion

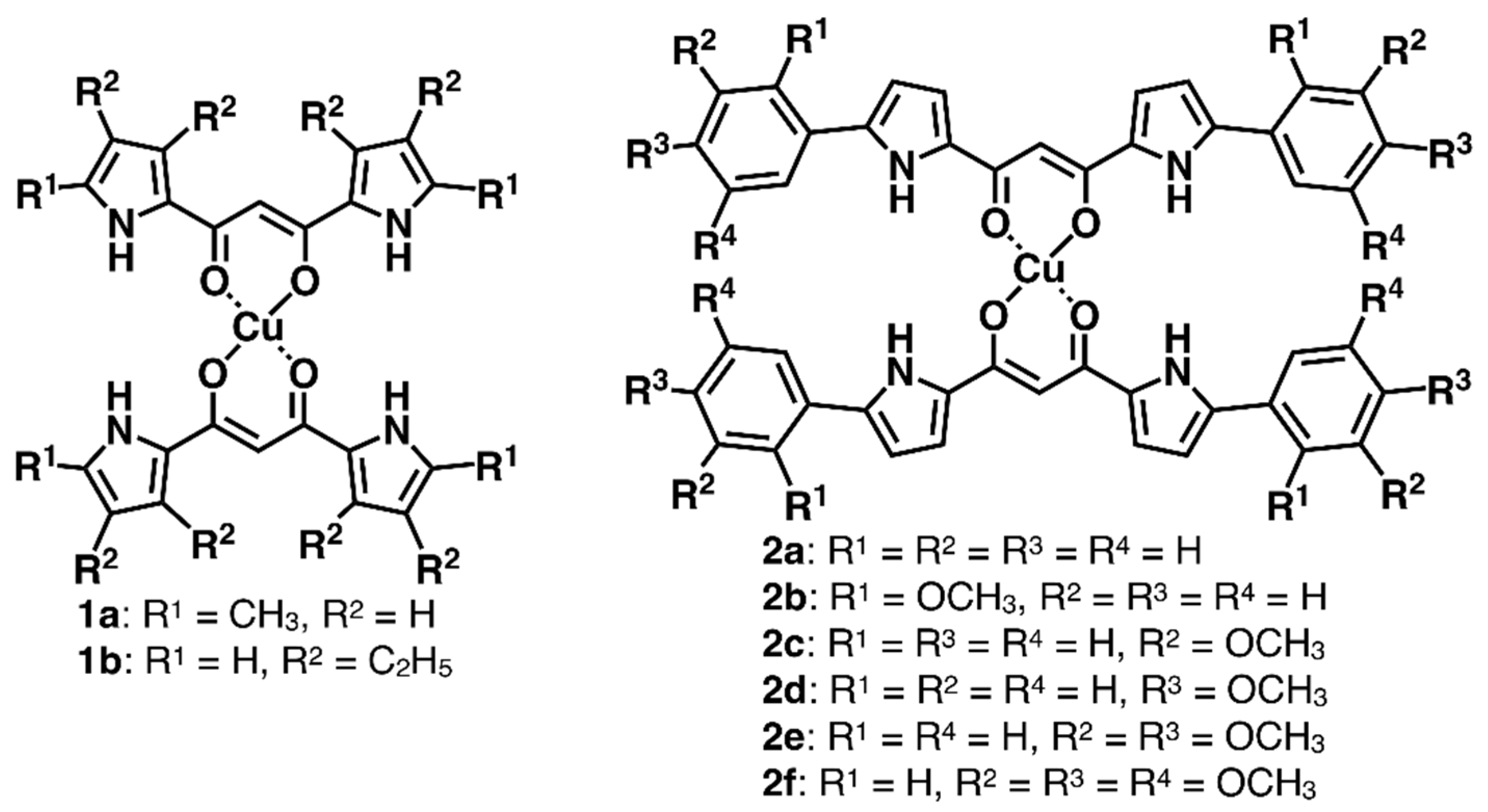

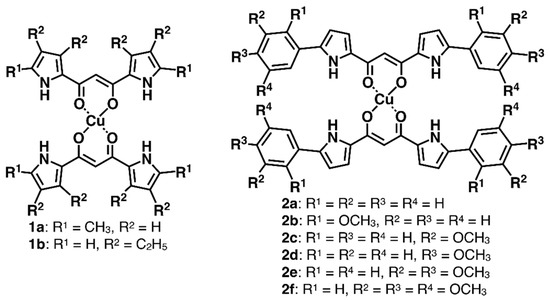

Dipyrrolyldiketone Cu^II complexes 1a,b and 2a–f (Figure 2) were synthesized according to the literature procedures, by treating dipyrrolyldiketones 1a′,b′ and 2a′–f′ [19,20,21,22] with Cu(OAc)₂ in MeOH/CHCl₃ [11]; moderate yields were obtained depending on the purification process. Due to the low stability of the 1,3-diketone–Cu coordination bonds under silica gel purification conditions, 1a,b and 2a–f were isolated by reprecipitation. The ¹H NMR of 1a,b and 2a–f displayed broad signals due to the paramagnetic properties of Cu^II as d⁹ electron configuration. Therefore, 1a,b and 2a–f were characterized by MALDI-TOF- and ESI-TOF-MS analysis. The UV/vis absorption maximum (λ_max) of 1a as a representative example in CH₂Cl₂ was 399 nm, which can be attributed to the transition at the π-electronic systems, as suggested by time-dependent (TD)-DFT calculations at the B3LYP/6-31G(d,p) level with LanL2DZ for Cu [23].

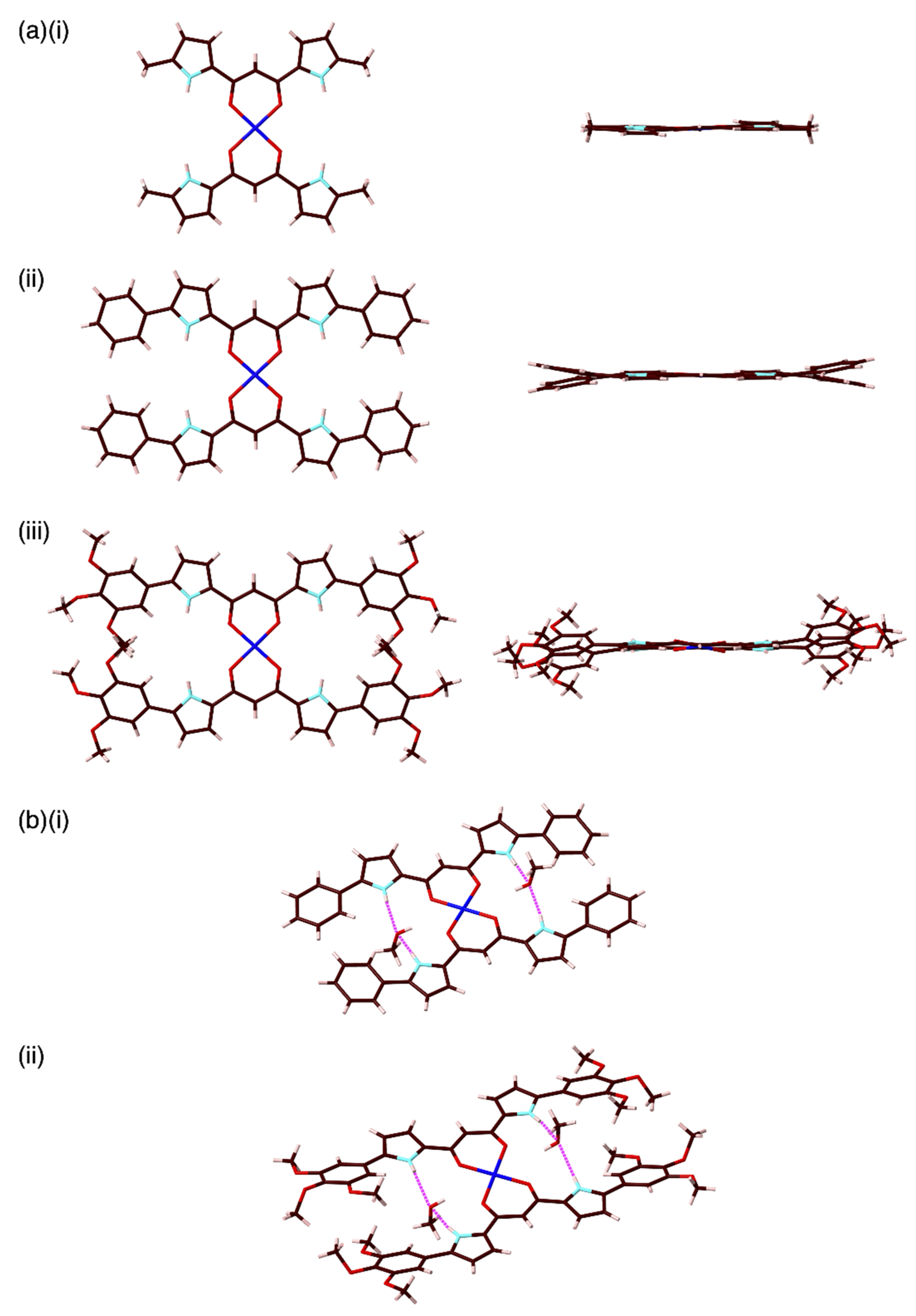

Single crystals of 1a,b and 2a–c,f for X-ray analysis were obtained using the vapor diffusion technique according to the solvent-dependent solubilities (see the Supplementary Materials for details). The Cu atoms in all the structures except for 2c lie on special positions. In the solid state, 1a and 2a–c,f exhibited planar geometries for the dipyrrolyldiketone Cu^II unit with mean-plane deviations of 0.065(2) Å for 1a (core dipyrrolyldiketone Cu^II unit as 31 atoms) and 0.041(4)/0.056(7), 0.127(4), 0.029(2), and 0.091(2) Å for 2a–c,f (core dipyrrolyldiketone Cu^II and aryl units as 55 atoms), respectively (Figure 3a; see Figures S14, S16 and S17 for 1b and 2b,c). On the other hand, 1b showed a distorted structure with a dihedral angle of 29.86(5)° for two oppositely arranged diketone mean planes (15 atoms of the two pyrrole and core diketone units). In each case, two pyrrole-NH units were oriented to the Cu^II (carbonyl) side as the most stable conformation, which was also revealed by DFT calculations [23]. For example, 1a with uninverted pyrrole rings was more stabilized by 17.62 kcal/mol than the structure with completely inverted pyrrole rings, as suggested by DFT calculations at the B3LYP/6-31G(d,p) level with LanL2DZ for Cu. The antiparallel direction of the dipoles for the pyrrole and carbonyl moieties was a key factor for determining the planar structure. The C_carbonyl–C_bridging–C_carbonyl angles for 1a,b and 2a–c,f were found to be 123.5(8)–126.4(2)°, which are similar to those of other 1,3-diketone Cu^II complexes [11,12]. Furthermore, the O–Cu–O angles were in the 93.3(5)–94.9(3)° range, which are typical values for divalent metal 1,3-diketone complexes. Similar O–Cu–O angles were observed by DFT calculations at the B3LYP/6-31G(d,p) level with LanL2DZ for Cu. The τ₄ parameters [24], which indicate the geometries of four-coordinate transition metal complexes, also showed square planar structures of the 1,3-diketone Cu^II complex units in 1a,b and 2a–c,f. The substituted aryl units in 2a–c were slightly twisted in the crystal state with dihedral angles of 4.4(2)–10.7(5)°, which were smaller than those of the phenyl-substituted dipyrrolyldiketone BF₂ complex (26.0 and 19.4°) [21]. On the other hand, 3,4,5-trimethoxyphenyl-substituted 2f displayed larger dihedral angles (18.5(1) and 23.4(1)°) for the pyrrole and aryl units due to the steric repulsion between the m-methoxy groups of the dipyrrolyldiketone units. Interestingly, in the case of 1a, two water molecules were bound in the cavities through hydrogen-bonding interactions with the pyrrole NH, exhibiting N(–H)···O distances of 2.88(1) and 2.90(1) Å. Similarly, in the case of 2a–c,f, the crystallization solvent MeOH was bound in the cavities surrounded by two pyrrole-NH and aryl-o-CH (Figure 3b). For example, in the case of 2f, the pyrrole-N(–H)···O and aryl-o-C(–H)···O distances were 2.86(1)/2.91(1) and 3.495(4)/3.87(1) Å, respectively, indicating the occurrence of hydrogen-bonding interactions. Smaller dihedral angles between the pyrrole and aryl rings resulted from the hydrogen bonding of the pyrrole-NH and aryl-o-CH with MeOH. The guest-binding cavities with pyrrole-NH and aryl-o-CH sites are characteristic of the Cu^II complexes of aryl-substituted dipyrrolyldiketones.

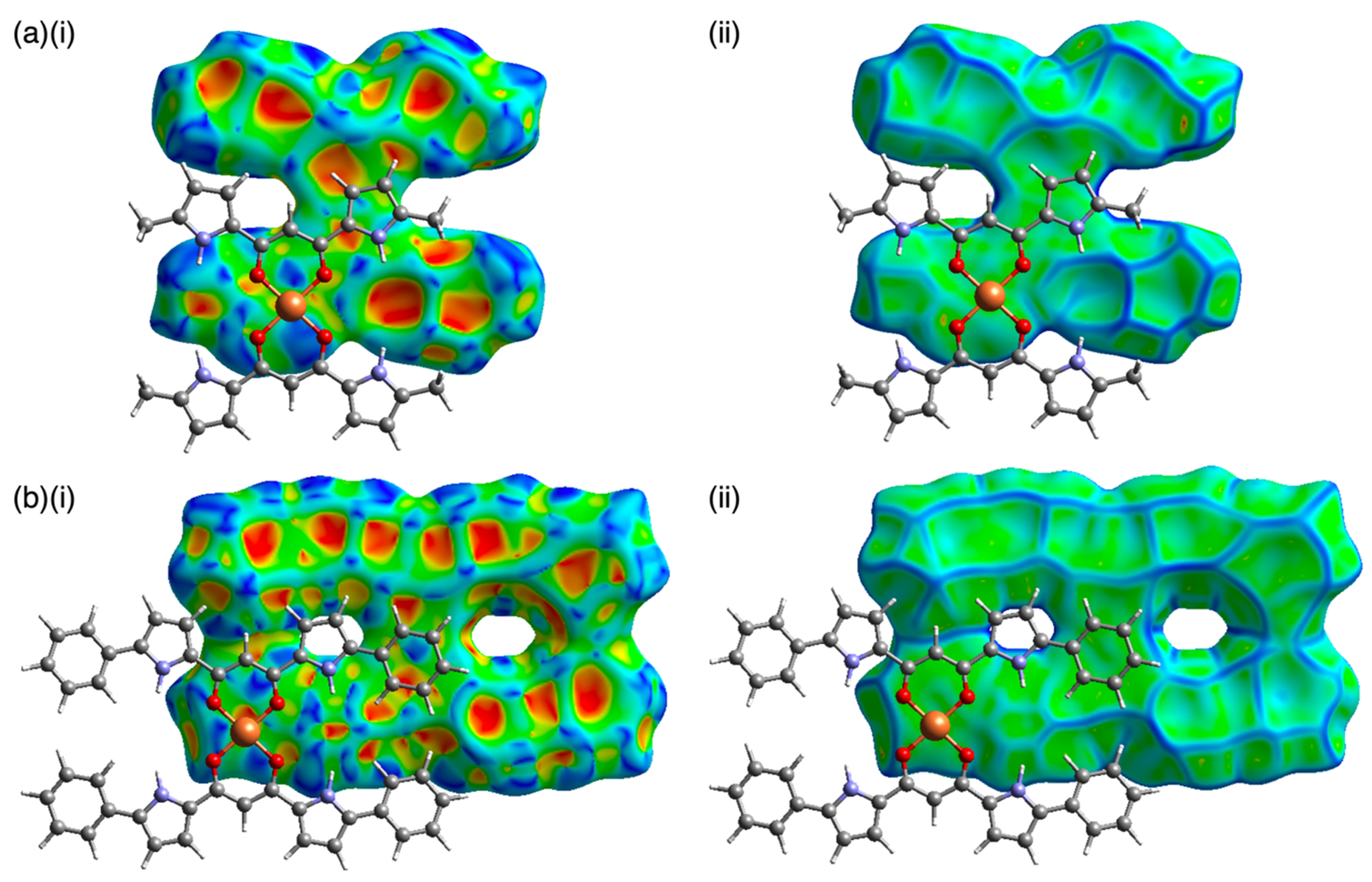

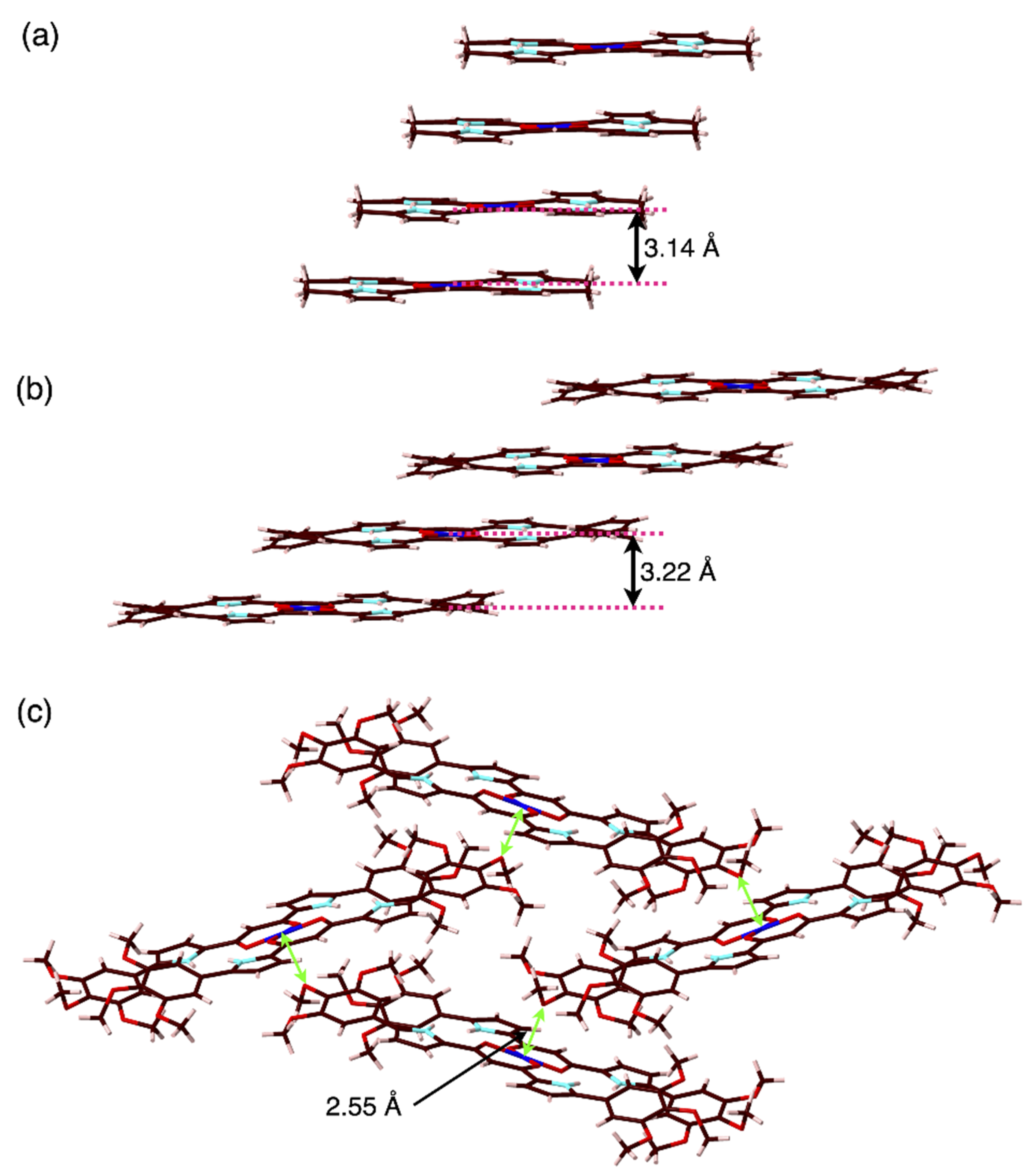

Owing to the core planar geometries of dipyrrolyldiketone Cu^II complexes, slipped-stacking structures were observed in the crystal states. For example, 1a showed a slipped-stacking columnar structure with a stacking distance of 3.14 Å between the two mean planes of the core dipyrrolyldiketone Cu^II unit (31 atoms of two dipyrrolyldiketone moieties and Cu) (Figure 4a). On the other hand, the distorted 1b showed a packing structure with no stacking, probably due to the steric repulsion between the β-ethyl units. Interestingly, 1b formed a hydrogen-bonding 1D-columnar structure based on the interaction of the pyrrole NH and the neighboring oxygen of the diketone unit (Figure S14). Similar to 1a, aryl-substituted 2a–c formed slipped-stacking columnar structures with stacking distances of 3.24–3.22 Å between the two mean planes of the aryl-substituted dipyrrolyldiketone Cu^II complex unit (55 atoms) (Figure 4b). The Cu^II···Cu^II distances in the stacking structures of 1a and 2a were 5.901(3) and 9.08(2) Å, respectively. Furthermore, angles of 32.1 and 19.8° were observed along the lines passing through two Cu^II in the columnar structures of 1a and 2a to the mean planes of the core dipyrrolyldiketone Cu^II complex units (31 atoms), respectively. The introduction of aryl units at the α-positions extended the planar structures to the long axis of the molecules, and thus, the aryl rings stacked on top of the diketone Cu^II planes. In order to visualize the intermolecular interactions in the crystal structures, the Hirshfeld surface analysis was carried out [25,26,27]. In fact, the Hirshfeld surface analysis of 1a and 2a revealed an effective stacking of the core 1,3-diketone Cu^II complex unit with the pyrrole and phenyl rings, respectively (Figure 5). In particular, the surfaces of the phenyl rings of 2a showed the red and blue triangles arranged in bow-tie shapes on the shape-index surface and flat region on the curvedness surface, indicating the characteristic mapping pattern for the stacking of planar units including aryl rings [28]. The stacking structures of the dipyrrolyldiketone Cu^II complexes as shown here were also stabilized by the chelate ring–π interaction [29]. The rectangular geometries formed by the introduction of aryl units are crucial for modulating the assembled structures. In contrast, 3,4,5-trimethoxy-substituted 2f exhibited a zigzag-arranged packing structure. The p-methoxy oxygen was coordinated to Cu^II of the neighboring complex with an O···Cu^II distance of 2.547(8) Å (Figure 4c).

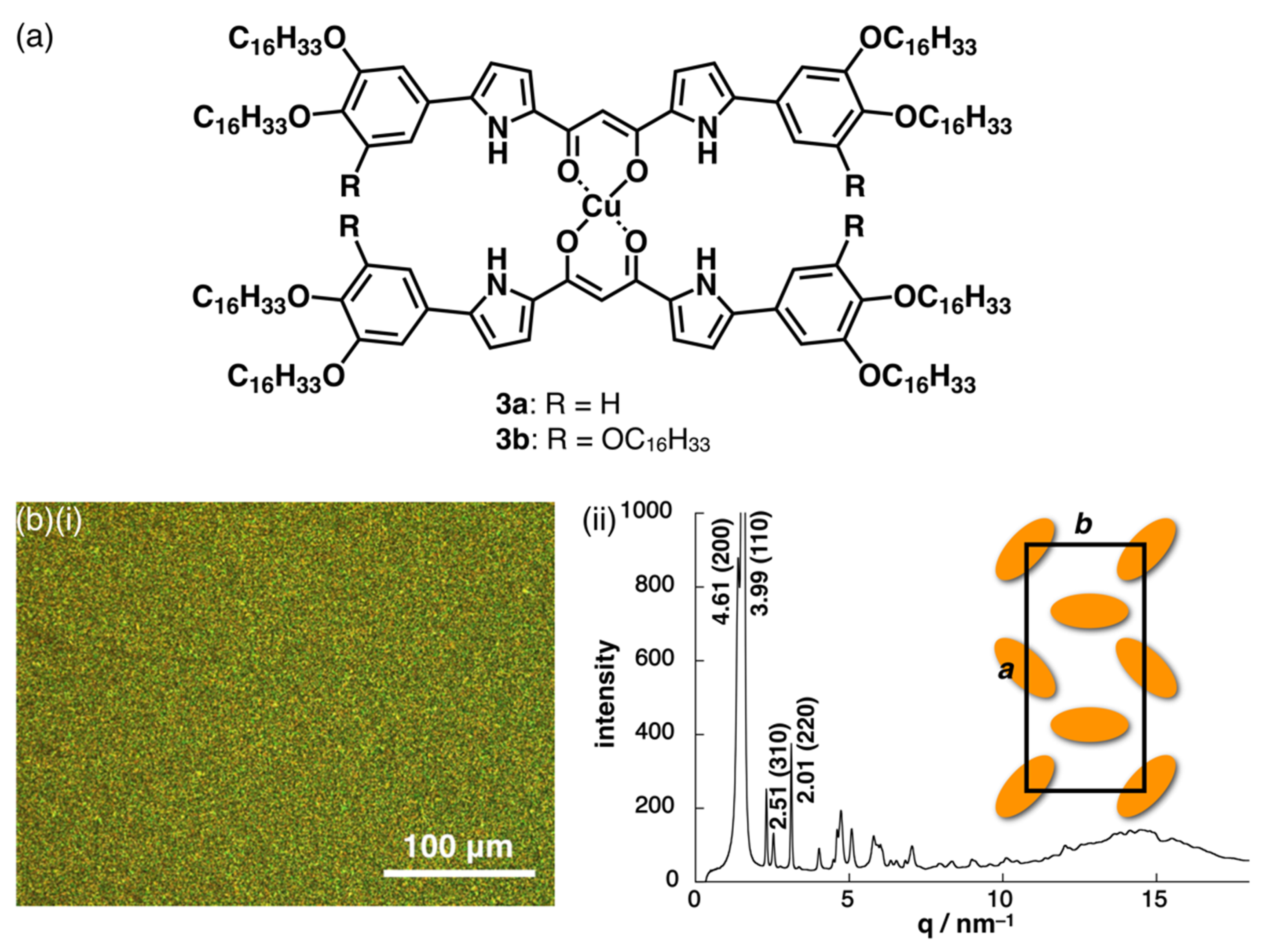

On the basis of the rectangular discotic geometries of the dipyrrolyldiketone Cu^II complexes, the formation of dimension-controlled assemblies as mesophases was investigated. To induce mesophases, 3,4-dihexadecyloxy and 3,4,5-trihexadecyloxy chains were introduced at the aryl rings of 3a,b (Figure 6a). Differential scanning calorimetry (DSC) analysis of dihexadecyloxy 3a revealed the formation of mesophases with transition temperatures of 104/86/36 and 28/96/107 °C upon cooling and heating, respectively, and a mosaic polarized optical microscopy (POM) texture (Figure 6b(i)). On the other hand, 3b exhibited broad transitions at the temperatures at 49/37/24 and 27/43/50 °C upon cooling and heating, respectively. X-ray diffraction (XRD) analysis of 3a at 90 °C upon cooling revealed peaks at 4.61, 3.99, 2.51, and 2.01 nm, which were indexed to (200), (110), (310), and (220), respectively, suggesting the formation of a Col_r (P2/a) structure with a = 9.22 nm, b = 4.43 nm, c = 0.39 nm, and Z = 4 (ρ = 1.1) (Figure 6b(ii)) [30]. It should be noted that dipyrrolyldiketone Cu^II complexes possessed rectangular geometries as the most stable structures based on the pyrrole NH directed toward the carbonyl moieties. In contrast to the columnar structure of 3a, trihexadecyloxy 3b exhibited XRD peaks at 6.77, 3.35, and 2.30 nm, which were indexed to (001), (002), and (003), respectively, suggesting the formation of a discotic lamellar structure with an interlayer distance of 6.77 nm. The length of 3b was estimated to be ca. 6 nm, which is in good agreement with the speculated packing structure formed by interdigitating the aliphatic chains.

3. Materials and Methods

3.1. Synthetic Procedures and Spectroscopic Data

3.1.1. General Procedures

Starting materials were purchased from FUJIFILM Wako Pure Chemical Corp. (Osaka, Japan), Nacalai Tesque Inc. (Kyoto, Japan), Tokyo Chemical Industry Co., Ltd. (Tokyo, Japan), and Sigma-Aldrich Co. (Tokyo, Japan) and were used without further purification unless otherwise stated. NMR spectra used in the characterization of precursors of Cu^II complexes were recorded on a JEOL ECA-600 600 MHz spectrometer (JEOL Ltd., Tokyo, Japan). UV-visible absorption spectra were recorded on a Hitachi U-3500 spectrometer (Hitachi High-Tech Science Corp., Tokyo, Japan). Matrix-assisted laser desorption ionization time-of-flight mass spectrometries (MALDI-TOF-MS) were recorded on a Shimadzu Axima-CFRplus (Shimadzu Corp., Kyoto, Japan). High-resolution (HR) electrospray ionization mass spectrometries (ESI-MS) were recorded on a BRUKER microTOF using the ESI-TOF method (Bruker, MA, USA). TLC analyses were carried out on aluminum sheets coated with silica gel 60 (Merck 5554). Column chromatography was performed on Wakogel C-300 and Merck silica gel 60H.

3.1.2. 1,3-Bis(5-(3,4-dimethoxyphenyl)pyrrol-2-yl)-1,3-propanedione (2e′)

A CH₂Cl₂ (20 mL) solution of 2-(3,4-dimethoxyphenyl)pyrrole (276.9 mg, 1.36 mmol) [31] was treated with malonyl chloride (115.01 mg, 0.816 mmol) at room temperature and was stirred for 1 h at the same temperature. After confirming the consumption of the starting pyrrole by the TLC analysis, the mixture was washed with saturated aqueous Na₂CO₃ and water, dried over anhydrous MgSO₄, filtered, and evaporated to dryness. The residue was then chromatographed over a silica gel column (eluent: 2% MeOH/CH₂Cl₂) and was recrystallized from CH₂Cl₂/n-hexane to afford 2e′ (166.2 mg, 0.35 mmol, 51%) as a pale-yellow solid. R_f = 0.27 (2% MeOH/CH₂Cl₂). ¹H NMR (600 MHz, CDCl₃, 20 °C; the diketone is obtained as a mixture of keto and enol tautomers in the ratio of 1:0.34): δ (ppm) keto form 9.43 (br, 2H, NH), 7.15–7.14 (m, 4H, pyrrole-H and Ar-H), 7.04 (m, 2H, Ar-H), 6.92–6.90 (m, 2H, Ar-H), 6.51–6.50 (m, 2H, pyrrole-H), 4.24 (s, 2H, CH₂), 3.96–3.91 (m, 12H, OCH₃); enol form 16.76 (br, 1H, OH), 9.35 (s, 2H, NH), 7.15–7.14 (m, 2H, Ar-H), 7.06 (m, 2H, Ar-H), 6.97–6.96 (m, 2H, pyrrole-H), 6.93–6.92 (m, 2H, Ar-H), 6.55–6.54 (m, 2H, pyrrole-H), 6.36 (s, 1H, CH), 3.96–3.91 (m, 12H, OCH₃). MALDI-TOF-MS m/z (% intensity): 473.2 (100). Calcd for C₂₇H₂₅N₂O₆ ([M − H]⁻): 473.17.

3.1.3. 1-tert-Butoxycarbonyl-2-(3,4-dihexadecyloxyphenyl)pyrrole and 2-(3,4-dihexadecyloxyphenyl)pyrrole

To a solution of 5-bromo-1,2-dihexadecyloxybenzene [32] (2.93 g, 4.60 mmol), 1-tert-butoxycarbonylpyrrole-2-boronic acid (1.0 g, 4.74 mmol), and Pd(PPh₃)₄ (543 mg, 0.47 mmol) in 1,2-dimethoxyethane (30 mL) at room temperature under nitrogen, a solution of Na₂CO₃ (2.5 g, 24.0 mmol) was added in water (3 mL). The mixture was heated at reflux temperature for 4 h, cooled, and then partitioned between water and CH₂Cl₂. The combined extracts were dried over anhydrous MgSO₄ and evaporated to give a solid. The residue was then chromatographed over a flash silica gel column (eluent: 3% EtOAc/n-hexane) to give 1-tert-butoxycarbonyl-2-(3,4-dihexadecyloxyphenyl)pyrrole (2.83 g, 3.90 mmol, 85%) as a white solid. R_f = 0.32 (eluent: 3% EtOAc/n-hexane). ¹H NMR (600 MHz, CDCl₃, 20 °C): δ (ppm) 7.32–7.31 (m, 1H, pyrrole-H), 6.87–6.84 (s, 2H, Ar-H), 6.85–6.84 (m, 1H, Ar-H), 6.21–6.20 (m, 1H, pyrrole-H), 6.15–6.14 (m, 1H, pyrrole-H), 4.00 (t, J = 6.6 Hz, 2H, OCH₂), 3.98 (t, J = 6.6 Hz, 2H, OCH₂), 1.84–1.78 (m, 4H, OCH₂CH₂), 1.49–1.42 (m, 4H, OC₂H₄CH₂), 1.37 (s, 9H, Boc), 1.35–1.25 (m, 48H, OC₃H₆C₁₂H₂₄), 0.89–0.86 (m, 6H, OC₁₅H₃₀CH₃). MALDI-TOF-MS: m/z (% intensity) 723.7 (100). Calcd for C₄₇H₈₁NO₄ ([M]⁺): 723.62. The produced 1-tert-butoxycarbonyl-2-(3,4-dihexadecyloxyphenyl)pyrrole (2.0 g, 2.76 mmol) was heated at 180 °C for 30 min. The residue was then chromatographed over a flash silica gel column (eluent: CH₂Cl₂/n-hexane = 1/1) to give 2-(3,4-dihexadecyloxyphenyl)pyrrole as a white solid (1.50 g, 2.40 mmol, 87%). R_f = 0.29 (CH₂Cl₂/n-hexane = 1/1). ¹H NMR (600 MHz, CDCl₃, 20 °C): δ (ppm) 8.32 (br, 1H, NH), 6.91 (d, J = 1.8 Hz, 1H, Ar-H), 6.98 (dd, J = 8.4 and 2.4 Hz, 1H, Ar-H), 6.88 (d, J = 8.4 Hz, 1H, Ar-H), 6.83–6.82 (m, 1H, pyrrole-H), 6.40–6.39 (m, 1H, pyrrole-H), 6.28–6.27 (m, 1H, pyrrole-H), 4.03 (t, J = 6.0 Hz, 2H, OCH₂), 4.00 (t, J = 6.6 Hz, 2H, OCH₂), 1.85–1.79 (m, 4H, OCH₂CH₂), 1.50–1.44 (m, 4H, OC₂H₄CH₂), 1.37–1.33 (m, 4H, OC₃H₆CH₂), 1.31–1.25 (m, 44H, OC₄H₈C₁₁H₂₂), 0.89–0.87 (m, 6H, OC₁₅H₃₀CH₃). MALDI-TOF-MS: m/z (% intensity): 624.5 (100). Calcd for C₄₂H₇₄NO₂ ([M + H]⁺): 624.57.

3.1.4. 1,3-Bis(5-(3,4-dihexadecyloxyphenyl)pyrrol-2-yl)-1,3-propanedione (3a′)

A CH₂Cl₂ (40 mL) solution of 2-(3,4-dihexadecyloxyphenyl)pyrrole (1.0 g, 1.6 mmol) was treated with malonyl chloride (124.2 mg, 0.881 mmol) at room temperature and stirred at reflux temperature for 1 h. After confirming the consumption of the starting pyrrole by TLC, the mixture was washed with saturated aqueous Na₂CO₃ and water, dried over anhydrous MgSO₄, filtered, and evaporated to dryness. The residue was then chromatographed over a silica gel column (eluent: CHCl₃) and was reprecipitated from CHCl₃/MeOH to afford 3a′ (441.8 mg, 0.34 mmol, 42%) as a pale-yellow solid. R_f = 0.25 (CHCl₃). ¹H NMR (600 MHz, CDCl₃, 20 °C; the diketone is obtained as a mixture of keto and enol tautomers in the ratio of 1:0.24): δ (ppm) keto form 9.36 (br, 2H, NH), 7.14–7.13 (m, 2H, pyrrole-H), 7.12–7.09 (m, 2H, Ar-H), 7.04 (m, 2H, Ar-H), 6.90–6.88 (m, 2H, Ar-H), 6.49–6.48 (m, 2H, pyrrole-H), 4.22 (s, 2H, CH₂), 4.06–4.00 (m, 8H, OCH₂), 1.86–1.80 (m, 8H, OCH₂CH₂), 1.51–1.44 (m, 8H, OC₂H₄CH₂), 1.36–1.34 (m, 8H, OC₃H₆CH₂), 1.30–1.25 (m, 88H, OC₄H₈C₁₁H₂₂), 0.89–0.86 (m, 18H, OC₁₅H₃₀CH₃); enol form 16.77 (br, 1H, OH), 9.29 (s, 2H, NH), 7.12 (m, 2H, Ar-H), 7.07 (m, 2H, Ar-H), 6.96–6.94 (m, 2H, pyrrole-H), 6.92–6.90 (m, 2H, Ar-H), 6.52–6.51 (m, 2H, pyrrole-H), 6.34 (s, 1H, CH), 4.06–4.00 (m, 8H, OCH₂), 1.86–1.80 (m, 8H, OCH₂CH₂), 1.51–1.44 (m, 8H, OC₂H₄CH₂), 1.36–1.34 (m, 8H, OC₃H₆CH₂), 1.30–1.25 (m, 88H, OC₄H₈C₁₁H₂₂), 0.89–0.86 (m, 18H, OC₁₅H₃₀CH₃). MALDI-TOF-MS m/z (% intensity): 1314.1 (100). Calcd for C₈₇H₁₄₅N₂O₆ ([M − H]⁻): 1314.11.

3.1.5. Cu^II complex of 1,3-di(5-methylpyrrol-2-yl)-1,3-propanedione (1a)

A mixture of 1,3-di(5-methylpyrrol-2-yl)-1,3-propanedione 1a′ [33] (11.8 mg, 0.051 mmol) and Cu(OAc)₂ (4.6 mg, 0.025 mmol) in MeOH (50 mL) was stirred at 25 °C for 1 h. After the solvent was evaporated, the residue was recrystallized from MeOH/n-hexane to afford 1a (4.52 mg, 8.7 μmol, 34%) as a brown solid. UV/vis (CH₂Cl₂, λ_max[nm] (ε, 10⁴ M⁻¹cm⁻¹)): 399 (7.5). MALDI-TOF-MS: m/z (% intensity): 520.1 (100). Calcd for C₂₆H₂₅CuN₄O₄ ([M − H]⁻): 520.12. HRMS (ESI-TOF): m/z 520.1177. Calcd for C₂₆H₂₅CuN₄O₄ ([M − H]⁻]): 520.1177. This compound was further characterized by the X-ray diffraction analysis.

3.1.6. Cu^II Complex of 1,3-bis(3,4-diethylpyrrol-2-yl)-1,3-propanedione (1b)

A mixture of 1,3-bis(3,4-diethylpyrrol-2-yl)-1,3-propanedione 1b′ [20] (15.8 mg, 0.050 mmol) and Cu(OAc)₂ (4.6 mg, 0.025 mmol) in MeOH (50 mL) was stirred at 25 °C for 1 h. After the solvent was evaporated, the residue was recrystallized from MeOH/n-hexane to afford 1b (7.24 mg, 10.5 μmol, 42%) as a brown solid. UV/vis (CH₂Cl₂, λ_max[nm] (ε, 10⁴ M⁻¹cm⁻¹)): 393 (6.0). MALDI-TOF-MS: m/z (% intensity): 688.2 (100). Calcd for C₃₈H₄₉CuN₄O₄ ([M − H]⁻): 688.30. HRMS (ESI-TOF): m/z 688.3056. Calcd for C₃₆H₄₉CuN₄O₄ ([M − H]⁻]): 688.3055. This compound was further characterized by the X-ray diffraction analysis.

3.1.7. Cu^II Complex of 1,3-di(5-phenylpyrrol-2-yl)-1,3-propanedione (2a)

A mixture of 1,3-di(5-phenylpyrrol-2-yl)-1,3-propanedione 2a′ [21] (30.0 mg, 0.075 mmol) and Cu(OAc)₂ (6.4 mg, 0.035 mmol) in CH₂Cl₂ (20 mL) and MeOH (30 mL) was stirred at 25 °C for 0.5 h. The precipitate was collected and washed with CH₂Cl₂ to afford 2a (20.2 mg, 0.026 mmol, 69%) as a yellow solid. MALDI-TOF-MS: m/z (% intensity): 768.2 (100). Calcd for C₄₆H₃₃CuN₄O₄ ([M − H]⁻): 768.18. HRMS (ESI-TOF): m/z 768.1803. Calcd for C₄₆H₃₃CuN₄O₄ ([M − H]⁻]): 768.1803. This compound was further characterized by the X-ray diffraction analysis. The UV/vis absorption spectrum was not measured due to the low solubility.

3.1.8. Cu^II complex of 1,3-di(5-(2-methoxyphenyl)pyrrol-2-yl)-1,3-propanedione (2b)

A mixture of 1,3-di(5-(2-methoxyphenyl)pyrrol-2-yl)-1,3-propanedione 2b′ [22] (21.3 mg, 0.051 mmol) and Cu(OAc)₂ (4.65 mg, 0.026 mmol) in CH₂Cl₂ (20 mL) and MeOH (20 mL) was stirred at 25 °C for 0.5 h. After the solvent was evaporated, the residue was recrystallized from MeOH/n-hexane to afford 2b (14.5 mg, 0.016 mmol, 63%) as a brown solid. UV/vis (CH₂Cl₂, λ_max[nm] (ε, 10⁴ M⁻¹cm⁻¹)): 454 (9.3). MALDI-TOF-MS: m/z (% intensity): 888.2 (100). Calcd for C₅₀H₄₁CuN₄O₈ ([M − H]⁻): 888.22. HRMS (ESI-TOF): m/z 888.2226. Calcd for C₅₀H₄₁CuN₄O₈ ([M − H]⁻]): 888.2226. This compound was further characterized by the X-ray diffraction analysis.

3.1.9. Cu^II complex of 1,3-di(5-(3-methoxyphenyl)pyrrol-2-yl)-1,3-propanedione (2c)

A mixture of 1,3-di(5-(3-methoxyphenyl)pyrrol-2-yl)-1,3-propanedione 2c′ [22] (35.5 mg, 0.086 mmol) and Cu(OAc)₂ (7.76 mg, 0.043 mmol) in CH₂Cl₂ (30 mL) and MeOH (30 mL) was stirred at 25 °C for 0.5 h. After the solvent was evaporated, the residue was recrystallized from MeOH/n-hexane to afford 2c (30.5 mg, 0.034 mmol, 80%) as a brown solid. UV/vis (THF, λ_max[nm] (ε, 10⁴ M⁻¹cm⁻¹)): 430 (8.2). MALDI-TOF-MS: m/z (% intensity): 888.3 (100). Calcd for C₅₀H₄₁CuN₄O₈ ([M − H]⁻): 888.22. HRMS (ESI-TOF): m/z 888.2224. Calcd for C₅₀H₄₁CuN₄O₈ ([M − H]⁻]): 888.2226. This compound was further characterized by the X-ray diffraction analysis.

3.1.10. Cu^II complex of 1,3-di(5-(4-methoxyphenyl)pyrrol-2-yl)-1,3-propanedione (2d)

A mixture of 1,3-di(5-(4-methoxyphenyl)pyrrol-2-yl)-1,3-propanedione 2d′ [22] (22.5 mg, 0.054 mmol) and Cu(OAc)₂ (4.91 mg, 0.027 mmol) in CH₂Cl₂ (20 mL) and MeOH (20 mL) was stirred at 25 °C for 0.5 h. The precipitate was collected and washed with CH₂Cl₂ to afford 2d (16.8 mg, 0.019 mmol, 72%) as a yellow solid. MALDI-TOF-MS: m/z (% intensity): 888.2 (100). Calcd for C₅₀H₄₁CuN₄O₈ ([M − H]⁻): 888.22. HRMS (ESI-TOF): m/z 888.2225. Calcd for C₅₀H₄₁CuN₄O₈ ([M − H]⁻]): 888.2226. This compound was further characterized by the X-ray diffraction analysis. The UV/vis absorption spectrum was not measured due to the low solubility.

3.1.11. Cu^II complex of 1,3-bis(5-(3,4-dimethoxyphenyl)pyrrol-2-yl)-1,3-propanedione (2e)

A mixture of 2e′ (31.0 mg, 0.065 mmol) and Cu(OAc)₂ (5.72 mg, 0.033 mmol) in CH₂Cl₂ (20 mL) and MeOH (40 mL) was stirred at 25 °C for 0.5 h. The precipitate was collected and washed with CH₂Cl₂ to afford 2e (32.0 mg, 0.032 mmol, 98%) as a yellow solid. UV/vis (CH₂Cl₂, λ_max[nm] (ε, 10⁴ M⁻¹cm⁻¹)): 444 (9.1). MALDI-TOF-MS: m/z (% intensity): 1008.4 (100). Calcd for C₅₄H₄₉CuN₄O₁₂ ([M − H]⁻): 1008.26. HRMS (ESI-TOF): m/z 1008.2649. Calcd for C₅₄H₄₉CuN₄O₁₂ ([M − H]⁻]): 1008.2648. This compound was further characterized by the X-ray diffraction analysis.

3.1.12. Cu^II complex of 1,3-bis(5-(3,4,5-trimethoxyphenyl)pyrrol-2-yl)-1,3-propanedione (2f)

A mixture of 1,3-bis(5-(3,4,5-trimethoxyphenyl)pyrrol-2-yl)-1,3-propanedione 2f′ [21] (40.0 mg, 0.075 mmol) and Cu(OAc)₂ (6.4 mg, 0.035 mmol) in CH₂Cl₂ (20 mL) and MeOH (30 mL) was stirred at 25 °C for 0.5 h. The precipitate was collected and washed with CH₂Cl₂ to afford 2f (36.14 mg, 0.032 mmol, 91%) as a brown solid. UV/vis (THF, λ_max[nm] (ε, 10⁴ M⁻¹cm⁻¹)): 448 (9.5). MALDI-TOF-MS: m/z (% intensity): 1128.3 (100). Calcd for C₅₈H₅₇CuN₄O₁₆ ([M − H]⁻): 1128.31. HRMS (ESI-TOF): m/z 1128.3071. Calcd for C₅₈H₅₇CuN₄O₁₆ ([M − H]⁻]): 1128.3071. This compound was further characterized by the X-ray diffraction analysis.

3.1.13. Cu^II complex of 1,3-bis(5-(3,4-dihexadecyloxyphenyl)pyrrol-2-yl)-1,3-propanedione (3a)

A mixture of 3a′ (99.56 mg, 0.076 mmol) and Cu(OAc)₂ (6.87 mg, 0.038 mmol) in CHCl₃ (30 mL) was stirred at 25 °C for 0.5 h. After the solvent was evaporated, the residue was reprecipitated from CHCl₃/MeOH to afford 3a (94.28 mg, 0.035 mmol, 93%) as a brown solid. UV/vis (CH₂Cl₂, λ_max[nm] (ε, 10⁴ M⁻¹cm⁻¹)): 447 (8.6). MALDI-TOF-MS: m/z (% intensity): 2692.2 (100). Calcd for C₁₇₄H₂₈₉CuN₄O₁₂ ([M − H]⁻): 2692.15.

3.1.14. Cu^II complex of 1,3-bis(5-(3,4,5-trihexadecyloxyphenyl)pyrrol-2-yl)-1,3-propanedione (3b)

A mixture of 1,3-bis(5-(3,4,5-trihexadecyloxyphenyl)pyrrol-2-yl)-1,3-propanedione 3b′ [21] (150.0 mg, 0.084 mmol) and Cu(OAc)₂ (7.58 mg, 0.042 mmol) in MeOH (40 mL) was stirred at 25 °C for 0.5 h. After the solvent was evaporated, the residue was reprecipitated from CHCl₃/MeOH to afford 2h (138.1 mg, 0.038 mmol, 90%) as a brown solid. UV/vis (CH₂Cl₂, λ_max[nm] (ε, 10⁴ M⁻¹cm⁻¹)): 448 (8.3). MALDI-TOF-MS: m/z (% intensity): 3654.1 (100). Calcd for C₂₃₈H₄₁₇CuN₄O₁₆ ([M − H]⁻): 3654.13.

3.2. Method for Single-Crystal X-ray Analysis

Crystallographic data are summarized in the Supplementary Materials. A single crystal of 1a was obtained by vapor diffusion of n-hexane into a MeOH solution of 1a. The data crystal was a yellow prism of approximate dimensions 0.30 × 0.10 × 0.05 mm. A single crystal of 1b was obtained by vapor diffusion of n-hexane into a CHCl₃ solution of 1b. The data crystal was a violet prism of approximate dimensions 0.50 × 0.30 × 0.20 mm. A single crystal of 2a was obtained by vapor diffusion of water into an N-methyl-2-pyrrolidone and MeOH mixed solution of 2a. The data crystal was a yellow prism of approximate dimensions 0.10 × 0.10 × 0.10 mm. A single crystal of 2b was obtained by vapor diffusion of n-hexane into a MeOH solution of 2b. The data crystal was a yellow prism of approximate dimensions 0.20 × 0.15 × 0.10 mm. A single crystal of 2c was obtained by vapor diffusion of n-hexane into a MeOH solution of 2c. The data crystal was an orange prism of approximate dimensions 0.60 × 0.40 × 0.20 mm. A single crystal of 2f was obtained by vapor diffusion of n-hexane into a mixture of MeOH and CH₂Cl₂ solution of 2f. The data crystal was an orange prism of approximate dimensions 0.40 × 0.20 × 0.10 mm. The data of 1a,b and 2a–c,f were collected at 123 K on a Rigaku RAXIS-RAPID diffractometer (Rigaku Corp., Tokyo, Japan) with graphite monochromated Mo-Kα (λ = 0.71075 Å). All the structures were solved by the dual-space method. The structures were refined by a full-matrix least-squares method using a SHELXL 2014 [34] (Yadokari-XG) [35,36]. In each structure, the non-hydrogen atoms were refined anisotropically. All the hydrogen atom positions were placed at calculated positions and rode on the atom of attachment except for the hydrogen atoms of water in 1a. For 2c,f, the disordered solvents, presumably N-methylpyrrolidone and CH₂Cl₂, respectively, were removed using the SQUEEZE protocol included in PLATON [37]. CIF files (CCDC-2051817–2051822) can be obtained free of charge from the Cambridge Crystallographic Data Centre.

3.3. DFT Caluculations

DFT calculations for the geometrical optimizations were carried out using the Gaussian 09 program [23].

3.4. Differential Scanning Calorimetry (DSC)

The phase transitions were measured on a differential scanning calorimetry (Shimadzu DSC-60 (Shimadzu Corp., Kyoto, Japan)).

3.5. Polarizing Optical Microscopy (POM)

The POM observation was carried out with a Nikon ECLIPSE E600POL polarizing optical microscope (Nikon Corp., Tokyo, Japan) equipped with a Mettler Toledo FP-82 HT hot stage system (Mettler Toledo, Columbus, OH, USA).

3.6. Synchrotron X-ray Diffraction Analysis (XRD)

High-resolution XRD analyses were carried out using a synchrotron radiation X-ray beam with a wavelength of 1.00 Å on BL40B2 at SPring-8 (Hyogo, Japan). The diffractions were detected by a large Debye-Scherrer camera with an imaging plate. The camera lengths were set at 550.5 mm. The diffraction patterns were obtained with a 0.01° step in 2θ. An exposure time of the X-ray beam was 10 s.

4. Conclusions

Cu^II complexes of dipyrrolyldiketones exhibited planar geometries based on their square planar coordination. Rectangular structures were formed upon extending the long axis of these molecules with the introduction of aryl units at the pyrrole α-positions. Planar dipyrrolyldiketone Cu^II complexes were suitable for the generation of stacking-based molecular assemblies, as observed in single-crystal structures. Furthermore, the introduction of the aliphatic alkoxy chains induced mesophases as dimension-controlled assemblies based on the characteristic geometries of the formation of dipyrrolyldiketone Cu^II complexes. The molecular design aimed at tuning the conformation of 1,3-diketone metal complexes developed in this study might enable further modifications of π-electronic systems for providing electronically and optically attractive materials.
