Abstract

Graphene is one of the most favorite materials for materials science research owing to its distinctive chemical and physical properties, such as superior conductivity, extremely larger specific surface area, and good mechanical/chemical stability with the flexible monolayer structure. Graphene is considered as a supreme matrix and electron arbitrator of semiconductor nanoparticles for environmental pollution remediation. The present review looks at the recent progress on the graphene-based metal oxide and ternary composites for photocatalysis application, especially for the application of the environmental remediation. The challenges and perspectives of emerging graphene-based metal oxide nanocomposites for photocatalysis are also discussed.
Keywords: graphene oxide; metal oxides; semiconductor; photocatalysis; dyes graphene oxide; metal oxides; semiconductor; photocatalysis; dyes

1. Introduction

Graphene is a 2-D material composed of layers of carbon atoms crammed into a honeycomb network and has become an escalating star on the prospect of materials science in the past many years [1,2,3]. Graphene can be used to produce 0-D fullerene, 1-D and 3-D graphitic carbon nanotubes that had been intensively studied for the last ten years [4,5]. Graphene exhibits enthralling assets such as extraordinary conductivity, maximum surface-area-to-volume ratio, a fluorescence-quenching competence by electron or energy-allocation, a quantum Hall effect at room temperature, a bipolar electric field effect laterally with the surface conduction of charge carriers and a tunable band gap [6,7]. Narrow band gap metal oxides are of great interest, due to their efficient utilization of solar energy which signifies an auspicious technology to resolve the global energy and eco-friendly challenges [5,8,9,10]. Furthermore, graphene sheets decorated with metal oxide nanoparticles exhibit the outstanding properties because of the synergetic effect between them [11].
The growth of graphene-based composites provides a significant milestone to multiply the application enactment of metal oxide nanomaterials in photocatalysis, as the hybrids have adaptable and suitable properties with superior performances over the individual oxide nanomaterials. With keeping this in mind, considerable efforts have been made on decorating graphene with metal oxides [12]. Graphene-based materials have also been used as the catalyst in the reactions pertaining to environmental remediation [13]. Graphene oxide-based (GO-based)/reduced graphene oxide-based (rGO-based) materials are used as photocatalysts for pollutant abatement [14,15,16,17].
In this context, focusing on the recent developments, an attempt is made in the present review to discuss the advantages and disadvantages of the composite in comparison with pristine graphene.

2. Photocatalysis

Different metal oxides-GO/rGO composites, their photocatalytic activities and synthesis process are discussed in the following sections as well as in Table 1. However, the photocatalytic performances of metal oxide-GO/rGO composite photocatalysts for the degradation of different pollutants are tabulated in Table 2.

2.1. Earth-Abundant Metal Oxide-GO/rGO Composites

2.1.1. rGO-WO3 Composites

rGO-WO3 catalyst dosage has a substantial impression on the photocatalytic activity. The finest Sulfamethoxazole (SMX) removal efficacy was achieved when rGO-WO3-200 loading was 1.0 g L−1, and this study demonstrated that the dosage of the catalyst is crucial for the photocatalytic activity. SMX degradation over rGO-WO3-200 was significantly influenced by neutral pH and displayed the pre-eminent process [18]. Photodegradation of naphthol-1 by rGO-WO3–nanocomposite and WO3 was achieved by 84% and 40% respectively, attributed to the larger specific surface area and lower band gap energy [19]. Outcomes suggested that the presence of rGO in the nanocomposite enabled the electron transfer [19]. The enhanced photocatalytic activity was due to the synergistic effect between WO3 and rGO sheets and suppressing the electron-hole pair recombination in the WO3-rGO nanocomposite [6]. WO3/GO composites revealed an enhanced photocatalysis under the visible light, which was two-folds of pure WO3 that reduced the recombination of the photogenerated electron-hole pairs and increased the visible light absorption efficiency [20].

2.1.2. rGO-Co3O4 Composites

Co3O4/rGO composite exhibits better photocatalytic activity in a low concentration of Methyl Orange (MO). The higher stocking dose of Co3O4 on Co3O4/rGO contributes more on the activity [21]. Degradation of organic dyes depicted by photocatalytic experiments where GO acts as a supporting material and active co-catalyst, which decreases the band gap of α-MoO3 from 2.82 to 2.51 eV [22]. This synthesized hybrid can be used for visible-light-induced photocatalysis. Co3O4-rGO hybrids were reported to completely oxidize 20 mg/L phenol in 20 min at 25 °C. Origination of sulfate radicals via Co3O4-mediated activation of peroxymonosulfate (PMS) is responsible for this catalytic effect [23]. The Co3O4/N-doped graphene hybrid exhibits similar catalytic activity but superior stability to Pt, in alkaline solutions. This unusual catalytic activity arises from synergetic chemical coupling effects between Co3O4 and graphene [23].

2.1.3. GO/rGO-TiO2 Composites

A systematic investigation on the photocatalytic properties of TiO2–GO nanocomposites was examined with different ratios of graphene additions and it was found that higher amount of graphene addition decreased the photocatalytic activity [24]. Liquid-phase degradation of dyes over the TiO2-GO photocatalyst showed the similar occurrence. This study demonstrated that TiO2-GO cannot offer truly new visions into the assembly of TiO2 carbon composite as high-performance photocatalysts. The TiO2 particles were found to be in anatase phase and a narrow size distribution was dispersed on the surface of graphene sheets uniformly [25]. A comparison of photoluminescence spectra between TiO2 and G-TiO2 was reported with different reaction times, as shown in Figure 1. In this figure, the inset is the amplificatory image of the area in the range of 300 to 500 nm which demonstrates the quenching extent in relation with the reaction time in the Graphene-TiO2 [26]. TiO2 (P25)-rGO composite was found to be the most proficient photocatalyst for the degradation of Methylene Blue (MB) and the optimum mass ratio was found to be 1/0.2 [14]. Comparison has revealed that the P25-rGO composite has additional effectiveness compared to the P25-CNT (carbon nanotubes) composite (Figure 2).
Graphene-loaded TiO2 films were reported to be highly conductive and transparent; remarkably, graphene/TiO2 films exhibited super hydrophilicity in a short time even under a white fluorescent light bulb. Higher photocatalytic activity owed to its efficient charge separation and electrons injection from the conduction band of TiO2 to graphene [27].
The higher photocatalytic performance was observed in TiO2-graphene oxide composite due to the formation of both π-π conjugations between dye molecules and aromatic rings. The photocatalytic property was reported to be higher with the higher content of the graphene oxide. Furthermore, ionic interactions between MB and functional groups of GO on the surfaces of carbon-based nanosheets was also the reason considered for the superior property [28]. Improving graphene oxide (IGO) in strong acidic condition was reported to enhance the chemical interaction between TiO2 and graphene sheets [29]. This study showed that IGO can react with Ti(OH)x to form graphene/TiO2 composite in situ, with complete and near coverage of Ti-C and Ti-O-C carbonaceous bonds at the graphene/TiO2 interface. Higher photocatalytic activity shown by graphene/TiO2 due to effective charge transfer imparts under visible light and GO forms chemical bonds at the interface [29].
Photocatalytic experiments using sacrificial hole and radical scavenging agents demonstrated that the photogenerated holes are the main reason for the degradation of diphenhydramine (DP), both under UV and visible light. In this report, photoluminescence studies revealed discrete appeasing of the GO photoluminiscence under visible light and near infrared laser excitation. Hence, it was conferred that GO acts as either an electron acceptor or donor of TiO2 under UV/visible light [30].
Nitrogen-doped P90 TiO2 (N-P90), nitrogen-doped reduced graphene oxide (N-rGO), as well as their composites were studied for the photocatalytic activity. N-P90/N-rGO showed enhanced photocatalytic activity, and in the presence of this composite, around 80% MB was degraded by visible light irradiation in 160 min. Enhanced photocatalytic performance is observed in N-P90/N-rGO composites for degradation of MB due to photo-induced and electronic interaction between TiO2 and graphene. Comparison of degradation efficiency of MB under visible light irradiation by P90 TiO2, N-P90, and N-P90/rGO is presented in Figure 3 [31]. It is reported that the rGO or N-rGO in the composite enables the separation of electrons and holes by performing as electron trapping/de-trapping under visible light [31]. Ultrafine TiO2 nanofibers (~10 nm diameters) were synthesized from electrospun rice-shaped TiO2 and potassium titanate was achieved from rice-shaped TiO2. The surface area was increased by 2.5 times after the nanofiber formation of TiO2. The results showed that the photodegradation of MO was found to be higher than bare TiO2 (P-25) nanoparticles [32]. GO/TiO2 of different composition ratios were tested and the formulation of catalyst with 1.2 times higher photocatalytic activity than commercial photocatalyst was reported. This catalyst was able to degrade 3 mg/L MB over 10 consecutive cycles with nominal loss in photocatalytic efficacy. Graphene plays a generous part in obstructing the accretion of TiO2 grains upon calcination at high temperature [33]. A set of reduced graphene oxide-TiO2 (rGO-TiO2) nanocomposites was synthesized and examined for the photocatalytic activity by decolorization of Rhodamine B dye (RhB) under UV light. In this study, various parameters, such as dye concentration, rGO content, catalytic dose, and pH, were optimized for the decolorization. The catalysts were found to be more active at natural pH of the dye under the UV-illumination for the degradation of RhB dye. The presence of H2O2 and K2S2O8 increased the decolorization. Further, addition of CO32− and Cl ions decreased the dye degradation rate [34].
TiO2 nanoparticle-attached graphene/carbon composite nanofibers (TiO2-CCNFs) were synthesized and reported as highly active photocatalysts for photocatalytic degradation of MB under the irradiation of visible light. Graphene was suggested to play the role of an electron acceptor and a photosensitizer, resulting in a higher photodegradation rate and reduced electron-hole pair recombination. CNFs having high surface also improved the photocatalytic activity of TiO2 [35].

2.1.4. GO/rGO-ZnO Composite

An effective scalable method was developed to make nanocomposites of functional graphene sheets (FGS)/ZnO. In this study, poly (vinyl pyrrolidone) (PVP) component was reported to play a crucial role for loading of ZnO nanoparticles onto FGS by connecting Zn ions on the carbon materials and promoting ZnO nucleation and crystal growth in the precursor-prepared route. Further, FGS/ZnO composite was evaluated for photocatalytic activity and was found to be applicable for a number of environmental issues [36]. ZnO/rGO nanocomposite was used as a photocatalyst for the removal of MB. Observations showed that the efficiency of the photocatalyst activity of the ZnO nanoparticles was significantly increased by rGO [37].
The calcination atmosphere was found to affect the photocatalytic activity of the TiO2/graphene sheet (GS) (5%) composites for H2 evolution from water splitting. This study demonstrated that beyond the critical content of GS (5%), photocatalytic activity was decreased by initiating electron-hole recombination centers. Calcination atmosphere was found to be important and better performance was observed for the samples calcined in nitrogen atmosphere [38].
The use of ZnO-graphene composites (Z-GC) was reported to remove dye from water due to the interaction between the graphene sheets and the ZnO nanoparticles [39]. rGO-ZnO (3.56%) showed higher photocurrent response and degradation of MB under illumination of UV light. Longer electron lifetime and the enhanced light absorption were verified by analytical and electrochemical technique (Figure 4) [40].
The ZnO/GO nanocomposite consisting of flower-like ZnO nanoparticles anchored on graphene-oxide. Further, photocatalytic efficiency of ZnO/GO composite progressed by annealing the product in N2 atmosphere. The superior photocatalytic performance was due to the synergistic effect of the proficient electron inoculation and low charge carriers in the composite, where GO acted as an electron collector and transporter, leading to unceasing generation of reactive oxygen species for the degradation of MB [10]. Core-shell nanorods with ZnO core and ZnS-Bi2S3 bi-component shell anchored on the rGO sheets were synthesized and reported to show a broad and strong photo-absorption in the visible region. These nanorods also manifested better photocatalytic activity for H2 evolution from the glycerol-water mixtures. The superiority in performance is owing to the elevated light absorption and effective charge separation [41].

2.2. Bimetal Oxide-GO/rGO Composites

2.2.1. GO/rGO-CoFe2O4 Composite

Connexion of the graphene suggestively progressed the photocatalytic performance of the CoFe2O4 in which the graphene acts as a charge carrier to detain the delocalized electrons. Photocatalytic activity was explored with the variation of the dosage and dye concentration [42]. CoFe2O4-graphene hybrid materials (CFGHs) showed ferromagnetic behavior and enhanced photodegradation rate and amended adsorbing capacity due to the assimilation of graphene [43]. The photodegradation fallouts directed the visible light fascinating performance of the ternary photocatalysts and formation of the p–n junction between CoFe2O4 and CdS. Escalation in the concentration of MB was observed as the irradiation time increased for CoFe2O4 due to the desorption of MB during irradiation. G-CoFe2O4/CdS easily separated from aqueous solution in an external magnetic field, as seen from the digital photos of Gr-CoFe2O4/CdS after irradiation [44]. The CoFe2O4-rGO composite unveiled required photocatalytic performance with excellent recycling stability for the degradation of MB, RhB, and MO under visible-light irradiation [45].
CoFe2O4-rGO (CF–rGO) nanocomposites hold exceptional microwave absorbing properties and high photocatalytic activity for the degradation of various dyes under visible light irradiation [46]. 85 CF-15 rGO exposed admirable microwave absorption possessions with a Reflection Loss (RL) of 31.31 dB (99.94% absorption) at 9.05 GHz, with an 8.2–10.92 GHz effective bandwidth range. 75CF-25 rGO was found to be a good magnetically separable photocatalyst for the degradation of dyes, MO, MB, and RhB, under visible light irradiation emitted from a 100 W reading lamp [46]. The photocatalytic activity was found to be affected by the structural and optical properties and surface area of the samples [47].
CoFe2O4-3D TiO2 nanocomposite showed an enhancement in the photodegradation of MB as compared to the commercial rutile-phase TiO2 and the pure urchin-like TiO2 (3D TiO2) microparticles. Results specified that the composite showed relatively consistent photocatalytic activity with slight degradation [48]. The photocatalytic activity of 75CF-25 rGO was found to be analogous and in some cases, superior, compared to the several reported rGO–CoFe2O4 composites [46]. The photocatalytic activity of CF-RGO was increased with increasing rGO content in composites until 25 wt% of rGO, and degradation takes place around 60 min.
The photocatalytic degradation of short-chain chlorinated paraffin’s over rGO/CoFe2O4/Ag under visible light (λ > 400 nm) was investigated by in-situ Fourier transform infrared spectroscopy and the correlated mechanisms were suggested. Superficial degradation ratio of 91.9% over rGO/CoFe2O4/Ag was obtained under visible light illumination of 12 h, while only about 21.7% was obtained with commercial P-25 TiO2 [49]. Increase of rGO caused an increase in the completion time of the photocatalysis. Degradation of MO diminished with increasing catalyst dose up to 500 mgL−1, and then, no noteworthy decrease of time was observed when more catalyst was added. Likewise, use of 2 mL of H2O2 was found to be an optimum amount for the photocatalysis reaction (Figure 5) [46]. Photocatalytic activity of the rGO-CoFe2O4 nanocomposites was queried for the degradation of 4-Chlorophenol (4-CP) under visible light illumination. Activity of rGO-CoFe2O4 composite was seen in the occurrence of PMS (Figure 6) [50].

2.2.2. GO-rGO-ZnFe2O4 Composite

Photocatalytic activity of ZnFe2O4-graphene catalyst demonstrated an important two-fold function as the photoelectrochemical degradation of MB and generation of hydroxyl radical for the decomposition of H2O2 under visible light irradiation [51]. Graphene-ZnFe2O4 photocatalyst facilitated the transport channels for photon-excited electrons from the surface of the catalyst. As a result, about 20 nm ZnFe2O4 catalyst with a highly crystallized (311) plane confined in the graphene network exhibited an excellent visible-light-driven photocatalytic activity with an ultrafast degradation rate of 1.924 × 10−7 mol g −1 s −1 for MB [52].
The boosted photocatalytic activity of ZnFe2O4-rGO nanocomposite was shown due to the active restraint of the recombination of the photo-excited electron-hole pairs by rGO sheets and the generation of ·OH-free radical [11]. The photocatalytic activity of the nanocomposite examined under visible light, for the degradation of 17 α-ethinylestradiol (EE2) [50]. The pseudo rate constant of ZnFe2O4-Ag/rGO nanocomposite was higher by the factor of 14.6 and 5.6 times over its counterparts. Photosensitization effect was prevailed by good interaction ensuing in only 80% removal of EE2 though humic acid [53]. rGO/ZnFe2O4 composite exhibited the remarkable catalytic activity toward MB degradation; in the presence of H2O2, the activity enhanced, and the reaction followed a pseudo-first-order kinetics. The complete MB degradation observed at rGO/ZnFe2O4 composites was attributed to the π–π interaction, hydrogen bonding, and electrostatic interaction exerted between the rGO and ZnFe2O4 [54].

2.2.3. GO/rGO-NiFe2O4 and MnFe2O4 Composites

NiFe2O4-GO (0.25) hetero-architecture demonstrated a considerable lesser emission intensity. Due to their competent electron-transport property, graphene sheets can deliberately reduce the fluorescence of NiFe2O4 fixed on them. Kinetic results indicated that the rate-determining step is the adsorption course of MB [55]. In this study, NiFe2O4-GO (0.25) shows the best activity compared to other NiFe2O4-G composites (Figure 7). GO-NiFe2O4 showed photo-Fenton reactions for organic contaminants in the presence of both H2C2O4 and H2O2 under visible light irradiation. The photochemical reduction of Fe3+ ions by GO was a key step in inducing the Fenton process [56]. The superior photocatalytic is due to (I) high visible absorbance for charge carrier production, (II) the electrons captured by Au nanoparticles results in the fast separation, and (III) the strong surface plasmon resonance (SPR) of Au nanoparticles permit the generation of high concentration of charge carriers [57]. MnFe2O4 catalyst is photocatalytically inactive. The noteworthy higher photocatalytic activity is due to the rGO, as the excellent conductivity in the MnFe2O4 and graphene composite [58].

2.2.4. Other Composite Systems

RGO-Bi2WO6 and 3D CNT-pillared rGO nanocomposites show outstanding photocatalytic performance for the degradation of dyes under visible light [59]. BiFeO3-graphene nanohybrids have a six times higher rate compared to BiFeO3 for the degradation of Congo Red (CR) under visible light due to its combined effects of modulated band gap and covalent bonding between BiFeO3 and graphene [60].
Photoluminescence studies of Nb3O7 (OH)-RGO composite supported the suggested mechanism of charge separation and transport mechanism. A higher degradation rate was obtained using the nanocomposite prepared with a graphene loading of 3 mgmL−1, and when the rGO loading exceeded 3 mgmL−1, degradation efficacy diminished. This arose as extra rGO sheets gathered and stuck the absorption of incident light [61].

3. Photocatalytic Evaluation

Pristine TiO2 and ZnO exhibited good photocatalytic activity in UV light due to their wide band gap. These two metal oxides are stable in aqueous conditions during photocatalysis. Further, coupling of graphene with TiO2 and ZnO increases the photocatalytic activity due to increases in the photogenerated charge carriers. Metal oxides with magnetic properties of metal ferrites (MFe2O4) offer an added advantage as photocatalysts since they can be recovered by applying an external magnetic field after catalysis. Metal ferrites (MFe2O4, M = Co, Ni, Mn, Zn, etc.) materials are proven to be excellent candidates for visible light photocatalytic H2 generation through water splitting. Recycling ability for metal ferrites are far better compared to nano semiconductors like TiO2 and ZnO. MFe2O4 is a class of semiconductor with narrow band gap, which exhibits characteristic visible light response, possess good photochemical stability, and exhibits excellent optical properties.
MFe2O4 absorbs 42–45% of sunlight, whereas TiO2 and ZnO absorbs 4% of sunlight. MFe2O4 are efficient for the degradation of dye degradation and organic pollutant degradation compared to the other metal oxides (SnO2, CeO2, BaTiO3, and SrTiO3), with respect to the catalyst and the light source. In MFe2O4 context, recombination of photogenerated charge carriers is the major limitation in semiconductor photocatalysis as it reduces the overall quantum efficiency. In order to enhance the photocatalytic activity, graphene material is coupled with MFe2O4, where the graphene channels the electrons. Comparison of degradation rate for various photocatalytic reaction systems is incongruous since the nature of catalyst and substrate pollutant molecules are different in each reaction. Ferrite nanoparticles have a strong magnetic property, which can be easily used for magnetic separation after photo-mineralization.
The photocatalytic efficiency depends on the ratio of the photogenerated charge-carrier transfer rate to the rate of electron-hole recombination. For composite structure, M2+ ion easily bonds with oxygen by giving an electron and super oxide radical. This super oxide radical can oxidize the organic substrate molecule. The Fe3+ ion and Fe2+ ions can show photo-Fenton reactions in presence of in-situ-generated H2O2. This H2O2 generates hydroxyl-free radicals, which are involved in the degradation of pollutants. Predicted mechanism for the rGO-CoFe2O4 composite is shown in Equations (1)–(4).
rGO ( e ) CoFe 2 O 4 ( h + ) + O 2 rGO CoFe 2 O 4 ( h + ) + O 2
rGO CoFe 2 O 4 ( h + ) + OH _ / H 2 O rGO CoFe 2 O 4 + OH
rGO ( e ) CoFe 2 O 4 ( h + ) + HSO 5 rGO CoFe 2 O 4 + OH + SO 4
SO 4 + H 2 O HSO 4 + OH
rGO-BiO6 composite shows better photocatalyst compared to other catalysts prepared from hydrothermal method (Table 1; Table 2). The enhanced photocatalytic activity could be endorsed to the negative shift in the Fermi level of graphene-Bi2WO6 (G-BWO), decrease the conduction band potential, and elevate migration efficiency of photo-induced electrons, which may restrain the charge recombination efficiently. Superior contact between BiVO4 and rGO scaffold subsidizes to photo-response augmentation compared to other electrochemical methods in the rGO-BiO4 composite.
Furthermore, the self-redox properties of iron and manganese atoms in MnFe2O4 induced by S2O82− were particularly useful for the generation of SO4. The quenching tests and electron spin resonance (ESR) display that h+, O2−, SO4, and OH are accountable for decomposition of antibiotics. Overall, irrespective of other parameters, the solvothermal method is best and helps in crystal growing and super saturation is achieved by reducing the temperature in the crystal growth zone.
Further, noble metal (Ag, Au, Cu, etc.) exhibits surface plasmon resonance (SPR), which is a characteristic feature. The SPR frequency of the metal particles can be tuned into visible light absorption by shifting the size of the deposited metal particles on the catalyst. Deposited metal is involved in multiple crucial roles, such as serving as a passive electron sink with high capacity to store electrons to suppress photogenerated charge carrier recombination, facilitates rapid dioxygen reduction to generate free radicals and direct excitation of metals, especially under visible light, and vectorial electron transfer to the conduction band (CB) of metal oxide. Thereby, showing improvement in the photocatalysis for the removal of various organic pollutants/dyes.

4. Perspectives and Challenges

Graphene nanosheets act as a substrate to support the metal oxides for photocatalytic activity and graphene-based semiconductor photocatalysts are used for environmental remediation. The morphologies of semiconductors, theoretical electronic-structure calculations, and experimental discovery determinations are necessary on GO to persuade the photocatalytic activity, and composition design is an operative method to enhance the photocatalytic properties. Photocatalytic properties depend on the preparative method, and various parameters like initial concentration, oxidant concentration, pH, particle size, number of GO sheets, and source of light should be explored.
The interface regulates the efficacy of the electron-hole separation. Currently, only few methods succeed in unswervingly depicting the interaction of GR and nanoparticles. Atomic force microscopy (AFM), Surface-enhanced Raman scattering (SERS), and scanning transmission electron microscope (STEM) may be the best techniques for determining the interaction of graphene and nanoparticles. Finally, studies on the preparation of a ternary composite as a photocatalyst for both UV and visible-light-driven pollutant photodegradation have been studied and reported. Especially, for the design of ternary composite, magnetic materials such as Fe, Co, Mn, etc., as a dopant, and possessing unique advantages, show a remarkable photocatalytic activity and photostability.
Further tasks exist in the application of graphene-based composite for the industrial scale. Some innovative applications of the metal oxide-graphene entail specific understanding between the metal oxides and surface of the graphene, which will have a direct impact on the properties of the composite. Designing a structure for the overall photocatalysis process may require further exploiting of GO by chemically modifying methods. A synthetic approach method of GO-based composite structure by using novel materials has not been achieved to date for photocatalysis, but the solutions to the key challenges appear within reach.
In view of this, graphene-based composites possess diverse potential applications, individually having dissimilar desires concerning material properties, and it can be projected that the research on graphene-composite materials will have an optimistic future.

Author Contributions

Conceptualization: S.M. (Soumen Mandal) and S.M. (Srinivas Mallapur); writing—original draft preparation: S.M. (Soumen Mandal), S.M. (Srinivas Mallapur), M.R., J.K.S., D.-E.L. and T.P.; writing—review and editing: S.M. (Soumen Mandal), S.M. (Srinivas Mallapur), M.R., J.K.S., D.-E.L. and T.P.; supervision: D.-E.L. and T.P.; funding acquisition: D.-E.L. and T.P. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Research Foundation of Korea (NRF) grant funded by the Ministry of Science and ICT (MSIT), Korea (No. NRF-2018R1A5A1025137).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Deng, X.; Lü, L.; Li, H.; Luo, F. The adsorption properties of Pb(II) and Cd(II) on functionalized graphene prepared by electrolysis method. J. Hazard. Mater. 2010, 183, 923–930. [Google Scholar] [CrossRef] [PubMed]
  2. Yang, S.-T.; Chang, Y.; Wang, H.; Liu, G.; Chen, S.; Wang, Y.; Liu, Y.; Cao, A. Folding/aggregation of graphene oxide and its application in Cu2+ removal. J. Colloid Interface Sci. 2010, 351, 122–127. [Google Scholar] [CrossRef] [PubMed]
  3. Zhang, N.; Qiu, H.; Si, Y.; Wang, W.; Gao, J. Fabrication of highly porous biodegradable monoliths strengthened by graphene oxide and their adsorption of metal ions. Carbon 2011, 49, 827–837. [Google Scholar] [CrossRef]
  4. Yeh, T.-F.; Syu, J.-M.; Cheng, C.; Chang, T.-H.; Teng, H. Graphite Oxide as a Photocatalyst for Hydrogen Production from Water. Adv. Funct. Mater. 2010, 20, 2255–2262. [Google Scholar] [CrossRef]
  5. Zhao, G.; Wen, T.; Chen, C.; Wang, X. Synthesis of graphene-based nanomaterials and their application in energy-related and environmental-related areas. RSC Adv. 2012, 2, 9286–9303. [Google Scholar] [CrossRef]
  6. Li, F.; Tian, X.; Yuhong, Z.; Jun, Y.; Aiwu, W.; Zhong, W. Preparation of WO3–reduced graphene oxide nanocomposites with Enhanced Photocatalytic Property. Ceram. Int. 2015, 41, 5903–5908. [Google Scholar]
  7. Lorestani, F.; Shahnavaz, Z.; Mn, P.; Alias, Y.; Manan, N.S.A. One-step hydrothermal green synthesis of silver nanoparticle-carbon nanotube reduced-graphene oxide composite and its application as hydrogen peroxide sensor. Sens. Actuators B-Chem. 2015, 208, 389–398. [Google Scholar] [CrossRef]
  8. Yu, B.; Xu, J.; Liu, J.-H.; Yang, S.-T.; Luo, J.; Zhou, Q.; Wan, J.; Liao, R.; Wang, H.; Liu, Y. Adsorption behavior of copper ions on graphene oxide–chitosan aerogel. J. Environ. Chem. Eng. 2013, 1, 1044–1050. [Google Scholar] [CrossRef]
  9. Fu, Y.; Wang, J.; Liu, Q.; Zeng, H. Water-dispersible magnetic nanoparticle–graphene oxide composites for selenium removal. Carbon 2014, 77, 710–721. [Google Scholar] [CrossRef]
  10. Li, B.; Liu, T.; Wang, Y.; Wang, Z. ZnO/graphene-oxide nanocomposite with remarkably enhanced visible-light-driven photocatalytic performance. J. Colloid Interface Sci. 2012, 377, 114–121. [Google Scholar] [CrossRef]
  11. Wu, S.; Wang, P.; Cai, Y.; Liang, D.; Ye, Y.; Tian, Z.; Liu, J.; Liang, C. Reduced graphene oxide anchored magnetic ZnFe2O4 nanoparticles with enhanced visible-light photocatalytic activity. RSC Adv. 2015, 5, 9069–9074. [Google Scholar] [CrossRef]
  12. Tan, L.-L.; Chai, S.-P.; Mohamed, A.R. Synthesis and Applications of Graphene-Based TiO2 Photocatalysts. Chem. Sus. Chem. 2012, 5, 1868–1882. [Google Scholar] [CrossRef] [PubMed]
  13. Li, Y.; Du, Q.; Liu, T.; Peng, X.; Wang, J.; Sun, J.; Wang, Y.; Wu, S.; Wang, Z.; Xia, Y.; et al. Comparative study of methylene blue dye adsorption onto activated carbon, graphene oxide, and carbon nanotubes. Chem. Eng. Res. Des. 2013, 91, 361–368. [Google Scholar] [CrossRef]
  14. Zhang, H.; Lv, X.; Li, Y.; Wang, Y.; Li, J. P25-Graphene Composite as a High Performance Photocatalyst. ACS Nano 2010, 4, 380–386. [Google Scholar] [CrossRef] [PubMed]
  15. An, X.; Yu, J.C. Graphene-based photocatalytic composites. RSC Adv. 2011, 1, 1426–1434. [Google Scholar] [CrossRef]
  16. Du, J.; Lai, X.; Yang, N.; Zhai, J.; Kisailus, D.; Su, F.; Wang, D.; Jiang, L. Hierarchically Ordered Macro−Mesoporous TiO2−Graphene Composite Films: Improved Mass Transfer, Reduced Charge Recombination, and Their Enhanced Photocatalytic Activities. ACS Nano 2011, 5, 590–596. [Google Scholar] [CrossRef] [PubMed]
  17. Wang, D.; Choi, D.; Li, J.; Yang, Z.; Nie, Z.; Kou, R.; Hu, D.; Wang, C.; Saraf, L.V.; Zhang, J.; et al. Self-Assembled TiO2–Graphene Hybrid Nanostructures for Enhanced Li-Ion Insertion. ACS Nano 2009, 3, 907–914. [Google Scholar] [CrossRef]
  18. Wenyu, Z.; Faqian, S.; Ronn, G.; Yan, Z. Facile fabrication of RGO-WO3 composites for effective visible lightphotocatalytic degradation of sulfamethoxazole. Appl. Catal. B 2017, 207, 93–102. [Google Scholar]
  19. Hajishafiee, H.; Sangpour, P.; Tabrizi, N.S. Facile Synthesis and Photocatalytic Performance of WO3/rGO Nanocomposite for Degradation of 1-Naphthol. Nano 2015, 10, 1550072. [Google Scholar] [CrossRef]
  20. Hu, X.; Xu, P.; Gong, H.; Yin, G. Synthesis and characterization of WO3/Graphene nanocomposites for enhanced photocatalytic activities by one-step in-situ hydrothermal reaction. Materials 2018, 11, 147. [Google Scholar]
  21. Wang, W.; Levi, G.; Tade, M.O.; Li, Q. April. Evaluation of Photocatalytic Activity of Co3O4/Graphene Composite. In 2015 International Conference on Materials, Environmental and Biological Engineering; Atlantis Press: Paris, France, 2015; pp. 561–564. [Google Scholar]
  22. Pervaiz, E.; Liu, H.; Yang, M. Facile synthesis and enhanced photocatalytic activity of single-crystalline nanohybrids for the removal of organic pollutants. Nanotechnology 2017, 28, 105701. [Google Scholar] [CrossRef] [PubMed]
  23. Yao, Y.; Yang, Z.; Sun, H.; Wang, S. Hydrothermal synthesis of Co3O4–graphene for heterogeneous activation of peroxymonosulfate for decomposition of phenol. Ind. Eng. Chem. Res. 2012, 51, 14958–14965. [Google Scholar] [CrossRef]
  24. Štengl, V.; Bakardjieva, S.; Grygar, T.M.; Bludská, J.; Kormunda, M. TiO2-graphene oxide nanocomposite as advanced photocatalytic materials. Chem. Cent. J. 2013, 7, 41. [Google Scholar] [CrossRef] [PubMed]
  25. Zhang, Y.; Tang, Z.R.; Fu, X.; Xu, Y.J. TiO2−graphene nanocomposites for gas-phase photocatalytic degradation of volatile aromatic pollutant: Is TiO2−graphene truly different from other TiO2−carbon composite materials? ACS Nano 2010, 4, 7303–7314. [Google Scholar] [CrossRef] [PubMed]
  26. Zhou, K.; Zhu, Y.; Yang, X.; Jiang, X.; Li, C. Preparation of graphene–TiO2 composites with enhanced photocatalytic activity. New J. Chem. 2011, 35, 353–359. [Google Scholar] [CrossRef]
  27. Anandan, S.; Narasinga Rao, T.; Sathish, M.; Rangappa, D.; Honma, I.; Miyauchi, M. Superhydrophilic graphene-loaded TiO2 thin film for self-cleaning applications. ACS Appl. Mater. Interfaces 2013, 5, 207–212. [Google Scholar] [CrossRef]
  28. Nguyen-Phan, T.D.; Pham, V.H.; Shin, E.W.; Pham, H.D.; Kim, S.; Chung, J.S.; Kim, E.J.; Hur, S.H. The role of graphene oxide content on the adsorption-enhanced photocatalysis of titanium dioxide/graphene oxide composites. Chem. Eng. J. 2011, 170, 226–232. [Google Scholar] [CrossRef]
  29. Min, Y.; Zhang, K.; Zhao, W.; Zheng, F.; Chen, Y.; Zhang, Y. Enhanced chemical interaction between TiO2 and graphene oxide for photocatalytic decolorization of methylene blue. Chem. Eng. J. 2012, 193–194, 203–210. [Google Scholar] [CrossRef]
  30. Pastrana-Martínez, L.M.; Morales-Torres, S.; Likodimos, V.; Figueiredo, J.L.; Faria, J.L.; Falaras, P.; Silva, A.M. Advanced nanostructured photocatalysts based on reduced graphene oxide–TiO2 composites for degradation of diphenhydramine pharmaceutical and methyl orange dye. Appl. Catal. B 2012, 123, 241–256. [Google Scholar] [CrossRef]
  31. Yin, X.; Zhang, H.; Xu, P.; Han, J.; Li, J.; He, M. Simultaneous N-doping of reduced graphene oxide and TiO2 in the composite for visible light photodegradation of methylene blue with enhanced performance. RSC Adv. 2013, 3, 18474–18481. [Google Scholar] [CrossRef]
  32. Chacko, D.K.; Madhavan, A.A.; Arun, T.A.; Thomas, S.; Anjusree, G.S.; Deepak, T.G.; Balakrishnan, A.; Subramanian, K.R.V.; Sivakumar, N.; Nair, S.V.; et al. Ultrafine TiO2 nanofibers for photocatalysis. RSC Adv. 2013, 3, 24858–24862. [Google Scholar] [CrossRef]
  33. Linley, S.; Liu, Y.; Ptacek, C.J.; Blowes, D.W.; Gu, F.X. Recyclable Graphene Oxide-Supported Titanium Dioxide Photocatalysts with Tunable Properties. ACS Appl. Mater. Interfaces 2014, 6, 4658–4668. [Google Scholar] [CrossRef] [PubMed]
  34. Maruthamani, D.; Divakar, D.; Kumaravel, M. Enhanced photocatalytic activity of TiO2 by reduced graphene oxide in mineralization of Rhodamine B dye. J. Ind. Eng. Chem. 2015, 30, 33–43. [Google Scholar] [CrossRef]
  35. Kim, C.H.; Kim, B.; Yang, K.S. TiO2 nanoparticles loaded on graphene/carbon composite nanofibers by electrospinning for increased photocatalysis. In Proceedings of the 2nd International Symposium on Physics and Technology of Sensors (ISPTS), Pune, India, 7–10 March 2015. [Google Scholar]
  36. Yang, Y.; Ren, L.; Zhang, C.; Huang, S.; Liu, T. Facile Fabrication of Functionalized Graphene Sheets (FGS)/ZnO Nanocomposites with Photocatalytic Property. ACS Appl. Mater. Interfaces 2011, 3, 2779–2785. [Google Scholar] [CrossRef]
  37. Azarang, M.; Shuhaimi, A.; Yousefi, R.; Moradi Golsheikh, A.; Sookhakian, M. Synthesis and characterization of ZnO NPs/reduced graphene oxide nanocomposite prepared in gelatin medium as highly efficient photo-degradation of MB. Ceram. Int. 2014, 40, 10217–10221. [Google Scholar] [CrossRef]
  38. Zhang, X.Y.; Li, H.P.; Cui, X.L.; Lin, Y. Graphene/TiO2 nanocomposites: Synthesis, characterization and application in hydrogen evolution from water photocatalytic splitting. J. Mater. Chem. 2010, 20, 2801–2806. [Google Scholar] [CrossRef]
  39. Li, B.; Cao, H. [email protected] composite with enhanced performance for the removal of dye from water. J. Mater. Chem. 2011, 21, 3346–3349. [Google Scholar] [CrossRef]
  40. Luo, Q.-P.; Yu, X.-Y.; Lei, B.-X.; Chen, H.-Y.; Kuang, D.-B.; Su, C.-Y. Reduced Graphene Oxide-Hierarchical ZnO Hollow Sphere Composites with Enhanced Photocurrent and Photocatalytic Activity. J. Phys. Chem. C 2012, 116, 8111–8117. [Google Scholar] [CrossRef]
  41. Xitao, W.; Rong, L.; Kang, W. Synthesis of [email protected]–Bi2S3 core–shell nanorod grown on reduced graphene oxide sheets and its enhanced photocatalytic performance. J. Mater. Chem. A 2014, 2, 8304–8313. [Google Scholar] [CrossRef]
  42. Yao, Y.; Yang, Z.; Zhang, D.; Peng, W.; Sun, H.; Wang, S. Magnetic CoFe2O4–Graphene Hybrids: Facile Synthesis, Characterization, and Catalytic Properties. Ind. Eng. Chem. Res. 2012, 51, 6044–6051. [Google Scholar] [CrossRef]
  43. Zhang, D.; Pu, X.; Gao, Y.; Su, C.; Li, H.; Li, H.; Hang, W. One-step combustion synthesis of CoFe2O4–graphene hybrid materials for photodegradation of methylene blue. Mater. Lett. 2013, 113, 179–181. [Google Scholar] [CrossRef]
  44. Shi, Y.; Zhou, K.; Wang, B.; Jiang, S.; Qian, X.; Gui, Z.; Yuen, R.K.; Hu, Y. Ternary graphene–CoFe2O4/CdS nanohybrids: Preparation and application as recyclable photocatalysts. J. Mater. Chem. A 2014, 2, 535–544. [Google Scholar] [CrossRef]
  45. He, G.; Ding, J.; Zhang, J.; Hao, Q.; Chen, H. One-Step Ball-Milling Preparation of Highly Photocatalytic Active CoFe2O4–Reduced Graphene Oxide Heterojunctions for Organic Dye Removal. Ind. Eng. Chem. Res. 2015, 54, 2862–2867. [Google Scholar] [CrossRef]
  46. Moitra, D.; Chandel, M.; Ghosh, B.K.; Jani, R.K.; Patra, M.K.; Vadera, S.R.; Ghosh, N.N. A simple ‘in situ’ co-precipitation method for the preparation of multifunctional CoFe2O4–reduced graphene oxide nanocomposites: Excellent microwave absorber and highly efficient magnetically separable recyclable photocatalyst for dye degradation. RSC Adv. 2016, 6, 76759–76772. [Google Scholar] [CrossRef]
  47. Suwanchawalit, C.; Somjit, V. Hydrothermal synthesis of magnetic CoFe2O4-graphene nanocomposite with enhanced photocatalytic performance. Dig. J. Nanomater. Biostruct. 2015, 10, 769–777. [Google Scholar]
  48. Haw, C.; Chiu, W.; Abdul Rahman, S.; Khiew, P.; Radiman, S.; Abdul Shukor, R.; Hamid, M.A.A.; Ghazali, N. The design of new magnetic-photocatalyst nanocomposites (CoFe2O4–TiO2) as smart nanomaterials for recyclable-photocatalysis applications. New J. Chem. 2016, 40, 1124–1136. [Google Scholar] [CrossRef]
  49. Chen, X.; Zhao, Q.; Li, X.; Wang, D. Enhanced photocatalytic activity of degrading short chain chlorinated paraffins over reduced graphene oxide/CoFe2O4/Ag nanocomposite. J. Colloid Interface Sci. 2016, 479, 89–97. [Google Scholar] [CrossRef]
  50. Devi, L.G.; Srinivas, M. Hydrothermal synthesis of reduced graphene oxide-CoFe2O4 heteroarchitecture for high visible light photocatalytic activity: Exploration of efficiency, stability and mechanistic pathways. J. Environ. Chem. Eng. 2017, 5, 3243–3255. [Google Scholar] [CrossRef]
  51. Fu, Y.; Wang, X. Magnetically Separable ZnFe2O4–Graphene Catalyst and its High Photocatalytic Performance under Visible Light Irradiation. Ind. Eng. Chem. Res. 2011, 50, 7210–7218. [Google Scholar] [CrossRef]
  52. Yang, D.; Feng, J.; Jiang, L.; Wu, X.; Sheng, L.; Jiang, Y.; Wei, T.; Fan, Z. Photocatalyst Interface Engineering: Spatially Confined Growth of ZnFe2O4 within Graphene Networks as Excellent Visible-Light-Driven Photocatalysts. Adv. Funct. Mater. 2015, 25, 7080–7087. [Google Scholar] [CrossRef]
  53. Khadgi, N.; Li, Y.; Upreti, A.R.; Zhang, C.; Zhang, W.; Wang, Y.; Wang, D. Enhanced Photocatalytic Degradation of 17α-Ethinylestradiol Exhibited by Multifunctional ZnFe2O4–Ag/rGO Nanocomposite Under Visible Light. Photochem. Photobiol. 2016, 92, 238–246. [Google Scholar] [CrossRef] [PubMed]
  54. Jenita Rani, G.; Jothi Rajan, M.A.; Gnana kumar, G. Reduced graphene oxide/ZnFe2O4 nanocomposite as an efficient catalyst for the photocatalytic degradation of methylene blue dye. Res. Chem. Intermed. 2017, 43, 2669–2690. [Google Scholar] [CrossRef]
  55. Fu, Y.; Chen, H.; Sun, X.; Wang, X. Graphene-supported nickel ferrite: A magnetically separable photocatalyst with high activity under visible light. AIChE J. 2012, 58, 3298–3305. [Google Scholar] [CrossRef]
  56. Liu, S.-Q.; Xiao, B.; Feng, L.-R.; Zhou, S.-S.; Chen, Z.-G.; Liu, C.-B.; Chen, F.; Wu, Z.-Y.; Xu, N.; Oh, W.-C.; et al. Graphene oxide enhances the Fenton-like photocatalytic activity of nickel ferrite for degradation of dyes under visible light irradiation. Carbon 2013, 64, 197–206. [Google Scholar] [CrossRef]
  57. Zeng, J.; Song, T.; Lv, M.; Wang, T.; Qin, J.; Zeng, H. Plasmonic photocatalyst Au/g-C3N4/NiFe2O4 nanocomposites for enhanced visible-light-driven photocatalytic hydrogen evolution. RSC Adv. 2016, 6, 54964–54975. [Google Scholar] [CrossRef]
  58. Fu, Y.; Xiong, P.; Chen, H.; Sun, X.; Wang, X. High Photocatalytic Activity of Magnetically Separable Manganese Ferrite–Graphene Heteroarchitectures. Ind. Eng. Chem. Res. 2012, 51, 725–731. [Google Scholar] [CrossRef]
  59. Gao, E.; Wang, W.; Shang, M.; Xu, J. Synthesis and enhanced photocatalytic performance of graphene-Bi2WO6 composite. Phys. Chem. Chem. Phys. 2011, 13, 2887–2893. [Google Scholar] [CrossRef]
  60. Li, Z.; Shen, Y.; Yang, C.; Lei, Y.; Guan, Y.; Lin, Y.; Liu, D.; Nan, C.-W. Significant enhancement in the visible light photocatalytic properties of BiFeO3–graphene nanohybrids. J. Mater. Chem. A 2013, 1, 823–829. [Google Scholar] [CrossRef]
  61. Lee, S.; Amaranatha Reddy, D.; Kim, T.K. Well-wrapped reduced graphene oxide nanosheets on Nb3O7(OH) nanostructures as good electron collectors and transporters for efficient photocatalytic degradation of rhodamine B and phenol. RSC Adv. 2016, 6, 37180–37188. [Google Scholar] [CrossRef]

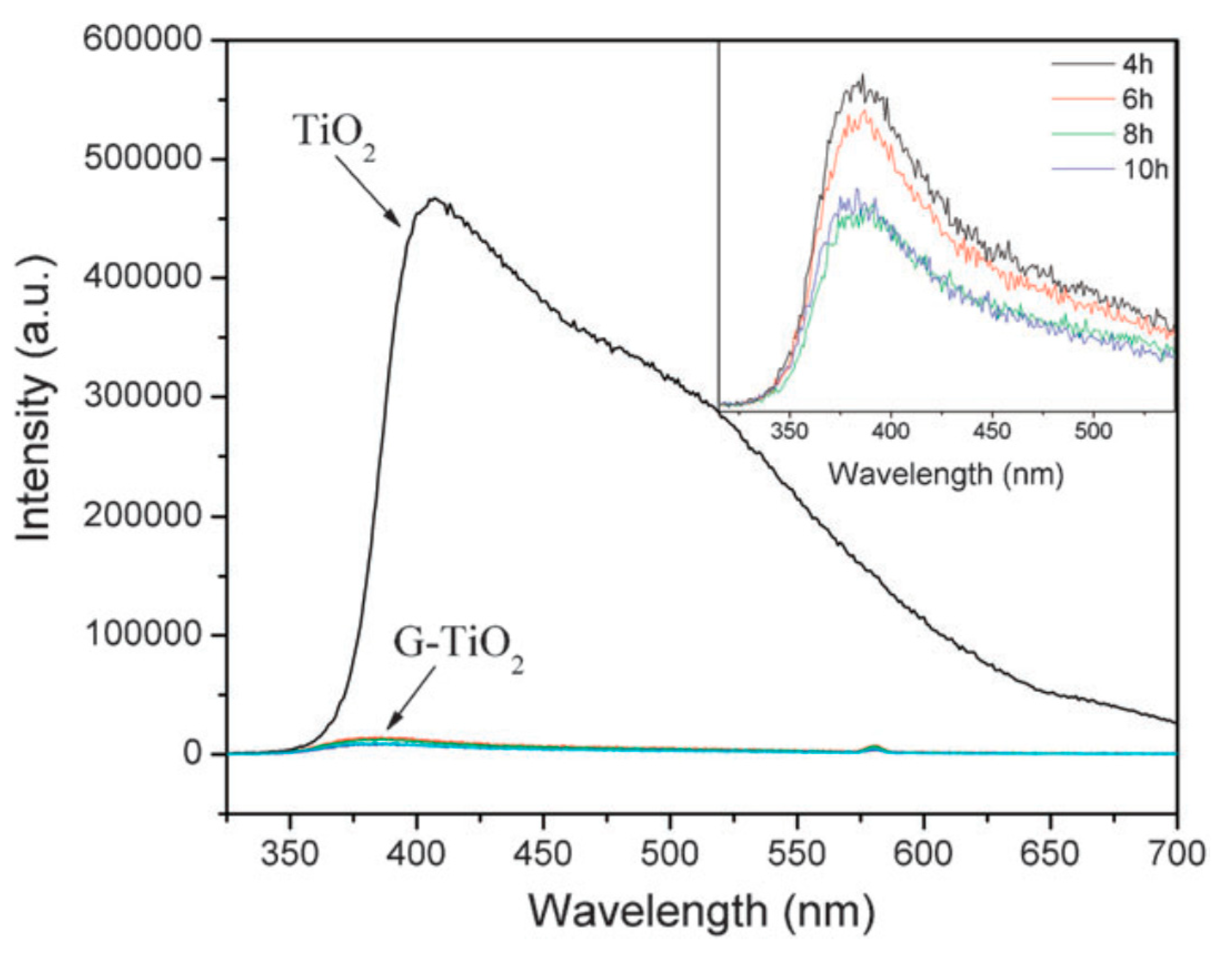

Figure 1. Photoluminescence spectra of TiO2 and G–TiO2 composite with various reaction times. The inset shows amplificatory image (300 to 550 nm) [26].
Figure 1. Photoluminescence spectra of TiO2 and G–TiO2 composite with various reaction times. The inset shows amplificatory image (300 to 550 nm) [26].
Molecules 25 05380 g001
Figure 2. Degradation of Methylene Blue under (a) UV and (b) visible light (λ > 400 nm) over (1) P25, (2) P25-carbon nanotubes (CNTs), and (3) P25-GR photocatalysts, respectively [14].
Figure 2. Degradation of Methylene Blue under (a) UV and (b) visible light (λ > 400 nm) over (1) P25, (2) P25-carbon nanotubes (CNTs), and (3) P25-GR photocatalysts, respectively [14].
Molecules 25 05380 g002

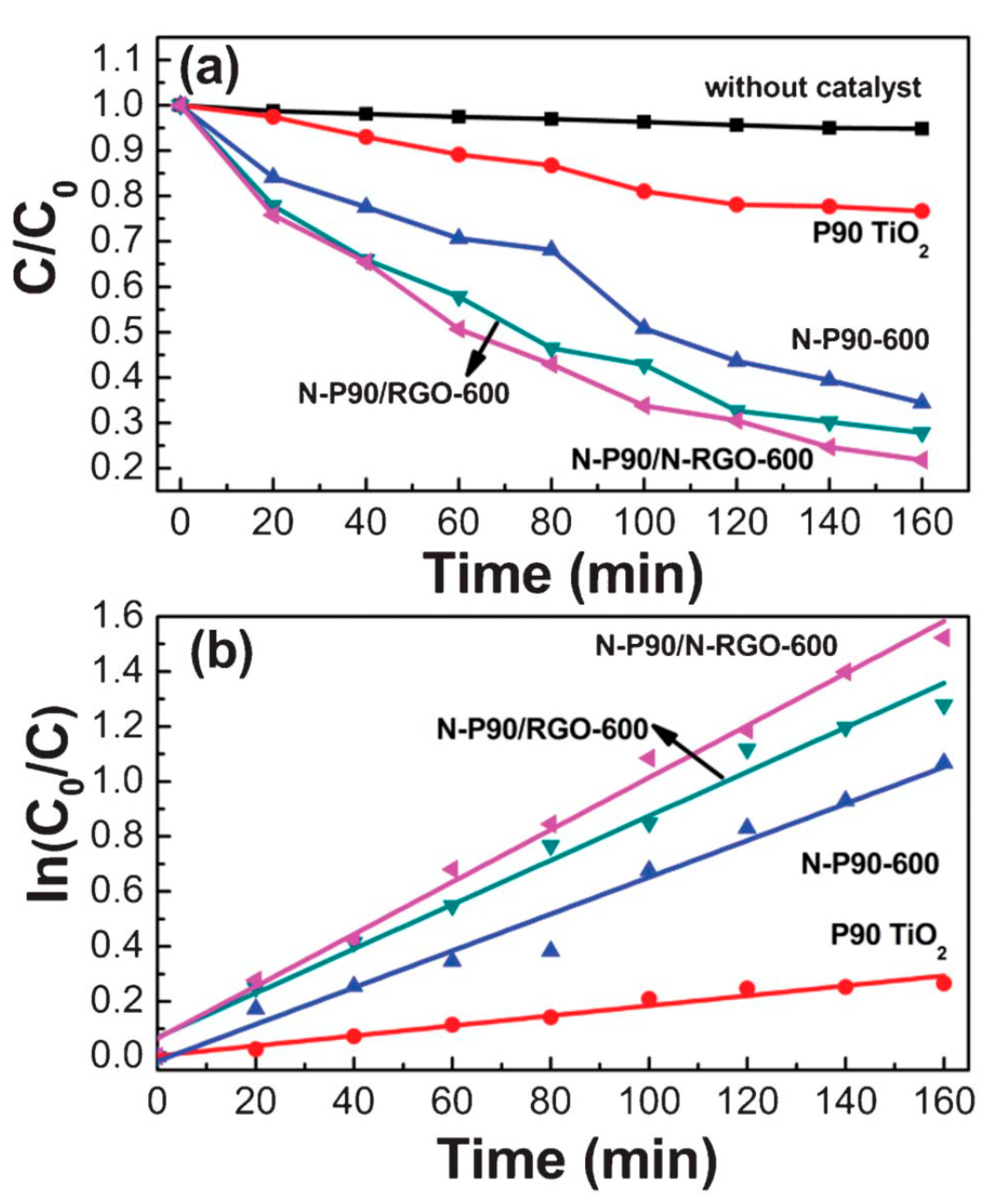

Figure 3. (a,b) Degradation of MB under visible light irradiation by P90 TiO2, N-P90-600, N-P90/reduced graphene oxide (rGO)-600, N-P90/N-rGO-600, and without catalyst [31].
Figure 3. (a,b) Degradation of MB under visible light irradiation by P90 TiO2, N-P90-600, N-P90/reduced graphene oxide (rGO)-600, N-P90/N-rGO-600, and without catalyst [31].
Molecules 25 05380 g003

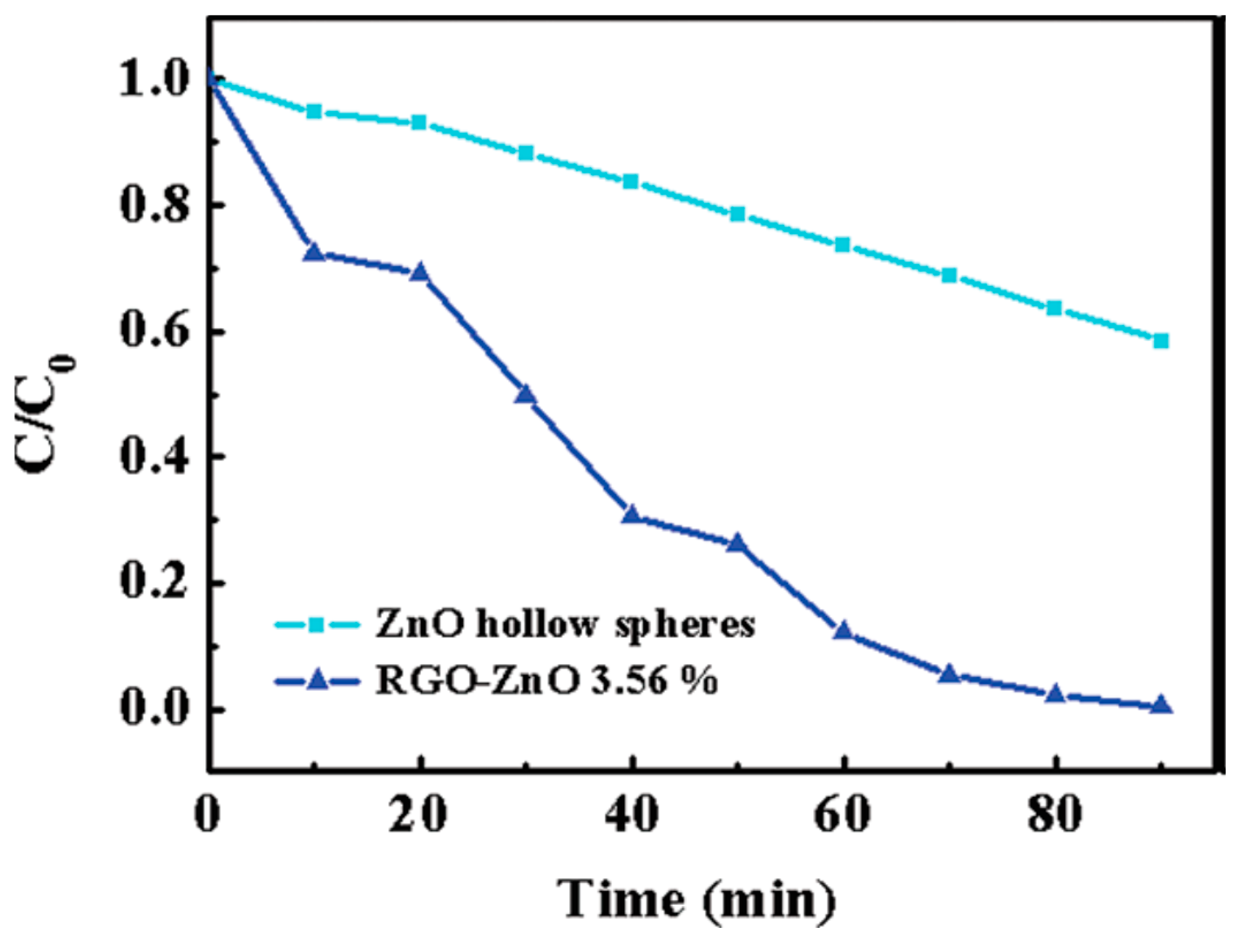

Figure 4. Photocatalytic activity of ZnO hollow spheres and rGO-ZnO 3.56% for the degradation of MB under UV illumination [40].
Figure 4. Photocatalytic activity of ZnO hollow spheres and rGO-ZnO 3.56% for the degradation of MB under UV illumination [40].
Molecules 25 05380 g004

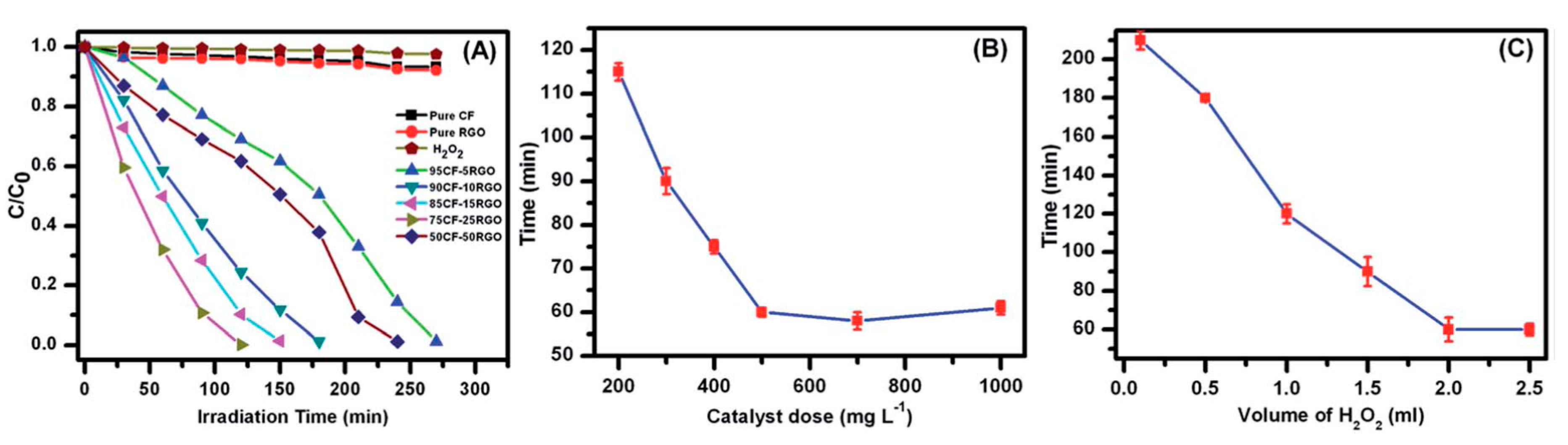

Figure 5. (A) Different catalysts for the degradation of Methyl Orange (MO) under visible light. (B) Catalyst dosage and (C) H2O2 on the accomplishment time of photocatalysis reaction of MO catalyzed by 75CF-25RGO [46].
Figure 5. (A) Different catalysts for the degradation of Methyl Orange (MO) under visible light. (B) Catalyst dosage and (C) H2O2 on the accomplishment time of photocatalysis reaction of MO catalyzed by 75CF-25RGO [46].
Molecules 25 05380 g005

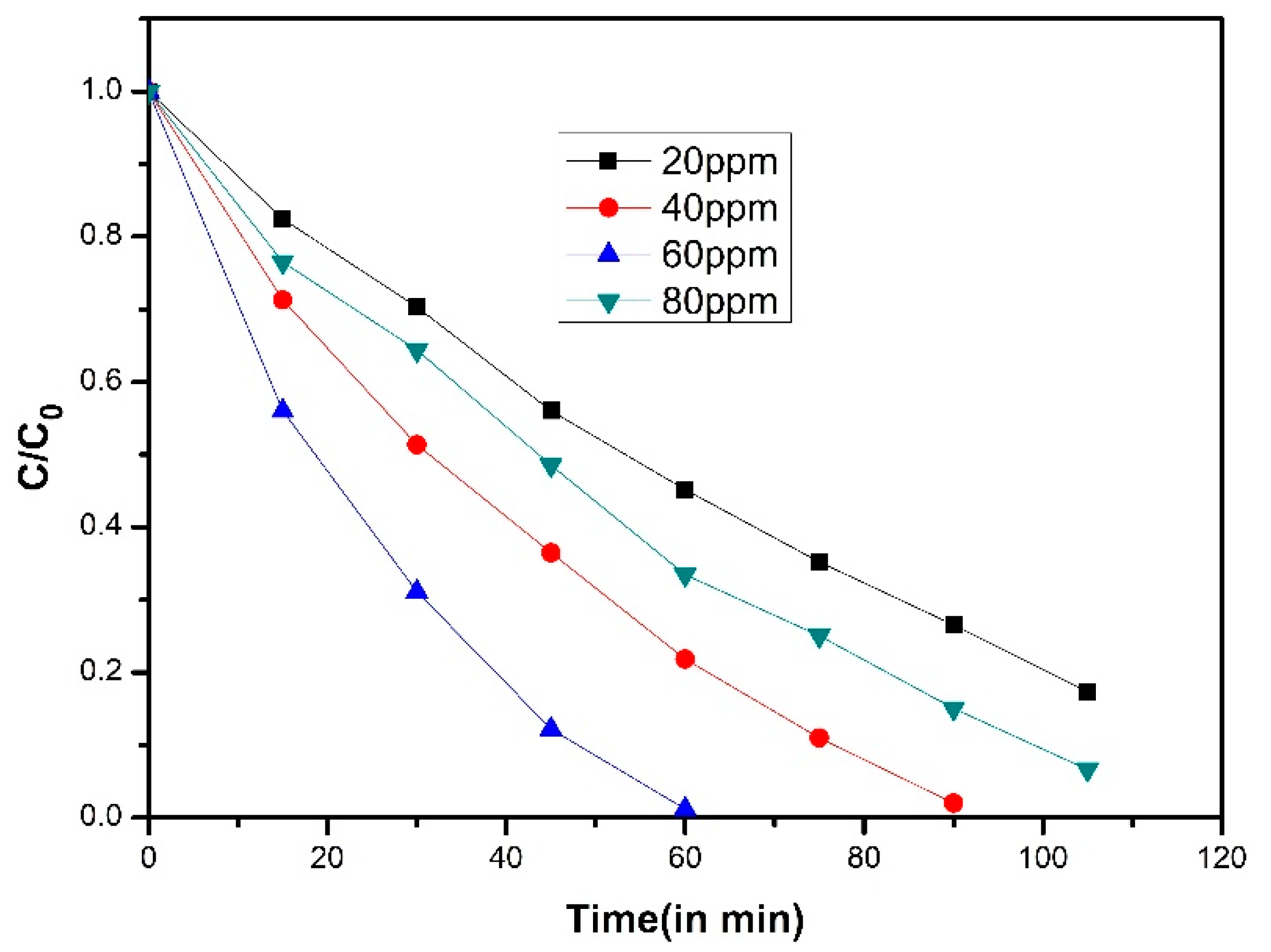

Figure 6. Plot of C/Co vs. time in min for the degradation of 4-CP (10 ppm) with 100 mg of catalyst at various peroxymonosulfate (PMS) concentrations [50].
Figure 6. Plot of C/Co vs. time in min for the degradation of 4-CP (10 ppm) with 100 mg of catalyst at various peroxymonosulfate (PMS) concentrations [50].
Molecules 25 05380 g006

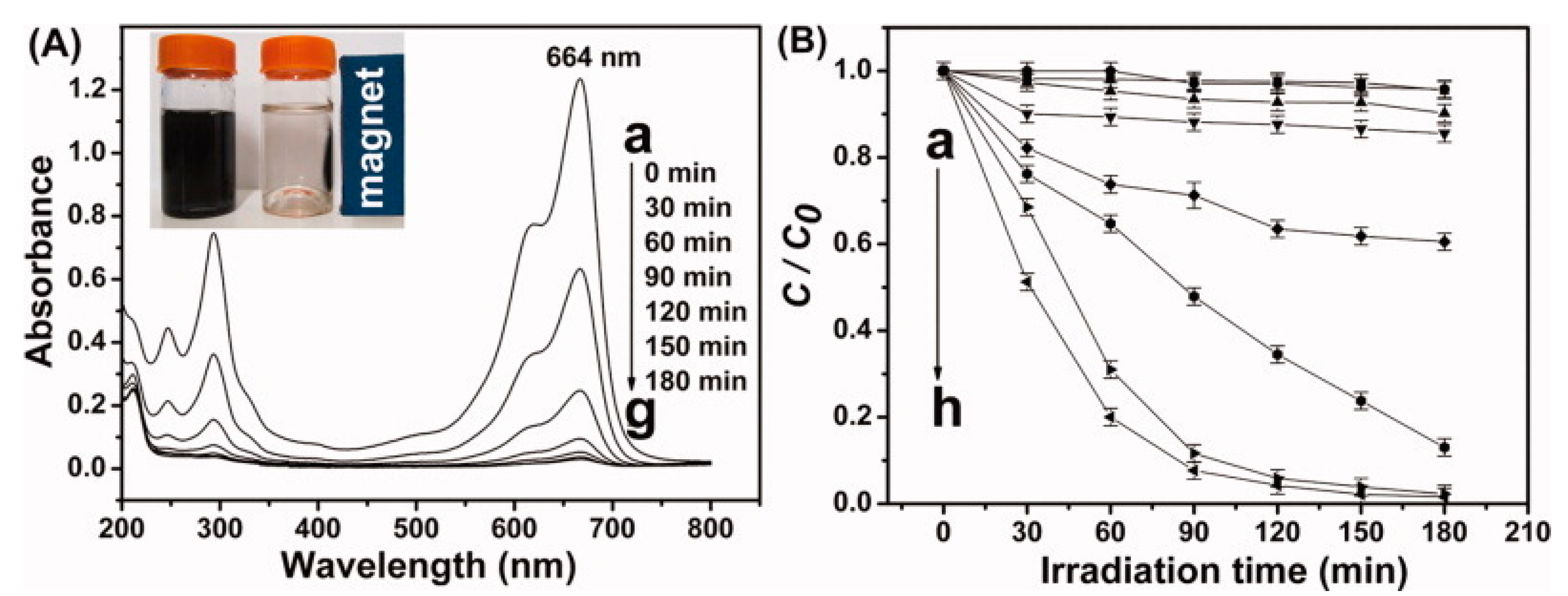

Figure 7. Absorption spectra of MB taken at various photocatalytic degradation times consuming NiFe2O4-GO (0.25) [55]. (A) The magnetic separation property of NiFe2O4-graphene nanocomposite is shown in the inset, (B) different catalysts and their photocatalytic degradation efficiency on MB: (a) pure NiFe2O4, (b) NiFe2O4-G(0.05), (c) NiFe2O4-G(0.10), (d) NiFe2O4-G(0.15), (e) NiFe2O4-G(0.20), (f) NiFe2O4-G(0.40), (g) NiFe2O4-G(0.30), and (h) NiFe2O4-G(0.25).
Figure 7. Absorption spectra of MB taken at various photocatalytic degradation times consuming NiFe2O4-GO (0.25) [55]. (A) The magnetic separation property of NiFe2O4-graphene nanocomposite is shown in the inset, (B) different catalysts and their photocatalytic degradation efficiency on MB: (a) pure NiFe2O4, (b) NiFe2O4-G(0.05), (c) NiFe2O4-G(0.10), (d) NiFe2O4-G(0.15), (e) NiFe2O4-G(0.20), (f) NiFe2O4-G(0.40), (g) NiFe2O4-G(0.30), and (h) NiFe2O4-G(0.25).
Molecules 25 05380 g007
Table 1. Photocatalysts and their typical synthetic methods used for the preparation from GO/rGO-supported composites.
Table 1. Photocatalysts and their typical synthetic methods used for the preparation from GO/rGO-supported composites.
OrderPhotocatalystPreparationReferences
A.Hydrothermal method for the synthesis of GO/rGO-NCs photocatalyst
1rGO-WO3Na2WO4·2H2O and 0.05 g NaCl were dissolved in the above dispersion and kept stirring for 1 h. The pH was adjusted to 2 by using HCl solution.[6]
2rGO-WO3Preset amounts of Na2WO4·2H2O (100, 200, and 400 mg, respectively) were dissolved in 10 mL above GO suspension. 5 mL 35% HCl was added slowly. Transferred to autoclave heated at 140 °C for 8 h.[18]
3rGO_Co3O4GO dispersed into 24 mL of alcohol, sonicating for 60 min in an ultrasonic cleaner. Then, 0.2 M of Co(Ac)2 was added to the mixture followed by 1.2 mL of water, and continued to be stirred for 10 h at a temperature of 80 °C. The resulting solution was then transferred into a 40 mL autoclave for hydrothermal reaction at 150 °C for 3 h.[21]
4rGO_Co3O4GO dispersed in the Co (C2H3O2)2·4H2O. 10 mL with 28% ammonia solution were added to solution, and transferred into an autoclave for hydrothermal action at 180 °C for 12 h.[23]
5rGO/ZnFe2O4-AgThe composite was synthesized by the co-precipitation of Zn (NO3)2·6H2O, Fe (NO3)3.9H2O, and AgNO3 in the presence of the GO powder.[53]
6GO-NiFe2O4GO in NiFe2O4 was dispersed in deionized water. Then, NiSO4H2O and FeCl36H2O (0.02 mol) were dissolved in 15 mL water. Transferred into autoclave and kept under high pressure.[56]
7GO-MnFe2O4GO and 60 mL of ethanol with sonication for 1 h and Mn(NO3)2 solution and Fe (NO3)3 9H2O were dissolved. The resulting mixture was transferred into a 100 mL Teflon-lined stainless-steel autoclave and heated to 180 °C for 20 h under autogenous pressure.[58]
8rGO-Bi2WO6GO by using Hammer method GO was reduced by ethylene glycol. Bi(NO3)3 5H2O was dispersed into 5 mL of 4 M nitric acid solution. Na2WO4 2H2O was dissolved in 5 mL of de-ionized water and then Na2WO4 was added dropwise to the solution.[59]
B.Sol-gel method for the synthesis of GO/rGO-NCs photocatalysts
9rGO-TiO2An aqueous solution of Ti(OH)4 was added into an aqueous suspension of GO.[30]
10rGO-ZnOAn aqueous solution of Zn (AcO)2·3H2O was added into an aqueous suspension of GO.[39]
C.Solvothermal technique for the GO/rGO-NCs photocatalysts
11GO/CoFe2O4/CdSGr–CoFe2O4 nanohybrids were sonicated in 60 mL of ethylene glycol for 10 min. The cadmium source containing 0.1431 g of Cd(NO3)24H2O and10 mL of ethylene glycol was added to the mixture containing Gr–CoFe2O4 nanohybrids. The mixture of 0.0348 g of thiourea, 0.0514 g of PVP, and 10 mL of ethyleneglycol was transferred into the above mixture.[44]
12rGO-ZnFe2O4GO dispersed in ZnOx(OH)y and FeOx solutions were put into a 50 mL autoclave.[51]
D.Colloidal method for the synthesis of GO/rGO-NCs photocatalyst
13rGO-ZnFe2O4C2H6O2 solution is containing 2M FeCl36H2O, and 1M ZnCl2 was gradually added. Then, 1MCH3COONa was introduced into the solution and magnetically stirred for 1 h. Then, transferred to autoclave heated at 1800 °C.[54]
E.Thermal treatment for the synthesis of GO/rGO-NCs photocatalyst
14rGO-WO3Na2WO4·2H2O was dissolved in 30 mL water. Then, nitric acid was added to the solution drop by drop until the precipitate was formed. Dried at 160 °C for 2 h and annealed at 500 °C for 5 h.[19]
15rGO-WO3Na2WO4·2H2O (0.5 g), H2C2O4 (1 g), and Na2SO4 (4 g) were added into subsequent solution and stirred for 3 h. The pH of the solution was maintained at 1.5 by adding 3M HCl and stirring was continued for 3 h. Then, transferred to autoclave maintained at 180 °C for 24 h.[20]
16FGS/ZnOGO, Zn(NH3)4CO3, and poly(vinyl pyrrolidone) as an intermediate to combine zinc with carbon material[36]
F.Ball-milling method for the synthesis of GO/rGO-NCs photocatalyst
17rGO-CoFe2O4Co (NO3)2·6H2O and of Fe (NO3)3·9H2O were added to GO (2.5 wt%). The pH is maintained 10[45]
18rGO-CoFe2O4[45]
19rGO-CoFe2O4[45]
G.Liquid phase deposition method for the synthesis of GO/rGO-NCs photocatalyst
20rGO-TiO2TiO2 powder (P25, Degussa) was dispersed in deionized water and subsequently added to the graphene oxide solution[28]
H.Microwave irradiation method for the synthesis of GO/rGO-NCs photocatalyst
21rGO-CoFe2O4(Co(NO3)2·6H2O and Fe(NO3)3 9H2O and glucose as oxidizer and fuel. GO, nitrates, and glucose were added in water for 30 min ultrasonic treatment.[43]
22rGO-CoFe2O4[43]
23rGO-CoFe2O4[43]
24rGO/CoFe2O4/AgGO, AgNO3, and CoFe2O4 were dissolved in deionized water and stirred for 2 h. Then, solution was further stirred for 2 h under the UV irradiation of a 22 W low-pressure mercury lamp. The product is washed with distilled water and ethanol in an oven at 60 °C for 12 h.[49]
I.In situ co-precipitation method for the synthesis of GO/rGO-NCs photocatalyst
25rGO-ZnOGO dispersed in aqueous solution containing Zn(CH3COO)2, DMSO, and H2O[40]
J.Annealing NH3 atmosphere method for the synthesis of GO/rGO-NCs photocatalyst
26rGO/N-TiO2GO and 300 mg of P90 TiO2 was added and stirred for 3 h. GO and P90 TiO2 and a few drops of tetrabutyltitanate were added. [31]
Table 2. Photocatalytic performances of GO/rGO-NCs photocatalysts for the degradation of pollutant.
Table 2. Photocatalytic performances of GO/rGO-NCs photocatalysts for the degradation of pollutant.
OrderPollutantsPhotocatalystLight SourceReactorMass of Catalyst (mg)Concentration (ppm)Irradiation Time (min)Conversion (%)Mol. Wt.Photon Flux (mW cm−2)Quantum Yield (%) Reference
A.Photocatalytic performances of GO-rGO semiconductor composites for dye degradation
A-1. MB
1MBrGO-WO3light source was a 150 W xenon
lamp.
20 °C self-made Lab Solar gas
photocatalysis system with external light irradiation
5071201002278.4NANA[6]
2MBrGO-WO3One 300 W PLS-SXE 300 xenon lampequipped with a λ < 400 nm cut-off filter201070952247.4NANA[20]
3MBrGO/N-TiO2Two 20 W black-lights with 352 nm (UV) and 545 nm (Visible)NA108.86080 (UV) and 95 (Visible)2123.6NANA[28]
4MBrGO/N-TiO2one 500 W Xenon lamp > 400 nmQuartz cell508.81601002137.6NANA[31]
5MBrGO-ZnOone 300 W Xe lamp with 420 nmNA8018701002125.2NANA[39]
6MBrGO-ZnOone 500 W mercury lampNA2010901002125.2NANA[40]
7MBGO/CoFe2O4/CdSone 40 W daylight lampNA25201801002422.8NANA[44]
8MBrGO-CoFe2O4one 800 W Xe lampNA10201801002278.4NANA[45]
9MBrGO-CoFe2O4A 100 W reading lampinstalled glass cut-off filter251075902278.4NANA[46]
10MBrGO-ZnFe2O4one 500 W xenon lamp > 420 nmGlass reactor (100 mL)501090612284.7NANA[51]
11MBrGO-ZnFe2O4one 530 W lamp with >400 nmPyrex glass tube (100 mL)25101201002284.7NANA[54]
12MBNiFe2O4-GOOne 300 W UV-visible lampQuartz glass (100 mL)10020600902280.2NANA[56]
13MBMnFe2O4-GOone 500 W mercury and xenon lampGlass tube
(100 mL)
2520360982274NANA[58]
A-2. MO
14MOrGO_Co3O4One 100 W Xenon lampNA1030180802287NANA[21]
15MOrGO-TiO2one 150 W medium-pressure mercury vapor lamp with >350 nmquartz cylindrical reactor (7.5 mL)100500301002123.66NA[30]
16MOrGO-CoFe2O4one 800 W Xe lampNA1020180252278.4NANA[45]
17MOrGO-CoFe2O4A 100 W reading lampinstalled glass cut-off filter251075602278.4NANA[46]
A-3. RhB
18RhB 6GFGS/ZnOTwo 100 and 250 W high-pressure mercury lamps with 300 nmPyrex glass tube (1000 mL)10101001002125.2NANA[36]
19RhBrGO-CoFe2O4one 800 W Xe lampNA1020180752278.4NANA[45]
20RhBrGO-CoFe2O4A 100 W reading lampinstalled glass cut-off filter251075902278.4NANA[46]
21RhBrGO-Bi2WO6one 500 W Xe lamp with 420 nmInstalled glass cut-off filter to visible-light irradiation glass tube (500 mL)1000.35515982740.8NANA[59]
B.Photocatalytic performances of GO-rGO semiconductor composites for organic pollutants degradation
22sulfamethoxazolerGO-WO3200 W Xe arc lamp with specific ranges 420–630 nm1.5 AM solar simulator10201801002247NANA[18]
231-NaphtholrGO-WO3One Xe lamp 570 Wcylindrical Pyrex reactor of 7 cm diameter and 15 cm height501501201002247NANA[19]
24Chain chlorinated paraffin’sRGO/CoFe2O4/AgOne 500 W xenon lamp with 400 nmin situ quartz reaction cell10NA720902386.2NANA[49]
2517 α-ethinylestradiolrGO/ZnFe2O4-AgOne 300 W Xe-lampNA10022401002382NANA[53]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Back to TopTop
