Alkaloid Enantiomers from the Roots of Isatis indigotica

Abstract

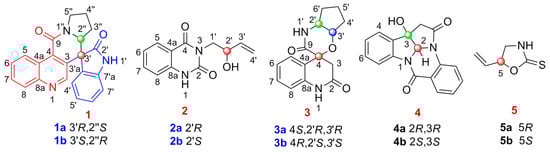

Five pairs of alkaloid enantiomers (1a/1b–5a/5b) were obtained from Isatis indigotica (I. indigotica) roots. Among them, 1a/1b, 2a/2b and 3a/3b were determined as three pairs of new alkaloid enantiomers. Their structures were elucidated by physicochemical properties and spectroscopic methods. The absolute configurations were deduced by comparison of their experimental circular dichroism (CD) and calculated electronic circular dichroism (ECD) spectra, as well as by single-crystal X-ray crystallography using anomalous scattering of Cu Kα radiation. Alkaloids 1a and 1b possess an unpresented carbon skeleton and their putative biosynthetic pathways are discussed. Moreover, all of the alkaloids were tested for their nitric oxide (NO) inhibitory effects in RAW 264.7 cells, and 4a and 4b showed inhibitory effects with IC₅₀ values of 76.97 μM and 65.88 μM, respectively.

1. Introduction

“Ban lan gen”, widely distributed and cultivated in the North of China, is the roots of Isatis indigotica Fort. (Cruciferae) [1,2,3]. As one of the most famous traditional Chinese medicines (TCMs), ban lan gen is usually used for the treatment of various kinds of diseases, such as influenza, fever, epidemic hepatitis and infections [4,5,6]. Previous phytochemical investigations of I. indigotica have led to the isolation of various kinds of natural constituents, including alkaloids, lignans, flavonoids and nucleotides [1,2,3,4,5,6,7,8,9], among which alkaloids have been considered as the most active constituents that possess anti-inflammatory, antiviral, antibacterial, antitumor and antioxidant activities [1,4,5,6,7,8,9]. For our continuous project to explore more bioactive components from I. indigotica [8,9], five pairs of alkaloid enantiomers were isolated from the 80% alcohol exact of I. indigotica roots. Among them, 1a/1b, 2a/2b and 3a/3b were determined as three pairs of new enantiomers, whose structures and absolute configurations were determined by extensive spectroscopic data analysis, including 1D, 2D-NMR and HRESIMS data, optical rotation data, comparison of their experimental circular dichroism (CD) and calculated electronic circular dichroism (ECD) spectra and single-crystal X-ray crystallography using anomalous scattering of Cu Kα radiation. The known forms (4a/4b–5a/5b, Figure 1) were identified by comparison of their spectroscopic and optical rotation data with those reported in the literature as (−)-(2R,3R)-3-hydroxy-2H-pyrrolo[2-b]indolo[5,5a,6-b,a]quinazoline- 9(8H),7′-dione (4a) [1], (+)-(2S,3S)-3-hydroxy-2H-pyrrolo[2-b]indolo[5,5a,6-b,a]quinazoline-9(8H),7′-dione (4b) [1], epigoitrin (5a) [10] and goitrin (5b) [10]. Alkaloids are one of the main types of active constituents in I. indigotica, and they have been reported to possess potential anti-inflammatory effects [1,2,3,4,5,6,7,8,9,10]. This pharmacological action, together with the traditional use for the treatment of epidemic hepatitis, prompted us to test the inhibitory effects on nitric oxide (NO) production of all the isolated alkaloids (1a/1b–5a/5b). Herein, the isolation and structure elucidation, putative biosynthetic pathways and the NO inhibitory activities of these enantiomers are presented.

2. Results and Discussion

Isatisindigoticanine B (1) was obtained as a primrose yellow amorphous power. Its molecular formula was determined as C₂₂H₁₇N₃O₂, by the ¹³C NMR data and the HRESIMS quasimolecular ion peak at m/z 356.1398 [M + H]⁺ (cacld. 356.1394 [M + H]⁺). The ¹H NMR spectrum (

Table 1. ¹H NMR (600 MHz in DMSO-d₆) and ¹³C NMR data (150 MHz in DMSO-d₆) of 1a/1b–3a/3b (ov: overlap signals).

No.	1a/1b		2a/2b		3a/3b
	δH (J in Hz)	δC	δH (J in Hz)	δC	δH (J in Hz)	δC
1			11.39, brs		12.39, brs
2	8.56, s	148.3		150.8		179.9
3		133.4			2.43, 2H, ov	47.9
4		132.1		162.6		71.8
4a		124.6		114.3		131.7
5	9.29, d (8.6)	126.7	7.93, d (8.0)	127.9	7.27, d (7.3)	123.7
6	7.77, dd (8.6, 7.7)	128.9	7.22, dd (8.0, 7.7)	122.9	6.87, dd (7.5, 7.3)	121.9
7	7.84, dd (8.3, 7.7)	130.4	7.76, dd (8.2, 7.7)	135.4	7.17, dd (7.7, 7.5)	128.5
8	8.07, d (8.3)	129.8	7.16, d (8.2)	115.5	6.76, d (7.7)	109.4
8a		148.5		139.9		141.3
9		161.6				174.2
1′	11.25, brs		3.84, dd (12.6, 5.0)	45.6	10.37, brs
			4.01, dd (12.6, 5.0)
2′		176.8	4.34, dd (12.6, 6.5)	69.2	3.33, m	46.9
3′		55.4	5.83, ddd (16.9, 10.7, 6.5)	140.0	3.82, dd (7.7, 1.4)	68.5
3′a		128.2
4′	6.76, d (7.5)	124.4	5.01, dd (10.7, 1.2)	115.5	1.71, m	31.8
			5.11, dd (16.9, 1.2)		1.90, m
5′	6.95, dd (7.7, 7.5)	123.1			1.73, m; 1.99, m	28.4
6′	7.30, dd (7.8, 7.7)	130.1			2.28, dd (12.5, 6.2)	43.3
					2.43, ov
7′	7.05, d (7.8)	111.2
7′a		141.9
2′’	4.44, dd (9.1, 2.6)	61.8
3′’	1.11, m; 1.97, m	27.1
4′’	1.94, 2H, m	22.8
5′’	3.48, ov; 3.81, m	46.6
2′-OH			5.12, d (5.2)

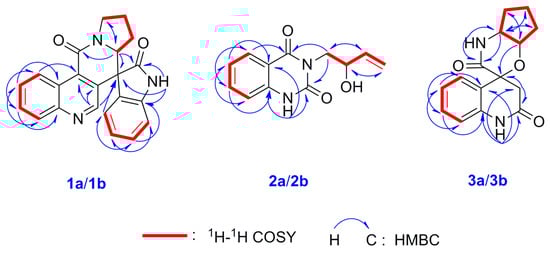

) of 1 showed signals of two ortho-disubstituted benzene ring at [δ_H 9.29 (1H, d, J = 8.6 Hz, H-5), 7.77 (1H, dd, J = 8.6, 7.7 Hz, H-6), 7.84 (1H, dd, J = 8.3, 7.7 Hz, H-7) and 8.07 (1H, d, J = 8.3 Hz, H-8)] and [6.76 (1H, d, J = 7.5 Hz, H-4′), 6.95 (1H, dd, J = 7.7, 7.5 Hz, H-5′), 7.30 (1H, dd, J = 7.8, 7.7 Hz, H-6′) and 7.05 (1H, d, J = 7.8 Hz, H-7′)]; a trisubstituted double bond at δ_H 8.56 (1H, s, H-2) and an exchangeable proton at δ_H 11.25 (1H, brs, NH-1′). The ¹³C NMR spectrum (Table 1) displayed 22 carbon signals, and based on the DEPT 135° experiments, 9 × C signals at δ_C (176.8, 161.6, 148.5, 141.9, 133.4, 132.1, 128.2, 124.6, 55.4), 10 × CH signals at δ_C (148.3, 130.4, 130.1, 129.8, 128.9, 126.7, 124.4, 123.1, 111.2, 61.8) and 3 × CH₂ signals at δ_C (46.6, 27.1, 22.8) were observed. These spectroscopic features, along with the molecular formula and the degrees of unsaturation (16 index of hydrogen deficiency, IHD), suggested that isatisindigoticanine B was an unusual alkaloid [1,2,3,6,7,8,9]. This inference was confirmed by detailed analysis of the 2D NMR data. The proton and protonated carbon resonances in the NMR spectra of 1 were unambiguously assigned by the HSQC experiments [11,12,13,14]. The ¹H-¹H COSY correlations of H-4′/H-5′/H-6′/H-7′, along with HMBC correlations (Figure 2) of NH-1′/C-2′, C-3′ and C-7′a, indicate a 1H-indol-2-one unit in 1 [15]; ¹H-¹H COSY correlations of H-2″/H-3″/H-4″/H-5″, along with the HMBC correlations of H-2″/C-3″ and C-5″, indicated a pyrrolidine unit in 1 [16]; ¹H-¹H COSY correlations of H-5/H6/H7/H8, along with the HMBC correlations of H-2/C-3 and C-4, H-5/C-4 and C-8a and the remaining molecular formula C₁₀H₅NO, indicated a 4-quinolinecarboxylic acid unit in 1 [17]. HMBC correlations of H-2/C-3′, C-3 and C-4 and correlations of H-2″/C-9, C-2′, C-3′ and C-5″, determined the 1H-indol-2-one unit connected with the pyrrolidine unit and the 4-quinolinecarboxylic acid via a six-membered ring of C-3-C-4-C-9-N-1″-C-2″-C-3′. The planar structure of 1 was thus deduced as depicted in Figure 1. Subsequent HPLC separation of 1 on a chiral column yielded 1a and 1b (Figure S34, Supplementary Information) with opposite optical rotations (+12.6° for 1a and −12.5° for 1b) and mirrored CD spectra curves (Figure 3). To further determine the absolute configurations of 1, the ECD curves were simulated for the four epimers of 1, [(3′R,2″S)-1, (3′S,2″R)-1, (3′R,2″R)-1 and (3′S,2″S)-1] (Figure 3). The experimental CD spectra of 1a and 1b were well matched with the calculated ECD curves of (3′R,2″S)-1 and (3′S,2″R)-1, respectively. Accordingly, the structure of 1a and 1b were elucidated as depicted (Figure 1) and named as (+)-(3′R,2″S)-isatisindigoticanine B (1a) and (−)-(3′S,2″R)-isatisindigoticanine B (1b). This carbon skeleton is the first report from a natural source and the putative biosynthetic pathways were proposed (Figure 4).

Isatisindigoticanine C (2) was obtained as a white amorphous power. Its molecular formula was assigned as C₁₂H₁₂N₂O₃ by the 1D NMR data and the HRESIMS quasimolecular ion peak at m/z 231.0771 [M − H]⁻ (cacld. 231.0775 [M − H]⁻). The ¹H NMR spectrum (Table 1) of 2 showed signals of an ortho-disubstituted benzene ring at δ_H 7.93 (1H, d, J = 8.0 Hz, H-5), 7.22 (1H, dd, J = 8.0, 7.7 Hz, H-6), 7.76 (1H, dd, J = 8.2, 7.7 Hz, H-7) and 7.16 (1H, d, J = 8.2 Hz, H-8) [8,9,15]; a monosubstituted double bond at δ_H 5.83 (1H, ddd, J = 16.9, 10.7, 6.5 Hz, H-3′), 5.01 (1H, dd, J = 10.7, 1.2 Hz, H-4′a) and 5.11 (1H, dd, J = 16.9, 1.2 Hz, H-4′b) and an exchangeable proton at δ_H 11.39 (brs, NH-1) [15]. Analysis of the ¹³C NMR, DEPT 135° and HSQC data (Table 1) of 2, a 2′-hydroxybut-3′-en-1′-yl (45.6, CH₂; 69.2, CH; 140.0, CH; 115.5, CH₂) [4,10] and a quinazoline-2,4(1H,3H)-dione moiety (150.8, C; 162.6, C; 114.3, C; 127.9, CH; 122.9, CH; 135.4, CH; 115.5, CH; 139.9, C) were observed [1,2,3]. HMBC correlations of H-1′/C-2 and C-4 indicated the 2′-hydroxybut-3′-en-1′-yl unit connected with the quinazoline-2,4(1H,3H)-dione unit via a N-3-C-1 bond [2,3]. This inference was supported by detailed analysis of the 2D NMR data including HSQC, HMBC (Figure 2) and ¹H-¹H COSY (Figure 2) experiments. The planar structure of 2 was thus deduced as depicted in Figure 1. Subsequent HPLC separation of 2 on a chiral column yielded 2a and 2b in a ratio of approximately 1:1, with opposite optical rotations (−31.1° for 2a and +33.1° for 2b) and cotton effects in their experimental ECD spectra (Figures S29 and S35, Supplementary Information). The comparison of the experimental CD spectra and the calculated ECD spectra of 2a and 2b (Figure 3) confirmed the two enantiomers as (−)-(2′R)-isatisindigoticanine C (2a, Figure 1) and (+)-(2′S)-isatisindigoticanine C (2b, Figure 1), respectively [2,3]. Finally, a single-crystal X-ray experiment with Cu Kα radiation analysis confirmed the structure of (+)-(2′S)-isatisindigoticanine C (2b, Figure 5).

Isatisindigoticanine D (3), a white amorphous powder, has the molecular formula of C₁₅H₁₆N₂O₃, which was supported by the positive HRESIMS ion at m/z 273.1245 [M + H]⁺ (cacld. 273.1239 [M + H]⁺) and 1D NMR data. The ¹H NMR spectrum (Table 1) of 3 showed signals of an ortho-disubstituted benzene ring at δ_H 7.27 (1H, d, J = 7.3 Hz, H-5), 6.87 (1H, dd, J = 7.5, 7.3 Hz, H-6), 7.17 (1H, dd, J = 7.7, 7.5 Hz, H-7) and 6.76 (1H, d, J = 7.7 Hz, H-8) and two exchangeable protons at δ_H 12.39 (brs, NH-1) and 10.37 (brs, NH-1′) [1,15]. The ¹³C NMR spectrum (Table 1) displayed 15 carbon signals based on the DEPT 135° experiments, and 5 × C signals at δ_C (179.9, 174.2, 141.3, 131.7, 71.8), 6 × CH signals at δ_C (128.5, 123.7, 121.9, 109.4, 68.5, 46.9) and 4 × CH₂ signals at δ_C (47.9, 43.3, 31.8, 28.4) were observed. The 2D NMR spectra of 3 showed the ¹H-¹H COSY correlations of H-5/H-6/H-7/H-8 and HMBC correlations from NH-1/C-2, C-3, C-4a and C-8a, and those from H-3/C-2 and C-4 indicated a 4-hydroxy-2-oxo-1,2,3,4-tetrahydroquinoline-4-carboxylic acid unit in 3 [18], while ¹H-¹H COSY correlations of H-2′/H-3′/H-4′/H-5′/H-6′ indicated a cyclopentanamine unit in 3 [19]. HMBC correlations from NH-1′/C-9 and C-6 and from H-2′/C-4 determined the 4-hydroxy-2-oxo-1,2,3,4-tetrahydroquinoline-4-carboxylic acid unit connected with the cyclopentanamine unit via a six-membered ring of N-1′-C-2″-C-3-O-C-4-C-9. The planar structure of 3 was thus determined as depicted in Figure 1. Subsequent HPLC separation of 3 on a chiral column yielded 3a and 3b (Figure S36, Supplementary Information) with opposite optical rotations (−65.7° for 3a and +63.2° for 3b) and mirrored CD spectra curves (Figure 3). Subsequently, the absolute configurations of 3a and 3b were determined by comparison of their experimental and calculated ECD spectra at the b3lyp/6-31g(d) level. As shown in Figure 3, the theoretically calculated ECD of (4S,2′R,3′R)-3 and (4R,2′S,3′S)-3 matched well with the experimental CD of 3a and 3b, respectively. Thus, the structures of the two enantiomers were given and named as (−)-(4S,2′R,3′R)-isatisindigoticanine D (3a, Figure 1) and (+)-(4R,2′S,3′S)-isatisindigoticanine D (3b, Figure 1), respectively [2,3].

For our continuous project to explore more anti-inflammatory components from I. indigotica [8,9], compounds 1a/1b–5a/5b were tested for their inhibitory effects on the NO production in LPS activated RAW 264.7 cells, a primary indicator in assessing inflammatory activities [20]. The results suggested that only 4a and 4b exhibited inhibitory activities, with IC₅₀ values of 76.97 μM and 65.88 μM.

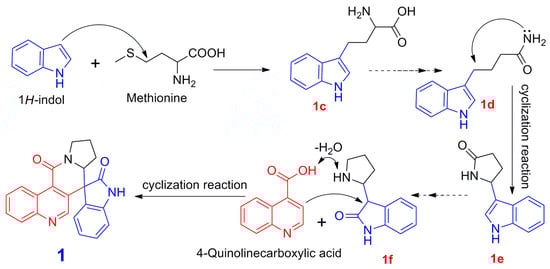

Isatisindigoticanine B (1) is the first example of a 1H-indol-2-one unit connected with a 4-quinolinecarboxylic acid unit and a pyrrolidine unit via a six-membered ring of C-3-C-4-C-9-N-1″-C-2″-C-3′. On the basis of its unique structural features, the putative biosynthetic pathways for isatisindigoticanine B (1) are proposed in Figure 4. The biosynthetic precursor of 1 is proposed from 1H-indol [4]. First, 1H-indol was connected with methionine moiety by sequential or simultaneous enzymatic catalysis to give 1c [4,5], and then 1c was modified via an enzyme-catalyzed reaction to give 1d [20]. Then, 1e was obtained by cyclization reaction of 1d [8] and then changed via a reduction reaction to give 1f, and finally 1f was modified by steps of dehydration and cyclization reactions [5,8] to give 1. Compound 1 was separated by chiral analysis to give 1a and 1b [2,3].

3. Experimental Section

The general experimental procedures and extraction and isolation sections are listed in the Supplementary Information section. The plant material (I. indigotica roots) was used in the same way we described previously [8,9].

3.1. Physical and Spectroscopic Data of Isatisindigoticanines B–D

Isatisindigoticanine B (1), a primrose yellow amorphous power; IR (KBr) ν_max: 3407, 2923, 1720, 1666, 1613, 1501, 1460, 1350, 1267, 1023, 954, 759 cm⁻¹; m/z 356.1398 [M + H]⁺ (cacld. 356.1394 [M + H]⁺); ¹H NMR (DMSO-d₆, 600 MHz) and ¹³C NMR (DMSO-d₆, 150 MHz) (Table 1); [α]${}_D^{20}$ +12.6° (c 0.15, MeOH) for (+)-(3′R,2″S)-isatisindigoticanine B (1a) and [α]${}_D^{20}$ −12.5° (c 0.07, MeOH) for (−)-(3′S,2″R)-isatisindigoticanine B (1b).

Isatisindigoticanine C (2), a white amorphous power; IR (KBr) ν_max: 3420, 2939, 1636, 1598, 1514, 1461, 1261, 1139, 1025, 859, 813 cm⁻¹; m/z 233.0771 [M − H]⁻ (cacld. 233.0775 [M − H]⁻); ¹H NMR (DMSO-d₆, 600 MHz) and ¹³C NMR (DMSO-d₆, 150 MHz) (Table 1); [α]${}_D^{20}$ −31.1° (c 0.21, MeOH) for (−)-(2′R)-isatisindigoticanine C (2a) and [α]${}_D^{20}$ +33.1° (c 0.13, MeOH) for (+)-(2′S)-isatisindigoticanine C (2b).

Isatisindigoticanine D (3), a white amorphous power; IR (KBr) ν_max: 3363, 2924, 1703, 1667, 1514, 1443, 1408, 1260, 1026, 957, 726 cm⁻¹; m/z 273.1245 [M + H]⁺ (cacld. 273.1239 [M + H]⁺); ¹H NMR (DMSO-d₆, 600 MHz) and ¹³C NMR (DMSO-d₆, 150 MHz) (Table 1); [α]${}_D^{20}$ −65.7° (c 0.18, MeOH) for (−)-(4S,2′R,3′R)-isatisindigoticanine D (3a) and [α]${}_D^{20}$ +63.2° (c 0.10, MeOH) for (+)-(4R,2′S,3′S)-isatisindigoticanine D (3b).

3.2. ECD Calculation of Compounds 1a/1b–3a/3b

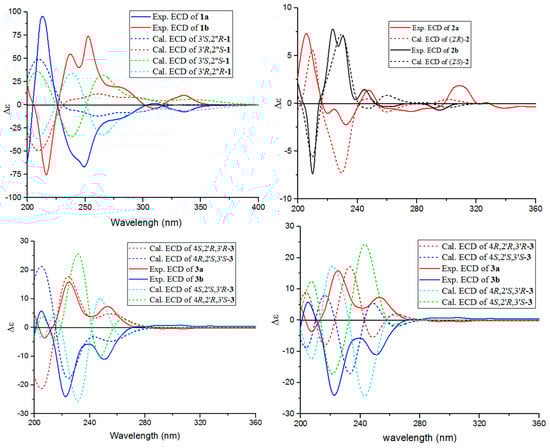

The conformers of compounds 1a/1b–3a/3b were obtained using the MM2 force field with ChemBio3D software. Gaussian 09 software was utilized for the semiempirical PM3 quantum mechanical geometry optimizations and the time-dependent density functional theory (TDDFT). ECD was calculated at the b3lyp/6-31g(d) level [20,21,22]. The ECD spectra conformers of 1a/1b–3a/3b were obtained using SpecDis 1.62 and were compared with the experimental data; the calculation details are listed in the supporting information (Figures S26–S33).

3.3. X-ray Crystallography of (+)-(2′S)-isatisindigoticanine C (2b)

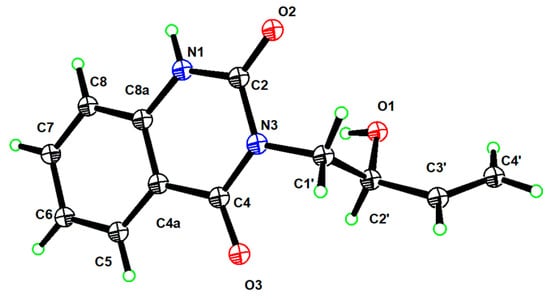

A crystal of 2b was obtained in MeOH. The crystallographic data of 2b were obtained with Cu Kα (λ = 1.54178 Å) radiation at 130 K on a Bruker Apex II CCD diffractometer. The structures were solved by a direct method and refined with the full-matrix least-squares technique using SHELX-2014 software. Nonhydrogen atoms were refined with anisotropic displacement parameters, and hydrogen atoms were placed in calculated positions and refined with a riding model. The flack parameter was 0.15(7) (Figure S37, Supplementary Information). The crystallographic data of 2b were deposited in the Cambridge Crystallographic Data Centre (CCDC) with deposition number 1941685.

3.4. Inhibitory Assay of NO Production

Compounds 1a/1b–5a/5b were tested for their NO inhibitory effects in the LPS activated RAW 264.7 cells using the previously reported method [8,9,23]. The IC₅₀ values showed that only 4a and 4b showed inhibitory effects with IC₅₀ values of 76.97 μM and 65.88 μM (aminoguanidine hydrochloride was used as the positive control, IC₅₀ 22.67 μM).

4. Conclusions

In this study, six new alkaloids: (+)-(3′R,2″S)-isatisindigoticanine B (1a), (−)-(3′S,2″R)-isatisindigoticanine B (1b), (−)-(2′R)-isatisindigoticanine C (2a), (+)-(2′S)-isatisindigoticanine C (2b), (−)-(4S,2′R,3′R)-isatisindigoticanine D (3a) and (+)-(4R,2′S,3′S)-isatisindigoticanine D (3b), together with four known ones: (−)-(2R,3R)-3-hydroxy-2H-pyrrolo[2,3-b]indolo[5,5a,6-b,a]quinazoline-9(8H),7′-dione (4a), (+)-(2S,3S)-3-hydroxy-2H-pyrrolo[2-b]indolo[5,5a,6-b,a]quinazoline-9(8H),7′-dione (4b), epigoitrin (5a) and goitrin (5b), were isolated from the roots of I. indigotica. The alkaloids 1a and 1b possess an unpresented carbon skeleton of a 1H-indol-2-one unit connected with a 4-quinolinecarboxylic acid unit and a pyrrolidine unit via a six-membered ring of C-3-C-4-C-9-N-1″-C-2″-C-3′. Alkaloids 4a and 4b showed NO inhibitory effects in the LPS activated RAW 264.7 cells, with IC₅₀ values of 76.97 μM and 65.88 μM.
