Article

Pd Nanocatalyst Adorned on Magnetic Chitosan@N-Heterocyclic Carbene: Eco-Compatible Suzuki Cross-Coupling Reaction

by
Roya Sedghi
1,*,
Bahareh Heidari
1,
Hatef Shahmohamadi
1,
Pourya Zarshenas
1 and
Rajender S. Varma
2,*
1
Department of Polymer& Materials Chemistry, Faculty of Chemistry & Petroleum Sciences, Shahid Beheshti University, G.C, 1983969411 Tehran, Iran
2
Regional Centre of Advanced Technologies and Materials, Department of Physical Chemistry, Faculty of Science, Palacky University, Šlechtitelů 27, 783 71 Olomouc, Czech Republic
*
Authors to whom correspondence should be addressed.
Molecules 2019, 24(17), 3048; https://doi.org/10.3390/molecules24173048
Submission received: 20 June 2019 / Revised: 18 August 2019 / Accepted: 19 August 2019 / Published: 22 August 2019
(This article belongs to the Special Issue Nanocatalysis)
Browse Figures
Versions Notes

Abstract

:
A novel magnetic-functionalized-multi-walled carbon nanotubes@chitosan N-heterocyclic carbene-palladium (M-f-MWCNTs@chitosan-NHC-Pd) nanocatalyst is developed in two steps. The first step entails the fabrication of a three-component cross-linking of chitosan utilizing the Debus–Radziszewski imidazole approach. The second step comprised the covalent grafting of prepared cross-linked chitosan to the outer walls of magnetically functionalized MWCNTs (M-f-MWCNTs) followed by introducing PdCl2 to generate the m-f-MWCNTs@cross-linked chitosan with a novel NHC ligand. The repeated units of the amino group in the chitosan polymer chain provide the synthesis of several imidazole units which also increase the number of Pd linkers thus leading to higher catalyst efficiency. The evaluation of catalytic activity was examined in the expeditious synthesis of biaryl compounds using the Suzuki cross-coupling reaction of various aryl halides and aryl boronic acids; ensuing results show the general applicability of nanocatalyst with superior conversion reaction yields, high turnover frequencies (TOFs) and turnover numbers (TON). Meanwhile, nanocatalyst showed admirable potential in reusability tests, being recycled for five runs without losing significant activities under optimum reaction conditions. The successfully synthesis of catalyst and its characterization was confirmed using the Fourier transform infrared spectrometer (FT-IR), spectrometer transmission electron microscopy (TEM), scanning electron microscopy (SEM), X-ray photo-electron spectroscopy (XPS) and thermogravimetric analysis (TGA).

Graphical Abstract

1. Introduction

The Suzuki–Miyaura cross-coupling reaction plays a significant industrial scale role for the production of biaryl compounds which are widely used for a variety of industrial applications, such as the synthesis of natural products, herbicides, pharmaceuticals, polymers and agrochemicals [1,2,3,4]. Commonly, bulky phosphine ligands are employed to facilitate the Suzuki cross-coupling reaction; however, critical setbacks for this ligand are toxicity, air sensitivity and typical susceptibility to metal-ligand degradation [5,6,7], posing significant limitations on their uses [8]. In contrast, nitrogen-based ligands such as N-heterocyclic carbenes (NHCs) [9,10] have attracted attention as transition metal ligands; NHCs feature a significantly stronger electron-donating capacity than phosphine’s ligands, which increases the stability of resulting complexes towards the air, moisture and heat. On the other hand, the NHC ligands have the same σ-donor and low π-acceptor properties while they can form stronger bonds to a wide variety of metals such as Co [11], Pd [12], Cu [13] and Ni [14]. Pd complexes incorporating NHC appear to be a superior catalyst to achieve excellent catalytic activities in cross-coupling reactions. Also, the strong σ-donating properties of the NHCs promote oxidative addition of reagent and can assist in the reductive elimination of biaryl compounds [15,16]. On the other hand, recent advances in ‘green’ Suzuki cross-coupling reactions have focused on designing easily recoverable catalysts, thus simplifying product separation and adhering to sustainable green chemistry [17]. Although current homogeneous metal catalysts have sufficient activity, heterogeneous catalysts offer superior and practical aforementioned advantages. In recent years, the catalysts have been immobilized on a wide variety of supports such as Fe3O4 [18], SiO2 [19], TiO2 nanoparticles (NPs) [20] and mesoporous silica [21]; potential supports should have high stability and large surface area. The MWCNTs are robust support materials due to the high aspect ratio, thermal, chemical and mechanical stability, and conductivity and strong interactions for grafting to the other material with suitable appending groups [22]. In the last few years, techniques based on magnetic materials have attracted much attention to use in the wide variety of fields such as immunoassay [21], targeted drug delivery [23], and environmental detection [24]. The main advantage of magnetic material is to achieve easy separation strategy using an external magnetic field without additional centrifugation or filtration [25,26]. Also, due to the large surface area, and unique physical and chemical properties of the magnetic NPs, they have attracted much attention. In recent years biopolymers have gained a great research interest to use as a support for catalysts [27,28]. Chitosan is a naturally occurring linear copolymer that can be produced from chitin—the naturally occurring polysaccharide—via deacetylation [29]. Since the Chitosan is soluble in aqueous acidic media, it can be easily processed, and a wide variety of shapes are known including membranes, fibers or spheres [30,31,32]. The most important advantage of using chitosan is because of the large number of available amino groups in its structure which makes this polymer an ideal material for a wide variety of applications via modification of side groups that assist in cross-linking or grafting with other polymers [33,34]. On the other hand, imidazolium compounds are very versatile materials with a wide range of recent innovations in the field of chemistry; the design and synthesis of imidazole derivatives and imidazolium-containing polymers as a metal-ligand has received ample attention [35]. The Debus–Radziszewski imidazole synthesis strategy has been used in designing the cross-linked chitosan derivatives via a rather convenient one-pot approach involving the reaction of formaldehyde, a primary amine and a 1,2-dicarobonyl compound [36]. Akin to NHC ligand design, herein, the in situ interaction of imidazolium salt and the Pd source can be accomplished by deploying chitosan.
In this study, Debus–Radziszewski imidazole synthesis was used to fabricate cross-linked chitosan using glyoxal and formaldehyde as dicarbonyl and carbonyl components, respectively. The prepared cross-linked chitosan was anchored on the high surface area of m-f-MWCNTs via the esterification reaction between the hydroxyl group of chitosan and the carboxylic acid group from the surface of m-f-MWCNTs and then finally the prepared compound was applied to generate NHC@Pd (Scheme 1). To the best of our knowledge, combining MWCNTs and cross-linked chitosan provides not only a high surface area of MWCNTs but also enhanced the interaction of imidazolium cross-linked chitosan with Pd NPs which leads to an excellent opportunity for the design and application of this ideal combination.

2. Experimental

2.1. Reagents and Materials

MWCNTs, FeCl3.6H2O, FeCl2.4H2O, H2SO4 (98%), HNO3 (65%), NH4OH (28%), Glyoxal, formaldehyde, N,N’-Dicyclohexylcarbodiimide (DCC), 4-dimethylaminopyridine (DMAP), palladium chloride (PdCl2), dimethyl sulfoxide (DMSO), dimethylformamide (DMF), acetonitrile (CH3CN), ethyl acetate, n-hexane and ethanol were purchased from Merck Company (Darmstadt, Germany). Chitosan, boronic acids and differently substituted aryl halides were purchased from Sigma-Aldrich Company (St. Louis, MO, USA). All employed solvents were dried using standard process and freshly distilled prior to use.

2.2. Instrumentation

The Fourier transform infrared (FT-IR) measurements were performed using a FT-IR spectrometer (BOMEM MB-Series, Quebec City, QC, Canada) in the form of KBr pellets over the wavenumbers of 400–4000 cm−1. The thermal properties of the nanocomposites were investigated using thermal analyzer instrument (TGA/DTA BAHR: STA 503, Hüllhorst, Germany) from 25 to 1000 °C at a heating rate of 10 °C/min under air. For determination of Pd loaded on nanocomposite an atomic absorption spectrometry (Shimadzu model AA-680, Kyoto, Japan) was used with air-acetylene flame atomizer and equipped with hollow cathode lamp. The SEM (Philips XL30, Leuven, Belgium) was used for the investigation of surface morphological features and size of nanocatalyst and in order to provide more quantitative data of surface, image of nanocatalyst was taken using TEM (Philips CM30, Milan, Italy). The X-ray photoelectron analysis (XPS) was performed using a thermo fisher scientific k-alpha instrument (Waltham, MA, USA). The Brunauer–Emmett–Teller (BET) surface area was determined using a BET analyzer (Belsorp mini, Osaka, Japan). The progress of the Suzuki cross-coupling reaction was monitored by gas chromatography (Shimadzu model GC instrument, Kyoto, Japan).

2.3. Synthesis of Functionalized-MWCNTs (f-MWCNTs)

In order to improve the dispersion and reduce the aggregation tendency of MWCNTs and also for improved interaction of cross-linked chitosan with surface of MWCNTs, surface functionalization of MWCNTs (carboxylation) was carried out. According to the previously reported procedure [37], 2 g MWCNTs were ultrasonically treated in a 100 mL of HNO3/H2SO4 (1:3) mixture at 60 °C. After 2 h stirring, the resulting product (f-MWCNTs) was collected and washed with distilled water and then dried at 60 °C for 24 h.

2.4. Synthesis of Magnetic f-MWCNTs (m-f-MWCNTs)

Firstly, 1 g of obtained f-MWCNTs nanocomposite was dispersed in 110 mL distilled water and then 0.8 g FeCl3.6H2O was added to the reaction mixture under vigorous stirring and under nitrogen atmosphere. The solution was stirred for 5 min and followed by addition of 1.2 g FeCl2.4H2O. Then 50 mL diluted NH4OH was added drop-wise to the reaction mixture and was kept at 60 °C for 3 h. The final products were isolated using a permanent magnetic field and washed several times with distilled water and ethanol. The obtained m-f-MWCNTs nanocomposite was dried at 25 °C for 24 h.

2.5. Synthesis of the Cross-Linked Chitosan Using Imidazole

Briefly, 1 g of medium molecular weight chitosan (6.1 mmol) was dissolved in 100 mL diluted CH3COOH (concentration 10%), then 0.35 mL (3.1 mmol) of glyoxal (40% in water) and 0.114 mL (3.1 mmol) formaldehyde were added to chitosan solution while it was being stirred vigorously. After attaining the homogeneous solution, a required amount of diluted NaOH (concentration 10%) was added drop-wise till the pH reached 5. The ensuing solution kept under constant stirring over 48 h at room temperature.

2.6. Substitution Cross-Linked Chitosan with Activated m-f-MWCNTs (Esterification)

The cross-linked chitosan was covalently linked onto the m-f-MWCNTs via a chemical reaction between the hydroxyl groups of the cross-linked chitosan and the active carboxyl groups of m-f-MWCNTs. To accomplish the purpose, 0.1 g of m-f-MWCNTs and 0.16 mL of DCC and 0.8 g DMAP were added to DMF (20 mL) while the mixture was stirred at room temperature for 30 min, followed by the addition of 0.5 g of cross-linked chitosan. The reaction mixture was stirred for 48 h and then the resulted product was rinsed with distilled water (3 times) and dried under vacuum for 24 h at 25 °C.

2.7. Preparation of the m-f-MWCNTs@chitosan NHC-Pd

In order to increase the solubility of the PdCl2 in aqueous solution, CH3CN was added to solubilize the complex. M-f-MWCNTs@cross-linked chitosan (0.2 g) was added to a solution of PdCl2 (MeCN)2 (5 mL) in DMF (10 mL) and the reaction mixture was stirred for 24 h at 60 °C. The final precipitated solid was collected using filtration under vacuum and washed with ethanol and distilled water to remove any adsorbed Pd from the surface of the composite.

2.8. General Procedure for the Suzuki Reactions

To establish the generality of this nanocatalyst, a wide variety of aryl halides and arylboronic acids were used. In a typical experiment, to a 50 mL flask an appropriate aryl halide (1 mmol), arylboronic acid (1.2 mmol), K2CO3 (3 mmol), the above-mentioned catalyst (0.1–1 mol% based on aryl halide) and 6 mL EtOH/water (1:1 V/V) were successively added. The mixture was stirred vigorously for the varying particular length of time (2–8 h) and temperature at (40 °C–60 °C) depending on the substrate used. Upon completion of the reaction, the mixture was cooled down to ambient temperature (25 °C) and the solid catalyst was separated by using a magnet bar. The filtrate was extracted three times with organic solvent (ethyl acetate). Then the organic phase was dried over anhydrous MgSO4 and after removal of the solvent, corresponding cross-coupled Suzuki products were purified by short chromatography on a silica gel (n-hexane/ethyl acetate) to afford the desired product and calculate the yield.

3. Result and Discussion

Homogenous Pd NPs have been extensively employed in various Pd catalyzed cross-coupling reactions such as Suzuki [38], Sonogashira [39], Heck [40] and Negishi [41]. The inherent tendency toward NPs agglomeration makes the use of supporting agents or stabilizers obligatory in most reactions. The main purpose of this study has been to develop robust Pd NPs stabilized onto a novel supported polymer which is abundant, renewable and biodegradable; such a decorated Pd nanocatalyst on m-f-MWCNTs with larger surface area coupled with ease of its separation using just an external magnet bodes well for its numerous Pd-catalyzed reactions.

3.1. Characterization of Nanocatalyst

3.1.1. FT-IR Spectroscopy

Figure 1 shows the FT-IR spectra for (a) MWCNTs, (b) f-MWCNTs, (c) m-f-MWCNTs, (d) chitosan, (e) cross-linked chitosan, and (f) m-f-MWCNTs@cross-linked chitosan. In Figure 1b, absorbance peaks at 1718 cm−1 and 3151 cm−1 were attributed to stretching bands vibration of C=O and O–H, respectively that confirmed successful carboxylation of MWCNTs (Figure 1a) [42,43]. For m-f-MWCNTs (Figure 1c), the band at 583 cm−1 is attributable to Fe–O stretching vibration. In the spectrum of cross-linked chitosan (Figure 1e), the appearance of the new band at 1564 cm_1 and 1664 cm_1 were accredited to the aromatic C=C stretching and C=N ring stretching vibrations, respectively, due to the formation of an imidazole ring [44,45]. The successful esterification reaction between OH groups of chitosan and carboxyl groups emanating from m-f-MWCNTs was confirmed by observation of 1733 cm−1 band (Figure 1f) [46].

3.1.2. XPS Analysis

XPS spectroscopy was applied to investigate the electronic state of Pd species that exist within the nanocatalyst. As shown in Figure 2, two peaks were centered at 335.48 eV and 340.94 eV which are ascribed to Pd0 3d5/2 and 3d3/2, respectively, and two peaks were centered at 338.2 and 343.5 eV which accredited to Pd (II) 3d5/2 and 3d3/2, respectively [47]. These observations are reminiscent of previous literature reports [48,49], wherein parts of Pd (II) species were likely reduced by chitosan backbone.

3.1.3. TGA Analysis

Thermograms provide useful information about the catalyst contents in the nanocomposite powder (Figure 3). It is well known that the graphitic structure of MWCNTs is stable up to 600–700 °C. As can be seen, decomposition of f-MWCNTs with strong acids (carboxylic acid groups at the surface of nanotube) occurs gradually in the whole range of temperature. Results showed that f-MWCNTs lost 27 wt.% by 700 °C while m-f-MWCNTs is thermally stable beyond this and lost 19 wt.% by 700 °C. The trend of weight loss for m-f-MWCNTs@chitosan is moderate and faster than of other samples up to 500 °C due to the decomposition of polymeric portions of the nanocomposite.

3.1.4. SEM and TEM Images and EDS Analysis

The morphological feature of the products before and after the assembly of imidazolium cross-linked chitosan to m-f-MWCNTs and dimensions of the MWCNTs, m-f-MWCNTs and m-f-MWCNTs@chitosan NHC-Pd were recorded using SEM (Figure 4). The surfaces of MWCNTs are smooth and tidy (Figure 4A), whereas m-f-MWCNTs (Figure 4B) have a spherical shape and smooth surface morphology. In contrast, the m-f-MWCNTs@chitosan NHC-Pd surfaces (Figure 4C) become rough and they have many new branches. Compared to MWCNTs, the m-f-MWCNTs@ chitosan NHC-Pd nanocomposite has a more aggregate morphology which possibly is due to the interactions among the functional groups of cross-linked chitosan and the external wall of m-f-MWCNTs and thereby affirming that cross-linked chitosan is successfully attached to m-f-MWCNTs surfaces. It is further substantiated by FT-IR and TGA characterizations. Figure 4D shows a SEM image of the recycled m-f-MWCNTs@ chitosan NHC-Pd nanocomposite. The morphology of m-f-MWCNTs@chitosan NHC-Pd was examined by TEM, the result is shown in Figure 4E; apparently, the modification of surface m-f-MWCNTs has occurred successfully, suggesting that the cross-linked chitosan was coated onto the MWCNTs. The obtained data for EDX analysis affirmed the presence of Pd NPs in the catalyst structure (Figure 4F).

3.1.5. BET Analysis

The BET surface areas of the MWCNTs and the catalysts are provided. After modification of the MWCNTs, the BET surface area decreased dramatically from 430.06 m2 g−1 in MWCNTs to 283.85 m2 g−1 in the final nanocatalyst; the obtained result indicated that most of the external surface of the MWCNTs was impregnated with the Pd.

3.2. Catalytic Performance of m-f-MWCNTs@chitosan NHC-Pd Nanocomposite

Heterogeneous catalysts stabilized by polymers have been extensively investigated for their cross-coupling reactions [50,51]. However, there are only a few reports on the application of magnetically separable nanoparticles stabilized by hydrophilic polymers which catalyze the cross-coupling reactions under greener conditions [25,52,53,54,55,56]. In this work, the catalytic activity of Pd NPs stabilized on m-f-MWCNTs@cross-linked chitosan nanocomposite was investigated for the Suzuki reaction under eco-friendly conditions. The flexibility in surface functionalities, large surface area to volume ratio and superior mechanical performance of m-f-MWCNTs positively influenced the amount of catalyst loaded and decreased the required reaction times. In this work, the reaction of bromobenzene with phenyl boronic acid in the presence of the aforementioned catalyst was studied as a model reaction (Table 1). According to the obtained data, the best result was found using a mixture of EtOH:H2O as a solvent of choice. The use of this mixture as the solvent provides excellent interaction between heterogeneous stabilized Pd nanocomposite with hydrophilic compound (boronic acid) and hydrophobic compound (aryl halides) which consequently leads to an increase in the yield and rate enhancement of the Suzuki reaction. According to the previous experiments—the base significantly affected the product yields in this regard—K2CO3 was used in a catalytic system. The amount of catalyst used and the time of the reaction are two significant parameters investigated in this work. The best conversion in the model reaction to provide biphenyl was identified by the deployment of 0.1 mol% of catalyst in 3 h for completion of the reaction (Table 1). As shown in Table 2, the coupling products obtained from the reaction of boronic acid derivatives with various aryl halides gave corresponding biaryls (entries 1–18). As shown, the iodobenzene, 4-iodotoluene and 4-iodoanisole gave the corresponding biaryls in the presence of 0.1 mol% catalyst in only 2 hrs (Table 2, entries 1–3). Both electron-donating and -withdrawing groups on aryl bromides gave the corresponding biaryls in excellent yields in the presence of 0.1 mol% catalyst in only 3 h (Table 2, entries 4–6). The prepared catalyst efficiently catalyzed the Suzuki cross-coupling reaction of aryl iodides and aryl bromides. It has been well-established that Suzuki reaction does not proceed smoothly when aryl chlorides are used; aryl chlorides are commonly less reactive since C–Cl bond is stronger than those of C–Br and C–I, thus requiring longer reaction times, and catalysts with higher activity are a prerequisite. Because of the ready availability of aryl chlorides and being relatively less expensive than their bromo and iodo counterparts, using them in cross-coupling reactions, including Suzuki reaction, is desirable. Thus, the most important advantage of our novel catalyst system is that it can be successfully used in Suzuki reaction wherein a wide variety of aryl chlorides can be coupled with aryl boronic acid to generate the corresponding products. However, aryl chlorides due to strong C–Cl bond, relative to C–Br and C–I, are more difficult to react than aryl bromides and aryl iodides and, therefore, increased amounts of catalyst and longer reaction time are often required. By increasing the amount of catalyst loading to 1 mol% and extending the reaction time to 8 h in 60 °C (entries 8–10 and 16–18), the Suzuki reaction of aryl chlorides could be completed in good yields (40–62%). Furthermore, 4-tolylboronic acid was subjected to various aryl halides and the obtained data are documented in entries 11–18.

3.3. Study of Pd Leaching

The hot filtration test was performed to investigate whether the reaction proceeded in a heterogeneous or homogeneous mode. In a typical experiment, phenyl boronic acid (1.2 mmol), bromobenzene (1 mmol), K2CO3 (3 mmol), m-f-MWCNTs@chitosan NHC-Pd nanocomposite as catalyst (0.1 mol%) were taken in solvent (H2O-EtOH: 1:1 (6 mL)) in a round-bottomed flask and stirred at 50 °C for 30 min. After 30 min of reaction, the hot reaction solution was separated by a magnet and the experiment was continued for another 3 h. According to the obtained data (monitored by GC), no further progress in the Suzuki cross-coupling reaction was observed even after a 3 h reaction time. Thus, barely any Pd leached into the reaction mixture, which confirmed that the reaction proceeded in a heterogeneous fashion.
According to the literature review [57] and as evidenced by local leaching studies, the following two essential factors have emerged: (1) the morphology of a heterogeneous catalyst is retained and (2) a very low level of metal leached in to the solution phase, thus implying that the catalyst system is a ‘cocktail’-type. However, for our prepared composite structure, where Pd NPs were dispersed on this composite structure, we cannot assign the Pd NPs shapes, but the hot filtration test confirmed the absence of leached Pd in solution.

3.4. The Reusability and Stability of Nanocatalyst

The reusability of the nanocatalyst was studied in the coupling reaction of bromobenzene and phenyl boronic acid as a model reaction under the identified optimal conditions. In each cycle, 6 mL aqueous solution containing reagents and the nanocatalyst was added into a 50 mL round-bottomed flask at optimal temperature. Upon the completion of the reaction, nanocatalyst was separated from the mixture using an external magnetic field, washed with water and reused for the next cycle in the same reaction. The results showed that the nanocatalyst could be successfully reused for five runs, without any considerable loss in its catalytic activity for the Suzuki cross-coupling reaction (Figure 5). The remaining amount of Pd after the fifth cycle was decreased by 0.325 mmol g−1 to 0.308 mmol g−1 as detected by AAS analysis (5% leaching).

3.5. Comparison

To evaluate the efficiency of the m-f-MWCNTs@ chitosan NHC-Pd nanocomposite, and its catalytic prowess, the activity was compared to similar earlier documented reactions from the literature. According to the results summarized in Table 3, the reduced time reaction, high catalytic efficiency under greener media at reduced reaction temperature, higher conversion and yield were obtained by using our catalyst [58,59,60,61,62,63,64].

4. Conclusions

Our investigations demonstrate that the immobilization of imidazolium cross-linked chitosan to m-f-MWCNTs support, followed by decorating with palladium, produces a well-defined and superior catalyst for the Suzuki cross-coupling reactions. The repeated amino groups of chitosan led to imidazole units’ in polymer chains that enhanced the number of Pd linkers and catalyst efficiency. Our best prototype catalyst demonstrated an encouraging range of catalytic activity in the Suzuki cross-coupling reactions of aryl chlorides in aqueous media. Further, this catalyst can be easily separated by using a magnetic field and used for five runs without losing significant activities under optimum reaction conditions; high TOF and TON, two important green chemistry metrics, bodes well for its utility in other related Pd-catalyzed reactions.

Author Contributions

Conceptualization, R.S. and B.H.; methodology, H.S. and P.Z.; software, B.H.; validation, R.S., B.H. and R.S.V.; formal analysis, R.S., B.H., H.S., P.Z. and R.S.V.; investigation, B.H., H.S. and P.Z.; resources, R.S. and R.S.V.; data curation, B.H.; writing—original draft preparation, B.H.; writing—review and editing, R.S. and R.S.V.; visualization, R.S., B.H., H.S., P.Z. and R.S.V.; supervision, R.S. and R.S.V.; project administration, B.H.; funding acquisition, R.S.V.

Funding

R.S.V. was supported by the Operational Program Research, Development and Education-European Regional Development Fund, project no. CZ.02.1.01/0.0/0.0/16_019/0000754 of the Ministry of Education, Youth and Sports of the Czech Republic.

Conflicts of Interest

Authors declare no conflict of interest.

References

  1. Magano, J.; Dunetz, J.R. Large-Scale Applications of Transition Metal-Catalyzed Couplings for the Synthesis of Pharmaceuticals. Chem. Rev. 2011, 111, 2177–2250. [Google Scholar] [CrossRef] [PubMed]
  2. Torborg, C.; Beller, M. Recent Applications of Palladium-Catalyzed Coupling Reactions in the Pharmaceutical, Agrochemical, and Fine Chemical Industries. Adv. Synth. Catal. 2009, 351, 3027–3043. [Google Scholar] [CrossRef]
  3. Corbet, J.-P.; Mignani, G.; Corbet, J. Selected Patented Cross-Coupling Reaction Technologies. Chem. Rev. 2006, 37, 2651–2710. [Google Scholar] [CrossRef] [PubMed]
  4. Hooshmand, S.E.; Heidari, B.; Sedghi, R.; Varma, R.S.; Hiedari, B. Recent advances in the Suzuki–Miyaura cross-coupling reaction using efficient catalysts in eco-friendly media. Green Chem. 2019, 21, 381–405. [Google Scholar] [CrossRef]
  5. Martin, R.; Buchwald, S.L. Palladium-Catalyzed Suzuki-Miyaura Cross-coupling Reactions Employing Dialkylbiaryl Phosphine Ligands. Acc. Chem. Res. 2008, 41, 1461–1473. [Google Scholar] [CrossRef] [PubMed]
  6. Barder, T.E.; Walker, S.D.; Martinelli, J.R.; Buchwald, S.L. Catalysts for Suzuki−Miyaura Coupling Processes: Scope and Studies of the Effect of Ligand Structure. J. Am. Chem. Soc. 2005, 127, 4685–4696. [Google Scholar] [CrossRef] [PubMed]
  7. Miura, M. Rational Ligand Design in Constructing Efficient Catalyst Systems for Suzuki—Miyaura Coupling. Angew. Chem. Int. Ed. 2004, 35, 2201–2203. [Google Scholar] [CrossRef] [PubMed]
  8. Marziale, A.N.; Jantke, D.; Faul, S.H.; Reiner, T.; Herdtweck, E.; Eppinger, J. An efficient protocol for the palladium-catalysed Suzuki–Miyaura cross-coupling. Green Chem. 2011, 13, 169–177. [Google Scholar] [CrossRef]
  9. Kim, J.-H.; Jun, B.-H.; Byun, J.-W.; Lee, Y.-S. N-Heterocyclic carbene–palladium complex on polystyrene resin surface as polymer-supported catalyst and its application in Suzuki cross-coupling reaction. Tetrahedron Lett. 2004, 45, 5827–5831. [Google Scholar] [CrossRef]
  10. Li, J.-H.; Liu, W.-J. Dabco as an Inexpensive and Highly Efficient Ligand for Palladium-Catalyzed Suzuki−Miyaura Cross-Coupling Reaction. Org. Lett. 2004, 6, 2809–2811. [Google Scholar] [CrossRef]
  11. Someya, H.; Ohmiya, H.; Yorimitsu, H.; Oshima, K. N-Heterocyclic Carbene Ligands in Cobalt-Catalyzed Sequential Cyclization/Cross-Coupling Reactions of 6-Halo-1-hexene Derivatives with Grignard Reagents. Org. Lett. 2007, 38, 1565–1567. [Google Scholar] [CrossRef] [PubMed]
  12. Peris, E.; Crabtree, R.H. Recent homogeneous catalytic applications of chelate and pincer N-heterocyclic carbenes. Coord. Chem. Rev. 2004, 248, 2239–2246. [Google Scholar] [CrossRef]
  13. Hu, X.; Castro-Rodriguez, I.; Olsen, K.; Meyer, K. Group 11 Metal Complexes of N-Heterocyclic Carbene Ligands: Nature of the MetalCarbene Bond. Organometallics 2004, 23, 755–764. [Google Scholar] [CrossRef]
  14. Dorta, R.; Stevens, E.D.; Scott, N.M.; Costabile, C.; Cavallo, L.; Hoff, C.D.; Nolan, S.P. Steric and Electronic Properties of N-Heterocyclic Carbenes (NHC): A Detailed Study on Their Interaction with Ni(CO)4. J. Am. Chem. Soc. 2005, 127, 2485–2495. [Google Scholar] [CrossRef] [PubMed]
  15. Fortman, G.C.; Nolan, S.P. N-Heterocyclic carbene (NHC) ligands and palladium in homogeneous cross-coupling catalysis: A perfect union. Chem. Soc. Rev. 2011, 40, 5151–5169. [Google Scholar] [CrossRef] [PubMed]
  16. Li, H.; Seechurn, C.C.C.J.; Colacot, T.J. Development of Preformed Pd Catalysts for Cross-Coupling Reactions, Beyond the 2010 Nobel Prize. ACS Catal. 2012, 2, 1147–1164. [Google Scholar] [CrossRef]
  17. Sydnes, M.O. The Use of Palladium on Magnetic Support as Catalyst for Suzuki–Miyaura Cross-Coupling Reactions. Catalysts 2017, 7, 35. [Google Scholar] [CrossRef]
  18. Fayazi, M.; Taher, M.A.; Afzali, D.; Mostafavi, A. Fe3O4 and MnO2 assembled on halloysite nanotubes: A highly efficient solid-phase extractant for electrochemical detection of mercury(II) ions. Sens. Actuators B Chem. 2016, 228, 1–9. [Google Scholar] [CrossRef]
  19. Guo, B.; Deng, F.; Zhao, Y.; Luo, X.; Luo, S.; Au, C.T. Magnetic ion-imprinted and –SH functionalized polymer for selective removal of Pb(II) from aqueous samples. Appl. Surf. Sci. 2014, 292, 438–446. [Google Scholar] [CrossRef]
  20. Deng, F.; Li, Y.; Luo, X.; Yang, L.; Tu, X. Preparation of conductive polypyrrole/TiO2 nanocomposite via surface molecular imprinting technique and its photocatalytic activity under simulated solar light irradiation. Colloids Surfaces A Physicochem. Eng. Asp. 2012, 395, 183–189. [Google Scholar] [CrossRef]
  21. Liu, Y.; Liu, Z.; Gao, J.; Dai, J.; Han, J.; Wang, Y.; Xie, J.; Yan, Y. Selective adsorption behavior of Pb(II) by mesoporous silica SBA-15-supported Pb(II)-imprinted polymer based on surface molecularly imprinting technique. J. Hazard. Mater. 2011, 186, 197–205. [Google Scholar] [CrossRef] [PubMed]
  22. Karaaslan, N.M.; Senkal, B.F.; Cengiz, E.; Yaman, M. Novel Polymeric Resin for Solid Phase Extraction and Determination of Lead in Waters. CLEAN Soil Air Water 2010, 38, 1047–1054. [Google Scholar] [CrossRef]
  23. Liu, Y.; Liu, Z.; Wang, Y.; Dai, J.; Gao, J.; Xie, J.; Yan, Y. A surface ion-imprinted mesoporous sorbent for separation and determination of Pb (II) ion by flame atomic absorption spectrometry. Microchim. Acta 2011, 172, 309–317. [Google Scholar] [CrossRef]
  24. Murugan, E.; Gopi, V. Amphiphilic Multiwalled Carbon Nanotube Polymer Hybrid with Improved Conductivity and Dispersibility Produced by Functionalization with Poly(vinylbenzyl)triethylammonium Chloride. J. Phys. Chem. C 2011, 115, 19897–19909. [Google Scholar] [CrossRef]
  25. Baig, R.B.N.; Varma, R.S. Magnetically retrievable catalysts for organic synthesis. Chem. Commun. 2013, 49, 752–770. [Google Scholar] [CrossRef] [PubMed]
  26. Baig, R.B.N.; Varma, R.S. Organic synthesis via magnetic attraction: Benign and sustainable protocols using magnetic nanoferrites. Green Chem. 2013, 15, 398–417. [Google Scholar] [CrossRef]
  27. Huang, K.; Xue, L.; Hu, Y.-C.; Huang, M.-Y.; Jiang, Y.-Y. Catalytic behaviors of silica-supported starch–polysulfosiloxane–Pt complexes in asymmetric hydrogenation of 4-methyl-2-pentanone. React. Funct. Polym. 2002, 50, 199–203. [Google Scholar] [CrossRef]
  28. Zhang, J.; Xia, C.-G. Natural biopolymer-supported bimetallic catalyst system for the carbonylation to esters of Naproxen. J. Mol. Catal. A Chem. 2003, 206, 59–65. [Google Scholar] [CrossRef]
  29. Leonhardt, S.E.S.; Ondruschka, B.; Ondruschka, J. Comment on Aspects of Chitosan Preparation. Chem. Eng. Technol. 2008, 31, 917–921. [Google Scholar] [CrossRef]
  30. Agboh, O.; Qin, Y. Chitin and chitosan fibers. Polym. Adv. Technol. 1997, 8, 355–365. [Google Scholar] [CrossRef]
  31. Knaul, J.Z.; Hudson, S.M.; Creber, K.A.M. Improved mechanical properties of chitosan fibers. J. Appl. Polym. Sci. 1999, 72, 1721–1732. [Google Scholar] [CrossRef]
  32. Silvestri, D.; Wacławek, S.; Sobel, B.; Torres-Mendieta, R.; Novotný, V.; Nguyen, N.H.A.; Ševců, A.; Padil, V.V.T.; Müllerová, J.; Stuchlik, M.; et al. A poly(3-hydroxybutyrate)–chitosan polymer conjugate for the synthesis of safer gold nanoparticles and their applications. Green Chem. 2018, 20, 4975–4982. [Google Scholar] [CrossRef]
  33. Baba, Y.; Hirakawa, H.; Yoshizuka, K.; Inuoe, K.; Kawano, Y. Adsorption Equilibria of Silver(I) and Copper(II) Ions on N-(2-Hydroxylbenzyl)chitosan Derivative. Anal. Sci. 1994, 10, 601–605. [Google Scholar] [CrossRef]
  34. Guibal, E. Interactions of metal ions with chitosan-based sorbents: A review. Sep. Purif. Technol. 2004, 38, 43–74. [Google Scholar] [CrossRef]
  35. Heeres, J.; Backx, L.J.J.; Mostmans, J.H.; Van Cutsem, J. Antimycotic imidazoles. Part 4. Synthesis and antifungal activity of ketoconazole, a new potent orally active broad-spectrum antifungal agent. J. Med. Chem. 1979, 22, 1003–1005. [Google Scholar] [CrossRef] [PubMed]
  36. Debus, H. Ueber die einwirkung des ammoniaks auf glyoxal. Eur. J. Org. Chem. 1858, 107, 199–208. [Google Scholar] [CrossRef]
  37. Huong, L.T.T.; Nam, N.H.; Doan, D.H.; Nhung, H.T.M.; Quang, B.T.; Nam, P.H.; Thong, P.Q.; Phuc, N.X.; Thu, H.P. Folate attached, curcumin loaded Fe3O4 nanoparticles: A novel multifunctional drug delivery system for cancer treatment. Mater. Chem. Phys. 2016, 172, 98–104. [Google Scholar] [CrossRef]
  38. Miyaura, N.; Yamada, K.; Suzuki, A. A new stereospecific cross-coupling by the palladium-catalyzed reaction of 1-alkenylboranes with 1-alkenyl or 1-alkynyl halides. Tetrahedron Lett. 1979, 20, 3437–3440. [Google Scholar] [CrossRef] [Green Version]
  39. Sonogashira, K. Development of Pd–Cu catalyzed cross-coupling of terminal acetylenes with sp2-carbon halides. J. Organomet. Chem. 2002, 653, 46–49. [Google Scholar] [CrossRef]
  40. Heck, R.F. Palladium-Catalyzed Vinylation of Organic Halides. Org. React. 1982, 345–390. [Google Scholar]
  41. Negishi, E.-I.; Hu, Q.; Huang, Z.; Qian, M.; Wang, G.; Brown, H. Palladium-catalyzed alkenylation by the Negishi coupling. Aldrichim. Acta 2005, 38, 71–87. [Google Scholar] [CrossRef]
  42. Chang, X.; Jiang, N.; Zheng, H.; He, Q.; Hu, Z.; Zhai, Y.; Cui, Y. Solid-phase extraction of iron(III) with an ion-imprinted functionalized silica gel sorbent prepared by a surface imprinting technique. Talanta 2007, 71, 38–43. [Google Scholar] [CrossRef] [PubMed]
  43. Rofouei, M.K.; Payehghadr, M.; Shamsipur, M.; Ahmadalinezhad, A. Solid phase extraction of ultra traces silver(I) using octadecyl silica membrane disks modified by 1,3-bis(2-cyanobenzene) triazene (CBT) ligand prior to determination by flame atomic absorption. J. Hazard. Mater. 2009, 168, 1184–1187. [Google Scholar] [CrossRef] [PubMed]
  44. Sarker, R.B.; Bhuiyan, A. Electrical conduction mechanism in plasma polymerized 1-Benzyl-2-methylimidazole thin films under static electric field. Thin Solid Films 2011, 519, 5912–5916. [Google Scholar] [CrossRef]
  45. Silva, S.M.; Braga, C.R.; Fook, M.V.; Raposo, C.M.; Carvalho, L.H.; Canedo, E.L. Application of Infrared Spectroscopy to Analysis of Chitosan/Clay Nanocomposites. In Infrared Spectroscopy—Materials Science, Engineering and Technology; InTech Open: Rijeka, Croatia, 2012. [Google Scholar] [Green Version]
  46. Chang, X.; Chen, D.; Jiao, X. Chitosan-Based Aerogels with High Adsorption Performance. J. Phys. Chem. B 2008, 112, 7721–7725. [Google Scholar] [CrossRef] [PubMed]
  47. Xu, Y.; Zhang, L.; Cui, Y. Catalytic performance of cellulose supported palladium complex for Heck reaction in water. J. Appl. Polym. Sci. 2008, 110, 2996–3000. [Google Scholar] [CrossRef]
  48. Wu, X.; Lu, C.; Zhang, W.; Yuan, G.; Xiong, R.; Zhang, X. A novel reagentless approach for synthesizing cellulose nanocrystal-supported palladium nanoparticles with enhanced catalytic performance. J. Mater. Chem. A 2013, 1, 8645–8652. [Google Scholar] [CrossRef]
  49. Xiong, R.; Lu, C.; Wang, Y.; Zhou, Z.; Zhang, X. Nanofibrillated cellulose as the support and reductant for the facile synthesis of Fe3O4/Ag nanocomposites with catalytic and antibacterial activity. J. Mater. Chem. A 2013, 1, 14910–14918. [Google Scholar] [CrossRef]
  50. Paul, S.; Islam, M.M. Suzuki–Miyaura reaction by heterogeneously supported Pd in water: Recent studies. RSC Adv. 2015, 5, 42193–42221. [Google Scholar] [CrossRef]
  51. Yin, L.; Liebscher, J. Carbon—Carbon Coupling Reactions Catalyzed by Heterogeneous Palladium Catalysts. Chem. Rev. 2007, 38, 133–173. [Google Scholar] [CrossRef]
  52. Sakai, T.; Matsunaga, T.; Yamamoto, Y.; Ito, C.; Yoshida, R.; Suzuki, S.; Sasaki, N.; Shibayama, M.; Chung, U.-I. Design and Fabrication of a High-Strength Hydrogel with Ideally Homogeneous Network Structure from Tetrahedron-like Macromonomers. Macromolecules 2008, 41, 5379–5384. [Google Scholar] [CrossRef]
  53. Hong, M.C.; Choi, M.C.; Chang, Y.W.; Lee, Y.; Kim, J.; Rhee, H. ChemInform Abstract: Palladium Nanoparticles on Thermoresponsive Hydrogels and Their Application as Recyclable Suzuki-Miyaura Coupling Reaction Catalysts in Water. Adv. Synth. Catal. 2012, 43, 1257–1263. [Google Scholar] [CrossRef]
  54. Sheldon, R.A.; Wallau, M.; Arends, I.W.C.E.; Schuchardt, U. Heterogeneous Catalysts for Liquid-Phase Oxidations: Philosophers’ Stones or Trojan Horses? Accounts Chem. Res. 1998, 31, 485–493. [Google Scholar] [CrossRef]
  55. Baig, R.B.N.; Leazer, J.; Varma, R.S. Magnetically separable Fe3O4@DOPA–Pd: A heterogeneous catalyst for aqueous Heck reaction. Clean Technol. Environ. Policy 2015, 17, 2073–2077. [Google Scholar] [CrossRef]
  56. Sá, S.; Gawande, M.B.; Velhinho, A.; Veiga, J.P.; Bundaleski, N.; Trigueiro, J.; Tolstoguzov, A.; Teodoro, O.M.N.D.; Zbořil, R.; Varma, R.S.; et al. Magnetically recyclable magnetite–palladium (Nanocat-Fe–Pd) nanocatalyst for the Buchwald–Hartwig reaction. Green Chem. 2014, 16, 3494–3500. [Google Scholar] [CrossRef]
  57. Eremin, D.B.; Ananikov, V.P. Understanding active species in catalytic transformations: From molecular catalysis to nanoparticles, leaching, “Cocktails” of catalysts and dynamic systems. Coord. Chem. Rev. 2017, 346, 2–19. [Google Scholar] [CrossRef]
  58. Lee, Y.; Hong, M.C.; Ahn, H.; Yu, J.; Rhee, H. Pd nanoparticles immobilized on poly(NIPAM-co-4-VP) hydrogel: Highly active and reusable catalyst for carbon–carbon coupling reactions in water. J. Organomet. Chem. 2014, 769, 80–93. [Google Scholar] [CrossRef]
  59. Shang, N.; Feng, C.; Zhang, H.; Gao, S.; Tang, R.; Wang, C.; Wang, Z. Suzuki–Miyaura reaction catalyzed by graphene oxide supported palladium nanoparticles. Catal. Commun. 2013, 40, 111–115. [Google Scholar] [CrossRef]
  60. Shang, N.; Gao, S.; Feng, C.; Zhang, H.; Wang, C.; Wang, Z. Graphene oxide supported N-heterocyclic carbene-palladium as a novel catalyst for the Suzuki–Miyaura reaction. RSC Adv. 2013, 3, 21863–21868. [Google Scholar] [CrossRef]
  61. Song, H.-Q.; Zhu, Q.; Zheng, X.-J.; Chen, X.-G. One-step synthesis of three-dimensional graphene/multiwalled carbon nanotubes/Pd composite hydrogels: An efficient recyclable catalyst for Suzuki coupling reactions. J. Mater. Chem. A 2015, 3, 10368–10377. [Google Scholar] [CrossRef]
  62. Zhang, Y.; Yang, J.; Zhang, X.; Bian, F.; Yu, W. A novel thermo and pH-double sensitive hydrogel immobilized Pd catalyst for Heck and Suzuki reactions in aqueous media. React. Funct. Polym. 2012, 72, 233–241. [Google Scholar] [CrossRef]
  63. Sun, Z.; Yang, J.; Wang, J.; Li, W.; Kaliaguine, S.; Hou, X.; Deng, Y.; Zhao, D. A versatile designed synthesis of magnetically separable nano-catalysts with well-defined core–shell nanostructures. J. Mater. Chem. A 2014, 2, 6071–6074. [Google Scholar] [CrossRef]
  64. Woo, H.; Lee, K.; Park, J.C.; Park, K.H. Facile synthesis of Pd/Fe3O4 /charcoal bifunctional catalysts with high metal loading for high product yields in Suzuki–Miyaura coupling reactions. New J. Chem. 2014, 38, 5626–5632. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds are not available from the authors.
Molecules 24 03048 sch001 550

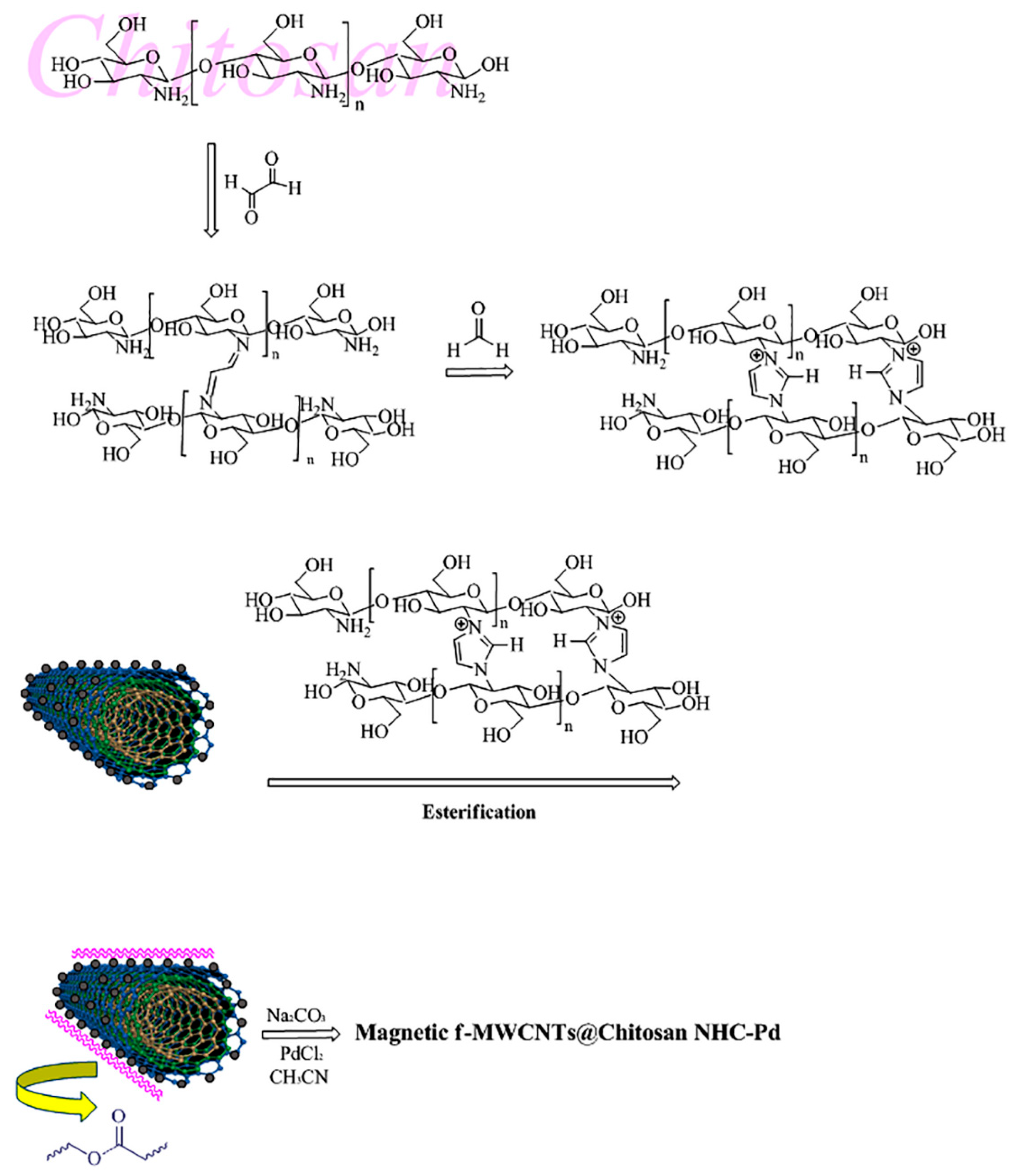

Scheme 1. Schematic depiction of the preparation of magnetic-functionalized-multi-walled carbon nanotubes@chitosan (m-f-MWCNTs@chitosan) N-heterocyclic carbene-palladium (NHC-Pd) nanocomposite.
Scheme 1. Schematic depiction of the preparation of magnetic-functionalized-multi-walled carbon nanotubes@chitosan (m-f-MWCNTs@chitosan) N-heterocyclic carbene-palladium (NHC-Pd) nanocomposite.
Molecules 24 03048 sch001
Molecules 24 03048 g001 550
Figure 1. FT-IR spectra of (a) multi-walled carbon nanotubes (MWCNTs), (b) functionalized-MWCNTs (f-MWCNTs), (c) magnetic f-MWCNTs (m-f-MWCNTs), (d) chitosan, (e) cross-linked chitosan, and (f) m-f-MWCNTs@cross-linked chitosan.
Figure 1. FT-IR spectra of (a) multi-walled carbon nanotubes (MWCNTs), (b) functionalized-MWCNTs (f-MWCNTs), (c) magnetic f-MWCNTs (m-f-MWCNTs), (d) chitosan, (e) cross-linked chitosan, and (f) m-f-MWCNTs@cross-linked chitosan.
Molecules 24 03048 g001
Molecules 24 03048 g002 550

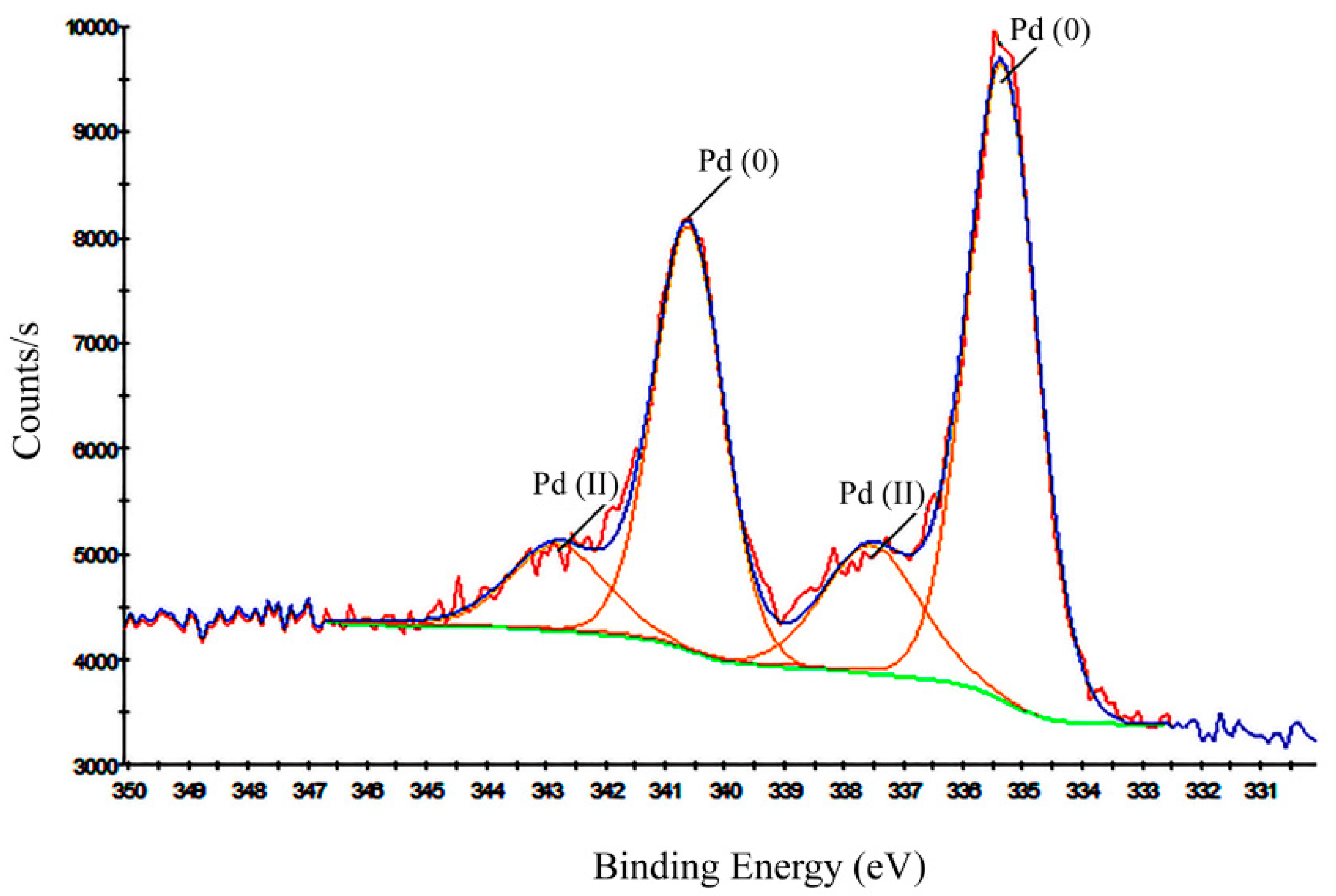

Figure 2. XPS of the m-f-MWCNTs@ chitosan NHC-Pd nanocomposite.
Figure 2. XPS of the m-f-MWCNTs@ chitosan NHC-Pd nanocomposite.
Molecules 24 03048 g002
Molecules 24 03048 g003 550

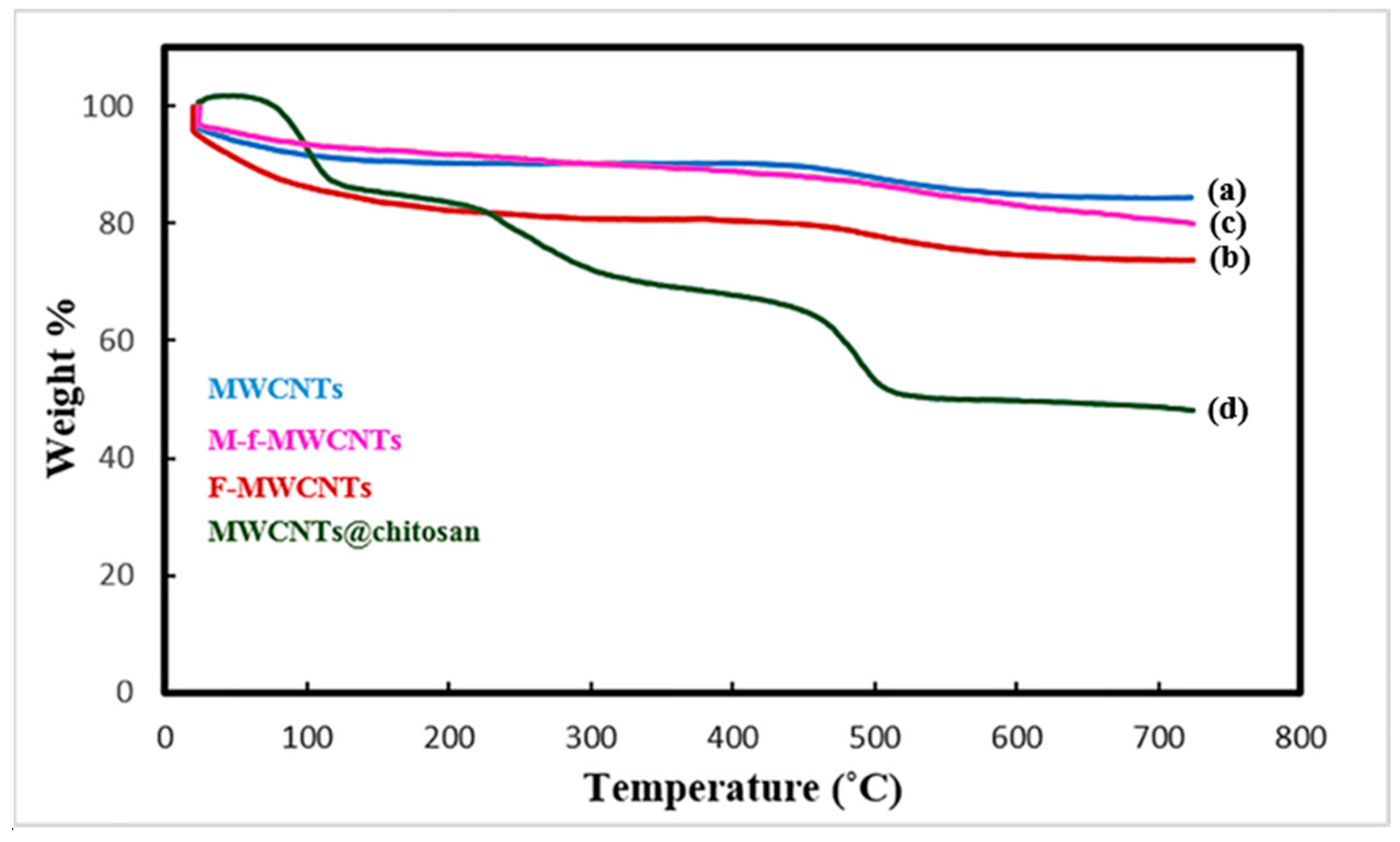

Figure 3. TGA plots of (a) MWCNTs, (b) f-MWCNTs, (c) m-f-MWCNT, (d) m-f-MWCNTs@cross-linked.
Figure 3. TGA plots of (a) MWCNTs, (b) f-MWCNTs, (c) m-f-MWCNT, (d) m-f-MWCNTs@cross-linked.
Molecules 24 03048 g003
Molecules 24 03048 g004 550

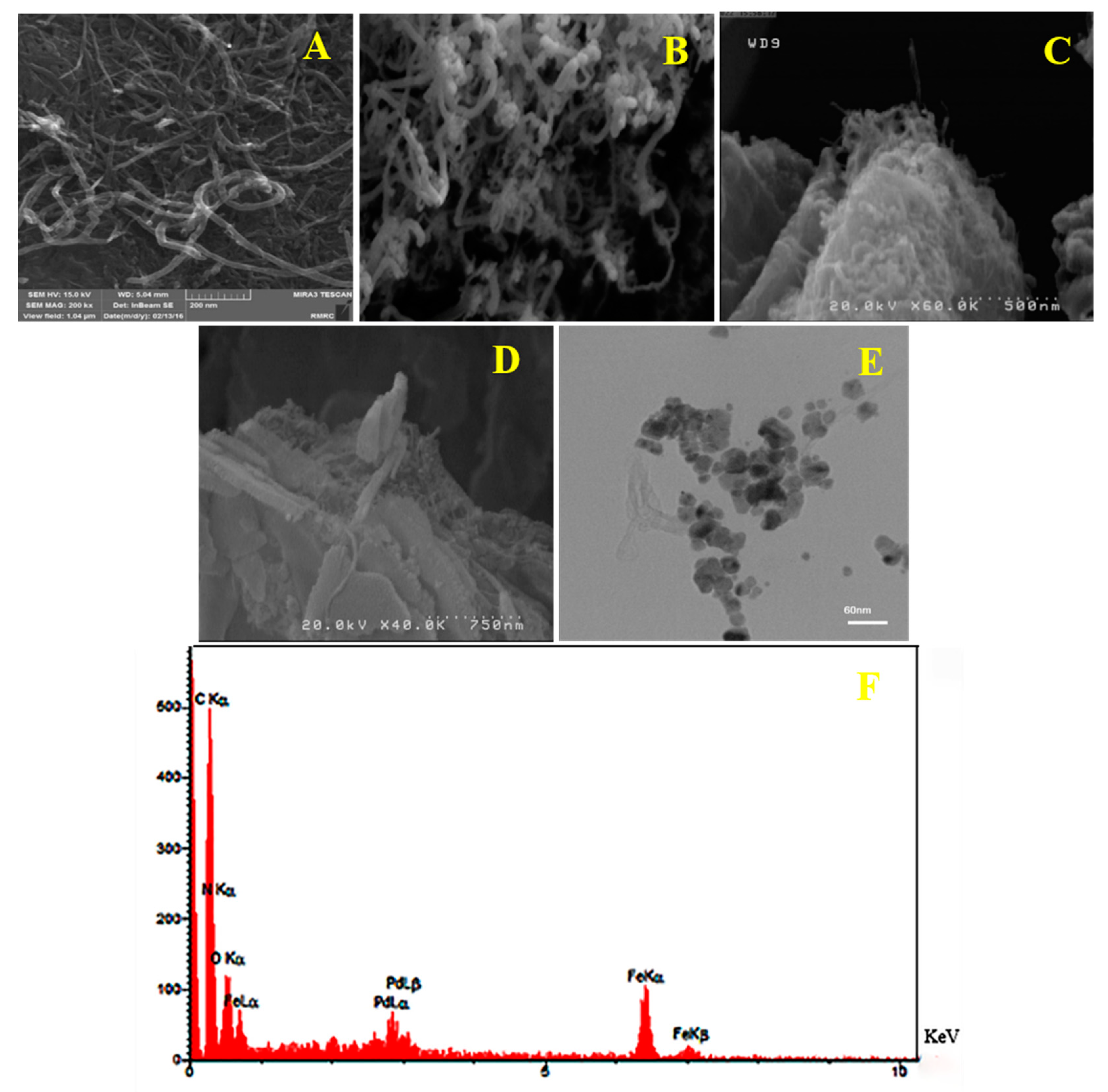

Figure 4. SEM images for (A) f-MWCNTs, (B) m-f-MWCNT, (C) m-f-MWCNTs@chitosan NHC-Pd nanocomposite, (D) m-f-MWCNTs@chitosan NHC-Pd nanocomposite after five runs, (E) TEM image for m-f-MWCNTs@chitosan NHC-Pd nanocomposite and (F) the EDX spectrum of m-f-MWCNTs@chitosan NHC-Pd nanocomposite.
Figure 4. SEM images for (A) f-MWCNTs, (B) m-f-MWCNT, (C) m-f-MWCNTs@chitosan NHC-Pd nanocomposite, (D) m-f-MWCNTs@chitosan NHC-Pd nanocomposite after five runs, (E) TEM image for m-f-MWCNTs@chitosan NHC-Pd nanocomposite and (F) the EDX spectrum of m-f-MWCNTs@chitosan NHC-Pd nanocomposite.
Molecules 24 03048 g004
Molecules 24 03048 g005 550
Figure 5. Reusability studies for recycling of m-f-MWCNTs@chitosan NHC-Pd nanocomposite catalyst in Suzuki reaction of bromobenzene with phenyl boronic acid.
Figure 5. Reusability studies for recycling of m-f-MWCNTs@chitosan NHC-Pd nanocomposite catalyst in Suzuki reaction of bromobenzene with phenyl boronic acid.
Molecules 24 03048 g005
Table
Table 1. Optimization of the reaction conditions for the Suzuki reaction of bromobenzene with phenyl boronic acid catalyzed by m-f-MWCNTs@chitosan NHC-Pd nanocomposite.
Table 1. Optimization of the reaction conditions for the Suzuki reaction of bromobenzene with phenyl boronic acid catalyzed by m-f-MWCNTs@chitosan NHC-Pd nanocomposite.
Molecules 24 03048 i001
EntryAmount of Catalyst (mol%)T (°C)SolventTime
(h)		Conversion
(%)		Yield
(%)
10.180H2O58075
20.580H2O59084
30.580H2O-EtOH510097
40.380H2O-EtOH59894
50.180H2O-EtOH59794
60.150H2O-EtOH39794
70.0850H2O-EtOH38580
Reaction conditions: Phenyl boronic acid (1.2 mmol), bromobenzene (1 mmol), K2CO3 (3 mmol), m-f-MWCNTs@chitosan NHC-Pd nanocomposite as a catalyst, Solvent (H2O-EtOH: 1:1 (6 mL)), calculated by GC.
Table

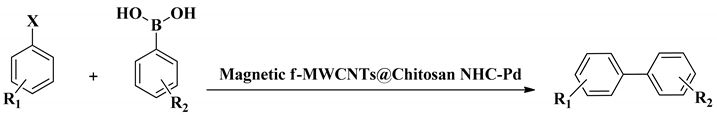

Table 2. Suzuki reaction of various aryl halides with aryl boronic acids catalyzed by m-f-MWCNTs@chitosan NHC-Pd nanocomposite.
Table 2. Suzuki reaction of various aryl halides with aryl boronic acids catalyzed by m-f-MWCNTs@chitosan NHC-Pd nanocomposite.
Molecules 24 03048 i002
EntryR1R2XAmount of Catalyst (mol%)Time
(h)		Temperature
(°C)		Conversion
(%)		Yield (%)TOF aTON
1HHI0.124010097485970
24-MeHI0.124010097485970
34-OMeHI0.124010097485970
4HHBr0.13509794313939
54-NO2HBr0.13509895316948
64-MeHBr0.13509491303909
7HHCl1550N.R.---
8HHCl186060536.652.8
94-MeHCl186053506.2550
104-NO2HCl186068627.7562
11HMeI0.12409895475950
124-MeMeI0.12409794470940
134-OMeMeI0.12409693465930
14HMeBr0.13509289296888
154-MeMeBr0.13508983276828
16HMeCl186055506.2550
174-MeMeCl186050475.8746.96
184-OMeMeCl18604540540
Reaction conditions: Aryl boronic acid (1.2 mmol), Aryl halide (1 mmol), K2CO3 2–3 (mmol), m-f-MWCNTs@chitosan NHC-Pd nanocomposite as catalyst, Solvent (H2O-EtOH: 1:1 (6 mL)), calculated by GC. N.R. means no reaction. a TOF = Moles of desired product formed/moles of catalyst/time = TON/time.
Table
Table 3. Comparison of the cross-coupling reaction results from m-f-MWCNTs@chitosan NHC-Pd nanocomposite with documented results from literature.
Table 3. Comparison of the cross-coupling reaction results from m-f-MWCNTs@chitosan NHC-Pd nanocomposite with documented results from literature.
EntryCatalyst (Pd Loading (mol%))Reaction ConditionsTime
(h)		Yield or Conversion (%)ReusabilityRef.
Molecules 24 03048 i003
1poly(NIPAM-co-4-VP)-Pd (1)K2CO3, H2O, 60 °C5955 times[58]
2GO-NH2-Pd(II) (1)K2CO3, EtOH:H2O, 60 °C47110 times[59]
3GO-NHC-Pd(II) (0.25)K2CO3, EtOH:H2O, 80 °C20946 times[60]
4rGO/Pd (0.5)K2CO3, EtOH:H2O, 60 °C1.5716 times[61]
5m-f-MWCNTs@chitosan NHC-Pd nanocomposite (0.1)K2CO3, EtOH:H2O, 50 °C3895 times.This work
Molecules 24 03048 i004
6Poly(NIPAM-4-VP AC)-Pd (0.05), X = BrK2CO3, H2O, Ar atmosphere, 90 °C1 926 times[62]
7GO-NH2-Pd(II) (1), X = BrK2CO3, EtOH:H2O, 60 °C47310 times[59]
8Fe3O4@C-Pd@mSiO2 (1.5), X = IK2CO3, iPrOH, 70 °C6926 times[63]
9Pd@Fe3O4@C (1), X = BrK2CO3, DMF:H2O, 100 °C499-[64]
10m-f-MWCNTs@chitosan NHC-Pd (0.1), X = BrK2CO3, EtOH:H2O, 50 °C3945 timesThis work

Share and Cite

MDPI and ACS Style

Sedghi, R.; Heidari, B.; Shahmohamadi, H.; Zarshenas, P.; Varma, R.S. Pd Nanocatalyst Adorned on Magnetic Chitosan@N-Heterocyclic Carbene: Eco-Compatible Suzuki Cross-Coupling Reaction. Molecules 2019, 24, 3048. https://doi.org/10.3390/molecules24173048

AMA Style

Sedghi R, Heidari B, Shahmohamadi H, Zarshenas P, Varma RS. Pd Nanocatalyst Adorned on Magnetic Chitosan@N-Heterocyclic Carbene: Eco-Compatible Suzuki Cross-Coupling Reaction. Molecules. 2019; 24(17):3048. https://doi.org/10.3390/molecules24173048

Chicago/Turabian Style

Sedghi, Roya, Bahareh Heidari, Hatef Shahmohamadi, Pourya Zarshenas, and Rajender S. Varma. 2019. "Pd Nanocatalyst Adorned on Magnetic Chitosan@N-Heterocyclic Carbene: Eco-Compatible Suzuki Cross-Coupling Reaction" Molecules 24, no. 17: 3048. https://doi.org/10.3390/molecules24173048

Article Metrics

Back to TopTop
