Communication

A Malonyl-Based Scaffold for Conjugatable Multivalent Carbohydrate-BODIPY Presentations

by
Clara Uriel
1,*,
Rebeca Sola-Llano
2,
Jorge Bañuelos
2,
Ana M. Gomez
1 and
J. Cristobal Lopez
1,*
1
Instituto de Química Orgánica General, Consejo Superior de Investigaciones Científicas (IQOG-CSIC), 28006 Madrid, Spain
2
Departamento Química Física, Universidad del País Vasco (UPV/EHU), 48080 Bilbao, Spain
*
Authors to whom correspondence should be addressed.
Molecules 2019, 24(11), 2050; https://doi.org/10.3390/molecules24112050
Submission received: 11 April 2019 / Revised: 23 May 2019 / Accepted: 27 May 2019 / Published: 29 May 2019
(This article belongs to the Special Issue Carbohydrate Chemistry)
Browse Figures
Versions Notes

Abstract

:
A concise synthetic route from methylmalonate to a tetravalent aliphatic scaffold has been developed. The ensuing tetra-tethered derivative is equipped with two hydroxyl groups, as well as orthogonal alkene and alkyne functionalities. The usefulness of the scaffold has been demonstrated with the preparation of two representative multivalent derivatives: (i) a tetravalent compound containing two D-mannose units, one fluorescent boron-dipyrromethene (BODIPY) dye and a suitably functionalized amino acid and (ii) by way of dimerization and saponification, a water-soluble tetramannan derivative containing two fluorescent BODIPY units. Additionally, photophysical measurements conducted on these derivatives support the viability of the herein designed single and double BODIPY-labeled carbohydrate-based clusters as fluorescent markers.

Graphical Abstract

1. Introduction

It is currently accepted that a broad range of biological functions is associated with recognition events between carbohydrates and proteins [1,2]. On the other hand, advances in chemical biology and biomedicine have benefitted from the emergence of small-molecule fluorescent probes [3,4] in combination with fluorescence spectroscopy or microscopy detection techniques [5,6,7,8,9,10]. Recently, encompassing these two research areas, several examples on the usefulness of fluorescently labeled carbohydrates in the investigation of biological processes have appeared in the literature [11,12,13,14]. In a complementary manner, it has been shown that a glycosyl moiety attached to a fluorescent probe might play a key role as a targeting [15,16,17,18] and internalizing agent for the probe [10,11,12,13,14,15,16,17,18,19,20,21,22], sometimes even providing less cytotoxic entities [23,24].
A further refinement related to the aforementioned carbohydrate-protein interactions came with the realization that individual carbohydrate-ligands bind to a protein site weakly, and therefore the high levels of recognition in biological events had to be associated to the existence of the so-called multivalent interactions [25]. In these (multivalent) interactions, multiple copies of the ligands and receptors must be involved in the binding event in order to provide the significantly high levels of specificity required for the biological processes to take place [26,27,28]. Accordingly, the quest for multivalent carbohydrate ligands has led to the design of several types of molecular scaffolds, for example, aliphatic, aromatic, carbohydrate, and peptide scaffolds [29,30,31,32,33,34,35,36], with the ability to lodge multiple copies of sugar epitopes [37]. Furthermore, glycan-coated polymers and other biomaterials have also been used in the multivalent presentation of sugar epitopes and shown their usefulness in lectin-mediated interactions [38].
We have recently become interested in the preparation of novel fluorescent conjugatable fluorophores [39,40], in particular, boron-dipyrromethene (BODIPY) [41,42] dyes, which in combination with carbohydrates could lead to water-soluble fluorophores [43,44,45] with potential biological interest [46,47]. In this communication, we report a novel strategy towards a tetravalent scaffold (1, Figure 1), which enables the multivalent presentation of saccharide derivatives in conjunction with a BODIPY fluorophore.
According to our design, the aliphatic scaffold 1, reminiscent of Lee’s AB3, tris(hydroxymethyl) aminomethane (2, TRIS) [48] (Figure 1), is easily available from ethyl malonate. It contains two primary hydroxyl groups for glycosylation and two additional (orthogonal) sites, an alkyne and an alkene for further functionalization. α-d-Mannose was chosen to be introduced in the scaffold as a relevant ligand that is recognized by macrophage mannose receptors [49], microbacterial membranes [50], as well as by lectins, such as DC-SIGN [51,52], and concanavalin A [31,33,36]. As a consequence, α-d-Mannose has been incorporated into a broad range of multivalent structures [20,30,53]. The incorporation of the BODIPY chromophore to the scaffold could be achieved by copper(I)-catalyzed azide-alkyne cycloaddition (CuAAC) [54,55], whereas the remaining terminal olefin could be used for further conjugation to olefin-containing (bio)molecules of interest (e.g., amino acids, peptides, nucleic acids, etc.) by a cross-metathesis reaction [56,57], leading to mannosyl BODIPY-labeled species type 3 (Figure 1).

2. Results and Discussion

2.1. Synthesis, Glycosylation, and CuAAC Reaction of The Scaffold

Based on the well-studied chemistry of malonate diesters [58], the sequential bis-alkylation of dimethyl malonate (4) with pentenyl bromide and propargyl bromide paved the way to, previously unreported, ene-yne derivative 5 (Scheme 1). Subsequent LiAlH4-mediated reduction of 5 led to diol 6, which was then glycosylated with readily prepared methyl orthoester (MeOE) 7 [59,60] (acid washed molecular sieves (AWMS), microwave irradiation) to furnish dimannan 8 in acceptable yield (Scheme 1) [60].
Pseudodisaccharide 8 possesses two orthogonal anchoring sites for further conjugation, and accordingly, the copper-catalyzed azide-alkyne cycloaddition (CuAAC) reaction of 8 with azidomethyl boron-dipyrromethene (BODIPY) derivative 9 [39] was carried out to furnish carbohydrate-BODIPY hybrid 10, leaving the terminal olefin ready for cross-metathesis reactions [56,57].

2.2. Cross-Metathesis Reactions

As proof of concept on the use of 10 in conjugation protocols, we carried out the cross-metathesis reaction of 10 and commercially available Boc-protected O-allyl-l-tyrosine (11), as an example of a functionalized molecule, to yield tetravalent derivative 12 (68% yield). Likewise, dimerization of 10 by cross-metathesis took place smoothly to yield compound 13, containing two BODIPY units and four copies of carbohydrate ligands (44% yield, 79% corrected yield based on recovered, unreacted, olefin 10).

2.3. De-O-Benzoylation of Dimer 13

Finally, de-O-benzoylation of dimeric structure 13 (NaOMe, MeOH, room temperature) yielded fluorescent, water-soluble, tetramannan compound 14 (Figure 2), as a diastereomeric mixture, wherein the fluorine atoms at boron, in the BODIPY cores, had been replaced by the oxygen atoms at C-4 and C-6 in the mannose units. The structural assignment of compound 14 was unambiguously made based on (i) the absence of the fluorine signals in its 19F-NMR spectrum (Supplementary materials, Figure S26), (ii) its mass spectrum, and (iii) the observed chemical shift (1.45 ppm) in its 11B-NMR spectrum (Supplementary materials, Figure S25). The latter allowed to unequivocally assign the BODIPY units as bounded to a 1,3-diol (11B-NMR, chemical shift range from 0.5 to 1.9 ppm) rather than to a cis-1,2-diol (11B-NMR, chemical shift range from 4.0 to 5.9 ppm), according to previous studies in related compounds [61]. This reaction, although somehow unexpected, provided 4,4′-dialkoxy BODIPY derivative 14 endowed with a respectable fluorescence quantum yield (ϕ = 0.30) in water.

2.4. Photophysical Studies

The photophysical signatures of the single BODIPY-labeled carbohydrate-based scaffolds (compounds 10 and 12, Table 1) retain the characteristics of the isolated BODIPY chromophoric core [62] and 8-ortho-benzyl BODIPYs [40]. The linkage of the BODIPY to the tetravalent cluster through the ortho position of the chromophoric 8-phenyl induces the required sterical hindrance to vanish the impact of such phenyl substituent into the photophysics of the BODIPY core. Thus, as a result of such constrained geometry, the 8-phenyl substituent is disposed of almost orthogonally with respect to the dipyrrin backbone and electronically decoupled, thereby, the spectral bands’ positions and profiles are unaltered by the attachment of the 8-aryl group (Figure 3). Moreover, such hindered 8-phenyl group is placed at a fixed position, hence, avoiding non-radiative deactivation channels associated to its free motion [63] and ensuring a bright fluorescence response (up to 90% for 10, Table 1) and long lifetimes (around 5–7 ns in Table 1). Note that the overall photophysical properties of both dyes 10 and 12 are very similar. Therefore, the size and length of the functionalization attached to the ortho position of the 8-phenyl substituent has a low impact on the photophysics of the photoactive BODIPY unit, albeit the presence of the electron donor terminal amino acid seems to slightly decrease the fluorescence efficiency (Table 1).
Compound 13 features two chromophoric units tethered to the carbohydrate-based cluster (Scheme 2). The position and shape of the absorption spectrum of dye 13 matches that of its precursor 10, but the intensity shows a two-fold enhancement (up to 105 M−1 cm−1, Figure 3) according to the presence of two BODIPYs in the cluster. Therefore, each chromophoric subunit contributes additively to the whole spectral transition of the molecular assembly. Furthermore, the fluorescence position also remains the same, and the fluorescence quantum yields and lifetimes are noticeable (higher than 50% and around 5–6 ns, respectively, Table 1), in spite of the large size of the molecule (up to four carbohydrates and two BODIPYs covalently linked in a single structure) and the conformational flexibility of the spacers. On the other hand, the absence of any change in the spectral profile of compound 13 rules out any intramolecular interaction between the two BODIPY units (such as exciton coupling) because they are most certainly disposed of far away from each other. In line with these results, de-O-benzoylated compound 14 (with Boron-oxygen substitution) also displays strong spectral bands even in water (Figure 3) with a notable fluorescence response (30%, Table 1). Such fluorescence efficiency is lower than that observed in the fluorinated derivative 13, owing to the known increase of the non-radiative pathways upon the presence of alkoxy groups replacing fluorine atoms at the boron bridge [64]. Nevertheless, the herein reported fluorescence efficiency in water is higher than that reported for the structurally related “BODIPY-labeled” carbohydrates via the boron center [61], owing to the imposed geometrical constraints around the key chromophoric C-8-position of the BODIPY core.
Summing up, an efficiently accessible tetravalent malonyl-derived scaffold allows the suitable incorporation of two (or four) carbohydrate units, tagged with one (or two) fluorescent BODIPY label(s). Variations in the carbohydrate ligands and/or the BODIPY unit(s) could provide a range of fluorescent glycoprobes.

3. Experimental Section

3.1. Chemistry

3.1.1. General Procedure for Alkylation

To a suspension of NaH (60% in mineral oil, 1.2 eq.) in anhydrous DMF under Ar atmosphere at 0 °C, the corresponding malonate (1 eq.) was added slowly, and the mixture was stirred for 15 min. Then, the alkyl bromide (1 eq.) was added dropwise, and the mixture was allowed to react at room temperature (r.t.) during 24 h. The solution was diluted with Et2O:Toluene (8:2) and washed with saturated ammonium chloride solution. The aqueous phase was extracted with Et2O. The combined organic layers were dried over NaSO4, filtered, and concentrated. The crude product was purified by flash chromatography on silica gel.
Dimethyl 2-(pent-4′-enyl)-2-(prop-2′-ynyl) malonate (5): Following the general alkylation procedure, dimethyl malonate (2 mL, 17.4 mmol) was added dropwise to a suspension of NaH (840 mg, 20.9 mmol) in anhydrous DMF (10 mL); after 15 min, 5-bromopent-1-ene (2.1 mL, 17.4 mmol) was added, and the mixture was stirred during 24 h, quenched, and purified by flash chromatography (hexane:EtOAc, 7:3) to afford dimethyl 2-(pent-4′-enyl) malonate 2.36 g (67%) [65]. This derivative (2.36 g, 11.8 mmol) was subsequently added to a suspension of NaH (571 mg, 14.2 mmol) in anhydrous DMF (10 mL). After 15 min, propargyl bromide (1.07 mL, 14.2 mmol) was slowly added, and the mixture was stirred for 24 h. The reaction was quenched and purified by flash chromatography (hexane: EtOAc, 95:5) to give compound 5, 2.41 g (86%). 1H-NMR (400 MHz, CDCl3): 1.20–1.32 (m, 2H), 2.00 (t, J =2.7 Hz, 1H), 2.02–2.09 (m, 1H), 2.82 (d, J = 2.7 Hz, 2H), 3.73 (s, 6H), 4.93–5.05 (m, 1H), 5.77 (ddt, J = 16.8, 10.2, 6.6 Hz, 1-H). 13C-NMR (100 MHz; CDCl3): 22.8, 23.2, 31.5, 33.6, 52.7 (×2), 56.8, 71.2, 78.7, 115.0, 137.8, 170.6 (×2). HRMS (ESI-QqTOF) m/z: Calc. for C13H19O4 [M+H]+ 239.1283, found 239.1285.
2-(pent-4′-enyl)-2-(prop-2′-ynyl)propane-1,3-diol (6): A solution of compound 5 (266 mg, 1 mmol) in anhydrous THF (5 mL) was added dropwise to a suspension of LiAlH4 (95 mg, 2.5 mmol) in THF (5 mL) at 0 °C. The resulting mixture was stirred at r.t. for 2 h. The reaction was quenched by slow addition of a saturated solution of Na2SO4 (10 mL) and stirring the mixture for 15 min. The resulting white slurry was filtered through celite and washed with Et2O (2 × 15 mL). The filtrate was concentrated and purified by flash chromatography (hexane:EtOAc 1:1) to give 6 (113 mg, 62 %). 1H-NMR (400 MHz; CDCl3): 1.32–1.33 (m, 2H), 1.99 (t, J =2.7 Hz, 1H), 2.02–2.04 (m, 1H), 2.24 (d, J = 2.7 Hz, 2H), 3.52–3.68 (m, 4H), 4.92–5.02 (m, 1H), 5.78 (ddt, J = 16.9, 10.2, 6.7 Hz, 1H). 13C-NMR (100 MHz; CDCl3): 21.3, 22.3, 31.0, 34.4, 41.6, 67.6, 70.7, 81.1, 114.8, 138.6. HRMS (ESI-QqTOF) m/z: Calc. for C11H19O2 [M+H]+ 182.13071, found 182.13231.
Compound 8: A mixture of methyl orthoester MeOE 7 [61] (305 mg, 0.5 mmol) and compound 6 (36.4 mg, 0.2 mmol) in toluene (5 mL) was azeotroped to dryness, and subsequently kept overnight under high vacuum. This mixture was then dissolved in dry CH2Cl2 (8 mL), and acid-washed molecular sieves AW-300 (Sigma-Aldrich, Saint Louis, MI, USA) (1.6 mm pellets, 3 g) were added. The mixture was stirred at 50 °C and 200 W during 2 h [61]. Then, the crude was filtered and purified by flash chromatography (Hexane: EtOAc, 7:3) to give 8 (179 mg, 67%). 1H-NMR (500 MHz; CDCl3): 8.12–7.76 (m, 15H), 7.59–7.19 (m, 25H), 6.14 (t, J = 10.0 Hz, 1H), 6.13 (t, J = 10.0 Hz, 1H), 5.93–5.83 (m, 3H), 5.75–5.73 (m, 2H), 5.17 (d, J = 2.1 Hz, 1H), 5.16 (d, J = 2.1 Hz, 1H), 5.16 (d, J = 2.0 Hz, 1H), 5.12–5.00 (m, 2H), 4.78–4.73 (m, 2H), 4.56–4.48 (m,4H), 3.91 (d, J = 9.7 Hz, 2H), 3.57 (d, J = 9.7 Hz, 2H), 2.53 (dd, J = 16.9, 2.7 Hz, 1H), 2.40 (dd, J = 16.9, 2.7 Hz, 1H), 2.21–2.12 (m, 2H), 2.06 (t, J = 2.6 Hz, 1H), 1.68–1.57 (m, 2H), 1.52–1.43 (m, 2H). 13C-NMR (125 MHz; CDCl3): 166.3 (×2), 165.6 (×4), 165.4 (×2), 138.4, 133.5 (×2), 133.4 (×2), 133.2 (×4), 130.1 (×4), 130.0 (×4), 129.9 (×4), 129.8 (×4), 129.5 (×4), 129.0 (×4), 128.6 (×8), 128.5 (×4), 128.4 (×4), 115.5, 98.5, 98.4, 80.6, 71.5, 70.5 (×2), 70.4 (×2), 70.3 (×2), 69.4 (×2), 66.8 (×2), 62.9 (×4), 41.3, 34.4, 31.5, 22.7 (×2). HRMS (ESI-QqTOF) m/z: Calc. for C79H74NO20 [M+NH4]+ 1357.48323, found 1357.48118.
Compound 10: The alkyne 8 (450 mg, 0.34 mmol) and the azidomethyl BODIPY derivative 9 [39] (99 mg, 0.3 mmol) were dissolved in THF (15 mL). Cu(I)-thiophene-2-carboxylate (57 mg, 0.3 mmol) was added, and the resulting solution was stirred at r.t. for 2 h. The crude was concentrated and purified by flash chromatography (Hexane:EtOAc, 6:4) to give 10 (344 mg, 70%). 1H-NMR (500 MHz; CDCl3): 8.04–7.68 (m, 20H), 7.51–7.08 (m, 28H), 6.59 (d, J = 4.2 Hz, 1H), 6.49 (d, J = 4.1 Hz, 1H), 6.36 (dd, J = 4.3, 1.9 Hz, 1H), 6.33 (dd, J = 4.3, 1.9 Hz, 1H), 6.09 (t, J = 10.0 Hz, 2H), 5.85–5.71 (m, 3H), 5.62–5.58 (m, 2H), 5.46 (t, J = 15.4 Hz, 1H), 5.38 (d, J = 15.4 Hz, 1H), 5.02 (d, J = 2.0 Hz, 1H), 5.01 (d, J = 1.9 Hz, 1H), 4.96–4.88 (m, 2H), 4.71–4.65 (m, 2H), 4.56–4.43 (m, 4H), 3.77 (t, J = 10.2 Hz, 2H), 3.33 (t, J = 9.1 Hz, 2H), 2.79 (d, J = 14.7 Hz, 1H), 2.73 (d, J = 14.9 Hz, 1H), 2.04 (m, 2H), 1.44 (m, 4H). 13C-NMR (125 MHz; CDCl3): 166.2 (×2), 165.6 (×4), 165.4 (×2), 145.4 (×2), 145.2 (×2), 144.0 (×2), 143.3 (×2), 138.7, 135.3, 134.4, 133.4 (×2), 133.3 (×2), 133.2 (×2), 133.1 (×2), 133.0, 132.3, 131.0, 130.9, 130.5, 130.3, 130.1, 130.0 (×2), 129.9 (×6), 129.8 (×6), 129.5, 129.4, 129.3, 129.2 (×2), 129.1 (×2), 128.6 (×2), 128.5 (×3), 128.4 (×2), 128.3 (×2), 128.1, 124.5, 119.2 (×2), 115.3, 98.5 (×2), 71.2, 70.8, 70.5 (×2), 70.4 (×2), 69.4 (×2), 66.7 (×2), 62.9 (×4), 51.6, 41.6, 34.4, 31.9, 28.4, 22.7. HRMS (ESI-QqTOF) m/z: Calc. for C95H85BF2N5O20 1663.58799 [M+H]+, found 1663.58625.

3.1.2. General Procedure for the Cross-Metathesis (CM) Reaction

The appropriate olefins were dissolved in dry CH2Cl2. Argon was bubbled through the solution for 10 min, and then the 2nd generation Hoveyda-Grubbs catalyst (5% mol) was added. The reaction mixture was refluxed for 12 h, and after which the air was bubbled through the solution. The solvent was evaporated in vacuo, and the residue was filtered through a FLORISIL pad and then purified by flash silica gel column chromatography.
Compound 12: Olefin 10 (25 mg, 0.015 mmol) and Boc-protected O-allyl-l-tyrosine (11) (19.3 mg, 0.06 mmol), dissolved in CH2Cl2 (2 mL), were reacted according to the general method for the CM reaction. The residue was purified by flash silica gel column chromatography (CH2Cl2:MeOH 9:1) to give 12 (20 mg, 68%). 1H-NMR (500 MHz; CDCl3): 8.11–7.77 (m, 20H), 7.59–7.14 (m, 26H), 7.02 (d, J = 8.6 Hz, 2H), 6.79 (d, J = 8.7 Hz, 2H), 6.63 (m, 1H), 6.54 (m, 1H), 6.44 (m, 1H), 6.37 (m, 1H), 6.16 (t, J = 9.9 Hz, 2H), 5.85–5.50 (m, 8H), 5.08 (m, 2H), 4.76 (m, 2H), 4.57–4.47 (m, 8H), 3.85 (m, 2H), 3.44 (m, 2H), 3.06 (m, 2H), 2.83 (d, J = 15.4 Hz, 1H), 2.79 (d, J = 15.1 Hz, 1H), 2.17 (m, 2H), 1.51–1.44 (m, 6H), 1.26 (s, 9H). 13C-NMR (125 MHz; CDCl3): 166.3, 166.2 (×2), 165.7 (×2), 165.6, 165.5, 165.4, 157.8, 155.5, 145.5 (×2), 145.1 (×2), 143.9 (×2), 143.2, 135.3 (×2), 134.5, 134.3, 133.4 (×2), 133.3 (×2), 133.2 (×2), 133.1 (×2), 132.5 (×2), 131.1, 130.9, 130.5, 130.4, 130.3, 130.1, 130.0 (×2), 129.9 (×4), 129.8 (×4), 129.5, 129.4, 129.3, 129.2, 129.1, 129.0, 128.6 (×3), 128.5 (×2), 128.4, 128.3, 128.1, 126.3, 124.3, 119.4 (×2), 119.2 (×2), 115.3 (×2), 98.5 (×2), 71.5, 71.1, 70.5 (×6), 69.5, 69.4 (×2), 68.8 (×2), 66.6 (×2), 62.8 (×2), 54.4, 52.0, 41.5, 36.9, 33.0 (×2), 31.1, 29.8, 28.5 (×2), 22.9. HRMS (ESI-QqTOF) m/z: Calc. for C110H102BF2N6O25 [M+H]+ 1956.69925, found 1956.69249.; Calc. for C110H101BF2N6NaO25 [M+Na]+ 1978.68119, found 1978.70314.
Compound 13: Olefin 10 (25 mg, 0.015 mmol), dissolved in CH2Cl2 (2 mL), was reacted according to the general method for the CM reaction. The residue was purified by flash silica gel column chromatography (Hexane:EtOAc, 1:1) to give 13 (11 mg, 44%). 1H-NMR (500 MHz; CDCl3): 8.11–7.74 (m, 38H), 7.56–7.08 (m, 56H), 6.65 (m, 2H), 6.55 (m, 2H), 6.43–6.39 (m, 4H), 6.18 (t, J = 10.1 Hz, 4H), 5.91–5.85 (m, 4H), 5.70 (bs, 4H), 5.52–5.42 (m, 6H), 5.11 (bs, 4H), 4.78–4.75 (m, 4H), 4.68–4.53 (m, 8H), 3.91–3.85 (m, 4H), 3.47–3.40 (m, 4H), 2.86–2.80 (m, 4H), 2.08–1.96 (m, 4H), 1.51–1.38 (m, 8H). 13C-NMR (125 MHz; CDCl3): 166.1 (×4), 165.5 (×4), 165.4 (×4), 165.3 (×4), 145.3 (×4), 145.2 (×4), 143.9 (×4), 143.2 (×4), 135.3 (×4), 135.2 (×4), 134.5 (×4), 134.4 (×4), 133.4 (×4), 133.3 (×4), 133.2 (×4), 133.1 (×4), 132.3 (×2), 131.1 (×2), 131.0 (×2), 130.5 (×4), 130.3 (×4), 130.2 (×4), 130.1 (×6), 130.0 (×6), 129.9 (×8), 129.8 (×4), 129.7 (×4), 129.5 (×4), 129.3 (×4), 129.2 (×4), 129.1 (×4), 129.0 (×4), 128.6 (×4), 128.5 (×4), 128.4 (×3), 128.3 (×3), 128.1 (×2), 119.1 (×4), 98.5 (×4), 71.4 (×2), 71.2 (×2), 70.6 (×8), 69.4 (×4), 66.6 (×4), 62.9 (×4), 51.6 (×2), 33.6 (×2), 29.9 (×4), 28.2 (×2). 19F-NMR (376 MHz; CDCl3): –144.7 (dq, JF,F = 103 Hz, JB-F = 27.1 Hz), –146.7 (dq, JF,F = 103 Hz, JB-F = 28.0 Hz). 11B-NMR (128 MHz; CDCl3): 0.16 (t, JB-F = 28.8 Hz). HRMS (ESI-QqTOF) m/z:Calc. for C188H161B2F4N10NaO40 [M+Na]+ 3319.08679, found 3319.10065. Unreacted olefin 10 (11 mg, 44%) could also be recovered.
Compound 14: A solution of compound 13 (23 mg, 0.007 mmol) in MeOH–CH2Cl2 (V:V/2:1, 4 mL) solution was treated with NaOMe (24 mg, 0.45 mmol, 3 equiv/OBz). After stirring at room temperature for 12 h, the solution was neutralized with ion-exchange resin (H+), then filtered and concentrated. The residue was purified by column chromatography on silica gel (EtOAc/MeOH/H2O: 7/2/1) to give 14 (9.8 mg, 90%). 1H-NMR (500 MHz; CD3OD): 7.95 (s, 2H), 7.65–7.35 (m, 12H), 6.61–6.51 (m, 8H), 5.51 (m, 4H), 5.30–5.20 (m, 2H), 4.64 (s, 4H), 3.81–3.48 (m, 28H), 3.13–3.00 (m, 4H), 2.64–2.46 (m, 4H), 1.83 (m, 4H), 1.33–1.08 (m, 8H). 13C-NMR (125 MHz; CD3OD): 146.6 (×2), 145.0 (×2), 137.2 (×2), 137.1 (×2), 135.4 (×2), 134.5 (×2), 131.8 (×4), 131.6 (×4), 131.0 (×6), 129.5 (×4), 124.8 (×4), 119.9 (×4), 102.3 (×2), 102.2 (×2), 74.8 (×4), 72.7 (×4), 72.0 (×4), 71.0 (×2), 68.6 (×4), 62.7 (×4), 54.8 (×2), 42.3 (×2), 32.7 (×2), 30.7 (×2), 28.9 (×2), 23.7 (×2). 19F-NMR (376 MHz; CD3OD): No signals observed. 11B-NMR (128 MHz; CD3OD): 1.45 (bs). HRMS (ESI-QqTOF) m/z: Calc. for C76H93B2N10O24 [M+H]+ 155.65503, found 1551.66285.

3.2. Spectroscopy

The photophysical properties were registered in diluted solutions (around 2 × 10−6 M) prepared by adding the corresponding solvent (spectroscopic grade) to the residue from the adequate amount of a concentrated stock solution in acetone (compounds 10, 12, and 13) or methanol (compound 14). UV-Vis absorption and fluorescence spectra were recorded on a Varian model CARY 4E spectrophotometer and a SPEX Fluorolog 322 spectrofluorimeter, respectively, using quartz cuvettes with an optical pathway of 1 cm. Fluorescence quantum yield (ϕ) was obtained by using the commercial PM546 dye as reference (ϕr = 0.85 in ethanol). Radiative decay curves were registered with the time correlated single-photon counting technique (Edinburgh Instruments, model FL920), equipped with a microchannel plate detector (Hamamatsu C4878) of picosecond time-resolution (20 ps). Fluorescence emission was monitored at the maximum emission wavelength after excitation by means of a diode laser (PicoQuant, model LDH470) with 150 ps full width at half maximum (FWHM) pulses. The fluorescence lifetime (τ) was obtained after the deconvolution of the instrumental response signal from the recorded decay curves by means of an iterative method. The goodness of the exponential fit was controlled by statistical parameters (chi-square and the analysis of the residuals).

Supplementary Materials

Supplementary materials are available online. Figures S1–S26: Copies of 1D and 2D NMR spectra for all compounds.

Author Contributions

Conceptualization, C.U., A.M.G., and J.C.L.; methodology, C.U., J.B., and R.S.-L.; investigation, C.U. and R.S.-L.; writing—original draft preparation, J.C.L. and J.B.; writing—review and editing, J.C.L., C.U., J.B., and A.M.G.; supervision, J.C.L. and J.B.; project administration, A.M.G.; funding acquisition, A.M.G., J.C.L., and J.B.

Funding

This research was funded by Ministerio de Economia y Competitividad (MINECO) CTQ2015-66702-R, MINECO (MAT2017-83856-C3-3-P), Ministerio de Ciencia Innovación y Universidades RTI2018-094862-B-I00, and Gobierno Vasco (IT912-16).

Acknowledgments

R.S.-L. thanks Gobierno Vasco for a postdoctoral contract.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Varki, A.; Cummings, R.; Esko, J.; Freeze, H.; Hart, G.; Marth, J. Essentials of Glycobiology; Cold Spring Harbor Laboratory Press: New York, NY, USA, 1999. [Google Scholar]
  2. Jayaraman, N. Multivalent ligand presentation as a central concept to study intricate carbohydrate-protein interactions. Chem. Soc. Rev. 2009, 38, 3463–3483. [Google Scholar] [CrossRef] [PubMed]
  3. Davis, L.D.; Raines, R.T. Bright Ideas for Chemical Biology. ACS Chem. Biol. 2008, 3, 142–155. [Google Scholar] [CrossRef] [Green Version]
  4. Davis, L.D.; Raines, R.T. Bright Building Blocks for Chemical Biology. ACS Chem. Biol. 2014, 9, 855–866. [Google Scholar] [CrossRef]
  5. Lee, M.H.; Kim, J.S.; Sessler, J.L. Small molecule-based ratiometric fluorescence probes for cations, anions, and biomolecules. Chem. Soc. Rev. 2015, 44, 4185–4191. [Google Scholar] [CrossRef] [PubMed]
  6. Soh, N. Selective Chemical Labeling of Proteins with Small Fluorescent Molecules Based on Metal-Chelation Methodology. Sensors 2008, 8, 1004–1024. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Zhu, J.-L.; Xu, Z.; Yang, Y.; Xu, L. Small-molecule fluorescent probes for specific detection and imaging of chemical species inside lysosomes. Chem. Commun. 2019. accepted manuscript. [Google Scholar] [CrossRef]
  8. Chilka, P.; Desai, N.; Datta, B. Small molecule fluorescent probes for G-quadruplex visualization as potential cancer theranostic agents. Molecules 2019, 24, 752. [Google Scholar] [CrossRef] [PubMed]
  9. Ueno, T.; Nagano, T. Fluorescent probes for sensing and imaging. Nat. Methods 2011, 8, 642–645. [Google Scholar] [CrossRef]
  10. Fernandez-Suarez, M.; Ting, A.Y. Fluorescent probes for super-resolution imaging in living cells. Nat. Rev. 2008, 9, 929–943. [Google Scholar] [CrossRef]
  11. Mechref, Y.; Novotny, M.V. Structural investigations of glycoconjugates at high sensititvity. Chem. Rev. 2002, 102, 321–369. [Google Scholar] [CrossRef]
  12. Xia, B.; Kawar, Z.S.; Ju, T.; Alvarez, R.A.; Sachdev, G.P.; Cummings, R.D. Versatile fluorescent derivatization of glycans for glycomic analysis. Nat. Methods 2005, 2, 845–850. [Google Scholar] [CrossRef]
  13. Lohse, A.; Martins, R.; Jørgensen, M.R.; Hindsgaul, O. Solid-Phase Oligosaccharide Tagging (SPOT): Validation on Glycolipid-Derived Structures. Angew. Chem. Int. Ed. 2006, 45, 4167–4172. [Google Scholar] [CrossRef] [PubMed]
  14. Cheng, J.M.H.; Chee, S.H.; Knight, D.A.; Acha-Orbea, H.; Hermans, I.F.; Timmer, M.S.M.; Stocker, B.L. An improved synthesis of dansylated α-galactosylceramide and its use as a fluorescent probe for the monitoring of glycolipid uptake by cells. Carbohydr. Res. 2011, 346, 914–926. [Google Scholar] [CrossRef] [PubMed]
  15. Lee, M.H.; Han, J.H.; Kwon, P.-S.; Bhuniya, S.; Kim, J.Y.; Sessler, J.L.; Kang, C.; Kim, J.S. Hepatocyte-Targeting Single Galactose-Appended Naphthalimide: A Tool for Intracellular Thiol Imaging in Vivo. J. Am. Chem. Soc. 2012, 134, 1316–1322. [Google Scholar] [CrossRef] [PubMed]
  16. Dou, W.-T.; Zhang, Y.; Lv, Y.; Wu, J.; Zang, Y.; Tan, C.; Li, J.; Chen, G.-R.; He, X.P. Interlocked supramolecular glycoconjugated polymers for receptor-targeting theranostics. Chem. Commun. 2016, 52, 3821–3824. [Google Scholar] [CrossRef]
  17. Wahiba, M.; Feng, X.Q.; Zang, Y.; James, T.D.; Li, J.; Chen, G.-R.; He, X.P. A supramolecular pyrenyl glycoside-coated 2D MoS2 composite electrode for selective cell capture. Chem. Commun. 2016, 52, 11689–11692. [Google Scholar] [CrossRef]
  18. Zhang, Q.; Cai, Y.; Li, Q.-Y.; Hao, L.-N.; Ma, Z.; Wang, X.-J.; Yin, J. Targeted delivery of a Mannose-conjugated BODIPY photosensitizer by nanomicelles for photodynamic breast cancer therapy. Chem. Eur. J. 2017, 23, 14307–14315. [Google Scholar] [CrossRef]
  19. Ribeiro-Viana, R.; Garcia-Vallejo, J.J.; Collado, D.; Perez-Inestrosa, E.; Bloem, K.; van Kooyk, Y.; Rojo, J. BODIPY-Labeled DC-SIGN-Targeting Glycodendrons Efficiently Internalize and Route to Lysosomes in Human Dendritic Cells. Biomacromolecules 2012, 13, 3209–3219. [Google Scholar] [CrossRef] [PubMed]
  20. Wong, C.S.; Hoogendoorn, S.; van der Marel, G.A.; Overkleeft, H.S.; Codee JD, C. Targeted Delivery of Fluorescent High-Mannose-Type Oligosaccharide Cathepsin Inhibitor Conjugates. ChemPlusChem 2015, 80, 928–937. [Google Scholar] [CrossRef]
  21. Shi, D.-T.; Zhou, D.; Zang, Y.; Li, J.; Chen, G.-R.; James, T.D.; He, X.P.; Tian, H. Selective fluorogenic imaging of hepatocellular H2S by a galactosyl azidonaphthalimide probe. Chem. Commun. 2015, 51, 3653–3655. [Google Scholar] [CrossRef] [PubMed]
  22. Calatrava-Perez, E.; Bright, S.A.; Achermann, S.; Moylan, C.; Senge, M.O.; Veale, E.B.; Williams, D.C.; Gunlaugsson, T.; Scanlan, E.M. Glycosidase activated release of fluorescent 1,8-naphthalimide probes for tumor cell imaging from glycosylated “pro-probes”. Chem. Commun. 2016, 52, 13086–13089. [Google Scholar] [CrossRef]
  23. Dong, L.; Zang, Y.; Zhou, D.; He, X.-P.; Chen, G.-R.; James, T.D.; Li, J. Glycosylation enhances the aqueous sensitivity and lowers the cytotoxicity of a naphthalimide zinc ion fluorescence probe. Chem. Commun. 2015, 51, 11852–11855. [Google Scholar] [CrossRef]
  24. Liu, F.; Tang, P.; Ding, R.; Liao, L.; Wang, L.; Wang, M.; Wang, J. A glycosylation strategy to develop a low toxic naphthalimide fluorescent probe for the detection of Fe3+ in aqueous medium. Dalton Trans. 2017, 46, 7515–7522. [Google Scholar] [CrossRef]
  25. Lee, Y.C.; RT Lee, R.T. Carbohydrate-protein interactions: Basis of glycobiology. Acc. Chem. Res. 1995, 28, 321–327. [Google Scholar] [CrossRef]
  26. Fasting, C.; Schalley, C.A.; Weber, M.; Seitz, O.; Hecht, S.; Koksch, B.; Dernedde, J.; Graf, C.; Knapp, E.-W.; Haag, R. Multivalency as a Chemical Organization and Action Principle. Angew. Chem. Int. Ed. 2012, 51, 10472–10498. [Google Scholar] [CrossRef] [Green Version]
  27. Quadir, M.; Fehse, S.; Multhaup, G.; Haag, R. Hyperbranched Polyglycerol Derivatives as Prospective Copper Nanotransporter Candidates. Molecules 2018, 23, 1281. [Google Scholar] [CrossRef]
  28. Gestwicki, J.E.; Strong, L.E.; Cairo, C.W.; Boehm, F.J.; Kiessling, L.L. Cell Aggregation by Scaffolded Receptor Clusters. Chem. Biol. 2002, 9, 163–169. [Google Scholar] [CrossRef] [Green Version]
  29. Bernardi, A.; Jimenez-Barbero, J.; Casnati, A.; De Castro, C.; Darbre, T.; Fieschi, F.; Finne, J.; Funken, H.; Jaeger, K.-E.; Lahmann, M.; et al. Multivalent glycoconjugates as anti-pathogenic agents. Chem. Soc. Rev. 2013, 42, 4709–4727. [Google Scholar] [CrossRef] [PubMed]
  30. Pagé, D.; Zanini, D.; Roy, R. Macromolecular Recognition: Effect of Multivalency in the Inhibition of Binding of Yeast Mannan to Concanavalin A and Pea Lectins by Mannosylated Dendrimers. Bioorg. Med. Chem. 1996, 4, 1949–1961. [Google Scholar] [CrossRef]
  31. Sanchez-Navarro, M.; Munoz, A.; Illescas, B.M.; Rojo, J.; Martin, N. [60]Fullerene as Multivalent Scaffold: Efficient Molecular Recognition of Globular Glycofullerenes by Concanavalin A. Chem. Eur. J. 2011, 17, 766–769. [Google Scholar] [CrossRef]
  32. Illescas, B.M.; Rojo, J.; Delgado, R.; Martin, N. Multivalent Glycosylated Nanostructures to Inhibit Ebola Virus Infection. J. Am. Chem. Soc. 2017, 139, 6018–6025. [Google Scholar] [CrossRef] [PubMed]
  33. Diwan, D.; Shinkai, K.; Tetsuka, T.; Cao, B.; Arai, H.; Koyama, T.; Hatano, K.; Matsuoka, K. Synthetic Assembly of Mannose Moieties Using Polymer Chemistry and the Biological Evaluation of Its Interaction towards Concanavalin A. Molecules 2017, 22, 157. [Google Scholar] [CrossRef]
  34. Wojcik, F.; O’Brien, A.G.; Götze, S.; Seeberger, P.H.; Hartmann, L. Synthesis of Carbohydrate-Functionalised Sequence-Defined Oligo(amidoamine)s by Photochemical Thiol–Ene Coupling in a Continuous Flow Reactor. Chem. Eur. J. 2013, 19, 3090–3098. [Google Scholar] [CrossRef] [PubMed]
  35. Bücher, K.S.; Konietzny, P.B.; Snyder, N.L.; Hartmann, L. Heteromultivalent Glycooligomers as Mimetics of Blood Group Antigens. Chem. Eur. J. 2019, 25, 3301–3309. [Google Scholar] [CrossRef]
  36. Papp, I.; Dernedde, J.; Enders, S.; Riese, S.B.; Shiao, T.C.; Roy, R.; Haag, R. Multivalent Presentation of Mannose on Hyperbranched Polyglycerol and their Interaction with Concanavalin a Lectin. ChemBioChem 2011, 12, 1075–1083. [Google Scholar] [CrossRef]
  37. Chabre, Y.M.; Roy, R. Design and creativity in synthesis of multivalent glycoconjugates. Adv. Carbohydr. Chem. Biochem. 2010, 63, 165–393. [Google Scholar] [PubMed]
  38. Bojarova, P.; Kren, V. Sugared biomaterial binding lectins: Achievements and perspectives. Biomater. Sci. 2016, 4, 1142–1160. [Google Scholar] [CrossRef] [PubMed]
  39. Martinez-Gonzalez, M.R.; Urias-Benavides, A.; Alvarado-Martinez, E.; Lopez, J.C.; Gomez, A.M.; del Rio, M.; Garcia, I.; Costela, A.; Bañuelos, J.; Arbeloa, T.; et al. Convenient Access to Carbohydrate–BODIPY Hybrids by Two Complementary Methods Involving One-Pot Assembly of “Clickable” BODIPY Dyes. Eur. J. Org. Chem. 2014, 5659–5663. [Google Scholar] [CrossRef]
  40. Del Rio, M.; Lobo, F.; López, J.C.; Oliden, A.; Bañuelos, J.; López-Arbeloa, I.; García-Moreno, I.; Gómez, A.M. One-pot synthesis of rotationally restricted, conjugatable, BODIPY derivatives from phtalides. J. Org. Chem. 2017, 82, 1240–1247. [Google Scholar] [CrossRef]
  41. Loudet, A.; Burgess, K. BODIPY Dyes and Their Derivatives: Syntheses and Spectroscopic Properties. Chem. Rev. 2007, 107, 4891–4932. [Google Scholar] [CrossRef] [PubMed]
  42. Ulrich, G.; Ziessel, R.; Harriman, A. The Chemistry of Fluorescent Bodipy Dyes: Versatility Unsurpassed. Angew. Chem. Int. Ed. 2008, 47, 1184–1201. [Google Scholar] [CrossRef]
  43. Li, L.; Han, J.; Nguyen, B.; Burgess, K. Syntheses and spectral properties of functionalized, water-soluble BODIPY derivatives. J. Org. Chem. 2008, 73, 1963–1970. [Google Scholar] [CrossRef]
  44. Poirel, A.; Retailleau, P.; De Nicola, A.; Ziessel, R. Synthesis of Water-Soluble Red-Emitting Thienyl–BODIPYs and Bovine Serum Albumin Labeling. Chem. Eur. J. 2014, 20, 1252–1257. [Google Scholar] [CrossRef]
  45. Niu, S.L.; Ulrich, G.; Ziessel, R.; Kiss, A.; Renard, P.-Y.; Romieu, A. Water-soluble BODIPY derivatives. Org. Lett. 2009, 11, 2049–2052. [Google Scholar] [CrossRef]
  46. He, X.-H.; Zang, Y.; James, T.D.; Li, J.; Chen, G.-R.; Xie, J. Fluorescent glycoprobes: A sweet addition for improved sensing. Chem. Commun. 2017, 52, 82–90. [Google Scholar] [CrossRef]
  47. Kowada, T.; Maeda, H.; Kikuchi, K. BODIPY-Based probes for the fluorescence imaging of biomolecules in living cells. Chem. Soc. Rev. 2015, 44, 4953–4972. [Google Scholar] [CrossRef]
  48. Lee, Y.C. Synthesis of some cluster glycosides suitable for attachment to proteins or solid matrices. Carbohydr. Res. 1978, 67, 509–514. [Google Scholar]
  49. Chabre, Y.M.; Roy, R. Multivalent glycoconjugate syntheses and applications using aromatic scaffolds. Chem. Soc. Rev. 2013, 42, 4657–4708. [Google Scholar] [CrossRef]
  50. Ivanova, I.M.; Negopodiev, S.A.; Saalbach, G.; O’Neill, E.C.; Urbaniak, M.D.; Ferguson MA, J.; Gurcha, S.S.; Besra, G.S.; Field, R.A. Fluorescent mannosides serve as acceptor substrates for glycosyltransferase and sugar-1-phosphate transferase activities in Euglena gracilis membranes. Carbohydr. Res. 2017, 438, 26–38. [Google Scholar] [CrossRef]
  51. Ribeiro-Viana, R.; Sanchez-Navarro, M.; Luckowiak, J.; Koeppe, J.R.; Delgado, R.; Rojo, J.; Davis, B.G. Virus-like glycodendrinanoparticles displaying quasi-equivalent nested polyvalency upon glycoprotein platforms potently block viral infection. Nat. Commun. 2012, 3, 1303–1311. [Google Scholar] [CrossRef]
  52. Guo, Y.; Feinberg, H.; Conroy, E.; Mitchell, D.A.; Alvarez, R.; Blixt, O.; Taylor, M.E.; Weis, W.I.; Drickamer, K. Structural basis for distinct ligand-binding and targeting properties of the receptors DC-SIGN and DC-SIGNR. Nat. Struct. Mol. Biol. 2004, 11, 591–598. [Google Scholar] [CrossRef]
  53. Ehrmann, S.; Chu, C.-W.; Kumari, S.; Silberreis, K.; Bottcher, C.; Dernedde, J.; Ravoo, B.J.; Haag, R. A toolbox approach for multivalent presentation of ligand-receptor recognition on a supramolecular scaffold. J. Mater. Chem. B 2018, 6, 4216–4222. [Google Scholar] [CrossRef]
  54. Meldal, M.; Tornoe, C.W. Cu-Catalyzed azide-alkyne cycloaddition. Chem. Rev. 2008, 108, 2952–3015. [Google Scholar] [CrossRef]
  55. Moses, J.E.; Moorhouse, A.D. The growing applications of click chemistry. Chem. Soc. Rev. 2007, 36, 1249–1262. [Google Scholar] [CrossRef]
  56. Grubbs, R.H. Handbook of Metathesis; Wiley-VCH: Weinheim, Germany, 2003. [Google Scholar]
  57. Aljarilla, A.; López, J.C.; Plumet, J. Metathesis Reactions of Carbohydrates: Recent Highlights in Cross-Metathesis. Eur. J. Org. Chem. 2010, 6123–6143. [Google Scholar] [CrossRef]
  58. Carruthers, W.; Coldham, I. Modern Methods of Organic Synthesis, 4th ed.; Cambridge University Press: Cambridge, UK, 2004. [Google Scholar]
  59. Uriel, C.; Ventura, J.; Gómez, A.M.; López, J.C.; Fraser-Reid, B. Methyl 1,2-Orthoesters as Useful Glycosyl Donors in Glycosylation Reactions: A Comparison with n-Pent-4-enyl 1,2-Orthoesters. Eur. J. Org. Chem. 2012, 3122–3131. [Google Scholar] [CrossRef]
  60. Uriel, C.; Rijo, P.; Fernandes, A.S.; Gómez, A.M.; Fraser-Reid, B.; López, J.C. Methyl 1,2-Orthoesters in Acid-Washed Molecular Sieves Mediated Glycosylations. ChemistrySelect 2016, 1, 6011–6015. [Google Scholar] [CrossRef]
  61. Liu, B.; Novikova, N.; Simpson, M.C.; Timmer MS, M.; Stocker, B.L.; Sohnel, T.; Ware, D.C.; Brothers, P.J. Lighting up sugars: Fluorescent BODIPY–glucofuranose and –septanose conjugates linked by direct B–O–C bonds. Org. Biomol. Chem. 2016, 14, 5205–5209. [Google Scholar] [CrossRef]
  62. Esnal, I.; Valois-Escamilla, I.; Gómez-Durán, C.F.A.; Urías-Benavides, A.; Betancourt-Mendiola, M.L.; López-Arbeloa, I.; Bañuelos, J.; García-Moreno, I.; Costela, A.; Peña-Cabrera, E. Blue-to-orange color-tunable laser emission from tailored boron-dipyrromethene dyes. ChemPhysChem 2013, 14, 4134–4142. [Google Scholar] [CrossRef]
  63. Kee, H.L.; Kirmaier, C.; Yu, L.; Thamyongkit, P.; Youngblood, W.J.; Calder, M.E.; Ramos, L.; Noll, B.C.; Bocian, D.F.; Scheidt, W.R.; et al. Structural control of the photodynamics of boron-dipyrrin complexes. J. Phys. Chem. B 2005, 109, 20433–20443. [Google Scholar] [CrossRef]
  64. Durán-Sampedro, G.; Agarrabeitia, A.A.; Cerdán, L.; Pérez-Ojeda, M.E.; Costela, A.; García-Moreno, I.; Esnal, I.; Bañuelos, J.; López-Arbeloa, I.; Ortiz, M.J. Carboxylates versus fluorines: Boosting the emission properties of commercial BODIPYs in liquid and solid media. Adv. Funct. Mater. 2013, 23, 4195–4205. [Google Scholar] [CrossRef]
  65. Kammerer, C.; Prestat, G.; Gaillard, T.; Madec, D.; Poli, G. A Successful Cohabitation of Pd and Ru. Org. Lett. 2008, 10, 405–408. [Google Scholar] [CrossRef] [PubMed]
Molecules 24 02050 g001 550

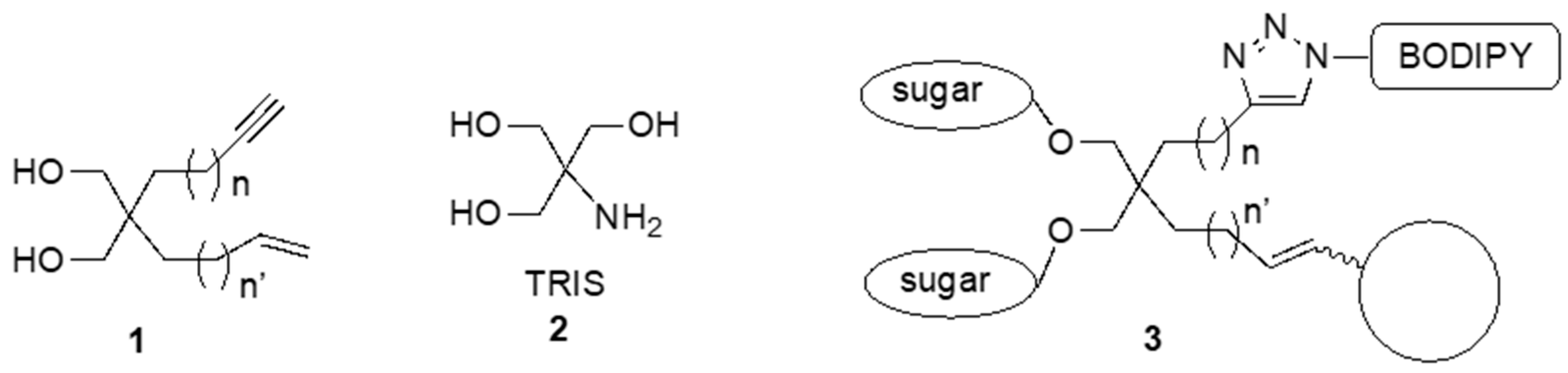

Figure 1. Tetravalent scaffold (1), Lee’s TRIS aliphatic scaffold (2), and target molecules (3) (this work). BODIPY: boron-dipyrromethene
Figure 1. Tetravalent scaffold (1), Lee’s TRIS aliphatic scaffold (2), and target molecules (3) (this work). BODIPY: boron-dipyrromethene
Molecules 24 02050 g001
Molecules 24 02050 sch001 550
Scheme 1. Synthesis of dimannoside (8) from methylmalonate (4).
Scheme 1. Synthesis of dimannoside (8) from methylmalonate (4).
Molecules 24 02050 sch001
Molecules 24 02050 sch002 550
Scheme 2. Synthesis of tetravalent and hexavalent derivatives (12) and (13).
Scheme 2. Synthesis of tetravalent and hexavalent derivatives (12) and (13).
Molecules 24 02050 sch002
Molecules 24 02050 g002 550

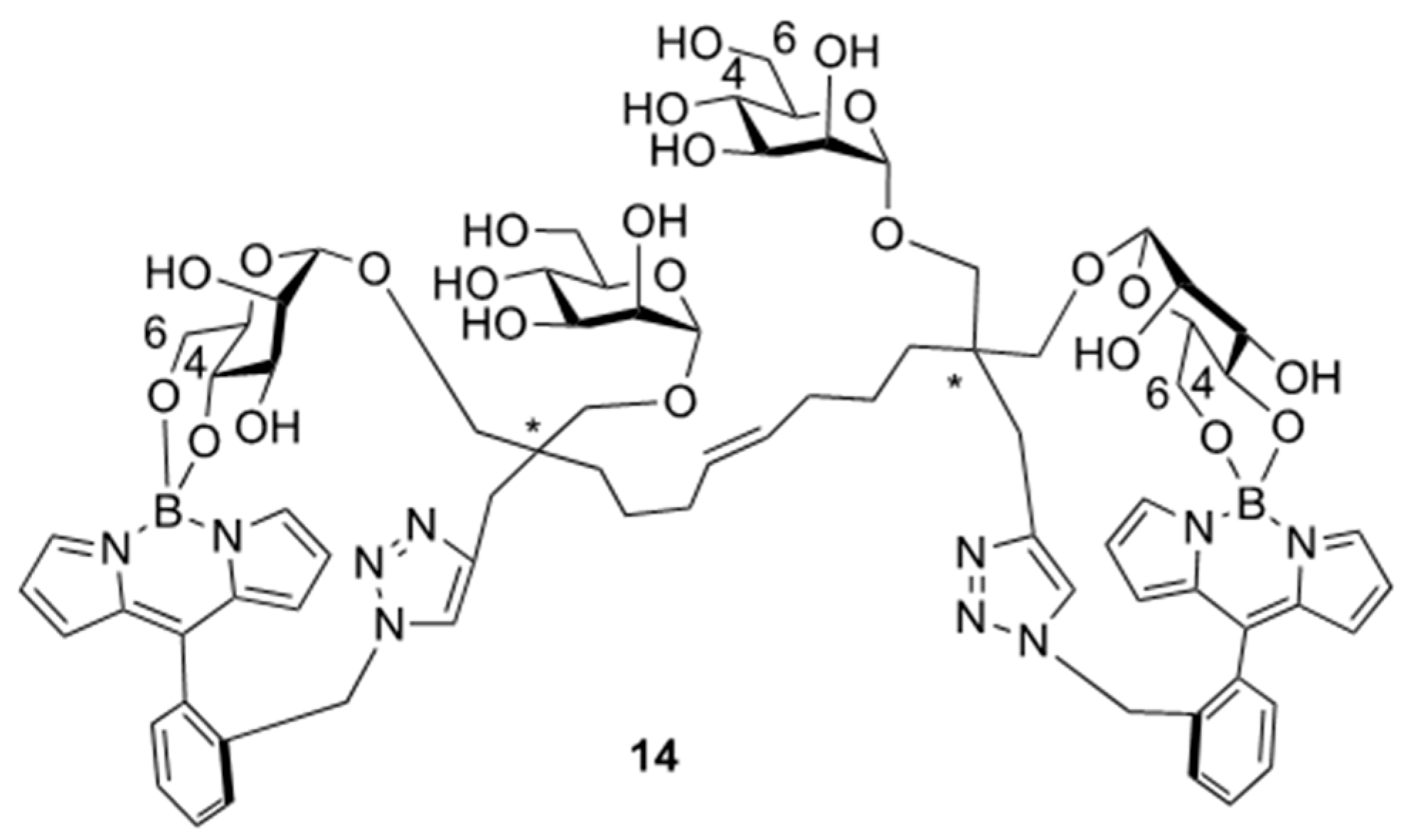

Figure 2. Fluorescently-labeled tetramannan derivative (14).
Figure 2. Fluorescently-labeled tetramannan derivative (14).
Molecules 24 02050 g002
Molecules 24 02050 g003 550

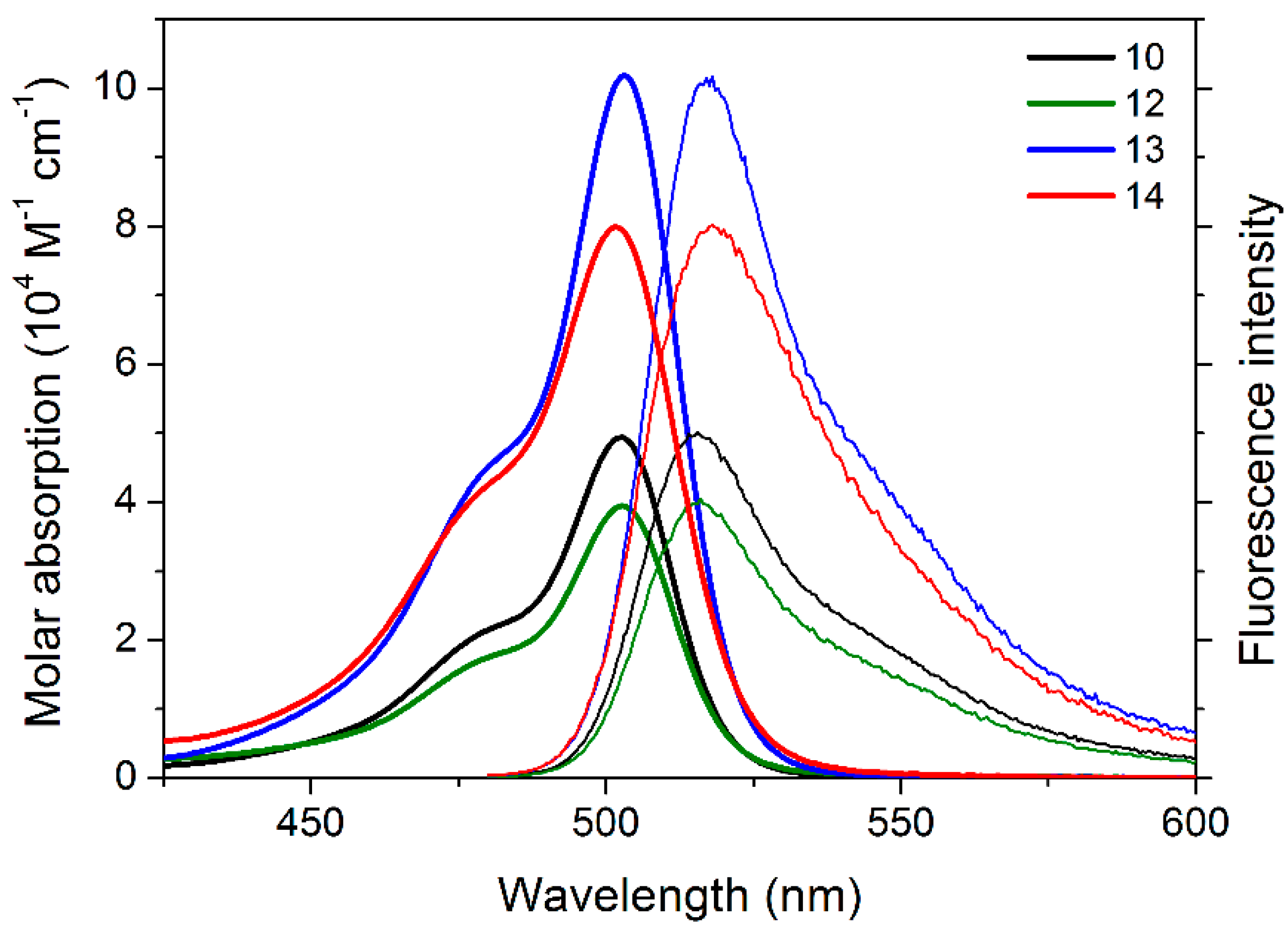

Figure 3. Absorption (bold line) and normalized fluorescence (thin line) spectra of boron-dipyrromethene (BODIPY)-labeled tetravalent (10 and 12) and hexavalent (13) derivatives in diluted solutions (2 μM) of EtOAc. The corresponding spectra of compound 14 in water is also included.
