Open AccessArticle
Molecules 2017, 22(12), 2232;

Are Diatoms “Green” Aluminosilicate Synthesis Microreactors for Future Catalyst Production?

Chair of Bioanalytical Chemistry, Faculty of Chemistry and Food Chemistry, TU Dresden, 01062 Dresden, Germany
Institute of Inorganic Chemistry, Faculty of Chemistry and Food Chemistry, TU Dresden, 01062 Dresden, Germany
Author to whom correspondence should be addressed.
Received: 11 November 2017 / Revised: 6 December 2017 / Accepted: 12 December 2017 / Published: 16 December 2017
Full-Text   |   PDF [2327 KB, uploaded 16 December 2017]   |

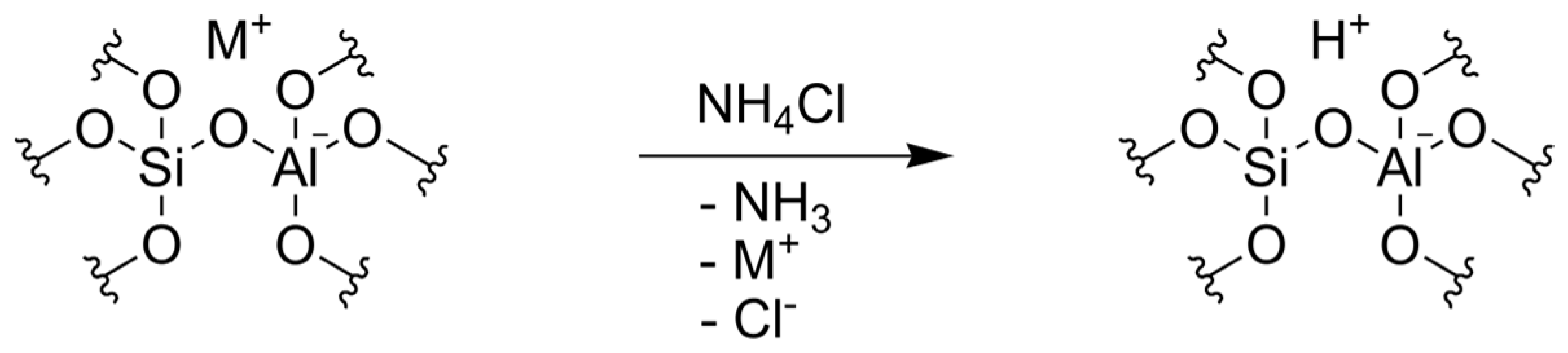

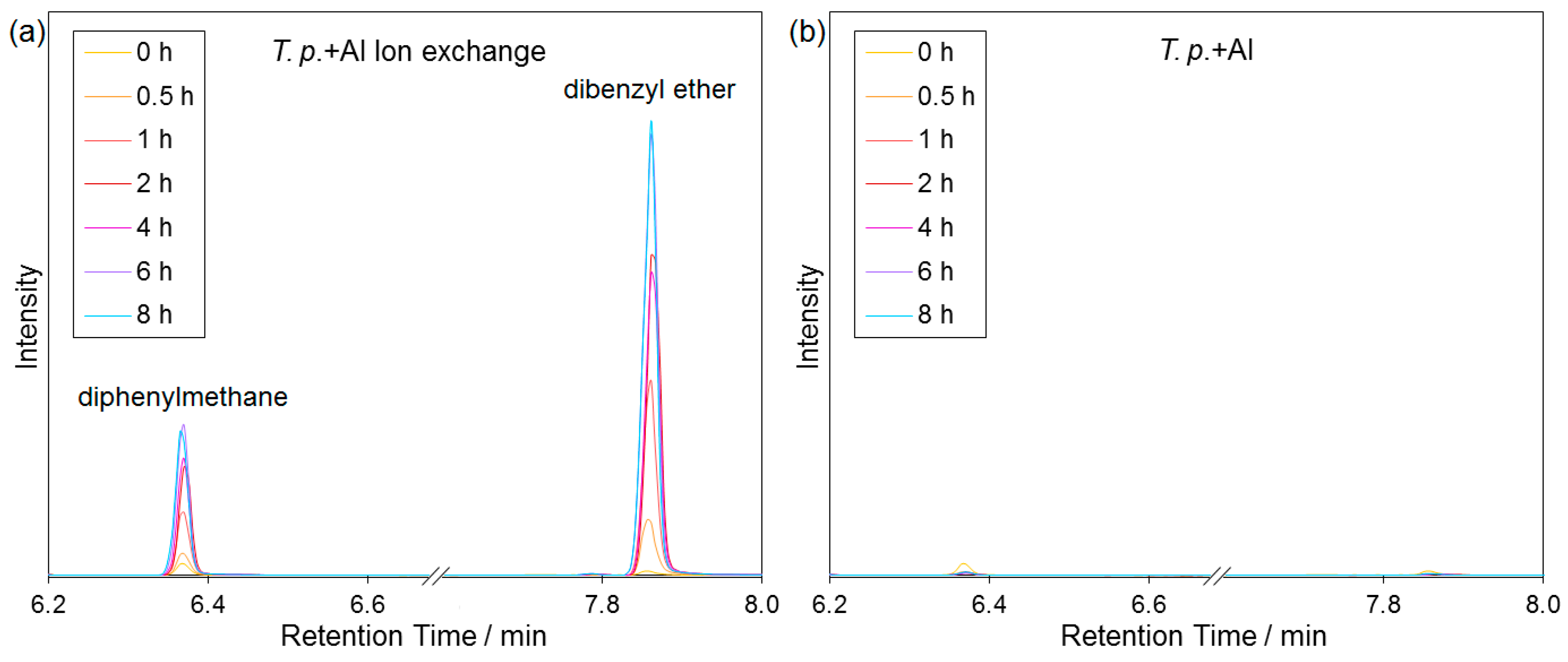

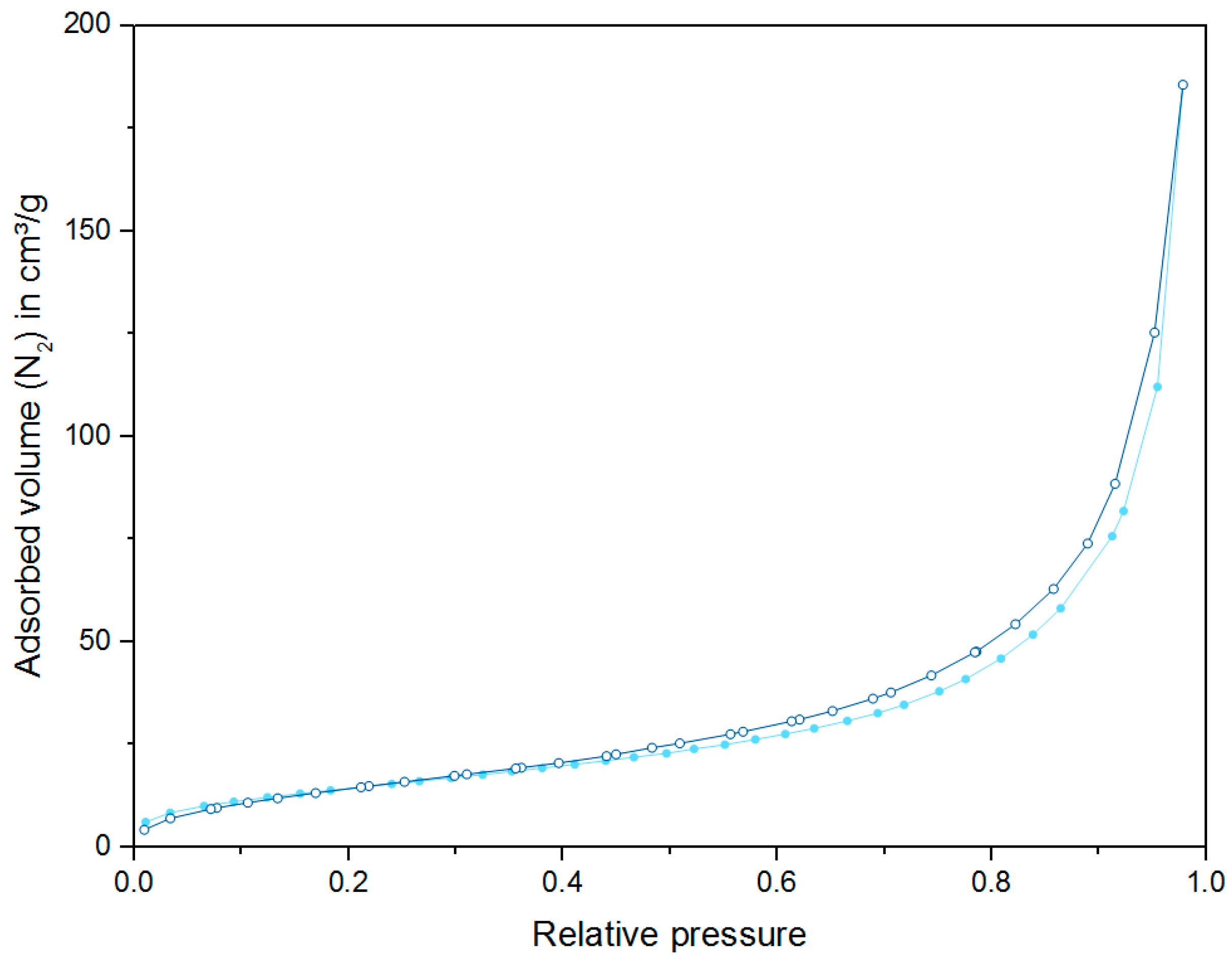

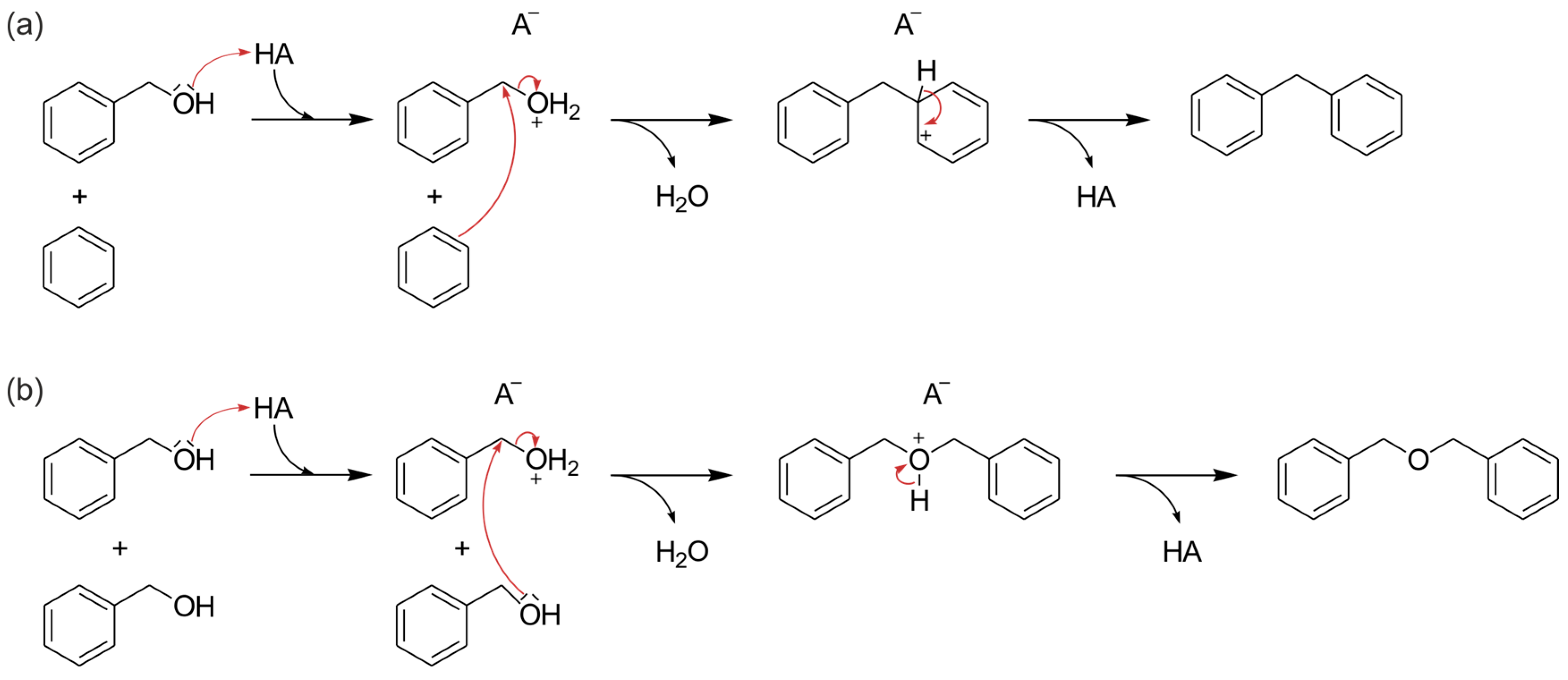

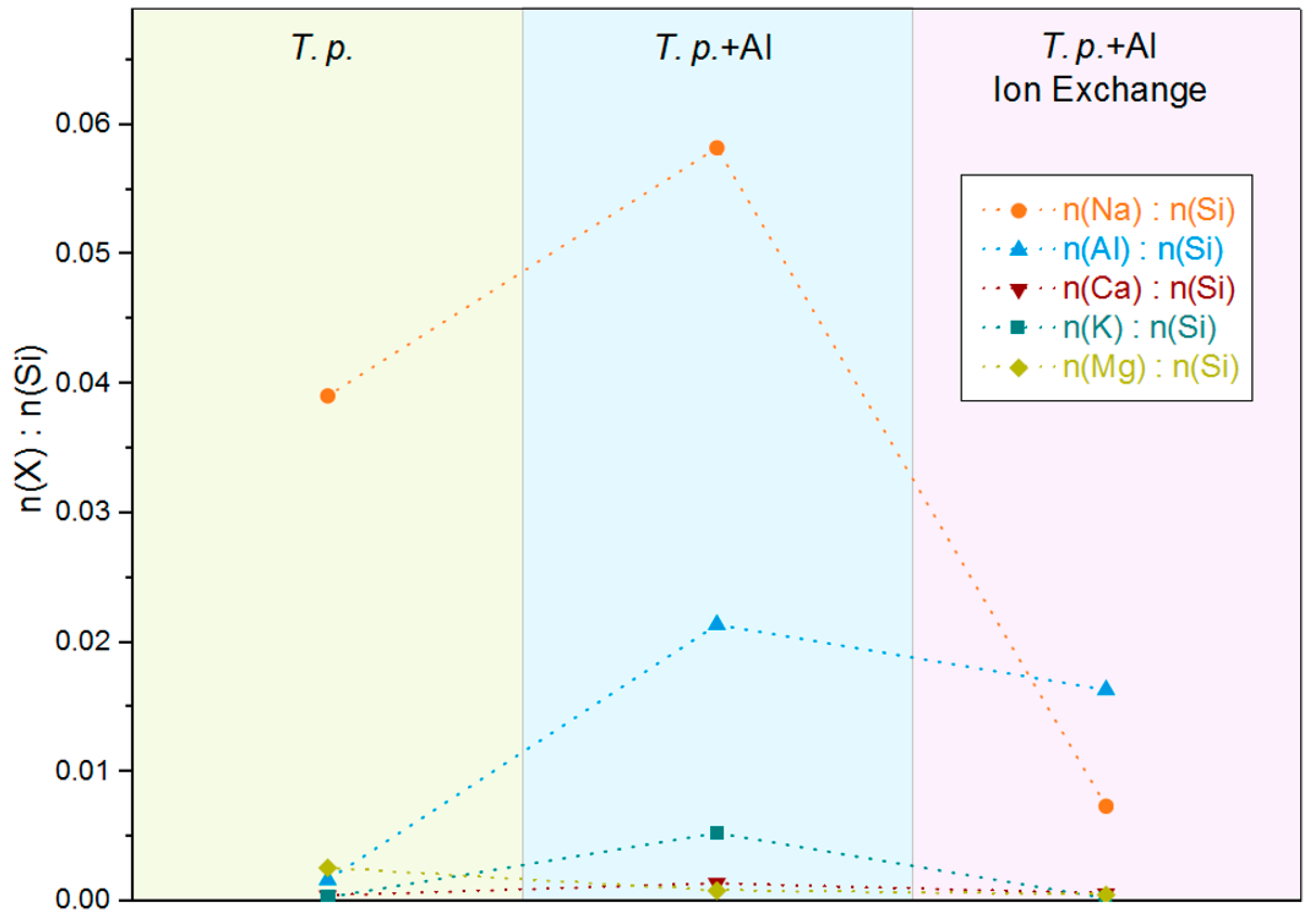

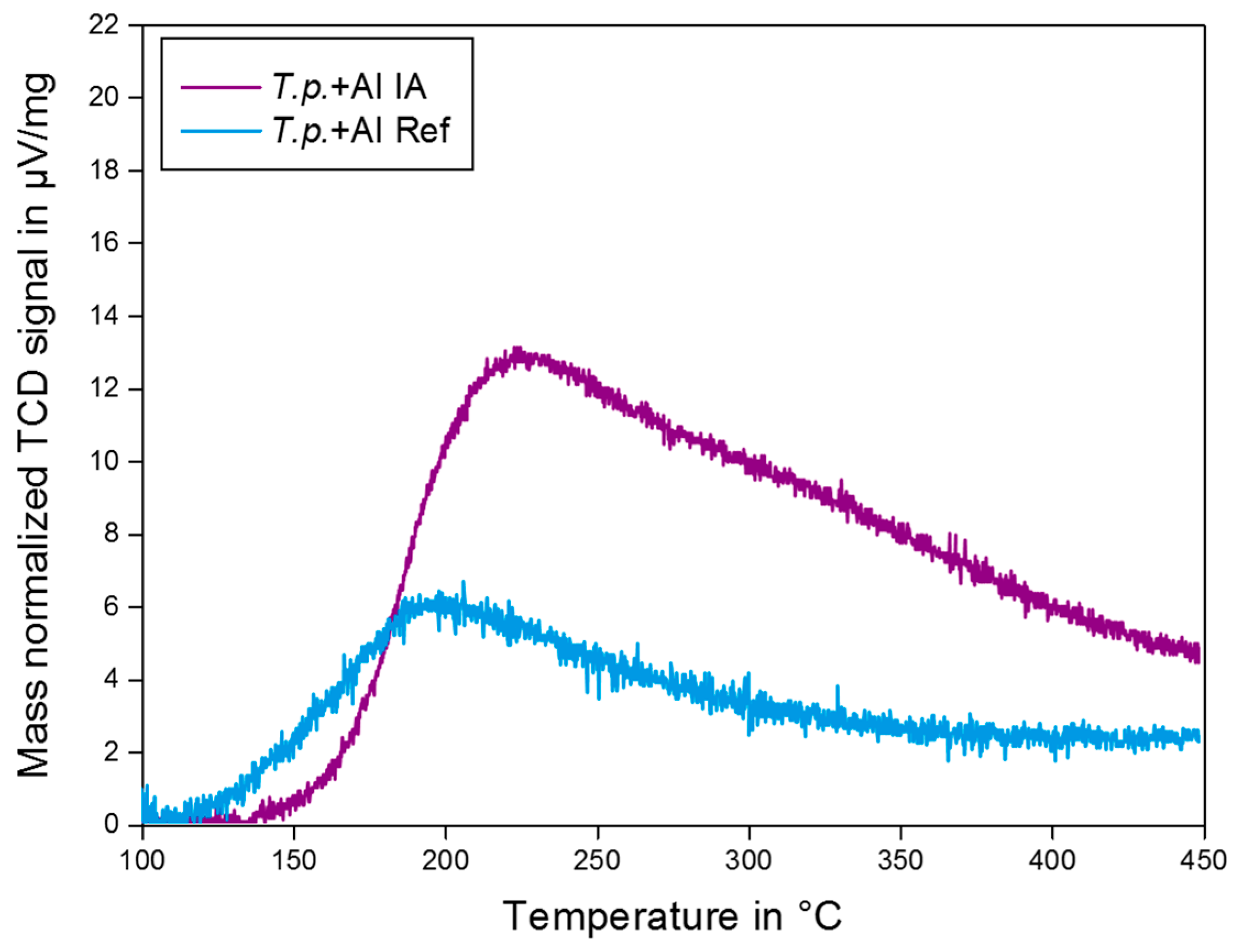

Diatom biosilica may offer an interesting perspective in the search for sustainable solutions meeting the high demand for heterogeneous catalysts. Diatomaceous earth (diatomite), i.e., fossilized diatoms, is already used as adsorbent and carrier material. While diatomite is abundant and inexpensive, freshly harvested and cleaned diatom cell walls have other advantages, with respect to purity and uniformity. The present paper demonstrates an approach to modify diatoms both in vivo and in vitro to produce a porous aluminosilicate that is serving as a potential source for sustainable catalyst production. The obtained material was characterized at various processing stages with respect to morphology, elemental composition, surface area, and acidity. The cell walls appeared normal without morphological changes, while their aluminum content was raised from the molar ratio n(Al):n(Si) 1:600 up to 1:50. A specific surface area of 55 m2/g was measured. The acidity of the material increased from 149 to 320 µmol NH3/g by ion exchange, as determined by NH3 TPD. Finally, the biosilica was examined by an acid catalyzed test reaction, the alkylation of benzene. While the cleaned cell walls did not catalyze the reaction at all, and the ion exchanged material was catalytically active. This demonstrates that modified biosilica does indeed has potential as a basis for future catalytically active materials. View Full-Text
Keywords: diatoms; biosilica; aluminosilicate; catalysis diatoms; biosilica; aluminosilicate; catalysis

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material


Share & Cite This Article

MDPI and ACS Style

Köhler, L.; Machill, S.; Werner, A.; Selzer, C.; Kaskel, S.; Brunner, E. Are Diatoms “Green” Aluminosilicate Synthesis Microreactors for Future Catalyst Production? Molecules 2017, 22, 2232.
