New Cassane Diterpenoids from Caesalpinia sappan and their Antiplasmodial Activity

Abstract

One new cassane diterpene possessing an unusual N bridge between C-19 and C-20 named caesalsappanin R (1), as well as another new diterpene caesalsappanin S (2), were isolated from the seeds of Caesalpinia sappan with methanol extract. Their structures were determined by spectroscopic analysis and examined alongside existing data from prior studies. Their biological activities were profiled by their antiplasmodial activity.

1. Introduction

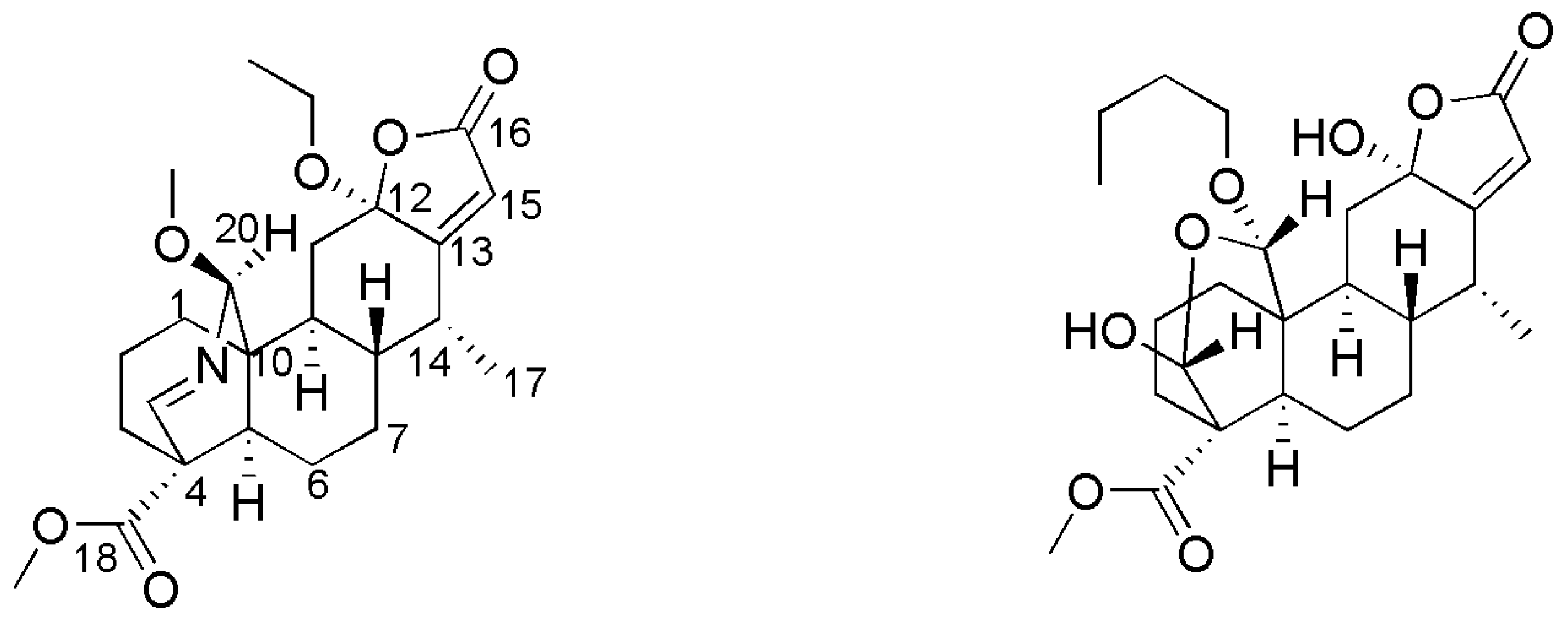

Caesalpinia sappan has been a part of traditional Chinese herbal medicine and is widely used in the treatment of dysmenorrheal, blood stagnation, and tetanus. Previous phytochemical investigations indicated that this genus contains an abundant source of cassane diterpenes with different structure types, and most of them showed in vitro or in vivo pharmacological impacts such as antiproliferative [1,2,3], antiplasmodial [4,5], antibacterial [6], antihelmintic, and antineoplastic activity [7]. As a continuation of our project towards new bioactive diterpenes discovery from the genus Caesalpinia [2,3,8], we examined the chemical constituents of C. sappan and obtained two new cassane diterpenes, designated caesalsappanin R (1) and caesalsappanin S (2) (Figure 1). Compound 1 is a rather unusual cassane diterpenoid lactone-type skeleton, consisting of an N bridge between C-19 and C-20. In this paper, we detail the separation and structural determination of the novel agents and the examination of their antiplasmodial activity.

2. Results and Discussion

2.1. Purification of Compounds 1–2

The seeds of C. sappan were extracted with MeOH three times. The two cassane-type diterpenoids were isolated and purified via silica gel chromatography, Sephadex LH-20 gel chromatography and semi-HPLC.

2.2. Structure Elucidation of Compounds 1–2

Compound 1 was acquired as a white shapeless powder. The HRESIMS spectrum demonstrated a quasi-molecular ion at m/z 454.2199 (Calcd. for C₂₄H₃₃NO₆Na, 454.2206), which in connection with the NMR data, confirmed that the molecular formula was C₂₄H₃₃NO₆. The IR and UV spectra revealed absorptions for an amidogen (3190 cm⁻¹), a carbonyl (1735 cm⁻¹), and an α,β-unsaturated butenolide unit (210 nm; 1749 cm⁻¹) [2]. The ¹H and ¹³C APT NMR spectra (

Table 1. NMR spectral data of 1–2 (CDCl₃, 600 and 150 MHz).

No.	1		2		Caesalsappanin H
	δC, Type	δH (J in Hz)	δC, Type	δH (J in Hz)	δC, Type
1	30.2 CH2	1.69–1.72 (m)	37.7 CH2	1.28–1.30 (m)	37.8 CH2
		2.17–2.21 (m)		2.07–2.09 (m)
2	19.3 CH2	1.38–1.41 (m)	20.6 CH2	1.58–1.60 (m)	20.6 CH2
		2.59–2.63 (m)		2.23–2.25 (m)
3	33.1 CH2	1.28–1.32 (m)	28.5 CH2	1.82–1.83 (m)	28.6 CH2
		1.89–1.93 (m)		2.25–2.30 (m)
4	44.1 C		50.3 C		50.4 C
5	47.0 CH	1.73 (m)	47.2 CH	1.68–1.71 (m)	47.2 CH
6	25.6 CH2	1.18–1.20 (m)	24.2 CH2	1.19–1.21 (m)	24.2 CH2
		1.39–1.42 (m)		2.00–2.02 (m)
7	29.1 CH2	1.69–1.72 (m)	29.5 CH2	1.25–1.28(m)	29.5 CH2
		2.19–2.23 (m)		1.60–1.62 (m)
8	43.4 CH	1.49 (m)	41.5 CH	2.19–2.21 (m)	41.1 CH
9	42.2 CH	1.78 (m)	41.3 CH	1.51–1.53 (m)	41.3 CH
10	49.8 C		38.6 C		38.7 C
11	37.2 CH2	1.68–1.70 (m)	38.0 CH2	1.36–1.38 (m)	38.1 CH2
		2.75 (dd, 12.0,2.4)		2.51–2.53 (m)
12	107.4 C		105.5 C		105.9 C
13	171.0 C		173.4 C		173.7 C
14	37.0 CH	2.99 (qd, 7.2, 2.4)	37.1 CH	2.91 (qd, 7.2, 2.4)	37.1 CH
15	115.9 CH	5.86 (s)	113.5 CH	5.69 (s)	113.8 CH
16	169.9 C		170.7 C		170.7 C
17	12.2 CH3	1.14 (d, 7.2)	12.0 CH3	1.13 (d, 7.2)	12.1 CH3
18	175.3 C		175.6 C		175.5 C
19	162.6 CH	7.53, s	90.1 CH	5.60 (s)	90.1 CH
20	91.2 CH	5.07 (d, 2.4)	104.2 CH	4.49 (s)	105.4 CH
	59.3, CH2	3.30 (m)
		3.58 (m)
OCH2CH3-12	15.0, CH3	1.21 (t, 7.2)
OCH3-18	52.2	3.74 (s)	52.0	3.71 (s)	51.7
OCH3-20	57.1	3.72 (s)			55.7
OCH2CH2CH2CH3-20			67.8	3.22 (ddd, 9.6, 6.0, 3.0) 3.80 (ddd, 9.6, 6.0, 3.0)
OCH2CH2CH2CH3-20			31.9	1.32 (m)
				1.47 (m)
OCH2CH2CH2CH3-20			20.0	1.28 (m)
				1.43 (m)
OCH2CH2CH2CH3-20			13.7	1.87 (t, 7.2)

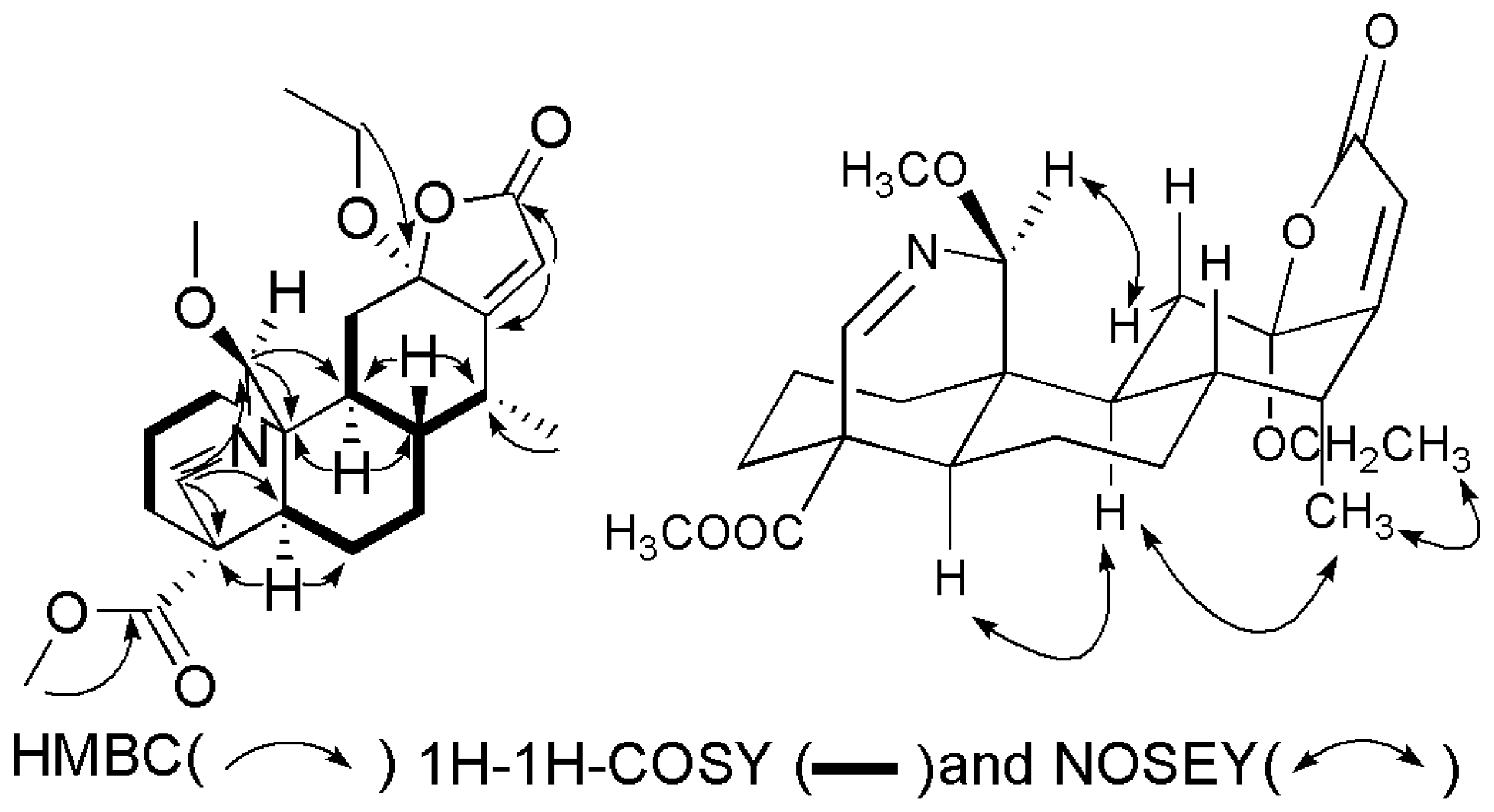

) displayed the olefinic proton signal at δ_H 5.86 (H-15, s) and four downfield-shifted carbon signals at δ_C 107.4 (C-12), 171.0 (C-13), 115.9 (C-15), and 179.9 (C-16), which also confirmed the presence of the α,β-unsaturated butenolide ring. Additionally, the ¹H-NMR spectrum exhibited signals for a methyl at δ_H 1.14 (d, J = 7.2 Hz, H₃-17), two methoxys at δ_H 3.74 (s, 18-OCH₃) and 3.72 (s, 20-OCH₃), an ethoxy group at δ_H 3.30, 3.58 (m, OCH₂CH₃) and 1.21 (d, J = 7.2 Hz, OCH₂CH₃), a nitrogen oxymethylene proton at δ_H 5.07 (d, J = 2.4 Hz), and a nitrogen alkenyl at δ_H 7.53 (s). Except for the methoxy (δ_C 52.2, 57.1) and ethoxy (δ_C 59.3, 15.0) substituents, the ¹³C APT NMR spectrum showed 20 carbons including one methyl (δ_C 12.2), six methylenes (δ_C 19.3, 25.6, 29.1, 30.2, 33.1, and 37.2), seven methines (δ_C 37.0, 42.2, 43.4, 47.0, 91.2, 115.9, and 169.9), and six quaternary carbons (δ_C 44.1, 49.8, 107.4, 169.9, 171.0, and 175.3). The HSQC spectrum displayed all of the proton signals assigned to the corresponding carbons through direct ¹H and ¹³C correlations. The overall ¹H- and ¹³C-NMR spectroscopic data confirmed that 1 is an oxynitride diterpene possessing a fused butenolide unit [9,10], and its entire structure was connected, as confirmed using HSQC, HMBC, and ¹H-¹H-COSY spectra (Figure 2). The nitrogen oxymethylene proton at δ_H 5.07 (d, J = 2.4 Hz, H-20) showed long-range correlations with carbons at δ_C 30.2 (C-1), 49.8 (C-10), 162.6 (C-19), and 57.1 (20-OCH₃), which suggested that C-1, C-10, C-19, and −OCH₃ were connected through the nitrogen oxymethylene carbon C-20. The quaternary carbon C-4 (δ_C 44.1) was connected to C-3 (δ_C 33.1), C-5 (δ_C 47.0), C-18 (δ_C 175.3), and C-19 (δ_C 162.6) due to the HMBC correlations of H-19, H₂-3, and H-5 to C-4 and C-18. Moreover, the nitrogen bridge between C-19 and C-20 was confirmed by the downfield chemical shifts of C-19 (δ_C 162.6) and C-20 (δ_C 91.2) together with the HMBC correlations between H-19 and C-20. Finally, the α,β-unsaturated butenolide moiety was connected to C-11 and C-14 based on the HMBC correlations from H₂-11 to C-12 (δ_C 107.4) and H-14 to C-13 (δ_C 171.0). The proton H₃-17 (δ_H 1.14, d, J = 7.2 Hz) showed long-range correlations with carbons C-14 (δ_C 37.0), which indicated that the methyl group of C-17 was connected to C-14. The methoxyl and ethoxyl groups were attached to C-18 and C-12, respectively, based on the HMBC correlations between δ_H 3.74 (s, −OCH₃) and δ_C 175.3 (C-18), δ_H 3.30, 3.58 (m, OCH₂CH₃) and δ_C 107.4 (C-12). The NOESY experiment established the relative configuration of compound 1, the correlations of H-20 (δ_H 5.07)/H-1α (δ_H 1.69–1.72), H₃-17 (δ_H 1.14)/H-9 (δ_H 1.78), OCH₂CH₃-12 (δ_H 3.30)/H₃-17 (δ_H 1.14) showed that the hydroxyl group was β-oriented at C-20, and the methyl group at C-14 and the ethoxy group at C-12 were all α-oriented. The same carbon skeleton with the trans/anti/trans system of three six-membered rings A, B, and C, and the oriented proton at C-8 was β-axial and the oriented protons at C-5/C-9 was α-axial, which are well established on all cassane diterpenes isolated so far from the genus Caesalpinia [3,8,11]. Considering the biosynthetic relationship and comparing with the literature of cassane diterpenoids [12], the absolute configurations of the chiral carbons were determined to be 4S, 5R, 8S, 9S, 10S, 12S, 14R in 1 and are shown in Figure 2. Therefore, the structure of 1 was determined and it was named caesalsappanin R (Figure 1). Compound 1 is representative of a new cassane diterpenoid lactone-type skeleton with an N bridge between C-19 and C-20.

Compound 2 was separated as a white shapeless powder, [α]${}_{\mathrm{D}}^{20}$ −47.3 (c = 0.1, MeOH). Its molecular formula was determined to be C₂₅H₃₆O₈ by HRESIMS (observed m/z 487.2332 [M + Na]⁺). The ¹H- and ¹³C-NMR data displayed a cassane diterpene skeleton with an oxygen bridge between C-19 and C-20, which was very similar to the reported compound caesalsappanin H [3]. In fact, the only difference between them was that the methoxy group at C-20 in caesalsappanin H was replaced with a butoxy group in 2. The ¹H- and ¹³C-NMR spectra displayed the signals at δ_H 3.22, 3.80 (2H, ddd, J = 9.6, 6.0, 3.0 Hz, CH₂), 1.32, 1.47 (2H, m, CH₂), 1.28, 1.43 (2H, m, CH₂), 1.87 (3H, t, J = 7.2 Hz, CH₃) and δ_C 67.8 (CH₂), 31.9 (CH₂), 20.0 (CH₂), 13.7 (CH₃), which suggested the presence of a butoxy group. Also, the HMBC correlations from CH₂ (δ_H 3.22, 3.80) to C-20 (δ_C 104.2) supported the position of the butoxy group at C-20. Taken along with ¹H-¹H COSY, HSQC, HMBC, and NOE spectra, the structure of compound 2 was determined and it was named caesalsappanin S (Figure 1).

2.3. In Vitro Antiplasmodial and Larvicidal Activities of Compounds 1–2

The two compounds were tested against the chloroquine-resistant strain K1 of P. falciparum (

Table 2. In vitro antiplasmodial and Larvicidal activities of compounds 1–2.

Compounds	IC50 (μM) a	LC50 (μM) b
1	3.60 ± 1.2	60.2 ± 2.3
2	25.1 ± 1.3	262.0 ± 8.7
Chloroquine c	0.19 ± 0.05	38.6 ± 2.1

^a IC₅₀ = inhibitory concentration 50%; ^b LC₅₀ = lethal concentration 50%. Values are means ± SD of triplicate experiments. ^c Positive control substance.

). Compound 1 exhibited relatively good antiplasmodial activity in vitro with IC₅₀ values of 3.6 μM, compared with chloroquine. On the other hand, compound 2 showed only weak activity against the chloroquine-resistant K1 strain of P. falciparum. It appears that the presence of the N bridge in cassane-type diterpenoids may play an important role in enhancing activity against the chloroquine-resistant K1 strain of P. falciparum in vitro. Furthermore the toxic activity of compounds 1 and 2 against mosquito larvae was evaluated. Both compounds displayed only low activity.

3. Materials and Methods

3.1. General Experimental Procedures

Optical rotation data were measured with a Perkin-Elmer 341 digital polarimeter (PerkinElmer, Norwalk, CT, USA). UV and IR data spectra were recorded on Shimadzu UV2550 and FTIR-8400S spectrometers (Shimadzu, Kyoto, Japan). NMR spectra were obtained using a Bruker AV III 600 NMR spectrometer with chemical shift values presented as δ values having TMS (Tetramethylsilane) as the internal standard. HRESIMS was performed using an LTQ-Orbitrap XL spectrometer (Thermo Fisher Scientific, Boston, MA, USA). Column–chromatography (CC) was performed using silica gel (100–200 and 300–400 mesh, Qingdao Marine Chemical Plant, Qingdao, China), Sephadex LH-20 (Pharmacia, Uppsala, Sweden). Precoated silica gel GF₂₅₄ plates (Zhi Fu Huang Wu Pilot Plant of Silica Gel Development, Yantai, China) were used for TLC. All solvent used was of analytical grade (Beijing Chemical Plant, Beijing, China).

3.2. Plant Material

The seeds of C. sappan were collected from Nanning, Guangxi Province, People’s Republic of China, in April 2013, and identified by Professor Jing Quan Yuan of the Department of Pharmaceutical Chemistry, Guangxi Botanical Garden of Medicinal Plants. A voucher specimen (NO. 13418) was deposited at the Guangxi Botanical Garden of Medical Plants.

3.3. Isolation and Purification of Compounds 1–2

The air-dried seeds of C. sappan (5.0 kg) were extracted with MeOH (3 × 40 L, 3 h each) at room temperature. Removal of the MeOH under reduced pressure yielded a MeOH-soluble extract (1267 g). The residue was suspended to H₂O (3 L) and partitioned with petroleum ether (3 × 3 L), CH₂Cl₂ (3 × 3 L), EtOAc (3 × 3 L), and n-BuOH (3 × 3 L), successively. The EtOAc fraction (164 g) was subjected to CC (column–chromatography) over silica gel (100–200 mesh, 15 × 60 cm) eluting with a stepwise gradient of CH₂Cl₂–MeOH (from 1:0 to 0:1, 100:0, 90:1, 70:1, 50:1, 30:1, 20:1, 10:1, 5:1, 2:1, 1:1, 0:1, v/v) to afford fractions A–G. Fraction E (3.1 g) was subjected to chromatographed repeatedly over silica gel CC eluting with CH₂Cl₂–MeOH (50:0, 40:1, 30:1, 20:1, 10:1, v/v) to obtained sub-fractions Fractions E1–E5. Fraction E3 was separated using silica gel CC eluting with CH₂Cl₂–MeOH (40:1, 30:1, 0:100, v/v) to obtained sub-fractions I-III. Sub-fraction II was purified by semi-HPLC of MeOH–H₂O (55:45, v/v) as the mobile phase to yield compound 1 (6.3 mg, 0.000146%, t_R = 28.4 min). Fraction E2 was separated using silica gel CC eluting with CH₂Cl₂–MeOH (50:1, v/v), yielding compound 2 (8.6 mg, 0.000172%).

3.4. Characterization of Compounds 1–2

Caesalsappanin R (1), White powder (MeOH); [α]${}_{\mathrm{D}}^{20}$ −24.2 (c = 0.05, MeOH); UV (MeOH) λ_max (log ε) 210 (3.86) nm; IR (film) ν_max 3190, 1745, 1735 cm⁻¹; ¹H- and ¹³C-NMR data (CDCl₃), see (Table 1); HR-ESI-MS m/z 454.2199 [M + Na]⁺. (Calcd. for. 454.2206 C₂₄H₃₃NO₆Na).

Caesalsappanin S (2), White powder (MeOH); [α]${}_{\mathrm{D}}^{20}$ −47.3 (c = 0.1, MeOH); UV (MeOH) λ_max (log ε) 213 (3.94) nm; IR (film) ν_max 3450, 1730 cm⁻¹; ¹H- and ¹³C-NMR data (CDCl₃), see (Table 1); HR-ESI-MS m/z 487.2332 [M + Na]⁺. (Calcd. for. 487.2308 C₂₄H₃₄O₈Na).

3.5. Antiplasmodial Assays of Compounds 1–2

Antiplasmodial activity in vitro was determined by means of the microculture radioisotope technique based on the method described by Desjardins [13]. The parasite P. falciparum (K1, multidrug-resistant strain) was cultured continuously according to the method of Trager and Jensen [14]. Three preparations were used for each experiment. The determination of IC₅₀ values against the erythrocytic stages of P. falciparum was carried out in duplicate using the [3H]-hypoxanthine incorporation assay [15]. Laboratory colonies of mosquito larvae/pupae (Culex quinquefasciatus Say, Diptera, Culicidae) were used for the larvicidal/pupicidal activity. Twenty-five numbers of first to fourth instars larvae and puape were introduce into 500 mL glass beaker containing 249 mL of de-chlorinated water and 1 mL of desired concentrations of ethanolic leaf extract were added. Larval food was given for the test larvae. At each tested concentration two to five trials were made and each trial consisted of five replicates. The control was setup by mixing 1 mL of acetone with 249 mL of dechlorinated water. The larvae and pupae were exposed to dechlorinated water without acetone served as control. The control mortalities were corrected by using Abbott’s formula [16,17]. The LC₅₀ were calculated from toxicity data by using probit analysis [18]. Chloroquine was included as a standard for comparison. Data are presented as means ± SEM. Statistical analyses were done by means of the Student’s t-test. A P value of less than 0.05 was considered a significant difference.

4. Conclusions

In conclusion, two new cassane-type diterpenoids (1 and 2) were isolated and characterized by spectrometric analysis (1 and 2D NMR, HRESIMS). Compound 1 exhibited active antiplasmodial activity in vitro with IC₅₀ at 3.60 μM. In addition, the compounds that we had reported also showed antiplasmodial activities; caesalsappanins A, G, H, and I displayed antiplasmodial activities with IC₅₀ values of 7.4, 0.78, 0.52, and 2.5 μM, respectively [3]. Therefore, we believe that this plant is an important source for the diverse structure of cassane-type diterpenoids and should be further investigated for the antiplasmodial activity.
