Molecules 2016, 21(5), 583; https://doi.org/10.3390/molecules21050583

Article
Development of Chromatographic Fingerprints of Eurycoma longifolia (Tongkat Ali) Roots Using Online Solid Phase Extraction-Liquid Chromatography (SPE-LC)
1
Faculty of Applied Sciences, Universiti Teknologi MARA, Shah Alam 40450, Selangor, Malaysia
2
East Coast Environmental Research Institute, Universiti Sultan Zainal Abidin, Kuala Terengganu 21300, Malaysia
*
Author to whom correspondence should be addressed.
Academic Editor: Maria Emília de Sousa
Received: 16 February 2016 / Accepted: 27 April 2016 / Published: 30 April 2016

Abstract

:
E. longifolia is attracting interest due to its pharmacological properties and pro-vitality effects. In this study, an online SPE-LC approach using polystyrene divinyl benzene (PSDVB) and C18 columns was developed in obtaining chromatographic fingerprints of E. longifolia. E. longifolia root samples were extracted using pressurized liquid extraction (PLE) technique prior to online SPE-LC. The effects of mobile phase compositions and column switching time on the chromatographic fingerprint were optimized. Validation of the developed method was studied based on eurycomanone. Linearity was in the range of 5 to 50 µg∙mL−1 (r2 = 0.997) with 3.2% relative standard deviation of peak area. The developed method was used to analyze 14 E. longifolia root samples and 10 products (capsules). Selected chemometric techniques: cluster analysis (CA), discriminant analysis (DA), and principal component analysis (PCA) were applied to the fingerprint datasets of 37 selected peaks to evaluate the ability of the chromatographic fingerprint in classifying quality of E. longifolia. Three groups were obtained using CA. DA yielded 100% correlation coefficient with 19 discriminant compounds. Using PCA, E. longifolia root samples were clearly discriminated from the products. This study showed that the developed online SPE-LC method was able to provide comprehensive evaluation of E. longifolia samples for quality control purposes.
Keywords:
chromatographic fingerprint; eurycomanone; Eurycoma longifolia; online SPE-LC; cluster analysis; discriminant analysis; principal component analysis

1. Introduction

Herbal formulations are gaining popularity worldwide for health promotion and adjuvant therapy. Many studies based on experimental evidence have reported the pharmacological properties of Eurycoma longifolia, including anti-malarial, anti-diabetic, anticancer, antiulcer and aphrodisiac effects [1,2,3,4,5,6,7,8]. Due to these effects, E. longifolia extracts are commonly used as an alternative medicine or dietary supplements making this species one of the most popular herbal plants. As the demand of this plant is increasing globally [1], a fast and reliable method for determining its quality is required.
Quality control is crucial in ensuring safety and efficacy of herbal formulations [7]. A comprehensive evaluation of the chemical profile, instead of only a single compound [9] is essential. A chromatographic fingerprint with specific profile or pattern based on detected compounds has been successfully applied in quality control of herbal formulation [9,10,11]. Chromatographic fingerprint technology has gained increasing attention and has been accepted by leading organizations such as the World Health Organization (WHO), Federal Drug Administration (FDA) and the British Herbal Medicine Association [12,13].
Due to the chemical complexity of herbal plants extract [14], an efficient analytical methodology for revealing chemical fingerprints is of great and current interest [3]. Common approaches involve several steps, including extraction (soaking [6], Soxhlet [4], PLE [15,16]), clean up using SPE [17,18] followed by gas chromatography (GC) [19] or high performance liquid chromatography (HPLC) [3,13]. In this study, online solid phase extraction-liquid chromatography (SPE-LC) method was developed in obtaining comprehensive fingerprints for E. longifolia. Using online SPE-LC, sample clean-up and HPLC analysis were achieved simultaneously by column switching strategy, designed to increase throughput and provide sufficient resolving power [20]. Online SPE-LC provides rapid analyses for complex mixtures.
The chromatographic performance of the online SPE-LC system, including accuracy, precision and repeatability was estimated by analyzing eurycomanone, the major compound in E. longifolia. The attributes of the chromatographic fingerprint obtained using the developed online SPE-LC in quality control of E. longifolia was evaluated by chemometric approaches using 37 selected peaks. Cluster analysis (CA) and principal component analysis (PCA) are the most common chemometric methods used in quality evaluation of herbal fingerprints [21,22].

2. Results and Discussion

2.1. Optimization of Online SPE-LC Conditions

Reverse phase-high performance liquid chromatography (RP-HPLC) is a predominant technique for the separation of eurycomanone in E. longifolia [4] after clean up using SPE C18 [17]. In this study, the chromatographic fingerprint of E. longifolia root extract obtained by the online SPE-LC technique was developed using PSDVB as the SPE column and C18 as the separating column. Methanesulfonic acid (MSA) (95%) and ultrapure water (5%) were used as eluting solvent for SPE. Various gradient elution compositions of mobile phase comprising ultrapure water (A), methanol (B) and acetonitrile (C) were studied. A decrease in the composition of ultrapure water with an increase of ACN (70% A and 30% C) improved the separation of the compounds (Figure 1a,b). The quality of the chromatographic fingerprint was further improved by optimizing the column switching time, defined as the time set for elution of analytes from the SPE column. Column switching time will affect the removal of interferences from the matrix [23]. Optimizing column switching time is important at optimum HPLC gradient elution program in producing better separation of the analytes [24]. An increase in the number of separated compounds was observed with column switching between 12–18 min (Figure 1c).

2.2. Method Validation of Online SPE-LC

In order for an analytical method to be employed and regarded as reliable, method validation must be carried out. In this study, a standard solution of eurycomanone (50 µg∙mL−1) was used in the determination of accuracy and precision of the developed method. High recovery (90.6%) of eurycomanone was obtained and ten replicates of standard eurycomanone gave low percent RSD (3.7%). Analysis of six E. longifolia root extract showed good repeatability (2.5% RSD). Good reproducibility was supported by principal component analysis (PCA) of 37 selected compounds (based on peak areas) from the chromatographic fingerprint. Triplicate analysis of each E. longifolia root extract clustered close together while distinct separation between the six types of E. longifolia root samples were observed (Figure 2).
Linearity study was conducted using standard eurycomanone with concentration ranges from 5 to 50 µg∙mL−1. Linear relationship of the correlation coefficients (R2= 0.997) was obtained with linear regression equation y = 0.0476x + 1.5654. The limit of detection (LOD) and quantification (LOQ) were identified by injecting a series of reference standard of eurycomanone until the signal-to-noise (S/N) ratio was 3 and 10 for LOD and LOQ, respectively. LOD and LOQ of eurycomanone were 2.7 µg∙mL−1 and 9.1 µg∙mL−1, respectively.

2.3. Chromatographic Fingerprint of E. longifolia Root Samples

Chromatographic fingerprints of five E. longifolia root samples (Figure 3a) and five of its products (Figure 3b) were obtained using the developed online SPE-LC. Major quassinoids in the root of E. longifolia are eurycomanone and eurycomanol [25]. Eurycomanone, identified as the most representative quassinoid in E. longifolia root extracts [26] was eluted at retention time of 5.6 min. The chromatographic fingerprints obtained visibly showed similarities and differences among the E. longifolia roots and products.

2.4. Chemometric Methods

Fourteen E. longifolia roots samples (R1 to R14) from four states in Malaysia and 10 products (P1 to P10) from different manufacturers were chosen as representative samples. All samples were analyzed using an optimized sample preparation method under optimized online SPE-LC conditions. The obtained peak areas in the fingerprints were used as explanatory variables. Peak areas of 37 peaks selected based on reproducible retention times (RSD < 2.5%) and peak areas (RSD 5.0%) were utilized to establish pattern recognition in fingerprint analysis [21,27,28,29].

2.4.1. Cluster Analysis (CA)

CA was applied to the pattern recognition of 14 batches of E. longifolia roots and 10 of its products in order to classify 37 variables using between-groups linkages as amalgamation rule (similarities) and Euclidean distance metric (dissimilarities). The dendrogram (Figure 4) visibly showed that all samples were divided into three clusters. From the eight root samples in cluster 1, four (R8 to R11) were obtained from the same state. In addition, two root samples from the same state were clustered together in cluster 2. The results suggested that the obtained chromatographic fingerprints may be used as source determination. The clustering of products in the same group with the roots may suggest that they were from the same source. As the products are formulated using E. longifolia extract, the extraction solvent used may affect the fingerprint composition [3] and the cluster analysis.

2.4.2. Discriminant Analysis (DA)

The three clusters obtained from CA were considered as dependent variables (CI, CII, CIII) to DA. DA showed that each group differed from the others in terms of different compositions as the no confusion matrix occurs on the data set [30]. The results from standard, stepwise backward and stepwise forward modes gave 100% correct classification based on the confusion matrix of the estimation sample (Figure 5).
Stepwise discriminant analysis was performed as an explanatory analysis to determine the most significant variables among the parameters. In stepwise forward mode, variables were included one by one, beginning with the most significant until no significant changes were obtained, while in stepwise backward mode, variables were removed one by one beginning with the least significant until no significant changes were obtained.
Stepwise backward mode yielded 100% correctly with 19 discriminant variables (peaks) whereas stepwise forward mode rendered 100% with only one discriminant variable, with little difference in matching for each sample compared with the stepwise backward mode. Therefore, DA results suggested all 19 discriminant variables as significant in discriminating the quality of E. longifolia.

2.4.3. Principal Component Analysis (PCA)

PCA is a powerful tool to reduce the dimensions of multivariate data set. In the present study, the RPA of 37 selected peaks were treated as variables. The first two PCs (PC1 and PC2) were selected to provide the highest variation of data objects (31.60% and 7.57% of the variation) for convenient visualization and differentiation. Figure 6 showed that the E. longifolia roots and products were distinctively separated. The result suggested that roots and products have their own unique chemical compositions.

3. Experimental Section

3.1. Chemicals, Reagents and Materials

Eurycomanone reference compound was purchased from Chromadex (Irvine, CA, USA). Acetonitrile (ACN) and methanol (MeOH) of HPLC grade were purchased from Merck (Darmstadt, Germany). Methanesulfonic acid (MSA) was purchased from Merck Schuchardt (Hohenbrunn, Germany). Roots of E. longifolia from various sources were obtained from local suppliers. Products (capsules) containing of E. longifolia were purchased from various manufacturers (registered with National Pharmaceutical Control Bureau, Selangor, Malaysia).

3.2. Sample Preparation

Pressurized Liquid Extraction (PLE) was performed on a Dionex ASE 350 accelerated solvent extractor (Thermo Scientific Ltd. Camberly, Surrey, UK). Dried root of E. longifolia was weighed (2.0 g) and mixed with an equal amount of diatomaceous earth, then transferred to a 34 mL PLE stainless steel extraction cell. Extraction was carried out at 100°C and 1500 psi for 30 min [31]. E. longifolia product (1.1 g) was dissolved in 15 mL of hot water (~80°C) and filtered using filter paper prior to online SPE-LC analysis.

3.3. Online Solid Phase Extraction Liquid Chromatography (SPE-LC)

Online SPE-LC analysis was performed on a Dionex Ultimate 3000 Liquid Chromatography system equipped with degasser, quaternary delivery system, an auto-sampler, column oven and a diode array detector (DAD). Online SPE-LC was done using polystyrene divinyl benzene (PSDVB) column (5 µm, 4.6 mm × 50 mm), while all the chromatographic separation was carried out on a C18 column (5 µm, 4.6 mm × 250 mm). The column temperature was maintained at 37 °C in an oven and injection volume was 100 µL. Data acquisition was performed by Chromeleon software (Version 6.8, Dionex, Sunnyvale, CA, USA).
The method involved four major steps: sample loading, clean up, elution of extract and LC separation achieved using two pumps (left and right) operated simultaneously. The left pump controlled the first three steps while the right pump was applied for separation of analytes. Solvents delivered by left pump were 95% MSA and 5% ultrapure water, while those of the right pump were ultrapure water (A), methanol (B) and acetonitrile (C). Both pumps were operated simultaneously.

3.4. Data Analysis

The chemometric techniques of cluster analysis (CA), principal component analysis (PCA) and discriminant analysis (DA) were performed using XLSTAT Software (XLSTAT, 2015, Addinsoft, New York, NY, USA) for statistical analysis. For this purpose, 37 peaks were selected and peak areas were used as variables.

3.4.1. Principal Component Analysis

Principal component analysis (PCA) is one of the most popular methods used for data analysis. PCA compresses the size of data by simplifying, extracting and keeping only important information. PCA creates linear combinations of the original variables called the principal components, which describes the systematic patterns of variation between the samples. The PCs are orthogonal and the number of PCs is less than or equal to the number of original variables. The first principal component has the largest possible variance.

3.4.2. Cluster Analysis

Cluster analysis (CA) is an unsupervised pattern recognition technique that can be used instead of PCA or in combination of PCA. The cluster analysis using Ward’s linkage was chosen in this study as the algorithm showed the best results for chromatographic fingerprint data. CA helped to find hidden similarities or dissimilarities between samples.

3.4.3. Discriminant Analysis (DA)

DA is a supervised pattern recognition technique which is applied to construct a classifier model from a data matrix and known class information. For an acceptable model, a high percentage of correct classification should be obtained.

4. Conclusions

A fast, reliable and comprehensive chromatographic fingerprint of E. longifolia root was obtained using an online SPE-LC method after extraction using PLE. Optimization of the mobile phase compositions and column switching time produced chromatographic fingerprint with good precision, accuracy and reproducibility. E. longifolia root samples and products from various sources were analyzed using the developed online SPE-LC. Chemometric analysis was applied on E. longifolia for uncovering the relationship between variables. CA helped to uncover the similarities among the roots and products forming three clusters. DA confirmed the results of CA and showed that 100% correct assignation with 19 discriminant features to discriminate the E. longifolia roots and products. The results of PCA differentiated between root samples and products. This study suggested that chromatographic fingerprint of E. longifolia obtained using online SPE-LC was able to provide a comprehensive chemical profile which would result in their different efficacies, thus could be a promising approach for quality control application. Further analyses for the identification of marker compounds of E. longifolia are being conducted to provide a fast, reliable and cost effective method suitable for authentication of E. longifolia products.

Acknowledgments

The authors would like to acknowledge the financial support obtained from Ministry of Higher Education (MOHE), Malaysia for this project (Project number: 600-RMI/FRGS 5/3 (48/2014) and Universiti Teknologi MARA.

Author Contributions

Nor Nasriah Zaini performed the experiments, analyzed the data and wrote the paper. Rozita Osman and Norashikin Saim guided the experimental work and revised the writing of paper. Hafizan Juahir assisted in the chemometric analysis.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
SPE-LC
Solid phase extraction-liquid extraction
PLE
Pressurised liquid extraction
PSDVB
Polystyrene divinyl benzene
CA
Cluster analysis
PCA
Principal component analysis
DA
Discriminant analysis
WHO
World Health Organisation
FDA
Federal Drug Administration
GC
Gas chromatography
MSA
Methanesulfonic acid
ACN
Acetonitrile
RP-HPLC
Reverse phase-high performance liquid chromatography
LOD
Limit of detection
LOQ
Limit of quantification
S/N
Signal to noise
RSD
Relative standard deviation
RPA
Relative peak area

References

  1. Bhat, R.; Karim, A.A. Tongkat Ali (Eurycoma longifolia Jack): A review on its ethnobotany and pharmacological importance. Fitoterapia 2010, 81, 669–679. [Google Scholar] [CrossRef] [PubMed]
  2. Low, B.S.; Das, P.K.; Chan, K.L. Acute, reproductive toxicity and two-generation teratology studies of a standardized quassinoid-rich extract of Eurycoma longifolia Jack in Sprague-Dawley rats. Phytother. Res. 2014, 28, 1022–1029. [Google Scholar] [CrossRef] [PubMed]
  3. Locatelli, M.; Genovese, S.; Carlucci, G.; Kremer, D.; Randic, M. Development and application of high-performance liquid chromatography for the study of two new oxyprenylated anthraquinones produced by Rhamnus species. J. Chromatogr. A 2012, 1225, 113–120. [Google Scholar] [CrossRef] [PubMed]
  4. Khari, N.; Aisha, A.F.A.; Ismail, Z. Phase high performance liquid chromatography for the quantification of eurycomanone in Eurycoma longifolia Jack (Simaroubaceae) extracts and their commercial products. Tropical J. Pharm. Res. 2014, 13, 801–807. [Google Scholar] [CrossRef]
  5. Zanoli, P.; Zavatti, M.; Montanari, C.; Baraldi, M. Influence of Eurycoma longifolia on the copulatory activity of sexually sluggish and impotent male rats. J. Ethnopharmacol. 2009, 126, 308–313. [Google Scholar] [CrossRef] [PubMed]
  6. Mohamad, M.; Ali, M.W.; Ripin, A.; Ahmad, A. Effect of extraction process parameters on the yield of bioactive compounds from the roots of Eurycoma longifolia. J. Technol. (Sci. Eng.) 2013, 60, 51–57. [Google Scholar]
  7. Kotirum, S.; Ismail, S.B.; Chaiyakunapruk, N. Efficacy of Tongkat Ali (Eurycoma longifolia) on erectile function improvement: Systematic review and meta-analysis of randomized controlled trials. Complement. Ther. Med. 2015, 23, 693–698. [Google Scholar] [CrossRef] [PubMed]
  8. Han, Y.M.; Kim, I.S.; Rehman, S.U.; Choe, K.; Yoo, H.H. In vitro evaluation of the effects of Eurycoma longifolia extract on CYP-mediated drug metabolism. Evid.-Based Complement. Altern. Med. 2015. [Google Scholar] [CrossRef]
  9. Liang, Y.Z.; Xie, P.; Chan, K. Quality control of herbal medicines. J. Chromatogr. B 2004, 812, 53–70. [Google Scholar] [CrossRef]
  10. Alaerts, G.; Dejaegher, B.; Smeyers-Berbeke, J.; Vander-Heyden, Y. Recent developments in chromatographic fingerprints from herbal products: Set-up and data analysis. Comb. Chem. High Throughput Screen. 2010, 13, 900–922. [Google Scholar] [CrossRef] [PubMed]
  11. Tistaert, C.; Dejaegher, B.; Vander-Heyden, Y. Chromatographic separation techniques and data handling methods for herbal fingerprints: A review. Anal. Chim. Acta 2011, 690, 148–161. [Google Scholar] [CrossRef] [PubMed]
  12. Anonymous. Traditional Medicine Strategy 2002–2005. 2002. Available online: http://whqlibdoc.who.int/hq/2002/who_edm_trm_2002.1.pdf (accessed on 15 June 2015).
  13. Fan, X.; Cheng, Y.; Ye, Z.; Lin, R.; Qian, Z. Multiple chromatographic fingerprinting and its application to the quality control of herbal medicines. Anal. Chim. Acta 2006, 555, 217–224. [Google Scholar] [CrossRef]
  14. Mazina, J.; Vaher, M.; Kuhtinskaja, M.; Poryvkina, L.; Kaljurand, M. Fluorescence, electrophoretic and chromatographic fingerprints of herbal medicines and their comparative chemometric analysis. Talanta 2015, 139, 233–246. [Google Scholar] [CrossRef] [PubMed]
  15. Peres, V.F.; Saffi, J.; Melecchi, M.I.S.; Abad, F.C.; Martinez, M.M.; Oliveira, E.C.; Jacques, R.A.; Caramao, E.B. Optimization of pressurised liquid extraction of Piper gaudichaudianum Kunth leaves. J. Chromatogr. A 2006, 1105, 148–153. [Google Scholar] [CrossRef] [PubMed]
  16. Zaibunnisa, A.H.; Norashikin, S.; Mamot, S.; Osman, H. An experimental design approach for the extraction of volatile compounds from turmeric leaves (Curcuma domestica) using pressurised liquid extraction (PLE). LWT-Food Sci. Technol. 2009, 42, 233–238. [Google Scholar] [CrossRef]
  17. Liang, Z.; Li, K.; Wang, X.; Ke, Y.; Jin, Y. Combination of off-line two-dimensional hydrophilic interaction liquid chromatography for polar fraction and two-dimensional hydrophilic interaction liquid chromatography × reversed-phase liquid chromatography for medium-polar fraction in a traditional chinese medicine. J. Chromatogr. A 2012, 1224, 61–69. [Google Scholar] [PubMed]
  18. Genovese, S.; Epifano, F.; Carlucci, G.; Marcotullio, M.C.; Curini, M.; Locatelli, M. Quantification of 4′-geranyloxyferulic acid, a new natural colon cancer chemopreventive agent, by HPLC-DAD in grapefruit skin extract. J. Pharm. Biomed. Anal. 2010, 53, 212–214. [Google Scholar] [CrossRef] [PubMed]
  19. Gong, F.; Liang, Y.Z.; Xie, P.S.; Chau, F.T. Information theory applied to chromatographic fingerprint of herbal medicine for quality control. J. Chromatogr. A 2003, 1002, 25–40. [Google Scholar] [CrossRef]
  20. Homing, O.B.; Theodorsen, S.; Vorm, O.; Jensen, O.N. Solid phase extraction-liquid chromatography (SPE-LC) interface for automated peptide separation and identification by tandem mass spectrometry. Int. J. Mass Spectrom. 2007, 268, 147–157. [Google Scholar]
  21. Yudthavorasit, S.; Wongravee, K.; Leepipatpiboon, N. Characteristic fingerprint based on gingerol derivative analysis for discrimination of ginger (Zingiber officinale) according to geographical origin using HPLC-DAD combined with chemometrics. Food Chem. 2014, 158, 101–111. [Google Scholar]
  22. Kong, W.J.; Zhao, Y.L.; Xiao, X.H.; Jin, C.; Li, Z.L. Quantitative and chemical fingerprint analysis for quality control of Rhizoma Coptidischinensis based on UPLC-PAD combined with chemometrics methods. Phytomedicine 2009, 16, 950–959. [Google Scholar] [CrossRef] [PubMed]
  23. Ramos, C.F.; Satinsky, D.; Solich, P. New method for the determination of carbamate and pyrethroid insecticides in water samples using on-line SPE fused core column chromatography. Talanta 2014, 129, 579–585. [Google Scholar] [CrossRef] [PubMed]
  24. Kuklenyik, Z.; Ye, X.; Reich, J.A.; Needham, L.L.; Calafat, A.M. Automated offline and online solid phase extraction methods for measuring isoflavones and lignans in urine. J. Chromatogr. Sci. 2004, 42, 495–500. [Google Scholar] [CrossRef] [PubMed]
  25. Hajjouli, S.; Chateauvieux, S.; Teiten, M.H.; Orlikova, B.; Schumacher, M.; Dicato, M.; Choo, C.Y.; Diederich, M. Eurycomanone and eurycomanol from Eurycoma longifolia Jack as regulators of signaling pathways involved in proliferation, cell death and inflammation. Molecules 2014, 19, 14649–14666. [Google Scholar] [CrossRef] [PubMed]
  26. Han, Y.M.; Woo, S.U.; Choi, M.S.; Park, Y.N.; Kim, S.H.; Yim, H.; Yoo, H.H. Antiinflammatory and analgesic effects of Eurycoma longifolia extracts. Arch. Pharm. Res. 2016, 39, 421–428. [Google Scholar] [CrossRef] [PubMed]
  27. Chen, Y.; Zhu, S.B.; Xie, M.Y.; Nie, S.P.; Liu, W.; Li, C.; Gong, X.F.; Wang, Y.X. Quality control and original discrimination of Ganoderma lucidum based on high-performance liquid chromatographic fingerprints and combined chemometrics methods. Anal. Chim. Acta 2008, 623, 146–156. [Google Scholar] [CrossRef] [PubMed]
  28. Tian, R.T.; Xie, P.S.; Liu, H.P. Evaluation of traditional Chinese herbal medicine: Chaihu (Bupleuri Radix) by both high-performance liquid chromatographic and high-performance thin-layer chromatographic fingerprint and chemometric analysis. J. Chromatogr. A 2009, 1216, 2150–2155. [Google Scholar] [CrossRef] [PubMed]
  29. Liu, A.H.; Lin, Y.H.; Yang, M.; Guo, H.; Guan, S.H.; Sun, J.H.; Guo, D.A. Development of the fingerprints for the quality of the roots of Salvia miltiorrhiza and its related preparations by HPLC-DAD and LC-MS. J. Chromatogr. B 2007, 846, 32–41. [Google Scholar] [CrossRef] [PubMed]
  30. Al-Odaini, N.A.; Zakaria, M.P.; Zali, M.A.; Juahir, H.; Yaziz, M.I.; Surif, S. Application of chemometrics in understanding the spatial distribution of human pharmaceuticals in surface water. Environ. Monit. Assess. 2012, 184, 6735–6748. [Google Scholar] [CrossRef] [PubMed]
  31. Osman, R.; Saim, N.; Saaid, M.; Zaini, N.N. An experimental design approach for the extraction of eurycomanone from Tongkat Ali (Eurycoma longifolia) roots using pressurised liquid extraction (PLE). Malays. J. Anal. Sci. 2016, 20, 342–350. [Google Scholar]
  • Sample Available: Samples of the compounds are available from the authors.

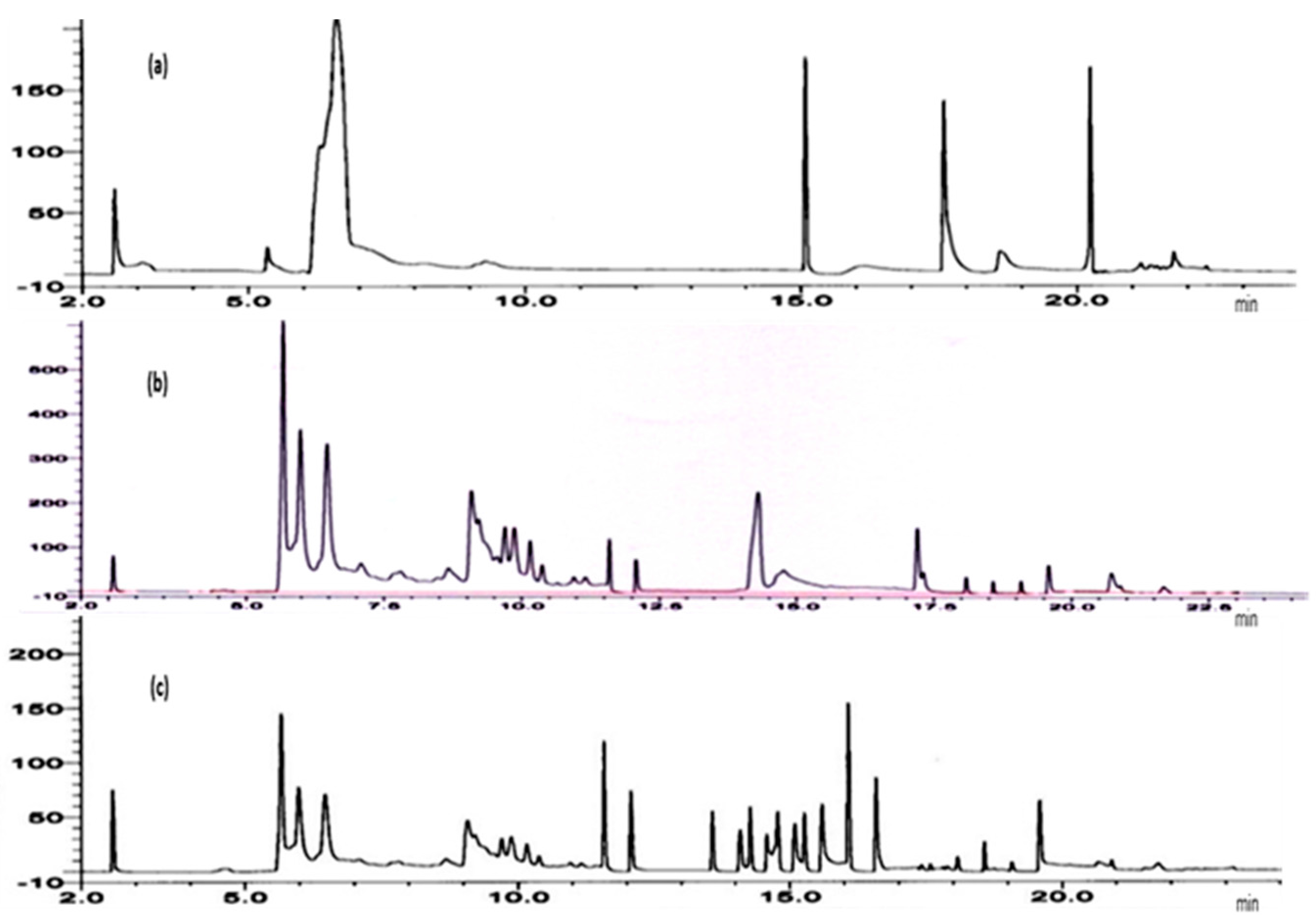

Figure 1. Chromatographic fingerprints of E. longifolia roots. (a) 0–6.0 min: 80% A:20% C; 6.0–16.0 min: 50% A:50% B; 16.0–25.0 min; 70% B:30% C; (b) 0–5.7 min: 70% A:30% C ; 5.7–8.5 min gradient elution to 30% A:70% C; 8.5–16.0 min: gradient elution 30% A:70% B to 60% A:40% B; 16.0–19.0 min: gradient elution 50% B:50% C to 10% B:90% C; 19.0–25.0 min; isocratic 10% B:90% C; (c) conditions same as (b) with column switching between 12–18 min.
Figure 1. Chromatographic fingerprints of E. longifolia roots. (a) 0–6.0 min: 80% A:20% C; 6.0–16.0 min: 50% A:50% B; 16.0–25.0 min; 70% B:30% C; (b) 0–5.7 min: 70% A:30% C ; 5.7–8.5 min gradient elution to 30% A:70% C; 8.5–16.0 min: gradient elution 30% A:70% B to 60% A:40% B; 16.0–19.0 min: gradient elution 50% B:50% C to 10% B:90% C; 19.0–25.0 min; isocratic 10% B:90% C; (c) conditions same as (b) with column switching between 12–18 min.
Molecules 21 00583 g001
Figure 2. PCA plot on triplicate analysis of E. longifolia roots samples.
Figure 2. PCA plot on triplicate analysis of E. longifolia roots samples.
Molecules 21 00583 g002
Figure 3. Chromatographic fingerprints of E. longifolia (a) roots (b) products.
Figure 3. Chromatographic fingerprints of E. longifolia (a) roots (b) products.
Molecules 21 00583 g003

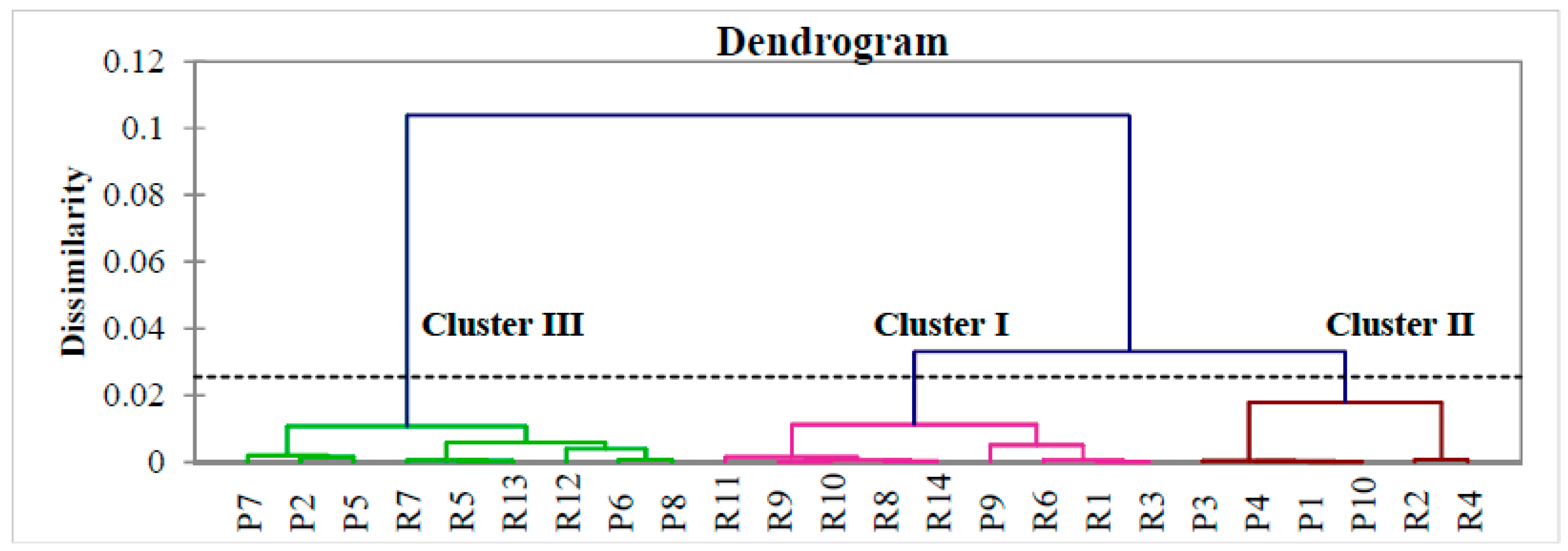

Figure 4. Dendrogram of E. longifolia roots and products.
Figure 4. Dendrogram of E. longifolia roots and products.
Molecules 21 00583 g004

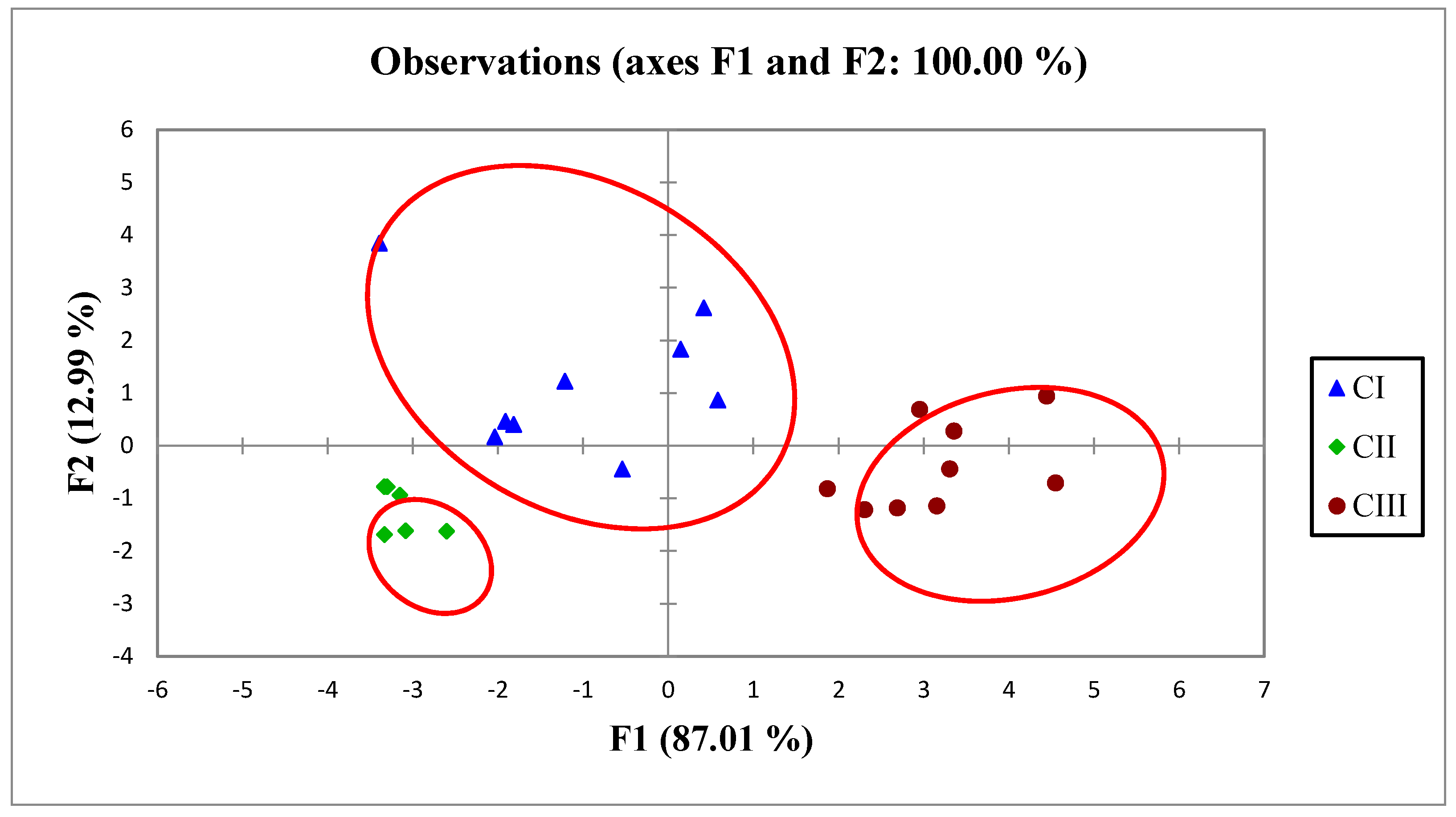

Figure 5. Discriminant analysis of the sampling groups.
Figure 5. Discriminant analysis of the sampling groups.
Molecules 21 00583 g005

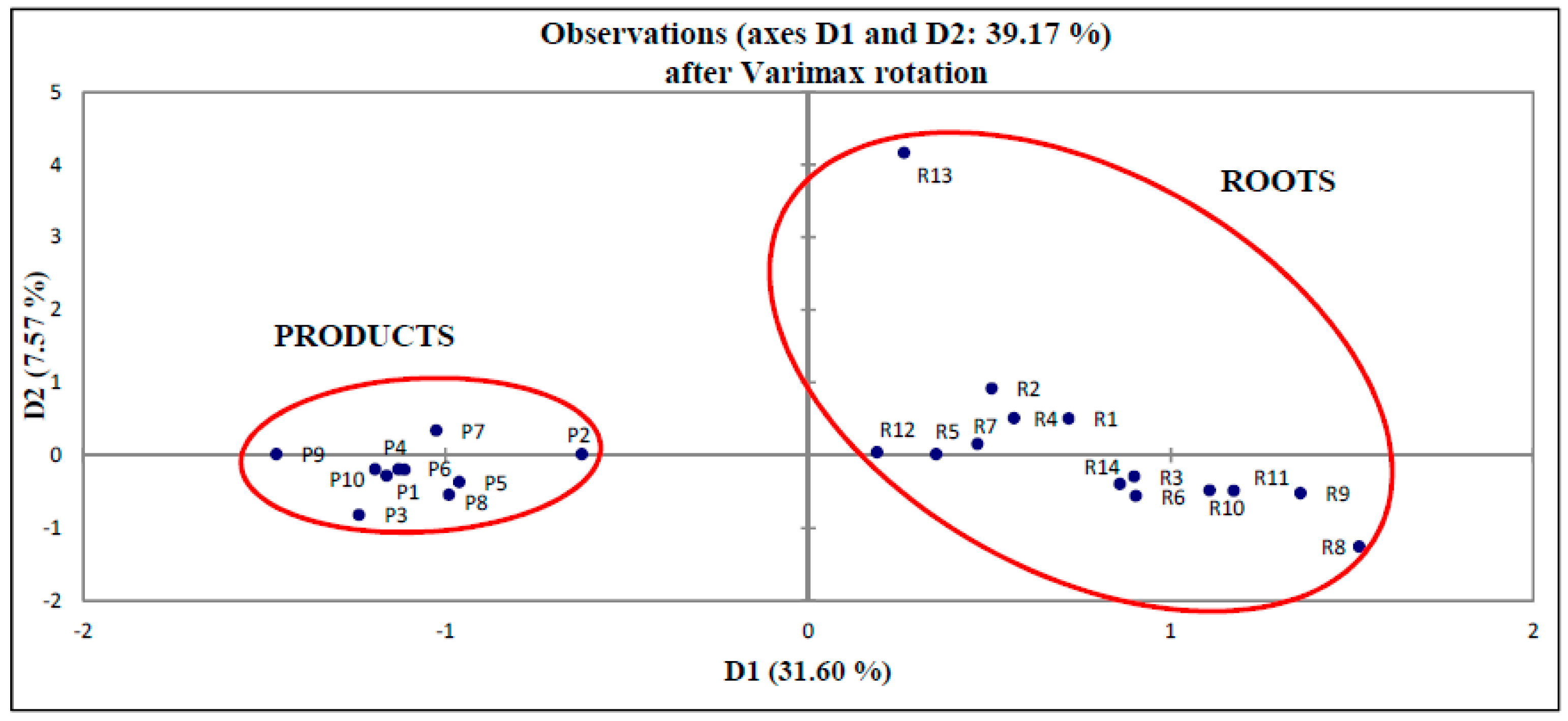

Figure 6. PCA plot of E. longifolia.
Figure 6. PCA plot of E. longifolia.
Molecules 21 00583 g006
