Article

A Structural Study of Epoxidized Natural Rubber (ENR-50) and Its Cyclic Dithiocarbonate Derivative Using NMR Spectroscopy Techniques

by
Rosniza Hamzah
1,
Mohamad Abu Bakar
1,*,
Melati Khairuddean
1,
Issam Ahmed Mohammed
2 and
Rohana Adnan
1
1
Nanoscience Research Laboratory, School of Chemical Sciences, Universiti Sains Malaysia, Penang 11800, Malaysia
2
School of Industrial Technology, Universiti Sains Malaysia, Penang 11800, Malaysia
*
Author to whom correspondence should be addressed.
Molecules 2012, 17(9), 10974-10993; https://doi.org/10.3390/molecules170910974
Submission received: 17 August 2012 / Revised: 3 September 2012 / Accepted: 3 September 2012 / Published: 12 September 2012
Browse Figures
Versions Notes

Abstract

:
A structural study of epoxidized natural rubber (ENR-50) and its cyclic dithiocarbonate derivative was carried out using NMR spectroscopy techniques. The overlapping 1H-NMR signals of ENR-50 at δ 1.56, 1.68–1.70, 2.06, 2.15–2.17 ppm were successfully assigned. In this work, the 13C-NMR chemical shift assignments of ENR-50 were consistent to the previously reported work. A cyclic dithiocarbonate derivative of ENR-50 was synthesized from the reaction of purified ENR-50 with carbon disulfide (CS2), in the presence of 4-dimethylaminopyridine (DMAP) as catalyst at reflux temperature. The cyclic dithiocarbonate formation involved the epoxide ring opening of the ENR-50. This was followed by insertion of the C–S moiety of CS2 at the oxygen attached to the quaternary carbon and methine carbon of epoxidized isoprene unit, respectively. The bands due to the C=S and C–O were clearly observed in the FTIR spectrum while the 1H-NMR spectrum of the derivative revealed the peak attributed to the methylene protons had split. The 13C-NMR spectrum of the derivative further indicates two new carbon peaks arising from the >C=S and quaternary carbon of cyclic dithiocarbonate. All other 1H- and 13C-NMR chemical shifts of the derivative remain unchanged with respect to the ENR-50.

1. Introduction

Epoxidized natural rubber (ENR) is a modified natural rubber (NR) [1]. A typical formation of ENR from NR, cis-1,4-isoprene, employing peracetic acid is shown in Scheme 1a [2]. The isoprene (C) and epoxidized isoprene (E) act as monomer units that are randomly distributed along the polymer chain [1]. Various degree of epoxidation of NR is commercially available. For examples, the isoprene units in the polymer chain are 25%, 50% and 75% epoxidized in ENR-25, ENR-50 and ENR-75, respectively. For the purpose of nomenclature, the general structure and the numbering of carbon atoms in ENR-50 is shown in Scheme 1b.
Molecules 17 10974 g010 550
Scheme 1. (a) Modification of NR to ENR [2] and (b) the general structure and the numbering of carbon atom in ENR-50 employed in this work.
Scheme 1. (a) Modification of NR to ENR [2] and (b) the general structure and the numbering of carbon atom in ENR-50 employed in this work.
Molecules 17 10974 g010
NMR spectroscopy techniques are widely used to characterize various polymers either in liquid or solid state. Characterization using 1D NMR gives structural elucidation on reactive groups and monomer units in the polymer chain. However, the 2D NMR extents detail structural arrangements of the monomer units within the polymer chain. Either or both of these techniques have been applied to ENR-25 [3], ENR-50 [4,5,6,7,8,9], and ENR-75 [6], and other ENR-related compounds [10]. However, most of these works fall short of full structural assignments due to the overlapping of signals arising from the randomly distributed C and E monomer units [11,12].
The random arrangement of C and E units within the ENR chains give rise to several probable sequences. This inevitably makes the structural interpretation via the NMR techniques difficult. To overcome this, Bradbury and Perera [12] have established a procedure of grouping the randomly located monomer units into triad sequence. A triad is made up of three possible monomer units. All possible triad sequences of ENR-50 are shown in Figure 1.
In a triad, the neighboring units may dictate the 1H and 13C environments of the middle unit. It is the middle unit that will reveal the triad structure. For example, an ENR chain fragment may comprise of C unit attached to an E unit which in turn is attached to another E unit. Thus, this triad sequence is denoted as CEE. Triad comprising of similar unit is only denoted by a single unit. Triad CCC is denoted as C and triad EEE is denoted as E. The methyl of the middle unit in the CEE and CCC triads are referred to as CE10E and C5, respectively, and the methylene carbon of C3 refers to the third carbon in the ENR-50 structure as shown in Scheme 1b. This also applies to the proton in the ENR-50 structure.

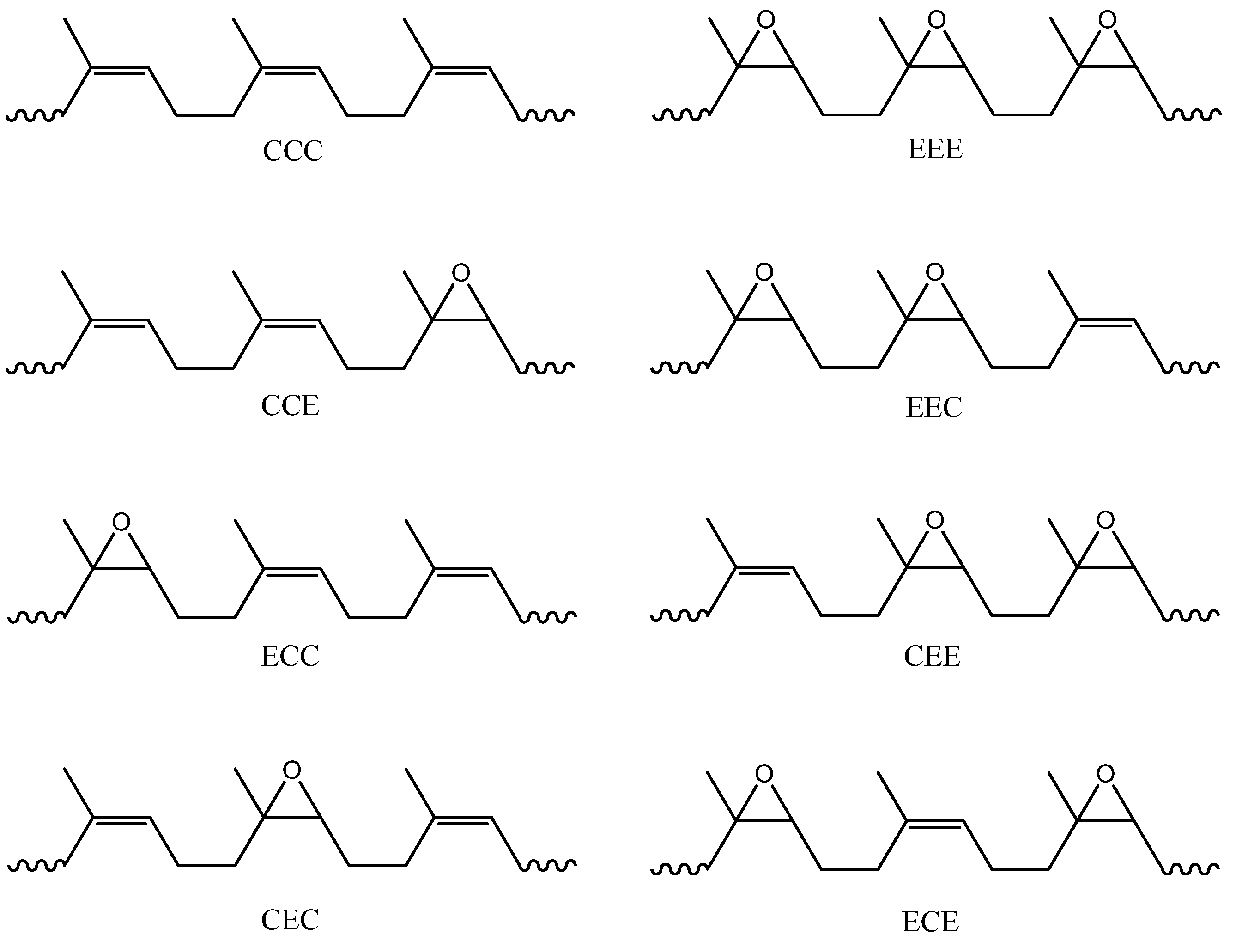

Molecules 17 10974 g001 550
Figure 1. The possible triad sequence of ENR-50.
Figure 1. The possible triad sequence of ENR-50.
Molecules 17 10974 g001
Thus prior to the advent of the triad sequence, previous workers [6,7,8,9,12,13] were only able to ascertain the assignments of 1H-NMR chemical shifts of the methine proton of C and E units but sporadically to either the methyl and or methylene protons of C and E of the ENR. Saito et al. [11] have reported the use of computer simulation [14,15] to predict chemical shifts of these protons and their triad assignments.
Gelling [2], on the other hand, has assigned the triad sequence based on 13C-NMR chemical shifts for ENR-20. However, the assignment deals with certain triad sequences such as CEE, CEC, C, EEC, and ECE and the position of carbon represented by the triad sequences was found to be inconsistent. Consequently, Saito et al. [11] have successfully interpreted the 13C-NMR spectra for the ENR related compounds and assigned their triad sequence as shown in Table 1, columns 2 and 4.
The increasing interests in the science and technology of ENR in various fields such as polymer blends [16], polymer modifications [17], polymer composites [18] and advanced green materials [19,20,21] makes it inevitable to understand the detail structure of ENR. This fundamental study is important to enable comprehensive structural characterization of the desired materials. Here we attempted a complete assignment of the commercial ENR-50 using the 1D and 2D NMR spectroscopy techniques. Our work differs from other reported works [11,22,23] in term of the degree of epoxidation and physical form of rubber. The ENR used is a low molecular weight fraction of ENR-50 obtained by solvent separation [19]. In this work, the results reported by Saito et al. [11] were used for comparison purposes. Apart from the above, this work also reported the structural elucidation of cyclic dithiocarbonate derivative of ENR-50 obtained from the reaction between purified ENR-50 with neat carbon disulfide, CS2 [24]. The reaction is shown in Scheme 2. A complete 1H- and 13C-NMR chemical shifts assignments of the cyclic dithiocarbonate derivative of ENR-50 is given and the probable mechanism of formation was discussed.
Table
Table 1. 1H, 13C-NMR chemical shifts and HMQC, HMBC and COSY spin coupling correlations of purified ENR-50.
Table 1. 1H, 13C-NMR chemical shifts and HMQC, HMBC and COSY spin coupling correlations of purified ENR-50.
1H chemical shift δ (ppm)13C chemical shiftδ (ppm)HMQCHMBC Coupling correlationCOSY Coupling correlation
Ref: 14–15Ref: 11This workRef: 11This workTriad assignmentMiddle unitWithin same unitMiddle unitWithin same unit
δ (ppm)δ (ppm)δ (ppm)δ (ppm)
1.311.291.3022.122.3E1029.7 (E8), 60.7 (E6), 64.5 (E7)NoneNoneNone
1.381.551.56 29.529.7EE8C, E822.3 (E10), 60.7 (E6), 64.5 (E7)24.7 (E9), 64.5 (E7)None1.68–1.70 (E9)
33.033.1CE8C, CE8E22.3 (E10), 60.7 (E6), 64.5 (E7)23.9 (C4), 125.0 (C2)None2.15–2.19 (C4)
26.927.0CE9C, EE9C60.7 (E6), 64.5 (E7)28.7 (C3), 134.7 (C1)2.72 (E7)2.15–2.19 (C3)
1.421.681.68–1.7023.323.4C532.0 (C3), 125.0 (C2), 134.7 (C1)NoneNoneNone
1.38 24.624.7CE9E, E960.7 (E6), 64.5 (E7)29.7 (E8), 60.7 (E6)2.72 (E7)1.56 (E8)
2.002.052.0626.226.3C4, EC4C125.0 (C2), 134.7 (C1)32.0 (C3), 134.7 (C1)5.12–5.17 (C2)2.06 (C3)
32.032.0C3, CC3E23.4 (C5), 125.0 (C2), 134.7 (C1)26.3 (C4), 125.0 (C2)None2.06 (C4)
1.962.152.15-2.1923.723.9CC4E, EC4E125.0 (C2), 134.7 (C1)33.1 (E8), 60.7 (E6)5.12–5.17 (C2)1.56 (E8)
28.528.7EC3C, EC3E23.4 (C5), 125.0 (C2), 134.7 (C1)27.0 (E9), 64.5 (E7)None1.56 (E9)
---60.360.7E6----
2.512.702.7264.064.5E722.3 (E10), 24.7 (E9), 29.7 (E8), 60.7 (E6)29.7 (E8), (None)1.68-1.70 (E9)None
5.205.105.12–5.17125.0125.0C223.4 (C5), 26.3 (C4), 32.0 (C3), 134.7 (C1) (NOT DETECTED)32.0 (C3)2.06 (C4) None
---135.0134.7C1----

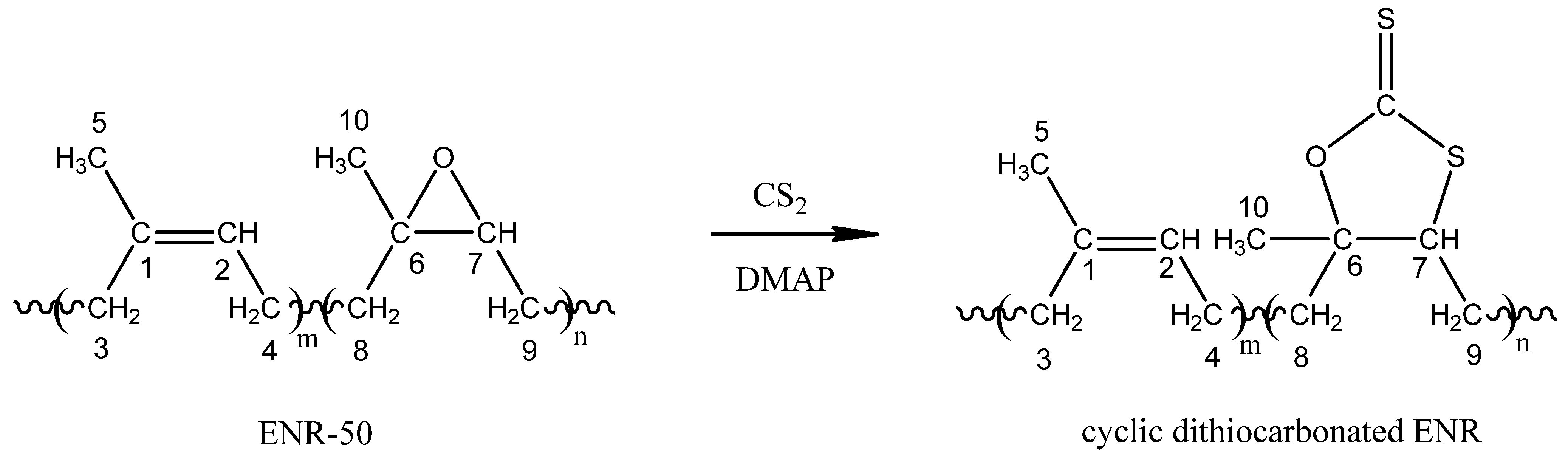

Molecules 17 10974 g011 550
Scheme 2. Reaction of purified ENR-50 with carbon disulfide catalyzed by 4-dimethylaminopyridine (DMAP).
Scheme 2. Reaction of purified ENR-50 with carbon disulfide catalyzed by 4-dimethylaminopyridine (DMAP).
Molecules 17 10974 g011

2. Results and Discussion

2.1. Epoxidized Natural Rubber

2.1.1. 1H- and 13C-NMR Spectroscopy
The 1H- and 13C-NMR spectra of purified ENR-50 are shown in Figure 2 and the respective chemical shifts are tabulated in Table 1. The respective observed chemical shifts were generally similar to those reported in previous works [11,14,15]. From Figure 2a, the 1H-NMR chemical shift at δ 1.30 ppm is assigned to the methyl protons of E10, at δ 2.72 ppm to the methine proton of E7 and at δ 5.12–5.17 ppm to the methine proton of C2. However, the chemical shift at δ 1.56 ppm overlapped with those at δ 1.68–1.70 ppm while the chemical shift at δ 2.15–2.19 ppm overlapped with those at δ 2.06 ppm. These overlapping signals may be due to the methylene protons of the ENR-50 chain. To confirm, a J-resolved spectroscopy (JRES) [25,26] experiment was conducted to specifically investigate the overlapping signals at δ 1.68–1.70 ppm region. Figure 3 shows the enlarged JRES spectra of δ 1.20–1.80 ppm region. The methyl of E10 is represented as a single contour at δ 1.30 ppm. The overlapping methylene signal in JRES was represented by a double contour located at δ 1.68 and 1.70 ppm, with coupling constant of 11 Hz. The multiple methylene protons signal is due to the different attachment modes of the epoxide to the isoprene which collectively form pairs of the enantiomers, stereoisomers and diastereoisomers that give rise to separate the resonances in the NMR spectrum [12].
The 13C-NMR spectrum of purified ENR-50 is shown in Figure 2b. The signals within δ 23.9 to 33.1 ppm represent the doublets of methylene carbons of C3, C4, E8 and E9. The methylene carbons of C4 and E9 are vicinal to the respective methine carbons of C2 and E7. While the methylene carbons of C3 and E8 are vicinal to the respective quaternary carbons of C1 and E6. The methine carbons of C2 and E7 has greater electron density than the quaternary carbons of C1 and E6 and therefore are more shielded causing the methylene carbons of C4 and E9 to be located in the upfield region compared to the methylene carbons of C3 and E8.

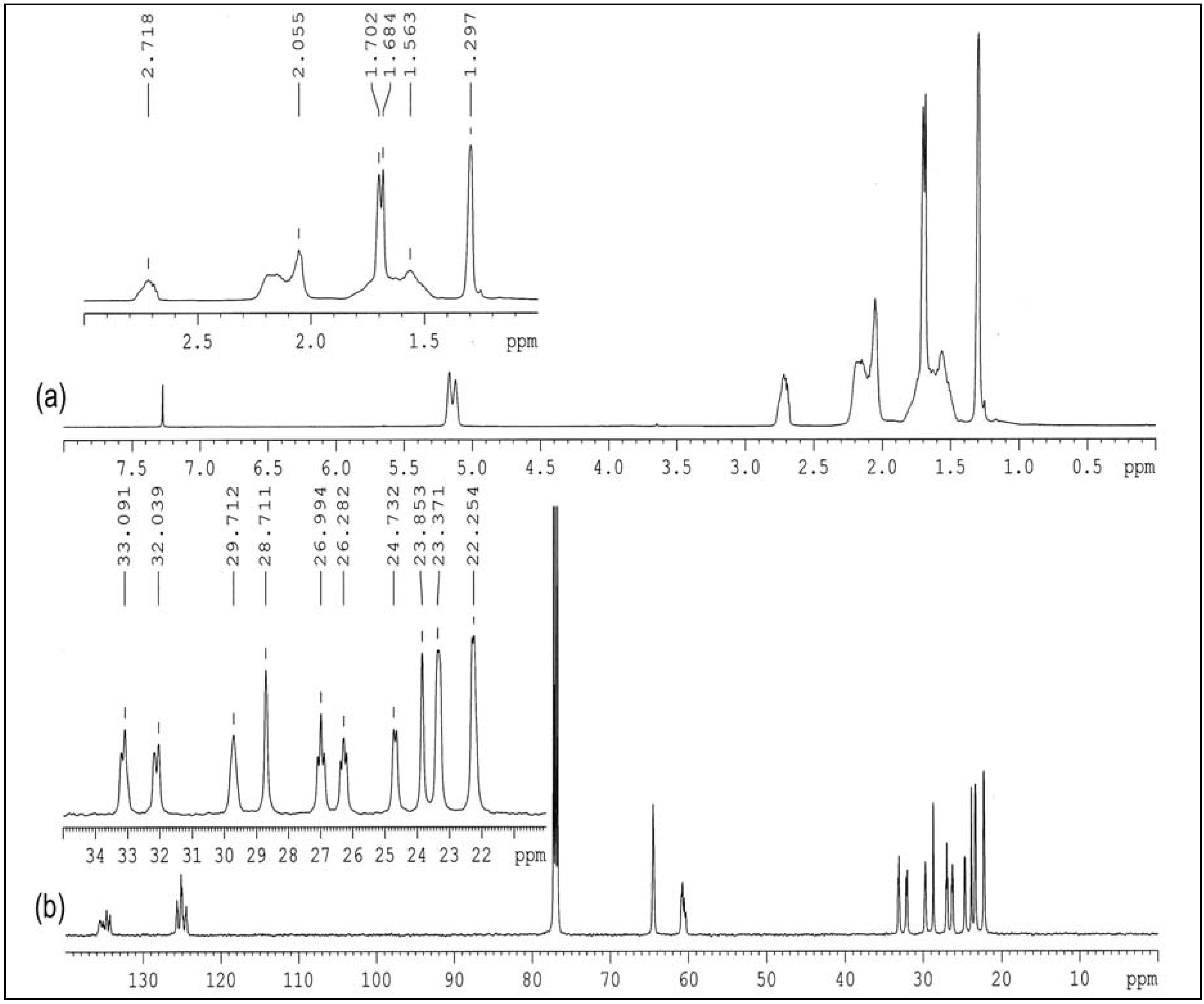

Molecules 17 10974 g002 550
Figure 2. (a) 1H and (b) 13C-NMR spectra of purified ENR-50 (in CDCl3).
Figure 2. (a) 1H and (b) 13C-NMR spectra of purified ENR-50 (in CDCl3).
Molecules 17 10974 g002

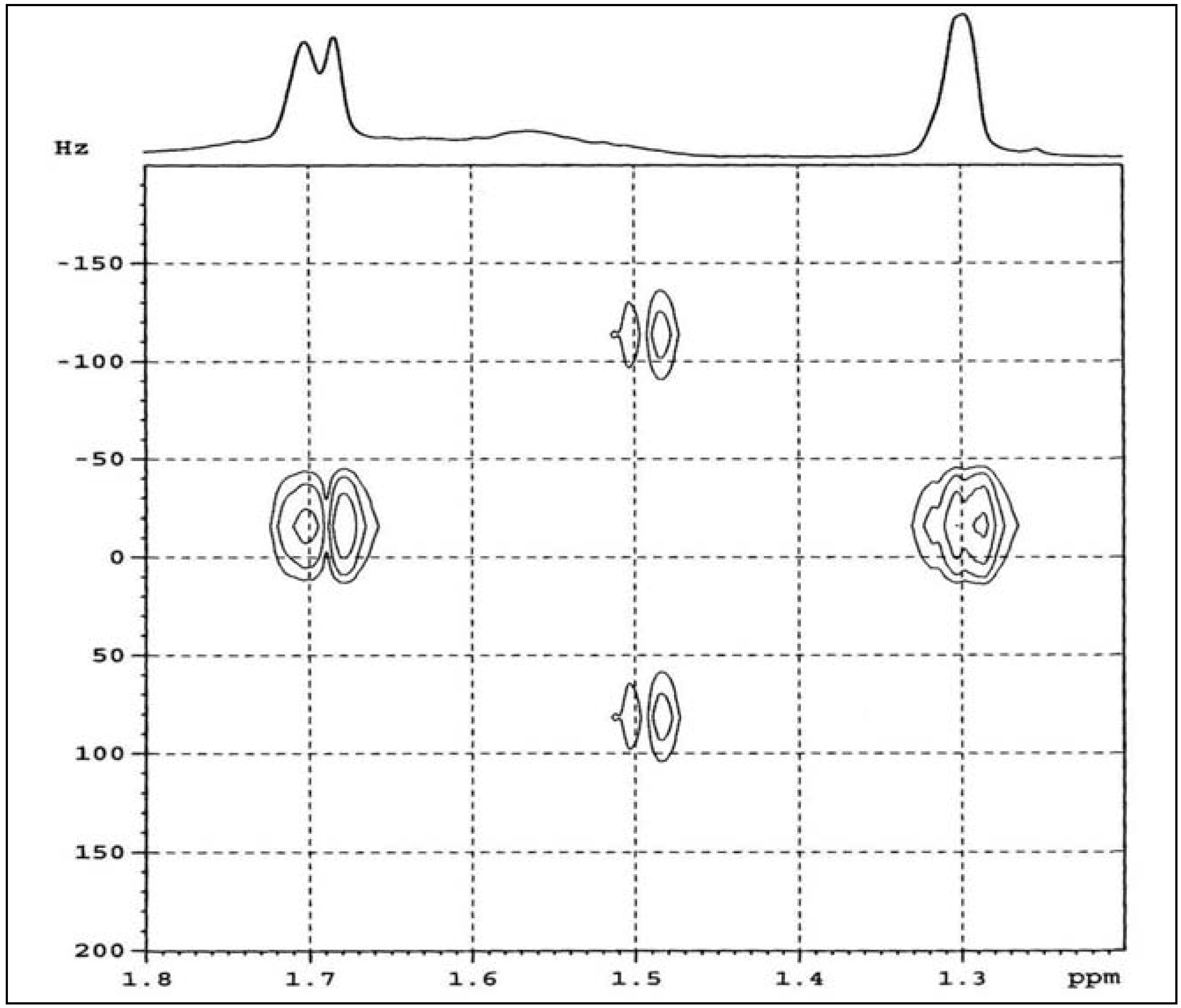

Molecules 17 10974 g003 550
Figure 3. JRES spectra of purified ENR-50 (in CDCl3).
Figure 3. JRES spectra of purified ENR-50 (in CDCl3).
Molecules 17 10974 g003
The 13C-NMR chemical shifts of the methylene carbons of C4 and E9 are also dependent on their vicinal neighboring units (i.e., to the right (R)- or left (L)-hand side) in the triad. If E unit is on the R side of either C4 or E9, the chemical shift is more shielded and upfield than those with neighboring C unit on the same R side. Thus the chemical shifts of CC4E, EC4E, CE9E and E9 triads will be upfield compared to C4, EC4C, CE9C and EE9C triads. Similarly, when E is on the L side of C3 and E8 unit in the triad sequence, the chemical shifts of EC3C, EC3E, EE8C and E8 triads will be upfield compared to C when it is on the L side of C3 and E8 as in C3, CC3E, CE8C and CE8E triads. In the case of C1, C2, C5, E6, E7 and E10 triads, the 13C-NMR chemical shifts of the E series are located in the upfield region while of the C series are located in the downfield region. This is due to the double bond in the latter causes deshielding.

2.1.2. HMQC

Figure 4 shows the HMQC spectra of purified ENR-50 and the identified triad assignments are tabulated in Table 1 (6th column). HMQC correlates the chemical shift of proton(s) directly bonded to carbon. The 1H-NMR chemical shift depends on the type of carbon it is attached to. The σ bond formed between the carbon and a proton produce shielding effect [27]. Thus depending on the number of C-H bond, protons attached to the primary carbon is shifted more upfield compared to the secondary and tertiary carbons.

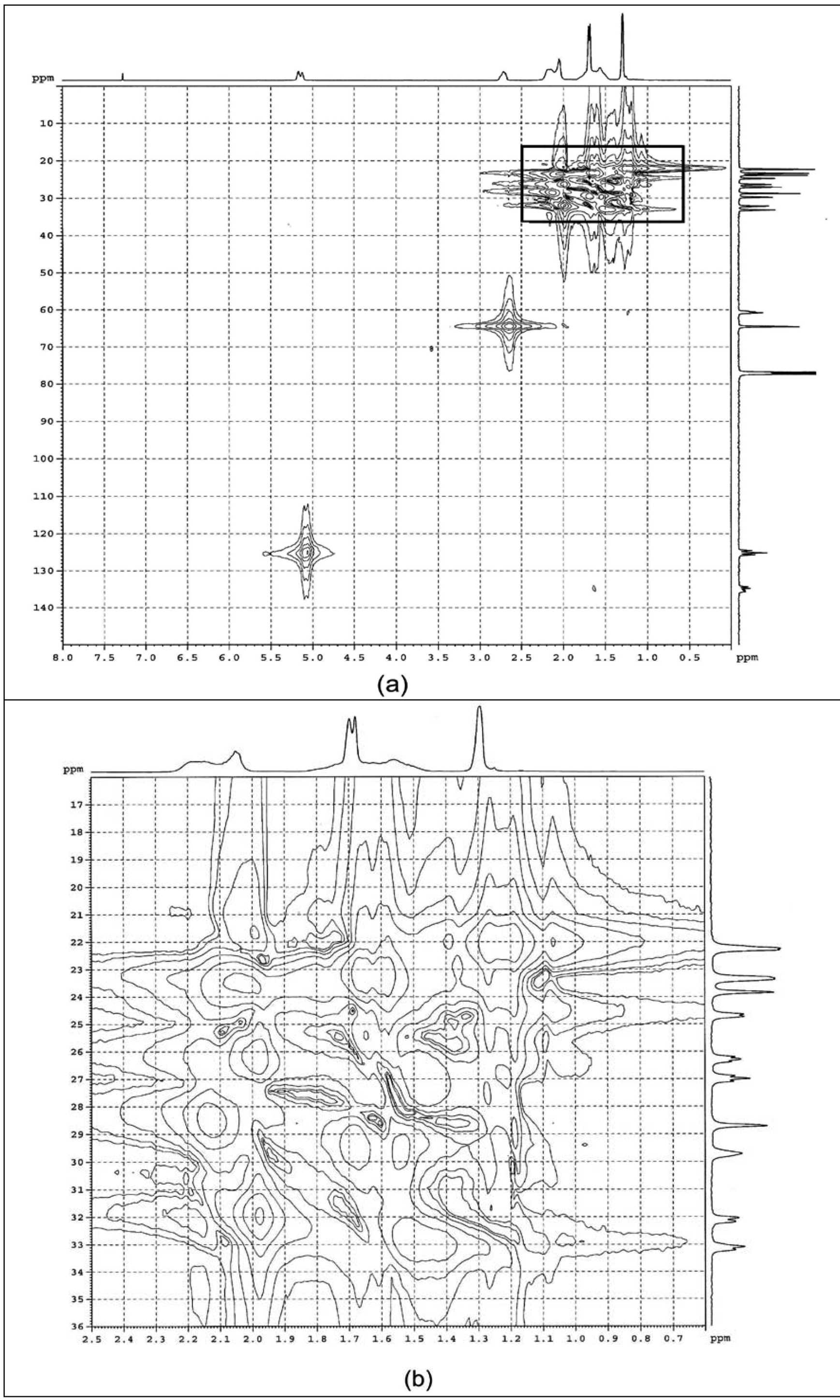

Molecules 17 10974 g004 550
Figure 4. HMQC spectra of (a) purified ENR-50 and (b) enlargement of the boxed region in (a).
Figure 4. HMQC spectra of (a) purified ENR-50 and (b) enlargement of the boxed region in (a).
Molecules 17 10974 g004
The correlations of the methyls of E10 and C5 are located upfield than the methylenes of C3, C4, E8, E9 and methines of C2 and E7. The correlations arising from the methyls of E10 and C5 also depend on the types of vicinal quartenary carbon, i.e., the epoxide (E6) or the double bond (C1). The methyl of E10 is vicinal to the quartenary carbon of E6 while the methyl of C5 is vicinal to quartenary carbon of C1. Thus the methyl of E10 is located upfield than that of methyl of C5. Similarly, the correlations of methines of E7 and C2 are influenced by the proximity of the epoxide or the double bond. The methine of E7 is shielded by electron density of epoxide while the methine of C2 is deshielded by the double bond. The methine of E7 is therefore more upfield than the methine of C2. In the case of methines of E7 and C2, their correlations are located downfield relative to the methylenes of C3, C4, E8 and E9. The deshielding effects of the double bond caused the correlations of methylenes of C3 and C4 to be located downfield than the respective methylenes of E8 and E9. Therefore C3 is also downfield than E8 while, C4 is downfield than E9.
For the EC3C and EC3E triads, these correlations are located downfield than CC4E and EC4E in the 13C-NMR spectrum. However, in the 1H-NMR spectrum, both appeared as overlapped peak. This is because the correlations of C3 and C4 superimpose those of CC3E and EC4C triads. Thus it can be similarly argued that the correlations of the triads CE8C and CE8E occur downfield than CE9C, and EE9C in the 13C-NMR spectrum while in the 1H-NMR spectrum, those of EE8C and CE9E superimpose those of E8 and E9.

2.1.3. HMBC

The HMQC results were further scrutinized using HMBC analysis. The HMBC correlation spectra of purified ENR-50 are shown in Figure 5. The 1H-13C signals correlations are tabulated in Table 1 (7th and 8th column). The overlapping proton signals at δ 1.56, 1.68–1.70, 2.06 and 2.15–2.19 ppm were individually assigned through coupling correlations. The coupling correlation between neighboring units classifies and arranges the methylene carbons in the correct triad sequence thus confirmed the previous HMQC assignments. The methyls of E10 and C5, and methines of E7 and C2 were affirmatively assigned based on the deduced correlations and consistent with the previous study [11].

2.1.4. COSY

The COSY of purified ENR-50 is shown in Figure 6 and was conducted to evaluate the representations of 1H-NMR signals at δ 1.56, 1.68–1.70, 2.06 and 2.15–2.19 ppm. The spin coupling correlations of the signals and the assigned triad sequences are as tabulated in column 9th and 10th in Table 1.
The signal at δ 1.56 ppm correlates with the signals at δ 2.72, 2.15–2.19 and 1.68–1.70 ppm. The signal of E7 methine proton at δ 2.72 ppm correlates to the methylene protons of the middle unit of the triad sequences of CE9C and EE9C. The signal representing the methylene protons of CC4E and EC4E as well as EC3C and EC3E at δ 2.15–2.19 ppm correlates to the methylene protons of isoprene CE8C, CE8E, CE9C and EE9C. While the signal assigned to the methyl protons of C5, methylene protons of CE9E and E9 at δ 1.68–1.70 ppm correlates to methylene protons of the epoxidized isoprene of EE8C and E8. The methyl proton of E10 at δ 1.30 ppm does not show any correlation as it is attached to the quartenary carbon, E6.
The signal that represents the methylene protons of the middle unit of C4 and EC4C as well as C3 and CC3E at δ 2.06 ppm correlates with the signals at δ 2.06 and 5.12–5.17 ppm. All these methylene protons are correlated to the methylene protons of isoprene with the same unit of triad at δ 2.06 ppm. However, for the triads C4 and EC4C, the correlation is to the methine proton of isoprene C2 at δ 5.12–5.17 ppm.
The methylene protons of CC4E and EC4E at δ 2.15–2.19 ppm were correlated with the signals at δ 5.12–5.17 and 1.56 ppm. These are due to the methine proton of C2 (δ 5.12–5.17 ppm) and the neighbouring methylene protons of epoxidized isoprene (δ 1.56 ppm) within the same unit. The methylene protons of EC3C and EC3E at δ 2.15–2.19 ppm are also correlated to the neighbouring methylene protons of epoxidized isoprene (δ 1.56 ppm) within the same unit of triad sequence.
Based on the COSY of purified ENR-50, the signal at δ 1.56 ppm represents the methylene protons of CE9C, EE9C, E8, EE8C, CE8C and CE8E. The signal at δ 1.68–1.70 ppm represents the methyl protons of C5 and the methylene protons of CE9E and E9. The signal at δ 2.06 ppm arises from the methylene protons of C4, EC4C, C3 and CC3E, while the signal at δ 2.15–2.19 ppm represents the methylene protons of CC4E, EC4E, EC3C and EC3E. These conformed to the HMQC results above.

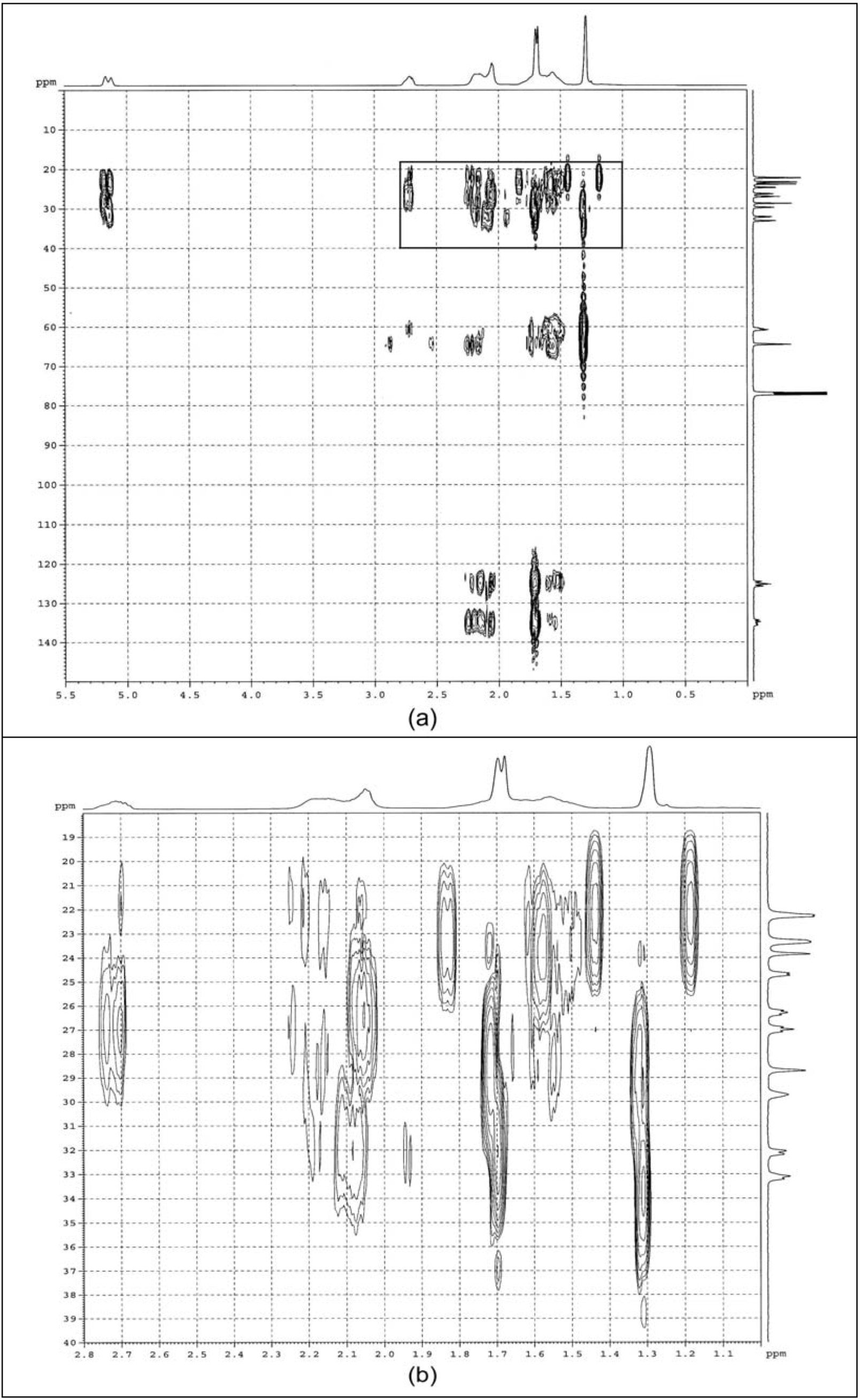

Molecules 17 10974 g005 550
Figure 5. HMBC spectra of (a) purified ENR-50 and (b) enlargement of the boxed region in (a).
Figure 5. HMBC spectra of (a) purified ENR-50 and (b) enlargement of the boxed region in (a).
Molecules 17 10974 g005
Molecules 17 10974 g006 550
Figure 6. COSY spectra of purified ENR-50.
Figure 6. COSY spectra of purified ENR-50.
Molecules 17 10974 g006

2.2. Cyclic Dithiocarbonate Derivative of ENR-50

The reaction of CS2 with purified ENR-50 afforded the five-membered ring dithiocarbonate derivative of ENR-50 as shown in Scheme 2. The formation of cyclic dithiocarbonate is generally a Diels-Alder type of reaction [24]. In this work, a very dilute solution of purified ENR-50 was used with the aim to stretch the random coil conformation of ENR-50 polymer chains in order to expose the reactive epoxidized isoprene unit using dimethylaminopyridine (DMAP) as the catalyst. The C–S moiety of CS2 is inserted into the epoxidized isoprene of the ENR-50. The reaction probably occurs via the SN2 mechanism that involved the epoxide ring opening.

2.2.1. FTIR Spectroscopy

Comparison of the FTIR spectrum of purified ENR-50 (Figure 7a) with the FTIR spectrum of the reaction product (Figure 7b) revealed two new bands at 1096 and 1060 cm−1 that are assigned to C=S and C-O functionalities, respectively [28,29]. The latter (υC-O) is located at lower wavenumber than the υC-O-C for cyclic ether at 1150–1070 cm−1. The weak C-S stretching vibration in the range of 700–590 cm−1 indicates bonding between sulfur from CS2 and the carbon E7 [29]. The band attributed to the epoxide is shifted to higher wavenumber compared to purified ENR-50, i.e., from 875 to 892 cm−1. Other typical bands of C=C and C–H are also slightly shifted to a low wavenumber region. This is probably due to the intermittent presence of cyclic dithiocarbonate within the ENR-50 chains.

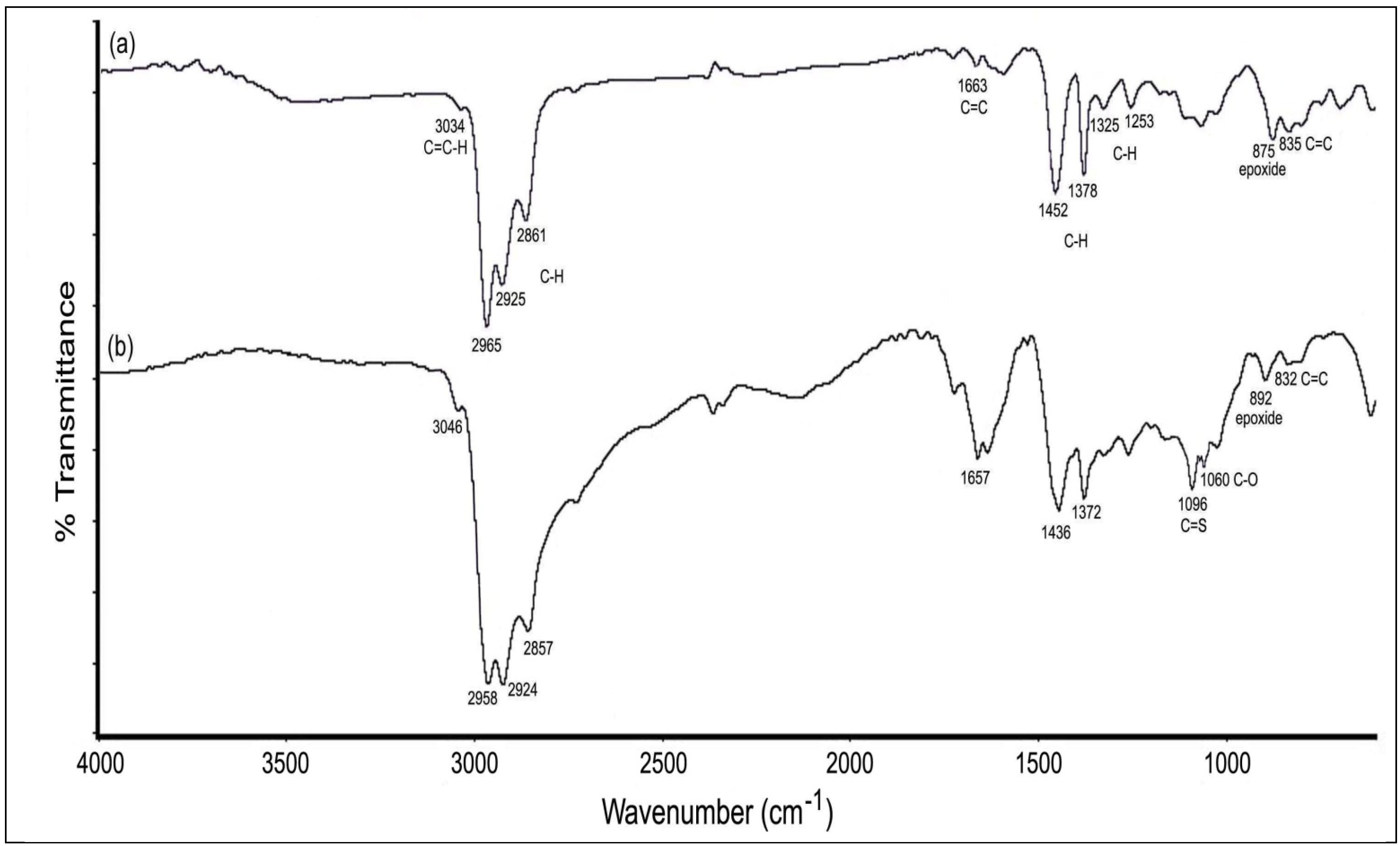

Molecules 17 10974 g007 550
Figure 7. FTIR spectra of (a) purified ENR-50 and (b) cyclic dithiocarbonate derivative of ENR-50.
Figure 7. FTIR spectra of (a) purified ENR-50 and (b) cyclic dithiocarbonate derivative of ENR-50.
Molecules 17 10974 g007
Comparison of the spectra of Figure 7a,b also indicates that there is a reduction in the epoxide band intensity after the reaction. The extent of dithiocarbonation reaction was estimated using semi-quantitative FTIR approach. This was based on the band area of the methyl, C=S and the epoxide functionalities before and after dithiocarbonation reaction. The band due to methyl at 1378–1372 cm−1 was used as the internal standard in this work [8]. Based on the FTIR approach, the percentage of epoxidation in the purified ENR-50 is ~50.7%. It was also found that after the dithiocarbonation reaction, 47.9% of the epoxide has reacted with CS2 while 52.1% were unreacted.

2.2.2. 1H and 13C-NMR Spectroscopy

The 1H and 13C-NMR spectra of cyclic dithiocarbonate derivative of ENR-50 are shown in Figure 8. The chemical shifts of the cyclic dithiocarbonate derivative of ENR-50 as well as the triad and carbon assignments are given in Table 2. From Figure 8a, with the exception for the splitting of peak at δ 1.58–1.63 ppm, the 1H-NMR spectrum shows almost similar features compared to purified ENR-50 (Figure 2a). As discussed earlier, the split peak above represents the methylene protons of EE8C, E8, CE8C, CE8E, CE9C and EE9C triads. The formation of cyclic five-membered dithiocarbonate within the ENR chain involves the E6 and E7 carbons as illustrated in Scheme 2. This, in turn, has affected the environment of E8 and E9 carbons. Therefore the split peaks observed at δ 1.58–1.63 ppm may be attributed to the methylene protons attached to the five-membered (cylic dithiocarbonate) and three-membered (oxirane) rings, respectively. The methylene protons attached to the five-membered ring are slightly downfield at δ 1.63 ppm compared to those attached to the three-membered ring (at δ 1.58 ppm).

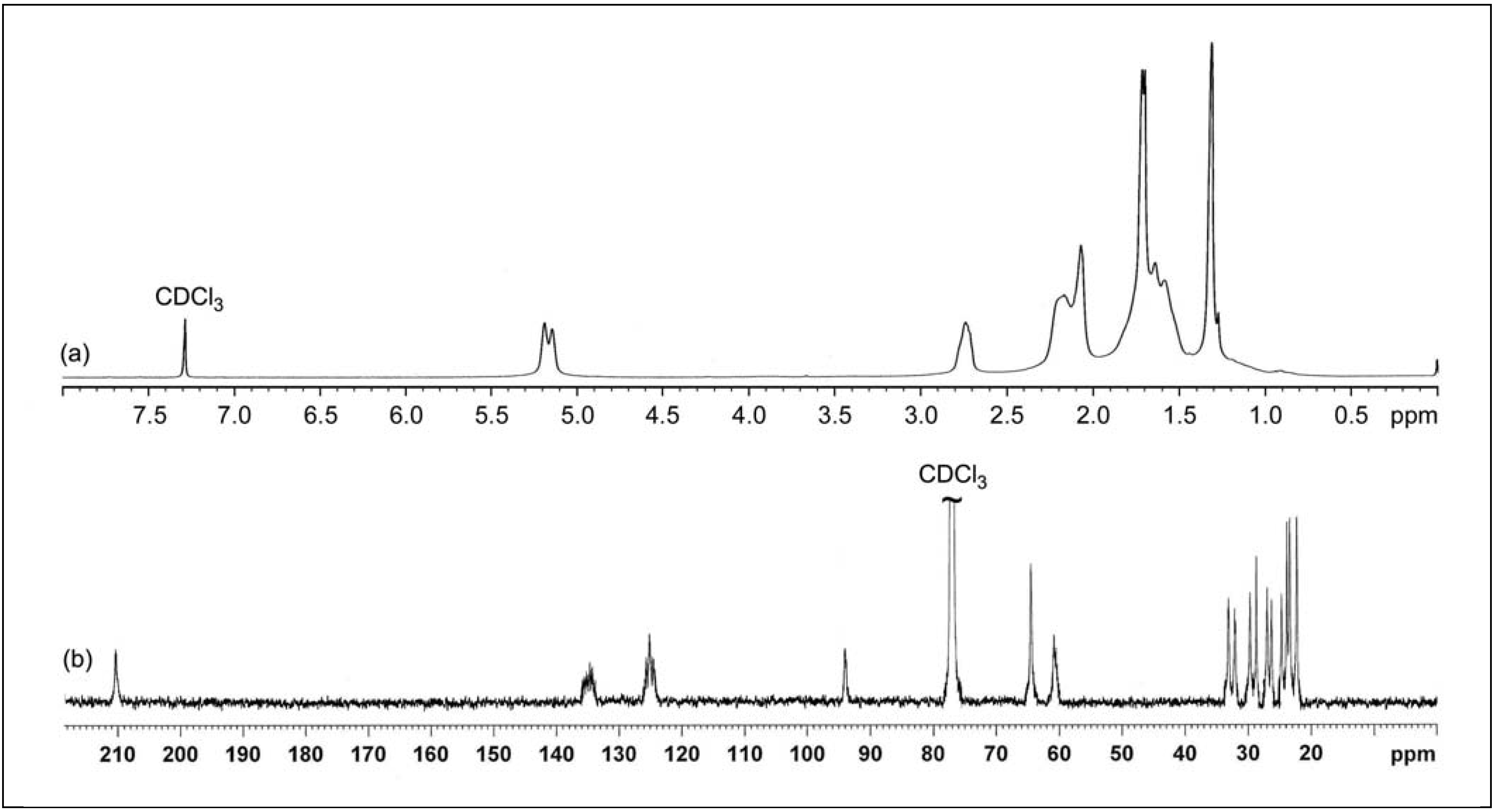

Molecules 17 10974 g008 550
Figure 8. (a) 1H and (b) 13C-NMR spectra of cyclic dithiocarbonate derivative of ENR-50 (in CDCl3).
Figure 8. (a) 1H and (b) 13C-NMR spectra of cyclic dithiocarbonate derivative of ENR-50 (in CDCl3).
Molecules 17 10974 g008
Table
Table 2. 1H and 13C-NMR chemical shifts and triad assignments for purified ENR-50 and its cyclic dithiocarbonate derivative.
Table 2. 1H and 13C-NMR chemical shifts and triad assignments for purified ENR-50 and its cyclic dithiocarbonate derivative.
Chemical shift δ (ppm)Triad assignment
1H13C
ENR-50 *Cyclic dithiocarbonate derivativeENR-50 *Cyclic dithiocarbonate derivative
1.301.3122.322.4E10
1.561.58–1.6329.729.8EE8C, E8
33.133.1CE8C, CE8E
27.027.0CE9C, EE9C
1.68–1.701.70–1.7123.423.5C5
24.724.8CE9E, E9
2.062.0826.326.4C4, EC4C
32.032.2C3, CC3E
2.15–2.192.12–2.1923.924.0CC4E, EC4E
28.728.7EC3C, EC3E
--60.761.0E6
2.722.7364.564.8E7, E7of five-membered ring
---94.0E6 of five-membered ring
5.12–5.175.15–5.19125.0125.1C2
--134.7134.9C1
---210.5CS2 carbon of five-membered ring
* from Table 1.
These methylene protons shows equal proton integrals compared to purified ENR-50. This is confirmed by the previous FTIR results where, approximately 1:1 ratio of reacted and unreacted epoxide is observed after the dithiocarbonation reaction. The formation of cyclic dithiocarbonate within the ENR chain however, does not produce any new peaks or change in the chemical shifts. Therefore it is expected that the ENR-50 polymer chains conformation was maintained upon dithiocarbonation.
The formation of cyclic dithiocarbonate also gives two new 13C-NMR peaks at δ 210.5 and 94.0 ppm, respectively [24]. The peak at δ 210.5 ppm represents the carbon of >C=S of the five-membered ring and is located at the most downfield region as this carbon is simultaneously bonded to the electronegative oxygen and sulfur. The carbon E6 of the five-membered ring is located slightly downfield at δ 94.0 ppm because it is vicinally bonded to the carbon of >C=S. The chemical shift for carbon E7 of the five-membered ring and the carbons of E6 and E7 of the three-membered ring (oxirane) however, remains unchanged, i.e., similar to the purified ENR-50. The main difference between the cyclic dithiocarbonated ENR reported in this work and the previously reported cyclic carbonated NR [30] is the position of S atom in the former is replaced by O atom in the latter. This gives rise to the different chemical shifts due to the different in electronegativity of S and O atoms. In the cyclic carbonated NR, the 13C-NMR chemical shift of quartenary carbon of >C=O is at δ 151.0 pm, the tertiary carbon of >C(H)–O– is at δ 75.0 ppm, and the quartenary carbon of ≡C–O– is at δ 74.0 ppm, respectively [30].
The 13C-NMR quantitative analysis was carried out to evaluate the epoxidation level in the purified ENR-50 as well as its cyclic dithiocarbonate derivative. The epoxidation level in purified ENR-50 was found to be ~51.4%. In the cyclic dithiocarbonate derivative, 52.0% of the epoxide ring is unreacted while 48.0% has reacted with CS2. These results are consistent with the FTIR results discussed previously.
Figure 9 shows the various DEPT spectra for cyclic dithiocarbonate derivative of ENR-50. In DEPT-135, the signals of the methylene carbons are shown downward (negative) while the methyl and methine carbons are shown as the upward peaks (positive) [31]. The spectrum for DEPT-90 shows only the methine carbons [31]. However, spectrum for DEPT-45 shows the upward peaks for methyl, methylene and methine carbons. The peak at δ 64.8 ppm appears as upward signal in DEPT-135, DEPT-90 and DEPT-45 proved its assignment as a methine carbon for E7 of the three-membered ring (oxirane) as well as carbon E7 of the five-membered ring. DEPT quartenary only shows quartenary carbon as upward peak in the spectrum. The real signals of the quartenary carbons in this spectrum are at δ 60.1, 94.0, 134.9 and 210.5 ppm. While the rest of the peaks in this spectrum are not reliable because the signal to noise ratio is less than 5 and those peaks are proven previously as methyl, methylene and methine in DEPT-135, -90 and -45 except for the CDCl3 peak which appear at 77.0 ppm. Thus the peaks at δ 94.0 ppm and 210.5 ppm are assigned for E6 and CS2 carbon of five-membered ring, respectively.

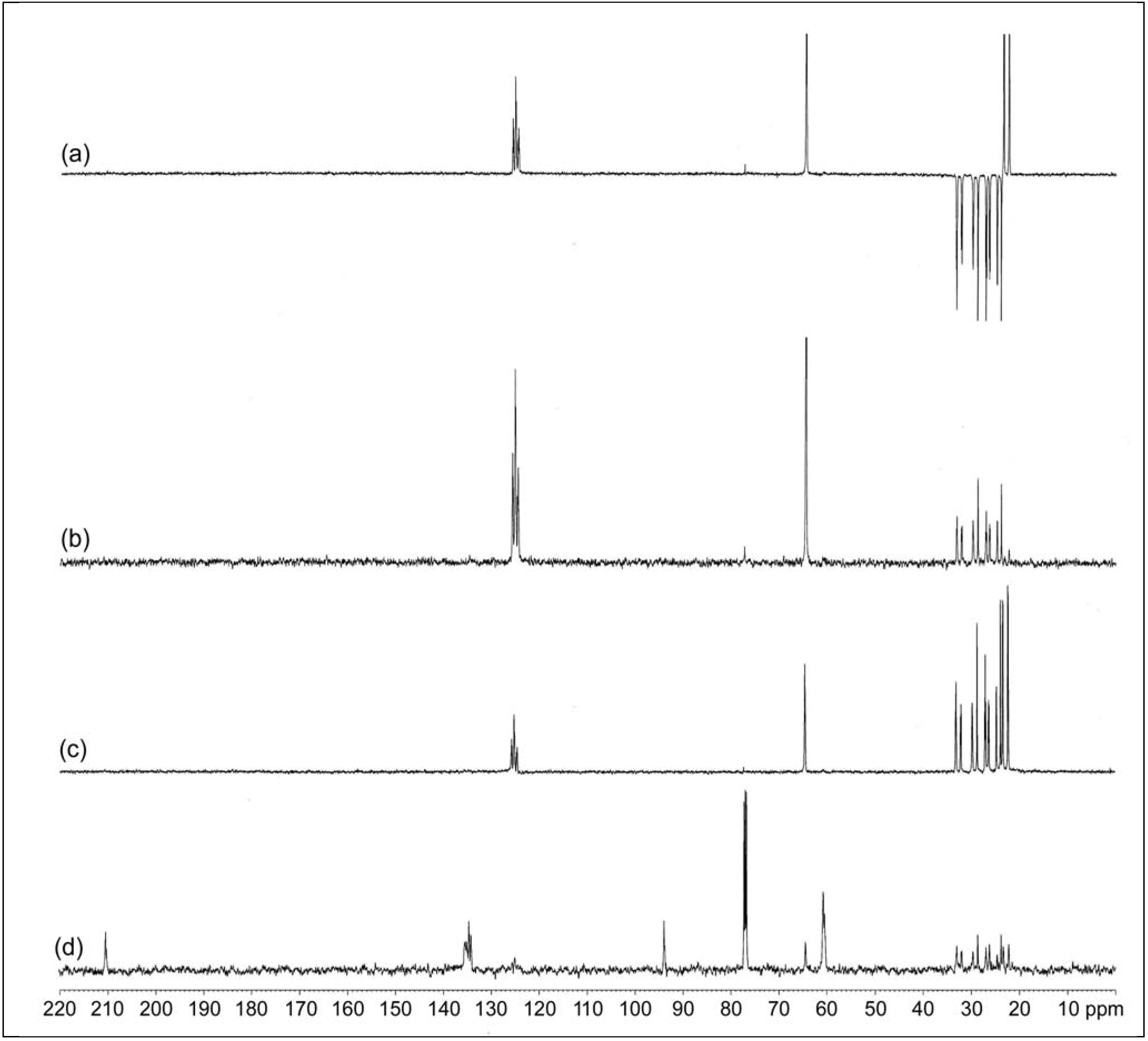

Molecules 17 10974 g009 550
Figure 9. (a) DEPT-135; (b) DEPT-90; (c) DEPT-45 and (d) DEPT quartenary spectra of cyclic dithiocarbonate derivative of ENR-50 (in CDCl3).
Figure 9. (a) DEPT-135; (b) DEPT-90; (c) DEPT-45 and (d) DEPT quartenary spectra of cyclic dithiocarbonate derivative of ENR-50 (in CDCl3).
Molecules 17 10974 g009

2.2.3. Proposed Mechanism for the Formation of Cyclic Dithiocarbonate

A proposed mechanism for the formation of cyclic dithiocarbonate from the reaction of ENR-50 with CS2 is shown in Scheme 3. DMAP catalyst is well known as a strong nucleophile. The lone pair electrons of DMAP attack the carbon of CS2 and form a [S2C-DMAP] complex. The complex provides the condition for overall reaction to proceed via a SN2 mechanism [32]. In this condition, the sulfur-centered nucleophile attacks the less substituted and less sterically hindered carbon E7 and ring opened the oxirane. The bond between oxygen and carbon E7 is severed and produced oxygen-centered nucleophile. This nucleophile attacks the CS carbon of [ENR-S(S)C-DMAP] intermediate with simultaneous detachment of a DMAP molecule and therefore affecting a ring closure via formation of O–C bond. The ring closure constitutes formation of cyclic dithiocarbonate derivative of ENR-50.

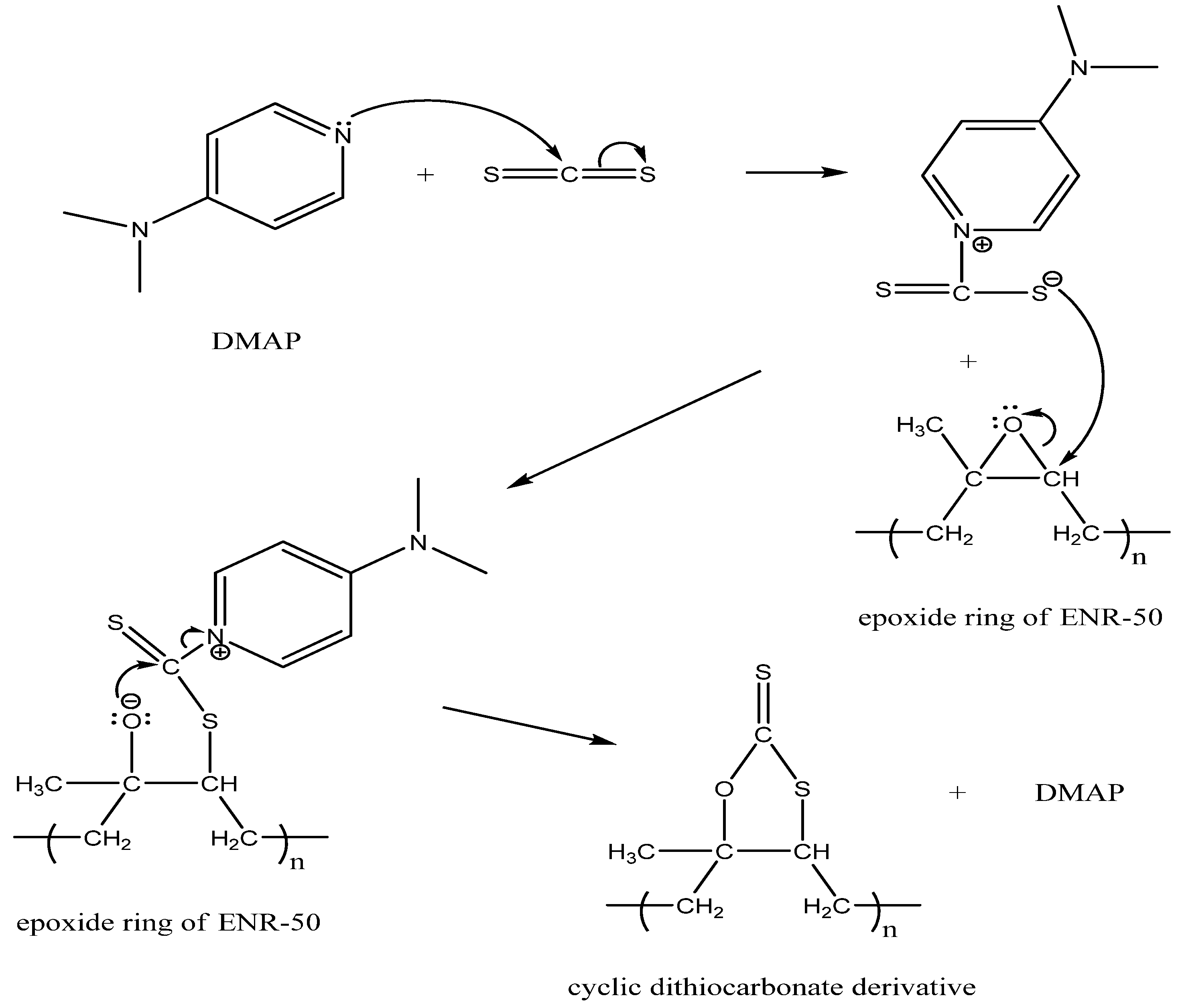

Molecules 17 10974 g012 550
Scheme 3. Proposed mechanism for the formation of cyclic dithiocarbonate derivative of ENR-50 via oxirane ring opening.
Scheme 3. Proposed mechanism for the formation of cyclic dithiocarbonate derivative of ENR-50 via oxirane ring opening.
Molecules 17 10974 g012

3. Experimental

3.1. Materials

Carbon disulfide 99.7%, CS2 (BDH Chemicals, Poole, UK), 4-dimethylaminopyridine 98%, DMAP and deuterated chloroform, CDCl3 (Fluka Chemicals, Buchs, Switzerland) and n-hexane (Systerm, Selangor, Malaysia) were all obtained commercially and used without further purification unless otherwise stated. Epoxidized natural rubber with 50% epoxidation (ENR-50) was purchased from the Rubber Research Institute (Kuala Lumpur, Malaysia).

3.2. Preparative Procedure

3.2.1. Purification of ENR-50 [19]

ENR-50 (about 20.00 g) was swelled in chloroform (400 mL) and stirred for 24 h at room temperature. The solution was then filtered through cotton gauze to separate the gel (high molecular ENR-50) from the extract (low molecular weight ENR-50). The later was precipitated in n-hexane and stirred using a glass rod. The white precipitate stuck to the glass rod was transferred to a Petri dish and was dried in a vacuum oven at 50 °C for two days. Mass of purified ENR-50 sample was recorded daily until a constant weight was achieved.

3.2.2. Reaction of Purified ENR-50 with CS2 [24]

Purified ENR-50 (about 20 mg, 1.31 × 10−4 mol) was swelled in CS2 (40 mL, 6.62 × 10−4 mol) under constant stirring. DMAP catalyst (about 16.44 mg, 1.32 × 10−4 mol) was added to the stirring solution. The mixture was then refluxed for 3 h and then left to cool to room temperature. The organic layer was washed with water (150 mL) to remove the catalyst. This procedure was repeated until the washing attained a neutral pH. The organic layer was then cast onto Teflon dishes before drying in a vacuum oven at 50 °C for 24 h.

3.3. Measurements and Characterization Techniques

FTIR spectra were recorded on a Perkin-Elmer 2000-FTIR using single beam transmittance onto a film of sample on ZnSe window in the range of 4,000–600 cm−1. The FTIR samples were prepared by swelling sample (100.00 mg) with chloroform (5 mL). The sample solution was cast onto a Teflon mould and air dried. The thin film was dried in a vacuum oven at 50 °C for 1 h and was later transferred onto ZnSe window. 1D and 2D NMR spectra were obtained using a Bruker Avance 500 MHz instrument in CDCl3 at 25 °C. A 10.00 mg sample was used for 1H and J-Resolved Spectroscopy (JRES) while 50.00 mg were used for the 13C-NMR, distortion enhancement by polarization transfer (DEPT), heteronuclear multiple quantum coherence (HMQC), heteronuclear multiple bond coherence (HMBC) and correlation spectroscopy (COSY) analyses. The respective range of the spectra and number of scan for 1H and for 13C-NMR measurements were 15–0 ppm with 16 scans and 200–0 ppm with 15,000 scans, respectively. For quantitative 13C-NMR measurements, 1,000 scans were applied with 60 seconds relaxation delay. The number of scans applied for JRES, DEPT, HMQC, HMBC and COSY were 8, 2000, 128, 256 and 40 scans, respectively.

3.4. Theoretical Treatments

The FTIR semi-quantitative treatments were based on the band area of methyl, epoxide and C=S functional groups. The percentage of epoxide in purified ENR-50 and the percentage dithiocarbonation of the epoxide were determined using Equations (1) and (2), respectively. In Equations (1) and (2), Nmethyl is the normalized band area of the methyl signal, A epoxide sample is the band area of epoxide functional group stretching peak for the sample, A C=S sample is the band area of C=S functional group stretching peak for the sample, and A epoxide ENR-50 is the band area of respective functional group stretching peak in purified ENR-50:
Molecules 17 10974 i001
Molecules 17 10974 i002
The 13C-NMR quantitative treatments were also used to determine the percentage of epoxidation in the purified ENR-50 and its five-membered ring cyclic dithiocarbonate derivative using Equations (3) and (4) below. In both equations, IC1 is the integral of C1 at δ 134.9 ppm, IE6 epoxide is the integral of E6 at δ 61.0 ppm, and IE6 cyclic is the integral of E6 at δ 94.0 ppm:
Molecules 17 10974 i003
Molecules 17 10974 i004

4. Conclusions

The overlapping 1H-NMR signals of purified ENR-50 at δ 1.56, 1.68–1.70, 2.06, 2.15–2.17 ppm was successfully assigned to their respective triad sequences using the 2D NMR; HMQC, HMBC and COSY techniques. The signal at δ 1.56 ppm was assigned to methylene protons of epoxidized isoprene, δ 1.68–1.70 ppm to both methyl protons of isoprene and methylene protons of epoxidized isoprene. The signals at δ 2.06 and 2.17–2.19 ppm were both assigned to the methylene protons of isoprene. The 13C-NMR chemical shifts were similar to those previously reported. However, the chemical shifts of methylene carbons were dependent on the types of vicinal neighbouring units in the triad sequence. The reaction of purified ENR-50 with CS2 formed the cyclic dithiocarbonate derivative of ENR-50 involving ring opening of the oxirane and the insertation of the C-S moiety at the oxygen attached to the quartenary carbon and methine carbon of epoxidized isoprene unit respectively. FTIR analysis showed that the C=S and C–O absorption bands appeared at 1096 and 1060 cm−1, respectively. 1H-NMR spectrum of cyclic dithiocarbonate derivative of ENR-50 displays splitting at δ 1.58–1.63 ppm and was assigned to the methylene protons of the respective epoxide and five-membered dithiocarbonate rings. Meanwhile, 13C-NMR showed two new carbon peaks assigned to the >C=S and the quartenary carbon of five-membered cyclic dithiocarbonate ring. The FTIR semi-quantitative and 13C-NMR quantitative calculations revealed that approximately half of the epoxide units in the ENR-50 were converted to the dithiocarbonate derivative.

Acknowledgments

The authors would like to acknowledge the Universiti Sains Malaysia for the research grants: FRGS (304/PKIMIA/671029) and USM-RU-PRGS (1001/PKIMIA/841023) in support of this work.

References

  1. Baker, C.S.L.; Gelling, I.R. Epoxidized Natural Rubber. In Development of Rubber Technology; Gelling, I.R., Ed.; Elsevier Applied Science: London, UK, 1987; Volume 4, p. 87. [Google Scholar]
  2. Gelling, I.R. Modification of Natural Rubber with Peracetic Acid. Rubber Chem. Technol. 1985, 58, 86–96. [Google Scholar] [CrossRef]
  3. Jeerupun, J.; Wootthikanokkhan, J.; Phinyocheep, P. Effects of Epoxidation Content of ENR on Morphology and Mechanical Properties of Natural Rubber Blended PVC. Macromol. Symp. 2004, 216, 281–292. [Google Scholar] [CrossRef]
  4. Lee, S.Y.; Hassan, A.; Tan, I.K.P.; Terakawa, K.; Ichikawa, N.; Gan, S.N. Reaction of Palm Oil Based mcl-PHAs with Epoxidized Natural Rubber. J. Appl. Polym. Sci. 2010, 115, 2039–2043. [Google Scholar] [CrossRef]
  5. Gelling, I.R. Epoxidised Natural Rubber. J. Nat. Rubb. Res. 1991, 6, 184–205. [Google Scholar]
  6. Burfield, D.R.; Lim, K.L.; Law, K.S.; Ng, S. Analysis of Epoxidized Natural Rubber: A Comparative Study of D.S.C., N.M.R., Elemental Analysis and Direct Titration Methods. Polymer 1984, 25, 995–998. [Google Scholar]
  7. Gelling, I.R. Epoxidized Natural Rubber. In Polymeric Materials Encyclopedia; Salamone, J.C., Ed.; CRC Press: Boca Raton, FL, USA, 1996; Volume 3 (D-E), p. 2192. [Google Scholar]
  8. Bhattacharjee, S.; Bhowmick, A.K.; Avasthi, B.N. Hydrogenation of Epoxidized Natural Rubber in the Presence of Palladium Acetate Catalyst. Polymer 1993, 34, 5168–5173. [Google Scholar] [CrossRef]
  9. Gan, S.N.; Ziana, A.H. Partial Conversion of Epoxide Groups to Diols in Epoxidized Natural Rubber. Polymer 1997, 38, 1953–1956. [Google Scholar]
  10. Derouet, D.; Brosse, J.C.; Challioui, A. Alcoholysis of Epoxidized Polyisoprene by Direct Opening of Oxirane Rings with Alcohol Derivatives. 2. Study on Epoxidized 1,4-Polyisoprene. Eur. Polym. J. 2001, 37, 1327–1337. [Google Scholar]
  11. Saito, T.; Klinklai, W.; Kawahara, S. Characterization of Epoxidized Natural Rubber by 2D NMR Spectroscopy. Polymer 2007, 48, 750–757. [Google Scholar] [CrossRef]
  12. Bradbury, J.H.; Perera, M.C.S. Epoxidation of Natural Rubber Studied by NMR Spectroscopy. J. Appl. Polym. Sci. 1985, 30, 3347–3364. [Google Scholar] [CrossRef]
  13. Thames, S.F.; Gupta, S. Synthesis and Characterization of Pendent Hydroxy Fluoroesters of Secondary High Molecular Weight Guayule Rubber. J. Appl. Polym. Sci. 1997, 63, 1077–1089. [Google Scholar] [CrossRef]
  14. Furst, A.; Pretsch, E. A Computer Program for the Prediction of 13C-NMR Chemical Shifts of Organic Compounds. Anal. Chim. Acta 1990, 229, 17–25. [Google Scholar] [CrossRef]
  15. Pretsch, E.; Furst, A.; Badertscher, M.; Burgin, R. C13Shift: A Computer Program for the Prediction of 13C-NMR Spectra Based on an Open Set of Additivity Rules. J. Chem. Inf. Comput. Sci. 1992, 32, 291–295. [Google Scholar]
  16. Mohamad, Z.; Ismail, H.; Chantara Thevy, R. Characterization of Epoxidized Natural Rubber/Ethylene Vinyl Acetate (ENR-50/EVA) Blend: Effect of Blend Ratio. J. Appl. Polym. Sci. 2006, 99, 1504–1515. [Google Scholar] [CrossRef]
  17. Noriman, N.Z.; Ismail, H.; Rashid, A.A. Characterization of Styrene Butadiene Rubber/Recycled Acrylonitrile-butadiene Rubber (SBR/NBRr) Blends: The Effects of Epoxidized Natural Rubber (ENR-50) As a Compatibilizer. Polym. Test. 2010, 29, 200–208. [Google Scholar] [CrossRef]
  18. Abu Bakar, M.; Ismail, J.; Teoh, C.H.; Tan, W.L.; Abu Bakar, N.H.H. Modified Natural Rubber Induced Aqueous to Toluene Phase Transfer of Gold and Platinum Colloids. J. Nanomater. 2008, 2008, 1–8. [Google Scholar]
  19. Lee, H.K.; Ismail, J.; Kammer, H.W.; Bakar, M.A. Melt Reaction in Blends of Poly(3-Hydroxybutyrate) (PHB) and Epoxidized Natural Rubber (ENR-50). J. Appl. Polym. Sci. 2005, 95, 113–129. [Google Scholar] [CrossRef]
  20. Han, C.C.; Ismail, J.; Kammer, H.W. Melt Reaction in Blends of Poly(3-hydroxybutyrate-co-3-hydroxyvalerate) and Epoxidized Natural Rubber. Polym. Degrad. Stab. 2004, 85, 947–955. [Google Scholar] [CrossRef]
  21. Mishra, J.K.; Chang, Y.W.; Kim, D.K. Green Thermoplastic Elastomer Based on Polycaprolactone/Epoxidized Natural Rubber Blend as a Heat Shrinkable Materials. Mater. Lett. 2007, 61, 3551–3554. [Google Scholar]
  22. Nghia, P.T.; Siripitakchai, N.; Klinklai, W.; Saito, T.; Yamamoto, Y.; Kawahara, S. Compatibility of Liquid Deproteinized Natural Rubber Having Epoxy Group (LEDPNR)/Poly (L-Lactide) Blend. J. Appl. Polym. Sci. 2008, 108, 393–399. [Google Scholar]
  23. Nghia, P.T.; Onoe, H.; Yamamoto, Y.; Kawahara, S. Hydrogenation of Natural Rubber Having Epoxy Group. Colloid Polym. Sci. 2008, 286, 993–998. [Google Scholar] [CrossRef]
  24. Halimehjani, A.Z.; Ebrahimi, F.; Azizi, N.; Saidi, M.R. A Simple and Novel Eco-Friendly Process for the Synthesis of Cyclic Dithiocarbonates from Epoxides and Carbon Disulfide in Water. J. Heterocycl. Chem. 2009, 46, 347–350. [Google Scholar]
  25. Giraudeau, P.; Akoka, S. Resolution and Sensitivity Aspects of Ultrafast J-resolved 2D NMR Spectra. J. Magn. Reson. 2008, 190, 339–345. [Google Scholar] [CrossRef]
  26. Viant, M.R. Improved Methods for the Acquisition and Interpretation of NMR Metabolomic Data. Biochem. Biophys. Res. Commun. 2003, 310, 943–948. [Google Scholar] [CrossRef]
  27. Macomber, R.S. A Complete Introduction to Modern NMR Spectroscopy; John Wiley & Sons Inc.: New York, NY, USA, 1998; p. 77. [Google Scholar]
  28. Shamsuzzaman; Salim, A. Synthesis of 1,3-Oxathiolane-2-Thiones by the Reaction of Steroidal Oxiranes with Carbon Disulfide. Tetrahedron Lett. 1997, 32, 5705–5708. [Google Scholar] [CrossRef]
  29. Conley, R.T. Infrared Spectroscopy, 2nd ed; Allyn and Bacon Inc.: Boston, MA, USA, 1972. [Google Scholar]
  30. Kawahara, S.; Saito, T. Preparation of Carbonated Natural Rubber. J. Polym. Sci. A Polym. Chem. 2006, 44, 1561–1567. [Google Scholar] [CrossRef]
  31. Kawahara, S.; Chaikumpollert, O.; Sakurai, S.; Yamamoto, Y.; Akabori, K. Crosslinking Junctions of Vulcanized Natural Rubber Analyzed by Solid-state NMR Spectroscopy Equipped with Field-gradient-magic Angle Spin Probe. Polymer 2009, 50, 1626–1631. [Google Scholar] [CrossRef]
  32. Bruice, P.Y. Organic Chemistry, 3rd ed; Prentice-Hall Inc: Upper Saddle River, NJ, USA, 2001; p. 448. [Google Scholar]
  • Sample Availability: Not available.

Share and Cite

MDPI and ACS Style

Hamzah, R.; Bakar, M.A.; Khairuddean, M.; Mohammed, I.A.; Adnan, R. A Structural Study of Epoxidized Natural Rubber (ENR-50) and Its Cyclic Dithiocarbonate Derivative Using NMR Spectroscopy Techniques. Molecules 2012, 17, 10974-10993. https://doi.org/10.3390/molecules170910974

AMA Style

Hamzah R, Bakar MA, Khairuddean M, Mohammed IA, Adnan R. A Structural Study of Epoxidized Natural Rubber (ENR-50) and Its Cyclic Dithiocarbonate Derivative Using NMR Spectroscopy Techniques. Molecules. 2012; 17(9):10974-10993. https://doi.org/10.3390/molecules170910974

Chicago/Turabian Style

Hamzah, Rosniza, Mohamad Abu Bakar, Melati Khairuddean, Issam Ahmed Mohammed, and Rohana Adnan. 2012. "A Structural Study of Epoxidized Natural Rubber (ENR-50) and Its Cyclic Dithiocarbonate Derivative Using NMR Spectroscopy Techniques" Molecules 17, no. 9: 10974-10993. https://doi.org/10.3390/molecules170910974

Article Metrics

Back to TopTop
