Molecules 2007, 12(8), 1940-1949;

Full Paper
Palladate Salts from Chiral Pyridinium Ionic Liquids: Synthesis and Crystal Structures
Laboratoire des Interactions Moléculaires, Réactivité Chimique et Photochimique, UMR CNRS 5623, Université Paul Sabatier, 31062 Toulouse Cedex 9, France
Laboratoire Hétérochimie Fondamentale et Appliquée, UMR CNRS 5069, Université Paul Sabatier, 31062 Toulouse Cedex 9, France
Authors to whom correspondence should be addressed.
Received: 23 May 2007; in revised form: 19 July 2007 / Accepted: 19 July 2007 / Published: 20 August 2007


This paper reports the preparation, characterization and the crystal X-ray structures of metal-containing ionic liquid complexes based on chiral pyridinium cations and tetrachloropalladate (II) [PdCl4]2-.
Chiral Ionic Liquids; Pyridinium; Transition metal complexes; Palladium


Ionic Liquids (ILs) are ionic compounds with relatively low melting points. They are characterized by very low vapor pressures and consequently, are considered as environmentally benign solvents. In addition ILs possess interesting properties such as tunable polarity, Lewis acidity, coordinating ability, hydrophilicity/lipophilicity and miscibility with various compounds [1,2,3]. These properties can be readily adjusted by a suitable choice of cation/anion. Therefore, the solubilities both of organic compounds and of metal salts in ILs are important with regard to chemical synthesis and catalytic processes [4]. The ammonium, phosphonium, pyridinium and imidazolium cations of ILs can coordinate to MX42- (M=Co,Ni,Cu,Zn,Cd,Pd and X=Cl, Br) complex ions to form ionic liquid crystals (ILCs) [5,6,7,8,9,10,11,12,13,14,15,16,17,18]. These ILCs contain a metal center, and so have been used as catalyst or catalyst precursors [5]. Moreover, they have a high degree of order, and so they are prime candidates for the synthesis of inorganic nanostructures [5]. Among them, imidazolium ILCs have been the most widely used [6,7,8,9]. Indeed for catalytical applications, imidazoliums ILs can generate metal-carbene complexes in situ [10]. Other cores such as pyridinium, ammonium and phosphonium have been employed to a lesser extent [11]. In the case of transition metal-pyridinium salts (N-alkylpyridinium tetrahalo-metallates), most of the studies focused on their lyotropic and/or thermotropic liquid crystal behaviour [12,13,14,15,16,17,18]. To our knowledge, the synthesis of chiral pyridinium metal salts has not yet been described. This paper reports the preparation, characterization and the crystal X-ray structure of complexes metal-containing ILs based on chiral pyridinium cations and tetrachloropalladate (II) [PdCl4]2-.

Results and Discussion

The use of Marazano’s route [19], based on the original work of Zincke [20], allowed access to unique chiral pyridinium salts. Reaction of Zincke’s salt, readily obtained from pyridine and 1-chloro-2,4-dinitrobenzene, with chiral primary amines give the corresponding enantiopure alkyl pyridinium chlorides (R)– or (S)–1-phenylethylpyridinium chloride (1R and 1S, Figure 1) [21]. Enantiopure (R)– and (S)–bis(1-phenylethylpyridinium) tetrachloropalladate complexes (2R and 2S) were prepared in quantitative yields by reacting palladium chloride with a 2 molar excess of the corresponding stereoisomer 1R and 1S in acetonitrile during 24 hours under reflux. Procedures used for the synthesis of 2 were similar to those described in the literature for corresponding imidazolium salts [7,22].

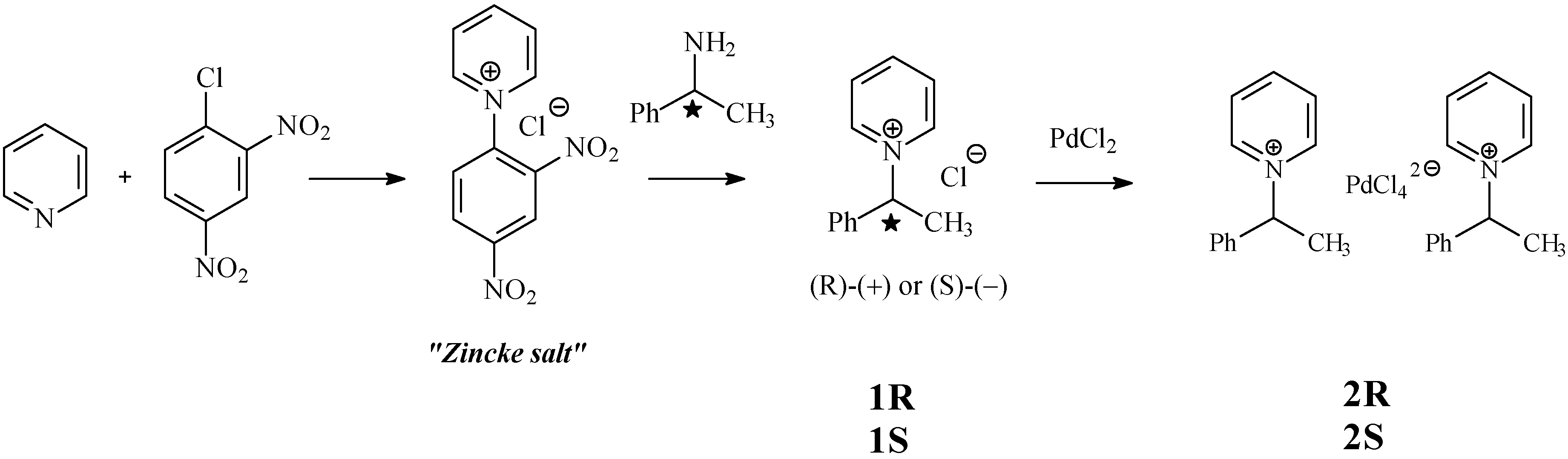

Figure 1. Synthesis of chiral pyridinium ILs and of the corresponding metallates.
Figure 1. Synthesis of chiral pyridinium ILs and of the corresponding metallates.
Molecules 12 01940 g001
All the products have been fully characterized by means of C, H, N combustion analysis and IR, 1H- and 13C-NMR spectroscopies (see Experimental section for further details). Crystals suitable for X-ray crystallography were obtained by recrystallisation of 1R and 2R from acetonitrile solution at room temperature (respectively colorless and light brown crystals). The crystal structures of 1R and 2R (this one is the first example of metal-containing ILs based on pyridinium chiral salts) are given respectively in Figure 2 and Figure 3 with 50 % thermal ellipsoids probability. Crystallographic data and parameters are given in Table 1. Compound 1R is hygroscopic; consequently the asymmetric unit presents 0.25 molecule of water per molecule of 1R. The water molecules and 1R are involved in a hydrogen bonding network, as confirmed by FT-IR spectrum that shows a broad band at 3453 cm-1.
Characteristics of these hydrogen bonds were summarized in Table 2. Moreover this asymmetric unit contains 5 anions and 4 cations due to the presence of anions Cl4 and Cl5 disordered over 2 positions with 50% occupancy factors. In 2R, the metal-containing anion [PdCl4]2-, has a regular square-planar geometry around the PdII center, the average Cl-Pd-Cl angle being 90.0° (Table 3). The bond lengths and angles of the pyridinium cation in 2R are similar to those found for 1R. All the halogen of the anion are part of a three-dimensional hydrogen-bonding network and the shortest H…X contacts involve only the hydrogen atoms of the pyridine rings. The distances of these H…Cl H-bonding (Table 4) are in the range of 2.7 to 2.9 Å, and are within the sum of the van der Waals radii of H and Cl (2.95 Å). This was confirmed by FT-IR spectrum that shows bands between 3100 and 3400 cm-1 characteristic of hydrogen bonding. Moreover, the initial conformation of the asymmetric pyridinium was not modified during the salt formation as demonstrated by X-ray molecular structure.
Figure 2. Molecular structure and atom labelling scheme of 1R with thermal ellipsoids drawn at the 50 % probability level (hydrogen atoms are not represented).
Figure 2. Molecular structure and atom labelling scheme of 1R with thermal ellipsoids drawn at the 50 % probability level (hydrogen atoms are not represented).
Molecules 12 01940 g002

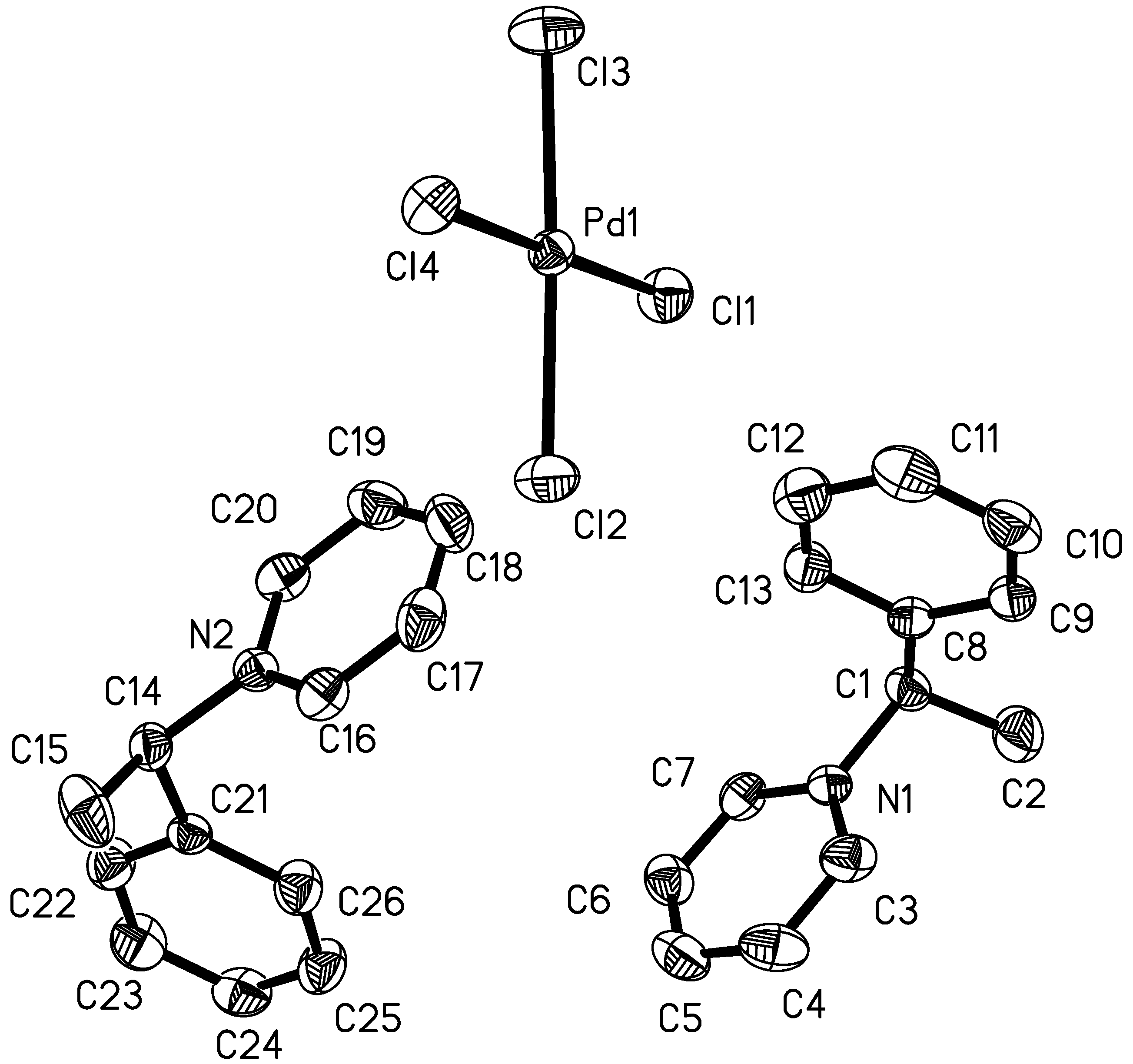

Figure 3. Molecular structure and atom labelling scheme of 2R with thermal ellipsoids drawn at the 50 % probability level (hydrogen atoms are not represented).
Figure 3. Molecular structure and atom labelling scheme of 2R with thermal ellipsoids drawn at the 50 % probability level (hydrogen atoms are not represented).
Molecules 12 01940 g003
The thermal behavior of compounds 1R and 2R was determined by optical microscopy and differential scanning calorimetry (DSC) and, as expected, is dependent on the nature of the counter anion. The melting point of (R)–1-phenylethylpyridinium chloride (1R) was found to be equal to 125°C. As described in a previous paper, the substitution of the chloride anion by a bis(trifluoro-methanesulfonyl)imide anion (CF3SO2)2N- led to a room temperature ionic liquid (RTILs) (Tm = -30°C) [21]. Here, the substitution of Cl- by [PdCl4]2- (leading to 2R) slightly increased this temperature to 155 °C, and so ILCs 2R could not be described as RTILs. Moreover, the upper limit of the liquidus range of these salts which is bounded by the thermal decomposition was also determined: 200°C for compound 1R and 210°C for compounds 2R. Further experiments are in progress to use the compound 2R (and corresponding gold salts) as a precursor for the formation of nanoparticles [23,24] surrounded by a chiral shell.


New pyridinium chiral salts: (S) and (R)–1-phenylethylpyridinium chloride and (S) and (R)–bis(1-phenylethylpyridinium) tetrachloropalladate were synthesized. Crystallographic data of 1R and 2R were presented and showed that H-bonding interactions play an important role in the formation of both complexes. The catalytic activities of the palladium complexes and palladium nanoparticles are currently under investigation.



All chemicals were purchased from Aldrich Fine Chemicals and were used in this study as received. Solvents (HPLC grade) were from SDS. 1H-NMR and 13C-NMR analysis were conducted with a Bruker Avance 500 MHz. Chemical shifts were reported as parts per million (ppm). Infrared measurements were performed on Perkin-Elmer IR FT 1600. Optical rotations measurements were realized at 20°C on a Perkin Elmer 241 polarimeter (Na lamp, λ = 589 nm) using solutions at 1% in MeOH. Micro-analysis were performed on a EAH10 apparatus from Carlo Erba and mass spectrometry measurements on an Applied Biosystem Q TRAP equipped with an electrospray source. The thermal properties of the samples were determined by polarised-light optical microscopy (Olympus microscope equipped with a Mettler FP82HT hot stage) and Differential Scanning Calorimetry (DSC) using a Perkin Elmer PYRIS 1 calorimeter. DSC calibration was done with indium and lead. DSC measurements were made at heating rates of 10, 20, 30, 40 °C/min and then extrapolated to 0 °C/min.

Synthesis of (R)– or (S)–1-phenylethylpyridinium chloride (1R and 1S)

To a solution of Zincke salt (15.38 g, 70 mmol) in n-BuOH (200 mL) was added (+)-(R) or (-)-(S)–1-phenylethylamine (9.38 g, 77 mmol). The mixture was boiled under reflux for 24 h. The solvent was removed under vacuum. Distilled water was added to the residue. The solid that appeared was filtered off, and the filtrate was washed three times with dichloromethane. The aqueous solution was concentrated under reduced pressure. The residue was purified by HPLC (Waters Alliance 2695, column C18 Delta Park 300Å, 19x300mm, isocratic mode water-acetonitrile 80:20, flow rate 5mL/min.) to afford compounds 1R or 1S as colourless very hydroscopic salts (1R: 92 %; 1S: 93%). [α]D20 (1R–enantiomer) = +44.9 ± 0.5°mL/g/dm, [α]D20 (1S–enantiomer) = -45.2 ± 0.5°mL/g/dm (1% in methanol). 1H-NMR (500 MHz, D2O): δ =1.97 (d, J = 7.0 Hz, 3H, CH3), 6.05 (q, J = 7.0 Hz, 1H, CH), 7.39 (m, 5H, Ph), 7.93 (t, J = 6.8 Hz, 2H, p-py), 8.41 (t, J = 7.0 Hz, 1H, m-py), 8.83 (d, J = 5.5 Hz, 2H, o-py) ppm; 13C-NMR (125 MHz, D2O): δ = 19.7 (CH3), 70.7 (CH), 127.4 (py C3), 128.3 (Ph C2’), 129.4 (Ph C4’), 129.8 (Ph C3’), 136.7 (Ph C1’), 143.0 (py C2), 145.9 (py C4) ppm. MS (ESI) positive mode: m/z = 184 [py+]. FT-IR (KBr pellet): 3423, 3054 (νC-H aromatic); 2934 (νC-H aliphatic), 1630, 1478, 1141, 771, 738, 702 and 686 cm-1. Anal. Calcd for C13H14NCl: C, 71.07; H, 6.42; N, 6.37%; Found: C, 71.17; H, 6.52; N, 6.36% (Elemental analysis was obtained from crystals strictly maintained in dry atmosphere). Melting point: 125°C.

Synthesis of (R)– or (S)–bis(1-phenylethylpyridinium) tetrachloropalladate (2R and 2S)

A mixture of 1-phenylethylpyridinium chloride (500 mg, 2.28 mmol) and palladium chloride (808 mg, 4.56 mmol) in acetonitrile (75 mL) was heated at reflux temperature for 24 h. The formed orange solution was concentrated to 3 mL under reduced pressure. Addition of toluene (25 mL) affords an yellow-orange solid that was recovered by filtration, washed with toluene (2 x 10 mL), and dried in vacuum. Crystals suitable for X-ray diffraction study were obtained by recrystallisation from acetonitrile solution at room temperature (1.2 g, 95% based on Pd). 1H-NMR (500 MHz, D2O): δ =2.06 (d, J = 7.0 Hz, 3H, CH3), 6.25 (q, J = 7.0 Hz, 1H, CH), 7.40 (m, 5H, Ph), 7.94 (t, J = 7 Hz, 2H, p-py), 8.43 (t, J = 8 Hz, 1H, m-py), 8.84 (d, J = 7 Hz, 2H, o-py) ppm; 13C-NMR (125 MHz, D2O): δ = 19.7 (CH3), 70.7 (CH), 127.5 (py C3), 128.3 (Ph C2’), 129.4 (Ph C4’), 129.8 (Ph C3’), 136.7 (Ph C1’), 143.1 (py C2), 145.9 (py C4) ppm. IR (KBr): 3434, 3040 (νC-H aromatic); 2972, 2929, 2870 (νC-H aliphatic); 1624, 1479, 1451, 1143, 698 cm-1. MS (ESI): Positive mode: 184 [py+]; Negative mode: 581 [Py]2[PdCl4]-. Anal. Calcd for C26H28Cl4N2Pd: C, 50.63; H, 4.58; N, 4.54. Found: C, 50.73; H, 4.53; N, 4.87. Melting point: 155°C.

Crystal data for 1R and 2R

Crystallographic data and details of the structure determination of 1R and 2R are presented in Table 1. All data for all structures represented in this paper were collected at low temperatures using an oil-coated shock-cooled crystal on a Bruker-AXS CCD 1000 diffractometer with MoKα radiation (λ = 0.71073 Å). The structures were solved by direct methods (SHELXS-97, G. M. Sheldrick, Acta Crystallogr. 1990, A46, 467-473) and all non hydrogen atoms were refined anisotropically using the least-squares method on F2 (SHELXL-97, Program for Crystal Structure Refinement, G. M. Sheldrick, University of Göttingen 1997). CCDC 647626 (1R) and CCDC 647627 (2R) contain the supplementary crystallographic data for this paper. These data can be obtained free of charge via (or from the CCDC, 12 Union Road, Cambridge CB2 1EZ, UK; fax: +44 1223 336033; e-mail: [email protected]).
Table 1. Summary of Crystallographic Data and Parameters for [py*][Cl] and for [py*]2[PdCl4].
Table 1. Summary of Crystallographic Data and Parameters for [py*][Cl] and for [py*]2[PdCl4].
Identification code[py*][Cl] (1R)[py*]2[PdCl4] (2R)
Empirical formulaC13H14.50ClNO0.25C26H28Cl4N2Pd
Formula weight224.21616.70
Temperature193(2) K173(2) K
Wavelength0.71073 Å0.71073 Å
Crystal systemTetragonalOrthorhombic
Space groupP41P212121
Unit cell dimensionsa = 22.369(1) Åa = 8.059(1) Å
b = 22.369(1) Åb = 12.211(1) Å
c = 9.570(1) Åc = 27.872(2) Å
Volume4788.9(4) Å32742.7(3) Å3
Density (calculated)1.244 Mg/m31.494 Mg/m3
Absorption coefficient0.29 mm-11.08 mm-1
Crystal size0.5 x 0.6 x 0.6 mm30.1 x 0.1 x 0.5 mm3
Theta range for data collection5.1 to 23.3°.1.5 to 26.4°.
Index ranges-24<=h<=24
Reflections collected2144116203
Independent reflections6428 [R(int) = 0.0184]5600 [R(int) = 0.0225]
Completeness to theta(=23.3°) 98.5 %(=26.4°) 99.8 %
Absorption correctionSemi-empiricalSemi-empirical
Ratio Tmin/Tmax0.6940.776
Refinement methodFull-matrix least-squares on F2Full-matrix least-squares on F2
Data / restraints / parameters6428 / 1 / 5695600 / 0 / 300
Goodness-of-fit on F21.181.05
Final R indices [I>2sigma(I)]R1 a = 0.070
wR2b = 0.175
R1 = 0.021
wR2 = 0.046
R indices (all data)R1 = 0.072
wR2 = 0.176
R1 = 0.024
wR2 = 0.047
Absolute structure parameter0.00(10)-0.019(19)
Largest diff. peak and hole0.76 and -1.24 e.Å-30.30 and -0.23 e.Å-3
a R1=Σ||Fo| - |Fc||/Σ|Fo|. bwR2=|Σ|Fo|2 - |Fc|2|/Σ|w(Fo)2|1/2 (Fo: observed, Fc: calculated).w =1/[σ2(Fo)2+(aP)2+bP], where P=(Fo2+2Fc2)/3 and a = 0.0419, b = 18.7495 for 1R and a = 0.0199, b = 0.7641 for 2R.
Table 2. Hydrogen bonds for 1R [Å and °].
Table 2. Hydrogen bonds for 1R [Å and °].
Symmetry transformations used to generate equivalent atoms:#1 x,y,z+1 #2 y,-x,z-1/4 #3 x,y,z-1 #4 y,-x+1,z-1/4#5 -x+1,-y,z-1/2 #6 -y,x,z+1/4 #7 -y+1,x,z+1/4#8 -x,-y,z-1/2 #9 -x,-y+1,z+1/2 #10 -y+1,x,z-3/4
Table 3. Selected Bond Angles (°) for salt 2R.
Table 3. Selected Bond Angles (°) for salt 2R.
Table 4. Hydrogen bonds for 2R [Å and °].
Table 4. Hydrogen bonds for 2R [Å and °].
Symmetry transformations used to generate equivalent atoms:#1 x,y+1,z #2 -x+1,y+1/2,-z+1/2 #3 x+1,y+1,z#4 x+1/2,-y+1/2,-z #5 x+1,y,z


The authors are greatly indebted to C. Routaboul for help in FTIR analysis and C. Claparols for mass spectrometry analysis.

References and Notes

  1. Binnemans, K. Ionic liquid crystals. Chem. Rev. 2005, 105, 4148–4204. [Google Scholar] [CrossRef]
  2. Ding, J.; Armstrong, D. W. Chiral ionic liquids: Synthesis and applications. Chirality 2005, 17, 281–292. [Google Scholar] [CrossRef]
  3. Wasserscheid, P.; Welton, T. (Eds.) Ionic Liquid in Synthesis. Wiley-VCH Verlag GmbH and Co. KGaA: Weinheim, 2003.
  4. Sheldon, R. Catalytic reactions in ionic liquids. Chem. Comm. 2001, 2399–2407. [Google Scholar] [CrossRef]
  5. Lin, I. J. B.; Vasam, C. S. Metal-containing ionic liquids and ionic liquid crystals based on imidazolium moiety. J. Organomet. Chem. 2005, 690, 3498–3512. [Google Scholar] [CrossRef]
  6. Lee, C. K.; Peng, H. H.; Lin, I. J. B. Liquid crystals of N,N '-dialkylimidazolium salts comprising palladium(II) and copper(II) ions. Chem. Mat. 2004, 16, 530–536. [Google Scholar]
  7. Hasan, M.; Kozhevnikov, I. V.; Siddiqui, M. R. H.; Steiner, A.; Winterton, N. Gold compounds as ionic liquids. Synthesis, structures, and thermal properties of N,N'-dialkylimidazolium tetrachloroaurate salts. Inorg. Chem. 1999, 38, 5637–5641. [Google Scholar]
  8. Hardacre, C.; Holbrey, J. D.; McCormac, P. B.; McMath, S. E. J.; Nieuwenhuyzen, M.; Seddon, K. R. Crystal and liquid crystalline polymorphism in 1-alkyl-3-methylimidazolium tetrachloropalladate(II) salts. J. Mat. Chem. 2001, 11, 346–350. [Google Scholar] [CrossRef]
  9. Dyson, P. J. Transition metal chemistry in ionic liquids. Transition Met. Chem. 2002, 27, 353–358. [Google Scholar] [CrossRef]
  10. Dobbs, W.; Suisse, J.-M.; Douce, L.; Welter, R. Electrodeposition of Silver Particles and Gold Nanoparticles from Ionic Liquid-Crystal Precursors. Angew. Chem. Int. Ed. 2006, 45, 4179–4182. [Google Scholar] [CrossRef]
  11. Zawartka, W.; Gniewek, A.; Trzeciak, A. M.; Drzewinski, L.; Lis, T. Bis(1-butyl-4-methylpyridinium)tetrachloropalladate(II). Acta Cryst. 2006, E62, M1100–M1102. [Google Scholar]
  12. Neve, F.; Crispini, A.; Armentano, S.; Francescangeli, O. Synthesis, structure, and thermotropic mesomorphism of layered N-alkylpyridinium tetrahalopalladate(II) salts. Chem. Mat. 1998, 10, 1904–1913. [Google Scholar] [CrossRef]
  13. Neve, F.; Crispini, A.; Francescangeli, O. Structural studies on layered alkylpyridinium iodopalladate networks. Inorg. Chem. 2000, 39, 1187–1194. [Google Scholar] [CrossRef]
  14. Neve, F.; Francescangeli, O.; Crispini, A. Crystal architecture and mesophase structure of long-chain N-alkylpyridinium tetrachlorometallates. Inorg. Chim. Acta 2002, 338, 51–58. [Google Scholar] [CrossRef]
  15. Neve, F.; Francescangeli, O.; Crispini, A.; Charmant, J. A(2) MX4 copper(II) pyridinium salts. From ionic liquids to layered solids to liquid crystals. Chem. Mat. 2001, 13, 2032–2041. [Google Scholar] [CrossRef]
  16. Taubert, A.; Steiner, P.; Mantion, A. Ionic liquid crystal precursors for inorganic particles: Phase diagram and thermal properties of a CuCl nanoplatelet precursor. J. Phys. Chem. B 2005, 109, 15542–15547. [Google Scholar] [CrossRef]
  17. Taubert, A.; Arbell, I.; Mecke, A.; Graf, P. Photoreduction of a Crystalline Au(III) Complex: a Solid-state Approach to Metallic Nanostructures. Gold Bull. 2006, 39(4), 205–211. [Google Scholar] [CrossRef]
  18. Neve, F.; Francescangeli, O. Layered w-Substituted Alkylpyridinium Salts with Inorganic Anions: Effects of H-Bonding Patterns on the Layer Thickness. Cryst. Growth Des. 2005, 5(1), 163–166. [Google Scholar] [CrossRef]
  19. Genisson, Y.; Marazano, C.; Mehmandoust, M.; Gnecco, D.; Das, B. C. Zincke Reaction with Chiral Primary Amines - a Practical Entry to Pyridinium Salts of Interest in Asymmetric-Synthesis. Synlett 1992, 431–434. [Google Scholar]
  20. Zincke, T. Ann. Chem. 1903, 330, 361.
  21. Patrascu, C.; Sugisaki, C.; Mingotaud, C.; Marty, J. D.; Genisson, Y.; Lauth-de Viguerie, N. New pyridinium chiral ionic liquids. Heterocycles 2004, 63, 2033–2041. [Google Scholar] [CrossRef]
  22. Dullius, J. E. L.; Suarez, P. A. Z.; Einloft, S.; de Souza, R. F.; Dupont, J.; Fischer, J.; De Cian, A. Selective catalytic hydrodimerization of 1,3-butadiene by palladium compounds dissolved in ionic liquids. Organometallics 1998, 17, 815–819. [Google Scholar] [CrossRef]
  23. Perignon, N.; Marty, J.-D.; Mingotaud, A.-F.; Dumont, M.; Rico-Lattes, I.; Mingotaud, C. Hyperbranched Polymers Analogous to PAMAM Dendrimers for the Formation and Stabilization of Gold Nanoparticles. Macromolecules 2007, 40, 3034–3041. [Google Scholar] [CrossRef]
  24. Gascon, I.; Marty, J.-D.; Gharsa, T.; and Mingotaud, C. Hyperbranched Polymers Analogous to PAMAM Formation of gold nanoparticles in a side-chain liquid crystalline network: Influence of the structure and macroscopic order of the material. Chem. Mat. 2005, 17, 5228–5230. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of compounds 1R, 1S, 2R, 2S are available from authors.
