Molecules 2007, 12(10), 2348-2363; https://doi.org/10.3390/12102348

Article
Synthesis, Chemical Characterization and Biological Screening for Cytotoxicity and Antitumor Activity of Organotin (IV) Derivatives of 3,4-Methylenedioxy 6-nitrophenylpropenoic Acid
1
Department of Biochemistry, Faculty of Biological Sciences, Quaid-i-Azam University Islamabad Pakistan
2
Department of Chemistry, Quaid-i-Azam University, Islamabad-45320, Pakistan
*
Author to whom correspondence should be addressed.
Received: 17 July 2007; in revised form: 9 August 2007 / Accepted: 10 August 2007 / Published: 25 October 2007

Abstract

:
A series of mono-, di- and triorganotin compounds with general formulae [RSnL2Cl], R = Bu (compound 3), [R2SnL2], where R = Me, Et, Bu, Oct (compounds 1, 2, 4 and 6) and [R3SnL], where R = Bu, Cy and Ph (compounds 5, 7 and 8) and where L = 3,4-methylenedioxy-6-nitrophenylpropenoic acid have been prepared and characterized by elemental analysis, multinuclear (1H-, 13C- and 119Sn-) NMR and mass spectrometry. The ligand and its respective organotin complexes were screened for cytotoxicity using the brine shrimp lethality assay and for antitumor activity using the crown gall tumor inhibition (potato disc) assay. The bioassay results support the conclusion that the biological activities of these synthetic compounds are in the following order: [RSnL2Cl] < [R2SnL2] < [R3SnL].
Keywords:
Antitumor; cytotoxicity; mass spectrometry; multinuclear NMR; organotin.

Introduction

Organotin (IV) complexes are extensively used as catalysts, stabilizers, biocides, antifouling agents and as wood preservatives [1,2,3,4,5]. Organotin (IV) derivatives of carboxylic acids are of special interest with regards to their methods of synthesis, structural elucidation and biological activity [6,7,8,9]. Generally these compounds can be well characterized by multinuclear NMR (1H-, 13C- and 119Sn-) spectroscopy [10, 12]. In recent years organotin (IV) carboxylates have attracted much attention owing to their potential biocidal activity and cytotoxicity [5, 12]. In addition, among organometallic compounds there has been increased interest in organotin carboxylates due to their activity against various types of cancer cells as many of the known di- and triorganotin (IV) carboxylates display interesting antitumor activities [12,13,14,15].
Their structural diversity was also of interest as both diorganotin and triorganotin esters show rich and diverse structural chemistry, as cited in a recent review [8]. Keeping in mind this structural and biological diversity of organotin (IV) carboxylates, we have now synthesized some organotin (IV) carboxylates of 3,4-methylenedioxy-6-nitrophenylpropenoic acid (L). The structures of these compounds have been evaluated by various analytical techniques such as elemental analysis, multinuclear NMR (1H-, 13C- and 119Sn-) and mass spectrometry. The ligand L and its organotin (IV) derivatives have been screened for cytotoxicity using the brine shrimp lethality assay and for antitumor activity with the crown gall tumor inhibition assay (potato disc assay).

Results and Discussion

Synthesis

Mono-, di- and triorganotin complexes were synthesized by refluxing stoichiometric amounts of the ligand acid, R'COOH, with the corresponding oxides/hydroxides (Procedure I) or its sodium salt with the corresponding organotin chlorides in toluene (Procedure II), as summarized in equations I-V.
RSn(OH)2Cl + 2HL Molecules 12 02348 i001 RSn(Cl)L2 + 2H2O
R= n-Bu (3)
R2SnO + 2HL Molecules 12 02348 i001 R2SnL2 + H2O
R = n-Bu (4), n-Oct (6)
R2SnCl2 + 2NaL Molecules 12 02348 i001 R2SnL2 + 2NaCl
R = Me (1), Et (2)
R3SnCl + NaL Molecules 12 02348 i001 R3SnL + NaCl
R = n-Bu (5)
R3Sn(OH)+HL Molecules 12 02348 i001R3SnL+H2O
R= Cy (7), Ph (8)
All the newly synthesized compounds are air stable crystalline solids, soluble in common organic solvents, and their physical data is summarized in Table 1. The structures of these compounds and coordination behavior of metal have been addressed by different analytical techniques such as elemental analysis, multinuclear NMR (1H, 13C and 119Sn) and mass spectrometry.
Table 1. Physical data of 3,4-methylenedioxy-6-nitrophenylpropenoic acid (L) and its organotin (IV) derivatives.
Table 1. Physical data of 3,4-methylenedioxy-6-nitrophenylpropenoic acid (L) and its organotin (IV) derivatives.
Compound No.Molecular FormulaMolecular WeightM.P. (˚C)Yield(%)Elemental Analysis
% Calculated (Found)
CHN
1C22H18O12N2Sn622237-2408642.51
(42.48)
2.90
(2.96)
4.51
(4.58)
2C24H22O12N2Sn650176-1786744.35
(44.40)
3.46
(3.43)
4.31
(4.42)
3C24H26O12N2SNCl689.5142-1457042.13
(42.24)
3.07
(3.15)
4.10
(4.04)
4C28H30O12N2Sn706196-1997347.66
(47.74)
4.26
(4.16)
3.97
(4.01)
5C22H33O6NSn527143-1468950.19
(50.23)
6.27
(6.30)
2.66
(2.70)
6C36H46O12N2Sn818151-1537552.88
(52.96)
5.63
(5.60)
3.43
(3.50)
7C28H39O6NSn60599-1018335.63
(35.69)
6.46
(6.50)
2.32
(2.36)
8C28H21O6NSn 587 207-210 80 57.34
(54.43)
3.58
(3.60)
2.39
(2.45)
LigandC10H7O6N2372788050.63
(50.45)
2.95
(2.80)
5.90
(5.87)

1H-NMR Spectroscopy

1H-NMR spectra for the synthesized compounds and free acid have been recorded in CDCl3 and DMSO solutions. They are reported in Table 2. 1H resonance signals of the protons attached to the phenyl moieties of the ligand have been assigned by their distinct multiplicities, J-values and comparison with the results obtained from the incremental method [9]. The methyl protons of dimethyltin derivatives appear as sharp singlets at 0.89 ppm, with well-defined satellites; coupling constants are included in Table 2. The α-CH2 protons of diethyltin (IV) compounds resonate as a quartet at 1.52 ppm and have well-resolved coupling constants, while β-CH3 protons resonate as a triplet at 1.34 ppm with 3J[1H,1H] = 8.2 Hz. The phenyl moieties of the triphenyl- and diphenyltin (IV) derivatives mostly show a complex pattern and were assigned according to the literature [10]. Despite the complex pattern of the 1H-NMR spectra of di- and tri-n-butyltin (IV) derivatives, assignments were possible: a clear triplet due to the terminal methyl group appears in the 0.91-0.92 ppm range [11,12a]. The α-CH2 protons of the di-n-butyltin compound 4 appear as a triplet around 1.72 ppm, with 3J[1H,1H] = 8.0 Hz [12b]. The β-CH2 and γ-CH2 signals appear as multiplets and δ-CH3 as a triplet at 0.91 with 3J[1H,1H] = 10.0 Hz. In the tri-n-butyltin (IV) complex, δ-CH3 resonates as a triplet at 0.92 ppm with 3J[1H,1H] = 8.5 Hz, and γ-CH2 and β-CH2 protons appear as multiplets at 1.33-1.37 ppm and 1.61-1.65 ppm, respectively. The α-CH2 appears as a triplet at 1.60 ppm. The methylene protons (CH2) of the n-octyltin (IV) moiety exhibit a somewhat different behavior, compared with the n-butyl groups of the respective complexes. The α-CH2, β-CH2 protons give multiplet signals at 1.49-1.53 ppm, respectively, which are consistent with the values calculated by the incremental method [13]. The γ-CH2 and γ′-CH2 do not appear in the region. However, the δ′-CH3 protons resonate as a triplet in the range of 0.65 ppm with 3J[1H,1H] = 7.0 Hz. The protons of the methylenedioxy moiety appear as singlets at 6.00-6.29 ppm and were seen in almost all the compounds. The 2J[119Sn-1H] coupling constants and the C-Sn-C angles (Table 3) calculated from 2J[119Sn-1H] values demonstrate that in the diorganotin (IV) derivatives, tin shows a coordination number greater that four, probably five or six in non coordinating solvents, while the triorganotin (IV) derivatives show distorted tetrahedral geometry [13, 14].
Table 2. 1H-NMR data of 3,4-methylenedioxy-6-nitrophenylpropenoic acid and its organotin (IV) derivatives a, b
Table 2. 1H-NMR data of 3,4-methylenedioxy-6-nitrophenylpropenoic acid and its organotin (IV) derivatives a, b
1H NoCompound
Ligand12345678
27.09 (s)7.12 (s)7.00 (s)7.10 (s)7.09 (s)7.01 (s)7.02 (s)7.03 (s)6.96 (s)
57.52 (s)7.58(s)7.54 (s)7.58 (s)7.52 (s)7.51 (s)7.33 (s)7.51(s)7.78 (s)
76.29 (s)6.24 (s)6.12 (s)6.00 (s)6.11 (s)6.14 (s)5.98 (s)6.14 (s)6.11 (s)
87.82
(d,15.9)
7.96
(d,15.0)
8.17
(d,16.5)
7.95
(d,15.0)
7.99
(d, 15.0)
8.00
(d,15.0)
7.82
(d,16.0)
8.02
(d, 15.5)
7.82
(d,16.0)
96.50
(d,15.6)
6.47
(d,15.0)
6.33
(d,15.0)
6.47
(d,15.0)
6.30
(d, 15.0)
6.31
(d,15.0)
6.17
(d,15.5)
6.31
(d, 15.5)
6.30
(d,15.0)
α0.89 (s) 1.52
(q, 10.0)
1.72
(t, 8.0)
1.6 1.49-1.53
(m)
β1.34
(t, 8.2)
1.34-1.37 (m)1.61-1.65 (m)1.49-1.53 (m)1.26-1.76 (m)7.35-7.49 (m)
γ1.34-1.37 (m)1.33-1.37 (m)1.26-1.76 (m)7.35-7.49 (m)
δ0.91
(t, 10.0)
0.92
(t, 8.5)
1.26-1.76 (m)7.35-7.49 (m)
γ-γ′1.15 (bs)
δ'0.65
(t, 7.0)
a Chemical shifts (δ) in ppm. 2J[119Sn, 1H]; n[1H, 1H] in Hz where n= 3,4 are listed in square brackets and parenthesis, respectively. Multiplicity is given s=singlet, bs = broad signal, d = doublet, dd=doublet of doublet, q = quartet, m = multiplet; b Numbering in accordance with Figure 1, Figure 2, Figure 3 and Figure 4.

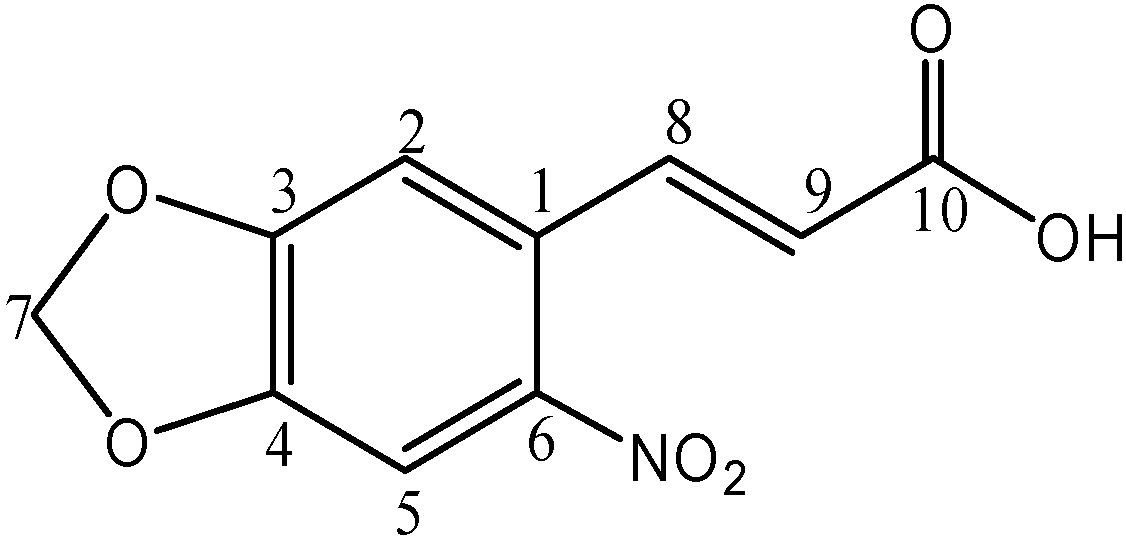

Figure 1. 1H- and 13C-NMR numbering scheme of the ligand L.
Figure 1. 1H- and 13C-NMR numbering scheme of the ligand L.
Molecules 12 02348 g001
Table 3. (C−Sn−C) Angles (o) Based on NMR Parameters of organotin (IV) derivatives of 3,4-methylenedioxy-6-nitrophenylpropenoic acid
Table 3. (C−Sn−C) Angles (o) Based on NMR Parameters of organotin (IV) derivatives of 3,4-methylenedioxy-6-nitrophenylpropenoic acid
Compound No.1J[119Sn, 13C] (Hz)2J[119Sn, 1H] (Hz)Angle (o)
1J2J
1-78-128.4
2-72-121.8
3----
4----
536074108.33123.9
6----
7----
8----

13C-NMR Spectroscopy

13C-NMR data recorded in CDCl3 and DMSO solutions of the ligand and its respective mono-, di- and triorganotin (IV) derivatives are given in Table 4. The 13C-NMR spectral data for the R groups attached to the tin atom where R = Me, Et, n-Bu, n-Oct, Ph and Cy were assigned by comparison with related analogues as model compounds, combined with the nJ[119Sn,13C] coupling constants [15, 18]. The assignment of the 13C- resonance associated with the carboxylate ligands is based: (I) on comparison with the results obtained from incremental methods [14], and (II) on comparison with the resonance values available in the literature [19]. The positions of the phenyl and olefinic carbon signals undergo minor variation in the complexes, compared to those observed in the free acid and its sodium salt. The carboxylate carbon shifts to a lower field region almost in all the complexes, indicating participation of the carboxyl group (COO) in coordination to tin (IV) [20].
Table 4. 13C- and 119Sn -NMR dataa,b of 3,4-methylenedioxy-6-nitrophenylpropenoic acid and its organotin (IV) derivatives. a, b
Table 4. 13C- and 119Sn -NMR dataa,b of 3,4-methylenedioxy-6-nitrophenylpropenoic acid and its organotin (IV) derivatives. a, b
13 CNoLigand12345678
1125.78126.36126.96127.11127.86127.93127.25128.07127.53
2107.19105.93107.64107.65107.46107.37107.68107.39107.40
3151.73153.10152.05152.62151.90151.90153.09151.87151.94
4148.73150.18149.24148.78148.65 148..63150..29148.55148.87
5106.90104.86105.18105.01105.60105.56105.75105.56105.63
6138.87141.35142.67143.81138.96139.03141.52138.78140.88
7103.74104.30103.06103.45103.26103.25104.68103.20103.20
8142.98141.25143.92143.81143.13143.06144.34143.07143.10
9122.67123.10120.78124.54125.82124.54122.49124.85122.77
10167.03187.87175.39186.84171.62170.90174.75170.70171.96
α-4.3419.1722.7022.7015.24
[340, 360]
25.4314.11130.22
β--14.1125.5726.3726.7923.2729.37137.13
γ---29.1926.8327.0433.5631.95128.97
δ---14.1113.6713.6429.7228.85128.97
α′------31.34--
β′------30.29--
γ′------32.51--
δ′------25.90--
119 Sn--112.63-150.68-150.03-156.43+116.10-175.0045.64-112.45
a Chemical shifts (δ) in ppm. nJ[117/119Sn, 13C]; nJ[119Sn, 13C]; in Hz are listed in square brackets; b Numbering in accordance with Figure 1, Figure 2, Figure 3 and Figure 4.

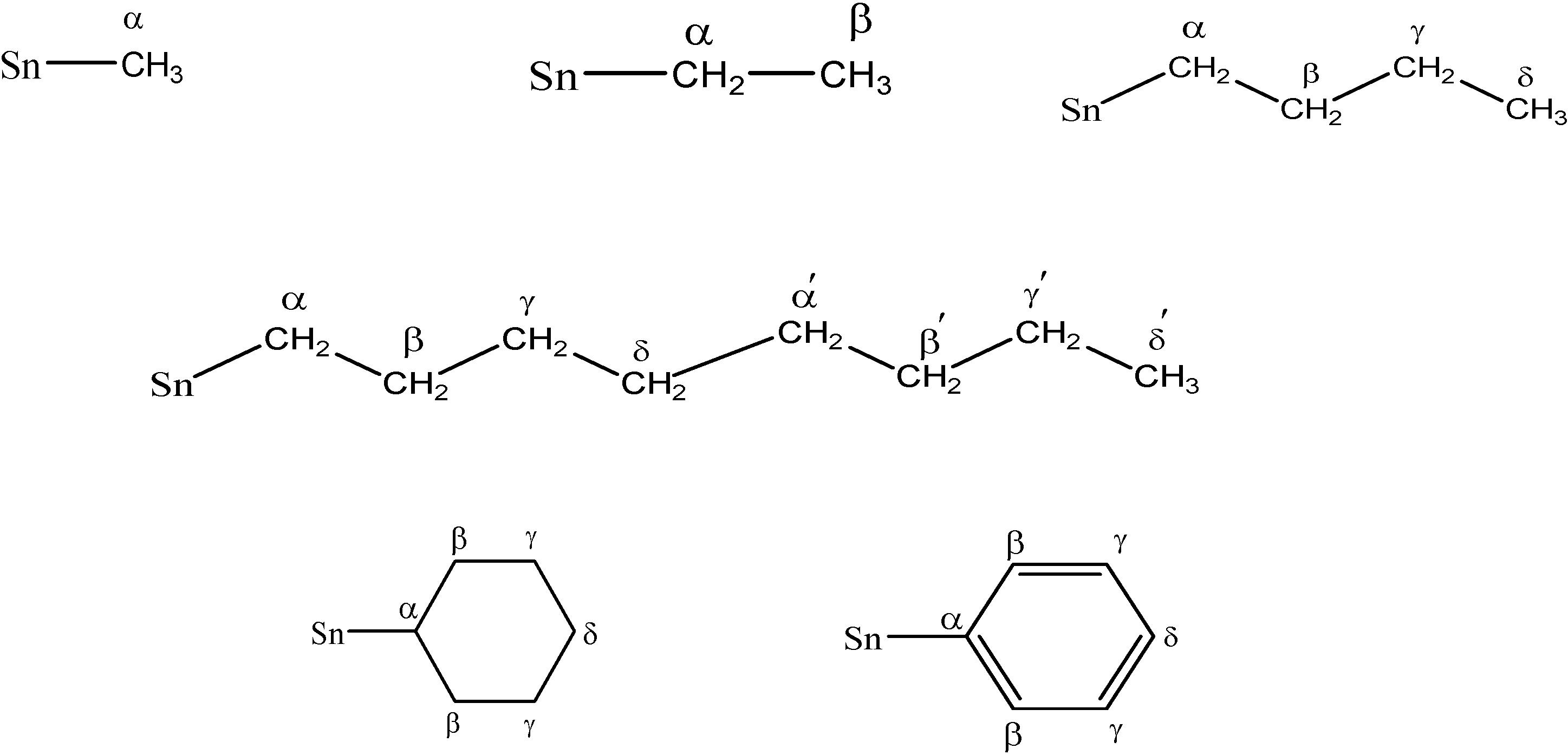

Figure 2. Numbering scheme for groups attached to tin.
Figure 2. Numbering scheme for groups attached to tin.
Molecules 12 02348 g002

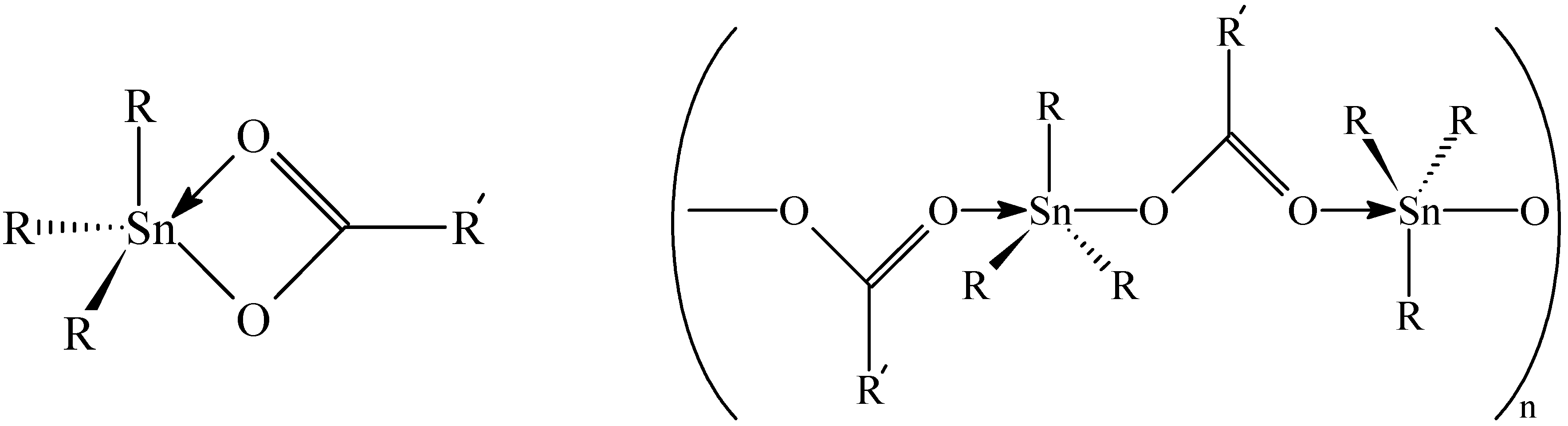

Figure 3. Structural diagrams of triorganotin (IV) Compounds.
Figure 3. Structural diagrams of triorganotin (IV) Compounds.
Molecules 12 02348 g003

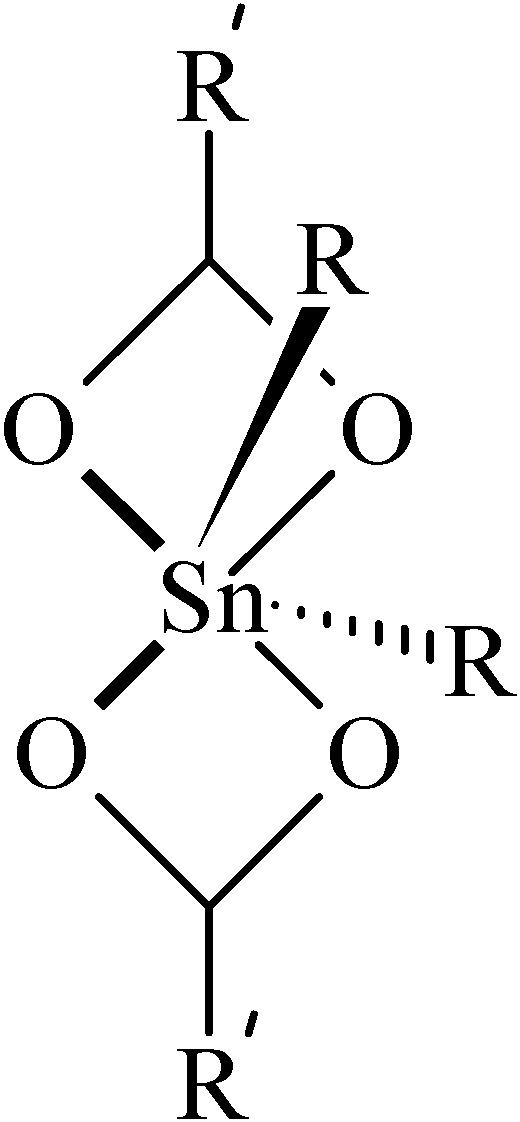

Figure 4. Structural diagram of diorganotin (IV) Compounds.
Figure 4. Structural diagram of diorganotin (IV) Compounds.
Molecules 12 02348 g004

119Sn-NMR Spectroscopy

The possibility of detecting the presence of coordinatively different organotin (IV) moieties was explored by acquisition of 119Sn-NMR spectra for all the investigated compounds. The 119Sn- chemical shifts usually cover a range, quoted relative to tetramethyltin, with increasing coordination number of tin producing a large upfield shift for δ(119Sn). The 119Sn-NMR spectra were recorded in CDCl3 solutions (a non-coordinating solvent). It is reported [20, 21] that in alkyltin carboxylates, tetra- coordinated tin has δ(119Sn) values ranging from about +200 to -60 ppm, and penta-coordinated tin from -200 to -400 ppm. A single resonance peak of 119Sn chemical shift values obtained for the triorganotin (IV) derivatives lies in the range expected for a tetrahedral geometry. 119Sn chemical shift values of diorganotin compounds were observed in the -112.63 to -175.0 ppm range. It appears from the shift values that a weakly hexacoordinated tin generates a deformed octahedron or a skewed trapezoidal bipyramid with four strong and two somewhat weaker bonds, as indicated by the upfield 119Sn chemical shift values [14, 16, 20, 21].
In order to gain further information about the possible coordination geometries in solution, close examination of the 1J[119Sn,13C] and 2J[119Sn,1H] coupling constants was undertaken as indicators of structural details. As reported by Nadvornik et al. [13, 22a], 2J [119Sn, 1H] in n-Bu3Sn (IV) carboxylates changes very little with a change in coordination number, being the smallest among such couplings. In the case of diorganotin compounds 1 and 2, the 2J[119Sn,1H] values are 78 and 72 Hz, respectively, which indicate that tin displays hypervalent behavior (valence higher than four) in these compounds. .1J[119Sn,13C] is, on the other hand, quite useful for making predictions about the geometry around the tin atom. In case of triorganotin (IV) carboxylates, 1J[119Sn,13C] values ranging between 327 and 387 Hz for tetra-coordinated compounds and between 442 and 509 Hz for penta-coordinated ones were observed [22b]. For the tri-n-butyltin (IV) derivative the 1J[119Sn,13C] values were 360 Hz and based on the Holeček and Lycka equation [20, 21], corresponds to a quasi-tetrahedral geometry in CDCl3 solution. The geometric data calculated, as just described, are consistent with tetrahedral geometries for the triorganotin (IV) species [20], i.e. monomers in solution. Unfortunately, 1J[119Sn,13C] values are not observed in any compound, but from the 119Sn values and 2J[119Sn,1H], it can be predicted that diorganotin (IV) species, possess skew-trapezoidal bipyramidal geometries with the lower apparent coordination number arising from the asymmetric coordination mode of the carboxylate ligand [23,24].

Mass Spectrometry

The mass spectra of all the synthesized compounds 1-8 were determined using the electrospray ionization (ESI) technique. The molecular ion [M]+ peak is not usually observed in case of organometallic compounds while using the conventional electron ionization (EI) or chemical ionization (CI) mass spectral techniques. However in case of ESI, not only the molecular ion peak [M]+, but also peaks due to aggregation of fragments with [M]+ or [M+H]+ are encountered [25]. These fragment aggregates have molecular weights which is greater than [M] + (Table 5).
The 1st order +ve ESI-MS mode is more informative than the –ve mode because it can also provide information about the polymeric species and hence it is the more preferred for organotin species [26]. The neutral loses observed in ESI-MS are attributed to loss of CO2, methane, ethane, butane and butene. The presence of more than one tin isotope in a molecule causes a wide distribution of the total signal among the many fragment aggregates, which decreases the relative intensity of the centroid peak. The presence or absence of a tin atom in individual ion can easily be recognized on the basis of the 10 characteristic natural tin isotopes, with the most abundant being the 120Sn isotope.
The base peak in these compounds whether di- or triorganotin (IV) compounds derives from the different fragmentation patterns. All the investigated compounds were found to possess a base peak resulting from the loss of the ligand acid (HL), the R group or the ligand moiety itself.
Table 5. Mass fragmentation patterns of organotin (IV) derivatives of 3,4-methylenedioxy-6-nitrophenylpropenoic acid.
Table 5. Mass fragmentation patterns of organotin (IV) derivatives of 3,4-methylenedioxy-6-nitrophenylpropenoic acid.
Fragment, m/z (%)
12345678
[C23H20N2O12Sn]+
636 (8.5)
[C22H16N2O12Sn]+
620 (3.5)
[C24H19ClN2O12Sn]+
682.5 (2.5)
[C32H37N2O12Sn]+
761(16.5)
[C30H50NO6Sn]+
640(7.3)
[C40H54N2O12Sn]+
874 (9.5)
[C28H39NO6Sn]+
605 (2.5)
[C22H15NO6Sn]+
509(14.9)
[C22H16N2O12Sn]+
620 (17.3)
[C15H12NO8Sn]+
454 (41.6)
[C20H10ClN2O12Sn]+
625.5 (11.3)
[C27H26N2O12Sn]+
690 (7.6)
[C22H31NO6Sn]+
525 (6.4)
[C34H40N2O12Sn]+
788 (16.2)
[C27H36NO4Sn]+
558 (7.3)
[C21H13NO4Sn]+
463 (3.3)
[C21H15N2O10Sn]+
575 (3.4)
[C10H13O4Sn]+
317 (17.1)
[C14H14Cl NO6Sn]+
447.5 (32.7)
[C24H19N2O12Sn]+
647 (19.9)
[C18H23 NO6Sn]+
469 (23.6)
[C28H28N2O10Sn]+
672 (26.3)
[C22H27NO6Sn]+
521 (33.4)
[C15H8 NO4Sn]+
386 (27.1)
[C19H9N2O10Sn]+
545 (37.7)
[Sn]+
120 (3.7)
[C5H11Sn]+
191 (41.5)
[C8H17N2O12Sn]+
453 (25.2)
[C14H14NO6Sn]+
412 (12.7)
[C18H22NO6Sn]+
468 (8.7)
[C16H16NO6Sn]+
438 (17.1)
[C9H6O2Sn]+
266 (72.4)
[C11H6NO6Sn]+
368 (60.9)
[C4H9]+
57 (100)
[C4H8Sn]+
176 (6.9)
[C4H7Sn]+
175 (79.7)
[C7H10O2Sn]+
246 (40.7)
[C9H16O2Sn]+
276 (100)
[C9H12O2Sn]+
272 (63.4)
[C11H6NO6Sn]+
368 (60.9)
[C4H4O2Sn]+
204 (100)
-[C3H8Sn]+
164 (18.8)
[C2H3Sn]+
145 (100)
[C4H9]+
57 (100)
[C4H9]+
57 (76.3)
[C4H6O2Sn]+
206 (100)
[C6H5]+
77 (100)
--[C4H9]+
57 (100)
-----

Biological Activity

All the synthesized compounds and their acid ligand were screened for their antitumor activity and cytotoxicity using standard in vitro biocidal screening tests.

Cytotoxicity

Bioactive compounds are often toxic to shrimp larvae. Hence, shrimp larvae have been extensively used as rapid and simple preliminary test for cytotoxicity [11a, b]. All the synthesized compounds and ligand were screened for cytotoxicity by brine-shrimp bioassay lethality method [11b] and the results are summarized in Table 6. The LD50 data shows that all the compounds even the ligand acid are toxic with LD50 values in the range 0.26 to 581.23 μg/mL for organotin derivatives and 975.24 μg/mL for the ligand L Tri-organotin derivatives are more toxic than di-organotin derivatives, mono-organotin derivatives and the ligand acid [27]. Compound 3 (a monoorganotin derivative) has been found to be the least toxic and compound 5 (a triorganotin derivative) was the most toxic of all the synthesized organotin derivatives [4, 5].
Table 6. Cytotoxicity data of organotin (IV) derivatives of 3,4-methylenedioxy-6-nitrophenylpropenoic acid.
Table 6. Cytotoxicity data of organotin (IV) derivatives of 3,4-methylenedioxy-6-nitrophenylpropenoic acid.
Compound NoLD50 µg/mL
1-
2130.98
3581.23
433.39
50.26
6191.64
70.40
80.56
Ligand975.24
Against brine shrimps (in vitro); Data is based on mean value of 3 replicates of each for 1000, 100 and 10 μg/mL concentrations; - = activity not determined.

Antitumor Activity

For antitumor activity, the crown gall tumor inhibition assay (potato disc assay) [11b] was performed for all the synthesized compounds using Agrobacterium tumefaciens (strain At10). Crown gall is a neoplasmic disease of plants induced by Agrobacterium tumefaciens due to its Ti (tumor inducing) plasmid [11b]. Since the mechanism of tumor induction is similar to that seen in animals, this assay was used to evaluate the antitumor activity of these compounds. All the compounds showed significant levels of tumor inhibition, as shown in Table 7. Activity observed for synthesized organotin series was more than that of their parent acid, and triorganotin derivatives showed more tumor inhibition than mono- and diorganotin derivatives. Furthermore, compounds 2, 5 and 8 showed 100% tumor inhibition. The bioassays results reflect the conclusion that the activity are in the following order: [RSnL2Cl] < [R2SnL2] < [R3SnL]. Further, it has been observed that the activities of these mono-, di and triorganotin (IV) complexes are comparable with those reported earlier [2, 4, 5, 27].
Table 7. Antitumor activities of organotin (IV) derivatives of 3,4-methylenedioxy-6-nitrophenylpropenoic acid a, b, c, d.
Table 7. Antitumor activities of organotin (IV) derivatives of 3,4-methylenedioxy-6-nitrophenylpropenoic acid a, b, c, d.
Compound No.Average number of tumors ± SE% inhibition of tumors
12.8±0.8962.66
20.0±0.0100
33.9±1.0248
41.0±0.3686.66
50.0±0.0100
65.3±0.8429.33
74.8±1.1336
80.0±0.0100
Ligand4.02±1.0444
(-)ive control7.5±1.13-
a) Potato disc antitumor assay, concentration: 1000 μg/mL in DMSO; b) More than 20% tumor inhibition is deemed significant; c) Percent Inhibition of tumors = [100 ─ (Number of tumors for sample/Number of tumors for control)] × 100; d) Data represents mean value of 15 replicates.

Experimental

General

Melting points were determined in a capillary tube using a MPD Mitamura Riken Kogyo (Japan) electrothermal melting point apparatus. Multinuclear NMR (1H-, 13C- and 119Sn) spectra were recorded on a Bruker ARX 300 MHz-FT-NMR spectrometer using CDCl3 as an internal reference for [δ 1H (CDCl3) = 7.25 and δ 13C (CDCl3) = 77.0]. 119Sn-NMR spectra were obtained with Me4Sn as an external reference [(119Sn) = 37.290665] [10]. Chemical shifts (δ) are given in ppm and coupling constants J are given in Hz. The multiplicities of signals in 1H-NMR are given with chemical shifts; (s = singlet, d = doublet, dd = doublet of doublet, t = triplet, q = quartet, m = multiplet). Mass spectral data (ESI mode) were taken on a LCQ Finnigan MAT ion trap (USA). The m/z values were evaluated assuming that H = 1, C = 12, N = 14, O = 16, Cl = 35.5 and Sn = 120.

Synthesis

Different mono-, di- and triorganotin (IV) carboxylates were prepared by treating the corresponding ligand acid with organotin oxide/hydroxides or its sodium salt with organotin chlorides, adopting various standard procedures [28].

Synthesis of the Ligand L

The ligand acid 3,4-methylenedioxy 6-nitrophenylpropenoic acid was synthesized by dissolving 6-nitropiperonal (6.5 g, 0.033 mol) and malonic acid (7.5 g, 0.072 mol) in a mixture of pyridine (15 mL) and piperidine (0.25 mL) in a 100 mL round bottom flask and heating under reflux for 1 hour in an oil bath (Scheme 1). A rapid evolution of carbon dioxide took place. The reaction was completed by boiling the reaction mixture for 5 minutes, then it was cooled and poured into an excess of water containing enough hydrochloric acid to combine with the pyridine. The 3,4-methylendioxy-6-nitrophenylpropenoic acid was filtered off, washed with a little water and dried. The acid obtained was recrystallized from glacial acetic acid. The synthesized ligand acid is a crystalline solid, possessing a sharp melting point. And the yield is typically in the 67-86 % range.

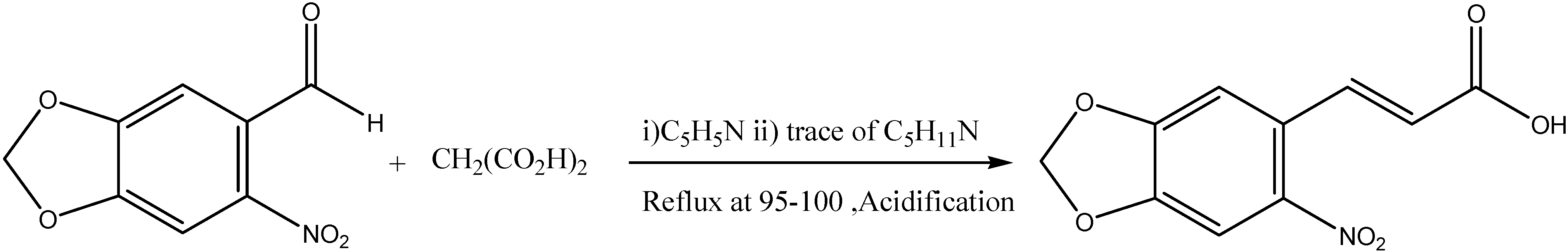

Scheme 1.
Scheme 1.
Molecules 12 02348 g005

Synthesis of Complexes

Procedure-I

The sodium salt RCOONa, was prepared by adding dropwise an equimolar amount of sodium hydrogen carbonate dissolved in distilled water to the ligand acid (RCOOH) dissolved in ethanol. The clear solution obtained was concentrated under reduced pressure. The dry sodium salt R'COONa (8 mmol), was mixed with diorganotin dichloride (4 mmol) or triorganotin chloride (8 mmol) in 2:1 and 1:1 ratios, respectively, in dry toluene contained in a 250 mL two necked round bottom flask. The mixture was refluxed for 9-10 hr. After refluxing a turbid solution was obtained, which was then left overnight at room temperature. The sodium chloride collected at bottom was filtered off and the solvent was evaporated by rotary evaporation. The resulting solid mass was recrystallized from chloroform and n-hexane mixture (4:1). Compounds 1, 2 and 5 were prepared by this method in yields of 86, 67 and 89%, respectively.

Procedure-II

The ligand acid, R'COOH (12 mmol) and diorganotin oxide (6 mmol), or triorganotin hydroxide (12 mmol) in 2:1 and 1:1 ratios, respectively, were suspended in dry toluene (100 mL) in a single necked round bottom flask (250 mL), equipped with a Dean-Stark apparatus. Anhydrous conditions are required to avoid the oxidation of metal atom before the reaction. However, water is produced as a secondary product and removed by the Dean-Stark apparatus. After the reaction is complete the products (tin carboxylates) are stable to moisture and oxygen. The mixture was refluxed for 8-10 hours and water formed during the condensation reaction was removed at regular intervals. It was then cooled to room temperature and solvent was removed by rotary evaporator. The solid obtained was recrystallized from chloroform containing a few drops of n-hexane. Compounds 3, 4, 6, 7, 8 were prepared by this method. Yield of these compounds were 70, 73, 75, 83, and 80%, respectively.

Biological Activity

Cytotoxicity

The cytotoxity was studied by the brine-shrimp lethality assay method [11b]. Brine-shrimp (Artemia salina) eggs (San Francisco Bay Brand, Inc, New York, CA94560, USA) were hatched in artificial sea water (40 g sea salts/L) at room temperature (22-29 ºC). Sea salts were obtained from from Instant Ocean, Inc, 8141, Tyler Boulevard, Mentor, OH44060, USA. After two days these shrimps were transferred to vials (10 shrimps per vial) containing artificial sea water (5 mL) with 1000, 100 and 10 μg/mL final concentrations of each compound taken from their stock solutions of 20 mg/mL in DMSO. After 24 hours number of surviving shrimps was counted. Data was analyzed with a finny computer programme (Probit analysis) to determine LD50 values.

Antitumor Activity

For antitumor activity crown gall tumor inhibition assay (Potato Disc Assay) [11b] was performed for all these synthesized compounds. Potato discs (0.5 cm thickness) were obtained from surface sterilized potatoes by using metallic cork borer (8 mm) and special cutter under complete aseptic conditions. These potato discs were then transferred to petri plates each containing 1.5 % agar (25 mL, 1.5 g agar/100 mL distilled water). Five potato discs were placed on each plate and three plates were used for each test sample along with same number of plates for control. Each compound (10 mg) was dissolved in DMSO (1 mL) in separate test tubes as a stock solution. Then stock solution of the test sample (0.5 mL, 10 mg/mL) was added to a broth culture of Agrobacterium tumefaciens (2 mL, At10, a 48 hours culture containing 5×109 cells/mL) and autoclaved distilled water (2.5 mL) to give 1000 μg/mL final concentration. These cultures (50 μL) were poured onto each potato disc. The petri plates were incubated at 28 ºC, the lids being taped down with Parafilm. After 21 days incubation, the number of tumors was counted with the aid of dissecting microscope after staining with Lugol’s solution (5% I2, 10% KI in distilled water).

Acknowledgments

The authors gratefully acknowledge financial grants from the Higher Education Commission, Islamabad, Pakistan.

References

  1. Davies, A. G. Organotin Chemistry; Wiley-VCH: Weinheim, Germany, 2004. [Google Scholar]
  2. Gielen, M. An overview of forty years organotin chemistry developed at the Free Universities of Brussels ULB and VUB. J. Braz Chem. Soc. 2003, 14, 870–877. [Google Scholar] [CrossRef]
  3. Casini, A.; Messori, L.; Orioli, P.; Gielen, M.; Kemmer, M.; Willem, R. Interactions of two cytotoxic organotin (IV) compounds with calf thymus DNA. J. Inorg. Biochem. 2001, 85, 297–300. [Google Scholar] [CrossRef]
  4. Gielen, M.; Handlir, K.; Hollein, M.; De, Vos. D. Synthesis, Characterization and Antitumour Activity of Some Butyltin (IV) Cysteaminates and N,N-Dimethylcysteaminates. Met. Based Drugs. 2000, 7, 233–236. [Google Scholar] [CrossRef]
  5. Gielen, M.; Biesemans, M.; De-Vos, D.; Willem, R. Synthesis, characterization and in vitro antitumor activity of di- and triorganotin derivatives of polyoxa- and biologically relevant carboxylic acids. J. Inorg. Biochem. 2000, 79, 139–45. [Google Scholar] [CrossRef]
  6. Bonire, J. J.; Fricker, S. P. The in vitro antitumour profile of some 1, 2-diaminocyclohexane organotin complexes. J. Inorg. Biochem. 2001, 83, 217–220. [Google Scholar] [CrossRef]
  7. De-Vos, D.; Willem, R.; Gielen, M.; Van, Wingerden. K.E.; Nooter, K. The Development of Novel Organotin Anti-Tumor Drugs: Structure and Activity. Met. Based Drugs. 1998, 5, 179–188. [Google Scholar]
  8. Gielen, M.; Biesemans, M.; Willem, R. Organotin compounds: from kinetics to stereochemistry and antitumor activities. Appl. Organomet. Chem. 2005, 19, 440–450. [Google Scholar] [CrossRef]
  9. Yin, D. H.; Wang, B. Q.; Xing, J. Q. Synthesis and characterization of trialkyltin esters of pyridinecarboxylic acids and crystal structure of [n Bu3SnO2CC5H4N-2] ∞. Heteroatom Chem. 2004, 15, 524–529. [Google Scholar]
  10. Ali, S.; Ahmad, F.; Mazhar, M.; Munir, A.; Masood, M. T. Synthesis and Spectral Studies of Di- and Triorganotin (IV) Complexes with 2-(6-Methoxynaphthyl) propionic Acid (Naproxen). Synth. React. Inorg. Met-Org. Chem. 2001, 32, 357–372. [Google Scholar]
  11. (a)Armarego, W. L. F.; Chai, C. L. L. Purification of Laboratory Chemicals, 5th Ed ed; Butterworth-Heinemann: London, 2004. [Google Scholar]b)Rehman, A.; Choudhary, M. I. Bioassay Techniques for Drug Development; Harwood Academic Publishers: Amsterdam, 2001; pp. 9–14. [Google Scholar]
  12. Masood, M. T.; Ali, S.; Danish, M.; Mazhar, M. Synthesis and Characterization of Tri-, Di-, and Chlorodiorganotin (IV) Derivatives of 3-Benzoyl-alpha-methylphenylacetic Acid and 3-(2-Thienyl)acrylic Acid. Synth. React. Inorg. Met-Org. Chem. 2002, 32, 9–24. [Google Scholar]Geilen, M.; Meunier-Piret, J.; Biesemans, M.; Willem, R.; Khloufo, A. El. Synthesis, spectroscopic characterization and in vitro antitumour activity of di-n-butyltin and diethyltin trimethoxybenzoates: X-ray structure analysis of bis[di-n-butyl(3,4,5-trimethoxybenzoato)tin] oxide. Appl. Organomet. Chem. 1992, 6, 67–69. [Google Scholar]
  13. Lockhart, T. P.; Manders, W. F. Structure determination by NMR spectroscopy. Correlation of |[2]J([119]Sn,[1]H)| and the Me-Sn-Me angle in methyltin (IV) compounds. Inorg. Chem. 1986, 25, 892–298. [Google Scholar] [CrossRef]
  14. Nadvornik, M.; Holeček, J.; Handlir, K.; Lycka, A. The [13]C and [119]Sn NMR spectra of some four- and five-coordinate tri-n-butyltin (IV) compounds. J. Organomet. Chem. 1984, 275, 43–51. [Google Scholar]
  15. Shahzadi, S.; Bhatti, M. H.; Shahid, K.; Ali, S.; Tariq, S. R.; Mazhar, M.; Khan, K. M. Synthesis, Characterization, and Biological Activity of n-Tributyltin Derivatives of Pharmaceutically Active Carboxylates. Monatsh. Chem. 2002, 133, 1089–1096. [Google Scholar] [CrossRef]
  16. Ahmed, F.; Ali, S.; Parvez, M.; Munir, A.; Mazhar, M.; Shah, T. A. Synthesis, characterization, and biological studies of tri- and diorganotin (IV) complexes with 2,4-difluoro-4-hydroxy-[1,1]-biphenyle-3-carbolic acid: Crystal structure of [(CH3)3Sn(C13H7O3F2)]. Heteroatom. Chem. 2002, 13, 638–642. [Google Scholar] [CrossRef]
  17. Danish, M.; Ali, S.; Mazhar, M.; Badshah, A.; Choudhary, M. I.; Alt, H. G.; Kehr, G. Moessbauer, multinuclear magnetic resonance and mass spectrometric studies of organotin carboxylates of m-methyl trans-cinnamic acid. Polyhedron 1995, 14, 3115–3120. [Google Scholar] [CrossRef]
  18. Shahid, K.; Ali, S.; Shahzadi, S.; Badshah, A.; Khan, K. M.; Maharvi, G. M. Organotin (IV) Complexes of Aniline Derivatives. I. Synthesis, Spectral, and Antibacterial Studies of Di- and Triorganotin (IV) Derivatives of 4-Bromomaleanilic Acid. Synth. React. Inorg. Met.-Org. Chem. 2003, 33, 1221–1236. [Google Scholar] [CrossRef]
  19. Sadiq-ur-Rehman; Ali, S; Mazhar, M; Badshah, A; Parvez, M. Synthesis, spectroscopic characterization, and biological activity studies of organotin (IV) derivatives of (E)-3-(3-fluorophenyl)-2-phenyl-2-propenoic acid. Crystal and molecular structure of Et2Sn[OCOC(C6H5) CH(3-FC6H4)]. Heteroatom Chem. 2006, 17, 420–432. [Google Scholar]
  20. Holeček, J.; Lycka, A. Dependence of [[1] J ([119] Sn [13] C)] on the C―Sn―C angle in n-butyltin (IV) compounds. Inorg. Chim. Acta. 1986, 118, L15–L16. [Google Scholar] [CrossRef]
  21. Kapoor, R; Gupta, A; Kapoor, P; Venugopalan, P. Synthesis and characterization of di-n-butyltin (IV) complexes with 4′/2′-nitrobiphenyl-2-carboxylic acids: X-ray crystal structures of [{(n-C4H9)2Sn(OCOC12H8NO2-4′)}2O]2 and (n-C4H9)2Sn{OCOC12H8NO2-4′}2. Appl. Organomet. Chem. 2003, 17, 600–606. [Google Scholar] [CrossRef]
  22. Holeček, J.; Nadvornik, M.; Handlir, K.; Lycka, A. 13C and 119Sn NMR spectra of di-n-butyltin (IV) compounds. J. Organomet. Chem. 1986, 315, 299–308. [Google Scholar] [CrossRef]Tiekink, E. R. T.; Gielen, M.; Bouhbid, A. Crystal structure of the dimeric bis(p-fluoro- and pentafluorophenylacetato)tetra-n-butyldistannoxanes. J. Organomet. Chem. 1995, 494, 247–253. [Google Scholar] [CrossRef]
  23. Tian, L; Yu, Q; Zheng, X; Shang, Z; Xueli, Liu; Qian, B. Synthesis, Characterization and in vitro anitumour activity of di- and tri-organotin derivatives of fenbufen. Appl. Organomet. Chem. 2005, 19, 672–676. [Google Scholar] [CrossRef]
  24. Mala, N.; Sulaxna; Song, X; Eng, G. Synthesis, spectral and thermal studies of some organotin (IV) derivatives of 5-amino-3H-1,3,4-thiadiazole-2-thione. Spectrochim. Acta A 2006, 64, 148–155. [Google Scholar] [CrossRef]
  25. Williams, D. H.; Fleming, I. Spectroscopic Methods in Organic Chemistry, 4th Edn. ed; McGraw-Hill Book Company (UK) Ltd.: London, 1987; p. 136. [Google Scholar]
  26. Ali, S.; Khokhar, M. N.; Bhatti, M. H.; Mazhar, M.; Masood, M. T.; Shahid, K.; Badshah, A. 1H, 13C, and 119Sn NMR, IR, Mass, Thermal, and Biological Studies of Organotin (IV) Derivatives of 4-p-(Chlorophenyl)-2-phenyl-5-thiazoleacetic Acid. Synth. React. Inorg. Met.-Org. Chem. 2002, 32, 1373–1392. [Google Scholar] [CrossRef]
  27. Sadiq-Ur-Rehman; Ali, S.; Badshah, A.; Malik, A.; Ahmed, V.; Jin, G. X.; Edward , R. T.; Tiekink. Di- and tri-organotin (IV) derivatives of (Z)-3-(4-nitrophenyl)-2-phenyl-2-propenoic acid: spectroscopic characterization and biocidal studies. Crystal structure analysis of tetrameric tri-n-butyltin (IV) (Z)-3-(4-nitrophenyl)-2-phenyl-2-propenoate. Appl. Organomet. Chem. 2004, 18, 401–408. [Google Scholar] [CrossRef]
  28. Danish, M.; Alt, H. G.; Badshah, A.; Ali, S.; Mazhar, M.; Islam, N. Organotin esters of 3-(2-furanyl)-2-propenoic acid: their characterization and biological activity. J. Organomet. Chem. 1995, 486, 51–56. [Google Scholar] [CrossRef]
  • Sample Availability: Contact the authors.
Back to TopTop
