Relative Stereochemistry of a Diterpene from Salvia cinnabarina
1
Dipartimento di Chimica e Tecnologie Farmaceutiche e Alimentari, Università di Genova, Via Brigata Salerno, Genova, Italy
2
Dipartimento di Scienze Farmaceutiche, Università di Salerno, Via Ponte Don Melillo, 84084 Fisciano, Salerno, Italy
3
Dipartimento di Scienze Farmaceutiche, Università di Genova, Viale Benedetto XV, Genova, Italy
*
Author to whom correspondence should be addressed.
Received: 27 September 2007; in revised form: 5 October 2007 / Accepted: 5 October 2007 / Published: 10 October 2007

Abstract

:
The relative stereochemistry of 3,4-secoisopimara-4(18),7,15-triene-3-oic acid, a diterpenoid with antispasmodic, hypotensive and antibacterial activities isolated from Salvia cinnabarina, was determined by an X-ray diffraction analysis of a single crystal of a suitable crystalline derivative.
Keywords:
Salvia cinnabarina; Lamiaceae; secoisopimarane-diterpene; relative stereo- chemistry; X-ray structure

Introduction

The genus Salvia (family Lamiaceae) includes over 900 species growing in the temperate and tropical zones of the world; and various taxa of this genus are commonly used in traditional medicine [1]. Interesting bioactive compounds isolated from Salvia species are flavonoids, essential oils, diterpenes, and triterpenes with antifeedant, antibacterial, antifungal [2,3], hallucinogenic [3] and antioxidant activities [4].
In previous papers we have described the antispasmodic, hypotensive and antibacterial activities of a new secoisopimarane diterpenoid isolated from Salvia cinnabarina M. Martens and Galeotti, whose relative stereochemistry could be only partially determined on the basis of NMR spectroscopic techniques [5,6,7,8,9]. We now report the complete relative stereochemistry of this compound, determined by an X-ray diffraction analysis of a single crystal of a suitable crystalline derivative.

Results and Discussion

In a previous paper, and on the basis of NMR spectroscopic techniques, we were able to report only the relative configuration at C-9 and C-13 of 3,4-secoisopimara-4(18),7,15-triene-3-oic acid (1), as the compound did not give crystals suitable for X-ray diffraction analysis. In order to confirm these partial results and to obtain the complete relative stereochemistry of 1 we have now prepared derivatives of the carboxylate group since this group was the most suitable for synthesis of derivatives without changes in the configuration of the rings (Scheme 1).
Scheme 1. Chemical structures of compounds 1 - 4.
Scheme 1. Chemical structures of compounds 1 - 4.
Molecules 12 02279 g003
We prepared the methyl ester 2 (an oil) from the sodium salt of 1 and methyl iodide and then the hydrazide 3 by treatment of 2 with hydrazine hydrate. Since compound 3 did not give suitable crystals either, we prepared the acetone derivative 4, which finally provided crystals suitable for X-ray diffraction analysis. Since compounds 1, 2, 3 and 4 showed in the 13C-NMR practically identical signals for the 19 carbons of the diterpenoid moiety and only the substituted C-3 showed different δ-values (Table 1), it may be inferred that the same relative stereochemistry is maintained in all compounds.
Table 1. 13C-NMR spectral data (δ values, CDCl3).
Table 1. 13C-NMR spectral data (δ values, CDCl3).
C1a234
132.032.233.031.9
229.028.829.129.4
3181.0174.7174.6176.3b
4147.3147.3147.8147.5
549.549.449.849.0
629.329.329.129.4
7121.4121.4121.3121.3
8136.0136.0136.0136.2
944.444.244.243.9
1037.637.637.537.8
1121.020.920.820.8
1236.336.336.236.3
1337.037.036.937.0
1446.446.446.446.4
15150.1150.1150.0150.3
16109.4109.4109.4109.3
1721.521.521.521.5
18114.0113.9113.9113.7
1923.723.723.323.9
2016.716.716.817.0
COOMe 51.5
C=N 148.6c
Acetone
moiety Me 25.4 and 27.2
aReference [5]; b this C showed an HMBC correlation with the NH proton at δ 8.53; c this C showed HMBC correlations with the NH proton and the Me protons of the acetone moiety at δ 1.95 and 1.79
In the crystal of 4 the asymmetric unit is formed by two independent molecules. A perspective view of one molecule is shown in Figure 1, together with the atomic labelling scheme. The two molecules are related by a non-crystallographic pseudo-twofold axis and are stabilized by means of two intermolecular hydrogen bonds: N1···O1’= 2.894 (3) Å, and N1’···O1= 2.953 (4) Å (Figure 2). They present geometric and conformational similarities, the only difference being observed for the C16 atom of the ethylenic group, which is rotated about 70° around the C13-C15 bond in one structure compared with the other. Upon best-fit superposition, the r.m.s. deviation of corresponding atoms, excluding the side substituents, is only 0.044 Å. Bond lengths and angles are within the expected ranges and generally agree well with the values reported in the literature for correlated molecules [16,17,18,19]
Figure 1. The molecular structure of 4, with the atomic labelling for non-H atoms.
Figure 1. The molecular structure of 4, with the atomic labelling for non-H atoms.
Molecules 12 02279 g001
The cyclohexene ring adopts a half-chair conformation, with atomic displacements of 0.415 (4) (for C5) and 0.390 (3) Å (for C10) for one molecule, and 0.456 (4) (for C5’) and 0.358 (3) Å (for C10’) for the other. The puckering parameters [20] of the cyclohexene are: Q = 0.526 (3) Å, θ = 52.7 (4)° and φ2 = 30.8 (5)° for the first molecule, and Q = 0.533 (4) Å, θ = 53.6 (4)° and φ2 = 33.5 (5)° for the second one. On the other hand, the cyclohexane ring approximates to an ideal chair, with puckering parameters Q = 0.524 (4) Å, θ = 9.1 (4)°, φ2 = 39 (3)° and Q = 0.534 (4) Å, θ = 11.3 (5)°, φ2 = 36 (2)° for the first and second molecule, respectively. The atomic displacements are 0.546 (4) (for C8) and 0.663 (4) Å (for C12) for the first molecule, and 0.532 (4) (for C8’) and 0.680 (4) Å (for C12’) for the second one.
In the absence of atoms with strong anomalous scattering, the absolute configuration was not determined and the configuration shown was chosen arbitrarily. On this basis, the relative configurations at the chiral centers are fixed as C5S*, C9S*, C10S* and C13S*.
Thus, taking into account the X-ray structure of derivative 4, in the original natural compound 1 H- 5 and H-9 are axial and on the opposite side of the 20 axial methyl group; moreover, the vinyl group at C-13 is equatorial and the C-17 axial methyl group is on the same side of the C-20 axial methyl group. These results are in agreement with the partial stereochemistry previously determined with NMR spectroscopic techniques and with the signal of the H-5 at δ 2.18 in the 1H-NMR spectrum of 1, which showed one axial/axial (J5ax/6ax = 12.0 Hz) and one axial/equatorial (J 5ax/6eq = 3.0 Hz) coupling, typical of an axial configuration [5].

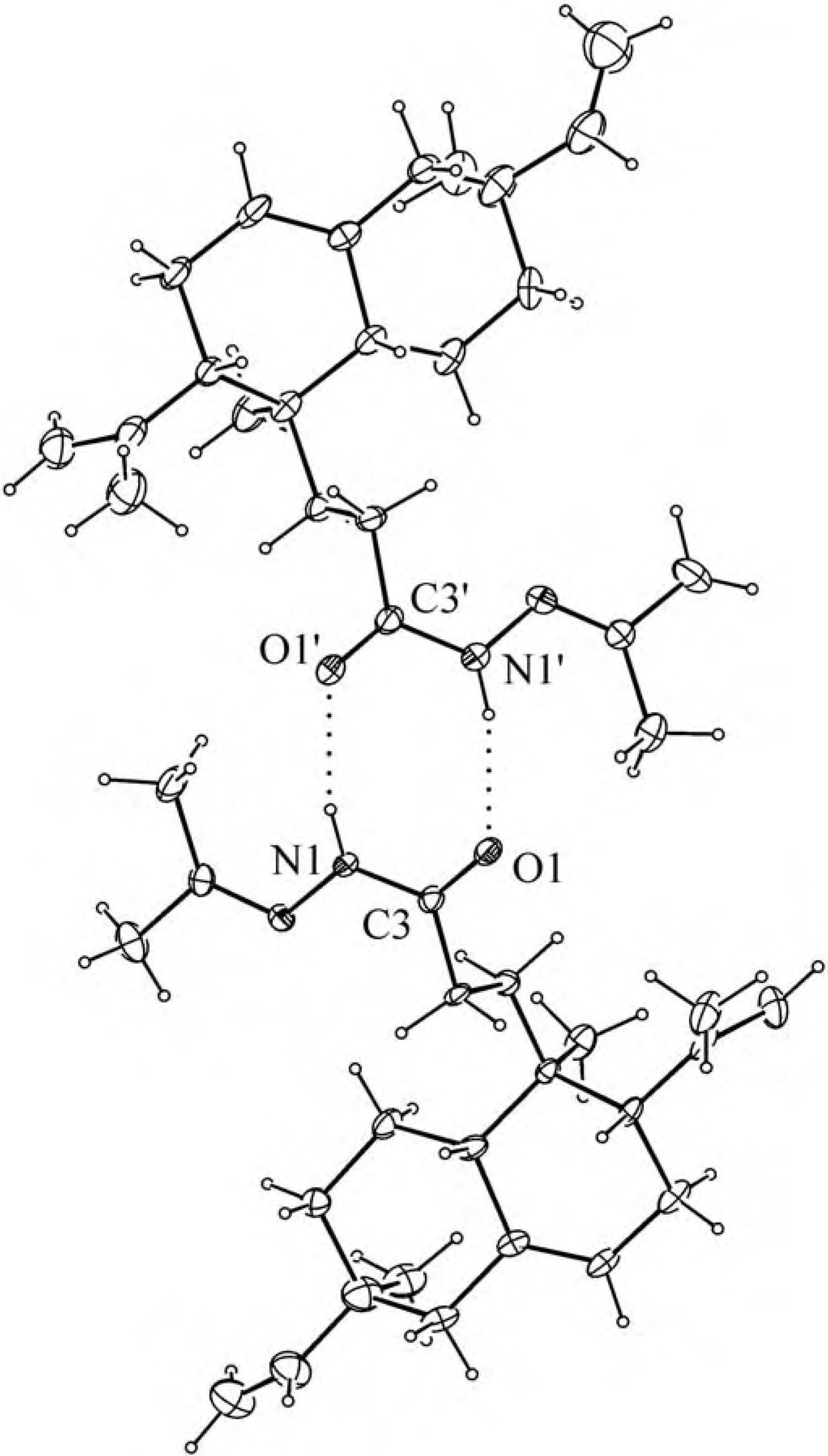

Figure 2. A perspective view of the two independent molecules of 4. Dotted lines indicate the two intermolecular hydrogen bonds.
Figure 2. A perspective view of the two independent molecules of 4. Dotted lines indicate the two intermolecular hydrogen bonds.
Molecules 12 02279 g002

Experimental

General

Silica gel 60 (Merck 230-400 mesh) was used for column chromatography; aluminium sheets of silica gel 60 F254 (Merck 0.2 mm thick) with CHCl3/MeOH (12:05) as eluent were used and the spots were detected by spraying 5% H2SO4, followed by heating. IR spectra were recorded on a Perkin- Elmer 1310 spectrophotometer. NMR spectra were recorded in CDCl3 on a BRUKER DRX 600 spectrometer (operating at 600 MHz for 1H and 150 MHz for 13C) using TMS as internal standard. The optical rotation was recorded on a Perkin-Elmer 241MC polarimeter. Melting points are uncorrected and were measured on a Tottoli melting point apparatus (Büchi).

Extraction

Extraction of 3,4-secoisopimara-4(18),7,15-triene-3-oic acid (1) from leaf surface constituents of fresh aerial parts of Salvia cinnabarina was performed as previously described [5]. The sodium salt was prepared by reaction with an equivalent of NaOH in MeOH solution.

Synthetic procedures

3,4-Secoisopimara-4(18),7,15-triene-3-oic acid methylester (2). CH3I (2.8 g, 20 mmol) was added to a solution of the sodium salt of 1 (0.97 g, 3 mmol) in MeOH (5 mL) and the mixture was refluxed in an oil bath for 4 h. Solvent and the excess of CH3I were then distilled off under vacuum and the residue extracted with n-hexane. The hexane solution was evaporated and the residue (oil, 0.78 g) was chromatographed on a silica gel column (1.5 x 30 cm, analytical TLC control) eluting with mixtures of n-hexane – CHCl3 [9:10 (90 mL), 8:2 (700 mL)]. Elution with 8:2 n-hexane – CHCl3 afforded 0.75 g of pure 2 (yield: 78.8 %) as an oil; [α]D22 + 42.2° (c 0.94, MeOH); IR (KBr)νmax 3070, 1735 (CO), 1628, 990, 902, 890 cm-1; 13C-NMR: see Table 1; 1H-NMR: δ 5.82 (1H, dd, J = 11.0, 17.0 Hz, H-15); 5.38 (1H, bs, H-7); 4.94 (1H, nd, J = 17.0 Hz, H-16 trans); 4.89 (1H, nd, J = 11.0 Hz, H-16 cis); 4.88 and 4.80 (both 1H, ns, CH2-18); 3.68 (3H, s, -COOMe); 1.83 (3H, s, Me-19); 0.93 (3H, s, Me-20), 0.89 (3H, s, Me-17); Anal. C 79.62 %, H 10.02 %, calc. for C21H32O2, C 79.70 %, H 10.19 %.
3,4-Secoisopimara-4(18),7,15-triene-3-oic acid hydrazide (3). A mixture of 2 (0.95 g, 3 mmol) and hydrazine hydrate (98%, 1 mL) was heated in an oil bath at 110°C for 15 min; abs. EtOH (4 mL) was then added and the solution was refluxed for 2 h. Solvent and excess of hydrazine hydrate were distilled off under vacuum and the residue was crystallized from n-hexane – EtOH. Yield: 0.91 g of crude 3 (95.7 %), which was purified by recrystallization from MeOH – H2O. Waxy crystals; m.p. 85-87°C; [α]D22 + 41.2 (c 0.90, MeOH); IR (KBr)νmax 3300 (NH), 3060, 1640 (CO), 1615, 988, 902, 885 cm-1; 13C-NMR: see Table 1; 1H-NMR: δ 7.11 (1H, ns, NH); 5.78 (1H, dd, J = 11.0, 17.1 Hz, H-15); 5.34 (1H, m, H-7); 4.96 (1H, nd, J = 17.1 Hz, H-16 trans); 4.85 (1H, nd, J = 11.0 Hz, H-16 cis); 4.84 and 4.78 (both 1H, ns, CH2-18); 3.90 (2H, brs, NH2); 1.79 (3H, s, Me-19); 0.96 (3H, s, Me-20), 0.85 (3H, s, Me-17); Anal. C 75.72 %, H 10.47 %, N 9.00 %, calc. for C20H32N2O, C 75.90 %, H 10.19 %, N 8.85 %.
3,4-Secoisopimara-4(18),7,15-triene-3-oil-hydrazone of acetone (4). Crude 3 (0.72 g, 2.27 mmol) was dissolved in boiling acetone (10 mL). The solution was concentrated, cooled to room temperature and the resulting crystalline precipitate was filtered. Yield: 0.62 g of crude 4 (76.4 %), which was purified by recrystallization from acetone. M.p. 108-110°C; [α]D22 + 21.2° (c 0.90, MeOH); IR (KBr)νmax 3160 (NH), 3062, 1650 (CO), 990, 901, 890 cm-1; 13C-NMR: see Table 1; 1H-NMR: δ 8.53 (1H, ns, NH); 5.77 (1H, dd, J = 11.0, 17.5 Hz, H-15); 5.33 (1H, m, H-7); 4.89 (1H, nd, J = 17.5, H-16 trans); 4.83 (1H, nd, J = 11.0, H-16 cis); 4.83 and 4.78 (both 1H, ns, CH2-18); 1.95 (3H, s, one Me of acetone moiety); 1.79 (6H, s, Me-19 and one Me of acetone moiety); 0.90 (3H, s, Me-20); 0.85 (3H, s, Me-17); Anal. C 77.65 %, H 10.52 %, N 7.87 %, calc. for C23H36N2O, C 77.48 %, H 10.18 %, N 7.86 %. Crystals suitable for X-ray analysis were obtained by slow evaporation from an acetone solution at room temperature.

X-ray structure determination of 4

A selected crystal was mounted on the glass fiber and the diffraction intensity data were collected at room temperature by Nonius KappaCCD diffractometer with graphite monochromatized Mo-Kα radiation (λ = 0.71073 Å). Accurate cell parameters were obtained by least-squares refined of the setting angles of 421 reflections at medium θ using DIRAX software [10]. Data collection were carried out with φ and ω scans, using COLLECT software [11]. Data reduction and absorption correction were performed using SADABS [12]. Structure solution was solved using direct method (SIR97) [13] and refinement was performed using SHELXL97 software package [14]. ORTEP-3 software was employed for molecular graphics [15]. All H atoms were found in difference Fourier maps and were included in the final refinement assuming idealized geometry, with C-H distances = 0.98, 0.97, 0.96 and 0.93 Å for tertiary CH, secondary CH2, methyl CH3 and sp2 CH atoms, respectively, and with amide N-H distance of 0.86 Å. They were refining with Uiso values equal to 1.2Ueq parent atoms.
Crystal data: C23H36N2O (356.54 g/mol), colorless elongated prism crystal with size 0.56 x 0.18 x 0.16 mm3, orthorhombic, space group P212121, T = 291 (2) K, a = 11.009 (3) Å, b = 12.679 (3) Å, c = 32.617 (10) Å, V = 4553 (2) Å3, Dc = 1.04 Mg/m3, Z = 8, F(000) = 1568, μ(Mo-Kα) = 0.063 mm-1. A total of 27598 reflections (−11 ≤ h ≤ 10, −12 ≤ k ≤ 13, −34 ≤ l ≤ 28), were collected in the range of 1.72° < θ < 22.09°, with 3183 independent reflections [R (int) = 0.061], completeness to θ max was 99.1%. The structure was refined by full-matrix least-square on F2, with a final discrepancy index R of 0.0417 based on 2128 observed reflections [I > 2σ(I)] and 479 variable parameters. The overall Rw value was 0.0747 with w=1/[σ2(Fo2)+(0.0265P)2+0.2811P] where P=(Fo2+2F 2)/3c; goodness–of-fit =1.140; (Δ/σ)max<0.0001. No residual electron density was outside the range -0.094 to 0.085 e Å-3. The anomalous dispersion effect is small and no reliable evidence of the absolute configuration could be obtained, indeed the final Flack parameter = 0.3 (14), using 2295 Friedel opposite reflections, is not significant.
All the crystallographic data have been deposited with the Cambridge Crystallographic Data Centre (Accession No. CCDC 650071). Copies of the data can be obtained, free of charge, on application to the Director, CCDC, 12 Union Road, Cambridge CB2 1EZ, UK (fax: +44-(0)1223-336033 or e-mail: [email protected]).

Acknowledgments

We thank the INTERREG III – ALCOTRA, project N.074 “SALVIA” for financial support. The X- ray experiments were performed at the ‘Centro di Metodologie Chimico-Fisiche’ of University Federico II of Naples, using the equipment of the ‘Centro Regionale di Competenza Nuove Tecnologie per le Attività Produttive’ of Campania Region.

References and Notes

  1. Penso, G. Index Plantarum Medicinalium Totius Mundi Eorumque Synonymorum; O.E.M.F.: Milano, 1983; pp. 845–848. [Google Scholar]
  2. Tomás-Barberán, F.A.; Wollenweber, E. Flavonoid aglycones from the leaf surfaces of some Labiatae species. Plant Syst. Evol. 1990, 173, 109–118. [Google Scholar] [CrossRef]
  3. Rodríguez-Hahn, L.; Esquivel, B.; Cárdenas, J. Clerodane Diterpenes in Labiatae. In Progress in the Chemistry of Organic Natural Products; Zechmeister, L., Ed.; Springer: Heidelberg, 1994; Vol. 63, 162 and literature cited therein. [Google Scholar]
  4. Cuvelier, M.E.; Richard, H.; Berset, C. Antioxidative Activity and Phenolic Composition of Pilot- Plant and Commercial Extracts of Sage and Rosemary. J. Am. Oil Chem. Soc. 1996, 73, 645–652. [Google Scholar] [CrossRef]
  5. Romussi, G.; Ciarallo, G.; Bisio, A.; Fontana, N.; De Simone, F.; De Tommasi, N.; Mascolo, N.; Pinto, L. A new diterpenoid with antispasmodic activity from Salvia cinnabarina. Planta Med. 2001, 67, 153–155. [Google Scholar]
  6. Capasso, R.; Izzo, A.A.; Romussi, G.; Capasso, F.; De Tommasi, N.; Bisio, A.; Mascolo, N. A diterpenoid from Salvia cinnabarina inhibits rat urinary bladder contractility in vitro. Planta Med. 2004, 70, 185–188. [Google Scholar]
  7. Capasso, R.; Izzo, A.A.; Capasso, F.; Romussi, G.; Bisio, A.; Mascolo, N. A diterpenoid from Salvia cinnabarina inhibits mouse intestinal motility in vivo. Planta Med. 2004, 70, 375–377. [Google Scholar]
  8. Capasso, R.; Avello, G.; Ascione, V.; D’Alessio, A.; De Fusco, R.; Romussi, G.; et al. Antimicrobial activity of a secoisopimarane diterpenoid isolated from Salvia cinnabarina. In Proceedings 3rd International Symposium on Natural Drugs, Naples; 2003; pp. 193–197. [Google Scholar]
  9. Alfieri, A.; Maione, F.; Bisio, A.; Romussi, G.; Mascolo, N.; Cicala, C. Effect of a diterpenoid from Salvia cinnabarina on arterial blood pressure in rats. Phytother Res. 2007, 21, 690–692. [Google Scholar]
  10. Duisenberg, A.J.M. Indexing in single-crystal diffractometry with an obstinate list of reflections. J. Appl. Cryst. 1992, 25, 92–96. [Google Scholar] [CrossRef]
  11. Hooft, R.W.W. COLLECT; Nonius BV: Delft, The Netherlands, 1999. [Google Scholar]
  12. Sheldrick, G.M. SADABS. Version 2.10; University of Göttingen: Göttingen, Germany, 2003. [Google Scholar]
  13. Altomare, A.; Burla, M.C.; Cavalli, M.; Cascarano, G.L.; Giacovazzo, C.; Gagliardi, A.; Moliterni, A.G.G.; Polidori, G.; Spagna, R. SIR97: a new tool for crystal structure determination and refinement. J. Appl. Cryst. 1999, 32, 115–119. [Google Scholar] [CrossRef]
  14. Sheldrick, G.M. SHELXL-97; University of Göttingen: Göttingen, Germany, 1997. [Google Scholar]
  15. Farrugia, L.J. ORTEP-3 for Windows - a version of ORTEP-III with a Graphical User Interface (GUI). J. Appl. Cryst. 1997, 30, 565. [Google Scholar] [CrossRef]
  16. Kato, T.; Kabuto, C.; Sasaki, N.; Tsunagawa, M.; Aizawa, H.; Fujita, K.; Kato, Y.; Kitahara, Y.; Takahashi, N. Momilactones, growth inhibitors from rice, Oryza sativa. Tetrahedron Lett. 1973, 39, 3861–3864. [Google Scholar]
  17. Lipson, V.V.; Desenko, S.M.; Orlov, V.D.; Shishkin, O.V.; Shirobokova, M.G.; Chernenko, V.N.; Zinov’eva, L.I. Cyclocondensation of 3-amino-1,2,4-triazoles with esters of substituted cinnamic acids and aromatic unsaturated ketones. Chem. Heterocycl. Comp. 2000, 36, 1329–1335. [Google Scholar]
  18. Khusainova, N.G.; Mostovaya, O.A.; Azancheev, N.M.; Litvinov, I.A.; Krivolapov, D.B.; Cherkasov, R.A. Reaction of 2-acetyl-5-methyl-2H-1,2,3-diazaphosphole with butane-2,3-diol. Mendeleev Commun. 2004, 5, 212–214. [Google Scholar]
  19. Atta-Ur-Rahman; Akhtar, M.N.; Choudhary, M.I.; Tsuda, Y.; Yasin, A.; Sener, B.; Parvez, M. New diterpene isopimara-7,15-dien-19-oic acid and its prolyl endopeptidase inhibitory activity. Nat. Prod. Res. 2005, 19, 13–22. [Google Scholar]
  20. Cremer, D.; Pople, J.A. General definition of ring puckering coordinates. J. Am. Chem. Soc. 1975, 97, 1354–1358. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of the compounds 1 - 4 are available from authors.
