Relative Stereochemistry of a Diterpene from Salvia cinnabarina

Abstract

The relative stereochemistry of 3,4-secoisopimara-4(18),7,15-triene-3-oic acid, a diterpenoid with antispasmodic, hypotensive and antibacterial activities isolated from Salvia cinnabarina, was determined by an X-ray diffraction analysis of a single crystal of a suitable crystalline derivative.

Introduction

The genus Salvia (family Lamiaceae) includes over 900 species growing in the temperate and tropical zones of the world; and various taxa of this genus are commonly used in traditional medicine [1]. Interesting bioactive compounds isolated from Salvia species are flavonoids, essential oils, diterpenes, and triterpenes with antifeedant, antibacterial, antifungal [2,3], hallucinogenic [3] and antioxidant activities [4].

In previous papers we have described the antispasmodic, hypotensive and antibacterial activities of a new secoisopimarane diterpenoid isolated from Salvia cinnabarina M. Martens and Galeotti, whose relative stereochemistry could be only partially determined on the basis of NMR spectroscopic techniques [5,6,7,8,9]. We now report the complete relative stereochemistry of this compound, determined by an X-ray diffraction analysis of a single crystal of a suitable crystalline derivative.

Results and Discussion

In a previous paper, and on the basis of NMR spectroscopic techniques, we were able to report only the relative configuration at C-9 and C-13 of 3,4-secoisopimara-4(18),7,15-triene-3-oic acid (1), as the compound did not give crystals suitable for X-ray diffraction analysis. In order to confirm these partial results and to obtain the complete relative stereochemistry of 1 we have now prepared derivatives of the carboxylate group since this group was the most suitable for synthesis of derivatives without changes in the configuration of the rings (Scheme 1).

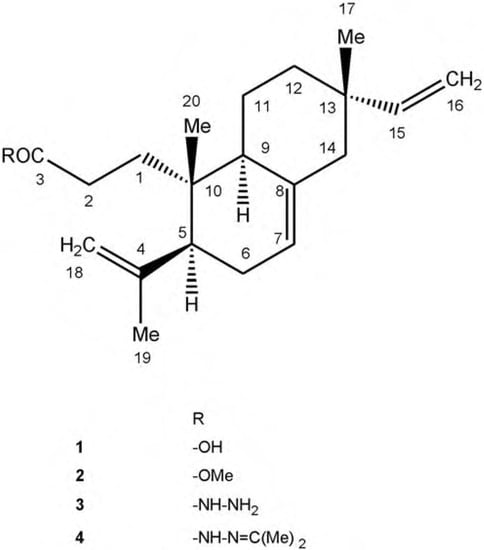

Scheme 1. Chemical structures of compounds 1 - 4.

Scheme 1. Chemical structures of compounds 1 - 4.

We prepared the methyl ester 2 (an oil) from the sodium salt of 1 and methyl iodide and then the hydrazide 3 by treatment of 2 with hydrazine hydrate. Since compound 3 did not give suitable crystals either, we prepared the acetone derivative 4, which finally provided crystals suitable for X-ray diffraction analysis. Since compounds 1, 2, 3 and 4 showed in the ¹³C-NMR practically identical signals for the 19 carbons of the diterpenoid moiety and only the substituted C-3 showed different δ-values (Table 1), it may be inferred that the same relative stereochemistry is maintained in all compounds.

Table 1. ¹³C-NMR spectral data (δ values, CDCl₃).

C	1a	2	3	4
1	32.0	32.2	33.0	31.9
2	29.0	28.8	29.1	29.4
3	181.0	174.7	174.6	176.3b
4	147.3	147.3	147.8	147.5
5	49.5	49.4	49.8	49.0
6	29.3	29.3	29.1	29.4
7	121.4	121.4	121.3	121.3
8	136.0	136.0	136.0	136.2
9	44.4	44.2	44.2	43.9
10	37.6	37.6	37.5	37.8
11	21.0	20.9	20.8	20.8
12	36.3	36.3	36.2	36.3
13	37.0	37.0	36.9	37.0
14	46.4	46.4	46.4	46.4
15	150.1	150.1	150.0	150.3
16	109.4	109.4	109.4	109.3
17	21.5	21.5	21.5	21.5
18	114.0	113.9	113.9	113.7
19	23.7	23.7	23.3	23.9
20	16.7	16.7	16.8	17.0
COOMe		51.5
C=N				148.6c
Acetone
moiety Me				25.4 and 27.2

^aReference [5]; ^b this C showed an HMBC correlation with the NH proton at δ 8.53; ^c this C showed HMBC correlations with the NH proton and the Me protons of the acetone moiety at δ 1.95 and 1.79

Table 1. ¹³C-NMR spectral data (δ values, CDCl₃).

C	1a	2	3	4
1	32.0	32.2	33.0	31.9
2	29.0	28.8	29.1	29.4
3	181.0	174.7	174.6	176.3b
4	147.3	147.3	147.8	147.5
5	49.5	49.4	49.8	49.0
6	29.3	29.3	29.1	29.4
7	121.4	121.4	121.3	121.3
8	136.0	136.0	136.0	136.2
9	44.4	44.2	44.2	43.9
10	37.6	37.6	37.5	37.8
11	21.0	20.9	20.8	20.8
12	36.3	36.3	36.2	36.3
13	37.0	37.0	36.9	37.0
14	46.4	46.4	46.4	46.4
15	150.1	150.1	150.0	150.3
16	109.4	109.4	109.4	109.3
17	21.5	21.5	21.5	21.5
18	114.0	113.9	113.9	113.7
19	23.7	23.7	23.3	23.9
20	16.7	16.7	16.8	17.0
COOMe		51.5
C=N				148.6c
Acetone
moiety Me				25.4 and 27.2

^aReference [5]; ^b this C showed an HMBC correlation with the NH proton at δ 8.53; ^c this C showed HMBC correlations with the NH proton and the Me protons of the acetone moiety at δ 1.95 and 1.79

In the crystal of 4 the asymmetric unit is formed by two independent molecules. A perspective view of one molecule is shown in Figure 1, together with the atomic labelling scheme. The two molecules are related by a non-crystallographic pseudo-twofold axis and are stabilized by means of two intermolecular hydrogen bonds: N1···O1’= 2.894 (3) Å, and N1’···O1= 2.953 (4) Å (Figure 2). They present geometric and conformational similarities, the only difference being observed for the C16 atom of the ethylenic group, which is rotated about 70° around the C13-C15 bond in one structure compared with the other. Upon best-fit superposition, the r.m.s. deviation of corresponding atoms, excluding the side substituents, is only 0.044 Å. Bond lengths and angles are within the expected ranges and generally agree well with the values reported in the literature for correlated molecules [16,17,18,19]

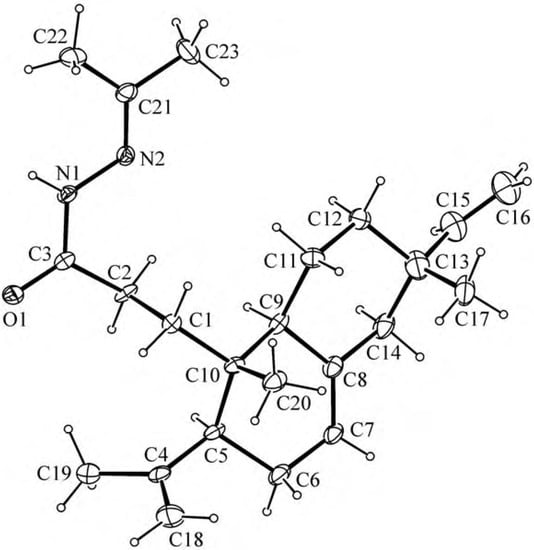

Figure 1. The molecular structure of 4, with the atomic labelling for non-H atoms.

Figure 1. The molecular structure of 4, with the atomic labelling for non-H atoms.

The cyclohexene ring adopts a half-chair conformation, with atomic displacements of 0.415 (4) (for C5) and 0.390 (3) Å (for C10) for one molecule, and 0.456 (4) (for C5’) and 0.358 (3) Å (for C10’) for the other. The puckering parameters [20] of the cyclohexene are: Q = 0.526 (3) Å, θ = 52.7 (4)° and φ₂ = 30.8 (5)° for the first molecule, and Q = 0.533 (4) Å, θ = 53.6 (4)° and φ₂ = 33.5 (5)° for the second one. On the other hand, the cyclohexane ring approximates to an ideal chair, with puckering parameters Q = 0.524 (4) Å, θ = 9.1 (4)°, φ₂ = 39 (3)° and Q = 0.534 (4) Å, θ = 11.3 (5)°, φ₂ = 36 (2)° for the first and second molecule, respectively. The atomic displacements are 0.546 (4) (for C8) and 0.663 (4) Å (for C12) for the first molecule, and 0.532 (4) (for C8’) and 0.680 (4) Å (for C12’) for the second one.

In the absence of atoms with strong anomalous scattering, the absolute configuration was not determined and the configuration shown was chosen arbitrarily. On this basis, the relative configurations at the chiral centers are fixed as C5S*, C9S*, C10S* and C13S*.

Thus, taking into account the X-ray structure of derivative 4, in the original natural compound 1 H- 5 and H-9 are axial and on the opposite side of the 20 axial methyl group; moreover, the vinyl group at C-13 is equatorial and the C-17 axial methyl group is on the same side of the C-20 axial methyl group. These results are in agreement with the partial stereochemistry previously determined with NMR spectroscopic techniques and with the signal of the H-5 at δ 2.18 in the 1H-NMR spectrum of 1, which showed one axial/axial (J_5ax/6ax = 12.0 Hz) and one axial/equatorial (J _5ax/6eq = 3.0 Hz) coupling, typical of an axial configuration [5].

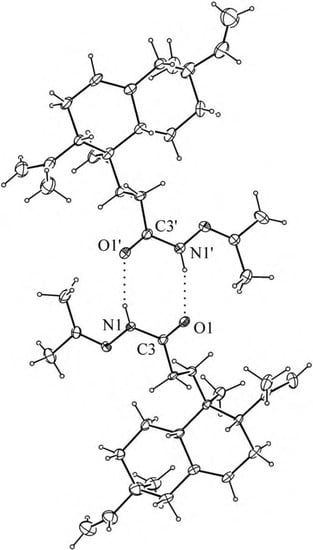

Figure 2. A perspective view of the two independent molecules of 4. Dotted lines indicate the two intermolecular hydrogen bonds.

Figure 2. A perspective view of the two independent molecules of 4. Dotted lines indicate the two intermolecular hydrogen bonds.

Experimental

General

Silica gel 60 (Merck 230-400 mesh) was used for column chromatography; aluminium sheets of silica gel 60 F₂₅₄ (Merck 0.2 mm thick) with CHCl₃/MeOH (12:05) as eluent were used and the spots were detected by spraying 5% H₂SO₄, followed by heating. IR spectra were recorded on a Perkin- Elmer 1310 spectrophotometer. NMR spectra were recorded in CDCl₃ on a BRUKER DRX 600 spectrometer (operating at 600 MHz for ¹H and 150 MHz for ¹³C) using TMS as internal standard. The optical rotation was recorded on a Perkin-Elmer 241MC polarimeter. Melting points are uncorrected and were measured on a Tottoli melting point apparatus (Büchi).

Extraction

Extraction of 3,4-secoisopimara-4(18),7,15-triene-3-oic acid (1) from leaf surface constituents of fresh aerial parts of Salvia cinnabarina was performed as previously described [5]. The sodium salt was prepared by reaction with an equivalent of NaOH in MeOH solution.

Synthetic procedures

3,4-Secoisopimara-4(18),7,15-triene-3-oic acid methylester (2). CH₃I (2.8 g, 20 mmol) was added to a solution of the sodium salt of 1 (0.97 g, 3 mmol) in MeOH (5 mL) and the mixture was refluxed in an oil bath for 4 h. Solvent and the excess of CH3I were then distilled off under vacuum and the residue extracted with n-hexane. The hexane solution was evaporated and the residue (oil, 0.78 g) was chromatographed on a silica gel column (1.5 x 30 cm, analytical TLC control) eluting with mixtures of n-hexane – CHCl₃ [9:10 (90 mL), 8:2 (700 mL)]. Elution with 8:2 n-hexane – CHCl₃ afforded 0.75 g of pure 2 (yield: 78.8 %) as an oil; [α]_D²² + 42.2° (c 0.94, MeOH); IR (KBr)ν_max 3070, 1735 (CO), 1628, 990, 902, 890 cm-1; ¹³C-NMR: see Table 1; ¹H-NMR: δ 5.82 (1H, dd, J = 11.0, 17.0 Hz, H-15); 5.38 (1H, bs, H-7); 4.94 (1H, nd, J = 17.0 Hz, H-16 trans); 4.89 (1H, nd, J = 11.0 Hz, H-16 cis); 4.88 and 4.80 (both 1H, ns, CH₂-18); 3.68 (3H, s, -COOMe); 1.83 (3H, s, Me-19); 0.93 (3H, s, Me-20), 0.89 (3H, s, Me-17); Anal. C 79.62 %, H 10.02 %, calc. for C₂₁H₃₂O₂, C 79.70 %, H 10.19 %.

3,4-Secoisopimara-4(18),7,15-triene-3-oic acid hydrazide (3). A mixture of 2 (0.95 g, 3 mmol) and hydrazine hydrate (98%, 1 mL) was heated in an oil bath at 110°C for 15 min; abs. EtOH (4 mL) was then added and the solution was refluxed for 2 h. Solvent and excess of hydrazine hydrate were distilled off under vacuum and the residue was crystallized from n-hexane – EtOH. Yield: 0.91 g of crude 3 (95.7 %), which was purified by recrystallization from MeOH – H₂O. Waxy crystals; m.p. 85-87°C; [α]_D²² + 41.2 (c 0.90, MeOH); IR (KBr)ν_max 3300 (NH), 3060, 1640 (CO), 1615, 988, 902, 885 cm-1; ¹³C-NMR: see Table 1; ¹H-NMR: δ 7.11 (1H, ns, NH); 5.78 (1H, dd, J = 11.0, 17.1 Hz, H-15); 5.34 (1H, m, H-7); 4.96 (1H, nd, J = 17.1 Hz, H-16 trans); 4.85 (1H, nd, J = 11.0 Hz, H-16 cis); 4.84 and 4.78 (both 1H, ns, CH₂-18); 3.90 (2H, brs, NH₂); 1.79 (3H, s, Me-19); 0.96 (3H, s, Me-20), 0.85 (3H, s, Me-17); Anal. C 75.72 %, H 10.47 %, N 9.00 %, calc. for C₂₀H₃₂N₂O, C 75.90 %, H 10.19 %, N 8.85 %.

3,4-Secoisopimara-4(18),7,15-triene-3-oil-hydrazone of acetone (4). Crude 3 (0.72 g, 2.27 mmol) was dissolved in boiling acetone (10 mL). The solution was concentrated, cooled to room temperature and the resulting crystalline precipitate was filtered. Yield: 0.62 g of crude 4 (76.4 %), which was purified by recrystallization from acetone. M.p. 108-110°C; [α]_D²² + 21.2° (c 0.90, MeOH); IR (KBr)ν_max 3160 (NH), 3062, 1650 (CO), 990, 901, 890 cm-1; ¹³C-NMR: see Table 1; ¹H-NMR: δ 8.53 (1H, ns, NH); 5.77 (1H, dd, J = 11.0, 17.5 Hz, H-15); 5.33 (1H, m, H-7); 4.89 (1H, nd, J = 17.5, H-16 trans); 4.83 (1H, nd, J = 11.0, H-16 cis); 4.83 and 4.78 (both 1H, ns, CH₂-18); 1.95 (3H, s, one Me of acetone moiety); 1.79 (6H, s, Me-19 and one Me of acetone moiety); 0.90 (3H, s, Me-20); 0.85 (3H, s, Me-17); Anal. C 77.65 %, H 10.52 %, N 7.87 %, calc. for C₂₃H₃₆N₂O, C 77.48 %, H 10.18 %, N 7.86 %. Crystals suitable for X-ray analysis were obtained by slow evaporation from an acetone solution at room temperature.

X-ray structure determination of 4

A selected crystal was mounted on the glass fiber and the diffraction intensity data were collected at room temperature by Nonius KappaCCD diffractometer with graphite monochromatized Mo-Kα radiation (λ = 0.71073 Å). Accurate cell parameters were obtained by least-squares refined of the setting angles of 421 reflections at medium θ using DIRAX software [10]. Data collection were carried out with φ and ω scans, using COLLECT software [11]. Data reduction and absorption correction were performed using SADABS [12]. Structure solution was solved using direct method (SIR97) [13] and refinement was performed using SHELXL97 software package [14]. ORTEP-3 software was employed for molecular graphics [15]. All H atoms were found in difference Fourier maps and were included in the final refinement assuming idealized geometry, with C-H distances = 0.98, 0.97, 0.96 and 0.93 Å for tertiary CH, secondary CH₂, methyl CH₃ and sp² CH atoms, respectively, and with amide N-H distance of 0.86 Å. They were refining with U_iso values equal to 1.2U_eq parent atoms.

Crystal data: C₂₃H₃₆N₂O (356.54 g/mol), colorless elongated prism crystal with size 0.56 x 0.18 x 0.16 mm³, orthorhombic, space group P2₁2₁2₁, T = 291 (2) K, a = 11.009 (3) Å, b = 12.679 (3) Å, c = 32.617 (10) Å, V = 4553 (2) ų, Dc = 1.04 Mg/m³, Z = 8, F₍₀₀₀₎ = 1568, μ_(Mo-Kα) = 0.063 mm^-1. A total of 27598 reflections (−11 ≤ h ≤ 10, −12 ≤ k ≤ 13, −34 ≤ l ≤ 28), were collected in the range of 1.72° < θ < 22.09°, with 3183 independent reflections [R (int) = 0.061], completeness to θ max was 99.1%. The structure was refined by full-matrix least-square on F², with a final discrepancy index R of 0.0417 based on 2128 observed reflections [I > 2σ(I)] and 479 variable parameters. The overall Rw value was 0.0747 with w=1/[σ²(F_o²)+(0.0265P)²+0.2811P] where P=(F_o²+2F ²)/3_c; goodness–of-fit =1.140; (Δ/σ)_max<0.0001. No residual electron density was outside the range -0.094 to 0.085 e Å^-3. The anomalous dispersion effect is small and no reliable evidence of the absolute configuration could be obtained, indeed the final Flack parameter = 0.3 (14), using 2295 Friedel opposite reflections, is not significant.

All the crystallographic data have been deposited with the Cambridge Crystallographic Data Centre (Accession No. CCDC 650071). Copies of the data can be obtained, free of charge, on application to the Director, CCDC, 12 Union Road, Cambridge CB2 1EZ, UK (fax: +44-(0)1223-336033 or e-mail: [email protected]).
