Molecules 2005, 10(10), 1232-1241; https://doi.org/10.3390/10101232

Review
25 Years of Natural Product R&D with New South Wales Agriculture
NSW Department of Primary Industries, Wollongbar Agricultural Institute, Australia
Received: 7 March 2005 / Accepted: 30 May 2005 / Published: 31 October 2005

Abstract

:
Following recent NSW Government restructuring, the Department of Agriculture now exists in a composite form along with Forestry, Fisheries and Minerals in the new NSW Department of Primary Industries. This paper outlines some of the highlights of secondary metabolite R&D accomplished in the 25 years since the essential oil research unit was transferred from the Museum of Applied Arts & Sciences, Sydney to NSW Agriculture’s Wollongbar Agricultural Institute on the NSW north coast.
The essential oil survey was continued, typing the Australian flora as a suitable source of isolates such as myrtenal (Astartea), myrtenol (Agonis), methyl chavicol (Ochrosperma), α-phellandren-8-ol (Prostanthera), methyl myrtenate (Darwinia), methyl geranate (Darwinia), kessane (Acacia), cis-dihydroagarofuran (Prosthanthera), protoanemonin (Clematis), isoamyl isovalerate (Micromyrtus), methyl cinnamate (Eucalyptus) and bornyl acetate (Boronia). Many of these components are used, or have potential use in the fragrance, flavour, medicinal plant or insect attraction fields.
Two weeds toxic to livestock in the Central West of the State are also harvested commercially as medicinal plants. Measurement of hypericin concentrations in the various plant parts of St John’s Wort (Hypericum perforatum) over two seasons has shown that the weed can be effectively managed by grazing sheep during the winter months when toxin levels are low. Syntheses of β-carbolines tribulusterine and perlolyrine have shown that the former alkaloid was misidentified in the literature and hence not the toxic principle responsible for Tribulus staggers in sheep.
Poor quality (high 1,8-cineole – low terpinen-4-ol) oil bearing tea tree (Melaleuca alternifolia) plantations have been established to the detriment of many a tea tree farmer. Analytical methods developed to check leaf quality at an early age indicated precursor. sabinene constituents that convert to the active terpinen-4-ol both as the leaf matures or as the precursors are distilled for oil production.
Tea tree’s major insect pest, pyrgo beetle (Paropsisterna tigrina), was seen to selectively metabolize only 1,8-cineole from it’s monoterpenoid-rich diet. Characterization of these and other metabolites from myrtaceous herbivores showed a species specific production of predominately ring hydroxylated products, some of which were attractive when bioassayed against adult beetles.
Keywords:
Essential oil isolates; terpenoids; phenylpropanoids; toxic weeds; medicinal plants; tea tree; pyrgo beetle; 1,8-cineole metabolism; insect chemical ecology

Introduction

The New South Wales (NSW) state government has been investigating natural products available from the Australian flora since the late nineteenth century [1]. After approximately 100 years at the Museum of Applied Arts and Sciences in Ultimo, Sydney, this research unit was relocated, in 1979, to NSW Agriculture, firstly to the Biological and Chemical Research Institute, Rydalmere, Sydney, and then to the Wollongbar Agricultural Institute on the NSW north coast. After 25 years, this research has now become part of the new composite NSW Department of Primary Industries. This paper now follows on from previous reviews [1,2] and summarizes the highlights of investigations into natural products from the Australian flora carried out during the last quarter of a century.

Survey of the Essential Oils of the Australian Flora

Australian species have continued to be excellent sources of isolates which are of interest for chemical, commercial and chemotaxonomic reasons [3,4,5]. Investigations in our laboratories have revealed predominantly terpenoid and phenylpropanoid isolates as shown in Table 1. Esters - iso-amyl iso-valerate (1), (+)-bornyl acetate (2), methyl geranate (7), methyl myrtenate (8) - and the hydrocarbon terpinolene (14) are important perfumery constituents with potential commercial applications in the fragrance field. Methyl chavicol (5), E-methyl cinnamate (6) and cis-sabinene hydrate (13) have applications in the flavouring area. Melaleuca alternifolia flush growth leaf, rich in 13, provides a sweet marjoram substitute whereas Ochrosperma lineare and Eucalyptus olida respectively provide alternatives for the methyl chavicol and methyl cinnamate chemotypes of basil. The latter has been developed, as a result of this investigation, as a small but new essential oil industry for applications requiring natural rather than synthetic methyl cinnamate,. Cis-dihydroagarofuran (3), kessane (4) and α-phellandren-8-ol (11) are rare terpenoids with an as yet unexplored potential. Protoanemonin (12) has broad ranging medicinal properties [19] and the α-pinene oxidation products (+)-myrtenal (9) and myrtenol (10) are known for their activity against various insect species [16,23]. The continual demand for flavour and fragrance materials [24] also provides opportunities for the commercial development of plantations as a source of these isolates.

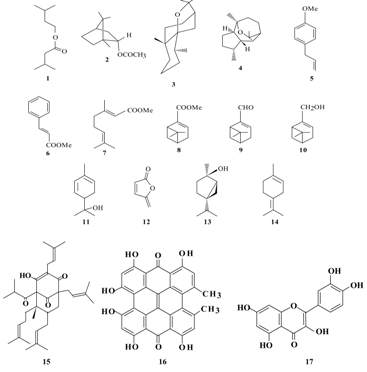

Table 1. List of isolates and their concentrations in volatile oils of Australian native species.
Table 1. List of isolates and their concentrations in volatile oils of Australian native species.
IsolateSpecies aFamilyOil Yield (%) bIsolate inoil (%) cIdentification dRef.
iso-amyl iso-valerate (1)MicromyrtusMyrtaceae0.6f,g49gcrt6
striatae
(+)-bornyl acetate (2)Boronia latipinnaRutaceae0.9-1.461gcrt, ms, ir, nmr7
cis-dihydroagarofuran (3)Prostanthera sp.Lamiaceae1.1-3.3g62gcrt, ms, ir, nmr8,9,10,11
aff. ovalifoliae
kessane (4)Acacia nuperrimaMimosaceae0.9g88gcrt, ms, ir12
ssp. cassitera Prostanthera sp.Lamiaceae1.1-3.3g79gcrt, ms, ir, nmr9,10
aff. ovalifoliae
methyl chavicol (5)OchrospermaMyrtaceae0.382gcrt, ms13
E-methyl cinnamate (6)lineare Eucalyptus olidah Myrtaceae1.6-6.1f,g95gcrt, ms, ir14
methyl geranate (7)DarwiniaMyrtaceae0.3g61gcrt, ms, ir, nmr8,15
methyl myrtenate (8)citriodora DarwiniaMyrtaceae0.3g63gcrt, ms, ir, nmr15
citriodora
(+)-myrtenal (9)Astartea sp.nov.Myrtaceae0.926gcrt, ms, ir16
myrtenol (10)Agonis fragransMyrtaceae 20gcrt, ms17
α-phellandren-8-ol (11)ProstantheraLamiaceae2.16gcrt, ms, ir, nmr18
staurophylla
protoanemonin (12)Clematis sp.Ranunculaceae0.2-2.3f90gcrt, ms, ir, nmr19
cis-sabinene hydrate (13)Melaleuca alternifoliae,j,kMyrtaceae1.0-3.0g42gcrt, ms, ir, nmr20,21
terpinolene (14)MelaleucaMyrtaceae1.0-3.0g46gcrt, ms22
alternifoliae
a Leaf and terminal branchlets steam-distilled unless indicated otherwise. b Calculated as weight(g)/fresh weight (100g) unless indicated otherwise. c Maximum given where more than one sample has been examined. d gcrt = gas chromatographic retention time comparison with authentic sample, ms = mass spectrometry, ir = infrared spectroscopy, nmr = nuclear magnetic resonance. e Chemical variation within this species - this entry relates to one chemovar only. f Air dried. g Calculated as volume (mL)/fresh weight (100g) unless indicated otherwise. h Recent name change. j Volatiles extracted rather than distilled. k Leaf flush growth only.
Molecules 10 01232 i001

Medicinal Plant or Toxic Weed?

St John’s wort (Hypericum perforatum) and cathead or puncture vine (Tribulus terrestris), two weed species introduced to Australia, are renowned for their toxicity to stock and are also used as herbal remedies. The photosensitization and even death of sheep subsequent to browsing on pastures infested with these species have long been a concern of pastoralists in the central west of New South Wales [25].
St John’s wort has reached weed status in many countries, including Australia, especially because of photosensitizing symptoms imparted to browsing stock. As a medicinal plant, Hypericum perforatum preparations are used in the treatment of mild to moderately severe depression. Although the active ingredient is thought to be the phloroglucinol hyperforin (15), the photosensitizing agent has been identified as the naphthodianthrone hypericin (16). Querecitin (17) and related flavonoids are also known to be bioactive. H. perforatum is also known to possess antiviral and antiretroviral activity [26]. Hypericism is a disease of livestock affecting the unpigmented skin, depressing the central nervous system (CNS) and making affected stock (sheep, cattle, horses, goats and swine) hypersensitive to temperature change and handling [27]. In our investigation, measurement of the hypericin showed that the narrow-leaf variety contained greater concentrations than the broad-leaf variety and that the toxin was concentrated in the flowering parts of the plant (Table 2) [28]. When measured over two seasons, it became clear that concentrations were such that sheep could be used for weed control if moved onto St John’s Wort infested pastures during the winter months of June to September [26] (Fig 1).
Tribulus terrestris, commonly known in Australia as cathead, puncture vine or caltrop, is also well known for chronic poisoning in sheep [29] and medicinal plant use [30]. In sheep, the disease is characterized by a distressing irreversible asymmetric locomotor disorder. It was thought that the neurotoxic agent may be the β-carboline alkaloid, tribulusterine (18), which had been reported from the fruit of T. terrestris [31]. After exploring several approaches, a Pictet-Spengler cyclisation route was used to prepare tribulusterine (18) [32]. The cyclisation of tryptamine (19) and furaldehyde (20), obtained in turn from 3-furanmethanol, in dry benzene and the presence of p-toluenesulphonic acid afforded indole (21), which was then dehydrogenated using palladium on charcoal to yield (22), and then tribulusterine (18) after hydrolysis (Scheme 1).
The structure of (18) was confirmed unequivocally by crystallography. NMR differences between the natural and synthetic materials however indicated that the natural product was probably perlolyrine (23) rather than tribulusterine. An independent synthesis of perlolyrine using the same procedure confirmed this [32]. As it is unlikely that the irreversible CNS effects are caused by perlolyrine, further analysis of the minor alkaloid and amide components of Tribulus terrestris is under investigation.

Tea Tree Oil

Teion has been a substantial industry on the north coast of NSW for the last two decades [33]. Plantation quality is dependant on the chemical variety of Melaleuca alternifolia planted. Measurement of this quality has been confounded by two factors discovered in our laboratories. Immature leaf of the commercial terpinen-4-ol variety was found, using microwave-assisted micro extraction techniques, to be rich in cis and trans-sabinene hydrate which was replaced by terpinen-4-ol and γ-terpinene as the leaf matured (Figure 2) [34].
Commercial distillation of the immature leaf did not cause contamination because of the thermal mild acid-catalyzed conversion of the sabinene hydrates to terpinen-4-ol and γ-terpinene. In addition, the analysis of early stage tea tree seedling leaves was found to be misleading because of the sequential onset of different biogenetic pathways in M. alternifolia [35]. For example α-pinene and terpinolene were found to be produced in up to six week old seedlings [36] prior to the formation of the commercially important terpinen-4-ol (Figure 3). Consequently, recommendations to the industry included analyzing only mature, older seedling leaf for confirmation of quality prior to plantation establishment by transplanting seedlings [33].

Insect Chemical Ecology

The major insect pest of tea tree plantations in north eastern New South Wales is the chrysomelid prygo beetle, Paropsisterna tigrina. Investigation of the frass volatiles of both adult and larval forms indicated that ingested oil was generally excreted unchanged except for 1,8-cineole which was metabolized predominantly to 2β-hydroxycineole with traces of the 2α, 3α and 9-hydroxycineole isomers [37,38]. Examination of frass from other cineole ingesting herbivores has shown that this metabolism is species specific (Figure 4). Mammals were seen to preferentially oxidize the most sterically unhindered methyl substituents in the 1,8-cineole molecule. Amongst the marsupials, the koala oxidizes cineole more extensively (to dicarboxylic acids) than the possum and other generalist herbivores [39]. Insects however, favour hydroxylating the ring carbons. Even within the insect kingdom, hydroxylation varies with the species suggesting a pheromonal use for the metabolites [40]. This was confirmed with pyrgo beetle by the attraction of 25 out of 26 beetles toward crystals of 2β- hydroxycineole in a choice test with a blank [8].
North-eastern NSW grows a range of tropical horticultural crops such as macadamias, avocados, custard apples and lychees susceptible to attack by insect pests such as monolepta beetle, macadamia nut borer and fruit spotting bug. A homologous series of novel long chain olefinic ethers with the formula CH3(CH2)9CH=CH(CH2)6O(CH2)12-16CH3 was found in the cuticular wax of monolepta (Monolepta australis) [41]. Current investigations are using SPME (Solid Phase Micro-Extraction) techniques coupled with GCMS (Gas Chromatography – Mass Spectrometry) to examine volatile constituents emitted from flowers and fruit that attract insect pests. These attractants, in addition to insect pheromones, are being identified and tested for use in lure-and-kill type traps as part of an IPM (Integrated Pest Management) strategy for the control of harmful horticultural crop insects.

Acknowledgements

This work would not have been possible without collaboration of NSW Agriculture (Chris Bourke, Malcolm Campbell, Mike Russell, Gary Baker, Bob Lowe, Roslyn Smith, Ian Stiff, Alison Curtis, Ruth Huwer, Craig Maddox), US Dept Agriculture (Greg Wheeler), Western Australian Dept Agriculture (Chris Robertson), the Universities of Wollongong (John Bremner, Waya Sengpracha). Western Australia (Brian Skelton, Alan White), New South Wales (Joe Brophy), Southern Cross (Peter Waterman), New England (David Tucker) and essential oil producers John Day, Arthur Vinnicombe and Athol Durre.

References

  1. McKern, H.H.G. Research into the Volatile Oils of the Australian Flora, 1788-1967 in “A Century of Scientific Progress”, the centenary volume of the Royal Society of NSW. Australian Medical Publishing Company: Glebe, 1967. [Google Scholar]
  2. Southwell, I.A. The Chemistry of Essential Oils in Australia in the RACI “Chemistry in an Australian Context Sourcebook”, Ed. I. Irvine edpp. 1–12. RMIT: Melbourne, 1989. [Google Scholar]
  3. Lassak, E.V.; Southwell, I.A. Int. Flav. Food Add. 1977, 126.
  4. Southwell, I.A. Flav. Frag. J. 1987, 2, 21. [CrossRef]
  5. Southwell, I.A.; Brophy, J. J. J. Essent. Oil Res. 2000, 12, 267. [CrossRef]
  6. Southwell, I.A.; Brophy, J. J. J. Essent. Oil Res. 1991, 3, 281. [CrossRef]
  7. Brophy, J.J.; Southwell, I.A.; Stiff, I.A. J. Nat. Prod. 1986, 49, 174. [CrossRef]
  8. Southwell, I.A. Wollongbar Agricultural Institute; unpublished results.
  9. Southwell, I.A.; Tucker, D.J. Phytochem, 1993; 32, 857.
  10. Southwell, I.A.; Tucker, D.J. Acta Horticulturae, 1993; 344, 428.
  11. Southwell, I.A.; Tucker, D.J. J. Essent. Oil. Res. 1996, 8, 585. [CrossRef]
  12. Southwell, I.A. J. Essent. Oil. Res. 2000, 12, 566. [CrossRef]
  13. Southwell, I.A.; Russell, M.F.; Smith, R.L.; Vinnicombe, A. J. Essent. Oil. Res. 2003, 15, 329. [CrossRef]
  14. Curtis, A.; Southwell, I.A.; Stiff, I.A. J. Essent. Oil. Res. 1990, 2, 105. [CrossRef]
  15. Southwell, I.A.; Brophy, J.J.; Tucker, D.J. J. Essent. Oil. Res. 2001, 13, 58.
  16. Lowe, R.F.; Russell, M.F.; Southwell, I.A.; Day, J. J. Essent. Oil. Res. 2004, 16. in press.
  17. Lowe, R.F.; Russell, M.F.; Southwell, I.A.; Carson, C.F.; Hammer, K.A.; Riley, T.V.; Robinson, C.J.; Day, J. J. Essent. Oil. Res. 2005. in preparation. [Google Scholar]
  18. Southwell, I.A.; Russell, M.; Waterman, P.G. J. Essent. Oil. Res. 2001, 13, 446.
  19. Southwell, I.A.; Tucker, D.J. Phytochem 1993, 32, 1099.
  20. Southwell, I.A.; Stiff, I.A. Phytochem 1989, 28, 1047.
  21. Southwell, I.A.; Stiff, I.A. Phytochem 1990, 29, 3529.
  22. Southwell, I.A; Stiff, I.A.; Brophy, J.J. J. Essent. Oil Res. 1992, 4, 363. [CrossRef]
  23. Czokajlo, D.; Hrasovec, B.; Pernek, M.; Hilszczanski, J.; Kolk, A.; Teale, S.; Wickham, J.; Kirsch, P. New lure for the larger pine shoot beetle, Tomicus piniperda – Attractant trap design combination tested in North America and Europe. pp 6-9 in Proceedings: Ecology, Survey and Management of Forest Insects. GTR-NE-311. Kraków, Poland, 2002 September 1-5; McManus, Michael L., Liebhold, Andrew M., Eds.; 2003. [Google Scholar]
  24. Bauer, K.; Garbe, D.; Surburg, H. Common fragrance and flavor materials, 3rd Ed. edWiley-VCH: Weinheim, 1997; pp. 35–36. [Google Scholar]
  25. Cunningham, G.M.; Mulham, W.E.; Milthorpe, P.L.; Leigh, J.H. Plants of Western New South Wales; Soil Conservation Service; NSW Government Printer: Sydney, 1981. [Google Scholar]
  26. Southwell, I.A.; Bourke, C.A. Phytochem; 2001; Volume 56, p. 437. [Google Scholar]
  27. Campbell, M.H.; Delfosse, E.S. J. Aust. Inst. Agric. Sci. 1984, 50, 63.
  28. Southwell, I.A.; Campbell, M.H. Phytochem 1991, 30, 475.
  29. Bourke, C.A.; Stevens, G.R.; Carrigan, M.J. Aust. Vet. J. 1990, 69.
  30. Bedir, E.; Khan, I.A. J. Nat. Prod. 2000, 63, 1699. [PubMed]
  31. Wu, T.; Shi, L.; Kuo, S. Phytochem 1999, 50, 1411.
  32. Bremner, J.B.; Sengpracha, W.; Southwell, I.A.; Bourke, C.; Skelton, B.W.; White, A.H. Aust. J. Chem. 2004, 57, 273.
  33. Russell, M.F.; Southwell, I.A. J. Agric. Food Chem. 2003, 51, 4254. [PubMed]
  34. Southwell, I.A.; Stiff, I.A. Phytochem 1989, 28, 1047.
  35. Southwell, I.A.; Russell, M. Acta Horticulturae 2003, 597, 31.
  36. Southwell, I.A.; Russell, M.F. Phytochem 2002, 59, 391.
  37. Southwell, I.A.; Maddox, C.D.A.; Zalucki, M.P. J. Chem. Ecol. 1995, 21, 439. [CrossRef] [PubMed]
  38. Southwell, I.A. Tea Tree Constituents. In Tea Tree, the Genus Melaleuca; Hardman, R., Ed.; Vol. 9 in Series Medicinal and Aromatic Plants - Industrial Profiles; Hardman, R., Ed.; Harwood Academic Publishers: Amsterdam, 1999; Chapter 2; pp. 26–62. [Google Scholar]
  39. Boyle, R.; McLean, S.; Foley, W.; Davies, N.W.; Peacock, E.J.; Moore, B. Comp. Biochem. Physiol. C. 2001, 129, 385.
  40. Southwell, I.A.; Russell, M.F.; Maddox, C.D.A.; Wheeler, G.S. J. Chem. Ecol. 2003, 29, 83.
  41. Southwell, I.A.; Stiff, I.A. J. Chem. Ecol. 1989, 15, 255.
  • Sample Availability: Available from the author.
Scheme 1. The Synthesis of Tribulusterine
Scheme 1. The Synthesis of Tribulusterine
Molecules 10 01232 sch001
Figure 1. Seasonal variation in hypericin concentrations in Australian St John’s Wort.
Figure 1. Seasonal variation in hypericin concentrations in Australian St John’s Wort.
Molecules 10 01232 g001

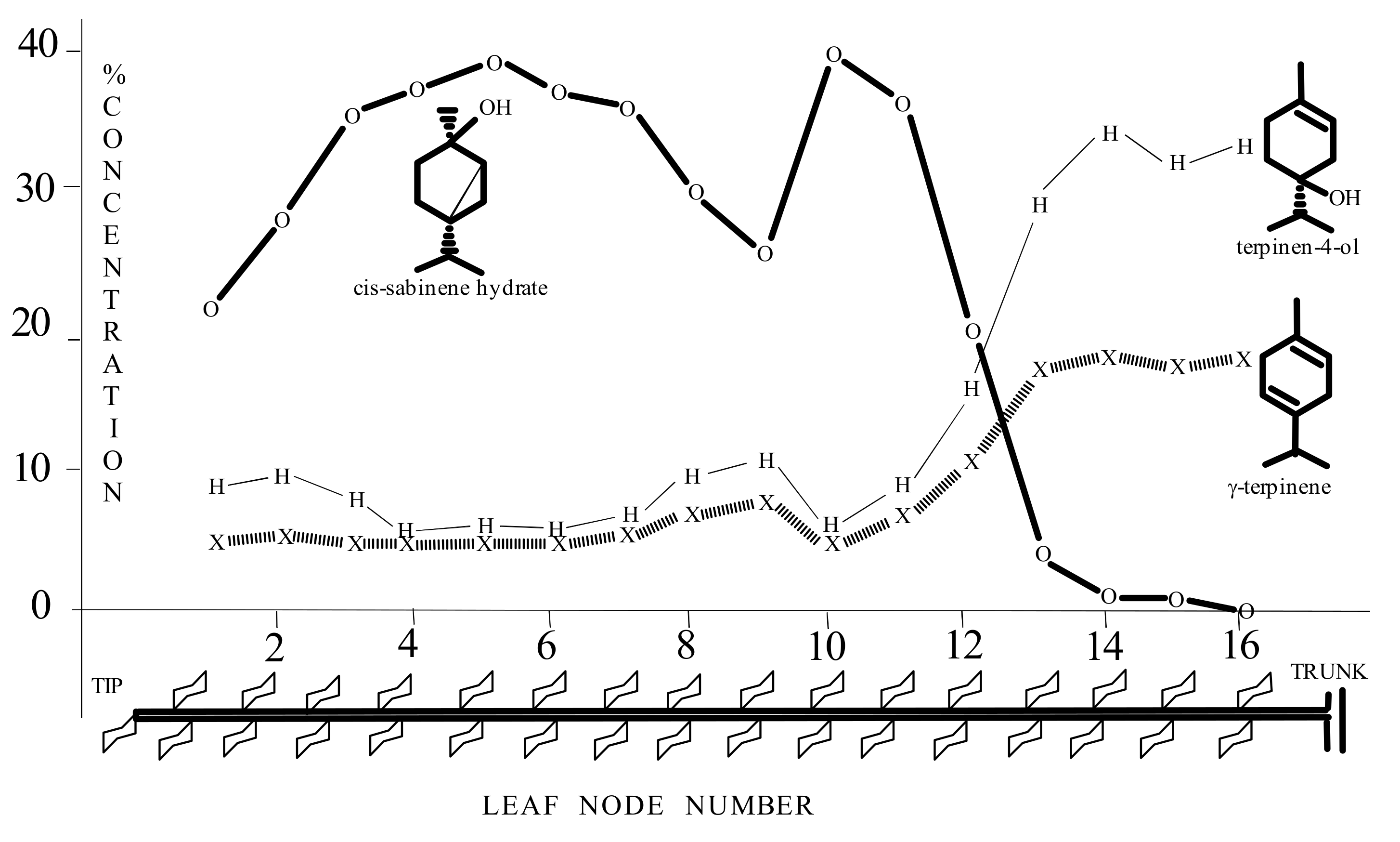

Figure 2. Along the branch variation in the concentrations of cis-sabinene hydrate, terpinen-4-ol and γ-terpinene in individual leaves of M. alternifolia.
Figure 2. Along the branch variation in the concentrations of cis-sabinene hydrate, terpinen-4-ol and γ-terpinene in individual leaves of M. alternifolia.
Molecules 10 01232 g002

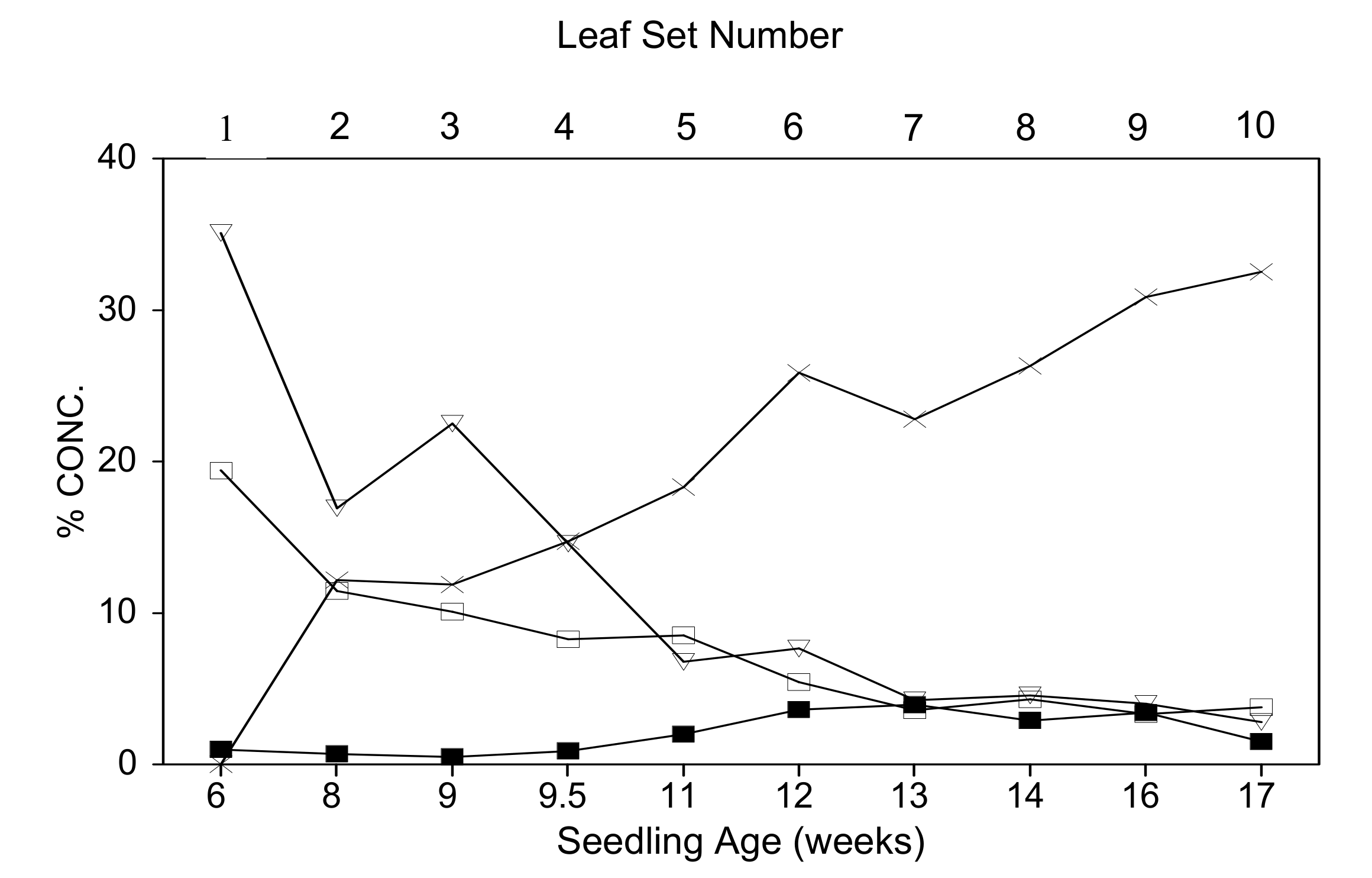

Figure 3. Concentration of terpinolene (∇), α-pinene (□ ), terpinen-4-ol (×) and 1,8- cineole (■ ) in consecutive leaf sets 6 weeks after emergence.
Figure 3. Concentration of terpinolene (∇), α-pinene (□ ), terpinen-4-ol (×) and 1,8- cineole (■ ) in consecutive leaf sets 6 weeks after emergence.
Molecules 10 01232 g003
Figure 4. Metabolism of 1,8-cineole by a variety of insects (pyrgo, Chrysophtharta bimaculata, Petasida, Oxyops, Faex) and mammals (rabbit, possum).
Figure 4. Metabolism of 1,8-cineole by a variety of insects (pyrgo, Chrysophtharta bimaculata, Petasida, Oxyops, Faex) and mammals (rabbit, possum).
Molecules 10 01232 g004
Table 2. Hypericin concentration in different plant parts of Australian varieties.
Table 2. Hypericin concentration in different plant parts of Australian varieties.
VarietyPlant PartHypericin (ppm)
Broad-leafleaves370
stems40
flowers2360
capsules730
Narrow-leafleaves1110
flowers5030
