Scalably Using Node Attributes and Graph Structure for Node Classification^{ †}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

#### 1.1. Previous Work

#### 1.2. Our Contribution

- We define a generative model that formally captures a diverse set of relationships between graph structure, node attributes, and node labels.
- We describe a general algorithm to compute a good initial estimate of $\mathbf{U}$ and a training algorithm called JANE for node classification. We also design batching and minibatching variants of JANE that scale well to large graphs.
- From our experimental results, we present three findings. First, we demonstrate the shortcomings of existing approaches and versatility of JANE on synthetic datasets. Second, we empirically validate the performance of four variants of JANE on seven real-world datasets and compare to five standard baselines. Thirdly, we conduct an extensive empirical analysis characterizing the usefulness of a good initial node embedding, the importance of updates to the embedding during training, and the trade-off between preserving adjacency and label information on classification accuracy.

## 2. Problem Setting

**u**$\in {\mathbb{R}}^{k}$, and possibly an unobserved categorical variable ${\mathbf{y}}_{}\in {\left\{0,1\right\}}^{M}$ (one-hot encoding) as the label from label-set $\mathbf{M}=\left\{1,2,\dots ,M\right\}$. For example, in citation graphs, with nodes corresponding to articles and edges to citations between articles, ${\mathbf{x}}_{}$ capture observed quantities such as the bag-of-words representation of the article text, and label ${\mathbf{y}}_{}$ denotes the research area of the article (e.g., ‘data mining’ or ‘machine learning’). The latent embedding

**u**corresponds to the properties of the articles that are not directly captured by attributes ${\mathbf{x}}_{}$ or label ${\mathbf{y}}_{}$, but that could play a role in determining which articles are connected with a citation (as captured by adjacency matrix $\mathbf{A}$) and to which research area ${\mathbf{y}}_{}$ an article is deemed to belong. In terms of notation, to refer to the attributes of all nodes, we write $\mathbf{X}=\left\{{\mathbf{x}}_{i}\in {\mathbb{R}}^{d},i\in \{1,\dots ,n\}\right\}$ to denote the observed node attributes, $\mathbf{U}=\left\{{\mathrm{u}}_{i}\in {\mathbb{R}}^{k},i\in \{1,\dots ,n\}\right\}$ for the latent node embedding, and $\mathbf{Y}=\left\{{\mathbf{y}}_{i}\in {\left\{0,1\right\}}^{M},i\in \{1,\dots ,n\}\right\}$ for the node labels. This naturally extends to the multi-label classification setting.

**Problem**

**1 (Node-Classification).**

## 3. Our Approach

#### 3.1. Model

**u**scaled by a factor ${s}^{2}$.

#### 3.2. Algorithms

#### 3.2.1. Training

**Training Objective.**From the product rule of probability, the likelihood of the data $\mathcal{D}$ given parameters $\subseteq $ is as follows:

Algorithm 1: INITIALIZE. |

1 Input: Adjacency Matrix $\mathbf{A}$; Embedding method EMBEDDING∈ {Laplacian, Gosh}, embedding dimensionality k; |

2 Output: Latent attributes ${\widehat{\mathbf{U}}}_{\mathrm{initial}}$, Scale s; |

3 $s\leftarrow 1$ |

4 $\overline{\mathbf{U}}\leftarrow \mathrm{EMBEDDING}\left(\left(\frac{1}{s}\xb7\mathbf{A}\right),\phantom{\rule{3.33333pt}{0ex}}k\right)$ |

5 $s\leftarrow \mathrm{MINIMIZE}\left(\mathrm{objective}={\mathcal{L}}_{\mathrm{edge}}+{\mathcal{L}}_{\mathrm{nonedge}},\mathrm{constants}=\mathbf{A},\overline{\mathbf{U}}\right)$// ((cf. Equation (7)) |

6 ${\widehat{\mathbf{U}}}_{\mathrm{initial}}\leftarrow \frac{1}{s}\xb7\overline{\mathbf{U}}$, ${s}_{\mathrm{initial}}\leftarrow 1$// Rescale |

return${\widehat{\mathbf{U}}}_{\mathrm{initial}},\phantom{\rule{3.33333pt}{0ex}}{s}_{\mathrm{initial}}$ |

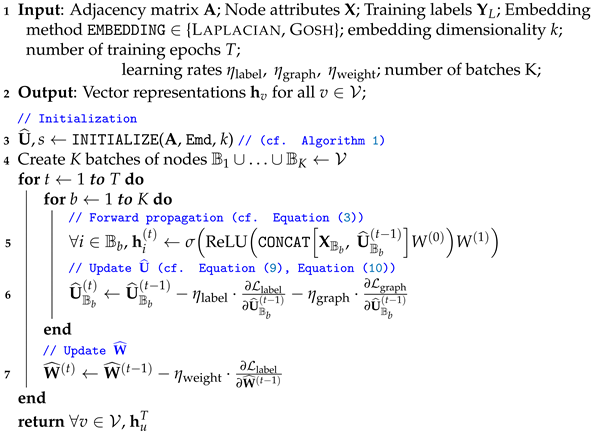

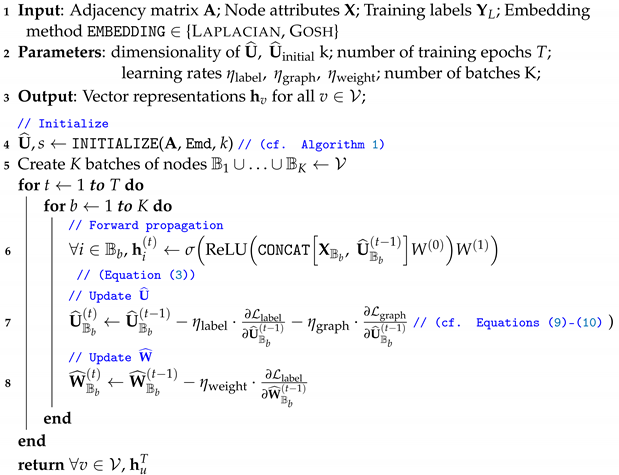

Algorithm 2: JANE-U (Batching). |

**Choosing ${\mathbf{U}}_{\mathrm{initial}}$.**We construct an initial estimate of $\widehat{\mathbf{U}}$ and s in an unsupervised manner using only the adjacency information and (temporarily) ignore node labels. That is,

**Updating Model Parameters.**Next, we describe the training procedure for JANE to minimize the overall loss ${\mathcal{L}}_{\mathrm{total}}$. Training begins with the values $\mathbf{U}={\mathbf{U}}_{initial}$ and $s=1$ provided by Algorithm 1, with the scale s remaining fixed during training. During each training epoch, JANE starts by fixing $\widehat{\mathbf{W}}$ and updating its estimate $\widehat{\mathbf{U}}$ using gradient descent on ${\mathcal{L}}_{\mathrm{total}}$ (cf. Equation (5)). This involves computing two gradients. First, the gradient of ${\mathcal{L}}_{\mathrm{label}}$ w.r.t. the i-th row of the current latent embedding, ${\widehat{\mathbf{u}}}_{i}$, is obtained using backpropagation as follows,

^{(0)}, a

^{(1)}are activations from the hidden and output layers, and ${z}_{}^{\left(0\right)}$ is the weighted sum from the input layer. The index i ranges over all nodes with known labels, and r indexes over the M different classes available for prediction. Second, the gradient of (upper-bounded) ${\mathcal{L}}_{\mathrm{graph}}$ in Equation (7) w.r.t. the i-th row of the current latent embedding, ${\widehat{\mathbf{u}}}_{i}$, is as follows.

**Batching.**To reduce memory overhead and improve scalability to larger graphs, we adapt our training algorithm to allow the forward and backward propagations described above to take place in K smaller batches of nodes, where $\mathcal{V}={\mathbb{B}}_{1}\cup \dots \cup {\mathbb{B}}_{K}$. Algorithm 2 gives the pseudocode for JANE using this batched approach. This takes advantage of the observation that, during any current iteration of gradient descent update, ${\widehat{\mathbf{U}}}_{{\mathbb{B}}_{b}}$ for a particular batch of nodes $b\in \left[K\right]$ does not depend on other nodes in the graph. An analogous minibatching variant called JANE-MU differs in only one aspect from JANE, namely that it updates $\widehat{\mathbf{W}}$ for every batch during each iteration. For completeness, we provide the pseudocode for the minibatching variant in Algorithm 3.

#### 3.2.2. Prediction

#### 3.2.3. Complexity Analysis

Algorithm 3: JANE-U-M (Mini-Batching). |

## 4. Experiments

#### 4.1. Algorithms

**Variants of**

**JANE**. We conducted experiments for four variants of JANE, depending on the choice ${\widehat{\mathbf{U}}}_{\mathrm{initial}}$ and the training procedure.

- JANE-R: This chooses a random matrix of appropriate dimensions ($n\times k$) as ${\widehat{\mathbf{U}}}_{\mathrm{initial}}$ and trains according to Algorithm 2 in a batched manner.
- JANE-NU: This computes a GOSH embedding [28] based on a hyperparameter search that minimizes Equation (7) as ${\widehat{\mathbf{U}}}_{\mathrm{initial}}$. However, ${\widehat{\mathbf{U}}}_{\mathrm{initial}}$ does not update during training (i.e. ignores Step 7). In effect, this becomes a simple feed-forward multi-layer perceptron.
- JANE-U-M: This is similar to JANE-U, except that it trains in a minibatched fashion (cf. Algorithm 3).

**Baselines.**We compare the performance of JANE with five baselines divided into three broad groups.

- Graph-structure agnostic algorithms: Random Forest (RF) [18] trains a random forest on the attribute matrix $\mathbf{X}$ and does not incorporate adjacency information.
- Node-attribute agnostic algorithms: Label Propagation (LP) [8] chooses labels for nodes based on the community label of its r-hop neighbors. DeepWalk (DW) [12] encodes neighbourhood information via truncated random walks and uses a Random Forest Classifier for label prediction. These do not incorporate node attributes.
- Graph-convolution based algorithms: GCN [31] and GraphSAGE (mean aggregator) [3] convolve over node attributes using the adjacency matrix. We acknowledge that this is extremely active area of research today and there exist several advancements that demonstrate improved performance in terms of training efficiency [32,33] and low homophily datasets [34,35]. However, GCN and GraphSAGE continue to prove to be strong benchmarks, and so we empirically compare with them to demonstrate our central point: JANE is a simple algorithm that efficiently scales and is competitive with the state-of-the-art on a variety of datasets.

**Implementation.**We implemented Random Forest using Scikit-Learn [36]. All other baselines and all variants of JANE were implemented using Pytorch Geometric [37]. In all our experiments, as is standard, all approaches only received the adjacency matrix of the graph $\mathbf{A}$ and the node attributes $\mathbf{X}$ as input. We grid searched over the hyperparameter space to find the best setting for all our baselines.

**Hardware.**We performed all experiments on a Linux machine with 32 cores, 32GB RAM and a NVIDIA A100 GPU.

#### 4.2. Node Classification on Synthetic Data

**Synthetic Datasets.**Figure 3 describes representative synthetic datasets generated according to the model described in Section 3.1. We set the number of individual node features $\left|\mathbf{X}\right|=d=2$ and number of latent features $\left|\mathbf{U}\right|=k=2$. We generated these $\mathbf{X}$ and $\mathbf{U}$ from gaussian distributions for $n=200$ points, each of which belonged to one of $M=4$ classes and set the scale ${s}^{2}=1$. The adjacency matrix was probabilistically created from $\mathbf{U}$ according to Equation (1). An influence parameter, $\alpha \in \left[0,1\right]$, controlled the degree to which node labels derive from $\mathbf{X}$ or $\mathbf{U}$: $\alpha =0.0$ signifies that they derive only from $\mathbf{U}$ and are independent of $\mathbf{X}$; $\alpha =1.0$ that they derive only from $\mathbf{X}$ and are independent of $\mathbf{U}$; and $\alpha =0.5$ that they derive equally from $\mathbf{X}$ and $\mathbf{U}$ (specifically, without loss of generality, only the first feature from $\mathbf{X}$ and $\mathbf{U}$ contributes to label assignment). Figure 3a depicts an instance of $\mathbf{X}$ and $\mathbf{U}$ each for $\alpha =\left\{0.0,0.5,1.0\right\}$, respectively. The colors of points represent classes. We constructed the adjacency matrix from $\mathbf{U}$ as per Equation (2). Figure 3b depicts an instance of the corresponding graphs.

**Implementation Details.**We used Scikit–Learn’s make_classification to generate these datasets. The approaches did not have access to $\alpha $ or $\mathbf{U}$. JANE was trained as a two-layer neural network for a maximum of $T=200$ epochs with dropout of 0.2 for each layer, weight decay of $0.05$, and learning rate of 0.005 using Adam. We set the number of eigenvectors as $k=2$ and chose a scaling factor of ${s}^{2}=0.01$.

**Performance.**Figure 3c shows performance as a function of increasing training set sizes.

- $\alpha =0.0$: LP and DW infer that labels derive from $\mathbf{A}$ (indirectly). GCN converges attribute values of nodes in the same cluster but is not perfectly accurate because $\mathbf{X}$ does not correlate with $\mathbf{Y}$. LANE forces the proximity representation to be similar to the attribute representation, and then smoothens it using the labels. It does not perform well, since there is no correlation between them.
- $\alpha =0.5$: LP, DW are able to correctly classify nodes belonging to 2 out of 4 classes, i.e. precisely those nodes whose labels are influenced by $\mathbf{U}$. Conversely, LANE is able to classify those nodes belonging to two classes of nodes that correlate with $\mathbf{X}$. GCN smoothens the attribute values of adjacent nodes, and thus can correctly infer labels correlated with $\mathbf{X}$.
- $\alpha =1.0$ LP and DW reduce to random classifiers since adjacent nodes do not have similar labels. GCN reduces to a nearly random classifier because, by forcing adjacent nodes with different attribute values to become similar, it destroys the correlation between $\mathbf{X}$ and the labels.

#### 4.3. Node Classification on Real-World Data

#### 4.3.1. Datasets

- Citation Networks: Cora, Citeseer, PubMed [1] represent academic papers as nodes, edges denote a citation between two nodes, node features are 0/1-valued sparse bag-of-words vectors and class labels denote the subfield of research to which the papers belong.
- Social Networks: Flickr denotes users of the social media site that post images as nodes, edges represent follower relationships, and features are specified by a list of tags reflecting the interests of the users [39]. The labels used to predict are pre-defined categories of images.
- Squirrel: This is a Wikipedia dataset [40] where nodes are web pages, edges are mutual links between pages, features correspond to informative nouns in the pages, and labels are categories based on the average number of monthly views of the page.

#### 4.3.2. Experimental Setup

#### 4.3.3. Performance Analysis

#### 4.3.4. Ablation Study on Choosing ${\widehat{\mathbf{U}}}_{\mathrm{initial}}$

#### 4.3.5. Ablation Study on Updating $\widehat{\mathbf{U}}$

#### 4.3.6. Relationship between ${\mathcal{L}}_{\mathrm{graph}}$ and Accuracy

#### 4.3.7. Runtime and Memory

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Sen, P.; Namata, G.; Bilgic, M.; Getoor, L.; Galligher, B.; Eliassi-Rad, T. Collective classification in network data. AI Mag.
**2008**, 29, 93. [Google Scholar] [CrossRef] [Green Version] - Zhu, X.; Goldberg, A.B. Introduction to semi-supervised learning. Synth. Lect. Artif. Intell. Mach. Learn.
**2009**, 3, 1–130. [Google Scholar] - Hamilton, W.L.; Ying, R.; Leskovec, J. Inductive representation learning on large graphs. In Proceedings of the 31st International Conference on Neural Information Processing Systems, Long Beach, CA, USA, 4–9 December 2017; pp. 1025–1035. [Google Scholar]
- Yue, X.; Wang, Z.; Huang, J.; Parthasarathy, S.; Moosavinasab, S.; Huang, Y.; Lin, S.M.; Zhang, W.; Zhang, P.; Sun, H. Graph embedding on biomedical networks: Methods, applications and evaluations. Bioinformatics
**2019**, 36, 1241–1251. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Parisot, S.; Ktena, S.I.; Ferrante, E.; Lee, M.; Guerrero, R.; Glocker, B.; Rueckert, D. Disease prediction using graph convolutional networks: Application to Autism Spectrum Disorder and Alzheimer’s disease. Med. Image Anal.
**2018**, 48, 117–130. [Google Scholar] [CrossRef] [PubMed] [Green Version] - McPherson, M.; Smith-Lovin, L.; Cook, J.M. Birds of a feather: Homophily in social networks. Annu. Rev. Sociol.
**2001**, 27, 415–444. [Google Scholar] [CrossRef] [Green Version] - Marsden, P.V.; Friedkin, N.E. Network studies of social influence. Sociol. Methods Res.
**1993**, 22, 127–151. [Google Scholar] [CrossRef] - Zhou, D.; Huang, J.; Schölkopf, B. Learning from labeled and unlabeled data on a directed graph. In Proceedings of the 22nd International Conference on Machine Learning—ICML ’05, Bonn, Germany, 7–11 August 2005; ACM Press: New York, NY, USA, 2005; pp. 1036–1043. [Google Scholar] [CrossRef] [Green Version]
- Blum, A.; Lafferty, J.; Rwebangira, M.R.; Reddy, R. Semi-supervised learning using randomized mincuts. In Proceedings of the Twenty-First International Conference on Machine Learning, Banff, AB, Canada, 4–8 July 2004; ACM: New York, NY, USA, 2004; p. 13. [Google Scholar]
- Joachims, T. Transductive learning via spectral graph partitioning. In Proceedings of the 20th International Conference on Machine Learning (ICML-03), Washington, DC, USA, 21–24 August 2003; pp. 290–297. [Google Scholar]
- Belkin, M.; Niyogi, P.; Sindhwani, V. Manifold regularization: A geometric framework for learning from labeled and unlabeled examples. J. Mach. Learn. Res.
**2006**, 7, 2399–2434. [Google Scholar] - Perozzi, B.; Al-Rfou, R.; Skiena, S. Deepwalk: Online learning of social representations. In Proceedings of the 20th ACM SIGKDD International Conference on Knowledge Discovery and Data Mining, New York, NY, USA, 24–27 August 2014; pp. 701–710. [Google Scholar]
- Qiu, J.; Dong, Y.; Ma, H.; Li, J.; Wang, K.; Tang, J. Network embedding as matrix factorization: Unifying deepwalk, line, pte, and node2vec. In Proceedings of the Eleventh ACM International Conference on Web Search and Data Mining, Los Angeles, CA, USA, 5–9 February 2018; pp. 459–467. [Google Scholar]
- Lorrain, F.; White, H.C. Structural equivalence of individuals in social networks. J. Math. Sociol.
**1971**, 1, 49–80. [Google Scholar] [CrossRef] - Sailer, L.D. Structural equivalence: Meaning and definition, computation and application. Soc. Netw.
**1978**, 1, 73–90. [Google Scholar] [CrossRef] - Huang, X.; Li, J.; Hu, X. Accelerated attributed network embedding. In Proceedings of the 2017 SIAM International Conference on data mining, Houston, TX, USA, 27–29 April 2017; pp. 633–641. [Google Scholar]
- Gao, H.; Huang, H. Deep Attributed Network Embedding. In Proceedings of the IJCAI, Stockholm, Sweden, 13–19 July 2018. [Google Scholar]
- Huang, X.; Li, J.; Hu, X. Label informed attributed network embedding. In Proceedings of the Tenth ACM International Conference on Web Search and Data Mining, Cambridge, UK, 6–10 February 2017; pp. 731–739. [Google Scholar]
- Wu, J.; He, J.; Xu, J. Net: Degree-specific graph neural networks for node and graph classification. In Proceedings of the 25th ACM SIGKDD International Conference on Knowledge Discovery & Data Mining, Anchorage, AK, USA, 4–8 August 2019; pp. 406–415. [Google Scholar]
- Veličković, P.; Cucurull, G.; Casanova, A.; Romero, A.; Lio, P.; Bengio, Y. Graph attention networks. arXiv
**2017**, arXiv:1710.10903. [Google Scholar] - Li, Q.; Han, Z.; Wu, X.M. Deeper insights into graph convolutional networks for semi-supervised learning. In Proceedings of the AAAI Conference on Artificial Intelligence, New Orleans, LA, USA, 2–7 February 2018; Volume 32. [Google Scholar]
- Ying, Z.; You, J.; Morris, C.; Ren, X.; Hamilton, W.; Leskovec, J. Hierarchical graph representation learning with differentiable pooling. In Proceedings of the 2018 Conference on Neural Information Processing Systems NeurIPS 2018, Montreal, QC, Canada, 3–8 December 2018; pp. 4800–4810. [Google Scholar]
- Wang, X.; Zhu, M.; Bo, D.; Cui, P.; Shi, C.; Pei, J. Am-gcn: Adaptive multi-channel graph convolutional networks. In Proceedings of the 26th ACM SIGKDD International Conference on Knowledge Discovery & Data Mining, Virtual Event, 6–10 July 2020; pp. 1243–1253. [Google Scholar]
- Xiao, S.; Wang, S.; Dai, Y.; Guo, W. Graph neural networks in node classification: Survey and evaluation. Mach. Vis. Appl.
**2022**, 33, 1–19. [Google Scholar] [CrossRef] - Merchant, A.; Mathioudakis, M. Joint Use of Node Attributes and Proximity for Node Classification. In Proceedings of the International Conference on Complex Networks and Their Applications; Springer: Cham, Switzerland, 2021; pp. 511–522. [Google Scholar]
- Belkin, M.; Niyogi, P. Laplacian eigenmaps for dimensionality reduction and data representation. Neural Comput.
**2003**, 15, 1373–1396. [Google Scholar] [CrossRef] [Green Version] - Chung, F.R.; Graham, F.C. Spectral Graph Theory; American Mathematical Society: Providence, RI, USA, 1998; Number 92. [Google Scholar]
- Akyildiz, T.A.; Alabsi Aljundi, A.; Kaya, K. Gosh: Embedding big graphs on small hardware. In Proceedings of the 49th International Conference on Parallel Processing, Edmonton, AB, Canada, 17–20 August 2020; pp. 1–11. [Google Scholar]
- Tsitsulin, A.; Mottin, D.; Karras, P.; Müller, E. Verse: Versatile graph embeddings from similarity measures. In Proceedings of the 2018 World Wide Web Conference, Lyon, France, 23–27 April 2018; pp. 539–548. [Google Scholar]
- Rahman, M.K.; Sujon, M.H.; Azad, A. Force2Vec: Parallel force-directed graph embedding. In Proceedings of the 2020 IEEE International Conference on Data Mining (ICDM), Sorrento, Italy, 17–20 November 2020; IEEE: Piscataway, NJ, USA, 2020; pp. 442–451. [Google Scholar]
- Kipf, T.N.; Welling, M. Semi-Supervised Classification with Graph Convolutional Networks. In Proceedings of the International Conference on Learning Representations (ICLR), Toulon, France, 24–26 April 2017. [Google Scholar]
- Cong, W.; Forsati, R.; Kandemir, M.; Mahdavi, M. Minimal Variance Sampling with Provable Guarantees for Fast Training of Graph Neural Networks. In Proceedings of the 26th ACM SIGKDD International Conference on Knowledge Discovery & Data Mining, Virtual Event, 6–10 July 2020; pp. 1393–1403. [Google Scholar]
- Hu, W.; Fey, M.; Zitnik, M.; Dong, Y.; Ren, H.; Liu, B.; Catasta, M.; Leskovec, J. Open graph benchmark: Datasets for machine learning on graphs. arXiv
**2020**, arXiv:2005.00687. [Google Scholar] - Pei, H.; Wei, B.; Chang, K.C.C.; Lei, Y.; Yang, B. Geom-gcn: Geometric graph convolutional networks. arXiv
**2020**, arXiv:2002.05287. [Google Scholar] - Zhu, J.; Yan, Y.; Zhao, L.; Heimann, M.; Akoglu, L.; Koutra, D. Generalizing graph neural networks beyond homophily. arXiv
**2020**, arXiv:2006.11468. [Google Scholar] - Pedregosa, F.; Varoquaux, G.; Gramfort, A.; Michel, V.; Thirion, B.; Grisel, O.; Blondel, M.; Prettenhofer, P.; Weiss, R.; Dubourg, V.; et al. Scikit-learn: Machine Learning in Python. J. Mach. Learn. Res.
**2011**, 12, 2825–2830. [Google Scholar] - Fey, M.; Lenssen, J.E. Fast graph representation learning with PyTorch Geometric. arXiv
**2019**, arXiv:1903.02428. [Google Scholar] - Zeng, H.; Zhou, H.; Srivastava, A.; Kannan, R.; Prasanna, V. GraphSAINT: Graph Sampling Based Inductive Learning Method. In Proceedings of the International Conference on Learning Representations, Virtual Conference, 26–30 April 2020. [Google Scholar]
- Li, J.; Hu, X.; Tang, J.; Liu, H. Unsupervised streaming feature selection in social media. In Proceedings of the 24th ACM International on Conference on Information and Knowledge Management, Melbourne, Australia, 19–23 October 2015. [Google Scholar]
- Rozemberczki, B.; Allen, C.; Sarkar, R. Multi-scale attributed node embedding. J. Complex Netw.
**2021**, 9, cnab014. [Google Scholar] [CrossRef] - Shchur, O.; Mumme, M.; Bojchevski, A.; Günnemann, S. Pitfalls of graph neural network evaluation. arXiv
**2018**, arXiv:1811.05868. [Google Scholar] - Yang, Z.; Cohen, W.; Salakhudinov, R. Revisiting semi-supervised learning with graph embeddings. In Proceedings of the International Conference on Machine Learning, Long Beach, CA, USA, 9–15 June 2019; pp. 40–48. [Google Scholar]
- Zeng, H.; Zhang, M.; Xia, Y.; Srivastava, A.; Malevich, A.; Kannan, R.; Prasanna, V.; Jin, L.; Chen, R. Decoupling the Depth and Scope of Graph Neural Networks. Adv. Neural Inf. Process. Syst.
**2021**, 34, 19665–19679. [Google Scholar]

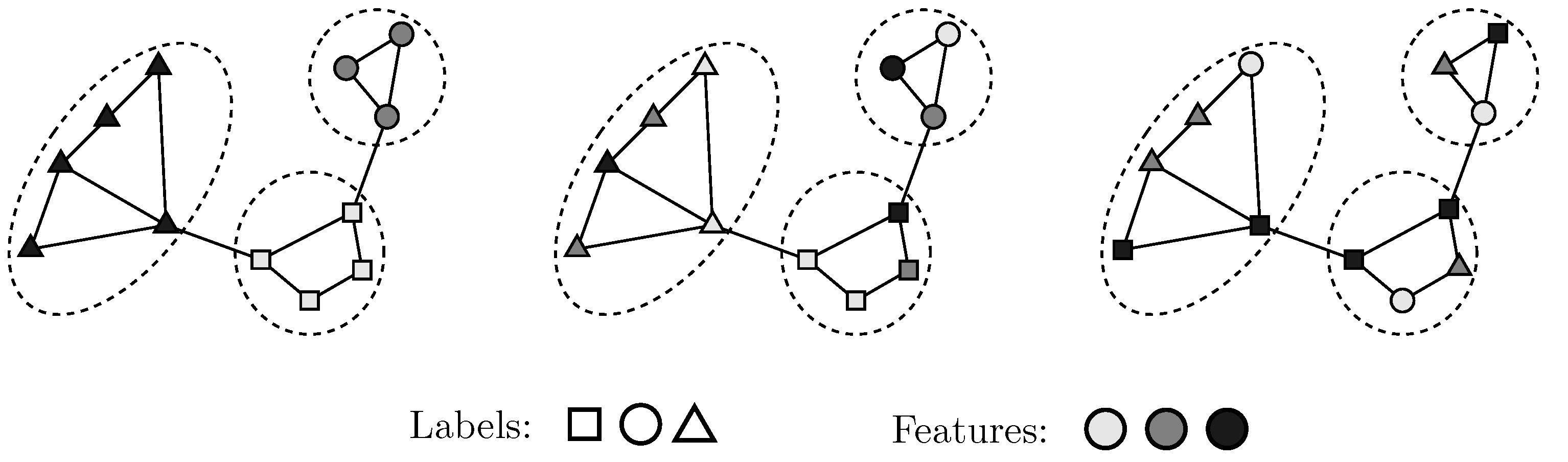

**Figure 1.**Nodes with the same labels may be adjacent and have similar features (

**left**), or may be adjacent but have different features (

**center**), or may not be adjacent but have similar features (

**right**). Features are depicted by colors and labels are depicted by shapes. GCN and GraphSAGE can perform well in the first two cases but not the third because they predict node labels by aggregating the features of adjacent nodes.

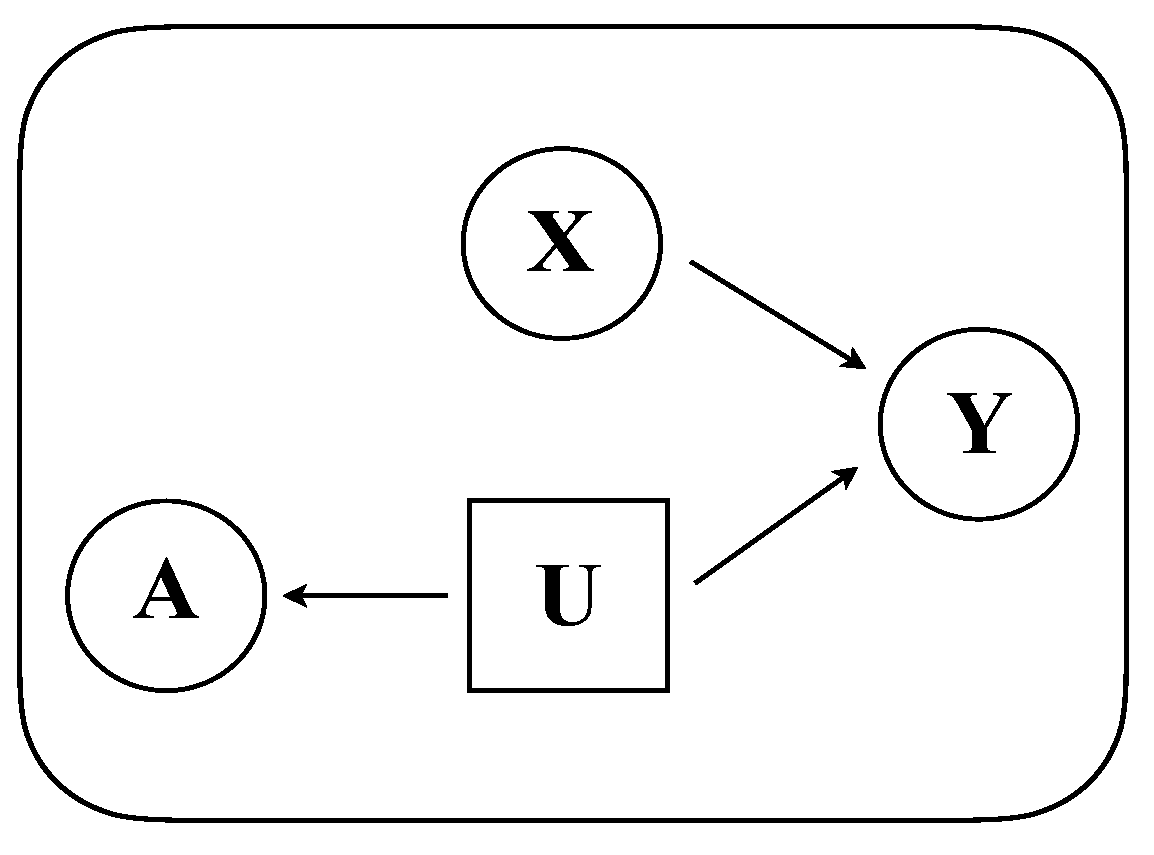

**Figure 2.**Visual illustration of the generative framework. Observed node attributes $\mathbf{X}$ (represented by circular box) and unobserved (latent) embeddings $\mathbf{U}$ (represented by square box) jointly generate node labels $\mathbf{Y}$. The (observed) adjacency matrix $\mathbf{A}$ is generated from $\mathbf{U}$ and indirectly correlates with $\mathbf{Y}$ (via $\mathbf{U}$). Reprinted with permission from Springer Nature Customer Service Centre GmbH: Springer, International Conference on Complex Networks and Their Applications, Joint Use of Node Attributes and Proximity for Node Classification, Merchant and Mathioudakis [25], 2021.

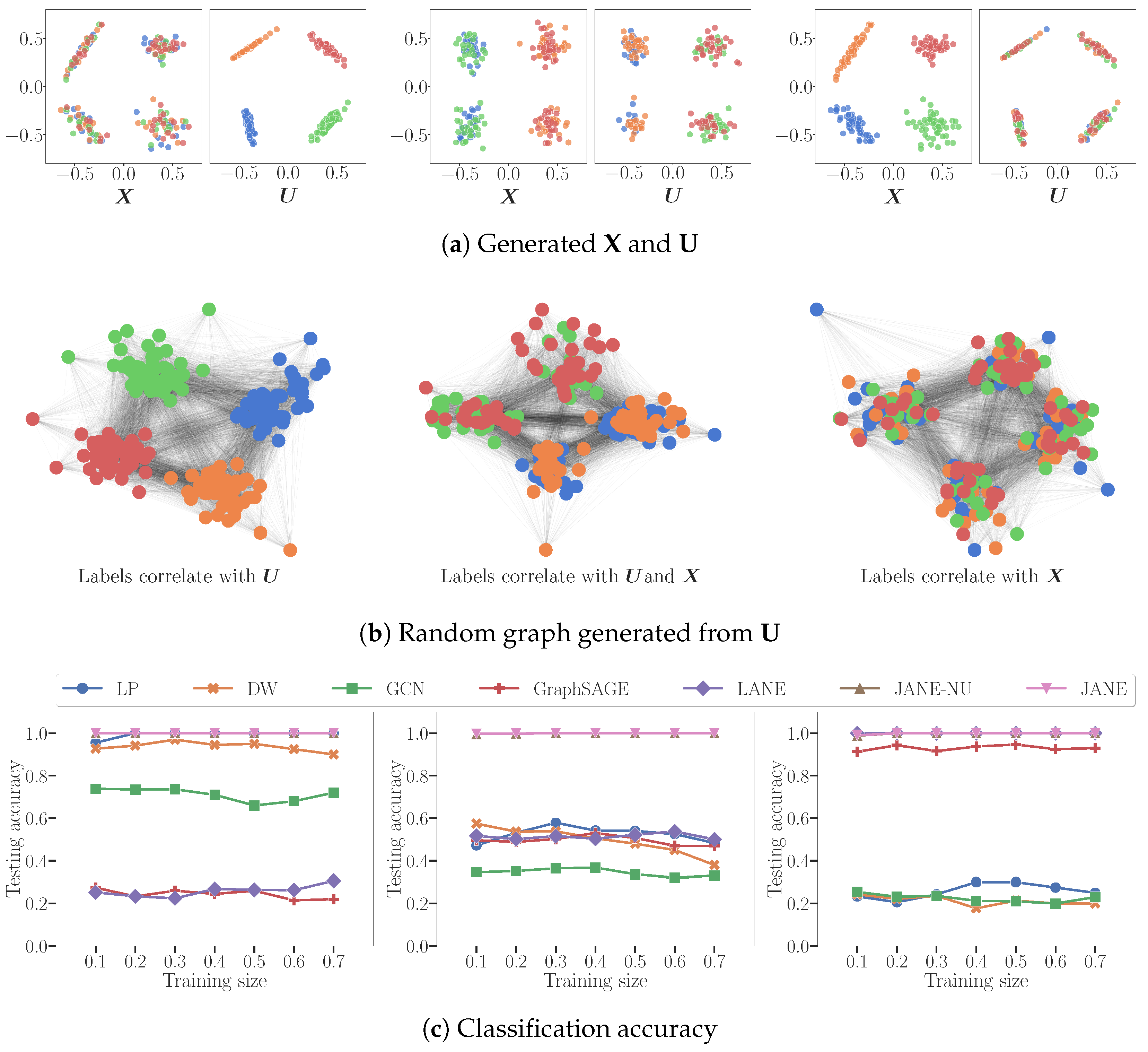

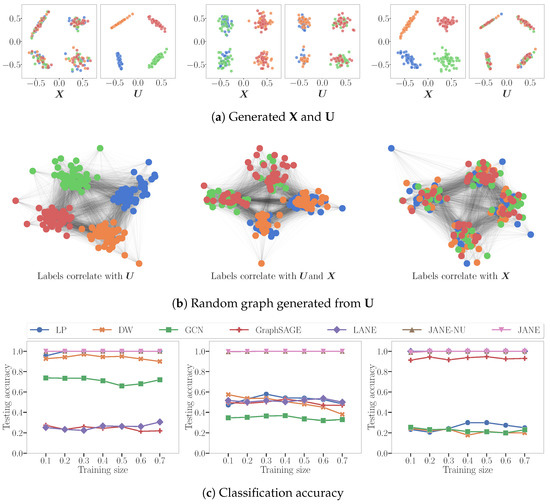

**Figure 3.**(

**a**) depicts three synthetically generated datasets $\mathbf{X}$ and $\mathbf{U}$ with class labels $\mathbf{Y}$ influenced only by $\mathbf{U}$ ($\alpha =0.0$, left), partly by $\mathbf{U}$ and partly by $\mathbf{X}$ ($\alpha =0.5$, center), and only by $\mathbf{X}$ ($\alpha =1.0$, right). (

**b**) shows an instance of the corresponding graph generated from $\mathbf{U}$ according to Equation (2). (

**c**) compares the node classification accuracy of JANE and JANE-NU, with the baselines averaged over five random train-test splits. Reprinted with permission from Springer Nature Customer Service Centre GmbH: Springer, International Conference on Complex Networks and Their Applications, Joint Use of Node Attributes and Proximity for Node Classification, Merchant and Mathioudakis [25], 2021.

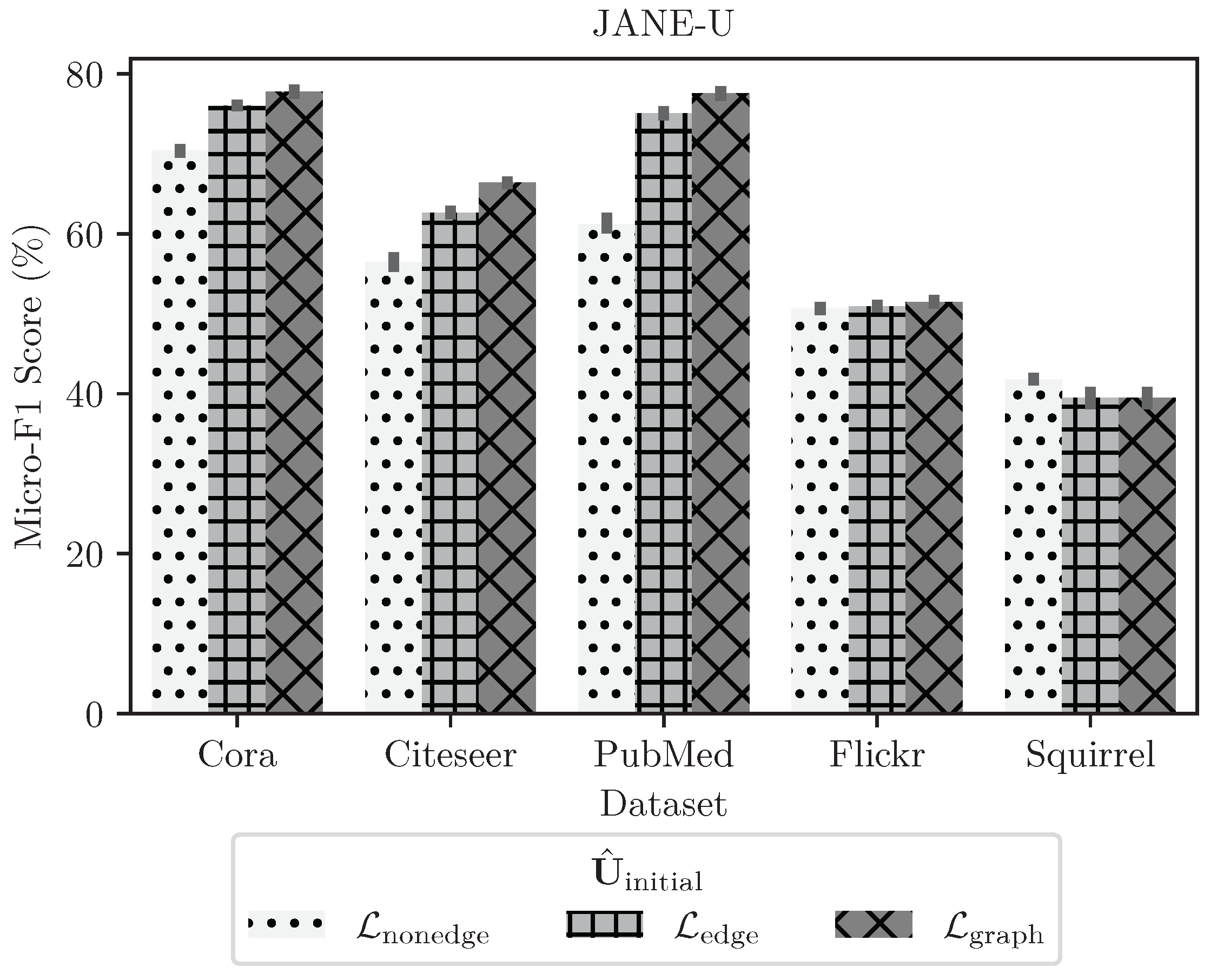

**Figure 4.**Test micro-F1 scores for JANE-U where ${\widehat{\mathbf{U}}}_{\mathrm{initial}}$ is that which minimizes ${\mathcal{L}}_{\mathrm{edge}}$, ${\mathcal{L}}_{\mathrm{nonedge}}$, or ${\mathcal{L}}_{\mathrm{graph}}$. Jointly preserving edge as well as non-edge information results in best performance.

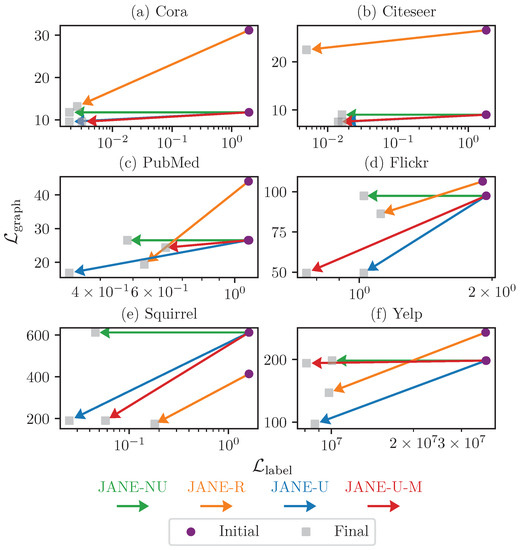

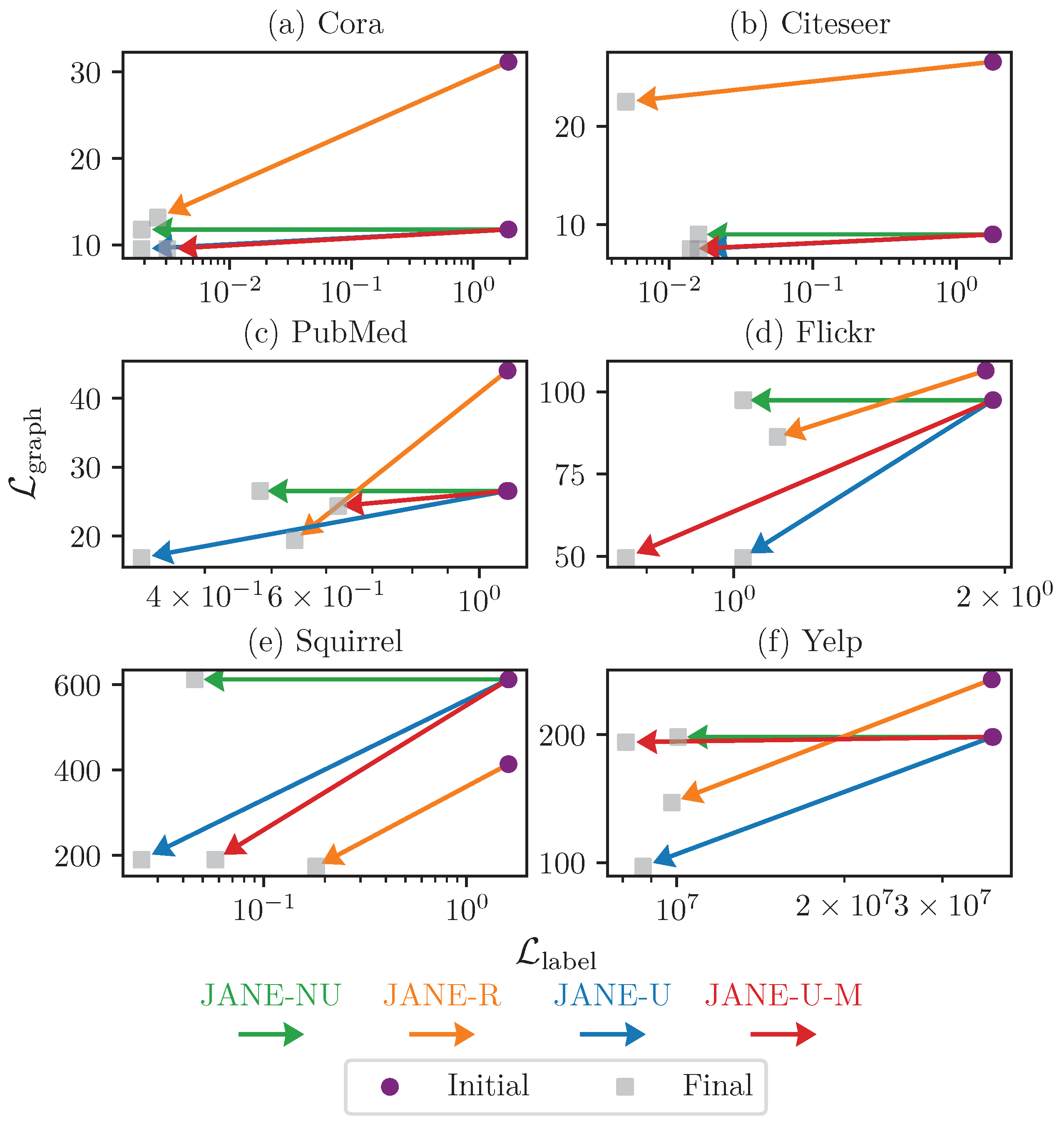

**Figure 5.**Change in ${\mathcal{L}}_{\mathrm{label}}$ (X-axis) and ${\mathcal{L}}_{\mathrm{graph}}$ (Y-axis) due to training for JANE-R, JANE-NU, JANE-U, and JANE-U-M. The purple circle denotes the loss value before the start of training and the grey square denotes the loss value after training for 200 epochs. JANE learns to fit to both the labels and adjacency during training.

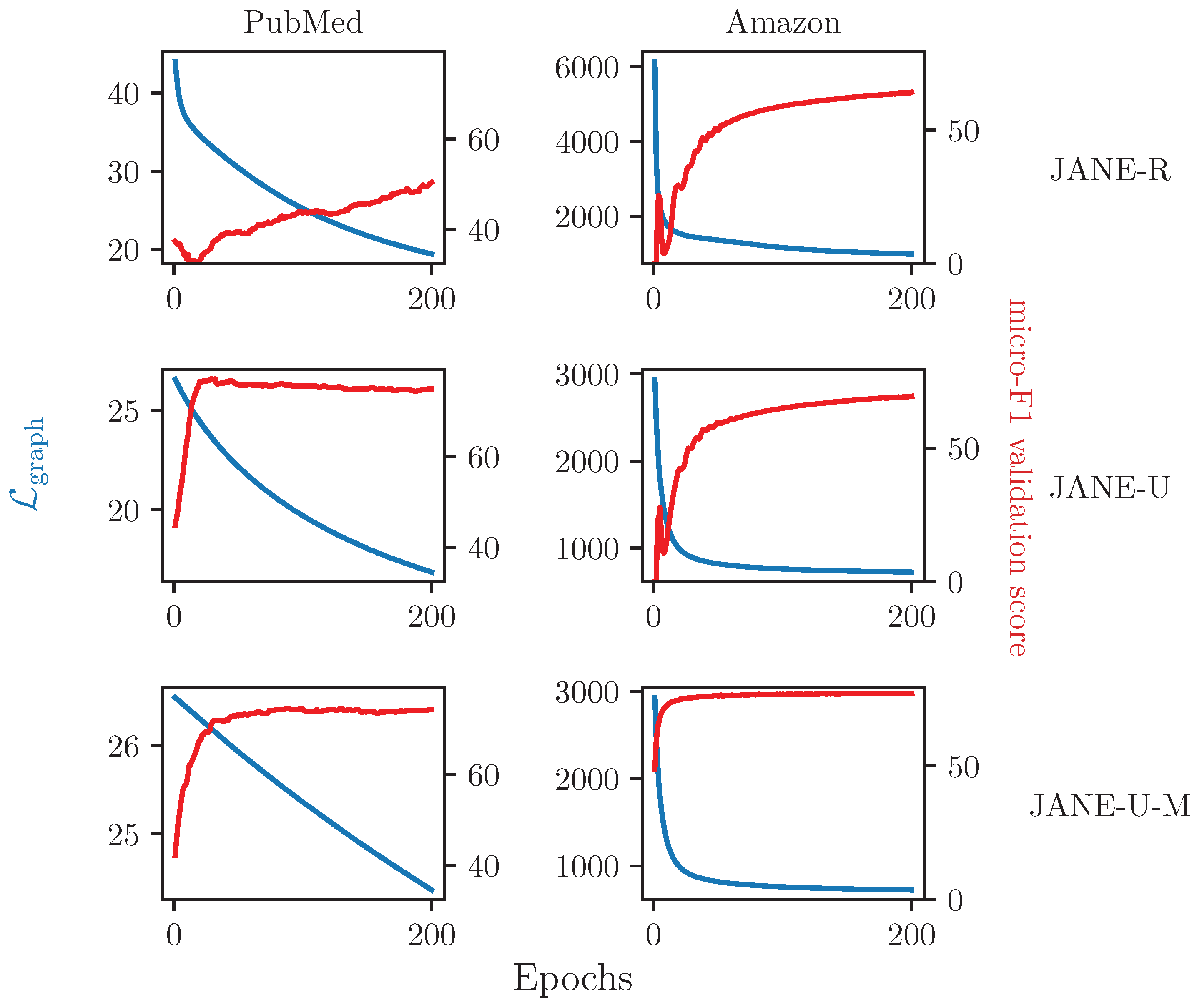

**Figure 6.**Decrease in ${\mathcal{L}}_{\mathrm{graph}}$ (blue line, left Y-axis) and increase micro-F1 validation accuracy (red line, right Y-axis) as a function of training epochs (X-axis) for JANE-R, JANE-U, and JANE-U-M on Pubmed and Amazon datasets.

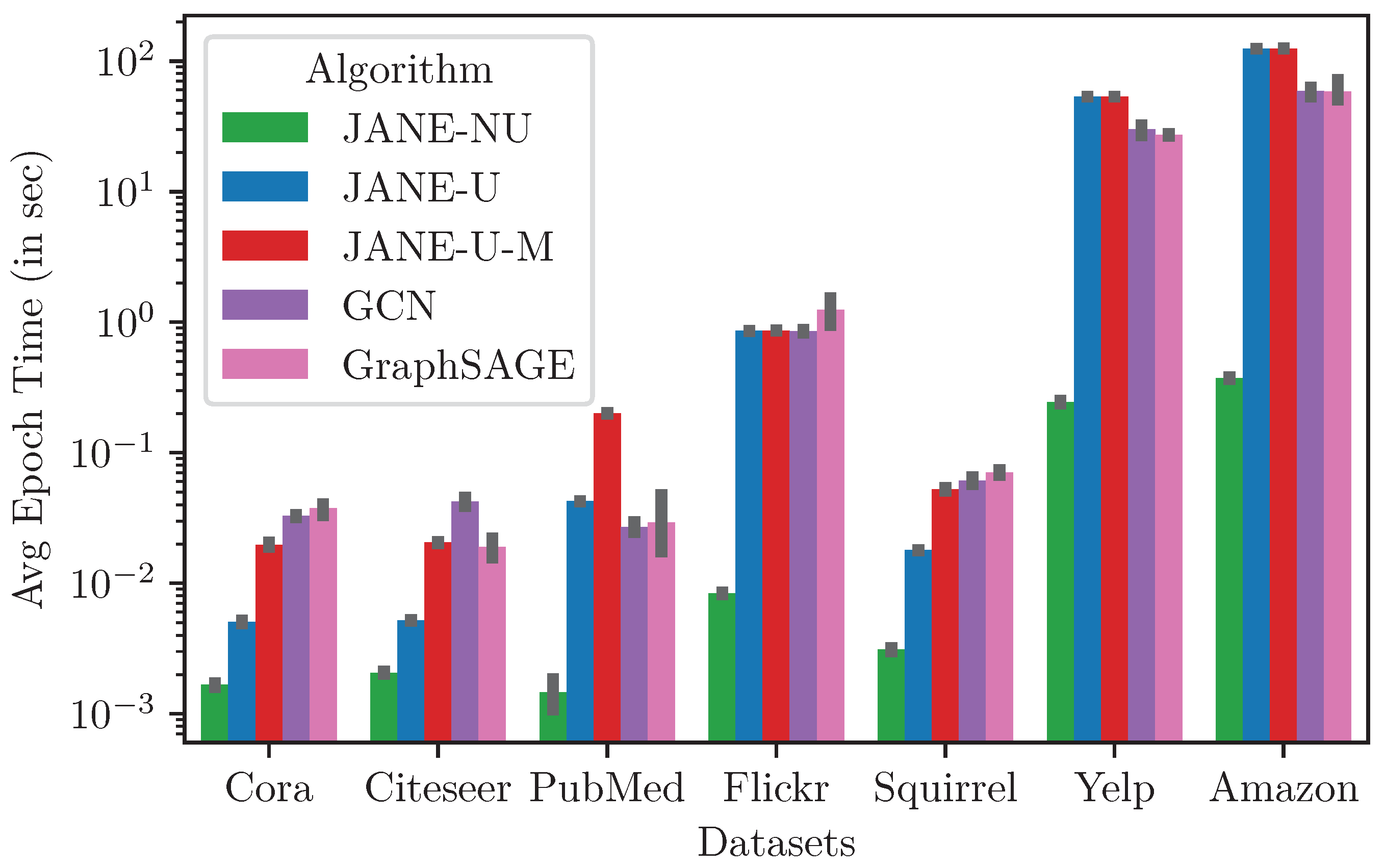

**Figure 7.**Average training time per epoch (in seconds) of training algorithms on different datasets.

**Table 1.**Dataset statistics: number of nodes $\left|\mathcal{V}\right|$, number of edges $\left|\mathcal{E}\right|$, number of classes, number of features, and edge homophily of the graph, respectively. Edge homophily is defined as the fraction of edges in a graph where both nodes have the same class label. We do not report homophily scores for the multi-label datasets Yelp and Amazon.

Graph | Size | Properties | |||
---|---|---|---|---|---|

$\left|\mathcal{V}\right|$ | $\left|\mathcal{E}\right|$ | Number of Classes | Number of Features | Edge Homophily | |

Cora | 2485 | 5069 | 7 | 1428 | 0.86 |

Citeseer | 2110 | 3668 | 6 | 3669 | 0.80 |

PubMed | 19,717 | 44324 | 3 | 500 | 0.86 |

Squirrel | 5201 | 401,907 | 5 | 2089 | 0.29 |

Flickr | 89,250 | 989,006 | 7 | 500 | 0.41 |

Yelp | 703,655 | 13,927,667 | 100 | 300 | NA |

Amazon | 1,066,627 | 263,793,649 | 107 | 200 | NA |

**Table 2.**Comparison of test micro-F1 scores with baseline algorithms. Accuracy numbers in blue represent the best model for each dataset. Results are averaged over 10 runs.

Algorithm | Cora | Citeseer | Squirrel | PubMed | Flickr | Yelp | Amazon |
---|---|---|---|---|---|---|---|

RandomForest | $56.19\pm 0.2$ | $49.20\pm 0.6$ | $33.31\pm 0.5$ | $73.70\pm 0.8$ | $45.80\pm 0.0$ | $42.55\pm 0.1$ | $59.12\pm 0.1$ |

LabelPropagation | $70.53\pm 0.0$ | $64.30\pm 0.0$ | $32.37\pm 0.0$ | $70.50\pm 0.0$ | $46.96\pm 0.0$ | $0.90\pm 0.0$ | $0.02\pm 0.0$ |

DeepWalk | $36.74\pm 1.6$ | $33.73\pm 2.2$ | $33.78\pm 1.1$ | $69.34\pm 1.3$ | $51.13\pm 0.1$ | NA | NA |

GCN | $77.34\pm 0.3$ | $63.90\pm 0.6$ | $47.44\pm 2.4$ | $76.48\pm 0.2$ | $42.67\pm 0.4$ | $39.58\pm 1.6$ | $12.22\pm 0.1$ |

GraphSAGE | $74.97\pm 1.5$ | $58.90\pm 1.2$ | $41.44\pm 0.8$ | $73.72\pm 0.7$ | $51.00\pm 0.6$ | $39.07\pm 3.2$ | $68.23\pm 0.4$ |

JANE-R | $58.40\pm 0.8$ | $49.58\pm 0.4$ | $31.39\pm 1.4$ | $51.42\pm 1.9$ | $45.39\pm 0.4$ | $39.03\pm 2.2$ | $63.39\pm 0.6$ |

JANE-NU | $77.75\pm 0.3$ | $66.58\pm 0.2$ | $42.32\pm 0.5$ | $76.70\pm 0.7$ | $51.44\pm 0.2$ | $40.98\pm 3.4$ | $69.57\pm 0.2$ |

JANE-U | $77.78\pm 0.3$ | $66.40\pm 0.1$ | $41.81\pm 0.2$ | $77.56\pm 0.3$ | $51.49\pm 0.2$ | $38.76\pm 1.2$ | $69.53\pm 0.2$ |

JANE-U-M | $78.10\pm 0.1$ | $66.30\pm 0.2$ | $42.65\pm 1.2$ | $77.14\pm 0.6$ | $50.67\pm 0.2$ | $60.70\pm 0.6$ | $77.23\pm 0.1$ |
