Preprocessing Pipelines including Block-Matching Convolutional Neural Network for Image Denoising to Robustify Deep Reidentification against Evasion Attacks
1
ITTI Sp. z o.o., 61-612 Poznań, Poland
2
Institute of Telecommunications and Computer Science, Bydgoszcz University of Science and Technology, 85-796 Bydgoszcz, Poland
*
Author to whom correspondence should be addressed.
Entropy 2021, 23(10), 1304; https://doi.org/10.3390/e23101304
Submission received: 17 August 2021
/
Revised: 27 September 2021
/
Accepted: 30 September 2021
/
Published: 3 October 2021
(This article belongs to the Special Issue Advances in Computer Recognition, Image Processing and Communications, Selected Papers from CORES 2021 and IP&C 2021)
Abstract
:Artificial neural networks have become the go-to solution for computer vision tasks, including problems of the security domain. One such example comes in the form of reidentification, where deep learning can be part of the surveillance pipeline. The use case necessitates considering an adversarial setting—and neural networks have been shown to be vulnerable to a range of attacks. In this paper, the preprocessing defences against adversarial attacks are evaluated, including block-matching convolutional neural network for image denoising used as an adversarial defence. The benefit of using preprocessing defences comes from the fact that it does not require the effort of retraining the classifier, which, in computer vision problems, is a computationally heavy task. The defences are tested in a real-life-like scenario of using a pre-trained, widely available neural network architecture adapted to a specific task with the use of transfer learning. Multiple preprocessing pipelines are tested and the results are promising.
1. Introduction
Artificial neural networks offer a collection of benefits which have proved useful in image processing, especially in tasks including artificial-intelligence-based computer aided detection [1]. The progress of the last decade allowed to push the results obtained by artificial neural networks to levels surpassing human performance, in select tasks [2]. In computer vision, deep neural networks became the go-to solution for a wide variety of problems [3], capable of producing an impressive result in a sensible time frame [4]. Recently, artificial neural networks found success in person reidentification [5,6,7].
In general, reidentification (reID) refers to the process of re-attaching publicly available data to an anonymised record in order to discover the identity of an individual. In the context of computer vision, the phrase refers to the ability of an image recognition system to spot an individual across different cameras, and different angles [7]. ReID is a challenging task which stirred up a significant amount of research recently, particularly due to the significant benefits it could bring for public safety [7]. The use in the context of intelligent surveillance systems forces the consideration of adversarial behaviour against the artificial intelligence (AI) technologies used for reID. In a real-world scenario, impressive detection metrics are not the only thing that matters [8]. The current trend in reID involves the use of deep neural networks, which have been proven to be susceptible to a novel kind of attacks [9,10,11,12].
Deep neural networks, particularly convolutional neural networks (CNN), are widely used for the CV tasks [13]; some of the best-performing ImageNet contest architectures were based on the premise of utilising convolutional layers. The network architectures tend to be very deep: Inception features over 6 million trainable parameters [14,15], ResNet18 (Residual neural network) over 11 million [16], AlexNet over 60 million [17], VGG16 (Visual Geometry Group) over 138 million [18], etc. Therefore, training a top-tier deep neural network is a huge computational endeavour [19]. In order not to repeat this effort for each task, transfer learning can be employed [20]. Transfer learning leverages pre-trained networks, essentially using them as feature extractors with frozen weights, feeding samples to the network and only training the added dense layers at the output end of the topology. However, the use of openly-available, pre-trained networks poses a security problem in an adversarial setting, as it raises the capability of the attacker [21,22].
The idea of attacking deep neural networks has focused the attention of the deep learning community over the last few years [23,24,25]. A range of adversarial attacks effective against AI were discovered, uncovering the vulnerabilities of data driven technologies [25]. In this work, the attacks performed at test-time are considered, which are known as evasion attacks [26,27].
The goal of an Evasion attack is to force the AI-based system to misclassify a particular sample. This is achieved by adding a specifically crafted noise to the tested sample. This added noise, in case of images, is imperceptible to humans, but leverages the ’intriguing properties of neural networks’ to fool the AI algorithm [28]. The issue of defending against those attacks is a fierce arms race and the satisfactory defence has not yet emerged [29].
The algorithms and technologies presented in this paper were used to form a submission to the reidentification defences track of the H2020 SPARTA SAFAIR contest. The task was formulated around the CelebA face recognition dataset [30,31]. The dataset, as used in the task, featured 5304 classes, with 85,612 samples in the training subset and 28,523 samples in the testing set. The objective of the defensive track was to propose ways of preventing adversarial samples from lowering the accuracy of the face recognition model. The following sections describe the specific technologies used for defining the submission of the contest, the rationale behind those choices, the formulated defences, and provide the results of the experiments.
As such, the research and, thus, the paper is conducted and formulated to answer the following research question:
- RQ1 Is it possible to use data preprocessing methods to robustify an ANN-based classifier against adversarial evasion attack in computer vision (CV)?
- RQ2 Does using all the identified defensive preprocessing methods provide a better protection than using just a selection of those?
Thus, the innovative contribution of this paper comes in the formulation and evaluation of a plug-and-play preprocessing pipeline for robustification of already-existing or pre-trained CV classifiers, easily deployable in a real-world situation and saving on the cost of re-training the classifier
The paper is structured as follows: In Section 2, the related works are introduced and the most important categories of defences are described. Section 3 lists the setup of the used reidentification pipeline, showcases the effects of the adversarial attacks and introduces the specific defences, including the block-matching convolutional neural network (BMCNN) for image denoising, which, to the best of our knowledge, has never before been used to counter adversarial attacks. Section 4 contains the experimental setups and the results obtained by specific pipelines. Section 5 encompasses the conclusions along with the impact the defensive pipeline has over a clean dataset.
2. Related Works
The advent of adversarial perturbations revealed the vulnerabilities of contemporary AI-based technologies. There is a considerable body of research into both the attacks and the defences. However, as noted by [32], the construction of a theoretical model of crafting adversarial perturbations is problematic, as it is a sophisticated optimisation procedure for most machine learning models. This absence of a theoretical baseline makes it troublesome to verify whether administering a certain defence can proof a system against a certain set of attacks. This situation finds its expression in the fact that whenever a new defence is proposed, a new attack capable of breaking through that defence appears [33,34,35,36,37,38].
Against this canvas, the authors of [38] propose a set of guidelines for research into the defensive mechanisms against adversarial attacks, listing common pitfalls and a range of best practices. There is a substantial body of work gathering both the available attacks and possible defences geared towards machine and deep learning [27,29,32,39,40,41,42] and even specifically deep learning in computer vision [23,43,44].
A thorough analysis of the sources allows one to roughly divide the adversarial defences into these categories:
- Gradient masking;
- Input reconstruction;
- Detectors.
According to [29], the category of gradient masking encompasses defences which fit either intentionally or unintentionally. This category of defences relies on making the gradient unfit for the operation of the attack algorithms. Some defences do not aim at gradient masking specifically, but achieve it as a by-product of defensive procedures. One of the most popular approaches, adversarial training, frequently has a gradient masking effect, even though it is not the goal of the process.
Adversarial (re)training is considered as the brute-force approach [32]. The procedure relies on crafting adversarial samples and including them in the training set. The problem with retraining the whole classifier is the computational cost of such course of conduct. This problem will be touched upon later in this paper.
The defences in the input reconstruction category perform various forms of input pre-processing. Although it might be possible to circumvent those methods in a scenario where the attacker has full knowledge of the system, in a real-world setting the defences from this category can be very effective, and computationally much cheaper in use than retraining. The detection approaches are effective as long as the adversary is not aware of the existence of the detector. For an attacker of sufficient capability it is possible to build an adversarial sample which, at the same time, circumvents the detector and fools the classifier, as proven by [33].
3. Materials and Methods
3.1. Classifier Setup
In this work, the VGG-face network was used [45] with the pre-trained ‘resnet-50’ [46] architecture. VGGFace is trained on a dataset containing 2.6 million face images of over 2.6k people. The resnet50 network is a CNN assembled of 50 layers. The detailed hyperparameter setup of the entire network can be found in [45]. The final layer of the pre-trained network is AveragePooling2D with the shape of (None, 1, 1, 2048). To perform transfer learning, a dense layer of 2048 neurons is added to the the pre-trained network, followed by a dropout layer, and wrapped up by the softmax layer set with the number of neurons equal to the number of classes. The added dense layer uses the rectified linear unit (ReLU) activation function. The weights between the AveragePooling layer and the dense layer along with the weights between the dense layer and the output layer constitute the part of the network that is trained on the CelebA dataset, with the weights of the remainder of the network frozen. The batch size used for training was set to 1, while early stopping was used to find the optimal number of epochs, which capped at 32. Multiple different hyperparameters setup were tested, and learning rate scheduling was also tested. For the reduced dataset used in the experiments the default learning rate of straight 0.01 proved optimal.
The trainable part of the model contains 15,064,248 parameters when it is prepared to recognise all the 5304 identities found in the CelebA dataset. To allow fast prototyping, a toy model was built on fourteen most populated classes in the CelebA dataset. The most populated classes were chosen to avoid having to deal with the data imbalance problem, allowing the research to focus on adversarial defences. Changing just the number of classes allowed to reduce the number of trainable parameters to just over 4 million; a reduction of over 70%. The prior probability of the occurrence of each of the classes is displayed in Table 1.
Multi-task cascaded convolutional neural networks (MTCNN) is a technique capable of spotting faces and extracting them for later processing by other networks. A state-of-the-art face recognition processing pipeline consists of MTCNN for face detection and landmark placement, and a CNN used for placing the extracted face in adequate categories [47,48,49]. In this work, MTCNN is used for preprocessing the CelebA images for both training and testing. The CelebA subset selected for the formulation of the model was further split into the training set and the testing set. The classifier performance on the test set containing the 14 most populated classes is presented in Table 2.
For better evaluation of the effects of adversarial perturbations and adversarial defences, the misclassified samples were removed from the set, manually pushing the performance to 100% accuracy. That way, any adversarial perturbations are registered as drops in performance, avoiding a situation where an attack pushes the misclassified sample to the correct class. Furthermore, the way the defences affect the classifier performance is more clearly readable.
3.2. Adversarial Attacks
The testing set was then subjected to the procedure of creating the adversarial samples. To produce the adversarial attacks, the projected gradient descent (PGD) method was used, considering PGD as the universal first-order adversary, following [50]. The maximum number of iterations was set to 100, the epsilon step to 0.1. The value of epsilon determines the maximum size of perturbation allowed for the attack. Along with the number of iterations, multiple values of epsilon were tested to simulate different strengths of attack. The effect different strengths of the attacks have on the image can be seen in Figure 1. The pictures are reformatted to fit the vgg-face input shape. The effects of PGD eps = 4 on the performance of the classifier can be seen in Table 3.
3.3. Defences
There have been a number of defences proposed by the research community [51]. The task is to design robust AI tools that are resilient to adversarial attacks. Some methods rely on retraining the entire classifier using attacks generated with the known attack methods [52]. This method, called adversarial training, not only impacts the effectiveness of the classifier, but also requires an immense computational effort. The proposition contained in this section utilises the idea of using pre-processing methods to robustify existing AI-based classifiers, so as the users do not need to re-train their models. The proposed methods are accompanied by an assessment of how the defensive measures affect the classifier performance, which helps optimise the resiliency of AI against the loss of performance some defences introduce.
3.3.1. JPEG Compression
The Joint Photographic Experts Group (JPEG) compression used as adversarial defence relies on the fact that JPEG-compressed images are very prevalent in contemporary usage. Following the authors of [53], who noted that JPEG compression often has the ability to reverse the effects of small adversarial perturbations, the technique is evaluated here for the use as a purely pre-processing defence against adversarial attacks. The compression has the effect of removing additive artefacts in square blocks of an image, effectively working as a filter removing adversarial perturbations [54]. The effect of different magnitudes of compression (20, 40, 80) can be seen in Figure 2. The results of the classifier using JPEG compression with quality set to 20 on PGD attacks with epsilon = 4 can be found in Table 4.
3.3.2. Gaussian Data Augmentation
Gaussian data augmentation [55] is a process of adding Gaussian noise to a sample. This method is proven not to produce adversarial samples and can reverse the effects of known adversarial attacks. Image samples with different sigma settings can be seen in Figure 3. The value of sigma expresses the variance.
3.3.3. Local Spatial Smoothing
Following the research of [56], spatial smoothing can be used to reduce the effects of added adversarial noise. The algorithm uses local blurring filters to remove the effects of adversarial noise. The approach is one of the feature squeezing methods and can be effectively applied as a pre-processor-based defence. The image before and after spatial smoothing can be seen in Figure 4.
3.3.4. Total Variance Minimisation
Total variance minimisation is a model-agnostic preprocessor approach. In the original paper [57], the defence is used for retraining the model and then the inputs are also pre-processed at test time. The method reassembles the image by rebuilding a randomly chosen set of pixels with the plainest depiction of these pixels. The image before and after total variance minimisation can be seen in Figure 5.
3.3.5. Block-Matching Convolutional Neural Network (BMCNN) for Image Denoising as an Adversarial Defence
Following the work in image denoising presented in [58], and extending the idea of applying autoencoders as adversarial defences [59], the BMCNN is proposed for the a method of robustifying the image recognition system against adversarial attacks. BMCNN is an attempt to merge two leading approaches to image denoising: non-local self-similarity prior based methods [60] and feed-forward denoising with the use of convolutional neural networks [61]. The method is applied as a pre-processor to remove adversarial noise before the sample is fed to the classifier. The results of the BMCNN with sigma set to 20 used on adversarial samples created with PGD with epsilon set to four can be seen in Table 5. The value of sigma has been chosen experimentally.
4. Results
The low computational cost of the preprocessors in comparison with re-training the classifier allows to mix and match the defences. The experiments show that some pipelines are more effective than others. An example of a defensive pipeline which utilises all the researched defences is displayed in Figure 6.
The pipeline makes intuitive sense, as blurring the image should remove some of the artefacts added by PGD, same for JPEG compression, then adding Gaussian noise and removing it with BMCNN denoising has the potential of removing both the Gaussian and the adversarial noise at the same time. The results of this particular pipeline are shown in Table 6.
As showcased by the results of the experiment in Table 6, the mix of defences improved the detection metrics as compared to the undefended model; however it did not perform as well as, for example, BMCNN denoising alone (Table 5). For the next experiment, the total variance minimisation preprocessor was removed, as it has a similar filtering effect as localised spatial smoothing. The pipeline is shown in Figure 7. The results of the experiment are contained in Table 7.
To find the optimal mix of preprocessors that would minimise or eliminate the effect of adversarial perturbations without significantly deteriorating the classifier results, a range of experiments was performed. The results of some of those tests are contained in Table 8 and Table 9. To assess the results of the preprocessing defences, the best performing preprocessing pipeline was tested on a clean, unperturbed set. The results of this experiment can be found in Table 10. The best performing pipeline is illustrated in Figure 8.
5. Conclusions
The classifier performance indicates that using preprocessing defences causes a drop in the measured metrics; at the same time, the achieved robustness is considerable. The results of the experiments prove that input transformations are an effective weapon against adversarial attacks, though the robustness comes at a cost. The utility of the proposed preprocessing pipeline solution comes in the fact that it can be used as a plug-and-play quick-fix, granting a measure of robustness against adversarial attacks without having to incur the costs of re-training the classifier. This answers RQ1 affirmatively, using preprocessing defensive methods is feasible for robustification of ANN-based classifiers against adversarial evasion attacks in computer vision tasks. The results of the experiments also point out that passing the images through a series of filters can have adverse effects on the accuracy of protected classifier. Joining all the researched preprocessing methods in one pipeline did alleviate some of the effects of the adversarial attacks. However, the accumulative distortion introduced by those methods hindered the effectiveness of the classifier to a considerable extent. Extensive experimentation made it possible to answer RQ2—some combinations are more effective than others and more effective than using all the preprocessors together.
Additionally, data augmentation is a booming area of research [62], and mixing preprocessing adversarial defences with novel approaches to data augmentation could potentially offset the performance loss of the researched defensive techniques, an approach which is part of future research.
Author Contributions
The authors contributed equally. All authors have read and agreed to the published version of the manuscript.
Funding
This work is funded under the SPARTA project, which has received funding from the European Union’s Horizon 2020 research and innovation programme under grant agreement No. 830892.
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
The dataset used in this study is the Large-Scale CebelFaces Attributes (CelebA) Dataset, available here: https://mmlab.ie.cuhk.edu.hk/projects/CelebA.html (accessed on 30 September 2021).
Acknowledgments
This work is funded under the SPARTA project, which has received funding from the European Union’s Horizon 2020 research and innovation programme under grant agreement No. 830892.
Conflicts of Interest
The authors declare no conflict of interest.
References
- Fazal, M.I.; Patel, M.E.; Tye, J.; Gupta, Y. The past, present and future role of artificial intelligence in imaging. Eur. J. Radiol. 2018, 105, 246–250. [Google Scholar] [CrossRef]
- Ho-Phuoc, T. CIFAR10 to compare visual recognition performance between deep neural networks and humans. arXiv 2018, arXiv:1811.07270. [Google Scholar]
- Huang, G.; Liu, Z.; Van Der Maaten, L.; Weinberger, K.Q. Densely Connected Convolutional Networks. In Proceedings of the 2017 IEEE Conference on Computer Vision and Pattern Recognition (CVPR), Honolulu, HI, USA, 21–26 July 2017; pp. 2261–2269. [Google Scholar] [CrossRef] [Green Version]
- LeCun, Y.; Bengio, Y.; Hinton, G. Deep learning. Nature 2015, 521, 436–444. [Google Scholar] [CrossRef]
- Wang, G.; Yuan, Y.; Chen, X.; Li, J.; Zhou, X. Learning discriminative features with multiple granularities for person re-identification. In Proceedings of the 26th ACM international conference on Multimedia, Seoul, Korea, 22–26 October 2018; pp. 274–282. [Google Scholar]
- Luo, H.; Gu, Y.; Liao, X.; Lai, S.; Jiang, W. Bag of tricks and a strong baseline for deep person re-identification. In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition Workshops, Long Beach, CA, USA, 16–17 June 2019; pp. 1487–1495. [Google Scholar]
- Ye, M.; Shen, J.; Lin, G.; Xiang, T.; Shao, L.; Hoi, S.C. Deep Learning for Person Re-identification: A Survey and Outlook. IEEE Trans. Pattern Anal. Mach. Intell. 2021, 1. [Google Scholar] [CrossRef]
- Choraś, M.; Pawlicki, M.; Puchalski, D.; Kozik, R. Machine learning–the results are not the only thing that matters! what about security, explainability and fairness? In International Conference on Computational Science; Springer: Cham, Switzerland, 2020; pp. 615–628. [Google Scholar]
- Grosse, K.; Manoharan, P.; Papernot, N.; Backes, M.; McDaniel, P. On the (Statistical) Detection of Adversarial Examples. arXiv 2017, arXiv:1702.06280. [Google Scholar]
- Papernot, N.; McDaniel, P.; Wu, X.; Jha, S.; Swami, A. Distillation as a Defense to Adversarial Perturbations Against Deep Neural Networks. In Proceedings of the 2016 IEEE Symposium on Security and Privacy (SP), San Jose, CA, USA, 22–26 May 2016. [Google Scholar] [CrossRef] [Green Version]
- Papernot, N.; McDaniel, P.; Jha, S.; Fredrikson, M.; Celik, Z.B.; Swami, A. The Limitations of Deep Learning in Adversarial Settings. In Proceedings of the 2016 IEEE European Symposium on Security and Privacy (EuroS&P), Saarbruecken, Germany, 21–24 March 2016. [Google Scholar] [CrossRef] [Green Version]
- Papernot, N.; McDaniel, P.; Goodfellow, I.; Jha, S.; Celik, Z.B.; Swami, A. Practical black-box attacks against machine learning. In Proceedings of the 2017 ACM on Asia Conference on Computer and Communications Security, Abu Dhabi, United Arab Emirates, 2–6 April 2017; pp. 506–519. [Google Scholar]
- Srinivas, S.; Sarvadevabhatla, R.K.; Mopuri, K.R.; Prabhu, N.; Kruthiventi, S.S.; Babu, R.V. An Introduction to Deep Convolutional Neural Nets for Computer Vision. In Deep Learning for Medical Image Analysis; Elsevier: Cambridge, MA, USA, 2017; pp. 25–52. [Google Scholar] [CrossRef]
- Anwar, A. Difference between AlexNet, VGGNet, ResNet, and Inception. 2019. Available online: https://towardsdatascience.com/the-w3h-of-alexnet-vggnet-resnet-and-inception-7baaaecccc96 (accessed on 10 February 2021).
- Szegedy, C.; Liu, W.; Jia, Y.; Sermanet, P.; Reed, S.; Anguelov, D.; Erhan, D.; Vanhoucke, V.; Rabinovich, A. Going Deeper with Convolutions. arXiv 2014, arXiv:1409.4842. [Google Scholar]
- He, K.; Zhang, X.; Ren, S.; Sun, J. Deep residual learning for image recognition. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Las Vegas, NV, USA, 27–30 June 2016; pp. 770–778. [Google Scholar]
- Krizhevsky, A.; Sutskever, I.; Hinton, G.E. ImageNet classification with deep convolutional neural networks. Commun. ACM 2017, 60, 84–90. [Google Scholar] [CrossRef]
- Simonyan, K.; Zisserman, A. Very Deep Convolutional Networks for Large-Scale Image Recognition. arXiv 2014, arXiv:1409.1556. [Google Scholar]
- Thompson, N.C.; Greenewald, K.; Lee, K.; Manso, G.F. The Computational Limits of Deep Learning. arXiv 2020, arXiv:2007.05558. [Google Scholar]
- Kaya, A.; Keceli, A.S.; Catal, C.; Yalic, H.Y.; Temucin, H.; Tekinerdogan, B. Analysis of transfer learning for deep neural network based plant classification models. Comput. Electron. Agric. 2019, 158, 20–29. [Google Scholar] [CrossRef]
- Wang, B.; Yao, Y.; Viswanath, B.; Zheng, H.; Zhao, B.Y. With great training comes great vulnerability: Practical attacks against transfer learning. In Proceedings of the 27th {USENIX} Security Symposium ({USENIX} Security 18), Baltimore, MD, USA, 15–17 August 2018; pp. 1281–1297. [Google Scholar]
- Davchev, T.; Korres, T.; Fotiadis, S.; Antonopoulos, N.; Ramamoorthy, S. An empirical evaluation of adversarial robustness under transfer learning. arXiv 2019, arXiv:1905.02675. [Google Scholar]
- Akhtar, N.; Mian, A. Threat of Adversarial Attacks on Deep Learning in Computer Vision: A Survey. IEEE Access 2018, 6, 14410–14430. [Google Scholar] [CrossRef]
- Choraś, M.; Pawlicki, M.; Kozik, R. The feasibility of deep learning use for adversarial model extraction in the cybersecurity domain. In International Conference on Intelligent Data Engineering and Automated Learning; Springer: Cham, Switzerland, 2019; pp. 353–360. [Google Scholar]
- Chakraborty, A.; Alam, M.; Dey, V.; Chattopadhyay, A.; Mukhopadhyay, D. Adversarial Attacks and Defences: A Survey. arXiv 2018, arXiv:1810.00069. [Google Scholar]
- Pawlicki, M.; Choraś, M.; Kozik, R. Defending network intrusion detection systems against adversarial evasion attacks. Future Gener. Comput. Syst. 2020, 110, 148–154. [Google Scholar] [CrossRef]
- Pitropakis, N.; Panaousis, E.; Giannetsos, T.; Anastasiadis, E.; Loukas, G. A taxonomy and survey of attacks against machine learning. Comput. Sci. Rev. 2019, 34, 100199. [Google Scholar] [CrossRef]
- Szegedy, C.; Zaremba, W.; Sutskever, I.; Bruna, J.; Erhan, D.; Goodfellow, I.; Fergus, R. Intriguing properties of neural networks. arXiv 2013, arXiv:1312.6199. [Google Scholar]
- Kurakin, A.; Goodfellow, I.; Bengio, S.; Dong, Y.; Liao, F.; Liang, M.; Pang, T.; Zhu, J.; Hu, X.; Xie, C.; et al. Adversarial Attacks and Defences Competition. In The NIPS ’17 Competition: Building Intelligent Systems; Escalera, S., Weimer, M., Eds.; Springer International Publishing: Cham, Switzerland, 2018; pp. 195–231. [Google Scholar]
- Liu, Z.; Luo, P.; Wang, X.; Tang, X. Deep Learning Face Attributes in the Wild. arXiv 2014, arXiv:1411.7766. [Google Scholar]
- Liu, Z.; Luo, P.; Wang, X.; Tang, X. Large-scale CelebFaces Attributes (CelebA) Dataset. 2016. Available online: https://mmlab.ie.cuhk.edu.hk/projects/CelebA.html (accessed on 10 February 2021).
- Chakraborty, A.; Alam, M.; Dey, V.; Chattopadhyay, A.; Mukhopadhyay, D. A survey on adversarial attacks and defences. CAAI Trans. Intell. Technol. 2021, 6, 25–45. [Google Scholar] [CrossRef]
- Carlini, N.; Wagner, D. Adversarial examples are not easily detected: Bypassing ten detection methods. In Proceedings of the 10th ACM Workshop on Artificial Intelligence and Security, Dallas, TX, USA, 3 November 2017; pp. 3–14. [Google Scholar]
- Uesato, J.; O’donoghue, B.; Kohli, P.; Oord, A. Adversarial risk and the dangers of evaluating against weak attacks. In Proceedings of the International Conference on Machine Learning. PMLR, 2018, Stockholm, Sweden, 10–15 July 2018; pp. 5025–5034. [Google Scholar]
- Shafahi, A.; Huang, W.R.; Studer, C.; Feizi, S.; Goldstein, T. Are adversarial examples inevitable? arXiv 2018, arXiv:1809.02104. [Google Scholar]
- Athalye, A.; Carlini, N.; Wagner, D. Obfuscated Gradients Give a False Sense of Security: Circumventing Defenses to Adversarial Examples. In Proceedings of Machine Learning Research, Proceedings of the 35th International Conference on Machine Learning, PMLR 2018, Stockholm, Sweden, 10–15 July 2018; Dy, J., Krause, A., Eds.; JMLR: Cambridge, MA, USA, 2018; Volume 80, pp. 274–283. [Google Scholar]
- Carlini, N.; Wagner, D. Towards Evaluating the Robustness of Neural Networks. In Proceedings of the 2017 IEEE Symposium on Security and Privacy (SP), San Jose, CA, USA, 22–26 May 2017; pp. 39–57. [Google Scholar] [CrossRef] [Green Version]
- Carlini, N.; Athalye, A.; Papernot, N.; Brendel, W.; Rauber, J.; Tsipras, D.; Goodfellow, I.; Madry, A.; Kurakin, A. On evaluating adversarial robustness. arXiv 2019, arXiv:1902.06705. [Google Scholar]
- De Mello, F.L. A survey on machine learning adversarial attacks. J. Inf. Secur. Cryptogr. (Enigm.) 2020, 7, 1–7. [Google Scholar] [CrossRef]
- Yuan, X.; He, P.; Zhu, Q.; Li, X. Adversarial Examples: Attacks and Defenses for Deep Learning. IEEE Trans. Neural Netw. Learn. Syst. 2019, 30, 2805–2824. [Google Scholar] [CrossRef] [Green Version]
- Sadeghi, K.; Banerjee, A.; Gupta, S.K. A system-driven taxonomy of attacks and defenses in adversarial machine learning. IEEE Trans. Emerg. Top. Comput. Intell. 2020, 4, 450–467. [Google Scholar] [CrossRef] [PubMed]
- Wiyatno, R.R.; Xu, A.; Dia, O.; de Berker, A. Adversarial examples in modern machine learning: A review. arXiv 2019, arXiv:1911.05268. [Google Scholar]
- Serban, A.; Poll, E.; Visser, J. Adversarial examples on object recognition: A comprehensive survey. ACM Comput. Surv. (CSUR) 2020, 53, 1–38. [Google Scholar] [CrossRef]
- Xu, H.; Ma, Y.; Liu, H.C.; Deb, D.; Liu, H.; Tang, J.L.; Jain, A.K. Adversarial attacks and defenses in images, graphs and text: A review. Int. J. Autom. Comput. 2020, 17, 151–178. [Google Scholar] [CrossRef] [Green Version]
- Parkhi, O.M.; Vedaldi, A.; Zisserman, A. Deep Face Recognition. In Proceedings of the British Machine Vision Conference 2015, Swansea, UK, 7–10 September 2015; British Machine Vision Association: Durham, UK, 2015; pp. 41.1–41.12. [Google Scholar] [CrossRef] [Green Version]
- ResNet-50. ResNet-50 Pre-trained Model for Keras. 2017. Available online: https://www.kaggle.com/keras/resnet50 (accessed on 10 February 2021).
- Du, J. High-Precision Portrait Classification Based on MTCNN and Its Application on Similarity Judgement. J. Phys. Conf. Ser. 2020, 1518, 12066. [Google Scholar] [CrossRef]
- Xiang, J.; Zhu, G. Joint Face Detection and Facial Expression Recognition with MTCNN. In Proceedings of the 2017 4th International Conference on Information Science and Control Engineering (ICISCE), Changsha, China, 21–23 July 2017; pp. 424–427. [Google Scholar] [CrossRef]
- Zhang, K.; Zhang, Z.; Li, Z.; Qiao, Y. Joint Face Detection and Alignment using Multi-task Cascaded Convolutional Networks. IEEE Signal Process. Lett. 2016, 23, 1499–1503. [Google Scholar] [CrossRef] [Green Version]
- Madry, A.; Makelov, A.; Schmidt, L.; Tsipras, D.; Vladu, A. Towards Deep Learning Models Resistant to Adversarial Attacks. arXiv 2017, arXiv:1706.06083. [Google Scholar]
- Qiu, S.; Liu, Q.; Zhou, S.; Wu, C. Review of Artificial Intelligence Adversarial Attack and Defense Technologies. Appl. Sci. 2019, 9, 909. [Google Scholar] [CrossRef] [Green Version]
- Bai, T.; Luo, J.; Zhao, J.; Wen, B.; Wang, Q. Recent Advances in Adversarial Training for Adversarial Robustness. arXiv 2021, arXiv:2102.01356. [Google Scholar]
- Dziugaite, G.K.; Ghahramani, Z.; Roy, D.M. A study of the effect of JPG compression on adversarial images. arXiv 2016, arXiv:1608.00853. [Google Scholar]
- Das, N.; Shanbhogue, M.; Chen, S.T.; Hohman, F.; Chen, L.; Kounavis, M.E.; Chau, D.H. Keeping the Bad Guys Out: Protecting and Vaccinating Deep Learning with JPEG Compression. arXiv 2017, arXiv:1705.02900. [Google Scholar]
- Zantedeschi, V.; Nicolae, M.I.; Rawat, A. Efficient Defenses Against Adversarial Attacks. arXiv 2017, arXiv:1707.06728. [Google Scholar]
- Xu, W.; Evans, D.; Qi, Y. Feature Squeezing: Detecting Adversarial Examples in Deep Neural Networks. arXiv 2017, arXiv:1704.01155. [Google Scholar] [CrossRef] [Green Version]
- Guo, C.; Rana, M.; Cisse, M.; van der Maaten, L. Countering Adversarial Images using Input Transformations. arXiv 2017, arXiv:1711.00117. [Google Scholar]
- Ahn, B.; Kim, Y.; Park, G.; Cho, N.I. Block-Matching Convolutional Neural Network (BMCNN): Improving CNN-Based Denoising by Block-Matched Inputs. In Proceedings of the 2018 Asia-Pacific Signal and Information Processing Association Annual Summit and Conference (APSIPA ASC), Honolulu, HI, USA, 12–15 November 2018; pp. 516–525. [Google Scholar] [CrossRef]
- Creswell, A.; Bharath, A.A. Denoising Adversarial Autoencoders. arXiv 2017, arXiv:1703.01220. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Xu, J.; Zhang, L.; Zuo, W.; Zhang, D.; Feng, X. Patch Group Based Nonlocal Self-Similarity Prior Learning for Image Denoising. In Proceedings of the 2015 IEEE International Conference on Computer Vision (ICCV), Santiago, Chile, 1–13 December 2015; pp. 244–252. [Google Scholar] [CrossRef]
- Zhang, K.; Zuo, W.; Chen, Y.; Meng, D.; Zhang, L. Beyond a Gaussian Denoiser: Residual Learning of Deep CNN for Image Denoising. IEEE Trans. Image Process. 2016, 26, 3142–3155. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Salazar, A.; Vergara, L.; Safont, G. Generative Adversarial Networks and Markov Random Fields for oversampling very small training sets. Expert Syst. Appl. 2021, 163, 113819. [Google Scholar] [CrossRef]

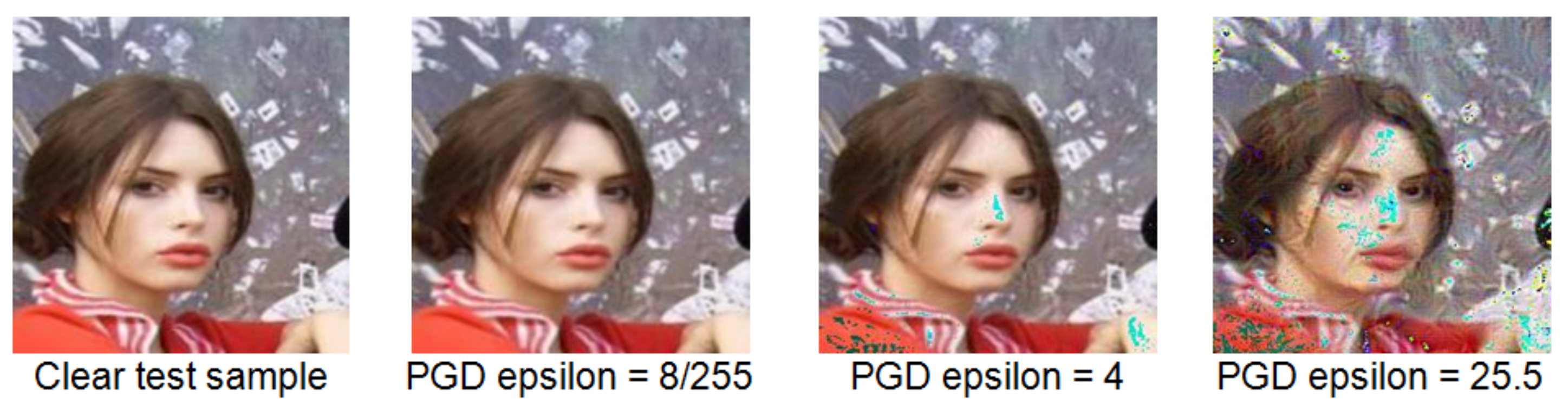

Figure 1.
The effects of different strengths of the attacks on the image.

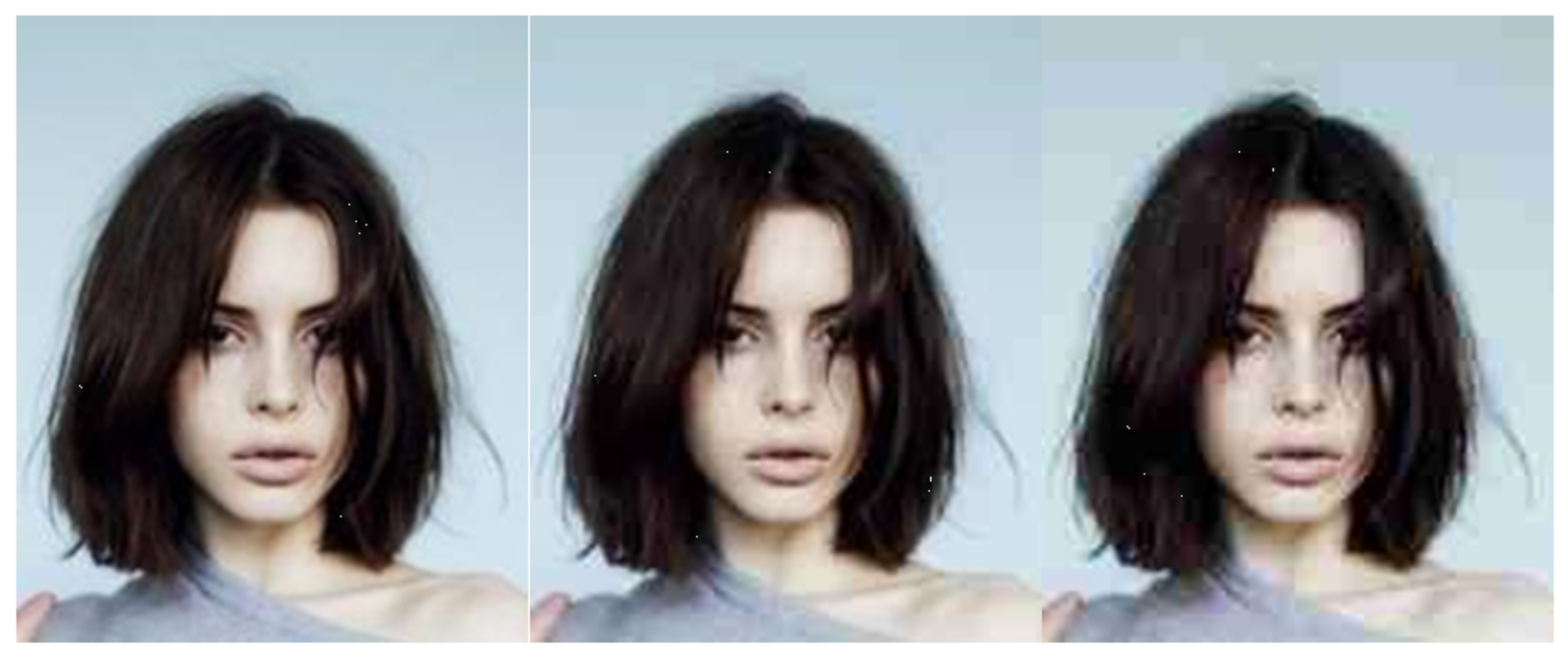

Figure 2.
JPEG compression.

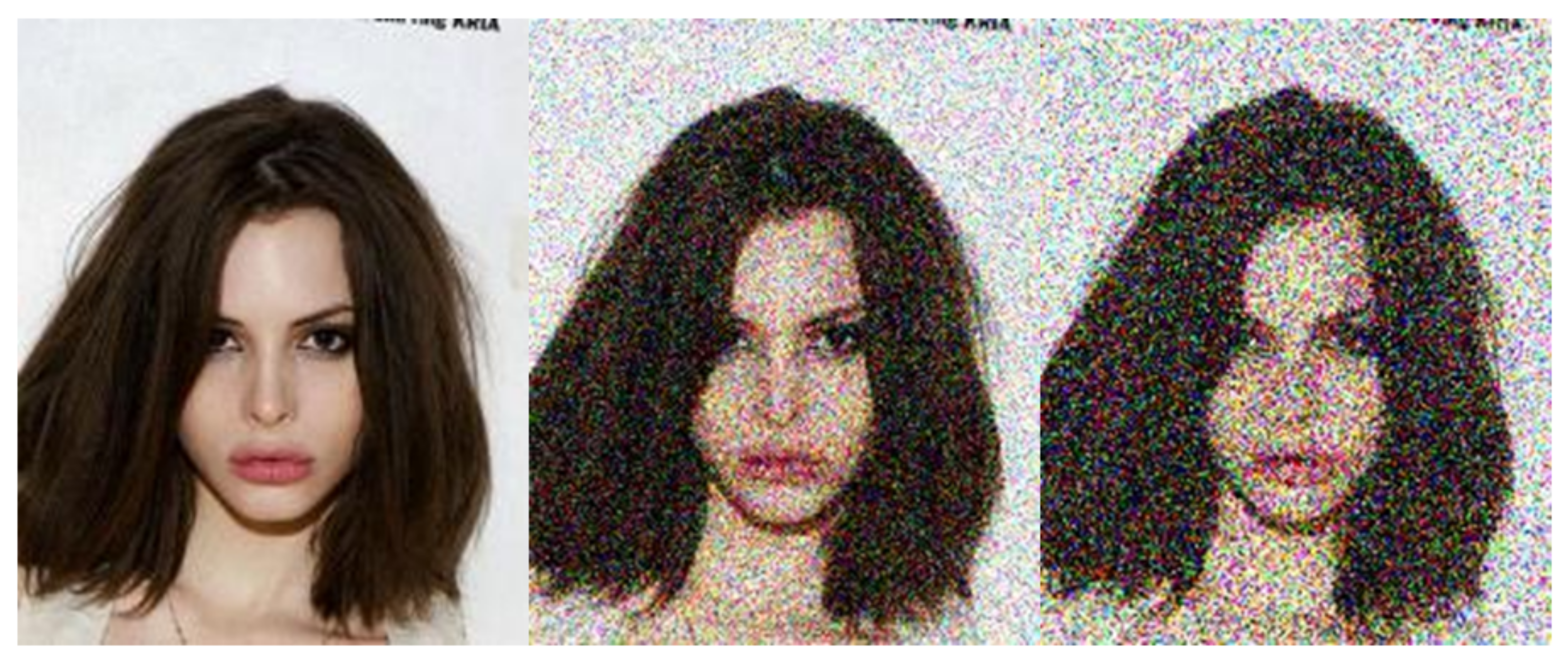

Figure 3.
Gaussian augmentation—sigma 255.0/5, 255.0/17, 255.0/3.

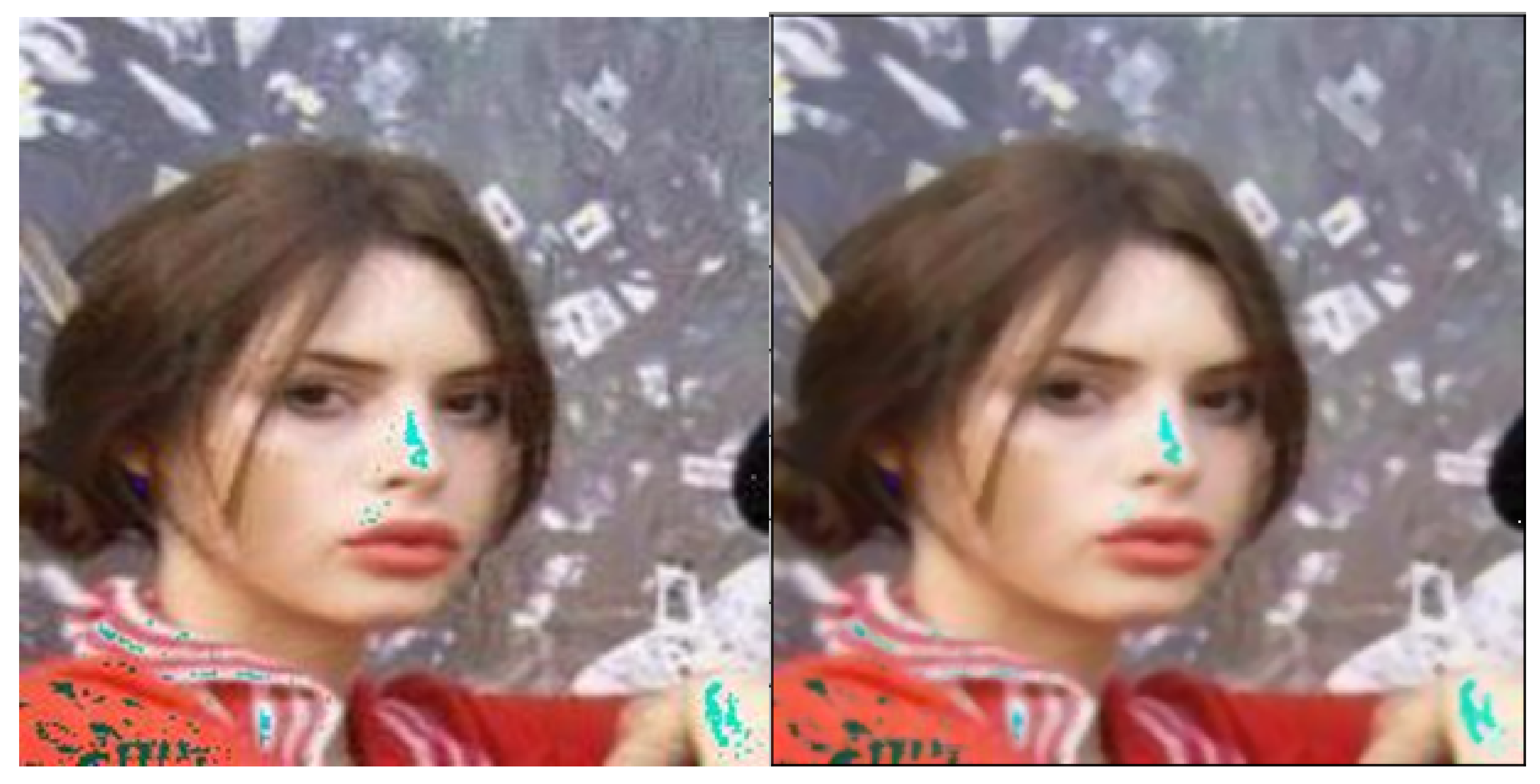

Figure 4.
The image before and after spatial smoothing.

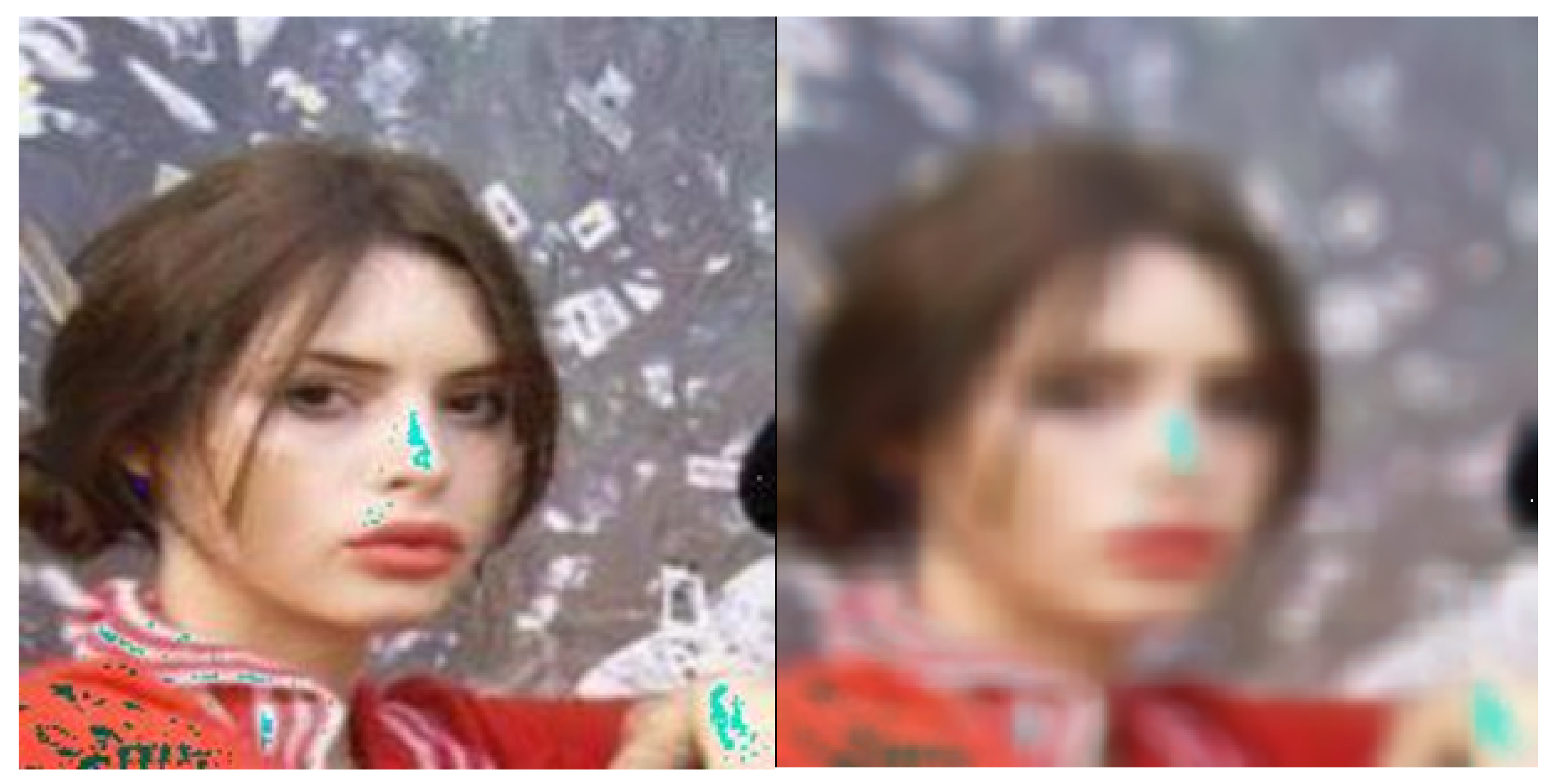

Figure 5.
The image before and after total variance minimisation.

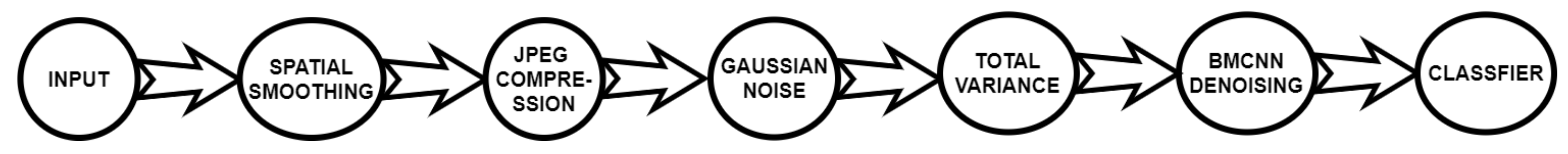

Figure 6.
A defensive pipeline which utilises all the researched defences.

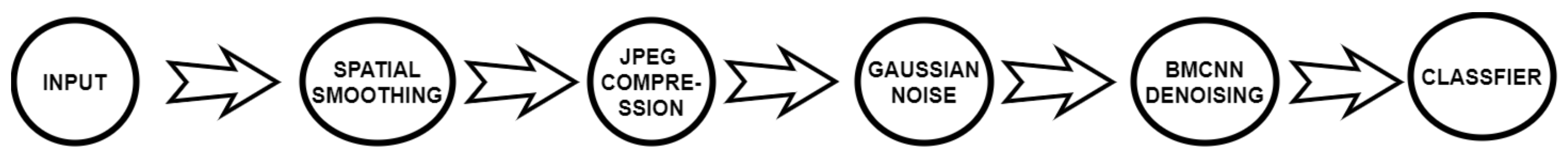

Figure 7.
A defensive pipeline which utilises all the researched defences, except total variance minimisation.
Figure 7.
A defensive pipeline which utilises all the researched defences, except total variance minimisation.

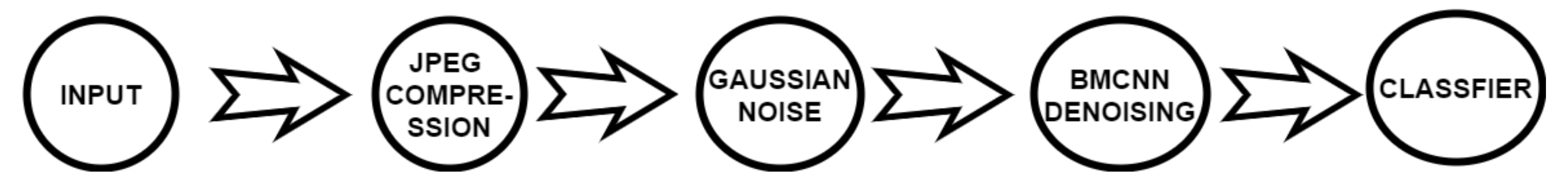

Figure 8.
A defensive pipeline with JPEG compression, Gaussian augmentation, and BMCNN.
Table 1.
The priors of the classes.
| Class | 1757 | 2114 | 2820 | 3227 | 3699 | 3745 | 3782 | 4262 |
| Prior Probability (%) | 6.72 | 6.72 | 7.84 | 7.84 | 7.56 | 7.56 | 7.84 | 6.72 |
| 4740 | 4978 | 6568 | 8968 | 9152 | 9256 | |||
| Prior Probability (%) | 6.72 | 6.72 | 6.72 | 7.00 | 7.00 | 7.00 |
Table 2.
Classifier performance on the test set containing the 14 most populated classes.
| Label | Precision | Recall | f1-Score | |
|---|---|---|---|---|
| 1757.0 | 1.00 | 1.00 | 1.00 | |
| 2114.0 | 1.00 | 1.00 | 1.00 | |
| 2820.0 | 0.88 | 1.00 | 0.93 | |
| 3227.0 | 1.00 | 0.86 | 0.92 | |
| 3699.0 | 0.88 | 1.00 | 0.93 | |
| 3745.0 | 1.00 | 1.00 | 1.00 | |
| 3782.0 | 1.00 | 1.00 | 1.00 | |
| 4262.0 | 0.88 | 1.00 | 0.93 | |
| 4740.0 | 1.00 | 1.00 | 1.00 | |
| 4978.0 | 1.00 | 1.00 | 1.00 | |
| 6568.0 | 1.00 | 1.00 | 1.00 | |
| 8968.0 | 1.00 | 1.00 | 1.00 | |
| 9152.0 | 1.00 | 1.00 | 1.00 | |
| 9256.0 | 1.00 | 0.71 | 0.83 | |
| macro avg | 0.97 | 0.97 | 0.97 | |
| weighted avg | 0.97 | 0.97 | 0.97 | |
| accuracy | 0.9693877551020408 | |||
| balanced accuracy | 0.9693877551020408 | |||
Table 3.
The effects of PGD eps = 4 on the performance of the classifier.
| Label | Precision | Recall | f1-Score | |
|---|---|---|---|---|
| 1757.0 | 1.00 | 0.14 | 0.25 | |
| 2114.0 | 0.33 | 0.14 | 0.20 | |
| 2820.0 | 0.00 | 0.00 | 0.00 | |
| 3227.0 | 1.00 | 0.17 | 0.29 | |
| 3699.0 | 0.32 | 1.00 | 0.48 | |
| 3745.0 | 0.00 | 0.00 | 0.00 | |
| 3782.0 | 0.00 | 0.00 | 0.00 | |
| 4262.0 | 0.33 | 0.71 | 0.45 | |
| 4740.0 | 0.08 | 0.14 | 0.11 | |
| 4978.0 | 0.00 | 0.00 | 0.00 | |
| 6568.0 | 1.00 | 0.14 | 0.25 | |
| 8968.0 | 0.00 | 0.00 | 0.00 | |
| macro avg | 0.40 | 0.21 | 0.20 | |
| weighted avg | 0.38 | 0.21 | 0.19 | |
| accuracy | 0.21052631578947367 | |||
| balanced accuracy | 0.2139455782312925 | |||
Table 4.
The results of the classifier using JPEG compression with quality set to 20 on PGD attacks with epsilon = 4.
Table 4.
The results of the classifier using JPEG compression with quality set to 20 on PGD attacks with epsilon = 4.
| Label | Precision | Recall | f1-Score | |
|---|---|---|---|---|
| 1757.0 | 1.00 | 1.00 | 1.00 | |
| 2114.0 | 1.00 | 1.00 | 1.00 | |
| 2820.0 | 1.00 | 1.00 | 1.00 | |
| 3227.0 | 1.00 | 0.83 | 0.91 | |
| 3699.0 | 0.88 | 1.00 | 0.93 | |
| 3745.0 | 0.86 | 0.86 | 0.86 | |
| 3782.0 | 0.86 | 0.86 | 0.86 | |
| 4262.0 | 0.78 | 1.00 | 0.88 | |
| 4740.0 | 1.00 | 1.00 | 1.00 | |
| 4978.0 | 0.86 | 0.86 | 0.86 | |
| 6568.0 | 1.00 | 1.00 | 1.00 | |
| 8968.0 | 1.00 | 0.86 | 0.92 | |
| 9152.0 | 1.00 | 0.86 | 0.92 | |
| 9256.0 | 0.80 | 0.80 | 0.80 | |
| macro avg | 0.93 | 0.92 | 0.92 | |
| weighted avg | 0.93 | 0.93 | 0.93 | |
| accuracy | 0.9263157894736842 | |||
| balanced accuracy | 0.9227891156462587 | |||
Table 5.
The results of the classifier using BMCNN with sigma set to 20 used on adversarial samples created with PGD with epsilon set to four.
Table 5.
The results of the classifier using BMCNN with sigma set to 20 used on adversarial samples created with PGD with epsilon set to four.
| Label | Precision | Recall | f1-Score | |
|---|---|---|---|---|
| 1757.0 | 1.00 | 1.00 | 1.00 | |
| 2114.0 | 1.00 | 1.00 | 1.00 | |
| 2820.0 | 1.00 | 1.00 | 1.00 | |
| 3227.0 | 0.83 | 0.83 | 0.83 | |
| 3699.0 | 0.70 | 1.00 | 0.82 | |
| 3745.0 | 1.00 | 0.71 | 0.83 | |
| 3782.0 | 0.88 | 1.00 | 0.93 | |
| 4262.0 | 0.78 | 1.00 | 0.88 | |
| 4740.0 | 1.00 | 1.00 | 1.00 | |
| 4978.0 | 0.88 | 1.00 | 0.93 | |
| 6568.0 | 1.00 | 0.86 | 0.92 | |
| 8968.0 | 1.00 | 0.86 | 0.92 | |
| 9152.0 | 0.80 | 0.57 | 0.67 | |
| 9256.0 | 1.00 | 0.8 | 0.89 | |
| macro avg | 0.92 | 0.90 | 0.90 | |
| weighted avg | 0.92 | 0.91 | 0.90 | |
| accuracy | 0.9052631578947369 | |||
| balanced accuracy | 0.9023809523809525 | |||
Table 6.
The results of the classifier using spatial smoothing with JPEG compression, Gaussian augmentation, total variance minimisation and BMCNN with sigma set to 20 on PGD images with epsilon set to four.
Table 6.
The results of the classifier using spatial smoothing with JPEG compression, Gaussian augmentation, total variance minimisation and BMCNN with sigma set to 20 on PGD images with epsilon set to four.
| Label | Precision | Recall | f1-Score | |
|---|---|---|---|---|
| 1757.0 | 0.50 | 0.71 | 0.59 | |
| 2114.0 | 0.50 | 0.43 | 0.46 | |
| 2820.0 | 0.00 | 0.00 | 0.00 | |
| 3227.0 | 0.40 | 0.33 | 0.36 | |
| 3699.0 | 0.37 | 1.00 | 0.54 | |
| 3745.0 | 0.25 | 0.14 | 0.18 | |
| 3782.0 | 0.25 | 0.86 | 0.39 | |
| 4262.0 | 0.25 | 0.14 | 0.18 | |
| 4740.0 | 0.50 | 0.57 | 0.53 | |
| 4978.0 | 0.67 | 0.29 | 0.40 | |
| 6568.0 | 1.00 | 0.14 | 0.25 | |
| 8968.0 | 0.50 | 0.14 | 0.22 | |
| 9152.0 | 0.67 | 0.29 | 0.40 | |
| 9256.0 | 0.00 | 0.00 | 0.00 | |
| macro avg | 0.42 | 0.36 | 0.32 | |
| weighted avg | 0.43 | 0.37 | 0.33 | |
| accuracy | 0.3684210526315789 | |||
| balanced accuracy | 0.36054421768707484 | |||
Table 7.
The results of the classifier using spatial smoothing with JPEG compression, Gaussian augmentation, and BMCNN with sigma set to 20 on PGD images with epsilon set to four, without total variance minimisation.
Table 7.
The results of the classifier using spatial smoothing with JPEG compression, Gaussian augmentation, and BMCNN with sigma set to 20 on PGD images with epsilon set to four, without total variance minimisation.
| Label | Precision | Recall | f1-Score | |
|---|---|---|---|---|
| 1757.0 | 1.00 | 1.00 | 1.00 | |
| 2114.0 | 1.00 | 1.00 | 1.00 | |
| 2820.0 | 1.00 | 1.00 | 1.00 | |
| 3227.0 | 0.83 | 0.83 | 0.83 | |
| 3699.0 | 0.78 | 1.00 | 0.88 | |
| 3745.0 | 1.00 | 0.86 | 0.92 | |
| 3782.0 | 0.75 | 0.86 | 0.80 | |
| 4262.0 | 0.78 | 1.00 | 0.88 | |
| 4740.0 | 1.00 | 1.00 | 1.00 | |
| 4978.0 | 0.86 | 0.86 | 0.86 | |
| 6568.0 | 1.00 | 0.86 | 0.92 | |
| 8968.0 | 1.00 | 0.86 | 0.92 | |
| 9152.0 | 1.00 | 0.57 | 0.73 | |
| 9256.0 | 0.83 | 1.00 | 0.91 | |
| macro avg | 0.92 | 0.91 | 0.90 | |
| weighted avg | 0.92 | 0.91 | 0.90 | |
| accuracy | 0.9052631578947369 | |||
| balanced accuracy | 0.9064625850340137 | |||
Table 8.
The results of the classifier using spatial smoothing with JPEG compression on PGD images with epsilon set to four.
Table 8.
The results of the classifier using spatial smoothing with JPEG compression on PGD images with epsilon set to four.
| Label | Precision | Recall | f1-Score | |
|---|---|---|---|---|
| 1757.0 | 1.00 | 1.00 | 1.00 | |
| 2114.0 | 1.00 | 1.00 | 1.00 | |
| 2820.0 | 1.00 | 1.00 | 1.00 | |
| 3227.0 | 1.00 | 0.83 | 0.91 | |
| 3699.0 | 0.78 | 1.00 | 0.88 | |
| 3745.0 | 0.86 | 0.86 | 0.86 | |
| 3782.0 | 0.86 | 0.86 | 0.86 | |
| 4262.0 | 0.78 | 1.00 | 0.88 | |
| 4740.0 | 1.00 | 1.00 | 1.00 | |
| 4978.0 | 0.86 | 0.86 | 0.86 | |
| 6568.0 | 1.00 | 1.00 | 1.00 | |
| 8968.0 | 1.00 | 0.86 | 0.92 | |
| 9152.0 | 1.00 | 0.71 | 0.83 | |
| 9256.0 | 0.80 | 0.80 | 0.80 | |
| macro avg | 0.92 | 0.91 | 0.91 | |
| weighted avg | 0.93 | 0.92 | 0.92 | |
| accuracy | 0.9157894736842105 | |||
| balanced accuracy | 0.9125850340136055 | |||
Table 9.
The results of the classifier using JPEG compression, Gaussian augmentation, and BMCNN on PGD images with epsilon set to four.
Table 9.
The results of the classifier using JPEG compression, Gaussian augmentation, and BMCNN on PGD images with epsilon set to four.
| Label | Precision | Recall | f1-Score | |
|---|---|---|---|---|
| 1757.0 | 0.88 | 1.00 | 0.93 | |
| 2114.0 | 1.00 | 1.00 | 1.00 | |
| 2820.0 | 1.00 | 1.00 | 1.00 | |
| 3227.0 | 1.00 | 0.83 | 0.91 | |
| 3699.0 | 0.78 | 1.00 | 0.88 | |
| 3745.0 | 0.86 | 0.86 | 0.86 | |
| 3782.0 | 0.86 | 0.86 | 0.86 | |
| 4262.0 | 0.88 | 1.00 | 0.93 | |
| 4740.0 | 1.00 | 1.00 | 1.00 | |
| 4978.0 | 0.86 | 0.86 | 0.86 | |
| 6568.0 | 1.00 | 1.00 | 1.00 | |
| 8968.0 | 1.00 | 0.86 | 0.92 | |
| 9152.0 | 1.00 | 0.71 | 0.83 | |
| 9256.0 | 1.00 | 1.00 | 1.00 | |
| macro avg | 0.94 | 0.93 | 0.93 | |
| weighted avg | 0.93 | 0.93 | 0.93 | |
| accuracy | 0.9263157894736842 | |||
| balanced accuracy | 0.9268707482993197 | |||
Table 10.
Results of classification with preprocessing defences on a clean dataset.
| Label | Precision | Recall | f1-Score | |
|---|---|---|---|---|
| 1757.0 | 1.00 | 1.00 | 1.00 | |
| 2114.0 | 1.00 | 1.00 | 1.00 | |
| 2820.0 | 1.00 | 1.00 | 1.00 | |
| 3227.0 | 1.00 | 0.83 | 0.91 | |
| 3699.0 | 0.88 | 1.00 | 0.93 | |
| 3745.0 | 0.83 | 0.71 | 0.77 | |
| 3782.0 | 0.75 | 0.86 | 0.80 | |
| 4262.0 | 0.78 | 1.00 | 0.88 | |
| 4740.0 | 1.00 | 1.00 | 1.00 | |
| 4978.0 | 1.00 | 1.00 | 1.00 | |
| 8968.0 | 1.00 | 1.00 | 1.00 | |
| 9152.0 | 1.00 | 1.00 | 1.00 | |
| 9256.0 | 1.00 | 0.60 | 0.75 | |
| macro avg | 0.95 | 0.93 | 0.93 | |
| weighted avg | 0.94 | 0.94 | 0.94 | |
| accuracy | 0.9368421052631579 | |||
| balanced accuracy | 0.9289115646258503 | |||
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Pawlicki, M.; Choraś, R.S. Preprocessing Pipelines including Block-Matching Convolutional Neural Network for Image Denoising to Robustify Deep Reidentification against Evasion Attacks. Entropy 2021, 23, 1304. https://doi.org/10.3390/e23101304
AMA Style
Pawlicki M, Choraś RS. Preprocessing Pipelines including Block-Matching Convolutional Neural Network for Image Denoising to Robustify Deep Reidentification against Evasion Attacks. Entropy. 2021; 23(10):1304. https://doi.org/10.3390/e23101304
Chicago/Turabian StylePawlicki, Marek, and Ryszard S. Choraś. 2021. "Preprocessing Pipelines including Block-Matching Convolutional Neural Network for Image Denoising to Robustify Deep Reidentification against Evasion Attacks" Entropy 23, no. 10: 1304. https://doi.org/10.3390/e23101304
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
