Quantum Work Statistics with Initial Coherence

Abstract

The two-point measurement scheme for computing the thermodynamic work performed on a system requires it to be initially in equilibrium. The Margenau–Hill scheme, among others, extends the previous approach to allow for a non-equilibrium initial state. We establish a quantitative comparison between both schemes in terms of the amount of coherence present in the initial state of the system, as quantified by the $l_1$-coherence measure. We show that the difference between the two first moments of work, the variances of work, and the average entropy production obtained in both schemes can be cast in terms of such initial coherence. Moreover, we prove that the average entropy production can take negative values in the Margenau–Hill framework.

1. Introduction

In the quest for the understanding of the interplay between thermal and quantum fluctuations that determine the energy exchange processes occurring at the nano- and micro-scale, the identification of the role played by quantum coherences is paramount [1,2]. The foundational nature of such understanding has been the driving force for much research effort, which has started shedding light onto the role that quantum coherence has in the quantum thermodynamic phenomenology, from work extraction to the emergence of irreversibility [3,4,5,6,7,8,9,10,11,12]. Owing to the success that it has encountered in classical stochastic thermodynamics, the current approach to the determination of the statistics of such energetics in the quantum domain is based on the so-called two-point measurement (TPM) protocol [13,14,15]: the energy change of a system driven by a time-dependent protocol is measured both at the initial and final time of the dynamics. The application of the TPM protocol has led to the possibility to address the statistics of quantum energy fluctuations in a few interesting experiments [16,17,18,19,20]. Unfortunately, such a strategy has a considerable drawback in that, by performing a strong initial projective measurement, all quantum coherences in the energy eigenbasis are removed, de facto washing out the possibility of quantum interference to take place.

This fundamental bottleneck has led to efforts aimed at formulating coherence-preserving protocols for the quantification of the statistics of energy fluctuations resulting from a quantum process [21,22,23,24]. A particularly tantalising one entails the use of quasi-probability functions to account for such statistics [21,25,26,27]. Drawing from the success that quasi-probability distributions have in signalling non-classical effects in the statistics of light fields, the authors of [21,23] have put forward the cases for the Margenau–Hill (MH) quasi-probability distribution [28,29] for the energetics of a quantum process. The MH distribution, which is the real part of the well-known complex Kirkwood distribution [30], provides the probability distribution for any two non-commuting observables and can take negative values. In the context of stochastic thermodynamics, the distribution of energy fluctuations provided by the MH approach generalises the TPM one by replacing the strong initial measurement requested by the latter with a weak measurement.

Negative values of the statistics inferred following the ensuing protocol witness strong non-classicality of the overall process followed by the system [23], which are completely removed from the picture provided by TPM. In such a context, it is crucial to pinpoint the role that the quantum coherences either present in the initial state of the system or created throughout its dynamics have in the setting up of the MH phenomenology. This is precisely the point addressed in this paper, where we thoroughly investigate the differences between the statistics entailed by the TPM and MH approaches and relate them to the value taken by well-established quantifiers of quantum coherence [31] over the initial state of the system, as well as dynamical features of the process that the latter undergoes. We show that such coherence-depending differences have strong implications for the formulation of statements on the degree of irreversibility of a non-equilibrium process provided by the MH approach, and provide a re-formulation of the average entropy production that clearly highlights the contribution resulting from quantum coherences. This work thus makes the first necessary steps towards the quantitative understanding of the implications of quantum coherence for the phenomenology of the statistics of energy fluctuations in the quantum domain.

The remainder of this paper is organised as follows: In Section 2.1, we present a detailed description of the TPM and MH schemes. Section 2.2 is a brief introduction to coherence theory. The distance between the first moments of work obtained in both schemes is related to initial coherence throughout Section 3.1. A similar investigation is carried out for the variances of work and the average entropy production, which can be found in Section 3.2 and Section 3.3, respectively. In Section 4, we draw our conclusions, while we defer a series of technical details, including the demonstration of the main results of our work, to the accompanying Appendix.

2. Background

2.1. Quantum Work Statistics

Consider an isolated quantum system initially prepared in an equilibrium state and subjected to an external force that changes a work parameter ${\lambda }_t$ in time according to a generic finite-time protocol. The latter includes, at the initial time $t=0$ and final time $t=\tau$, projective measurements of the energy of the system, which result in the values $E_n^{{\lambda }_0}\equiv E_n^0$ and $E_m^{{\lambda }_{\tau }}\equiv E_m^{\tau }$. Here, n and m label the respective energy levels of the initial and final Hamiltonian $H\left({\lambda }_0\right)\equiv H_0$, $H\left({\lambda }_{\tau }\right)\equiv H_{\tau }$ of the system. Thermal and quantum randomness render the measured energy difference $E_m^{\tau }-E_n^0$, which can be interpreted as the work done on the system through the protocol, a stochastic variable. One can recognize here the well-known two-point measurement (TPM) scheme for measuring work, whose values are distributed according to the following probability distribution:

$$p_{\tau }^{\mathrm{TPM}}\left(w\right)=\sum _{m,n}{P}_{\tau }^{\mathrm{TPM}}[E_m^{\tau },E_n^0]\delta [w-(E_m^{\tau }-E_n^0)].$$

(1)

Here, $P_{\tau }^{\mathrm{TPM}}[E_m^{\tau },E_n^0]$ is the joint probability to measure the energy values $E_n^0$ and $E_m^{\tau }$,

$$P_{\tau }^{\mathrm{TPM}}[E_m^{\tau },E_n^0]=\mathrm{Tr}\left[{\mathsf{\prod }}_{E_m^{\tau }}{U}_{\tau }{\mathsf{\prod }}_{E_n^0}{\mathcal{G}}_0{\mathsf{\prod }}_{E_n^0}{U}_{\tau }^{†}{\mathsf{\prod }}_{E_m^{\tau }}\right],$$

(2)

where $\mathcal{G}\left({\lambda }_t\right)\equiv {\mathcal{G}}_t=e^{-\beta H_t}/Z_t$ is a Gibbs state—at the inverse temperature $\beta$—of the instantaneous Hamiltonian $H\left({\lambda }_t\right)\equiv H_t={\sum }_i{E}_i^t{\mathsf{\prod }}_i^t$, $Z_t=\mathrm{Tr}\left[e^{-\beta H_t}\right]$ is the associated partition function, ${\mathsf{\prod }}_i^t=|E_i^t\rangle \langle E_i^t|$ is the projector onto the eigenstate $|E_i^t\rangle$ of $H_t$ with energy $E_i^t$, and $U\left(\tau \right)\equiv U_t$ is the unitary propagator of the evolution.

Suppose now that our initial system was instead in a non-equilibrium state of the form ${\rho }^{\mathrm{ne}}={\mathcal{G}}_0+{\sum }_{i\ne j}{\rho }_{ij}^{\mathrm{ne}}$. It can be noticed that $p_{\tau }^{\mathrm{TPM}}\left(w\right)$ would remain invariant in this case, since the action of the first projective measurement, performed through ${\mathsf{\prod }}_n^0$, destroys any coherence that could be present in the initial state. The following question can then be posed: what alternative protocols could be devised such that the initial state coherence would have an effect on the measured thermodynamic work?

Several strategies beyond the TPM scheme have been pointed out in this line [5,6,7,21,22,23,24,32]. Here, we will consider the MH scheme for measuring work, which replaces the first projective measurement of the TPM scheme with a weak measurement [23], and thus allows for initial coherence to survive along the protocol. For an initial state ${\rho }^{\mathrm{ne}}$, the values of work are now distributed according to

$$p_{\tau }^{\mathrm{MH}}\left(w\right)=\sum _{m,n}{P}_{\tau }^{\mathrm{MH}}[E_m^{\tau },E_n^0]\delta [w-(E_m^{\tau }-E_n^0)],$$

(3)

where

$$P_{\tau }^{\mathrm{MH}}[E_m^{\tau },E_n^0]=\mathrm{Re}\left(\mathrm{Tr}\left[U_t^{†}{\mathsf{\prod }}_{E_m^{\tau }}{U}_t{\mathsf{\prod }}_{E_n^0}{\rho }^{\mathrm{ne}}\right]\right)$$

(4)

is the MH quasiprobability distribution, which can take negative values in the range $P_{\tau }^{\mathrm{MH}}[E_m^{\tau },E_n^0]\in [-1/8,1]$ when the state that we consider deviates from equilibrium [21], and goes back to the distribution associated with a TPM approach for initial equilibrium states.

2.2. Coherence Theory

The coherence of a state can be cast within the framework set by the well-established resource theory of coherence [31,33,34,35,36]. As in every quantum resource theory [37], free states and operations must be first identified: here, the set $\mathcal{I}$ of free states—denoted as incoherent states—includes all the states $\delta \in \mathcal{S}\left(\mathcal{H}\right)$ (with $\mathcal{S}\left(\mathcal{H}\right)$ denoting the set of unit-trace and semi-positive definite linear operators on $\mathcal{H}$) that are diagonal in some fixed basis ${\left\{\right|i\rangle \}}_{i=0}^{d-1}$ of $\mathcal{H}$, whereas free operations are those that map the set of free states to itself and thus cannot generate coherence. The largest class of free operations are the maximally incoherent operations (MIOs) [33], consisting of all completely positive and trace-preserving (CPTP) maps $\mathcal{M}$ such that $\mathcal{M}\left(\mathcal{I}\right)\subset \mathcal{I}$. A subset of MIOs are incoherent operations (IOs) [31], comprising all CPTP maps $\mathcal{M}$ that admit a Kraus representation with operators $K_{\alpha }$ such that $K_{\alpha }\mathcal{I}{K}_{\alpha }^{†}\subset \mathcal{I}$ for all $\alpha$. Only after singling out the states and operations that can be performed at no cost can one investigate how resource states—states with coherence—are to be quantified, manipulated, and interconverted among each other. Coherence measures [31] are indispensable at this stage; quantifying the amount of coherence present in a state $\rho \in \mathcal{S}\left(\mathcal{H}\right)$, a coherence measure is a functional $C:\mathcal{S}\left(\mathcal{H}\right)\to {\mathbb{R}}_{\ge 0}$ that fulfills the following conditions: (i) faithfulness, meaning that $C\left(\delta \right)=0$ for all $\delta \in \mathcal{I}$, and (ii) monotonicity, $C\left(\rho \right)\ge C\left(\mathcal{M}\right(\rho \left)\right)$, for all free operations $\mathcal{M}$.

In particular, throughout this work, we will make use of the $l_1$-coherence measure [31] defined as

$$C_{l_1}\left(\rho \right)=\sum _{i\ne j}\left|{\rho }_{ij}\right|,$$

(5)

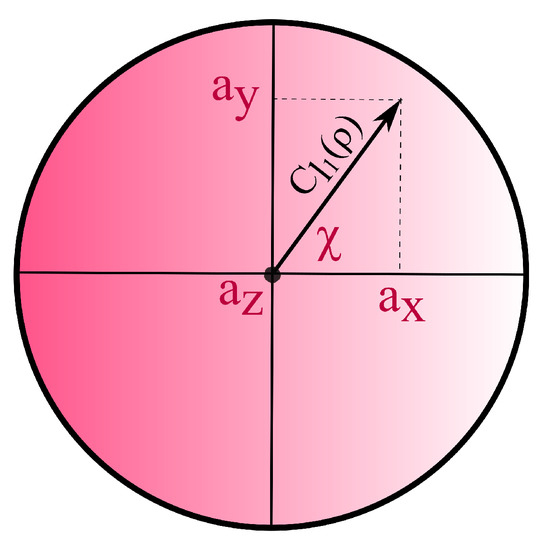

which is a valid coherence quantifier under IOs, but not MIOs [38]. Notably, when used on qubit states parametrised as $\rho =\frac{1}{2}(\mathbb{1}+\mathit{a}·\mathbf{\sigma })$ with $\mathit{a}\in {\mathbb{R}}^3$, the Bloch vector associated with $\rho$, and $\mathbf{\sigma }$ the vector of Pauli matrices, Equation (5) quantifies the length of the projection ${\mathit{a}}_{\perp }$ of $\mathit{a}$ onto the equatorial plane of the Bloch sphere. Thus, for qubit states with $a_z=0$, we have $a_x=C_{l_1}\left(\rho \right)cos\left(\chi \right)$ and $a_y=C_{l_1}\left(\rho \right)sin\left(\chi \right)$, where $\chi$ is the angle between ${\mathit{a}}_{\perp }$ and the x-axis of the Bloch sphere (cf. Figure 1).

3. Main Results

As previously stated, the purpose of this work is to provide a quantitative connection between the TPM scheme and the MH one in terms of quantum coherence. As all the information about a distribution is encoded in its moments, our approach to the assessment of the link between both schemes will rely on quantifying the distance between their corresponding moments.

3.1. Distance between the Averages of Work

The generating function of $p_{\tau }^{\mathcal{O}}\left(w\right)$ is defined as the Fourier transform $G_{\mathcal{O}}(\eta ,\tau )=\int dw{p}_{\tau }^{\mathcal{O}}\left(w\right)e^{i\eta w}$ with $\mathcal{O}=\mathrm{TPM},\mathrm{MH}$. Moments of work are obtained through differentiation with respect to $\eta$, ${\langle w_{\tau }^m\rangle }_{\mathcal{O}}={(-i)}^k\frac{d^k}{d{\eta }^k}{G}_{\mathcal{O}}(\eta ,\tau ){|}_{\eta =0}$ [15]. In the TPM scheme, the latter can be written as

$${\langle w_{\tau }^m\rangle }_{\mathrm{TPM}}=\mathrm{Tr}\left[\Delta \left({\rho }_0\right){(U_{\tau }^{†}{H}_{\tau }{U}_{\tau }-H_0)}^m\right],$$

(6)

where ${\rho }_0$ is the initial state of the working medium and $\Delta \left({\rho }_0\right)={\sum }_n{\mathsf{\prod }}_n^0{\rho }_0{\mathsf{\prod }}_n^0$ is the fully dephasing map that suppresses coherences in the energy eigenbasis of the initial Hamiltonian (see notation in Section 2.1). However, the corresponding quantity within the MH approach has the more involved form

$${\langle w_{\tau }^m\rangle }_{\mathrm{MH}}=\frac{1}{2}\sum _{l=0}^m\left(\genfrac{}{}{0pt}{}{m}{l}\right)\mathrm{Tr}\left[\left\{H_{\tau }^l,{(-H_0)}^{m-l}\right\}{\rho }_0\right],$$

(7)

which reduces to ${\langle w_{\tau }^m\rangle }_{\mathrm{MH}}=\mathrm{Tr}\left[{\rho }_0{(U_{\tau }^{†}{H}_{\tau }{U}_{\tau }-H_0)}^m\right]$ only for $m=1,2$. It then becomes evident that the two first moments of work agree for both distributions whenever $[U_{\tau }^{†}{H}_{\tau }{U}_{\tau },H_0]=0$ or $[{\rho }_0,H_0]=0$ [32].

If we then consider cyclic processes such that $H_0=H_{\tau }\equiv H={\sum }_k{h}_k|k\rangle \langle k|$, we are led to our first result.

Theorem 1.

For a d-dimensional system undergoing a cyclic process described by a unitary evolution $U_{\tau }$, we have

$${|\langle w\rangle }_{\mathrm{MH}}-{\langle w\rangle }_{\mathrm{TPM}}|\le \frac{\mathrm{Tr}\left|H\right|}{2}{C}_{l_1}\left({\rho }_0\right).$$

(8)

The upper bound is tight for qubits, which are such that

$$\underset{U_{\tau }}{max}|{\langle w_{\tau }\rangle }_{MH}-{\langle w_{\tau }\rangle }_{TPM}|=\frac{\mathrm{Tr}\left|H\right|}{2}{C}_{l_1}\left({\rho }_0\right),$$

(9)

where the maximum is sought over all unitary operations $U_{\tau }$.

A proof is given in Appendix A. It is worth pointing out that the bound depends on initial time quantities such as $C_{l_1}\left({\rho }_0\right)$ as well as the Hamiltonian spectrum $\mathrm{Tr}\left[\left|H\right|\right]$, thus clearly highlighting the role of initial coherences and the impact of the first initial projective measurement on them brought by the TPM scheme.

The tightness of the bound in Equation (8) is quickly lost as the dimension of the information carrier grows. For instance, Figure 2a addresses the case of a system with $d=3$ showing the values taken by the exact (maximum) difference between the average work corresponding to the two strategies assessed here (red dots)—computed by means of random sampling over the set of initial states $\rho$—versus the degree of initial coherence in the state of the system. Such quantity is compared to the bound in Equation (8) (blue crosses) to show a widening gap as $C_{l_1}\left({\rho }_0\right)$ grows. However, a linear-like dependence with respect to the amount of coherence can still be appreciated for the actual maximum distance between average works.

Let us get back to a qubit and consider the case of a sudden Hamiltonian quench, for which $U_{\tau }\to \mathbb{1}$ in the limit $\tau \to 0$. Under such conditions, we have ${\langle w_{\tau \to 0}\rangle }_{\mathrm{MH}}={\langle w_{\tau \to 0}\rangle }_{\mathrm{TPM}}$, irrespective of the initial coherence. This reflects the fact that both first moments of work will vanish individually under a sudden quench when considering cyclic processes—that is, ${\langle w_{\tau \to 0}\rangle }_{\mathrm{TPM},\mathrm{MH}}\stackrel{U\to \mathbb{1}}{\to }0$.

3.2. Distance between the Variances of Work

The above analysis at the level of the averages of the work distributions is clearly insufficient to satisfactorily characterise the statistical implications of the first projective energy measurement which distinguishes between the TPM and MH schemes. It is in fact well known that measurements induce quantum fluctuations, which become extremely relevant whenever micro- and nano-scale systems are considered. Their connection with thermodynamics has recently drawn much attention and their role as a resource has been clarified [39,40,41]. Driven by this, we now investigate the relationship between the variances of the work distribution in the TPM and MH schemes. Somehow contrary to intuition, we will find that a definite general hierarchy between the two cannot be established, i.e., ${(\Delta w_{\tau })}_{TPM}^2$ is not greater or smaller than ${(\Delta w_{\tau })}_{MH}^2$ for all parameters. Instead, each particular experimental setup needs to be investigated on its own, as either situation can occur.

Let us first of all focus on the second moment of the work distributions. In the same spirit of Theorem 1, we prove the following:

Theorem 2.

For a d-dimensional system undergoing a cyclic process described by a unitary evolution $U\left(\tau \right)$, we have

$$|{\langle w_{\tau }^2\rangle }_{\mathrm{MH}}-{\langle w_{\tau }^2\rangle }_{\mathrm{TPM}}|\le \frac{C_{l_1}}{2}\left({\rho }_0\right)\left(\mathrm{Tr}{H}^2+2\underset{k}{max}|h_k\left|\mathrm{Tr}\right|H|\right).$$

(10)

A detailed proof is reported in Appendix B. Once again, the bound Equation (10) just depends on initial quantities such as the amount of coherences in the initial state ${\rho }_0$ and the energy spectrum of the initial Hamiltonian. It is important to stress that, at variance with the bound in Theorem 1, Equation (10) is not tight, even for qubits. A simple calculation in the case $d=2$ in fact shows that, while the left hand side is identically zero, i.e., $|{\langle w^2\rangle }_{\mathrm{MH}}-{\langle w^2\rangle }_{\mathrm{TPM}}|=0$, the right hand side does not vanish. In line with the analysis carried out for the discrepancy between first moments, Figure 2b illustrates the diverging gap between the bound in Equation (10) and the maximum difference between second moments for the case of a qutrit ($d=3$) system with a growing degree of quantum coherence in its initial state.

The difference between variances can be simply calculated as ${(\Delta w_{\tau })}_{\mathrm{MH}}^2-{(\Delta w_{\tau })}_{\mathrm{TPM}}^2=-{\langle w_{\tau }\rangle }_{\mathrm{MH}}^2+{\langle w_{\tau }\rangle }_{\mathrm{TPM}}^2$. These two considerations allow to show that the above difference does not have a definite sign in general. To show this, let us restrict for simplicity to the case of a qubit undergoing an evolution described by

$$U_{\tau }=\left(\begin{array}{cc}cos\tau & sin\tau \\ -sin\tau & cos\tau \end{array}\right).$$

(11)

Then, it is straightforward to prove the following

Corollary 1.

For a $d=2$ system undergoing a cyclic process described by a real unitary evolution $U_{\tau }$, we have

$$\begin{array}{cc}\hfill {(\Delta w_{\tau })}_{\mathrm{MH}}^2& -{(\Delta w_{\tau })}_{\mathrm{TPM}}^2=\hfill \\ & -f\left({\rho }_0\right)[f\left({\rho }_0\right)+2sin{\left(\tau \right)}^2{a}_z(h_0-h_1)],\hfill \end{array}$$

(12)

where $f\left({\rho }_0\right)=(h_0-h_1)C_{l_1}\left({\rho }_0\right)sin\left(2\tau \right)cos\left(\chi \right)/2$.

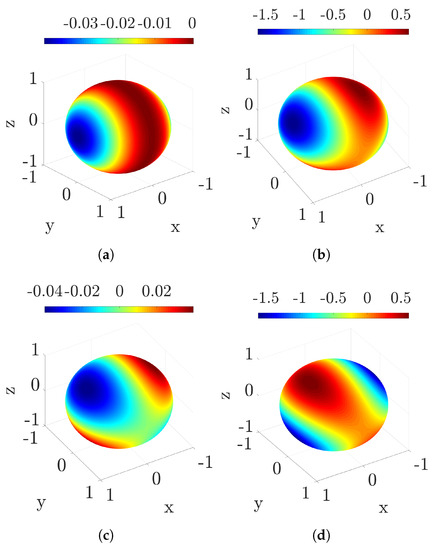

As we see in Figure 3 and Figure 4, the difference between the variances can be either negative or non-negative, so it is not possible to determine which one is larger in general. Restricting to pure real qubits ($a_y=0\to cos\left(\chi \right)=\pm 1$ and $a_z=\pm \sqrt{1-a_x^2}$) for ease of calculation helps us discern which distribution is more uncertain depending on the values of $a_x$, as shown in Figure 3 and summarised in

Table 1. Relation between the variances of the MH and the TPM schemes for a two-level system with a Bloch vector with $a_y=0$ and dynamics ruled by Equation (11). In Table (a), we have taken $\mathrm{sgn}\left(a_z\right)=\mathrm{sgn}(tan\tau )$, while Table (b) is for $\mathrm{sgn}\left(a_z\right)\ne \mathrm{sgn}(tan\tau )$.

	$\mathbf{sgn}\left({\mathit{a}}_{\mathit{z}}\right)=\mathbf{sgn}(tan\mathit{\tau })$
$a_x\in [-1,-2a_{z}tan\tau ]$	$a_x\in [-2a_{z}tan\tau ,0]$	$a_x\in [0,1]$
${(\Delta w)}_{\mathrm{MH}}^2\le {(\Delta w)}_{\mathrm{TPM}}^2$	${(\Delta w)}_{\mathrm{MH}}^2\ge {(\Delta w)}_{\mathrm{TPM}}^2$	${(\Delta w)}_{\mathrm{MH}}^2\le {(\Delta w)}_{\mathrm{TPM}}^2$
(a)
	$\mathrm{sgn}\left(a_z\right)\ne \mathrm{sgn}(tan\tau )$
$a_x\in [-1,0]$	$a_x\in [0,-2a_{z}tan\tau ]$	$a_x\in [-2a_{z}tan\tau ,1]$
${(\Delta w)}_{\mathrm{MH}}^2\le {(\Delta w)}_{\mathrm{TPM}}^2$	${(\Delta w)}_{\mathrm{MH}}^2\ge {(\Delta w)}_{\mathrm{TPM}}^2$	${(\Delta w)}_{\mathrm{MH}}^2\le {(\Delta w)}_{\mathrm{TPM}}^2$
(b)

(further details about the corresponding analysis can be found in Appendix C). The results demonstrate that knowing the value of $C_{l_1}\left({\rho }_0\right)$ does not suffice to ascertain which variance is larger: rather, it is the sign of $cos\left(\chi \right)=\pm 1$ that eventually dictates their ordering.

Considering the whole set of pure qubits ($a_y\ne 0\to cos\left(\chi \right)\ne \pm 1$ and $a_x^2+a_y^2+a_z^2=1$) would certainly require a much more involved analysis; however, this exceeds the present purposes, which are just to point out that the contribution of $cos\left(\chi \right)$, consistently with what was claimed for real qubits, can never be neglected when assessing the relative uncertainty between distributions (see Figure 4, where the difference between variances is shown to change significantly for different values of $\chi$).

3.3. Study of the Entropy Production

We conclude our analysis by exploiting the above results concerning the work statistics in order to investigate the consequences of initial coherence onto the average entropy production. The latter quantity represents in general a measure of irreversibility and quantifies the amount of work that is dissipated when driving a closed system out of equilibrium. The well-known second law of thermodynamics dictates that the entropy production, defined as the difference between the average work and the free energy difference, is always a non-negative quantity, i.e.,

$${\langle {\mathsf{\Sigma }}_{\tau }\rangle }_{\mathrm{TPM}}\equiv {\langle w_{\tau }\rangle }_{\mathrm{TPM}}-\Delta F\ge 0$$

(13)

with $\Delta F_{\tau }={\beta }^{-1}ln\frac{Z_0}{Z_{\tau }}$ and $Z_t=\mathrm{Tr}\left[e^{-\beta H_t}\right]$. However, occasional violations to the second law can take place due to the work fluctuations. Remarkably, the above inequality can be turned into an equality; this milestone result, known as the Jarzynski equality [42], states that

$${\langle e^{-\beta (w_{\tau }-\Delta F_{\tau })}\rangle }_{\mathrm{TPM}}=1,$$

(14)

from which Equation (13) is recovered by simple application of Jensen’s inequality. Crucially, these results rely on the assumption that the system was initially prepared in a thermal state by contact with a bath at inverse temperature $\beta$, i.e., ${\rho }_0={\mathcal{G}}_0\equiv Z_0^{-1}{e}^{-\beta {\mathcal{H}}_0}$. This state, which is clearly incoherent with respect to the initial Hamiltonian, implies that both the TPM and the MH schemes would provide the same answer for the work distribution, as the first energy projective measurement entailed by the TPM approach would not affect the subsequent work statistics. We thus chose for convenience and clarity to use the subscript TPM in order to distinguish from the MH scenario when initial states with finite coherence in the energy eigenbasis are considered.

For an arbitrary initial state ${\rho }_0$, however, a modified version of the Jarzynski equality has been shown to hold [21]

$${\langle e^{-\beta (w_{\tau }-\Delta F_{\tau })}\rangle }_{\mathrm{MH}}=\mathrm{Re}\left(\mathrm{Tr}\left[{\gamma }_{\tau }{\mathcal{G}}_0^{-1}{\rho }_0\right]\right)\equiv {\xi }_{\tau },$$

(15)

where ${\gamma }_{\tau }\equiv U_{\tau }^{†}{\mathcal{G}}_{\tau }{U}_{\tau }$. Equation (14) is recovered for ${\rho }_0={\mathcal{G}}_0$. The consequences of the first projective measurement involved in the TPM scheme, whenever the system possesses initial coherence, can therefore be seen by comparing Equations (15) and (14). In what follows, we will, in particular, complement the analysis carried out in this respect in [21] by studying the average entropy production in the MH scheme, showing that the latter can become negative without being in contradiction with the second law of thermodynamics (which only applies when a TPM scheme is applied).

Thanks to the convexity of the function appearing in Equation (15), one can still apply Jensen’s inequality to obtain

$${\langle {\mathsf{\Sigma }}_{\tau }\rangle }_{\mathrm{MH}}=\beta ({\langle w_{\tau }\rangle }_{\mathrm{MH}}-\Delta F_{\tau })\ge -ln{\xi }_{\tau },$$

(16)

which remarkably does not preclude a negative average entropy production (indeed, $ln{\xi }_{\tau }$ can be arbitrarily large [21]). This happens to hold for small enough $\beta$, as we can see in Figure 5a,b, where we have plotted the minimum average entropy production as a function of $\beta$, for a suitable qubit evolution, both in the MH and the TPM schemes. From Figure 5b, we also note that both schemes seem to converge for $\beta \to \infty$, which is due to the fact that the coherence of $\rho$ gets smaller as $\beta$ increases.

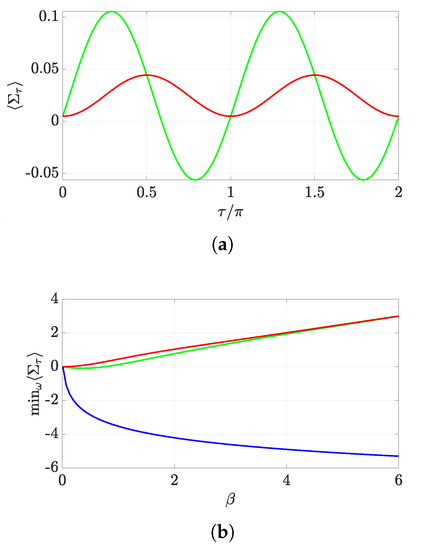

For both panels, we have taken a qubit prepared in state $\rho =\left(\begin{array}{cc}1-{\alpha }^2& \omega \alpha \sqrt{1-{\alpha }^2}\\ \omega \alpha \sqrt{1-{\alpha }^2}& {\alpha }^2\end{array}\right)$ with ${\alpha }^2=e^{\beta }/\mathrm{Tr}\left[e^{-\beta H_0}\right]$, $\omega \in [0,1]$ and $H_0={\sigma }_z$, undergoing an evolution given by a real unitary ruled by Equation (11) with $H_{\tau }={\sigma }_z/2$.

In order to get a deeper analytical insight of the regions where ${\langle {\mathsf{\Sigma }}_{\tau }\rangle }_{\mathrm{MH}}<0$, we go to the linear response regime [43]. Here, we prove the following:

Theorem 3.

In the MH scheme, the average entropy production in the linear response regime amounts to

$$\begin{array}{cc}\hfill {\langle {\mathsf{\Sigma }}_{\tau }\rangle }_{\mathrm{MH}}^{\mathrm{LR}}& =\beta {\langle w_{\tau }\rangle }_{\mathrm{MH}}-{\displaystyle \frac{{\beta }^2}{2}}\mathrm{Re}\left\{\mathrm{Tr}\left({\rho }_0[H_0,U_{\tau }^{†}{H}_{\tau }{U}_{\tau }]\right)\right\}\hfill \\ \hfill & -{\displaystyle \frac{{\beta }^2}{4}}\mathrm{Tr}[H_0^2-H_{\tau }^2].\hfill \end{array}$$

(17)

For two-dimensional systems undergoing a process described by a real unitary evolution, $H_0={\sigma }_z$ and $H_{\tau }=k{\sigma }_z$ ($k\in \mathbb{R}$), this yields

$${\langle {\mathsf{\Sigma }}_{\tau }\rangle }_{\mathrm{MH}}^{\mathrm{LR}}-{\langle {\mathsf{\Sigma }}_{\tau }\rangle }_{\mathrm{TPM}}^{\mathrm{LR}}=\beta ksin\left(2\tau \right)cos\left(\chi \right)C_{l_1}\left({\rho }_0\right),$$

(18)

where ${\langle {\mathsf{\Sigma }}_{\tau }\rangle }_{\mathrm{TPM}}^{\mathrm{LR}}={\beta }^2{(\Delta w_{\tau })}_{\mathrm{TPM}}^2/2$.

From Equation (18), we see again that both approaches are only equivalent when the initial state is in equilibrium (meaning that $C_{l_1}\left({\rho }_0\right)=0$). Moreover, we notice that considering a cyclic process ($k=1$) would allow us to recover the relation between the first moments of work obtained in Theorem 1. Finally, we observe that, under a sudden quench, both approaches agree irrespective of the initial state. This must be the case, since it has to be ensured that for $k=1$ (cyclic processes), both first moments of work vanish under a sudden quench, as argued in Section 3.1,

$$\langle {\mathsf{\Sigma }}_{\tau }\rangle =\beta \langle w_{\tau }\rangle =\beta \mathrm{Tr}\rho (U_{\tau }^{†}H{U}_{\tau }-H)\stackrel{U\to \mathbb{1}}{\to }0.$$

(19)

We are now equipped to prove the achievability of ${\langle {\mathsf{\Sigma }}_{\tau }\rangle }_{\mathrm{MH}}<0$.

Corollary 2.

In the MH scheme, the average entropy production can take negative values, in contrast to what happens in the TPM scheme:

$${\langle {\mathsf{\Sigma }}_{\tau }\rangle }_{\mathrm{MH}}\in \mathbb{R},\mathrm{whereas}{\langle {\mathsf{\Sigma }}_{\tau }\rangle }_{\mathrm{TPM}}\in {\mathbb{R}}^{+}\cup \left\{0\right\}.$$

(20)

Let us mention that Corollary 2 is independent of the fact that the MH distribution may present negativities. What is more, the ordering of the variances of work obtained in both schemes (see Table 1) cannot explain this result either (more details on these facts can be found in Appendix F).

4. Conclusions

Throughout this work, we have studied the TPM and the MH distributions of work from a systematic comparative approach, being able to assess the difference between both of them in terms of quantum coherence. In particular, we have shown that the difference between the first and second moments of work obtained in both schemes is upper-bounded by the initial coherence, as quantified by the $l_1$-coherence measure. Regarding the variances of work, we have proved that it is not possible to establish which one is larger in general, since their difference is fundamentally sensitive to the specific configuration of the experiment. Moreover, when restricting to a specific qubit setting, the difference between variances can again be cast via the $l_1$-coherence of the initial state. This holds as well for the average entropy production, which, in addition, can take negative values, contrary to what is prescribed in the TPM framework.

Our work sheds light on the formal connection between the theory of quantum coherence and recent attempts at going beyond the limitation of the TPM to unveil the statistics of energy fluctuations resulting from quantum processes. Such connection, which is becoming increasingly apparent in light of recent work [3,4,7,8], is likely to embody the leit motif of future endeavours aimed at pinpointing the potential advantages of quantum (thermo-)devices.
