# Use of the Complex Zeros of the Partition Function to Investigate the Critical Behavior of the Generalized Interacting Self-Avoiding Trail Model

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Method

## 3. Results

## 4. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Vanderzande, C. Lattice Models of Polymers; CUP: Cambridge, UK, 1998. [Google Scholar]
- Flory, P. Principles of Polymer Chemistry; Cornell University Press: Ithaca, NY, USA, 1971. [Google Scholar]
- De Gennes, P.G. Collapse of a polymer chain in poor solvents. J. Phys. Lett.
**1975**, 36, 55–57. [Google Scholar] [CrossRef] - Massih, A.R.; Moore, M.A. Phase transition in a polymer chain in dilute solution. J. Phys. A
**1975**, 8, 237. [Google Scholar] [CrossRef] - Blöte, H.W.J.; Nienhuis, B. Critical behaviour and conformal anomaly of the O(n) model on the square lattice. J. Phys. A
**1989**, 22, 1415. [Google Scholar] [CrossRef] - Foster, D.P.; Orlandini, E.; Tesi, M.C. Surface critical exponents for models of polymer collapse and adsorption: The universality of the Θ and Θ′ points. J. Phys. A
**1992**, 25, L1211. [Google Scholar] [CrossRef] - Duplantier, B.; Saleur, H. Exact tricritical exponents for polymers at the θ point in two dimensions. Phys. Rev. Lett.
**1987**, 59, 539. [Google Scholar] [CrossRef] [PubMed] - Foster, D.P.; Pinettes, C. A corner transfer matrix renormalization group investigation of the vertex-interacting self-avoiding walk model. J. Phys. A
**2003**, 36, 10279. [Google Scholar] [CrossRef] - Vernier, E.; Jacobsen, J.L.; Saleur, H. A new look at the collapse of two-dimensional polymers. J. Stat. Mech.
**2015**, 2015, P09001. [Google Scholar] [CrossRef] - Foster, D.P. Universality of collapsing two-dimensional self-avoiding trails. J. Phys. A
**2009**, 42, 372002. [Google Scholar] [CrossRef] - Doukas, J.; Owczarek, A.L.; Prellberg, T. Identification of a polymer growth process with an equilibrium multicritical collapse phase transition: The meeting point of swollen, collapsed, and crystalline polymers. Phys. Rev. E
**2010**, 82, 031103. [Google Scholar] [CrossRef] - Lyklema, J. The growing self-avoiding trail. J. Phys. A
**1985**, 18, L617. [Google Scholar] [CrossRef] - Guha, A.; Lim, H.A.; Shapir, Y. Non-perturbative tricritical exponents of trails. II. Exact enumerations on square and simple cubic lattices. J. Phys. A
**1988**, 21, 1043. [Google Scholar] [CrossRef] - Chang, I.; Meirovitch, H. Surface critical exponents of self-avoiding walks and trails on a square lattice: The universality classes of the θ and θ′ points. Phys. Rev. Lett.
**1992**, 69, 2232. [Google Scholar] [CrossRef] - Foster, D.P. Surface critical behaviour of the interacting self-avoiding trail on the square lattice. J. Phys. A
**2010**, 43, 335004. [Google Scholar] [CrossRef] - Foster, D.P. Generalized interacting self-avoiding trails on the square lattice: Phase diagram and critical behavior. Phys. Rev. E
**2011**, 84, 032102. [Google Scholar] [CrossRef] [PubMed] - Warnaar, S.O.; Batchelor, M.T.; Nienhuis, B. Critical properties of the Izergin-Korepin and solvable O(n) models and their related quantum spin chains. J. Phys. A
**1992**, 25, 3077. [Google Scholar] [CrossRef] - Foster, D.P.; Pinettes, C. Surface critical behaviour of the vertex-interacting self-avoiding walk on the square lattice. J. Phys. A
**2012**, 45, 505003. [Google Scholar] [CrossRef] - Bedini, A.; Owczarek, A.L.; Prellberg, T. Numerical simulation of a lattice polymer model at its integrable point. J. Phys. A
**2013**, 46, 265003. [Google Scholar] [CrossRef] - Yang, C.N.; Lee, T.D. Statistical theory of equations of state and phase transitions. I theory of condensation. Phys. Rev.
**1952**, 87, 4049. [Google Scholar] [CrossRef] - Lee, T.D.; Yang, C.N. Statistical theory of equations of state and phase transitions. II Lattice gas and Ising model. Phys. Rev.
**1952**, 87, 4109. [Google Scholar] [CrossRef] - Prellberg, T.; Krawczyk, J. Flat Histogram Version of the Pruned and Enriched Rosenbluth Method. Phys. Rev. Lett.
**2004**, 92, 120502. [Google Scholar] [CrossRef] - Fisher, M.E. Lectures in Theoretical Physics; Brittin, W.E., Ed.; University of Colorado Press: Boulder, CO, USA, 1965; Volume 7C, Chapter 1. [Google Scholar]
- Bedini, A.; Owczarek, A.L.; Prellberg, T. Weighting of topologically different interactions in a model of two-dimensional polymer collapse. Phys. Rev. E
**2013**, 87, 012142. [Google Scholar] [CrossRef] [PubMed] - Nahum, A.; Serna, P.; Somoza, A.M.; Ortuño, M. Loop models with crossings. Phys. Rev. B
**2013**, 87, 184204. [Google Scholar] [CrossRef] - Stanley, H.E. Introduction to Phase Transitions and Critical Phenomena; Oxford University Press: Oxford, UK, 1971. [Google Scholar]
- Privman, V.; Kurtze, D.A. Partition function zeros in two-dimensional lattice models of the polymer Θ-point. Macromolecules
**1986**, 19, 2377–2379. [Google Scholar] [CrossRef] - Lee, J.H.; Kim, S.Y.; Lee, J. Exact partition function zeros and the collapse transition of a two-dimensional lattice polymer. J. Chem. Phys.
**2010**, 133, 114107. [Google Scholar] [CrossRef] [PubMed] - Owczarek, A.L.; Prellberg, T. The collapse point of interacting trails in two dimensions from kinetic growth simulations. J. Stat. Phys.
**1995**, 79, 951–967. [Google Scholar] [CrossRef] - Taylor, M.P.; Luettmer-Strathmann, J. Partition function zeros and finite size scaling for polymer adsorption. J. Chem. Phys.
**2014**, 141, 204906. [Google Scholar] [CrossRef] [PubMed] - Van Rensburg, E.J. Partition and generating function zeros in adsorbing self-avoiding walks. J. Stat. Mech.
**2017**, 2017, 033208. [Google Scholar] [CrossRef] - Bradly, C.J.; Owczarek, A.L.; Prellberg, T. Adsorption of neighbor-avoiding walks on the simple cubic lattice. Phys. Rev. E
**2018**, 98, 062141. [Google Scholar] [CrossRef]

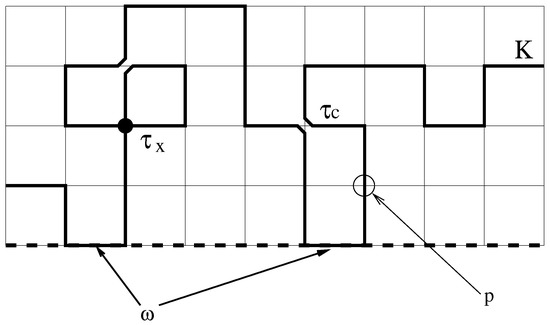

**Figure 1.**The generalized trail model. Weights ${\tau}_{C}$ and ${\tau}_{X}$ are introduced for collisions and crossings at a site, respectively, and weights p and $\omega $ are introduced to model chain stiffness and attraction with a surface (dotted line).

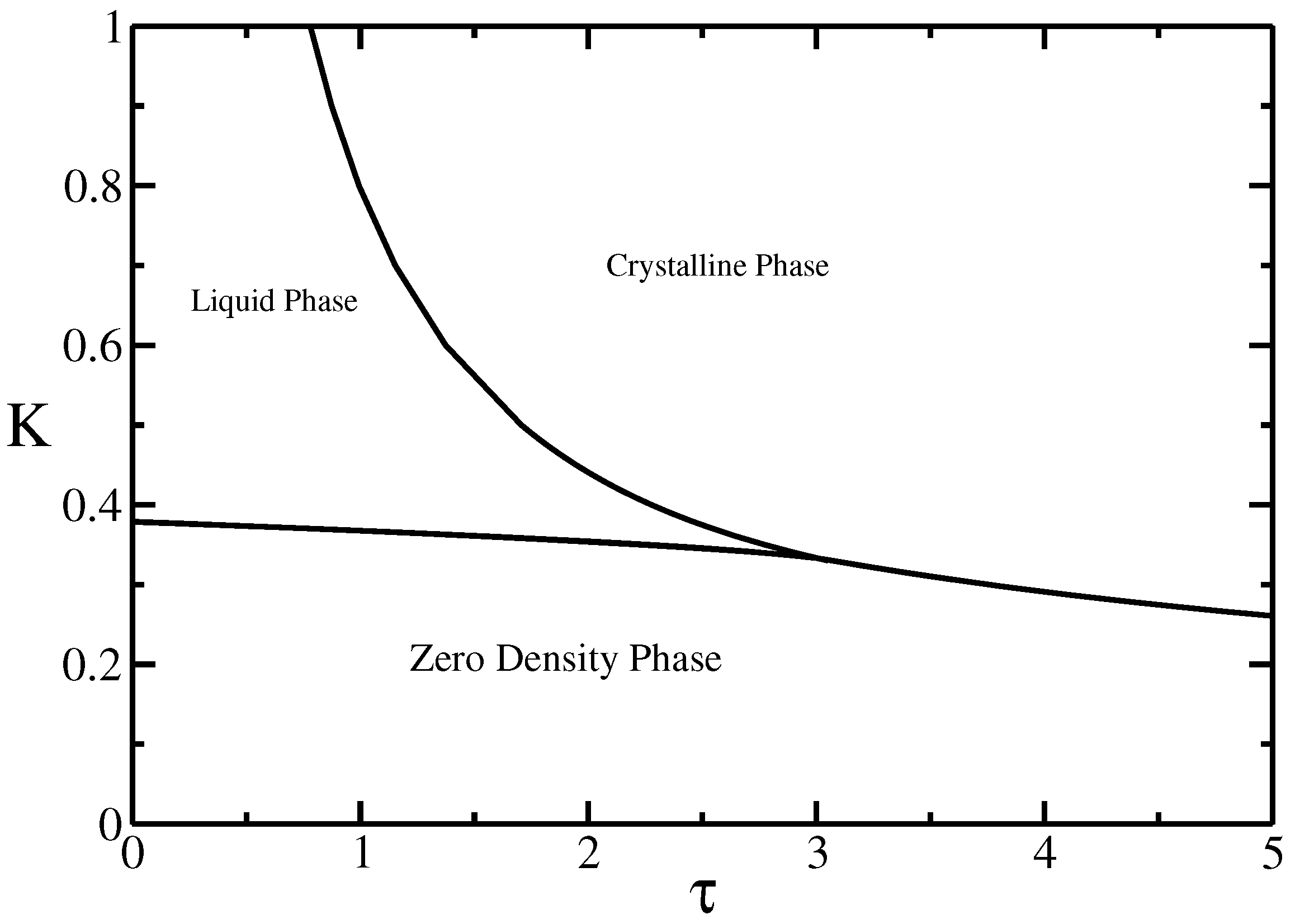

**Figure 2.**Schematic bulk phase diagram in the $\tau $, K plane. K is the step fugacity, which controls the average length of the walk, and $\tau $ is the Boltzmann weight for the monomer-monomer interactions.

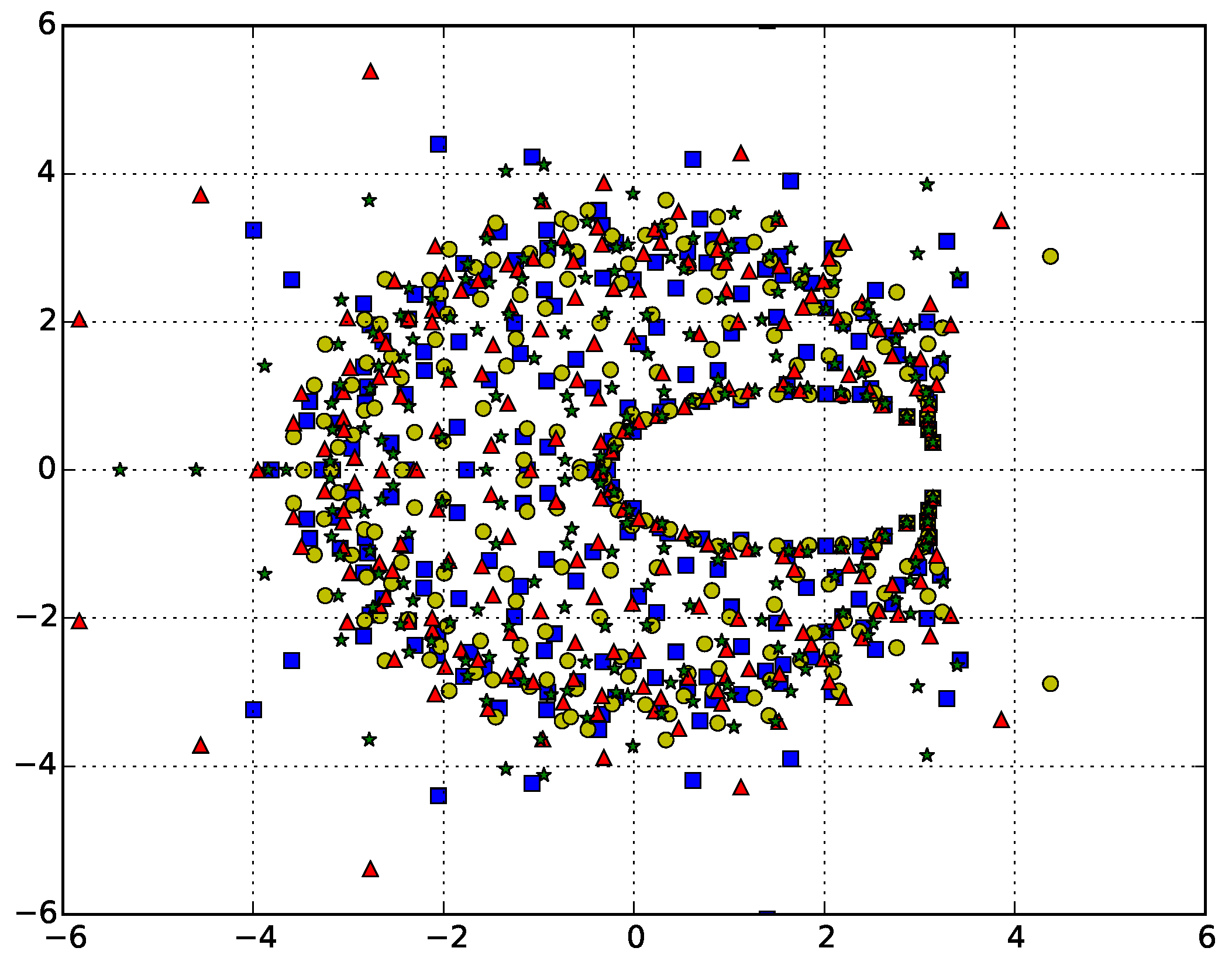

**Figure 3.**Zeros of the canonical partition function for self-avoiding trails for $N=500$ calculated for four different simulations. If we label the leading zero (the one closest to the positive real axis) ${\tau}_{0}$, the x-axis gives the real part of the zero and the y-axis the imaginary part. The complex zeros can clearly be seen to pinch the real axis near ${\tau}^{\star}=3.0$, where in the thermodynamic limit the zero will sit on the axis and denote the critical point.

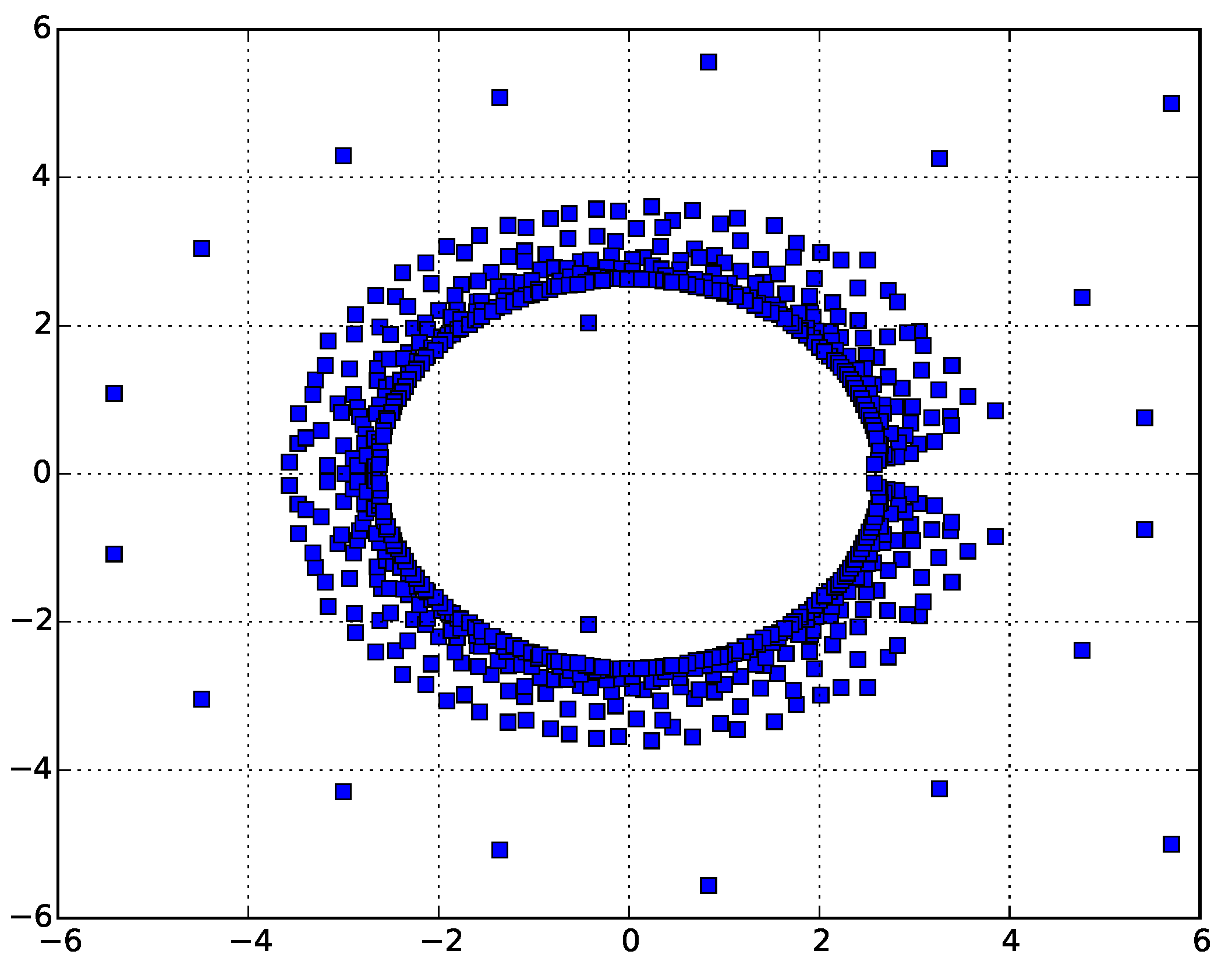

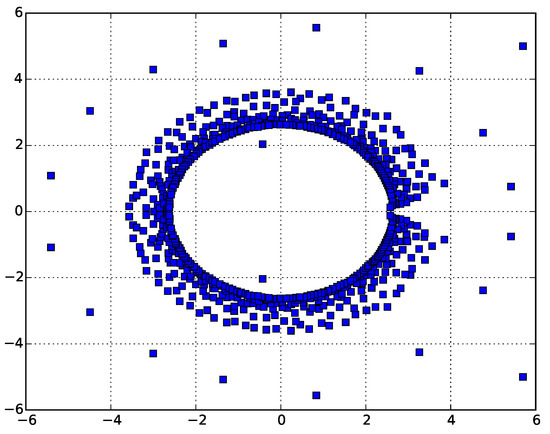

**Figure 4.**Zeros of the canonical partition function for self-avoiding trails for $N=650$. Again, it can clearly be seen that the leading complex zeros pinch near ${\omega}^{\star}=2.45$, giving the estimate of the critical adsorption point.

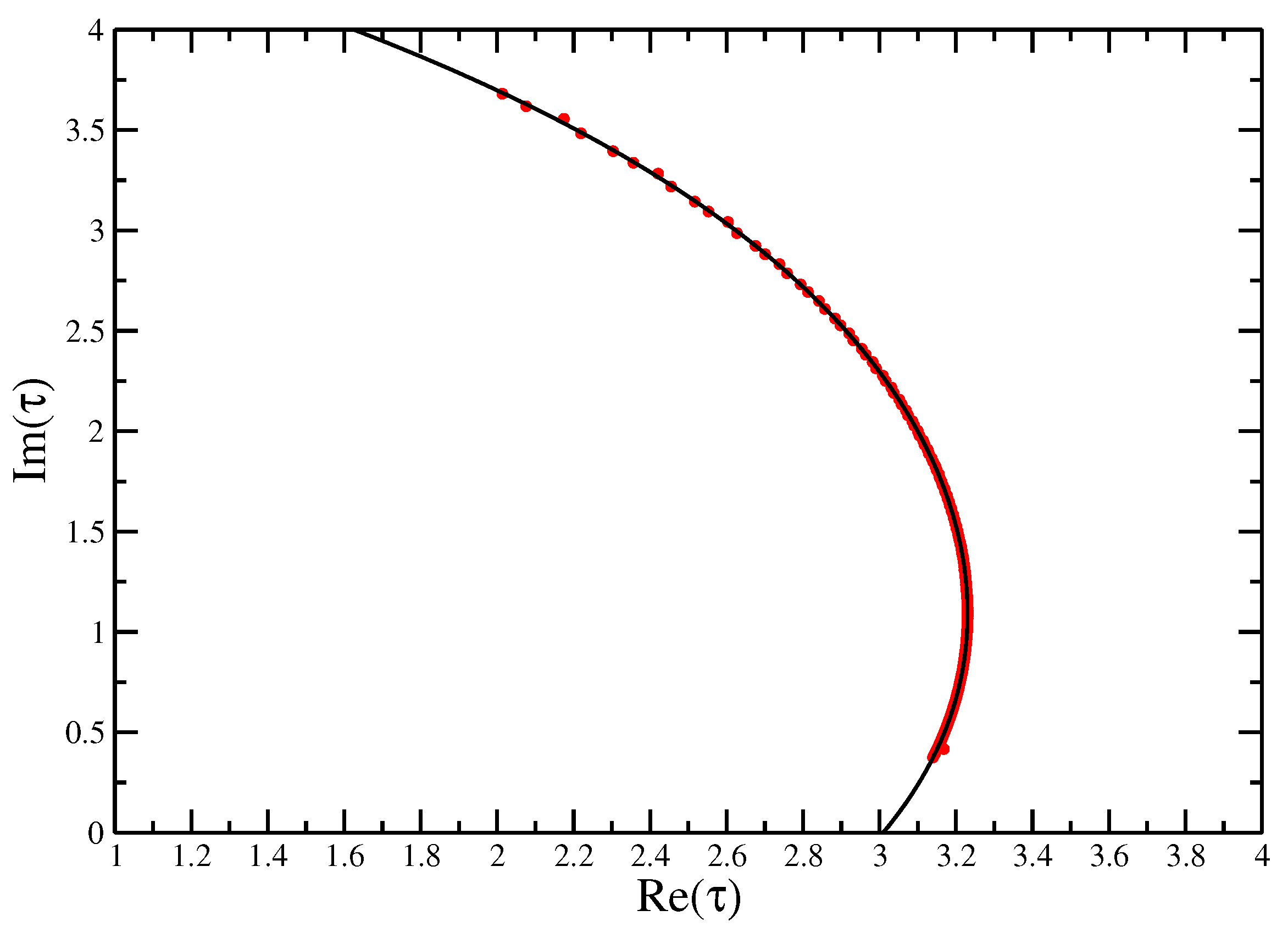

**Figure 5.**Fisher zeros for the canonical partition function of the interacting self-avoiding trail model for sizes from $N=30$ to $N=500$ fitted with a quartic function, showing the extrapolation to the critical interaction strength $\tau =3.01\pm 0.01$ to compare with the exact value of ${\tau}_{c}=3$.

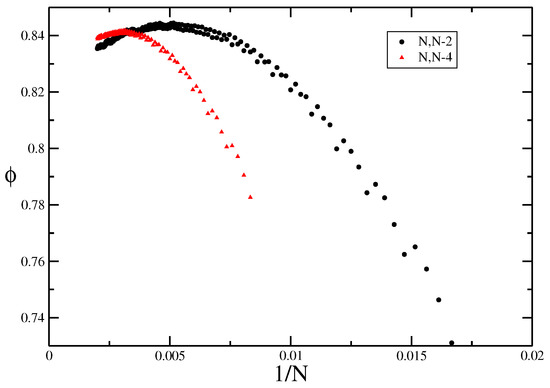

**Figure 6.**The effective bulk cross-over exponent for the trails model, ${\varphi}_{\mathrm{eff}}$ plotted against $1/N$ where the exponent is calculated using two lattice sizes. Due to parity effects, we have looked at two cases: $N1=N,{N}_{2}=N-2$ and ${N}_{1}=N,{N}_{2}=N-4$.

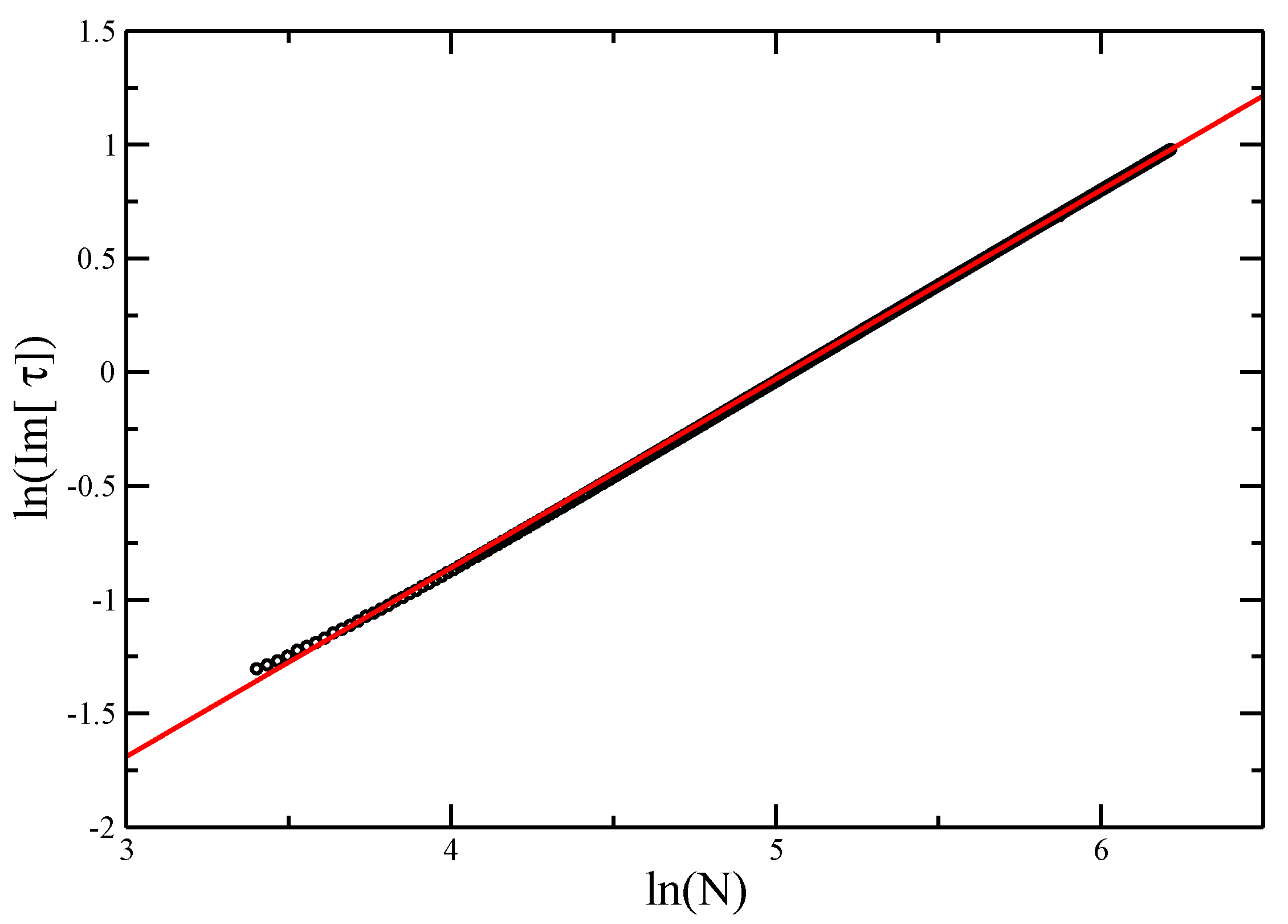

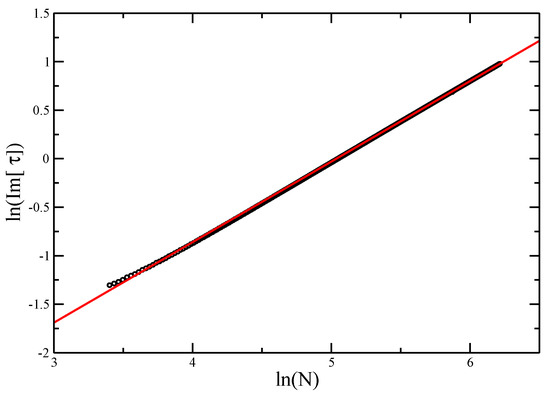

**Figure 7.**$\mathrm{log}\mathrm{Im}\left({\tau}_{c}\right)$ vs. $\mathrm{log}N$ for Trails $O\left(n\right)$. The slope of the best fit gives an estimate of $\varphi =0.83\pm 0.02$.

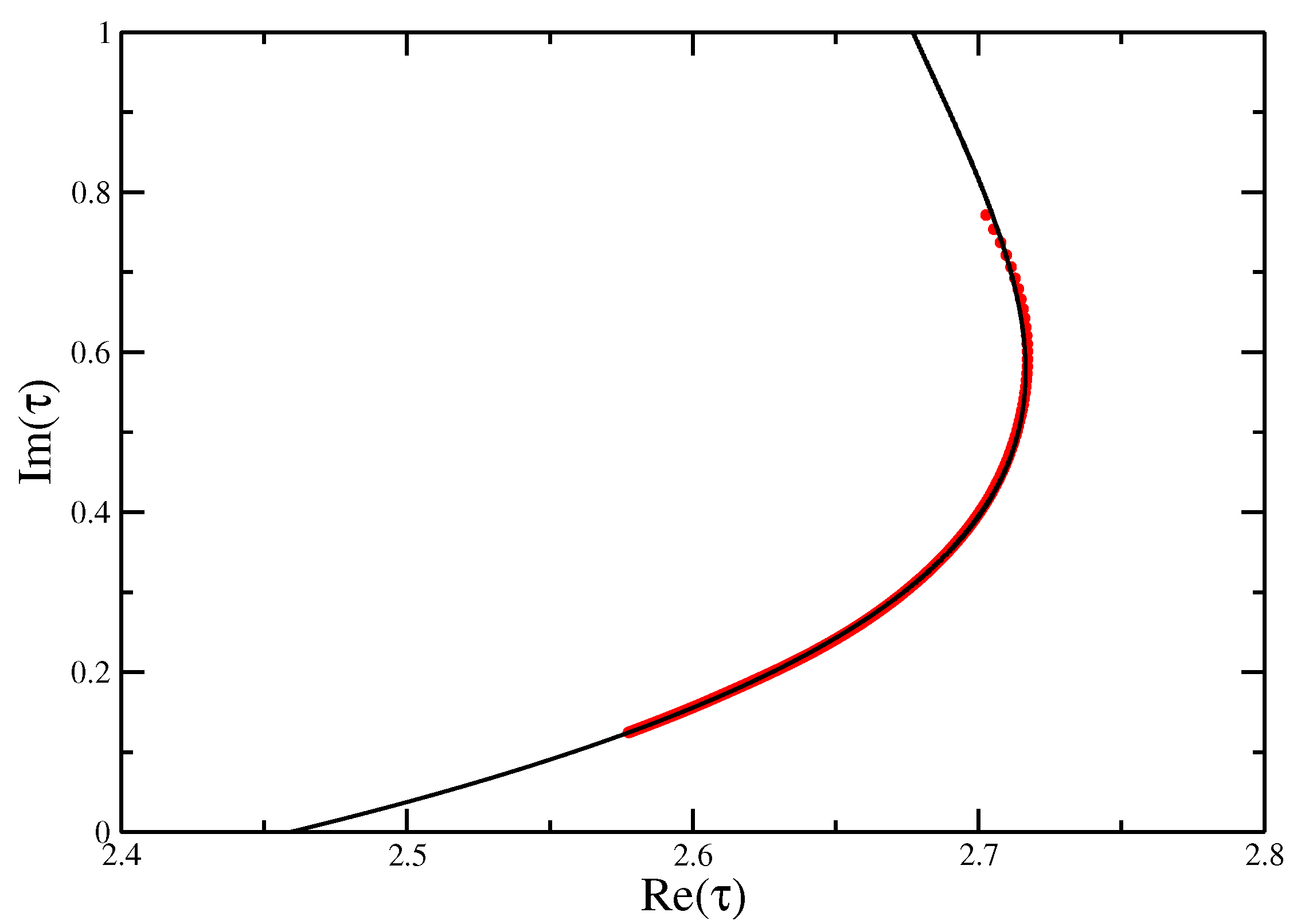

**Figure 8.**A cubic fit of the $\mathrm{Re}\left({\omega}_{c}\right)$ against $\mathrm{Im}\left({\omega}_{c}\right)$ for the surface interaction of Trails at the special surface transition with $\tau ={\tau}^{\star}=3$.

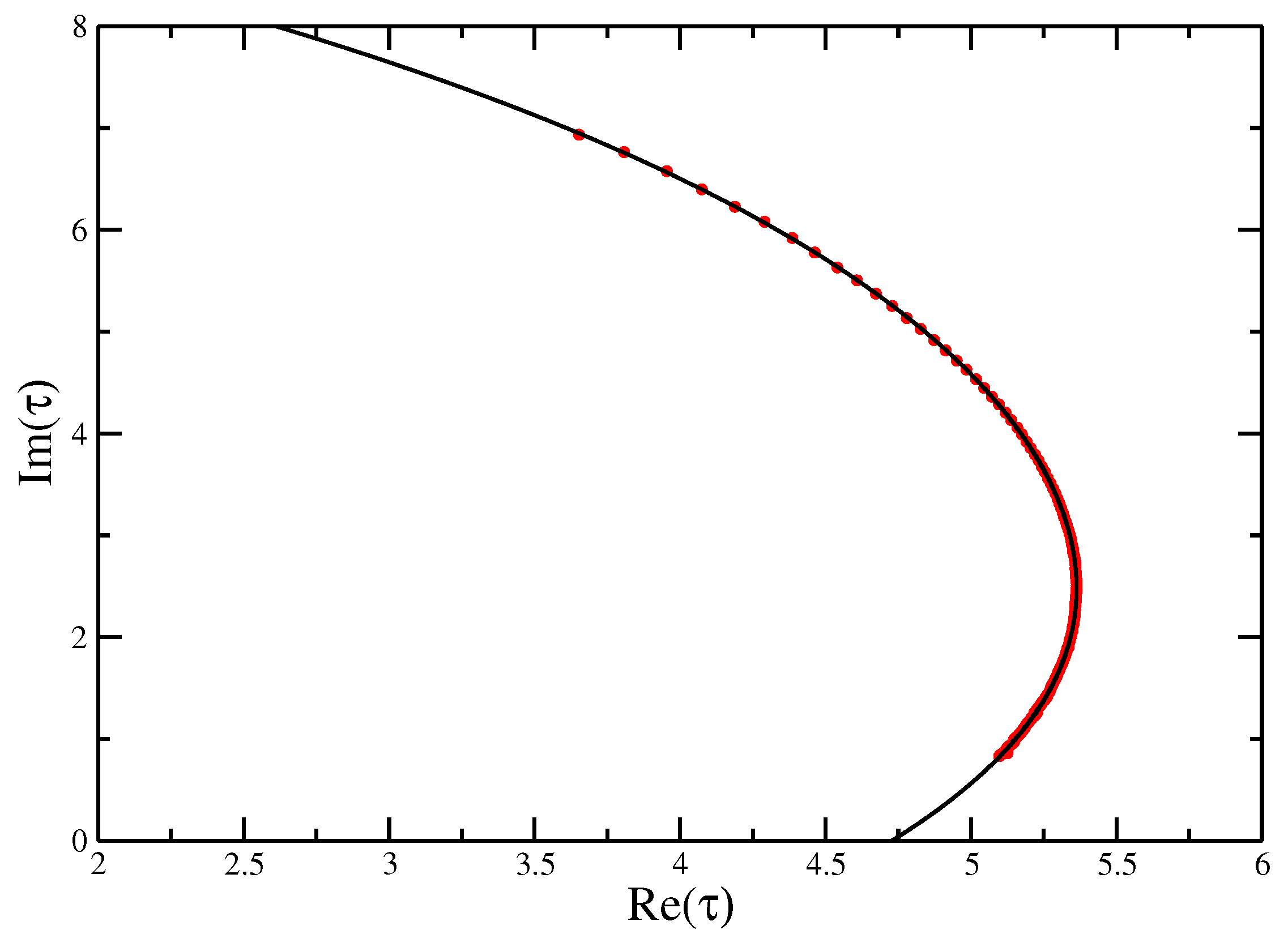

**Figure 9.**Fisher zeros for the canonical partition function of the VISAW model fitted with a quartic function, showing the extrapolation to the critical interaction strength $\tau =4.76\pm 0.04$ to compare with the value of ${\tau}_{c}=4.69\pm 0.01$ calculate from Transfer Matrices and DMRG.

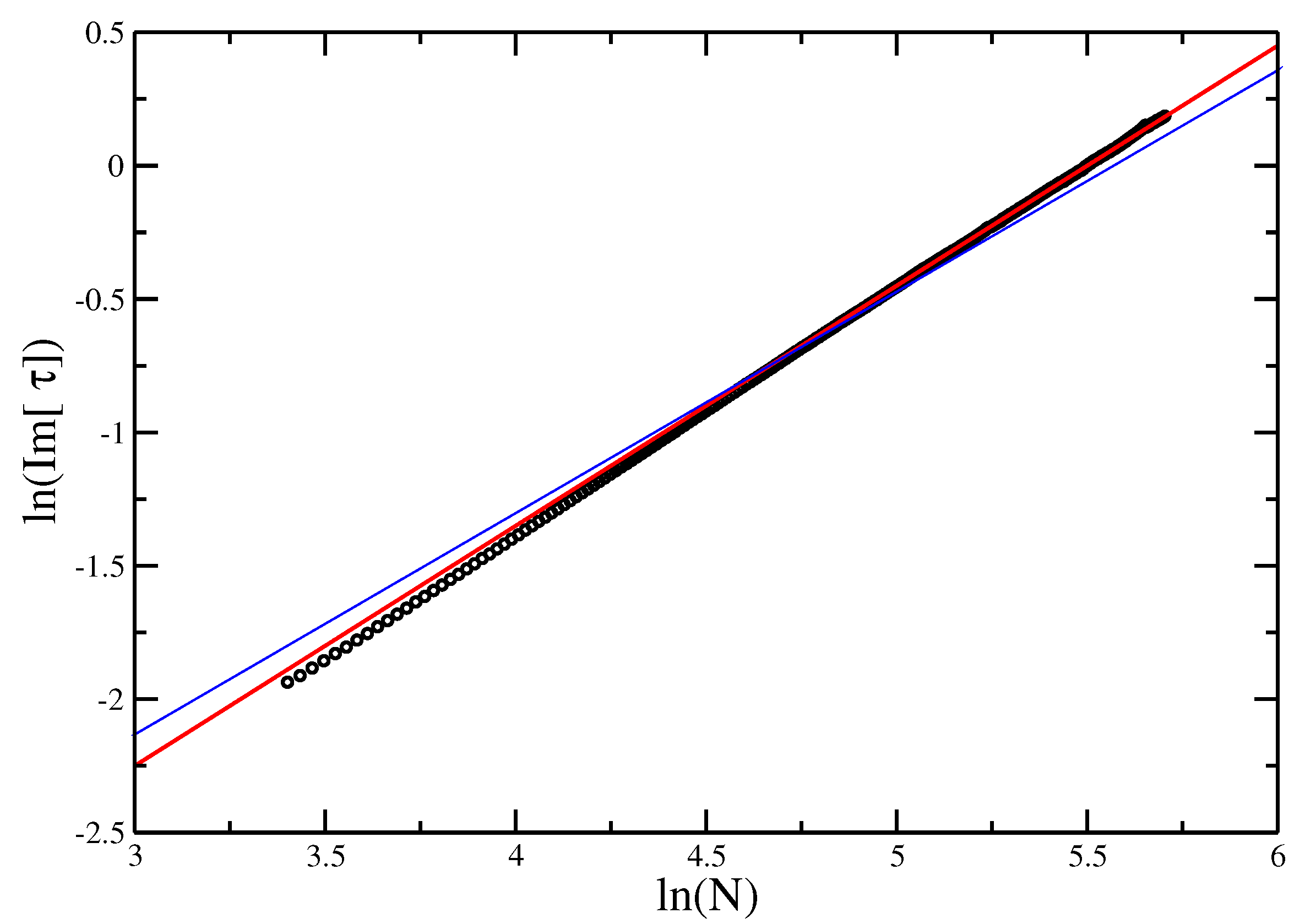

**Figure 10.**$\mathrm{log}\mathrm{Im}\left({\tau}_{c}\right)$ vs. $\mathrm{log}N$ for the VISAW model. The red line gives the slope of best fit, giving an estimate of $\varphi =0.89\pm 0.01$. The points appear to lie on a straight line, and the blue line (of slope $0.83\pm 0.02$, as found for the Trails) is shown as reference. While it is possible that the line evolves further to reach the slope of the blue line, we would argue that this supports the hypothesis that the ISAT and the VISAW are in different universality classes.

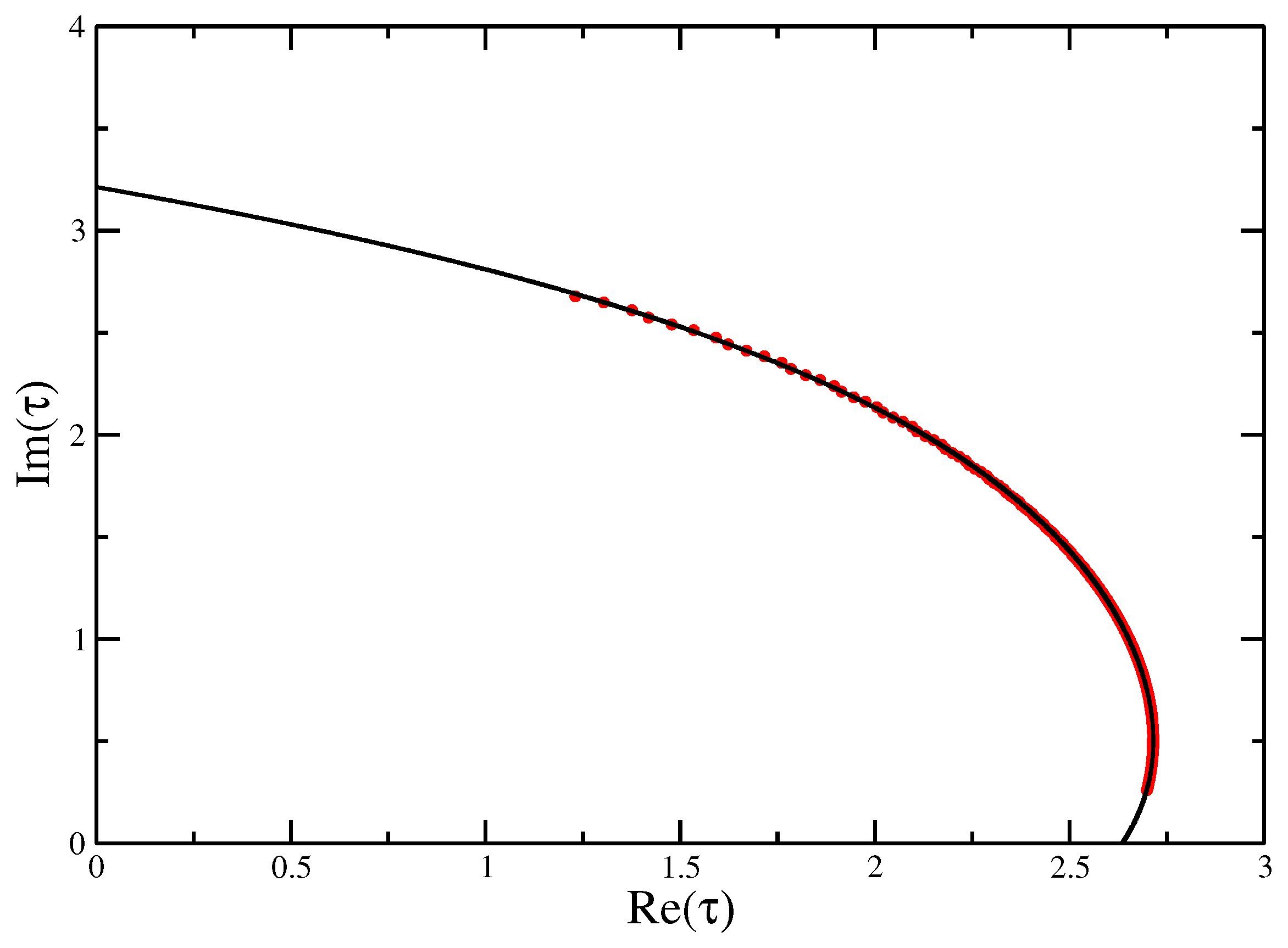

**Figure 11.**Fisher zeros for the canonical partition function of the Integrable VISAW model at the integrable point fitted with a quartic function, showing the extrapolation to the critical interaction strength $\tau =2.64\pm 0.02$ to compare with the exact value of ${\tau}_{c}=2.630986\cdots $.

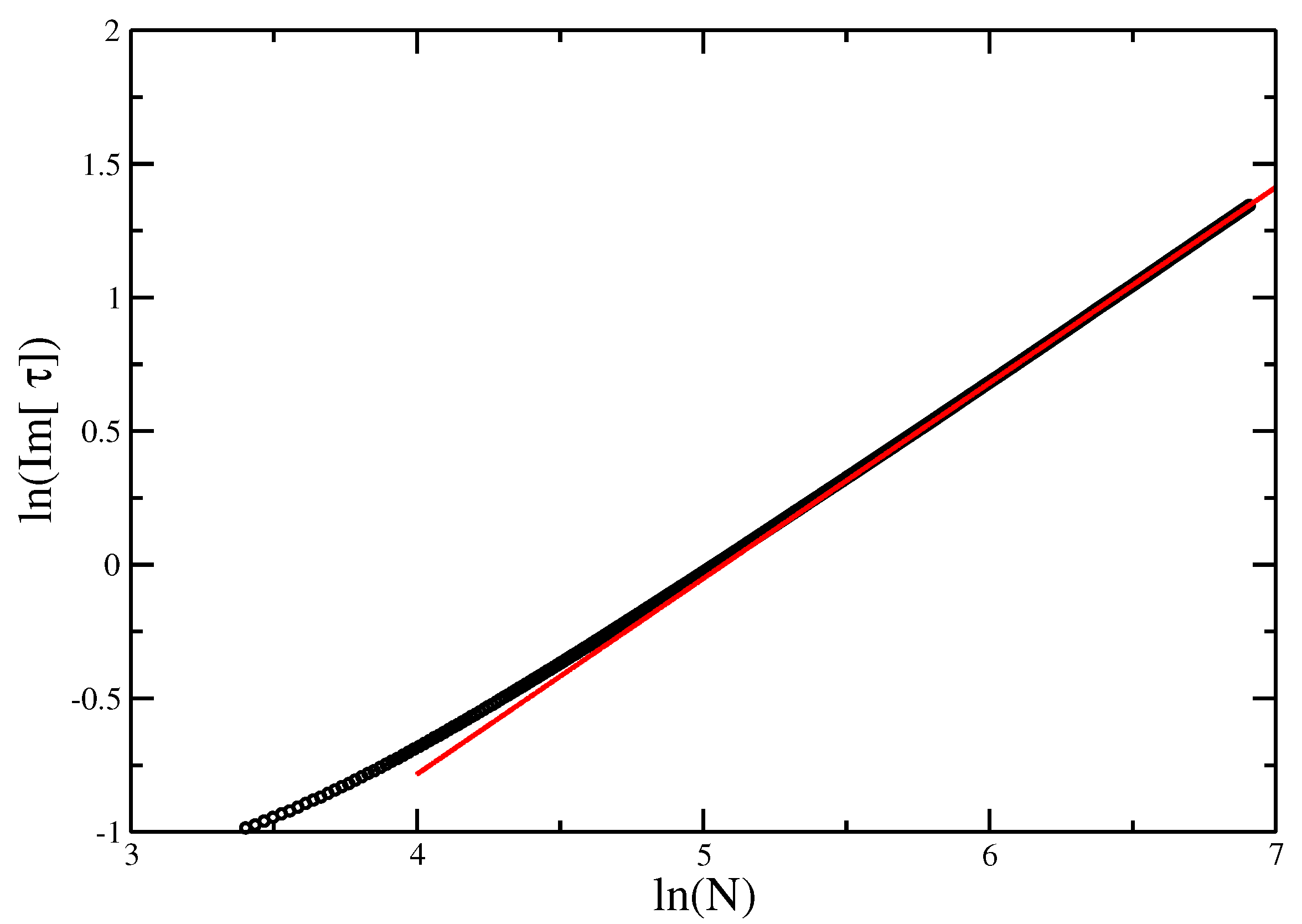

**Figure 12.**$\mathrm{log}\mathrm{Im}\left({\tau}_{c}\right)$ vs. $\mathrm{log}N$ for the Integrable VISAW model. The slope of the best fit gives an estimate of $\varphi =0.73\pm 0.01$.

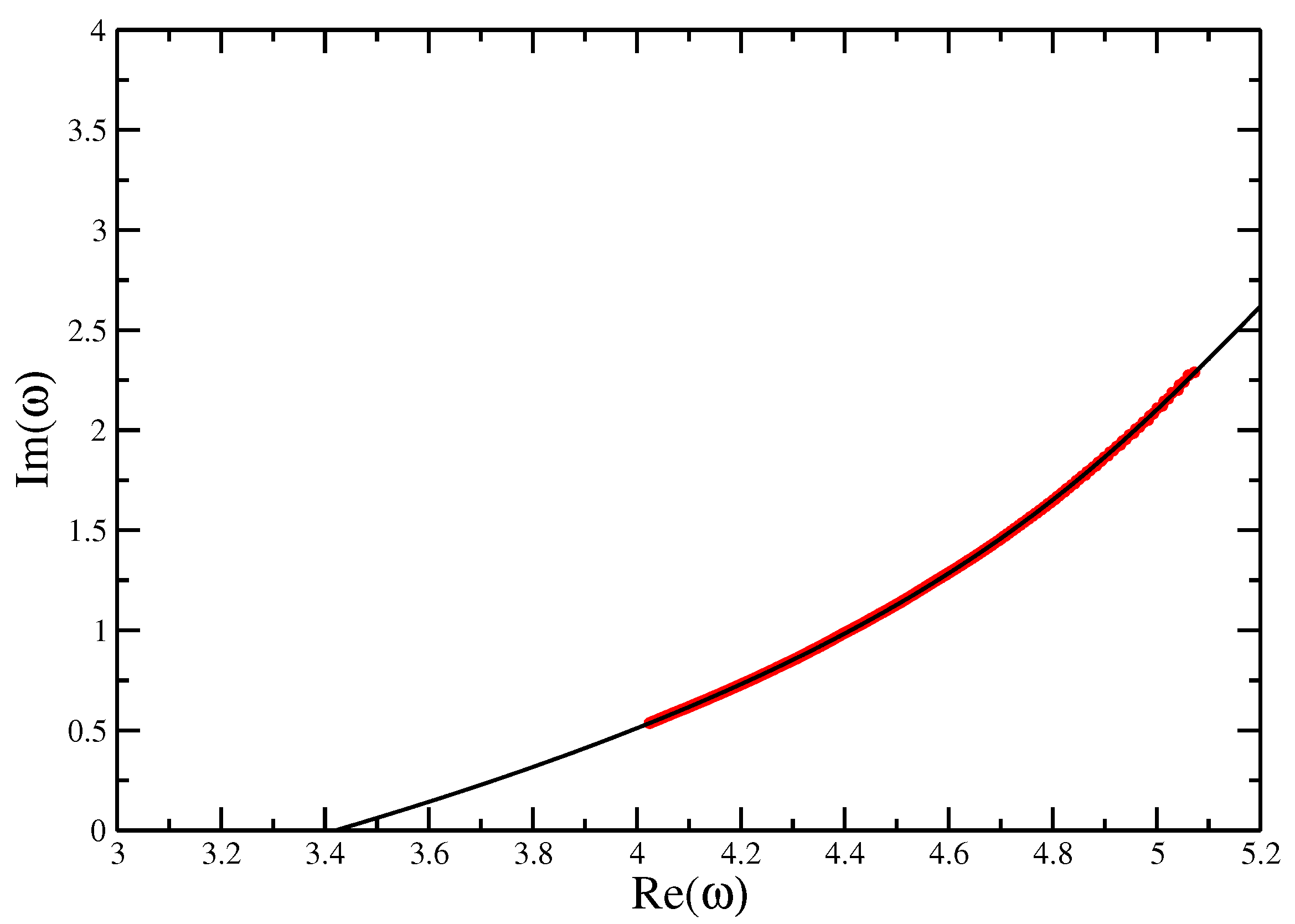

**Figure 13.**A cubic fit of the $\mathrm{Re}\left({\omega}^{\star}\right)$ against $\mathrm{Im}\left({\omega}^{\star}\right)$ for the surface interaction of the Integrable VISAW model at the collapse transition with $p={p}^{\star}$ and $\tau ={\tau}^{\star}$.
