# Detecting Causality in Multivariate Time Series via Non-Uniform Embedding

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Method

#### 2.1. PMIME Method

- An empty embedding vector $\mathbf{v}{}_{\mathbf{t}}^{\mathbf{0}}=\varnothing $ is initialized.
- At the first iteration k = 1, the embedding vector $w{}_{t}^{1}\in {W}_{t}$ is selected most related to ${y}_{t}$:$$w{}_{t}^{1}=\underset{w\in {W}_{t}}{\mathrm{arg}\mathrm{max}}I({y}_{t};w),$$
- At the iteration $k>1$, the mixed embedding vector is augmented by the component $w{}_{t}^{k}$ of ${W}_{t}$, giving most information about ${y}_{t}$ additionally to the information already contained in $\mathbf{v}{}_{\mathbf{t}}^{\mathbf{k}-\mathbf{1}}=[w{}_{t}^{1},\dots ,w{}_{t}^{k-1}]$. $w{}_{t}^{k}$ will be selected by a standard through calculating the maximum value of the conditional mutual information, $w{}_{t}^{k}={\mathrm{arg}\mathrm{max}}_{w\in {W}_{t}}I({y}_{t};w|\mathbf{v}{}_{\mathbf{t}}^{\mathbf{k}-\mathbf{1}})$, i.e., at the iteration $k=2$, $w{}_{t}^{2}={\mathrm{arg}\mathrm{max}}_{w\in {W}_{t}}I({y}_{t};w|\mathbf{v}{}_{\mathbf{t}}^{\mathbf{1}})$, where the CMI is calculated by the k-NNs estimator, and the mixed embedding vector is $\mathbf{v}{}_{\mathbf{t}}^{\mathbf{2}}=[w{}_{t}^{1},w{}_{t}^{2}]$. By using greedy forward method, each $w{}_{t}^{k}$ will be embedded in the already embedded vector $\mathbf{v}{}_{\mathbf{t}}^{\mathbf{k}-\mathbf{1}}$ until the process stops. The termination criterion is quantified as:$$I({y}_{t};\mathbf{v}{}_{\mathbf{t}}^{\mathbf{k}-\mathbf{1}})/I({y}_{t};\mathbf{v}{}_{\mathbf{t}}^{\mathbf{k}})>A,$$
- To calculate the causality strength of X on Y conditioned by the other variables in Z, the index is defined as$$R{}_{X\to Y|Z}=\frac{I({y}_{t};\mathbf{v}{}_{\mathbf{t}}^{\mathbf{x}}|\mathbf{v}{}_{\mathbf{t}}^{\mathbf{y}},\mathbf{v}{}_{\mathbf{t}}^{\mathbf{z}})}{I({y}_{t};\mathbf{v}{}_{\mathbf{t}})},$$

#### 2.2. The Proposed Method

#### 2.2.1. Low Dimensional Approximation of CMI

#### 2.2.2. Mixed Search Strategy

#### 2.2.3. LM-PMIME Method

- Initialize an empty embedding vector $\mathbf{v}{}_{\mathbf{t}}^{\mathbf{0}}=\varnothing $.
- At the first iteration k = 1, the embedding vector $w{}_{t}^{1}\in {W}_{t}$ is selected most related to ${y}_{t}$:$$w{}_{t}^{1}=\underset{w\in {W}_{t}}{\mathrm{arg}\mathrm{max}}I({y}_{t};w)$$Then we have $\mathbf{v}{}_{\mathbf{t}}^{\mathbf{1}}=\left[w{}_{t}^{1}\right]$.
- At the iteration $1<k\le m$, $w{}_{t}^{k}$ will be selected by a standard through calculating the maximum value of the low dimensional approximation of CMI.$$\begin{array}{c}\hfill w{}_{t}^{k}\phantom{\rule{-0.166667em}{0ex}}=\phantom{\rule{-0.166667em}{0ex}}\underset{w\in {W}_{t}}{\mathrm{arg}\mathrm{max}}I(w;{y}_{t})\phantom{\rule{-0.166667em}{0ex}}-\phantom{\rule{-0.166667em}{0ex}}\beta \sum _{{w}_{i}\in \mathbf{v}{}_{\mathbf{t}}^{\mathbf{k}-\mathbf{1}}}I(w;{w}_{i})\phantom{\rule{-0.166667em}{0ex}}+\phantom{\rule{-0.166667em}{0ex}}\gamma \sum _{{w}_{i}\in \mathbf{v}{}_{\mathbf{t}}^{\mathbf{k}-\mathbf{1}}}I(w;{w}_{i}|{y}_{t})\phantom{\rule{-0.166667em}{0ex}}-\phantom{\rule{-0.166667em}{0ex}}\delta \sum _{{w}_{i}^{}\in \mathbf{v}{}_{\mathbf{t}}^{\mathbf{k}-\mathbf{1}}}\sum _{{w}_{j}^{}\in \mathbf{v}{}_{\mathbf{t}}^{\mathbf{k}-\mathbf{1}};i\ne j}I(w;{w}_{j}|{w}_{i}),\end{array}$$
- At the iteration $k>m$, greedy strategy is used. Each $w{}_{t}^{k}$ will be embedded in the already embedded vector $\mathbf{v}{}_{\mathbf{t}}^{\mathbf{k}-\mathbf{1}}$ until the process stops. The standard of low dimensional approximation is still used before stopping.
- The termination criterion is quantified as:$$I({y}_{t};\mathbf{v}{}_{\mathbf{t}}^{\mathbf{k}-\mathbf{1}})/I({y}_{t};\mathbf{v}{}_{\mathbf{t}}^{\mathbf{k}})>A,$$
- To calculate the causality strength of X on Y conditioned by the other variables in Z, the index is defined as:$$R{}_{X\to Y|Z}=\frac{I({y}_{t};\mathbf{v}{}_{\mathbf{t}}^{\mathbf{x}}|\mathbf{v}{}_{\mathbf{t}}^{\mathbf{y}},\mathbf{v}{}_{\mathbf{t}}^{\mathbf{z}})}{I({y}_{t};\mathbf{v}{}_{\mathbf{t}})},$$

## 3. Simulation Study

#### 3.1. Linear Multivariate Stochastic Process

#### 3.2. Nonlinear Multivariate Stochastic Process

#### 3.3. Coupled Henon Maps

#### 3.4. Coupled Lorenz System

## 4. Application to Epilespy ECoG Signals

## 5. Discussion and Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Paluš, M.; Krakovská, A.; Jakubík, J.; Chvosteková, M. Causality, dynamical systems and the arrow of time. Chaos Interdiscip. J. Nonlinear Sci.
**2018**, 28, 075307. [Google Scholar] [CrossRef] [PubMed] - Krakovská, A.; Jakubík, J.; Chvosteková, M.; Coufal, D.; Jajcay, N.; Paluš, M. Comparison of six methods for the detection of causality in a bivariate time series. Phys. Rev. E
**2018**, 97, 042207. [Google Scholar] [CrossRef] [PubMed] - Paluš, M.; Komárek, V.; Hrnčíř, Z.; Štěrbová, K. Synchronization as adjustment of information rates: Detection from bivariate time series. Phys. Rev. E
**2001**, 63, 046211. [Google Scholar] [CrossRef] [PubMed][Green Version] - Granger, C.W.J. Investigating causal relations by econometric models and cross-spectral methods. Econometrica
**1969**, 424–438. [Google Scholar] [CrossRef] - Marko, H. The bidirectional communication theory–a generalization of information theory. IEEE Trans. Commun.
**1973**, 21, 1345–1351. [Google Scholar] [CrossRef] - Schreiber, T. Measuring information transfer. Phys. Rev. Lett.
**2000**, 85, 461. [Google Scholar] [CrossRef][Green Version] - Barnett, L.; Barrett, A.B.; Seth, A.K. Granger causality and transfer entropy are equivalent for Gaussian variables. Phys. Rev. Lett.
**2009**, 103, 238701. [Google Scholar] [CrossRef][Green Version] - Schindlerova, K. Equivalence of Granger Causality and Transfer Entropy: A Generalization. Appl. Mathem. Sci.
**2011**, 5, 3637–3648. [Google Scholar] - Mao, X.; Shang, P. Transfer entropy between multivariate time series. Commun. Nonlinear Sci. Numer. Simul.
**2017**, 47, 338–347. [Google Scholar] [CrossRef] - Montalto, A.; Stramaglia, S.; Faes, L.; Tessitore, G.; Prevete, R.; Marinazzo, D. Neural networks with non-uniform embedding and explicit validation phase to assess Granger causality. Neural Netw.
**2015**, 71, 159–171. [Google Scholar] [CrossRef][Green Version] - Faes, L.; Nollo, G.; Porta, A. Information-based detection of nonlinear Granger causality in multivariate processes via a nonuniform embedding technique. Phys. Rev. E
**2011**, 83, 051112. [Google Scholar] [CrossRef] [PubMed][Green Version] - Runge, J. Causal network reconstruction from time series: From theoretical assumptions to practical estimation. Chaos Interdiscip. J. Nonlinear Sci.
**2018**, 28, 075310. [Google Scholar] [CrossRef] [PubMed] - Zhao, X.; Sun, Y.; Li, X.; Shang, P. Multiscale transfer entropy: Measuring information transfer on multiple time scales. Commun. Nonlinear Sci. Numer. Simul.
**2018**, 62, 202–212. [Google Scholar] [CrossRef] - Sysoev, I.V.; Ponomarenko, V.I.; Pikovsky, A. Reconstruction of coupling architecture of neural field networks from vector time series. Commun. Nonlinear Sci. Numer. Simul.
**2018**, 57, 342–351. [Google Scholar] [CrossRef] - Vlachos, I.; Kugiumtzis, D. Nonuniform state-space reconstruction and coupling detection. Phys. Rev. E
**2010**, 82, 016207. [Google Scholar] [CrossRef][Green Version] - Kugiumtzis, D. Direct-coupling information measure from nonuniform embedding. Phys. Rev. E
**2013**, 87, 062918. [Google Scholar] [CrossRef][Green Version] - Kugiumtzis, D.; Koutlis, C.; Tsimpiris, A.; Kimiskidis, V.K. Dynamics of epileptiform discharges induced by transcranial magnetic stimulation in genetic generalized epilepsy. Int. J. Neural Syst.
**2017**, 27, 1750037. [Google Scholar] [CrossRef] - Kugiumtzis, D.; Kimiskidis, V.K. Direct causal networks for the study of transcranial magnetic stimulation effects on focal epileptiform discharges. Int. J. Neural Syst.
**2015**, 25, 1550006. [Google Scholar] [CrossRef] - Papana, A.; Kyrtsou, C.; Kugiumtzis, D.; Diks, C. Financial networks based on Granger causality: A case study. Physica A
**2017**, 482, 65–73. [Google Scholar] [CrossRef] - Papana, A.; Kyrtsou, C.; Kugiumtzis, D.; Diks, C. Assessment of resampling methods for causality testing: A note on the US inflation behavior. PLoS ONE
**2017**, 12, e0180852. [Google Scholar] [CrossRef][Green Version] - Runge, J.; Heitzig, J.; Petoukhov, V.; Kurths, J. Escaping the curse of dimensionality in estimating multivariate transfer entropy. Phys. Rev. Lett.
**2012**, 108, 258701. [Google Scholar] [CrossRef] [PubMed] - Runge, J.; Donner, R.V.; Kurths, J. Optimal model-free prediction from multivariate time series. Phys. Rev. E
**2015**, 91, 052909. [Google Scholar] [CrossRef] [PubMed][Green Version] - Brown, G.; Pocock, A.; Zhao, M.J.; Luján, M. Conditional likelihood maximisation: A unifying framework for information theoretic feature selection. J. Mach. Learn. Res.
**2012**, 13, 27–66. [Google Scholar] - Vinh, N.X.; Zhou, S.; Chan, J.; Bailey, J. Can high-order dependencies improve mutual information based feature selection? Pattern Recognit.
**2016**, 53, 46–58. [Google Scholar] [CrossRef][Green Version] - Battiti, R. Using mutual information for selecting features in supervised neural net learning. IEEE Trans. Neural Netw. Learn. Syst.
**1994**, 5, 537–550. [Google Scholar] [CrossRef][Green Version] - Yang, H.H.; Moody, J. Data visualization and feature selection: New algorithms for nongaussian data. NIPS
**2000**, 687–693. [Google Scholar] - Fleuret, F. Fast binary feature selection with conditional mutual information. J. Mach. Learn. Res.
**2004**, 5, 1531–1555. [Google Scholar] - Peng, H.; Long, F.; Ding, C. Feature selection based on mutual information criteria of max-dependency, max-relevance, and min-redundancy. IEEE Trans. Pattern Anal. Mach. Intell.
**2005**, 27, 1226–1238. [Google Scholar] [CrossRef] - Lin, D.; Tang, X. Conditional infomax learning: An integrated framework for feature extraction and fusion. ECCV
**2006**, 68–82. [Google Scholar] - Runge, J.; Nowack, P.; Kretschmer, M.; Flaxman, S.; Sejdinovic, D. Detecting causal associations in large nonlinear time series datasets. arXiv
**2017**, arXiv:1702.07007. [Google Scholar] [CrossRef][Green Version] - Meyer, P.E.; Bontempi, G. On the use of variable complementarity for feature selection in cancer classification. ECCV
**2006**, 91–102. [Google Scholar] - Montalto, A.; Faes, L.; Marinazzo, D. MuTE: A MATLAB toolbox to compare established and novel estimators of the multivariate transfer entropy. PLoS ONE
**2014**, 9, e109462. [Google Scholar] [CrossRef] [PubMed][Green Version] - Faes, L.; Kugiumtzis, D.; Nollo, G.; Jurysta, F.; Marinazzo, D. Estimating the decomposition of predictive information in multivariate systems. Phys. Rev. E
**2015**, 91, 032904. [Google Scholar] [CrossRef][Green Version] - Hacine-Gharbi, A.; Ravier, P.; Harba, R.; Mohamadi, T. Low bias histogram-based estimation of mutual information for feature selection. Pattern Recognit. Lett.
**2012**, 33, 1302–1308. [Google Scholar] [CrossRef] - Kwak, N.; Choi, C.H. Input feature selection by mutual information based on Parzen window. IEEE Trans. Pattern Anal. Mach. Intell.
**2002**, 12, 1667–1671. [Google Scholar] [CrossRef][Green Version] - Kraskov, A.; Stögbauer, H.; Grassberger, P. Estimating mutual information. Phys. Rev. E
**2004**, 69, 066138. [Google Scholar] [CrossRef][Green Version] - Schelter, B.; Winterhalder, M.; Hellwig, B.; Guschlbauer, B.; Lücking, C.H.; Timmer, J. Direct or indirect? Graphical models for neural oscillators. J. Physiol. Paris
**2006**, 99, 37–46. [Google Scholar] [CrossRef] - Gourévitch, B.; Le Bouquin-Jeannès, R.; Faucon, G. Linear and nonlinear causality between signals: Methods, examples and neurophysiological applications. Biol. Cybern.
**2006**, 95, 349–369. [Google Scholar] [CrossRef] - Kramer, M.A.; Kolaczyk, E.D.; Kirsch, H.E. Emergent network topology at seizure onset in humans. Epilepsy Res.
**2008**, 79, 173–186. [Google Scholar] [CrossRef] - Marinazzo, D.; Pellicoro, M.; Stramaglia, S. Kernel method for nonlinear Granger causality. Phys. Rev. Lett.
**2008**, 100, 144103. [Google Scholar] [CrossRef][Green Version] - Faes, L.; Marinazzo, D.; Stramaglia, S. Multiscale information decomposition: Exact computation for multivariate Gaussian processes. Entropy
**2017**, 19, 408. [Google Scholar] [CrossRef][Green Version] - Porta, A.; Faes, L. Wiener–Granger causality in network physiology with applications to cardiovascular control and neuroscience. Proc. IEEE
**2016**, 104, 282–309. [Google Scholar] [CrossRef] - Sun, J.; Taylor, D.; Bollt, E.M. Causal network inference by optimal causation entropy. SIAM J. Appl. Dyn. Syst.
**2015**, 14, 73–106. [Google Scholar] [CrossRef][Green Version]

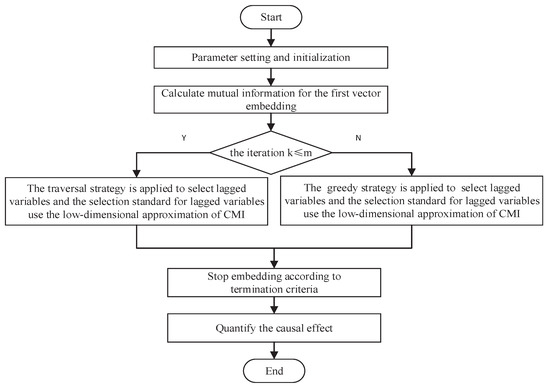

**Figure 1.**The flowchart of the low-dimensional approximation of CMI and the mixed search strategy(LM)-partial conditional mutual information from mixed embedding (PMIME) method.

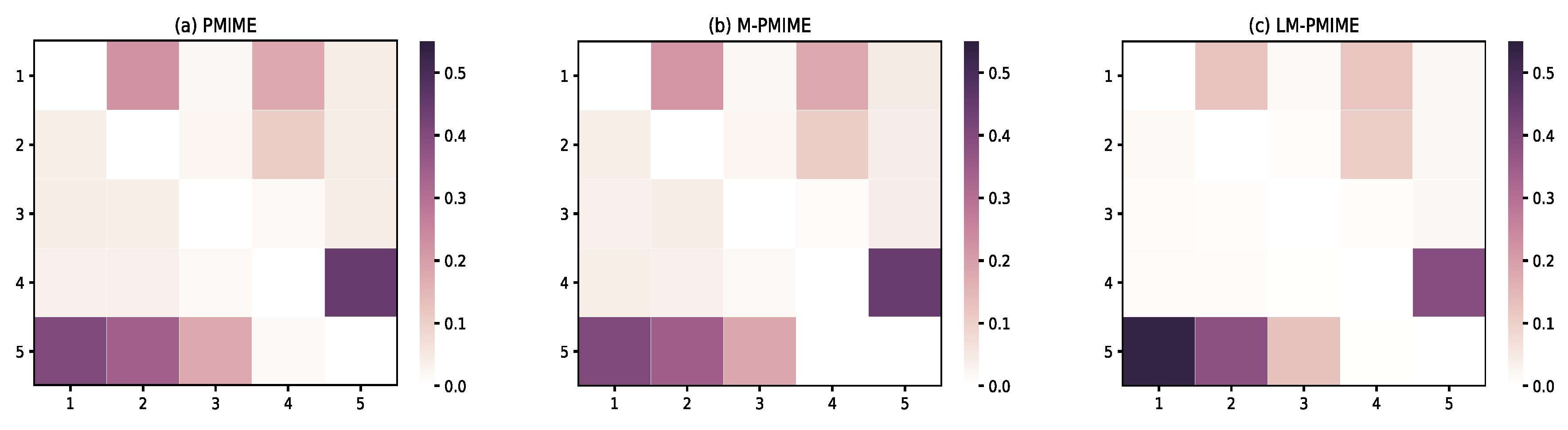

**Figure 2.**Matrix representation of causality for the linear vector autoregressive (VAR) process. Retrieved by (

**a**) traditional PMIME method, (

**b**) mixed search strategy (M)-PMIME method, (

**c**) and LM-PMIME method with k-nearest neighbors (k-NNs) estimator. The length of the time series is 512. $m=2$ is used for the M-PMIME method and the LM-PMIME method. The remaining parameters of the three methods are the same ($L=6,A=0.97$). Color maps for the mean values of coupling measurements are obtained from 100 realizations of the linear VAR process. The direction of causal influence is from row to column in the matrix. The true causal connections in this linear VAR process are at the matrix elements (1, 2), (1, 4), (2, 4), (4, 5), (5, 1), (5, 2) and (5, 3).

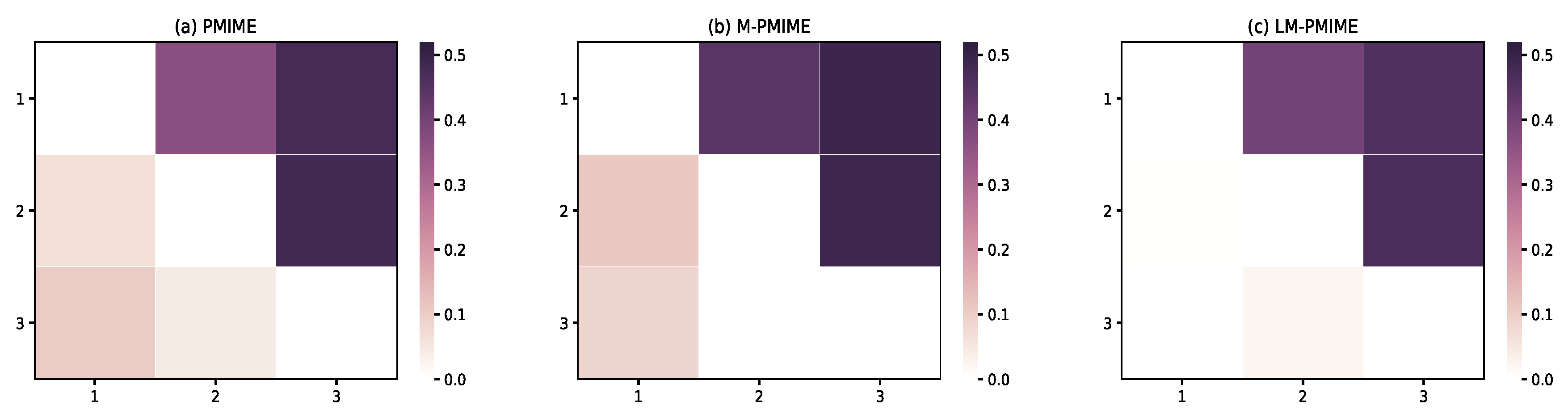

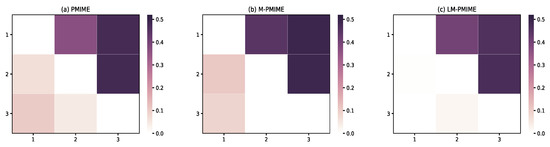

**Figure 3.**Matrix representation of causality for ${\mathrm{NLVAR}}_{3}\left(1\right)$. Retrieved by (

**a**) traditional PMIME method, (

**b**) M-PMIME method, (

**c**) and LM-PMIME method with k-NNs estimator. The time series length is 512. $m=3$ is used for the M-PMIME method and the LM-PMIME method. The remaining parameters of the three methods are the same ($L=6$, $A=0.97$). Color maps for the mean values of coupling measurements are obtained from 100 realizations of ${\mathrm{NLVAR}}_{3}\left(1\right)$. The true causal connections in ${\mathrm{NLVAR}}_{3}\left(1\right)$ are at the matrix elements (1,2), (1,3), (2,3).

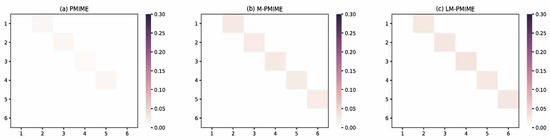

**Figure 4.**Matrix representation of causality for $K=6$ variables of the coupled Henon maps ($C=0.1$). Retrieved by (

**a**) traditional PMIME method, (

**b**) M-PMIME method, (

**c**) and LM-PMIME method with k-NNs estimator. The time series length is 1024. $m=2$ is used for the M-PMIME method and the LM-PMIME method. The remaining parameters of the three methods are the same ($L=5$, $A=0.95$). Color maps for the mean values of coupling measurements are obtained from 100 realizations of the coupled Henon maps. The true causal connections in the coupled Henon maps are at the matrix elements ($i-1,i$), where $i=2,\cdots \phantom{\rule{4pt}{0ex}},6$.

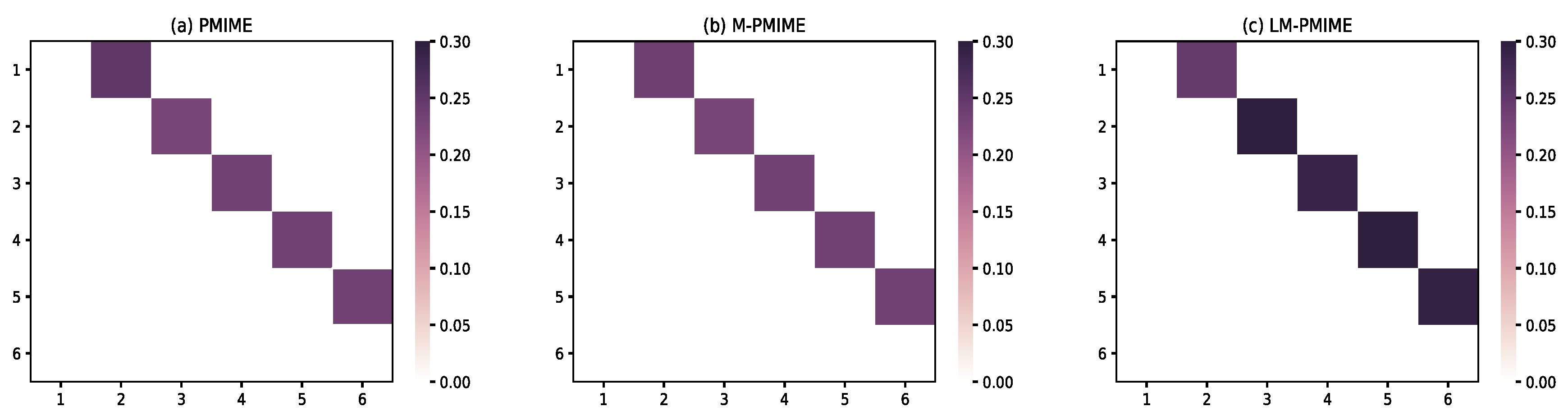

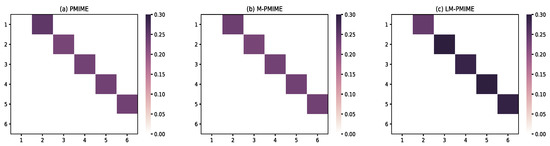

**Figure 5.**Matrix representation of causality for $K=6$ variables of the coupled Henon maps ($C=0.3$). Retrieved by (

**a**) traditional PMIME method, (

**b**) M-PMIME method, (

**c**) and LM-PMIME method with k-NNs estimator. The time series length is 1024. $m=2$ is used for the M-PMIME method and the LM-PMIME method. The remaining parameters of the three methods are the same ($L=5$, $A=0.95$). Color maps for the mean values of coupling measurements are obtained from 100 realizations of the coupled Henon maps. The true causal connections in the coupled Henon maps are at the matrix elements ($i-1,i$), where $i=2,\cdots \phantom{\rule{4pt}{0ex}},6$.

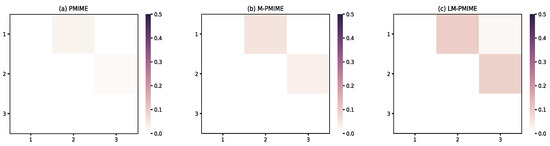

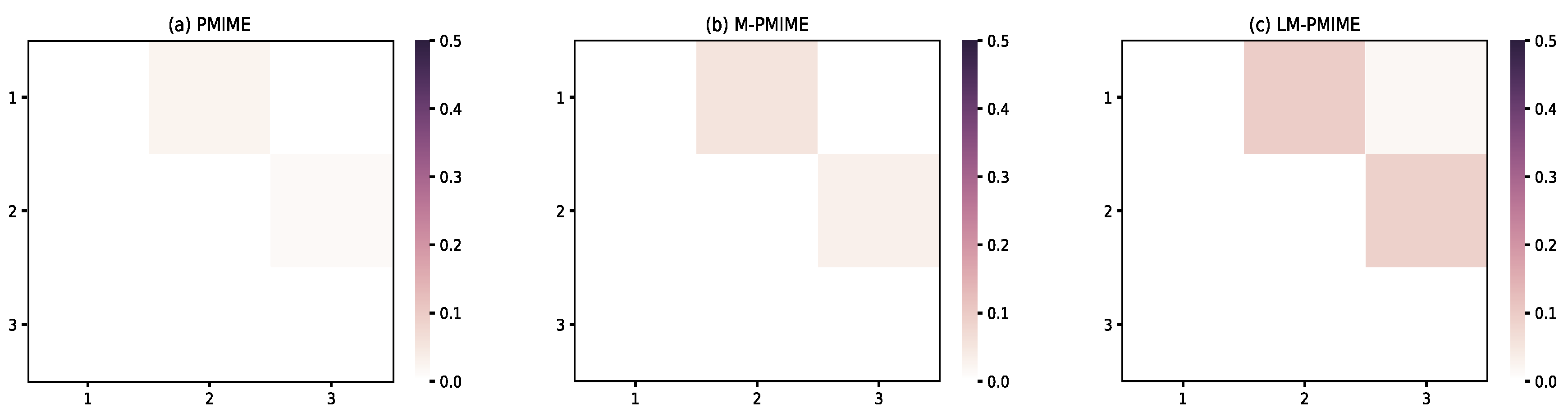

**Figure 6.**Matrix representation of causality for the three coupled Lorenz oscillators. Retrieved by (

**a**) traditional PMIME method, (

**b**) M-PMIME method, (

**c**) and LM-PMIME method with k-NNs estimator. The length of the time series is 512 with coupling strength $C=3$. $m=3$ is used for the M-PMIME method and the LM-PMIME method. The remaining parameters of the three methods are the same ($L=5$, $A=0.95$). Color maps for the mean values of coupling measurements are obtained from 100 realizations of the three coupled Lorenz oscillators. The true causal connections in the three coupled Lorenz oscillators are at the matrix elements ($i-1,i$), where $i=2,3$.

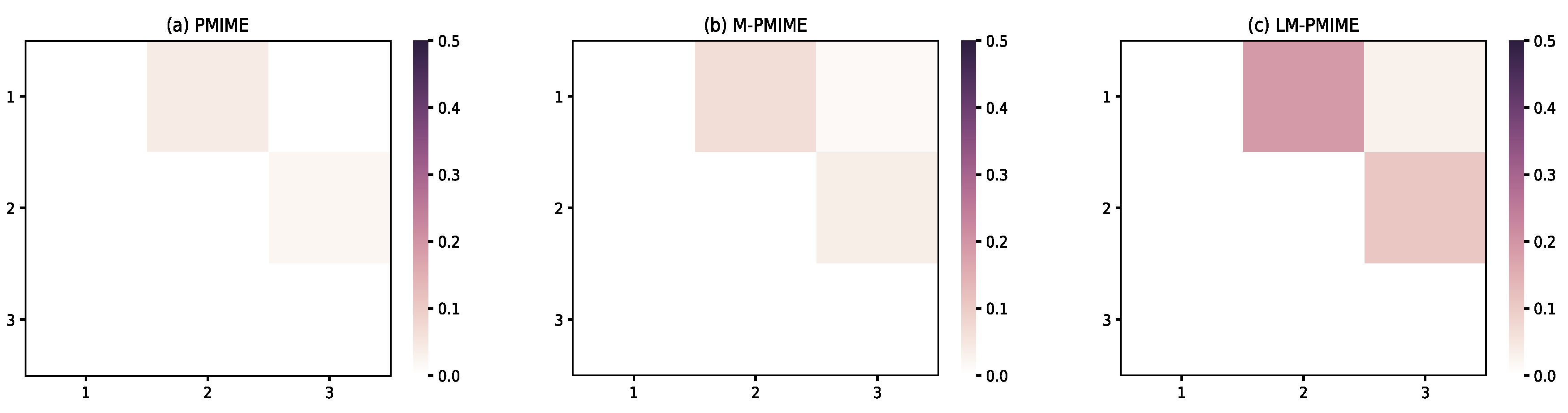

**Figure 7.**Matrix representation of causality for the three coupled Lorenz oscillators. Retrieved by (

**a**) traditional PMIME method, (

**b**) M-PMIME method, (

**c**) and LM-PMIME method with k-NNs estimator. The length of the time series is 512 with coupling strength $C=5$. $m=3$ is used for the M-PMIME method and the LM-PMIME method. The remaining parameters of the three methods are the same ($L=5$, $A=0.95$). Color maps for the mean values of coupling measurements are obtained from 100 realizations of the three coupled Lorenz oscillators. The direction of causal influence is from row to column in the matrix. The true causal connections in the three coupled Lorenz oscillators are at the matrix elements ($i-1,i$), where $i=2,3$.

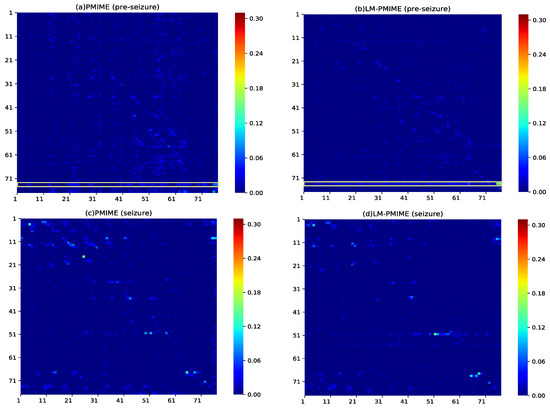

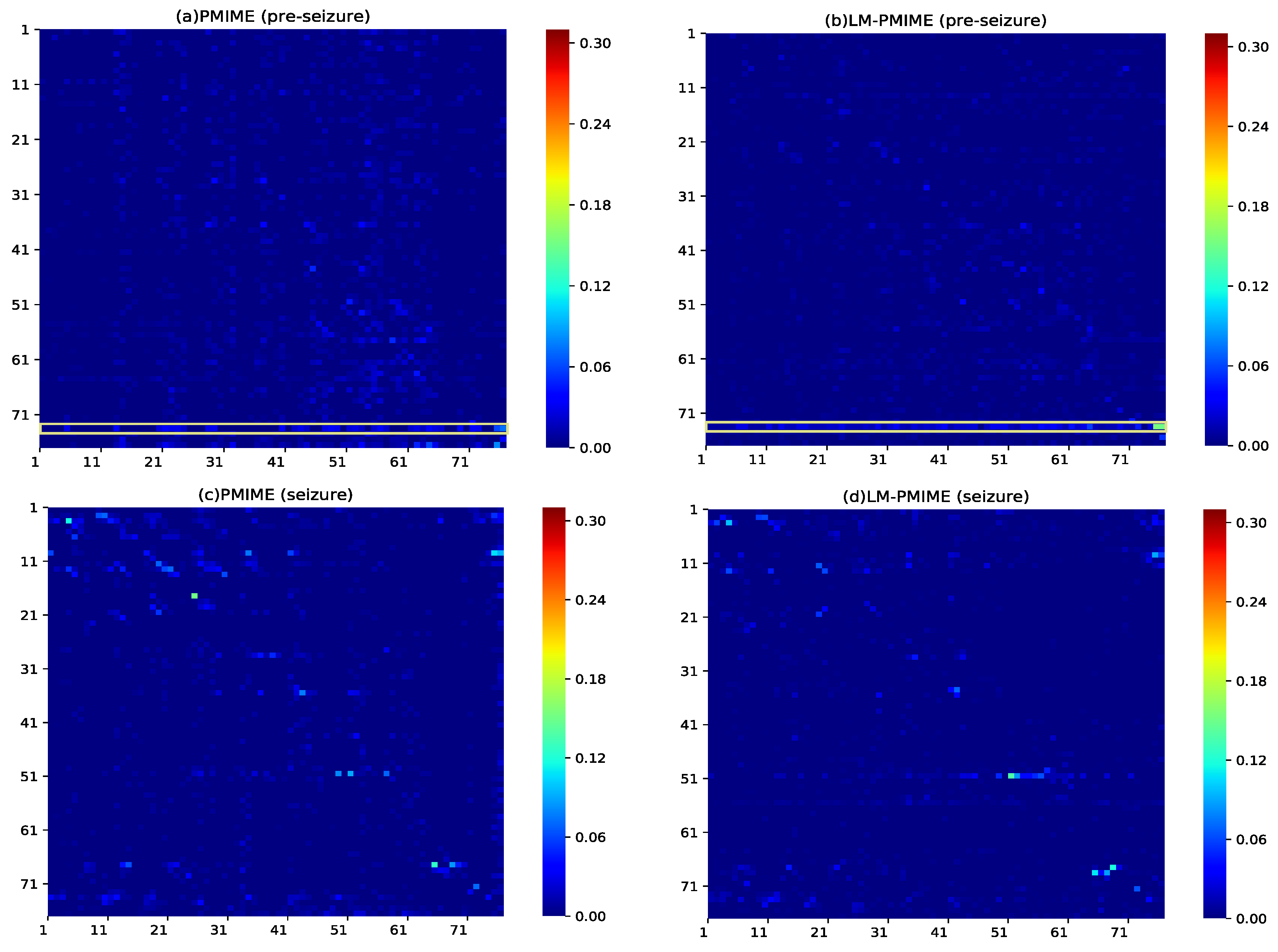

**Figure 8.**Results for multivariate electrocorticographic (ECoG) data. Matrices of causalities reflect the pre-seizure state (

**top**) and the seizure state (

**bottom**)) estimated by the PMIME method and the LM-PMIME method. The causal strengths are averaged (the mean values of the coupling measurements over all epochs in the same physiological state). Contacts 1 to 64 belong to an eight-by-eight electrode grid, and contacts 65 to 76 belong to two depth electrodes. The direction of causal influence is from row to column in the matrices. The brighter colors indicate more significant values. The key contact is marked by a rectangular box. The parameter $A=0.95$ and $m=2$ are set for the different methods.

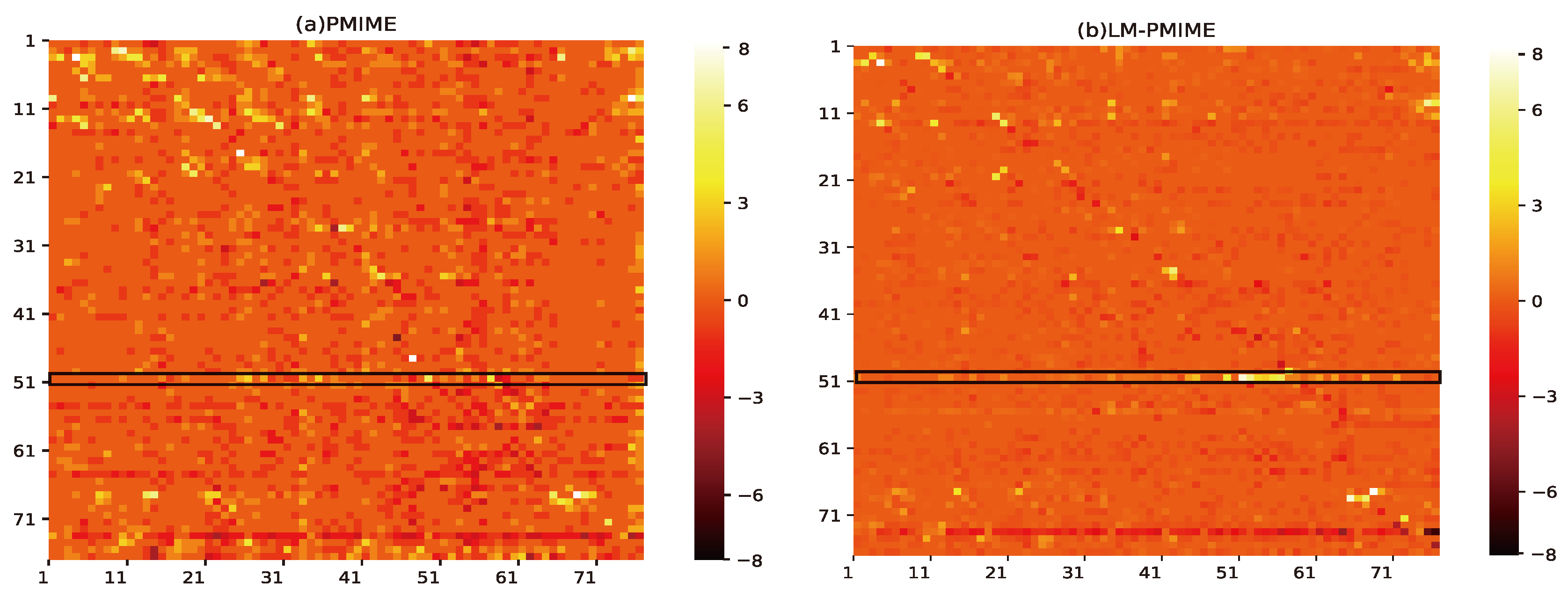

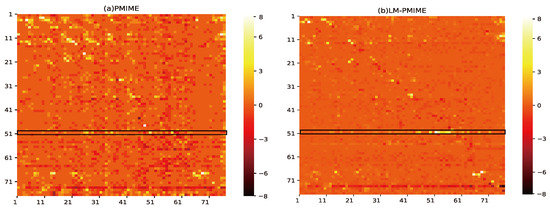

**Figure 9.**Results for multivariate ECoG data. Matrices reflect the difference of total numbers of significant connections between the seizure state and the pre-seizure state (seizure minus pre-seizure). The numbers are respectively summed from 8 seizure epochs and eight pre-seizure epochs. Contacts 1 to 64 belong to an eight-by-eight electrode grid, and contacts 65 to 76 belong to two depth electrodes. The brighter colors indicate more significant values. The key contact is marked by a rectangular box. The parameter $A=0.95$ and $m=2$ are set for the different methods.

**Table 1.**Evaluation indicators are obtained from 100 realizations of linear VAR process with varying time series length for the three different methods. $A=0.97$ and $L=6$ are the parameters common to the three methods. In addition, the LM-PMIME method and the M-PMIME method use the parameter $m=2$.

Sensitivity | Specificity | F1 Score | |
---|---|---|---|

$n=256$ | |||

PMIME | $0.988$ | $0.492$ | $0.600$ |

M-PMIME | $0.989$ | $0.481$ | $0.596$ |

LM-PMIME | $0.797$ | $0.741$ | $0.647$ |

$n=512$ | |||

PMIME | $1.000$ | $0.567$ | $0.643$ |

M-PMIME | $0.994$ | $0.727$ | $0.645$ |

LM-PMIME | $0.855$ | $0.763$ | $0.693$ |

$n=1024$ | |||

PMIME | $1.000$ | $0.697$ | $0.719$ |

M-PMIME | $0.940$ | $0.729$ | $0.713$ |

LM-PMIME | $0.877$ | $0.807$ | $0.739$ |

**Table 2.**Evaluation indicators are obtained from 100 realizations of ${\mathrm{NLVAR}}_{3}\left(1\right)$ with varying time series length for the three different methods. $A=0.97$ and $L=6$ are the parameters common to the three methods. In addition, the LM-PMIME method and the M-PMIME method use the parameter $m=3$.

Sensitivity | Specificity | F1 Score | |
---|---|---|---|

$n=256$ | |||

PMIME | $0.973$ | $0.650$ | $0.737$ |

M-PMIME | $0.976$ | $0.615$ | $0.712$ |

LM-PMIME | $0.860$ | $0.844$ | $0.792$ |

$n=512$ | |||

PMIME | $1.000$ | $0.681$ | $0.758$ |

M-PMIME | $1.000$ | $0.662$ | $0.748$ |

LM-PMIME | $0.950$ | $0.887$ | $0.873$ |

$n=1024$ | |||

PMIME | $1.000$ | $0.860$ | $0.877$ |

M-PMIME | $1.000$ | $0.790$ | $0.827$ |

LM-PMIME | $0.989$ | $0.892$ | $0.896$ |

**Table 3.**Evaluation indicators are obtained from 100 realizations of K variables of the Henon maps ($C=0.1$) for the three different methods. $A=0.95$ and $L=5$ are the parameters common to the three methods. In addition, the LM-PMIME method and the M-PMIME method use the parameter $m=2$.

Sensitivity | Specificity | F1 Score | |
---|---|---|---|

$K=3$ | |||

PMIME | $0.175$ | $1.000$ | $0.297$ |

M-PMIME | $0.715$ | $1.000$ | $0.834$ |

LM-PMIME | $0.945$ | $1.000$ | $0.972$ |

$K=6$ | |||

PMIME | $0.217$ | $1.000$ | $0.357$ |

M-PMIME | $0.674$ | $1.000$ | $0.806$ |

LM-PMIME | $0.926$ | $0.998$ | $0.950$ |

$K=9$ | |||

PMIME | $0.204$ | $1.000$ | $0.338$ |

M-PMIME | $0.700$ | $1.000$ | $0.824$ |

LM-PMIME | $0.895$ | $0.998$ | $0.904$ |

**Table 4.**Evaluation indicators are obtained from 100 realizations of K variables of the Henon maps ($C=0.3$) for the three different methods. $A=0.95$ and $L=5$ are the parameters common to the three methods. In addition, the LM-PMIME method and the M-PMIME method use the parameter $m=2$.

Sensitivity | Specificity | F1 Score | |
---|---|---|---|

$K=3$ | |||

PMIME | $1.000$ | $1.000$ | $1.000$ |

M-PMIME | $1.000$ | $1.000$ | $1.000$ |

LM-PMIME | $1.000$ | $1.000$ | $1.000$ |

$K=6$ | |||

PMIME | $1.000$ | $1.000$ | $1.000$ |

M-PMIME | $1.000$ | $1.000$ | $1.000$ |

LM-PMIME | $1.000$ | $1.000$ | $1.000$ |

$K=9$ | |||

PMIME | $1.000$ | $1.000$ | $1.000$ |

M-PMIME | $1.000$ | $1.000$ | $1.000$ |

LM-PMIME | $1.000$ | $1.000$ | $1.000$ |

**Table 5.**Evaluation indicators are obtained from 100 realizations of the three coupled Lorenz oscillators ($C=3$) with varying time series length for the three different methods. $A=0.95$ and $L=5$ are the parameters common to the three methods. In addition, the LM-PMIME method and the M-PMIME method use the parameter $m=3$.

Sensitivity | Specificity | F1 Score | |
---|---|---|---|

$n=256$ | |||

PMIME | $0.225$ | $0.997$ | $0.364$ |

M-PMIME | $0.660$ | $0.863$ | $0.617$ |

LM-PMIME | $0.805$ | $0.665$ | $0.541$ |

$n=512$ | |||

PMIME | $0.185$ | $1.000$ | $0.312$ |

M-PMIME | $0.640$ | $0.913$ | $0.658$ |

LM-PMIME | $0.875$ | $0.743$ | $0.631$ |

$n=1024$ | |||

PMIME | $0.175$ | $1.000$ | $0.297$ |

M-PMIME | $0.670$ | $0.909$ | $0.674$ |

LM-PMIME | $0.970$ | $0.756$ | $0.687$ |

**Table 6.**Evaluation indicators are obtained from 100 realizations of the three coupled Lorenz oscillators ($n=512$) with coupling strength C from 1 to 5 for the three different methods. $A=0.95$ and $L=5$ are the parameters common to the three methods. In addition, the LM-PMIME method and the M-PMIME method use the parameter $m=3$.

Sensitivity | Specificity | F1 Score | |
---|---|---|---|

$C=1$ | |||

PMIME | $0.000$ | $1.000$ | $0.000$ |

M-PMIME | $0.155$ | $0.926$ | $0.221$ |

LM-PMIME | $0.375$ | $0.830$ | $0.381$ |

$C=2$ | |||

PMIME | $0.075$ | $1.000$ | $0.141$ |

M-PMIME | $0.565$ | $0.893$ | $0.583$ |

LM-PMIME | $0.825$ | $0.765$ | $0.623$ |

$C=3$ | |||

PMIME | $0.185$ | $1.000$ | $0.312$ |

M-PMIME | $0.640$ | $0.913$ | $0.658$ |

LM-PMIME | $0.875$ | $0.743$ | $0.631$ |

$C=4$ | |||

PMIME | $0.260$ | $1.000$ | $0.413$ |

M-PMIME | $0.740$ | $0.892$ | $0.698$ |

LM-PMIME | $0.920$ | $0.710$ | $0.627$ |

$C=5$ | |||

PMIME | $0.320$ | $0.997$ | $0.481$ |

M-PMIME | $0.725$ | $0.873$ | $0.660$ |

LM-PMIME | $0.960$ | $0.731$ | $0.661$ |
