Next Article in Journal / Special Issue
The Effect of Scandium Ternary Intergrain Precipitates in Al-Containing High-Entropy Alloys
Previous Article in Journal
Quantification and Analysis of the Irreversible Flow Loss in a Linear Compressor Cascade
Previous Article in Special Issue
Al-Ti-Containing Lightweight High-Entropy Alloys for Intermediate Temperature Applications
Open AccessArticle

Effect of Co and Gd Additions on Microstructures and Properties of FeSiBAlNi High Entropy Alloys

School of Materials Science and Engineering, University of Jinan, Jinan 250022, China
*
Author to whom correspondence should be addressed.
Entropy 2018, 20(7), 487; https://doi.org/10.3390/e20070487
Received: 10 April 2018 / Revised: 18 June 2018 / Accepted: 19 June 2018 / Published: 22 June 2018
(This article belongs to the Special Issue New Advances in High-Entropy Alloys)

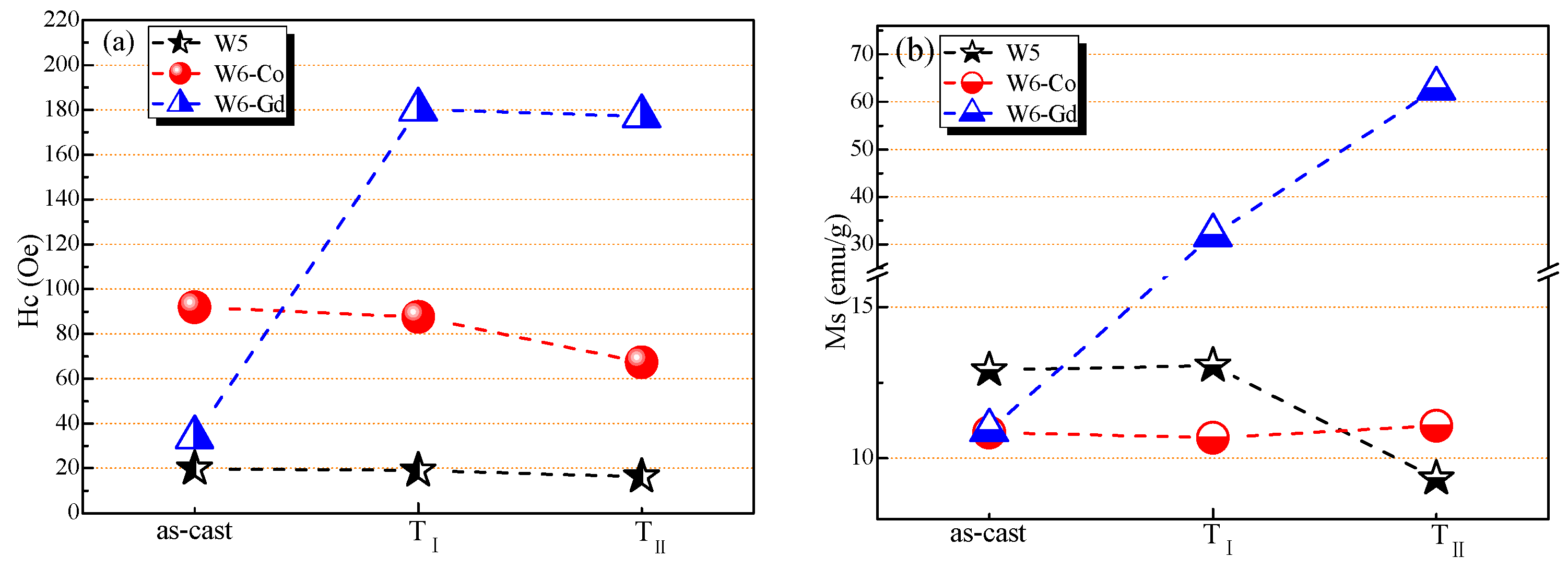

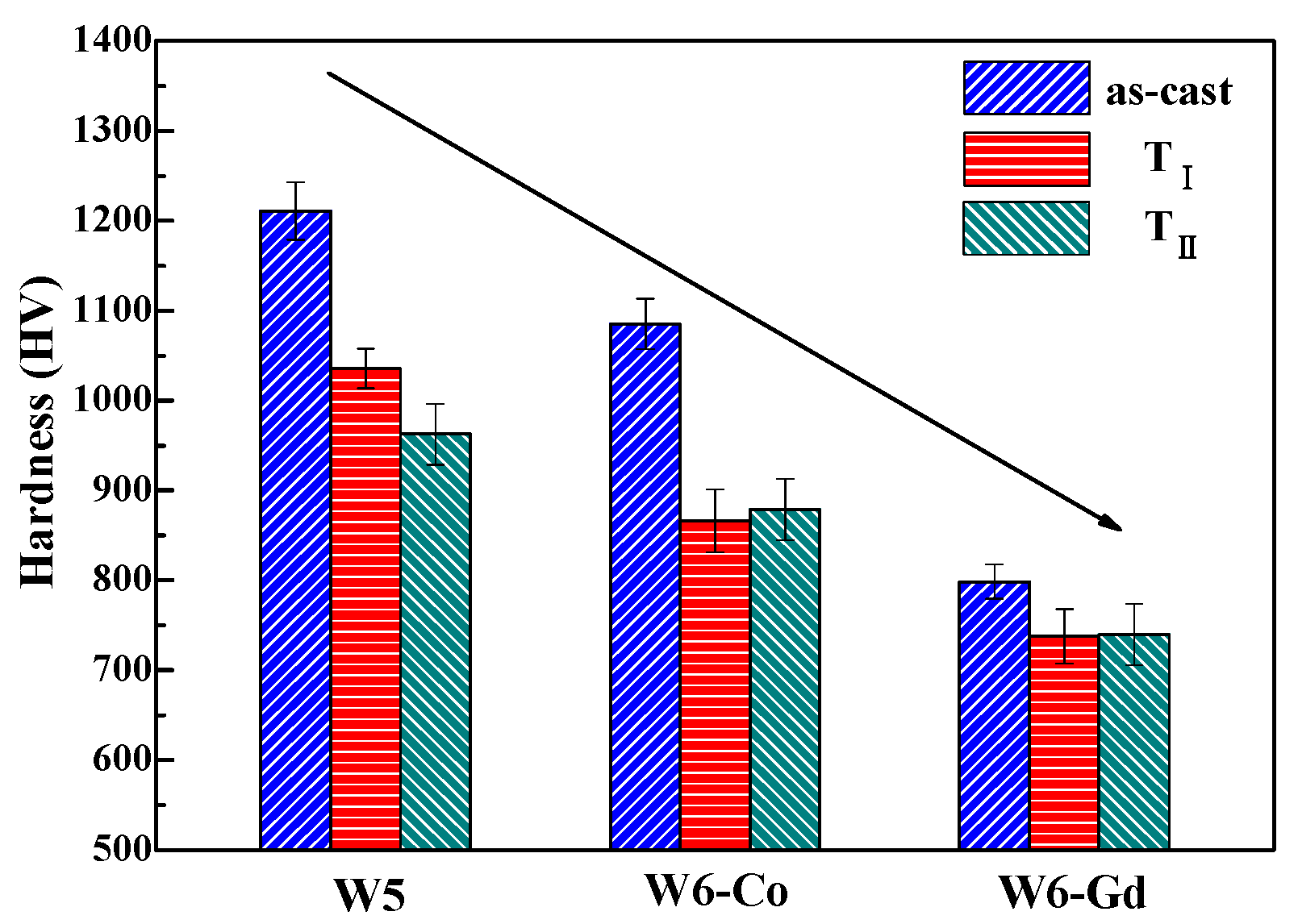

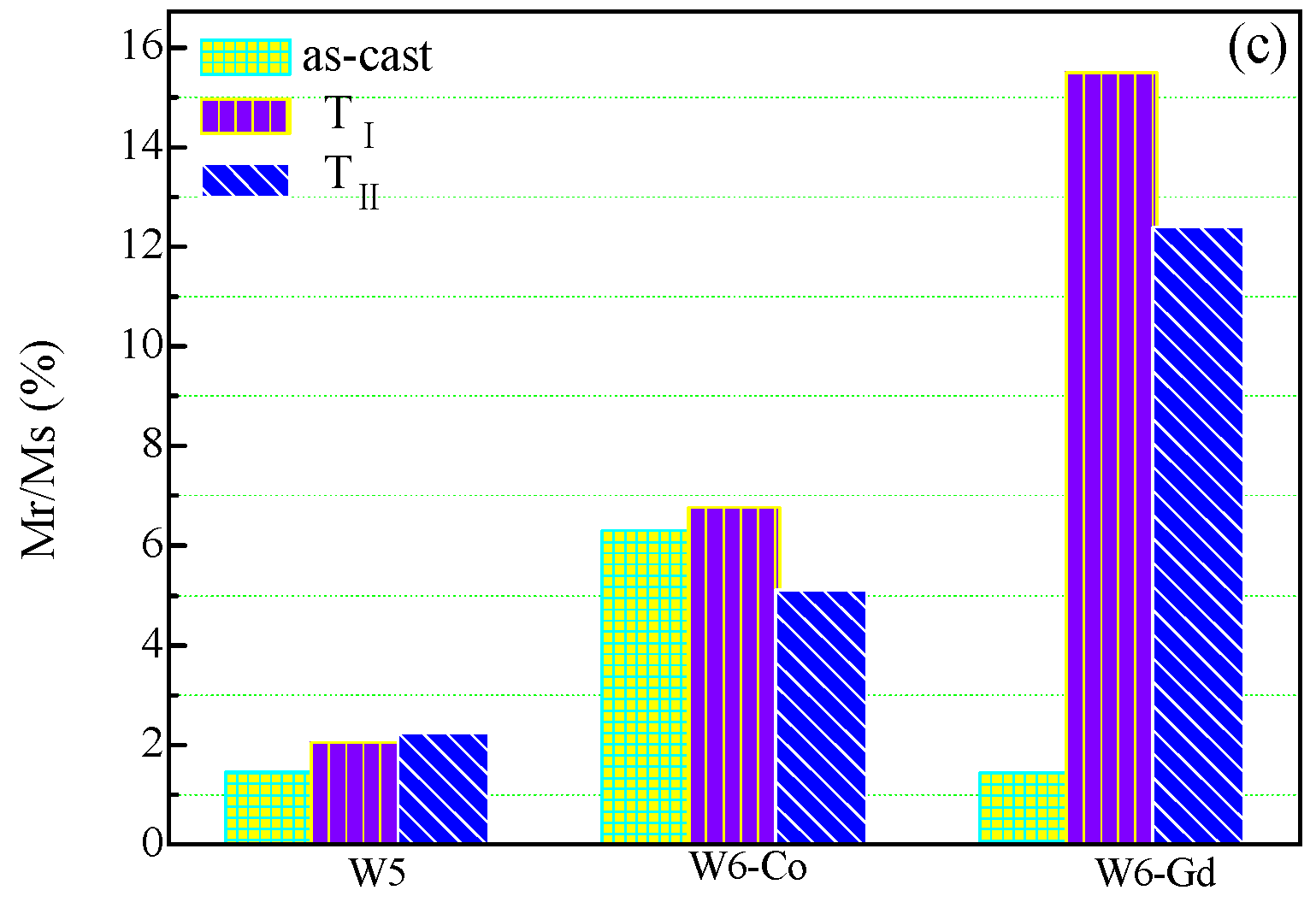

FeSiBAlNi (W5), FeSiBAlNiCo (W6-Co), and FeSiBAlNiGd (W6-Gd) high entropy alloys (HEAs) were prepared using a copper-mold casting method. Effects of Co and Gd additions combined with subsequent annealing on microstructures and magnetism were investigated. The as-cast W5 consists of BCC solid solution and FeSi-rich phase. The Gd addition induces the formation of body-centered cubic (BCC) and face-centered cubic (FCC) solid solutions for W6-Gd HEAs. Whereas, the as-cast W6-Co is composed of the FeSi-rich phase. During annealing, no new phases arise in the W6-Co HEA, indicating a good phase stability. The as-cast W5 has the highest hardness (1210 HV), which is mainly attributed to the strengthening effect of FeSi-rich phase evenly distributed in the solid solution matrix. The tested FeSiBAlNi-based HEAs possess soft magnetism. The saturated magnetization and remanence ratio of W6-Gd are distinctly enhanced from 10.93 emu/g to 62.78 emu/g and from 1.44% to 15.50% after the annealing treatment, respectively. The good magnetism of the as-annealed W6-Gd can be ascribed to the formation of Gd-oxides. View Full-Text
Keywords: high entropy alloys; elemental addition; annealing treatment; magnetic property; microhardness high entropy alloys; elemental addition; annealing treatment; magnetic property; microhardness
Show Figures

Figure 1

MDPI and ACS Style

Zhai, S.; Wang, W.; Xu, J.; Xu, S.; Zhang, Z.; Wang, Y. Effect of Co and Gd Additions on Microstructures and Properties of FeSiBAlNi High Entropy Alloys. Entropy 2018, 20, 487.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
