# Entropy Generation Analysis and Natural Convection in a Nanofluid-Filled Square Cavity with a Concentric Solid Insert and Different Temperature Distributions

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Mathematical Formulation

## 3. Numerical Method and Validation

## 4. Results and Discussion

## 5. Conclusions

- The inner solid insertion tends to influence the flow behavior: temperature distribution and local entropy generation affected by the resistance due to the conductive heat transfer in the solid inner square.
- A very strong enhancement is observed on the heat transfer rate with the increasing of Rayleigh number from ${10}^{4}$ to ${10}^{5}$ as compared to the other values. This is due to a significant increment of the buoyancy forces compared to the viscous forces in this range of Rayleigh number.
- The thermal property and the size of the inner solid square significantly influenced the rate of the heat transfer. A larger solid insert inhibits the convective heat transfer within the square cavity, as well as a low thermal conductivity of the solid insert. Furthermore, the higher thermal conductivity of the solid insert tends to increase the heat transfer rate.
- The global entropy generation increases with the augmentation of the Rayleigh number, while a counteractive behavior was observed on average Bejan number. As Rayleigh number rises, the average Bejan number tends to reduce.
- The global entropy generation is a decreasing function of the size of the inner solid for the case of intensive convection regime ($Ra\ge {10}^{5}$), while average Bejan number is an increasing function of the size of the inner solid of the same regime.
- A larger solid insert with a high thermal resistance inhibits the global entropy generation. However, the global entropy generation is strong at the higher nanoparticles volume fraction. Whereas a relatively bigger solid insert leads to a positive influence on the average Bejan number.
- Some other directions in future work could include non-Newtonian fluids, three dimensional problems and non-uniform heating. Including the non-Darcy effect in the formulation of the porous medium problem is also a considerable future work.

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Nomenclature

$Be$ | Bejan number |

${C}_{p}$ | specific heat capacity |

${d}_{bf}$ | equivalent diameter of the a molecule of base fluid |

g | gravitational accleration |

GEG | Dimensionless global entropy generation |

k | thermal conductivity |

${K}_{r}$ | square wall to base fluid thermal conductivity ratio, ${K}_{r}={k}_{w}/{k}_{bf}$ |

L | width and height of enclosure |

d | width and height of inner solid square |

D | ratio of the length of the inner solid to that of the outer hollow, $D=d/L$ |

${N}_{\mu}$ | irreversibility distribution ratio |

$\overline{Nu}$ | average Nusselt number |

Pr | Prandtl number |

$Ra$ | Rayleigh number |

${S}_{gen}$ | Entropy generation rate |

${S}_{GEN}$ | Dimensionless entropy generation rate |

${S}_{\theta}$ | dimensionless entropy generation due to heat transfer irreversibility |

${S}_{\Psi}$ | dimensionless entropy generation nanofluid friction irreversibility |

T | temperature |

${T}_{0}$ | reference temperature (293K) |

u, v | velocity components in the x-direction and y-direction |

U, V | dimensionless velocity components in the X-direction and Y-direction |

x, y and X, Y | space coordinatesand dimensionless space coordinates |

Greek symbols | |

$\alpha $ | thermal diffusivity |

$\beta $ | thermal expansion coefficient |

$\theta $ | dimensionless temperature |

$\mu $ | dynamic viscosity |

$\nu $ | kinematic viscosity |

$\rho $ | density |

$\varphi $ | solid volume fraction |

$\psi \phantom{\rule{0.222222em}{0ex}}\mathrm{and}\phantom{\rule{0.222222em}{0ex}}\Psi $ | stream function and dimensionless stream function |

$\omega \phantom{\rule{0.222222em}{0ex}}\mathrm{and}\phantom{\rule{0.222222em}{0ex}}\Omega $ | vorticity and dimensionless vorticity |

Subscripts | |

c | cold |

$bf$ | base fluid |

h | hot |

$nf$ | nanofluid |

$sp$ | solid nanoparticles |

w | inner solid wall |

## References

- Khanafer, K.; Vafai, K.; Lightstone, M. Buoyancy-driven heat transfer enhancement in a two-dimensional enclosure utilizing nanofluids. Int. J. Heat Mass Transf.
**2003**, 46, 3639–3653. [Google Scholar] [CrossRef] - Jou, R.Y.; Tzeng, S.C. Numerical research of nature convective heat transfer enhancement filled with nanofluids in rectangular enclosures. Int. Commun. Heat Mass Transf.
**2006**, 33, 727–736. [Google Scholar] [CrossRef] - Santra, A.K.; Sen, S.; Chakraborty, N. Study of heat transfer augmentation in a differentially heated square cavity using copper-water nanofluid. Int. J. Therm. Sci.
**2008**, 47, 1113–1122. [Google Scholar] [CrossRef] - Alloui, Z.; Vasseur, P.; Reggio, M. Natural convection of nanofluids in a shallow cavity heated from below. Int. J. Therm. Sci.
**2011**, 50, 385–393. [Google Scholar] [CrossRef] - Öztop, H.F.; Estellé, P.; Yan, W.M.; Al-Salem, K.; Orfi, J.; Mahian, O. A brief review of natural convection in enclosures under localized heating with and without nanofluids. Int. Commun. Heat Mass Transf.
**2015**, 60, 37–44. [Google Scholar] [CrossRef] - Xiao, B.; Wang, W.; Fan, J.; Chen, H.; Hu, X.; Zhao, D.; Zhang, X.; Ren, W. Optimization of the fractal-like architecture of porous fibrous materials related to permeability, diffusivity and thermal conductivity. Fractals
**2017**, 25, 1750030. [Google Scholar] [CrossRef] - Alsabery, A.I.; Hashim, I.; Chamkha, A.J.; Saleh, H.; Chanane, B. Effect of spatial side-wall temperature variation on transient natural convection of a nanofluid in a trapezoidal cavity. Int. J. Numer. Methods Heat Fluid Flow
**2017**, 27, 1365–1384. [Google Scholar] [CrossRef] - Xiao, B.; Chen, H.; Xiao, S.; Cai, J. Research on relative permeability of nanofibers with capillary pressure effect by means of Fractal-Monte Carlo technique. J. Nanosci. Nanotechnol.
**2017**, 17, 6811–6817. [Google Scholar] [CrossRef] - Long, G.; Xu, G. The Effects of Perforation Erosion on Practical Hydraulic-Fracturing Applications. SPE J.
**2017**, 22, 645–659. [Google Scholar] [CrossRef] - Xiao, B.; Zhang, X.; Wang, W.; Long, G.; Chen, H.; Kang, H.; Ren, W. A fractal model for water flow through unsaturated porous rocks. Fractals
**2018**, 26, 1840015. [Google Scholar] [CrossRef] - House, J.M.; Beckermann, C.; Smith, T.F. Effect of a centered conducting body on natural convection heat transfer in an enclosure. Numer. Heat Transf.
**1990**, 18, 213–225. [Google Scholar] [CrossRef] - Ha, M.Y.; Jung, M.J.; Kim, Y.S. Numerical study on transient heat transfer and fluid flow of natural convection in an enclosure with a heat-generating conducting body. Numer. Heat Transf. Part Appl.
**1999**, 35, 415–433. [Google Scholar] - Mahmoodi, M.; Sebdani, S.M. Natural convection in a square cavity containing a nanofluid and an adiabatic square block at the center. Superlattices Microstruct.
**2012**, 52, 261–275. [Google Scholar] [CrossRef] - Alsabery, A.; Siddheshwar, P.; Saleh, H.; Hashim, I. Transient free convective heat transfer in nanoliquid-saturated porous square cavity with a concentric solid insert and sinusoidal boundary condition. Superlattices Microstruct.
**2016**, 100, 1006–1028. [Google Scholar] [CrossRef] - Mehmood, K.; Hussain, S.; Sagheer, M. Mixed convection in alumina-water nanofluid filled lid-driven square cavity with an isothermally heated square blockage inside with magnetic field effect: Introduction. Int. J. Heat Mass Transf.
**2017**, 109, 397–409. [Google Scholar] [CrossRef] - Kaluri, R.S.; Basak, T. Role of entropy generation on thermal management during natural convection in porous square cavities with distributed heat sources. Chem. Eng. Sci.
**2011**, 66, 2124–2140. [Google Scholar] [CrossRef] - Mahapatra, P.S.; De, S.; Ghosh, K.; Manna, N.K.; Mukhopadhyay, A. Heat transfer enhancement and entropy generation in a square enclosure in the presence of adiabatic and isothermal blocks. Numer. Heat Transf. Part Appl.
**2013**, 64, 577–596. [Google Scholar] [CrossRef] - Lam, P.A.K.; Prakash, K.A. A numerical study on natural convection and entropy generation in a porous enclosure with heat sources. Int. J. Heat Mass Transf.
**2014**, 69, 390–407. [Google Scholar] [CrossRef] - Sheremet, M.A.; Oztop, H.F.; Pop, I.; Abu-Hamdeh, N. Analysis of entropy generation in natural convection of nanofluid inside a square cavity having hot solid block: Tiwari and Das’ model. Entropy
**2015**, 18, 9. [Google Scholar] [CrossRef] - Kefayati, G. Heat transfer and entropy generation of natural convection on non-Newtonian nanofluids in a porous cavity. Powder Technol.
**2016**, 299, 127–149. [Google Scholar] [CrossRef] - Kolsi, L.; Mahian, O.; Öztop, H.F.; Aich, W.; Borjini, M.N.; Abu-Hamdeh, N.; Aissia, H.B. 3D buoyancy-induced flow and entropy generation of nanofluid-filled open cavities having adiabatic diamond shaped obstacles. Entropy
**2016**, 18, 232. [Google Scholar] [CrossRef] - Ismael, M.A.; Armaghani, T.; Chamkha, A.J. Conjugate heat transfer and entropy generation in a cavity filled with a nanofluid-saturated porous media and heated by a triangular solid. J. Taiwan Inst. Chem. Eng.
**2016**, 59, 138–151. [Google Scholar] [CrossRef] - Bouchoucha, A.; Bessaïh, R.; Oztop, H.F.; Al-Salem, K.; Bayrak, F. Natural convection and entropy generation in a nanofluid filled cavity with thick bottom wall: Effects of non-isothermal heating. Int. J. Mech. Sci.
**2017**, 126, 95–105. [Google Scholar] [CrossRef] - Ghasemi, K.; Siavashi, M. Lattice Boltzmann numerical simulation and entropy generation analysis of natural convection of nanofluid in a porous cavity with different linear temperature distributions on side walls. J. Mol. Liquids
**2017**, 233, 415–430. [Google Scholar] [CrossRef] - Ashorynejad, H.R.; Hoseinpour, B. Investigation of different nanofluids effect on entropy generation on natural convection in a porous cavity. Eur. J. Mech. B/Fluids
**2017**, 62, 86–93. [Google Scholar] [CrossRef] - Kaluri, R.S.; Basak, T. Entropy generation due to natural convection in discretely heated porous square cavities. Energy
**2011**, 36, 5065–5080. [Google Scholar] [CrossRef] - Roslan, R.; Saleh, H.; Hashim, I. Buoyancy-driven heat transfer in nanofluid-filled trapezoidal enclosure with variable thermal conductivity and viscosity. Numer. Heat Transf. Part Appl.
**2011**, 60, 867–882. [Google Scholar] [CrossRef] - Nasrin, R.; Parvin, S. Investigation of buoyancy-driven flow and heat transfer in a trapezoidal cavity filled with water-Cu nanofluid. Int. Commun. Heat Mass Transf.
**2012**, 39, 270–274. [Google Scholar] [CrossRef] - Nguyen, C.; Desgranges, F.; Roy, G.; Galanis, N.; Maré, T.; Boucher, S.; Mintsa, H.A. Temperature and particle-size dependent viscosity data for water-based nanofluids-hysteresis phenomenon. Int. J. Heat Fluid Flow
**2007**, 28, 1492–1506. [Google Scholar] [CrossRef] - Chon, C.H.; Kihm, K.D.; Lee, S.P.; Choi, S.U. Empirical correlation finding the role of temperature and particle size for nanofluid (Al
_{2}O_{3}) thermal conductivity enhancement. Appl. Phys. Lett.**2005**, 87, 3107. [Google Scholar] [CrossRef] - Corcione, M. Empirical correlating equations for predicting the effective thermal conductivity and dynamic viscosity of nanofluids. Energy Convers. Manag.
**2011**, 52, 789–793. [Google Scholar] [CrossRef] - Calcagni, B.; Marsili, F.; Paroncini, M. Natural convective heat transfer in square enclosures heated from below. Appl. Therm. Eng.
**2005**, 25, 2522–2531. [Google Scholar] [CrossRef]

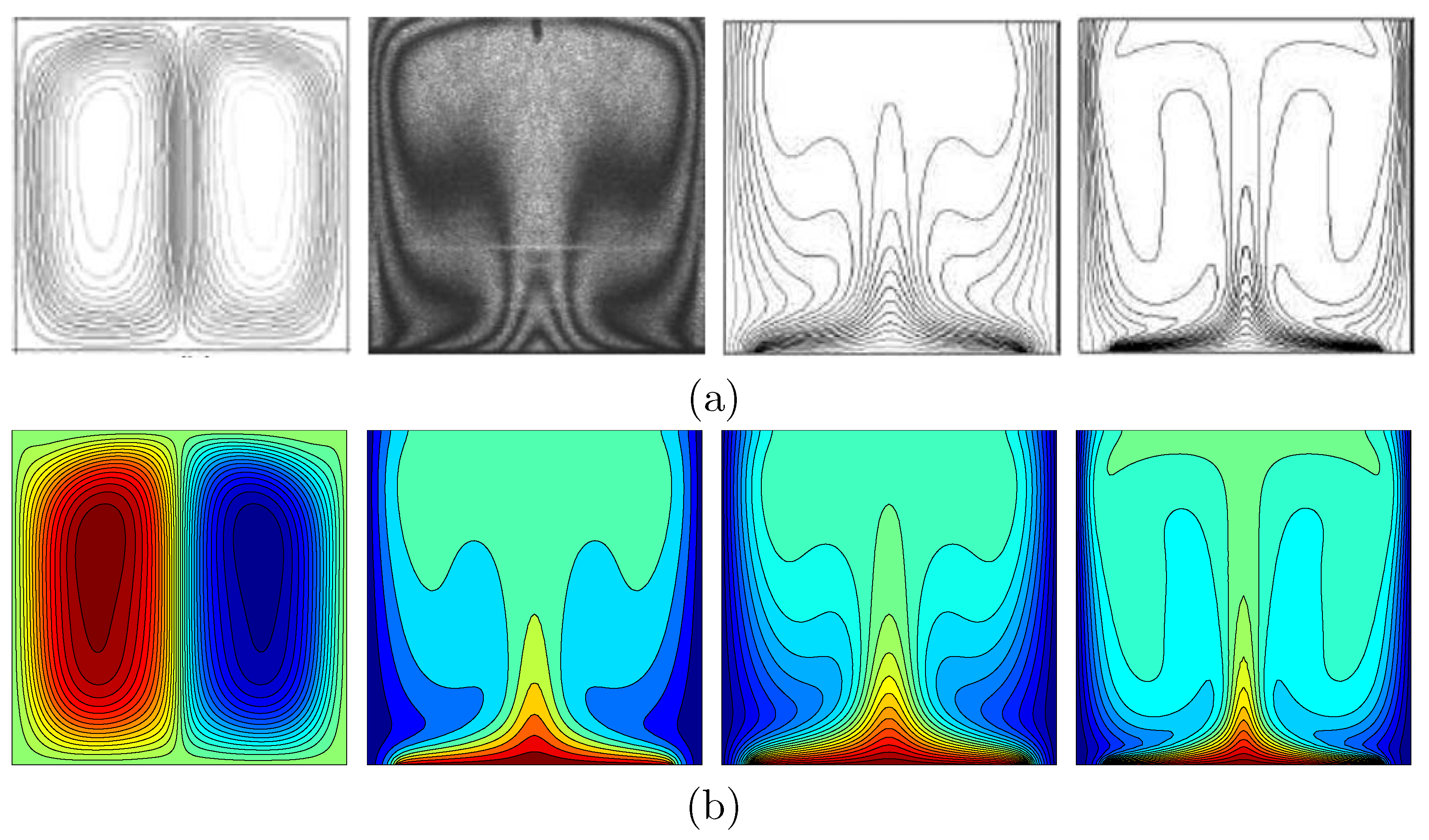

**Figure 2.**streamlines at $Ra={10}^{6}$, isotherms at $Ra=1.836\times {10}^{5}$, isotherms at $Ra={10}^{5}$ and isotherms at $Ra={10}^{6}$ (

**a**) numerical and experimental results of Calcagni et al. [32] and (

**b**) numerical results of the present study for $\varphi =0$ and $D=0$.

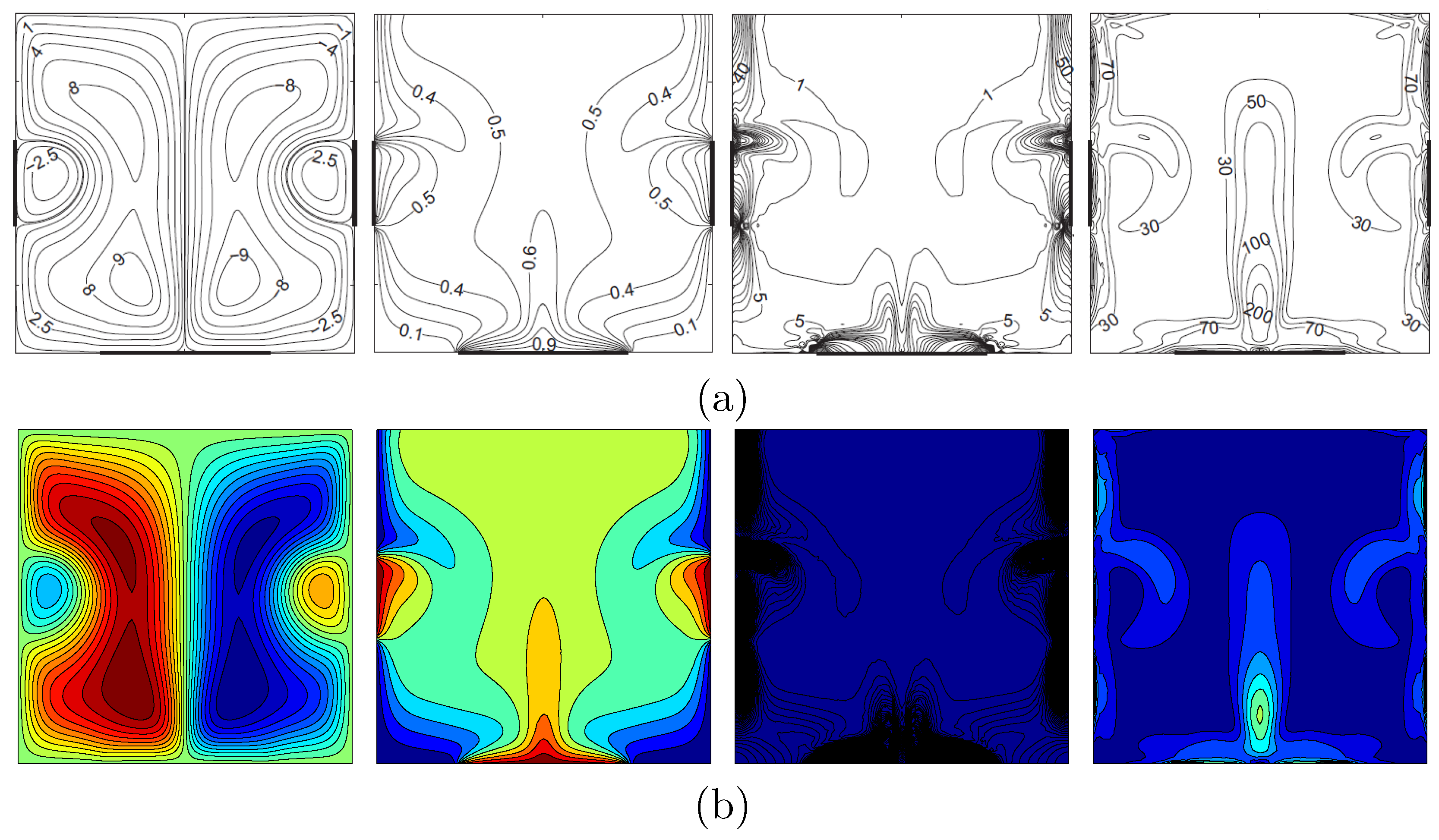

**Figure 3.**Streamlines, isotherms, local entropy generation due to heat transfer and due to fluid friction (

**a**) Kaluri and Basak [16] and (

**b**) present study for $Ra={10}^{6}$, $Da={10}^{-3}$, $\varphi =0$ and $D=0$.

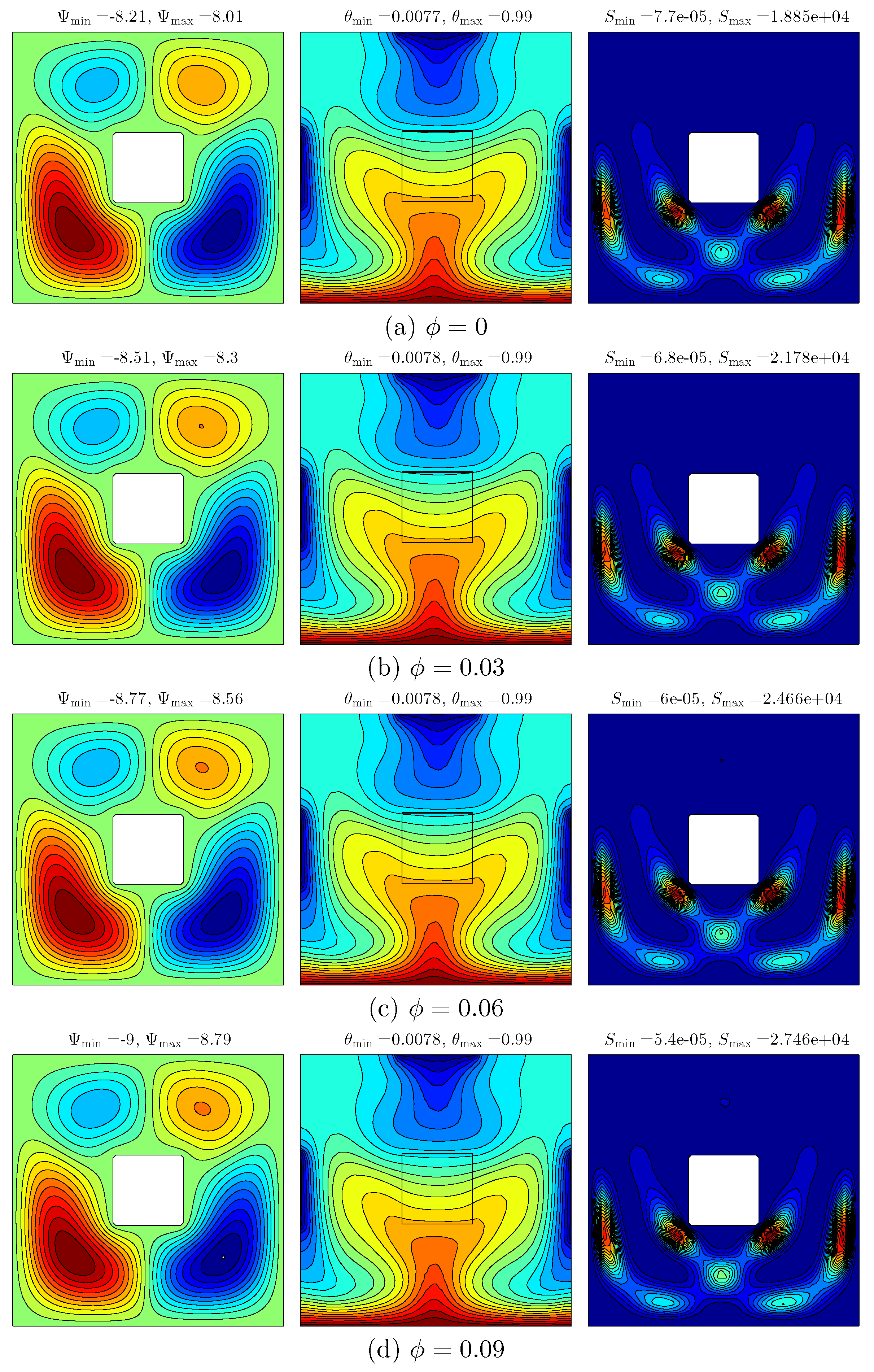

**Figure 4.**Variations of the streamlines (

**left**); isotherms (

**middle**); and isentropic (

**right**) evolution by the solid volume fraction ($\varphi $) for $Ra={10}^{5}$, ${K}_{r}=1$ and $D=0.25$. (

**a**) $\varphi =0$; (

**b**) $\varphi =0.03$; (

**c**) $\varphi =0.06$; (

**d**) $\varphi =0.09$.

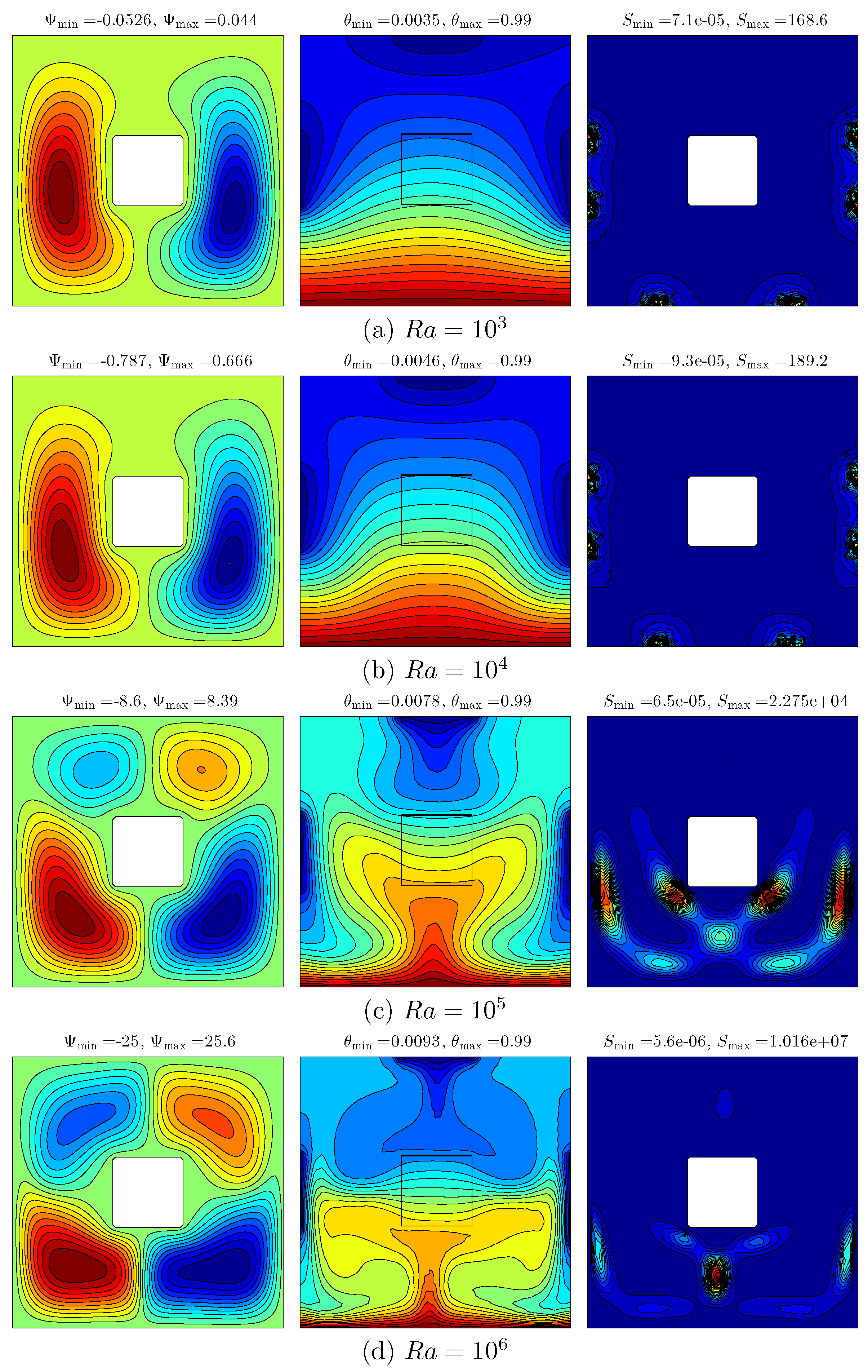

**Figure 5.**Variations of the streamlines (

**left**); isotherms (

**middle**); and isentropic (

**right**) evolution by Rayleigh number ($Ra$) for $\varphi =0.04$, ${K}_{r}=1$ and $D=0.25$. (

**a**) $Ra={10}^{3}$; (

**b**) $Ra={10}^{4}$; (

**c**) $Ra={10}^{5}$; (

**d**) $Ra={10}^{6}$.

**Figure 6.**Variations of the streamlines (

**left**); isotherms (

**middle**); and isentropic (

**right**) evolution by thermal conductivity ratio (${K}_{r}$) for $Ra={10}^{5}$, $\varphi =0.04$ and $D=0.25$. (

**a**) ${K}_{r}=0.44$; (

**b**) ${K}_{r}=2.40$; (

**c**) ${K}_{r}=9.90$; (

**d**) ${K}_{r}=23.8$.

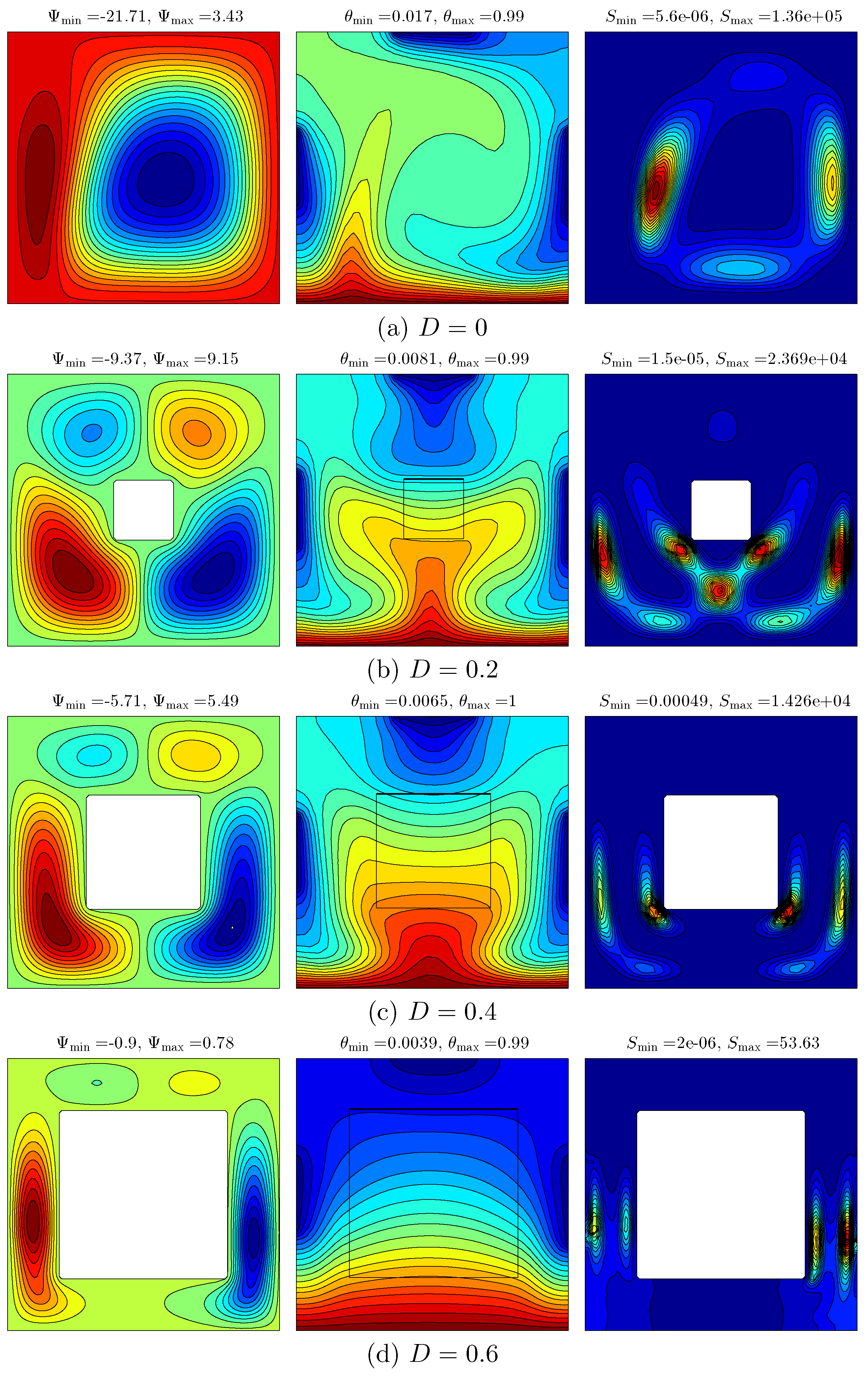

**Figure 7.**Variations of the streamlines (

**left**); isotherms (

**middle**); and isentropic (

**right**) evolution by the length of the inner solid (D) for $Ra={10}^{5}$, $\varphi =0.04$ and ${K}_{r}=1$. (

**a**) $D=0$; (

**b**) $D=0.2$; (

**c**) $D=0.4$; (

**d**) $D=0.6$.

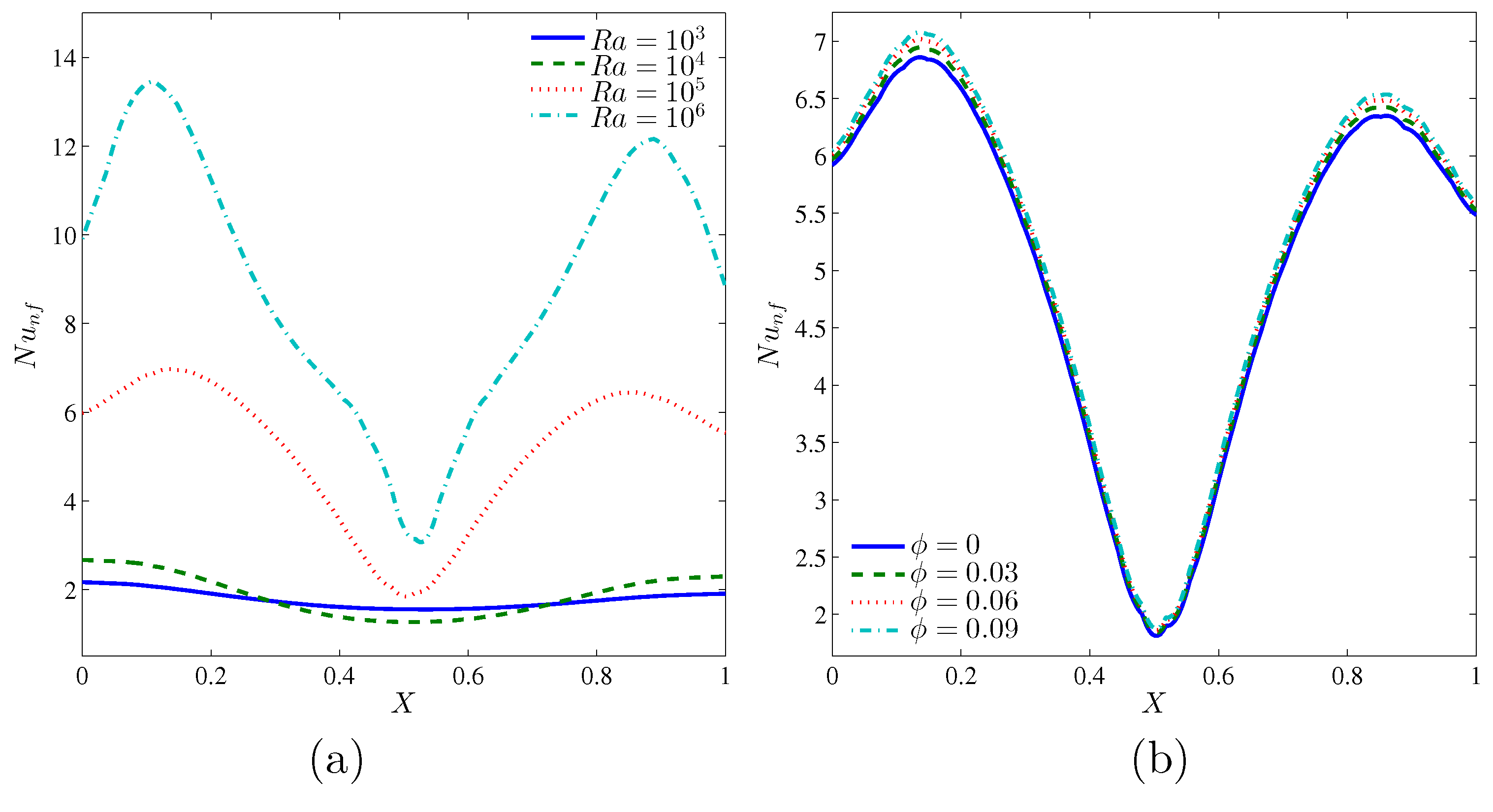

**Figure 8.**Variations of local Nusselt number interfaces with X for different (

**a**) $Ra$ and (

**b**) $\varphi $ at ${K}_{r}=1$ and $D=0.25$.

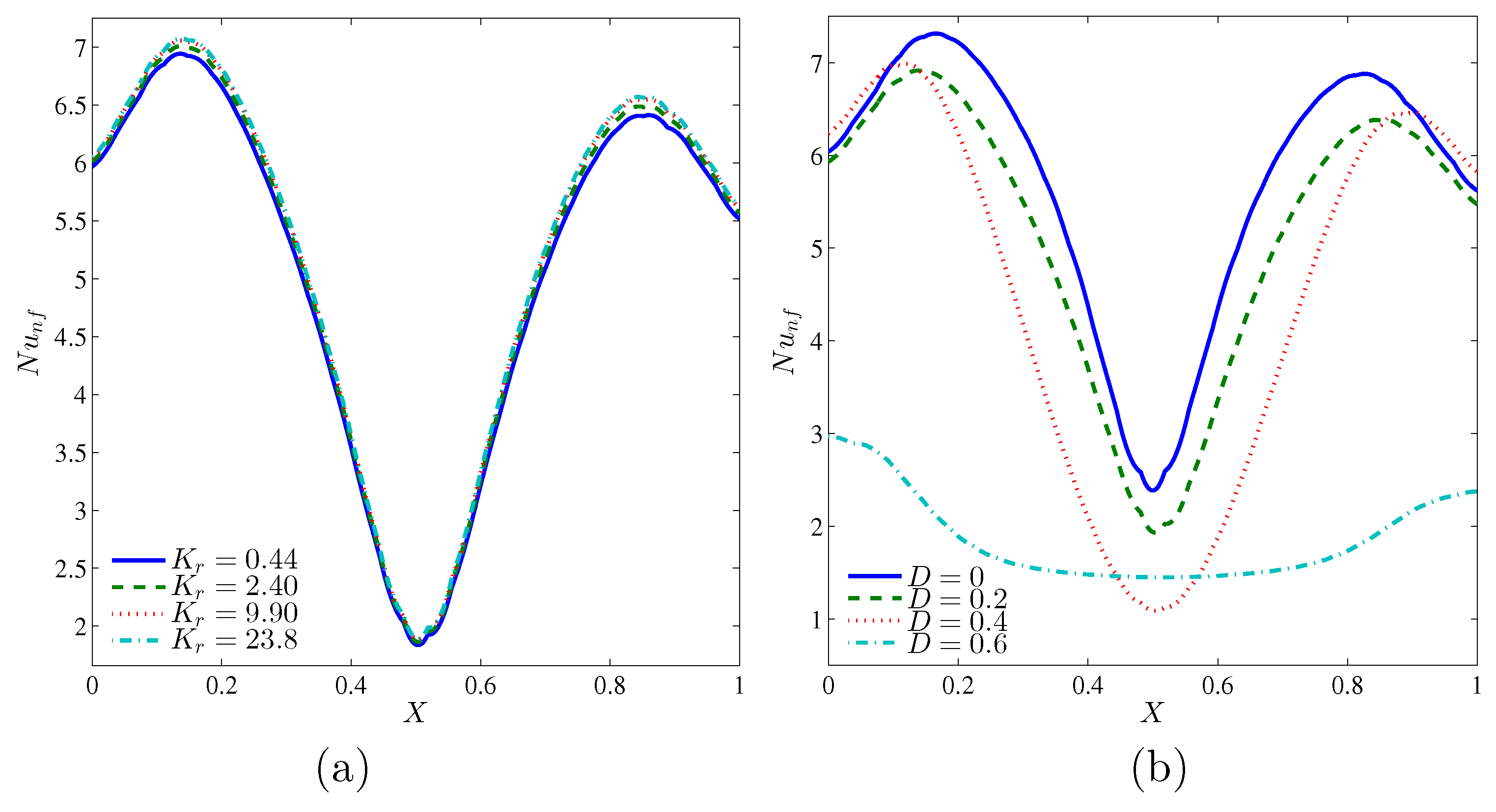

**Figure 9.**Variations of local Nusselt number interfaces with X for different (

**a**) ${K}_{r}$ and (

**b**) D at $Ra={10}^{5}$ and $\varphi =0.04$.

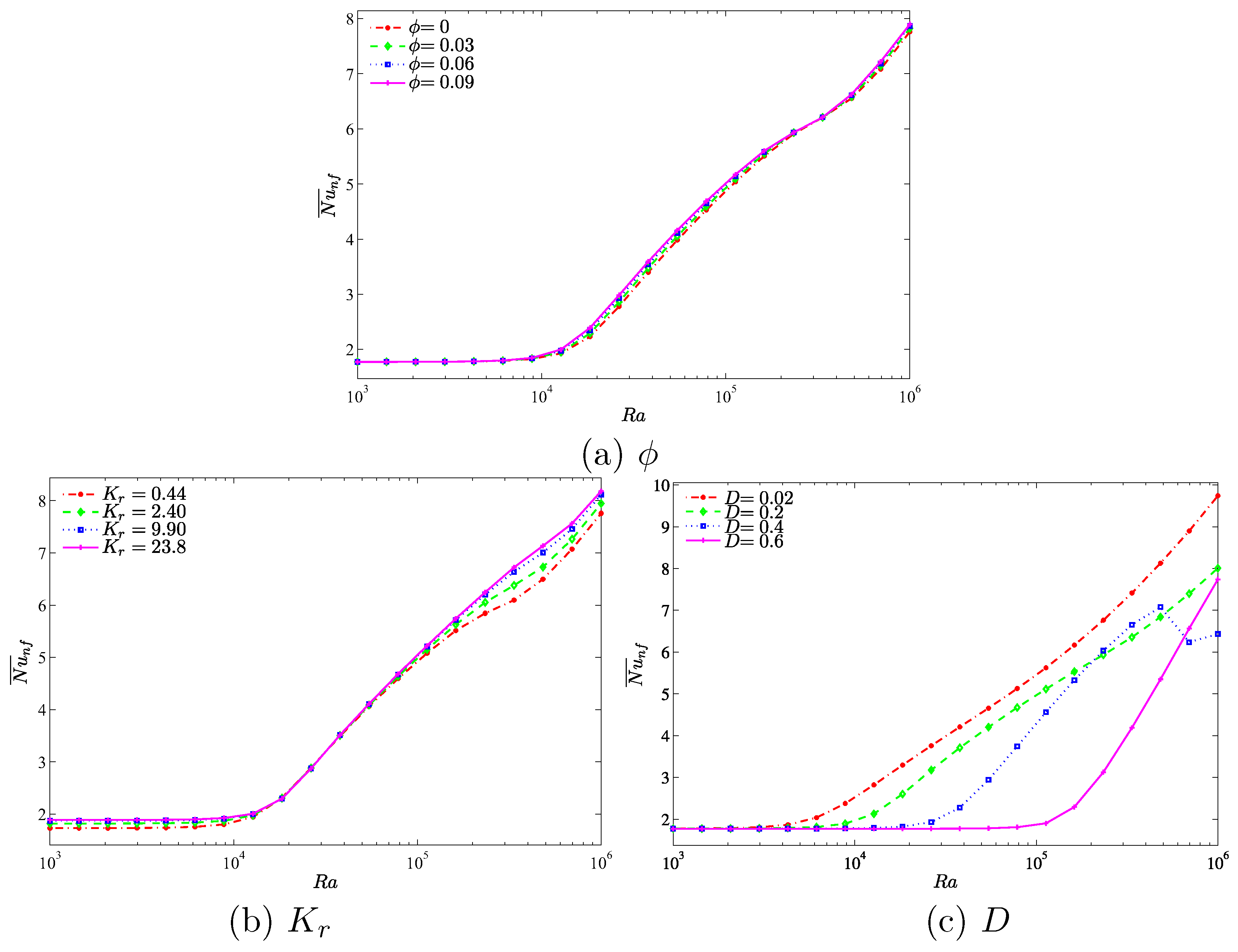

**Figure 10.**Variations of average Nusselt number with $Ra$ for different (

**a**) $\varphi $; (

**b**) ${K}_{r}$ and (

**c**) D.

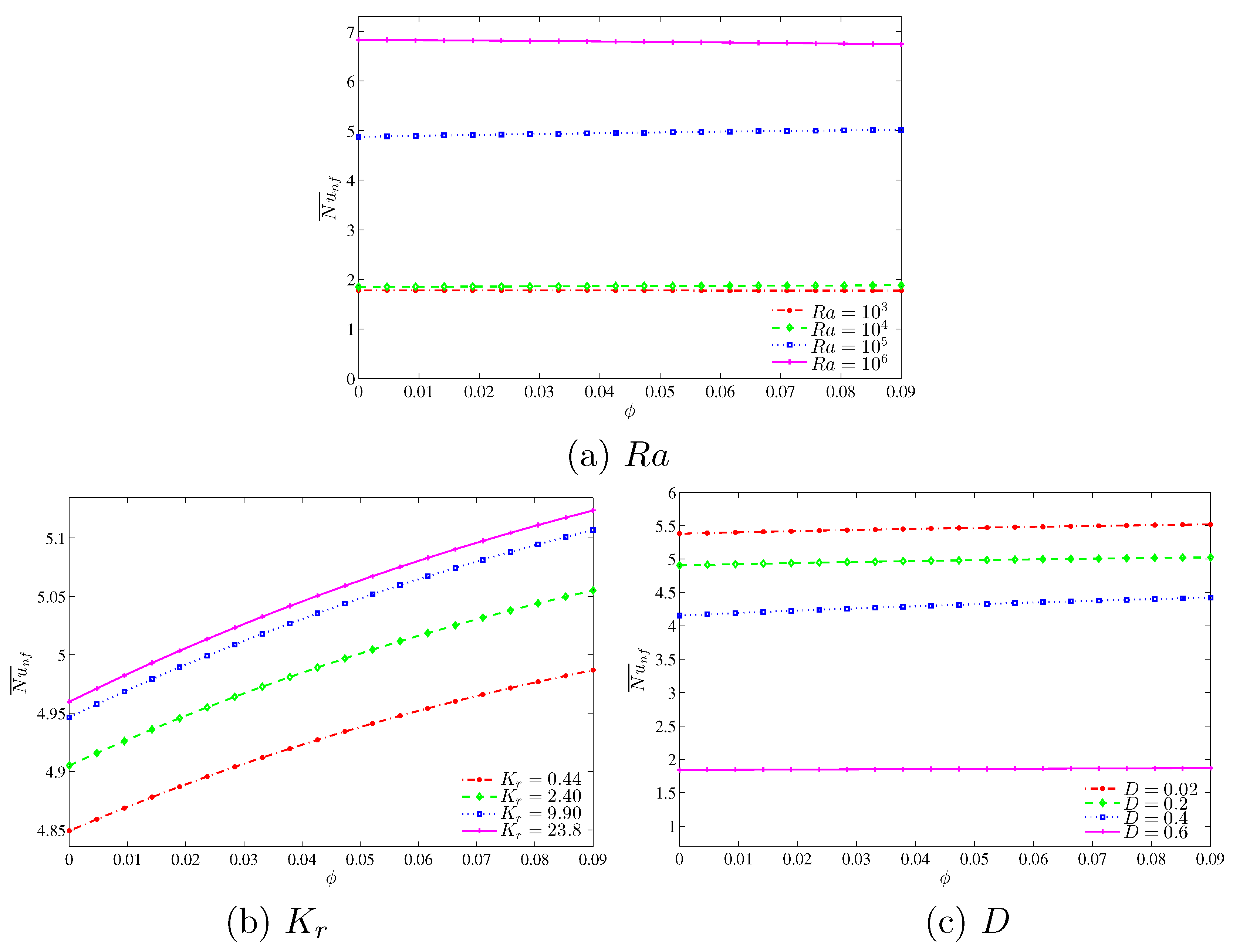

**Figure 11.**Variations of average Nusselt number with $\varphi $ for different (

**a**) $Ra$; (

**b**) ${K}_{r}$ and (

**c**) D.

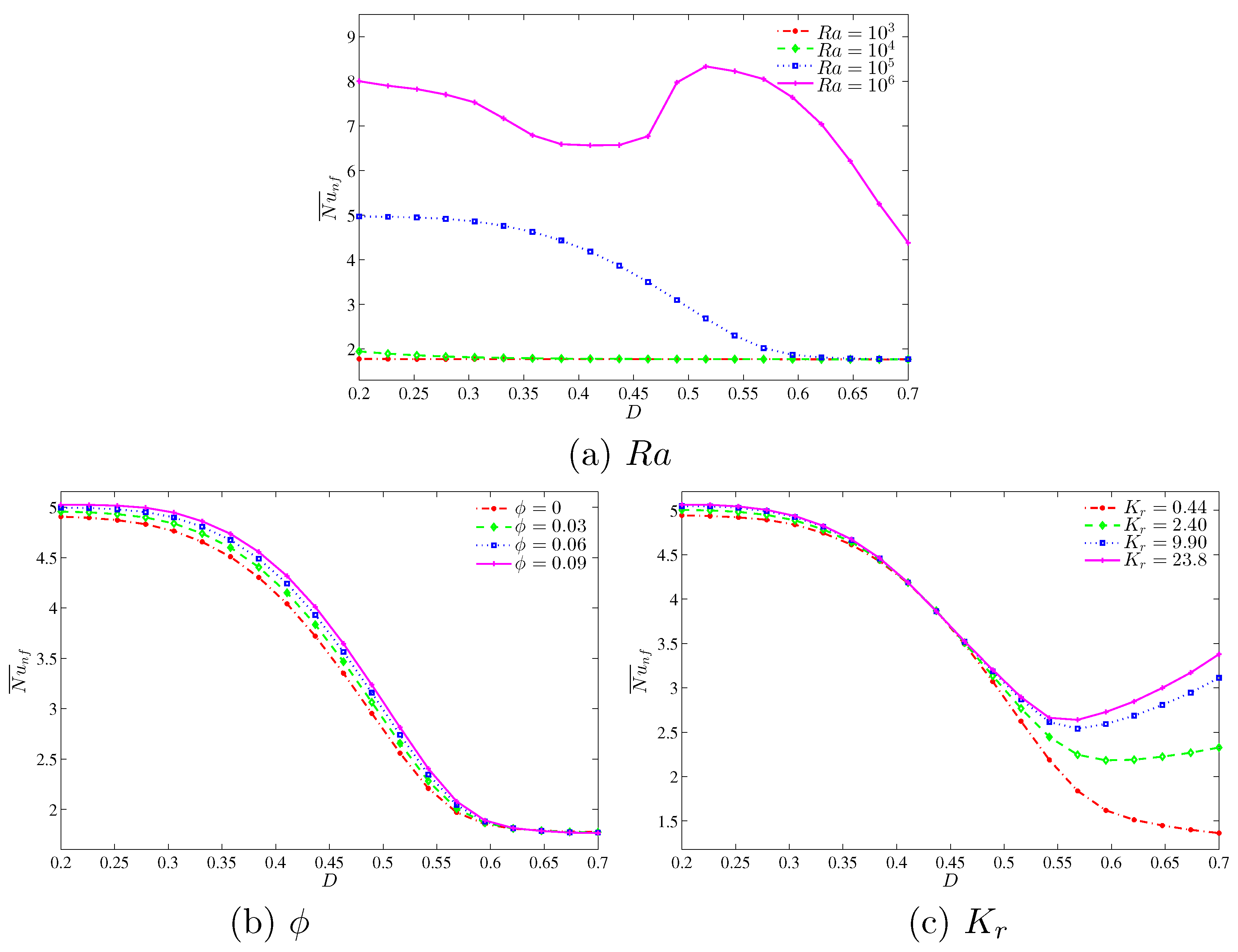

**Figure 12.**Variations of average Nusselt number with D for different (

**a**) $Ra$; (

**b**) $\varphi $ and (

**c**) ${K}_{r}$.

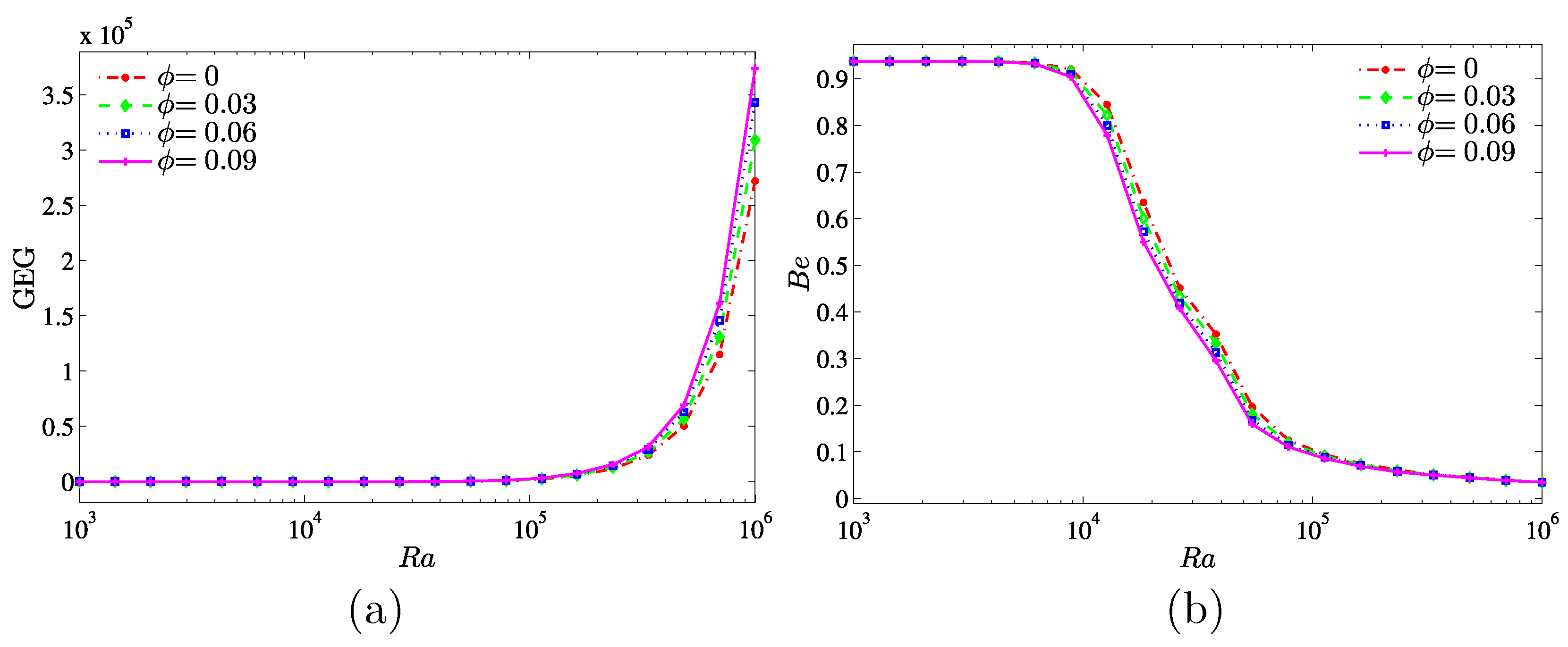

**Figure 13.**Variations of (

**a**) the global entropy generation (GEG) and (

**b**) Bejan number ($Be$) with $Ra$ for different values of $\varphi $ at ${K}_{r}=1$ and $D=0.25$.

**Figure 14.**Variations of (

**a**) the global entropy generation (GEG) and (

**b**) Bejan number ($Be$) with $Ra$ for different values of D at $\varphi =0.04$ and ${K}_{r}=1$.

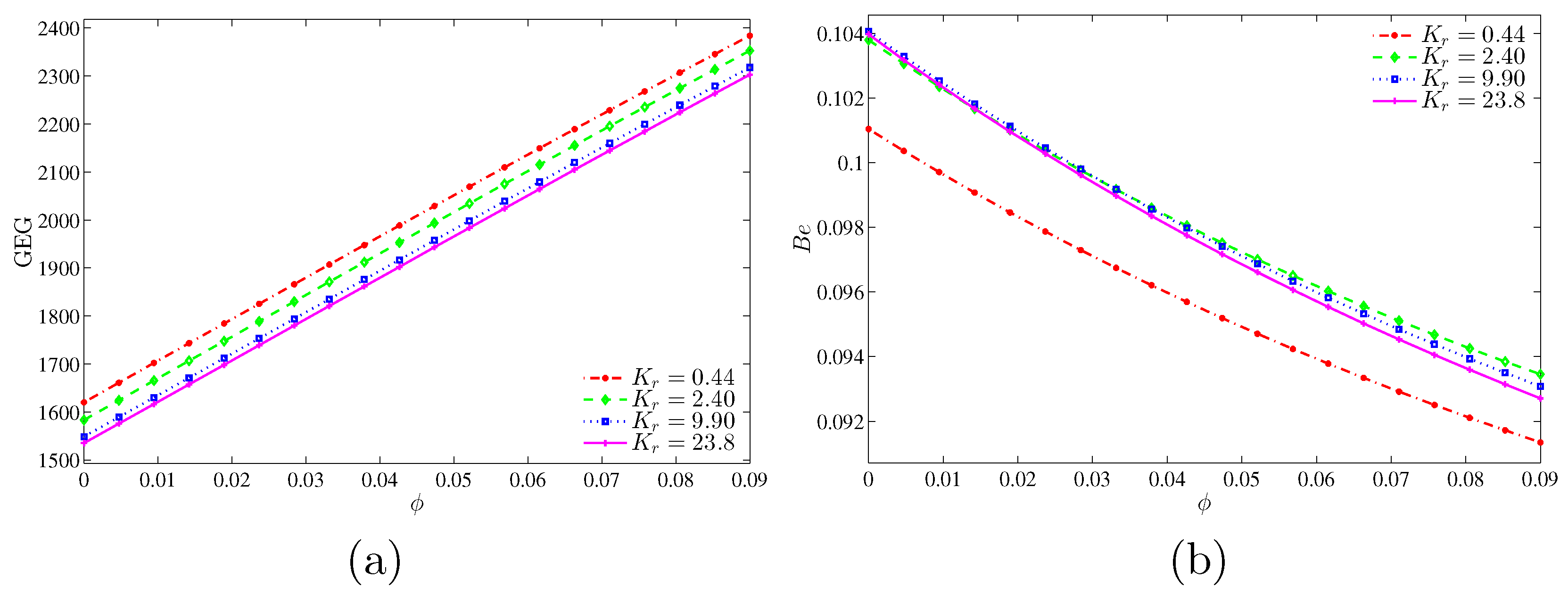

**Figure 15.**Variations of (

**a**) the global entropy generation (GEG) and (

**b**) Bejan number ($Be$) with $\varphi $ for different values of ${K}_{r}$ at $Ra={10}^{5}$ and $D=0.25$.

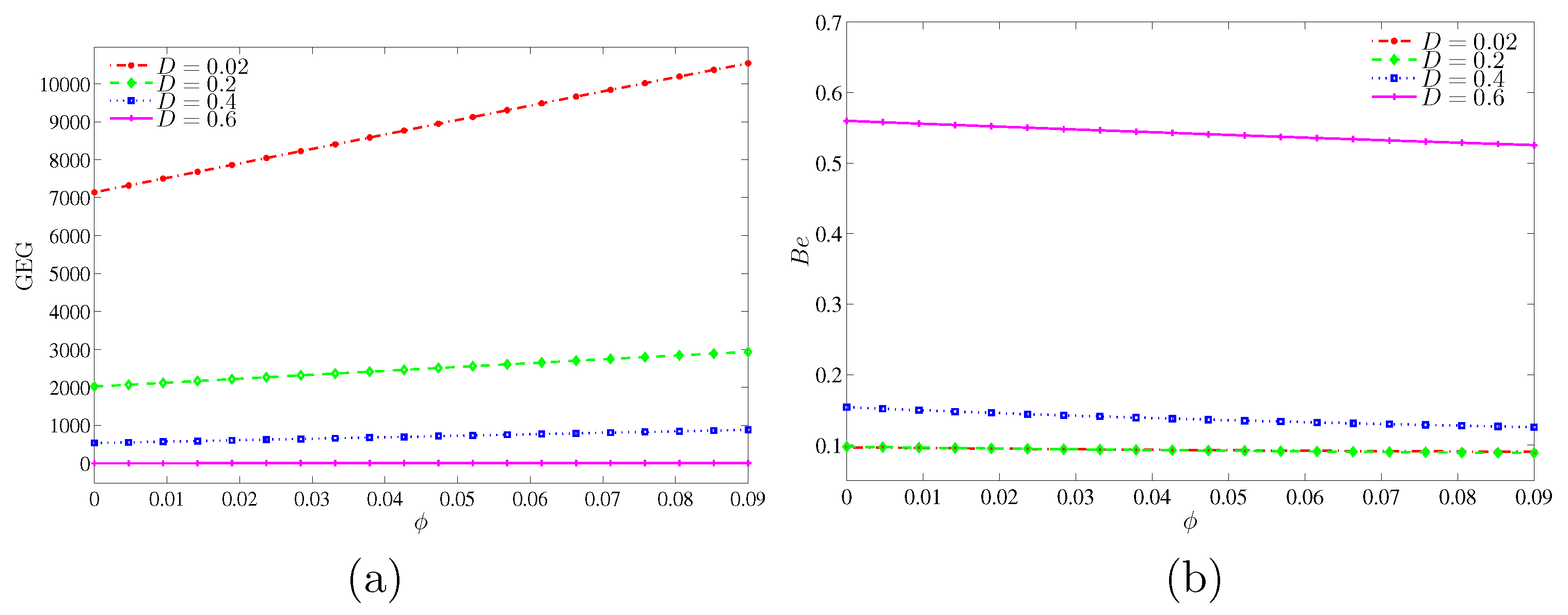

**Figure 16.**Variations of (

**a**) the global entropy generation (GEG) and (

**b**) Bejan number ($Be$) with $\varphi $ for different values of D at $Ra={10}^{5}$ and ${K}_{r}=1$.

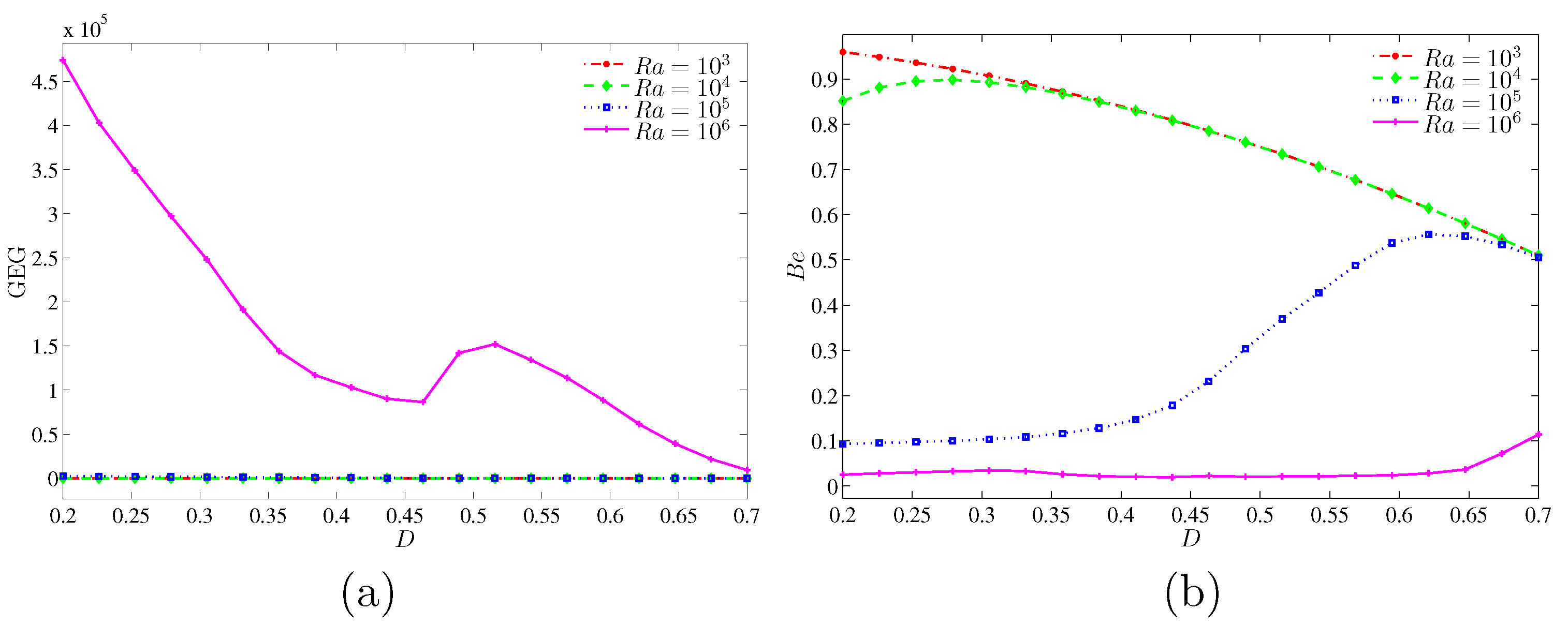

**Figure 17.**Variations of (

**a**) the global entropy generation (GEG) and (

**b**) Bejan number ($Be$) with D for different values of $Ra$ at $\varphi =0.04$ and ${K}_{r}=1$.

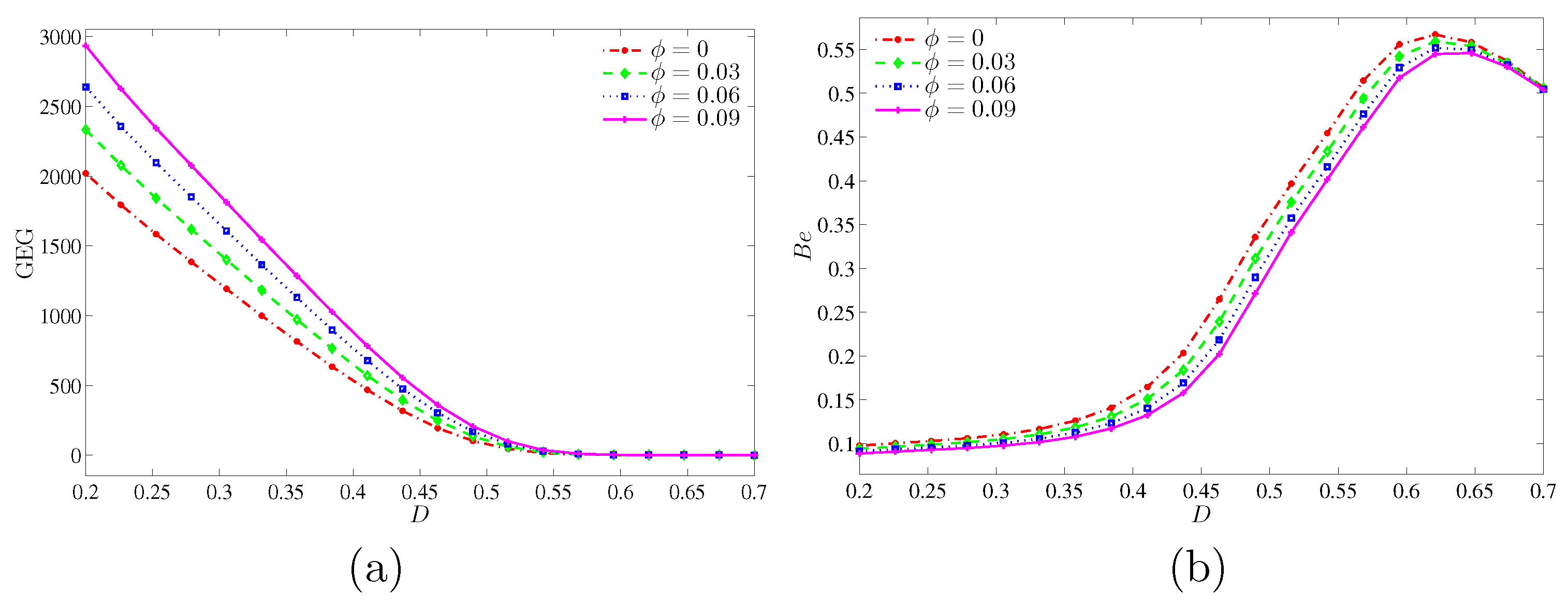

**Figure 18.**Variations of (

**a**) the global entropy generation (GEG) and (

**b**) Bejan number ($Be$) with D for different values of $\varphi $ at $Ra={10}^{5}$ and ${K}_{r}=1$.

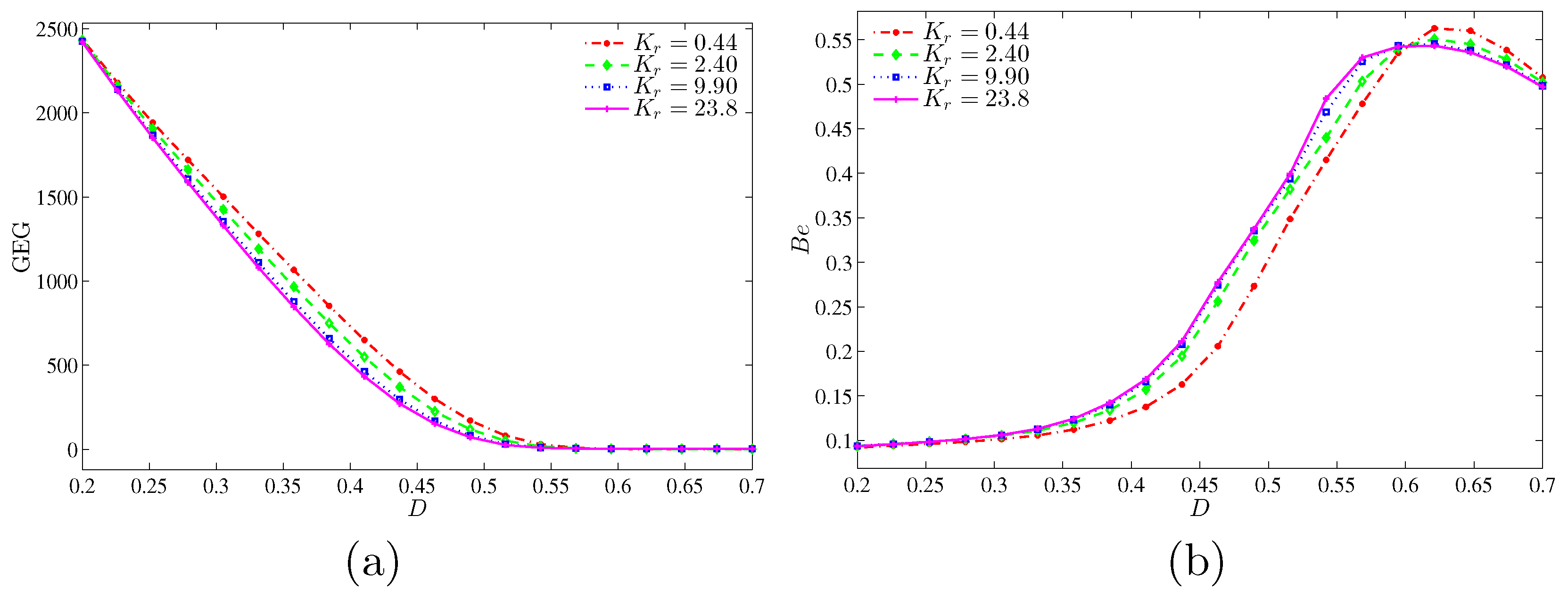

**Figure 19.**Variation of (

**a**) the global entropy generation (GEG) and (

**b**) Bejan number ($Be$) with D for different values of ${K}_{r}$ at $Ra={10}^{5}$ and $\varphi =0.04$.

**Table 1.**Grid testing for ${\Psi}_{\mathrm{min}}$ and ${\overline{Nu}}_{nf}$ at different grid size for $Ra={10}^{5}$, $\varphi =0.04$, ${K}_{r}=1$ and $D=0.25$.

Grid Size | ${\mathsf{\Psi}}_{\mathbf{min}}$ | ${\overline{\mathit{Nu}}}_{\mathit{nf}}$ |
---|---|---|

$10\times 10$ | −0.76597 | 3.7233 |

$20\times 20$ | −0.76613 | 3.7569 |

$40\times 40$ | −0.76653 | 3.7802 |

$60\times 60$ | −0.76658 | 3.7979 |

$80\times 80$ | −0.76761 | 3.8014 |

$100\times 100$ | −0.76878 | 3.8016 |

$120\times 120$ | −0.76897 | 3.8018 |

$140\times 140$ | −0.76956 | 3.8019 |

$160\times 160$ | −0.76968 | 3.8019 |

**Table 2.**Thermo-physical properties of the base fluid (water) with Al${}_{2}$O${}_{3}$ nanoparticles at $T=295$ K [27].

Physical Properties | Fluid Phase (Water) | Al${}_{2}$O${}_{3}$ |
---|---|---|

$Cp\phantom{\rule{0.166667em}{0ex}}(\mathrm{J}/\mathrm{kgK})$ | 4179 | 765 |

$\rho \phantom{\rule{0.166667em}{0ex}}(\mathrm{kg}/{\mathrm{m}}^{3})$ | 997.1 | 3970 |

$k\phantom{\rule{0.166667em}{0ex}}({\mathrm{Wm}}^{-1}\xb7{\mathrm{K}}^{-1})$ | 0.613 | 25 |

$\beta \times {10}^{5}\phantom{\rule{0.166667em}{0ex}}(1/\mathrm{K})$ | 21 | 0.85 |

${d}_{p}\phantom{\rule{0.166667em}{0ex}}\left(\mathrm{nm}\right)$ | 3.85 | 36 |
