Entropy 2018, 20(4), 216; doi:10.3390/e20040216
Generalized Pesin-Like Identity and Scaling Relations at the Chaos Threshold of the Rössler System
Department of Physics, Faculty of Science, Ege University, 35100 Izmir, Turkey
Correspondence: [email protected]
These authors contributed equally to this work.
Received: 16 February 2018 / Accepted: 20 March 2018 / Published: 23 March 2018
In this paper, using the Poincaré section of the flow we numerically verify a generalization of a Pesin-like identity at the chaos threshold of the Rössler system, which is one of the most popular three-dimensional continuous systems. As Poincaré section points of the flow show similar behavior to that of the logistic map, for the Rössler system we also investigate the relationships with respect to important properties of nonlinear dynamics, such as correlation length, fractal dimension, and the Lyapunov exponent in the vicinity of the chaos threshold.
Keywords:nonlinear dynamics; connections between chaos and statistical physics; dissipative systems
In many disciplines, continuous systems are used for modeling systems to ease operation and obtain a better viewpoint with respect to dynamics. In addition to applications in physics [1,2], biology [3,4], and chemistry  etc., continuous systems are widely used in nonlinear dynamics studies as test systems [6,7,8,9]. As three-dimensional dissipative continuous systems can exhibit chaotic behavior according to their parameter values, these systems have become more popular recently [10,11,12,13]. The period-doubling bifurcations that are seen in model systems which exhibit a transition from periodic to chaotic behavior [14,15] can also be seen in nature, and in experiments involving for example semiconductors  and RLC circuits . A good example of these systems is the Rössler system, which can exhibit complex dynamics and chaos. Although it was constructed as a simple system to obtain chaotic behavior , the Rössler system has become a test system for new numerical techniques [7,8]. The Rössler system is modeled with three ordinary differential equations given bywhere a, b, and c are the control parameters that are assumed to be positive and dimensionless .
Traditionally, two of three control parameters are kept constant and the effects of changing the last control parameter on the system are observed. In our investigations we keep as constant parameters, and we use c as a control parameter. While the a and b parameters are kept constant and c varies from zero to larger values, the Rössler system changes its periodic behavior to chaotic after c reaches the critical point , the chaos threshold. Above this chaos threshold there also exist periodic windows in the chaotic region.
As the three-dimensional state space of the Rössler system is complicated for our analysis, here the use of the Poincaré section reduces the dimensions of the state space that we investigate, and through an appropriate choice of the Poincaré section we can obtain a full picture of system dynamics . In our investigations, the Poincaré section is constructed by collecting maximum points of a signal of a variable of the Rössler system. With that choice of Poincaré section, we reduce the dimensions of the state space by two and we are able to investigate the Rössler system as one-dimensional. In Figure 1a we see that the system becomes chaotic after successive period doublings which terminate at the chaos threshold where the system has an infinite number of periods. This bifurcation diagram is in the same universality class as the one-dimensional dissipative logistic map .
In Figure 1b we plot the Lyapunov exponent diagram as a descriptor of bifurcation diagram. The three Lyapunov exponents , , and , are the characteristic exponents of the state space, and they are the eigenvalues of the Jacobian matrixconstructed for the Rössler system. As the Lyapunov exponent is a measure of the average convergence or divergence of neighbor trajectories in the state space , we see that the combination of and explains behaviors that we observe at the bifurcation diagram. becomes more negative as the c parameter increases, so we plot this exponent in an inner plot apart from other two. We detect the chaos threshold of the Rössler system as .
For the strongly chaotic regime it can be seen from Figure 1b that the Lyapunov exponent is positive. For this exponent value, the initially nearby trajectories diverge in an exponential form as the system evolves. As trajectories spread into the state space, the relation between the Lyapunov exponent and the entropy increase rate, namely Kolmogorov–Sinai (KS) entropy, is given by the Pesin identity . This states that for the strongly chaotic case, the Lyapunov exponent and KS entropy should be equal, whereas for the periodic case, KS entropy should be zero. In this paper, at the chaos threshold of the Rössler system where the Lyapunov exponent is zero and the behavior is weakly chaotic, we numerically investigate a generalization of a Pesin-like identity similar to that of the logistic map, which has been shown recently in [22,23,24,25]. We also investigate the scaling relations among the correlation length, the Lyapunov exponent, and the fractal dimension in the vicinity of the chaos threshold for the Rössler system.
2. Sensitivity to the Initial Conditions, Entropy Increase Rate, and the Pesin Identity at the Chaos Threshold
One of the signatures of the chaotic behavior is exponential sensitivity to the initial conditions. This sensitivity property is characterized by the sensitivity function given byfor a one-dimensional case, where is the initial distance between two nearby points and is the distance at time t . If the system has a positive Lyapunov exponent, which corresponds to the chaotic behavior, the sensitivity function diverges as , where is the standard Lyapunov exponent (subindex will be explained later). For the system is said to be strongly sensitive and for strongly insensitive to the initial conditions. At the chaos threshold the standard Lyapunov exponent vanishes () and for this marginal case it has been shown for several dissipative maps that the sensitivity function exhibits power-law behavior of the form , where is the generalized Lyapunov exponent andwhich is known to be q-exponential [22,23,24,25]. This expression recovers the standard exponential case as , namely, . Thus, the sensitivity function can be given byin the vicinity of the chaos threshold. For and ( and ), the system is said to be weakly sensitive (weakly insensitive) to the initial conditions . At the chaos threshold, a q value that yields power-law behavior for is always obtained for .
For chaotic systems, another way to describe the behavior is through KS entropy which is the increase, per unit time, of the Boltzmann–Gibbs (BG) entropy (, where W is the total number of possible configurations and is the probability of finding a point in the ith state) and it is related to the standard Lyapunov exponent via the Pesin identity , which states that if , and otherwise . Although KS entropy can be defined in terms of a single trajectory in a phase space using a symbolic representation of cells of a partitioned phase space , in almost all cases this definition can be replaced by a version based on an ensemble of initial conditions [24,25,26]. In this paper we use this version.
As BG entropy requires strong chaos for its applicability, the q-entropy that is the basis of the non-extensive statistical mechanics [22,27,28] can recover both chaotic and marginal cases. This entropy is given aswhere is the q-logarithm function that is the inverse of the q-exponential given in Equation (4). As this function becomes the standard logarithm function and the entropy achieves the BG case. From this perspective, KS entropy can also be generalized as where t is the time steps, N is the number of points, and W is the number of regions in the partitioned phase space. With these generalizations the Pesin identity can also be generalized by including the standard case as a special case as for and otherwise .
In our investigations on the sensitivity to the initial conditions at the chaos threshold of the Rössler system we use the sensitivity function given by Equation (3) and use as an initial separation of two nearby points in the phase space. Starting from these points we let the system evolve and then we collect Poincaré points of the flow. This procedure is repeated for randomly chosen different initial conditions to make an ensemble average. For Poincaré points of each variable of the Rössler system, an average is taken all over those values, namely, . In Figure 2, for a specific q value (), we observe a linear time dependence of and the slope of this curve gives the generalized Lyapunov exponent from Equation (5).
At the chaos threshold, we analyze generalized KS entropy using Equation (6). As entropy calculation requires dividing the phase space into W small cells, putting N randomly chosen initial conditions into a cell, and letting the system evolve, in order to obtain a reasonable behavior of Poincaré points of a variable of the Rössler system, our method is described in three steps. Firstly, for a variable for which we investigate its Poincaré points, we divide the one-dimensional phase space obtained by the Poincaré section into equal intervals and keep other two variables at a constant value that is used to obtain the bifurcation diagram given in Figure 1a. Since the Rössler system is continuous, it is not possible to divide all of the phase space. In our investigations, using the dissipative nature of the system, we divide the region at a point between zero and slightly above the maximum of the chaos threshold phase space attractor, which we see in the bifurcation diagram. With this region selection we can also observe transient behavior as the system reaches its attractor. Secondly, we put randomly chosen initial conditions into one of the equally-sized intervals. Then, we let the system evolve for each of these N points and collect Poincaré points. As the flow intersects with the Poincaré section, these points occupy W intervals, and relative frequency  can be calculated where is the occupancy (). In this formalism t corresponds to the intersection step in the Poincaré section. Thirdly, with the relative frequency we can calculate and the entropy production per unit time . We repeat this procedure many times starting from randomly chosen different intervals to make an ensemble average.
In recent works [25,29] it has been shown that is finite only for , while diverges and is equal to zero for and , respectively. In Figure 3 it can be seen that we obtain a linear increase of the and values, showing the slope of this linear curve that coincides with (with numerical error). One can argue that this q-generalization of the Pesin-like identity holds for the Rössler system at the chaos threshold. In Figure 3, linear regions are detected using the maximum R-squared value, which is ≃0.999 for three plots. Above this region we see the initiation of the saturation due to the finiteness of W.
3. Scaling Relations of the Rössler System at the Edge of Chaos
As the Poincaré section points of the Rössler system show the power-law behavior for the sensitivity to the initial conditions at the chaos threshold, we can examine other power-law behaviors obtained for scaling relations in the vicinity of the chaos threshold as done recently for the logistic map [30,31]. To investigate scaling relations for the Rössler system, we use the generalized Huberman–Rudnick scaling law to get closer to the chaos threshold from the chaotic region . This generalized scaling law is defined aswhere is one of the Feigenbaum constants, is the chaos threshold parameter value, s is a parameter describing each particular period window, and n is an index that represents the chaotic bands which approach the Feigenbaum attractor as by the band-splitting procedure . Here, we only focus on the period-2 () window. As the chaos threshold is approached with increasing n values, we take the control parameter values c corresponding to these n values. Increasing n values with the same precision makes us approach the chaos threshold by staying on one of the infinitely many possible straight lines, all having positive Lyapunov exponents, given by the Huberman-Rudnick scaling law. As the Lyapunov exponents for integer n values tend to , we choose non-integer n values and increase them with the same precision. These parameter values are listed in Table 1. By using () tuples, we numerically investigate scaling relations as the chaos threshold is approached.
3.1. Huberman–Rudnick Scaling
Huberman and Rudnick defined a universal expression for the parameter dependence of the Lyapunov exponent as the system moves from a chaotic state to the chaos threshold. With their definition, they showed that the Lyapunov exponent has the same form of scaling law as the critical phenomena describing the physical properties near the second-order phase transition in physics  if we consider the system transition from periodic behavior to chaotic. The Huberman–Rudnick scaling law is given bywhere is the Feigenbaum constant and is the Lyapunov exponent . For the Rössler system we calculate the Lyapunov exponents for () tuples and check the validity of the Huberman–Rudnick scaling law by plotting versus (). In Figure 4 we observe that Lyapunov exponents represent a power-law scaling which is perfectly consistent with the universal Huberman–Rudnick scaling law.
3.2. Scaling Relation between the Correlation Length and Distance to the Chaos Threshold
Poincaré section points of the Rössler system in the vicinity of the chaos threshold show strong correlations due to strongly correlated data points in distinct bands. We study the correlation property of the data obtained from the Poincaré section of x, y, and z variables of the Rössler system. In order to analyze whether the data of a time series is correlated, we can use the auto-correlation function which is defined aswhere , N is the total number of data points of the time series, and is the time lag. The data is said to be correlated if and not correlated if . To visualize strong correlations of the Poincaré section points of the Rössler system, we plot the auto-correlation function (Equation (10)), of the data obtained from the Poincaré section that contains maximum y trajectories for . As seen in Figure 5, the auto-correlation function of the data oscillates around zero with very large fluctuations.
As the chaos threshold is approached with increasing n values, correlations between trajectory points of chaotic bands get stronger. Due to this behavior, the correlation length of a chaotic band and its distance to the chaos threshold can be related. can be defined using the auto-correlation function aswhere K is upper limit of the time lag (for , and , ) corresponding to the correlated data . In the calculation of the auto-correlation function (Equation (10)) and (Equation (11)), we take the summation of the Poincaré points for each () tuple, (). This summation of Poincaré points is defined as
Equation (12) is given for the Poincaré points obtained from the x-variable of the Rössler system, and for the other two variables the equation has the same form. As Poincaré points of the Rössler system behave in the same way as iteration steps of an iterative map, we fall back to our starting point at the chaotic band of our () tuple (not exactly to our starting point, but very close to it). Repeating this process times successively we cover the whole band and obtain strongly correlated variables possessing the length of [30,31].
We plot the calculated correlation length of each () tuple versus their distances to the chaos threshold in order to obtain a scaling relation. In Figure 6 we see that as we approach the chaos threshold, of chaotic bands increases with power-law behavior with critical exponent value. This obtained scaling relation is valid for all of three variables of the Rössler system.
3.3. Analysis of the Fractal Dimension for the Rössler system
If we look from geometric point of view to the chaotic bands observed in the band-splitting procedure in the chaotic regime, we see that Poincaré points are approximately uniformly distributed on allowed regions of the phase space and there are forbidden regions among allowed ones. Due to the band-splitting procedure, the whole phase space has fractal properties [20,36].
In our study, for the fractal dimension calculation we use box-counting method that requires covering the phase space of the system with boxes of side length . We then fill these boxes with the iterations of the dynamical system. We use line segments of length since the Poincaré section points of the Rössler system construct a one-dimensional phase space and we fill these line segments with the Poincaré points. The box-counting fractal dimension is defined aswhere is the number of line segments needed to include all the points of geometric object for chosen length.
The band-splitting procedure in the chaotic regime can be seen as a Cantor set construction. From this perspective, in recent works [30,31] it has been shown for the one-dimensional logistic map that the fractal dimension of each chaotic band exhibits a power-law type scaling relation with its distance to the chaos threshold. At the most chaotic regime of the map, the whole phase space is fully occupied by iterations and can be regarded as a single band with . This single band is involved in the first stage of the Cantor set construction and also the beginning of the band-splitting procedure .
As a consequence of the continuous system dynamics, the Rössler system has no analytical bounds for its phase space, unlike the logistic map. In the analysis of the fractal dimension for the Poincaré points of the flow, a problem emerges. Since there are no bounds for the phase space and parameter values, one may choose arbitrarily large control parameters, driving the system to the strongly chaotic regime. Before the first band is split, any case corresponds to a single band with which is fully occupied by Poincaré points. For this reason, choosing a band for the first stage of the Cantor set construction is arbitrary. Due to these difficulties arising from the nature of the flow, there is no scaling relation between fractal dimensions of chaotic bands and their distances to the chaos threshold for the Rössler system.
From the Poincaré section analysis of the Rössler system, we observe that a q-generalization of Pesin-like identity is valid at the chaos threshold and that there exist power-law type scaling relations in the vicinity of this critical point. For each variable of the Rössler system, the linear time dependence of the sensitivity function and the entropy increase rate are obtained for the same specific q value (), showing that the generalization of the Pesin-like identity holds for this q value.
As Poincaré points obtained by the Poincaré section that collects maximum points of a signal of a variable of the Rössler system represent similar behavior to the one-dimensional unimodal dissipative logistic map, our results can be compared to the results that are given for the logistic map in [30,31]. In Table 2 we see that q-generalized Pesin-like identity is valid at the same q value for both systems. The same types of power-law behavior have also been observed for scaling relations as the chaos threshold of each system is approached.
As a result of the fact that the phase space of the flow is unlimited, the fractal dimension analysis cannot be handled in a similar manner to that of recent works [30,31] performed for the logistic map.
To the best of our knowledge, for the first time one of the paradigmatic model systems of flows (Rössler) is analyzed here in the realm of non-extensive statistical mechanics using the Poincaré technique. Obtained results have been compared to those of the paradigmatic one-dimensional dissipative map (a logistic map). Since these distinct systems share the same universality class, as expected the scaling relations have exactly the same exponents, which leads to the fact that . The tendency of the Lyapunov exponent is exactly the same as that of the order parameter (magnetization) observed in the second-order phase transitions.
U.T. is a member of the Science Academy, Istanbul, Turkey and acknowledges partial support from the John Templeton Foundation. This work has been supported by TUBITAK (Turkish Agency) under Research Project number 115F492.
All the authors conceived the study, performed simulations, analysed the results and wrote the paper.
Conflicts of Interest
The authors declare no conflict of interest.
- Lorenz, E.N. Deterministic Nonperiodic Flow. J. Atmos. Sci. 1963, 20, 130–148. [Google Scholar] [CrossRef]
- Ruelle, D.; Takens, F. On the nature of turbulence. Commun. Math. Phys. 1971, 20, 167–192. [Google Scholar] [CrossRef]
- Volterra, V. Fluctuations in the Abundance of a Species Considered Mathematically. Nature 1926, 118, 558–560. [Google Scholar] [CrossRef]
- Yang, C.R.; Shapiro, B.E.; Mjolsness, E.D.; Hatfield, G.W. An enzyme mechanism language for the mathematical modeling of metabolic pathways. Bioinformatics 2005, 21, 774–780. [Google Scholar] [CrossRef] [PubMed]
- Kermack, W.O.; McKendrick, A.G. A contribution to the mathematical theory of epidemics. Proc. R. Soc. Lond. A 1927, 115, 700–721. [Google Scholar] [CrossRef]
- He, R.; Vaidya, P.G. Analysis and synthesis of synchronous periodic and chaotic systems. Phys. Rev. A 1992, 46, 7387. [Google Scholar] [CrossRef] [PubMed]
- Al-Sawalha, M.M.; Noorani, M.S.M. Application of the differential transformation method for the solution of the hyperchaotic Rössler system. Commun. Nonlinear Sci. Numer. Simul. 2009, 14, 1509–1514. [Google Scholar] [CrossRef]
- Chen, S.; Hu, J.; Wang, C.; Lü, J. Adaptive synchronization of uncertain Rössler hyperchaotic system based on parameter identification. Phys. Lett. A 2004, 321, 50–55. [Google Scholar] [CrossRef]
- Cuomo, K.M.; Oppenheim, A.V. Circuit implementation of synchronized chaos with applications to communications. Phys. Rev. Lett. 1993, 71, 65. [Google Scholar] [CrossRef] [PubMed]
- Sprott, J.C. A dynamical system with a strange attractor and invariant tori. Phys. Lett. A 2014, 378, 1361–1363. [Google Scholar] [CrossRef]
- Afsar, O.; Eroglu, D.; Marwan, N.; Kurths, J. Scaling behaviour for recurrence-based measures at the edge of chaos. EPL 2015, 112, 10005. [Google Scholar] [CrossRef]
- Sun, Y.; Ruan, J. Synchronization in coupled time-delayed systems with parameter mismatch and noise perturbation. Chaos 2009, 19, 043113. [Google Scholar] [CrossRef] [PubMed]
- Sun, Y.; Li, W.; Ruan, J. Generalized outer synchronization between complex dynamical networks with time delay and noise perturbation. Commun. Nonlinear Sci. Numer. Simulat. 2013, 18, 989–998. [Google Scholar] [CrossRef]
- May, R.M. Simple mathematical models with very complicated dynamics. Nature 1976, 261, 459–467. [Google Scholar] [CrossRef] [PubMed]
- Chirikov, B.V. A universal instability of many-dimensional oscillator systems. Phys. Rep. 1979, 52, 263–379. [Google Scholar] [CrossRef]
- Ye, J.; Li, H.; McInerney, J.G. Period-doubling route to chaos in a semiconductor laser with weak optical feedback. Phys. Rev. A 1993, 47, 2249–2252. [Google Scholar] [CrossRef] [PubMed]
- Linsay, P.S. Period Doubling and Chaotic Behavior in a Driven Anharmonic Oscillator. Phys. Rev. Lett. 1981, 47, 1349. [Google Scholar] [CrossRef]
- Rössler, O.E. An equation for continuous chaos. Phys. Lett. A 1976, 57, 397–398. [Google Scholar] [CrossRef]
- Rössler, O.E. Continuous Chaos-Four Prototype Equations. Ann. N. Y. Acad. Sci. 1979, 316, 376–392. [Google Scholar] [CrossRef]
- Hilborn, R.C. Chaos and Nonlinear Dynamics; Oxford University Press: New York, NY, USA, 1994. [Google Scholar]
- Pesin, Y. Characteristic Lyapunov exponents and smooth ergodic theory. Russ. Math. Surv. 1977, 32, 55–114. [Google Scholar] [CrossRef]
- Tsallis, C.; Plastino, A.R.; Zheng, W.M. Power-law sensitivity to initial conditions—New entropic representation. Chaos Solitons Fractals 1997, 8, 885–891. [Google Scholar] [CrossRef]
- Tirnakli, U. Two-dimensional maps at the edge of chaos: Numerical results for the Henon map. Phys. Rev. E 2002, 66, 066212. [Google Scholar] [CrossRef] [PubMed]
- Celikoglu, A.; Tirnakli, U. Sensitivity function and entropy increase rates for z-logistic map family at the edge of chaos. Physica A 2006, 372, 238–242. [Google Scholar] [CrossRef]
- Tirnakli, U.; Tsallis, C. Chaos edges of z-logistic maps: Connection between the relaxation and sensitivity entropic indices. Phys. Rev. E 2006, 73, 037201. [Google Scholar] [CrossRef] [PubMed]
- Tirnakli, U.; Ananos, G.F.J.; Tsallis, C. Generalization of the Kolmogorov–Sinai entropy: Logistic-like and generalized cosine maps at the chaos threshold. Phys. Lett. A 2001, 289, 51–58. [Google Scholar] [CrossRef]
- Tsallis, C. Possible generalization of Boltzmann-Gibbs statistics. J. Stat. Phys. 1988, 52, 479–487. [Google Scholar] [CrossRef]
- Curado, E.M.F.; Tsallis, C. Generalized statistical mechanics: Connection with thermodynamics. J. Phys. A 1991, 24, L69, Corrigenda: J. Phys. A 1991, 24, 3187 and J. Phys. A 1991, 25, 1019. [Google Scholar] [CrossRef]
- Baldovin, F.; Robledo, A. Nonextensive Pesin identity: Exact renormalization group analytical results for the dynamics at the edge of chaos of the logistic map. Phys. Rev. E 2004, 69, 045202(R). [Google Scholar] [CrossRef] [PubMed]
- Afsar, O.; Tirnakli, U. Relationships and scaling laws among correlation, fractality, Lyapunov divergence and q-Gaussian distributions. Physica D 2014, 272, 18–25. [Google Scholar] [CrossRef]
- Cetin, K.; Afsar, O.; Tirnakli, U. Limit behaviour and scaling relations of two kinds of noisy logistic map in the vicinity of chaos threshold and their robustness. Physica A 2015, 424, 269–282. [Google Scholar] [CrossRef]
- Afsar, O.; Tirnakli, U. Generalized Huberman-Rudnick scaling law and robustness of q-Gaussian probability distributions. EPL 2013, 101, 20003. [Google Scholar] [CrossRef]
- Beck, C.; Schlögl, F. Thermodynamics of Chaotic Systems: An Introduction; Cambridge University Press: Cambridge, UK, 1995. [Google Scholar]
- Huberman, B.A.; Rudnick, J. Scaling Behavior of Chaotic Flows. Phys. Rev. Lett. 1980, 45, 154. [Google Scholar] [CrossRef]
- Morales, J.J.; Nuevo, M.J. Physical meaning of the time-correlation length obtained in a computer simulation. Phys. Rev. E 1993, 48, 1550. [Google Scholar] [CrossRef]
- Schuster, H.G.; Just, W. Deterministic Chaos: An Introduction; Wiley-VCH: Weinheim, Germany, 2005. [Google Scholar]

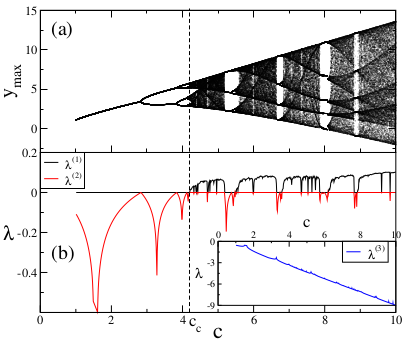

Figure 1. (a) Bifurcation diagram obtained from the Poincaré section intersection points of the y variable of the Rössler system; (b) the Lyapunov exponent diagram of the Rössler system starting from initial points , with constant parameters .

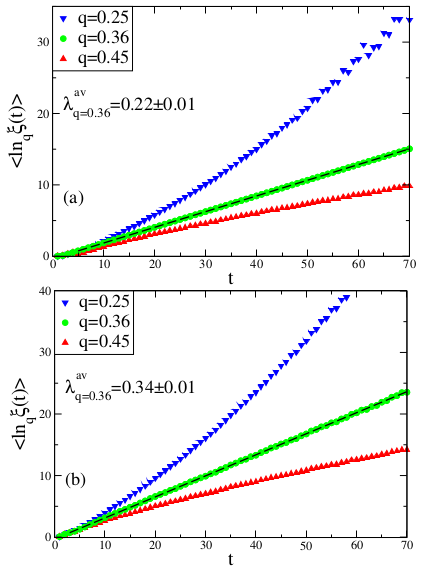

Figure 2. Time evolution of the averaged sensitivity function at the chaos threshold of the Rössler system for the (a) x , (b) y , and (c) z variables.

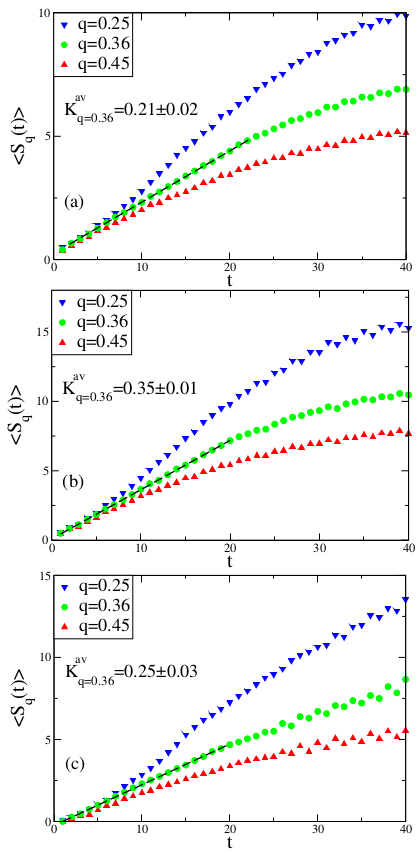

Figure 3. Entropy increase rates at the chaos threshold of the Rössler system for the (a) x , (b) y , and (c) z variables.
Figure 4. Scaling relation between the Lyapunov exponents of () tuples and their distance to the chaos threshold () for the Rössler system.
Figure 5. Auto-correlation function of data points obtained for the y-variable of the Rössler system for .

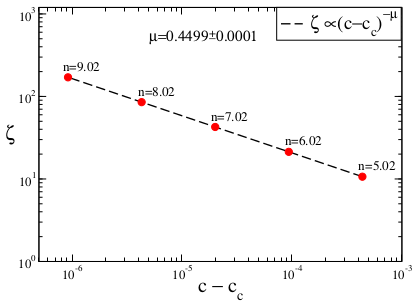

Figure 6. Plot of the correlation lenght of () tuples of the Rössler system versus distances of the () tuples to the chaos threshold.
Table 1. n Values that correspond to chaotic bands and c parameter values calculated from Equation (8) for these n values.
Table 2. Relations obtained for the Rössler system and the logistic map.
