# Security Analysis of Unidimensional Continuous-Variable Quantum Key Distribution Using Uncertainty Relations

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Unidimensional Quantum Key Distribution

#### 2.1. Equivalence between the EB Scheme and the PM Scheme

_{M}, which is assumed to be expressed in shot-noise units, and that the coherent states follow the uncertainty principle of variance 1. Thus, the mixture of Gaussian-modulated coherent states gives rise to a unidimensional chain structure with a thickness of 1 and a length of $\sqrt{1+{V}_{M}}$ in the phase space. These quantum states are then sent to Bob through an untrusted quantum channel with transmittance ${T}_{x}$, ${T}_{y}$ and excess noise ${\epsilon}_{x}$, ${\epsilon}_{y}$.

#### 2.2. Calculation of Secret Key Rate with Reverse Reconciliation

## 3. Security Analysis Using Uncertainty Relations

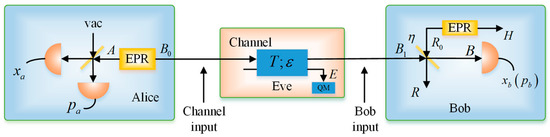

#### 3.1. Uncertainty Relations for Symmetrical Coherent-State Protocol

#### 3.2. Uncertainty Relations for Unidimensional Coherent-State Protocol

## 4. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Gisin, N.; Ribordy, G.; Tittel, W.; Zbinden, H. Quantum cryptography. Rev. Mod. Phys.
**2002**, 74, 145–195. [Google Scholar] [CrossRef] - Scarani, V.; Bechmann-Pasquinucci, H.; Cerf, N.J.; Dušek, M.; Lütkenhaus, N.; Peev, M. The security of practical quantum key distribution. Rev. Mod. Phys.
**2009**, 81, 1301–1350. [Google Scholar] [CrossRef] - Cerf, N.J.; Levy, M.; Van Assche, G. Quantum distribution of gaussian keys using squeezed states. Phys. Rev. A
**2001**, 63, 052311. [Google Scholar] [CrossRef] - Silberhorn, C.; Ralph, T.C.; Lütkenhaus, N.; Leuchs, G. Continuous variable quantum cryptography: Beating the 3 db loss limit. Phys. Rev. Lett.
**2002**, 89, 167901. [Google Scholar] [CrossRef] - Weedbrook, C.; Lance, A.M.; Bowen, W.P.; Symul, T.; Ralph, T.C.; Lam, P.K. Quantum cryptography without switching. Phys. Rev. Lett.
**2004**, 93, 170504. [Google Scholar] [CrossRef] - Fossier, S.; Diamanti, E.; Debuisschert, T.; Villing, A.; Tualle-Brouri, R.; Grangier, P. Field test of a continuous-variable quantum key distribution prototype. New J. Phys.
**2009**, 11, 045023. [Google Scholar] [CrossRef] - Leverrier, A.; Grangier, P. Continuous-variable quantum-key-distribution protocols with a non-gaussian modulation. Phys. Rev. A
**2011**, 83, 042312. [Google Scholar] [CrossRef] - Madsen, L.S.; Usenko, V.C.; Lassen, M.; Filip, R.; Andersen, U.L. Continuous variable quantum key distribution with modulated entangled states. Nat. Commun.
**2012**, 3, 1083. [Google Scholar] [CrossRef] - Wang, X.Y.; Bai, Z.L.; Du, P.Y.; Li, Y.M.; Peng, K.C. Ultrastable fiber-based time-domain balanced homodyne detector for quantum communication. Chin. Phys. Lett.
**2012**, 29, 124202. [Google Scholar] [CrossRef] - Weedbrook, C.; Pirandola, S.; García-Patrón, R.; Cerf, N.J.; Ralph, T.C.; Shapiro, J.H.; Lloyd, S. Gaussian quantum information. Rev. Mod. Phys.
**2012**, 84, 621–669. [Google Scholar] [CrossRef] - Wang, X.Y.; Bai, Z.L.; Wang, S.F.; Li, Y.M.; Peng, K.C. Four-state modulation continuous variable quantum key distribution over a 30-km fiber and analysis of excess noise. Chin. Phys. Lett.
**2013**, 30, 010305. [Google Scholar] [CrossRef] - Gehring, T.; Handchen, V.; Duhme, J.; Furrer, F.; Franz, T.; Pacher, C.; Werner, R.F.; Schnabel, R. Implementation of continuous-variable quantum key distribution with composable and one-sided-device-independent security against coherent attacks. Nat. Commun.
**2015**, 6, 8795. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Zhang, Y.; Li, Z.; Weedbrook, C.; Marshall, K.; Pirandola, S.; Yu, S.; Guo, H. Noiseless linear amplifiers in entanglement-based continuous-variable quantum key distribution. Entropy
**2015**, 17, 4547. [Google Scholar] [CrossRef] - Li, H.S.; Wang, C.; Huang, P.; Huang, D.; Wang, T.; Zeng, G.H. Practical continuous-variable quantum key distribution without finite sampling bandwidth effects. Opt. Express
**2016**, 24, 20481–20493. [Google Scholar] [CrossRef] - Bai, D.Y.; Huang, P.; Ma, H.X.; Wang, T.; Zeng, G.H. Performance improvement of plug-and-play dual-phase-modulated quantum key distribution by using a noiseless amplifier. Entropy
**2017**, 19, 546. [Google Scholar] [CrossRef] - Bai, Z.L.; Yang, S.S.; Li, Y.M. High-efficiency reconciliation for continuous variable quantum key distribution. Jpn. J. Appl. Phys.
**2017**, 56, 044401. [Google Scholar] [CrossRef] - Grosshans, F.; Grangier, P. Continuous variable quantum cryptography using coherent states. Phys. Rev. Lett.
**2002**, 88, 057902. [Google Scholar] [CrossRef] - Grosshans, F.; Van Assche, G.; Wenger, J.; Brouri, R.; Cerf, N.J.; Grangier, P. Quantum key distribution using gaussian-modulated coherent states. Nature
**2003**, 421, 238–241. [Google Scholar] [CrossRef] - Iblisdir, S.; Van Assche, G.; Cerf, N.J. Security of quantum key distribution with coherent states and homodyne detection. Phys. Rev. Lett.
**2004**, 93, 170502. [Google Scholar] [CrossRef] - Grosshans, F. Collective attacks and unconditional security in continuous variable quantum key distribution. Phys. Rev. Lett.
**2005**, 94, 020504. [Google Scholar] [CrossRef] [PubMed] - Lance, A.M.; Symul, T.; Sharma, V.; Weedbrook, C.; Ralph, T.C.; Lam, P.K. No-switching quantum key distribution using broadband modulated coherent light. Phys. Rev. Lett.
**2005**, 95, 180503. [Google Scholar] [CrossRef] [PubMed] - Lodewyck, J.; Bloch, M.; Garcia-Patron, R.; Fossier, S.; Karpov, E.; Diamanti, E.; Debuisschert, T.; Cerf, N.J.; Tualle-Brouri, R.; McLaughlin, S.W.; et al. Quantum key distribution over 25 km with an all-fiber continuous-variable system. Phys. Rev. A
**2007**, 76, 042503. [Google Scholar] [CrossRef] - Qi, B.; Huang, L.L.; Qian, L.; Lo, H.K. Experimental study on the gaussian-modulated coherent-state quantum key distribution over standard telecommunication fibers. Phys. Rev. A
**2007**, 76, 052323. [Google Scholar] [CrossRef] - Yang, S.S.; Bai, Z.L.; Wang, X.Y.; Li, Y.M. FPGA-based implementation of size-adaptive privacy amplification in quantum key distribution. Photonics J.
**2017**, 9, 7600308. [Google Scholar] [CrossRef] - Jouguet, P.; Kunz-Jacques, S.; Leverrier, A.; Grangier, P.; Diamanti, E. Experimental demonstration of long-distance continuous-variable quantum key distribution. Nat. Photonics
**2013**, 7, 378–381. [Google Scholar] [CrossRef] - Li, Y.M.; Wang, X.Y.; Bai, Z.L.; Liu, W.Y.; Yang, S.S.; Peng, K.C. Continuous variable quantum key distribution. Chin. Phys. B
**2017**, 26, 040303. [Google Scholar] [CrossRef] - Liu, W.Y.; Wang, X.Y.; Wang, N.; Du, S.N.; Li, Y.M. Imperfect state preparation in continuous-variable quantum key distribution. Phys. Rev. A
**2017**, 96, 042312. [Google Scholar] [CrossRef] - Usenko, V.C.; Grosshans, F. Unidimensional continuous-variable quantum key distribution. Phys. Rev. A
**2015**, 92, 062337. [Google Scholar] [CrossRef] - Wang, X.Y.; Liu, W.Y.; Wang, P.; Li, Y.M. Experimental study on all-fiber-based unidimensional continuous-variable quantum key distribution. Phys. Rev. A
**2017**, 95, 062330. [Google Scholar] [CrossRef] - Wang, P.; Wang, X.Y.; Li, J.Q.; Li, Y.M. Finite-size analysis of unidimensional continuous-variable quantum key distribution under realistic conditions. Opt. Express
**2017**, 25, 27995–28009. [Google Scholar] [CrossRef] - Braunstein, S.L.; van Loock, P. Quantum information with continuous variables. Rev. Mod. Phys.
**2005**, 77, 513–577. [Google Scholar] [CrossRef] - Serafini, A. Detecting entanglement by symplectic uncertainty relations. J. Opt. Soc. Am. B
**2007**, 24, 347–354. [Google Scholar] [CrossRef] - Grosshans, F.; Cerf, N.J.; Wenger, J.; Tualle-Brouri, R.; Grangier, P. Virtual entanglement and reconciliation protocols for quantum cryptography with continuous variables. Quantum Inform. Comput.
**2003**, 3, 535–552. [Google Scholar] - Ben-Israel, A.; Greville, T.N.E. Generalized Inverses: Theory and Applications, 2nd ed.; Springer: New York, NY, USA, 2003. [Google Scholar]
- Serafini, A.; Paris, M.G.A.; Illuminati, F.; Siena, S.D. Quantifying decoherence in continuous variable systems. J. Opt. B
**2005**, 7, R19. [Google Scholar] [CrossRef] - Garcia-Patron, R.; Cerf, N.J. Continuous-variable quantum key distribution protocols over noisy channels. Phys. Rev. Lett.
**2009**, 102, 130501. [Google Scholar] [CrossRef] - Milicevic, M.; Feng, C.; Zhang, L.M.; Gulak, P.G. Key reconciliation with low-density parity-check codes for long-distance quantum cryptography. arXiv, 2017; arXiv:1702.07740. [Google Scholar]

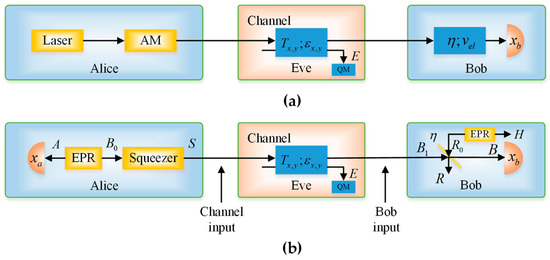

**Figure 1.**Unidimensional (UD) protocol schemes under realistic conditions. (

**a**) Prepare-and-measure (PM) scheme of the UD protocol; (

**b**) Entanglement-based (EB) scheme of the UD protocol.

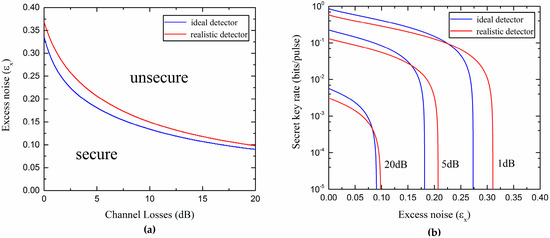

**Figure 3.**(

**a**) Secure and unsecure regions of the SY protocol using ideal homodyne detector ($\eta =1,{v}_{el}=0$) and realistic homodyne detector ($\eta =0.6,{v}_{el}=0.1$); (

**b**) Secret key rate versus the excess noise for different channel losses.

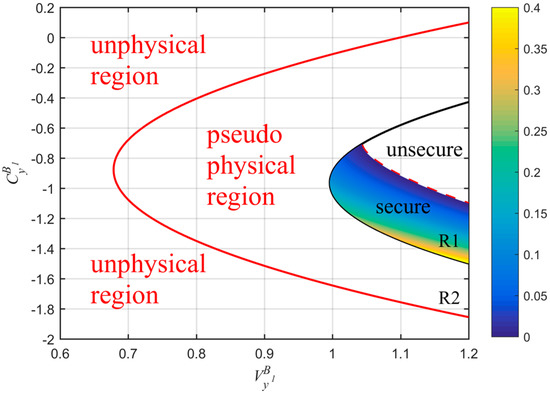

**Figure 4.**Comparison among physical regions of the UD protocol under both ideal and realistic detection conditions. The red solid line represents the realistic parabolic curve (equivalent to Bob using a realistic homodyne detector with $\eta =0.6,{v}_{el}=0.1$) and black solid line is the ideal parabolic curve (equivalent to Bob using an ideal homodyne detector with $\eta =1,{v}_{el}=0$). The red dashed line represents the part where the key rate is zero under realistic detection condition. Here, we set: $\beta =0.99$, ${T}_{x}=0.4$ (corresponding to a distance of 20 km fiber), ${\epsilon}_{x}=0.01$ and ${V}_{M}=6.35$.

**Figure 5.**Comparison among physical regions delimited by the parabolic curves of the UD protocol. The black solid curve corresponds to the ideal parabolic curve, whereas the others to the realistic parabolic curves obtained for different parameter conditions. (

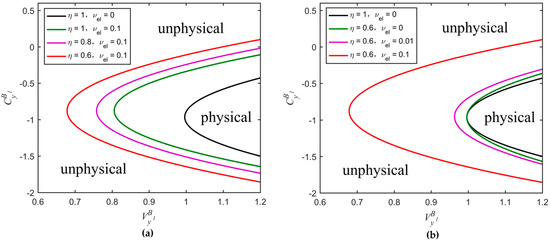

**a**) Changes of the physical region extension according to different values of $\eta $ (${v}_{el}$ remains constant); (

**b**) Changes of the physical region extension according to different values of ${v}_{el}$ ($\eta $ remains constant). The values of the parameters ${T}_{x}$, ${\epsilon}_{x}$, and ${V}_{M}$ are the same as in Figure 4.

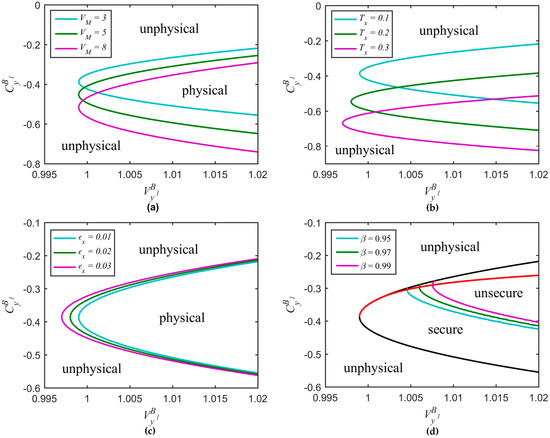

**Figure 6.**Ideal parabolic curve versus related parameters. (

**a**) Different modulation variance values with ${T}_{x}=0.1$ and ${\epsilon}_{x}=0.01$; (

**b**) Different transmission efficiency values with ${\epsilon}_{x}=0.01$ and ${V}_{M}=3$; (

**c**) Different excess noise values with ${T}_{x}=0.1$ and ${V}_{M}=3$; (

**d**) Different reconciliation efficiency values with ${T}_{x}=0.1$, ${\epsilon}_{x}=0.01$, and ${V}_{M}=3$.

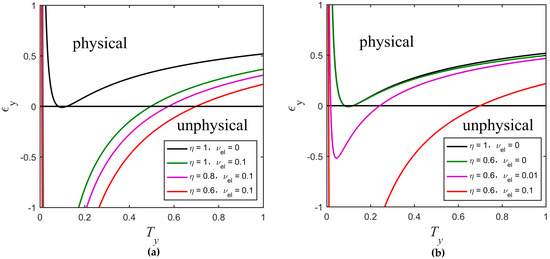

**Figure 7.**Comparison among physical regions delimited by the new curves of the UD protocol. (

**a**) Changes of the physical region according to different values of $\eta $ (${v}_{el}$ remains constant); (

**b**) Changes of the physical region according to different values of ${v}_{el}$ ($\eta $ remains constant). The other parameters are $\beta =0.99$, ${T}_{x}=0.1$, ${\epsilon}_{x}=0.01$, and ${V}_{M}=3$.

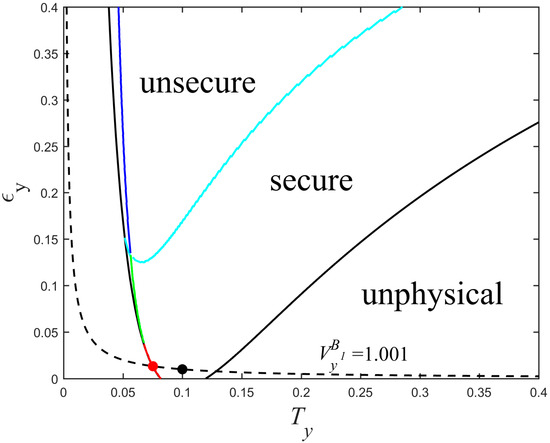

**Figure 8.**Secure and unsecure regions of the UD protocol under realistic detection condition. The parameters are set to $\beta =0.99$, ${V}_{M}=3$, ${T}_{x}=0.1$, ${\epsilon}_{x}=0.01$, $\eta =0.6$, and ${v}_{el}=0.1$.

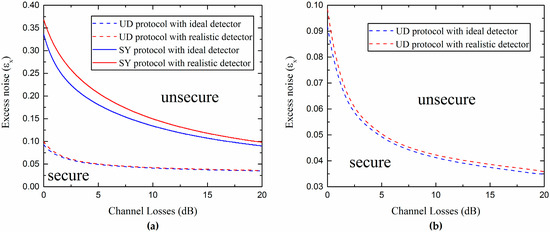

**Figure 9.**(

**a**) Comparison between secure and unsecure regions for the SY coherent-state protocol and UD coherent-state protocol under different detection conditions; (

**b**) Secure and unsecure regions of the UD protocol using an ideal homodyne detector ($\eta =1,{v}_{el}=0$) and a realistic one ($\eta =0.6,{v}_{el}=0.1$). Here we consider ${V}_{M}=3$, $\beta =0.99$, and the estimated value ${V}_{y}^{{B}_{1}}\approx 1+{T}_{x}{\epsilon}_{x}$.

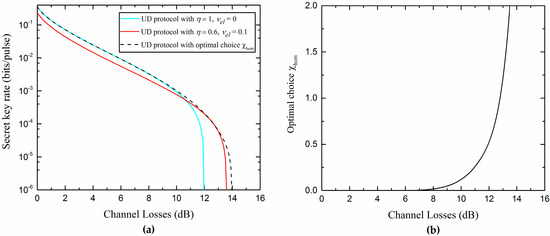

**Figure 10.**(
