# Exergy Analysis of the Musculoskeletal System Efficiency during Aerobic and Anaerobic Activities

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Thermodynamic Model

**B**is the exergy of the control volume obtained in Joules (J), whereas $\dot{B}=\dot{{m}_{i}}{b}_{i}$ is the exergy associated with the mass flow rate in Watts (W).

## 3. Experimental Procedure

- 1
- Weight lifting (biceps curl): a continuous series of lifting (76 repetitions) was performed and with one arm (the forearm is considered to elevate the mass to 0.26 m) and a mass of 4 kg until the exhaustion of the subject. This was an experimental protocol aiming at the proposition of the most suitable exercise to apply the exergy analysis.
- 2
- Stationary bicycle, where there was an incremental cadence of the bicycle (Wattbike, Model Pro/Trainer) every 4 min. When the subject was exhausted, the level of activity decreased, and the exercise continued only for recovery purposes, which was around 17 min of activity. This protocol was based on the one proposed in [29]. The performed power was obtained directly from the bicycle, taking into account the thermodynamic definition.

## 4. Results and Discussion

- The first column (1) indicates the maximum work that the body could extract from nutrients; therefore, the metabolic exergy (in blue). In order to obtain these values, the exergy metabolism was integrated over the period of time of the test. The value obtained in Figure 9a was 730 kJ. For Figure 9b, it was 18 kJ.
- Because the body only consumes ATP as a nutrient to perform any physical activity, there must be some irreversibilities in this step, as indicated in Column (2), using an integration of Equation (21). This result is in accordance with [5]. Nevertheless, there is a destroyed exergy in the process, in red (${B}_{{d}_{ATP}}$), and an exergy loss associated with heat, in green (${B}_{{Q}_{ATP}}$).

## 5. Concluding Remarks

- The bicycle test is more efficient than weight lifting, from the second law perspective. Nevertheless, this result must be understood with some care, since larger muscular groups are used, although the nature of metabolism is different.
- The metabolic path, from nutrients’ consumption (obtained by indirect calorimetry) to performed power, was first analyzed from the exergy analysis point of view.
- The exergy efficiency achieved values around 40% if the exergy input considered was the ATP and values around 30% if the complete cycle was evaluated (${B}_{M}$ as exergy input).
- The exergy efficiency was no larger than 10% for the weight lifting.
- If all of the metabolism was anaerobic, both cases would violate the second law of thermodynamics. This last result demonstrates the characteristic of this kind of nutrient degradation: fast energy conversion, although with low efficiency (use less exergy from the nutrient).
- The most important conclusion is that for future tests involving the application of the first and second laws of thermodynamics, the stationary bicycle test is adequate. It is more precise in the definition of performed power, even when compared with the treadmill, as indicated [29,36]. In future experiments, the group will focus on the referred exercise.

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Schrödinger, E. What Is Life? The Physical Aspect of the Living Cell; Cambridge University Press: Cambridge, UK, 1944. [Google Scholar]
- Prigogine, I.; Wiame, J. Biologie et thermodynamique des phénomènes irréversibles. Experientia
**1946**, 2, 451–453. (In French) [Google Scholar] [CrossRef] [PubMed] - Luo, L. Entropy production in a cell and reversal of entropy flow as an anticancer therapy. Front. Phys. China
**2009**, 4, 122–136. [Google Scholar] [CrossRef] - Lems, S. Thermodynamic Explorations into Sustainable Energy Conversion. Learning from Living Systems. Ph.D. Thesis, Technische Universiteit Delft, Delft, The Netherlands, 2009. [Google Scholar]
- Mady, C.; Oliveira, S. Human body exergy metabolism. Int. J. Thermodyn.
**2013**, 16, 73–80. [Google Scholar] [CrossRef] - Aoki, I. Entropy principle for human development, growth and aging. J. Theor. Biol.
**1991**, 150, 215–223. [Google Scholar] [CrossRef] - Aoki, I. Effects of exercise and chills on entropy production in human body. J. Theor. Biol.
**1990**, 145, 421–428. [Google Scholar] [CrossRef] - Aoki, I. Entropy flow and entropy production in the human body in basal conditions. J. Theor. Biol.
**1989**, 141, 11–21. [Google Scholar] [CrossRef] - Aoki, I. Entropy balance of white-tailed deer during a winter night. Bull. Math. Biol.
**1987**, 49, 321–327. [Google Scholar] [CrossRef] [PubMed] - Aoki, I. Radiation entropies in diffuse reflection and scattering and application to solar radiation. J. Phys. Soc. Jpn.
**1982**, 51, 4003–4010. [Google Scholar] [CrossRef] - Silva, C.; Annamalai, K. Entropy generation and human aging: Lifespan entropy and effect of diet composition and caloric restriction diets. J. Thermodyn.
**2009**, 2009, 186723. [Google Scholar] [CrossRef] - Silva, C.; Annamalai, K. Entropy generation and human aging: Lifespan entropy and effect of physical activity level. Entropy
**2008**, 10, 100–123. [Google Scholar] [CrossRef] - Mady, C.; Ferreira, M.; Yanagihara, J.; Saldiva, P.; Oliveira-Junior, S. Modeling the exergy behavior of human body. Energy
**2012**, 45, 546–553. [Google Scholar] [CrossRef] - Schweiker, M.; Kolarik, J.; Dovjak, M.; Shukuya, M. Unsteady-state human-body exergy consumption rate and its relation to subjective assessment of dynamic thermal environments. Energy Build.
**2016**, 116, 164–180. [Google Scholar] [CrossRef] [Green Version] - Schweiker, M.; Shukuya, M. Adaptive comfort from the viewpoint of human body exergy consumption. Build. Environ.
**2012**, 51, 351–360. [Google Scholar] [CrossRef] - Shukuya, M. Exergy concept and its application to the built environment. Build. Environ.
**2009**, 44, 1545–1550. [Google Scholar] [CrossRef] - Prek, M. Exergy analysis of thermal comfort. Int. J. Exergy
**2004**, 1, 303–315. [Google Scholar] [CrossRef] - Prek, M. Thermodynamical analysis of human thermal comfort. Energy
**2006**, 31, 732–743. [Google Scholar] [CrossRef] - Prek, M.; Butala, V. Principles of exergy analysis of human heat and mass exchange with the indoor environment. Int. J. Heat Mass Transf.
**2010**, 53, 5806–5814. [Google Scholar] [CrossRef] - Prek, M.; Butala, V. Comparison between Fanger’s thermal comfort model and human exergy loss. Energy
**2017**, 138, 228–237. [Google Scholar] [CrossRef] - Wu, X.; Zhao, J.; Olesen, B.W.; Fang, L. A novel human body exergy consumption formula to determine indoor thermal conditions for optimal human performance in office buildings. Energy Build.
**2013**, 56, 48–55. [Google Scholar] [CrossRef] - Mady, C.E.K.; Ferreira, M.S.; Yanagihara, J.I.; de Oliveira, S. Human body exergy analysis and the assessment of thermal comfort conditions. Int. J. Heat Mass Transf.
**2014**, 77, 577–584. [Google Scholar] [CrossRef] - Henriques, I.B.; Mady, C.E.K.; de Oliveira Junior, S. Assessment of thermal comfort conditions during physical exercise by means of exergy analysis. Energy
**2017**, 128, 609–617. [Google Scholar] [CrossRef] - Mady, C.E.K.; Henriques, I.B.; de Oliveira, S. A thermodynamic assessment of therapeutic hypothermia techniques. Energy
**2015**, 85, 392–402. [Google Scholar] [CrossRef] - Henriques, I.B.; Mady, C.E.K.; de Oliveira Junior, S. Exergy model of the human heart. Energy
**2016**, 117, 612–619. [Google Scholar] [CrossRef] - Henriques, I.B.; Mady, C.E.K.; Neto, C.A.; Yanagihara, J.I.; Junior, S.O. The effect of altitude and intensity of physical activity on the exergy efficiency of respiratory system. Int. J. Thermodyn.
**2014**, 17, 265–273. [Google Scholar] [CrossRef] - Annamalai, K.; Nanda, A. Biological Aging and Life Span Based on Entropy Stress via Organ and Mitochondrial Metabolic Loading. Entropy
**2017**, 19, 566. [Google Scholar] [CrossRef] - Çatak, J.; Özilgen, M.; Olcay, A.B.; Yılmaz, B. Assessment of the work efficiency with exergy method in ageing muscles and healthy and enlarged hearts. Int. J. Exergy
**2018**, 25, 1–33. [Google Scholar] [CrossRef] - Mady, C.; Albuquerque-Neto, C.; Fernandes, T.; Hernandez, A.; Yanagihara, J.; Saldiva, P.; Oliveira Junior, S. Exergy performance of human body under physical activities. Energy
**2013**, 62, 370–378. [Google Scholar] [CrossRef] - Sorgüven, E.; Özilgen, M. First and second law work production efficiency of a muscle cell. Int. J. Exergy
**2015**, 18, 142–156. [Google Scholar] [CrossRef] - Genc, S.; Sorguven, E.; Kurnaz, I.A.; Ozilgen, M. Exergetic efficiency of ATP production in neuronal glucose metabolism. Int. J. Exergy
**2013**, 13, 60–84. [Google Scholar] [CrossRef] - Yalçınkaya, B.H.; Erikli, Ş.; Özilgen, B.A.; Olcay, A.B.; Sorgüven, E.; Özilgen, M. Thermodynamic analysis of the squid mantle muscles and giant axon during slow swimming and jet escape propulsion. Energy
**2016**, 102, 537–549. [Google Scholar] [CrossRef] - Ç atak, J.; Develi, A.Ç.; Sorguven, E.; Özilgen, M.; İnal, H.S. Lifespan entropy generated by the masseter muscles during chewing: An indicator of the life expectancy? Int. J. Exergy
**2015**, 18, 46–67. [Google Scholar] - Özilgen, M. Review on biothermoydnamics applications: Timeline, challenges, and opportunities. Int. J. Energy Res.
**2017**, 41, 1513–1533. [Google Scholar] [CrossRef] - Cavagna, G.; Kaneko, M. Mechanical work and efficiency in level walking and running. J. Physiol.
**1977**, 268, 467–481. [Google Scholar] [CrossRef] [PubMed] - Mady, C.; Henriques, I.; Albuquerque, C.; Ynagihara, J.; Oliviera Junior, S. Evaluation of different methods of mechanical work calculation and their effect on thermodynamic analysis of runners on a treadmill test. In Proceedings of the Anais do 5
^{∘}Encontro Nacional de Engenharia Biomecanica (ENEBI 2015), Uberlândia, Brazil, 5–8 May 2015. [Google Scholar] - Batato, M.; Deriaz, O.; Borel, L.; Jequier, E. Analyse exergétique, théorique et expérimentale, du corps human. Entropie
**1990**, 26, 120–130. [Google Scholar] - Diener, J. Calorimetria indireta. Rev. Assoc. Méd. Bras.
**1997**, 43, 245–253. [Google Scholar] [CrossRef] [PubMed] - Cortassa, S.; Aon, M.; Iglesias, A.; Lloyd, D. An Introduction to Metabolic and Cellular Engineering; World Scientific Pub Co Inc.: London, UK, 2002. [Google Scholar]
- Haynie, D.T. Biological Thermodynamics, 2 ed.; Cambridge University Press: Cambridge, UK, 2008. [Google Scholar]
- Nelson, D.L.; Lehninger, A.L.; Cox, M.M. Lehninger Principles of Biochemistry; Macmillan: Basingstoke, UK, 2008. [Google Scholar]
- Alberty, R. Calculation of standard transformed Gibbs energies and standard transformed enthalpies of biochemical reactants. Arch. Biochem. Biophys.
**1998**, 353, 116–130. [Google Scholar] [CrossRef] [PubMed] - Alberty, R.; Goldberg, R. Standard thermodynamic formation properties for the adenosine 5
^{′}-triphosphate series. Biochemistry**1992**, 31, 10610–10615. [Google Scholar] [CrossRef] [PubMed] - Smith, N.P.; Barclay, C.J.; Loiselle, D.S. The efficiency of muscle contraction. Prog. Biophys. Mol. Biol.
**2005**, 88, 1–58. [Google Scholar] [CrossRef] [PubMed] - Ferreira, M.; Yanagihara, J. A transient three-dimensional heat transfer model of the human body. Int. Commun. Heat Mass Transf.
**2009**, 36, 718–724. [Google Scholar] [CrossRef] - He, Z.H.; Bottinelli, R.; Pellegrino, M.A.; Ferenczi, M.A.; Reggiani, C. ATP consumption and efficiency of human single muscle fibers with different myosin isoform composition. Biophys. J.
**2000**, 79, 945–961. [Google Scholar] [CrossRef] - Çatak, J.; Yılmaz, B.; Ozilgen, M. Effect of Aging on the Second Law Efficiency, Exergy Destruction and Entropy Generation in the Skeletal Muscles during Exercise. WASET Int. J. Med. Health Biomed. Bioeng. Pharm. Eng.
**2017**, 11, 27–32. [Google Scholar]

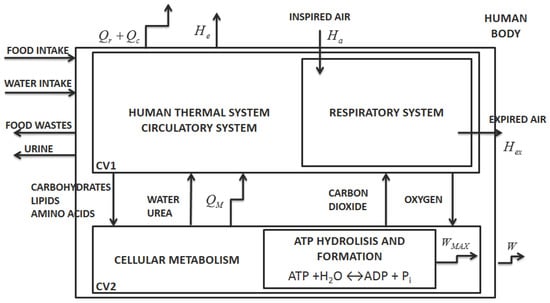

**Figure 1.**Human body proposed by [5], dividing it into two control volumes: human thermal model (CV1) and cellular metabolism (CV2). Inside the cellular metabolism, there is a reaction of adenosine triphosphate (ATP) formation and hydrolysis. Note that the body is considered as CV1 + CV2, and the surface of the skin is the control volume named the human body.

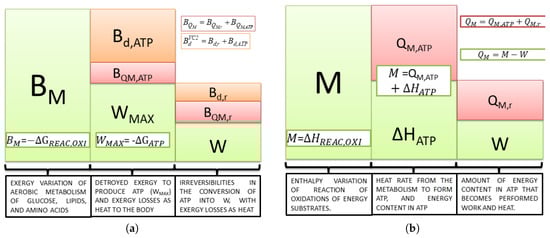

**Figure 2.**(

**a**) Exergy conversion process in the cellular metabolism. From nutrient oxidation, ATP formation and the use of ATP. (

**b**) Energy analysis of the conversion of the chemical energy of substrates into work and heat. Obtained and modified from [36].

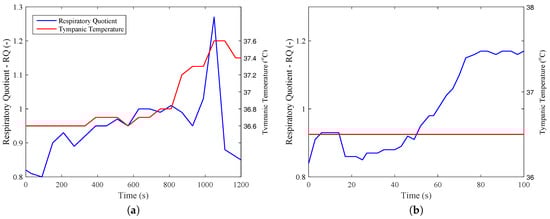

**Figure 3.**(

**a**) Respiratory quotient and tympanic temperature of a subject under a bicycle test, (

**b**) respiratory quotient of a subject performing a continuous biceps series with 4 kg (the internal temperature was considered constant, equal to 36.5 ${}^{\circ}$C.

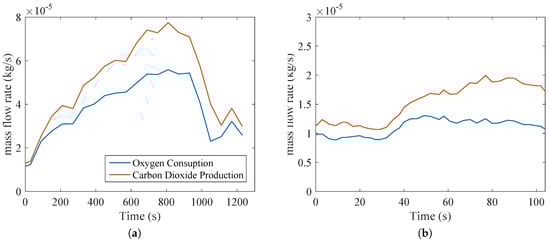

**Figure 4.**Physiological data collected during tests: oxygen consumption and carbon dioxide production of a subject under: (

**a**) bicycle test; (

**b**) biceps series.

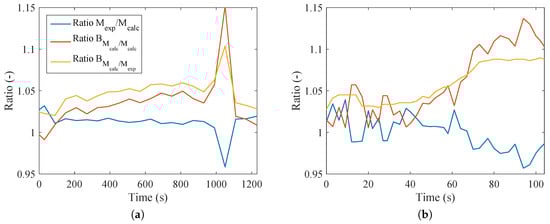

**Figure 7.**Ratio of ${M}_{exp}$ to ${M}_{calc}$, ${B}_{{M}_{calc}}$ to ${M}_{calc}$ and ${B}_{{M}_{calc}}$ to ${M}_{exp}$, for: (

**a**) bicycle test; (

**b**) weight lifting.

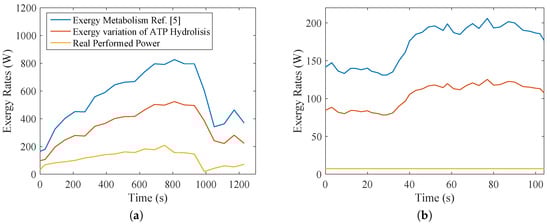

**Figure 8.**Exergy terms indicating the metabolic efficiency, from the transformations of ${B}_{M}$ (Equation (18)) into ATP (ratio of ${W}_{MAX}$ to ${B}_{M}$) and ATP into $Wreal$ (ratio of ${W}_{real}$ to ${W}_{MAX}$) for the two studied cases: (

**a**) bicycle test; (

**b**) weight lifting.

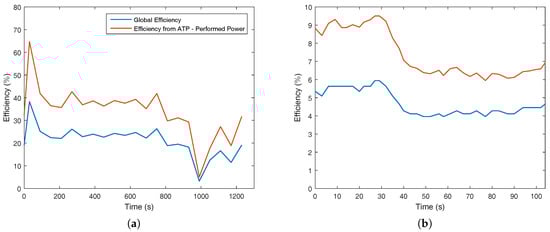

**Figure 9.**Global efficiency (ratio of W to ${B}_{M}$) and the efficiency of the conversion of ATP into ${W}_{real}$ (ratio of ${W}_{real}$ to ${W}_{MAX}$), for two cases (ratio of ${W}_{MAX}$ to W): (

**a**) bicycle test; (

**b**) weight lifting.

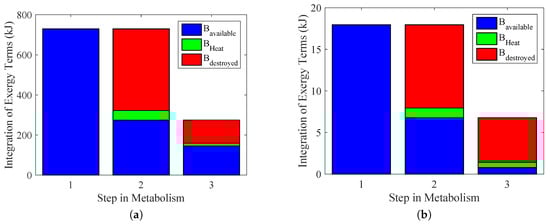

**Figure 10.**Exergy conversion process in cellular metabolism. From nutrient oxidation, ATP formation and the use of ATP. Based on the figures proposed in [36]. (

**a**) Bicycle test; (

**b**) weight lifting.

**Figure 11.**Exergy analysis of the conversion of the chemical exergy of substrates into work and heat. Several metabolic efficiencies were evaluated, from 100 % of aerobic to 100 % of anaerobic oxidation. (

**a**) Bicycle test; (

**b**) weight lifting.

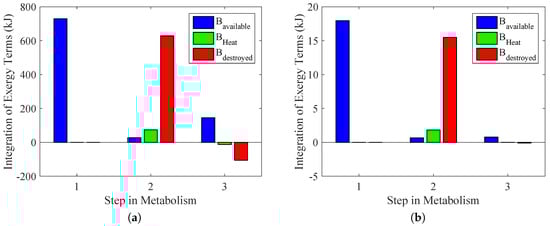

**Figure 12.**Extreme case where all of metabolism is considered as anaerobic. The first group of columns is the exergy conversion process in the cellular metabolism. From nutrient oxidation, ATP formation and the use of ATP. Based on the figures proposed in [36]. (

**a**) Bicycle test; (

**b**) weight lifting.
