Concavity, Response Functions and Replica Energy

^{1}

National Center for Radiation Protection and Computational Physics, Istituto Superiore di Sanità, Viale Regina Elena 299, 00161 Roma, Italy

^{2}

Dipartimento di Fisica e Astronomia and CSDC, Università di Firenze, and INFN, Sezione di Firenze, via G. Sansone 1, 50019 Sesto Fiorentino, Italy

^{3}

INAF-Osservatorio Astrofisico di Arcetri, Largo E. Fermi 5, 50125 Firenze, Italy

^{4}

Department of Mechanical Engineering, Université de Sherbrooke, Sherbrooke, QC J1K 2R1, Canada

^{5}

Departament de Física de la Matèria Condensada, Facultat de Física, Universitat de Barcelona, Martí i Franquès 1, 08028 Barcelona, Spain

^{6}

SISSA, INFN and ISC-CNR, via Bonomea 265, 34136 Trieste, Italy

^{*}

Author to whom correspondence should be addressed.

Received: 28 October 2018 / Accepted: 21 November 2018 / Published: 28 November 2018

## Abstract

**:**

In nonadditive systems, like small systems or like long-range interacting systems even in the thermodynamic limit, ensemble inequivalence can be related to the occurrence of negative response functions, this in turn being connected with anomalous concavity properties of the thermodynamic potentials associated with the various ensembles. We show how the type and number of negative response functions depend on which of the quantities E, V and N (energy, volume and number of particles) are constrained in the ensemble. In particular, we consider the unconstrained ensemble in which E, V and N fluctuate, which is physically meaningful only for nonadditive systems. In fact, its partition function is associated with the replica energy, a thermodynamic function that identically vanishes when additivity holds, but that contains relevant information in nonadditive systems.

Keywords:

long-range interactions; non-additive systems; ensemble inequivalence## 1. Introduction

Additivity can be defined in very simple terms for physical systems. In fact, a system is said to be additive if, thought as the union of several parts, the energy of interaction between the parts is negligible with respect to the total energy [1,2]. In other words, the total energy is the sum of the energies of the different parts, i.e., the energy is additive. In additive systems, all of the extensive quantities, in particular all the thermodynamic potentials and not only the energy, are additive, and, as a consequence, these quantities are linear homogeneous functions of the system size; more precisely, the thermodynamic potentials can be expressed as functions of the intensive variables multiplied by an extensive variable related to the system size, like the number of constituents N or the volume V.

Small systems [3,4,5,6] are obvious examples of nonadditive systems, i.e., systems composed of a number of constituents which is not very large. However, a very important class of nonadditive systems is represented by systems with long-range interactions including, for instance, self-gravitating systems [7,8,9,10,11,12,13,14], plasmas [15,16], or fluid dynamics [17,18]. At variance with small systems with short-range interactions, that become additive by increasing the number of constituents, systems with long-range interactions are never additive, independently from their size. It is a simple matter to see that a necessary condition for additivity in macroscopic systems is that the interaction between the constituents decays more rapidly that the inverse of the d-th power of the distance, where d is the dimension of the space where the system is embedded.

In nonadditive systems, the thermodynamic potentials are no more linear homogeneous functions of extensive variables; however, this does not prevent the application of the formalism and of the computational tools of thermodynamics and statistical mechanics. The statistical mechanics formulation requires proper generalizations [1,2] to take into account the nonnegligible interaction between parts of the system, but also a purely thermodynamic description, stemming from the formalism introduced by Hill for small systems [3], is possible [19].

A relevant physical peculiarity of nonadditive systems is that their possible equilibrium states depend on which thermodynamic quantities are held fixed. These fixed quantities are usually called control parameters (e.g., the total energy E is a control parameter in an isolated system, while the temperature T is a control parameter in a system kept in contact with a heat bath at that fixed temperature); the other thermodynamic quantities fluctuate around their equilibrium values. Using the example of the total energy and the temperature, in an additive system, the following holds at equilibrium: fixing the total energy to a value E and finding that the expected value of the temperature is ${T}_{\ast}$, we know that fixing the temperature at $T={T}_{\ast}$ will make the expected value ${E}_{\ast}$ of the energy equal to E (this holds in the so-called thermodynamic limit in which N and V tend to infinite). In other words, the equilibrium states do not depend on which control parameters we use to define them. In the statistical mechanics formalism, this is expressed by the equivalence of the ensembles. This equivalence is in general absent in nonadditive systems, and physically this implies that there are equilibrium states defined by given control parameters that do not exist if one chooses another set of control parameters. This will be stated in more precise terms later.

Ensemble inequivalence is related to the occurrence of negative response functions, this in turn being related to anomalous concavity properties of the thermodynamic potentials associated with the various ensembles. In this paper, we focus exactly on this issue, making a survey of all the statistical ensembles and thermodynamic potentials, showing in each case the response function that can have a negative value. We stress that ensemble inequivalence can give rise to negative response functions, but that this is not necessary, since there can be inequivalence without negative response functions. We will be more precise about this issue in the following. For the moment, we underline that a negative response function implies ensemble inequivalence, while ensemble inequivalence does not necessarily imply a negative response function.

The paper is organized as follows. In Section 2, we show how the replica energy can be introduced, a relevant thermodynamic function for nonadditive systems, and present the associated statistical ensemble that is treated in more detail later. In Section 3 and Section 4, we describe the relation between ensemble inequivalence and the anomalous concavity properties and response functions; the latter section is dedicated to the ensemble associated with the replica energy, while the former section concerns the other ensembles. In the last section, we present a discussion with concluding remarks.

## 2. Thermodynamics, Replica Energy, Statistical Ensembles

To obtain the thermodynamic properties of a system from the principles of statistical mechanics, one considers a great number $\mathcal{N}$ of independent replicas of the system, namely, a statistical ensemble. The replicas are identical in nature, but they differ in phase, that is, in their condition with respect to configuration and velocity [20]. If the energy, entropy, volume and number of particles of the system under consideration are E, S, V and N, respectively, the corresponding quantities of the ensemble are ${E}_{\mathrm{t}}=\mathcal{N}E$, ${S}_{\mathrm{t}}=\mathcal{N}S$, ${V}_{\mathrm{t}}=\mathcal{N}V$ and ${N}_{\mathrm{t}}=\mathcal{N}N$. Energy variations in the ensemble satisfy the general thermodynamic relation [3]
where T is the temperature, P is the pressure exerted on the boundary of the systems, and $\mu $ is the chemical potential of a single system. The last term on the right-hand side of Equation (1) accounts for the energy variation when the number of members of the ensemble $\mathcal{N}$ varies, holding ${S}_{\mathrm{t}}$, ${V}_{\mathrm{t}}$ and ${N}_{\mathrm{t}}$ constant. The replica energy $\mathcal{E}$, formally given by
vanishes if the system is additive; this can be derived using the fact that for additive systems the extensive variables are linear homogeneous functions of the system size [19]. The physical reason why the replica energy $\mathcal{E}$ does not vanish for nonadditive systems can be traced back to the following argument. By changing the size of a macroscopic nonadditive system, its bulk properties in general change, while this does not occur, as it is well known, for an additive system (that is why the extensive variables are linear homogeneous functions of the systems size for additive systems). The replica energy is a measure of the energy associated with this change and Equation (2) is the mathematical expression of this fact.

$$\mathrm{d}{E}_{\mathrm{t}}=T\mathrm{d}{S}_{\mathrm{t}}-P\mathrm{d}{V}_{\mathrm{t}}+\mu \mathrm{d}{N}_{\mathrm{t}}+\mathcal{E}\mathrm{d}\mathcal{N},$$

$$\mathcal{E}={\left(\frac{\partial {E}_{\mathrm{t}}}{\partial \mathcal{N}}\right)}_{{S}_{\mathrm{t}},{V}_{\mathrm{t}},{N}_{\mathrm{t}}},$$

In the case in which all single systems properties are held constant, Equation (1) can be written $E\mathrm{d}\mathcal{N}=TS\mathrm{d}\mathcal{N}-PV\mathrm{d}\mathcal{N}+\mu N\mathrm{d}\mathcal{N}+\mathcal{E}\mathrm{d}\mathcal{N}$, which can be integrated from 0 to $\mathcal{N}$ to give ${E}_{\mathrm{t}}=T{S}_{\mathrm{t}}-P{V}_{\mathrm{t}}+\mu {N}_{\mathrm{t}}+\mathcal{E}\mathcal{N}$. Dividing by $\mathcal{N},$ the latter equation gives
which relates the properties of a single system with the replica energy. By differentiation, one obtains:

$$E=TS-PV+\mu N+\mathcal{E},$$

$$\mathrm{d}\mathcal{E}=\mathrm{d}E-T\mathrm{d}S-S\mathrm{d}T+P\mathrm{d}V+V\mathrm{d}P-\mu \mathrm{d}N-N\mathrm{d}\mu .$$

Thus, one can exploit the first law of thermodynamics, expressed by
to obtain

$$\mathrm{d}E=T\mathrm{d}S-P\mathrm{d}V+\mu \mathrm{d}N,$$

$$\mathrm{d}\mathcal{E}=-S\mathrm{d}T+V\mathrm{d}P-N\mathrm{d}\mu .$$

The above equation generalizes the usual Gibbs–Duhem equation for additive systems, which is obtained by setting to zero the left-hand side of Equation (6). Since, in general, the usual Gibbs–Duhem equation does not hold for nonadditive systems [21], there exists the possibility of taking T, P and $\mu $ as independent variables, a fact that is forbidden when $\mathcal{E}=0$. Moreover, as can be seen from Equation (3), we highlight that when $\mathcal{E}\ne 0$, the Gibbs free energy $G=E-TS+PV$ is not equal to $\mu N$.

Depending on the control parameters defining the state of the system, certain quantities fluctuate and other quantities are fixed. Distinguishing between these two kinds of quantities is relevant here, and it is convenient to set now the notation that will be used to indicate such a distinction when necessary: if the energy E, volume V, or number of particles N are not control parameters, they are fluctuating quantities and will be denoted with a bar by $\overline{E}$, $\overline{V}$, and $\overline{N}$, respectively. Equations (3), (5), and (6) are general relations at a thermodynamic level and have to be understood for quantities with or without bars.

We will refer to the variables E, V, and N as constraint variables, and ensembles in which at least one of the constraint variables is a control parameter will be termed as constrained ensembles. The thermodynamic properties of an isolated system are obtained from a completely constrained ensemble in which all the constraint variables are control parameters; as is well known, this is the microcanonical ensemble. On the other hand, if none of the constraint variables is a control parameter, the system is said to be completely open and the associated ensemble is the unconstrained ensemble.

We have reminded above that ensemble inequivalence is associated with the fact that, for nonadditive systems, the possible equilibrium configurations depend on the specific control parameters used to define its state. Therefore, the thermodynamics of the system must be necessarily derived from the characteristic function (the entropy or the free energies) in the ensemble associated with the particular set of control parameters under consideration. In doing so, it is in general possible to obtain the replica energy from the corresponding characteristic function, except in the case where the replica energy itself is the characteristic function corresponding to a particular set of control parameters. In fact, the replica energy is the free energy associated with the unconstrained ensemble where the corresponding control parameters are T, P and $\mu $ [22], namely,
where
is the unconstrained partition function, $\omega (E,V,N)$ being the microcanonical density of states, which is defined below, and ${k}_{B}$ the Boltzmann constant. In Section 4, we will come back to the relation between the microcanonical density of states (and the associated microcanonical entropy) and the replica energy.

$$\mathcal{E}(T,P,\mu )\equiv -{k}_{B}Tln\mathsf{{\rm Y}}(T,P,\mu ),$$

$$\mathsf{{\rm Y}}(T,P,\mu )=\int \mathrm{d}E\int \mathrm{d}V{\displaystyle \sum _{N=0}^{\infty}}\omega (E,V,N){\mathrm{e}}^{-(E+PV-\mu N)/({k}_{B}T)}$$

The replica energy can indeed be explicitly computed in a few physical examples. For instance, given the potential energy
where $n(x)$ is the particle density and $\mathsf{\Phi}(x)$ is the two-body potential of a system embedded in a d-dimensional space, the replica energy can be evaluated to be [23]
where ${P}^{(e)}=P-NT/V$ is the excess pressure due to the interactions. In the particular case in which $\mathsf{\Phi}(x)$ is a long-range potential decaying as $1/{|x|}^{\alpha}$ with $0<\alpha <d$, one has [21] $\mathcal{E}=-(1-\alpha /d)W$, showing that the replica energy vanishes when $\alpha \to d$, which corresponds to the limit of an additive system.

$$W=\frac{1}{2}\int {\mathrm{d}}^{d}xn(x)\mathsf{\Phi}(x),$$

$$\mathcal{E}=-W+{P}^{(e)}V,$$

Another remarkable example is the extended Thirring model [22], representing the physics of self-gravitating systems, for which the potential energy is
where ${N}_{0}$ is the number of particle inside a given volume ${V}_{0}$ and ${N}_{1}$ are those outside ($\nu $ and b are parameters of the model). The expression of the replica energy $\mathcal{E}$ is given by Equation (10) and can be written as

$$W=-\nu ({N}_{0}^{2}+b{N}_{1}^{2}),$$

$$\mathcal{E}=\nu ({N}_{0}^{2}+b{N}_{1}^{2})+P{V}_{0}-{N}_{0}T.$$

## 3. Response Functions and Ensemble Inequivalence

In this and in the next section, we analyze the relation between ensemble inequivalence and the occurrence of negative response functions. Ensemble inequivalence can be studied with the help of the properties of the Legendre–Fenchel transformation; this approach, already well documented for constrained ensembles [24,25,26], can be extended to the case of the unconstrained ensemble. It is the Legendre–Fenchel transformation that allows one to connect ensemble inequivalence and negative response functions. In this paper, we are particularly interested in the inequivalence between the unconstrained ensemble and the other ensembles. However, it is instructive to consider first the inequivalence between constrained ensembles; this will be done in this section, showing the associated anomalous response functions. The unconstrained ensemble will be considered in Section 4. In the following, we use units in which the Boltzmann constant ${k}_{B}$ is set to unity.

To begin, we consider the microcanonical and canonical ensembles for a system described by the Hamiltonian $\mathcal{H}(\mathit{p},\mathit{q})$ with $\mathit{p}=({\mathit{p}}_{1},\dots ,{\mathit{p}}_{N})$ and $\mathit{q}=({\mathit{q}}_{1},\dots ,{\mathit{q}}_{N})$, where ${\mathit{p}}_{i}\in {\mathbb{R}}^{d}$ and ${\mathit{q}}_{i}\in {\mathbb{R}}^{d}$ are the momentum and position of particle i, respectively, and d is the dimensionality of the system. Just for completeness, we remind readers that, while the constraint variables E, V and N are the control parameters of the microcanonical ensemble, the control parameters of the canonical ensemble are T, V and N. The microcanonical density of states is given by
where h is a constant and ${\mathrm{d}}^{2dN}\mathsf{\Gamma}={\prod}_{i=1}^{N}{\mathrm{d}}^{d}{\mathit{p}}_{i}{\mathrm{d}}^{d}{\mathit{q}}_{i}$, while the canonical partition function is

$$\omega (E,V,N)=\frac{1}{{h}^{dN}N!}\int \delta (E-\mathcal{H}(\mathbf{p},\mathbf{q}))\phantom{\rule{0.166667em}{0ex}}{\mathrm{d}}^{2dN}\mathsf{\Gamma},$$

$$Z\left(T,V,N\right)=\frac{1}{{h}^{dN}N!}\int {\mathrm{e}}^{-\mathcal{H}(\mathbf{p},\mathbf{q})/T}\phantom{\rule{0.166667em}{0ex}}{\mathrm{d}}^{2dN}\mathsf{\Gamma}.$$

Taking advantage of the Dirac $\delta $ in (13), after posing $Z={\mathrm{e}}^{-\mathcal{F}}$, we rewrite the canonical partition function as
with $\beta =1/T$ being the inverse canonical temperature, $\mathcal{F}=\beta F$ the rescaled Helmholtz free energy, and $S=S(E,V,N)$, the logarithm of the density of states $\omega $, the microcanonical entropy. In the large N limit, we can compute the integral on the right-hand side of Equation (15) using the saddle-point approximation and write

$${\mathrm{e}}^{-\mathcal{F}(\beta ,V,N)}=\int \mathrm{d}E\phantom{\rule{0.166667em}{0ex}}\omega (E,V,N)\phantom{\rule{0.166667em}{0ex}}{\mathrm{e}}^{-\beta E}=\int \mathrm{d}E\phantom{\rule{0.166667em}{0ex}}{\mathrm{e}}^{S(E,V,N)-\beta E},$$

$$\mathcal{F}(\beta ,V,N)=\underset{E}{inf}\left[\beta E-S(E,V,N)\right].$$

We thus obtain the rescaled Helmholtz free energy as the Legendre–Fenchel transform of the microcanonical entropy with respect to the energy [1,2,24,25,26], which reduces to the usual Legendre transformation if the entropy is differentiable and concave in E at constant V and N.

On the one hand, the Legendre–Fenchel transformation of any function, as defined in (16), is always a globally concave function [26]. This very remarkable property guarantees that the rescaled free energy $\mathcal{F}$ is always globally concave with respect to $\beta $. For convenience, we recall in Appendix A the definition of locally and globally concave (and convex) functions, of concave (and convex) envelope, together with some properties of the Legendre–Fenchel transformation and its relations with concave functions. In the following, we will refer to these definitions and relations several times, therefore the reader not familiar with them should read Appendix A at this point. Using that
the concavity of $\mathcal{F}$ with respect to $\beta $ means that
which ensures that the response function
that is, the heat capacity, is a nonnegative quantity in the canonical ensemble. This statement is valid regardless of the differentiability of $\mathcal{F}$. If $\mathcal{F}$ is twice-differentiable, then ${C}_{V,N}$ is continuous; otherwise, it has discontinuities, or it can even diverge, if $\mathcal{F}$ is not differentiable, for the values of $\beta $ where the derivative of this function is not continuous; however, the inequality in Equation (19) is always satisfied in the canonical ensemble, since $\mathcal{F}$ is always globally concave. For additive systems, the heat capacity is a nonnegative quantity also in the microcanonical ensemble (furthermore, it coincides with that in the canonical ensemble), since for these systems it can be proved that the microcanonical entropy $S(E,V,N)$ is globally concave with respect to E [27] and, as remarked in Appendix A, globally concave functions coincide with their concave envelope. Actually, it can be proved that, for additive systems, $S(E,V,N)$ is globally concave also with respect to V, and, in addition, it is globally completely concave in the $(E,V)$ plane [27]. On the other hand, the lack of additivity can induce the lack of global concavity in the microcanonical entropy as a function of the energy. Hence, the quantity
can be negative in the microcanonical ensemble (hereafter, we use, for simplicity, the same symbol to represent the response functions in the different ensembles). Referring to Figure A1 in Appendix A, we have a negative microcanonical heat capacity ${C}_{V,N}$ for a range of E values if the entropy has a behavior similar to that of the upper curve or the middle curve; if the behavior is similar to that of the lower curve, the heat capacity is positive except for the E value where the cusp occurs, and where it is not defined. Note that the middle curve presents both features shown separately by the other two curves: it has a range of E where ${C}_{V,N}$ is negative and also a point of discontinuity. In all these cases, the microcanonical entropy does not coincide with its concave envelope; its Legendre–Fenchel transform, i.e., the function $\mathcal{F}(\beta ,V,N)$, will have at least a point $\beta $, for the given V and N values, where its first derivative with respect to $\beta $ is not defined (see Appendix A). Thus, also the associated response function, the heat capacity, is not defined there. This point marks the occurrence of a first order phase transition in the canonical ensemble. We remark that, apart from such points, the canonical heat capacity (19) is perfectly defined and always positive. Negative heat capacities in the microcanonical ensemble can occur since they are not forbidden by any fundamental requirement. In addition, according to equation (19), equilibrium states with negative heat capacity cannot be realized if the system is put in contact with an infinite thermal bath (canonical ensemble). It is therefore clear that states associated with energy values where the entropy does not coincide with its concave envelope have no correspondence in the canonical ensemble.

$$\overline{E}={\left(\frac{\partial \mathcal{F}}{\partial \beta}\right)}_{V,N},$$

$${\left(\frac{\partial \overline{E}}{\partial \beta}\right)}_{V,N}={\left(\frac{{\partial}^{2}\mathcal{F}}{\partial {\beta}^{2}}\right)}_{V,N}\le 0,$$

$${C}_{V,N}={\left(\frac{\partial \overline{E}}{\partial T}\right)}_{V,N}\ge 0,$$

$$\frac{1}{{C}_{V,N}}={\left(\frac{\partial T}{\partial E}\right)}_{V,N}=-{T}^{2}{\left(\frac{{\partial}^{2}S}{\partial {E}^{2}}\right)}_{V,N}$$

To summarize the main result, if the microcanonical entropy does not coincide with its concave envelope with respect to E, the microcanonical and canonical ensembles are not equivalent [1,2,24,25,26,28]. In this case, the function $\mathcal{F}$ presents at least a point of discontinuous derivative with respect to $\beta $, associated with a first order phase transition. The function $\mathcal{F}$ has a discontinuous derivative with respect to $\beta $ also in the limiting case where the microcanonical entropy does coincide with its concave envelope, but the latter is a linear function of the energy in a given interval. This case has been referred to as “partial equivalence” [29] because there is equivalence but not one-to-one: a single value of $\beta $ corresponds to a whole interval of values of the energy. This may happen also in additive systems and indeed it happens whenever the system undergoes a discontinuous phase transition, e.g., when there is a change of state like a liquid–gas phase transition.

It is useful to stress the physical reason that permits having a negative heat capacity in the microcanonical ensemble, while this is not allowed in the canonical ensemble. In the microcanonical ensemble, the energy is fixed, and it can be given a value belonging to the energy range of convexity. In the canonical ensemble, the energy can fluctuate, and it can be easily seen that, if a system at a given energy E in the energy range of convexity, with expected value of the temperature equal to ${T}_{\ast}$, is put in contact with a heat bath at temperature $T={T}_{\ast}$, it is unstable with respect to energy fluctuations, and it will acquire an expected value of the energy where the associated temperature is also ${T}_{\ast}$, but that it is located in an energy range of concavity of the microcanonical entropy. A state with an energy where the microcanonical entropy is locally concave, but that does not belong to the range where it coincides with its concave envelope, is metastable when put in contact with a heat bath at the corresponding temperature ${T}_{\ast}$, i.e., it is stable with respect to sufficiently small energy fluctuations, but not with respect to general fluctuations; namely, it is not globally stable and then it cannot be defined as an equilibrium state [1].

In the microcanonical ensemble, nonadditive systems could exhibit a convex region in the entropy as a function of the other constraint variables, V or N, or, more generally, ranges where the entropy does not coincide with its concave envelope with respect to one or both of these variables (while for additive systems the entropy is globally concave with respect to V and N). For those variables, such anomalous behavior is inherited by the canonical ensemble, since in this case both V and N are control parameters as well, and the Legendre–Fenchel transformation does not involve them. However, we point out the following. While “normal” behavior of the microcanonical entropy $S(E,V,N)$ is represented by global concavity with respect to V and N, “normal” behavior of the rescaled Helmholtz free energy $\mathcal{F}(\beta ,V,N)$ (or of the free energy $F(\beta ,V,N)$) is represented by global convexity with respect to these variables, since, in the Legendre–Fenchel transform (16), the microcanonical entropy appears with the minus sign. Thus, in nonadditive systems where the microcanonical entropy can have ranges of convexity in V and/or in N, correspondingly, the Helmholtz free energy will have ranges of concavity in V and/or in N.

Let us now turn to the grand canonical ensemble. In this ensemble, in addition to the energy, the number of particles is also not constrained. The control parameters of this ensemble are $\mu $, T and V. The grand canonical partition function $\mathsf{\Xi}={\mathrm{e}}^{-\mathcal{L}}$ can be written as
where $\alpha =-\mu /T$. The rescaled grand potential $\mathcal{L}=\beta \mathsf{\Omega}$ is thus given by the term that dominates the sum according to
which is the Legendre–Fenchel transform of $-\mathcal{F}=-\beta F$ with respect to N. This expression (22) assures that $\mathcal{L}(\alpha ,\beta ,V)$ is always globally concave in $\alpha $, and that its concavity with respect to $\beta $ is inherited from that of $\mathcal{F}$. Using Equation (16), we can also write

$${\mathrm{e}}^{-\mathcal{L}(\alpha ,\beta ,V)}={\displaystyle \sum _{N=0}^{\infty}}{\mathrm{e}}^{\mu N/T}Z(T,V,N)={\displaystyle \sum _{N=0}^{\infty}}{\mathrm{e}}^{-\alpha N-\mathcal{F}(\beta ,V,N)},$$

$$\mathcal{L}(\alpha ,\beta ,V)=\underset{N}{inf}\left[\alpha N+\mathcal{F}(\beta ,V,N)\right],$$

$$\mathcal{L}(\alpha ,\beta ,V)=\underset{E,N}{inf}\left[\alpha N+\beta E-S(E,V,N)\right].$$

From this expression, we infer that, in addition, $\mathcal{L}(\alpha ,\beta ,,V)$ is globally completely concave in the plane $(\alpha ,\beta )$. Thus, from
we have
so that in the grand canonical ensemble

$$\overline{N}={\left(\frac{\partial \mathcal{L}}{\partial \alpha}\right)}_{\beta ,V},$$

$${\left(\frac{\partial \overline{N}}{\partial \alpha}\right)}_{\beta ,V}={\left(\frac{{\partial}^{2}\mathcal{L}}{\partial {\alpha}^{2}}\right)}_{\beta ,V}\le 0,$$

$${M}_{T,V}\equiv {\left(\frac{\partial \overline{N}}{\partial \mu}\right)}_{T,V}\ge 0.$$

Here, ${M}_{T,V}$ is a response function, just as the heat capacity; it tells us that, in the grand canonical ensemble, the number of particles increases whenever the chemical potential increases, holding T and V constant. We can repeat here the observation made for the canonical heat capacity (19). Thus, the positivity of ${M}_{T,V}$ in the grand canonical ensemble is valid regardless of the differentiability of $\mathcal{L}$. If $\mathcal{L}$ is twice-differentiable, then ${M}_{T,V}$ is continuous; otherwise, it has discontinuities, or it can even diverge, if $\mathcal{L}$ is not differentiable, for the values of $\mu $ where the derivative of this function is not continuous; however, the inequality in Equation (26) is always satisfied in the grand canonical ensemble since $\mathcal{L}$ is always globally concave.

As a side remark, we note that this response function can be written as ${M}_{T,V}=\beta N/\mathsf{\Gamma}$, where $\mathsf{\Gamma}$ is the thermodynamic factor given by [30]

$$\frac{1}{\mathsf{\Gamma}}=\frac{1}{\beta}{\left(\frac{\partial ln\overline{N}}{\partial \mu}\right)}_{T,V}.$$

In addition, for macroscopic short-range interacting systems, the usual Gibbs–Duhem equation holds, and the function ${M}_{T,V}$ can be directly related to the isothermal compressibility ${\kappa}_{T}$. For this kind of systems, using $n=\overline{N}/V$, we can write

$${M}_{T,V}={\left(\frac{\partial \overline{N}}{\partial \mu}\right)}_{T,V}=V{\left(\frac{\partial n}{\partial \mu}\right)}_{T}=V{\left(\frac{\partial P}{\partial \mu}\right)}_{T}{\left(\frac{\partial n}{\partial P\phantom{\mu}}\right)}_{T}.$$

Since the Gibbs–Duhem holds in this case ($\mathcal{E}=0$), under isothermal conditions, we have $\mathrm{d}P=n\mathrm{d}\mu $. Hence, using the fact that $\partial n/\partial P=-{n}^{2}\partial (1/n)/\partial P$, ${\kappa}_{T}$ is related to ${M}_{T,V}$ according to
so that the sign of ${M}_{T,V}$ and that of ${\kappa}_{T}$ are the same, namely, they are both positive quantities. However, if the replica energy is different from zero, as in nonadditive systems, the signs of these response functions are independent from each other, in general.

$${M}_{T,V}=Vn{\left(\frac{\partial n}{\partial P\phantom{\mu}}\right)}_{T}=-\frac{\overline{N}n}{V}{\left(\frac{\partial V}{\partial P\phantom{\mu}}\right)}_{T,\overline{N}}=\overline{N}n{\kappa}_{T},$$

Concerning the issue of ensemble inequivalence, in the canonical ensemble, there is no mechanism ensuring that for nonadditive systems the Helmholtz free energy is convex with respect to N. Therefore, the quantity
could be negative. Again, in perfect analogy to the relation between microcanonical and canonical ensembles, we have the following: if the rescaled Helmholtz free energy does not coincide with its convex envelope with respect to N, then its convex Legendre–Fenchel transform $-\mathcal{L}$ will have at least a point $\alpha $, for the given V and $\beta $ values, where its first derivative with respect to $\alpha $ is not defined, marking the occurrence of a first order phase transition. Apart from this isolated point, or points, ${M}_{T,V}$ is perfectly defined and always positive in the grand canonical ensemble. On the other hand, the response function ${M}_{T,V}$ in the canonical ensemble can be negative, if the rescaled Helmholtz free energy has a range where it is not locally convex with respect to N, or could have points where it is not defined, or both; these three cases correspond to the upper, lower and middle curves in Figure A1, respectively.

$$\frac{1}{{M}_{T,V}}={\left(\frac{\partial \mu}{\partial N}\right)}_{T,V}={\left(\frac{{\partial}^{2}F}{\partial {N}^{2}}\right)}_{T,V}$$

Summarizing the main result, if the rescaled Helmholtz free energy does not coincide with its convex envelope with respect to N, the canonical and grand canonical ensembles are not equivalent. In this case, the function $\mathcal{L}$ presents at least a point of discontinuous derivative with respect to $\alpha $, associated with a first order phase transition. If an equilibrium canonical state in which the rescaled Helmholtz free energy does not coincide with its convex envelope with respect to N is put in contact with a reservoir with its same chemical potential and with which it can exchange particles, then it becomes either unstable or not globally stable.

We now consider the isothermal-isobaric ensemble, where the volume is not a control parameter; the control parameters are N, T and P. The associated partition function $\Delta ={\mathrm{e}}^{-\mathcal{G}}$ is written as
where $\gamma =P/T$. Hence, the saddle-point approximation gives the rescaled Gibbs free energy $\mathcal{G}=\beta G$ as
which is the Legendre–Fenchel transform of $-\mathcal{F}$ with respect to V. Moreover, using (16), we can also write
from which we infer that $\mathcal{G}(N,\beta ,\gamma )$ is concave in both $\beta $ and $\gamma $; moreover, it is completely concave in the plane $(\beta ,\gamma )$. In particular, using that
we can assert that
and therefore that the isothermal compressibility in the isothermal-isobaric ensemble is nonnegative,

$${\mathrm{e}}^{-\mathcal{G}(N,\beta ,\gamma )}=\int \mathrm{d}V\phantom{\rule{0.166667em}{0ex}}{\mathrm{e}}^{-PV/T}Z(T,V,N)=\int \mathrm{d}V{\mathrm{e}}^{-\gamma V-\mathcal{F}(\beta ,V,N)},$$

$$\mathcal{G}(N,\beta ,\gamma )=\underset{V}{inf}\left[\gamma V+\mathcal{F}(\beta ,V,N)\right],$$

$$\mathcal{G}(N,\beta ,\gamma )=\underset{E,V}{inf}\left[\beta E+\gamma V-S(E,V,N)\right],$$

$$\overline{V}={\left(\frac{\partial \mathcal{G}}{\partial \gamma}\right)}_{N,\beta},$$

$${\left(\frac{\partial \overline{V}}{\partial \gamma}\right)}_{N,\beta}={\left(\frac{{\partial}^{2}\mathcal{G}}{\partial {\gamma}^{2}}\right)}_{N,\beta}\le 0,$$

$${\kappa}_{T}=-\frac{1}{\overline{V}}{\left(\frac{\partial \overline{V}}{\partial P}\right)}_{T,N}\ge 0.$$

This is what we expect on physical grounds, since states with negative ${\kappa}_{T}$ cannot be stable under volume fluctuations. For convenience, instead of the isothermal compressibility ${\kappa}_{T}$, we can consider the quantity ${K}_{T,N}=\overline{V}{\kappa}_{T}$ as a response function, where the subscript N is written to emphasize that it is also computed at constant number of particles. Then, in the isothermal-isobaric ensemble

$${K}_{T,N}=-{\left(\frac{\partial \overline{V}}{\partial P}\right)}_{T,N}\ge 0.$$

The same argument made before applies. Thus, the positivity of ${K}_{T,N}$ in the isothermal-isobaric ensemble is valid regardless of the differentiability of $\mathcal{G}$. If $\mathcal{G}$ is twice-differentiable, then ${K}_{T,N}$ is continuous, otherwise it has discontinuities, or it can even diverge, if $\mathcal{G}$ is not differentiable, for the values of P where the derivative of this function is not continuous; however, the inequality in Equation (35) is always satisfied in the isothermal-isobaric ensemble, since $\mathcal{G}$ is always globally concave. However, in the canonical ensemble, the volume is a control parameter, i.e., it is fixed in the equilibrium configuration. The Helmholtz free energy for nonadditive systems is not necessarily convex with respect to V, so that states with negative isothermal compressibility or, equivalently, negative ${K}_{T,N}$ can be realized. In fact, in the canonical ensemble, we have
which is not restricted to be a positive quantity. An argument analogous to that already used before implies the following. If the rescaled Helmholtz free energy does not coincide with its convex envelope with respect to V, then its convex Legendre–Fenchel transform $-\mathcal{G}$ will have at least a point $\gamma $, for the given N and $\beta $ values, where its first derivative with respect to $\gamma $ is not defined, marking the occurrence of a first order phase transition. Apart from this isolated point, or points, ${K}_{T,N}$ is perfectly defined and always positive in the isothermal-isobaric ensemble. On the other hand, the response function ${K}_{T,N}$ in the canonical ensemble can be negative at points where the rescaled Helmholtz free energy is not locally convex with respect to V, or could have points where it is not defined, or both (the three cases represented in Figure A1).

$$\frac{1}{{K}_{T,N}}=-{\left(\frac{\partial P}{\partial V}\right)}_{T,N}={\left(\frac{{\partial}^{2}F}{\partial {V}^{2}}\right)}_{T,N},$$

According to the previous discussion, we conclude that, if the rescaled Helmholtz free energy does not coincide with its convex envelope with respect to V, the canonical and isothermal-isobaric ensembles are not equivalent. In this case, the function $\mathcal{G}$ presents at least a point of discontinuous derivative with respect to $\gamma $, associated with a first order phase transition. If an equilibrium canonical state in which the rescaled Helmholtz free energy does not coincide with its convex envelope with respect to V is put in contact with an environment with its same pressure, then it becomes either unstable or not globally stable.

## 4. From Microcanonical Entropy to Rescaled Replica Energy

Continuing the discussion of the preceding section, here we focus on the unconstrained ensemble and its connection with the other ensembles. Since the unconstrained ensemble describes the thermodynamics of completely open systems, it can be seen as the opposite situation of the one described by the microcanonical ensemble where the systems are isolated. Such an opposite situation is reflected in the curvature properties of the thermodynamic characteristic functions. We shall see that the characteristic function of completely open systems, the rescaled replica energy, possesses always a very well defined concavity with respect to all its natural variables (none of them being a constraint variable), while, as noted previously, the microcanonical entropy can be nonconcave in any of its natural variables (all of them being constraint variables).

In the case where the energy, volume, and number of particles fluctuate, from (8), we can write the unconstrained partition function $\mathsf{{\rm Y}}={\mathrm{e}}^{-\mathcal{R}}$ as a function of the microcanonical entropy, that is,

$${\mathrm{e}}^{-\mathcal{R}(\alpha ,\beta ,\gamma )}=\int \mathrm{d}E\int \mathrm{d}V{\displaystyle \sum _{N=0}^{\infty}}{\mathrm{e}}^{S(E,V,N)-\alpha N-\beta E-\gamma V}.$$

Similarly to the other ensembles, the rescaled replica energy $\mathcal{R}$ and the replica energy $\mathcal{E}$ are related by $\mathcal{R}=\beta \mathcal{E}$. We note that considering the set of control parameters $\alpha =-\mu /T$, $\beta =1/T$, and $\gamma =P/T$ is completely equivalent to considering T, P, and $\mu $. Evaluating (37) in a saddle-point approximation, we have
which ensures that $\mathcal{R}(\alpha ,\beta ,\gamma )$ is completely concave, implying that it is also separately concave in $\alpha $, $\beta $, and $\gamma $. Therefore, in the unconstrained ensemble, we get

$$\mathcal{R}(\alpha ,\beta ,\gamma )=\underset{E,V,N}{inf}\left[\alpha N+\beta E+\gamma V-S(E,V,N)\right],$$

$$\begin{array}{cc}\hfill {\left(\frac{\partial \overline{N}}{\partial \alpha}\right)}_{\beta ,\gamma}& ={\left(\frac{{\partial}^{2}\mathcal{R}}{\partial {\alpha}^{2}}\right)}_{\beta ,\gamma}\le 0,\end{array}$$

$$\begin{array}{cc}\hfill {\left(\frac{\partial \overline{E}}{\partial \beta}\right)}_{\alpha ,\gamma}& ={\left(\frac{{\partial}^{2}\mathcal{R}}{\partial {\beta}^{2}}\right)}_{\alpha ,\gamma}\le 0,\end{array}$$

$$\begin{array}{cc}\hfill {\left(\frac{\partial \overline{V}}{\partial \gamma}\right)}_{\alpha ,\beta}& ={\left(\frac{{\partial}^{2}\mathcal{R}}{\partial {\gamma}^{2}}\right)}_{\alpha ,\beta}\le 0.\end{array}$$

Using that $\alpha =-\mu /T$, $\beta =1/T$, and $\gamma =P/T$, Equations (39), (40), and (41) imply that the response functions
respectively, are nonnegative in the unconstrained ensemble. As before, there could be isolated points where these response functions are not defined; apart from these isolated points, the response functions are perfectly defined and are always positive.

$$\begin{array}{ccc}\hfill {M}_{T,P}& \equiv & {\left(\frac{\partial \overline{N}}{\partial \mu}\right)}_{T,P}\ge 0,\hfill \end{array}$$

$$\begin{array}{ccc}\hfill {C}_{\alpha ,\gamma}& \equiv & {\left(\frac{\partial \overline{E}}{\partial T}\right)}_{\mu /T,P/T}\ge 0,\hfill \end{array}$$

$$\begin{array}{ccc}\hfill {K}_{T,\mu}& \equiv & -{\left(\frac{\partial \overline{V}}{\partial P}\right)}_{T,\mu}\ge 0,\hfill \end{array}$$

The rescaled replica energy can be related to the rescaled grand potential via

$${\mathrm{e}}^{-\mathcal{R}(\alpha ,\beta ,\gamma )}=\int \mathrm{d}V\phantom{\rule{0.166667em}{0ex}}\mathsf{\Xi}(T,V,\mu )\phantom{\rule{0.166667em}{0ex}}{\mathrm{e}}^{-PV/T}=\int \mathrm{d}V\phantom{\rule{0.166667em}{0ex}}{\mathrm{e}}^{-\mathcal{L}(\alpha ,\beta ,V)-\gamma V}.$$

Using the saddle-point approximation, we then have
so that $\mathcal{R}$ is expressed as the Legendre–Fenchel transform of $-\mathcal{L}=-\beta \mathsf{\Omega}$ with respect to V. The grand potential is not necessarily a convex function in V for nonadditive systems, so that the response function ${K}_{T,\mu}$, given in the grand canonical ensemble by
can be a negative quantity. If the grand potential does not coincide with its convex envelope with respect to V, the grand canonical and unconstrained ensembles are not equivalent. As before, the response function ${K}_{T,\mu}$ in the grand canonical ensemble can be negative where the rescaled grand potential is not locally convex with respect to V, or could have points where it is not defined, or both (the three cases of Figure A1).

$$\mathcal{R}(\alpha ,\beta ,\gamma )=\underset{V}{inf}\left[\gamma V+\mathcal{L}(\alpha ,\beta ,V)\right],$$

$$\frac{1}{{K}_{T,\mu}}=-{\left(\frac{\partial P}{\partial V}\right)}_{T,\mu}={\left(\frac{{\partial}^{2}\mathsf{\Omega}}{\partial {V}^{2}}\right)}_{T,\mu},$$

We observe here that, if the rescaled grand potential energy does not coincide with its convex envelope with respect to V, the grand canonical and the unconstrained ensembles are not equivalent. In this case, the function $\mathcal{R}$ presents at least a point of discontinuous derivative with respect to $\gamma $, associated with a first order phase transition. If an equilibrium grand canonical state in which the rescaled grand potential does not coincide with its convex envelope with respect to V is put in contact with an environment with its same pressure, then it becomes either unstable or not globally stable.

Furthermore, we can also write
which relates the rescaled replica energy to the rescaled Gibbs free energy, and therefore we obtain $\mathcal{R}$ as the Legendre–Fenchel transform of $-\mathcal{G}=-\beta G$ with respect to N,

$${\mathrm{e}}^{-\mathcal{R}(\alpha ,\beta ,\gamma )}={\displaystyle \sum _{N=0}^{\infty}}\Delta (T,P,N)\phantom{\rule{0.166667em}{0ex}}{\mathrm{e}}^{\mu N/T}={\displaystyle \sum _{N=0}^{\infty}}{\mathrm{e}}^{-\mathcal{G}(N,\beta ,\gamma )-\alpha N},$$

$$\mathcal{R}(\alpha ,\beta ,\gamma )=\underset{N}{inf}\left[\alpha N+\mathcal{G}(N,\beta ,\gamma )\right].$$

Now, let us consider the response function ${M}_{T,P}$ in the isothermal-isobaric ensemble. The rescaled Gibbs free energy is not necessarily convex in N for nonadditive systems, so that
is not restricted to be a positive quantity. The unconstrained and isothermal-isobaric ensembles are not equivalent if the Gibbs free energy does not coincide with its convex envelope with respect to N. The response function ${M}_{T,P}$ in the isothermal-isobaric ensemble can be negative at points where the rescaled Gibbs free energy is not locally convex with respect to N, or could have points where it is not defined, or both (the three cases of Figure A1).

$$\frac{1}{{M}_{T,P}}={\left(\frac{\partial \mu}{\partial N}\right)}_{T,P}={\left(\frac{{\partial}^{2}G}{\partial {N}^{2}}\right)}_{T,P}$$

Analogously with the previous situations, we point out here that, if the rescaled Gibbs free energy energy does not coincide with its convex envelope with respect to N, the isothermal-isobaric and the unconstrained ensembles are not equivalent. In this case, the function $\mathcal{R}$ presents at least a point of discontinuous derivative with respect to $\alpha $, associated with a first order phase transition. If an equilibrium isothermal-isobaric state in which the rescaled Gibbs free energy does not coincide with its convex envelope with respect to N is put in contact with an environment with its same chemical potential and with which it can exchange particles, then it becomes either unstable or not globally stable.

A final remark. We have noted that the replica energy $\mathcal{E}$ vanishes for additive systems. This is related to the fact that the validity of the Gibbs–Duhem equation implies that the variables $(T,P,\mu )$ cannot be taken as independent control parameters for those systems. In turn, this implies that $\mathsf{{\rm Y}}={\mathrm{e}}^{-\mathcal{R}}$ is negligible in the thermodynamic limit.

## 5. Discussion

We have seen that ensemble inequivalence is connected with the occurrence of negative response functions, and that these anomalous responses are in turn associated with anomalous concavity properties of the thermodynamic functions. In detail, we note that all these response functions concern the variation of a constraint variable (E, V or N) with respect to the respective conjugate thermodynamic variable (T, P and $\mu $, respectively). In addition, the Legendre–Fenchel transformations relating the various thermodynamic functions are defined by the minimization with respect one of the constraint variables. In Figure 1, we show a simple scheme of the transformations and of the response functions connecting the different thermodynamic potentials.

It is interesting to note the following. The rescaled replica energy $\beta \mathcal{E}$ is obtained from the microcanonical entropy by minimizing with respect to all the constraint variables. However, while the first minimization with respect to E produces the rescaled Helmholtz free energy $\beta F$, the following minimizations with respect to N and V can be made in the two different orders, thus producing, as “intermediate” thermodynamic functions, either $\beta \mathsf{\Omega}$ or $\beta G$. For this reason, the scheme in Figure 1 has two routes from S to $\beta \mathcal{E}$.

We stress once more that a negative response function implies ensemble inequivalence, while the reverse is not true: ensemble inequivalence can occur with or without a negative response function. We have described in each case which response function can be negative, and, referring to Figure A1, we have cited the possible situations, clarifying that ensemble inequivalence implies the presence of a first order phase transition in the ensemble which is the arriving one in the Legendre–Fenchel transformation. We also note that, very often, concrete models can present all the three cases considered in Figure A1, which occur varying the value of the parameters of the Hamiltonian. Thus, in conclusion: ensemble inequivalence occurs each time a thermodynamic function does not coincide with its concave or, alternatively (depending on the concrete function, see the analyses above), convex envelope with respect to a constraint variable (also the constraint variable of interest depends on the concrete function, see Figure 1); a negative response function can be present in these cases, but it cannot occur with ensemble equivalence.

In principle, one may wonder about the following point. Is it possible that an ensemble corresponding to a thermodynamic function that is the starting one in a Legendre–Fenchel transformation is not equivalent to the ensemble corresponding to the arriving function, but, at the same time, it is equivalent to the ensemble corresponding to a successive function of the scheme? For more clarity and, as an example, referring to Figure 1: is it possible that the microcanonical ensemble, corresponding to S, is not equivalent to the canonical ensemble, corresponding to $\beta F$, but it is equivalent either to the grand canonical ensemble, corresponding to $\beta \mathsf{\Omega}$, or the isothermal-isobaric ensemble, corresponding to $\beta G$? This situation is not possible and it can be seen in the following way. Suppose that the microcanonical ensemble is equivalent to the grand canonical ensemble. This means that Equation (23) can be inverted, obtaining
i.e., the microcanonical entropy $S(E,V,N)$ coincides with its concave envelope with respect to the double Legendre–Fenchel transformation in the $(E,N)$ plane. This implies that $S(E,V,N)$ is globally concave in the $(E,N)$ plane, but then it is a fortiori globally concave with respect to E, and it coincides with its concave envelope with respect to E. In turn, this implies that the microcanonical and the canonical ensembles are equivalent. Then, if the microcanonical ensemble is not equivalent to the canonical ensemble, it is not equivalent also to the grand canonical ensemble.

$$S(E,V,N)=\underset{\alpha ,\beta}{inf}\left[\alpha N+\beta E-\mathcal{L}(\alpha ,\beta ,V)\right],$$

The same procedure can be used if one assumes that the microcanonical ensemble is equivalent to the isothermal-isobaric ensemble. Then, Equation (31) can be inverted to have
i.e., the microcanonical entropy coincides with its concave envelope with respect to the double Legendre–Fenchel transformation in the $(E,V)$ plane. This implies that $S(E,V,N)$ is globally concave in the $(E,V)$ plane; however, then, as before, it is a fortiori globally concave with respect to E and the microcanonical and canonical ensembles are equivalent. Then, if the microcanonical ensemble is not equivalent to the canonical ensemble, it is not equivalent also to the isothermal-isobaric ensemble.

$$S(E,V,N)=\underset{\beta ,\gamma}{inf}\left[\beta E+\gamma V-\mathcal{G}(N,\beta ,\gamma )\right],$$

The above derivations are valid regardless of the differentiability of the thermodynamic functions. It is instructive to also give an alternative derivation based on partial derivatives, which shows that the heat capacity at constant V and N is positive in both the grand canonical and isothermal-isobaric ensemble. This is not completely trivial, since $(\beta ,V,N)$ are not the control parameters of either of these two ensembles. In Appendix B, we present this derivation.

In an analogous way, if the canonical ensemble is not equivalent to, e.g., the grand canonical ensemble, then it is not equivalent also to the unconstrained ensemble. On the contrary, it may happen that canonical and grand canonical ensembles are equivalent, but they are both not equivalent to the unconstrained ensemble (see Reference [22] for a concrete example).

In this paper, we have presented a general discussion, without reference to any specific model. Although the results are valid regardless of the differentiability of the thermodynamic functions, as a matter of fact, the most interesting situations arise when we have points where the differentiability does not hold, i.e., when we are dealing with first-order phase transitions. In fact, if neither of the two ensembles connected by a Legendre–Fenchel transformation has a first order phase transition, but at most a continuous transition, then the two ensembles are equivalent.

The results here discussed have the consequence that with ensemble inequivalence the phase transitions are located, generally, in different points of the thermodynamic phase diagram for nonadditive systems. From the general results, one can also prove that, in many cases, it is possible to obtain the response function in the “higher” ensemble from that in the “lower” ensemble (where “higher” means that, in the scheme of Figure 1, it is on the right of the “smaller” and connected by one or more arrows) by invoking the Maxwell construction. For example, if one computes the function $T(E)$ (at constant V and N) in the microcanonical ensemble and then obtains the specific heat ${C}_{V,N}$, then the analogous curve and the specific heat in the canonical ensemble are obtained by applying the Maxwell construction in the neighborhood of the regions where the microcanonical ${C}_{V,N}$ is negative.

In any case, we believe that a general and simple scheme like the one given in this paper can be useful as a reference material when dealing with concrete nonadditive systems.

## Author Contributions

Conceptualization, A.C., L.C., I.L., A.P.-M. and S.R.; Formal analysis, A.C., L.C., I.L., A.P.-M. and S.R.; Writing—original draft preparation, A.C. and I.L.; Writing—review and editing, A.C., L.C., I.L., A.P.-M. and S.R.

## Funding

This research received no external funding.

## Acknowledgments

A.C. acknowledges financial support from INFN (Istituto Nazionale di Fisica Nucleare) through the projects DYNSYSMATH and ENESMA.

## Conflicts of Interest

The authors declare no conflict of interest.

## Appendix A. Legendre–Fenchel Transformation, Concave and Convex Functions

In this appendix, we recall, without proof, some relations between concave functions and the Legendre–Fenchel transformation. A function $f(x)$ is said to be concave if the relation

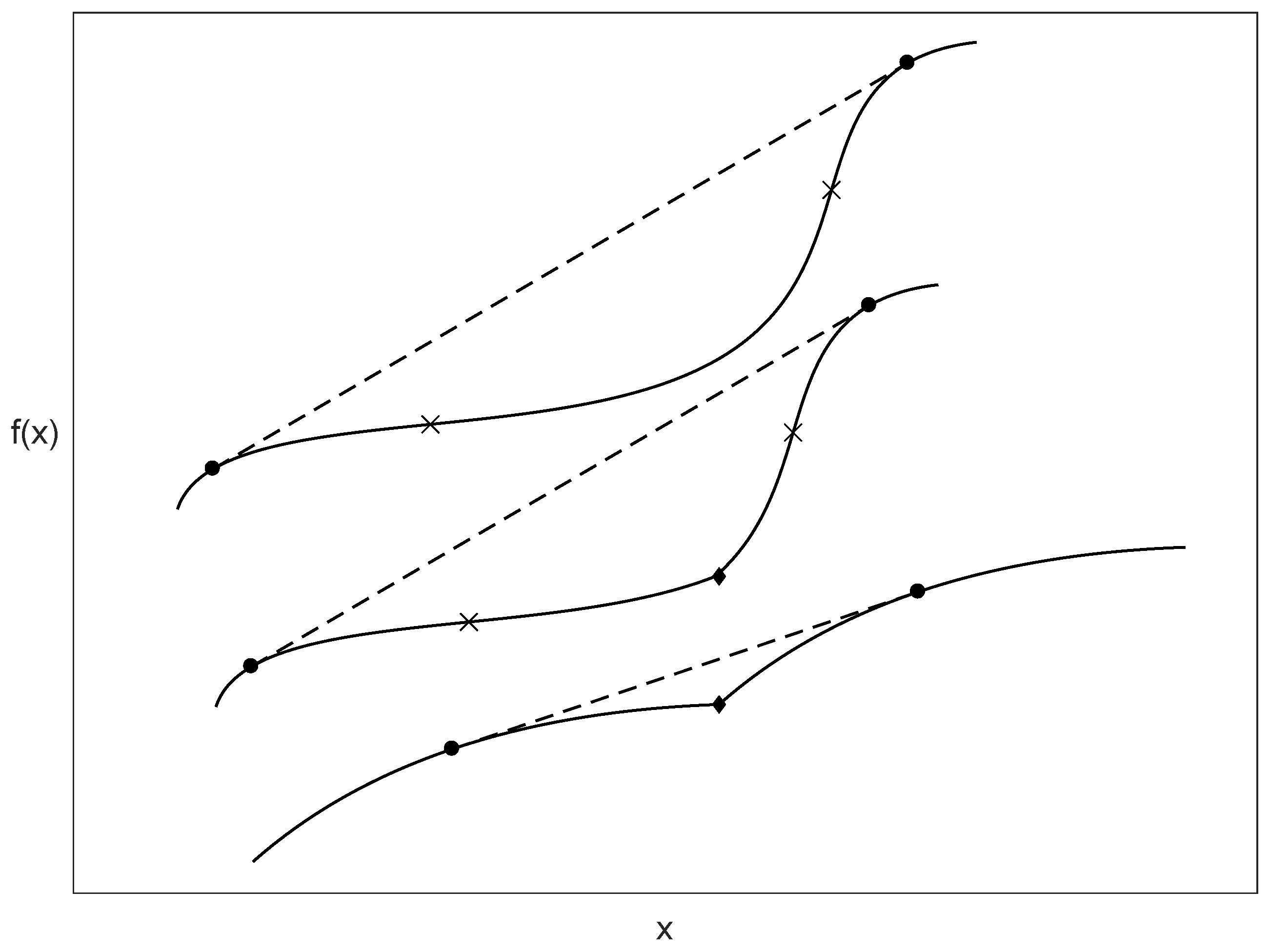

holds for any $0\le c\le 1$. If this occurs for any $({x}_{1},{x}_{2})$ in the range of definition of f, the function is said to be globally concave; if the relation is satisfied only for ${x}_{1}$ and ${x}_{2}$ belonging to a sufficiently small neighborhood of a point x, then f is said to be locally concave in x. From the practical point of view, the graph of f between ${x}_{1}$ and ${x}_{2}$ lies above the straight line connecting $f({x}_{1})$ and $f({x}_{2})$. If f is twice differentiable, then its second derivative is nonpositive in a point of local concavity and it is nonpositive in the whole range of definition for a globally concave function.

$$f\left(c{x}_{1}+(1-c){x}_{2}\right)\ge cf({x}_{1})+(1-c)f({x}_{2})$$

The Legendre–Fenchel transform $g(z)$ of $f(x)$ is defined by

$$g(z)=\underset{x}{inf}\left[zx-f(x)\right]\phantom{\rule{0.166667em}{0ex}}.$$

It is easy to show that $g(z)$ is globally concave. By applying the Legendre–Fenchel transformation to $g(z)$ (loosely speaking, by inverting the transformation), we obtain the following function of x:
where we have adopted a common notation for functions obtained by applying twice the transformation. The function ${f}^{\ast \ast}(x)$ is called the concave envelope of $f(x)$. Being defined by a Legendre–Fenchel transformation, ${f}^{\ast \ast}(x)$ is globally concave. If the starting function $f(x)$ is globally concave, then ${f}^{\ast \ast}(x)$ coincides with it; otherwise, it is the smallest globally concave function which is larger than $f(x)$ (where ${f}_{1}(x)$ smaller than ${f}_{2}(x)$ here means that ${f}_{1}(x)<{f}_{2}(x)$ for any x in the range of definition). In Figure A1, we show three examples of functions that are not globally concave and thus do not coincide with their concave envelope. In the upper curve, the function is twice differentiable, while, in the other two curves, the first derivative has a point of discontinuity. Apart from the point of discontinuity, the lower curve always has a negative second derivative (i.e., it is locally concave), while the middle curve, like the upper one, has a range where the second derivative is positive. It should be noted that the range where ${f}^{\ast \ast}(x)$ and $f(x)$ do not coincide is larger than the range where $f(x)$ is not locally concave. The following important result can be proved. Whenever the concave envelope ${f}^{\ast \ast}(x)$ does not coincide with $f(x)$ (e.g., in all cases represented in Figure A1), the Legendre–Fenchel transform $g(z)$ has at least a point where its first derivative is discontinuous. Equivalently, if $g(z)$ is differentiable, in particular if furthermore it is twice differentiable, then the concave envelope ${f}^{\ast \ast}(x)$ coincides with $f(x)$, i.e., $f(x)$ is globally concave.

$${f}^{\ast \ast}(x)=\underset{z}{inf}\left[xz-g(z)\right]\phantom{\rule{0.166667em}{0ex}},$$

**Figure A1.**A representative plot showing three situations often occurring in the study of nonadditive systems. We can think of x as a constraint variable, e.g., E, and f as a thermodynamic function, e.g., S. The three curves in solid lines show functions that are not globally concave; the upper curve is twice differentiable, while the other two curves have a discontinuous derivative at the point of the cusp, marked by a diamond. The upper and the middle curves are locally concave outside the x range between the two crosses, where their second derivative is negative, while in the range between the crosses their second derivative is positive. On the contrary, the lower curve is locally concave everywhere except at the point of discontinuity of its first derivative, since the second derivative is always negative except at that point. The dashed lines define the concave envelope of each function; more precisely, the concave envelope ${f}^{\ast \ast}(x)$ is equal to the dashed line in the x range where this line is defined, while it is equal to $f(x)$ outside this range. Note that the range where ${f}^{\ast \ast}(x)$ does not coincide with $f(x)$ is larger than that where the function is not locally concave. The dots marking the ends of the dashed lines are just for visual clarity.

Let us now consider a function of two variables, $f(x,y)$. It can be concave (locally or globally) as a function of x for a given y, and/or as a function of y for a given x. If it is concave in both variables and twice differentiable, we have (adopting the usual notation for derivatives) ${f}_{xx}<0$ and ${f}_{yy}<0$. Concavity with respect to each of the two variables is necessary, but not sufficient to make f completely concave (or in other words concave in the plane $(x,y)$); complete concavity is defined by
for any $0\le c\le 1$. For twice differentiable functions, to have complete concavity, we must also have ${f}_{xx}{f}_{yy}-{f}_{xy}^{2}>0$. The Legendre–Fenchel transform with respect to x
is globally concave with respect to z, while the Legendre–Fenchel tranform with respect to y
is globally concave with respect to w. On the other hand, the double Legendre–Fenchel transform
is globally and completely concave in the $(z,w)$ plane. These definitions and properties for functions of two variables can be readily extended, with obvious modifications, to functions of more than two variables.

$$f\left(c{x}_{1}+(1-c){x}_{2},c{y}_{1}+(1-c){y}_{2}\right)\ge cf({x}_{1},{y}_{1})+(1-c)f({x}_{2},{y}_{2})$$

$$g(z,y)=\underset{x}{inf}\left[zx-f(x,y)\right]$$

$$g(x,w)=\underset{y}{inf}\left[wy-f(x,y)\right]$$

$$g(z,w)=\underset{x,y}{inf}\left[zx+wy-f(x,y)\right]$$

The above properties have the analogous ones by defining a transformation similar to (A2), but with a supremum instead of an infimum, i.e.,

$${g}_{c}(z)=\underset{x}{sup}\left[zx-f(x)\right].$$

Let us call this transformation, just to distinguish it from the previous one, the convex Legendre–Fenchel transformation; accordingly, we have put a subscript to $g(z)$. We can also define convex functions which satisfy an inequality similar to (A1), but where the left-hand side is smaller than or equal to the righ hand side [the graph of f between ${x}_{1}$ and ${x}_{2}$ lies below the straight line connecting $f({x}_{1})$ and $f({x}_{2})$], namely,

$$f\left(c{x}_{1}+(1-c){x}_{2}\right)\le cf({x}_{1})+(1-c)f({x}_{2}).$$

Then, it can be proved that the convex Legendre–Fenchel transformation gives rise to globally convex functions [26]. Analogously with the previous case, we can define the convex envelope of $f(x)$ by

$${f}_{c}^{\ast \ast}(x)=\underset{z}{sup}\left[xz-{g}_{c}(z)\right].$$

It follows that, if $f(x)$ is globally convex, then ${f}_{c}^{\ast \ast}(x)$ and $f(x)$ coincide.

In the main text, we find Legendre–Fenchel transformations in which the transformed function is not $f(x)$, but $-f(x)$, as in

$$g(z)=\underset{x}{inf}\left[zx+f(x)\right]\phantom{\rule{0.166667em}{0ex}}.$$

This can also be written as

$$-g(z)=\underset{x}{sup}\left[-zx-f(x)\right]\phantom{\rule{0.166667em}{0ex}}.$$

Thus, $-g(z)$ is the convex Legendre–Fenchel transform of $f(x)$ (the fact that there appears $-zx$ instead of $zx$ is irrelevant), namely, $g(z)=-{g}_{c}(z)$. If $-f(x)$ coincides with its concave envelope, that is, if
then $f(x)$ coincides with its convex envelope, since the last expression can also be written as

$$-f(x)=\underset{z}{inf}\left[xz-g(z)\right]\phantom{\rule{0.166667em}{0ex}},$$

$$f(x)=\underset{z}{sup}\left[-xz-{g}_{c}(z)\right].$$

This conclusion can be easily inferred in a visual manner. In fact, it is trivial to see, e.g., that if $f(x)$ is twice differentiable and its second derivative is negative (positive) definite, then the second derivative of $-f(x)$ is positive (negative) definite. In the main text, we thus refer to global convexity for thermodynamic functions $f(x)$ where the Legendre–Fenchel transformation involves $-f(x)$.

## Appendix B. Heat Capacity in the Grand Canonical and the Isothermal-Isobaric Ensembles

Here, we show that the response function ${C}_{V,N}$ is positive not only in the canonical ensemble, but also in the grand canonical ensemble and in the isothermal-isobaric ensemble. In this Appendix, we assume that the thermodynamic functions are twice differentiable. Thus, we show that, if the microcanonical ensemble is not equivalent to the canonical ensemble, i.e., if ${C}_{V,N}$ is negative in the microcanonical ensemble, then this ensemble is not equivalent also to the grand canonical and the isothermal-isobaric ensembles. Summarizing, we want to see that the quantity
is negative in both the grand canonical and the isothermal-isobaric ensembles. This is not completely trivial, since $(\beta ,V,N)$ are not the control parameters of either of the two ensembles. We proceed as follows. Beginning with the grand canonical ensemble, we start from the relations

$${\left(\frac{\partial \overline{E}}{\partial \beta}\right)}_{V,N}=-{\beta}^{2}{C}_{V,N}$$

$$\begin{array}{ccc}\hfill \overline{E}& =& {\left(\frac{\partial (\beta \mathsf{\Omega})}{\partial \beta}\right)}_{V,\beta \mu},\hfill \end{array}$$

$$\begin{array}{ccc}\hfill \overline{N}& =& -{\left(\frac{\partial (\beta \mathsf{\Omega})}{\partial (\beta \mu )}\right)}_{\beta ,V}.\phantom{\rule{0.166667em}{0ex}}\hfill \end{array}$$

Then, we have to compute the second partial derivative of $\beta \mathsf{\Omega}$ with respect to $\beta $ while keeping constant its first partial derivative with respect to $(\beta \mu )$. Without showing the passages, we state the result. One obtains

$$\begin{array}{ccc}\hfill {\left(\frac{\partial \overline{E}}{\partial \beta}\right)}_{V,N}& =& {\left[{\left(\frac{{\partial}^{2}(\beta \mathsf{\Omega})}{\partial {(\beta \mu )}^{2}}\right)}_{\beta ,V}\right]}^{-1}\hfill \\ & \times & \left[{\left(\frac{{\partial}^{2}(\beta \mathsf{\Omega})}{\partial {\beta}^{2}}\right)}_{\beta \mu ,V}{\left(\frac{{\partial}^{2}(\beta \mathsf{\Omega})}{\partial {(\beta \mu )}^{2}}\right)}_{\beta ,V}-{\left(\frac{{\partial}^{2}(\beta \mathsf{\Omega})}{\partial \beta \partial (\beta \mu )}\right)}_{V}^{2}\right]\phantom{\rule{0.166667em}{0ex}}.\hfill \end{array}$$

We have noted in Section 3 that $\beta \mathsf{\Omega}$ is completely concave in the $(\beta \mu ,\beta )$ plane. This implies that the quantity in square brackets in the second line of the expression is positive, while that in the first line is negative. Therefore, we obtain a negative quantity. For the isothermal-isobaric ensemble, we can proceed in an analogous way. Now, we start from the relations

$$\begin{array}{ccc}\hfill \overline{E}& =& {\left(\frac{\partial (\beta G)}{\partial \beta}\right)}_{N,\beta P},\hfill \end{array}$$

$$\begin{array}{ccc}\hfill \overline{V}& =& {\left(\frac{\partial (\beta G)}{\partial (\beta P)}\right)}_{\beta ,N}.\phantom{\rule{0.166667em}{0ex}}\hfill \end{array}$$

Then, we have to compute the second partial derivative of $\beta G$ with respect to $\beta $ while keeping constant its first partial derivative with respect to $(\beta P)$. The result is now

$$\begin{array}{ccc}\hfill {\left(\frac{\partial \overline{E}}{\partial \beta}\right)}_{V,N}& =& {\left[{\left(\frac{{\partial}^{2}(\beta G)}{\partial {(\beta P)}^{2}}\right)}_{\beta ,N}\right]}^{-1}\hfill \\ & \times & \left[{\left(\frac{{\partial}^{2}(\beta G)}{\partial {\beta}^{2}}\right)}_{\beta P,N}{\left(\frac{{\partial}^{2}(\beta G)}{\partial {(\beta P)}^{2}}\right)}_{\beta ,N}-{\left(\frac{{\partial}^{2}(\beta G)}{\partial \beta \partial (\beta P)}\right)}_{N}^{2}\right]\phantom{\rule{0.166667em}{0ex}}.\hfill \end{array}$$

We have also noted in Section 3 that $\beta G$ is completely concave in the $(\beta P,\beta )$ plane. This implies that the quantity in square brackets in the second line of the expression is positive, while that in the first line is negative. Therefore, we again obtain a negative quantity.

## References

- Campa, A.; Dauxois, T.; Fanelli, D.; Ruffo, S. Physics of Long-Range Interacting Systems; Oxford University Press: Oxford, UK, 2014. [Google Scholar]
- Campa, A.; Dauxois, T.; Ruffo, S. Statistical mechanics and dynamics of solvable models with long-range interactions. Phys. Rep.
**2009**, 480, 57–159. [Google Scholar] [CrossRef][Green Version] - Hill, T.L. Thermodynamics of Small Systems, Parts I and II; Dover: New York, NY, USA, 2013. [Google Scholar]
- Hill, T.L.; Chamberlin, R.V. Extension of the thermodynamics of small systems to open metastable states: An example. Proc. Nat. Acad. Sci. USA
**1998**, 95, 12779–12782. [Google Scholar] [CrossRef] [PubMed][Green Version] - Hill, T.L. A different approach to nanothermodynamics. Nano Lett.
**2001**, 1, 273–275. [Google Scholar] [CrossRef] - Hill, T.L.; Chamberlin, R.V. Fluctuations in energy in completely open small systems. Nano Lett.
**2001**, 2, 609–613. [Google Scholar] [CrossRef] - Antonov, V.A. Most probable phase distribution in spherical star systems and conditions for its existence. Vest. Leningr. Gos. Univ.
**1962**, 7, 135, translation: IAU Symposia**1985**, 113, 525–540. [Google Scholar] - Lynden-Bell, D.; Wood, R. The gravo-thermal catastrophe in isothermal spheres and the onset of red-giant structure for stellar systems. Mon. Not. R. Astr. Soc.
**1968**, 138, 495–525. [Google Scholar] [CrossRef] - Thirring, W. Systems with Negative Specific Heat. Z. Phys.
**1970**, 235, 339–352. [Google Scholar] [CrossRef] - Padmanabhan, T. Statistical mechanics of gravitating systems. Phys. Rep.
**1990**, 188, 285–362. [Google Scholar] [CrossRef] - Lynden-Bell, D. Negative specific heat in astronomy, physics and chemistry. Physica A
**1999**, 263, 293–304. [Google Scholar] [CrossRef][Green Version] - Chavanis, P.-H. Gravitational instability of finite isothermal spheres. Astron. Astrophys.
**2002**, 381, 340–356. [Google Scholar] [CrossRef][Green Version] - Chavanis, P.-H. Phase transitions in self-gravitating systems. Int. J. Mod. Phys. B
**2006**, 20, 3113–3198. [Google Scholar] [CrossRef] - Campa, A.; Casetti, L.; Latella, I.; Pérez-Madrid, A.; Ruffo, S. Phase transitions in Thirring’s model. J. Stat. Mech.
**2016**, 073205. [Google Scholar] [CrossRef] - Kiessling, M.K.H.; Neukirch, T. Negative specific heat of a magnetically self-confined plasma torus. Proc. Natl. Acad. Sci. USA
**2003**, 100, 1510–1514. [Google Scholar] [CrossRef] [PubMed][Green Version] - Nicholson, D.R. Introduction to Plasma Theory; Wiley: New York, NY, USA, 1983. [Google Scholar]
- Chavanis, P.H.; Sommeria, J. Statistical mechanics of the shallow water system. Phys. Rev. E
**2002**, 65, 026302. [Google Scholar] [CrossRef] [PubMed] - Robert, R.; Sommeria, J. Statistical equilibrium states for two-dimensional flows. J. Fluid. Mech.
**1991**, 229, 291–310. [Google Scholar] [CrossRef] - Latella, I.; Pérez-Madrid, A.; Campa, A.; Casetti, L.; Ruffo, S. Thermodynamics of nonadditive systems. Phys. Rev. Lett.
**2015**, 114, 230601. [Google Scholar] [CrossRef] [PubMed] - Gibbs, J.W. Elementary Principles in Statistical Mechanics; Charles Scribner’s Sons: New York, NY, USA, 1902. [Google Scholar]
- Latella, I.; Pérez-Madrid, A. Local thermodynamics and the generalized Gibbs-Duhem equation in systems with long-range interactions. Phys. Rev. E
**2013**, 88, 042135. [Google Scholar] [CrossRef] [PubMed] - Latella, I.; Pérez-Madrid, A.; Campa, A.; Casetti, L.; Ruffo, S. Long-range interacting systems in the unconstrained ensemble. Phys. Rev. E
**2017**, 95, 012140. [Google Scholar] [CrossRef] [PubMed] - Latella, I. Statistical Thermodynamics of Long-Range Interacting Systems and Near-Field Thermal Radiation. Ph.D. Thesis, University of Barcelona, Barcelona, Spain, 27 June 2016. [Google Scholar]
- Ellis, R.S.; Haven, K.; Turkington, B. Large deviation principles and complete equivalence and nonequivalence results for pure and mixed ensembles. J. Stat. Phys.
**2000**, 101, 999–1064. [Google Scholar] [CrossRef] - Touchette, H.; Ellis, R.S.; Turkington, B. An introduction to the thermodynamic and macrostate levels of nonequivalent ensembles. Phys. A
**2004**, 340, 138–146. [Google Scholar] [CrossRef][Green Version] - Touchette, H. The large deviation approach to statistical mechanics. Phys. Rep.
**2009**, 478, 1–69. [Google Scholar] [CrossRef][Green Version] - Ruelle, D. Statistical Mechanics: Rigorous Results; W. A. Benjamin, Inc.: New York, NY, USA, 1969. [Google Scholar]
- Bouchet, F.; Barré, J. Classification of phase transitions and ensemble inequivalence, in systems with long range interactions. J. Stat. Phys.
**2005**, 118, 1073–1105. [Google Scholar] [CrossRef] - Casetti, L.; Kastner, M. Partial equivalence of statistical ensembles and kinetic energy. Phys. A
**2007**, 384, 318–334. [Google Scholar] [CrossRef][Green Version] - Schnell, S.K.; Vlugt, T.J.; Simon, J.M.; Bedeaux, D.; Kjelstrup, S. Thermodynamics of small systems embedded in a reservoir: A detailed analysis of finite size effects. Mol. Phys.
**2012**, 110, 1069–1079. [Google Scholar] [CrossRef]

**Figure 1.**A schematic picture showing the connection between the thermodynamic functions through Legendre–Fenchel transformations. For each thermodynamic function, the natural variables on which it depends are shown. The arrows connect the starting and the arriving function of the Legendre–Fenchel transformations. On one side of each arrow, there is the constraint variable with respect to which one has to minimize to perform the transformation; on the other side of the arrow, there is the response function associated with the possible ensemble inequivalence: the response function is always positive in the arriving thermodynamic function, while it can be negative in the starting function if ensemble inequivalence occurs. Each response function concerns the response of the constraint variable of the corresponding Legendre–Fenchel transformation with respect to its conjugate thermodynamic variable, while keeping constant the other two variables (shown in the subscripts) on which the arriving functions depend on. Actually, except in the first transformation, relating S and $\beta F$, the starting function of the other Legendre–Fenchel transformations are given by minus the indicated function (see text). However, this is irrelevant for our general discussion.

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
